1. Introduction
The limited introduction of new antibiotics, together with the widespread use of existing agents, has contributed to the increasing prevalence of multidrug-resistant bacterial infections, which were associated with an estimated 4.71 million deaths globally in 2021 [
1,
2,
3]. Although considerable efforts have been directed towards the discovery of new antibacterial agents, including antimicrobial peptides, bacterial resistance continues to emerge against multiple antibiotic classes, highlighting the urgent need for coordinated global action and new therapeutic strategies [
4,
5,
6]. Among these, macrocyclic peptides continue to represent a diverse and expanding chemical space for antibiotic development [
7]. As a result, there is sustained interest in identifying new antibacterial scaffolds with mechanisms of action that are less susceptible to resistance development. Lewis and his co-workers in 2015 reported a new naturally occurring antibiotic, teixobactin [
8]. Teixobactin is highly potent against Gram-positive bacteria and thus far has not been associated with detectable resistance. Resistance to teixobactin is unlikely because it binds the highly conserved pyrophosphate moiety of the non-protein cell-wall precursors Lipid II and Lipid III, in contrast to vancomycin resistance which arises from the modification of the pentapeptide region of Lipid II; this multi-target, mutation-resistant mechanism underpins teixobactin’s superior activity and low resistance potential [
9,
10,
11,
12,
13,
14]. These properties make the teixobactin scaffold an attractive starting point for antibiotic development [
15].
We have previously elucidated the mode of action of the teixobactin analogue
D-Arg
4-Leu
10-teixobactin in bacterial membranes with Lipid II on a molecular level. The complex formed between
D-Arg
4-Leu
10-teixobactin and labelled Lipid II was studied by solid-state NMR spectroscopy which revealed that
D-Arg
4-Leu
10-teixobactin binds weakly with Lipid II in cellular membranes and is not solely responsible for potent antibacterial activity [
16]. On the other hand, the analogue
D-Arg
4-Leu
10-teixobactin forms micro clusters at a slow rate on the bacterial membrane surface. These observations, together with more recent visualisation and biophysical studies of teixobactin analogue assembly and membrane interactions, suggest that additional membrane-associated processes contribute to the antibacterial activity of teixobactin [
16,
17,
18]. These findings indicate that the formation of membrane-associated clusters may sequester cell wall precursors and disrupt cell wall biosynthesis [
16,
19]. The synthesis of teixobactin is of moderate complexity, with the non-natural amino acid
L-
allo-End
10 being the bottleneck in the synthesis.
L-
allo-End
10 is not commercially available, laborious in synthesis and low-yielding upon incorporation into the peptide [
20]. To address this limitation, several simplified synthetic strategies have been explored [
21,
22,
23].
One effective approach to addressing this limitation has been substitution of
L-
allo-enduracididine at position 10 with leucine. Previous studies, including our own, demonstrated that the replacement of
L-
allo-enduracididine with leucine yields teixobactin analogues with potent antibacterial activity comparable to the natural product, indicating that a cationic residue at position 10 is not essential for activity [
24]. Subsequent studies further confirmed the in vivo efficacy of
D-Arg
4-Leu
10-teixobactin [
25]. More recent work has also demonstrated potent in vivo antibacterial activity of teixobactin in an inhalation anthrax model [
26].
Nowick’s group determined the X-ray crystal structure of truncated Arg
10-teixobactin [
27,
28]. The crystal structure presented key interactions in the compound. The amide NH group of Ala
9, Arg
10, Ile
11 and guanidinium side chain of Arg forms a cavity that binds to the chloride ion. Additionally, the -OH group of the Ser
7 side chain forms a hydrogen bond with the NH of Ala
9 [
27]. The results hypothesised that the replacement of the lactone group of the macrocyclic ring by the lactam ring offers an extra amide NH, which strengthens the interaction with the chloride ion and eventually with the pyrophosphate group of Lipid II; however, they also found the presence of the β-methyl group present on the side chain of
D-Threonine (
D-Thr) at position 8 to be crucial in maintaining antibacterial activity [
28,
29].
The substitution of
D-Thr8 with
D-2,3-diaminopropionic acid (
D-Dap) derivatives bearing a β-methyl substituent was used to probe the role of ring size and linkage chemistry in Arg
10 teixobactin analogues. These analogues replaced the native lactone with a lactam while retaining comparable activity to Arg
10-teixobactin, demonstrating that ester–amide isosteric substitution is tolerated. Building on this concept, the authors synthesised seven ring-expanded Arg
10-teixobactin analogues incorporating β
3-homo amino acids, proposing that increased ring size may better accommodate the pyrophosphate moiety of Lipid II. Importantly, the retention of the β-methyl substituent on the Dab/Dap residue was essential for maintaining antibacterial activity [
29].
Previous work by Scioli et al. using Arg
10-teixobactin analogues showed that replacing the native depsipeptide linkage with a total lactam ring maintained antibacterial activity and, based on structural considerations, was proposed to enhance interactions with Lipid II through additional amide functionality [
30]. These results encourage further investigation of side-chain modifications and alternative macrocyclisation approaches to enhance the physicochemical and biological characteristics of teixobactin analogues.
Despite these advances, the combined effects of macrocycle size expansion and replacement of the native depsipeptide linkage with an amide bond within a simplified Leu10-teixobactin scaffold have not been systematically investigated.

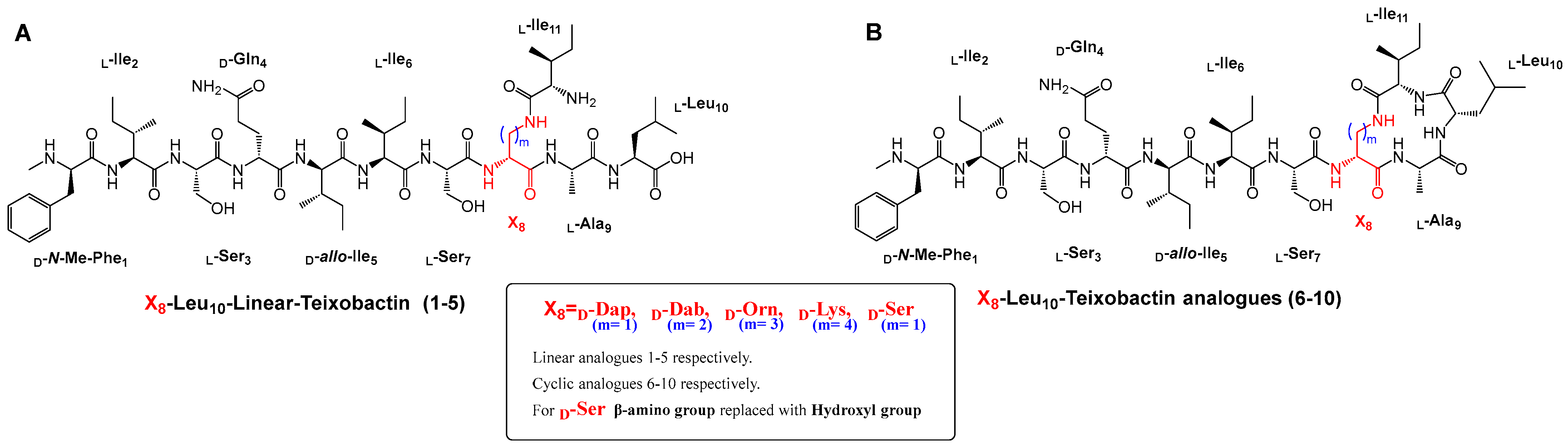

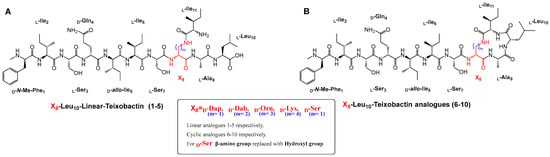

We investigated the effect of ring expansion of teixobactin on antibacterial activity (
Figure 1) based on Leu
10-teixobactin. We chose Leu
10-teixobactin as the core template due to its superior antibacterial activity (eight-fold) in comparison to Arg
10-teixobactin against MRSA [
15,
24]. Herein, we report the synthesis and evaluation of a series of ring-expanded teixobactin analogues based on our Leu
10-teixobactin scaffold, enabling systematic assessment of macrocycle size and linkage type on antibacterial activity (
Figure 1A,B).
2. Materials and Methods
2.1. General Reagents, Analytical and Instrumentation
All amino acids, 1-[Bis(dimethylamino)methylene]-1H-1,2,3 triazolo[4,5-b]pyridinium3-oxidhexafluorophosphate (HATU), Phenylsilane (PhSiH3), Diisopropylethylamine (DIPEA), Tritylchloride 4-(Dimethylamino)pyridine(DMAP), Tetrakis(triphenylphosphine)palladium(0) Pd(PPh3)4, Ethyl cyano(hydroxyimino)acetate (Oxyma Pure), Diisopropylcarbodiimide (DIC) and Triisopropylsilane (TIS), were purchased from Fluorochem, Hadfield, UK. Dimethylformamide (DMF), peptide synthesis grade, was purchased from Rathburn chemicals, Walkerburn, UK. Triethylamine, Diethyl ether (Et2O), Dimethylsulfoxide (DMSO), Dichloromethane (DCM), formic acid 98–100% purity, water (HPLC grade) and Acetonitrile (HPLC grade) were purchased from Fisher Scientific, Loughborough, UK. 2-chlorotrityl chloride resin (manufacturer’s loading: 1.60 mmol Cl−/g) was purchased from Iris Biotech GmbH, Marktredwitz, Germany. All chemicals were used without further purification. Compounds were analysed on a Thermo Scientific Dionex Ultimate 3000 RP-HPLC (Thermo Scientific, Hemel Hempstead, UK) equipped with a Phenomenex Gemini NX C18 110 Å (150 × 4.6 mm) column (Phenomenex, Macclesfield, UK) using the following buffer systems: A: 0.1% HCOOH in water; B: ACN using a flow rate of 1 mL/min. The column was flushed with 95% A for 5 min prior to an injection and was flushed for 5 min with 95% B and 5% A after the run was finished. HRMS spectra were recorded on two machines: a Thermo Scientific Q Exactive Plus Orbitrap Mass Spectrometer and an Agilent QTOF 7200 Mass Spectrometer (Agilent, Santa Clara, CA, USA) in the positive ion mode. NMR was carried out at 27 °C on a Bruker Avance III HD 500 MHz spectrometer (Bruker, Billerica, MA, USA) equipped with a room-temperature broadband probe.
2.2. Synthesis of Amino Acid Dimers (ii, iv, vi, viii)
Boc-Ile-OH (1.0 eq.) and the corresponding Fmoc-protected
D-amino acids (Fmoc-
D-Dap-OH (
i), Fmoc-
D-Dab-OH (
iii), Fmoc-
D-Orn-OH (
v), or Fmoc-
D-Lys-OH (
vii)) were dissolved in DMF (2 mL). HATU (0.8 eq.) and DIPEA (3.0 eq.) were added, and the reaction mixture was stirred for 1 h at room temperature. The reaction was quenched with 1 M citric acid in water, and the products were extracted with dichloromethane and purified by normal-phase chromatography (see

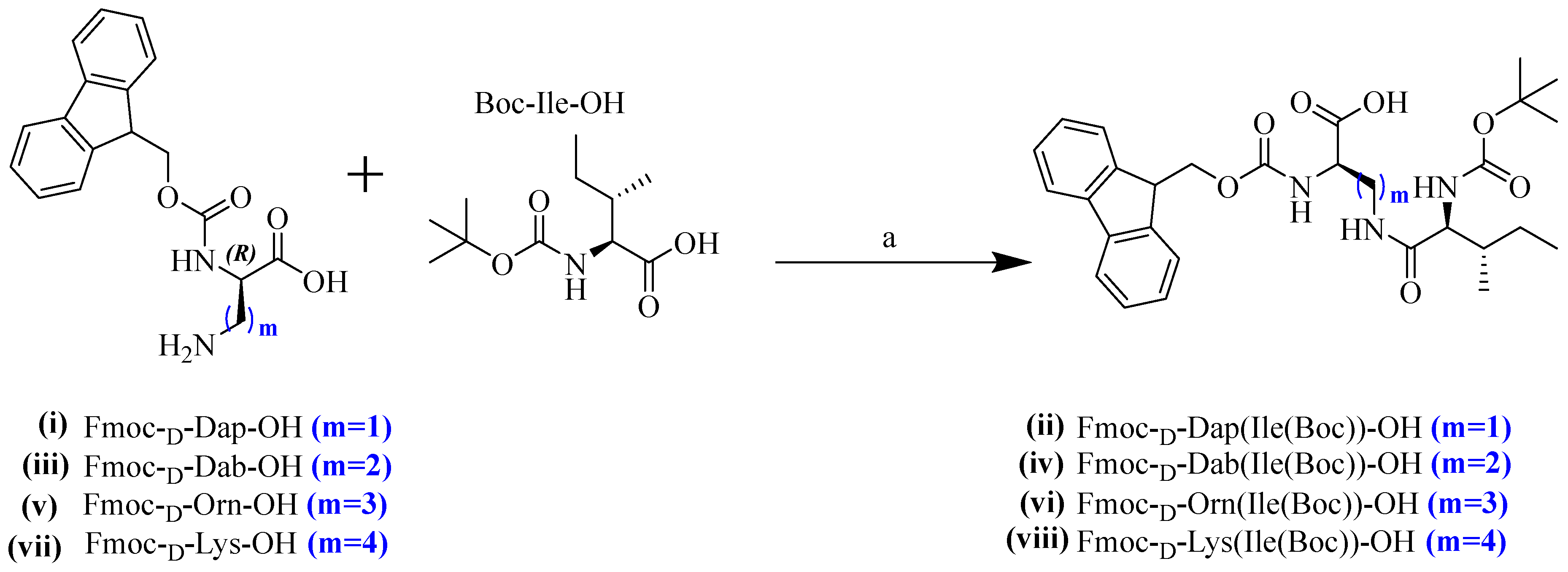

Scheme 1 and
Supplementary Scheme S1, Table S1, Figures S1–S16).

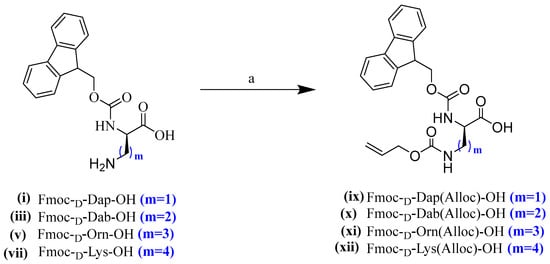

2.3. Synthesis of Fmoc-Alloc Protected Amino Acid Building Blocks (ix–xii)
Fmoc-protected amino acids (Fmoc-D-Dap-OH (
i), Fmoc-D-Dab-OH (
iii), Fmoc-D-Orn-OH (
v), or Fmoc-D-Lys-OH (
vii); 1.0 eq.) were dissolved in THF (10 mL), followed by the addition of NaHCO
3 (5.0 eq.). Allyl chloroformate (1.5 eq.) was added dropwise, and the reaction mixture was stirred at room temperature overnight. Reaction progress was monitored by TLC. Upon completion, the reaction mixture was diluted with water (50 mL) and acidified to pH 2 using 1 M HCl. The aqueous phase was extracted with DCM (3 × 50 mL), and the combined organic layers were dried over anhydrous Na
2SO
4, filtered, and concentrated under reduced pressure. The crude products were purified by silica gel column chromatography using DCM/MeOH as the eluent to afford the corresponding Fmoc- and Alloc-protected amino acid building blocks. Product identity was confirmed by LC–MS, and the compounds were used directly for subsequent peptide synthesis (see

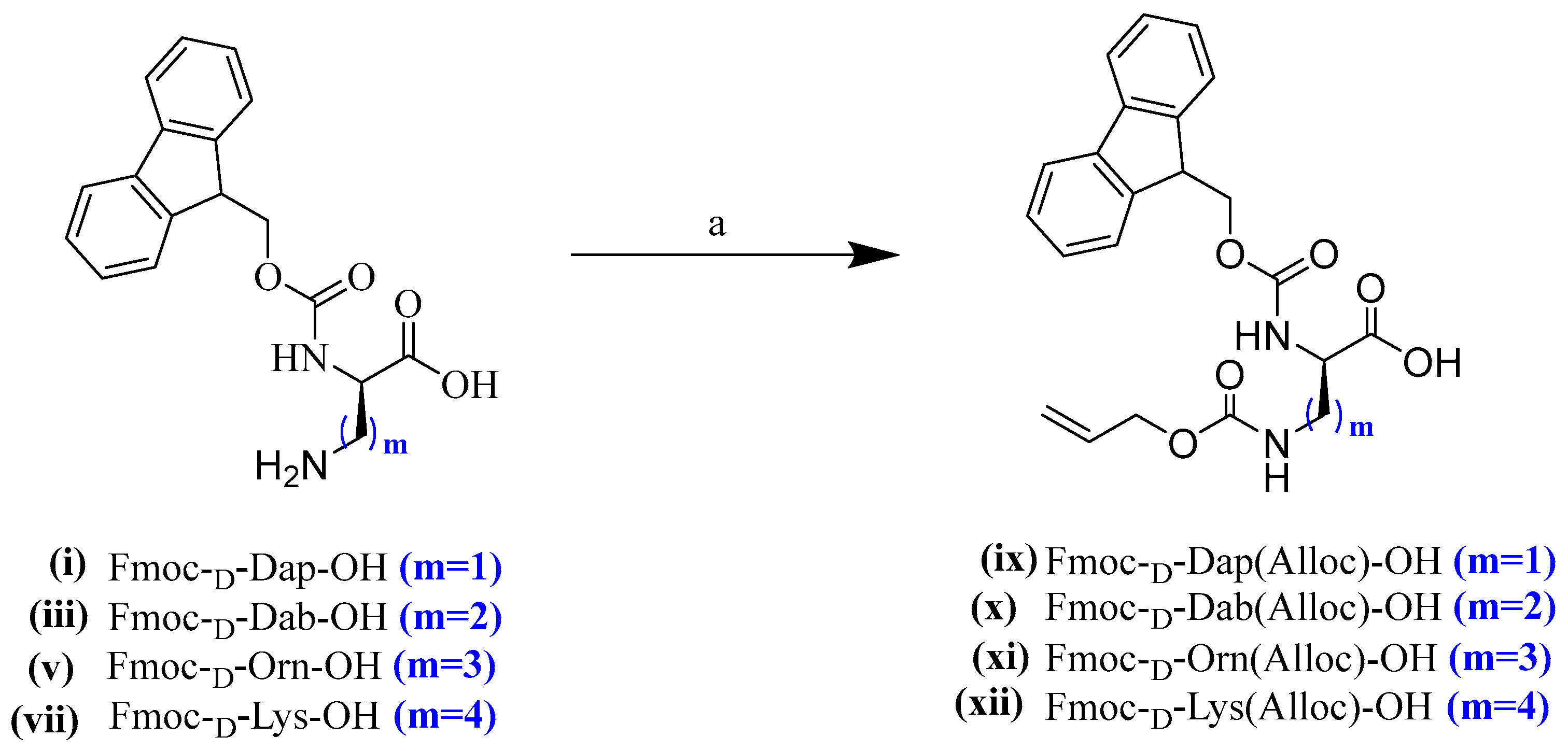

Scheme 2 and
Supplementary Scheme S2, Table S2, Figures S17–S20).
2.4. Synthesis of Teixobactin Analogues Using a Dimer Strategy
Teixobactin analogues were synthesised on 2-chlorotrityl chloride resin using standard Fmoc solid-phase peptide synthesis protocols. Fmoc-Leu-OH (4 eq.) was coupled using DIPEA (8 eq.) in DCM, followed by Fmoc deprotection with 20% piperidine in DMF. Subsequent amino acids were coupled using Fmoc-protected amino acids and DIC/Oxyma activation under microwave irradiation. Fmoc deprotection was performed using 20% piperidine in DMF. The dimer building block was coupled at position 8 under standard coupling conditions. Global deprotection and resin cleavage were performed using TFA/TIS/H
2O (95:2.5:2.5,
v/
v/
v). Macrocyclisation was carried out in solution using HATU (3 eq.) and DIPEA (10 eq.) in DMF for 1 h (See

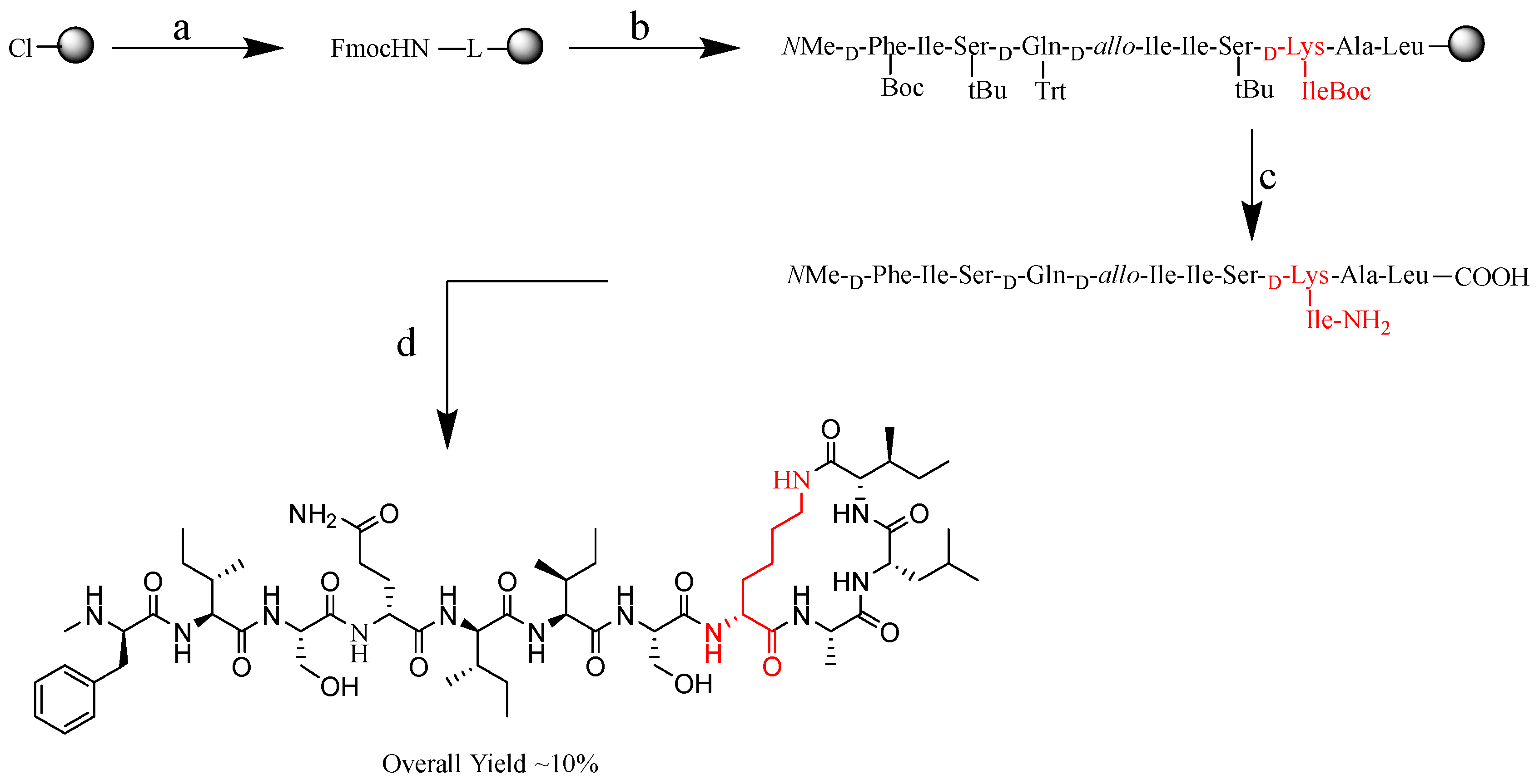

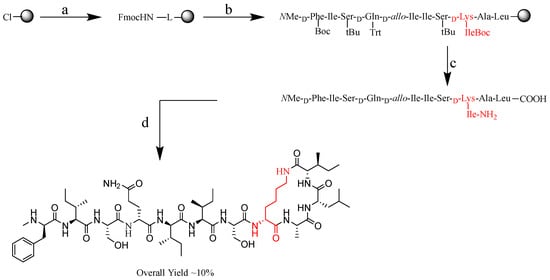

Scheme 3 and
Supplementary Scheme S3).
2.5. Synthesis of Teixobactin Analogues Using Alloc-Protected Strategy
Teixobactin analogues incorporating Alloc-protected amino acids were synthesised on 2-chlorotrityl chloride resin using standard Fmoc solid-phase peptide synthesis protocols. Following assembly of the linear peptide sequence, selective removal of the Alloc protecting group was carried out using Pd(PPh
3)
4 and phenylsilane in dichloromethane. Subsequent amino acid coupling, macrolactamisation and global deprotection were performed using standard solid-phase peptide synthesis procedures. All final peptide analogues were purified by RP-HPLC prior to biological evaluation and were obtained with analytical purities ranging between 90 and 98% as determined by HPLC analysis (see

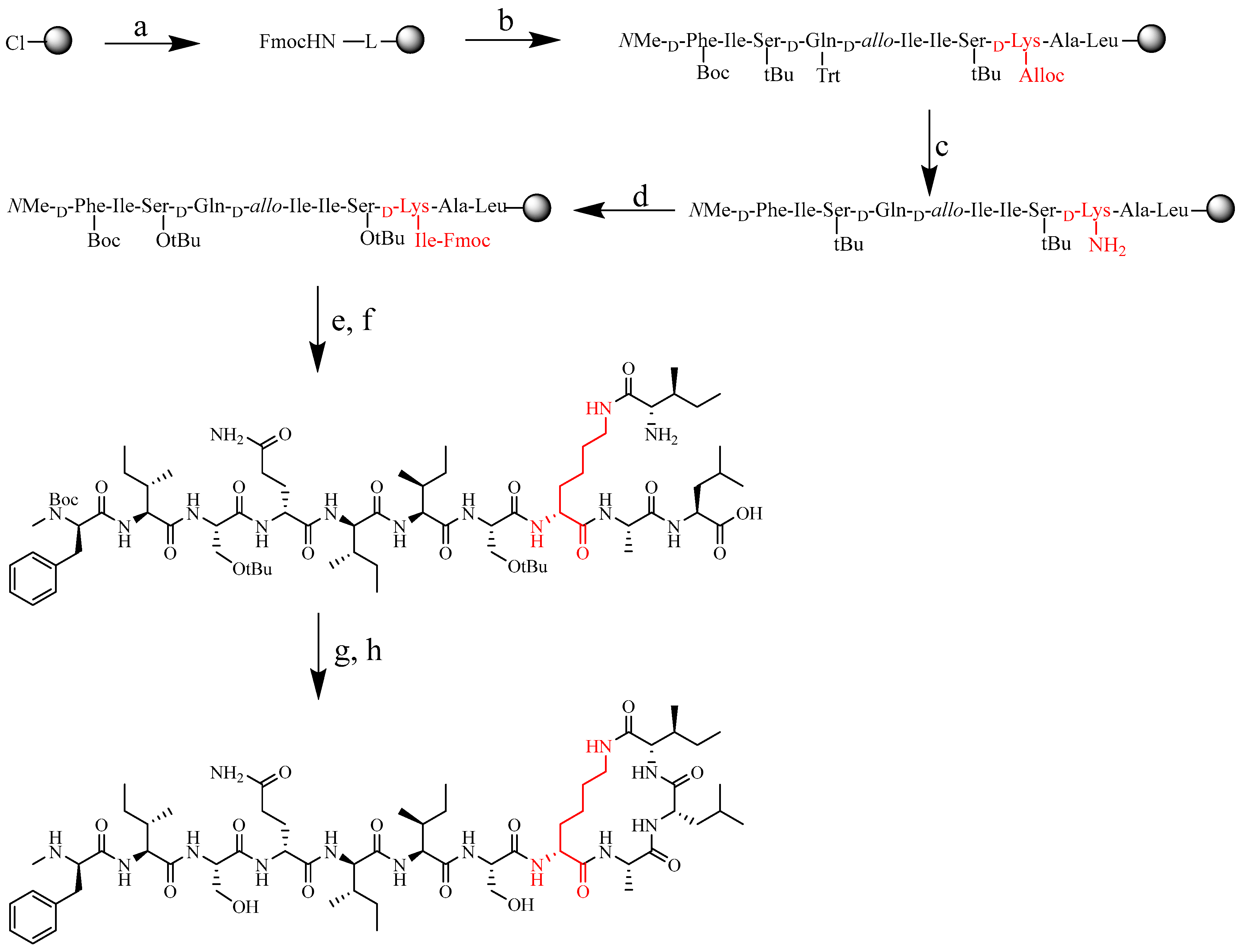

Scheme 4,
Supplementary Scheme S4, Table S3, Figures S21–S40).
2.6. Antimicrobial Susceptibility Testing
Bacterial cultures were grown overnight in Mueller–Hinton Agar (MHA) plates and adjusted to a final concentration of 105–106 CFU/mL. An amount of 100 µL of inoculum in Mueller–Hinton broth (MHB) was mixed with an equal volume of peptides (dissolved in MHB) at 2× their concentration in a 96-well plate. In parallel experiments, MIC values were determined in media containing polysorbate 80 (0.002%, v/v) to prevent non-specific adsorption of the peptides to plastic surfaces. The final peptide concentrations ranged from 0.0625 to 32 µg/mL. Positive and negative controls contained 200 µL of broth with/without inoculum without peptide dissolved, respectively. The 96-well plates were incubated at 37 °C for 24 h. All experiments were performed in triplicate, and the MIC was determined as the lowest concentration at which no visible growth was observed.
3. Results
3.1. Establishing Synthetic Routes for Ring-Expanded Teixobactin Analogues
A series of teixobactin analogues based on the Leu
10-teixobactin scaffold were designed to enable systematic evaluation of macrocycle ring size and linkage type (

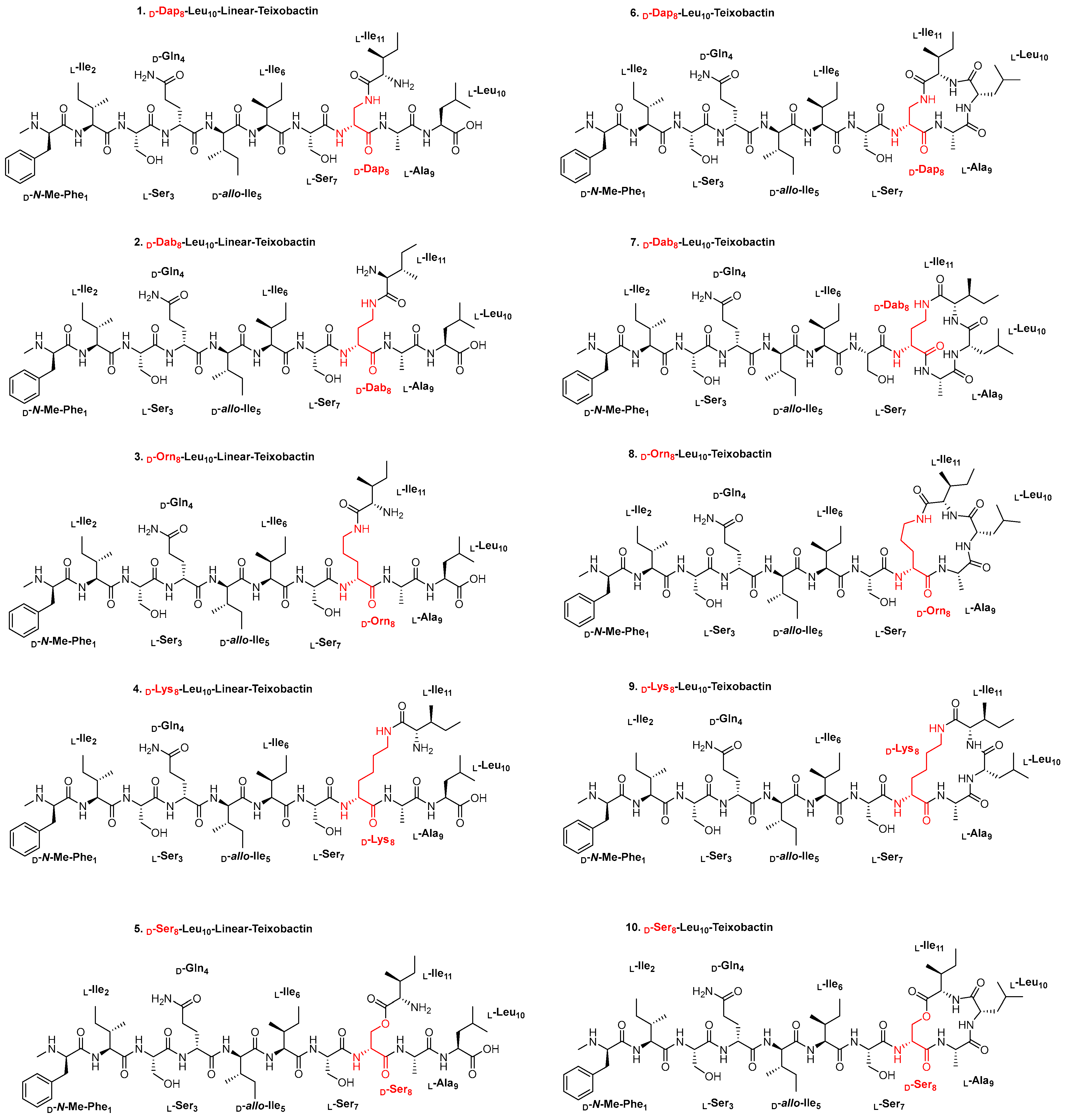

Figure 2). Ring expansion was achieved by substitution of
D-threonine at position 8 with amino acids bearing primary amine side chains of increasing length, enabling macrolactam formation with Ile
11.
An initial synthetic approach employed pre-formed amino acid dimer building blocks to introduce flexibility at the cyclisation site. Specifically, Fmoc-protected dimer building blocks incorporating
D-Dap,
D-Dab,
D-Orn, or
D-Lys at position 8 were synthesised separately (
ii,
iv,
vi,
viii) (
Scheme 1) and subsequently incorporated during solid-phase peptide synthesis (
Scheme 3). The identity of the dimer building blocks was confirmed by NMR spectroscopy and high-resolution mass spectrometry (see
Supplementary Schemes S1 and S2, Section SIII).
The synthesised dimers were subsequently incorporated during solid-phase peptide synthesis on 2-chlorotrityl chloride resin, followed by global deprotection and solution-phase macrolactamisation to afford the corresponding macrocyclised analogues.
Although incorporation of the dimer building blocks proceeded as expected, selective removal of the Boc protecting group required for macrolactam formation was inefficient at a late stage of the synthesis, necessitating full global deprotection prior to cyclisation. Global deprotection at this stage removes all acid-labile-protecting groups, increasing the number of reactive functionalities present during macrolactam formation and thereby raising the risk of competing side reactions. As a result, the dimer-based strategy afforded the desired macrocyclised products in low isolated yields (8–12%).
To overcome these limitations, an alternative strategy employing Alloc-protected amino acid building blocks was developed. The Alloc protecting group enables orthogonal and quantitative side-chain deprotection, allowing selective liberation of the amine required for cyclisation while all other functionalities remain protected.
Accordingly, the Alloc-protected amino acid building blocks Fmoc-
D-Dap(Alloc)-OH (
ix), Fmoc-
D-Dab(Alloc)-OH (
x), Fmoc-
D-Orn(Alloc)-OH (
xi), and Fmoc-
D-Lys(Alloc)-OH (
xii) were synthesised in-house to enable orthogonal side-chain protection (
Scheme 2).
In this strategy, the Alloc-protected amino acid was incorporated into the growing peptide chain by standard Fmoc solid-phase peptide synthesis. Selective removal of the Alloc protecting group was then performed on resin to liberate the side-chain amine required for macrolactam formation, after which the subsequent amino acid residue (Ile) was coupled using standard SPPS conditions. This orthogonal deprotection sequence enabled partial cleavage from the resin prior to macrolactamisation, ensuring that cyclisation occurred in the presence of a single reactive amine and thereby favouring clean ring closure (
Scheme 4).
Compared to the dimer-based approach, the Alloc-protected strategy enabled controlled macrolactam formation under standard amide coupling conditions (
Scheme 4). This resulted in improved overall efficiency and reproducibility, affording the macrocyclised analogues in higher isolated yields (16–18%). Using these synthetic strategies, a total of ten teixobactin analogues were prepared comprising five linear analogues (
1–
5) and five macrocyclised analogues (
6–
10).

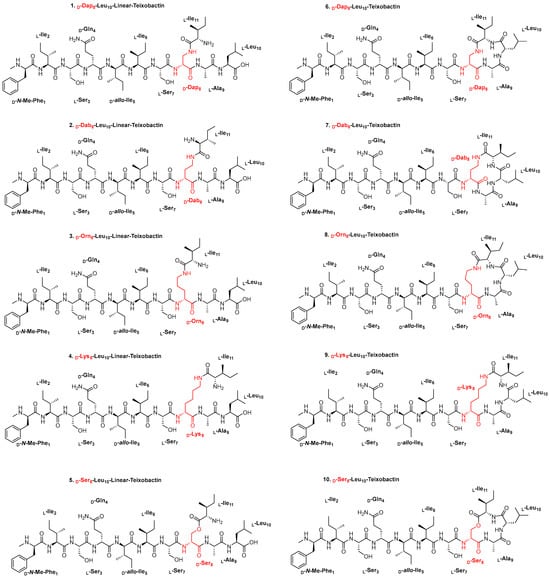

3.2. Design and Preparation of Linear and Macrocyclised Teixobactin Analogues
This analogue set enabled direct comparison of linear and macrocyclic peptides, allowing systematic evaluation of macrocycle expansion and replacement of the native depsipeptide linkage with an amide bond on antibacterial activity. In total, ten Leu
10-teixobactin analogues were prepared, comprising five linear peptides (
1–
5) and five corresponding macrocyclic analogues (
6–
10) (
Figure 2).
Variation at position 8 was achieved by substitution of D-threonine with commercially available amino acids bearing primary amine side chains of increasing length, including D-2,3-diaminopropionic acid (D-Dap), D-2,4-diaminobutyric acid (D-Dab), D-ornithine (D-Orn), and D-lysine (D-Lys). These substitutions enabled controlled expansion of the macrocycle from the native 13-membered ring to larger macrolactams in the cyclised analogues. A D-serine-containing analogue was included as a control to assess the influence of β-methyl substitution at position 8. For this analogue, a D-serine residue was incorporated at position 8, the linear peptide chain was assembled by standard SPPS, and esterification with Ile was performed to afford the corresponding depsipeptide (10).
Linear analogues were synthesised without cyclisation to assess the contribution of the macrocycle to antibacterial activity, while the corresponding macrocyclised analogues incorporated an amide linkage between the side chain at position 8 and the carboxylate of Ile11. This design enabled direct comparison of linear versus macrocyclised peptides and systematic assessment of the impact of macrocycle expansion on antibacterial activity.
3.3. Antimicrobial Activity of Teixobactin Analogues
The antibacterial activity of the synthesised teixobactin analogues was initially evaluated against methicillin-resistant
Staphylococcus aureus (MRSA) ATCC 33591 to establish baseline potency and assess the impact of macrocyclisation and ring size. The minimum inhibitory concentration (MIC) values for the linear analogues (
1–
5) and macrocyclised analogues (
6–
10) are summarised in
Table 1.
The linear analogues exhibited weak or no antibacterial activity against MRSA ATCC 33591, with MIC values ≥ 32 μg/mL. In contrast, macrocyclised analogues displayed measurable antibacterial activity, with D-Dap8-Leu10-teixobactin (6), D-Dab8-Leu10-teixobactin (7), and D-Lys8-Leu10-teixobactin (9) exhibiting MIC values of 4 μg/mL. Within the macrocyclised series, variation in the amino acid at position 8 was generally tolerated, with the majority of the analogues displaying comparable antibacterial activity. D-Dap8-Leu10-teixobactin (6), D-Dab8-Leu10-teixobactin (7), D-Orn8-Leu10-teixobactin (8) and D-Lys8-Leu10-teixobactin (9) exhibited similar antibacterial activity across the tested strains. Notably, D-Ser8-Leu10-teixobactin (10), which retains a comparable ring size to the D-Dap analogue but incorporates a depsipeptide linkage, also exhibited reduced activity.
These data indicate that macrocyclisation is required to retain antibacterial activity in this analogue series and that increased macrocycle size is also tolerated.
Based on the activity observed against MRSA ATCC 33591, selected macrocyclised analogues (
6–
10) were further evaluated against a panel of multidrug-resistant (MDR)
Staphylococcus aureus clinical isolates to assess whether antibacterial activity was retained across strains with distinct susceptibility profiles. The antibacterial activity of these analogues, alongside clinically used antibiotics, is summarised in
Table 2.
Across the MDR clinical isolates tested, the macrocyclised teixobactin analogues exhibited variable antibacterial activity, with MIC values differing between strains. Analogues 6, 7, and 9 generally displayed lower MIC values across multiple isolates relative to the remaining macrocyclised analogues. In contrast, D-Orn8-Leu10-teixobactin (8) showed reduced potency across several isolates, consistent with increased macrocycle size. The reduced activity of D-Ser8-Leu10-teixobactin (10) likely reflects both the loss of the β-methyl substituent and the change in hydrogen-bonding geometry introduced by the depsipeptide linkage. Notably, several clinical isolates displayed reduced susceptibility to linezolid, cefotaxime, levofloxacin, and ampicillin, whereas the macrocyclised teixobactin analogues retained measurable antibacterial activity across the tested MDR strains.
Collectively, these results show that macrocyclisation is required for antibacterial activity in this analogue series and that increased macrocycle size is tolerated with respect to our Leu10-teixobactin scaffold.
4. Discussion
In this study, we evaluated how macrocycle size and the replacement of the native depsipeptide linkage with an amide bond influence antibacterial activity within a simplified Leu10-teixobactin scaffold. Two complementary synthetic strategies enabled the preparation of both linear and macrocyclised analogues, allowing direct comparison of macrocyclisation, ring expansion, and linkage type within a consistent structural framework.
The loss of antibacterial activity in the linear analogues highlights the critical role of macrocyclisation in maintaining antibacterial function in teixobactin-derived scaffolds. Consistent with prior studies, the removal of the macrocycle resulted in a marked reduction in activity, underscoring the importance of conformational constraint for activity within this scaffold.
Native teixobactin contains the non-proteinogenic amino acid L-allo-enduracididine at position 10, which has been proposed to contribute to antibacterial activity through target interactions. However, our previous work demonstrated that substitution of L-allo-enduracididine with leucine does not abolish antibacterial activity, enabling the development of a simplified and synthetically accessible Leu10-teixobactin framework. Building on this finding, the present study explores whether macrocyclisation within this Leu10-teixobactin scaffold remains compatible with antibacterial activity and enables evaluation of macrocycle size–activity relationships.
Systematic expansion of the macrocycle through variation in the amino acid at position 8 revealed a relationship between macrocycle size and antibacterial activity. Analogues incorporating shorter side-chain linkers, such as D-Dap and D-Dab, retained antibacterial potency, indicating that moderate macrocycle expansion is tolerated. Further expansion using D-Orn and D-Lys resulted in modest variations in antibacterial activity, with MIC values remaining within a comparable range (4–8 µg/mL) across the series, suggesting that increased macrocycle size is broadly tolerated in this analogue set.
Notably, D-Ser8-Leu10-teixobactin (analogue 10) was included as a depsipeptide-linked comparator within the simplified Leu10-teixobactin scaffold and provides insight into the importance of linkage type independent of macrocycle size. Unlike the amide-linked analogues, analogue 10 incorporates a depsipeptide linkage analogous to native teixobactin but lacks the β-methyl substituent present in D-threonine. Despite retaining a macrocycle size comparable to the D-Dap analogue, this compound exhibited reduced antibacterial activity, indicating that both the nature of the linkage and side-chain substitution at position 8 influence activity. The absence of the β-methyl group in serine may influence local conformational preferences or hydrogen-bonding interactions, contributing to the observed reduction in activity.
Previous studies have reported macrocyclisation strategies employing methylated diamino acids to facilitate lactam formation, often in combination with alternative residues at position 10. While effective, these approaches rely on synthetically demanding building blocks. In contrast, the present work demonstrates that lactamisation can be achieved within a simplified Leu10-teixobactin scaffold using readily accessible amino acids, while retaining measurable antibacterial activity. This highlights the potential of more synthetically tractable macrocyclisation strategies for the development of teixobactin-inspired antibiotics.
Evaluation against multidrug-resistant clinical Staphylococcus aureus isolates revealed that selected macrocyclised analogues retained comparable antibacterial activity to that of the reference MRSA strain. While diminished activity was observed for some clinical antibiotics across these isolates, the teixobactin analogues maintained measurable antibacterial effects, consistent with a mode of action distinct from those of clinical antibiotics. Together, these findings demonstrate that controlled macrocyclisation within a simplified teixobactin scaffold can retain antibacterial activity and provide insight into the structural features governing potency.
