Multi-Configuration Dirac–Hartree–Fock Calculations of Pr⁹⁺ and Nd¹⁰⁺: Configuration Resolution and Probing Fine-Structure Constant Variation

Abstract

We present high-precision multi-configuration Dirac–Hartree–Fock (MCDHF) calculations for the metastable states of ${\mathrm{Pr}}^{9+}$ and ${\mathrm{Nd}}^{10+}$ ions, systematically investigating their energy levels, transition properties, Landé $g_J$ factors, and hyperfine interaction constants. Our results show excellent agreement with available experimental data and theoretical benchmarks, while resolving critical configuration assignment discrepancies through detailed angular momentum coupling analysis. The calculations highlight the significant role of Breit interaction and provide the first theoretical predictions of electric quadrupole hyperfine constants ($B_{\mathrm{hfs}}$). These findings deliver essential atomic data for the development of next-generation optical clocks and establish lanthanide highly charged ions as exceptional candidates for precision tests of fundamental physics.

1. Introduction

Highly Charged Ions (HCIs) are not only ubiquitously present in astrophysical environments but also extensively observed in several experimental systems, including magnetic confinement fusion devices, electron beam ion traps (EBITs), heavy-ion accelerators, and laser-produced plasmas [1,2,3,4]. Forbidden transitions in HCIs have long been a central focus in both astrophysical spectroscopy and laboratory plasma physics due to their high diagnostic potential [5,6]. The spectral line intensities of transitions from HCIs exhibit extreme sensitivity to plasma density and temperature, making them critical tools for diagnosing and modeling both astrophysical environments and laboratory plasmas [7,8,9]. Moreover, forbidden transitions in HCIs are promising candidates for next-generation optical atomic clocks and for probing potential temporal variations of fundamental constants [10,11,12]. Recent advances in many-body theoretical frameworks have also highlighted their suitability for precision tests of quantum electrodynamics (QED) in strong-field regimes [13,14,15].

Owing to their contracted electron clouds and enhanced relativistic effects, HCIs exhibit exceptional insensitivity to external perturbations while maintaining pronounced sensitivity to variations in the fine-structure constant $\alpha$. These properties render them highly suitable for the development of ultra-stable optical clocks [16,17,18,19]. However, only a limited number of HCIs systems have demonstrated viable optical-clock transitions. A representative mechanism involves magnetic dipole ($M1$) or electric quadrupole ($E2$) transitions between fine or hyperfine structures levels. In isoelectronic sequences of HCIs, the increasing nuclear charge Z systematically enlarges energy gaps between fine-structure levels and enhances hyperfine splitting. This progression shifts transition frequencies from the microwave to the optical frequency regimes [20,21]. Notably, the rearrangements of orbital binding energies within these sequences can induce energy level crossings. At these critical points, near-degenerate levels produce dense optical transitions with laser-accessible frequencies in the visible spectrum [22,23]. Together, these characteristics establish HCIs as promising platforms for precision spectroscopy and next-generation optical frequency standards [24,25,26,27].

Energy level crossings in HCIs have long been of interest in atomic structure studies [28,29,30]. Systematic analyses have identified multiple HCIs with potential for optical clock applications, including the low-lying excited states in open shells configurations of ions such as ${\mathrm{Nd}}^{n+}$ ($n=4,5$) [29], ${\mathrm{Ba}}^{4+}$ [31], ${\mathrm{Pr}}^{9+}$ [32], ${\mathrm{Cf}}^{6+}$ and ${\mathrm{Cf}}^{7+}$ [33], and ${\mathrm{Nd}}^{9+}$ [34]. As the charge state increases, the evolution of electronic structure in HCIs leads to a fundamental change in orbital ordering: electron filling rules gradually transition from Madelung’s rule to hydrogen-like (Coulomb) limit. This structural rearrangement results in characteristic level crossings, particularly involving s–d, s–f, and p–f orbitals. Many studies have focused on these phenomenon in ions such as ${\mathrm{Nd}}^{13+}$, ${\mathrm{Cf}}^{15+}$ and ${\mathrm{Sm}}^{14+}$ [35,36], ${\mathrm{Ir}}^{17+}$, ${\mathrm{Ir}}^{16+}$, ${\mathrm{W}}^{7+}$, and ${\mathrm{W}}^{8+}$ [37], in efforts to assess their suitability for optical frequency metrology.

Experimentally, optical clocks based on neutral atoms Sr and singly charged ions, such as ${\mathrm{Al}}^{+}$ and ${\mathrm{Yb}}^{+}$, have already achieved fractional frequency uncertainties at the 10⁻¹⁸–10⁻¹⁹ levels [19,25,38]. Theoretical studies suggest that HCI-based optical clocks could surpass these systems, potentially achieving accuracies on the order of 10⁻²⁰–10⁻²¹ [39,40,41]. Recently, clock transitions in ${\mathrm{Ar}}^{13+}$ have been successfully demonstrated using quantum logic spectroscopy [42]. In the Sn-like isoelectronic sequence, ${\mathrm{Pr}}^{9+}$ and ${\mathrm{Nd}}^{10+}$ ions have emerged as particularly promising candidates due to relativistic $5p$–$4f$ orbital crossings (see Figure 1). Among these, ${\mathrm{Pr}}^{9+}$ is especially attractive due to its unique electronic configuration [32,43]. The $5p^2$³$P_0$→$5p4f^3{G}_3$ magnetic octupole ($M3$) transition in ${\mathrm{Pr}}^{9+}$ is an excellent candidate for ultra-precise optical clocks and searches for physics beyond the Standard Model, as it exhibiting high sensitivity to both fine-structure constant $\alpha$ variations and potential violations of local Lorentz invariance (LLI) [44,45]. Additionally, the strong $M1$ transition at 351 nm ($5p^2$³$P_0$→³$P_1$) provides a feasible path for ion cooling and probing.

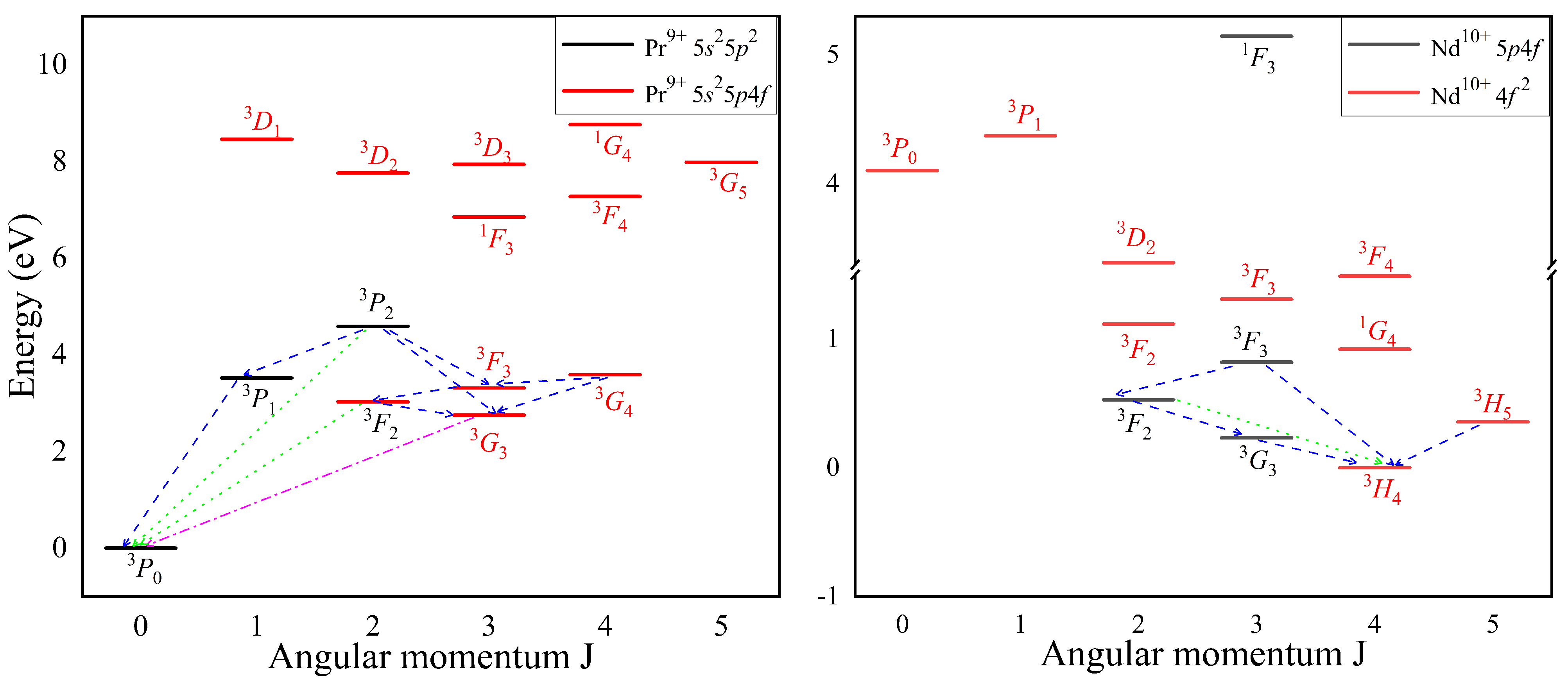

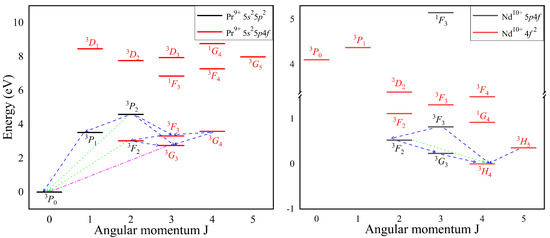

Figure 1. The energy level structure diagram of ${\mathrm{Pr}}^{9+}$ and ${\mathrm{Nd}}^{10+}$ ions. The blue dashed arrow represents M1 transition, the green dotted arrow represents E2 transition, and magenta dash-dot arrow represents M3 transition.

Current research efforts are directed toward identifying narrow-linewidth clock transitions in HCIs such as ${\mathrm{Ni}}^{12+}$, ${\mathrm{Pd}}^{12+}$, ${\mathrm{Pr}}^{9+}$, and ${\mathrm{Nd}}^{9+}$ [32,34,46,47]. However, current theoretical predictions still lack the accuracy required to guide the precision laser spectroscopy experiments.

In this work, we employ the multi-configuration Dirac–Hartree–Fock (MCDHF) method to systematically investigate key atomic parameters of the highly charged ions ${\mathrm{Pr}}^{9+}$ and ${\mathrm{Nd}}^{10+}$, including energy levels, transition wavelengths, transition probabilities, Landé g factors, and hyperfine interaction constants. Our calculated results show excellent agreement with both existing theoretical data and recent experimental measurements. These results are expected to provide valuable reference data for the development of high-precision optical clocks and for plasma diagnostics in astrophysics contexts.

2. Results and Discussion

Utilizing the MCDHF method with the aforementioned electron correlation model, we systematically calculated excitation energies, transition energies, transition probabilities, lifetimes, Landé g factors, hyperfine interaction constants, and the sensitivity coefficients to the variation in the fine-structure constant $\alpha$ for ${\mathrm{Pr}}^{9+}$ and ${\mathrm{Nd}}^{10+}$ ions.

2.1. Energy Levels of ${\mathrm{Pr}}^{9+}$ and ${\mathrm{Nd}}^{10+}$ Ions

Table 1 presents the excitation energies for selected energy levels arising from the $5p^2$, $5p4f$, and $4f^2$ configurations of ${\mathrm{Pr}}^{9+}$ and ${\mathrm{Nd}}^{10+}$ ions. All the levels are denoted by LS notation obtained by the jj2lsj code from the GRASP2k package. This computation enables us to estimate the dominant LS-coupling character inherent to each state. The LS term labels, in turn, are assigned according to the largest component present in the configuration state function (CSF) expansion. The numbers in the parentheses indicate the estimated uncertainty of the available data. The accuracy of our calculation was assessed using an extrapolation approach similar to that described by Fischer [48]. Specifically, we evaluated the convergence behavior of the excitation energy by firstly computing difference between successive active space expansion: $\mathrm{\Delta }{E}_{AS6}=E_{AS6}-E_{AS5}$ and $\mathrm{\Delta }{E}_{AS5}=E_{AS5}-E_{AS4}$. Then, the rate of convergence is estimated as

$$r=\mathrm{\Delta }{E}_{AS6}/\mathrm{\Delta }{E}_{AS5}.$$

Assuming that this convergence rate remains constant in the subsequent steps, the residual contribution can be approximated by a geometric series, yielding a total correction of

$$\sum _{i=1}^{\infty }\mathrm{\Delta }{E}_{AS6}{r}^i=\mathrm{\Delta }{E}_{AS6}{\displaystyle \frac{r}{1-r}}\mathrm{if}\left|r\right|<1.$$

It should be noted, however, that this approach may underestimate the remaining corrections, as contributions from higher active spaces often converge slowly, potentially leading to an increasing ratio r at larger configuration expansions.

Table 1. Contributions of the Breit interaction and QED effects to the excitation energy (in cm ⁻¹) of selected levels in ${\mathrm{Pr}}^{9+}$ and ${\mathrm{Nd}}^{10+}$. Bold font indicates levels with ambiguous term assignments. Diff = |Final − Expt|/Final × 100%. The digits in the parentheses indicates the accuracy of the available data.

Ion	Ref [32]	Config (Term)	Coulomb	Breit	QED	Final	AMBiT [32]	FSCC [32]	CI + all Order [43]	Expt [32]	Diff (%)
Pr9+	$5p^2$ [3$P_0$]	$5p^2$ [3$P_0$]	0	0	0	0	0	0	0	0	0
	$5p4f$ [3$G_3$]	$5p4f$ [3$G_3$]	22,848	−642	−11	22,195 (4)	21,368	22,248	21,055 (840)	22,101.36 (5)	0.42
	$5p4f$ [3$F_2$]	$5p4f$ [3$F_2$]	24,993	−607	−4	24,382 (3)	23,845	24,525	23,845 (710)	24,494.00 (5)	0.46
	$5p4f$ [3${\mathbf{D}}_3$]	$5p4f$ [3${\mathbf{F}}_3$]	27,644	−917	−8	26,720 (3)	26,372	27,575	26,182 (820)	27,287.09 (5)	2.12
	$5p^2$ [3$P_1$]	$5p^2$ [3$P_1$]	28,753	−412	45	28,386 (2)	27,789	28,526	28,440 (900)	28,561.06 (6)	0.62
	$5p4f$ [3$G_4$]	$5p4f$ [3$G_4$]	29,897	−949	−8	28,940 (3)	28,369	29,482	28,474 (320)	29,230.87 (6)	1.01
	$5p^2$ [3${\mathbf{D}}_2$]	$5p^2$ [3${\mathbf{P}}_2$]	37,467	−513	42	36,997 (1)	35,550	35,980	35,935 (380)	36,407.48 (6)	1.59
	$5p4f$ [3${\mathbf{F}}_3$]	$5p4f$ [1${\mathbf{F}}_3$]	56,305	−1072	36	55,269 (9)	54,852	55,737	54,404 (820)	55,662.43 (5)	0.71
	$5p4f$ [3$F_4$]	$5p4f$ [3$F_4$]	59,898	−1254	37	58,681 (10)	58,469	59,393		59,184.84 (5)	0.86
	$5p^2$ [3${\mathbf{F}}_2$]	$5p4f$ [3${\mathbf{D}}_2$]	63,547	−1005	45	62,587 (17)	61,325	62,380		62,182.14 (2)	0.65
	$5p4f$ [3$G_5$]	$5p4f$ [3$G_5$]	65,312	−1317	36	64,031 (11)	62,788	64,214		63,924.17 (6)	0.17
	$5p4f$ [3$D_1$]	$5p4f$ [3$D_1$]	69,229	−1048	66	68,217 (10)	66,429	67,925		67,309.3 (1)	1.36
Nd10+		$4f^2$ [3$H_4$]	0	0	0	0			0
		$5p4f$ [3$G_3$]	978	881	13	1872 (1)			1062 (1300)
		$4f^2$ [3$H_5$]	3185	−310	2	2877 (1)			3059 (210)
		$5p4f$ [3$F_2$]	3535	718	13	4265 (2)			4550 (1100)
		$5p4f$ [3$F_3$]	6180	427	15	6621 (1)			6738 (1320)
		$4f^2$ [1$G_4$]	7276	153	10	7437 (2)

For ${\mathrm{Pr}}^{9+}$, our results show excellent agreement with recent experimental values and previous theoretical predictions, with deviations generally within 2% after accounting for Breit interaction and QED effects. This accuracy indicates that dominant correlation and relativistic effects are well captured by the adopted calculation model.

Several term assignments exhibit discrepancies between experimental observation and theoretical calculation, echoing findings from S. G. Porsev et al. [49]. Specifically, the level experimentally labeled as $5p4f^3{D}_3$ is theoretically identified as [³$F_3$]; the $5p^2$ ³D₂ term corresponds to the ³$P_2$ term; and the ³$F_2$ level arises not from the $5p^2$ configuration but from $5p4f$. This is consistent with atomic structure theory, as two equivalent p electrons cannot generate a term with total orbital angular momentum $L=3$. Additionally, the state associated with the $5p4f$ configuration is more appropriately designated as ¹$F_3$, not ³$F_3$.

Breit interaction corrections contribute up to 3% of the excitation energies in ${\mathrm{Pr}}^{9+}$, while QED contributions are negligible. Our results also exhibit strong consistency with other theoretical models, such as AMBiT and FSCC, further validating the reliability of our MCDHF approach. In ${\mathrm{Nd}}^{10+}$, the Breit interaction exhibits an even more pronounced influence, reaching up to 47% for some states. Although the CI+all-order calculations present relatively large uncertainties, our results fall within their estimated ranges, thereby offering valuable benchmark. These systematic data are particularly important for advancing high-precision optical clocks development and provide a foundation for future experimental studies, especially for ${\mathrm{Nd}}^{10+}$, where experimental data remain limited.

2.2. Transition Properties

Table 2 lists transition properties, including transition energies, types, probabilities, and lifetimes for key transitions in ${\mathrm{Pr}}^{9+}$ and ${\mathrm{Nd}}^{10+}$. The computed values show excellent agreement with experimental transition energies, typically within 0.1–0.2 eV. Transition probabilities calculated using the MCDHF method also align well with those from CI+all-order methods [43].

Table 2. Comparison of the transition energies $\mathrm{\Delta }E$ (eV) and transition probabilities(s⁻¹) for selected transitions in ${\mathrm{Pr}}^{9+}$ and ${\mathrm{Nd}}^{10+}$. Asterisks denote direct experimental observations.

				$\mathit{\Delta }\mathit{E}$						Rate		$\mathit{\tau }$
Ion	Upper	Lower	Type	MCDHF	Expt [32]	AMBiT [32]	FSCC [32]	CI + all Order [43]	$\mathbf{\lambda }$ (nm)	MCDHF	Ref. [43]	MCDHF	Ref. [43]
${\mathrm{Pr}}^{9+}$	$5p4f{[}^3{G}_3]$	$5p^2{[}^3{P}_0]$	M3	2.75	2.74	2.65	2.76	2.71	451	4.32 [−15]	2.00 [−15]	2.32 [+14]	4.99 [+14]
	$5p4f{[}^3{F}_2]$	$5p^2{[}^3{P}_0]$	E2	3.02	3.04	2.96	3.04	3.00	410	3.43 [−02]	8.64 [−01]	2.3 [+01]	5.18 [+01]
	$5p4f{[}^3{F}_2]$	$5p4f{[}^3{G}_3]$	M1	0.27	0.30	0.31	0.28	0.29	4573	9.12 [−03]	7.92 [−03]
	$5p4f{[}^3{F}_3]$	$5p4f{[}^3{F}_2]$	M1	0.29	0.35	0.31	0.38	0.35	4278	1.54 [−01]	2.12 [−01]	6.49 [+00]	4.72 [+00]
	$5p^2{[}^3{P}_1]$	$5p^2{[}^3{P}_0]$	M1	3.52	3.54 *	3.45	3.54	3.53	352	3.38 [+02]	3.36 [+02]	2.94 [−03]	2.98 [−03]
	$5p4f{[}^3{G}_4]$	$5p4f{[}^3{G}_3]$	M1	0.84	0.88	0.87	0.90	0.92	1483	3.34 [+00]	4.32 [+00]	2.93 [−01]	2.27 [−01]
	$5p4f{[}^3{G}_4]$	$5p4f{[}^3{F}_3]$	M1	0.28	0.24	0.25	0.24	0.29	1483	7.04 [−02]	7.39 [−02]
	$5p^2{[}^3{P}_2]$	$5p^2{[}^3{P}_0]$	E2	4.59	4.51	4.41	4.46	4.49	270	4.91 [+00]	4.85 [+00]	7.70 [−02]	8.38 [−02]
	$5p^2{[}^3{P}_2]$	$5p4f{[}^3{G}_3]$	M1	1.84	1.77	1.76	1.70	1.78	675	7.28 [−01]	7.46 [−01]
	$5p^2{[}^3{P}_2]$	$5p4f{[}^3{F}_3]$	M1	1.27	1.13	1.14	1.04	1.14	973	3.40 [+00]	4.16 [+00]
	$5p^2{[}^3{P}_2]$	$5{\mathrm{p}}^2{[}^3{P}_1]$	M1	1.07	1.22	0.96	0.92	0.96	1161	3.91 [+00]	2.20 [+00]
	$5p4f{[}^3{D}_2]$	$5p^2{[}^3{P}_2]$	M3	3.26	3.20 *	3.20	3.27		380	9.63 [−14]		1.14 [−02]
	$5p4f{[}^3{D}_2]$	$5p^2{[}^3{P}_1]$	M1	4.21	4.17 *	4.16	4.20		295	8.75 [+01]
${\mathrm{Nd}}^{10+}$	$5p4f{[}^3{G}_3]$	$4f^2{[}^3{H}_4]$	M1	0.23				0.19	5347	1.41 [−04]	1.96 [−05]	7.10 [+03]	5.09 [+04]
	$4f^2{[}^3{H}_5]$	$4f^2{[}^3{H}_4]$	M1	0.36				0.38	3475	6.09 [−01]	7.26 [−01]	1.64 [+00]	1.38 [+00]
	$5p4f{[}^3{F}_2]$	$5p4f{[}^3{G}_3]$	M1	0.30				0.30	4171	2.08 [−02]	3.95 [−02]	4.81 [+01]	2.54 [+01]
	$5p4f{[}^3{F}_2]$	$4f^2{[}^3{H}_4]$	E2	0.53				0.63	2345	1.13 [−05]	1.94 [−05]
	$5p4f{[}^3{F}_3]$	$5p4f{[}^3{F}_2]$	M1	0.29				0.25	4243	2.02 [−01]	1.53 [−01]	4.79 [+00]	3.92 [+00]
	$5p4f{[}^3{F}_3]$	$4f^2{[}^3{H}_4]$	M1	0.82				0.87	1510	6.72 [−03]	5.97 [−03]

For ${\mathrm{Pr}}^{9+}$, the M3 transition from the $5p4f$ [³$G_3$] level to the ground state ($5p^2$ [³$P_0$]) has a very small rate ($\sim {10}^{-15}$ s⁻¹), resulting in a long lifetime on the order of ${10}^{14}$ s. Conversely, the E2 transition from $5p4f$ [³$F_2$] to $5p^2$ [³$P_0$] has a rate on the order of ${10}^{-2}$ s⁻¹, giving a lifetime in the tens of seconds range. Several M1 transitions among closely spaced levels also exhibit significant transition probabilities, contributing to observable decay channels.

The consistency of transition rates across methods and with available experimental data supports the reliability of our electron correlation model. These accurate predictions of lifetimes and branching ratios are critical for identifying suitable clock transitions and for interpreting astrophysical spectra.

2.3. Hyperfine Interaction Constant and Landé g Factor

The hyperfine interaction arises from the interaction between the magnetic moments of the electrons and the magnetic moments of the nucleus in an atom. In the first-order approximation, the energy splitting due to the hyperfine interaction is given by

$$\mathrm{\Delta }{E}_{\mathrm{hfs}}={\displaystyle \frac{1}{2}}{A}_{\mathrm{hfs}}C+B_{\mathrm{hfs}}{\displaystyle \frac{\frac{3}{4}C(C+1)-I(I+1)J(J+1)}{2I(2I-1)J(2J-1)}}$$

(1)

where $C=F(F+1)-J(J+1)-I(I+1)$, I and J represent the nuclear and atomic angular momenta, respectively. F is the total angular momenta quantum numbers coupling by I and J. $A_{\mathrm{hfs}}$ and $B_{\mathrm{hfs}}$ are known as the magnetic dipole and electric quadrupole hyperfine interaction constants. With the knowledge of $A_{\mathrm{hfs}}$ and $B_{\mathrm{hfs}}$, it is possible to estimate $\mathrm{\Delta }E$ for any hyperfine level F. For the ions considered in this work ($\genfrac{}{}{0ex}{}{141}{59}{\mathrm{Pr}}^{9+}$ with I = 5/2 and $\genfrac{}{}{0ex}{}{145}{60}{\mathrm{Nd}}^{10+}$ with I = −7/2), we have calculated the magnetic dipole and electric quadrupole constants corresponding to different nuclear spins respectively. The magnetic dipole constants can be calculated using the following expression:

$$A_{\mathrm{hfs}}={\displaystyle \frac{{\mu }_I}{I}}\sqrt{{\displaystyle \frac{1}{J(J+1)}}}⟨\mathrm{\Psi }\left(\gamma J\right)\parallel {\mathit{T}}^{\left(1\right)}\parallel \mathrm{\Psi }\left(\gamma J\right)⟩$$

(2)

$$B_{\mathrm{hfs}}=2Q_I\sqrt{{\displaystyle \frac{J(2J-1)}{(J+1)(2J+3)}}}⟨\mathrm{\Psi }\left(\gamma J\right)\parallel {\mathit{T}}^{\left(2\right)}\parallel \mathrm{\Psi }\left(\gamma J\right)⟩$$

(3)

where ${\mu }_I$ and $Q_I$ are the magnetic dipole moment and the quadrupole moment of the nucleus, respectively. The values of the magnetic dipole moment and electronic quadrupole moment of $\genfrac{}{}{0ex}{}{141}{59}{\mathrm{Pr}}^{9+}$(${\mu }_I$ = 4.2754${\mu }_N$, Q = −0.0776b), and $\genfrac{}{}{0ex}{}{145}{60}{\mathrm{Nd}}^{10+}$ (${\mu }_I$ = −1.065${\mu }_N$, Q = −0.593b), were taken from the work of Stone et al. [50].

The Landé g-factor reflects the sensitivity of the atomic state to the external magnetic field and plays a key role in diagnosing the magnetic field strength [51,52,53]. Within the framework of relativistic atomic structure theory, the Landé $g_J$ factor can be calculated using the reduced matrix element of $M1$. The Landé $g_J$ factor is given by [54,55,56]:

$$g_J=-{\displaystyle \frac{1}{2{\mu }_B}}{\displaystyle \frac{⟨\mathrm{\Psi }\left(\gamma J\right)\parallel Q^{M1}\parallel \mathrm{\Psi }\left(\gamma J\right)⟩}{\sqrt{J(J+1)(2J+1)}}}$$

(4)

where ${\mu }_B$ denotes the Bohr magneton. Once the Landé $g_J$-factor for a specific atomic state is determined, the energy of the split levels can be accurately calculated. This allows for the determination of the first order Zeeman shift [57,58], given by

$$\mathrm{\Delta }{E}_{\mathrm{Zeem}}^{\left(1\right)}=g_J{\mu }_{B}MB$$

(5)

where B is the magnetic flux density of the external field, and M is the magnetic quantum number.

Table 3 presents calculated hyperfine magnetic dipole (A) and electric quadruple (B) constants, and Landé $g_J$-factor for low-lying states of ${\mathrm{Pr}}^{9+}$ and ${\mathrm{Nd}}^{10+}$. The values are computed using nuclear parameters appropriate for the most abundant isotopes, ¹⁴¹Pr and ¹⁴³Nd. These data are essential for interpreting hyperfine splitting in high-resolution spectra and for precision frequency metrology.

Table 3. Hyperfine magnetic dipole (A) and electric quadrupole (B) constants, and the Landé $g_J$-factor of low-lying levels in Pr⁹⁺ and Nd¹⁰⁺ ions. The nuclear spin $I=5/2$ and magnetic moment $\mu =4.2754\left(5\right){\mu }_N$ were used for ${\mathrm{Pr}}^{9+}$, and $I=7/2$, $\mu =-1.5290\left(2\right){\mu }_N$ for ${\mathrm{Nd}}^{10+}$.

			Hyperfine Constant (GHz)			Landé ${\mathit{g}}_{\mathit{J}}$-Factor
Ion	Config	Level	${\mathbf{A}}_{\mathrm{hfs}}$	AMBiT [32]	${\mathbf{B}}_{\mathrm{hfs}}$	MCDHF	AMBiT [32]	Expt [32]
Pr9+	$5p^2$	3$P_0$	0	0	0	0	0	0
	$5p4f$	3$G_3$	7.631	7.771	0.075	0.857	0.853	0.875 (2)
	$5p4f$	3$F_2$	−2.434	−1.688	0.012	0.841	0.883	0.889 (5)
	$5p4f$	3$F_3$	−3.572	−3.857	0.119	1.138	1.145	1.136 (4)
	$5p^2$	3$P_1$	−2.967	−3.203	−0.256	1.500	1.500	1.487 (3)
	$5p4f$	3$G_4$	5.343	5.692	0.190	1.122	1.115	1.130 (3)
	$5p^2$	3$P_2$	11.467	11.004	−0.104	1.187	1.139	1.19 (1)
Nd10+	$4f^2$	3$H_4$	0.281		−0.057	0.806
	$5p4f$	3$G_3$	1.637		0.063	0.854
	$4f^2$	3$H_5$	0.214		0.034	1.032
	$5p4f$	3$F_2$	−0.645		0.069	0.774
	$5p4f$	3$F_3$	−0.612		0.083	1.136
	$4f^2$	1$G_4$	0.680		−0.078	1.109

Hyperfine magnetic dipole constants (A) show considerable variation among different states, depending strongly on the electronic configuration and the angular momentum coupling of the electrons near the nucleus. For ${\mathrm{Pr}}^{9+}$, the A constants range from a few GHz to over 11 GHz. The large values for some $5p4f$ states arise due to significant overlap of the $4f$ orbital with the nucleus, enhancing hyperfine interactions. Similarly, quadrupole constants (B) are sizeable for states with $J\ge 1$ and reflect the distribution of electronic charge around the nucleus.

These hyperfine constants are of particular importance for experimental efforts in high-resolution laser spectroscopy. They allow accurate modeling of hyperfine splittings which are crucial for determining systematic frequency shifts in atomic clocks based on highly charged ions. Furthermore, they offer a benchmark for refining nuclear models and probing nuclear moments through atomic spectroscopy.

The Landé g-factors for all levels are in good agreement with both the theoretical results from AMBiT and the experimental results [32]. Nevertheless, for the ${\mathrm{Nd}}^{10+}$ ion, there are no comparable results at present. We hope that these calculated results can provide a reference for future experimental studies or theoretical analyses.

2.4. Sensitivity of Clock Transitions

The frequencies of optical atomic clock transitions exhibit different dependencies on the fine-structure constant, enabling high-precision tests of its possible variation over time or space [45,59]. By monitoring the ratio of two clock transition frequencies over an extended period, any observed change in this ratio may signal a variation in $\alpha$. Crucially, this ratio is dimensionless and independent of the system of units used.

In atomic units, the relativistic correction to atomic energy levels scale approximately as ${\alpha }^2$, which leads to a convenient parameterization of the transition frequency $\omega$ as

$$\omega ={\omega }_0+q\left[{\left({\displaystyle \frac{\alpha }{{\alpha }_0}}\right)}^2-1\right]$$

(6)

where ${\omega }_0$ is the unperturbed transition frequency at the reference value ${\alpha }_0$ of the fine structure constant, and q is the sensitivity coefficient. The coefficient q quantifies how strongly the transition frequency shifts with small changes in $\alpha$ and can be accurately determined through atomic structure calculations. Notably, q is less sensitive to electron correlation effects than absolute energy levels, making it more robust for precision evaluation.

To compute the q coefficient, one performs atomic structure calculations with two slightly different values of ${\alpha }^2$, introducing a small, controlled perturbations [60,61]. The coefficient is then extracted via numerical differentiation as follows:

$$q={\displaystyle \frac{\omega \left(x\right)-\omega (-x)}{2x}}$$

(7)

where $x={(\alpha /{\alpha }_0)}^2-1$. The perturbation parameter x must be small enough to ensure linear behavior, yet large enough to suppress numerical noise; in our calculation, we take $x=0.01$.

To detect a possible change in $\alpha$, one must compare at least two independent clock transitions over time. The fractional variation in their frequency ratio can be expressed as

$$\delta \left({\displaystyle \frac{{\omega }_1}{{\omega }_2}}\right)/{\displaystyle \frac{{\omega }_1}{{\omega }_2}}={\displaystyle \frac{\delta {\omega }_1}{{\omega }_1}}-{\displaystyle \frac{\delta {\omega }_2}{{\omega }_2}}\equiv (K_1-K_2){\displaystyle \frac{\delta \alpha }{\alpha }}$$

(8)

where $K=2q/\omega$ is the dimensionless enhancement factor. A larger K value indicates high sensitivity of a transition frequency to changes in $\alpha$, making such transitions ideal for probing its variation.

Table 4 presents the computed q values and enhancement factors K for several low-lying levels in ${\mathrm{Pr}}^{9+}$ and ${\mathrm{Nd}}^{10+}$. All the listed transitions exhibit enhancement factors significantly larger than unity, confirming their exceptional sensitivity to $\alpha$-variation. Particularly striking are the levels in ${\mathrm{Nd}}^{10+}$, where K values reach as high as $-84.6$, surpassing those found in many currently operational optical clocks, including those based on neutral atoms, singly charged ions, and some HCIs.

Table 4. Sensitivity coefficients (q) and enhancement factor (K) for selected transitions in Pr⁹⁺ and Nd ¹⁰⁺ ions.

Ion	Config	Level	$\mathit{\omega }$ (cm −1)	q	K
	$5p4f$	3$G_3$	22,184.96	46,027	4.1
	$5p4f$	3$F_2$	24,376.09	46,020	3.8
	$5p4f$	3$F_3$	26,710.83	51,206	3.8
Pr9+	$5p^2$	3$P_1$	28,380.26	36,608	2.6
	$5p4f$	3$G_4$	28,931.23	51,206	3.5
	$5p^2$	$3P_2$	36,995.13	42,944	2.3
	$5p4f$	3$G_3$	1871.53	−79,197	−84.6
	$5p4f$	3$F_2$	4265.37	−60,108	−28.2
	$5p4f$	3$F_3$	6621.39	−76,526	−23.1
Nd10+	$4f^2$	1$G_4$	7437.39	−43,269	−11.6
	$4f^2$	3$F_2$	9011.82	−27,591	−6.1

The heightened sensitivity arises from strong relativistic effects associated with $5p-4f$ orbital interactions. The relativistic contraction of $5p$ orbitals, combined with the relatively unperturbed nature of $4f$ orbitals, leads to a pronounced dependence of the transition energy on $\alpha$. This $5p-4f$ hybridization mechanism makes these lanthanide HCIs particularly powerful for fundamental physics searches, including tests of temporal variation of fundamental constants and violations of local Lorentz invariance.

3. Theory and Methods

3.1. Multi-Configuration Dirac–Hartree–Fock Method

To accurately predict the transition energies and lifetimes of clock states, we employ the ab initio fully relativistic Multi-Configuration Dirac–Hartree–Fock (MCDHF) method, followed by the Relativistic Configuration Interaction (RCI) approach. These methods are implemented in the GRASP2K code package [62,63,64]. For detailed methodological background, readers are referred to Froese Fischer [65] and the monograph by I. P. Grant [66]. This framework has been successfully applied in recent studies of complex atomic structures and related properties [67,68].

In the MCDHF method, an atomic state wave function is represented by a linear combination of configuration state functions (CSFs) Φ with common parity P, total angular momentum J, and its component $M_J$:

$$\mathrm{\Psi }\left(\gamma PJ{M}_J\right)=\sum _{i=1}^{N_c}{c}_i\mathrm{\Phi }\left({\gamma }_{i}PJ{M}_J\right),$$

(9)

where $N_c$ is the number of CSFs, ${\gamma }_i$ represents the additional quantum numbers needed to define the configuration, and $c_i$ are the mixing coefficient. The radial orbitals are optimized using the extended optimal level (EOL) scheme with equal weights. The coefficients $c_i$ are determined variationally by minimizing the energy expectation value of the Dirac–Coulomb Hamiltonian, expressed (in atomic unit) as follows:

$${\widehat{H}}^{DC}=c\alpha ·\mathbf{p}+(\beta -1)c^2+\sum _{i>j}^N{\displaystyle \frac{1}{r_{ij}}},$$

(10)

where $\mathbf{\alpha }$ and $\mathbf{\beta }$ are $4\times 4$ Dirac matrices, $p_i$ is the momentum operator, $V_i^N$ is the interaction between the ith electron and the atomic nucleus, ${\displaystyle \frac{1}{r_{ij}}}$ is the electron–electron Coulomb repulsion, and c is the speed of light in vacuum.

After orbital optimization, the RCI step includes the frequency-independent Breit interaction and leading quantum electrodynamics (QED) effects—self-energy (SE) and vacuum polarization (VP)—as first-order perturbations corrections. Higher-order retardation terms beyond the ${\omega }^2$ expansion are omitted. The Breit interaction in the low-frequency limit is given by the following:

$${\widehat{H}}_{\mathrm{Breit}}=-\sum _{i<j}^N{\displaystyle \frac{1}{2r_{ij}}}\left[\left({\mathbf{\alpha }}_i·{\mathbf{\alpha }}_j\right)+{\displaystyle \frac{\left({\mathbf{\alpha }}_i·{\mathbf{r}}_{ij}\right)\left({\mathbf{\alpha }}_j·{\mathbf{r}}_{ij}\right)}{r_{ij}^2}}\right].$$

(11)

The transition probability $A_{ij}$ between two states is evaluated through reduced matrix elements of the multipolar radiation field operator ${\mathrm{O}}^L$.

$$A_{ij}=⟨\mathrm{\Psi }\left(\gamma PJ\right)\parallel {\widehat{O}}^L\parallel \mathrm{\Psi }\left({\gamma }^{\prime }{P}^{\prime }{J}^{\prime }\right)⟩=\sum _{i,j}{c}_i{c}_j^{\prime }⟨\mathrm{\Psi }\left({\gamma }_{i}PJ\right)\parallel {\widehat{O}}^L\parallel \mathrm{\Psi }\left({\gamma }_j^{\prime }{P}^{\prime }{J}^{\prime }\right)⟩,$$

(12)

where $c_i$ and $c_j^{\prime }$ are the expansion coefficients for the initial and final CSFs. The lifetime ${\tau }_i$ of an excited state i is then

$${\tau }_i={\displaystyle \frac{1}{{\sum }_j{A}_{ij}}}.$$

(13)

3.2. Electron Correlation Model

To accurately account for electron correlation effects, we construct a series of active space (AS) models using configuration state functions generated via single and double (SD) excitations from the valence orbitals into a set of virtual orbitals. Given that Sn-like ions possess only four valence electrons, and to maintain computational tractability, we treat the closed-shell configuration $\left\{1s^{2}2s^{2}2p^{6}3s^{2}3p^{6}3d^{10}4s^{2}4p^{6}4d^{10}\right\}$ as inactive core. Excitation from the inactive core are not included.

In the final calculations, SD excitations are applied to the four valence electrons in the $\left\{5s^{2}5p^2\right\}$ orbitals. The construction of active spaces proceeds as follows:

$$\begin{array}{cc}\hfill DF& =\{5s,5p\}\hfill \\ \hfill AS1& =DF+\{4f,5f,5g\}\hfill \\ \hfill AS2& =AS1+\{6s,6p,6d,6f,6g\}\hfill \\ \hfill AS3& =AS2+\{7s,7p,7d,7f,7g\}\hfill \\ \hfill AS4& =AS3+\{8s,8p,8d,8f,8g\}\hfill \\ \hfill AS5& =AS4+\{9s,9p,9d,9f,9g\}\hfill \\ \hfill AS6& =AS5+\{10s,10p,10d,10f,10g\}.\hfill \end{array}$$

To ensure convergence, virtual orbitals were expanded incrementally up to $n_{\max }=10$ and $l_{\max }=4$, representing the maximum principal and the angular momentum quantum number, respectively. At each step, only the newly added orbitals were optimized while previously generated orbitals were held fixed. In the GRASP2K package, the orbital orthogonality is strictly preserved throughout the self-consistent field (SCF) optimization process. The orbital sets are constructed and updated in a manner that explicitly enforces the orthogonal normality conditions, thus ensuring that the active orbitals remain always orthogonal to the frozen ones.

The excitation energies of ${\mathrm{Pr}}^{9+}$ calculated under different AS models are presented in Table 5. The result show consistent convergence with increasing active space, validating the reliability of the chosen electron correlation model.

Table 5. Convergence of MCDHF calculated excitation energies (in cm ⁻¹) for selected states of ${\mathrm{Pr}}^{9+}$ across different active sets. DF represents the Dirac–Fock calculation.

	Energy (cm −1)
	$5{\mathit{p}}^2$		$5\mathit{p}4\mathit{f}$
AS	3${\mathit{P}}_1$	3${\mathit{P}}_2$	3${\mathit{G}}_3$	3${\mathit{F}}_2$	3${\mathit{F}}_3$	3${\mathit{G}}_4$
DF	27,672.04	36,470.81	21,048.52	23,645.63	25,955.64	28,098.59
AS1	28,346.58	36,989.53	21,895.37	24,144.97	26,437.06	28,669.28
AS2	28,342.42	36,950.90	21,943.95	24,181.02	26,482.04	28,704.41
AS3	28,354.15	36,985.37	22,117.35	24,318.77	26,646.55	28,872.52
AS4	28,359.17	36,980.70	22,145.11	24,340.75	26,673.04	28,894.80
AS5	28,380.26	36,995.13	22,184.96	24,374.09	26,710.83	28,931.23
AS6	28,385.66	36,996.78	22,195.03	24,381.87	26,719.68	28,939.60

4. Conclusions

In this work, we have performed a comprehensive theoretical investigation of the highly charged ions ${\mathrm{Pr}}^{9+}$ and ${\mathrm{Nd}}^{10+}$ using the multi-configuration Dirac–Hartree–Fock (MCDHF) method, including Breit interaction and QED corrections. Our calculations cover energy levels, transition probabilities, Landé $g_J$ factors, and hyperfine interaction constants, achieving excellent agreement with available experimental data and thereby validating the reliability of our computational approach.

Through detailed angular momentum coupling analysis, we resolved ambiguities in configuration assignments and identified dominant Breit interaction effects in shaping the fine-structure and hyperfine structures. Notably, we present the theoretical predictions of electric quadrupole hyperfine constants ($B_{\mathrm{hfs}}$) for these ions.

Furthermore, we carried out an in-depth analysis of the sensitivity of clock transitions to potential variations of the fine-structure constant $\alpha$. Our results reveal exceptionally large enhancement factors (K), especially in ${\mathrm{Nd}}^{10+}$, due to strong relativistic $5p$–$4f$ orbital hybridization. This extreme sensitivity positions these ions as promising candidates for next-generation optical clocks and precision tests of fundamental physics, including searches for temporal variation in $\alpha$ and violations of local Lorentz invariance.

Altogether, our findings provide critical atomic data, resolve existing theoretical uncertainties, and offer valuable guidance for experimental efforts aimed at developing high-precision clocks based on alternative highly charged ions.
