Application of 1H HR-MAS NMR-Based Metabolite Fingerprinting of Marine Microalgae

by
Carolina da Silva Canielles Caprara
1,
Tatiane Ksyvickas Mathias
2,
Maria de Fátima C. Santos
2,
Marcelo G. M. D’Oca
2,
Caroline Da R. M. D’Oca
2,
Fabio Roselet
3,
Paulo Cesar Abreu
3,† and
Daniela Fernandes Ramos
1,4,*
1
Laboratório de Desenvolvimento de Novos Fármacos (LADEFA), Universidade Federal do Rio Grande (FURG), Rio Grande 96200-400, RS, Brazil
2
NMR Laboratory, NMR Center, Departamento de Química, Universidade Federal do Paraná, Curitiba 81530-900, PR, Brazil
3
Laboratório de Produção de Microalgas (LPM), Instituto de Oceanografia, Universidade Federal do Rio Grande (FURG), Rio Grande 96210-030, RS, Brazil
4
Núcleo de Desenvolvimento de Novos Fármacos—NUDEFA, Rua General Osório, s/n°, Campus Saúde, 2° andar, Rio Grande 96200-400, RS, Brazil
*
Author to whom correspondence should be addressed.
†
This work is dedicated to the memory of our dear colleague and mentor, Professor Paulo Cesar Abreu, who passed away on 19 July 2022.
Metabolites 2023, 13(2), 202; https://doi.org/10.3390/metabo13020202
Submission received: 5 January 2023 / Revised: 22 January 2023 / Accepted: 24 January 2023 / Published: 30 January 2023
(This article belongs to the Special Issue Marine Microbes Related Metabolic Studies)
Browse Figures
Versions Notes

Abstract

:
Natural products from the marine environment as well as microalgae, have been known for the complexity of the metabolites they produce due to their adaptability to different environmental conditions, which has been an inexhaustible source of several bioactive properties, such as antioxidant, anti-tumor, and antimicrobial. This study aims to characterize the main metabolites of three species of microalgae (Nannochloropsis oceanica, Chaetoceros muelleri, and Conticribra weissflogii), which have important applications in the biofuel and nutrition industries, by 1H High-resolution magic angle spinning nuclear magnetic resonance (1H HR-MAS NMR), a method which is non-destructive, is highly reproducible, and requires minimal sample preparation. Even though the three species were found in the same ecosystem and a superior production of lipid compounds was observed, important differences were identified in relation to the production of specialized metabolites. These distinct properties favor the use of these compounds as leaders in the development of new bioactive compounds, especially against environmental, human, and animal pathogens (One Health), and demonstrate their potential in the development of alternatives for aquaculture.

Graphical Abstract

1. Introduction

Oceans cover 70% of the planet’s surface and contain about 97% of its water [1]. Marine and coastal environments cover a diverse spectrum of habitats, from shallow coral reefs to deep hydrothermal vents, and are home to an enormous diversity of species, from micro- to macro-organisms. This species diversity is translated into unique metabolic abilities to ensure survival in harsh marine conditions [2]. Compared to terrestrial environments, marine and coastal environments favor the production of natural products, as approximately 28,500 marine natural products were identified by the end of 2016, many with a high degree of structural novelty [3].
Microalgae are unicellular organisms that convert carbon dioxide, light, water, and macro- and micronutrients into biomass, mainly carbohydrates, lipids, proteins, and pigments. Recent research estimated a diversity of 72,500 species of algae, of which 39% are yet to be described [4]. Microalgae live in close relation with bacteria and predators; therefore, microalgae have developed several chemical defense mechanisms [3]. They are adapted to a wide range of environmental conditions, which influence the production of metabolites [5], which are a potential source of marine natural products [6].
Potential advantages of using microalgae as a raw material for various purposes in biotechnology include its ability to synthesize and accumulate large amounts of neutral lipids. These lipids are composed of a large percentage of polyunsaturated fatty acids that are important for the diet of other aquatic organisms and for human health [7]. Furthermore, fatty acids have great commercial potential when incorporated into food, animal feed, cosmetics, and pharmaceutical products [8]. Products from marine organisms have shown many interesting activities, such as antimicrobial, cytotoxic, anticancer, antidiabetic, antifungal, anticoagulant, anti-inflammatory, and other pharmacological activities [9,10,11].
Interest in the biotechnological potential of microalgae has increased due to their high production rates and their production of several valuable substances [12]. The cultivation of microalgae has gained great momentum among researchers in recent decades due to their ability to produce valuable metabolites, remarkable photosynthetic efficiency, and versatile nature [13]. In Brazil, the government has promoted a national strategy to encourage and strengthen in vitro studies that validate the use of metabolites produced by microalgae and other marine organisms in different aquaculture systems. The biomass produced will be used as a raw material for the production of many biomolecules used in the food and pharmaceutical industries [14]. In this scenario, we highlight Nannochloropsis oceanica, a unicellular microalga that belongs to the class Eustigmatophyceae that has high biotechnological potential due to its massive lipid production [15,16,17,18] and the diatoms of the genus Chaetoceros and Conticribra, which are among the most cultivated diatoms for larviculture [19]. Diatoms belong to a large group of microalgae and are among the most abundant classes in marine environments [20]. The microalgae Chaetoceros muelleri is used due to its fatty acid profile, and the diatom Conticribra (Thalassiosira) weissflogii is an euryhaline species [21] and has high carbon fixation rates, as well as excellent photosynthetic efficiency. Both have been used as a model in physiological studies of photosynthesis [22,23]. The lipid content of C. weissflogii was analyzed, mainly as a source of fatty acids for copepods [24].
The methodologies commonly used to study the chemical profile of microalgae are laborious and require extraction with organic solvents. An alternative that has been used to directly investigate the chemical composition of microalgae preserving the integrity of the compounds is the High-resolution magic-angle spinning nuclear magnetic resonance spectroscopy (HR-MAS NMR) [25,26,27]. The HR-MAS NMR has been used for investigations based on the fingerprints or metabolomic profiles of biofluids [27], herbal medicines [28,29], foods [30], and microalgae [31]. This technique allows the analysis of semi-solid samples that are characterized by inhomogeneity and restricted molecular motion with spectral resolution similar to the solution-state NMR [25,26]. This happens due to the molecular mobility in the swollen samples, which is associated with fast spinning around of the so-called “magic angle” (θ = 54.74°). As a result, line broadening is drastically reduced due to dipole coupling and chemical shift anisotropy (CSA) [26]. The main advantage of the HR-MAS NMR is that it allows the identification of the metabolic profile under conditions similar to the natural chemical environment of the compounds with the same spectral resolution of NMR solution.
Several studies have demonstrated the abundance of primary metabolites produced by microalgae; these metabolites include lipids, fatty acids, amino acids, and some sugars. However, there are few studies that investigate the complex characterization of marine microalgae, especially through more robust tools, and that enable fast, easy, non-destructive, and unbiased screening such as 1H NMR-based metabolomics [32,33,34,35]
Carotenoids, polyphenols, and polyunsaturated fatty acids (PUFAs) have gained prominence among the bioactive compounds produced by microalgae [36,37,38], which have been widely proposed for biotechnological use in the area of food, fertilizers, bioenergy, cosmetics, pharmaceuticals, and industries in general [39].
In this way, the aim of the present study was to evaluate the spectral profiles of microalgae N. oceanica, C. muelleri, and C. weissflogii microalgae in polar and non-polar solvents by 1H HR-MAS NMR to provide a more comprehensive investigation of these microalgae that can contribute to the targeting of applications in several areas.

2. Materials and Methods

2.1. Microalgae Cultivation

The microalgae used in this study, namely Nannochloropsis oceanica Suda and Miyashita 2002 (Eustigmatophyceae), Chaetoceros muelleri Lemmermann 1898 (Mediophyceae), and Conticribra weissflogii (Grunow) Stachura-Suchoples and D.M. Williams 2009 (Mediophyceae), were obtained from the collection of the Laboratory of Microalgae Production from the Institute of Oceanography, Federal University of Rio Grande (FURG/Brazil). The microalgae were cultivated in natural seawater (salinity 28), which was measured using a hand-held salinity refractometer (ATAGO, Bellevue, WA, USA). The seawater was first filtered by a sand filter. Next, it was further filtered through a 1.0 µm polypropylene filter cartridge, disinfected with sodium hypochlorite 12% (NaClO, 0.15 mL L−1) for 24 h, and then neutralized with ascorbic acid (C6H8O6, 30 mg L−1). Batch culture technique was employed, using Guillard’s medium [32], composed of sodium nitrate (NaNO3, 75 mg L−1), sodium phosphate (NaH2PO4·H2O, 5 mg L−1), EDTA (C10H14N2O8Na2·2H2O, 4.36 mg L−1), ferric chloride (FeCl3·6H2O, 3.15 mg L−1), cupric sulfate (CuSO4·5H2O, 0.01 mg L−1), zinc sulfate (ZnSO4·7H2O, 0.02 mg L−1), cobalt chloride (CoCl2·6H2O, 0.01 mg L−1), manganese chloride (MnCl2·4H2O, 0.18 mg L−1), sodium molybdate (Na2MoO4·2H2O, 0.006 mg L−1), thiamine (C12H17ClN4OS·HCl, 0.1 mg L−1), cyanocobalamin (C63H88CoN14O14P, 0.0005 mg L−1), and biotin (C10H16N2O3S, 0.0005 mg L−1). Diatoms were supplemented with sodium silicate (Na2SiO3·9H2O, 30 mg L−1). All chemicals were analytical grade (Dinâmica, Indaiatuba, São Paulo, Brazil). The microalgae were cultured in a 330 L bubble column acrylic photobioreactor (0.5 m diameter, 1.5 m height), and kept indoors under controlled conditions (23 °C, 150 µmol m−2 s−1, and a light period of 16h L: 8h D). The culture growth was monitored daily by counting the cell abundance using an improved Neubauer hemocytometer (Marienfeld, Lauda-Königshofen, Baden-Württemberg, Germany), and cultivation was maintained for 12 days until the stationary phase was reached.

2.2. Biomass Harvesting

The microalgae were harvested by flocculation using Flopam FO 4800 SH, an organic synthetic polyacrylamide-based polymer [34]. The flocculant was prepared by adding 3.3 g of polymer to 3.3 L of deionized water and by mixing at 300 rpm until dissolution (ca. 1 h). Then, the flocculant solution was poured into the photobioreactor. Concurrently, the microalgae suspension was mixed intensively (100 rpm) for 5 min to allow uniform flocculant dispersal, followed by gentler mixing (20 rpm) for 15 min to allow floc formation. The flocculated biomass settled within 10 min and was collected after the supernatant was siphoned. The biomass was further dewatered by centrifugation (2527× g) at 4 °C for 5 min, and then dried at 60 °C for 24 h.

2.3. Sample Preparation for 1H HR-MAS NMR

An amount of 10 mg of dried marine microalgae was inserted into the zirconia rotor (50 µL), then 40 µL of deuterated solvent was added, homogenized, and packed. The solvents used were chloroform (CDCl3) and methanol (CD3OD), both at 0.05% of TMS, and water (D2O) at 0.01% of TMSP.

2.4. Acquisition of 1H HR-MAS NMR Spectra

The 1H HR-MAS NMR spectra were acquired on a Bruker AVANCE 400 NMR spectrometer (Bruker, Karlsruhe, Germany), which was operated at 9.4 T, with observation of the 1H core at 400.13 MHz, and which was equipped with a quadrinuclear probe (1H/13C/15N/2H) at a high resolution with 4mm magic angle (θ = 54.74°) rotation and field gradient in the magic angle direction. The 1H HR-MAS NMR spectra were acquired with the zgpr pulse sequence, a recycle delay (D1) of 1.0 s, and 64 transients and 64k points (TD) distributed in a spectral window of 8012.820 Hz, resulting in time acquisition (AQ) of 4.01 s and a temperature of 298 K. During acquisition, the samples were rotated at a speed of 5 KHz around the magic angle.
The 1D and 2D NMR spectra were obtained at 298 K in a AVANCE III NMR spectrometer (Bruker, Karlsruhe, Germany) which operated at 14.7 T (1H at 600.13 MHz and 13C at 150.92 MHz) and was equipped with a TCI CryoProbe Prodigy 5 inverse detection probe with a z-gradient. Tuning (matching and tuning) for 1H and 13C and adjustment of the homogeneity of the magnetic field spatially (shimming) were performed for each analysis.

2.5. Sample Preparation and Acquisition of 1D and 2D NMR Spectra

To support NMR chemical shift assignments, experiments of 1D and 2D NMR in solution with N. oceanica, C. muelleri, and C. weissflogii were also performed. For this purpose, 100.0 ± 1.0 mg of each sample was submitted to extraction directly in 1 mL of CDCl3, D2O, and CD3OD sonicated and subsequently centrifuged at 12,000 rpm for 10 min. After this procedure, 600 µL of the extracts were added to 5 mm tubes for further analyses. Direct and long-range 1H-13C NMR correlations were acquired on a Bruker Avance III 600 NMR spectrometer operating at 14.1 T and observing 1H and 13C at 600.13 and 150.92 MHz, respectively. The spectrometer was equipped with a 5 mm inverse detection four-channel probe (1H, 13C, 15N and 31P) with z-gradient. One-bond and long-range 1H-13C correlations from HSQC and HMBC NMR experiments were optimized for average coupling constants 1J(H,C) and LRJ(H,C) of 140 and 8 Hz, respectively.

3. Results

Initially, the metabolite fingerprinting of the marine microalgae N. oceanica, C. muelleri, and C. weissflogii were explored by 1H HR-MAS NMR. Due to restricted and low molecular motion conditions of semi-solid samples such as microalgae, several anisotropic trends such dipolar interactions, magnetic susceptibility, and chemical shift anisotropy affect T2 relaxation, producing a line-broadening of signals, low signal-to-noise ratio, and low resolution in the NMR spectra. The high spinning rates of the samples, which occur at a magical angle (θ = 54.74°), minimize the line-broadening effects coming from dipolar interactions. Additionally, the HR-MAS technique is applied in swollen samples, employing suitable NMR solvents, which provide sufficient molecular motions in order to improve spectral resolution. In this sense, to have a more comprehensive view of the mobility of microalgal compounds, 1H HR-MAS NMR spectra were recorded directly from samples by employing 40 µL of chloroform, methanol, or water as solvents (Figure 1, Figure 2 and Figure 3) without sample pretreatment steps and then preventing changes in the chemical compositions during extraction and isolation procedures.
According to the 1H HR-MAS NMR spectra of marine microalgae C. muelleri, C. weissflogii, and N. oceanica analyzed in deuterated chloroform (Figure 1), it was possible to observe that the three species of microalgae presented a similar chemical profile because they are constituted of mono- or polyunsaturated fatty acids. From the ampliation of the region between δH 5.40–0.50, characteristic signals of vinylic hydrogens were observed at δH δH 5.40–5.30 (m), bis-allylic at δH 2.81 (m), α–C=O in δH 2.34 t (J = 7.5 Hz), allylic at δH 2.06 (m), β–C=O in δH 1.62 (m), methylene at δH 1.35–1.25(m), and methyls at δH 0.87 (m). Only for the microalgae N. oceanica, a triplet at δH 0.98 (J = 7.0 Hz) relative to methyl hydrogens of type ω-3 was observed.
The spectral profile acquired directly from dried marine microalgae samples using deuterated water (or D2O) as the solvent seemed to be more complex, with several signals overlapped; thus, it was difficult to clearly identify the signals from the chemical compounds (Figure 2). The entire signal assignments of C. muelleri, C. weissflogii, and N. oceanica were confirmed based on 2D NMR experiments, which were performed in solution state (Figures S1–S13), as well as previously reported data [35]. From these spectra, it was possible to identify eight chemical compounds, including amino acids and organic acids. Regarding amino acids, a doublet at δH 1.47 (J = 7.2 Hz) was observed for the methyl hydrogen of alanine for the microalgae N. oceanica and C. weissflogii. On the other hand, for C. muelleri, a broad simplet at δH 1.49 was observed due to the lower spectral resolution for this microalga. The three microalgae presented a simplet at δH 3.59 relative to the methine hydrogen of glycine.
In the three microalgae, typical relative signals of hydrogens from the para-substituted aromatic ring of tyrosine were observed. However, for N. oceanica, these signals presented with higher spectral resolution because a two doublet was observed at δH 6.89 (J = 8.1 Hz) and 7.19 (J = 8.1 Hz). Furthermore, it was also observed that only C. weissflogii presented a simplet at δH 8.23 relative to the N-H hydrogen of the tripeptide cysteine amino acid, glutathione. Furthermore, organic acids have also been identified. A doublet at δH 1.33 (J = 6.7 Hz) was observed for the methyl lactate hydrogens for the three microalgae, and a simplet was observed at δH 2.40 for the succinate methylene hydrogens only for Figure 2. A simplet at δH 3.20 relative to the methyl hydrogens of the choline was observed for the three microalgae in question. A signal at δH 8.47 (s) was also observed relative to the methynic hydrogen of the formate only for N. oceanica. The attributions of these metabolites in comparison with the literature [35] are presented in Table 1.
From the spectra acquired employing methanol, it was possible to identify a greater number of compounds from different classes, indicating that methanol promoted greater molecular mobility. In addition, it was observed that with this solvent, the spectral profiles presented a better spectral resolution. Thus, signals were observed in the regions of aliphatic hydrogens, amino acids, sugars, and aromatics (Figure 3). The attributions of these metabolites by 1D and 2D NMR and in comparison with the literature [35,40,41] are presented in Table 1.

4. Discussion

In this study, the spectra revealed the presence of different classes of metabolites including amino acids and mono- and polyunsaturated fatty acids and organic acids. In addition, 13 amino acids were identified in at least one of the samples evaluated using water or methanol as solvents in spectral regions compatible with the description in the literature, ranging 0.50–8.50 ppm [35,42]. The choice of solvent used to swell the samples showed great importance for identifying the compounds present in the microalgae matrix. Spectra recorded with the addition of methanol and water, for example, were able to increase molecular mobility and, thus, result in more defined and resolved signals that identified more compounds than chloroform, with amino acids and organic acids emerging in the spectra. However, monounsaturated fatty acids and PUFAs were identified more frequently with chloroform.
Some compounds seem to be characteristic markers according to the species of microalgae analyzed, with N. oceanica showing the greatest diversity of compounds, followed by C. weissflogii and C. muelleri. We emphasize that, unlike other species of the genus Nannochloropsis, N. oceanica has been described as having mostly lipids and proteins, which represent approximately half of the dry weight of the biomass, according to Zanella and Vianello (2020). This genus of microalgae has high photosynthetic efficiency and can convert carbon dioxide to storage lipids mainly in the form of triacylglycerols and to the ϖ-3 long-chain polyunsaturated fatty acid eicosapentaenoic acid (EPA) [17]. Interestingly, N. oceanica was the only coastal species evaluated that presented, at 8.47 s, a characteristic peak of formate. Inhibition of the folate biosynthetic pathway, which may have formate as a product, has been proposed as a promising target for the development of several antimicrobial compounds with cytotoxic activity against tumor cells, for example [43,44,45]. In addition, formate can act as a by-product of anaerobic fermentation of some bacterial species and interfere, as a secondary metabolite, in different pathophysiological conditions.
With regard to fatty acids, which are already widely recognized as important metabolites present and biotechnologically important in microalgae of the genus Nannochloropsis, and EPA and PUFAS [37,42], which are the major fatty acids in N. oceanica, only this microalgae presented omega-3 fatty acids (ϖ-3), and this metabolite is referenced by many authors as beneficial to human and animal health, as well as in the pharmaceutical, food, environmental, and cosmetic industries [17,42].
On the other hand, recent studies have proposed that α-linolenic acid (ALA), EPA, and docosahexaenoic acid (DHA) are major bioactive compounds in different species of the genus Chaetoceros [46].
Surprisingly, among the evaluated polyunsaturated fatty acids in the metabolomics analyses for C. muelleri, only methylic ϖ-3 (0.98 t) was not identified, contrary to the findings of Ramos et al (2022), which identified potential antibacterial activity in extracts of different polarities which contained this metabolite through 1H Nuclear Magnetic Resonance (NMR) analysis.
To the best of our knowledge, this is the first study that characterizes metabolites through assays with 1H HR-MAS NMR of C. weissflogii, which is a model species for environmental studies and in the development of energy and feed supplements for animals [47,48]. Since before its reclassification (previously known as Thalassiosira weissflogii) [48,49], this species has demonstrated important cytotoxic and immunomodulatory bioactivity related to the presence of polysaccharides, as well as the important production of metabolites that are toxic against different microorganisms; for example, it interferes with quorum sensing and the adhesion and formation of bacterial biofilms [47,50,51].
Therefore, metabolomics studies of species belonging to coastal ecosystems—such as microalgae, which suffer intensely from abiotic factors such as constant changes due to seasonal heat input and thermal stratification, as well as ecosystem variations—are increasingly necessary. Such studies are necessary in order to understand specific responses of organisms to abiotic stressors and the organism–environment interactions and between the communities that constitute this niche [52].
In this sense and in corroboration with the objectives of the Brazilian Biotecmar [14] strategy, innovative, technological strategies are necessary to favor marine biotechnology as a whole. These strategies would aid in the understanding of the impacts of each individual that comprises this ecosystem on the biosphere, the monitoring of the impacts of environmental disturbances, and the use of bioactive metabolites for the development of therapeutic products in favor of sustainable development and the maintenance of One Health.

5. Conclusions

The fingerprinting approach of coastal microalgae by HR-MAS NMR proved to be an interesting tool to identify metabolites with minimal sample preparation that may contribute to future investigations of unpublished compounds or little explored compounds, which can contribute to the development of biotechnological products. Marine microalgae, such as the diatom Conticribra weissflogii, the major chemical composition of which has been described for the first time in this study, have highlighted as a fundamental element in the food chains of aquatic ecosystems, in addition to its use in the production of food and new drugs. In addition, our study allowed us to identify different metabolite profiles among the three evaluated species, evidencing the possibility of these marine microalgae to act as raw materials for bioactive compounds applied to One Health, the food industry, animal production, and cosmetics. Lastly, the results demonstrate that methanol was the best solvent; however, it must be noted that the choice in the solvent depends on the type of compound ones wants to extract.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/metabo13020202/s1, Figure S1. 1H-13C one-bond correlation map from multiplicity edited HSQC NMR experiment acquired from Conticribra weissflogii (1H and 13C, 600 and 150 MHz, D2O)—regions A, B, and C; Figure S2. Ampliation from 1H-13C one-bond correlation map from multiplicity edited HSQC NMR experiment acquired from Conticribra weissflogii (1H and 13C, 600 and 150 MHz, D2O)—region A; Figure S3. Ampliation from 1H-13C one-bond correlation map from multiplicity edited HSQC NMR experiment acquired from Conticribra weissflogii (1H and 13C, 600 and 150 MHz, D2O)—region B; Figure S4. Ampliation from 1H-13C one-bond correlation map from multiplicity edited HSQC NMR experiment acquired from Conticribra weissflogii (1H and 13C, 600 and 150 MHz, D2O)—region C; Figure S5. 1H-13C one-bond correlation map from multiplicity edited HSQC NMR experiment acquired from Chaetoceros muelleri (1H and 13C, 600.13 and 150.92 MHz, CD3OD)—regions A, B, and C; Figure S6. Ampliation from 1H-13C one-bond correlation map from multiplicity edited HSQC NMR experiment acquired from Chaetoceros muelleri (1H and 13C, 600.13 and 150.92 MHz, CD3OD)—region A; Figure S7. Ampliation from 1H-13C one-bond correlation map from multiplicity edited HSQC NMR experiment acquired from Chaetoceros muelleri (1H and 13C, 600.13 and 150.92 MHz, CD3OD)—region B; Figure S8. Ampliation from 1H-13C one-bond correlation map from multiplicity edited HSQC NMR experiment acquired from Chaetoceros muelleri (1H and 13C, 600.13 and 150.92 MHz, CD3OD)—region C; Figure S9. 1H-13C long-distance correlation map HMBC NMR experiment acquired from Chaetoceros muelleri (1H and 13C, 600.13 and 150.92 MHz, CD3OD); Figure S10. 1H-13C one-bond correlation map from multiplicity edited HSQC NMR experiment acquired from Nannochloropsis oceanica (1H and 13C, 600.13 and 150.92 MHz, CD3OD)—regions A, B, and C; Figure S11. Ampliation from 1H-13C one-bond correlation map from multiplicity edited HSQC NMR experiment acquired from Nannochloropsis oceanica (1H and 13C, 600.13 and 150.92 MHz, CD3OD)—region A; Figure S12. Ampliation from 1H-13C one-bond correlation map from multiplicity edited HSQC NMR experiment acquired from Nannochloropsis oceanica (1H and 13C, 600.13 and 150.92 MHz, CD3OD)—region B; Figure S13. Ampliation from 1H-13C one-bond correlation map from multiplicity edited HSQC NMR experiment acquired from Nannochloropsis oceanica (1H and 13C, 600.13 and 150.92 MHz, CD3OD)—region C.

Author Contributions

Conceptualization, C.D.R.M.D. and D.F.R.; methodology, C.d.S.C.C., T.K.M. and M.d.F.C.S.; formal analysis, M.G.M.D.; investigation, C.d.S.C.C., M.d.F.C.S. and F.R.; resources, D.F.R. and P.C.A.; data curation, M.G.M.D.; writing—original draft preparation, C.d.S.C.C. and M.d.F.C.S.; writing—review and editing, C.d.S.C.C., M.d.F.C.S., M.G.M.D., C.D.R.M.D. and F.R.; supervision and project administration, C.D.R.M.D., D.F.R. and P.C.A.; funding acquisition, D.F.R. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Conselho Nacional de Desenvolvimento Científico e Tecnológico (CNPq), grant number 428243/2018-5 and Research Productivity, Grant number 305921/2019-3.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available in Figure 1, Figure 2 and Figure 3, Table 1, and Figures S1–S4 in the Supplementary Material.

Acknowledgments

This work is dedicated to the memory of our dear colleague and mentor, Professor Paulo Cesar Abreu, who passed away on 19 July 2022. During his career, he made a notable contribution to research on microalgae, biofuels, and metabolites of commercial interest. Furthermore, the authors thank the Coordenação de Aperfeiçoamento de Pessoal de Nível Superior (CAPES), Conselho Nacional de Desenvolvimento Científico e Tecnológico (CNPq), Rede Brasileira de Pesquisa em Tuberculose (REDE-TB), and Fundação de Amparo à Pesquisa do Estado do Rio Grande do Sul (FAPERGS).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Altmann, K.H. Drugs from the oceans: Marine natural products as leads for drug discovery. Chimia 2017, 71, 646–651. [Google Scholar] [CrossRef] [PubMed]
  2. Martins, A.; Vieira, H.; Gaspar, H.; Santos, S. Marketed marine natural products in the pharmaceutical and cosmeceutical industries: Tips for success. Mar. Drugs 2014, 12, 1066–1101. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Blunt, J.W.; Carroll, A.R.; Copp, B.R.; Davis, R.A.; Keyzers, R.A.; Prinsep, M.R. Marine natural products. Nat. Prod. Rep. 2018, 34, 235–294. [Google Scholar] [CrossRef] [Green Version]
  4. Guiry, M.D. How many species of algae are there? J. Phycol. 2012, 48, 1057–1063. [Google Scholar] [CrossRef]
  5. Hopes, A.; Mock, T. Evolution of Microalgae and Their Adaptations in Different Marine Ecosystems. eLS 2015, 1–9. [Google Scholar] [CrossRef]
  6. Lauritano, C.; Ferrante, M.I.; Rogato, A. Marine Natural Products from Microalgae: An -Omics Overview. Mar. Drugs 2019, 17, 269. [Google Scholar] [CrossRef] [Green Version]
  7. Matos, Â.P. The Impact of Microalgae in Food Science and Technology. JAOCS J. Am. Oil Chem. Soc. 2017, 94, 1333–1350. [Google Scholar] [CrossRef]
  8. Borowitzka, M.A. High-value products from microalgae-their development and commercialization. J. Appl. Phycol. 2013, 25, 743–756. [Google Scholar] [CrossRef]
  9. Gul, W.; Hamann, M.T. Indole alkaloid marine natural products: An established source of cancer drug leads with considerable promise for the control of parasitic, neurological and other diseases. Life Sci. 2005, 78, 442–453. [Google Scholar] [CrossRef]
  10. Habbu, P.; Warad, V.; Shastri, R.; Madagundi, S.; Kulkarni, V.H. Antimicrobial metabolites from marine microorganisms. Chin. J. Nat. Med. 2016, 14, 101–116. [Google Scholar] [CrossRef]
  11. Mayer, A.M.S.; Rodríguez, A.D.; Taglialatela-Scafati, O.; Fusetani, N. Marine pharmacology in 2009–2011: Marine compounds with antibacterial, antidiabetic, antifungal, anti-inflammatory, antiprotozoal, antituberculosis, and antiviral activities; affecting the immune and nervous systems, and other miscellaneous mechanisms of action. Mar. Drugs 2013, 11, 2510–2573. [Google Scholar] [CrossRef] [PubMed]
  12. Roselet, F.; Vandamme, D.; Muylaert, K.; Abreu, P.C. Harvesting of microalgae for biomass production. In Microalgae Biotechnology for Development of Biofuel and Wastewater Treatment; Springer: Singapore, 2019. [Google Scholar] [CrossRef]
  13. de Freitas Coêlho, D.; Tundisi, L.L.; Cerqueira, K.S.; da Silva Rodrigues, J.R.; Mazzola, P.G.; Tambourgi, E.B.; de Souza, R.R. Microalgae: Cultivation aspects and bioactive compounds. Braz. Arch. Biol. Technol. 2019, 62, e19180343. [Google Scholar] [CrossRef]
  14. Thompson, F.; Krüger, R.; Thompson, C.C.; Berlinck, R.G.S.; Coutinho, R.; Landell, M.F.; Pavão, M.; Mourão, P.A.S.; Salles, A.; Negri, N.; et al. Marine Biotechnology in Brazil: Recent Developments and Its Potential for Innovation. Front. Mar. Sci. 2018, 5, 236. [Google Scholar] [CrossRef] [Green Version]
  15. Radakovits, R.; Jinkerson, R.E.; Fuerstenberg, S.I.; Tae, H.; Settlage, R.E.; Boore, J.L.; Posewitz, M.C. Draft genome sequence and genetic transformation of the oleaginous alga Nannochloropis gaditana. Nat. Commun. 2012, 3, 686. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Al-Hoqani, U.; Young, R.; Purton, S. The biotechnological potential of Nannochloropsis. Perspect. Phycol. 2017, 4, 1–15. [Google Scholar] [CrossRef] [Green Version]
  17. Ma, X.N.; Chen, T.P.; Yang, B.; Liu, J.; Chen, F. Lipid production from Nannochloropsis. Mar. Drugs 2016, 14, 61. [Google Scholar] [CrossRef] [Green Version]
  18. Ben-Sheleg, A.; Khozin-Godberg, I.; Yaakov, B.; Vonshak, A. Characterization of nannochloropsis oceanica rose bengal mutants sheds light on acclimation mechanisms to high light when grown in low temperature. Plant Cell Physiol. 2021, 62, 1478–1493. [Google Scholar] [CrossRef]
  19. Guedes, A.C.; Malcata, F. Nutritional Value and Uses of Microalgae in Aquaculture. In Aquaculture; IntechOpen: London, UK, 2012. [Google Scholar] [CrossRef] [Green Version]
  20. Serôdio, J.; Lavaud, J. Diatoms and Their Ecological Importance. In Life Below Water. Encyclopedia of the UN Sustainable Development Goals; Leal Filho, W., Azul, A.M., Brandli, L., Lange Salvia, A., Wall, T., Eds.; Springer: Cham, Switzerland, 2020. [Google Scholar] [CrossRef]
  21. Radchenko, I.G.; Il’yash, L.V. Growth and photosynthetic activity of diatom Thalassiosira weissflogii at decreasing salinity. Biol. Bull. 2006, 33, 242–247. [Google Scholar] [CrossRef]
  22. Halac, S.R.; Villafañe, V.E.; Helbling, E.W. Temperature benefits the photosynthetic performance of the diatoms Chaetoceros gracilis and Thalassiosira weissflogii when exposed to UVR. J. Photochem. Photobiol. B Biol. 2010, 101, 196–205. [Google Scholar] [CrossRef]
  23. Antal, T.K.; Osipov, V.; Matorin, D.N.; Rubin, A.B. Membrane potential is involved in regulation of photosynthetic reactions in the marine diatom Thalassiosira weissflogii. J. Photochem. Photobiol. B Biol. 2011, 102, 169–173. [Google Scholar] [CrossRef]
  24. Klein Breteler, W.C.M.; Schogt, N.; Rampen, S. Effect of diatom nutrient limitation on copepod development: Role of essential lipids. Mar. Ecol. Prog. Ser. 2005, 291, 125–133. [Google Scholar] [CrossRef]
  25. Farooq, H.; Courtier-Murias, D.; Soong, R.; Bermel, W.; Kingery, W.M.; Simpson, A.J. HR-MAS NMR Spectroscopy: A Practical Guide for Natural Samples. Curr. Org. Chem. 2013, 17, 3013–3031. [Google Scholar] [CrossRef]
  26. Keifer, P.A.; Baltusis, L.; Rice, D.M.; Tymiak, A.A.; Shoolery, J.N. A comparison of NMR spectra obtained for solid-phase-synthesis resins using conventional high-resolution, magic-angle-spinning, and high-resolution magic-angle-spinning probes. J. Magn. Reson. Ser. A 1996, 119, 65–75. [Google Scholar] [CrossRef]
  27. Lindon, J.C.; Beckonert, O.P.; Holmes, E.; Nicholson, J.K. High-resolution magic angle spinning NMR spectroscopy: Application to biomedical studies. Prog. Nucl. Magn. Reson. Spectrosc. 2009, 55, 79–100. [Google Scholar] [CrossRef]
  28. Dutra, L.M.; da Conceição Santos, A.D.; Lourenço, A.V.F.; Nagata, N.; Heiden, G.; Campos, F.R.; Barison, A. 1H HR-MAS NMR and chemometric methods for discrimination and classification of Baccharis (Asteraceae): A proposal for quality control of Baccharis trimera. J. Pharm. Biomed. Anal. 2020, 184, 113200. [Google Scholar] [CrossRef]
  29. Ali, S.; Rech, K.S.; Badshah, G.; Soares, F.L.F.; Barison, A. 1H HR-MAS NMR-Based Metabolomic Fingerprinting to Distinguish Morphological Similarities and Metabolic Profiles of Maytenus ilicifolia, a Brazilian Medicinal Plant. J. Nat. Prod. 2021, 84, 1707–1714. [Google Scholar] [CrossRef]
  30. da Conceição Santos, A.D.; Fonseca, F.A.; Dutra, L.M.; de Fátima Costa Santos, M.; Menezes, L.R.A.; Campos, F.R.; Nagata, N.; Ayub, R.; Barison, A. 1H HR-MAS NMR-based metabolomics study of different persimmon cultivars (Diospyros kaki) during fruit development. Food Chem. 2018, 239, 511–519. [Google Scholar] [CrossRef]
  31. Chauton, M.S.; Størseth, T.R.; Krane, J. High-resolution magic angle spinning NMR analysis of whole cells of Chaetoceros muelleri (Bacillariophyceae) and comparison with 13C-NMR and distortionless enhancement by polarization transfer 13C-NMR analysis of lipophilic extracts. J. Phycol. 2004, 40, 611–618. [Google Scholar] [CrossRef]
  32. Couto, C.; Hernández, C.P.; Alves Sobrinho, R.C.M.; Mendes, C.R.B.; Roselet, F.; Abreu, P.C. Optimization of a low-cost fertilizer-based medium for large-scale cultivation of the coastal diatom Conticribra weissflogii using response surface methodology and its effects on biomass composition. J. Appl. Phycol. 2021, 33, 2767–2781. [Google Scholar] [CrossRef]
  33. Kubelka, B.G.; Roselet, F.; Pinto, W.T.; Abreu, P.C. The action of small bubbles in increasing light exposure and production of the marine microalga Nannochloropsis oceanica in massive culture systems. Algal Res. 2018, 35, 569–576. [Google Scholar] [CrossRef]
  34. Roselet, F.; Vandamme, D.; Roselet, M.; Muylaert, K.; Abreu, P.C. Effects of pH, Salinity, Biomass Concentration, and Algal Organic Matter on Flocculant Efficiency of Synthetic Versus Natural Polymers for Harvesting Microalgae Biomass. Bioenergy Res. 2017, 10, 427–437. [Google Scholar] [CrossRef] [Green Version]
  35. Martínez-Bisbal, M.C.; Carbó Mestre, N.; Martínez-Máñez, R.; Bauzá, J.; Alcañiz Fillol, M. Microalgae degradation follow up by voltammetric electronic tongue, impedance spectroscopy and NMR spectroscopy. Sens. Actuators B Chem. 2019, 281, 44–52. [Google Scholar] [CrossRef]
  36. Sathasivam, R.; Radhakrishnan, R.; Hashem, A.; Abd_Allah, E.F. Microalgae metabolites: A rich source for food and medicine. Saudi J. Biol. Sci. 2019, 26, 709–722. [Google Scholar] [CrossRef] [PubMed]
  37. Zanella, L.; Vianello, F. Microalgae of the genus Nannochloropsis: Chemical composition and functional implications for human nutrition. J. Funct. Foods 2020, 68, 103919. [Google Scholar] [CrossRef]
  38. Hughes, A.H.; Magot, F.; Tawfike, A.F.; Rad-Menéndez, C.; Thomas, N.; Young, L.C.; Stucchi, L.; Carettoni, D.; Stanley, M.S.; Edrada-Ebel, R.; et al. Exploring the chemical space of macro-and micro-algae using comparative metabolomics. Microorganisms 2021, 9, 311. [Google Scholar] [CrossRef]
  39. Park, Y.H.; Han, S.-I.; Oh, B.; Kim, H.S.; Jeon, M.S.; Kim, S.; Choi, Y.-E. Microalgal secondary metabolite productions as a component of biorefinery: A review. Biooresour. Technol. 2022, 344 Pt A, 126206. [Google Scholar] [CrossRef]
  40. Abreu, A.C.; Molina-Miras, A.; Aguilera-Saéz, L.M.; López-Rosales, L.; Cerón-Garciá, M.D.C.; Sánchez-Mirón, A.; Olmo-Garciá, L.; Carrasco-Pancorbo, A.; Garciá-Camacho, F.; Molina-Grima, E.; et al. Production of Amphidinols and Other Bioproducts of Interest by the Marine Microalga Amphidinium carterae Unraveled by Nuclear Magnetic Resonance Metabolomics Approach Coupled to Multivariate Data Analysis. J. Agric. Food Chem. 2019, 67, 9667–9682. [Google Scholar] [CrossRef]
  41. Ma, N.L.; Aziz, A.; Teh, K.Y.; Lam, S.S.; Cha, T.S. Metabolites Re-programming and Physiological Changes Induced in Scenedesmus regularis under Nitrate Treatment. Sci. Rep. 2018, 8, 9746. [Google Scholar] [CrossRef] [Green Version]
  42. Azizan, A.; Bustamam, M.S.A.; Maulidiani, M.; Shaari, K.; Ismail, I.S.; Nagao, N.; Abas, F. Metabolite profiling of the microalgal diatom chaetoceros calcitrans and correlation with antioxidant and nitric oxide inhibitory Activities via 1H NMR-Based Metabolomics. Mar. Drugs 2018, 16, 154. [Google Scholar] [CrossRef] [Green Version]
  43. Crable, B.R.; Plugge, C.M.; McInerney, M.J.; Stams, A.J.M. Formate formation and formate conversion in biological fuels production. Enzym. Res. 2011, 2011, 532536. [Google Scholar] [CrossRef] [Green Version]
  44. Pietzke, M.; Meiser, J.; Vazquez, A. Formate metabolism in health and disease. Mol. Metab. 2020, 33, 23–37. [Google Scholar] [CrossRef] [PubMed]
  45. Eadsforth, T.C.; Gardiner, M.; Maluf, F.V.; McElroy, S.; James, D.; Frearson, J.; Gray, D.; Hunter, W.N. Assessment of Pseudomonas aeruginosa N5,N10-methylenetetrahydrofolate dehydrogenase-cyclohydrolase as a potential antibacterial drug target. PLoS ONE 2012, 7, e35973. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  46. Ramos, D.F.; Bartolomeu Halicki, P.C.; da Silva Canielles Caprara, C.; Borges, P.; da D’Oca, C.R.M.; de Santos, M.F.C.; D’Oca, M.G.M.; Roselet, F.; Almeida da Silva, P.E.; Abreu, P.C. Chemical Profile and Antimicrobial Activity of the Marine Diatom Chaetoceros muelleri. Chem. Biodivers. 2022, 19, e202100846. [Google Scholar] [CrossRef] [PubMed]
  47. Sonnenschein, E.C.; Syit, D.A.; Grossart, H.P.; Ullrich, M.S. Chemotaxis of Marinobacter adhaerens and its impact on attachmentto the diatom Thalassiosira weissflogii. Appl. Environ. Microbiol. 2012, 78, 6900–6907. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  48. Li, L.; Wang, H.; Wang, S.; Xu, Y.; Liang, H.; Liu, H.; Sonnenschein, E.C. The Draft Genome of the Centric Diatom Conticribra weissflogii (Coscinodiscophyceae, Ochrophyta). Protist 2021, 172, 125845. [Google Scholar] [CrossRef] [PubMed]
  49. Stachura-Suchoples, K.; Williams, D.M. Description of Conticribra tricircularis, a new genus and species of Thalassiosirales, with a discussion on its relationship to other continuous cribra species of Thalassiosira Cleve (Bacillariophyta) and its freshwater origin. Eur. J. Phycol. 2009, 44, 477–486. [Google Scholar] [CrossRef]
  50. Ribalet, F.; Intertaglia, L.; Lebaron, P.; Casotti, R. Differential effect of three polyunsaturated aldehydes on marine bacterial isolates. Aquat. Toxicol. 2008, 86, 249–255. [Google Scholar] [CrossRef]
  51. Rizzi, J.; Moro, T.R.; Winnischofer, S.M.B.; Colusse, G.A.; Tamiello, C.S.; Trombetta-Lima, M.; Noleto, G.R.; Dolga, A.M.; Duarte, M.E.R.; Noseda, M.D. Chemical structure and biological activity of the (1 → 3)-linked β-D-glucan isolated from marine diatom Conticribra weissflogii. Int. J. Biol. Macromol. 2022, 224, 584–593. [Google Scholar] [CrossRef]
  52. Barrera-Alba, J.J.; Abreu, P.C.; Tenenbaum, D.R. Seasonal and inter-annual variability in phytoplankton over a 22-year period in a tropical coastal region in the southwestern Atlantic Ocean. Cont. Shelf Res. 2019, 176, 51–63. [Google Scholar] [CrossRef]
Metabolites 13 00202 g001 550

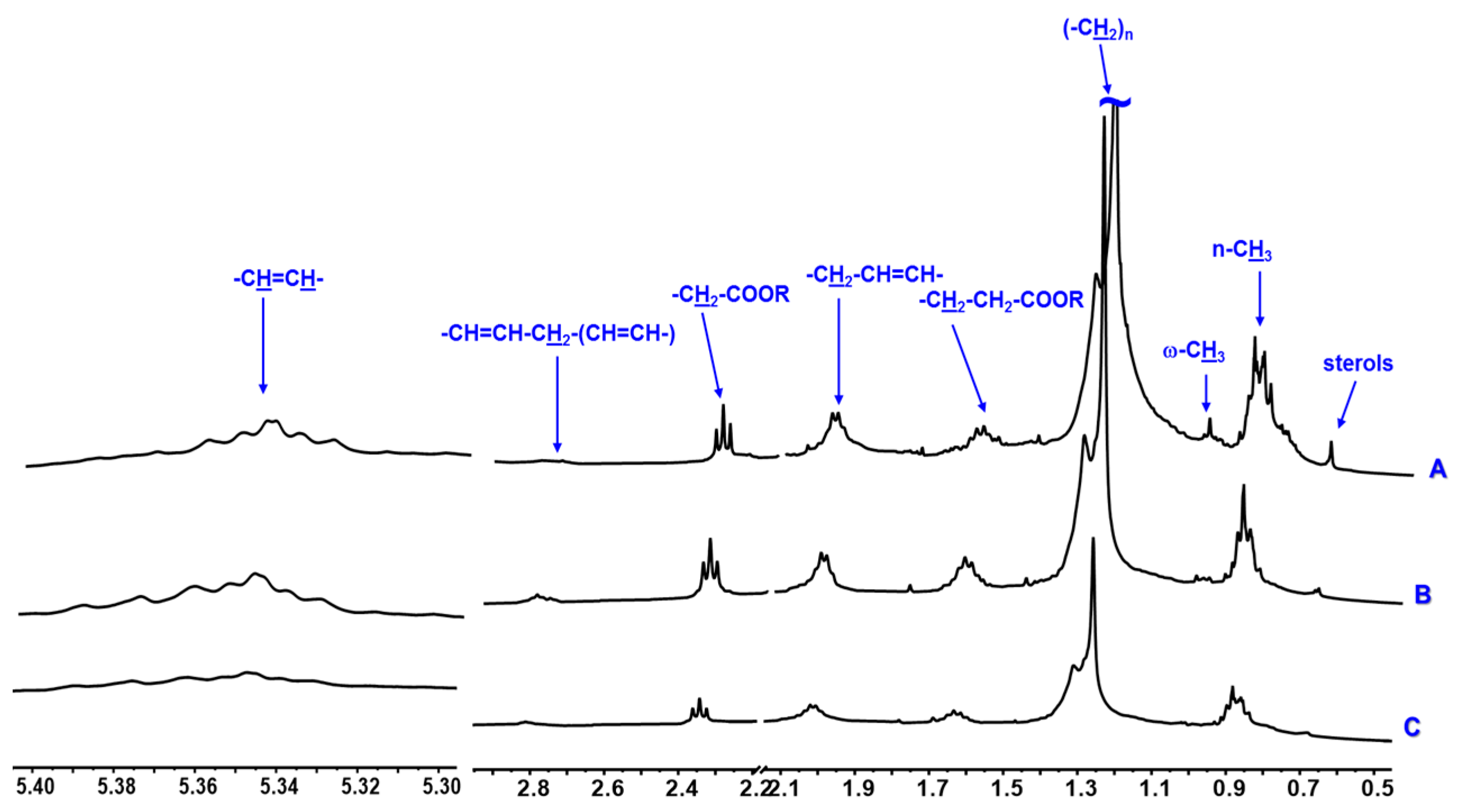

Figure 1. 1H HR-MAS NMR spectra (400 MHz, CDCl3) of the microalgae N. oceanica (A), C. muelleri (B), and C. weissflogii (C). In blue, types of hydrogens of polyunsaturated fatty acids are indicated.
Figure 1. 1H HR-MAS NMR spectra (400 MHz, CDCl3) of the microalgae N. oceanica (A), C. muelleri (B), and C. weissflogii (C). In blue, types of hydrogens of polyunsaturated fatty acids are indicated.
Metabolites 13 00202 g001
Metabolites 13 00202 g002 550

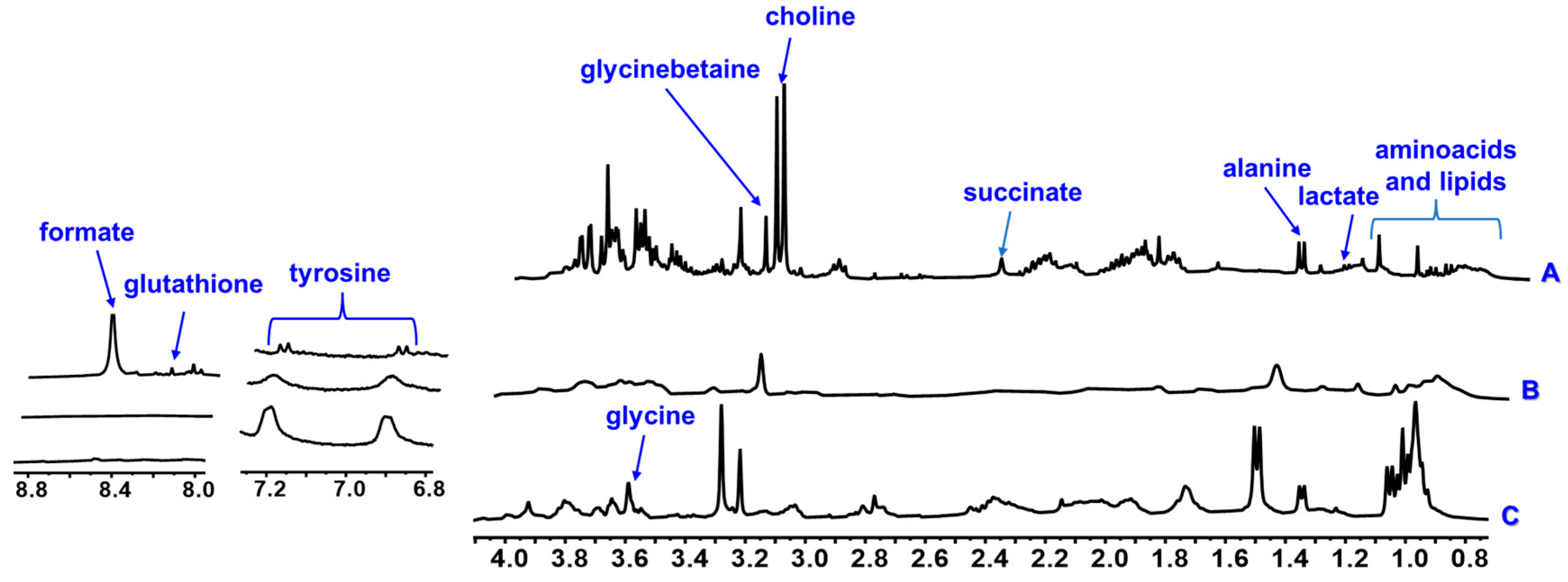

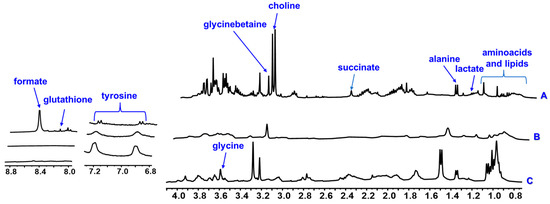

Figure 2. 1H HR-MAS NMR spectra (400 MHz, D2O) of the microalgae N. oceanica (A), C. muelleri (B), and C. weissflogii (C). In blue, the metabolites identified are indicated.
Figure 2. 1H HR-MAS NMR spectra (400 MHz, D2O) of the microalgae N. oceanica (A), C. muelleri (B), and C. weissflogii (C). In blue, the metabolites identified are indicated.
Metabolites 13 00202 g002
Metabolites 13 00202 g003 550

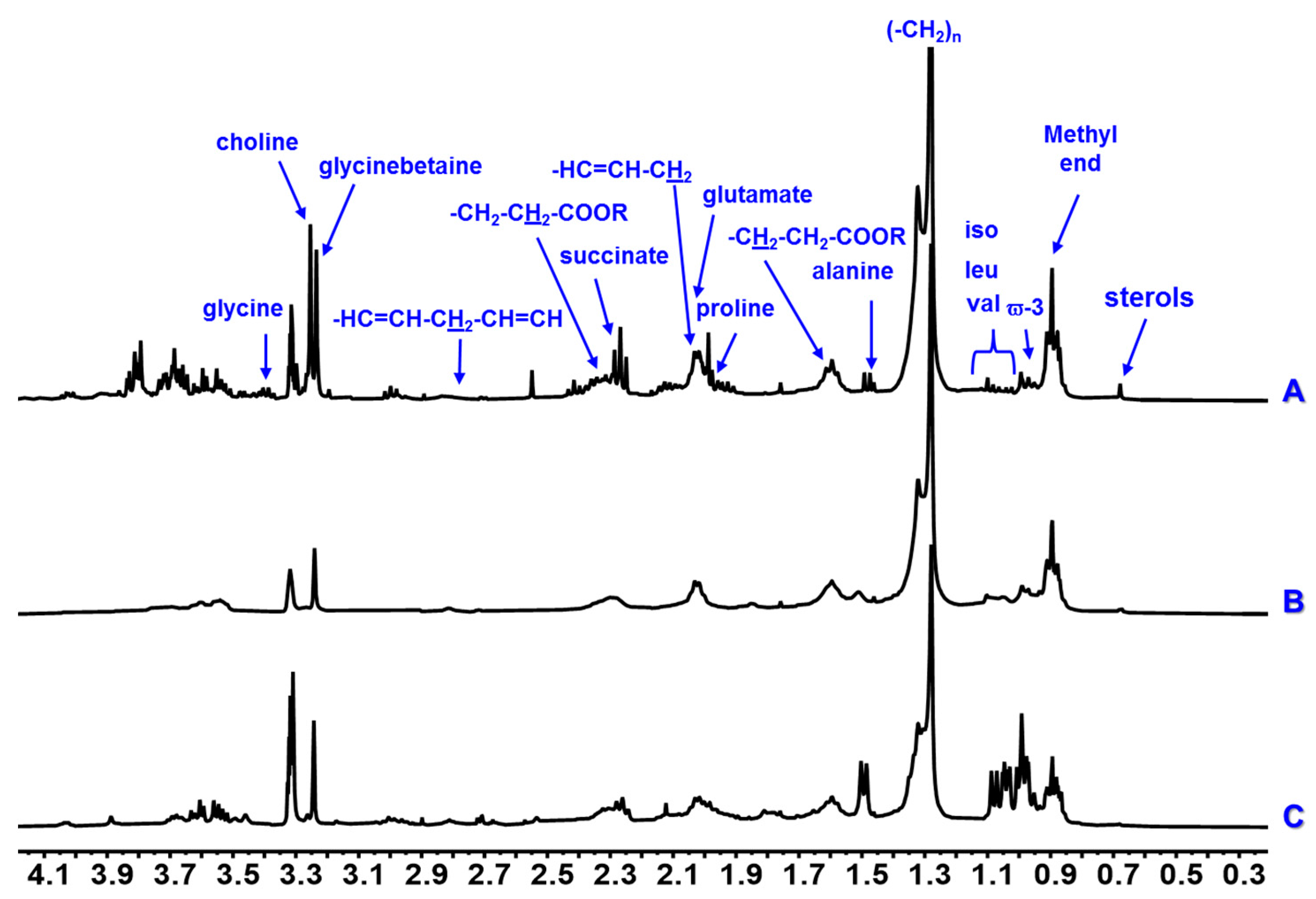

Figure 3. 1H HR-MAS NMR spectra (400 MHz, MeOD) of the microalgae N. oceanica (A), C. muelleri (B) and C. weissflogii (C). In blue, the metabolites or types of hydrogens identified are indicated.
Figure 3. 1H HR-MAS NMR spectra (400 MHz, MeOD) of the microalgae N. oceanica (A), C. muelleri (B) and C. weissflogii (C). In blue, the metabolites or types of hydrogens identified are indicated.
Metabolites 13 00202 g003
Table
Table 1. Assignment of main resonances of marine microalgae by 1H HR-MAS NMR (400 MHz).
Table 1. Assignment of main resonances of marine microalgae by 1H HR-MAS NMR (400 MHz).
ClassCompoundδH mult. (J in Hz)CDCl3D2OCD3OD
N. OC. MC. WN. OC. MC. WN. OC. MC. W
Amino AcidsIsoleucine0.95 t (7.0), 1.02 d (7.0)---xxx xxx
Leucine0.99 m---xxxxxx
Valine1.02 d (7.0), 1.07 d (7.0)---xxxxxx
Alanine1.48 d (7.0)---xxxxxx
Proline1.97–2.07 m------xxx
Glutamate2.08 m, 2.14 m, 2.35 m------xxx
Choline3.20 s---xxxxxx
Glycinebetaine3.26 s---xxxxxx
Glycine3.59 s---xxxxxx
Phenylalanine7.24 m, 7.30 m, 7.34 m---xxxx-x
Histidine7.24 m, 8.13 s------x-x
Tyrosine6.89 d (8.1), 7.19 d (8.1)---xxxxxx
Glutatione8.23 s---xxx---
Organic acidsLactate1.33 d (6.7)---xxx---
Succinate2.30 s---x-xxxx
Formate8.47 s---x--x--
Sterols0.73 mxxx---xxx
Monounsaturated
Fatty acids		Methylic0.89 mxxx---xxx
Methylenic1.35–1.25 mxxx---xxx
–CH2–CH2–COOR1.59 mxxx---xxx
–CH2–CH2–COOR2.34 mxxx---xxx
PUFAsMethylic ϖ-30.98 t (7.0)x-----x--
–CH2–CH2–COOR1.62 mxxx---xxx
Allylic2.06 mxxx---xxx
–CH2–CH2–COOR2.34 mxxx---xxx
bis-allylic2.81 mxxx---xxx
Vinylic5.40–5.30 mxxx---xxx
N. O—N. oceanica; C. M—C. muelleri; C. W—C. weissflogii. (δ) Chemical shift in ppm. x—Indicates the presence of the metabolite.
