Effects of Annealing Atmosphere on Electrical Performance and Stability of High-Mobility Indium-Gallium-Tin Oxide Thin-Film Transistors

by
Hwan-Seok Jeong
,
Hyun Seok Cha
,
Seong Hyun Hwang
and
Hyuck-In Kwon
*
School of Electrical and Electronics Engineering, Chung-Ang University, Seoul 06972, Korea
*
Author to whom correspondence should be addressed.
Electronics 2020, 9(11), 1875; https://doi.org/10.3390/electronics9111875
Submission received: 11 October 2020 / Revised: 5 November 2020 / Accepted: 6 November 2020 / Published: 7 November 2020
(This article belongs to the Special Issue Applications of Thin Films in Microelectronics)
Browse Figures
Versions Notes

Abstract

:
In this study, we examined the effects of the annealing atmosphere on the electrical performance and stability of high-mobility indium-gallium-tin oxide (IGTO) thin-film transistors (TFTs). The annealing process was performed at a temperature of 180 °C under N2, O2, or air atmosphere after the deposition of IGTO thin films by direct current magnetron sputtering. The field-effect mobility (μFE) of the N2- and O2-annealed IGTO TFTs was 26.6 cm2/V·s and 25.0 cm2/V·s, respectively; these values were higher than that of the air-annealed IGTO TFT (μFE = 23.5 cm2/V·s). Furthermore, the stability of the N2- and O2-annealed IGTO TFTs under the application of a positive bias stress (PBS) was greater than that of the air-annealed device. However, the N2-annealed IGTO TFT exhibited a larger threshold voltage shift under negative bias illumination stress (NBIS) compared with the O2- and air-annealed IGTO TFTs. The obtained results indicate that O2 gas is the most suitable environment for the heat treatment of IGTO TFTs to maximize their electrical properties and stability. The low electrical stability of the air-annealed IGTO TFT under PBS and the N2-annealed IGTO TFT under NBIS are primarily attributed to the high density of hydroxyl groups and oxygen vacancies in the channel layers, respectively.

1. Introduction

Since the inceptive report on indium-gallium-zinc oxide (IGZO) thin-film transistors (TFTs) published by Nomura et al. in 2004, IGZO TFTs have attracted significant research interest, owing to their excellent electrical properties, high uniformity, and low fabrication costs. IGZO TFTs are widely used as the backplanes of large-area flat-panel displays, including active matrix organic light-emitting diode (OLED) displays [1,2,3,4,5]. However, the field-effect mobility (μFE) of IGZO TFTs is approximately 10 cm2/V·s, which is insufficient to meet the requirements of ultra-high-resolution and high-frame-rate next-generation displays. Over the past decade, various oxide TFTs with higher field-effect mobilities than those of IGZO TFTs have been extensively studied for next-generation display applications. Among these transistors, indium-gallium-tin oxide (IGTO) TFTs are promising as high-mobility oxide TFTs because of their excellent performance, even under low-temperature annealing conditions (<200 °C). The IGTO alloy comprises Sn cations instead of the Zn cations in IGZO, where the similar electronic configuration of the Sn4+ and In3+ ions enhances the formation of percolation conduction paths and increases the electron mobility of the former [6,7,8].
The oxygen-related species present in oxide thin-film transistors (TFTs), such as oxygen vacancies (VO) or hydroxyl (OH) groups, have a significant impact on the stability and electrical characteristics of the TFTs [9,10]. Thus far, extensive studies have been conducted to investigate the effects of various process conditions on the concentration of oxygen-related species in the oxide channel layer [11,12,13,14,15,16,17]. The post-deposition annealing atmosphere has a particularly strong influence on the number of oxygen species within the channel layer and also affects the electrical properties and stability of oxide TFTs with various channel materials [18,19,20,21,22,23,24]. However, in most prior studies, the results obtained under various heat-treatment environments differed depending on the selected channel material and process conditions, suggesting the need to determine the most suitable annealing atmosphere for IGTO TFTs in order to enhance the electrical characteristics of the IGTO TFTs. However, to date, the influence of the annealing environment on the electrical properties of IGTO TFTs has not been examined. In this study, we investigate the effects of various annealing environments on the electrical performance and stability of IGTO TFTs. For this purpose, post-deposition annealing is performed at a temperature of 180 °C under N2, O2, and air atmosphere. From the obtained results, it is concluded that O2 gas is the most suitable post-deposition atmosphere for IGTO TFT fabrication.

2. Experimental

Experiments were conducted using bottom-gate top-source/drain electrode IGTO TFTs, where p+-Si wafers served as both the substrates and gate electrodes. A 100 nm thick SiO2 layer was thermally grown on top of a Si wafer as the gate insulator, and a 20 nm thick IGTO thin film was deposited on top of a SiO2/p+-Si substrate via direct current (DC) magnetron sputtering of a 3-inch IGTO target. Sputtering was performed using a DC power of 150 W, an Ar/O2 ratio of 35/15 (sccm/sccm), and a deposition pressure of 3 mTorr; the substrate was at room temperature (RT). The source and drain electrodes were produced from a DC magnetron-sputtered 100 nm thick indium tin oxide layer. The channel and source/drain electrode layers were patterned using photolithography and lift-off techniques. Finally, the IGTO TFTs were thermally annealed at a temperature of 180 °C and a pressure of 1 atm for 2 h under N2, O2, and air atmosphere.
Figure 1 shows a schematic of the fabricated IGTO TFTs. All TFTs designed in this work had a channel width/length (W/L) of 75/100 (μm/μm). The effects of post-deposition annealing on the optical, structural, and chemical properties of the fabricated IGTO thin films were investigated by ultraviolet visible–near infrared (UV–vis–NIR) spectroscopy (V-670, JASCO, Tokyo, Japan), X-ray diffraction (XRD, D8-Advance, Bruker-AXS, Wisconsin, USA) and X-ray photoelectron spectroscopy (XPS, K-alpha+, Thermo Fisher Scientific-KR, Seoul, Korea). Electrical characterization of the produced TFTs was conducted using a semiconductor parameter analyzer (4156C, Agilent Technologies, Santa Clara, USA) at RT, in the dark, under vacuum to avoid possible effects of the ambient environment on the properties of the IGTO TFT.

3. Results and Discussion

Figure 2 shows the transfer characteristics of the N2-, O2-, and air-annealed IGTO TFTs plotted on a semi-logarithmic scale, where ID, VGS, and VDS are the drain current, gate-to-source voltage, and drain-to-source voltage, respectively. Measurements were conducted by sweeping VGS from −30 to 30 V at VDS = 0.5 V for all TFTs. Table 1 lists the electrical parameters of the three fabricated TFTs. The field-effect mobility (µFE) was calculated from the maximum transconductance at a VDS of 0.5 V, and the threshold voltage (VTH) was obtained from the VGS value, assuming that ID = W/L × 10−9 (A). The subthreshold swing (SS) was determined as the dVGS/dlogID value in the range of 10−10 < ID < 10−9 A.
The results presented in Figure 2 and Table 1 indicate that the highest μFE (26.6 cm2/V·s) and lowest VTH (= −6.0 V) were achieved with the N2-annealed IGTO TFT. In contrast, the lowest μFE (= 23.5 cm2/V·s) and highest VTH (= −2.0 V) were obtained with the air-annealed IGTO TFT. Finally, the corresponding values for the O2-annealed IGTO TFT were μFE = 25.0 cm2/V·s and VTH = −3.2 V, which lie between the corresponding values obtained for the N2- and air-annealed IGTO TFTs. The O2-annealed IGTO TFT afforded the lowest SS of 0.48 V/dec. as compared with those of the IGTO TFTs annealed in other environments. The obtained results clearly show that the post-deposition annealing atmosphere significantly affects the electrical performance of the IGTO TFTs.
Figure 3a–c shows the time dependence of the transfer characteristics of the N2-, O2-, and air-annealed IGTO TFTs obtained under a constant overdrive voltage stress of VOV = 20 V, where VOV = VGS − VTH. The insets in Figure 3a–c show the shift of transfer characteristics on a magnified scale during the positive bias stress (PBS). Figure 3d displays the VTH shifts (ΔVTH) determined for the three IGTO TFTs at various stress times. Analysis of the transfer characteristics of the respective TFTs showed a shift of VTH in the positive direction with an increase in the stress time, and the largest ΔVTH was observed for the air annealed IGTO TFT. However, the ΔVTH was significantly lower for the N2- and O2-annealed IGTO TFTs than for the air-annealed IGTO TFT after subjection to PBS for the same duration.
Figure 3e displays the SS variation determined for the three IGTO TFTs at various stress times. The SS value remains nearly unchanged during the PBS. Therefore, we did not consider additional defect generation in the active region during the PBS [25,26].
Figure 4a–e displays the time-dependence of the transfer characteristics, ΔVth, and SS values of the N2-, O2-, and air-annealed IGTO TFTs obtained after the application of a constant bias stress VOV = −15 V under illumination by a light-emitting diode (LED) backplane unit with a brightness of 3000 lx.
The transfer curves of all IGTO TFTs shifted in the negative direction with an increase in the stress time. The largest VTH shift was observed for the N2-annealed IGTO TFT; however, for the O2- and air annealed IGTO TFTs, ΔVTH was lower than that of the N2-annealed IGTO TFT after subjection to the negative bias illumination stress (NBIS). The SS value remained nearly unchanged during the NBIS.
Figure 3 and Figure 4 demonstrate that the post-deposition annealing environment affectrf not only the electrical properties of the IGTO TFTs, but also their stability under PBS and NBIS [27,28,29]. To elucidate the physical mechanism responsible for the processes illustrated in Figure 3 and Figure 4, the IGTO thin films annealed under different atmospheres were characterized by XRD, UV–vis–NIR spectroscopy, and XPS.
Figure 5 shows the XRD patterns of the N2-, O2-, and air annealed 20 nm thick IGTO thin films deposited on glass substrates. The obtained diffraction patterns contained only halo peaks at approximately 23° and 45°, originating from the glass substrates [30]; this suggests that the IGTO thin films comprised an amorphous phase, regardless of the annealing environment.
Figure 6a shows the optical transmittance spectra of the N2-, O2-, and air annealed 20 nm-thick IGTO thin films on the glass substrates, which were recorded in the wavelength range of 300–1400 nm. The optical transmittance of the glass substrate was subtracted from the obtained spectra to determine the actual optical transmittance of the deposited IGTO thin films. Figure 6b shows the Tauc plot constructed from the spectra presented in Figure 6a. The optical bandgap (Eg) of the IGTO thin films was approximately 3.88 eV regardless of the annealing environment, which indicates that the annealing environment had no effect on the Eg value.
Figure 7a–c displays the XPS O 1s spectra of the N2-, O2-, and air annealed IGTO thin films, respectively, recorded for the middle of the thin films. The obtained XPS profiles were deconvoluted into three sub-peaks originating from the lattice oxygen (OI), VO (OII), and impurity-related oxygen (OIII), respectively, using the Gaussian function. The binding energies of these components were fixed at 529.8 ± 0.1 eV, 530.7 ± 0.1 eV, and 531.8 ± 0.1 eV, respectively [7,31]. Figure 7d shows the relative areas of the OI, OII, and OIII peaks, which were obtained for the IGTO thin films, annealed under different atmospheres. The XPS data presented in Figure 7 indicate that the relative area of the OIII component of the air-annealed IGTO thin film was much larger than that of the N2- and O2-annealed films. In previous studies on oxide thin films and TFTs, OIII was primarily attributed to the oxygen bonds in OH functional groups, which generate acceptor-like states near the conduction band (CB) edge and enhance electron trapping during PBS application because of their polar nature in oxide semiconductors, such as IGZO and IGTO [32,33,34,35]. Therefore, the small value of μFE, large value of SS, and poor PBS stability of the air-annealed IGTO TFT can be attributed to the high concentration of OH groups within the channel layer that originated from the H2O species present in air. Because an n-type TFT with a higher density of acceptor-like states near the CB edge requires a larger VGS to switch on and fill up the states, the highest VTH value obtained for the air-annealed IGTO TFT can also be ascribed to the large number of OH groups within the IGTO channel.
Further, the largest OII relative area was obtained for the N2-annealed IGTO thin film (Figure 7). Note that VO generates shallow and deep donor states within the oxide channel layer. The shallow donor states supply electrons to the CB; thus, the electron concentration increases with an increase in the number of VO sites within the channel layer. Furthermore, the higher electron concentration promotes the formation of percolation conduction paths in oxide semiconductors, such as IGZO and IGTO, making it very difficult to turn off the transistor [36,37,38]. Therefore, the low value of VTH and the high values of μFE and SS obtained for the N2-annealed IGTO TFT can be attributed to the large VO concentration within the channel layer caused by the desorption of oxygen atoms during N2 annealing. The poor NBIS stability of the N2-annealed IGTO TFT is likely caused by the high density of VO within the IGTO channel, because VO generates VO2+ species, which subsequently diffuse toward the gate insulator/channel interface under NBIS [39].

4. Conclusions

The effects of various post-deposition annealing environments on the electrical characteristics and stability of high-mobility IGTO TFTs were evaluated herein. The post-deposition annealing process was conducted at 180 °C under N2, O2, or air atmosphere. The lowest μFE and highest SS and VTH were obtained with the air annealed IGTO TFT, along with the lowest PBS stability. This phenomenon is attributed primarily to the large number of OH groups within the IGTO channel layer that originated from the H2O molecules in air. The μFE and PBS stability of the N2- and O2-annealed IGTO TFTs are higher than those of the air-annealed IGTO TFT. However, the NBIS stability of the N2-annealed IGTO TFTs is lower, accompanied by a larger negative shift of the VTH values compared with the corresponding parameters for the O2-annealed IGTO TFTs because of the large VO concentration within the channel layer, caused by the desorption of oxygen atoms during N2 annealing. The obtained results suggest that O2 gas is the most suitable annealing environment for optimizing the electrical properties and stability of IGTO TFTs.

Author Contributions

Conceptualization, H.-S.J. and H.-I.K.; experiment, H.-S.J., H.S.C., and S.H.H.; data analysis, H.-S.J. and H.-I.K., writing—original draft preparation, H.-S.J.; supervision, H.-I.K.; writing—review and editing, H.-I.K. All authors have read and agreed to the published version of the manuscript.

Funding

This research was supported by the National Research Foundation of Korea (NRF), funded by the Korean Government (MSIT) (grant No. 2020R1A2B5B01001765). The authors thank Shinhyuk Kang (Samsung Corning Advanced Glass) for providing the IGTO sputter target used in this work.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Nomura, K.; Ohta, H.; Takagi, A.; Kamiya, T.; Hirano, M.; Hosono, H. Room-temperature fabrication of transparent flexible thin-film transistors using amorphous oxide semiconductors. Nature 2004, 432, 488–492. [Google Scholar] [CrossRef] [PubMed]
  2. Yabuta, H.; Sano, M.; Abe, K.; Aiba, T.; Den, T.; Kumomi, H.; Nomura, K.; Kamiya, T.; Hosono, H. High mobility thin-film transistor with amorphous InGaZnO4 channel fabricated by room temperature rf magnetron sputtering. Appl. Phys. Lett. 2006, 89, 112123. [Google Scholar] [CrossRef]
  3. Suresh, A.; Muth, J.F. Bias stress stability of indium gallium zinc oxide channel based transparent thin film transistors. Appl. Phys. Lett. 2008, 92, 033502. [Google Scholar] [CrossRef] [Green Version]
  4. Kamiya, T.; Nomura, K.; Hosono, H. Present status of amorphous In–Ga–Zn–O thin-film transistors. Sci. Technol. Adv. Mater. 2010, 11, 044305. [Google Scholar] [CrossRef] [PubMed]
  5. Park, M.-J.; Yun, D.-J.; Ryu, M.-K.; Yang, J.-H.; Pi, J.-E.; Kwon, O.-S.; Kim, G.H.; Hwang, C.-S.; Bak, J.-Y.; Yoon, S.-M. Improvements in the bending performance and bias stability of flexible InGaZnO thin film transistors and optimum barrier structures for plastic poly (ethylene naphthalate) substrates. J. Mater. Chem. C 2015, 3, 4779–4786. [Google Scholar] [CrossRef]
  6. Jeong, H.-J.; Lee, H.-M.; Oh, K.-T.; Park, J.; Park, J.-S. Enhancement of In–Sn–Ga–O TFT performance by the synergistic combination of UV + O3 radiation and low temperature annealing. J. Electroceram. 2016, 37, 158–162. [Google Scholar] [CrossRef]
  7. Oh, C.; Jang, H.; Kim, H.W.; Jung, H.; Park, H.; Cho, J.; Kim, B.S. Influence of oxygen partial pressure in In–Sn–Ga–O thin-film transistors at a low temperature. J. Alloy. Compd. 2019, 805, 211–217. [Google Scholar] [CrossRef]
  8. Kim, H.-A.; Kim, J.O.; Hur, J.S.; Son, K.-S.; Lim, J.H.; Cho, J.; Jeong, J.K. Achieving High Mobility in IGTO Thin-Film Transistors at a Low Temperature via Film Densification. IEEE Trans. Electron Devices 2018, 65, 4854–4860. [Google Scholar] [CrossRef]
  9. Jin, J.; Luo, Y.; Bao, P.; Brox-Nilsen, C.; Potter, R.; Song, A. Tuning the electrical properties of ZnO thin-film transistors by thermal annealing in different gases. Thin Solid Films 2014, 552, 192–195. [Google Scholar] [CrossRef]
  10. Huang, X.D.; Ma, Y.; Song, J.Q.; Lai, P.T.; Tang, W.M. Effects of Metal-Hydroxyl and InOx Defects on Performance of InGaZnO Thin-Film Transistor. IEEE Trans. Electron Devices 2018, 64, 1009–1013. [Google Scholar] [CrossRef]
  11. Kim, H.J.; Han, C.J.; Yoo, B.; Lee, J.; Lee, K.; Lee, K.H.; Oh, M.S. Effects of Intense Pulsed Light (IPL) Rapid Annealing and Back-Channel Passivation on Solution-Processed In–Ga–Zn–O Thin Film Transistors Array. Micromachines 2020, 11, 508. [Google Scholar] [CrossRef] [PubMed]
  12. Choi, S.; Kim, J.Y.; Kang, H.; Ko, D.; Rhee, J.; Choi, S.J.; Kim, D.M.; Kim, D.H. Effect of oxygen content on current stress-induced instability in bottom-gate amorphous InGaZnO thin-film transistors. Materials 2019, 12, 3149. [Google Scholar] [CrossRef] [Green Version]
  13. Huang, X.; Zhou, D.; Xu, W. Influence of N2/O2 Partial Pressure Ratio during Channel Layer Deposition on the Temperature and Light Stability of a-InGaZnO TFTs. Appl. Sci. 2019, 9, 1880. [Google Scholar] [CrossRef] [Green Version]
  14. Wang, D.; Furuta, M.; Tomai, S.; Yano, K. Understanding the Role of Temperature and Drain Current Stress in InSnZnO TFTs with Various Active Layer Thicknesses. Nanomaterials 2020, 10, 617. [Google Scholar] [CrossRef] [Green Version]
  15. Hu, S.; Ning, H.; Lu, K.; Fang, Z.; Li, Y.; Yao, R.; Xu, M.; Wang, L.; Peng, J.; Lu, X. Mobility Enhancement in Amorphous In–Ga–Zn–O Thin-Film Transistor by Induced Metallic in Nanoparticles and Cu Electrodes. Nanomaterials 2018, 8, 197. [Google Scholar] [CrossRef] [Green Version]
  16. Wang, D.; Furuta, M.; Tomai, S.; Yano, K. Impact of Photo-Excitation on Leakage Current and Negative Bias Instability in InSnZnO Thickness-Varied Thin-Film Transistors. Nanomaterials 2020, 10, 1782. [Google Scholar] [CrossRef] [PubMed]
  17. Park, J.; Kim, D.-K.; Park, J.-I.; Kang, I.M.; Jang, J.; Kim, H.; Lang, P.; Bae, J.-H. Numerical Analysis on Effective Mass and Traps Density Dependence of Electrical Characteristics of a-IGZO Thin-Film Transistors. Electronics 2020, 9, 119. [Google Scholar] [CrossRef] [Green Version]
  18. Zhou, X.; Han, D.; Dong, J.; Li, H.; Yi, Z.; Zhang, X.; Wang, Y. The Effects of Post Annealing Process on the Electrical Performance and Stability of Al–Zn–O Thin-Film Transistors. IEEE Electron Device Lett. 2020, 41, 569–572. [Google Scholar] [CrossRef]
  19. Kikuchi, Y.; Nomura, K.; Yanagi, H.; Kamiya, T.; Hirano, M.; Hosono, H. Device characteristics improvement of a-In–Ga–Zn–O TFTs by low-temperature annealing. Thin Solid Films 2010, 518, 3017–3021. [Google Scholar] [CrossRef]
  20. Fuh, C.S.; Sze, S.M.; Liu, P.T.; Teng, L.F.; Chou, Y.T. Role of environmental and annealing conditions on the passivation-free in-Ga–Zn–O TFT. Thin Solid Films 2011, 520, 1489–1494. [Google Scholar] [CrossRef]
  21. Qu, M.; Chang, C.-H.; Meng, T.; Zhang, Q.; Liu, P.-T.; Shieh, H.-P.D. Stability study of indium tungsten oxide thin-film transistors annealed under various ambient conditions. Phys. Status Solidi A 2017, 214, 1600465. [Google Scholar] [CrossRef]
  22. Chung, W.-F.; Chang, T.-C.; Li, H.-W.; Tseng, T.-Y.; Tai, Y.-H. Effects of Post-Deposition Annealing Atmosphere and Duration on Sol-Gel Derived Amorphous Indium-Zinc-Oxide Thin Film Transistors. ECS Trans. 2011, 41, 265–271. [Google Scholar] [CrossRef] [Green Version]
  23. Su, J.; Yang, H.; Ma, Y.; Li, R.; Jia, L.; Liu, D.; Zhang, X. Annealing atmosphere-dependent electrical characteristics and bias stability of N-doped InZnSnO thin film transistors. Mater. Sci. Semicond. Process. 2020, 113, 105040. [Google Scholar] [CrossRef]
  24. Lee, H.; Ha, S.H.; Bae, J.H.; Kang, I.M.; Kim, K.; Lee, W.Y.; Jang, J. Effect of annealing ambient on SnO2 thin film transistors via an ethanol-based sol-gel route. Electronics 2019, 8, 995. [Google Scholar] [CrossRef] [Green Version]
  25. Zhou, X.; Shao, Y.; Zhang, L.; Lu, H.; He, H.; Han, D.; Wang, Y.; Zhang, S. Oxygen Interstitial Creation in a-IGZO Thin-Film Transistors Under Positive Gate-Bias Stress. IEEE Electron Device Lett. 2017, 38, 1252–1255. [Google Scholar] [CrossRef]
  26. Kim, D.H.; Choi, S.; Jang, J.; Kang, H.; Kim, D.M.; Choi, S.-J.; Kim, Y.-S.; Oh, S.; Baeck, J.H.; Bae, J.U.; et al. Experimental decomposition of the positive bias temperature stress-induced instability in self-aligned coplanar InGaZnO thin-film transistors and its modeling based on the multiple stretched-exponential function. J. Soc. Inf. Disp. 2017, 25, 98–107. [Google Scholar] [CrossRef]
  27. Kim, Y.K.; Ahn, C.H.; Yun, M.G.; Cho, S.W.; Kang, W.J.; Cho, H.K. Periodically pulsed wet annealing approach for low-temperature processable amorphous InGaZnO thin film transistors with high electrical performance and ultrathin thickness. Sci. Rep. 2016, 6, 26287. [Google Scholar] [CrossRef] [Green Version]
  28. Chowdhury, M.D.H.; Um, J.G.; Jang, J. Remarkable changes in interface O vacancy and metal-oxide bonds in amorphous indium-gallium-zinc-oxide thin-film transistors by long time annealing at 250 °C. Appl. Phys. Lett. 2014, 105, 233504. [Google Scholar] [CrossRef]
  29. Kim, H.-D.; An, H.-M.; Seo, Y.; Zhang, Y.; Park, J.S.; Kim, T.G. Hydrogen passivation effects under negative bias temperature instability stress in metal/silicon-oxide/silicon-nitride/silicon-oxide/silicon capacitors for flash memories. Microelectron. Reliab. 2010, 50, 21–25. [Google Scholar] [CrossRef]
  30. Jung, S.H.; Moon, H.J.; Ryu, M.K.; Cho, K.I.; Bae, B.S.; Yun, E.-J. The effects of high-energy electron beam irradiation on the properties of IGZO thin films prepared by rf magnetron sputtering. J. Ceram. Process. Res. 2012, 13, s246–s250. [Google Scholar] [CrossRef]
  31. Jeong, H.-J.; Ok, K.-C.; Park, J.; Lim, J.; Cho, J.; Park, J.-S. Stability Improvement of In–Sn–Ga–O Thin-Film Transistors at Low Annealing Temperatures. IEEE Electron Device Lett. 2015, 36, 1160–1162. [Google Scholar] [CrossRef]
  32. Lee, E.; Kim, T.H.; Lee, S.W.; Kim, J.H.; Kim, J.; Jeong, T.G.; Ahn, J.-H.; Cho, B. Improved Electrical Performance of a Sol-Gel IGZO Transistor with High-k Al2O3 Gate Dielectric Achieved by Post Annealing. Nano Converg. 2019, 6, 1–8. [Google Scholar] [CrossRef] [Green Version]
  33. Ji, H.; Hwang, A.Y.; Lee, C.K.; Yun, P.S.; Bae, J.U.; Park, K.-S.; Jeong, J.K. Improvement in Field-Effect Mobility of Indium Zinc Oxide Transistor by Titanium Metal Reaction Method. IEEE Trans. Electron Devices 2015, 62, 1009–1013. [Google Scholar] [CrossRef]
  34. Kumaran, S.; Liu, M.-T.; Lee, K.-Y.; Tai, Y. The Impact of Solvents on the Performances of Solution-Processed Indium Gallium Zinc Oxide Thin-Film Transistors Using Nitrate Ligands. Adv. Eng. Mater. 2020, 22, 1901053. [Google Scholar] [CrossRef]
  35. Kim, S.T.; Shin, Y.; Yun, P.S.; Bae, J.U.; Chung, I.J.; Jeong, J.K. Achieving High Carrier Mobility Exceeding 70 cm2/Vs in Amorphous Zinc Tin Oxide Thin-Film Transistors. Electron. Mater. Lett. 2017, 13, 406–411. [Google Scholar] [CrossRef]
  36. Lee, S.; Ghaffarzadeh, K.; Nathan, A.; Robertson, J.; Jeon, S.; Kim, C.; Song, I.-H.; Chung, U.I. Trap-limited and percolation conduction mechanisms in amorphous oxide semiconductor thin film transistors. Appl. Phys. Lett. 2011, 98, 203508. [Google Scholar] [CrossRef]
  37. Yoon, J.; Jung, H.; Jang, J.T.; Lee, J.; Lee, Y.; Lim, M.; Kim, D.M.; Kim, D.H.; Choi, S.J. Hybrid Complementary inverter based on carbon nanotube and IGZO thin-film transistors with controlled process conditions. J. Alloy. Compd. 2018, 762, 456–462. [Google Scholar] [CrossRef]
  38. Mativenga, M.; Um, J.G.; Jang, J. Reduction of Bias and Light Instability of Mixed Oxide Thin-Film Transistors. Appl. Sci. 2017, 7, 885. [Google Scholar] [CrossRef] [Green Version]
  39. Oh, H.; Yoon, S.M.; Ryu, M.K.; Hwang, C.S.; Yang, S.; Park, S.H. Photon-accelerated negative bias instability involving subgap states creation in amorphous In–Ga–Zn–O thin film transistor. Appl. Phys. Lett. 2010, 97, 183502. [Google Scholar] [CrossRef]
Electronics 09 01875 g001 550
Figure 1. Cross-sectional schematic diagram of the fabricated indium-gallium-tin oxide (IGTO) thin-film transistors (TFTs).
Figure 1. Cross-sectional schematic diagram of the fabricated indium-gallium-tin oxide (IGTO) thin-film transistors (TFTs).
Electronics 09 01875 g001
Electronics 09 01875 g002 550

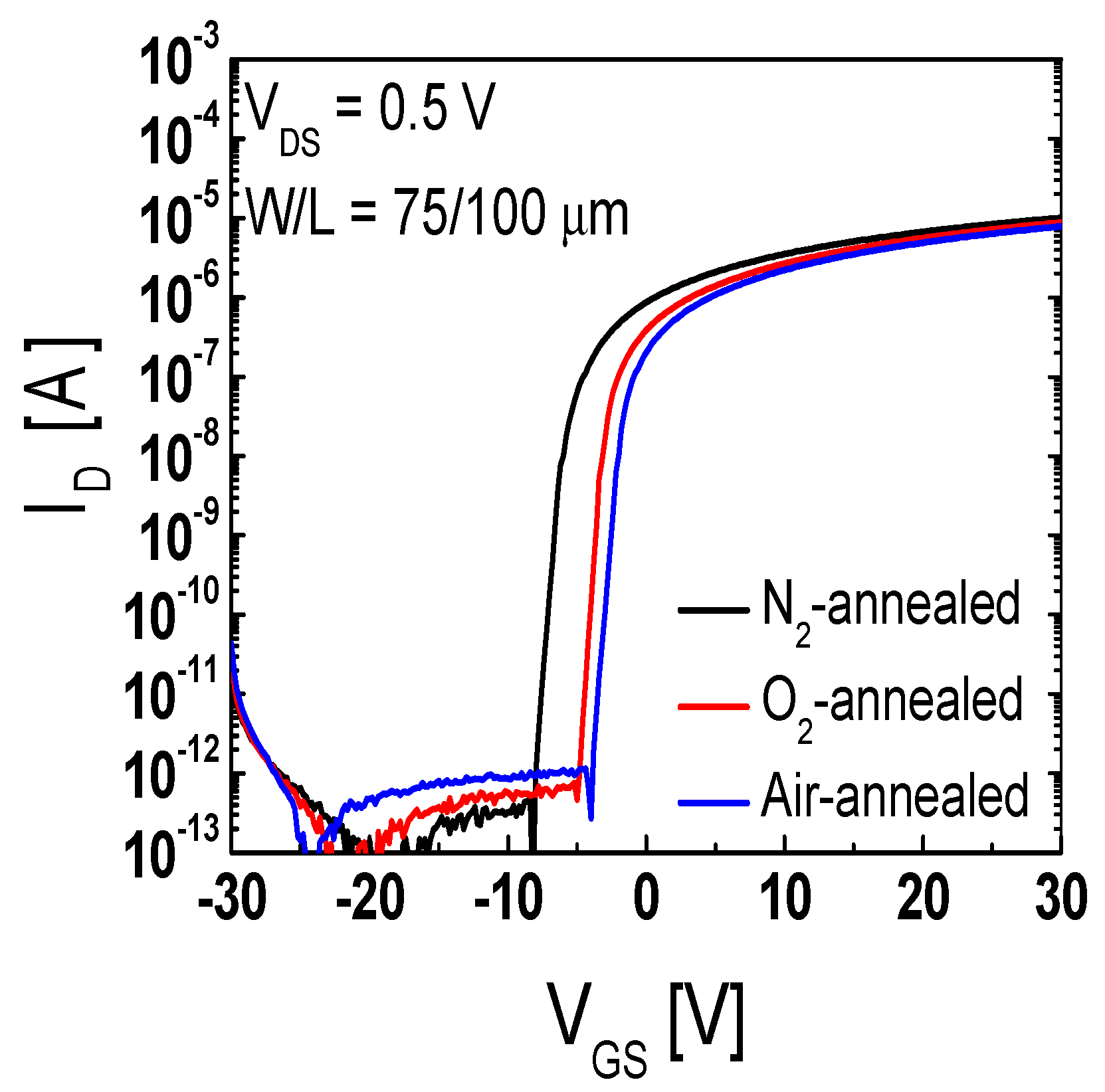

Figure 2. Transfer characteristics of N2-, O2-, and air-annealed IGTO TFTs plotted on a semi-logarithmic scale. The measurements were conducted by sweeping VGS from −30 to 30 V at VDS = 0.5 V for all TFTs.
Figure 2. Transfer characteristics of N2-, O2-, and air-annealed IGTO TFTs plotted on a semi-logarithmic scale. The measurements were conducted by sweeping VGS from −30 to 30 V at VDS = 0.5 V for all TFTs.
Electronics 09 01875 g002
Electronics 09 01875 g003 550

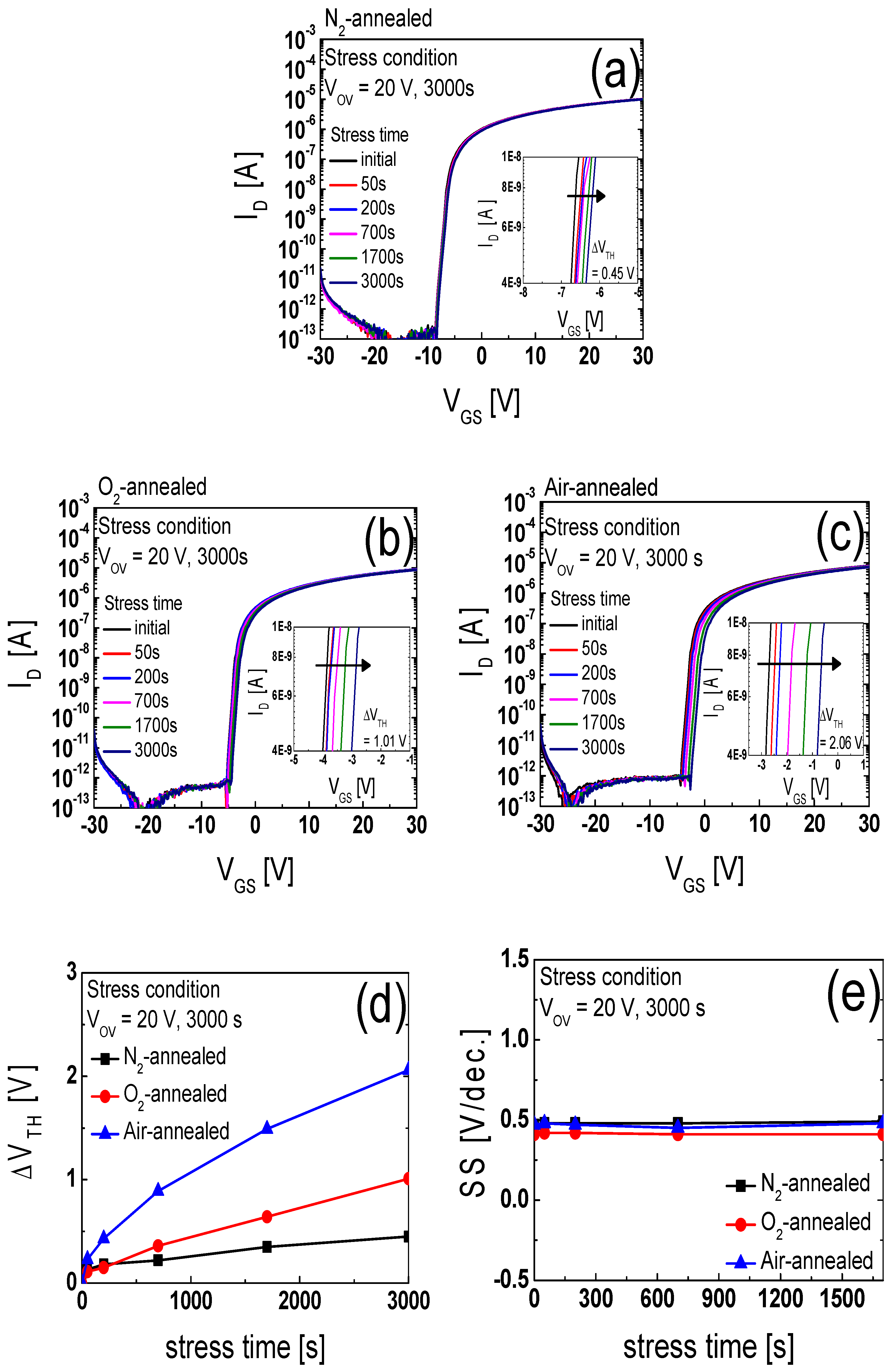

Figure 3. Time-dependence of transfer characteristics of (a) N2-, (b) O2-, and (c) air-annealed IGTO TFTs, determined under a constant overdrive voltage stress of VOV = 20 V. The insets in (a–c) show the shift of transfer characteristics on a magnified scale. (d) ΔVTH values obtained for the N2-, O2-, and air-annealed IGTO TFTs after subjection to PBS various times. (e) Subthreshold swing (SS) values obtained for the N2-, O2-, and air-annealed IGTO TFTs at every PBS time.
Figure 3. Time-dependence of transfer characteristics of (a) N2-, (b) O2-, and (c) air-annealed IGTO TFTs, determined under a constant overdrive voltage stress of VOV = 20 V. The insets in (a–c) show the shift of transfer characteristics on a magnified scale. (d) ΔVTH values obtained for the N2-, O2-, and air-annealed IGTO TFTs after subjection to PBS various times. (e) Subthreshold swing (SS) values obtained for the N2-, O2-, and air-annealed IGTO TFTs at every PBS time.
Electronics 09 01875 g003
Electronics 09 01875 g004 550

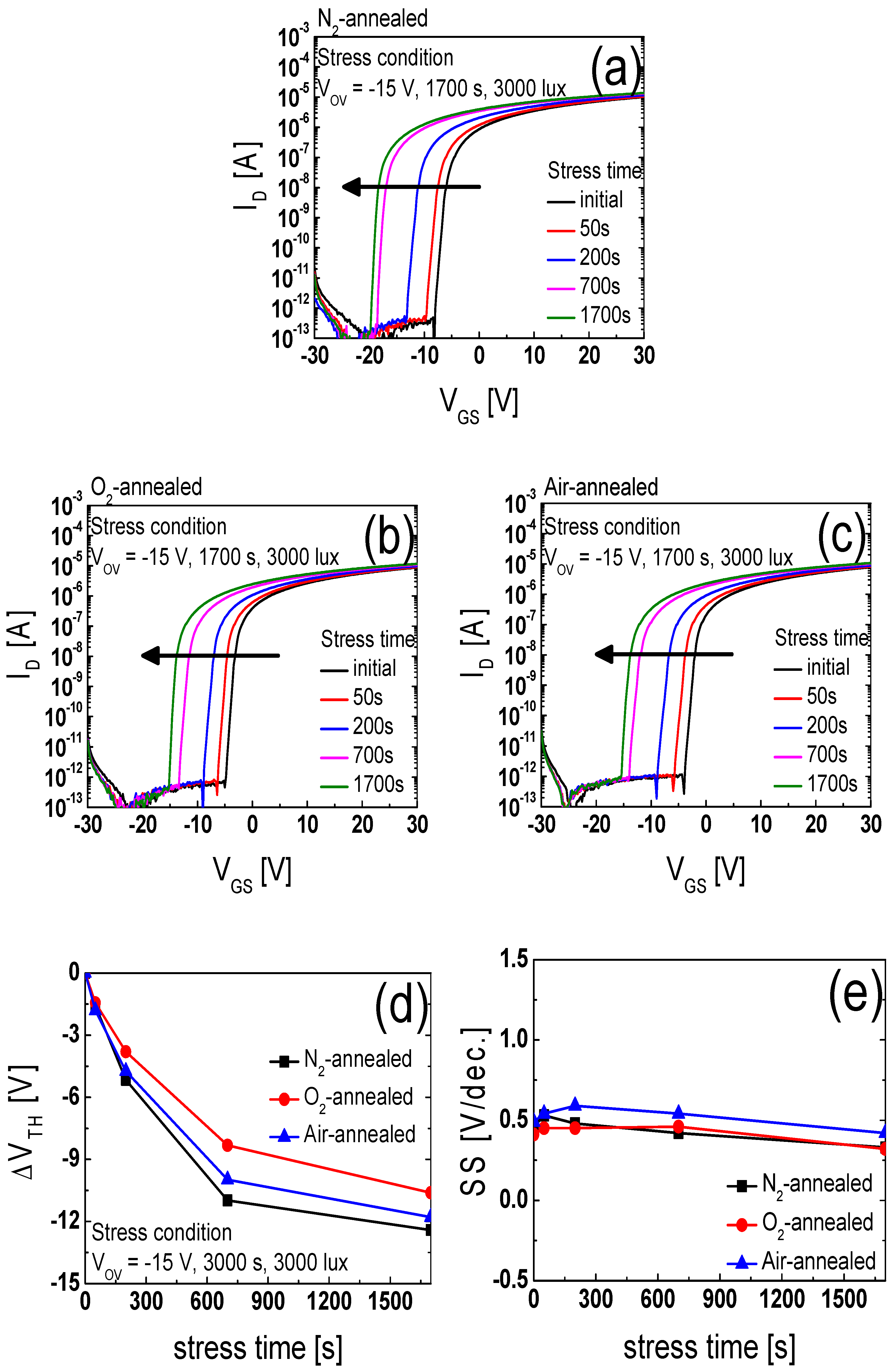

Figure 4. Time-dependence of transfer characteristics of (a) N2-, (b) O2-, and (c) air-annealed IGTO TFTs after the application of a constant bias stress VOV = –15 V under illumination by a LED backplane unit with a brightness of 3000 lx. (d) Δ VTH values obtained for the N2, O2, and air annealed IGTO TFTs after subjection to negative bias illumination stress (NBIS) various times. (e) The SS values obtained for the N2-, O2-, and air annealed IGTO TFTs at every NBIS time.
Figure 4. Time-dependence of transfer characteristics of (a) N2-, (b) O2-, and (c) air-annealed IGTO TFTs after the application of a constant bias stress VOV = –15 V under illumination by a LED backplane unit with a brightness of 3000 lx. (d) Δ VTH values obtained for the N2, O2, and air annealed IGTO TFTs after subjection to negative bias illumination stress (NBIS) various times. (e) The SS values obtained for the N2-, O2-, and air annealed IGTO TFTs at every NBIS time.
Electronics 09 01875 g004
Electronics 09 01875 g005 550

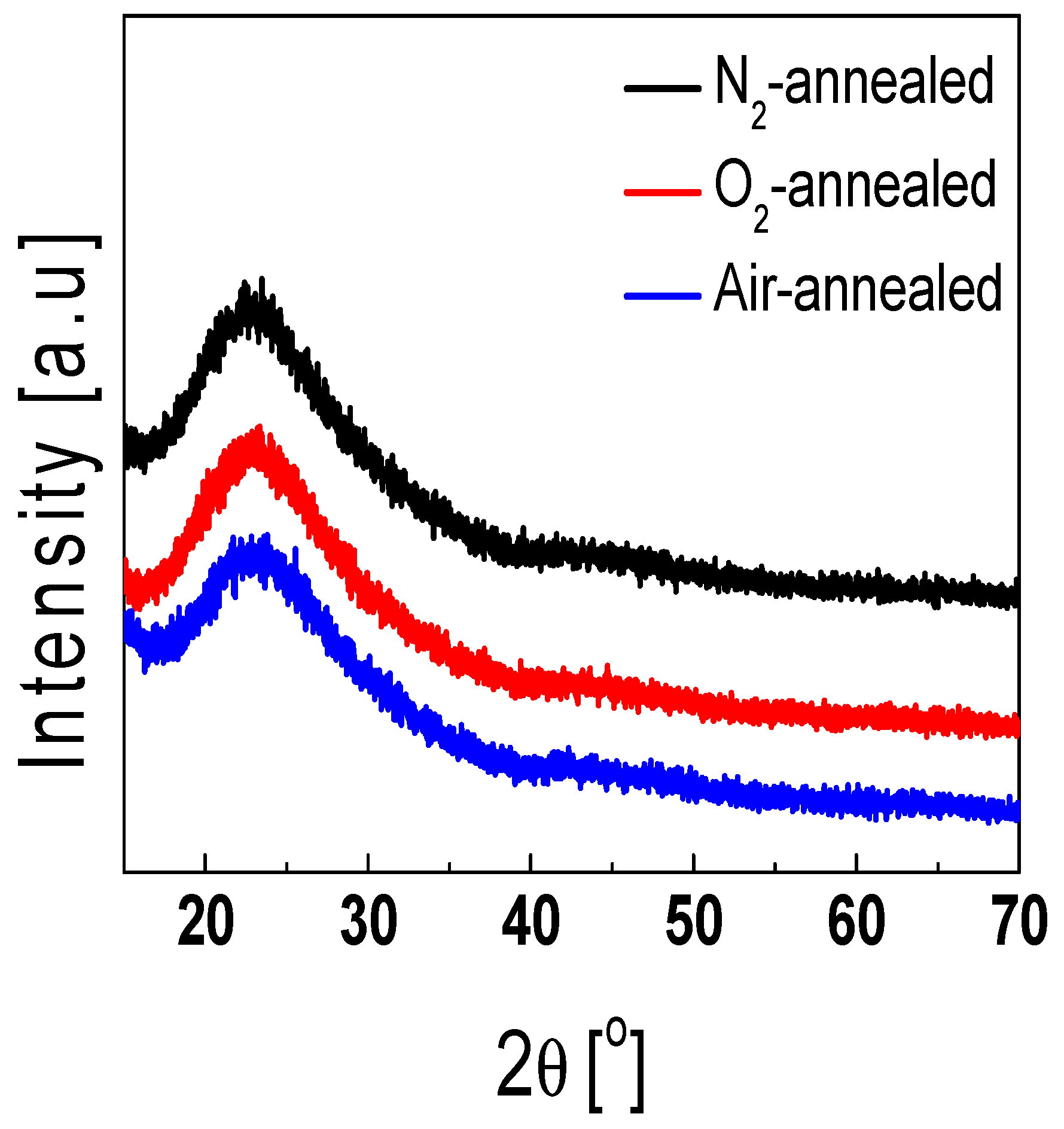

Figure 5. X-ray diffraction (XRD) patterns of N2-, O2-, and air annealed 20 nm-thick IGTO thin films deposited on the glass substrates.
Figure 5. X-ray diffraction (XRD) patterns of N2-, O2-, and air annealed 20 nm-thick IGTO thin films deposited on the glass substrates.
Electronics 09 01875 g005
Electronics 09 01875 g006 550
Figure 6. (a) Optical transmittance spectra recorded for N2-, O2-, and ai -annealed 20 nm-thick IGTO thin films. (b) Tauc plot constructed from the optical transmittance spectra.
Figure 6. (a) Optical transmittance spectra recorded for N2-, O2-, and ai -annealed 20 nm-thick IGTO thin films. (b) Tauc plot constructed from the optical transmittance spectra.
Electronics 09 01875 g006
Electronics 09 01875 g007 550

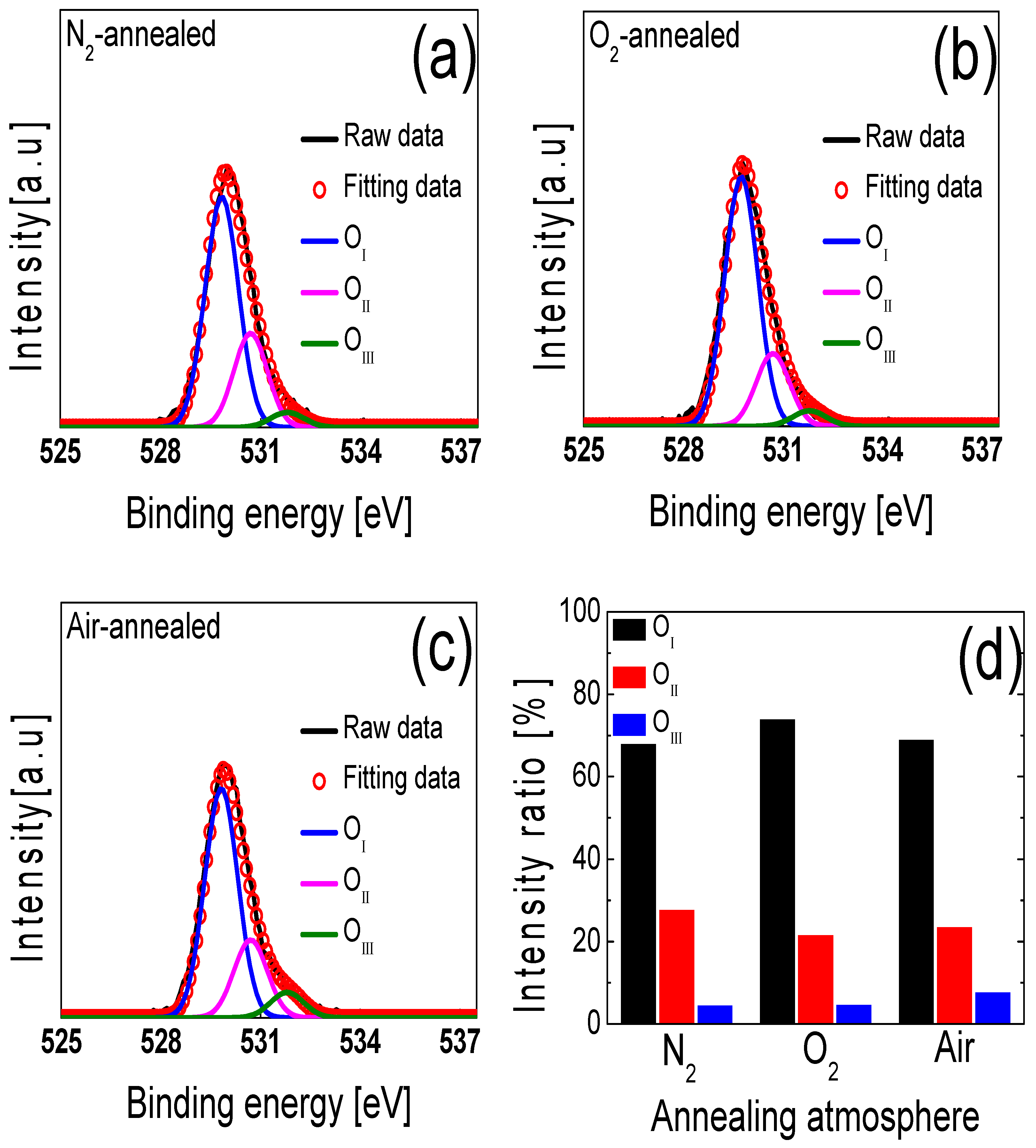

Figure 7. X-ray photoelectron spectroscopy (XPS) O 1s spectra of (a) N2-, (b) O2-, and (c) air annealed IGTO thin films, respectively, recorded for the middle of the thin films. (d) Relative areas of the OI, OII, and OIII peak regions that were obtained for the IGTO thin films annealed under different atmospheres.
Figure 7. X-ray photoelectron spectroscopy (XPS) O 1s spectra of (a) N2-, (b) O2-, and (c) air annealed IGTO thin films, respectively, recorded for the middle of the thin films. (d) Relative areas of the OI, OII, and OIII peak regions that were obtained for the IGTO thin films annealed under different atmospheres.
Electronics 09 01875 g007
Table
Table 1. Electrical parameters of N2-, O2-, and air-annealed IGTO TFTs.
Table 1. Electrical parameters of N2-, O2-, and air-annealed IGTO TFTs.
Annealing AtmosphereVTH (V)SS (V/Decade)μFE (cm2·V−1·S−1)
N2–6.00.4726.6
O2–3.20.4025.0
Air–2.00.4823.5
