SoC Design Based on a FPGA for a Configurable Neural Network Trained by Means of an EKF

1
Advanced Studies and Research Center (CINVESTAV), National Polytechnic Institute (IPN), Guadalajara Campus, Zapopan 45015, Mexico
2
CONACYT–Advanced Studies and Research Center (CINVESTAV), National Polytechnic Institute (IPN), Guadalajara Campus, Zapopan 45015, Mexico
*
Author to whom correspondence should be addressed.
Electronics 2019, 8(7), 761; https://doi.org/10.3390/electronics8070761
Received: 30 May 2019 / Revised: 28 June 2019 / Accepted: 4 July 2019 / Published: 8 July 2019
(This article belongs to the Special Issue New Applications and Architectures Based on FPGA/SoC)
  |
PDF [654 KB, uploaded 8 July 2019]
  |

Abstract

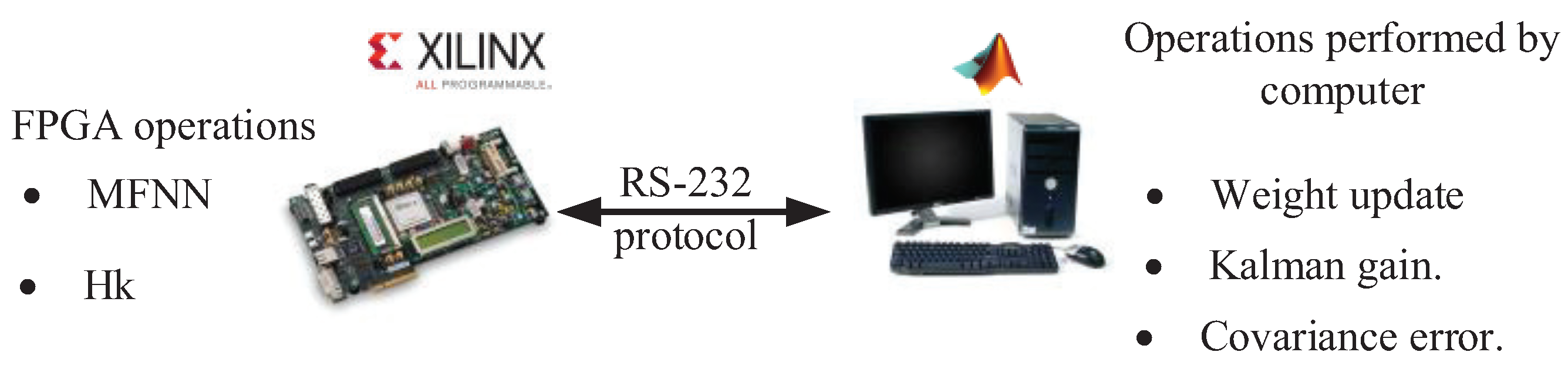

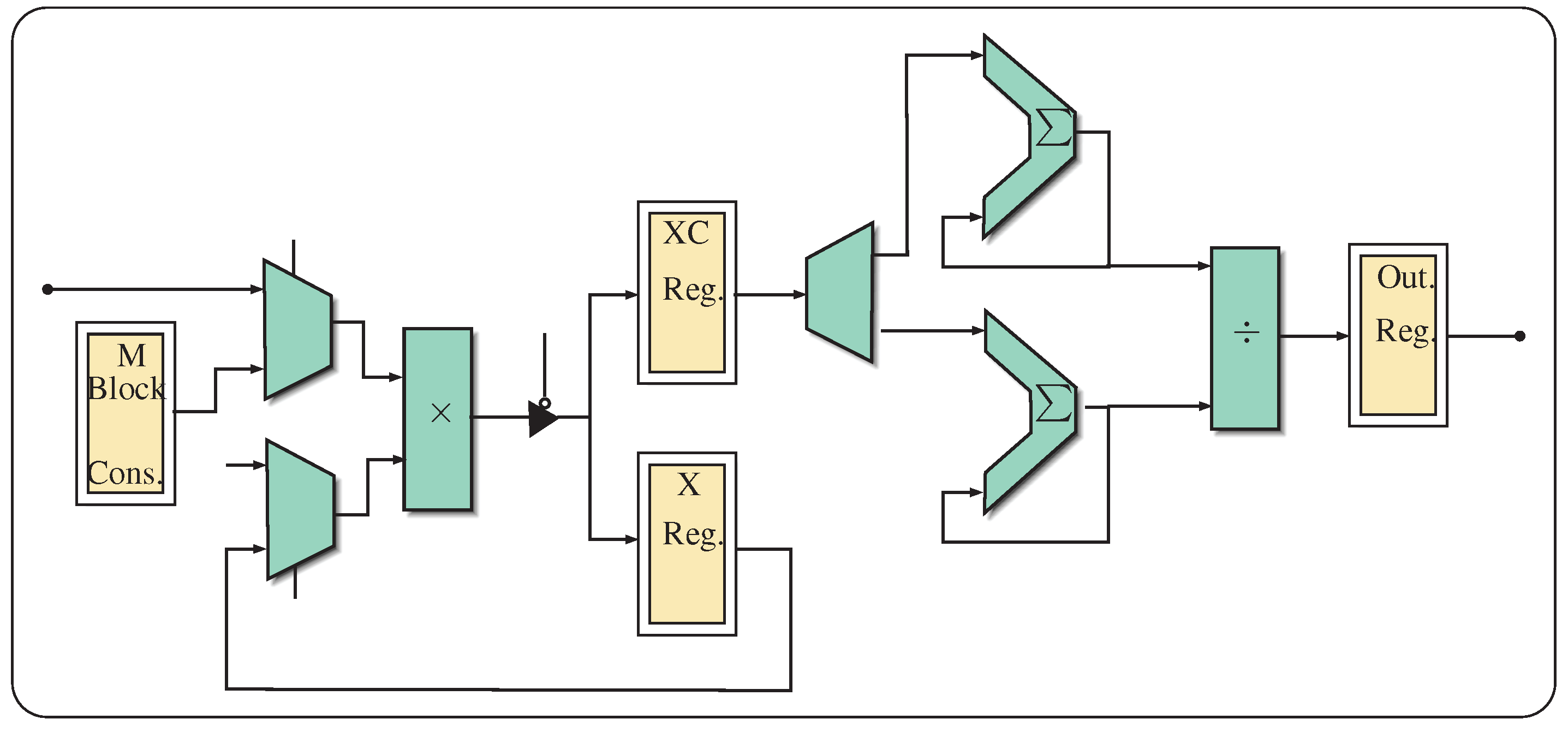

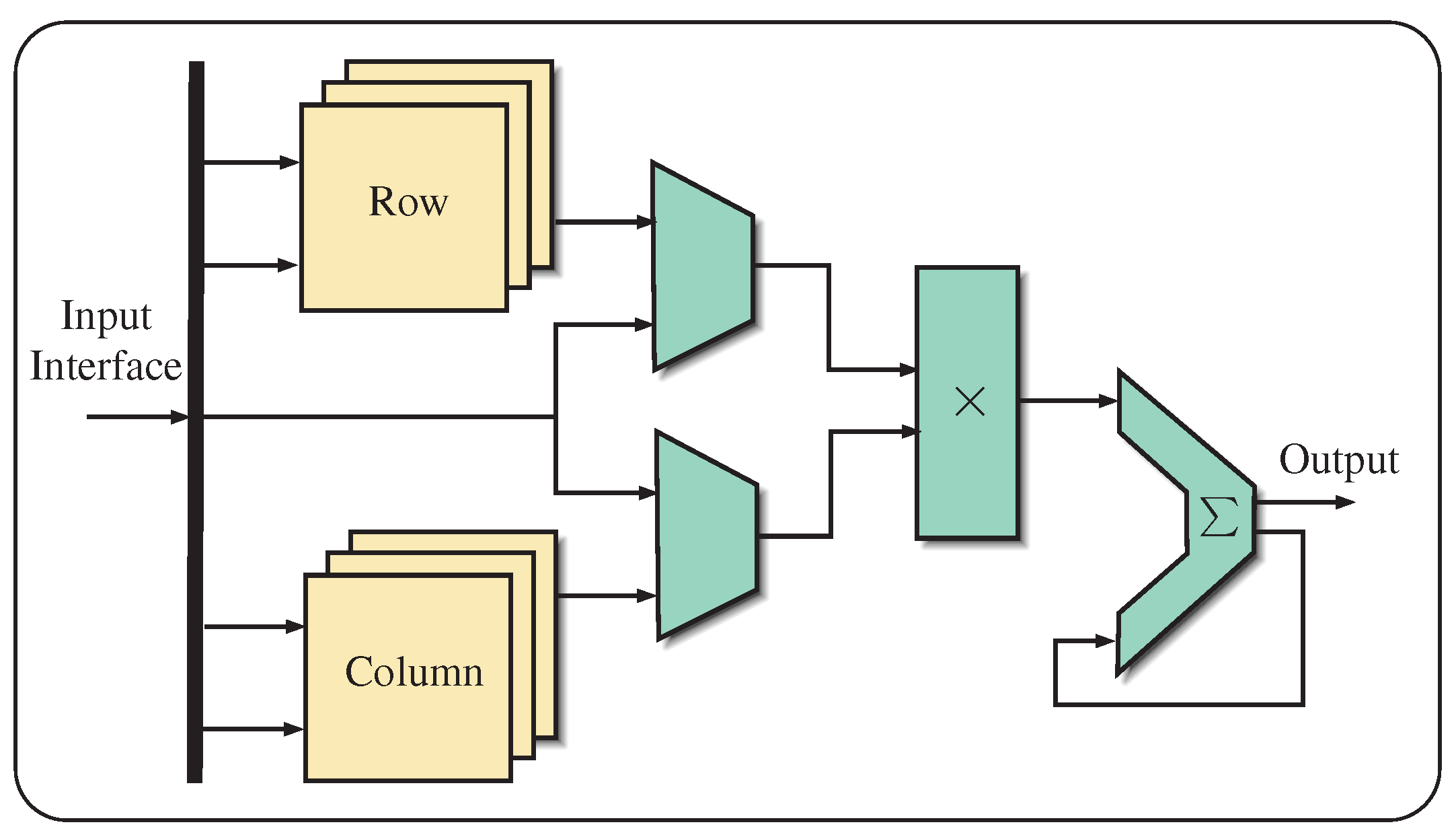

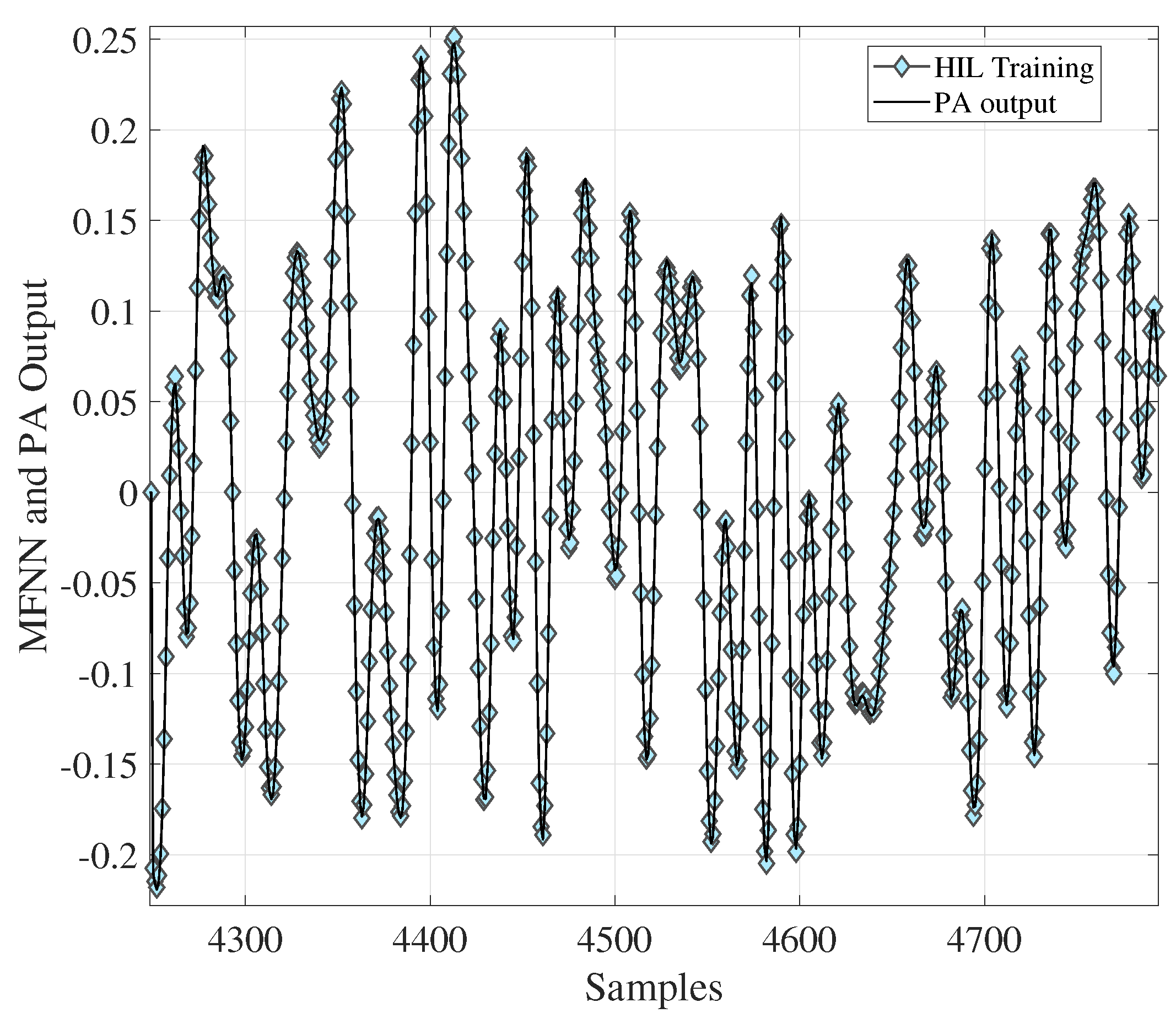

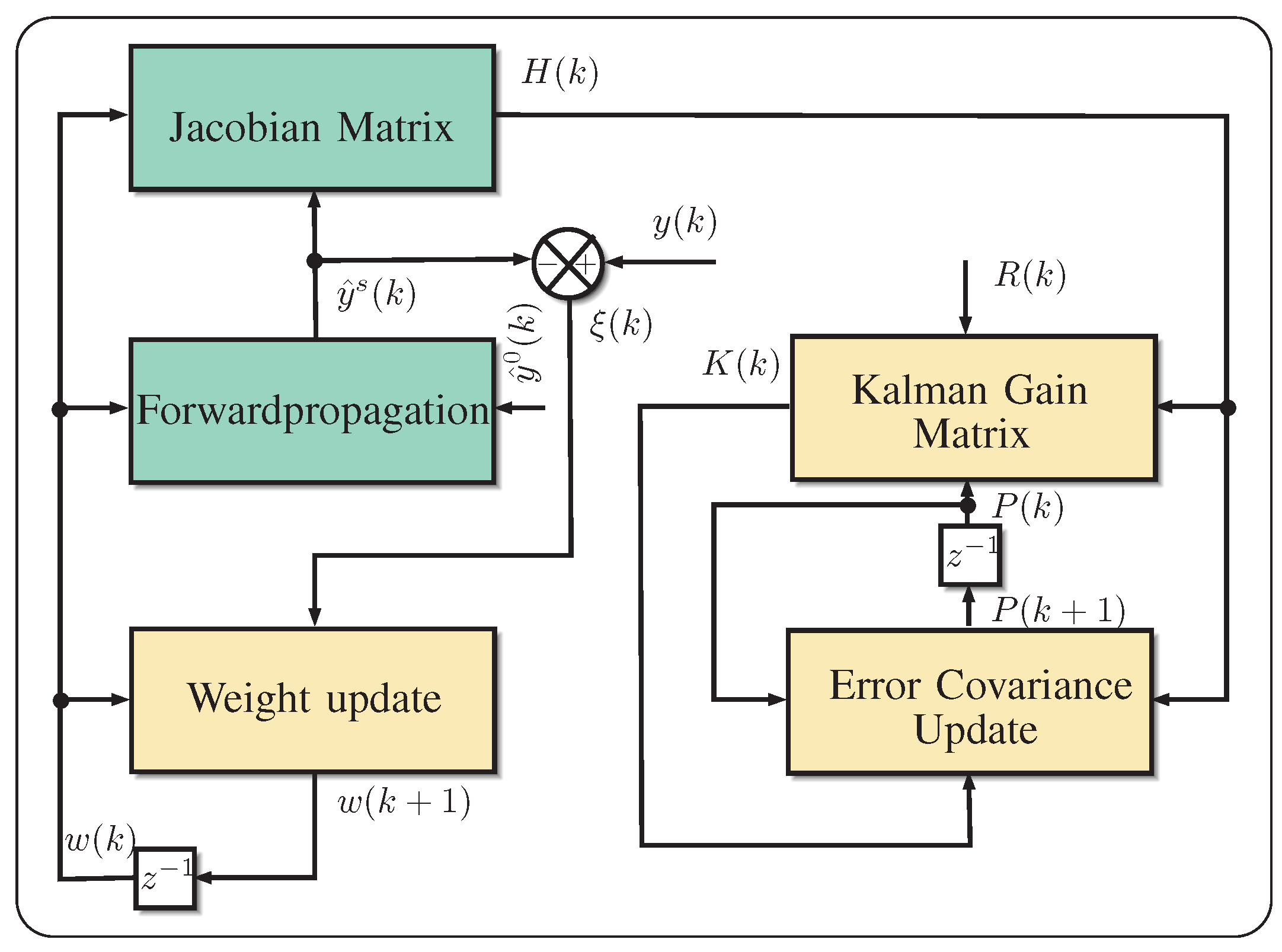

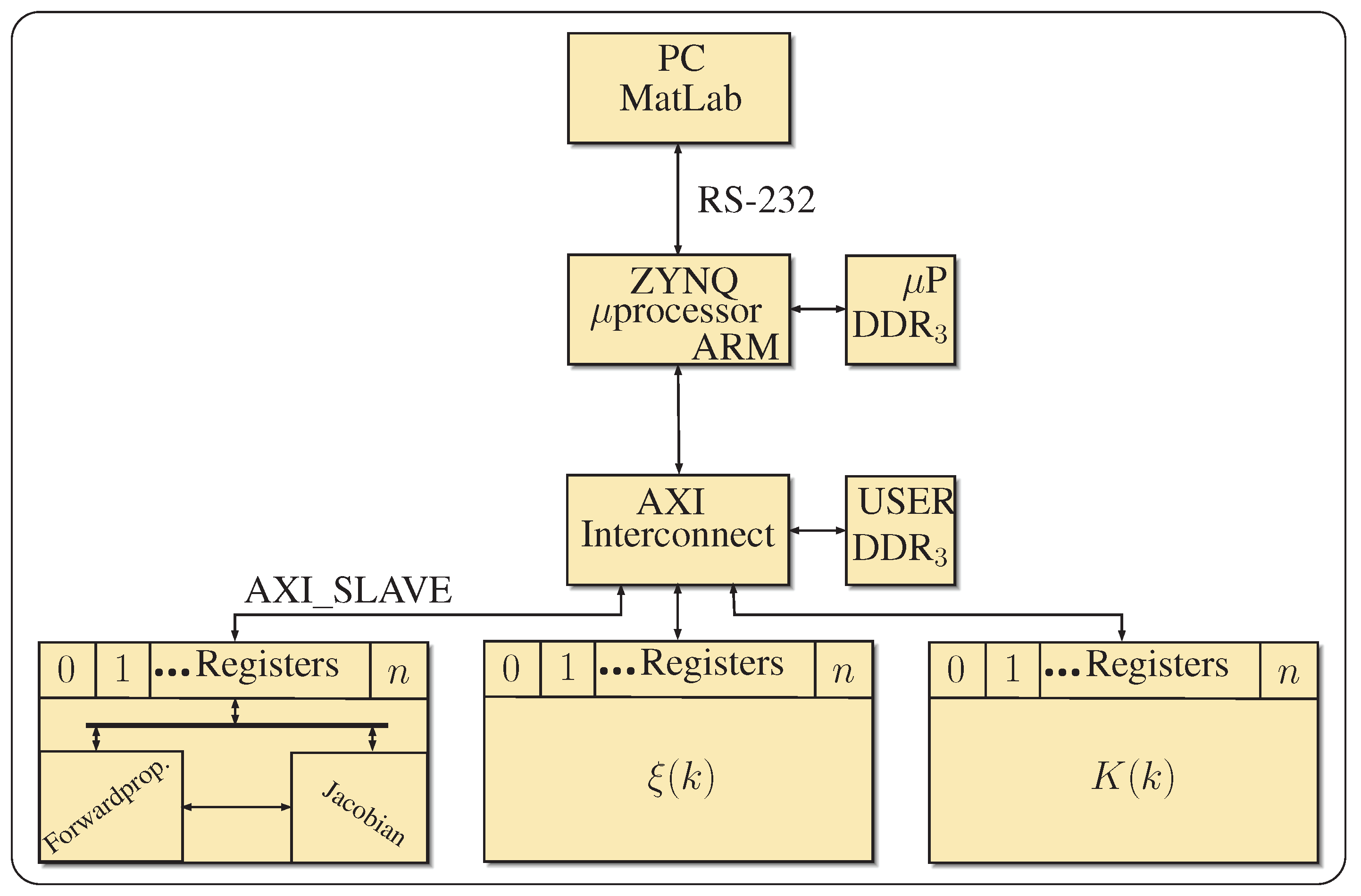

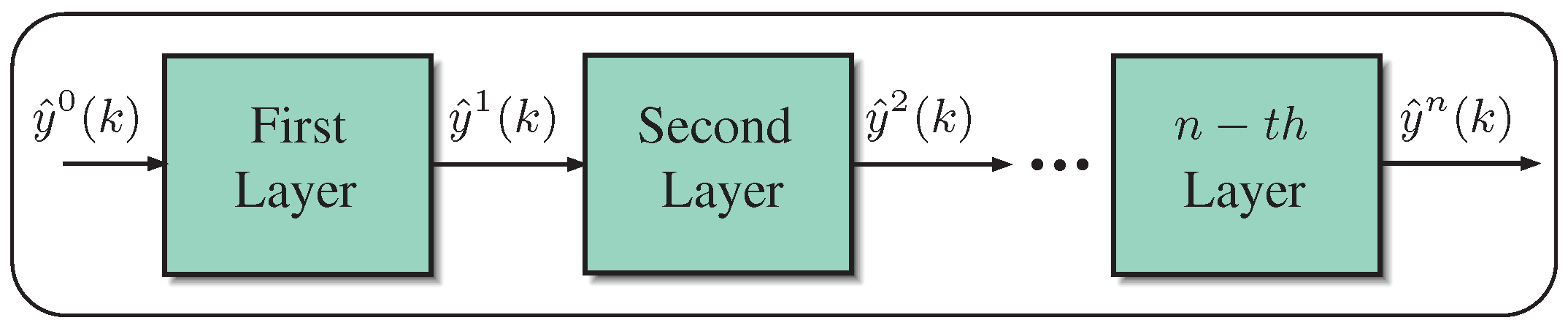

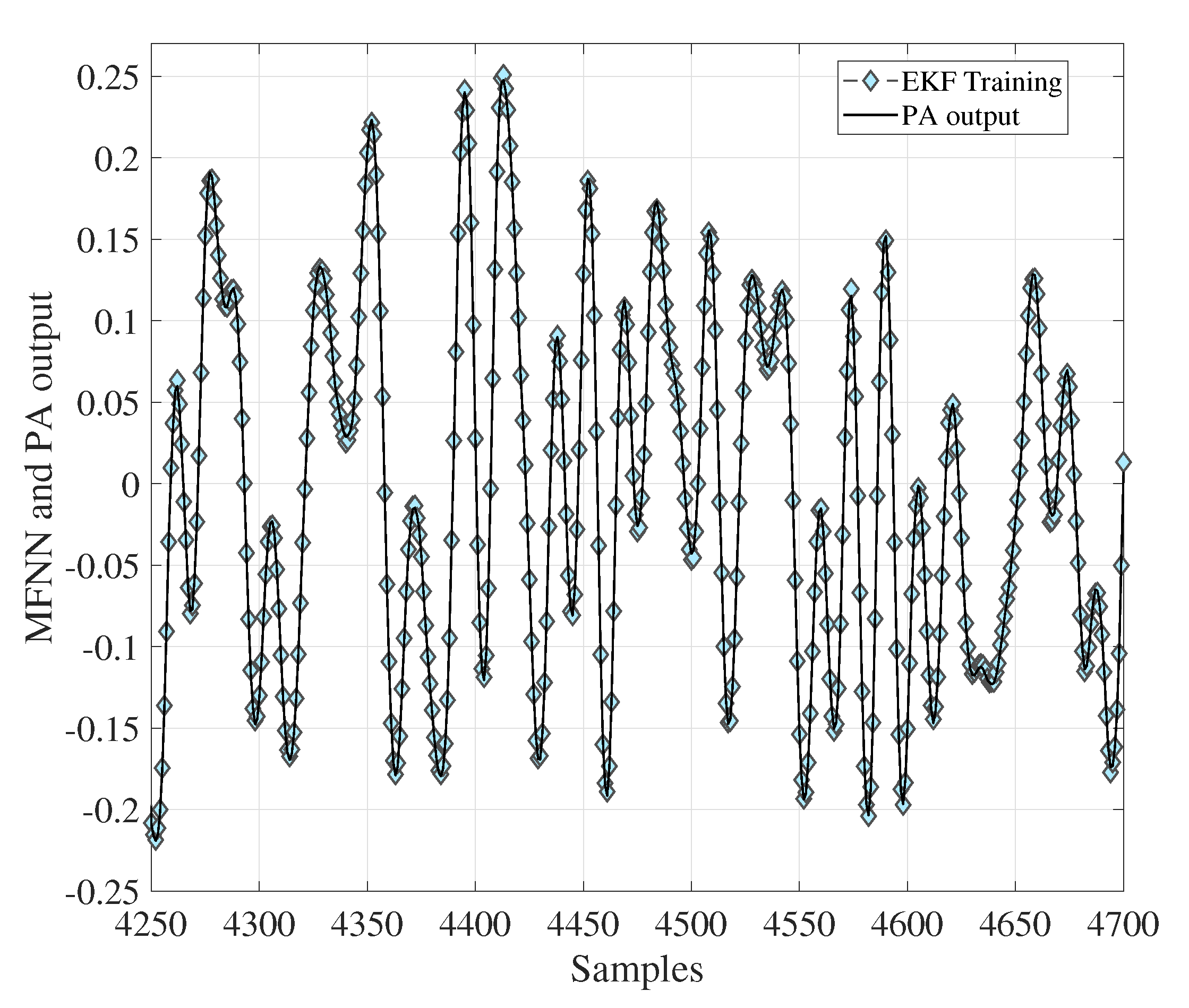

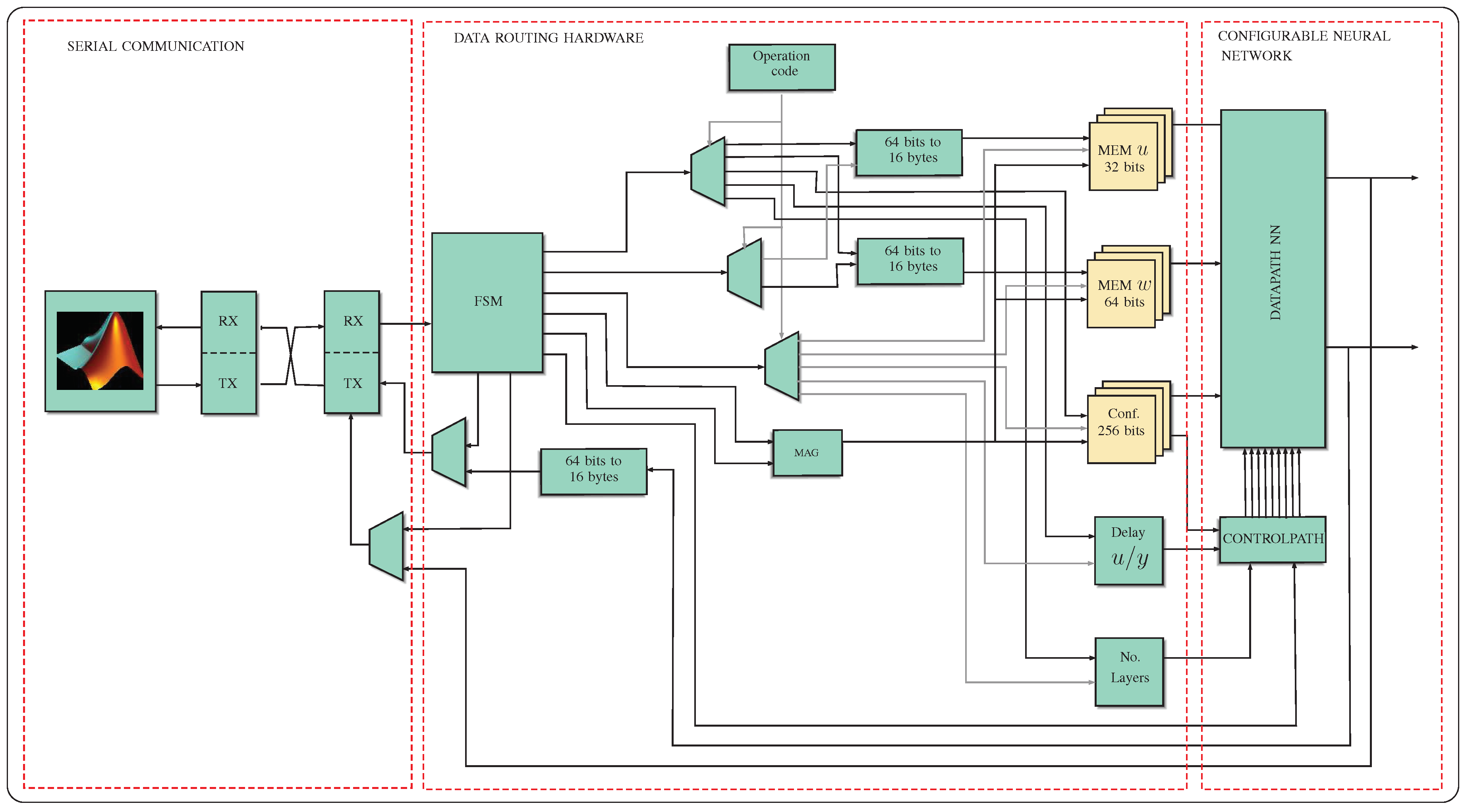

This work presents a configurable architecture for an artificial neural network implemented with a Field Programmable Gate Array (FPGA) in a System on Chip (SoC) environment. This architecture can reproduce the transfer function of different Multilayer Feedforward Neural Network (MFNN) configurations. The functionality of this configurable architecture relies on a single perceptron, multiplexers, and memory blocks that allow routing, storing, and processing information. The extended Kalman filter is the training algorithm that obtains the optimal weight values for the MFNN. The presented architecture was developed using Verilog Hardware Description Language, which permits designing hardware with a fair number of logical resources, and facilitates the portability to different FPGAs models without compatibility problems. A SoC that mainly incorporates a microprocessor and a FPGA is proposed, where the microprocessor is used for configuring the the MFNN and to enable and disable some functional blocks in the FPGA. The hardware was tested with measurements from a GaN class F power amplifier, using a 2.1 GHz Long Term Evolution signal with 5 MHz of bandwidth. In particular, a special case of an MFNN with two layers, i.e., a real-valued nonlinear autoregressive with an exogenous input neural network, was considered. The results reveal that a normalized mean square error value of −32.82 dB in steady-state was achievable, with a 71.36% generalization using unknown samples. View Full-Text
Keywords: multilayer perceptrons; neural network hardware; kalman filters; field programmable gate arrays multilayer perceptrons; neural network hardware; kalman filters; field programmable gate arrays
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
