A Unified Multimode Control of a DC–DC Interlinking Converter Integrated into a Hybrid Microgrid

1
Facultad de Ingeniería, Universidad de Ibagué, 730001 Ibagué, Colombia
2
Methods and Algorithms for Control, Université de Toulouse, INSA, LAAS-CNRS, 31013 Toulouse, France
3
Departament d’Enginyeria Electrònica, Elèctrica i Automàtica, Universitat Rovira i Virgili, 43007 Tarragona, Spain
*
Author to whom correspondence should be addressed.
Electronics 2019, 8(11), 1314; https://doi.org/10.3390/electronics8111314
Received: 3 October 2019 / Revised: 29 October 2019 / Accepted: 29 October 2019 / Published: 8 November 2019
(This article belongs to the Section Power Electronics)

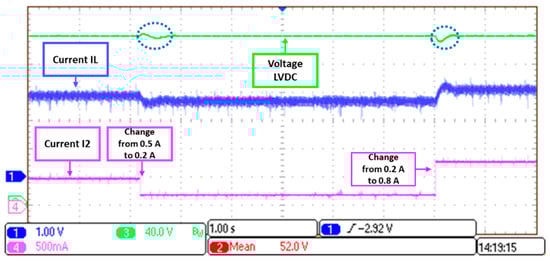

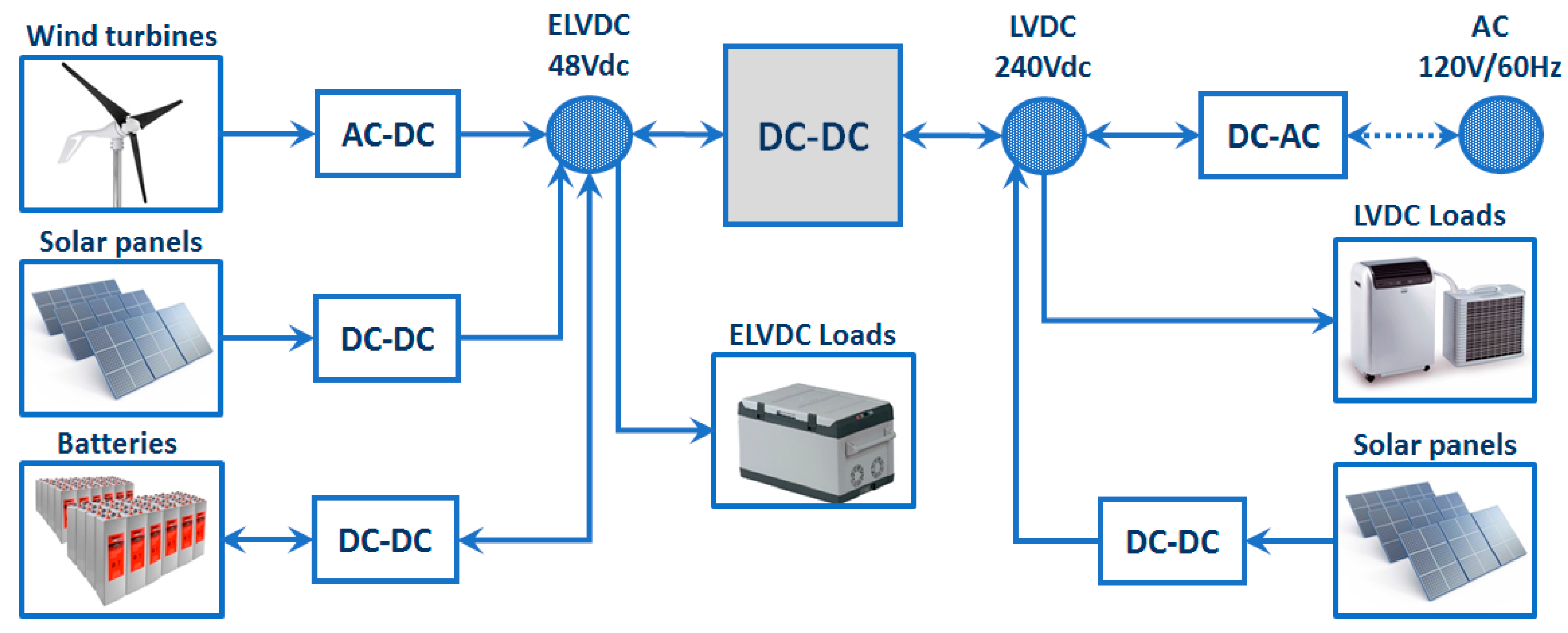

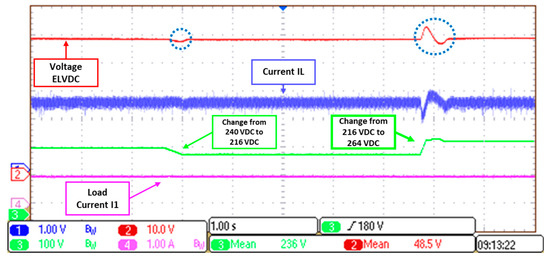

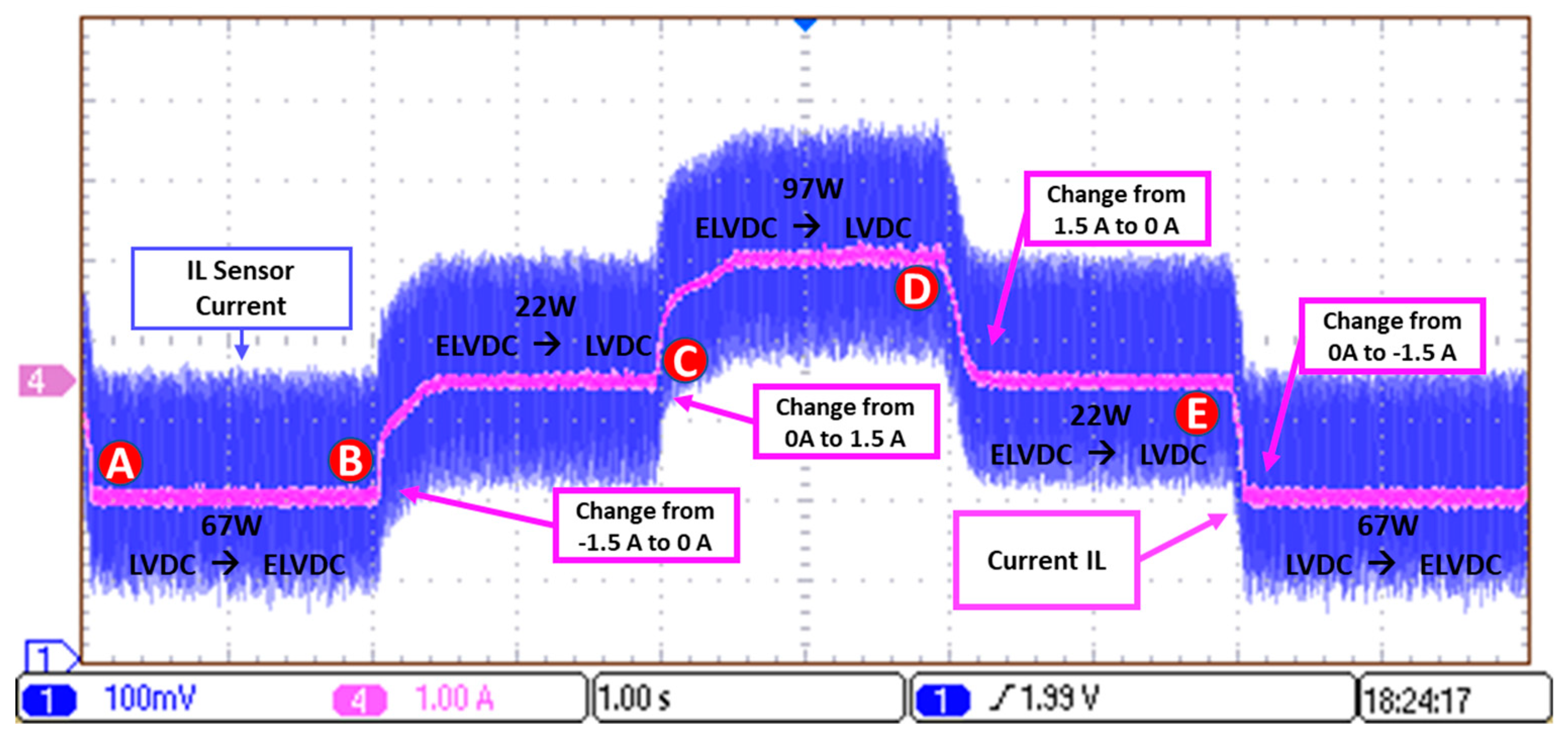

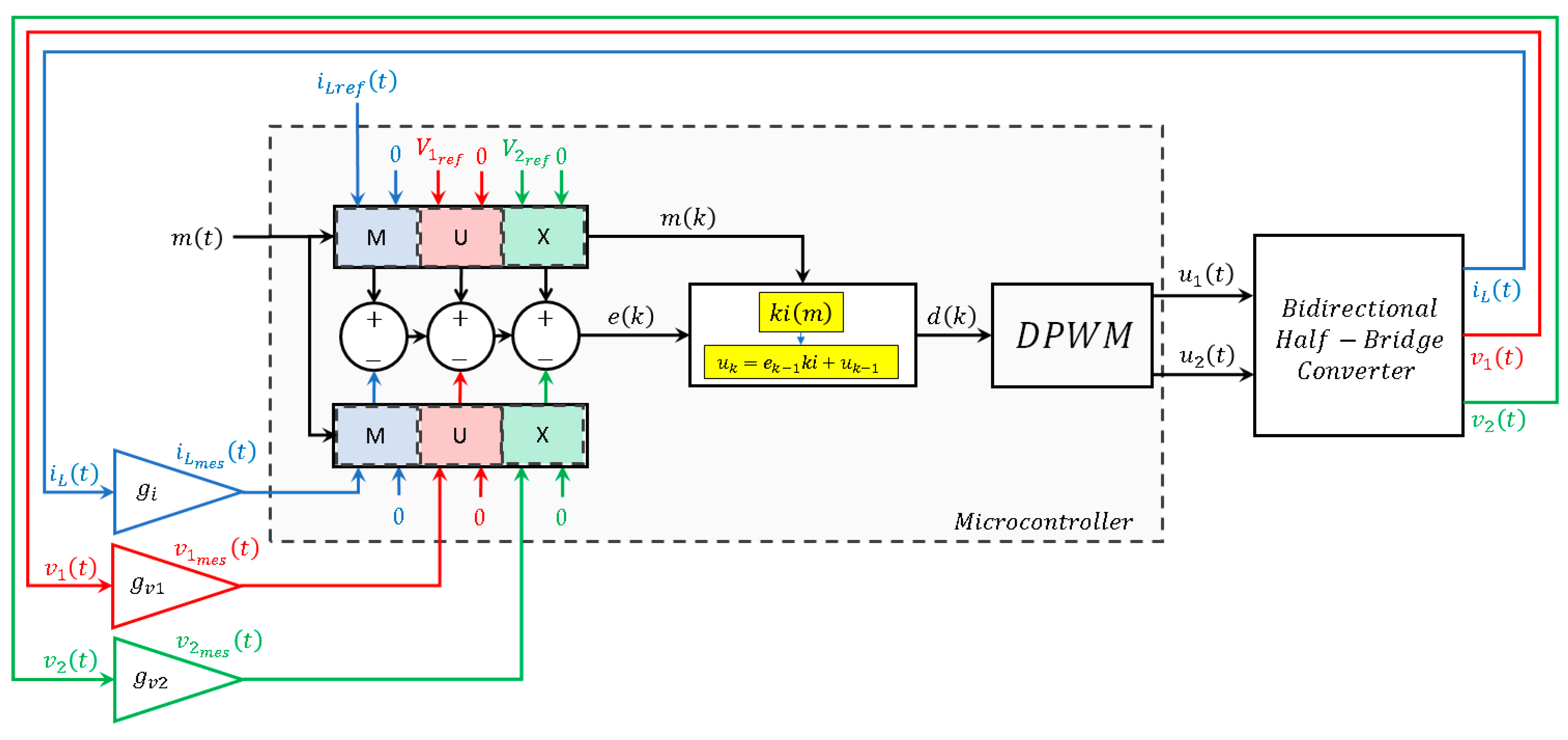

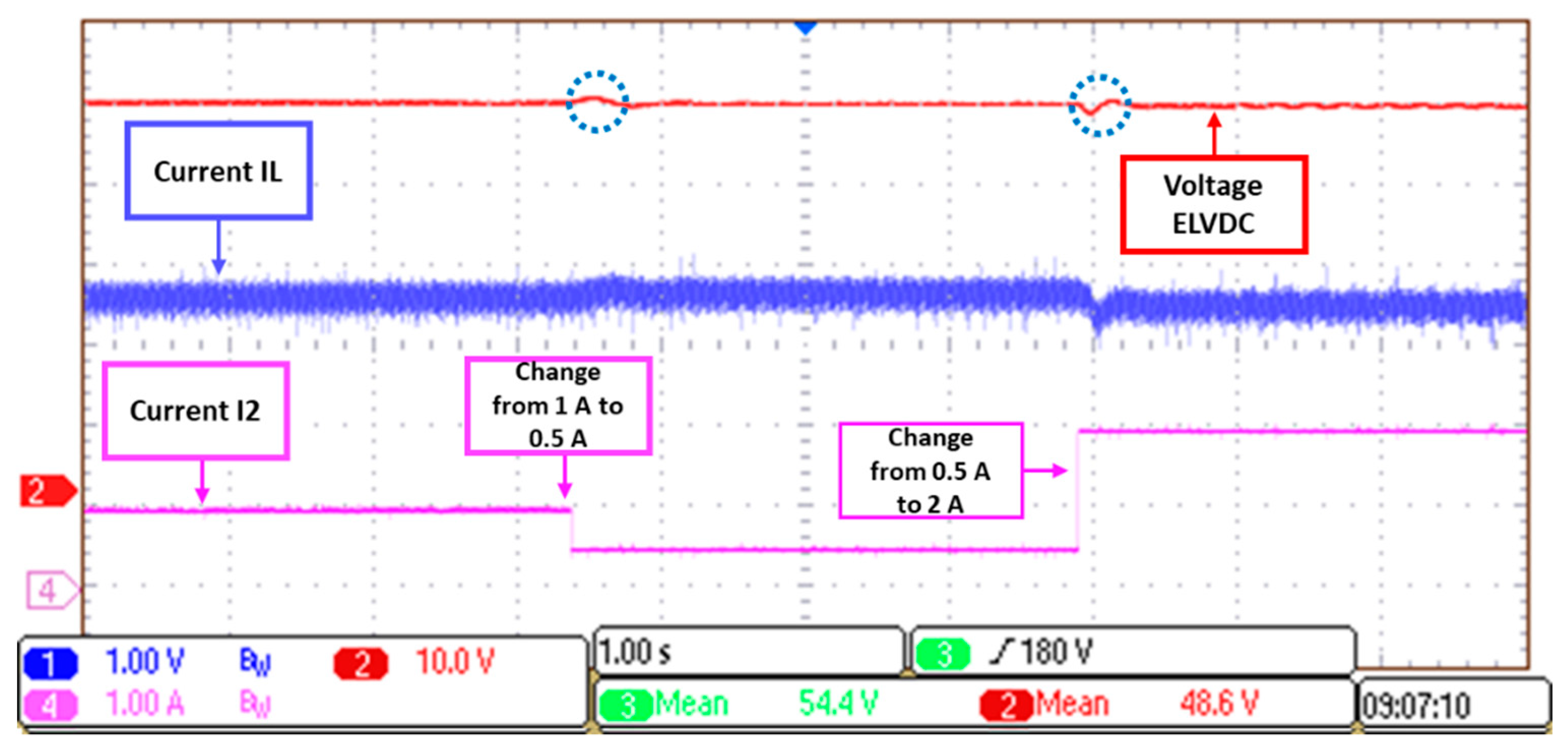

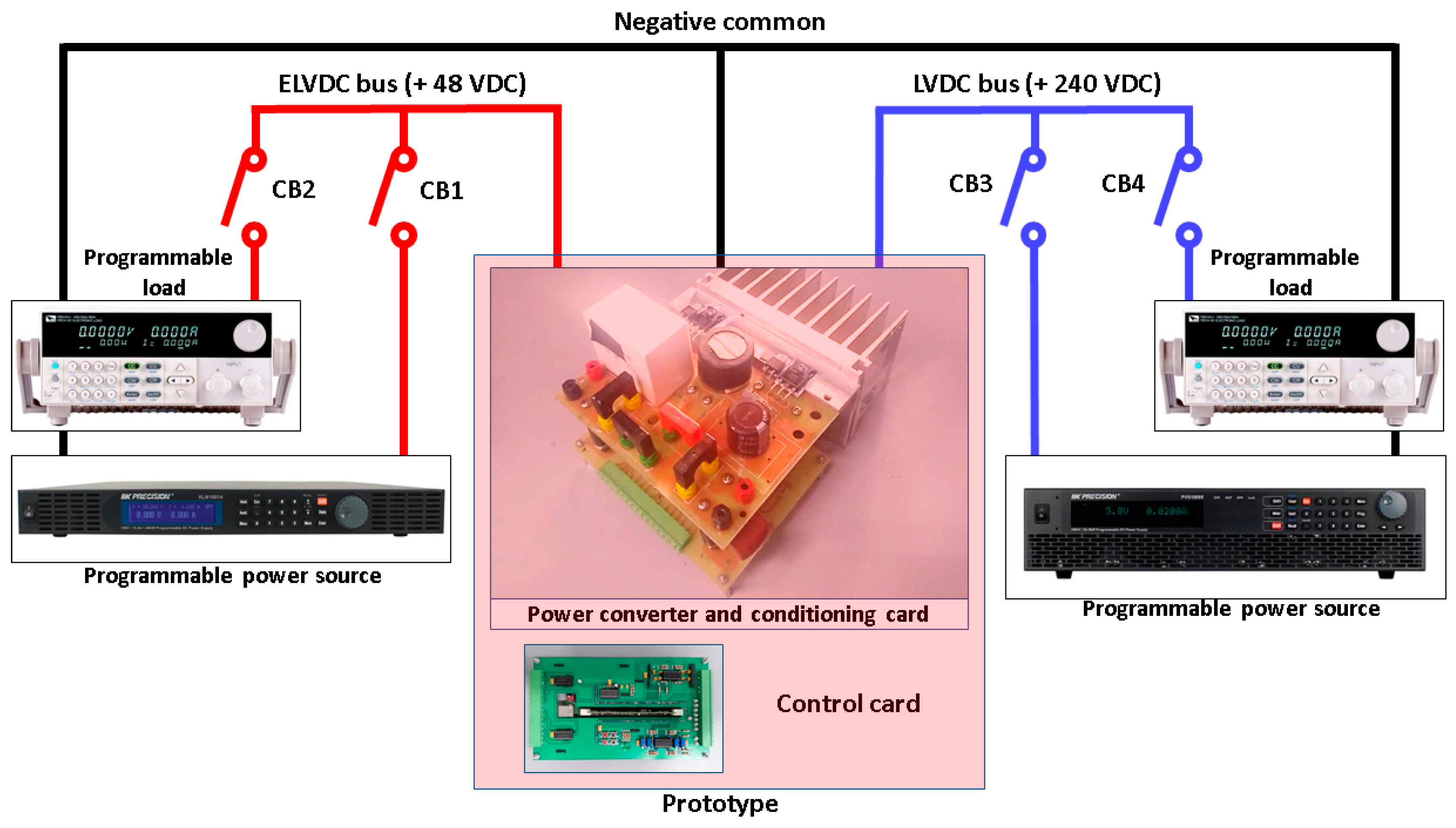

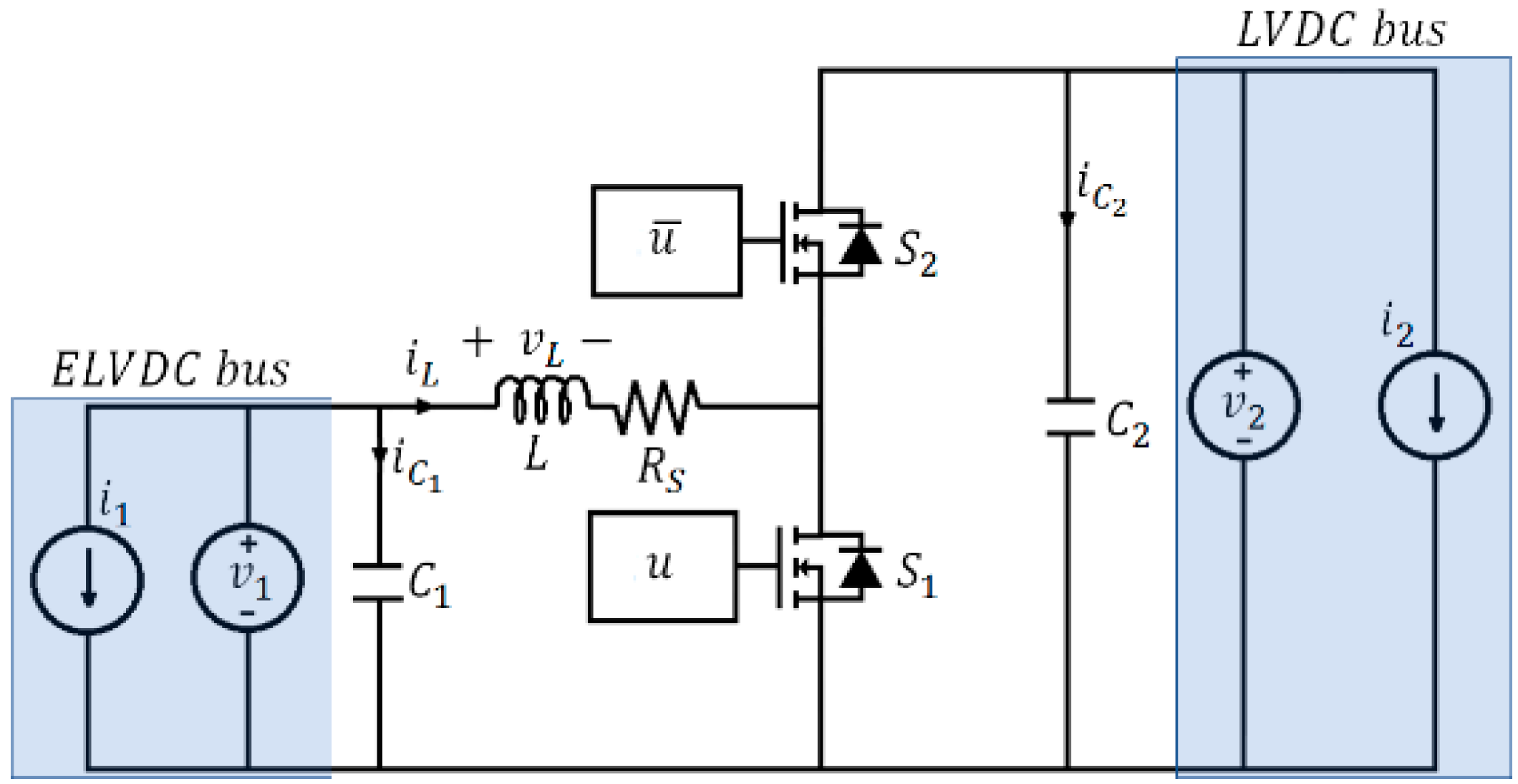

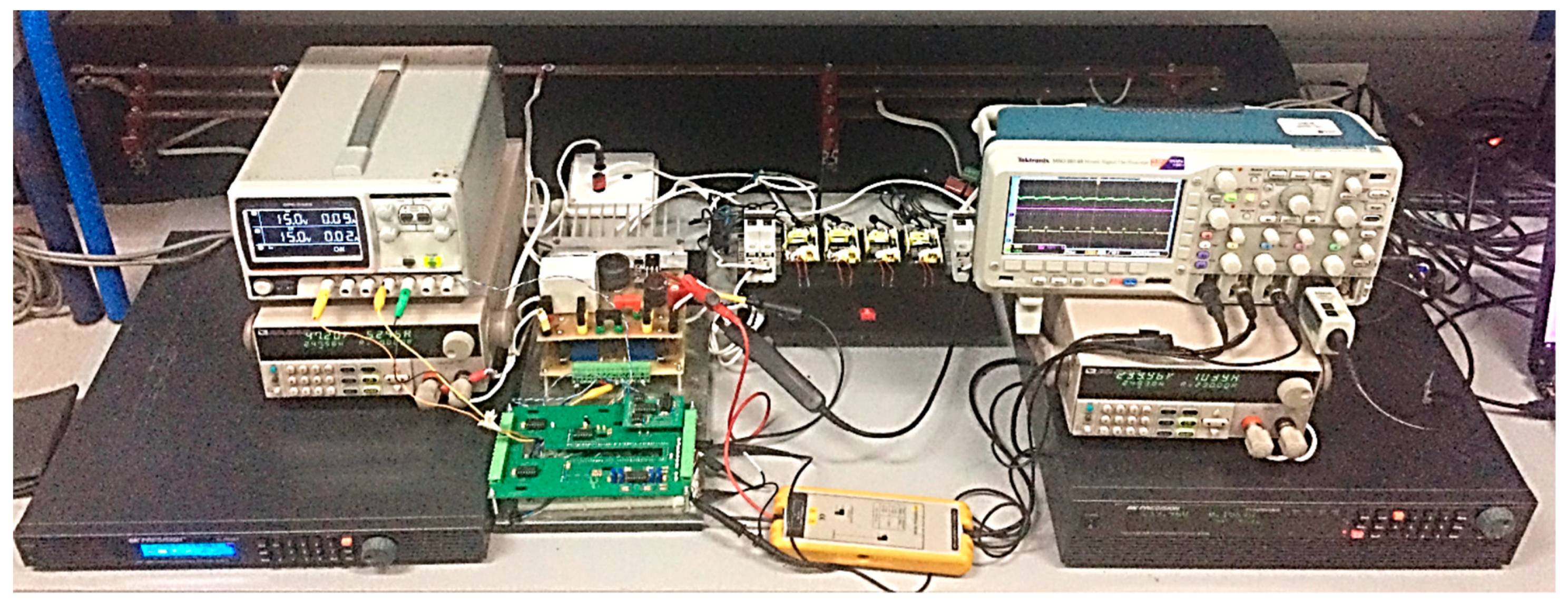

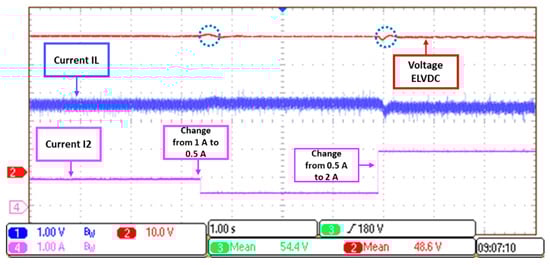

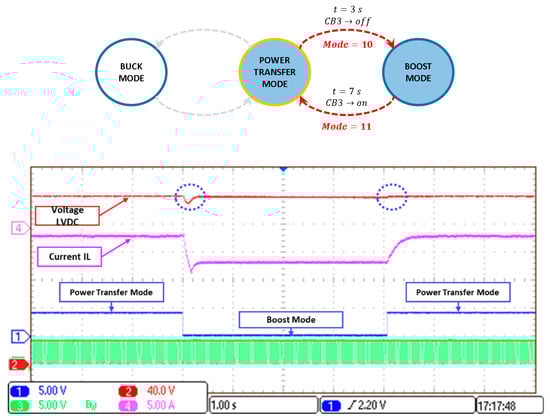

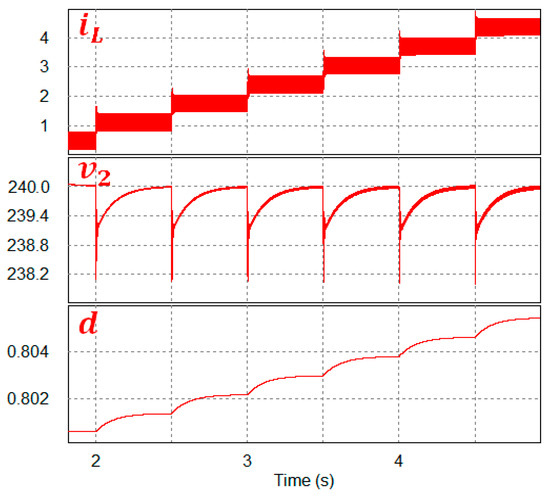

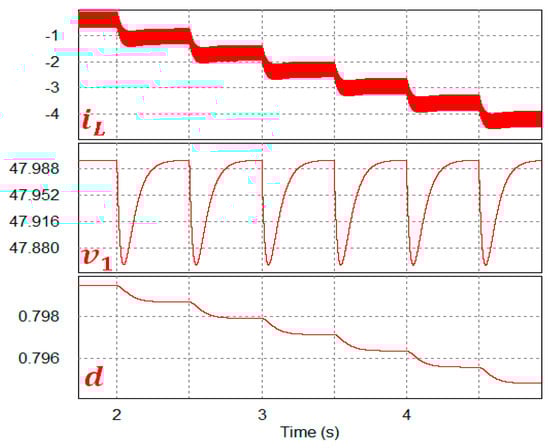

DC–DC interlinking converters (ILCs) allow bidirectional energy exchange between DC buses of different voltage levels in microgrids. This paper introduces a multimode control approach of a half-bridge DC–DC converter interlinking an extra-low-voltage DC (ELVDC) bus of 48 VDC and a low-voltage DC (LVDC) bus of 240 VDC within a hybrid microgrid. By using the proposed control, the converter can transfer power between the buses when the other converters regulate them, or it can ensure the voltage regulation of one of the buses, this originating from its three operation modes. The proposed control scheme is very simple and provides a uniform system response despite the dependence of the converter dynamic on the operating point and the selected mode. Simulation and experimental results validated the theoretical development and demonstrated the usefulness of the proposed scheme. View Full-Text
Keywords: hybrid microgrids; DC–DC bidirectional converter; interlinking DC–DC converter; bidirectional power flow hybrid microgrids; DC–DC bidirectional converter; interlinking DC–DC converter; bidirectional power flow
Show Figures

Figure 1

MDPI and ACS Style

López-Santos, O.; Aldana-Rodríguez, Y.A.; Garcia, G.; Martínez-Salamero, L. A Unified Multimode Control of a DC–DC Interlinking Converter Integrated into a Hybrid Microgrid. Electronics 2019, 8, 1314.
