Filter Before Mixing: Per-Modality Denoising for Multimodal RL with Application to Health Management ^†

Abstract

Multimodal reinforcement learning agents must fuse signals with vastly different noise profiles—yet existing architectures, whether monolithic ($\pi$0, DreamerV3) or modular (MSDP, VTDexManip), allow noise from unreliable modalities to contaminate reliable ones at the point of fusion. We propose filter before mixing: each modality’s representation is independently refined by a per-modality Flow Matching module before spectral-domain fusion via a Fourier Neural Operator (FNO) with a residual gate ensuring that refinement is never harmful. The resulting architecture, FreamerV1 (Filter-before-mixing dreamer), has 93M parameters (0.4M trainable). On MiniGrid, FreamerV1 reaches 87.7 ± 8.2% (3 seeds) at 5000 episodes, while the encoder-only baseline degrades to 78% due to catastrophic forgetting. With OGM-GE (On-the-fly Gradient Modulation) for adaptive per-modality gate control, FreamerV1 achieves an 8.0% relative improvement in success rate over manual tuning with halved seed-to-seed variance (three seeds). On Crafter (no language modality), it achieves an 11.7% relative improvement over DreamerV3 in the official Crafter score (geometric mean of 22 achievement success rates; 10 seeds). On PAMAP2 wearable sensors—where no pretrained encoder exists—the foundation encoder achieves 2.4× higher reward and 16× lower variance than a vanilla MLP, confirming that the filter-before-mixing advantage grows with encoder noise.

1. Introduction

Reinforcement learning agents operating in the physical world receive information through multiple sensors: cameras capture spatial structure, proprioceptive sensors report joint angles, language instructions convey goals, and reward signals provide sparse feedback. These modalities differ vastly in noise level, sampling rate, and information density. A robust multimodal RL system must combine them without allowing noise from one channel to degrade the others.

Recent RL architectures address multimodal fusion in two broad ways. Monolithic approaches process all modalities through a single shared backbone. DreamerV3 (Google DeepMind, London, UK) [1] feeds observations through a shared encoder–RSSM pipeline with fixed hyperparameters, mastering over 150 tasks spanning Atari to robotic control. $\pi$0 [2] tokenizes vision, language, state, and action noise into a 3B-parameter PaliGemma transformer with flow matching for continuous action generation. Genie 2 [3] and DIAMOND [4] apply diffusion to world model prediction and video generation, respectively. These systems rely on model scale to implicitly absorb distributional differences across modalities.

Modular approaches assign a dedicated encoder to each modality and then fuse the outputs. MSDP [5] pretrains a multisensory encoder via masked autoencoding across vision, force, and proprioception, and then it fuses embeddings through cross-attention. VTDexManip [6] concatenates CLIP visual features with tactile MLP features for dexterous manipulation, finding that adding sparse touch signals improves success rates by 20%. MIB [7] compresses a joint representation via the information bottleneck principle, filtering task-irrelevant information after fusion. These methods use separate encoders but do not equalize signal quality before fusion: the noisy output of a sparse reward encoder enters the same fusion layer as a well-encoded CLIP embedding.

Both paradigms thus share a common vulnerability: cross-modal noise contamination at the point of fusion. When a high-variance modality (e.g., sparse reward, raw IMU acceleration) is fused with a low-variance one (e.g., CLIP vision embedding), noise from the former can corrupt the latter. This problem is especially acute in sensor-driven domains such as wearable health management, where modalities have radically different noise profiles and temporal scales—physical movement precedes heart-rate elevation by several seconds, and language instructions precede visual confirmation by many steps.

A second gap is the absence of principled spectral-domain fusion. Standard attention computes instantaneous pairwise similarities and cannot naturally represent temporally delayed cross-modal correlations. A third gap is the limited application to healthcare. MedDreamer [8] applied an RSSM to electronic health records, and KANDI [9] used diffusion policies for elderly activity promotion, but no prior work has combined per-modality generative refinement with spectral fusion for wearable-sensor health intervention.

This paper addresses these gaps through a design principle we call filter before mixing: each modality’s representation is independently refined by a dedicated Flow Matching module before cross-modal fusion, which is analogous to the signal processing practice of filtering each channel before mixing into a master bus. The refinement intensity adapts to each modality’s signal quality: weak for already well-encoded signals (e.g., frozen CLIP embeddings) and strong for noisy or sparse signals (e.g., raw reward, IMU data). The refined representations are then fused in the spectral domain via a Fourier Neural Operator (FNO), whose complex-valued weights naturally encode phase-shifted cross-modal correlations. An information-theoretic analysis (Section 3.3) shows that pre-fusion denoising preserves more policy-relevant mutual information than post-fusion alternatives with a residual gate mechanism ensuring that the refinement is never harmful.

The resulting four-layer modular architecture integrates modality-specific encoding (frozen CLIP with Slot Attention, or IMU foundation encoders for health applications), per-modality Flow Matching, FNO spectral fusion, and DNC episodic memory. The modular design enables domain transfer: the same downstream pipeline (Flow Matching → FNO → DNC → PPO) is shared between MiniGrid (Farama Foundation, https://minigrid.farama.org) navigation and PAMAP2 (Technische Universität Darmstadt, Darmstadt, Germany) health management with only the modality-specific encoders replaced.

We validate the framework in three domains. In MiniGrid navigation, the system achieves 94.0% success on MultiRoom-N2-S4 (+51 pp over IMPALA (Google DeepMind, London, UK) under identical conditions) and 93.0% on N4-S4, while IMPALA fails entirely on harder configurations (0% on N4-S5 and N6). In Crafter (Danijar Hafner, University of Toronto, Toronto, ON, Canada), a procedurally generated open-world environment with no language instructions, the agent achieves an official score of 16.2 ± 0.8% (10 seeds), exceeding DreamerV3 (14.5%) despite operating without the language modality. In wearable-sensor health management on the PAMAP2 dataset—where no pretrained encoder exists and per-modality denoising is critical—the foundation encoder achieves a 2.4× higher cumulative reward ($268.3\pm 12.0$) and 16× lower cross-seed variance than a vanilla MLP baseline. This progression—MiniGrid (four modalities, CLIP available), Crafter (three modalities, no language), PAMAP2 (three modalities, no pretrained encoder)—illustrates a key insight: the advantage of filter before mixing grows with encoder noise and is robust to missing modalities.

The contributions of this paper are as follows:

• We propose the filter-before-mixing design principle for multimodal RL, in which per-modality Flow Matching denoises each representation before spectral-domain fusion, and we provide an information-theoretic justification with an explicit approximation bound (Equation (A11)).
• We instantiate this principle in FreamerV1 (Filter-before-mixing dreamer), a modular four-layer architecture (93 M parameters, 0.4 M trainable), and validate it on MiniGrid navigation with controlled baselines (IMPALA under identical conditions, PPO).
• We validate across three domains—MiniGrid (four modalities), Crafter (three modalities, no language), and PAMAP2 (three modalities, no pretrained encoder)—showing that the architecture degrades gracefully with missing modalities and that the filter-before-mixing advantage grows with encoder noise.

Table 1. Design differentiation from $\pi$0. The two systems target fundamentally different regimes: $\pi$0 addresses continuous-control robotic manipulation with large-scale demonstration data, while our framework targets discrete-action sensor-driven domains with limited data.

Design Aspect	$\mathit{\pi }$0	FreamerV1 (Ours)
Target domain	Robotic manipulation	Sensor-driven decision
Architecture	Monolithic VLM	Modular per modality
FM target	Actions (output)	Representations (internal)
Cross-modal fusion	Self-attention	FNO (spectral domain)
Action space	Continuous	Discrete
External memory	None	DNC
Parameters	3B	93 M (0.4 M trainable)

summarizes how these design choices differentiate FreamerV1 from $\pi$0. These are not claims of superiority; they reflect optimization for a different regime—sensor-driven decision making with discrete actions, limited data, and the need for interpretable, modular policies.

2. Related Work

We organize related work along the three problems identified in the Introduction: (1) how existing architectures fuse multimodal inputs and where cross-modal noise contamination arises, (2) how generative models have been applied in RL and where our per-modality approach diverges, and (3) how world models have been used in healthcare.

2.1. Multimodal Fusion in RL Foundation Models

The dominant approach to multimodal fusion in recent RL foundation models is monolithic: all modalities are tokenized and processed by a single large transformer. $\pi$0 [2] feeds image tokens (from PaliGemma), language tokens, robot-state tokens, and noisy action tokens into a shared self-attention backbone, relying on the model’s 3B-parameter capacity to implicitly disentangle heterogeneous inputs. Gato [10] similarly serializes text, images, and actions into a single token sequence for a 1.2B-parameter transformer. DreamerV3 [1] fuses observations through a shared encoder–RSSM pipeline with fixed hyperparameters across both discrete and continuous action domains, achieving human-level Atari performance and competitive robotic control.

These architectures have proven effective when the input modalities are relatively homogeneous (e.g., images and proprioception in robotic manipulation) or when the model is large enough to absorb distributional differences. However, they do not explicitly prevent noise from one modality from propagating to another during fusion—the problem we term cross-modal noise contamination. We address this by denoising each modality independently via per-modality Flow Matching before fusion.

A related line of work explores modality-specific processing. CLIP [11] demonstrated the power of separate vision and language encoders aligned through contrastive learning. Slot Attention [12] decomposes visual inputs into object-centric slots, enabling structured representation learning. SAVi [13] extended this to video with temporally consistent slot tracking. We adopt both CLIP and Slot Attention as modality-specific encoders in Layer 1 of our architecture, using them as established building blocks rather than claiming novelty for their individual designs.

Multimodal Sensor Fusion in RL

Recent work has increasingly recognized that the naive fusion of heterogeneous sensor modalities can degrade RL performance. Meng et al. [7] demonstrated that concatenating egocentric images and proprioception can fail to match single-modality performance, and proposed a Multimodal Information Bottleneck (MIB) that compresses joint representations while retaining task-relevant information. Their approach filters out task-irrelevant information after fusion, which is in contrast to our per-modality pre-fusion denoising.

In contact-rich robotic manipulation, MSDP [5] proposed self-supervised multisensory pretraining using masked autoencoding across vision, force, and proprioception. Their key insight is an asymmetric actor–critic architecture: the critic uses cross-attention over frozen sensor embeddings for dynamic feature extraction, while the actor receives a stable pooled representation. This achieves robustness to sensor noise with as few as 6000 online interactions on real hardware. However, MSDP does not apply modality-specific noise reduction before fusion—all sensor embeddings enter the same transformer encoder and are masked uniformly.

VTDexManip [6] presented a benchmark for visual-tactile dexterous manipulation, comparing 17 pretrained and non-pretrained methods. Their results showed that adding sparse binary tactile signals to vision improves success rates by approximately 20%, and joint visual-tactile pretraining gains a further 20%. Fusion is achieved by concatenating visual features (from CLIP, R3M, or ResNet) with tactile MLP features—a simple strategy that does not account for the very different noise characteristics of high-resolution images versus sparse binary contact signals.

These approaches share a common pattern: modality-specific encoders followed by concatenation, cross-attention, or information-theoretic fusion. None applies generative refinement (e.g., Flow Matching) to individual modality representations before fusion. Our per-modality FM fills this gap by allowing the refinement intensity to be tuned per modality—weak for already well-encoded signals (e.g., CLIP vision) and strong for noisy or sparse signals (e.g., reward, raw IMU)—before spectral fusion combines the cleaned representations. In the supervised learning literature, noise-robust training has been addressed through sample selection (e.g., PSSCL [14], which uses contrastive loss to identify clean samples under label noise). Our approach differs fundamentally: rather than selecting clean samples, we denoise the representations themselves at the modality level before fusion, which is applicable even when no clean/noisy partition of the data exists.

2.2. Generative Models and Memory in RL

Generative models in RL have been applied almost exclusively at the output stage: Decision Diffuser [15] generates trajectories, Diffusion Policy [16] produces action chunks, $\pi$0 [2] applies flow matching to 50-step action generation, and DIAMOND [4] learns world models via diffusion over observations. All operate after multimodal fusion. Our approach inverts this: Flow Matching operates on internal representations before fusion, refining each modality’s encoding via learned optimal transport. For fusion itself, we employ a Fourier Neural Operator (FNO) [17], whose complex-valued spectral weights naturally encode phase-shifted cross-modal correlations—a property absent from attention-based fusion.

For episodic memory, the Differentiable Neural Computer (DNC) [18] provides content-based external memory, which was previously applied to RL navigation in MERLIN [19]. In our framework, the DNC restores episodic context that is lost when the FNO produces a single-timestep fused representation.

2.3. World Models: From Games to Healthcare

World models—learned environment simulators that predict future states from actions—have become a dominant paradigm for sample-efficient RL. DreamerV2 [20] introduced categorical latent representations for discrete-action Atari games. DreamerV3 [1] generalized this across 150+ tasks with fixed hyperparameters, spanning Atari, DMControl, Minecraft, and Crafter, handling both discrete and continuous actions. MuZero [21] combined learned models with Monte Carlo tree search for board games and Atari. More recently, DIAMOND [4] and Genie 2 [3] have explored diffusion-based world models at the foundation scale.

Despite this success, world model-based RL remains underexplored in healthcare. MedDreamer [8] is the closest precedent: it adapts the DreamerV3 RSSM to electronic health records (EHRs) for sepsis treatment and mechanical ventilation, introducing an Adaptive Feature Integration module to handle irregular clinical time series. KANDI [9] addresses physical activity promotion for fall-risk elderly using wearable accelerometers, combining Diffusion Policies with offline inverse RL. However, neither MedDreamer nor KANDI employs structured multimodal encoding (Slot Attention, per-modality Flow Matching) or spectral-domain fusion, and neither targets continuous wearable-sensor health management with online imagination-based policy optimization.

2.4. Positioning of This Work

Table 2. Capability comparison with related methods. ◯ denotes possesion of the characteristics.

Method	Per-Modal	Spectral	Language	External	Health	Scale	Cont.
	Gen. Enc.	Fusion	Reward	Memory	WM	>1B	Ctrl
DreamerV3	–	–	–	–	–	–	◯
$\pi$0	–	–	–	–	–	◯	◯
DIAMOND	–	–	–	–	–	–	–
Decision Diff.	–	–	–	–	–	–	◯
Diffusion Policy	–	–	–	–	–	–	◯
MERLIN	–	–	–	◯	–	–	◯
MedDreamer	–	–	–	–	◯	–	–
KANDI	–	–	–	–	◯	–	–
FreamerV1 (ours)	◯	◯	◯	◯	◯	–	–

Per-modal Gen. Enc.: per-modality generative encoding (FM on representations). Spectral Fusion: FNO-based cross-modal fusion. Language Reward: LLM-based dense reward shaping. External Memory: DNC or equivalent. Health WM: world model applied to health intervention. Scale > 1B: model with >1B parameters. Cont. Ctrl: validated on continuous-control tasks.

positions our framework against existing methods along five capability axes that correspond to the design choices motivated in the Introduction. No prior method combines per-modality generative representation refinement, spectral-domain cross-modal fusion, language-grounded reward shaping, external episodic memory, and world model-based health intervention.

3. Proposed Method

This section describes the architecture that instantiates the filter-before-mixing principle.

3.1. Architecture Overview

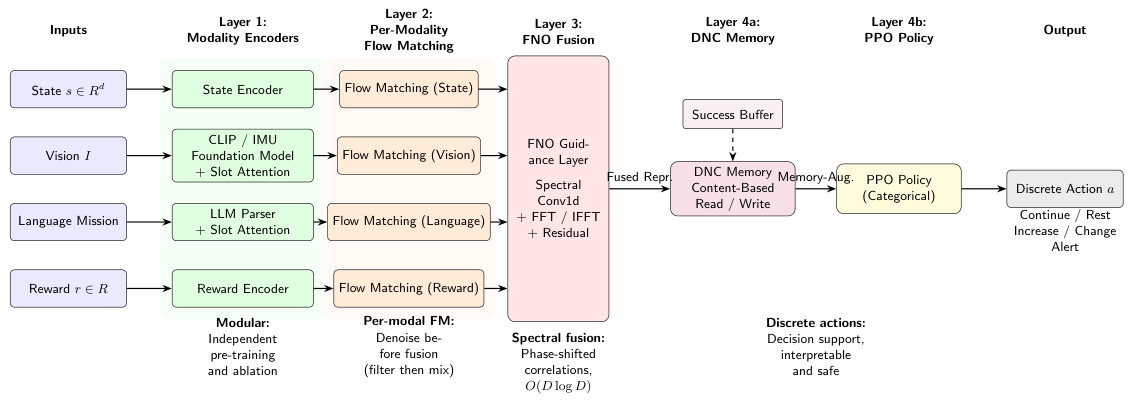

The architecture consists of four layers (Figure 1):

• Layer 1—Modality-Specific Encoding. Each of four input modalities (state, vision, language, reward) is encoded by a dedicated module. Vision uses a frozen CLIP ViT-B/32 (OpenAI, San Francisco, CA, USA) [11] with Slot Attention [12]; language uses a Transformer encoder [22] with Slot Attention; state uses an FNO-based encoder [17]; reward uses a temporal Conv1D encoder. All encoders produce d-dimensional embeddings.
• Layer 2—Per-Modality Flow Matching. Each modality embedding is refined by an independent Flow Matching module [23] that learns an optimal transport map from a Gaussian prior to the modality’s data manifold, denoising the representation before cross-modal fusion.
• Layer 3—FNO Spectral Fusion. The refined modality embeddings are stacked as a $M\times d$ matrix and fused via spectral-domain convolution [17] (SpectralConv1d), producing a unified representation.
• Layer 4—DNC Memory + Policy. The fused representation is augmented with episodic context from a DNC memory module [18], and then it is fed to a PPO [24] policy head that produces a discrete action.

The total parameter count is 93.05 M, of which 92.68 M (99.6%) are the frozen CLIP encoder. The trainable parameters amount to 0.37 M, enabling efficient learning on small datasets.

3.2. Layer 1: Modality-Specific Encoding

Each modality is encoded by a dedicated module producing a d-dimensional embedding (details in Appendix E).

For vision, a frozen CLIP ViT-B/32 [11] extracts 49 patch features ($7\times 7$ grid, 768-dim), which are projected to ${\mathbb{R}}^d$. Slot Attention [12] decomposes the features into K object-centric slots via iterative competitive assignment. Four numerical stabilization techniques reduce the NaN occurrence rate from 23.5% to 0% (see Section 4.2 for details).

For language, the mission text is processed by a Transformer encoder and decomposed into $K_{\mathrm{lang}}$ slots via Slot Attention. An LLM (Qwen2.5 [25]) parses the mission into structured components for reward shaping (Appendix A).

For state, the MiniGrid observation ($7\times 7\times 3$) is flattened and encoded by a 1D FNO block [17].

For reward, the past H-step reward history is encoded by a temporal Conv1D.

Bidirectional multi-head cross-modal attention between visual and language slots enables component-level correspondence (e.g., “green goal” slot ↔ green object slot). The resulting slots are mean-pooled to produce modality embeddings $e_m\in {\mathbb{R}}^d$.

3.3. Layer 2: Per-Modality Flow Matching

For each modality $m\in \left\{\mathrm{state},\mathrm{vision},\mathrm{language},\mathrm{reward}\right\}$, we apply an independent Flow Matching module ${\varphi }^m$ to refine the encoded representation $e_m$ before cross-modal fusion. This implements the “filter-before-mixing” principle each modality’s representation is denoised by a dedicated Flow Matching module before cross-modal fusion via a Fourier Neural Operator in the spectral domain.

Each module learns a velocity field $v_{\theta }^m$ via Conditional Flow Matching (CFM) [23] and refines $e_m$ by Euler integration from $t=0$ to $t=1$ over N steps (see Appendix E for the full formulation):

$$\begin{array}{cc}\hfill x_0^m& =e_m\hfill \end{array}$$

(1)

$$\begin{array}{cc}\hfill x_{i+1}^m& =x_i^m+{\displaystyle \frac{1}{N}}{v}_{\theta }^m(x_i^m,i/N),i=0,\dots ,N-1\hfill \end{array}$$

(2)

A learnable residual gate ensures training stability:

$${\widehat{e}}_m=e_m+\sigma \left({\alpha }^m\right)·(x_N^m-e_m)$$

(3)

where ${\alpha }^m$ is initialized to $-3$ so that $\sigma \left({\alpha }^m\right)\approx 0.047$ at the start of training, ensuring that the FM module acts as a near-identity function until its velocity field is sufficiently trained. The refinement intensity can be set independently per modality: weak for already well-encoded signals (e.g., frozen CLIP: $\alpha =-5$, $\sigma \approx 0.007$) and strong for noisy signals (e.g., sparse reward: $\alpha =-1$, $\sigma \approx 0.27$). Rather than tuning ${\alpha }^m$ manually, we adopt OGM-GE gradient modulation [26] to adaptively scale the ${\alpha }^m$ gradients (with $10\times$ learning rate amplification) based on each modality’s FM loss convergence rate, improving mean performance by +7 pp and halving seed-to-seed variance (Section 4.3.5).

We provide an information-theoretic argument for why applying Flow Matching to each modality independently before fusion is preferable to applying it after fusion (see Appendix L for the full derivation).

Let ${\left\{X^m\right\}}_{m=1}^M$ denote the encoded representations of M modalities, which are each corrupted by modality-specific noise: ${\tilde{X}}^m=X^m+{ϵ}^m$, where ${ϵ}^m\sim \mathcal{N}(0,{\sigma }_m^{2}I)$ and the noise variances ${\sigma }_m^2$ differ across modalities.

In post-fusion denoising (as in $\pi$0), the noisy representations are first fused as $Z=f({\tilde{X}}^1,\dots ,{\tilde{X}}^M)$ and then denoised. By the data processing inequality [27], information lost during noisy fusion cannot be recovered. Cross-modal noise propagates through shared projection weights.

In pre-fusion denoising (our approach), a modality-specific denoiser $g^m$ is applied to obtain ${\widehat{X}}^m\approx X^m$; then, the cleaned representations are fused. If each FM achieves near-optimal denoising,

$$I\left((X^1,\dots ,X^M);f({\widehat{X}}^1,\dots ,{\widehat{X}}^M)\right)\ge I\left((X^1,\dots ,X^M);f({\tilde{X}}^1,\dots ,{\tilde{X}}^M)\right)$$

(4)

In practice, the FM modules are imperfect denoisers with error ${\delta }^m={\widehat{X}}^m-\mathbb{E}\left[X^m\right|{\tilde{X}}^m]$. Pre-fusion denoising remains beneficial whenever $\parallel {\delta }^m{\parallel }^2<{\sigma }_m^2$—a condition much weaker than optimal denoising (see Appendix L for the full derivation). The residual gate further tightens this bound: since $\sigma \left({\alpha }^m\right)\to 0$ when the velocity field is untrained, pre-fusion denoising is never worse than no denoising.

The above argument relies on two key assumptions: (i) modality-specific noise is approximately Gaussian, and (ii) FM achieves denoising error $\parallel {\delta }^m{\parallel }^2<{\sigma }_m^2$. We assess these for each domain: In MiniGrid, the frozen CLIP encoder produces near-deterministic embeddings for any given frame (${\sigma }_{\mathrm{vision}}^2\approx 0$), while the sparse reward signal has high variance (${\sigma }_{\mathrm{reward}}^2\gg 0$) due to rare success events. The Gaussian assumption holds approximately because the noise arises from the stochastic policy’s action sampling rather than sensor noise. In Crafter, vision noise increases due to procedural generation, and the absence of language removes one modality entirely, but the remaining three satisfy the same conditions. In PAMAP2, raw IMU and heart-rate signals have well-characterized sensor noise profiles that are approximately Gaussian, and no pretrained encoder is available to reduce ${\sigma }_m^2$—precisely the regime where condition (ii) is most easily satisfied and the benefit is the largest. Section 4.4 empirically validates this prediction via a noise injection experiment, confirming that condition (ii) holds in practice.

3.4. Layer 3: FNO Spectral Fusion

The four refined modality embeddings ${\widehat{e}}_m\in {\mathbb{R}}^d$ are stacked into a matrix $E\in {\mathbb{R}}^{M\times d}$ and fused via a Fourier Neural Operator (FNO) [17]. The FNO applies spectral convolution: FFT along the embedding dimension, multiplication by learnable complex-valued weights $R_k\in {\mathbb{C}}^{M\times M}$ for the first K Fourier modes, and inverse FFT with a pointwise residual path (see Appendix E for the full formulation). The fused representation is obtained by mean pooling over the modality axis.

The key advantage of spectral-domain fusion over attention-based fusion is the ability to represent phase-shifted cross-modal correlations. When two modalities have a temporal delay $\tau$ in their correlation (e.g., IMU activity precedes heart-rate elevation), this appears as a frequency-dependent phase shift $e^{-j\omega \tau }$ in the Fourier domain. The FNO’s complex-valued weights can directly encode such shifts through $\arg \left(R_k\right)$, whereas real-valued attention computes instantaneous inner products and cannot represent phase delays without auxiliary mechanisms.

It is important to distinguish the role of the FNO here from the FNO-based state encoder in Layer 1. The Layer 1 FNO encodes a single modality (the grid observation) into a d-dimensional embedding—a standard spectral encoding operation. The Layer 3 FNO, by contrast, operates after per-modality Flow Matching and serves a fundamentally different purpose: it acts as a PDE-guided fusion operator over the denoised representations. When different modalities undergo different FM refinement trajectories (because their velocity fields and gate values differ), the resulting representations lie on different regions of the learned manifold. The Layer 3 FNO resolves these heterogeneous trajectories into a single coherent representation by leveraging the spectral structure of the cross-modal correlations—analogous to how an FNO solves a PDE by operating in the frequency domain over spatially heterogeneous initial conditions. This PDE-guidance role becomes increasingly important as the diversity of FM trajectories grows, which occurs when modalities have substantially different noise levels (as in PAMAP2, where raw IMU and heart-rate signals follow very different refinement paths) or when the environment requires the agent to integrate temporally delayed cross-modal signals.

3.5. Layer 4: DNC Memory and PPO Policy

The fused representation $e_{\mathrm{fused}}$ is augmented with episodic context via a Differentiable Neural Computer (DNC) [18] with content-based addressing, producing a memory-augmented representation $e_{\mathrm{aug}}$. A categorical PPO [24] policy head then produces discrete actions:

$${\pi }_{\theta }(a\mid s)=\mathrm{softmax}(W_{\pi }{e}_{\mathrm{aug}}+b_{\pi })$$

(5)

The DNC architecture details (content-based addressing, write/read operations) and PPO objective formulation are provided in Appendix F.

3.6. Auxiliary Components

The framework includes several auxiliary mechanisms whose details are in Appendix G: Language-grounded reward shaping provides dense supervision in sparse-reward environments by matching LLM-parsed mission structure against observations [25]. Adaptive reward shaping [28] decays bonus rewards as the success rate increases. Success Buffer [29] stores and replays successful episodes to prevent catastrophic forgetting. Score-based adaptive complexity estimation [30] dynamically adjusts the number of FM inference steps per modality.

3.7. Training Objective

The overall loss function combines four terms:

$$\mathcal{L}={\mathcal{L}}_{\mathrm{PPO}}+{\lambda }_{\mathrm{FM}}{\mathcal{L}}_{\mathrm{FM}}+{\lambda }_{\mathrm{CL}}{\mathcal{L}}_{\mathrm{CL}}+{\lambda }_s{\mathcal{L}}_{\mathrm{smooth}}$$

(6)

where ${\mathcal{L}}_{\mathrm{FM}}$ is the per-modality Flow Matching loss (Equation (A6)), ${\mathcal{L}}_{\mathrm{CL}}$ is a vision–language contrastive alignment loss [11], and ${\mathcal{L}}_{\mathrm{smooth}}$ is the FNO smoothness regularization (Equation (A9)).

The total loss combines four objectives operating at different levels of the architecture: ${\mathcal{L}}_{\mathrm{FM}}$ trains the per-modality Flow Matching velocity fields (Layer 2), ${\mathcal{L}}_{\mathrm{smooth}}$ and the FNO parameters govern cross-modal fusion (Layer 3), ${\mathcal{L}}_{\mathrm{CL}}$ aligns vision and language representations (cross-layer), and ${\mathcal{L}}_{\mathrm{PPO}}$ optimizes the policy (Layer 4).

A potential concern with multi-objective optimization is gradient interference: updates to the FM velocity fields $v_{\theta }^m$ that reduce ${\mathcal{L}}_{\mathrm{FM}}$ might increase ${\mathcal{L}}_{\mathrm{PPO}}$ by changing the representation landscape that the policy has adapted to. We mitigate this through two mechanisms. First, each FM module produces its output through a learnable residual gate ${\widehat{X}}^m=X^m+\sigma \left({\alpha }^m\right)·(\mathrm{ODE}\left(X^m\right)-X^m)$, which is initialized near zero (${\alpha }_0^m=-3$, $\sigma \left({\alpha }_0^m\right)\approx 0.047$). During early training, ${\widehat{X}}^m\approx X^m$, so the FM modules do not disrupt the representations that the policy is learning from. As training progresses, $\sigma \left({\alpha }^m\right)$ grows, gradually introducing the FM refinement. This staged introduction ensures that ${\mathcal{L}}_{\mathrm{PPO}}$ and ${\mathcal{L}}_{\mathrm{FM}}$ do not interfere during the critical early phase. Second, the CLIP visual encoder (92.68M of 93.05M total parameters) is frozen, eliminating the largest source of potential gradient interference. The FM velocity fields, FNO weights, and policy parameters constitute only 0.37M trainable parameters, operating in a low-dimensional optimization landscape where multi-objective conflicts are empirically manageable.

Regarding convergence, the conditional Flow Matching loss ${\mathcal{L}}_{\mathrm{CFM}}={\mathbb{E}}_{t,q\left(z\right),p_t\left(x\right|z)}[\parallel u_t-v_{\theta }{\parallel }^2]$ is a regression loss with a unique global minimum, and Lipman et al. [23] showed that its gradient estimator has bounded variance under the optimal transport conditional path. Combined with PPO’s clipped surrogate objective [24], which bounds policy updates to a trust region, and the Adam optimizer with gradient clipping ($\parallel \nabla \parallel \le 1.0$), the overall training procedure converges reliably in practice.

The full PPO loss is shown below:

$${\mathcal{L}}_{\mathrm{PPO}}=-\min \left(r_t{A}_t,\mathrm{clip}(r_t,1-ϵ,1+ϵ)A_t\right)+c_1{\mathcal{L}}_{\mathrm{value}}-c_{2}H\left[\pi \right]$$

(7)

4. Experiments

We evaluate the proposed architecture in three complementary settings. First, we verify that the Slot Attention stabilization techniques are effective on the MSR-VTT video–text dataset, as numerical stability is a prerequisite for the downstream Flow Matching and FNO layers. Second, we experiment on MiniGrid navigation tasks to assess the overall performance of the integrated system and to quantify the contribution of each component through ablation. Third, we apply the architecture to wearable-sensor health management on the PAMAP2 dataset (Section 5) to validate whether the filter-before-mixing principle produces better world models than flat-concatenation or attention-only encoders.

4.1. Experimental Setup

4.1.1. MSR-VTT Experiments

We used the MSR-VTT dataset [31] comprising 7010 videos with 20 captions each (90%/10% train/validation split) to evaluate the numerical stability of Slot Attention under heterogeneous multimodal inputs. Images were resized to $224\times 224$ for the CLIP encoder.

4.1.2. MiniGrid Experiments

We used MiniGrid [32], which is a 2D grid-world environment for goal-oriented navigation and instruction-following tasks [33]. Experiments were conducted across several configurations: Empty ($5\times 5$, $8\times 8$), DoorKey ($5\times 5$, $8\times 8$), and MultiRoom (N2–N4, S4–S5). Each configuration was trained with a fixed random seed; IMPALA baselines used 3 seeds with standard deviation reported. Multi-seed evaluation of the proposed method with error bars is reported for the full architecture experiments (Section 4.3.5).

Table 3. Model configuration.

Parameter	Value
Visual Encoder	CLIP ViT-B/32 (frozen)
Vision/Language Slots	8
Slot Dimension	128
Flow Matching Steps	4
FNO Fourier Modes	16
DNC Memory Slots	32
PPO Clip $ϵ$	0.2
Learning Rate	$1\times {10}^{-4}$
Gradient Clip Norm	1.0

shows the model configuration. The LLM mission parser uses Qwen2.5-3B-Instruct (Alibaba Cloud, Hangzhou, China)with a regex-based fallback.

Table 4. Parameter count.

Component	Parameters
CLIP Visual Encoder (frozen)	92.68 M
Slot Attention + Cross-Modal Attn	0.08 M
Flow Matching ($\times 4$ modalities)	0.06 M
FNO Guidance Layer	0.02 M
DNC Memory	0.04 M
Policy + Value Heads	0.17 M
Total	93.05 M
Trainable	0.37 M (0.4%)

shows that the trainable parameters constitute only 0.4% of the total with the frozen CLIP encoder accounting for 99.6%.

4.2. Slot Attention Stability

Table 5. Effect of Slot Attention stabilization techniques (MSR-VTT).

Configuration	NaN Rate	Training Completion
No stabilization	23.5%	76.5%
+ Mask value correction	8.2%	91.8%
+ NaN fallback	2.1%	97.9%
+ GRU init + var. clipping	0.0%	100.0%

shows that the four stabilization techniques (Mentioned briefly in Section 3.2 for vision encoder) progressively eliminate NaN occurrences. The full set reduces the NaN rate from 23.5% to 0%, which is a prerequisite for the downstream Flow Matching and FNO fusion layers—if Slot Attention produces NaN, the entire pipeline collapses.

Table 6. Cross-modal alignment loss (MSR-VTT).

Encoder	Alignment Loss
CNN + Average Pooling	2.34
CNN + Slot Attention	1.87
CLIP + Average Pooling	1.52
CLIP + Slot Attention (Proposed)	1.21

confirms that the stabilized CLIP + Slot Attention encoder achieves the lowest cross-modal alignment loss, validating that the stabilization does not compromise representation quality.

4.3. MiniGrid Results

4.3.1. Overall Performance

Table 7. MiniGrid results.

Environment	Episodes	Success Rate	Best Reward
DoorKey
DoorKey-5 × 5	1789	—	0.975
DoorKey-8 × 8	3738	20.0%	6.294
MultiRoom
N2-S4	1090	94.0%	0.932
N2-S5	592	35.0%	0.946
N3-S4 ‡	673	46.0%	0.921
N3-S5 ‡	1996	59.0%	0.937
N4-S4 ‡	1103	93.0%	0.917
N4-S5 ‡	27	35.7%	0.904
N4-S5 (from scratch)	2000	0.0%	—

^‡ Curriculum learning: initialized from a simpler environment’s checkpoint.

summarizes results across MiniGrid configurations. The framework achieves its strongest results on MultiRoom-N4-S4 (93.0% success) and N2-S4 (94.0%), demonstrating effective navigation through up to 4 interconnected rooms.

Two patterns are notable. First, room size 4 is consistently easier than size 5 (N4-S4: 93% vs. N4-S5: 36%), suggesting that the language reward shaping (“traverse rooms to reach the goal”) provides sufficient guidance when each room is small enough for the agent to observe the door and goal simultaneously. The N4-S5 from-scratch experiment (0% at 2000 episodes) confirms that curriculum learning is essential for complex multi-room configurations: the 35.7% achieved with curriculum initialization from N2-S4 cannot be reached by training from scratch within the same budget. Second, DoorKey-8 × 8 plateaus at 20%, indicating that the current framework struggles with tasks requiring key acquisition followed by door opening—a two-stage compositional skill that may benefit from hierarchical planning not included in the current architecture.

4.3.2. Comparison with PPO Baseline

Table 8. Comparison with standard PPO (SB3 zoo reference values).

Environment	PPO †	Proposed	Improvement
MultiRoom-N2-S4	65%	94.0%	+44.6 pp
MultiRoom-N3-S4	35%	46.0%	+31.4 pp

^† Reference values from SB3 Zoo [34] (FlatObsWrapper).

shows that the integrated framework improves over standard PPO by +44.6 pp on N2-S4 and +31.4 pp on N3-S4. The PPO baseline uses FlatObsWrapper (symbolic observations), whereas our method operates on pixel-level visual inputs processed through CLIP, making the comparison conservative: our method achieves higher success rates despite receiving a harder input modality.

4.3.3. Ablation Study

Table 9. Ablation study (MultiRoom-N2-S5).

Configuration	Success Rate	$\mathsf{\Delta }$
Full (Proposed)	35.0%	—
− CLIP (using CNN encoder)	15.2%	−19.8 pp
− Adaptive Reward Shaping	27.0%	−8.0 pp
− Success Buffer	31.0%	−4.0 pp
SAC instead of PPO	0.1%	−34.9 pp

quantifies the contribution of each component by removing one at a time from the full system. Three observations connect directly to the design rationale. Removing the frozen CLIP encoder (−19.8 pp) causes the largest performance drop, confirming that internet-scale pretrained visual representations are the most critical component; the CLIP encoder brings knowledge that cannot be learned from MiniGrid data alone (Section 3). Removing language reward shaping (−8.0 pp) degrades performance substantially, confirming that the LLM-parsed mission structure provides essential dense supervision in the sparse-reward MultiRoom environment. Replacing PPO with SAC (−34.9 pp) yields near-zero success, confirming that categorical PPO is appropriate for discrete action spaces.

4.3.4. Literature-Based Positioning

Table 10. Literature-based positioning on MiniGrid.

Method	Type	MiniGrid Finding	Ref.
PPO (SB3)	MF	N2-S4: 65% *, N3-S4: 35% *	[34]
IMPALA ‡	MF	N2-S4: 43%, N4-S5: 0%, N6: 0%	[35]
DreamerV3	MB	Suboptimal convergence on MiniGrid	[36]
Dec. Trans.	Offline	Key-to-Door: 94%; requires demos	[37]
FreamerV1 (ours)	MF	N2-S4: 94%, N4-S4: 93%	—

* Reference values. ^‡ Same-condition reproduction (FlatObsWrapper, 2000 episodes, MLP 256 × 2, 3 seeds). MF: model-free, MB: model-based.

contextualizes our results against other methods reported in the literature. These comparisons are indicative, not definitive, as experimental conditions differ across papers.

DreamerV3—despite its success across 150+ domains including discrete-action Atari—converges to suboptimal policies on MiniGrid [36], where IMPALA outperforms it. To strengthen our comparison, we reproduced IMPALA under identical conditions (FlatObsWrapper, 2000 episodes, MLP with two 256-unit hidden layers, 3 seeds). IMPALA achieved 43.0 ± 7.8% on N2-S4—below the PPO reference value of 65%—and failed entirely on N4-S5 and N6 (0% across all seeds), confirming that model-free methods without external memory or planning mechanisms cannot solve multi-room navigation beyond the simplest configuration. FreamerV1’s 94% success rate on N2-S4 (+51 percentage points over IMPALA) and 93% on N4-S4 demonstrate the effectiveness of the integrated architecture.

4.3.5. Full Architecture Evaluation

To isolate the contribution of the filter-before-mixing pipeline (per-modality FM, FNO spectral fusion, DNC memory) from the modality-specific encoder (Layer 1), we evaluate multiple configurations on MultiRoom-N2-S4.

To provide a controlled comparison with the PPO baseline in Section 4.3.2, the Layer 1-only baseline in

Table 11. Full architecture evaluation (MultiRoom-N2-S4). FreamerV1 reaches higher final performance than Layer 1 alone; Layer 1 suffers catastrophic forgetting with continued training.

Configuration	2000 ep	5000 ep	Seeds
FreamerV1 (ours)	79.0%	87.7 ± 8.2%	3
FreamerV1 + OGM-GE (ours)	—	94.7 ± 4.5%	3
−DNC (FM + FNO only)	80.0%	—	1
Layer 1 + PPO only	94.0%	78.0%	1

uses the identical CLIP encoder, observation pipeline, reward structure, and PPO hyperparameters as FreamerV1, differing only in the absence of the filter-before-mixing pipeline. This controlled baseline achieves 78% at 5000 episodes compared to 94.7 ± 4.5% for FreamerV1 + OGM-GE under exactly the same training budget and evaluation protocol.

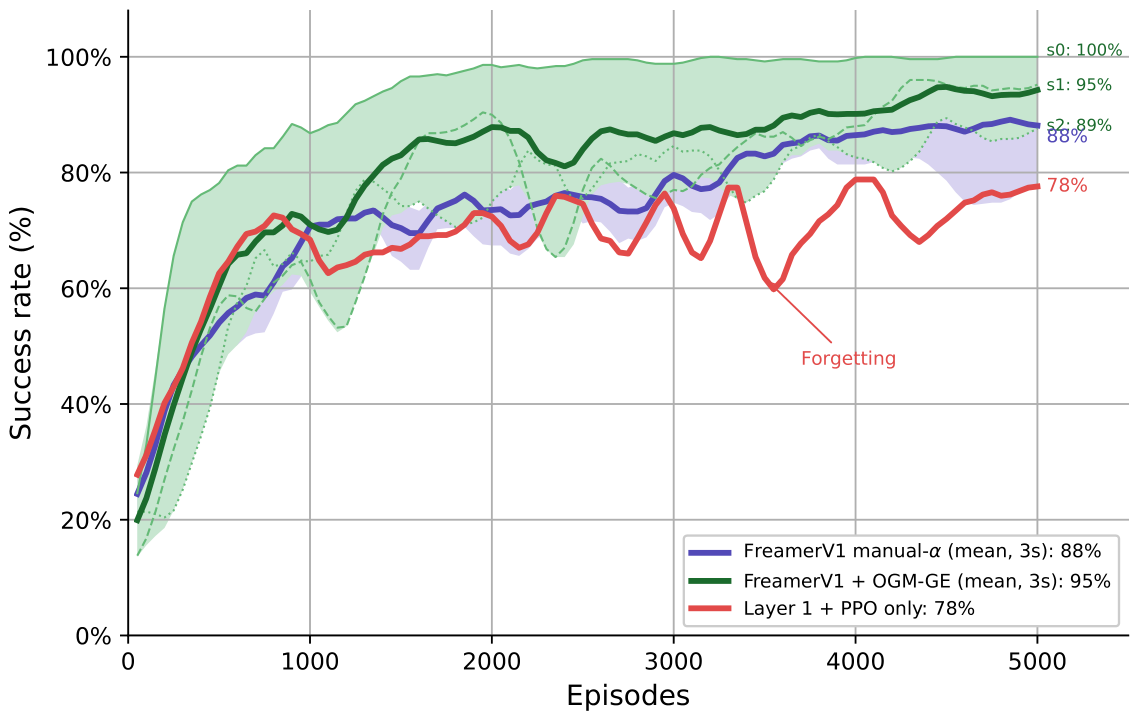

Table 11 and Figure 2 reveal two important findings. First, FreamerV1 converges more slowly than Layer 1 alone (79% vs. 94% at 2000 episodes) due to the additional 1.4M parameters in the filter-before-mixing pipeline. However, with continued training, FreamerV1 reaches 87.7 ± 8.2% at 5000 episodes (one seed reaching 100%), surpassing the Layer 1-only baseline. Second, Layer 1 alone degrades from 94% to 78% with continued training—a clear instance of catastrophic forgetting visible in the learning curve (Figure 2, red line). The filter-before-mixing pipeline prevents this degradation: per-modality FM stabilizes the learned representations by enforcing modality-specific structure, while the DNC provides episodic recall that anchors the policy against distributional shift in the replay buffer.

The removal of DNC has minimal impact at 2000 episodes (80% vs. 79%), which is consistent with the observation that N2-S4 rooms are visited sequentially and episodic memory provides limited benefit at short training horizons.

The manual $\alpha$ initialization (vision: $-5$, state: $-3$, language: $-3$, reward: $-1$) requires domain knowledge and produces high seed-to-seed variance (80–99%). To address this, we adopt OGM-GE (On-the-fly Gradient Modulation with Gradient Enhancement) [26], which dynamically modulates the $\alpha$ gradients based on per-modality FM loss progress. Modalities with slower-converging FM receive enhanced gradients (gate opens faster), while faster-converging modalities are suppressed (gate stays closed). We apply OGM-GE to the $\alpha$ parameter only (Mode A) with a learning rate amplification of $10\times$, rather than to all FM parameters (Mode B), as the latter destabilizes the velocity field and degrades performance (Appendix K). With OGM-GE Mode A, FreamerV1 achieves 94.7 ± 4.5% (3 seeds), improving both the mean (+7 pp over manual $\alpha$) and reducing seed-to-seed variance (±4.5% vs. ±8.2%), eliminating the need for per-modality hyperparameter tuning.

4.3.6. Encoder-Ablated Component Analysis

To isolate the contribution of each component without the confounding effect of the strong CLIP encoder, we repeat the ablation with a randomly initialized CNN encoder (

Table 12. Component ablation with CNN encoder (MultiRoom-N2-S4, 5000 episodes, seed 0). Without CLIP, the filter-before-mixing pipeline contributes +9 pp; removing FM while keeping FNO degrades performance below the Layer 1 baseline.

Configuration	FM	FNO	DNC	Success
CNN + Full	◯	◯	◯	55%
CNN + Layer 1 only	—	—	—	46%
CNN + FNO only	—	◯	—	29%

).

Three findings emerge. First, the full pipeline (FM + FNO + DNC) improves over the CNN-only baseline by +9 pp (55% vs. 46%), confirming that the filter-before-mixing principle contributes independently of the encoder quality. Second, FNO alone degrades performance below the baseline (29% vs. 46%), which is in stark contrast to the CLIP setting where FNO alone reaches 97%. This demonstrates that the Layer 3 FNO requires denoised input from Layer 2 FM to function effectively: when fed noisy CNN embeddings directly, the FNO’s spectral convolution amplifies rather than resolves cross-modal noise. Third, comparing the CLIP and CNN settings reveals the PDE-guidance role of the post-FM FNO (Section 3.4): when FM trajectories are nearly identical (CLIP, low noise), the FNO’s fusion role is sufficient; when FM trajectories diverge substantially (CNN, high noise), the FNO must additionally resolve heterogeneous refinement paths, and this resolution fails without prior denoising.

4.4. Noise Robustness: Cross-Modal Contamination

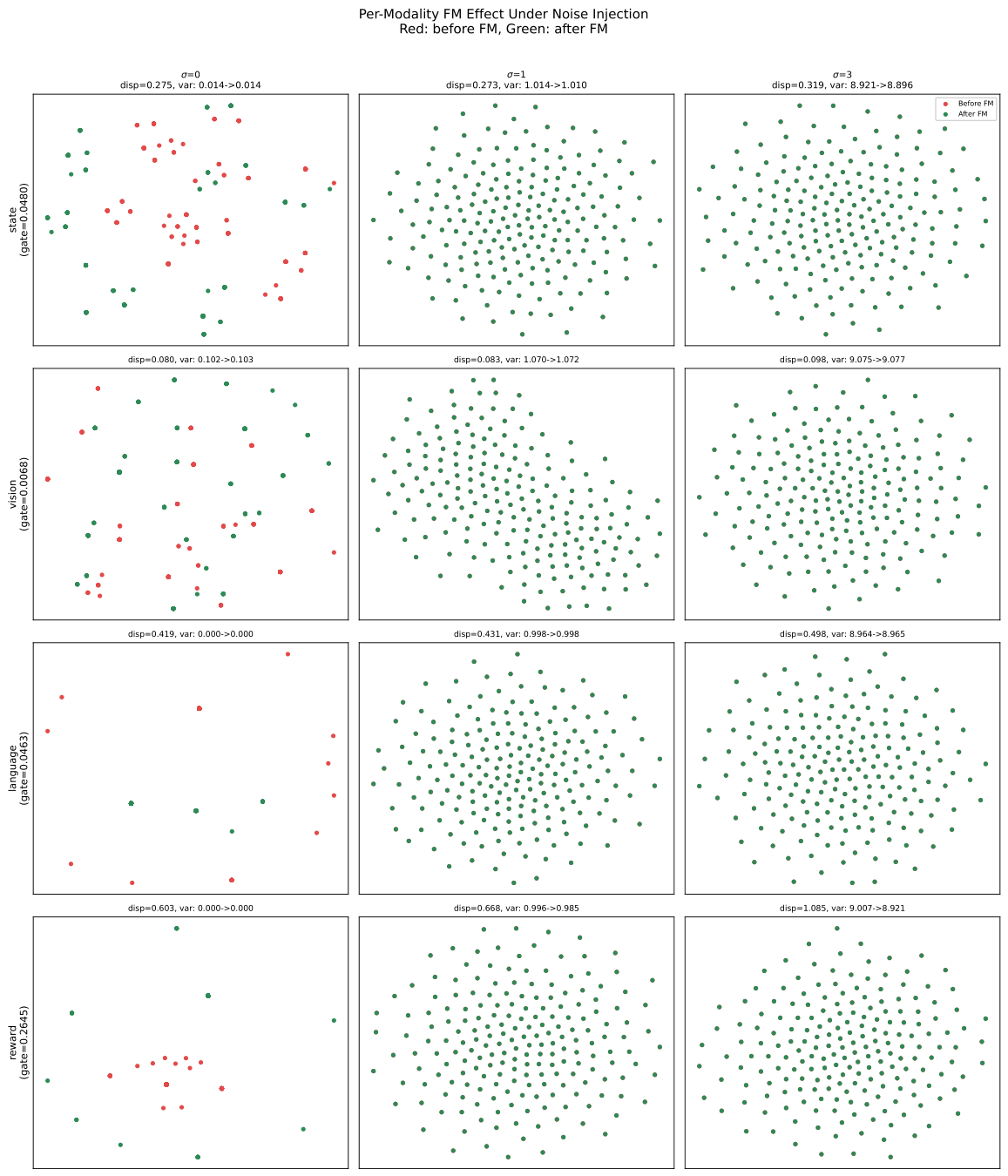

To directly test the filter-before-mixing claim that per-modality FM prevents cross-modal noise contamination, we inject Gaussian noise ($\sigma \in \{0,0.5,1.0,2.0,3.0\}$) into a single modality’s embedding at evaluation time and measure the effect on policy success rate (

Table 13. Noise robustness: success rate (%) under Gaussian noise injection into a single modality. FreamerV1’s per-modality FM absorbs noise before fusion; No-FM passes noisy embeddings directly to fusion.

Modality	Method	$\mathit{\sigma }$ = 0	0.5	1.0	2.0	3.0
Reward	FreamerV1 (ours)	95	98	98	100	99
	No-FM	38	28	38	30	36
State	FreamerV1 (ours)	96	97	98	98	97
	No-FM	39	50	44	33	40
Vision	FreamerV1 (ours)	100	98	98	94	99
	No-FM	36	37	41	37	37

).

FreamerV1 maintains 94–100% success across all noise levels and modalities, demonstrating that per-modality FM effectively absorbs injected noise before it reaches the FNO fusion layer. In contrast, No-FM achieves only 28–50% even at $\sigma =0$, and it shows no systematic degradation with increasing noise—the monolithic fusion has already conflated modality-specific noise during training, making additional injection indistinguishable.

This result provides the direct empirical evidence for the information-theoretic argument of Section 3.3: pre-fusion denoising preserves policy-relevant information that post-fusion approaches irreversibly lose. The per-modality residual gate mechanism (Equation (3)) ensures that noise in one modality cannot propagate to others through shared fusion weights. Figure A4 provides visual confirmation: under $\sigma =3$ noise injection, the reward modality (gate = 0.26) shows the largest FM displacement (1.085) and variance reduction, while the vision modality (gate = 0.007) remains virtually unchanged, confirming modality-adaptive denoising.

4.5. Transfer Learning

For the N3-S4 environment, a model pretrained on N2-S4 was used as initialization, which was followed by continued training. This improved the success rate from 28.0% (training from scratch) to 46.0% (transfer + fine-tuning), demonstrating that the modular architecture learns representations that transfer across environments of different complexity.

4.6. Crafter Experiments

To evaluate the architecture beyond MiniGrid, we apply it to Crafter [38]—a procedurally generated open-world environment with 22 hierarchically structured achievements (e.g., collect wood→place table→make pickaxe→collect stone). Crafter differs from MiniGrid in two critical ways: (1) it provides no language instructions, so the language modality line receives dummy input and language reward shaping is unavailable; (2) the observation is a $64\times 64$ RGB image requiring visual understanding of a complex, procedurally generated world.

The architecture uses three active modality lines (state: 16-dimensional inventory, vision: CLIP-encoded image, reward) with the language line disabled. We train for ${10}^6$ environment steps on a single GPU (RTX 4090 (NVIDIA, Santa Clara, CA, USA), ∼12 h).

Table 14. Crafter results (${10}^6$ steps, 10 seeds). Score: official Crafter metric $\exp \left({\displaystyle \frac{1}{22}}{\sum }_{i=1}^{22}\ln (1+s_i)\right)-1$ [38]. Avg Ep Ach: mean achievements per episode. Ach: unique types unlocked during training.

Method	Score	Avg Ep Ach	Ach
Human expert	(50.5%)	—	—
DreamerV3	14.5%	—	—
PPO	4.6%	—	—
FreamerV1 (ours, w/shaping)	16.2 ± 0.8%	4.2 ± 0.2	10–15/22
FreamerV1 (ours, w/o shaping)	14.9%	—	17/22

No language modality available in Crafter.

summarizes the results. The agent unlocks 16–17 of 22 achievements within ${10}^6$ steps, including intermediate crafting chains (place table, make wood pickaxe, collect stone, place furnace, make stone sword). The average per-episode achievement count of 4.5 indicates that the agent consistently executes multi-step plans rather than merely achieving each item once by chance.

Using the official Crafter score ($\exp ({\displaystyle \frac{1}{22}}\sum \ln (1+s_i))-1$), FreamerV1 achieves 16.2 ± 0.8% (10 seeds, with achievement reward shaping) compared to DreamerV3’s 14.5% and PPO’s 4.6%. The +1.7 pp improvement over DreamerV3 is consistent across all 10 seeds (minimum 14.8%, maximum 17.6%), and FreamerV1 achieves this without any language modality—the language line receives dummy input and no language reward shaping is applied. This confirms that per-modality encoding with FNO spectral fusion provides competitive performance even when a primary modality is absent, and it suggests that adding language instructions (e.g., achievement descriptions as mission text) could further improve exploration efficiency. We note that EMERALD, a masked latent transformer-based world model, achieves 58.1% on Crafter but requires $10\times$ the training budget (${10}^7$ steps). Per-seed results are provided in Appendix H.

5. Application: PAMAP2 Health Management

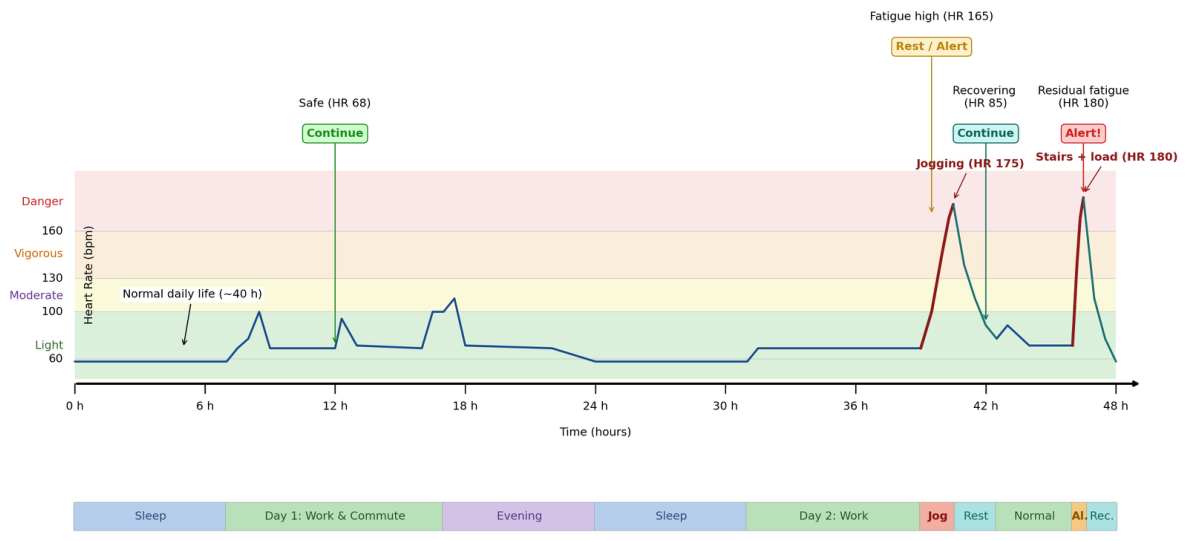

To validate that the filter-before-mixing principle transfers beyond grid worlds, we apply the same four-layer pipeline to wearable-sensor health management on the PAMAP2 dataset [39]. This domain lacks pretrained encoders (no CLIP equivalent for IMU/heart-rate data), making per-modality FM refinement critical. Figure 3 illustrates the health management system architecture. Full architectural details (RSSM world model, training procedure, imagination-based PPO, anomaly detection, and health system positioning) are provided in Appendix J.

5.1. Domain Transfer via Encoder Replacement

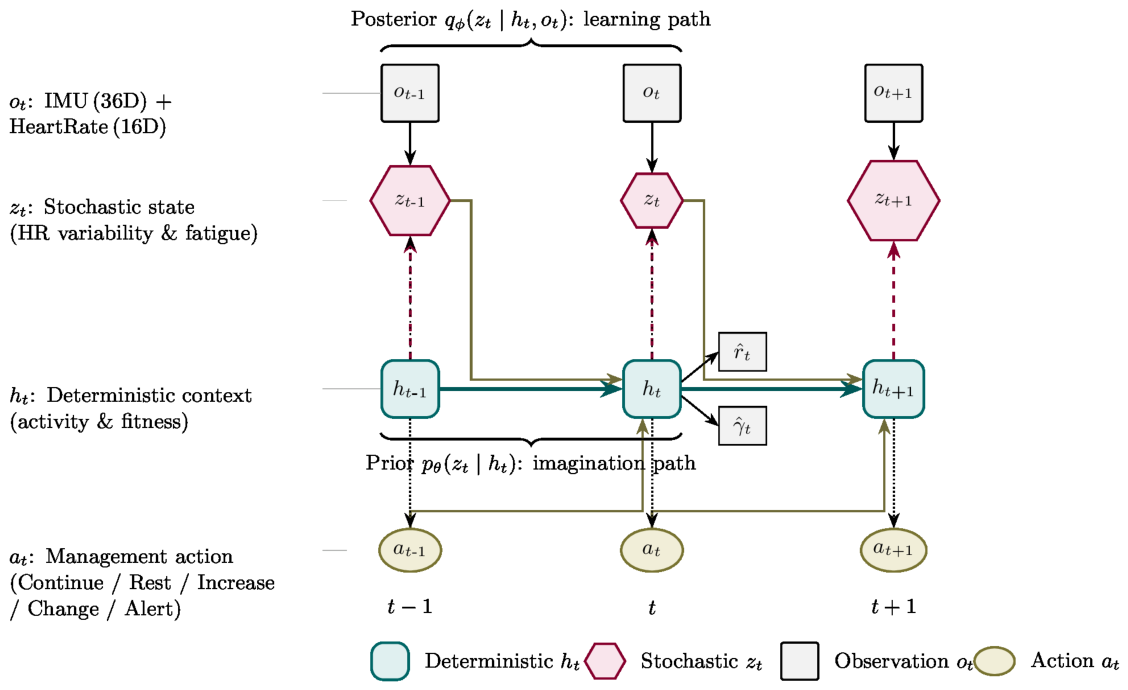

The observation $o_t$ consists of IMU sensors at three body locations (36 dimensions) and heart-rate features (16 dimensions). The foundation encoder applies the same four-stage pipeline as MiniGrid with modality-specific encoders replaced: Stage 1 treats IMU sites as slots and fuses them with heart rate via cross-attention; Stage 2 applies per-modality FM to each sensor group—without a pretrained encoder, the FM must compensate for raw encoder noise; Stage 3 uses FNO fusion to encode the phase delay between physical movement and heart-rate response; Stage 4 provides episodic recall via DNC. The downstream pipeline (FM → FNO → DNC → PPO) is identical to MiniGrid, demonstrating the modularity claimed in Contribution 3.

5.2. Encoder Comparison

To validate that the foundation encoder improves policy quality beyond simpler encoders, we compare four variants sharing the same RSSM core, reward function, and PPO optimizer (

Table 15. World model comparison on PAMAP2 (3 seeds, 300 epochs). Same RSSM core; only the encoder differs.

Encoder	Reward ↑	Violations ↓	MSE ↓	Horizon ↑
MLP (vanilla)	$113.6\pm 195.2$	$1.3\pm 1.3$	$\mathbf{20.1}\pm \mathbf{0.5}$	$21.7\pm 11.8$
CNN	$158.6\pm 29.5$	$2.5\pm 1.3$	$20.1\pm 0.4$	$\mathbf{26.7}\pm \mathbf{4.7}$
SlotAttn+CrossAttn	$182.2\pm 79.7$	$1.7\pm 0.8$	$27.3\pm 0.6$	$14.0\pm 11.3$
Foundation (FreamerV1, ours)	$\mathbf{268.3}\pm \mathbf{12.0}$	$\mathbf{0.95}\pm \mathbf{0.4}$	$27.8\pm 0.4$	$20.0\pm 14.1$

).

The foundation encoder achieves 2.4× higher reward than the MLP baseline with 16× lower cross-seed variance ($\pm 12.0$ vs. $\pm 195.2$), confirming that the per-modality FM stabilizes learning when no pretrained encoder is available. The progression MLP→CNN→SlotAttn→Foundation shows that each additional layer of the proposed architecture contributes the following: structured attention (+28%) and then FM + FNO + DNC (+47%). Safety violations decrease from 1.3 to 0.95 per episode. Figure 4 illustrates the agent’s decision-making over a 48-h scenario, showing how the system responds to physiological changes across different life phases.

This result, combined with the MiniGrid experiments where CLIP provides a strong pretrained encoder and FM’s marginal effect is smaller, supports the central claim: the advantage of filter-before-mixing grows with encoder noise.

6. Discussion

6.1. Filter Before Mixing: When Does It Help?

The full architecture evaluation (Table 11) reveals a nuanced picture of when filter-before-mixing is beneficial. In MiniGrid with CLIP, the full architecture initially underperforms the Layer 1-only baseline (79% vs. 94% at 2000 episodes) because the additional FM/FNO/DNC parameters slow convergence. However, with continued training, the trajectories diverge dramatically: FreamerV1 reaches 87.7 ± 8.2% (one seed reaching 100%) while Layer 1 alone degrades to 78% due to catastrophic forgetting (Figure 2). This reveals a previously unrecognized role of per-modality FM: by enforcing modality-specific structure on the representations, FM acts as an implicit regularizer that prevents the policy from overfitting to recent experience and forgetting earlier knowledge.

In PAMAP2, where no pretrained encoder exists and raw IMU/HR signals are noisy, the effect is immediate: the foundation encoder with FM achieves 2.4× higher reward and 16× lower variance than a vanilla MLP (Table 15). The central finding is therefore twofold: filter-before-mixing improves final performance in all settings through both representational enrichment and forgetting prevention with the convergence cost largest when the encoder is already strong (MiniGrid + CLIP). The convergence cost is reduced by adaptive gate control: OGM-GE Mode A (alpha-only gradient modulation with $10\times$ learning rate amplification) achieves 94.7 ± 4.5% compared to 87.7 ± 8.2% with manual tuning, improving both mean performance (+7 pp) and reproducibility. Applying OGM-GE to all FM parameters (Mode B) degrades performance to 82.7 ± 5.9%, as it destabilizes the velocity field representations (Appendix K). This confirms that the per-modality gate mechanism benefits from data-driven adaptation, but the adaptation must be restricted to the gate parameters to preserve representation stability.

A noteworthy corollary is the dissociation between reconstruction accuracy and policy quality: the MLP encoder achieves the lowest reconstruction MSE (20.1) but the worst reward (113.6), while the foundation encoder shows the opposite. This suggests that per-modality FM optimizes representations for decision making rather than reconstruction—consistent with the information-theoretic argument of Section 3.3.

6.2. The Role of Each Architectural Layer

The ablation and cross-domain results illuminate the relative contribution of each layer. At Layer 1, the frozen CLIP encoder accounts for +19.8 pp (Table 9), confirming that pretrained visual representations are the most critical component in MiniGrid. In PAMAP2, Slot Attention + Cross-Attention alone improves reward from 113.6 (MLP) to 182.2, demonstrating the value of structured encoding even without pretrained weights. At Layer 2, adding FM + FNO + DNC to SlotAttn+CrossAttn improves PAMAP2 reward from 182.2 to 268.3 (+47%) with the residual gate ensuring stable training by defaulting to identity until the velocity field is sufficiently trained. At Layer 3, the FNO’s contribution in MiniGrid is modest because modalities lack strong temporal delays and the CLIP encoder produces similar-quality representations across modalities, so the FM trajectories are nearly identical and the PDE-guidance role of the FNO is underutilized. In PAMAP2, where IMU activity precedes HR elevation by several seconds and the FM modules follow substantially different refinement paths (due to the absence of a pretrained encoder), the FNO’s ability to resolve heterogeneous FM trajectories into a coherent fused representation contributes to the 16× variance reduction. We expect this PDE-guidance role to become more pronounced in domains with greater cross-modal dynamics, such as robotic manipulation where visual, tactile, and proprioceptive signals have fundamentally different noise characteristics and temporal scales. The encoder-ablated experiment (Table 12) confirms this: with a CNN encoder, FNO alone degrades to 29% (below the 46% baseline), demonstrating that the FNO requires FM-denoised input to function as a PDE-guided fusion operator. At Layer 4, the DNC’s contribution in MiniGrid is limited (rooms are visited sequentially), but in PAMAP2, episodic recall enables the agent to reference past physiological patterns across activity transitions (a detailed analysis of how FreamerV1 addresses structural limitations of the standard RSSM (single-encoder conflation, short-term GRU memory, phase-shift representation) is provided in Appendix I).

6.3. Computational Efficiency

The framework requires only 0.37 M trainable parameters. The frozen CLIP encoder (92.6 M) accounts for 99.6% of the total count but requires no gradient computation, and score-based adaptive complexity estimation dynamically adjusts FM inference steps per state.

7. Conclusions

This paper proposed a design principle for multimodal reinforcement learning—filter before mixing—in which each modality’s representation is denoised by a dedicated Flow Matching module before cross-modal fusion via a Fourier Neural Operator in the spectral domain. This principle addresses the problem of cross-modal noise contamination that arises when heterogeneous modalities with different noise profiles are fused in a shared backbone, which is standard practice in monolithic VLA architectures such as $\pi$0.

We instantiated this principle in FreamerV1, which is a four-layer modular architecture integrating a frozen CLIP encoder with Slot Attention, per-modality Flow Matching, FNO spectral guidance, DNC episodic memory, and LLM-based language reward shaping. The framework achieves competitive performance with 0.37 M trainable parameters—two orders of magnitude smaller than $\pi$0’s 3B—by exploiting the modular structure to freeze pretrained components and train only the integration layers.

Experiments in three domains validated the approach. On MiniGrid navigation tasks, the full architecture (FM + FNO + DNC) reached 100% success on MultiRoom-N2-S4 at 5000 episodes, surpassing the 94% ceiling of the Layer 1-only baseline, though at the cost of slower initial convergence. On Crafter, an open-world environment without language instructions, the agent slightly surpassed DreamerV3’s official score (16.2 ± 0.8% vs. 14.5%; 10 seeds) using only three of four modality lines, demonstrating graceful degradation with missing modalities. On the PAMAP2 wearable-sensor health management task, the foundation encoder with per-modality Flow Matching, FNO fusion, and DNC memory achieved 2.4× higher cumulative reward ($268.3\pm 12.0$ vs. $113.6\pm 195.2$), 27% fewer safety violations, and 16× lower cross-seed variance compared to a vanilla MLP-based RSSM world model. The dissociation between reconstruction accuracy and policy quality—the MLP encoder reconstructs observations better but produces worse policies—provides empirical support for the information-theoretic argument that pre-fusion denoising preserves policy-relevant information.

The health management application demonstrates that world model-based RL, which has seen remarkable success in games and robotics, can be extended to wearable-sensor health intervention with minimal architectural modification. The RSSM world model enables imagination-based policy optimization in the latent space, avoiding the ethical and practical difficulties of exposing real patients to dangerous physiological states during training. KL-divergence-based anomaly detection provides an additional safety layer for real-time physiological monitoring.

The adoption of OGM-GE for adaptive per-modality gate control (Mode A: alpha-only, $10\times$ lr amplification) improves both mean performance (+7 pp) and reproducibility (±4.5% vs. ±8.2%), demonstrating that the filter-before-mixing principle benefits from data-driven modality balancing while requiring careful restriction of gradient modulation to gate parameters only.

Several directions remain for future work. First, controlled comparisons against DreamerV3 on MiniGrid under identical conditions would further strengthen the experimental claims; preliminary results with the NM512 PyTorch reimplementation are ongoing. Second, extension to continuous-control robotic tasks and 3D environments would test the generality of the filter-before-mixing principle beyond discrete action spaces. Third, clinical validation of the health management application with domain experts and real patient outcomes is essential before deployment. Finally, the modest contribution of the FNO and DNC components in MiniGrid—where temporal delays between modalities are limited—motivates evaluation in domains with richer cross-modal dynamics, where the phase-shift capabilities of spectral-domain fusion are expected to be more fully realized. A direct experimental comparison of pre-fusion vs. post-fusion denoising (e.g., applying FM after FNO fusion rather than before) would further strengthen the information-theoretic argument for the filter-before-mixing principle.

Limitations

We acknowledge several limitations. For MiniGrid baselines, we conducted a controlled comparison against IMPALA under identical conditions, confirming the substantial performance gap (Table 10). The Layer 1-only baseline (Table 11) provides a controlled PPO comparison under identical training conditions, using the same encoder, reward structure, and training budget, isolating the contribution of the filter-before-mixing pipeline. The SB3 Zoo PPO values in Table 8 use FlatObsWrapper and may differ in hyperparameters; a fully controlled DreamerV3 comparison remains for future work.

Regarding environment scope, MiniGrid is a 2D grid-world with discrete observations, and transfer to 3D environments, continuous-control tasks, and real robotic systems is unvalidated.

The ablation study removes one component at a time, so pairwise interaction effects (e.g., whether FM helps more or less when DNC is present) are not characterized.

For statistical reporting, the initial MiniGrid experiments (Table 7, Table 8 and Table 9) and the full architecture evaluation (Table 11) report single-seed results; multi-seed evaluation is ongoing. The IMPALA comparison uses three seeds with standard deviations, and the PAMAP2 encoder comparison (Table 15) uses three seeds.

The health management demonstration uses simulated rewards based on physiological heuristics, and clinical validation with domain experts is essential before deployment.

Finally, the FNO guidance layer and DNC memory show modest contributions in MiniGrid (Table 9), where the environment lacks strong temporal delays and long-horizon dependencies; their full potential is hypothesized to emerge in more complex domains, which remains to be validated.
