A 48 nW, Universal, Multi-Mode Gm-C Filter with a Frequency Range Tunability

Abstract

This paper presents an ultra-low-power, inverter-based, universal Gm-C filter capable of operating in multiple modes: voltage, current, transconductance, and trans-resistance. The proposed filter features orthogonal tunability of the center frequency (ω₀) and quality factor (Q). To achieve ultra-low power consumption, all transistors are biased in the subthreshold region with a supply voltage of 0.5 V. A Nauta inverter-based gm block is utilized as the operational transconductance amplifier (OTA), further enhancing power efficiency. The filter is capable of generating all filtering responses across a supply voltage ranges from 1.2 V down to 0.5 V. Moreover, the center frequency and quality factor can be tuned by adjusting capacitance values. The proposed Gm-C filter achieves a power consumption of 48 nW, with the center frequency ranging from 50.6 Hz to 1270 Hz.

1. Introduction

Gm-C filters have become widely used in various applications in the past few years, including communication systems, signal processing, implantable biomedical devices, and portable electronic systems [1,2,3]. The use of analog filters, due to their different frequency responses, such as low-pass (LP), high-pass (HP), band-pass (BP), band-reject (BR), and all-pass (AP), is common in a wide range of applications. Therefore, the design of a universal filter in which all the filtering responses (LP, HP, BP, BR, and AP) can be generated is reported in [4,5,6,7,8]. Considering that analog circuits use both current and voltage signals, multi-mode analog filters can be generated in different modes of operation like voltage mode (VM), current mode (CM), transconductance mode (TCM), and trans-resistance mode (TRM) [9,10,11,12]. Some advanced techniques are presented to reduce power consumption. These techniques include lowering the supply voltage value, floating gates, biasing transistors in the subthreshold region, and bulk-driven techniques [13,14,15,16]. The inverter circuit comprises two transistors that can reduce power consumption and chip size area. As a result of lowering power consumption and parasitic capacitors in the inverter structure, inverter-based analog filters can be used in biomedical and communication systems [17,18,19,20]. Furthermore, the adjustability of the filter’s performance (center frequency $\omega$₀ and quality factor Q) over a wide range is crucial in the design of high-performance universal Gm-C filters [21,22,23,24]. However, a highly linear continuous-time filter is discussed in [23], which benefits from a MOSFET biased in the triode region to implement a linear transconductance (g_m). However, this circuit suffers from a low-frequency tunability range while consuming high power. Furthermore, the circuit reported in [24] provides a 10x transconductance variation at the cost of high-power consumption and a low tunability range for the center frequency. A tunable band-pass, inverter-based Gm-C filter is reported in [21]. However, this circuit requires a high supply voltage to implement a wide frequency tunability range, which limits the usability of this circuit in low-voltage applications. An inverter-based Gm-C filter in the subthreshold region capable of tuning the center frequency range of 10 kHz to 2.8 MHz is reported in [22]. However, this circuit only generates a voltage-mode low-pass filtering response. As a result, this circuit fails to be considered as a universal multi-mode analog filter.

The proposed inverter-based Gm-C filter in this paper can generate all filtering responses (LP, HP, BP, BR, and AP) in various modes of operation (current, voltage, trans-resistance, and transconductance). A Nauta inverter-based gm structure is utilized as an OTA circuit to reduce power consumption in the proposed filter. The proposed filter can adjust the center frequency and quality factor without variations in the current and voltage bias of the OTA blocks, so the filter’s static power consumption can be constant during frequency variations. This paper is structured as follows: Section 2 introduces the proposed filter structure, while Section 3 presents simulation results using 180 nm TSMC technology node parameters. Section 4 presents noise analysis, while Section 5 compares the performance of the proposed filter with state-of-the-art designs. Finally, the conclusion is presented in Section 6.

2. The Proposed Filter Design

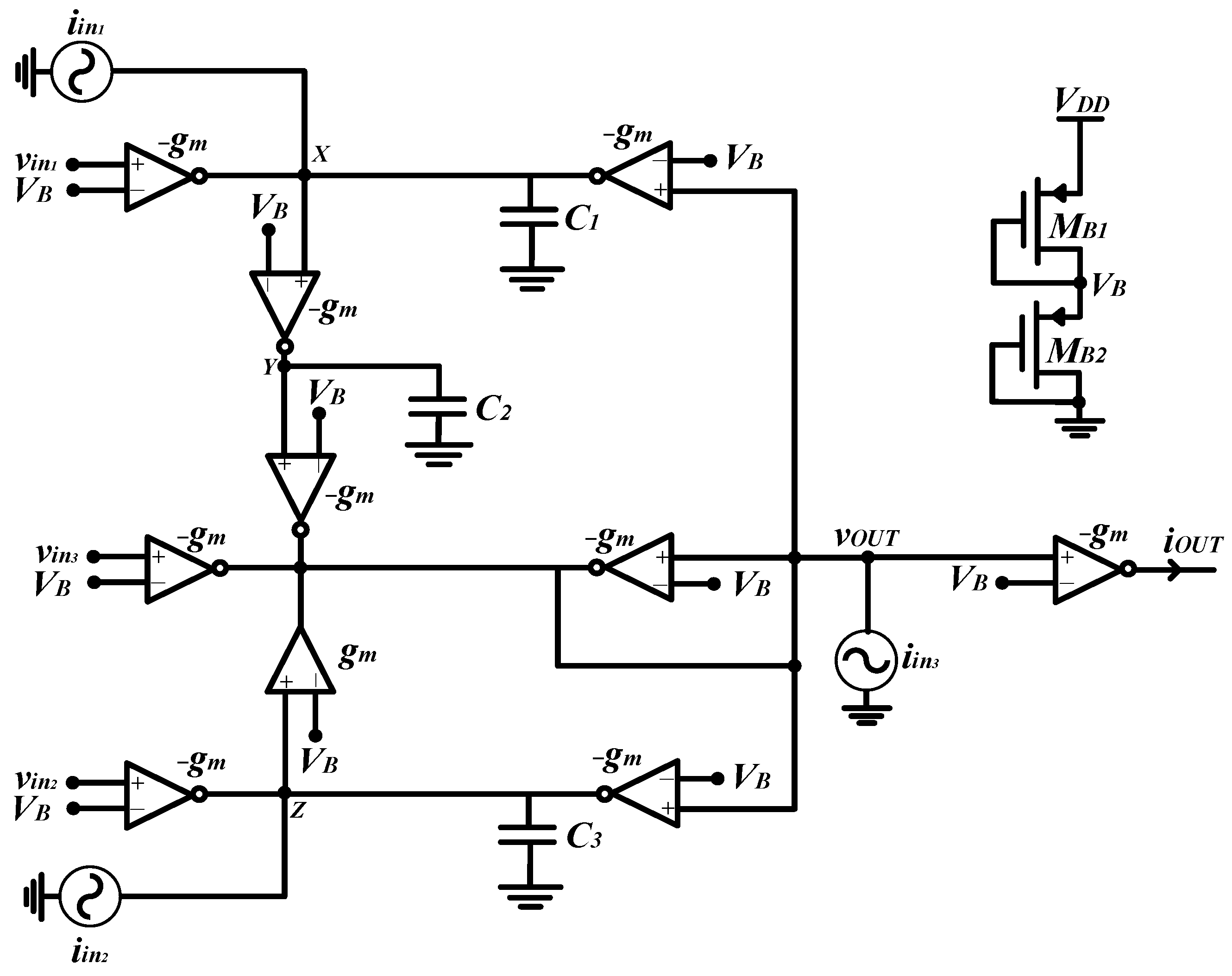

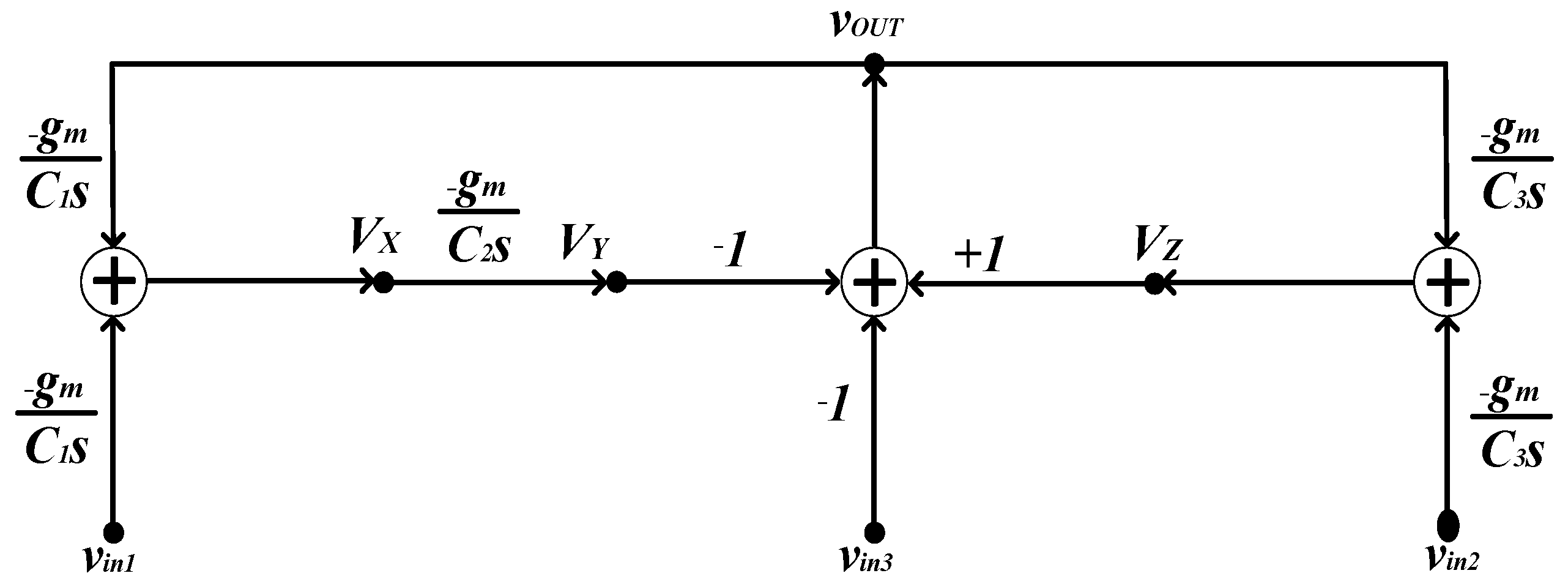

The tunable, universal Gm-C filter is illustrated in Figure 1, where i_in1, i_in2, i_in3, and v_in1, v_in2, and v_in3 represent the input current and voltage signals, while i_OUT and v_OUT signify the proposed filter’s output current and voltage signals. Furthermore, Figure 2 shows a signal flow graph (SFG) to justify the transfer function of the proposed circuit. The positive and negative transconductances g_m and −g_m for the OTA circuit are shown in Figure 3. The filter equations for the overall transfer function, center frequency (ω₀), and quality factor (Q) are as follows, in which D(s) is a polynomial:

$$\mathrm{D}\left(\mathrm{s}\right)={\mathrm{s}}^3+{\displaystyle \frac{{\omega }_0}{\mathrm{Q}}}{\mathrm{s}}^2+{{\omega }_0}^2\mathrm{s}={\mathrm{s}}^3+{\displaystyle \frac{{\mathrm{g}}_{\mathrm{m}}}{{\mathrm{C}}_3}}{\mathrm{s}}^2+{\displaystyle \frac{{{\mathrm{g}}_{\mathrm{m}}}^2}{{\mathrm{C}}_2{\mathrm{C}}_1}}\mathrm{s}$$

(1)

$${\mathrm{v}}_{\mathrm{O}\mathrm{U}\mathrm{T}\left(\mathrm{VM}\right)}=-{\displaystyle \frac{{\mathrm{s}}^3{\mathrm{v}}_{\mathrm{in}3}+\frac{{\mathrm{g}}_{\mathrm{m}}}{{\mathrm{C}}_3}{\mathrm{s}}^2{\mathrm{v}}_{\mathrm{in}2}+\frac{{{\mathrm{g}}_{\mathrm{m}}}^2}{{\mathrm{C}}_2{\mathrm{C}}_1}\mathrm{s}{\mathrm{v}}_{\mathrm{in}1}}{\mathrm{D}\left(\mathrm{s}\right)}}$$

(2)

$${\mathrm{i}}_{\mathrm{O}\mathrm{U}\mathrm{T}\left(\mathrm{TCM}\right)}={\displaystyle \frac{{\mathrm{g}}_{\mathrm{m}}\left[{\mathrm{s}}^3{\mathrm{v}}_{\mathrm{in}3}+\frac{{\mathrm{g}}_{\mathrm{m}}}{{\mathrm{C}}_3}{\mathrm{s}}^2{\mathrm{v}}_{\mathrm{in}2}+\frac{{{\mathrm{g}}_{\mathrm{m}}}^2}{{\mathrm{C}}_2{\mathrm{C}}_1}\mathrm{s}{\mathrm{v}}_{\mathrm{in}1}\right]}{\mathrm{D}\left(\mathrm{s}\right)}}$$

(3)

$${\mathrm{i}}_{\mathrm{O}\mathrm{U}\mathrm{T}\left(\mathrm{CM}\right)}=-{\displaystyle \frac{{\mathrm{s}}^3{\mathrm{i}}_{\mathrm{in}3}+\frac{{\mathrm{g}}_{\mathrm{m}}}{{\mathrm{C}}_3}{\mathrm{s}}^2{\mathrm{i}}_{\mathrm{in}2}+\frac{{{\mathrm{g}}_{\mathrm{m}}}^2}{{\mathrm{C}}_2{\mathrm{C}}_1}\mathrm{s}{\mathrm{i}}_{\mathrm{in}1}}{\mathrm{D}\left(\mathrm{s}\right)}}$$

(4)

$${\mathrm{v}}_{\mathrm{O}\mathrm{U}\mathrm{T}\left(\mathrm{TRM}\right)}={\displaystyle \frac{{\mathrm{s}}^3{\mathrm{i}}_{\mathrm{in}3}+\frac{{\mathrm{g}}_{\mathrm{m}}}{{\mathrm{C}}_3}{\mathrm{s}}^2{\mathrm{i}}_{\mathrm{in}2}+\frac{{{\mathrm{g}}_{\mathrm{m}}}^2}{{\mathrm{C}}_2{\mathrm{C}}_1}\mathrm{s}{\mathrm{i}}_{\mathrm{in}1}}{{\mathrm{g}}_{\mathrm{m}}\mathrm{D}\left(\mathrm{s}\right)}}$$

(5)

$${\omega }_0={\displaystyle \frac{\sqrt{{{\mathrm{g}}_{\mathrm{m}}}^2}}{\sqrt{{\mathrm{C}}_2{\mathrm{C}}_1}}}$$

(6)

$$\mathrm{Q}={\displaystyle \frac{{\omega }_0}{\frac{{\mathrm{g}}_{\mathrm{m}}}{{\mathrm{C}}_3}}}={\displaystyle \frac{{\mathrm{C}}_3}{{\mathrm{g}}_{\mathrm{m}}}}{\displaystyle \frac{\sqrt{{{\mathrm{g}}_{\mathrm{m}}}^2}}{\sqrt{{\mathrm{C}}_2{\mathrm{C}}_1}}}$$

(7)

2.1. Current and Trans-Resistance Modes

When v_in1 = v_in2 = v_in3 = 0, the current-mode filtering responses are obtained as follows:

Low-pass (LP): if i_in = i_in1; i_in2 = i_in3 = 0

$${\displaystyle \frac{{\mathrm{i}}_{\mathrm{OUT}\left(\mathrm{LP}\right)}}{{\mathrm{i}}_{\mathrm{in}}}}=-{\displaystyle \frac{\frac{{{\mathrm{g}}_{\mathrm{m}}}^2}{{\mathrm{C}}_2{\mathrm{C}}_1}\mathrm{s}}{\mathrm{D}\left(\mathrm{s}\right)}};\hspace{1em}\hspace{1em}\hspace{1em}{\displaystyle \frac{{\mathrm{v}}_{\mathrm{OUT}\left(\mathrm{LP}\right)}}{{\mathrm{i}}_{\mathrm{in}}}}={\displaystyle \frac{\frac{{{\mathrm{g}}_{\mathrm{m}}}^2}{{\mathrm{C}}_2{\mathrm{C}}_1}\mathrm{s}}{{\mathrm{g}}_{\mathrm{m}}\mathrm{D}\left(\mathrm{s}\right)}}$$

(8)

High-pass (HP): if i_in = i_in3; i_in1 = i_in2 = 0

$${\displaystyle \frac{{\mathrm{i}}_{\mathrm{OUT}\left(\mathrm{HP}\right)}}{{\mathrm{i}}_{\mathrm{in}}}}=-{\displaystyle \frac{{\mathrm{s}}^3}{\mathrm{D}\left(\mathrm{s}\right)}};\hspace{1em}\hspace{1em}\hspace{1em}{\displaystyle \frac{{\mathrm{v}}_{\mathrm{OUT}\left(\mathrm{HP}\right)}}{{\mathrm{i}}_{\mathrm{in}}}}={\displaystyle \frac{{\mathrm{s}}^3}{{\mathrm{g}}_{\mathrm{m}}\mathrm{D}\left(\mathrm{s}\right)}}$$

(9)

Band-pass (BP): if i_in = i_in2; i_in1 = i_in3 = 0

$${\displaystyle \frac{{\mathrm{i}}_{\mathrm{OUT}\left(\mathrm{BP}\right)}}{{\mathrm{i}}_{\mathrm{in}}}}=-{\displaystyle \frac{\frac{{\mathrm{g}}_{\mathrm{m}}}{{\mathrm{C}}_3}{\mathrm{s}}^2}{\mathrm{D}\left(\mathrm{s}\right)}};\hspace{1em}\hspace{1em}\hspace{1em}{\displaystyle \frac{{\mathrm{v}}_{\mathrm{OUT}\left(\mathrm{BP}\right)}}{{\mathrm{i}}_{\mathrm{in}}}}={\displaystyle \frac{\frac{{\mathrm{g}}_{\mathrm{m}}}{{\mathrm{C}}_3}{\mathrm{s}}^2}{{\mathrm{g}}_{\mathrm{m}}\mathrm{D}\left(\mathrm{s}\right)}}$$

(10)

Band-reject (BR): if i_in = i_in1 = i_in3; i_in2 = 0

$${\displaystyle \frac{{\mathrm{i}}_{\mathrm{OUT}\left(\mathrm{BR}\right)}}{{\mathrm{i}}_{\mathrm{in}}}}=-{\displaystyle \frac{{\mathrm{s}}^3+\frac{{{\mathrm{g}}_{\mathrm{m}}}^2}{{\mathrm{C}}_2{\mathrm{C}}_1}}{\mathrm{D}\left(\mathrm{s}\right)}};\hspace{1em}\hspace{1em}\hspace{1em}{\displaystyle \frac{{\mathrm{v}}_{\mathrm{OUT}\left(\mathrm{BR}\right)}}{{\mathrm{i}}_{\mathrm{in}}}}={\displaystyle \frac{{\mathrm{s}}^3+\frac{{{\mathrm{g}}_{\mathrm{m}}}^2}{{\mathrm{C}}_2{\mathrm{C}}_1}}{{\mathrm{g}}_{\mathrm{m}}\mathrm{D}\left(\mathrm{s}\right)}}$$

(11)

All-pass (AP): if i_in = i_in1 = i_in2 = i_in3

$${\displaystyle \frac{{\mathrm{i}}_{\mathrm{OUT}\left(\mathrm{AP}\right)}}{{\mathrm{i}}_{\mathrm{in}}}}=-{\displaystyle \frac{{\mathrm{s}}^3+\frac{{\mathrm{g}}_{\mathrm{m}}}{{\mathrm{C}}_3}{\mathrm{s}}^2+\frac{{{\mathrm{g}}_{\mathrm{m}}}^2}{{\mathrm{C}}_2{\mathrm{C}}_1}\mathrm{s}}{\mathrm{D}\left(\mathrm{s}\right)}};\hspace{1em}\hspace{1em}\hspace{1em}{\displaystyle \frac{{\mathrm{v}}_{\mathrm{OUT}\left(\mathrm{AP}\right)}}{{\mathrm{i}}_{\mathrm{in}}}}={\displaystyle \frac{{\mathrm{s}}^3+\frac{{\mathrm{g}}_{\mathrm{m}}}{{\mathrm{C}}_3}{\mathrm{s}}^2+\frac{{{\mathrm{g}}_{\mathrm{m}}}^2}{{\mathrm{C}}_2{\mathrm{C}}_1}\mathrm{s}}{{\mathrm{g}}_{\mathrm{m}}\mathrm{D}\left(\mathrm{s}\right)}}$$

(12)

2.2. Voltage and Transconductance Modes

When i_in1 = i_in2 = i_in3 = 0, the voltage-mode filtering responses are obtained as follows:

Low-pass (LP): if v_in = v_in1; v_in2 = v_in3 = 0

$${\displaystyle \frac{{\mathrm{v}}_{\mathrm{OUT}\left(\mathrm{LP}\right)}}{{\mathrm{v}}_{\mathrm{in}}}}=-{\displaystyle \frac{\frac{{{\mathrm{g}}_{\mathrm{m}}}^2}{{\mathrm{C}}_2{\mathrm{C}}_1}\mathrm{s}}{\mathrm{D}\left(\mathrm{s}\right)}}; {\displaystyle \frac{{\mathrm{i}}_{\mathrm{OUT}\left(\mathrm{LP}\right)}}{{\mathrm{v}}_{\mathrm{in}}}}={\displaystyle \frac{\frac{{{\mathrm{g}}_{\mathrm{m}}}^3}{{\mathrm{C}}_2{\mathrm{C}}_1}\mathrm{s}}{\mathrm{D}\left(\mathrm{s}\right)}}$$

(13)

High-pass (HP): if v_in = v_in3; v_in1 = v_in2 = 0

$${\displaystyle \frac{{\mathrm{v}}_{\mathrm{OUT}\left(\mathrm{H}\mathrm{P}\right)}}{{\mathrm{v}}_{\mathrm{in}}}}=-{\displaystyle \frac{{\mathrm{s}}^3}{\mathrm{D}\left(\mathrm{s}\right)}};\hspace{1em}\hspace{1em}\hspace{1em}{\displaystyle \frac{{\mathrm{i}}_{\mathrm{OUT}\left(\mathrm{H}\mathrm{P}\right)}}{{\mathrm{v}}_{\mathrm{in}}}}={\displaystyle \frac{{\mathrm{g}}_{\mathrm{m}}{\mathrm{s}}^3}{\mathrm{D}\left(\mathrm{s}\right)}}$$

(14)

Band-pass (BP): if v_in = v_in2; v_in1 = v_in3 = 0

$${\displaystyle \frac{{\mathrm{v}}_{\mathrm{OUT}\left(\mathrm{BP}\right)}}{{\mathrm{v}}_{\mathrm{in}}}}=-{\displaystyle \frac{\frac{{\mathrm{g}}_{\mathrm{m}}}{{\mathrm{C}}_3}{\mathrm{s}}^2}{\mathrm{D}\left(\mathrm{s}\right)}};\hspace{1em}\hspace{1em}\hspace{1em}{\displaystyle \frac{{\mathrm{i}}_{\mathrm{OUT}\left(\mathrm{BP}\right)}}{{\mathrm{v}}_{\mathrm{in}}}}={\displaystyle \frac{\frac{{{\mathrm{g}}_{\mathrm{m}}}^2}{{\mathrm{C}}_3}{\mathrm{s}}^2}{\mathrm{D}\left(\mathrm{s}\right)}}$$

(15)

Band-reject (BR): if v_in = v_in1 = v_in3; v_in2 = 0

$${\displaystyle \frac{{\mathrm{v}}_{\mathrm{OUT}\left(\mathrm{BR}\right)}}{{\mathrm{v}}_{\mathrm{in}}}}=-{\displaystyle \frac{{\mathrm{s}}^3+\frac{{{\mathrm{g}}_{\mathrm{m}}}^2}{{\mathrm{C}}_2{\mathrm{C}}_1}\mathrm{s}}{\mathrm{D}\left(\mathrm{s}\right)}}; {\displaystyle \frac{{\mathrm{i}}_{\mathrm{OUT}\left(\mathrm{BR}\right)}}{{\mathrm{v}}_{\mathrm{in}}}}={\displaystyle \frac{{{\mathrm{g}}_{\mathrm{m}}\mathrm{s}}^3+\frac{{{\mathrm{g}}_{\mathrm{m}}}^3}{{\mathrm{C}}_2{\mathrm{C}}_1}\mathrm{s}}{\mathrm{D}\left(\mathrm{s}\right)}}$$

(16)

All-pass (AP): if v_in = v_in1 = v_in2 = v_in3

$${\displaystyle \frac{{\mathrm{v}}_{\mathrm{OUT}\left(\mathrm{AP}\right)}}{{\mathrm{v}}_{\mathrm{in}}}}=-{\displaystyle \frac{{\mathrm{s}}^3+\frac{{\mathrm{g}}_{\mathrm{m}}}{{\mathrm{C}}_3}{\mathrm{s}}^2+\frac{{{\mathrm{g}}_{\mathrm{m}}}^2}{{\mathrm{C}}_2{\mathrm{C}}_1}\mathrm{s}}{{\mathrm{D}}_{\left(\mathrm{S}\right)}}};\hspace{1em}\hspace{1em} {\displaystyle \frac{{\mathrm{i}}_{\mathrm{OUT}\left(\mathrm{AP}\right)}}{{\mathrm{v}}_{\mathrm{in}}}}={\displaystyle \frac{{\mathrm{g}}_{\mathrm{m}}\left[{\mathrm{s}}^3+\frac{{\mathrm{g}}_{\mathrm{m}}}{{\mathrm{C}}_3}{\mathrm{s}}^2+\frac{{{\mathrm{g}}_{\mathrm{m}}}^2}{{\mathrm{C}}_2{\mathrm{C}}_1}\mathrm{s}\right]}{{\mathrm{D}}_{\left(\mathrm{S}\right)}}}$$

(17)

According to Equation (15), the filter gain for the band-pass filter in voltage mode at the center frequency $\mathrm{j}{\omega }_0$ is as follows, in which $\mathrm{j}{\omega }_0$ replaces ‘s’:

$$\mathrm{H}\left(\mathrm{s}\right)=-{\displaystyle \frac{\frac{{\mathrm{g}}_{\mathrm{m}}}{{\mathrm{C}}_3}{\mathrm{s}}^2}{\mathrm{D}\left(\mathrm{s}\right)}}=-{\displaystyle \frac{\frac{{\mathrm{g}}_{\mathrm{m}}}{{\mathrm{C}}_3}{\mathrm{s}}^2}{{\mathrm{s}}^3+\frac{{\mathrm{g}}_{\mathrm{m}}}{{\mathrm{C}}_3}{\mathrm{s}}^2+\frac{{{\mathrm{g}}_{\mathrm{m}}}^2}{{\mathrm{C}}_2{\mathrm{C}}_1}\mathrm{s}}}\to \mathrm{H}\left(\mathrm{j}{\omega }_0\right)=-{\displaystyle \frac{\frac{{\mathrm{g}}_{\mathrm{m}}}{{\mathrm{C}}_3}{\left(\mathrm{j}{\omega }_0\right)}^2}{{\left(\mathrm{j}{\omega }_0\right)}^3+\frac{{\mathrm{g}}_{\mathrm{m}}}{{\mathrm{C}}_3}{\left(\mathrm{j}{\omega }_0\right)}^2+\frac{{{\mathrm{g}}_{\mathrm{m}}}^2}{{\mathrm{C}}_2{\mathrm{C}}_1}\left(\mathrm{j}{\omega }_0\right)}}$$

(18)

To simplify the expression, the numerator is as follows:

$${\displaystyle \frac{{-\mathrm{g}}_{\mathrm{m}}}{{\mathrm{C}}_3}}{{\omega }_0}^2$$

(19)

While the denominator is as follows:

$$\mathrm{j}{{\omega }_0}^3+{\displaystyle \frac{{-\mathrm{g}}_{\mathrm{m}}}{{\mathrm{C}}_3}}{{\omega }_0}^2+{\displaystyle \frac{{{\mathrm{g}}_{\mathrm{m}}}^2}{{\mathrm{C}}_2{\mathrm{C}}_1}}\mathrm{j}{\omega }_0$$

(20)

This can be rearranged as follows:

$$\mathrm{j}{\omega }_0\left({{\omega }_0}^2+{\displaystyle \frac{{{\mathrm{g}}_{\mathrm{m}}}^2}{{\mathrm{C}}_2{\mathrm{C}}_1}}\right)-{\displaystyle \frac{{\mathrm{g}}_{\mathrm{m}}}{{\mathrm{C}}_3}}{{\omega }_0}^2$$

(21)

So, the magnitude of the transfer function is given as follows:

$$\left|\mathrm{H}\left(\mathrm{j}{\omega }_0\right)\right|={\displaystyle \frac{\left|\frac{{\mathrm{g}}_{\mathrm{m}}}{{\mathrm{C}}_3}{{\omega }_0}^2\right|}{\sqrt{{\left({{\omega }_0}^2+\frac{{{\mathrm{g}}_{\mathrm{m}}}^2}{{\mathrm{C}}_2{\mathrm{C}}_1}\right)}^2+{\left(\frac{{\mathrm{g}}_{\mathrm{m}}}{{\mathrm{C}}_3}{{\omega }_0}^2\right)}^2}}}$$

(22)

Table 1. Various filtering functions with inverting and non-inverting input signals.

Filtering Function	Current Mode	Trans-Resistance Mode	Input
LP	Inverting	Non-Inverting	iin1
HP	Inverting	Non-Inverting	iin3
BP	Inverting	Non-Inverting	iin2
BR	Inverting	Non-Inverting	iin1 = iin3
AP	Inverting	Non-Inverting	iin1 = iin2 = iin3
Filtering Function	Voltage Mode	Transconductance Mode	Input
LP	Inverting	Non-Inverting	vin1
HP	Inverting	Non-Inverting	vin3
BP	Inverting	Non-Inverting	vin2
BR	Inverting	Non-Inverting	vin1 = vin3
AP	Inverting	Non-Inverting	vin1 = vin2 = vin3

summarizes the filtering function variations for the proposed filter. As Table 1 shows, the different filtering functions (LP, HP, BP, BR, and AP) are obtained by inverting and non-inverting the input signals.

3. Simulation Results

3.1. Proposed Gm-C Structure

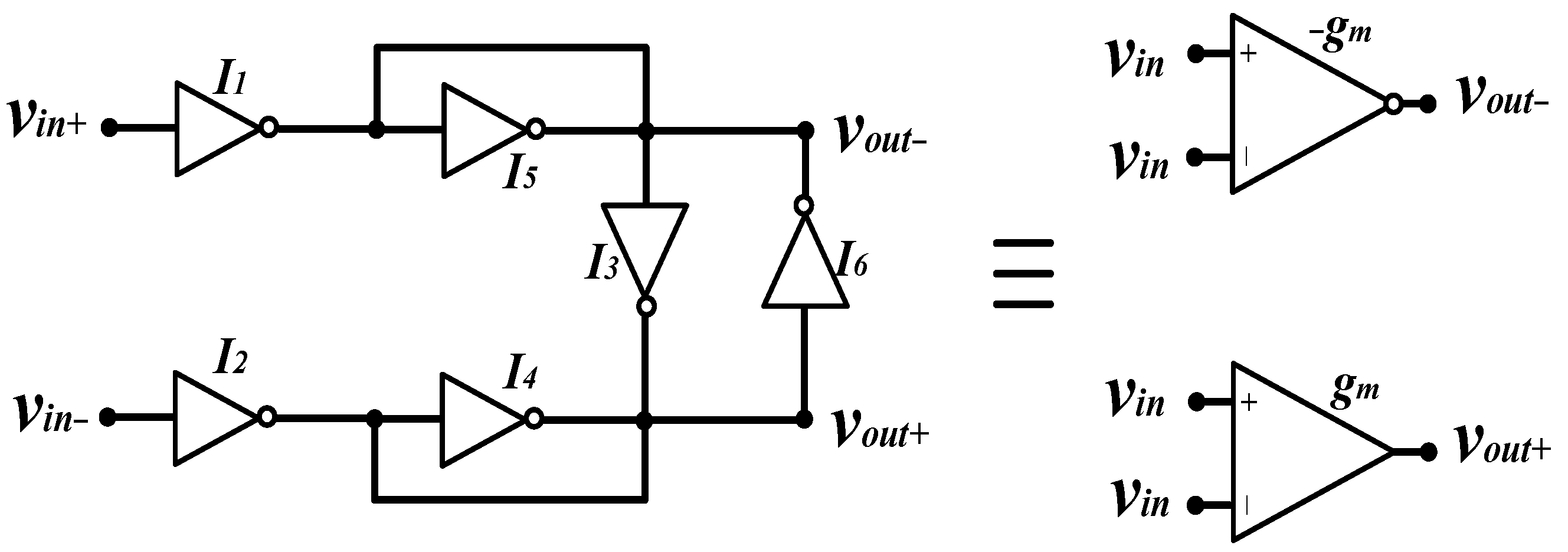

The proposed universal tunable Gm-C filter has been designed and simulated using 180 nm TSMC technology node parameters. The Nauta inverter-based OTA circuit used in the proposed filter is shown in Figure 3, in which g_m and −g_m are positive and negative transconductances of the OTA circuit. The OTA circuit is biased at a 0.5 V supply voltage while its transistors are biased in the sub-threshold region, resulting in low-power consumption. Applying a positive input voltage and keeping the negative input amplitude at zero in the OTA circuit are sufficient to implement the −g_m and g_m functions. The bulk node for M_B2 (see Figure 1) is connected to the source node, while the bulk nodes of the other PMOS and NMOS transistors are connected to the V_DD and the ground nodes. On the other hand, the transistor aspect ratios are reported in

Table 2. The aspect ratio of the OTA transistors employed in the proposed filter.

Aspect Ratio of OTA and Bias Circuit
Transistor	W/L (µm/µm)
MP,INV	5/3
MN,INV	1/3
MB1, MB2	1/0.18

, while the characteristics of the OTA circuit are listed in

Table 3. Characteristics of the OTA used in the proposed filter.

Specifications	Value
Supply voltage [V]	0.5
DC gain [dB]	41.3
Phase margin [°]	90
$\mathrm{GBW} \left[\mathrm{k}\mathrm{H}\mathrm{z}\right]$	11.67
$\mathrm{Input} \mathrm{noise} \left[{\displaystyle \frac{\mu \mathrm{V}}{\sqrt{\mathrm{H}\mathrm{z}}}}@\mathrm{G}\mathrm{B}\mathrm{W}\right]$	1.24
$\mathrm{Output} \mathrm{noise} \left[{\displaystyle \frac{\mu \mathrm{V}}{\sqrt{\mathrm{H}\mathrm{z}}}}@\mathrm{G}\mathrm{B}\mathrm{W}\right]$	1.24
THD [%]	1
${\mathrm{S}\mathrm{R}}_{+}$$\left[{\displaystyle \frac{\mathrm{V}}{\mathrm{m}\mathrm{s}}}\right]$	13.82
${\mathrm{S}\mathrm{R}}_{-}$$\left[{\displaystyle \frac{\mathrm{V}}{\mathrm{m}\mathrm{s}}}\right]$	13.72
${\mathrm{S}\mathrm{R}}_{av}\left[{\displaystyle \frac{\mathrm{V}}{\mathrm{m}\mathrm{s}}}\right]$	13.77
$\mathrm{DC} \mathrm{output} \mathrm{voltage} \left[\mathrm{m}\mathrm{V}\right]$	242
$\mathrm{Power} \mathrm{consumption} \left[\mathrm{n}\mathrm{W}\right]$	4.69
CL [pF]	1

. Figure 4 shows the gain and phase OTA’s simulation results with a capacitance load of 1 pF. Furthermore, the simulation results for low-pass, high-pass, band-pass, band-reject, and all-pass in all modes of operation (voltage, transconductance, current, and trans-resistance) are illustrated in Figure 5. As is shown in Figure 5, the proposed filter can operate all frequency responses properly in all modes of operation. The transconductance (g_m) and capacitance values (C₁ = C₂ = C₃) for the simulation results shown in Figure 5 are 80 nS and 20 pF, respectively.

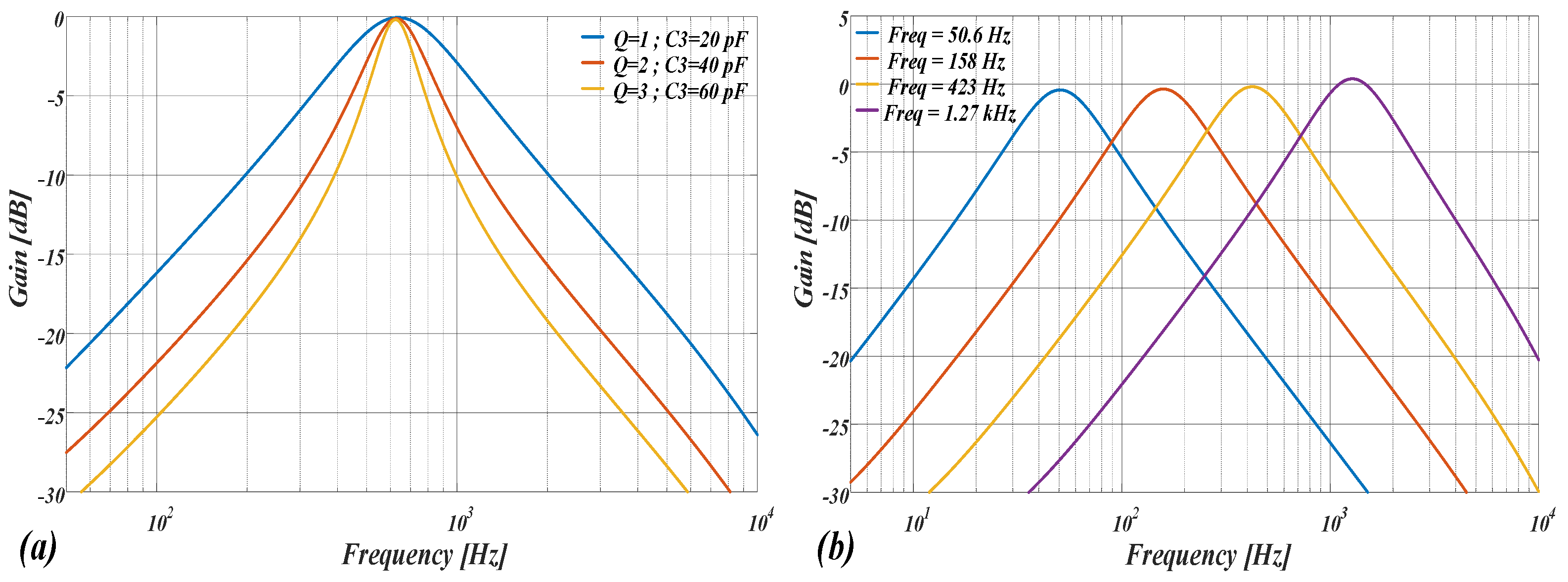

Furthermore, the proposed Gm-C filter can adjust the quality factor and center frequency parameters, as depicted in Figure 6. It is evident from Figure 6a that the performance of the quality factor varies with changes in the C₃ values. Similarly, the center frequency of the proposed filter varies with adjustments to the capacitance values (C1, C2, and C3), as illustrated in Figure 6b.

Table 4. Variations of the quality factor by changing the C3 values.

C1 = C2 = 20 pF C3 [pF]	Quality Factor (Q)
20	1
40	2
60	3

and

Table 5. Variations of the center frequency by changing the capacitance values.

Capacitance Values [pF]	Frequency Range [Hz]
C1 = C2 = C3 = 10	1270
C1 = C2 = C3 = 30	423
C1 = C2 = C3 = 80	158
C1 = C2 = C3 = 250	50.6

summarize the quality factor and center frequency results in the C₃ and capacitance value variations. It is worth saying that the center frequency of the proposed filter varies from 50.6 Hz to 1270 Hz while its power consumption is unchanged at 48 nW.

Furthermore, biological signals are widely utilized in various biomedical applications, including Electroencephalogram (EEG), Electromyography (EMG), Electrocardiogram (ECG), Intracardiac Electrograms (IEGM), and Envelope of Neural Signals (ENG) [26,27,28,29,30]. It is worth mentioning that the proposed filter’s center frequency variations in Table 5 range from 50.6 Hz to 1270 Hz, which justifies its use in certain types of biomedical applications listed in

Table 6. The biological signals used for biomedical applications [31].

Type of Signal	Frequency Range [Hz]	Suitability of the Proposed Filter
EEG	0.5–60	Yes
EMG	10–200	Yes
ECG	0.05–250	Yes
IEGM	0.7–70	Yes
ENG	250–5000	Yes

due to its tunable range of central frequencies.

3.2. PVT Analysis

A further investigation into the performance of the OTA and proposed Gm-C filter is conducted, considering the effects of PVT variations. PVT variations, including process, supply voltage, and temperature variations with a load capacitance of 20 pF, are summarized in

Table 7. OTA and proposed Gm-C circuits specification for different coner process.

Parameter	SS	SF	FS	FF	TT
OTA’s gain [dB]	41.4	42.4	41.4	41	41.3
OTA’s phase [°]	90	90	90	90	90
Filter’s power consumption [nW]	20.96	58.18	71.64	108.3	48
Filter’s center frequency [Hz]	282.5	736	755	1400	635

,

Table 8. Supply voltage variations of the OTA and proposed Gm-C circuits.

Parameter	0.45 V	0.5 V	0.55 V
OTA’s gain [dB]	41	41.3	42.9
OTA’s phase [°]	90	90	90
Filter’s power consumption [nW]	23.12	48	101.8
Filter’s center frequency [Hz]	331	635	1200

and

Table 9. Temperature variations of the OTA and proposed Gm-C circuits.

Parameter	0 °C	10 °C	20 °C	30 °C	40 °C
OTA’s gain [dB]	41.5	41.4	41.3	41.2	41.1
OTA’s phase [°]	90	90	90	90	90
Filter’s power consumption [nW]	18.22	26.6	38	53.2	73.12
Filter’s center frequency [Hz]	256	365.6	510.5	695	929

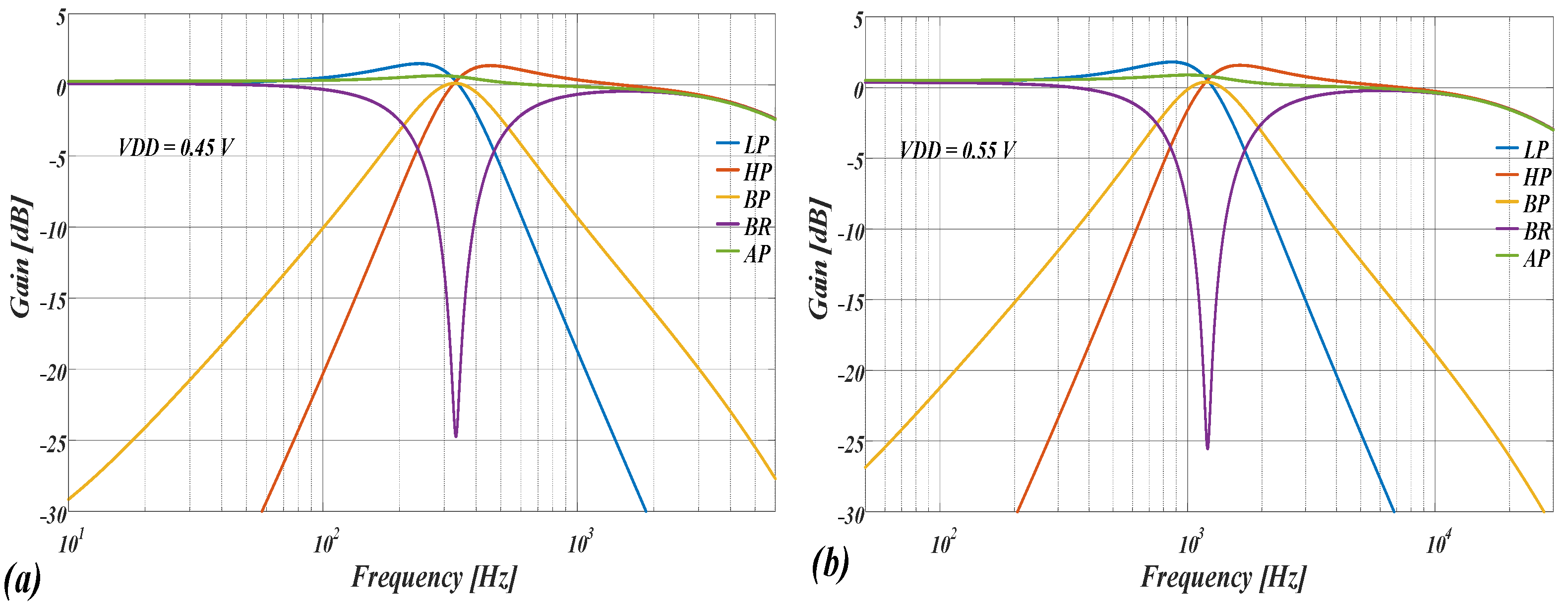

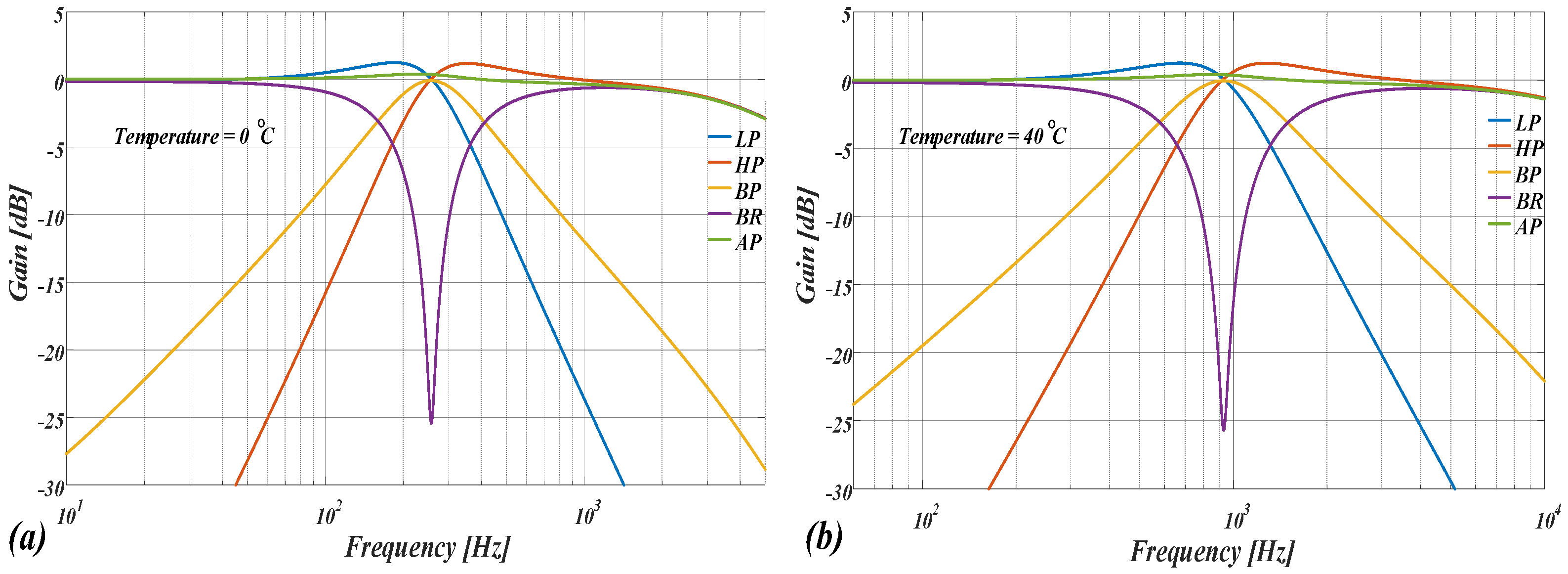

. Figure 7 illustrates the frequency responses at various process corners, while Figure 8 shows the frequency responses at supply voltages of 0.45 V and 0.55 V. The frequency responses of the proposed filter at two different temperatures (0 °C and 40 °C) are shown in Figure 9.

On the other hand, the proposed filter can still operate with all filtering responses across different power voltage supplies in various modes of operation.

Table 10. Voltage supply variations of the proposed Gm-C design.

Parameter	0.5 V	0.6 V	0.7 V	0.8 V	0.9 V	1 V	1.1 V	1.2 V
$\mathrm{Power} \mathrm{consumption} [\mu$W]	0.048	0.22	1.067	4.36	13.46	32.95	67.25	121
Center frequency [kHz]	0.635	2.244	7.413	21.83	52	96.83	150.7	211

reports the change in power consumption and center frequency of the proposed Gm-C filter for a variating supply voltage, ranging from 0.5 V up to 1.2 V.

It is worth noting that the filter can generate all filtering responses at power supply voltages also above 0.8 V, as reported in Figure 10: on one side this fact justifies its use in applications that require scalable power supply voltages, but its high power consumption in such conditions makes it impractical for a real use in most of the cases.

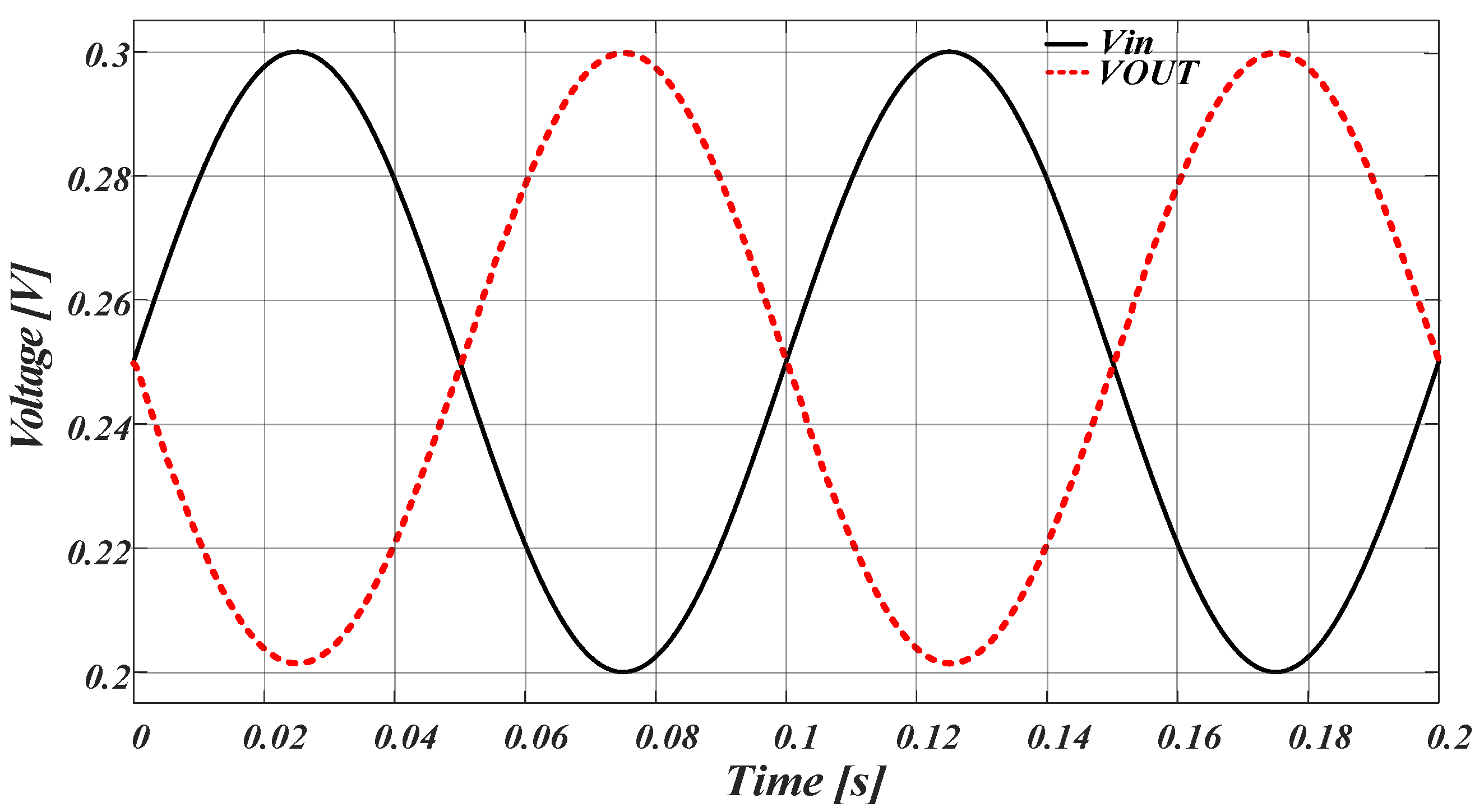

Moreover, to investigate the linearity performance of the low-pass filter, different sinusoidal input voltages at 10 Hz are applied, and the respective variation of the total harmonic distortion (THD) is shown in Figure 11. The transient input and output low-pass responses are illustrated in Figure 12 by using a 50 mV_P sinusoidal input at 10 Hz. The THD value of the proposed filter at the 50 mV_P input is 0.93%.

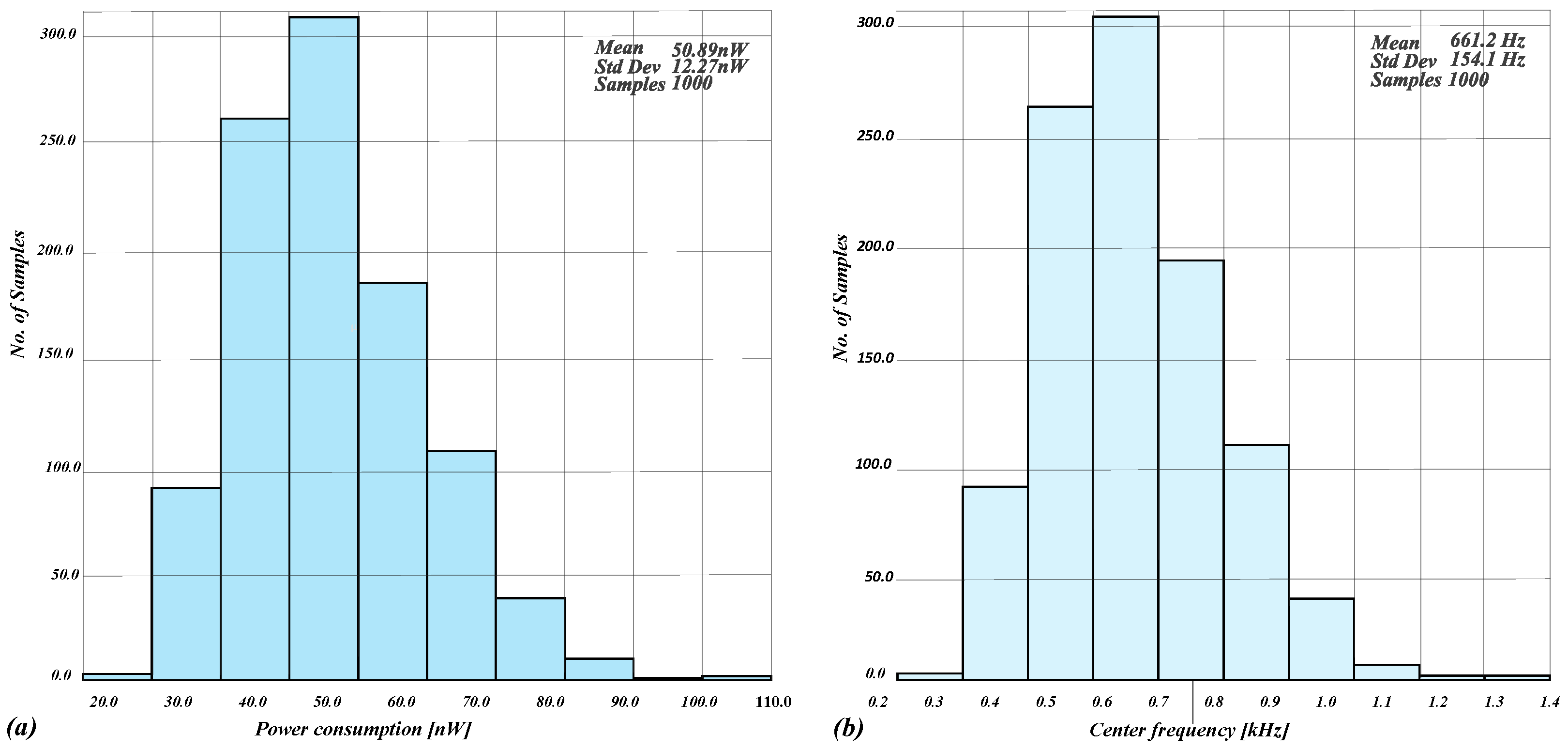

Furthermore, a Monte Carlo analysis with 1000 iterations is conducted to verify the robustness of the proposed filter’s design. The Monte Carlo analysis for the OTA circuit is implemented by 20% variations in the width and length of the inverter transistors used in the Nauta OTA circuit. Figure 13 shows the results of the Monte Carlo analysis, while

Table 11. Monte Carlo variations result for the OTA and proposed filter.

Parameter	Mean	Std Dev
OTA-DC gain [dB]	40.24	0.17
OTA-Phase margin [°]	90.5	0.012
OTA-GBW [kHz]	12.65	3
OTA-Input Noise $\left[{\displaystyle \frac{\mu \mathrm{V}}{\sqrt{\mathrm{H}\mathrm{z}}}}@\mathrm{G}\mathrm{B}\mathrm{W}\right]$	1.23	0.145
OTA-Output Noise $\left[{\displaystyle \frac{\mu \mathrm{V}}{\sqrt{\mathrm{H}\mathrm{z}}}}@\mathrm{G}\mathrm{B}\mathrm{W}\right]$	1.29	0.153
OTA-THD [%]	1.18	0.2
OTA-${\mathrm{S}\mathrm{R}}_{+}$$\left[{\displaystyle \frac{\mathrm{V}}{\mathrm{m}\mathrm{s}}}\right]$	14.28	0.466
OTA-${\mathrm{S}\mathrm{R}}_{-}$$\left[{\displaystyle \frac{\mathrm{V}}{\mathrm{m}\mathrm{s}}}\right]$	14.04	0.435
OTA-${\mathrm{S}\mathrm{R}}_{av}$$\left[{\displaystyle \frac{\mathrm{V}}{\mathrm{m}\mathrm{s}}}\right]$	14.16	0.317
OTA-Output voltage $\left[\mathrm{m}\mathrm{V}\right]$	240.5	12
OTA-Power consumption $\left[\mathrm{n}\mathrm{W}\right]$	4.88	1
Filter-Power consumption  $\left[\mathrm{n}\mathrm{W}\right]$	50.89	12.27
Filter-Center frequency [Hz]	661.2	154.1

summarizes the Monte Carlo variations results for the OTA and the proposed filter. As detailed in Table 11, the mean value and standard deviation for the filter’s center frequency are 661.2 Hz and 154.1 Hz, respectively.

4. Noise Analysis

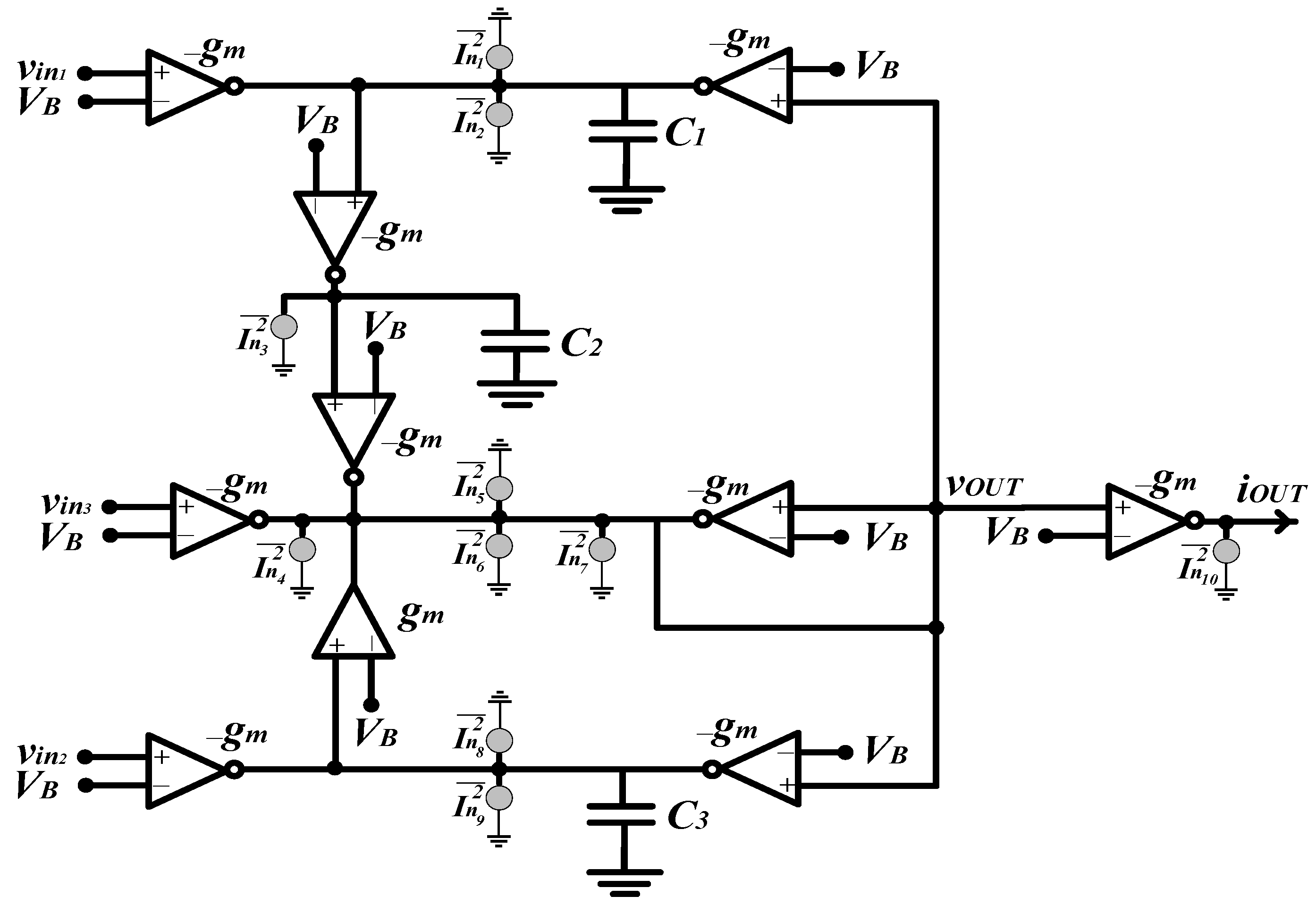

The noise model of the proposed Gm-C filter is shown in Figure 14, in which $\overline{{\mathrm{I}}_{\mathrm{n}}^2}$ represents the output-referred current noise of the Nauta OTA circuit.

$${\mathrm{g}}_{\mathrm{m},\mathrm{inv}\left(\mathrm{i}\right)}={\mathrm{g}}_{\mathrm{mP},\mathrm{inv}\left(\mathrm{i}\right)}+{\mathrm{g}}_{\mathrm{mN},\mathrm{inv}\left(\mathrm{i}\right)}$$

(23)

$$\overline{{\mathrm{I}}_{\mathrm{n}}^2}=8\mathrm{KT}\gamma {\sum }_{i=1}^6{\mathrm{g}}_{\mathrm{m},\mathrm{inv}\left(\mathrm{i}\right)}+{\displaystyle \frac{{2\mathrm{K}}_{\mathrm{P}}}{{\mathrm{C}}_{\mathrm{o}\mathrm{x}}\mathrm{f}{\left(\mathrm{W}·\mathrm{L}\right)}_{\mathrm{P}}}}{\sum }_{i=1}^6{\mathrm{g}}_{\mathrm{m}\mathrm{P},\mathrm{i}\mathrm{n}\mathrm{v}\left(\mathrm{i}\right)}^2+{\displaystyle \frac{{2\mathrm{K}}_{\mathrm{N}}}{{\mathrm{C}}_{\mathrm{o}\mathrm{x}}\mathrm{f}{\left(\mathrm{W}·\mathrm{L}\right)}_{\mathrm{N}}}}{\sum }_{i=1}^6{\mathrm{g}}_{\mathrm{m}\mathrm{P},\mathrm{i}\mathrm{n}\mathrm{v}\left(\mathrm{i}\right)}^2$$

(24)

where ${\mathrm{g}}_{\mathrm{m},\mathrm{inv}\left(\mathrm{i}\right)}$ is the transconductance of each inverter circuit in the Nauta OTA; K is the Boltzmann constant; T is the temperature; γ is the noise factor; K_P and K_N are the flicker noise coefficients of the PMOS and NMOS transistors; C_OX is the gate-oxide capacitance; W is the width; and L is the length of the MOSFET transistors.

$$\overline{{\mathrm{I}}_{\mathrm{n}}^2}={\mathrm{g}}_{\mathrm{m}}^2\overline{{\mathrm{V}}_{\mathrm{in}}^2}={\mathrm{g}}_{\mathrm{m}}^2{\displaystyle \frac{\overline{{\mathrm{V}}_{\mathrm{InTOUT}}^2}}{{\mathrm{H}}_{\left(\mathrm{s}\right)}^2}}\gg \gg \overline{{\mathrm{V}}_{\mathrm{InTOUT}}^2}={\displaystyle \frac{\overline{{\mathrm{I}}_{\mathrm{n}}^2}{\mathrm{H}}_{\left(\mathrm{s}\right)}^2}{{\mathrm{g}}_{\mathrm{m}}^2}}$$

(25)

According to Equation (25), in which H_(s) is the transfer function of the proposed filter, the output-referred noise of each current noise is calculated as follows:

$${\mathrm{H}}_{\left(\mathrm{s}\right),\mathrm{L}\mathrm{P}}^2={\left[{\displaystyle \frac{{\mathrm{g}}_{\mathrm{m}}^2\mathrm{s}}{{\mathrm{D}}_{\left(\mathrm{s}\right)}{\mathrm{C}}_2{\mathrm{C}}_1}}\right]}^2$$

(26)

$${\mathrm{H}}_{\left(\mathrm{s}\right),\mathrm{B}\mathrm{P}}^2={\left[{\displaystyle \frac{{{\mathrm{g}}_{\mathrm{m}}\mathrm{s}}^2}{{\mathrm{D}}_{\left(\mathrm{s}\right)}{\mathrm{C}}_3}}\right]}^2$$

(27)

$${\mathrm{H}}_{\left(\mathrm{s}\right),\mathrm{H}\mathrm{P}}^2={\left[{\displaystyle \frac{{\mathrm{s}}^3}{{\mathrm{D}}_{\left(\mathrm{s}\right)}}}\right]}^2$$

(28)

$$\overline{{\mathrm{V}}_{\mathrm{InT}1\mathrm{OUT}}^2}={\displaystyle \frac{\overline{{\mathrm{I}}_{\mathrm{n}}^2}{\mathrm{H}}_{\left(\mathrm{s}\right),\mathrm{L}\mathrm{P}}^2}{{\mathrm{g}}_{\mathrm{m}}^2}}=\left[\overline{{\mathrm{I}}_{\mathrm{n}1}^2}+\overline{{\mathrm{I}}_{\mathrm{n}2}^2}\right]·{\left[{\displaystyle \frac{{\mathrm{g}}_{\mathrm{m}}\mathrm{s}}{{\mathrm{D}}_{\left(\mathrm{s}\right)}{\mathrm{C}}_2{\mathrm{C}}_1}}\right]}^2$$

(29)

$$\overline{{\mathrm{V}}_{\mathrm{InT}2\mathrm{OUT}}^2}={\displaystyle \frac{\overline{{\mathrm{I}}_{\mathrm{n}}^2}{\mathrm{H}}_{\left(\mathrm{s}\right),\mathrm{B}\mathrm{P}}^2}{{\mathrm{g}}_{\mathrm{m}}^2}}=\left[\overline{{\mathrm{I}}_{\mathrm{n}8}^2}+\overline{{\mathrm{I}}_{\mathrm{n}9}^2}\right]·{\left[{\displaystyle \frac{{\mathrm{s}}^2}{{\mathrm{D}}_{\left(\mathrm{s}\right)}{\mathrm{C}}_3}}\right]}^2$$

(30)

$$\overline{{\mathrm{V}}_{\mathrm{InT}3\mathrm{OUT}}^2}={\displaystyle \frac{\overline{{\mathrm{I}}_{\mathrm{n}}^2}{\mathrm{H}}_{\left(\mathrm{s}\right),\mathrm{H}\mathrm{P}}^2}{{\mathrm{g}}_{\mathrm{m}}^2}}=\left[\overline{{\mathrm{I}}_{\mathrm{n}4}^2}+\overline{{\mathrm{I}}_{\mathrm{n}5}^2}+\overline{{\mathrm{I}}_{\mathrm{n}6}^2}+\overline{{\mathrm{I}}_{\mathrm{n}7}^2}\right]·{\left[{\displaystyle \frac{{\mathrm{s}}^3}{{\mathrm{D}}_{\left(\mathrm{s}\right)}{\mathrm{g}}_{\mathrm{m}}}}\right]}^2$$

(31)

The equivalent input-referred noise values for the various configurations of the filter (namely, the low-pass, band-pass, high-pass, band-reject, and all-pass) are as follows:

LOW-PASS:

$$\overline{{\mathrm{V}}_{\mathrm{in}1}^2}={\displaystyle \frac{\overline{{\mathrm{V}}_{\mathrm{InT}1\mathrm{OUT}}^2}+\overline{{\mathrm{V}}_{\mathrm{InT}2\mathrm{OUT}}^2}+\overline{{\mathrm{V}}_{\mathrm{InT}3\mathrm{OUT}}^2}}{{\mathrm{H}}_{\left(\mathrm{s}\right),\mathrm{L}\mathrm{P}}^2}}=={\displaystyle \frac{1}{{\mathrm{g}}_{\mathrm{m}}^2}}\left\{\left[\overline{{\mathrm{I}}_{\mathrm{n}1}^2}+\overline{{\mathrm{I}}_{\mathrm{n}2}^2}\right]+\left[\overline{{\mathrm{I}}_{\mathrm{n}8}^2}+\overline{{\mathrm{I}}_{\mathrm{n}9}^2}\right]·{\left[{\displaystyle \frac{{\mathrm{g}}_{\mathrm{m}}{\mathrm{C}}_2{\mathrm{C}}_1\mathrm{s}}{{\mathrm{C}}_3}}\right]}^2+\left[\overline{{\mathrm{I}}_{\mathrm{n}4}^2}+\overline{{\mathrm{I}}_{\mathrm{n}5}^2}+\overline{{\mathrm{I}}_{\mathrm{n}6}^2}+\overline{{\mathrm{I}}_{\mathrm{n}7}^2}\right]·{\left[{\displaystyle \frac{{\mathrm{C}}_2{\mathrm{C}}_1{\mathrm{s}}^2}{{\mathrm{g}}_{\mathrm{m}}}}\right]}^2\right\}$$

(32)

BAND-PASS:

$$\overline{{\mathrm{V}}_{\mathrm{in}2}^2}={\displaystyle \frac{\overline{{\mathrm{V}}_{\mathrm{InT}1\mathrm{OUT}}^2}+\overline{{\mathrm{V}}_{\mathrm{InT}2\mathrm{OUT}}^2}+\overline{{\mathrm{V}}_{\mathrm{InT}3\mathrm{OUT}}^2}}{{\mathrm{H}}_{\left(\mathrm{s}\right),\mathrm{B}\mathrm{P}}^2}}=={\displaystyle \frac{1}{{\mathrm{g}}_{\mathrm{m}}^2}}\left\{\left[\overline{{\mathrm{I}}_{\mathrm{n}1}^2}+\overline{{\mathrm{I}}_{\mathrm{n}2}^2}\right]·{\left[{\displaystyle \frac{{\mathrm{g}}_{\mathrm{m}}{\mathrm{C}}_3}{{\mathrm{C}}_2{\mathrm{C}}_1\mathrm{s}}}\right]}^2+\left[\overline{{\mathrm{I}}_{\mathrm{n}8}^2}+\overline{{\mathrm{I}}_{\mathrm{n}9}^2}\right]+\left[\overline{{\mathrm{I}}_{\mathrm{n}4}^2}+\overline{{\mathrm{I}}_{\mathrm{n}5}^2}+\overline{{\mathrm{I}}_{\mathrm{n}6}^2}+\overline{{\mathrm{I}}_{\mathrm{n}7}^2}\right]·{\left[{\displaystyle \frac{{\mathrm{C}}_3\mathrm{s}}{{\mathrm{g}}_{\mathrm{m}}}}\right]}^2\right\}$$

(33)

HIGH-PASS:

$$\overline{{\mathrm{V}}_{\mathrm{in}3}^2}={\displaystyle \frac{\overline{{\mathrm{V}}_{\mathrm{InT}1\mathrm{OUT}}^2}+\overline{{\mathrm{V}}_{\mathrm{InT}2\mathrm{OUT}}^2}+\overline{{\mathrm{V}}_{\mathrm{InT}3\mathrm{OUT}}^2}}{{\mathrm{H}}_{\left(\mathrm{s}\right),\mathrm{H}\mathrm{P}}^2}}=={\displaystyle \frac{1}{{\mathrm{g}}_{\mathrm{m}}^2}}\left\{\left[\overline{{\mathrm{I}}_{\mathrm{n}1}^2}+\overline{{\mathrm{I}}_{\mathrm{n}2}^2}\right]·{\left[{\displaystyle \frac{{{\mathrm{g}}_{\mathrm{m}}}^2}{{\mathrm{C}}_2{\mathrm{C}}_1{\mathrm{s}}^2}}\right]}^2+{\left[\overline{{\mathrm{I}}_{\mathrm{n}8}^2}+\overline{{\mathrm{I}}_{\mathrm{n}9}^2}\right]·\left[{\displaystyle \frac{{\mathrm{g}}_{\mathrm{m}}}{{\mathrm{C}}_3\mathrm{s}}}\right]}^2+\left[\overline{{\mathrm{I}}_{\mathrm{n}4}^2}+\overline{{\mathrm{I}}_{\mathrm{n}5}^2}+\overline{{\mathrm{I}}_{\mathrm{n}6}^2}+\overline{{\mathrm{I}}_{\mathrm{n}7}^2}\right]\right\}$$

(34)

BAND-REJECT:

$$\overline{{\mathrm{V}}_{\mathrm{in}1}^2}+\overline{{\mathrm{V}}_{\mathrm{in}3}^2}={\displaystyle \frac{\overline{{\mathrm{V}}_{\mathrm{InT}1\mathrm{OUT}}^2}+\overline{{\mathrm{V}}_{\mathrm{InT}2\mathrm{OUT}}^2}+\overline{{\mathrm{V}}_{\mathrm{InT}3\mathrm{OUT}}^2}}{{\mathrm{H}}_{\left(\mathrm{s}\right),\mathrm{L}\mathrm{P}}^2}}+{\displaystyle \frac{\overline{{\mathrm{V}}_{\mathrm{InT}1\mathrm{OUT}}^2}+\overline{{\mathrm{V}}_{\mathrm{InT}2\mathrm{OUT}}^2}+\overline{{\mathrm{V}}_{\mathrm{InT}3\mathrm{OUT}}^2}}{{\mathrm{H}}_{\left(\mathrm{s}\right),\mathrm{H}\mathrm{P}}^2}}$$

(35)

ALL-PASS:

$$\overline{{\mathrm{V}}_{\mathrm{in}1}^2}+\overline{{\mathrm{V}}_{\mathrm{in}2}^2}+\overline{{\mathrm{V}}_{\mathrm{in}3}^2}={\displaystyle \frac{\overline{{\mathrm{V}}_{\mathrm{InT}1\mathrm{OUT}}^2}+\overline{{\mathrm{V}}_{\mathrm{InT}2\mathrm{OUT}}^2}+\overline{{\mathrm{V}}_{\mathrm{InT}3\mathrm{OUT}}^2}}{{\mathrm{H}}_{\left(\mathrm{s}\right),\mathrm{L}\mathrm{P}}^2}}+{\displaystyle \frac{\overline{{\mathrm{V}}_{\mathrm{InT}1\mathrm{OUT}}^2}+\overline{{\mathrm{V}}_{\mathrm{InT}2\mathrm{OUT}}^2}+\overline{{\mathrm{V}}_{\mathrm{InT}3\mathrm{OUT}}^2}}{{\mathrm{H}}_{\left(\mathrm{s}\right),\mathrm{B}\mathrm{P}}^2}}+{\displaystyle \frac{\overline{{\mathrm{V}}_{\mathrm{InT}1\mathrm{OUT}}^2}+\overline{{\mathrm{V}}_{\mathrm{InT}2\mathrm{OUT}}^2}+\overline{{\mathrm{V}}_{\mathrm{InT}3\mathrm{OUT}}^2}}{{\mathrm{H}}_{\left(\mathrm{s}\right),\mathrm{H}\mathrm{P}}^2}}$$

(36)

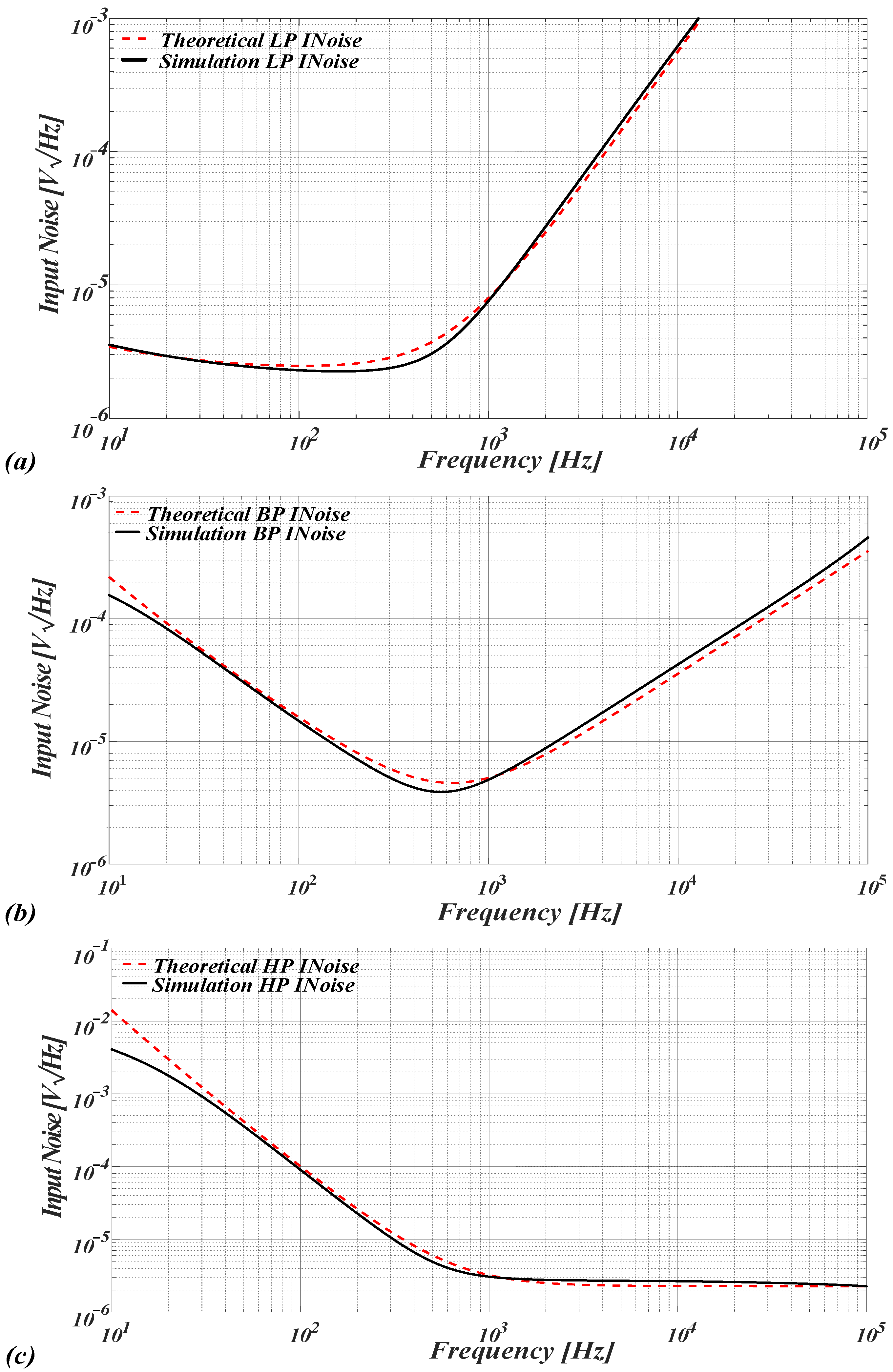

The simulation and theoretical results for the noise parameters are compared to better view the noise equations.

Table 12. Theoretical noise parameters for the proposed filter.

Parameter	Unit	Parameter	Unit
K	$1.38 {10}^{-23}{\displaystyle \frac{\mathrm{J}}{\mathrm{K}}}$	KN	${10}^{-10} {\mathrm{V}}^2·\mathrm{f}\mathrm{F}$
T	$300 \breve{\mathrm{K}}$	COX	$9 {\displaystyle \frac{\mathrm{f}\mathrm{F}}{\mathrm{\mu }{\mathrm{m}}^2}}$
γ	1	$(\mathrm{W}·$L)P	$15 \mathrm{\mu }{\mathrm{m}}^2$
${\mathrm{g}}_{\mathrm{mP},\mathrm{inv}}$	35.6 nS	$(\mathrm{W}·$L)N	$3 \mathrm{\mu }{\mathrm{m}}^2$
${\mathrm{g}}_{\mathrm{mN},\mathrm{inv}}$	47.4 nS	C1 = C2 = C3	20 pF
KP	${10}^{-9} {\mathrm{V}}^2·\mathrm{f}\mathrm{F}$	gm	83 nS

summarizes the theoretical noise parameters for the proposed Gm-C filter. The theoretical input-referred noise for the band-pass filter at the center frequency of 635 Hz is 4.42 µ${\displaystyle \frac{\mathrm{V}}{\sqrt{\mathrm{H}\mathrm{z}}}}$ while the simulation result is 3.9 µ${\displaystyle \frac{\mathrm{V}}{\sqrt{\mathrm{H}\mathrm{z}}}}$. Figure 15 compares the theoretical and simulated input-referred noise for three configurations of the proposed filter (LP, BP, HP). However, the R.M.S output noise for the low-pass filter is 75 µVrms in the frequency range of 1 Hz to 635 Hz. The dynamic range of the low-pass filter at the input voltage of 50 mV_P with the lower 1% THD is 53.46 dB.

$${\mathrm{D}\mathrm{R}}_{\mathrm{d}\mathrm{y}\mathrm{n}\mathrm{a}\mathrm{m}\mathrm{i}\mathrm{c}\mathrm{r}\mathrm{a}\mathrm{n}\mathrm{g}\mathrm{e}}={\displaystyle \frac{{\mathrm{V}}_{\mathrm{r}\mathrm{m}\mathrm{s}-\mathrm{m}\mathrm{a}\mathrm{x}}}{{\mathrm{V}}_{\mathrm{r}\mathrm{m}\mathrm{s}-\mathrm{o}\mathrm{u}\mathrm{t}\mathrm{p}\mathrm{u}\mathrm{t}\mathrm{n}\mathrm{o}\mathrm{i}\mathrm{s}\mathrm{e}}}}$$

(37)

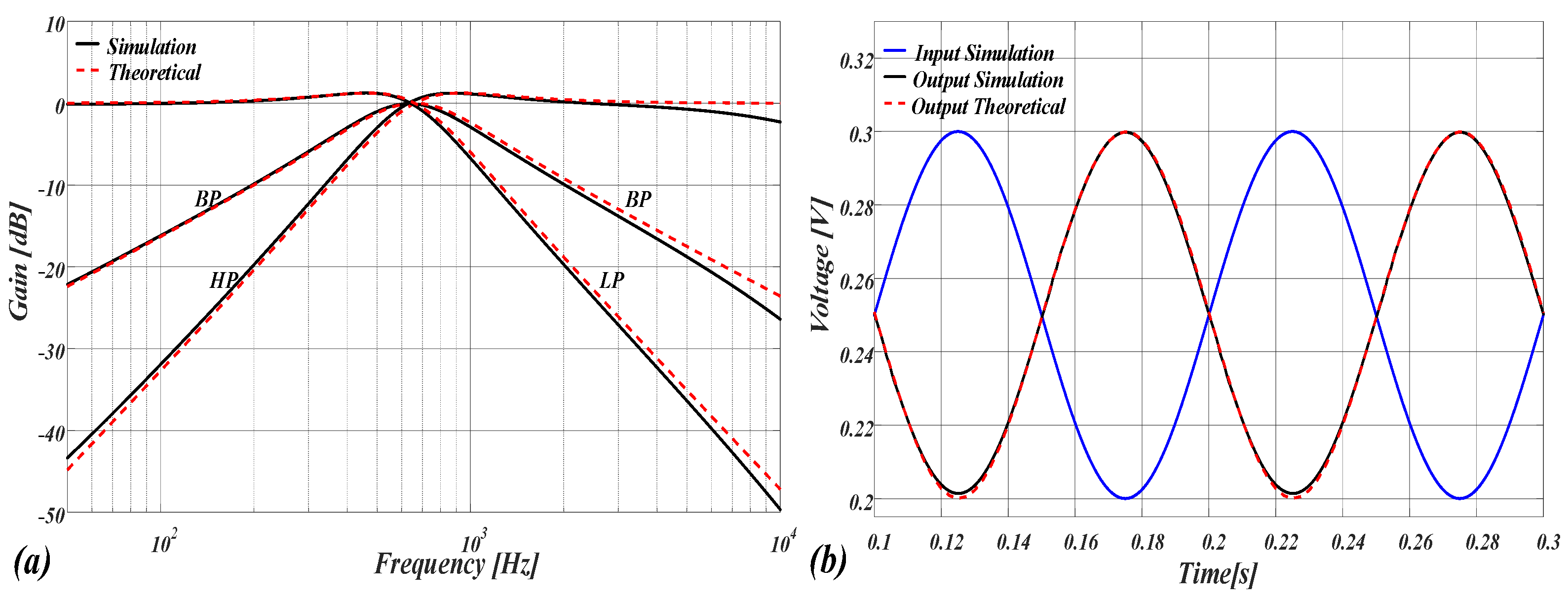

Furthermore, Figure 16 compares the simulation and theoretical results for the filtering and transient responses. The theoretical center frequency for the band-pass filter at the capacitance values ${{\mathrm{C}}_3=\mathrm{C}}_2={\mathrm{C}}_1=$ 20 pF is 661 Hz, while its simulation center frequency is 635 Hz.

$${{\mathrm{g}}_{\mathrm{m}}}_{\mathrm{Theoretical}}={\mathrm{g}}_{\mathrm{m},\mathrm{inv}1}={\mathrm{g}}_{\mathrm{mP},\mathrm{inv}1}+{\mathrm{g}}_{\mathrm{mN},\mathrm{inv}1}=83 \mathrm{n}\mathrm{S}$$

(38)

$${{\mathrm{g}}_{\mathrm{m}}}_{\mathrm{S}\mathrm{i}\mathrm{m}\mathrm{u}\mathrm{l}\mathrm{a}\mathrm{t}\mathrm{i}\mathrm{o}\mathrm{n}}={\mathrm{g}}_{\mathrm{m},\mathrm{inv}1}={\mathrm{g}}_{\mathrm{mP},\mathrm{inv}1}+{\mathrm{g}}_{\mathrm{mN},\mathrm{inv}1}=80 \mathrm{n}\mathrm{S}$$

(39)

$${\mathrm{f}}_{0-\mathrm{T}\mathrm{h}\mathrm{e}\mathrm{o}\mathrm{r}\mathrm{e}\mathrm{t}\mathrm{i}\mathrm{c}\mathrm{a}\mathrm{l}}={\displaystyle \frac{1}{2\pi }}\sqrt{{\displaystyle \frac{{{\mathrm{g}}_{\mathrm{m}}}_{\mathrm{Theoretical}}^2}{{\mathrm{C}}_2{\mathrm{C}}_1}}}={\displaystyle \frac{1}{2\pi }}\sqrt{{\displaystyle \frac{{\left[83·{10}^{-9}\right]}^2}{{\left[20·{10}^{-12}\right]}^2}}}\approx 661 \mathrm{H}\mathrm{z}$$

(40)

$${\mathrm{f}}_{0-\mathrm{S}\mathrm{i}\mathrm{m}\mathrm{u}\mathrm{l}\mathrm{a}\mathrm{t}\mathrm{i}\mathrm{o}\mathrm{n}}={\displaystyle \frac{1}{2\pi }}\sqrt{{\displaystyle \frac{{{\mathrm{g}}_{\mathrm{m}}}_{\mathrm{Simulation}}^2}{{\mathrm{C}}_2{\mathrm{C}}_1}}}={\displaystyle \frac{1}{2\pi }}\sqrt{{\displaystyle \frac{{\left[80·{10}^{-9}\right]}^2}{{\left[20·{10}^{-12}\right]}^2}}}\approx 635 \mathrm{H}\mathrm{z}$$

(41)

The comparison gain value for the band-pass filter in theoretical and simulation results are as follows:

$${\left|\mathrm{H}\left(\mathrm{j}{\omega }_0\right)\right|}_{\mathrm{T}\mathrm{h}\mathrm{e}\mathrm{o}\mathrm{r}\mathrm{e}\mathrm{t}\mathrm{i}\mathrm{c}\mathrm{a}\mathrm{l}}={\displaystyle \frac{\left|\frac{{\mathrm{g}}_{\mathrm{m}}}{{\mathrm{C}}_3}{{\omega }_0}^2\right|}{\sqrt{{\left({{\omega }_0}^2+\frac{{{\mathrm{g}}_{\mathrm{m}}}^2}{{\mathrm{C}}_2{\mathrm{C}}_1}\right)}^2+{\left(\frac{{\mathrm{g}}_{\mathrm{m}}}{{\mathrm{C}}_3}{{\omega }_0}^2\right)}^2}}}={\displaystyle \frac{\left|\left[\frac{83·{10}^{-9}}{20·{10}^{-12}}\right]{·[2\pi ·661]}^2\right|}{\sqrt{{\left({[2\pi ·661]}^2+\frac{{\left[83·{10}^{-9}\right]}^2}{{\left[20·{10}^{-12}\right]}^2}\right)}^2+{\left(\left[\frac{83·{10}^{-9}}{20·{10}^{-12}}\right]{·[2\pi ·661]}^2\right)}^2}}}\approx 1=0 \mathrm{d}\mathrm{B}$$

(42)

$${\left|\mathrm{H}\left(\mathrm{j}{\omega }_0\right)\right|}_{\mathrm{S}\mathrm{i}\mathrm{m}\mathrm{u}\mathrm{l}\mathrm{a}\mathrm{t}\mathrm{i}\mathrm{o}\mathrm{n}}={\displaystyle \frac{\left|\frac{{\mathrm{g}}_{\mathrm{m}}}{{\mathrm{C}}_3}{{\omega }_0}^2\right|}{\sqrt{{\left({{\omega }_0}^2+\frac{{{\mathrm{g}}_{\mathrm{m}}}^2}{{\mathrm{C}}_2{\mathrm{C}}_1}\right)}^2+{\left(\frac{{\mathrm{g}}_{\mathrm{m}}}{{\mathrm{C}}_3}{{\omega }_0}^2\right)}^2}}}={\displaystyle \frac{\left|\left[\frac{80·{10}^{-9}}{20·{10}^{-12}}\right]{·[2\pi ·635]}^2\right|}{\sqrt{{\left({[2\pi ·635]}^2+\frac{{\left[80·{10}^{-9}\right]}^2}{{\left[20·{10}^{-12}\right]}^2}\right)}^2+{\left(\left[\frac{80·{10}^{-9}}{20·{10}^{-12}}\right]{·[2\pi ·635]}^2\right)}^2}}}\approx 1=0 \mathrm{d}\mathrm{B}$$

(43)

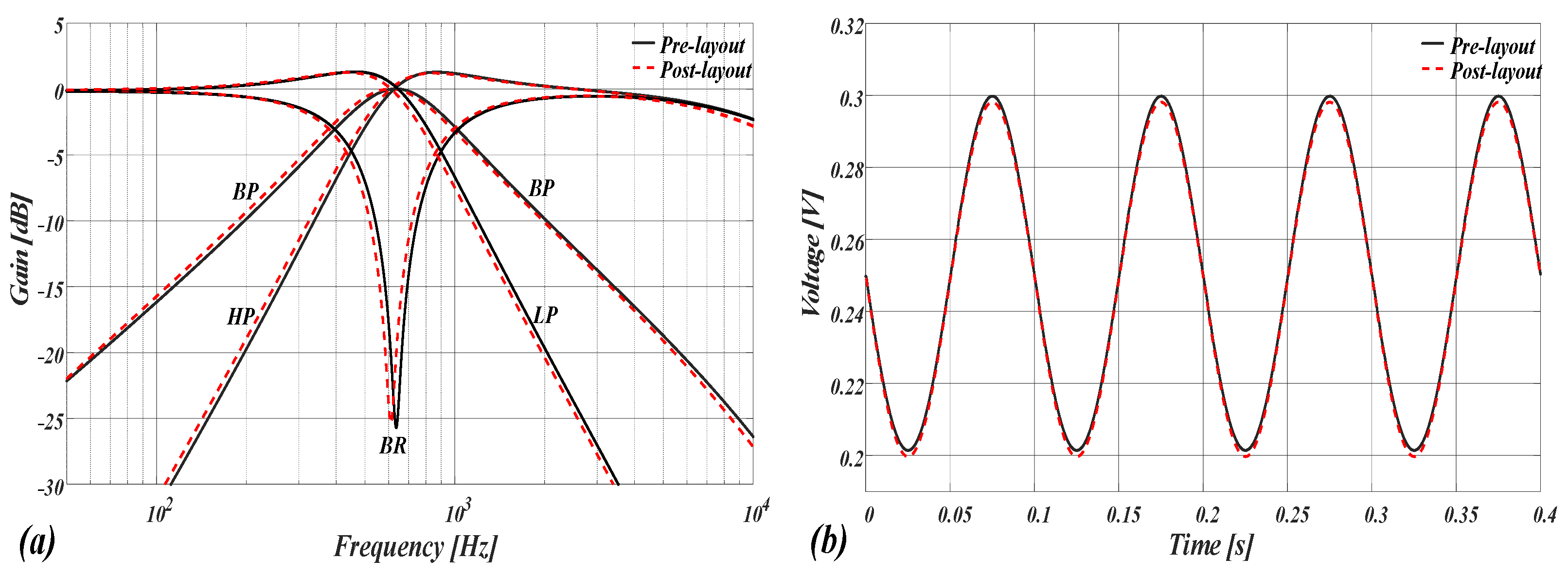

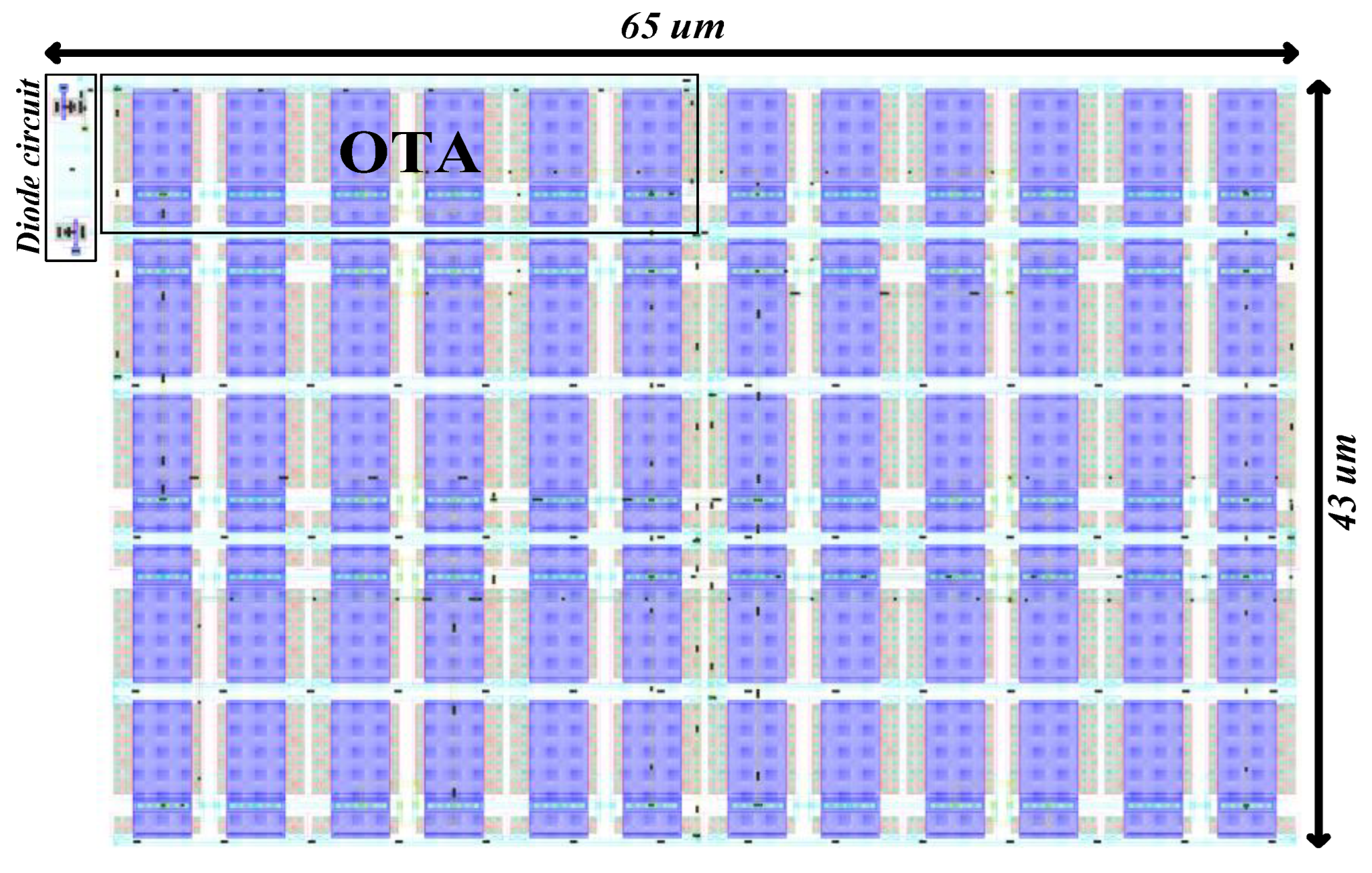

The layout of the proposed filter is shown in Figure 17, and its total area is 2.795 $\mathrm{m}{\mathrm{m}}^2$. Figure 18 compares the proposed filter’s pre-layout and post-layout simulations in filtering (Figure 18a) and output low-pass transient responses (Figure 18b).

Table 13. Pre-layout and post-layout simulation results of the proposed filter at different frequencies and process corner variations.

Frequency Range [Hz]	Capacitance Value [pF]	TT	SS	SF	FS	FF
Pre-layout	250	50.6	22.5	58.7	60.2	111
Post-layout		48.3	21.6	56	53.3	107
Pre-layout	80	158	70.3	183.6	188.3	349
Post-layout		151.3	67.4	175	166.7	333.4
Pre-layout	30	423	188	491	502.3	933
Post-layout		404.5	180.3	469	444.6	891
Pre-layout	20	635	282.5	736	755	1400
Post-layout		608	271	705	667	1342
Pre-layout	10	1270	566	1479	1513	2812
Post-layout		1222	547	1412	1336	2691

,

Table 14. Pre-layout and post-layout simulation results of the proposed filter at different frequencies and with ±10% variations in the supply voltage.

Frequency Range [Hz]	Capacitance Value [pF]	0.5 V	0.45 V	0.55 V
Pre-layout	250	50.6	26.36	95
Post-layout		48.3	25.6	91.4
Pre-layout	80	158	82.4	297
Post-layout		151.3	80.16	286
Pre-layout	30	423	220	792.5
Post-layout		404.5	214.8	762
Pre-layout	20	635	331	1200
Post-layout		608	323	1145
Pre-layout	10	1270	663.7	2376
Post-layout		1222	648.6	2296

and

Table 15. Pre-layout and post-layout simulation results of the proposed filter at different frequencies and temperature.

Frequency Range [Hz]	Capacitance Value [pF]	27 °C	0 °C	10 °C	20 °C	30 °C	40 °C
Pre-layout	250	50.6	20.3	29	40.5	55	74
Post-layout		48.3	19	27.5	38.7	53	71
Pre-layout	80	158	63.7	91	127	173.4	231
Post-layout		151.3	59.7	86.3	121	166	222
Pre-layout	30	423	170.2	243.2	339.6	463.4	618
Post-layout		404.5	159.6	230.6	323.6	443.6	594.3
Pre-layout	20	635	256	365.6	510.5	695	929
Post-layout		608	240	346.7	486.4	667	893
Pre-layout	10	1270	513	733	1021	1393	1862
Post-layout		1222	482	696.6	979.5	1340	1794

summarize the pre-layout and post-layout simulation results in different frequency ranges and PVT variations. They confirm the proposed filter’s performance and design accuracy in different frequency responses.

5. Comparison with State-of-the-Art

Table 16. Performance comparison with the Gm-C filter’s state-of-the-art (best performance in bold).

Specifications	This Work	[5]	[6]	[7]	[8]	[9]	[10]
Supply voltage [V]	0.5	0.5	0.5	0.5	0.5	0.5	0.5
Supply voltage scalability	0.5V to 1.2V	No	No	No	No	No	No
Universal	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Multi-mode	Yes	No	No	Yes	No	Yes	Yes
Frequency tuning by current bias	No	Yes	Yes	Yes	Yes	Yes	Yes
Filter order	2	2	2	2	2	2	2
Center frequency [Hz]	635	254	10	323	153	211	114
Frequency tuning range [Hz]	50.6–1270	66–501	5.9–21.6	162–1330	62.3–595.6	28–211	58.8–840
Tuning range [X]	25	7.6	3.66	8.2	9.56	7.53	14.28
THD [%] @ amplitude [mVP]	0.93 @ 50	0.62 @ 50	1 @ 50	0.8 @ 50	0.33 @ 50	1 @ 150	1 @ 135
Dynamic range [dB]	53.46	49.7	63	53.2	50	58.23	53.2
R.M.S output noise [µVrms]	75	116	45	108	220	130	208
Power consumption [nW]	48	616	53.3	646	37	281	58
$\mathrm{Area} [\mathrm{m}{\mathrm{m}}^2$]	2.795	-	-	-	11.537	-	-
$\mathrm{FoM} [{10}^{-12}$$\mathrm{W}·{\mathrm{H}\mathrm{z}}^{-1}·{\mathrm{d}\mathrm{B}}^{-1}$]	0.08	3.96	1.88	2.187	2.41	0.816	0.556

summarizes the performance of the proposed Gm-C filter in comparison with previously reported designs [5,6,7,8,9,10]. The power consumption of the proposed filter exhibits a considerable decrease compared to [5,6,7,9,10], while it increases compared to [8]. The center frequency of the proposed filter also benefits from a broader frequency range tunability compared to all the reported designs. The proposed Gm-C filter can generate all filtering responses (universal) in all modes of operation (multi-mode), whereas the reported designs in [5,6,8] can only produce voltage-mode filters. In addition, the circuit discussed in [7,9,10] can operate in all modes of operation and benefits from the orthogonal tunability of the center frequency. Still, the smaller tuning range of the center frequency is the primary limitation of the circuit reported in [7,9,10]. It is worth mentioning that the frequency tuning of all reported designs consumes higher power due to the change in current biasing. In contrast, the frequency tuning of the proposed filter is achieved through capacitance variations, resulting in no change in power consumption. The proposed tunable Gm-C filter can operate with all filtering responses in all modes of operation, even at higher supply voltages, unlike other reported designs that require a regulated supply voltage. The figure-of-merit (FoM) is defined as follows to compare the comprehensive performance of the proposed filter with other filter designs shown in Table 16:

$$\mathrm{F}\mathrm{o}\mathrm{M}={\displaystyle \frac{\mathrm{P}}{\mathrm{f}·\mathrm{N}·\mathrm{D}\mathrm{R}}}$$

(44)

where P is power consumption, f is the center frequency, N is the filter’s order, and DR is the filter’s dynamic range.

According to Table 16, the proposed filter’s figure of merit (FoM) is considerably lower than that of [5,6,7,8,9,10]. This confirms that it performs well in low-voltage and low-power applications.

6. Conclusions

This paper presents an inverter-based, multi-mode, universal Gm-C filter implemented using 180 nm TSMC technology, which can generate all filtering responses properly at different power supply voltages. At the lowest supply voltage, the transistors of the proposed filter operate in the sub-threshold region, effectively decreasing power consumption. However, the proposed circuit benefits from three grounded capacitances, and C3 is used to ensure the tunability of the proposed circuit’s quality factor. Additionally, the center frequency adjustments are performed by changing the capacitance values without introducing current- and voltage-biasing variations. The power consumption of the proposed filter is 48 nW at center frequency ranges from 50.6 Hz to 1270 Hz, which justifies the low-voltage and low-power performance of the proposed universal filter.
