1. Introduction
Facial imagery processing constitutes one of the prominent approaches for person identification as far as it concerns security and forensics. Other procedures involve fingerprints, voice characteristics and handwriting [
1,
2,
3,
4,
5,
6]. Face recognition procedures as well as their performance are seriously affected by illumination conditions when visible light is used [
6]. Thermal infrared [
7,
8] can be used to capture information from faces. This procedure is actually a passive approach, i.e., the thermal detector records only the energy radiated from the face according to its temperature, which mainly depends on the physiological condition of the person [
9]. The human face radiates as a perfect black body only in thermal infrared (wavelength 10 μm). This is according to Wien’s law, the region of the electromagnetic spectrum in which a body with the temperature of the environment (300 K) radiates its maximum energy.
Thermal infrared images are the most appropriate to investigate alcohol consumption since a drunk person has different thermal characteristics on his face than someone who is sober. For a drunk person, the arteries and the vessels on their face increase in activity and therefore the temperature on the face changes according to vessel network distribution. Isothermal regions have not been used so far for intoxication identification. In automotive anti-drunk driving systems referred in the literature, electrical signals from the heart and brain or information from breathing are mainly used [
10].
Isotherms have already been used as a biometric feature in medical procedures [
11,
12]. They have also been used for recognition of human faces [
13] in other pattern recognition tasks except intoxication problems [
14,
15]. The work in [
12] provides an overview of medical infrared thermography in sports medicine and focuses on procedures for identifying traumatic knee injuries. In this same work are thoroughly explained the clinical applicability and limitations of medical infrared thermography. The most important advantage of medical infrared thermography is that it is a non-invasive, non-radiating, low cost detection tool. A detailed description of the applications of infrared thermography in medical diagnosis is given [
11].
Drunk person identification procedures using infrared imagery can be found in the literature in [
16,
17,
18,
19,
20]. These methods are based on thermal features that change with alcohol consumption. In [
16], the features used for drunk identification are simple pixels obtained on specific points on the thermal image of the face of sober and drunk persons. In the same work, the concept of the “drunk feature space” is introduced and explained proving that the clusters of drunk persons are moving toward the same direction into this space. Moreover, it was found that the regions of the forehead and the nose change temperature when a person consumes alcohol, with the forehead becoming cooler and the nose hotter. In [
17], blood vessel behavior is analyzed during alcohol consumption and those vessels on the face that exhibit higher activity are isolated and used as identification features. In [
18], neural networks are used as a black box to recognize intoxicated persons. It is important to note that neural structures operating only on the forehead present very high drunk identification success. An approach for intoxication detection based on neighboring statistics was presented in [
19]. This approach presents very good intoxication discriminations success. In [
20] the activities of facial blood veins and variations on the eye socket of drunk persons are studied using special mathematical tools. In almost all methods presented in [
16,
17,
18,
19,
20], one can identify intoxication without making use of the thermal image of the person when sober for comparison. This makes these approaches of high value for real time intoxication identification. On the other hand, a very resent method [
21] that deals with intoxication identification presents almost the same kinds of characteristics as those appearing in [
16,
17,
18,
19,
20]. In [
21], the database used consists only of 20 persons, i.e., much smaller than that used in this work.
In the present work, sober–drunk classification is carried out using the thermal map of the face. Actually, multiple frames are obtained in each acquisition from each person. This 50-frame multi-view approach, gives the capability to resample each persons’ face 50 times and create a reasonably large cluster of feature vectors. Elaboration on the behaviour of the cluster in the feature space gives improved capabilities in intoxication detection. The morphological feature vector called pattern spectrum (pecstrum) is employed as a shape descriptor and the SVMs as classifiers. The present identification method differs substantially from the procedures presented in [
16,
17,
18,
19,
20] since new drunk identification features are extracted from the person’s face. However, the conclusions in the present work as far as the capacity of the thermal images to identify intoxication are strongly supporting the significance of the contained information. Two different ways are employed in this work in order to isolate the face isothermal regions and to derive continues feature vectors for intoxication identification. According to the first way, the histogram of the face is separated (both for the sober and the drunk person) into equal segments. In the second way, the isothermal region in which the forehead lies is found and all the rest locations of the face that lie also in the same temperature range are recorded. It is necessary to smooth the boundaries of the thermal infrared images before extracting isothermal regions. This was carried out by the means of anisotropic diffusion. The isothermal regions are morphologically processed in order to derive the feature vector called pattern spectrum [
22]. This shape descriptor is transferred to the SVMs. Sober–drunk discrimination performance was evaluated to be over 80% percent, which is considered satisfactory.
The novelty of the proposed method is related to the fact that the procedure is a non-invasive test, which can be applied remotely. This test can give a fast assess on the person’s condition and if necessary a breathalyzer or a blood test can follow. Furthermore, the identification of the drunk person does not require any comparison with an existing signature of a corresponding sober person. This work can be considered as an application with significant contribution in theory and algorithms development. Theoretically, new feature vectors for drunk identification are proposed making special use of morphological operators to convert isotherms into vectors. Furthermore, the developed algorithms are related to feature extraction as well as to histogram modification to outline isothermal regions.
Basic concepts regarding the signal processing procedures employed in this work are briefly provided for the reader to have a consistent view of the theoretical background. Firstly, a three-fold goal is achieved by means of anisotropic diffusion [
23,
24], namely details preservation is succeeded, while noise removal and homogenization of regions are simultaneously performed. Morphological operations [
22,
25,
26] are employed for the formation of the feature vector called pattern spectrum. Finally, the SVMs are used for recognition of intoxicated persons. Support Vector Machines (SVMs) have been used extensively in the past for face detection in images, isolated handwritten digit recognition, object recognition, speaker identification and text categorization [
27,
28,
29,
30,
31,
32].
Forty-one subjects were involved in the experimental procedure. These persons, initially sober, consumed a specific amount of alcohol in a systematic way. This number of participants is considered large, taking into consideration that the persons were involved in a totally controlled alcohol consumption procedure. For each subject, 50 frames were obtained when they were sober and 50 frames after consuming alcohol. Thus, a total of 4100 feature vectors were employed in each identification procedure carried out. This database is actually the only one available worldwide. It is the only one acquired with consistency in experimentation and having images for the same person, sober and drunk with a specific amount of alcohol consumed in a specific allotted time period. It is worth mentioning that in the experiments only an intoxicated situation is tested assuming that no other scenario happens, i.e., the people employed were calm and in normal physical and psychological condition, healthy, without fever or any other psychological stress or having gone through any kind of body exercise before the experiment.
The work layout is as follows. In
Section 2, a description is provided regarding the data used and the experimental procedure followed. The different isothermal regions are explained in
Section 3. Furthermore, a brief discussion for anisotropic diffusion is addressed in
Section 4, the morphological feature vectors are explained in
Section 5, while the basic concepts of SVM classification are given in
Section 6. In
Section 7, the experimental results and discussion are provided. Finally, the conclusions are drawn in
Section 8.
2. Infrared Data Used

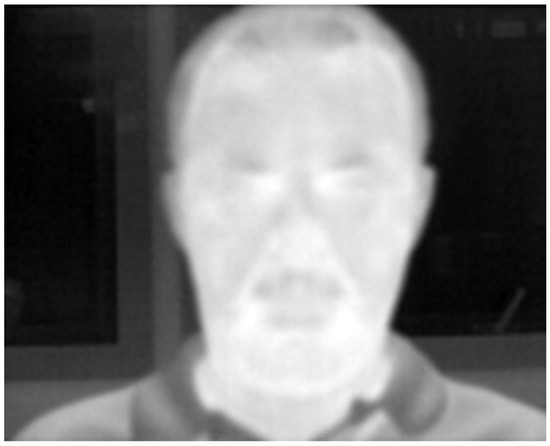

The thermal infrared images required to assess the proposed drunk identification method were obtained by our research team during a systematic and well organized experimental procedure. Accordingly, both the thermal images of the sober person along with the thermal images of the corresponding drunk person, in specific time instances after alcohol consumption, are employed so that comparisons can be carried out. The persons who participated in the experiment were conscious about the requirements of the procedure. Consequently, only researchers from our university were asked to participate in the experiment since only these persons can be aware of the specific needs of the experimental procedure and simultaneously to be well aware of a possible risk they were undertaking.
The Thermal Vision Micron/A10 infrared camera was employed for image acquisition. The resolution of the camera is 160 × 128 pixels and is sensitive in the thermal infrared region of the electromagnetic spectrum, i.e., from 7.5 to 13.0 μm. At the middle of this region of wavelengths, i.e., at 10 μm, a perfect black body with a mean temperature of approximately 300 degrees Kelvin, radiates its maximum according to Wien’s law [
11]. The human body as being in the same temperature with the environment, i.e., 300 degrees Kelvin, radiates in this exact region of wavelengths.
The experimental procedure focuses only on thermal changes on the face of the persons that have been caused by alcohol consumption. This means that only healthy persons participated in the experiment. During the experimental procedure, they remained calm, physically and psychologically in normal condition. No illness or fever, no psychological stress, other pathological reason or any kind of body exercises were recorded for any one of the participants. Consequently, intoxication detection is studied extensively under specific experimental conditions since the final goal is to prove that the face thermal signature changes with alcohol consumption.
The thermal infrared images were recorded in a well organized database available on the Internet for possible use by the scientific community. After four years of its availability over two hundred researchers worldwide have uploaded the database. No other similar database is available on the internet worldwide containing well organized information with many participants and created in a systematic way. All participants in the experiment accepted their personal data to be available on the Internet. The database contains information regarding the age, the weight and the sex of the participant.
Forty-one subjects were involved in the experimental procedure (
http://old.physics.upatras.gr/sober/—Free Database) (accessed on 1 September 2012). Most of them were males (31) and the rest females. All participants had agreed by signing a special agreement form that their personal data can be used by the scientific community. All participants were over 18 years of age. Their specific data (name, age, sex, weight etc.) have been recorded in the database. Every participant consumed the same amount of alcohol. Specifically, half a kilo of wine had each participant to consume in one hour’s time. This corresponds to a total of 62.4 mL of pure alcohol. Sequences of 50 frames each, with a sampling period of 100 msec, were acquired from all persons. Before alcohol consumption, the first sequence of frames was obtained. Immediately after that the person has to start to consume the wine in the 60 min allotted. The second acquisition of 50 frames was obtained 30 min after finishing alcohol consumption. A total of 2050 frames were acquired for the 41 sober persons and the same number of frames from the same persons when they were drunk. The mean value of the 50-frame multi-view acquisition for a specific drunk person is demonstrated in
Figure 1.
In order to secure smooth experimental procedure that would lead to reliable data acquisition, the participants were asked to be present in the room of the experiment half an hour earlier and to keep calm during the experimental procedure, which lasted over three hours. Simultaneously, the temperature of the room where measurements took place was kept between 23 and 25 degrees Celsius (almost 300 Kelvin). No physical light was used in the room of the experiment. A dim light from a neighboring room was used to be able to carry out the experiments. This light was not affecting the infrared camera. The distance of each face from the camera was kept almost 30 cm for all persons so that the acquired images could be compared.
According to the standards found in the literature [
33,
34] if a person has consumed four glasses of wine or a total of 62.4 mL of alcohol, he is characterized as being “drunk” or “intoxicated”. We considered this quantity of alcohol as being the maximum that our participants could drink and be involved in the experiment. According to the literature, only three glasses of wine are adequate for a person to go beyond the limit for secure driving, which is 0.5 g/(L of blood). We were not able to conduct blood tests during the experiment. However, persons are affected differently when drinking the same quantity of alcohol. This was verified by contacting measurements with a breathalyzer. For this reason, the police helped us to carry out measurements with a breathalyzer with some of the participant groups.
Based on our results and the breathalyzer measurements, it can be concluded with confidence that with the quantity of 62.4 mL of alcohol the breath alcohol content ranges from 0.25 to 0.9 mg/L. The content of 0.22 mg of alcohol per liter of exhaled air is equivalent to 0.5 g of alcohol per liter of blood [
34]. This value is at the limit of drunkenness. It was found that the maximum concentration of alcohol in the exhaled air was recorded thirty minutes after the consumption of the last glass of wine, decreasing gradually after this moment. Furthermore, males are affected less than females, while lighter persons are more affected than those who were heavy. Specifically, for the males participating in the experiment, the breathalyzer measurements ranged from 0.22 to 0.37 mg/L of exhaled air, with the lowest indication corresponding to the heaviest persons. Higher values for these measurements were obtained for the females ranging from 0.49 to 0.89 mg/L.

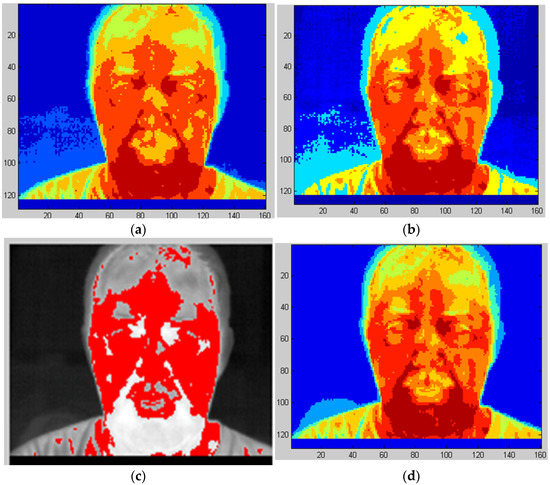

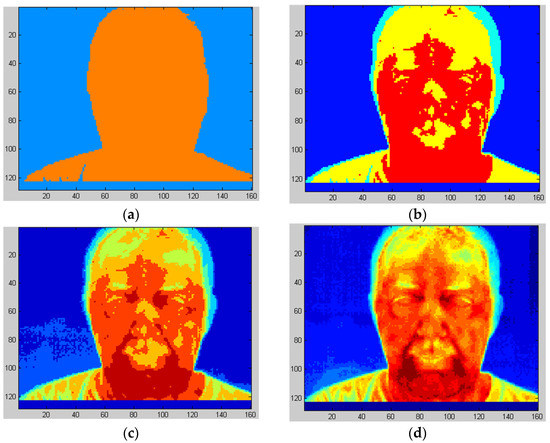

4. Anisotropic Diffusion Preprocessing
Fine details and significant information, such as edges or pixel sized objects may be distorted by noise inherent in thermal images. A preprocessing technique which is capable in reducing noise without affecting the important information in the thermal images is anisotropic diffusion [
23,
24]. The basic concept of the anisotropic diffusion technique is the way that the pixel concentration distribution u is changing so that based on Fick’s law its gradient causes flux
j:
where
D is the diffusion tensor, which is in general a positive definite symmetric matrix, and is a function of the structure of the image. Diffusion can be considered as representing mass transport (gray values in images) without destroying mass or creating new mass. So,
where
is the time partial derivative of the concentration distribution
. After substituting Equations (1) into (2), it is obtained:
We can define the diffusion tensor
to be a function of the gradient of
:
so that diffusion is performed only parallel to the edges resulting in edge preservation. Perona and Malik provide in [
23] a quadratic expression for
:
where
is a constant, depended on the particular application, which acts as an edge strength threshold.
The continuous anisotropic diffusion in (3) can be discretely implemented by using the four nearest neighbors and the Laplacian operator which was proposed by Perona and Malik [
23]:
where in our experimental procedure we used
, and
, which corresponded to gradients to south, north, east and west directions. In this work, the parameter k was selected equal to 20 and the number of iterations equal to 7. After the extraction of the isothermal regions on the face of the each participant, two morphological processes were applied.
5. Morphological Feature Vectors
The morphological operation called opening (erosion followed by dilation) is very effective to extract information from binary images such as the isothermal regions are and simultaneously separate fine from bulky details. This is achieved by the proper selection of the structuring element (SE) [
22], the size of which determines what kind of information will be rejected by the opening operation. Measuring the loss in the area of a binary object, when openings with successively increasing the SE are applied to it, is actually the way to evaluate the components of the morphological shape descriptor called pattern spectrum (pecstrum) [
25,
26]:
where
is the result obtained after opening the initial image with SE
and
is the area of the object. Each
gives the percentage of the total area of
that is eliminated by the opening with the SE
given that the opening with the SE
has already been carried out. Consequently, all
sum up to 1 with the last component of the pecstrum
being the one for which the binary object disappears when the SE
operates on it. Accordingly, the morphological shape description of a specific binary object called pattern spectrum is a k-dimensional vector
which brings into the k-dimensional “pecstral” space the corresponding object. The reader can find detailed description of the properties of the pattern spectrum in [
22,
25,
26].
Morphological impulses [
22] were proposed as an alternative means to study the information content of the pattern spectrum. A morphological impulse
is a convex binary object which remains unchanged when opened with the SE
but is totally cancelled by the SE
. This object is called an impulsive pattern or impulsive binary object. As a result, the dimensionality of the spectral space equals the number of the existing different morphological impulses. All the impulsive patterns have the same area each one equal to unity. These morphological impulses can be considered to constitute the unitary vectors of the k-dimensional pecstral space. The cumulative transformation (CT) [
22] adapts the pecstral space to subjective requirements and is realized when the lower triangular matrix W with its nonzero elements equal to one, operates on the vector of the pecstrum
The matrix W represents an accumulation or integration procedure since each component
of the new vector
is the summation of the first
components of the original pesctrum
6. Classification Using SVMs
Support Vector Machines (SVMs) [
35,
36,
37] as being supervised learning models analyze data and reorganize patterns by employing machine learning algorithms. By employing training samples from two different populations an SVM assigns new appearing samples into one of the two categories since it is a non-probabilistic binary linear classifier. Actually, an SV machine achieves to map the clusters of the two categories so that a clear wide gap separates them. This gap prevents new incoming samples to be incorrectly classified. Furthermore, SVMs by employing the so called kernels achieve non-linear classification by mapping the samples into a higher dimensionality feature space.
For Linear Support Vector machines, the support vector algorithm searches for the separating hyper-plane with the largest margin between the data
. This can be formulated so that all the training data fulfill the following constraints:
If we consider the points for which the equality in Equation (10) holds, then these points lie on the hyper-plane H
1:
with normal w and perpendicular distance from the origin
. Similarly, the points for which the equality in Equation (11) holds lie on the hyper-plane H
2:
, with normal again w, and perpendicular distance from the origin
. Hence
and the margin is simply
. We have to mention that H
1 and H
2 are parallel since they have common normal and that no training points fall between them. In this way the pair of hyper-planes which gives the maximum margin by minimizing

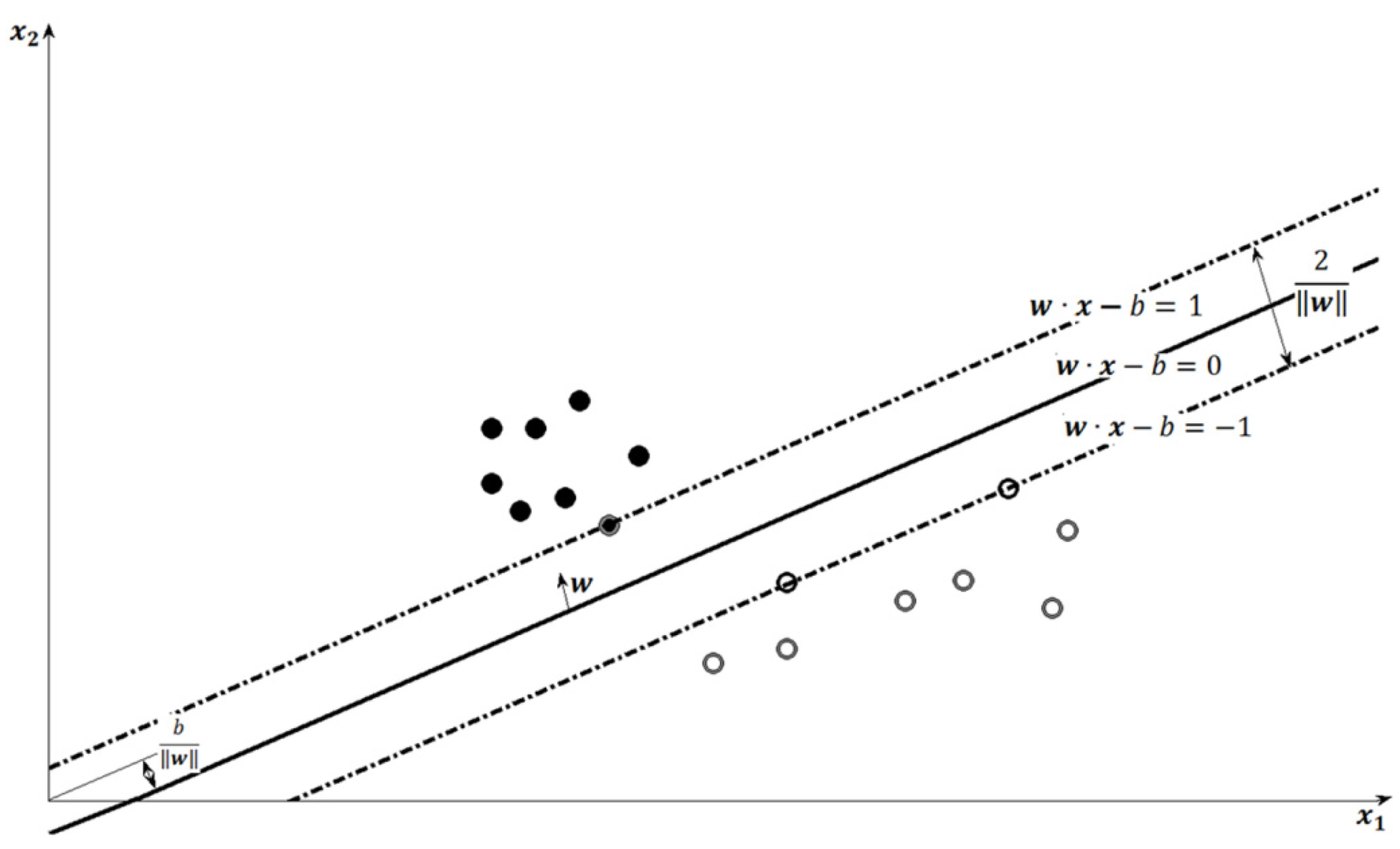

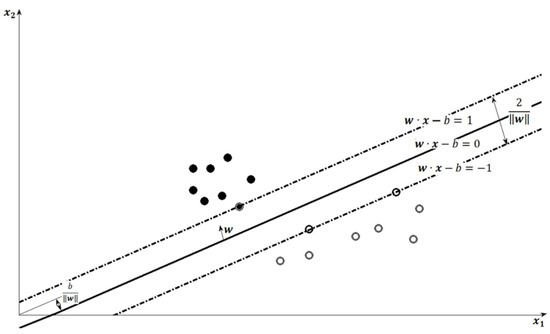

can be determined. So the solution for a typical two dimensional case will have the form shown in
Figure 6. Those training points for which the equality in Equation (10) or Equation (11) are valid and whose removal would change the solution found, are called support vectors; they are indicated in
Figure 6 by the extra circles.
When the decision function is not a linear function of the data, the nonlinear Support Vector Machines [
32,
33,
34] constitute a generalization of the above methods. First notice that the only way in which the data appear in the training problem, is on the form of dot products,
. Here the training vectors
are mapped into a higher dimensional Euclidean space
by the function
Thus, the maximal margin is achieved by a linear separating hyper-plane determined by the SVM. Furthermore, , is called the kernel function. Among the kernels that have being proposed in the past are the linear, polynomial, Gaussian radial basis function and hyperbolic tangent. The effectiveness of SVM depends on the selection of the kernel and the kernel’s parameters.
7. Results and Discussion

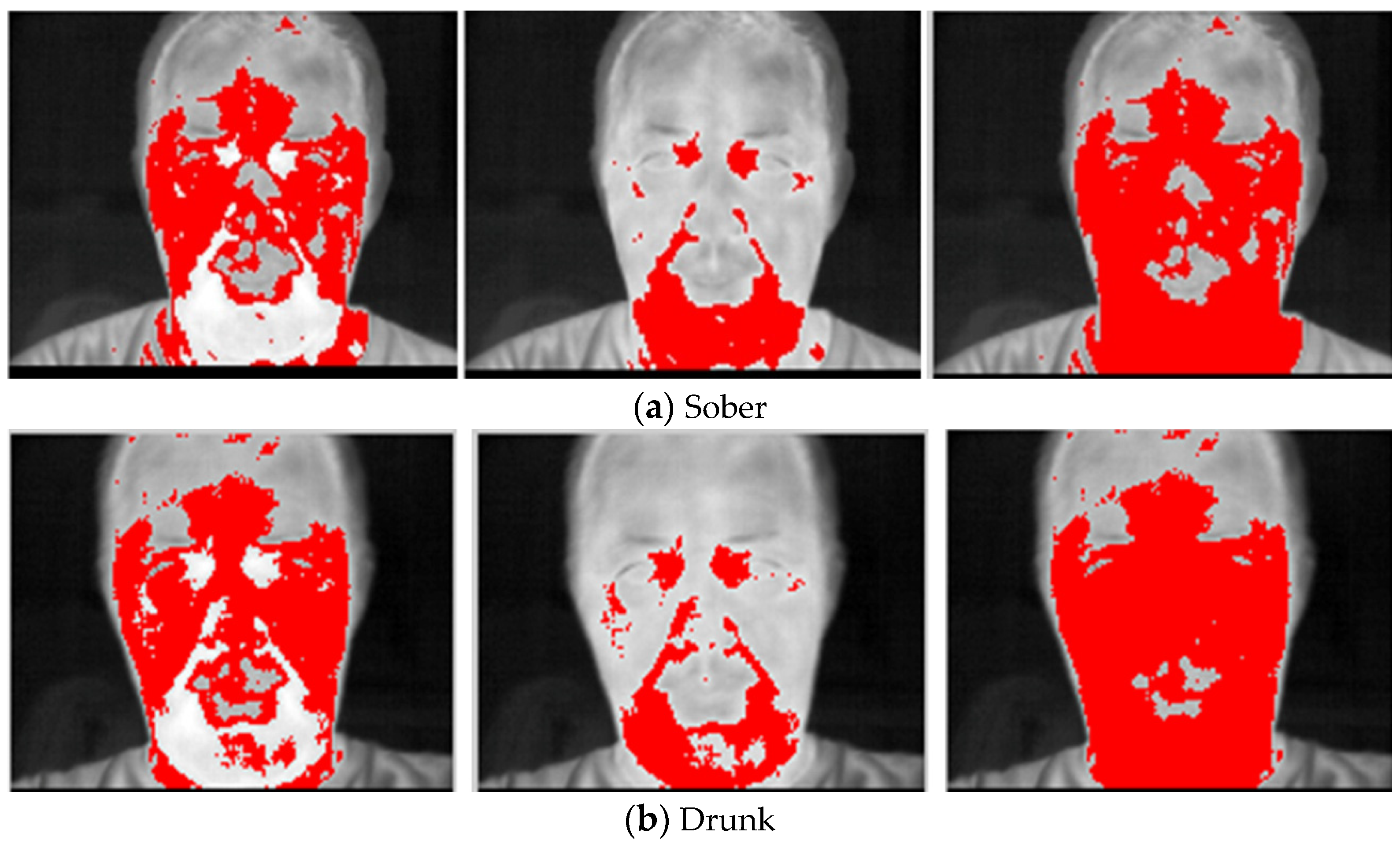

The isothermal regions that were employed in the experimental procedure for assessing their contribution to the performance of the proposed method in drunk person identification are those with gray levels between 191–255, 223–255 and 191–222. Actually, two versions of these isothermal regions were used. Those obtained by simply extracting the pixels with the specific values and those obtained after applying a modest diffusion processes. The features employed from these isothermal regions were those obtained as pattern spectrum components as well as the impulsive pecstral components. Furthermore, various types of SVMs were tested for examining their performance in the specific identification problem, namely:
Linear;
Precomputed kernel;
Polynomial kernel;
Radial basis kernel;
Sigmoidal kernel.
The combination of the above types of SVMs, with the two different morphological feature vectors, and the three types of isotherms with or without diffusion, gives 60 different cases for testing intoxication by means of isotherms. As it is explained in the following the most promising results were obtained using the impulsive spectrum without diffusion.
The first group of experimental results is given
Table 1. The identification results are presented separately for the three isotherms using the pattern spectrum and various types of SVM kernels. The best performance appears for the isotherms (223–255) and (191–222) with diffusion. The most promising results in this case are obtained with linear and precomputed kernels with diffusion for 7 iterations and
k = 20 for the isotherm 191–222, as well as for the isotherm 223–255. The success rate reaches 76% and it is considered acceptable given the high degree of boundary noise that is inherent in the procedure of isotherm extraction. Obviously, this noise is reduced with the diffusion procedure.
In
Table 2 are given the drunk identification results using separately three different isotherms with feature vector as it results from the impulsive pattern spectrum for various types of SVM kernels. The best performance is obtained for the isotherm (191–222) with or without diffusion. The recognition percentage reaches almost 80%. We observe in this Table that the best results are obtained with linear and precomputed kernels without diffusion for the isotherm 191–222. Obviously, the other types of kernels as well as the isothermal regions are not appropriate for drunk discrimination. On the other hand, it is apparent when comparing with the previous case that diffusion gives no improvement on the identification results. This is expected from the fact that the impulsive pattern spectrum used as feature vector is robust in noise caused at the boundaries of the isothermal regions.
Finally, in

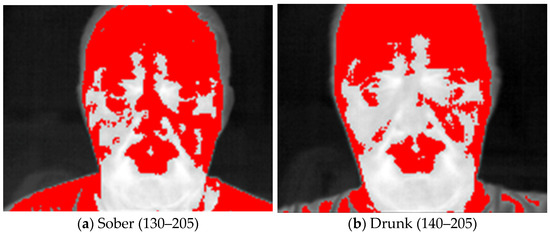

Table 3 is presented the case of isotherms that occupy the area of the forehead and is simultaneously examined if other face regions are contained in these isotherms. The simple pecstrum without performing diffusion achieves the largest success, which reaches 86%. Pre-computed and linear kernel types were employed to obtain these results. Consequently, we obtain the interesting result that a drunk person is identified since the isothermal regions in which the forehead lies, contain actually no other region of the face. Accordingly, no comparison with the image of the sober person is needed for intoxication identification.
8. Conclusions
In this work the isothermal regions of the face of sober and the corresponding drunk persons are thoroughly studied in order to be used for detecting intoxication. Two different approaches are proposed for elaborating with the shapes of the isotherms. In the first, the isotherms are simply separated having the same width in the histogram. Using this approach and pattern spectrum features, the identification success reaches 76%. On the other hand, the second approach is based on determining the isothermal region in which the whole forehead of the person lies. It was found that while for the sober person the forehead is isothermal with other regions of the face, for the intoxicated person the forehead is isothermally isolated from the rest of the face. In this case, the drunk identification success reaches 86%.
The multi-frame view employed in our experiments gave the capability to elaborate on a large number of images and make reliable performance measurements for the proposed features.
Employing the above concepts into forensic procedures for intoxicated person discrimination, the second approach can be applied directly on the drunk person’s face and no need exists for using the infrared image of the sober person. If the forehead of the face is isolated from the rest of the face in a specific isotherm, then we have almost certainty that the person is drunk and the authorities have to proceed to invasive (breathalyzer or blood test) examination procedures. The proposed method is non-invasive and provides a fast means of intoxication detection.
