AMROFloor: An Efficient Aging Mitigation and Resource Optimization Floorplanner for Virtual Coarse-Grained Runtime Reconfigurable FPGAs

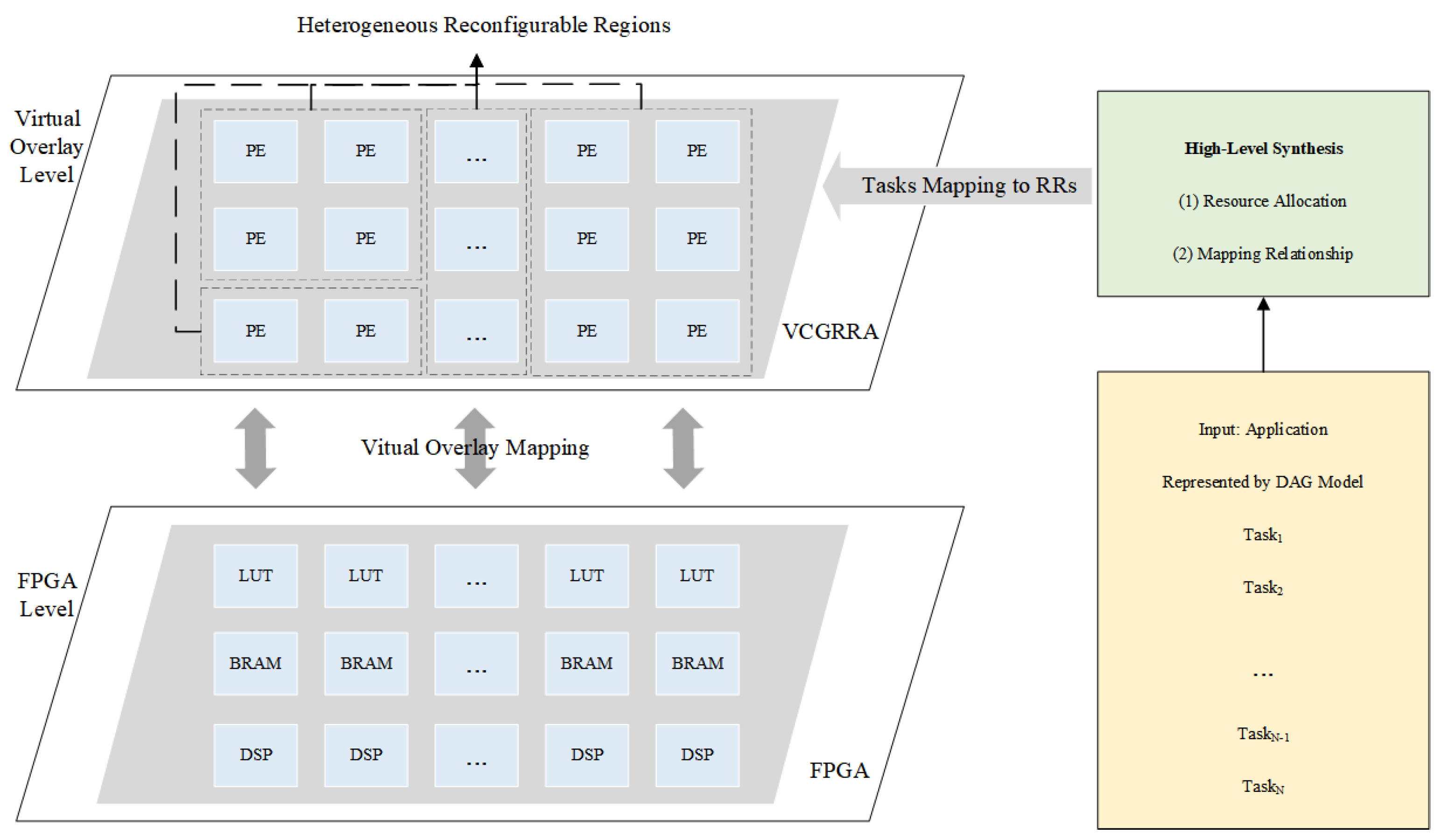

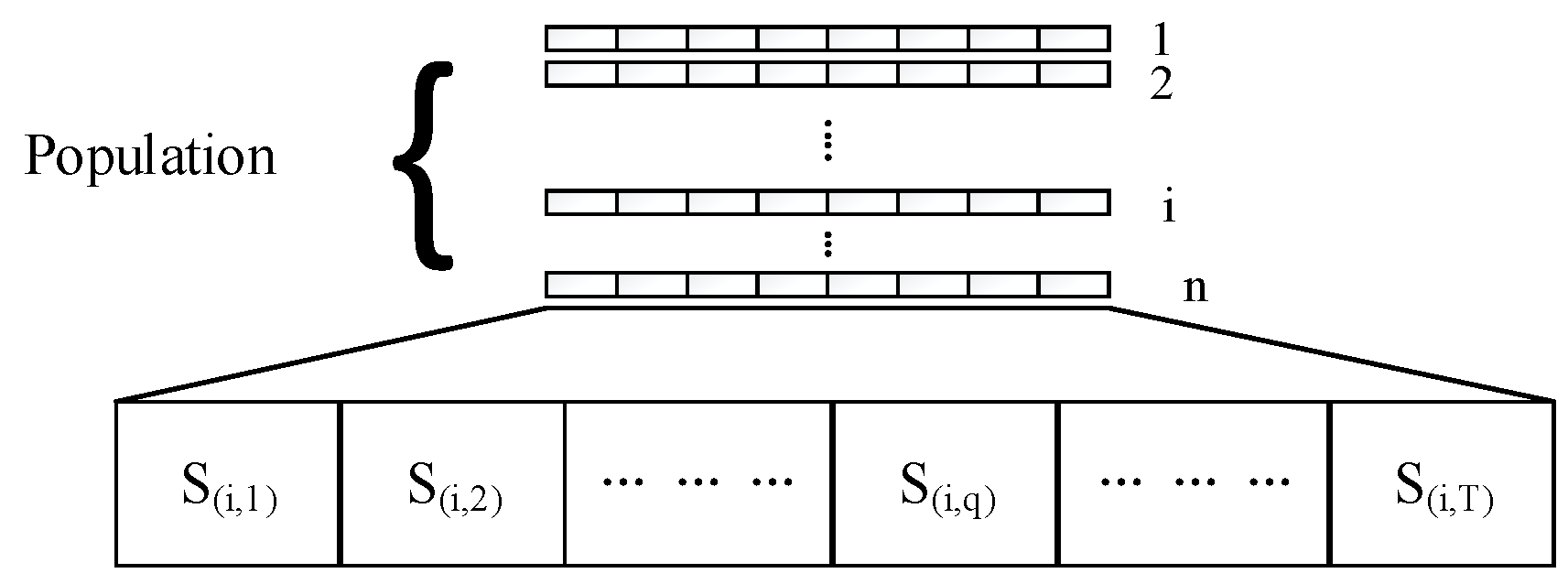

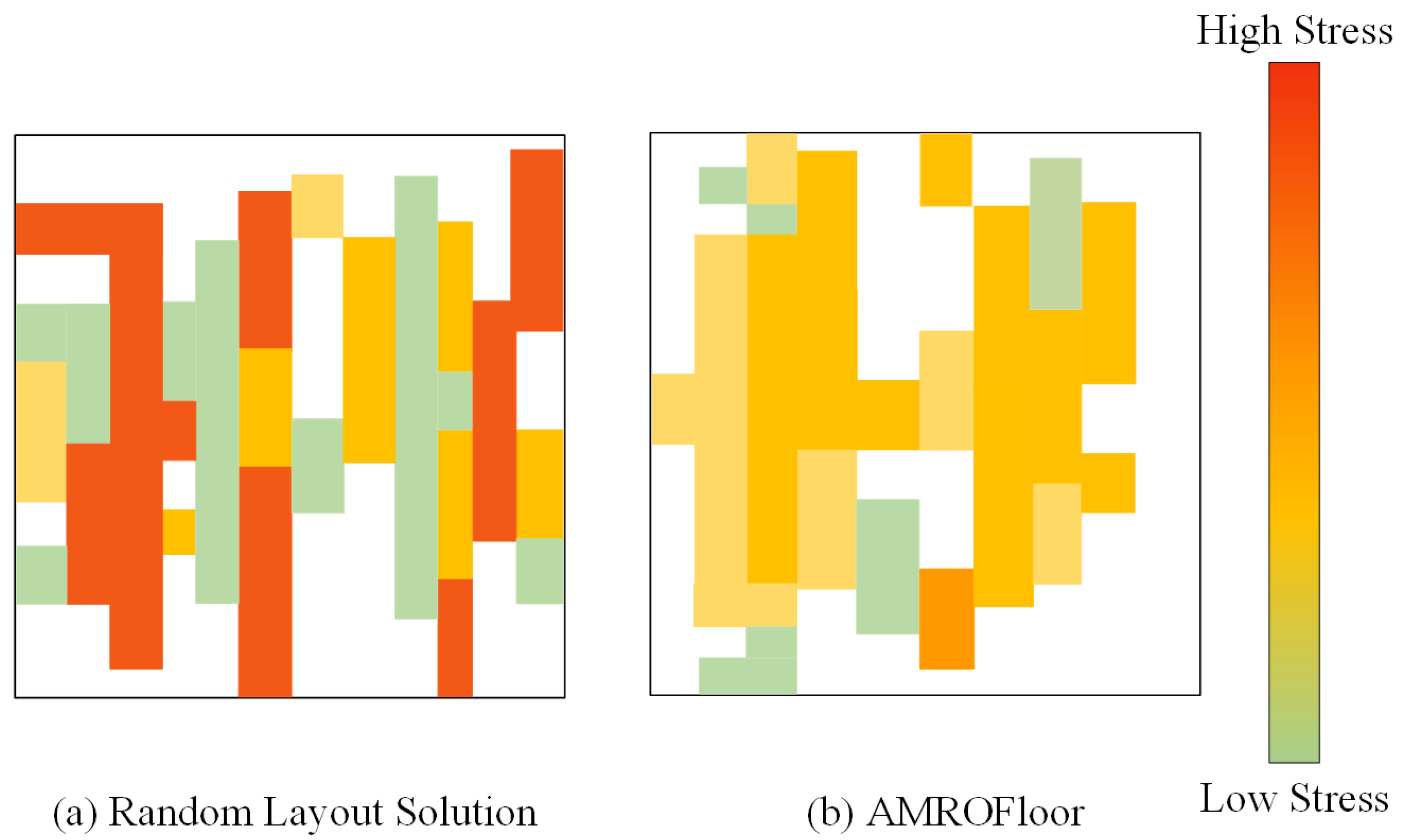

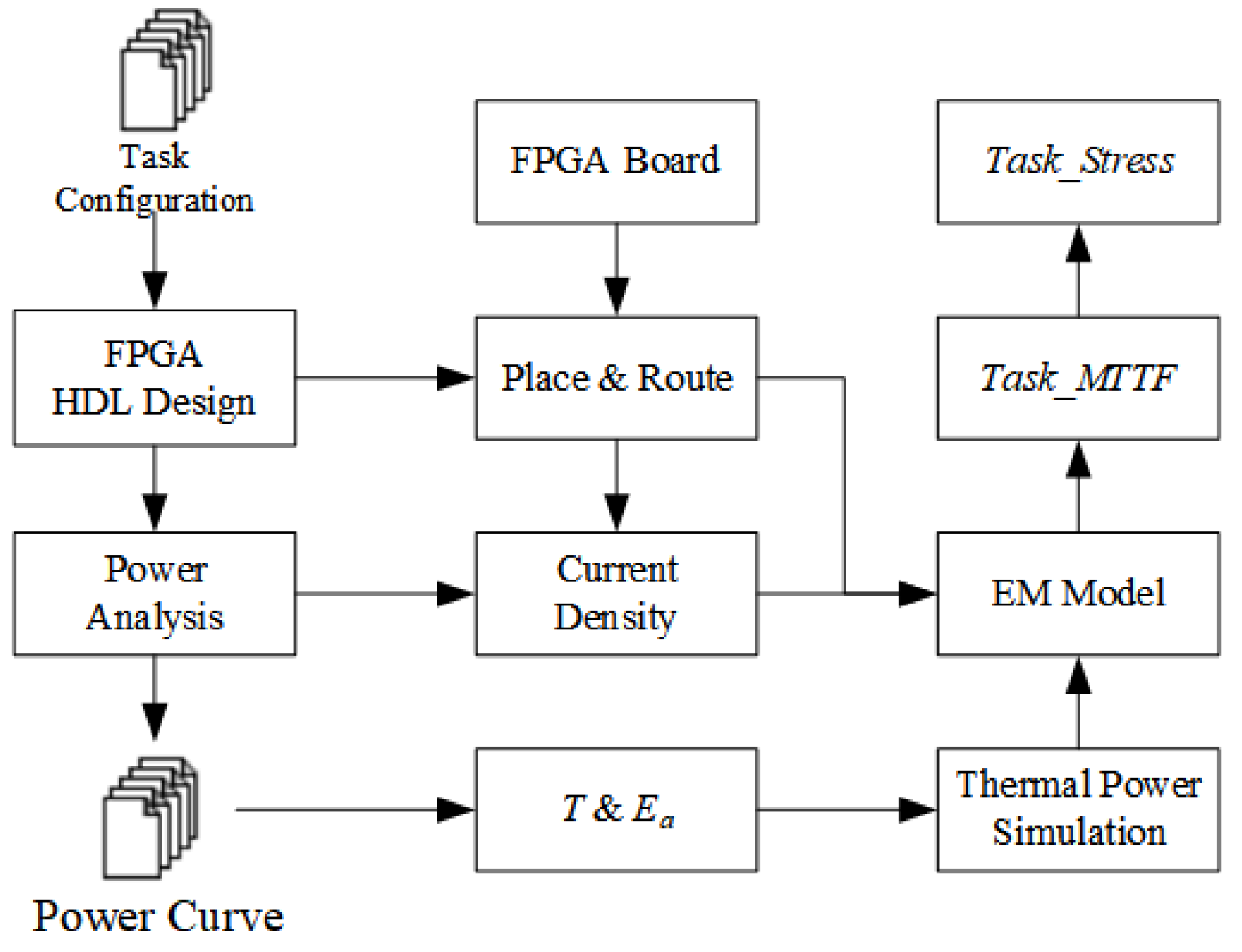

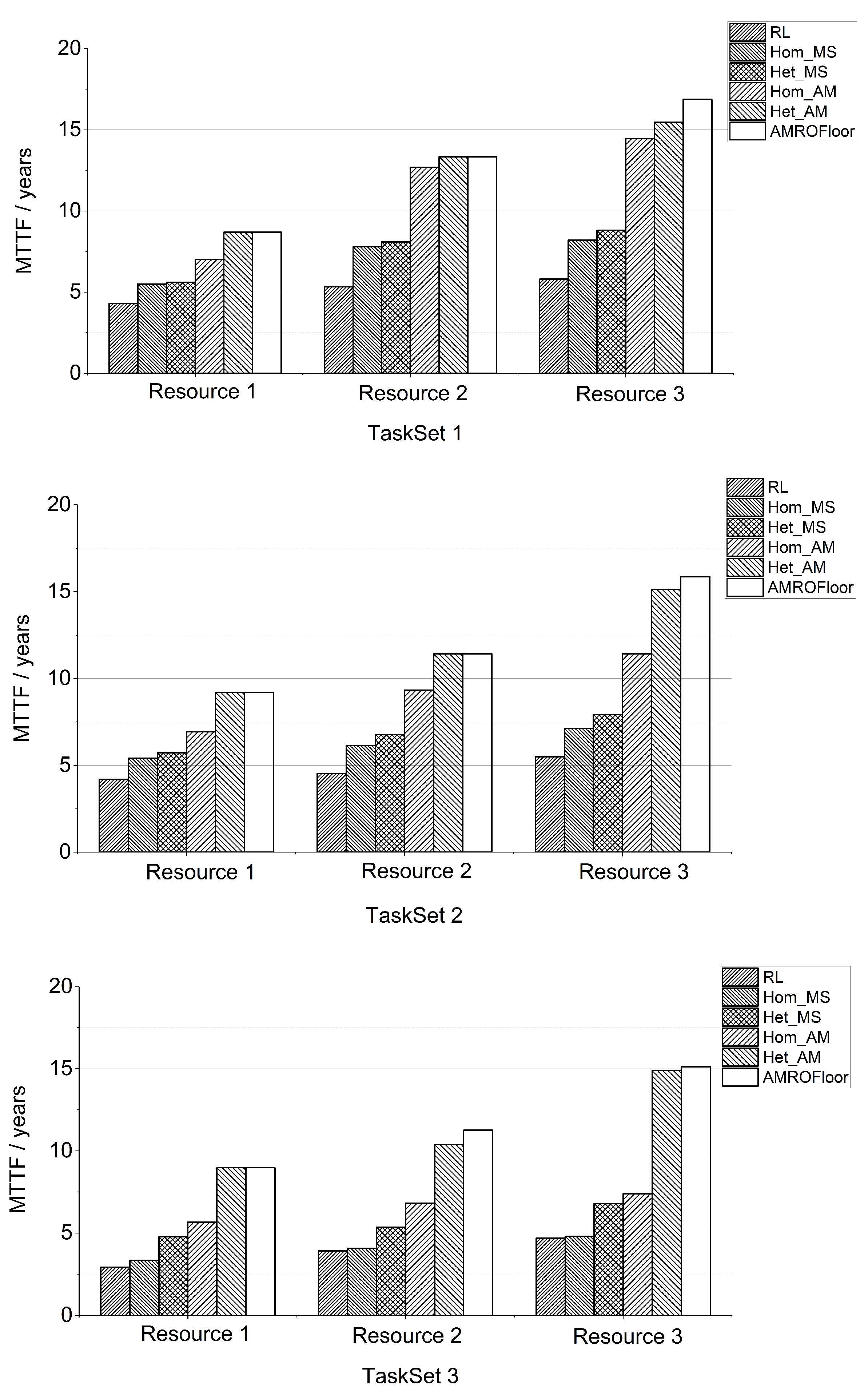

With the rapid reduction of CMOS process size, the FPGAs with high-silicon accumulation technology are becoming more sensitive to aging effects. This reduces the reliability and service life of the device. The offline aging-aware layout planning based on balance stress is an effective solution. However, the existing methods need to take a long time to solve the floorplanner, and the corresponding layout solutions occupy many on-chip resources. To this end, we proposed an efficient Aging Mitigation and Resource Optimization Floorplanner (AMROFloor) for FPGAs. First, the layout solution is implemented on the Virtual Coarse-Grained Runtime Reconfigurable Architecture, which contributes to avoiding rule constraints for placement and routing. Second, the Maximize Reconfigurable Regions Algorithm (MRRA) is proposed to quickly determine the RRs’ number and size to save the solving time and ensure an effective solution. Furthermore, the Resource Combination Algorithm (RCA) is proposed to optimize the on-chip resources, reducing the on-Chip Resource Utilization (CRU) while achieving the same aging relief effect. Experiments were simulated and implemented on Xilinx FPGA. The results demonstrate that the AMROFloor method designed in this paper can extend the Mean Time to Failure (MTTF) by 13.8% and optimize the resource overhead by 19.2% on average compared to the existing aging-aware layout solutions.
