A Road towards 6G Communication—A Review of 5G Antennas, Arrays, and Wearable Devices
Abstract

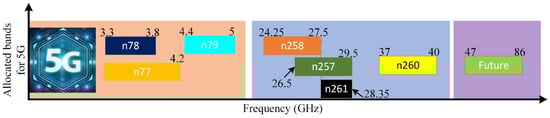

:1. Introduction
2. Towards 6G Communication System

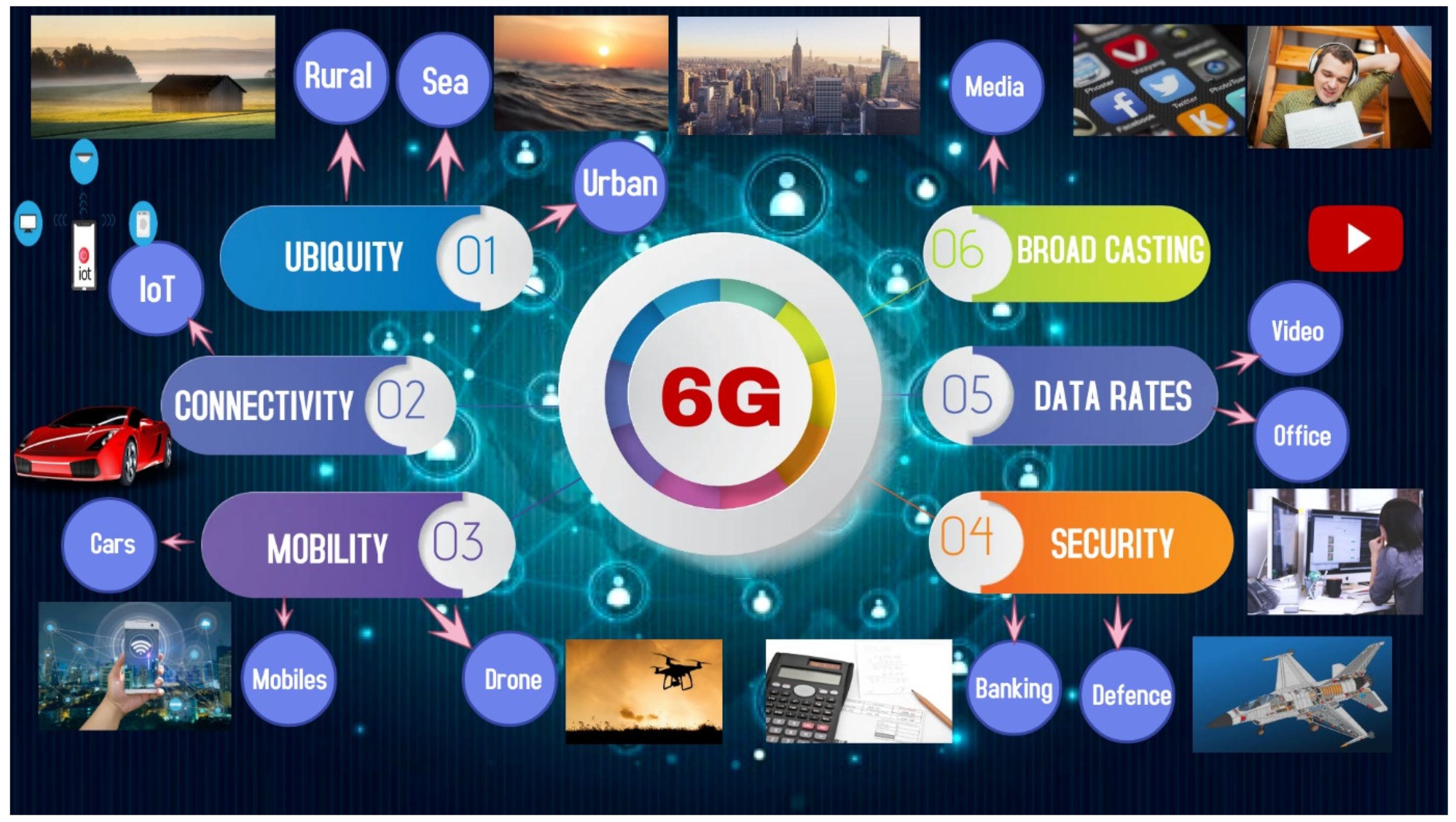

2.1. Key Features
- Connectivity: One of the key features of the transition from 5G to 6G is massive connectivity. A massive number of IoTs are expected to be connected with each other either in line of sight or non-line of sight scenarios. Uninterrupted connectivity will be achieved using artificial-intelligent-assisted reconfigurable meta-surfaces. Connectivity in large areas is expected to be achieved using integrated satellite and 5G networks.
- Mobility: Intelligent transport systems with very high speed are expected. Ultra-low latency in data communication will improve the transportation system. The peak speed that is considered in 6G is 1000 Km/h for airline communication scenarios, which is much higher than 5G [31].
- Security: Data privacy and security are essential aspects of any communication system, especially in the defense and banking sectors, as shown in Figure 3. By applying deep learning and artificial intelligence technologies in physical and network layers, the security will be improved in deceives, infrastructures, and assets in 6G networks.
- Broadcasting: New multimedia services and infrastructures with the focus on ultra-high video streaming, live broadcasting, and entertainment will be available in 6G. That excellent quality of service will be achieved by a mixture of satellites, cables, and mobile technologies.

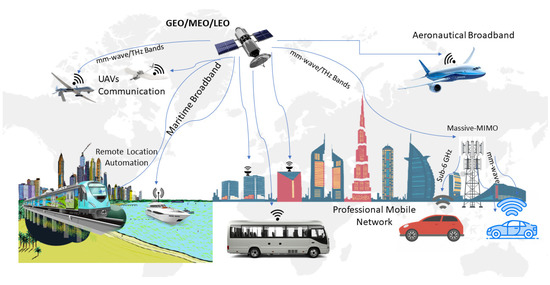

- Ubiquity: The coverage area is expected to be larger compared to 5G systems. The 6G systems will include space and maritime communication along with ground-based communication to achieve large coverage and higher data rates. It will be available using a combination of GEO/LEO satellite and terrestrial networks. This is very important, especially for communication in aeroplanes, ships, and people living/working in remote areas.
- Data Rates: According to Shannon’s equation, the data rates directly proportional to capacity can be improved by enhancing bandwidth and the number of antennas. The mm-wave/THz bands provide significantly high bandwidth from 1 to 10 GHz. Hence, both techniques, a massive number of antennas and a Mm-wave/THz band, are direct methods to achieve a higher demand of data rates. It is expected to achieve 1 Tbps, which is higher than 5G in both up and downlinks [6,31]. The higher data rates are significant in almost all sectors, including ultra-high-definition video streaming, large data files in offices, etc.

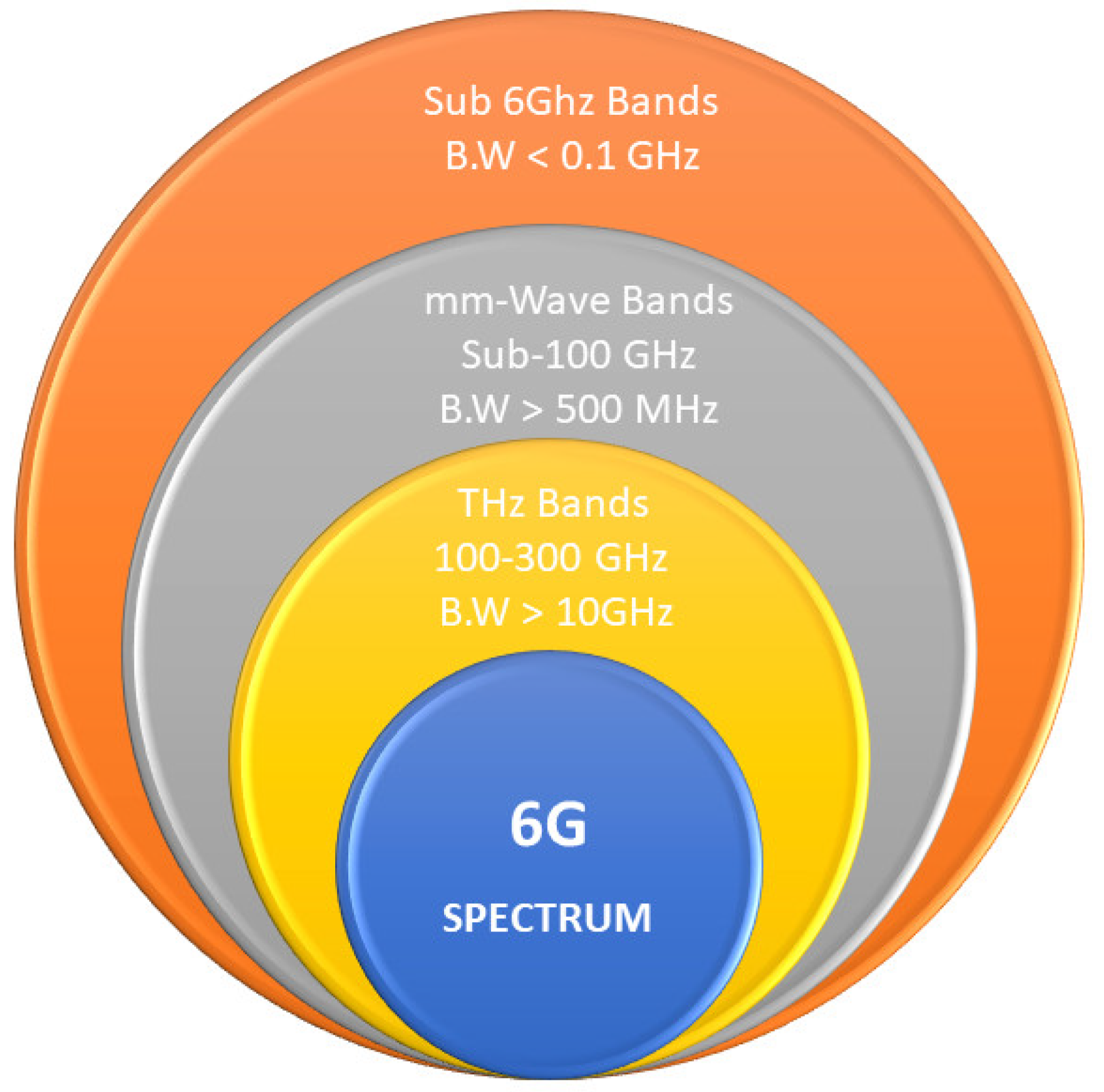

2.2. The 6G Frequency Spectrums
3. 5G Antennas, Arrays, and Wearable Devices
3.1. Antennas for 5G Handheld Devices
3.1.1. 5G Antennas according to Operational Approach

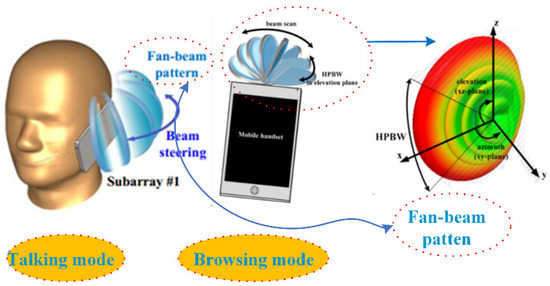

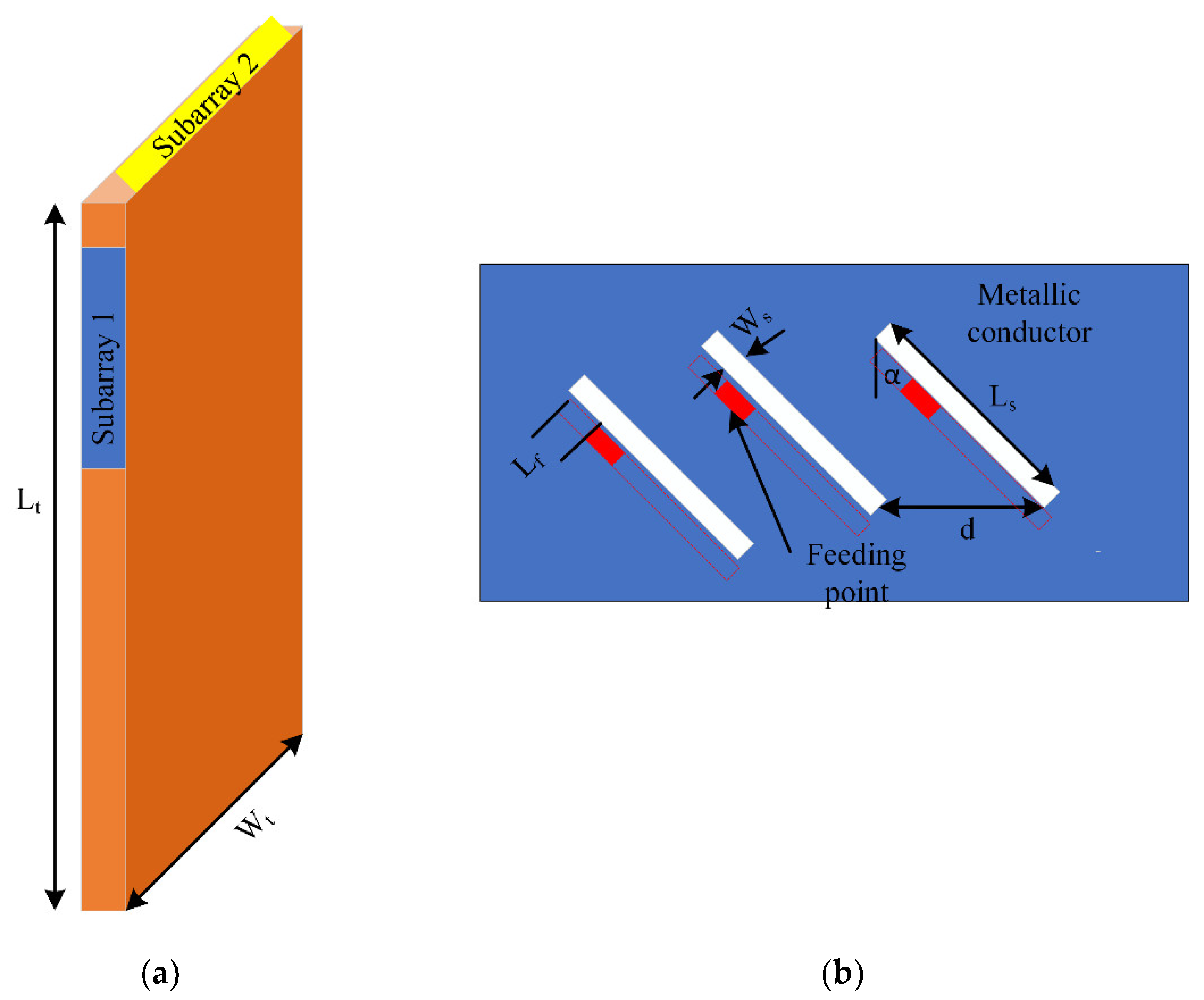

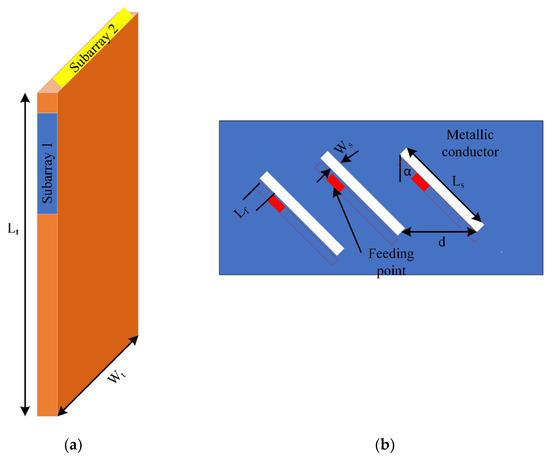

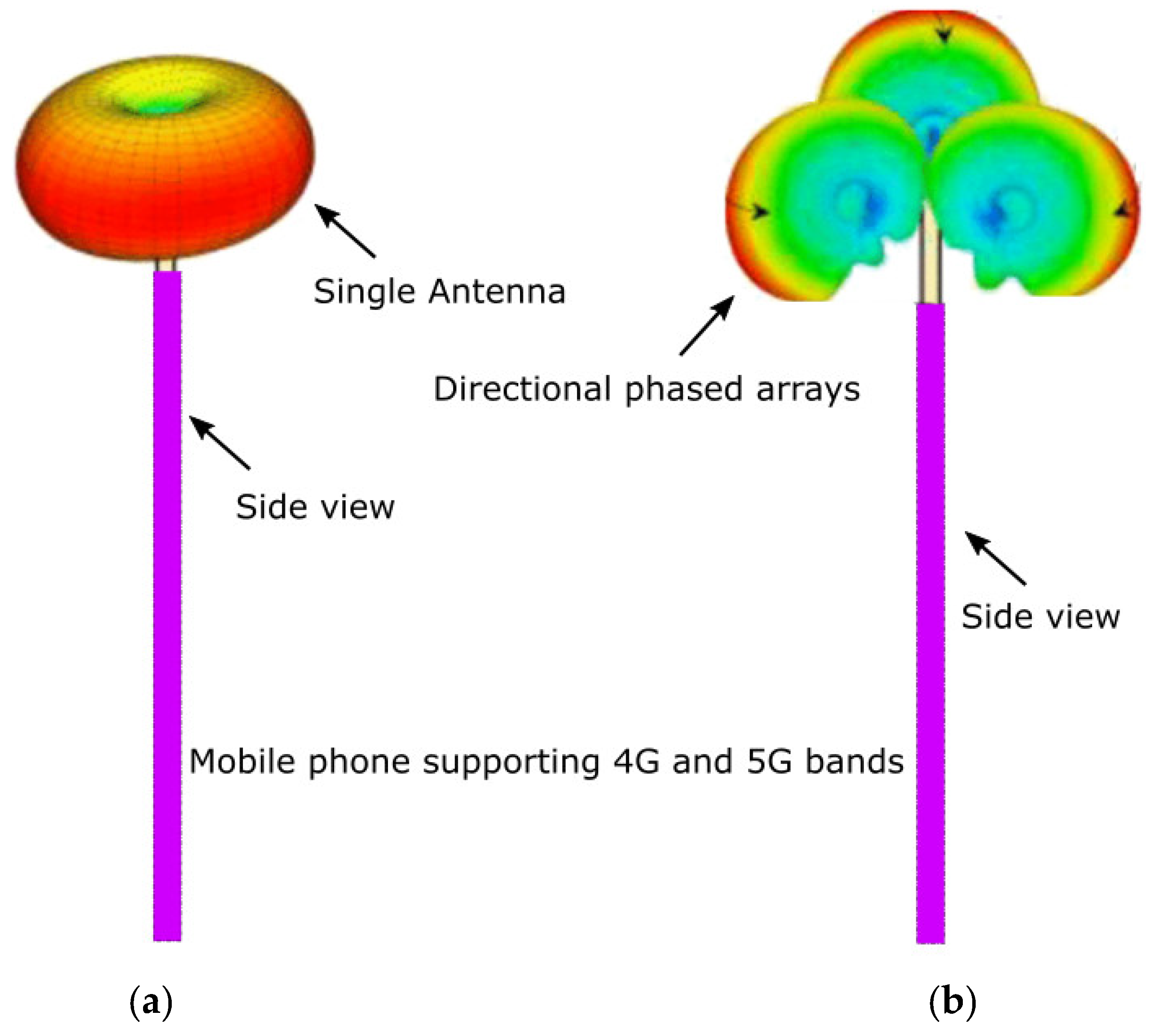

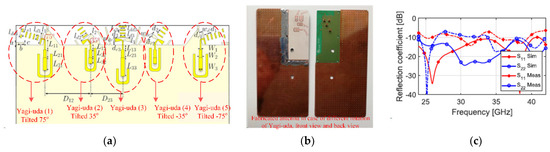

Beam Steerable Antenna

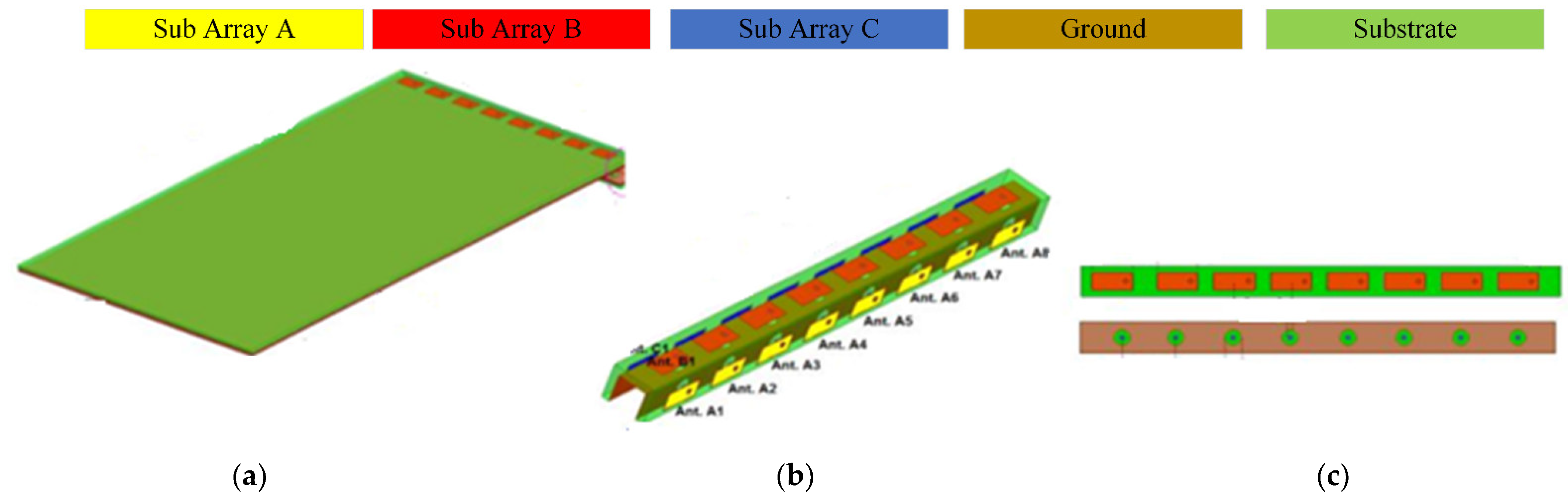

B. Switchable Phased Array

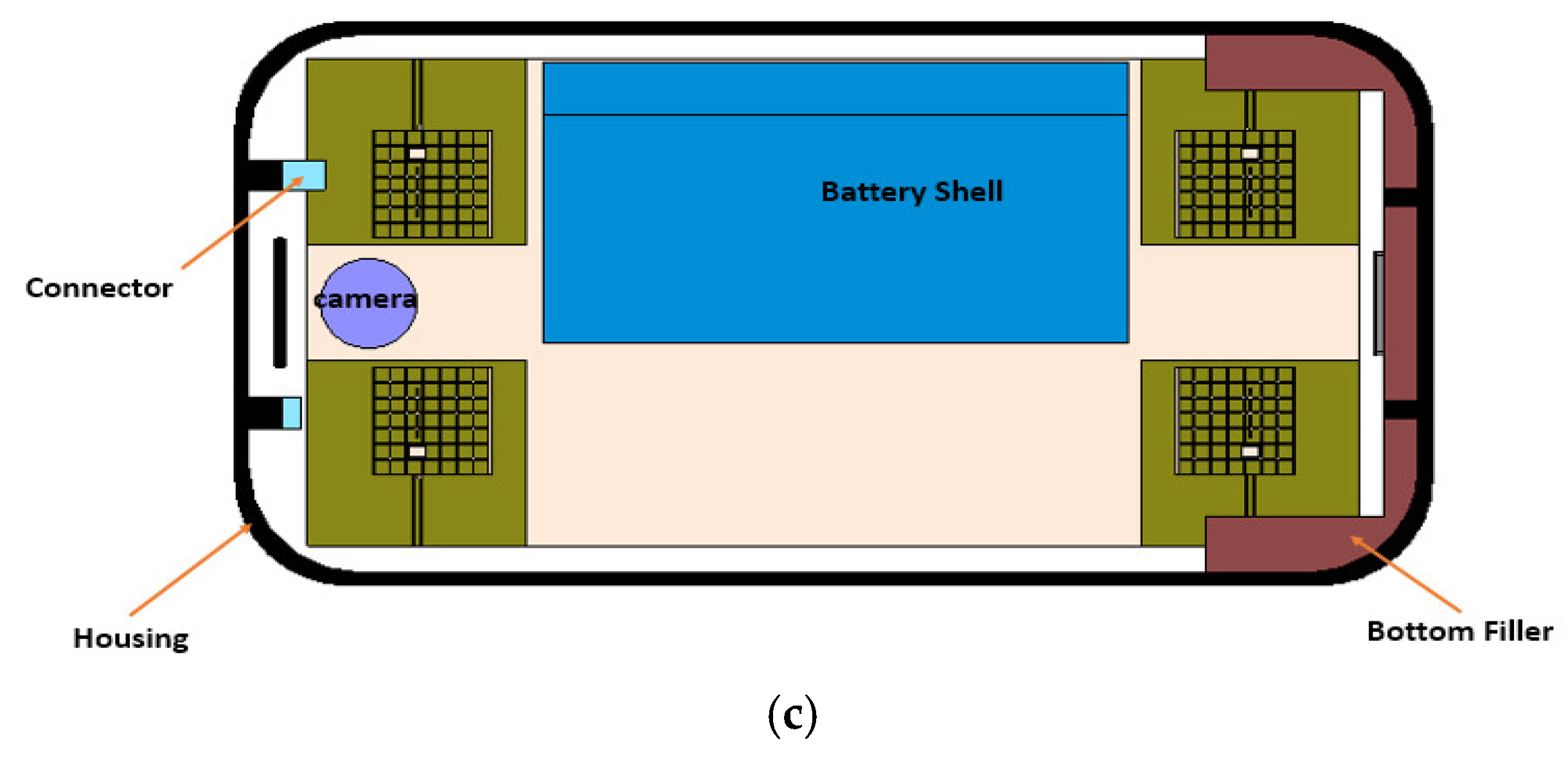

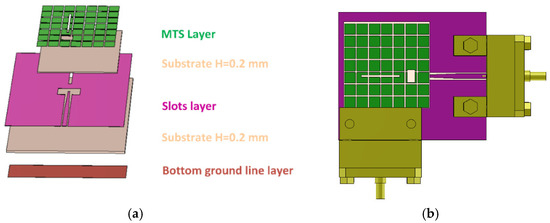

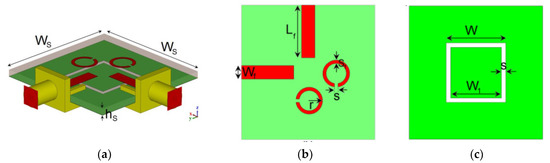

Dual Polarized Antenna
3.1.2. 5G Antennas according to the Operational Frequency Band

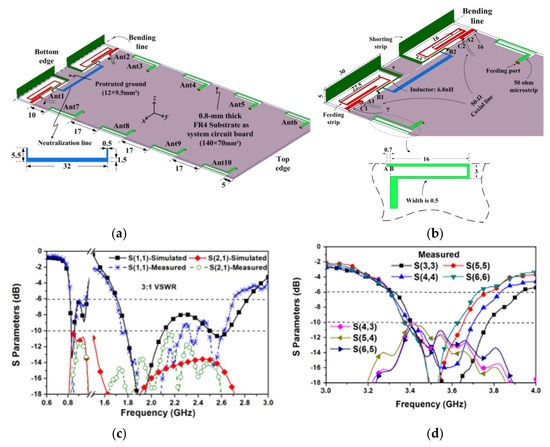

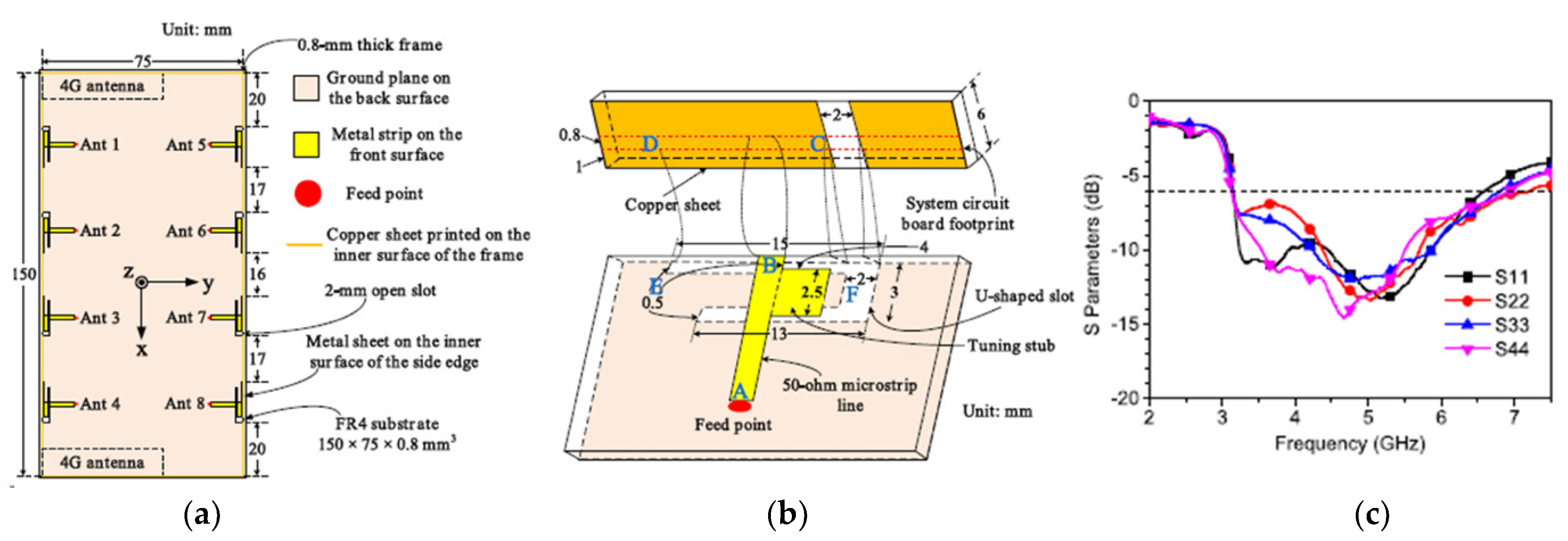

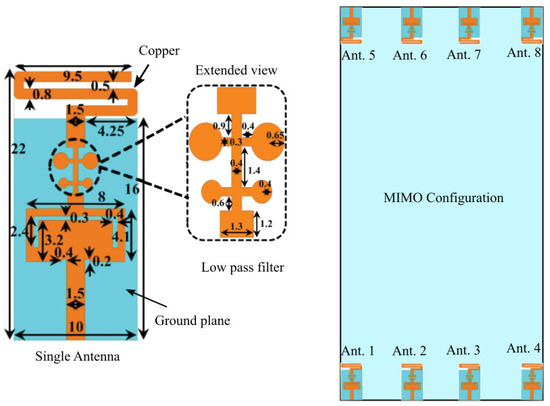

Sub-6 GHz 5G Antennas

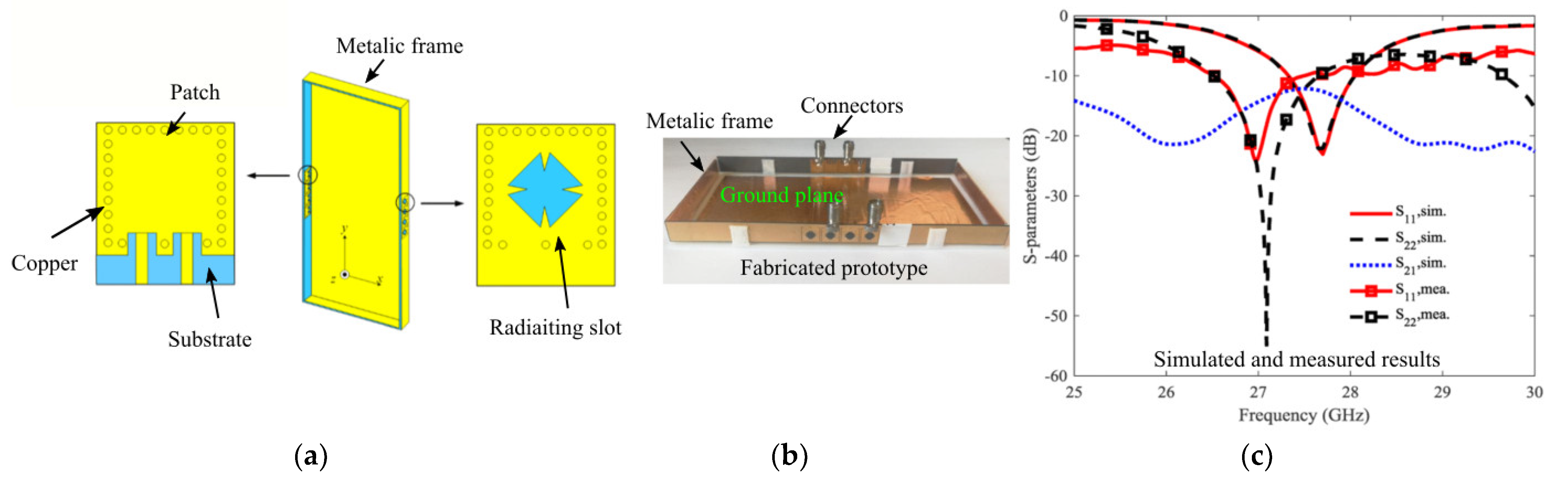

mm-Wave Antennas

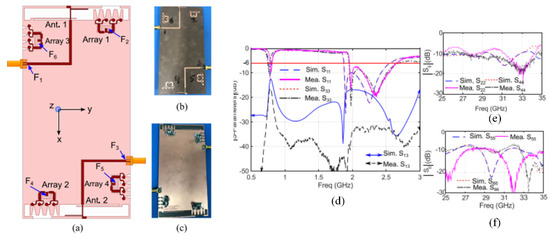

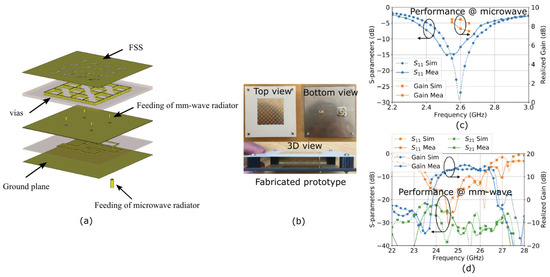

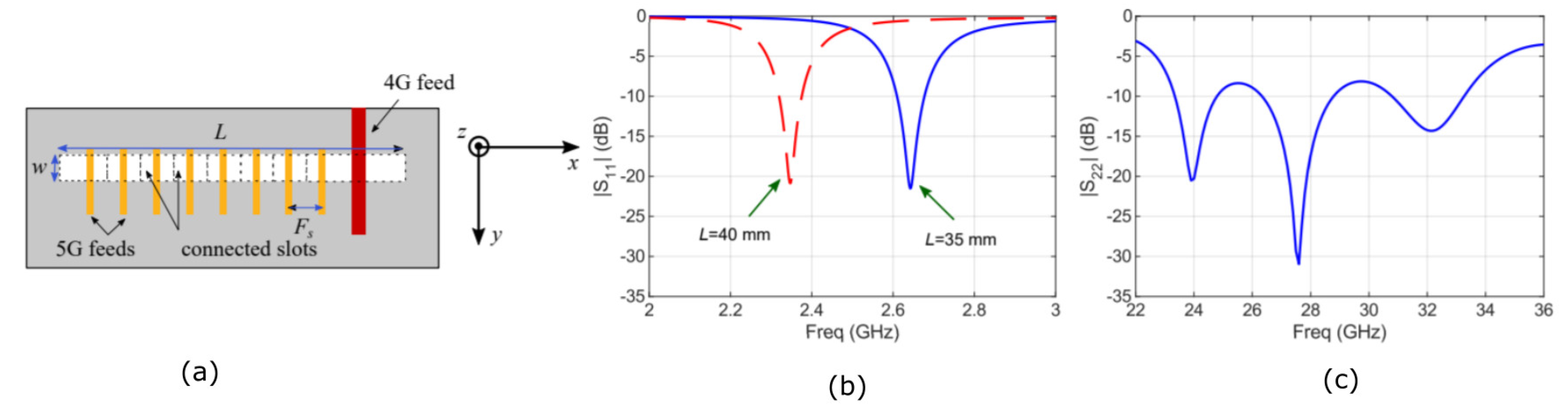

Sub 6 GHz and mm-Wave Antennas

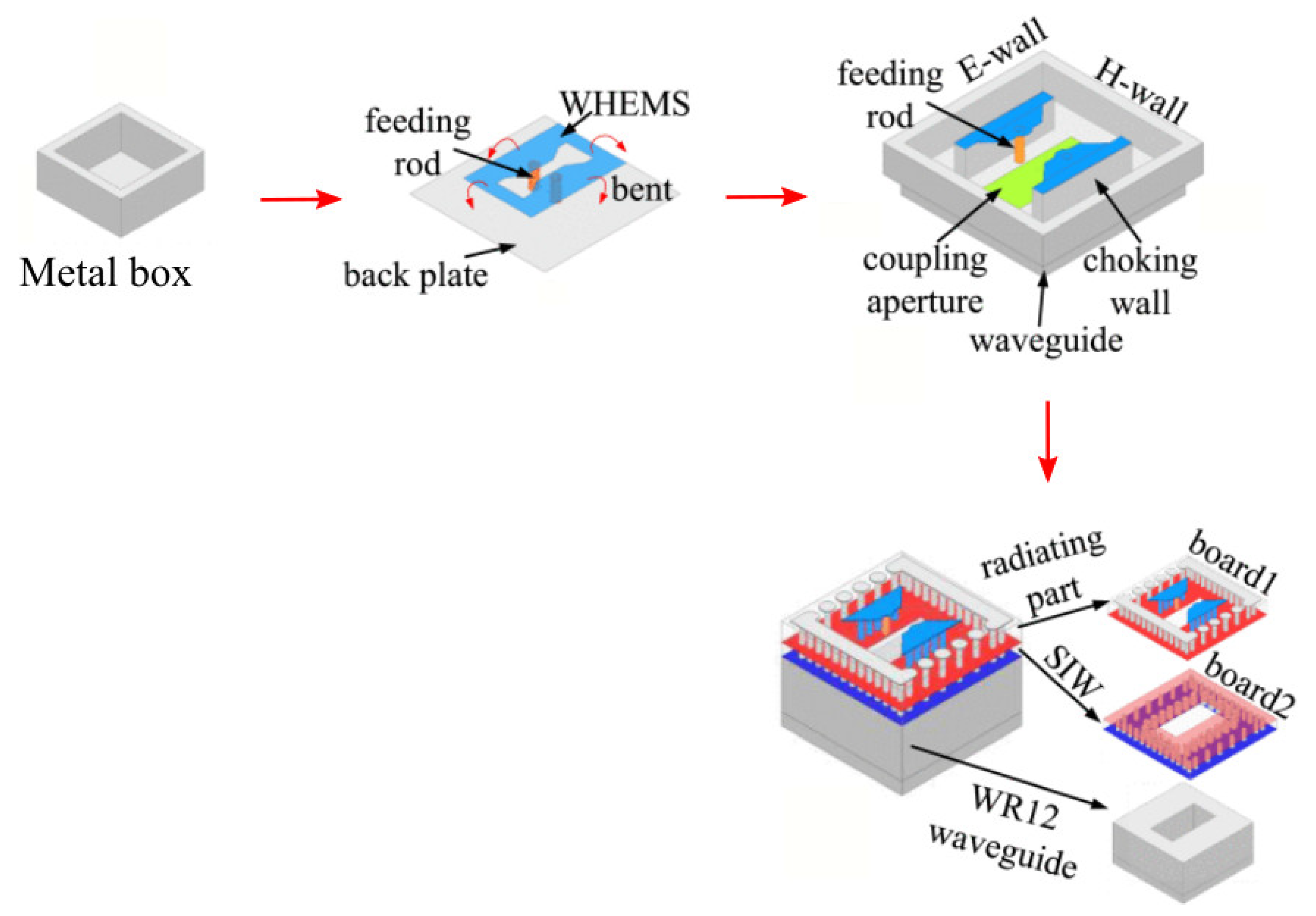

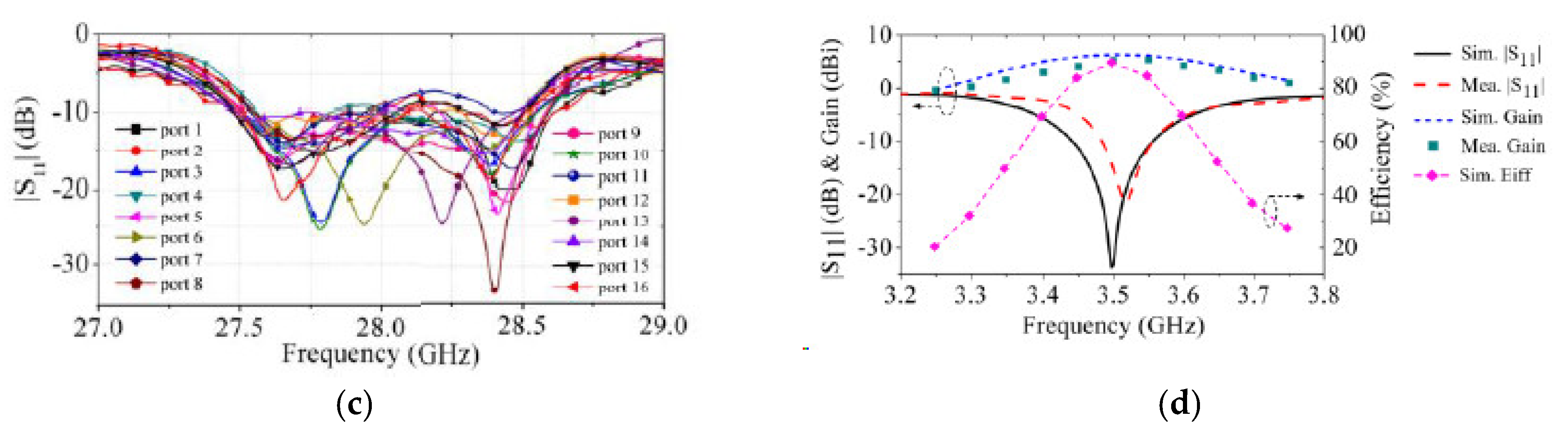

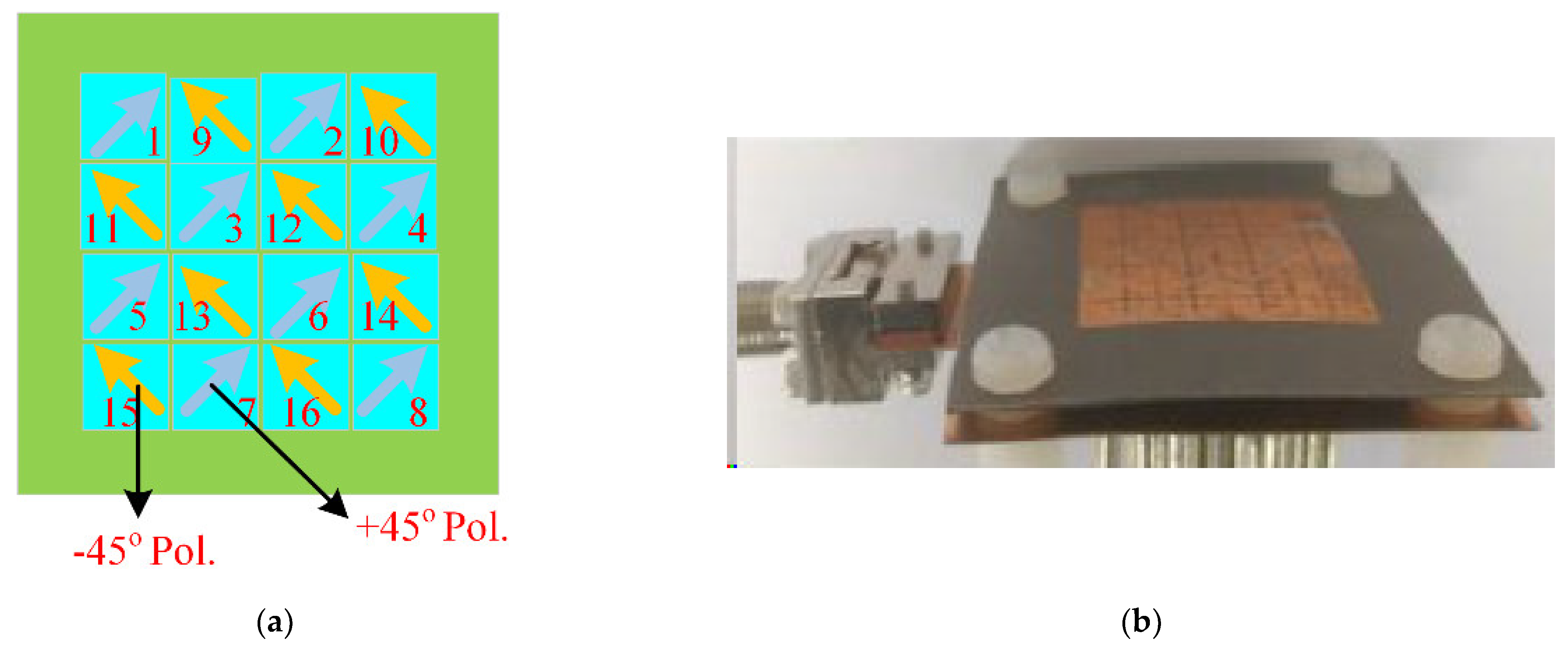

3.2. Antennas for 5G Access Points
3.3. Antennas at THz Frequency Bands

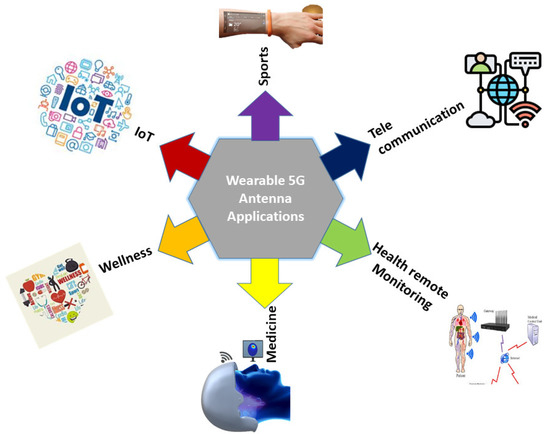

3.4. 5G Wearable Antennas

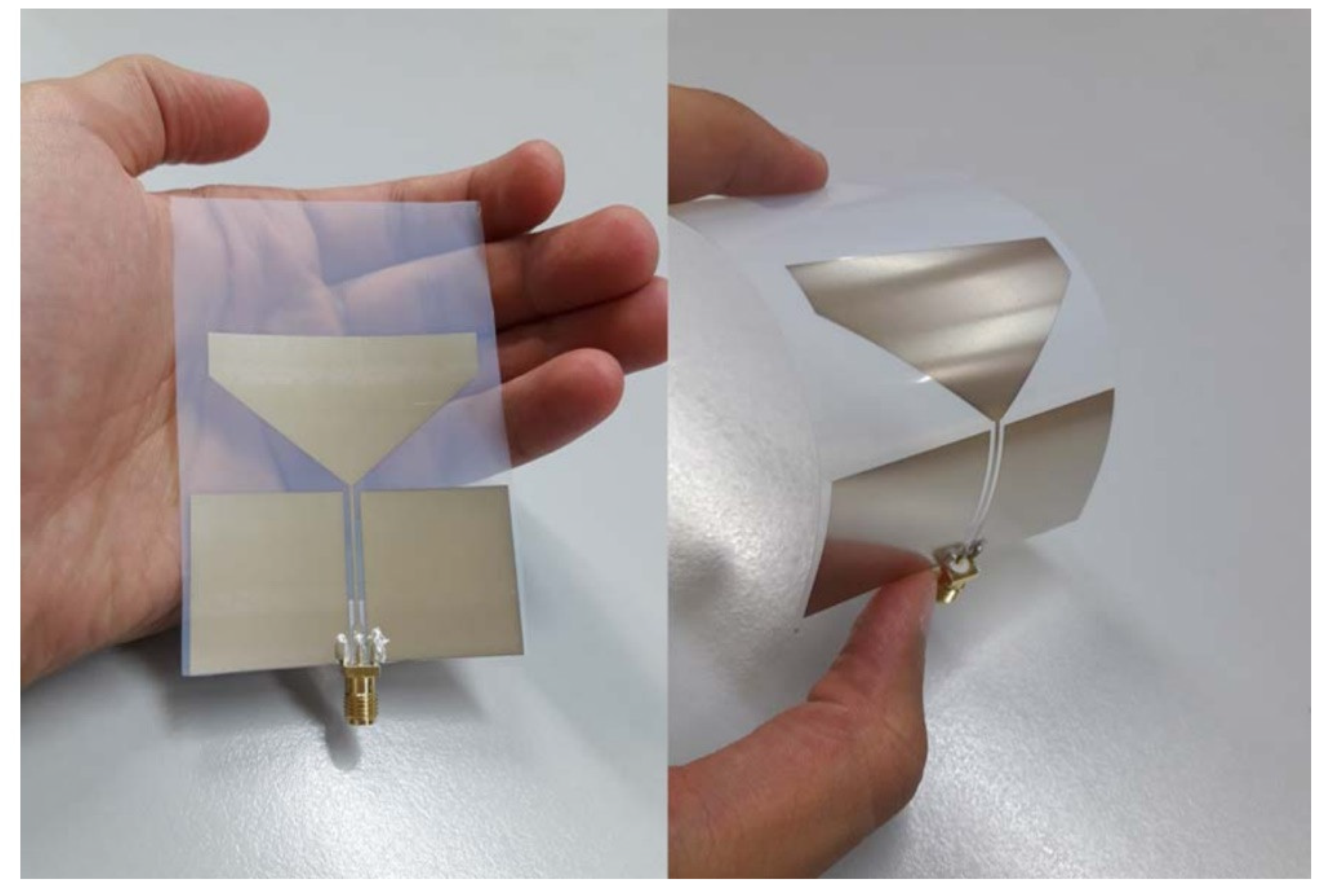

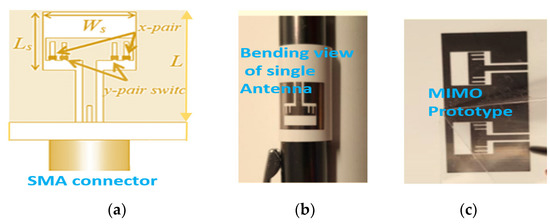

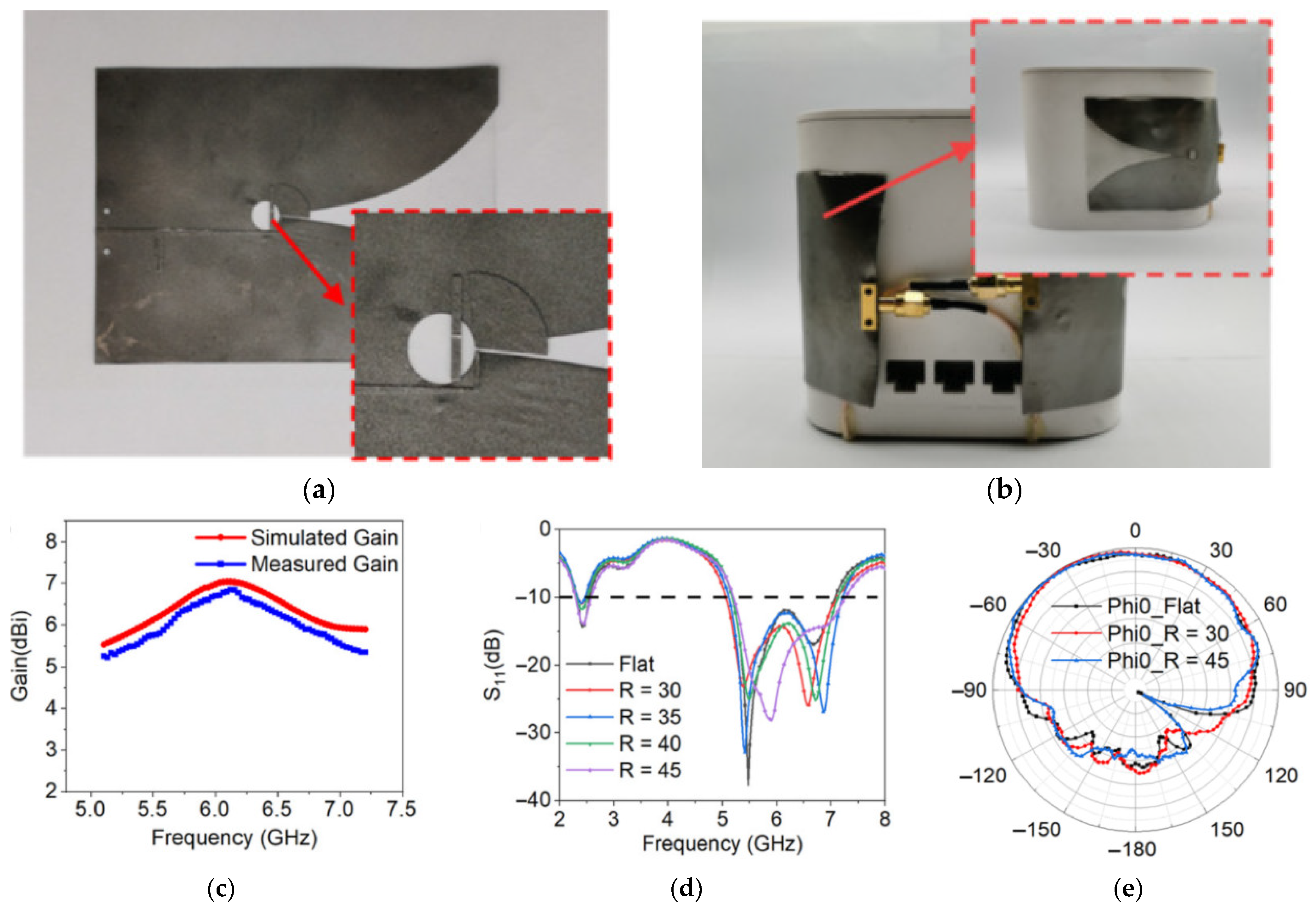

3.4.1. Sub-6 GHz 5G Wearable Antennas

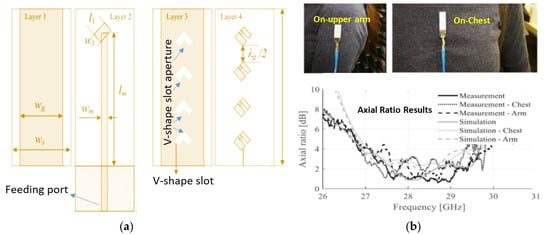

3.4.2. mm-Wave 5G Wearable Antennas
4. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
