Article

Alaskan Bog Blueberry (Vaccinium uliginosum) Extract as an Innovative Topical Approach to Prevent UV-Induced Skin Damage

1
North Carolina Research Campus, Plants for Human Health Institute, Animal Science Department, North Carolina State University, Kannapolis, NC 28081, USA
2
North Carolina Research Campus, Plants for Human Health Institute, Food, Bioprocessing & Nutrition Sciences Department, North Carolina State University, Kannapolis, NC 28081, USA
3
Department of Environment and Prevention, University of Ferrara, 44121 Ferrara, Italy
4
Department of Food and Nutrition, Kyung Hee University, Seoul 02447, Korea
*
Author to whom correspondence should be addressed.
Cosmetics 2021, 8(4), 112; https://doi.org/10.3390/cosmetics8040112
Submission received: 4 November 2021 / Revised: 25 November 2021 / Accepted: 26 November 2021 / Published: 27 November 2021
(This article belongs to the Special Issue Feature Papers in Cosmetics in 2021)

Abstract

:
Our body is continuously exposed to various exogenous aggressors, and, in particular, the skin represents the main target for outdoor stressors, including ultraviolet (UV) radiation. UV exposure is well-known to be associated with the development/worsening of extrinsic photoaging and a multitude of skin conditions. Considering the role of photoprotection in skin health, the research of natural photoprotective molecules becomes of great importance. Therefore, in this work we wanted to evaluate the beneficial protective effects of ripe berries of Vaccinium uliginosum (Alaska bog blueberry (BB)) extract (100 μg/mL) for preventing the cutaneous oxidative, inflammatory, and structural damage induced by exposure to 200 mJ of UVA/UVB radiation. We observed that the topical application of BB extract on human ex vivo skin explants averted the UV-induced cutaneous OxInflammatory phenomenon by quenching the increase in the oxidative and inflammatory marker levels, such as 4-hydroxynonenal (4HNE), heme-oxygenase-1 (HO-1), cyclooxygenase-2 (COX2), and aryl hydrocarbon receptor (AhR); as well as by counteracting the loss of structural proteins (filaggrin and involucrin) induced by UV radiation. Our data propose the use of a topical application of Alaska bog blueberry extract as a natural and valuable approach to ensure photoprotection against UV-induced skin damage and premature aging.

1. Introduction

The skin is the largest sensory organ in our body, having a surface extension of circa 2 m2. Due to its size and location, the skin is one of the organs most exposed to external stimuli [1], and among these, one of the most aggressive is represented by ultraviolet radiation (UV) [2,3].
The UV radiation region ranges from wavelength of 100 nm up to 400 nm and is divided in three different bands: UVA (400–320 nm), UVB (320–290 nm), and UVC (290–200 nm).
The stratospheric layer of ozone is able to entirely absorb the shortest wavelengths of UVC rays and a great percentage of UVB radiation, indeed only 5–10% of UVB rays can reach Earth’s surface. UVA rays, however, are able to almost entirely pass (90–95%) the stratospheric ozone layer [4,5]. Although UVA radiation is considered a weak energy, it is able to extensively penetrate the skin, reaching the deepest dermal layers. On the other hand, UVB rays are mainly absorbed by the epidermis, but due to their high energy radiation, they are more genotoxic than UVA [6].
UV radiation’s beneficial effect on human health has been well established. UV is not only able to trigger vitamin D3 synthesis, but it can also improve psoriatic lesions. On the other hand, chronic exposure to UV has been reported as the main risk factor for the development of photoaging and malignant melanoma [7]. Indeed, some evidence possibly correlates the development of 60–70% of all the cutaneous malignant melanomas with UV exposure [8].
The UV-induced skin damage that ultimately leads to tumorigenesis is caused by the absorption of strongly harmful rays by the cutaneous layers, culminating in oxidative stress. The resulting redox unbalance seems to be caused either via direct DNA damage or via the oxidation of cellular lipid and proteins, due to the generation of reactive oxygen species (ROS) [6].
Although the skin presents a complex antioxidant system [9], problems arise when the exposure to UV becomes chronic, leading to a shift in the balance between oxidants and antioxidants species towards oxidation, with a consequent depletion of the skin’s defense system [10]. In fact, chronic exposure to UV has been associated with sunburn, cellular apoptosis, DNA damage, and photo carcinogenesis [11,12].
Considering the cutaneous harmful effects of UV exposure and the strain posed on the skin’s defense potential, improving skin protection becomes a major priority.
The use of sunscreen has been the most effective method to reduce the risk prevalence of UV-induced skin cancer [13], by scattering, reflecting, or absorbing UV radiation [14]. Even though, for many years, synthetic and chemical formulations were considered the front runners, recent concerns about their stability and their safety for humans and the marine eco-system [15,16,17] have skewed attention and interest towards natural photoprotective compounds.
In this context, as the topical application of antioxidant compounds has been proven to be safe and effective for protecting the skin from external stressors [18,19], the need to find new protective molecules offers interesting avenues for future research [20].
In a quest to find effective and promising topical photoprotective compounds, plant species have been researched from folk and traditional medicine, for their antioxidant and anti-inflammatory properties [21]. The physicochemical composition of these herbal remedies is presumably the reason for their beneficial effects, by containing flavonoids, phenolic acids, anthocyanins, and pro-anthocyanidin [22].
Wild Alaska blueberry (BB) (Vaccinium uliginosum, also called ‘bog blueberry’) is endemic to the wild lands in Alaska and circumpolar regions in the arctic. It is an integral component of the subsistence diet for Alaskan Native communities, and a rich source of polyphenolic compounds that are protective against metabolic disorders, such as diabetes and obesity, as well as other sources of oxidative or inflammatory stress to humans [23,24]. Bog blueberry has been utilized both topically and orally for medicinal use by indigenous people, including the Inuit of Alaska, who also use fermented preparations of these berries [21,25]. As the bog blueberry thrives in the harsh, unprotected extremes of the arctic, with extremely cold winters and up to a 23-h photoperiod during the harvest season, it reacts to environmental stress by producing a copious and diversified array of polyphenolic compounds (including anthocyanins), which aid in habitat survival; a phenomenon known as ‘elicitation’ [21]. This abundance of health-protective polyphenolics gives the bog blueberry an unusually high antioxidant and anti-inflammatory potency [21,26].
Even though there are many indicators of the possible photoprotective potential of Alaska bog blueberries, the beneficial effects the topical application of BB could have in preventing cutaneous UV-induced damage have never been investigated.
Skin exposure to UV radiation has already been proven to be associated with a vicious cycle of oxidative and inflammatory events (OxInflammation) [27] and to impairment of cutaneous barrier functions [3]. Previously, we demonstrated that topical application of polyphenol-containing natural extracts (wild lowbush blueberry and rosemary) prevented the pollution-induced loss of cutaneous barrier function and OxInflammatory damage [18,19]. With these considerations, in this study we hypothesize that the topical application of anthocyanin-rich BB extract could be beneficial in preventing UV-induced oxidative stress, inflammation, and structural impairment of cutaneous barrier by quenching the direct and indirect sources of oxidative stress.
In this work, we demonstrate that the topical application of Alaska blueberry extract was able to prevent the UV-induced increased expression of oxidative and inflammatory markers and restore the levels of skin-barrier associated proteins previously lost after UV exposure.

2. Materials and Methods

2.1. Plant Material

Wild Alaskan bog blueberry (BB) (Vaccinium uliginosum L.) were handpicked when fully ripe from the vicinity of Fairbanks, Poker Flat Research Range/Coordinates 65.1256° N, 147.4919° W, AK, USA in summer 2018. Berries were immediately stored at −80 °C and shipped to Kannapolis, NC, USA on dry ice. Samples were stored at −80 °C until used for extraction.

2.2. Extraction and Polyphenol Enrichment

Frozen bog blueberries (25 g) were thawed down to room temperature before homogenization in 50 mL 90% acidified methanol (0.5% acetic acid) for 1 min. The mixture was centrifuged (Sorvall RC-6 plus, Asheville, NC, USA) for 10 min at 4000 rpm and supernatant was collected. Extraction was repeated two more times, and the collected supernatants were evaporated under vacuum at 40 °C in a rotary evaporator and freeze-dried to produce the crude bog blueberry extract (2.9 g). The crude extract was dissolved in DI water (6 mL) and passed through 6 preconditioned C18 SPE tubes (Strata X 33 µm 100 mg tubes, Phenomenex, CA, USA). The tubes were washed with acidified water (0.5% acetic acid) to get rid of soluble sugars and organic acids before elution of the polyphenols with 100% methanol. The methanol was evaporated (40 °C) and the residual material was freeze-dried to afford the 0.33 g polyphenol-rich extract of bog blueberry. The polyphenol-enriched extract was used in all skin experiments.
The identification of compounds was based on HPLC against the available standard and LC-MS/MS [28]. Peaks were quantified based on peak area measurement against a standard curve constructed with the cyanidin-3-O-glucoside reference standard, and results were expressed as μg/mg cyanidin glucoside equivalent.

2.3. HPLC Conditions

Anthocyanin (ANC) profiles were analyzed by HPLC-DAD, using an Agilent 1200 series HPLC (Agilent Technologies, Santa Clara, CA, USA) equipped with a photodiode array detector (DAD) set at 520 nm. The chromatographic separation was performed on an RP Supelcosil-LC-18 column, 250 mm × 4.6 mm× 5G μm (Supelco, Bellefonte, PA, USA), according to our previously described method [29].

2.4. Ex Vivo Human Skin Explants Preparation

Human skin biopsies were obtained from Hunstad/Kortesis/Bharti Cosmetic Surgery clinic, where elective abdominoplasties were performed on three Caucasian healthy donors, as approved by the IBC at NC State University (Raleigh, NC, USA).
A total of 36 punch biopsies, of 12 mm diameter each, were taken from each donor’s abdominal skin and the subcutaneous fat was removed right away, with the help of sterile scissors and scalpel, leaving only the dermal and epidermal layers.
Following this, the collected biopsies were rinsed with phosphate-buffered saline (PBS, Gibco, NY, USA) and moved into 6-well plates containing 2 mL of complete Dulbecco’s modified Eagle medium (DMEM) with the addition of 10% fetal bovine serum (FBS) and 1% of antibiotics and antimycotics (100 U/mL penicillin and 100 µg/mL, Gibco, NY, USA), then incubated at 37 °C in 5% CO2 for overnight recovery.
The experiment was performed at least in triplicates for each condition and for each donor.

2.5. Alaska Blueberry (BB) Extract Preparation and Ex Vivo Human Skin Explants Pre-Treatment

The frozen BB extract powder was solubilized in dimethylsulfoxyde (DMSO) (20688, 99.5%, Thermo Fisher Scientific) to obtain a stock solution of 100 mg/mL, which was then aliquoted and stored at −80 °C. On the day of each pre-treatment, a new freshly made BB formulation was prepared by diluting the stock solution in complete media to reach a final concentration of 100 μg/mL (containing a final concentration of DMSO of 0.1%).
The morning after overnight recovery, media in the wells was replaced with a fresh complete one and each biopsy was topically applied with 30 μL of Alaska blueberry extract (100 μg/mL), which was evenly spread with a glass rod. Following this, plates were incubated in humidified 5% CO2/95% air atmosphere for 24 h.

2.6. Ex Vivo Human Skin Explants Ultraviolet Light (UV) Exposure

After 24 h of BB pre-treatment, the human skin biopsies were exposed to 200 milli Joule (mJ) UVA/UVB light (circa 20 s) generated by Sol1A Class ABB Solar Simulator, equipped with xenon lamp (Newport Oriel Sol1A, 1600 W, UVC &AM0 filters, Irvine, CA, USA). The UVA/UVB ratio was 21:1, to closely match the solar spectrum at the condition of the sun at Zenith angle of 0. To ensure correct levels of UV exposure, the doses of radiation were monitor using a radiometer, ILT2400 Hang-Held Light Meter/Optometer (International Light technologies, Inc., Peabody, MA, USA). The dose 200 mJ UVA/UVB was the standard dose of exposure chosen for sun-sensitive individuals and corresponds to circa 10 minimal erythemal dose (MED, with 1 MED = 20 mJ/cm2); which in real life equates to circa 2 h at solar apex [30].
Samples were collected upon UV exposure (T0), 6 h (T6), or after 24 h (T24).

2.7. Immunofluorescence

In preparation for immunohistochemical analysis, skin explants were fixed in normal buffered formalin (NBF) 10% for 48 h at 4 °C and then dehydrated using increasing alcohol gradients, followed by immersion in xylene and paraffin embedding.
Next, 4 µm sections of paraffin-embedded skin explants were deparaffined by heat (65 °C for 30 min) and xylene, then rehydrated in decreasing alcohol gradients. Following this, antigen retrieval was achieved via heat-based epitope retrieval with sodium citrate buffer at pH 6.0 (Thermo Fisher Scientific, Waltham, MA, USA) at a sub-boiling temperature in a water bath set at 95 °C for 8 min.
After cooling down, sections were washed twice with phosphate buffered saline (PBS) 1× and blocked with 5% bovine serum albumin (BSA) in PBS for 1 h. Following this, sections were incubated overnight at 4 °C with primary antibodies for 4HNE (dil. 1:400; AB5605, Millipore), AhR (NB 100-128, Novus, 1:150), COX2 (NB 100-868, Novus, 10 µg/mL), and prepared in 2% BSA/PBS.
The following day, sections were washed 3 × 5 min with PBS 1X, then incubated for 45 min at room temperature with s fluorochrome-conjugated secondary antibodies (dil 1:500) (A11008 Alexa Fluor 488, A11055 Alexa Fluor 488) in 2% BSA/PBS.
Sections were washed 3 × 5 min with PBS 1X and then incubated with DAPI (1874814, Invitrogen) (dil 1:20,000) in PBS for 90 s in the dark to stain nuclei. Next, sections were washed 3 × 5 min with PBS 1X, followed by 1 wash of 5 min with DDI water. Finally, sections were mounted using aqueous PermaFluor mounting medium (TA-006-FM, Thermo Fisher Scientific, Waltham, MA, USA) and imaged on a Zeiss LSM10 microscope. Fluorescence intensity was quantified using ImageJ.

2.8. Hematoxylin and Eosin (H&E) Staining

For H&E observation, freshly cut 4 µm thick sections were deparaffinized in xylene and then rehydrated in decreasing alcohol gradients. Next, skin sections were stained for 10 min at room temperature, with Mayer’s hematoxylin solution (26043-06, Electron Microscopy Sciences, Hatfield, PA, USA). Following this, sections were rinsed with lukewarm tap water for 15 min and then stained with aqueous Eosin Y solution (786-1072, G-Biosciences St. Louis, MO, USA) for 3 min. Upon staining, the sections were dehydrated in increasing alcohol solutions, terminating with xylene. Subsequently, the sections were mounted onto glass slides using a toluene-based solution (SP15-100, Fisher Chemical, Chicago, IL, USA) and images were taken with (EVOS FL Auto, Life Technologies Carlsbad, CA, USA). Scale bar 100 μm.

2.9. Western Blot Assay

First, circa 60 mg of ex vivo human skin explants were homogenized in 500 μL of cold lysis buffer (containing Hepes, KOH 20 mM (pH 7.5), KCl 150 mM, NP-40 1%, 1% protease inhibitor cocktails (Sigma-Aldrich, Burlington, MA, USA), and PMSF 0.1mM). Homogenization was performed with tissue homogenizer (Precellys 24 homogenizer, 10 cycles 6500 rpm 3 × 30 s, at 4 °C).
Following this, 10% polyacrylamide SDS gel were loaded with 15 µg of denatured proteins, separated by molecular size. The gel was then electroblotted at 80 V for 45 min onto nitrocellulose membranes and blocked for 5 min at room temperature with EveryBlot Blocking Buffer (12010020, Bio-Rad, Hercules, CA, USA). Nitrocellulose membranes were then incubated overnight at 4 °C with primary antibodies: HO-1 (dil 1:1,000, NOVUS NBP1-31341), Filaggrin (dil 1:1,000, Santa Cruz sc-66192), and Involucrin (dil 1:500 Santa Cruz sc-21748), prepared in EveryBlot Blocking Buffer.
The next morning, membranes were washed 5 × 5 min with TBS-T at room temperature under mild shaking and incubated for 1 h at room temperature with secondary antibody conjugated with horseradish peroxidase (dil 1:10,000), prepared in EveryBlot Blocking Buffer.
Chemiluminescence signal was detected and Beta-Actin (dil 1: 100,000, A3854, Sigma-Aldrich, Burlington, MA, USA) was used as loading control.
Finally, bands were digitalized and densitometry analysis was performed using ImageJ Software.

2.10. Statistical Analyses

To evaluate differences between groups, analysis of variance (ANOVA) followed by Tukey’s multiple comparisons was performed with GraphPad Prism 6 software (GraphPad Software Inc., https://www.graphpad.com/, accessed on 15 September 2021), considering timepoints separately.
All data were expressed as means ± standard deviations and statistical differences between means were determined using a p ≤ 0.05 significance level.

3. Results

3.1. Polyphenolic Composition of Wild Alaska Bog Blueberry Extract

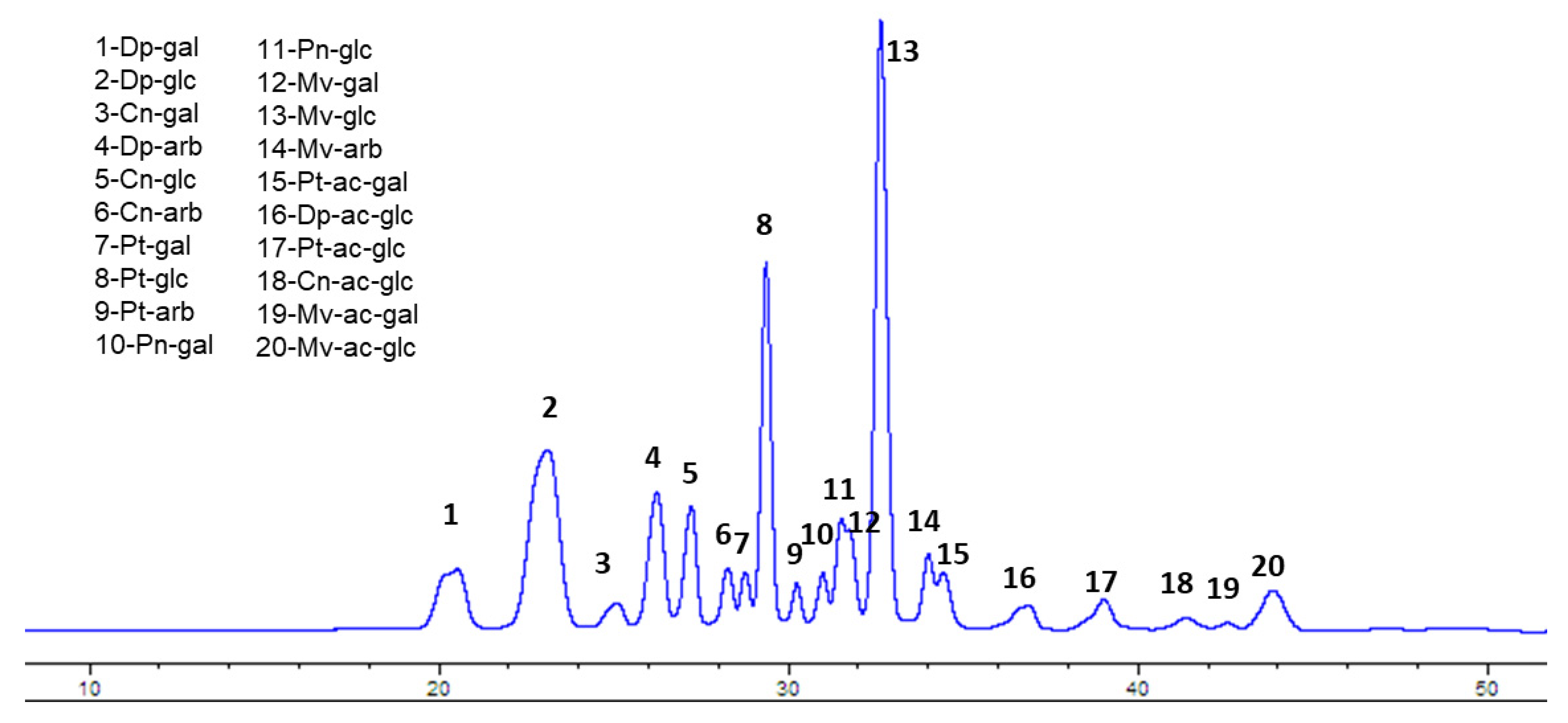

The first step was the determination and quantification of the anthocyanin (ANC) content in wild Alaskan bog blueberry (BB) extracts. Crude extract contained 17.8 mg/g total anthocyanins, measured as cyanidin-3-glucoside equivalent. The SPE polyphenol enrichment procedure resulted in 308.6 mg/g total anthocyanins in the polyphenol-enriched extract (>15 fold higher than crude extract). As shown in Figure 1 (Figure 1) the HPLC chromatogram shows that glucosides of malvidin (peak 13) and delphinidin (peak 2) represent >40% of total ANC, followed by petunidin glucoside (peak 8), constituting around 12% of the total ANC content.

3.2. Effect of UV Exposure on Skin Structure and Morphology

After the evaluation of the polyphenolic qualitative and quantitative composition of BB extract, we wanted to investigate the effect of UV exposure and BB extract on the morphology/structure of the cutaneous tissues. As shown in Figure 2, the extract did not produce any morphological nor structural changes in tissues, with or without UV exposure, at all of the timepoints considered.

3.3. Effect of UV Exposure on Cutaneous Oxinflammatory Responses

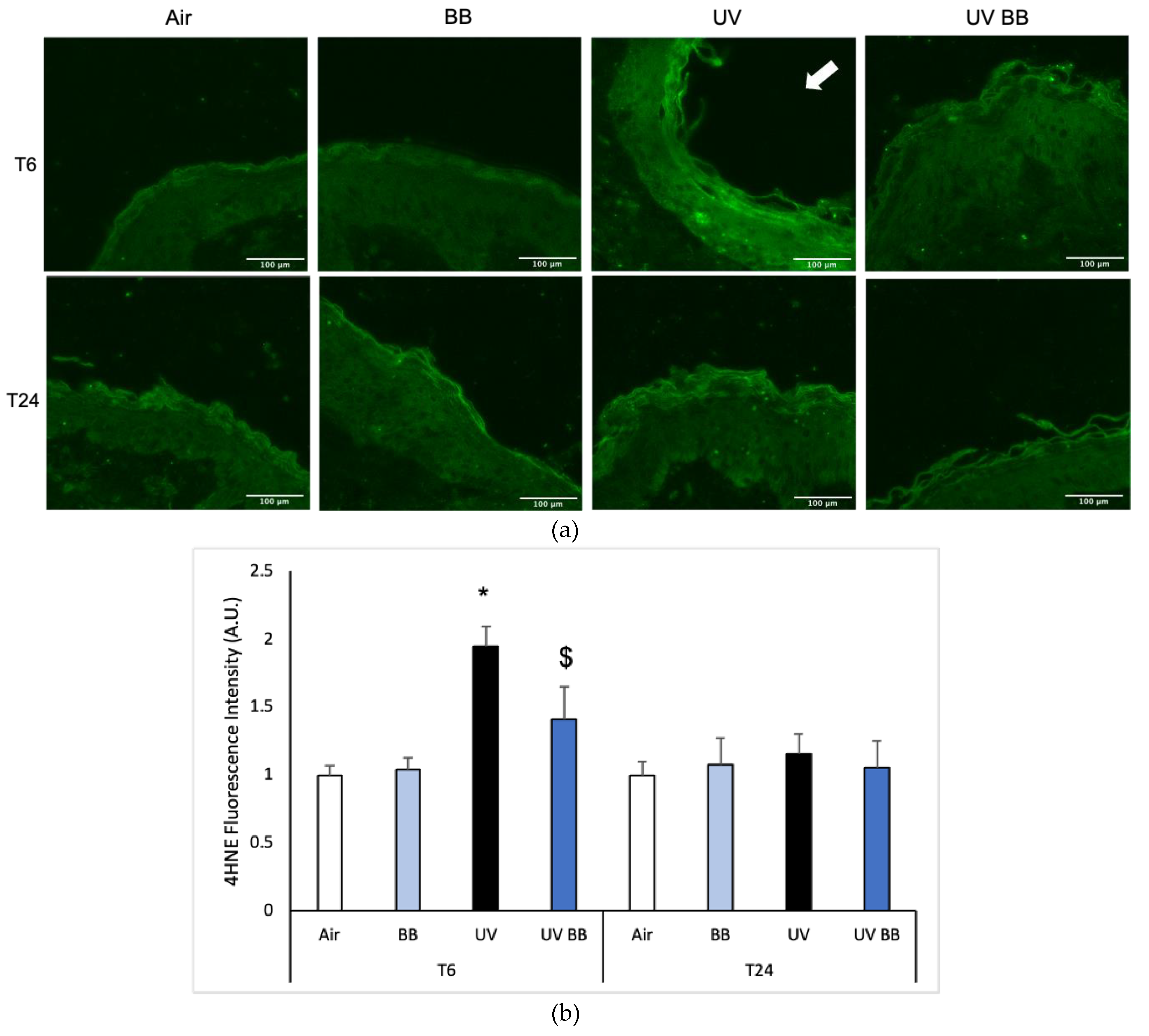

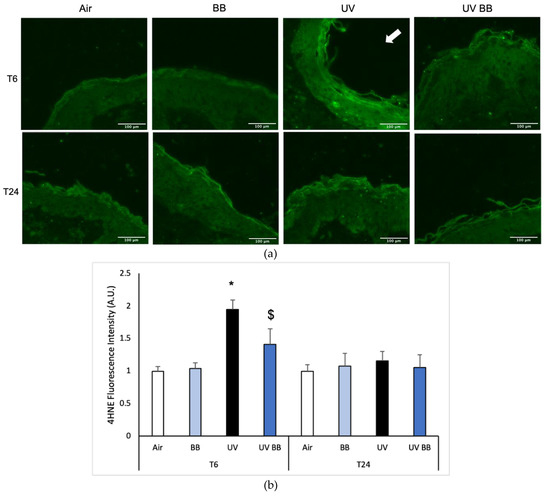

Exposure to UV radiation can generate ROS that subsequently lead to the oxidation of biological molecules, such as lipids, proteins, and DNA [4]. An important marker of lipid peroxidation is 4-hydroxy-nonenal (4HNE) [31]. As shown in Figure 3a,b, after 6 h from UV exposure (T6) we detected increased 4HNE protein levels in skin exposed to UV light compared to the air control (Figure 3a,b). We also observed that pre-treatment with BB counteracted the UV-induced 4HNE levels. Interestingly, after 24 h from the oxidant exposure, 4HNE levels were back to the baseline, suggesting that lipid peroxidation is one of the early steps promoted by UV radiation in the cascade of oxidative damage (Figure 3a,b).
To further corroborate the induction of redox damage by UV exposure, we evaluated the protein levels of heme oxygenase-1 (HO-1), an important antioxidant enzyme that is known to be activated in the presence of oxidative challenges, including UV radiation [32].

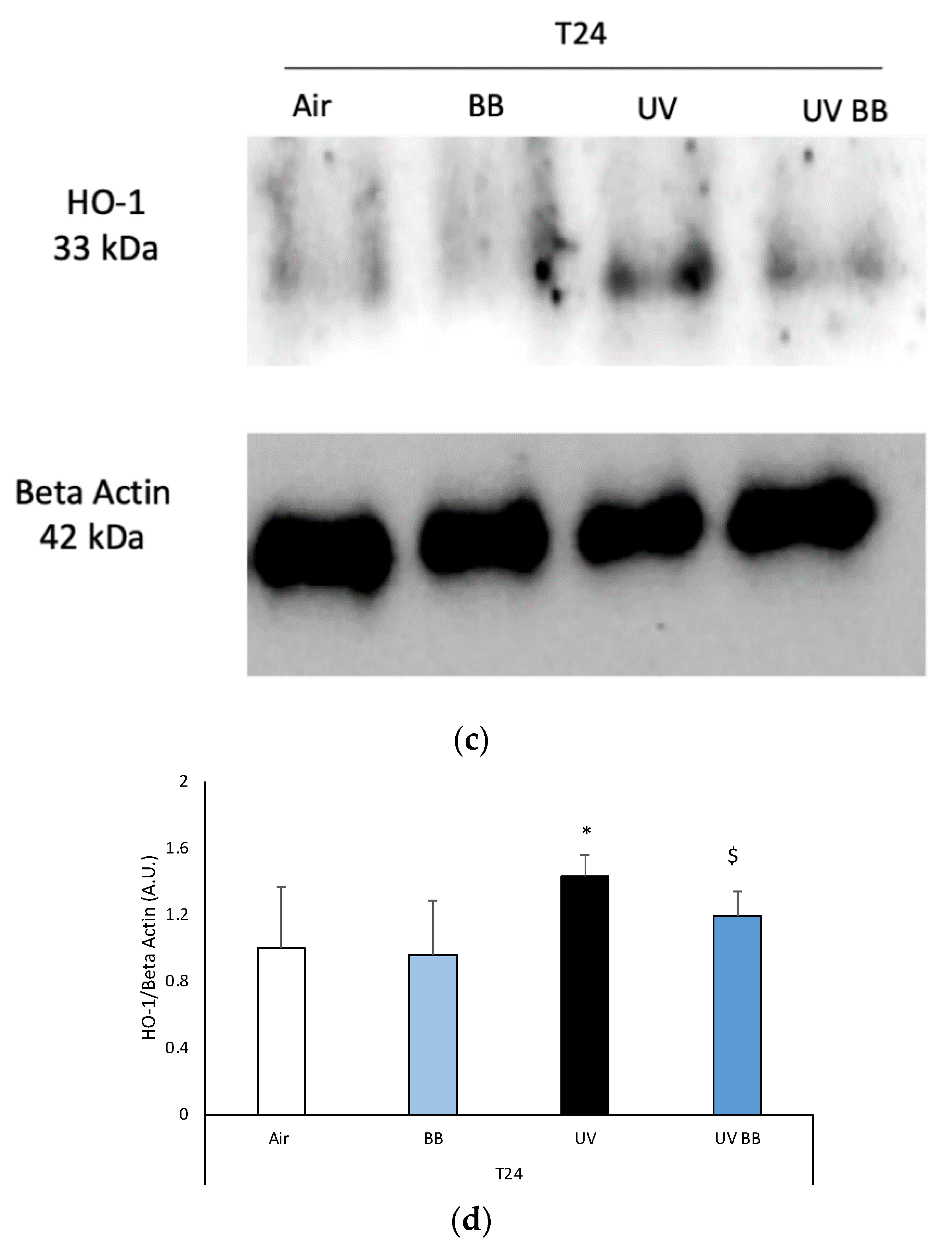

As shown in Figure 3c,d, after 24 h from UV exposure, skin tissues exposed to UV exhibited a significant induction of HO-1 levels compared to the control and, most importantly, this increase was prevented by BB topical application (Figure 3c,d).

3.4. Effect of UV Exposure on Cutaneous Inflammatory Status

As a result of oxidative stress, redox sensitive transcription factors (NFkB, AP-1, and AhR) can be activated and can induce the transcription of inflammatory genes, such cyclooxygenase-2 (COX2) [33].
To further evaluate the effect of UV exposure on skin redox homeostasis and the protective properties of BB extract, we measured the levels of AhR. Right after UV exposure (T0) there were no visible effects; whereas, after 24 h from UV exposure, as shown in Figure 4a, there was an increase in AhR levels in the biopsies exposed to UV, and also in this case, pre-treatment with BB abolished UV-induced AhR expression (Figure 4a,b).

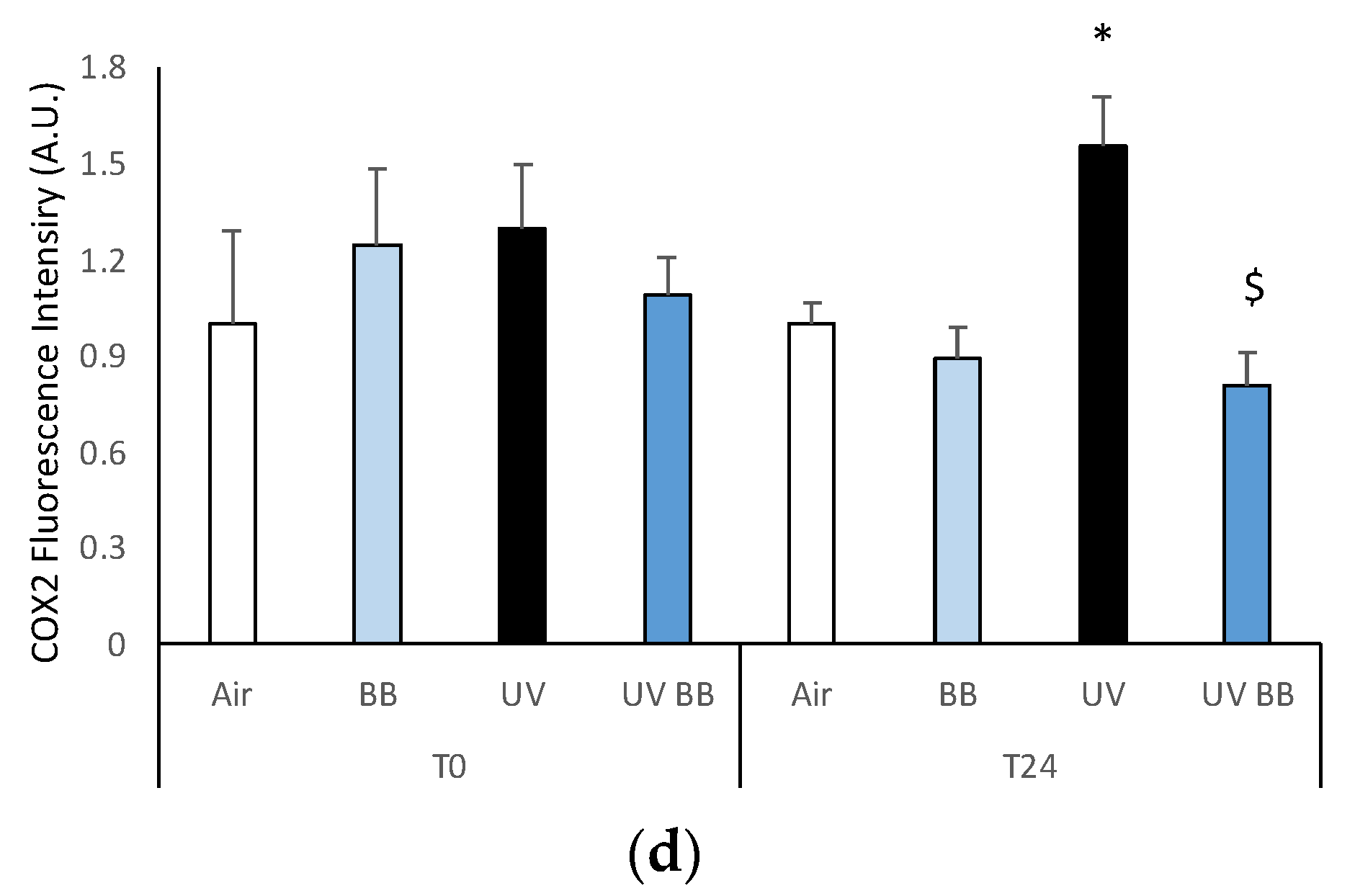

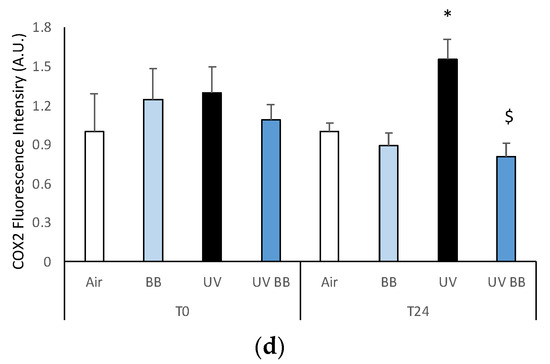

As aforementioned, the expression of pro-inflammatory proteins can be strongly induced by redox imbalance; thus, we evaluated the levels of COX2, an important inflammatory marker. Figure 4c,d show the ability of UV radiation to induce increased COX2 levels only after 24 h (T24), while, the pre-treatment with BB extract was able to prevent COX2 upregulation.

3.5. Effect of UV Exposure on Skin-Barrier Associated Proteins

Inflammatory skin conditions have, as a common denominator, impaired skin barrier functions; therefore, we decided to evaluate the expression of proteins important in this role.

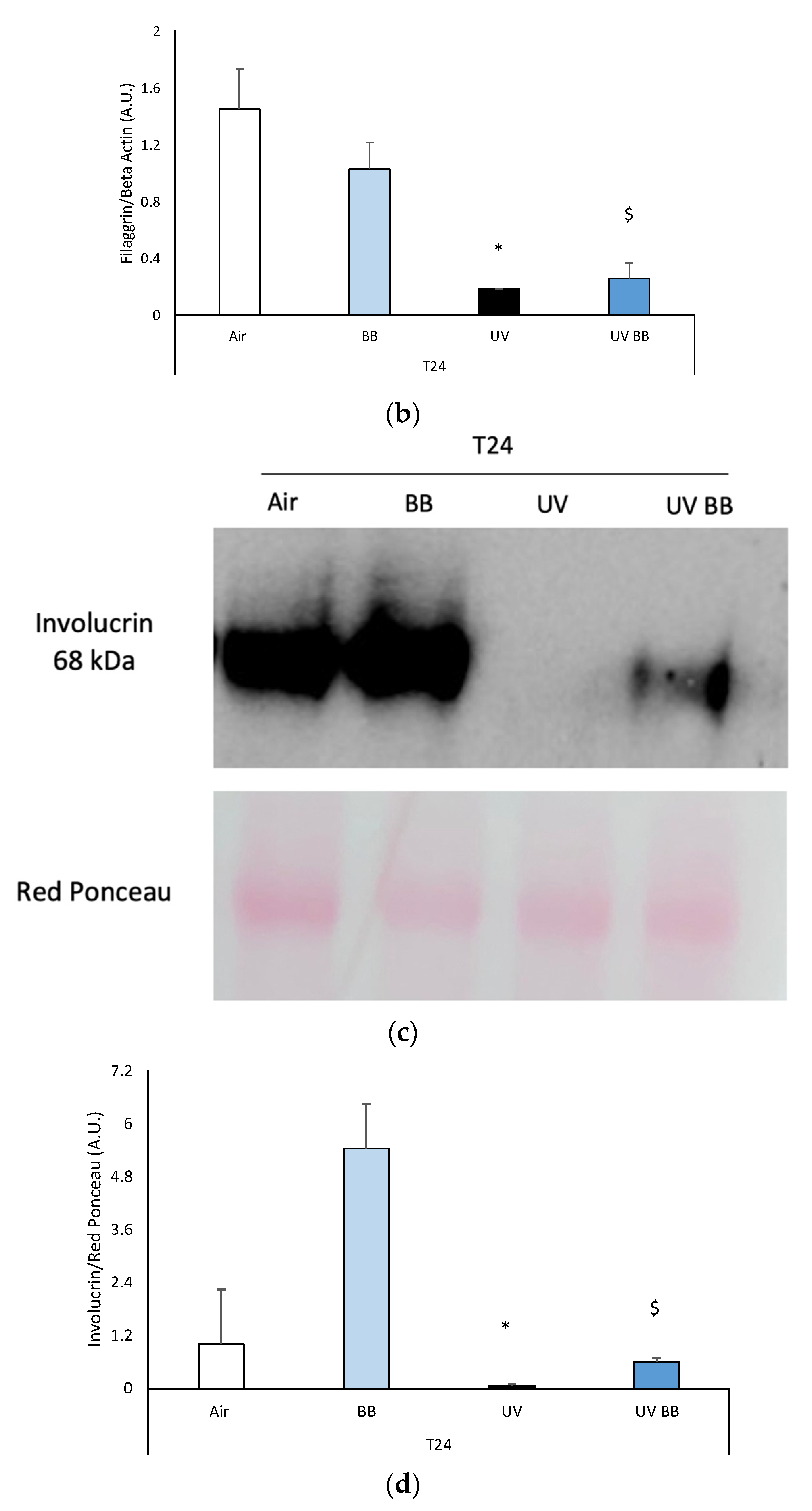

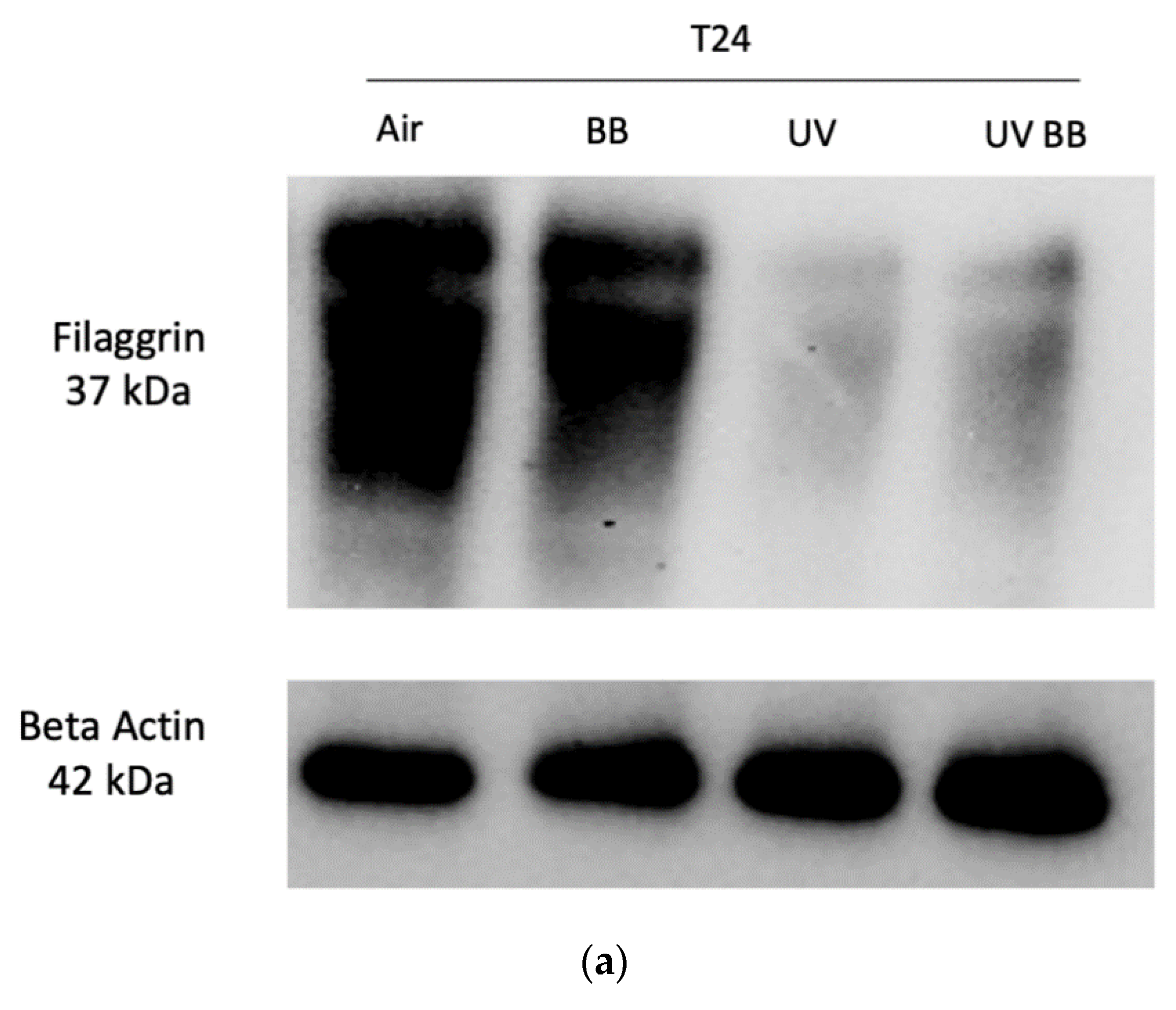

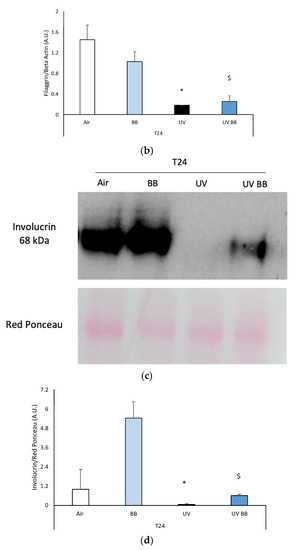

First, we evaluated the effects of UV exposure on filaggrin, a protein involved in the maintenance of the stratum corneum barrier properties [34].
We observed that ex vivo human skin exposed to 200 mJ of UV radiation induced a significant downregulation of filaggrin levels after 24 h from UV exposure, compared to control. Furthermore, topical application with BB extract counteracted the loss of filaggrin induced by UV (Figure 5a,b).
Another important protein for skin structure and barrier properties is involucrin, due to its role in the formation of the stratum corneum cornified envelope [35].
Additionally, in this case, we observed a decrease of involucrin protein levels in skin exposed to UV at T24, and BB pre-treatment was able to avert this effect (Figure 5c,d).

4. Discussion

Due to its location and size, skin represents not only a target for environmental stressors but also the first line of protection against them [1], while UV radiation represents the most aggressive cutaneous stressor [2,3].
Exposure to UV light has been deeply investigated in recent decades, and its harmful effects on skin tissue have been uncovered [12,36].
It is well known that solar radiation induces skin damage via the photochemical generation of reactive nitrogen (RNS) and oxygen species (ROS), such as nitric oxide (NO), superoxide anion (O2), hydrogen peroxide (H2O2), and hydroxyl radical (OH·). These radical species can interact with different cellular biomolecules, such as DNA, protein, and lipids, inducing multiple oxidative cascades that can then cause extensive cellular damage, with loss of structure and functionality of the tissue [37].
Multiple works have identified UV light as the primary risk factor in the development of extrinsic photoaging (characterized by coarse wrinkles, pigmented spots (lentigines) and uneven skin tone [38]) and skin cancer [7]. Therefore, prevention from UV exposure is important, not only at a cosmetic level, but also to avoid the triggering/exacerbation of severe skin pathologies.
In this context, the research of molecules able to quench this UV-induced cutaneous damage becomes increasingly important.
Recently there has been a turn of events in the field of sunscreen formulations, where we have seen an increasing demand for natural extracts, in replacement of synthetic and chemical sunscreens [39,40,41,42]. This started after many reports brought to light the instability and inability of organic sunscreens to completely dissipate the energy absorbed by UV light, leading to the generation of free radical species that can cause further skin damage [15,16]. Furthermore, in the last two years, chemical sunscreens containing synthetic compounds such as oxybenzone and octinoxate have been banned in some countries [43], because of the potential harm induced to coral reefs and other marine ecosystems [17].
Natural compounds have been demonstrated to be safe and capable of protecting the skin from free radicals and photoaging [41,42,44,45] thanks to their polyphenolic composition, which is an index of the environmental stress the plant has gone through during the growth phase. Specifically, it has been demonstrated in humans that the topical application of natural antioxidants before exposure to UVA radiation reduces the photo-dermatoses induced by UVA light and increases the minimal dose to induce pigment darkening [44,46].
We wanted to confirm in our skin model the well-known ability of UV light to induce oxidative damage, thus we evaluated the levels of 4HNE-protein adducts and found them to be elevated upon UV exposure and demonstrated that pre-treatment with Alaska blueberry extract was able to prevent its formation.
It is common knowledge that oxidative stress is associated with consequent inflammatory cascades via the activation of redox sensitive transcription factors such as the nuclear factor kappa-light-chain-enhancer of activated B cells (NF-kB) pathway [33]. This vicious cycle, where oxidative species caused by exogenous stimuli trigger and are induced by pro-inflammatory events, is known as OxInflammation [27]. As expected, we did not see any OxInflammatory response or structural variation at T0 (right after UV exposure), due to the time required for signaling pathways to be triggered. We confirmed UV’s ability to induce inflammation via the increase at 24 h of the pro-inflammatory marker COX2, which was prevented by the topical application with BB extract at 24 h from UV exposure. The induction of cutaneous COX2 via NFkB has been also demonstrated by other pollutants, such as ozone [47], and, therefore, it is possible that BB would also be able to prevent ozone damage to the skin.
We speculate that the ability of BB to prevent UV-induced oxidative damage is via the modulation of the cellular defense pathway nuclear factor erythroid 2-related factor 2 (Nrf2). Although we did not directly measure the levels of Nrf2, we evaluated the protein expression of one of the products regulated by Nrf2: the antioxidant enzyme HO-1. Indeed, we demonstrated that topical application of BB extract prevents the UV-induced increase of HO-1 levels, a very well-known outcome of UV exposure [32,48]. It has been demonstrated that after UV exposure, skin tissue activates the Nrf2 pathway and increases the transcription of HO-1; therefore, the ability of BB to prevent HO-1 induction can be read as a lack of Nrf2 activation.
Another mechanism that the skin has to sense outdoor stressors (xenobiotics) is via expression of the aryl hydrocarbon receptor (AhR), a ligand-activated transcription factor. We showed that UV exposure activates AhR after 24 h. Moreover, in this case, other pollutants such as ozone, cigarette smoke, and particulate matter (PM) have been shown to activate AhR, possibly as a response to the formation of ROS [3]. Indeed, the increased levels of superoxide anion or H2O2 produced by NADPH oxidase (NOX) that can be activated by UV [49] can regulate the AhR signaling pathway, connecting AhR activation to oxidative stress responses [50].
Pre-treatment with Alaska blueberry extract reduced the activation of AhR upon UV exposure, possibly due to the reduction of UV-induced peroxides.
UV-generated ROS can induce OxInflammatory damage in the dermal layers, as well as in the epidermis, where they can impair cutaneous barrier functions by affecting the protein expression and composition [3]. Indeed, we have shown that the levels of filaggrin and involucrin, respectively, involved in the maintenance of stratum corneum properties and in the formation of keratinocytes cornified cell envelope, were clearly affected by UV exposure.
The lowering of filaggrin levels has been observed in multiple chronic inflammatory skin conditions, such as ichthyosis vulgaris and atopic dermatitis [51,52,53]. Of note, recent evidence suggested that the impairment of cutaneous barrier functions can favor the entry of external pathogens and environmental pollutants; therefore, possibly worsening pre-existing skin conditions [54,55]. In light of these considerations, we wanted to evaluate the topical application of BB extract as a possible way to prevent the onset, or reduce the severity, of cutaneous inflammation, and, in fact, BB topical treatment significantly improved the levels of filaggrin and involucrin, previously affected by UV exposure.
It is possible that the beneficial effect of Alaska blueberries resides in their ability to modulate the Nrf2 pathway, which not only induces a strong defensive cellular response [56], but also attenuates the activation of the pro-inflammatory NF-kB pathway [57]; thus, BB extract could possibly counteract oxidative stress in two ways.
Even though this is a preliminary study performed on ex vivo human skin biopsies that present donor variability and lack circulation and innervation, these data are promising, because they uncover the beneficial effects of the topical application of Alaska blueberry extract in counteracting cutaneous OxInflammatory damage and possibly premature skin aging. Of course, before extrapolating the data to real life, it should be mentioned that the approach used in this study has some limitations, related to the skin model (as described above) and to the BB extract; as it needs a proper cosmetic formulation, tested pre-clinically and eventually in a study. Further work is needed to evaluate the chemical characteristics and properties of Alaskan BB extract as a possible new and natural technology to prevent pollution induced skin damage.

Author Contributions

Conceptualization, E.P., M.A.L. and G.V.; Formal analysis, E.P., Z.H., A.P., M.G., J.-P.T. and G.V.; Funding acquisition, G.V. and M.A.L.; Investigation, E.P., Z.H., A.P., M.G., and G.V.; Methodology, E.P., Z.H., A.P., M.G. and J.-P.T.; Resources, G.V.; Supervision, G.V. and M.A.L.; Validation, G.V. and M.A.L.; Visualization, E.P. and A.P.; Writing—original draft, E.P., M.G., M.A.L. and G.V.; Writing—review & editing, E.P. and G.V. All authors have read and agreed to the published version of the manuscript.

Funding

This research was partially funded by Amway.

Institutional Review Board Statement

Not applicable, as skin biopsies were purchased as waste material from a local hospital.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data is contained within the article.

Acknowledgments

The authors are thankful to Amway for partial support.

Conflicts of Interest

The authors declare no conflict of interest.
