1. Introduction
Tea originated in East and South Asia. China was the first country to use tea as a beverage by infusing the dried leaves into hot water [
1]. Since ancient times, tea has been widely used as a medicinal plant and popularly used in various traditional medicines such as Ayurveda, Unani, and Homoeopathy. Nowadays, tea beverages are widely distributed throughout the world and are the most consumed after water. Not only is the leaf part of tea utilized, but the seed can be used to produce oil. Tea seed oil is an edible oil widely consumed in China. It is estimated that more than 2.5 million tons of tea seed oil will be produced by the year 2020 [
2].
Cultivated tea was originally classified as
Thea sinensis and
Thea bohea by Linnaeus in 1752. However, the classification was revised to
Camellia sinensis (Chinese tea: small-leaves, resistant to cold) and
Camellia assamica (Assam tea: large-leaves, less resistant to cold), both of which belong to the family Theacea [
3]. Altogether there are more than 65 species in the genus
Camellia distributed in China but only 18 species can produce seeds that can be used for oil production [
4]. Tea seed oil is rich in vitamin A, B, and E while having no cholesterol, leading to be the “king of cooking oil” with high nutritional value and health benefits [
2]. Moreover, tea seed oil has desirable nutritional properties (high oleic acid, medium linoleic acid, and low linolenic acid) [
5] and contains many natural antioxidants and functional components which was not only good for cardiovascular disease, cirrhosis, hypertension, and hyperlipidemia, but also have the special function of cancer prevention [
6]. The physical and chemical constants of tea seed oil are similar to those of olive oil, thus it is sometimes referred to “Eastern olive oil”. As it is high in antioxidant properties, it could be a promising oil to use in cosmetic formulations.
Microemulsion (ME) is the isotropic colloidal system that forms spontaneously with the appropriate combinations of oil, water, surfactant, and co-surfactant [
7]. ME is optically transparent since the internal phase droplet size ranges from 5 to 200 nm which is below the wavelength of visible light [
8,
9]. The advantages of ME over the conventional topical formulations such as creams, ointments and gels are easy production and thermodynamic stability which will lead to a good shelf-life [
10]. Therefore, ME is of interest for pharmaceutical and cosmeceutical applications as a carrier system.
The present study focused on tea seed oil extracted from C. assamica cultivated in the high-attitude area in the Northern part of Thailand. The cosmeceutical properties, including antioxidant and moisturizing effects, of C. assamica seed oil (CA) were investigated. ME from CA were developed and characterized for topical use as a carrier system in cosmetic formulations.
2. Materials and Methods
2.1. Materials
CA was obtained from the Department of Chemistry and Research Laboratory for Analytical Instrument and Electrochemistry Innovation, Faculty of Science, Chiang Mai University. Two commercial Camellia oleifera seed oils (CO1 and CO2) were purchased from local market in Chiang Mai, Thailand.
DPPH (1,1-diphenyl-2-picrylhydrazyl radical), linoleic acid, quercetin, Triton X-114, tocopheryl acetate, and propylene glycol were purchased from Sigma–Aldrich (St. Louis, MO, USA). Polyethylene glycol sorbitan monolaurate (Tween 20), polyethylene glycol sorbitan monostearate (Tween 60), polyethylene glycol sorbitan monooleate (Tween 80), polyethylene glycol sorbitan trioleate (Tween 85), sorbitan monooleate (Span 80), and polyoxyethylene monooctylphenyl ether (Triton X-114) were purchased from Acros Organics (Morris Plains, NJ, USA). Glycerin, BP/USP was purchased from Malaysia. Polyethylene glycol 400, USP was purchased from Wilhelmshaven, Germany. Ammonium thiocyanate, and ferrous chloride were purchased from Fisher Chemicals (Loughborough, UK). Hydrochloric acid was analytical grade and purchased from Merck (Darmstadt, Germany). Ethanol, acetone, dimethyl sulfoxide (DMSO), and propan-2-ol were AR grade and purchased from Labscan (Dublin, Ireland).
2.2. Determination of Fatty Acid Composition of Tea Seed Oils
Fatty acid composition of
CA and commercial tea seed oils (
CO1) were analyzed according to the method reported by Lucchetti et al. [
11]. Briefly, fatty acids were converted to methyl esters before the analysis to reduce their polarity and increase their volatility. Then the methyl esters were quantified by gas chromatography (GC) equipped with a flame ionization detector (FID) (Perkin Elmer Autosystem, Waltham, MA, USA). The fatty acids were identified by their retention times as compared to those of standards purchased from Sigma–Aldrich (St. Louis, MO, USA).
2.3. Biological Activities Determination of Tea Seed Oils
2.3.1. Antioxidant Activity Determination
Inhibition of Lipid Peroxidation by the Ferric Thiocyanate Assay
Antioxidant activity of
CA and two commercial tea seed oils (
CO1 and
CO2) were tested for the inhibition of lipid peroxidation by the ferric thiocyanate method reported by Motamed and Naghibi with slight a modification [
12]. Briefly, 100 μL of a test sample solution or tocopheryl acetate (
TA) as standard solution in DMSO was mixed with 1 mL of 25 mM linoleic acid in acetone and 1 mL of 0.1 M phosphate buffer pH 7.0 in the test tube with cork lid stock. The reaction was carried out in the dark for 6 h at 60 °C. Then 50 μL of the mixture was mixed with 3 mL of 75% EtOH, 20 μL of 35% ammonium thiocyanate, and 20 μL of 20 mM ferrous chloride in 3.5% HCl. After mixing by vortex for 1 min, the absorbance was measured at 500 nm by using a UV-Visible spectrophotometer (Biochrom, Cambridge, UK).
% Inhibition was calculated using the following equation;
where
B is the absorbance of the mixture of 100 μL of acetone, 1 mL of 25 mM linoeic acid in acetone, and 1 mL of 0.1 M phosphate buffer pH 7.0 in the absence of test sample and
S is the absorbance of 1 mL of 25 mM linoeic acid in acetone, and 1 mL of 0.1 M phosphate buffer pH 7.0 in the presence of 100 μL of test sample. The experiment was performed in triplicate.

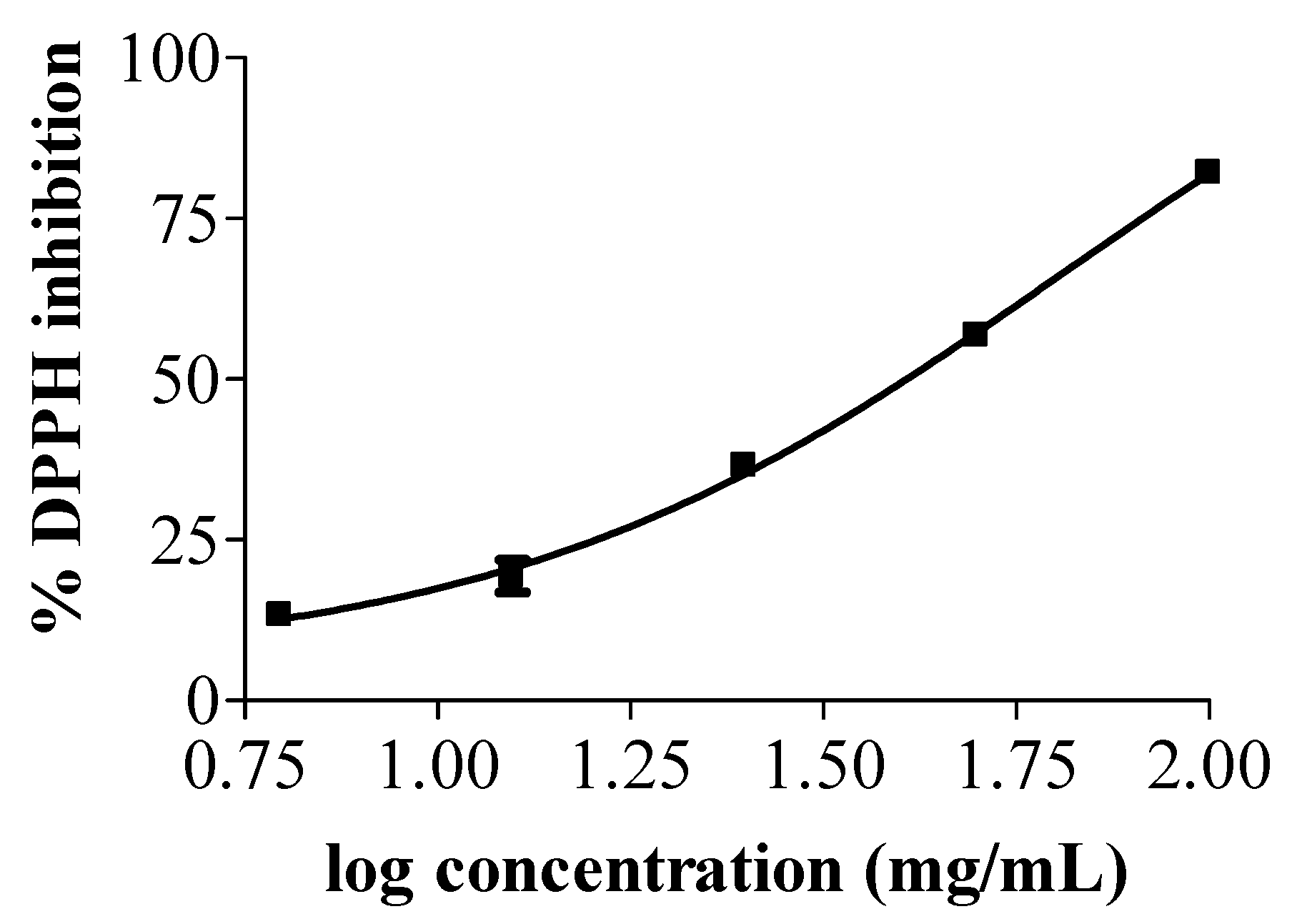

Scavenging of 1,1-Diphenyl-2-picrylhydrazy Radical (DPPH Assay)
Tea seed oils including
CA,
CO1, and
CO2 were tested for radical scavenging activity against stable DPPH using the method reported by Blois [
13] with a slight modification. Briefly, 20 μL of test sample solution or quercetin (Q) as a standard solution in DMSO was mixed with 180 μL of 167 μM DPPH
● (1,1-diphenyl-2-picrylhydrazyl radical) solution. The reaction was carried out in the dark for 30 min at room temperature. Then the absorbance was measured at 520 nm using a DTX-880 Multimode Detector (Biochrom, Cambridge, UK).
% Inhibition was calculated using the following equation;
where
PC is the absorbance of 20 μL of acetone and 180 μL of 167 μM DPPH mixture,
NC is the absorbance of 200 μL of acetone,
S is the absorbance of 20 μL of test sample and 180 μL of 167 μM DPPH mixture, and
B is the absorbance of 20 μL of test sample and 180 μL of acetone mixture. The experiment was performed in triplicate.
2.3.2. In Vitro Skin Moisturizing Effect Determination
The tea seed oils including
CA,
CO1, and
CO2 were examined in comparison with tocopheryl acetate (
TA). The tested skins were prepared from the flank area of stillborn piglets which were accidentally died before birth. The piglets were obtained fresh from a local farm. The fat layer was removed, and the skin was cut into 3 × 3 cm
2. The skins were left at room temperature (25 ± 1 °C) with 50–60% relative humidity (RH) for at least 30 min before further testing. After preparation, 60 μL of each test sample was applied on the skin surface. The moisture content was measured before and after applying the sample for 15 and 30 min using a Corneometer
® CM 825 (Courage and Khazaka, Köln, Germany). All the measurements were performed in triplicate. This method had been modified from O’Goshi et al
. [
14].
2.4. Development of Microemulsion Containing Tea Seed Oils
2.4.1. Pseudoternary Phase Diagram Construction

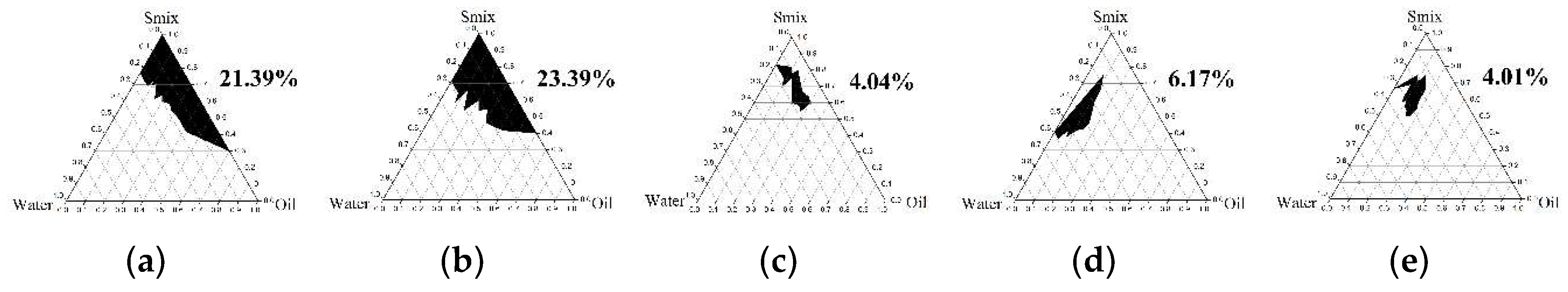

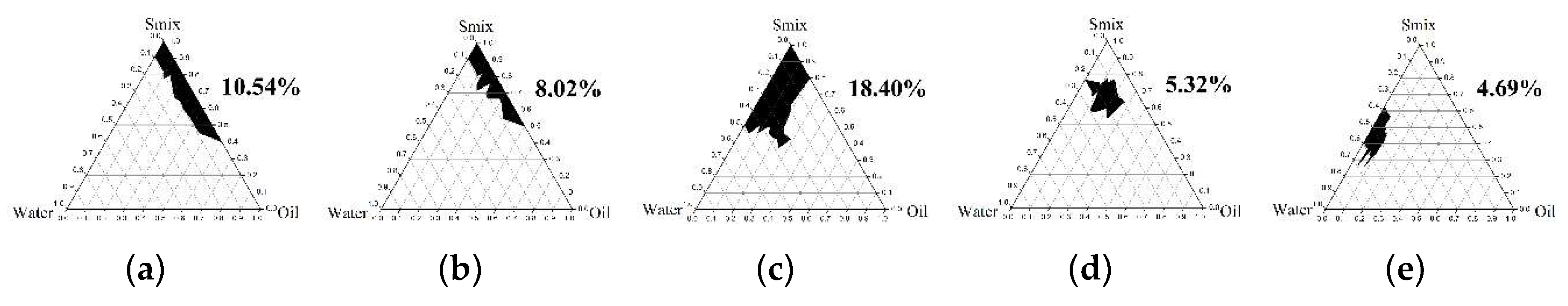

Pseudoternary phase diagrams of
CA were constructed using a slightly modified water titration method [
15]. Three components used for the construction of pseudoternary phase diagrams were oil phase, water phase, and surfactant mixture (Smix).
CA was used as the oil phase. Various non-ionic surfactants (Tween 20, Tween 60, Tween 80, Tween 85, Span 80, or Triton X-114) were mixed with various co-surfactants (ethanol, propan-2-ol, glycerine, PG, or PEG-400) at a weight ratio of 1:1 to obtain Smix. The effect of surfactant to co-surfactant weight ratio were also investigated by using the ratio of 6:1, 4:1, 2:1, 1:1, and 1:2. The oil phase and Smix were then mixed at various weight ratios (0:1, 1:9, 2:8, 3:7, 4:6, 5:5, 6:4, 7:3, 8:2, 9:1, and 1:0) and the resulting mixtures were subsequently titrated with water under moderate agitation at room temperature. The samples were classified as MEs when they appeared visually as clear liquids. The different formulations were made in triplicate. The pseudoternary phase diagrams were drawn by OriginPro 8 software. The ME regions were measured by ImageJ 1.47v software.
2.4.2. Microemulsion Development
MEs were developed by mixing CA (oil phase) with Smix and water, when Smix were the combination of Tween 85 and ethanal (4:1) or Tween 85 and PG (2:1). Three ME formulations were developed and were classified as ME A, B, and C. Tween 85 and ethanal (4:1) were used as Smix in formulation A, where the CA:Smix:water ratio was 1:8:1. Tween 85 and propylene glycol (2:1) were used as Smix in formulation B and C, where the CA:Smix:water ratio were 1:8:1 and 1:7:2, respectively.
2.4.3. Characterization of Microemulsion
Photon Correlation Spectroscopy

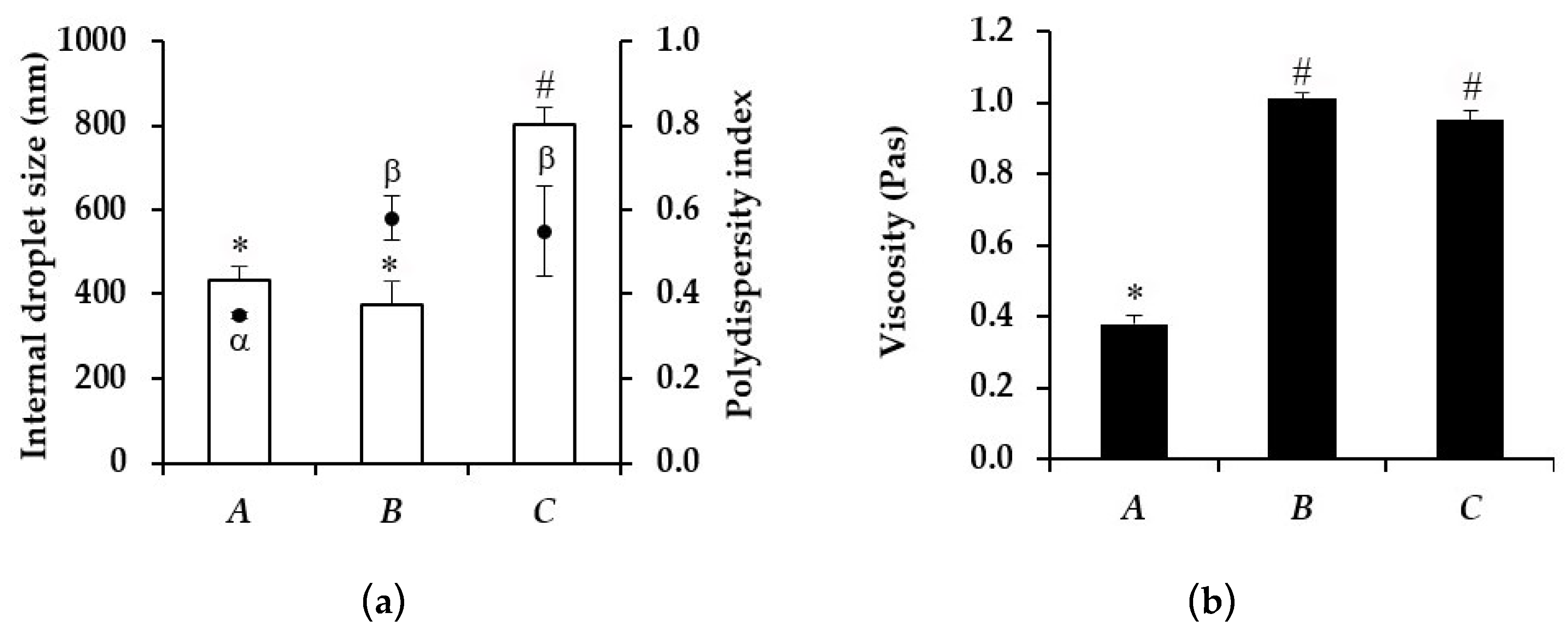

Particle size analysis was carried out using photon correlation spectroscopy (Zetasizer® version 5.00, Malvern Instruments Ltd., Malvern, UK). The sizing measurements were carried out at a fixed angle of 173°. The reported results are mean ± standard deviation (S.D.) of at least ten measurements on the sample.
Rheology Study
Viscosity of MEs was measured using a Brookfield DVIII rheometer (Brookfield Engineering Laboratories, Stroughton, MA, USA) fitted with a bob spindle. Brookfield Rheocalc operating software was used to control the measurement. A sample volume of 70 mL was used. The measurements were performed in triplicate at 25 °C.
Biological Activities Determination of Microemulsion Containing Tea Seed Oil
Antioxidant activities of ME s containing tea seed oil were tested as mentioned in
Section 2.3.1.
2.4.4. Stability Study
MEs were kept in air-tight containers under the accelerated conditions, i.e., six heating-cooling cycles consisting of 4 °C for 24 h switching to 45 °C for 24 h. The ME were then characterized for the particle size by using photon correlation spectroscopy (Zetasizer® version 5.00, Malvern Instruments Ltd., Malvern, UK) and the viscosity by using a Brookfield DVIII rheometer (Brookfield Engineering Laboratories, Stroughton, MA, USA) fitted with a bob spindle.
2.5. Statistical Analysis
All data are presented as a mean ± standard deviation (S.D.). Individual differences were evaluated by t-test and One-Way ANOVA with post-hoc testing. Statistical difference was set at p < 0.05.
4. Discussion
Tea seed oil is rich in vitamin A, B, and E with no cholesterol [
2,
17]. The major fatty acids of
CA were cis-9-oleic acid (57.97%), cis-9,12-linoleic acid (18.57%), and palmitic acid (17.32%). The fatty acid contents of
CO1 were slightly different from
CA, as cis-9-oleic acid, the major component in both oils, was more pronounced in
CO1 (79.96%) rather than that in
CA (57.97%). Furthermore, the amount of cis-9,12-linoleic acid and palmitic acid in
CO1 was about half of the amount that detected in
CA. However, the results in this study were in an accordance with the literature which noted that tea seed oil contained high amount of oleic acid, medium amount of linoleic acid, and low amount of linolenic acid [
5].
The antioxidant activities of tea seed oil from
Camellia oleifera Abel. and
Camellia sinensis L. have been extensively investigated and their prophylactic properties against free radical related conditions have been reported [
18,
19]. However, the antioxidant activity of

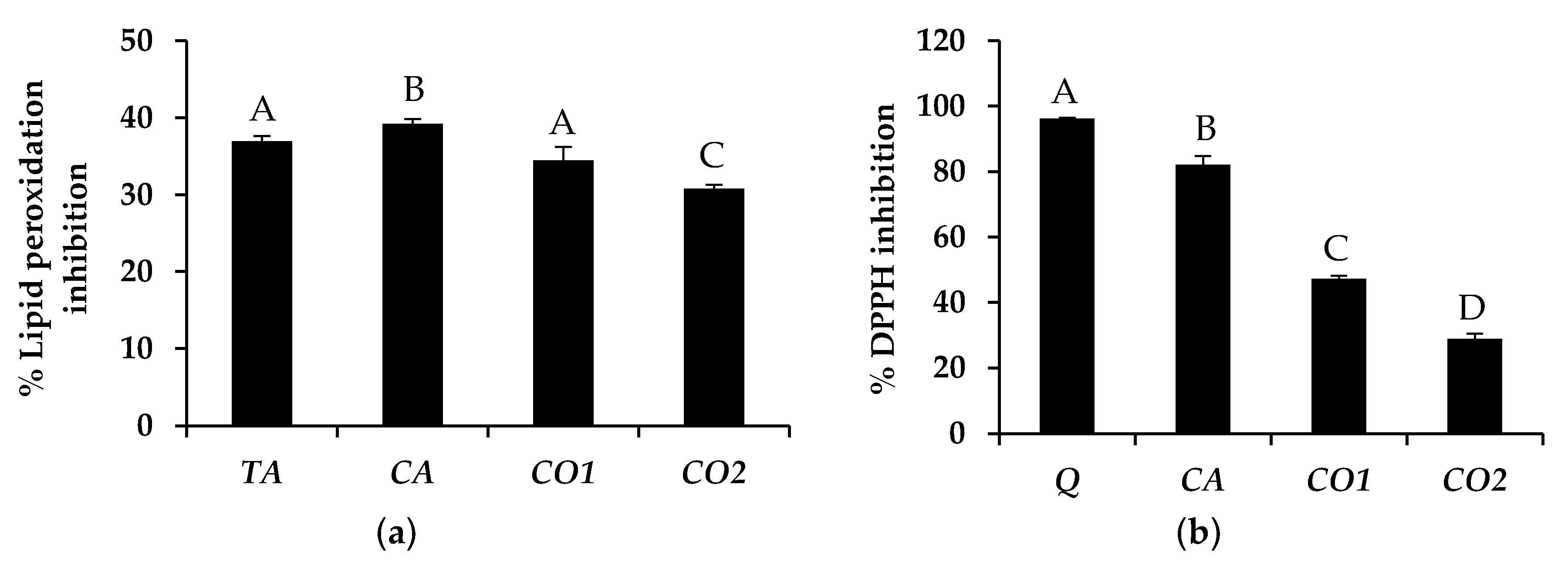

CA is first described in the present study. The antioxidant activity of the oil was determined in a comparison with two commercial oils (
CO1 and
CO2) by using the inhibition of lipid peroxidation and DPPH assays. These two methods were used as the previous studies emphasized that the antioxidant activity was depended on the method used and it recommended the use of at least two different test methods [
20]. DPPH assay is the test system using a stable free radical to give information on radical scavenging or antiradical activity, whereas, the lipid peroxidation assay is the most studied biologically relevant free radical chain reaction that gives information on the antioxidant activity. Both assays revealed that
CA possessed higher antioxidant activity compared to the commercial oils. Therefore, tea seed oil is rich in antioxidant activity and can be used as alternative source of oil phase in cosmetics production. Additionally,

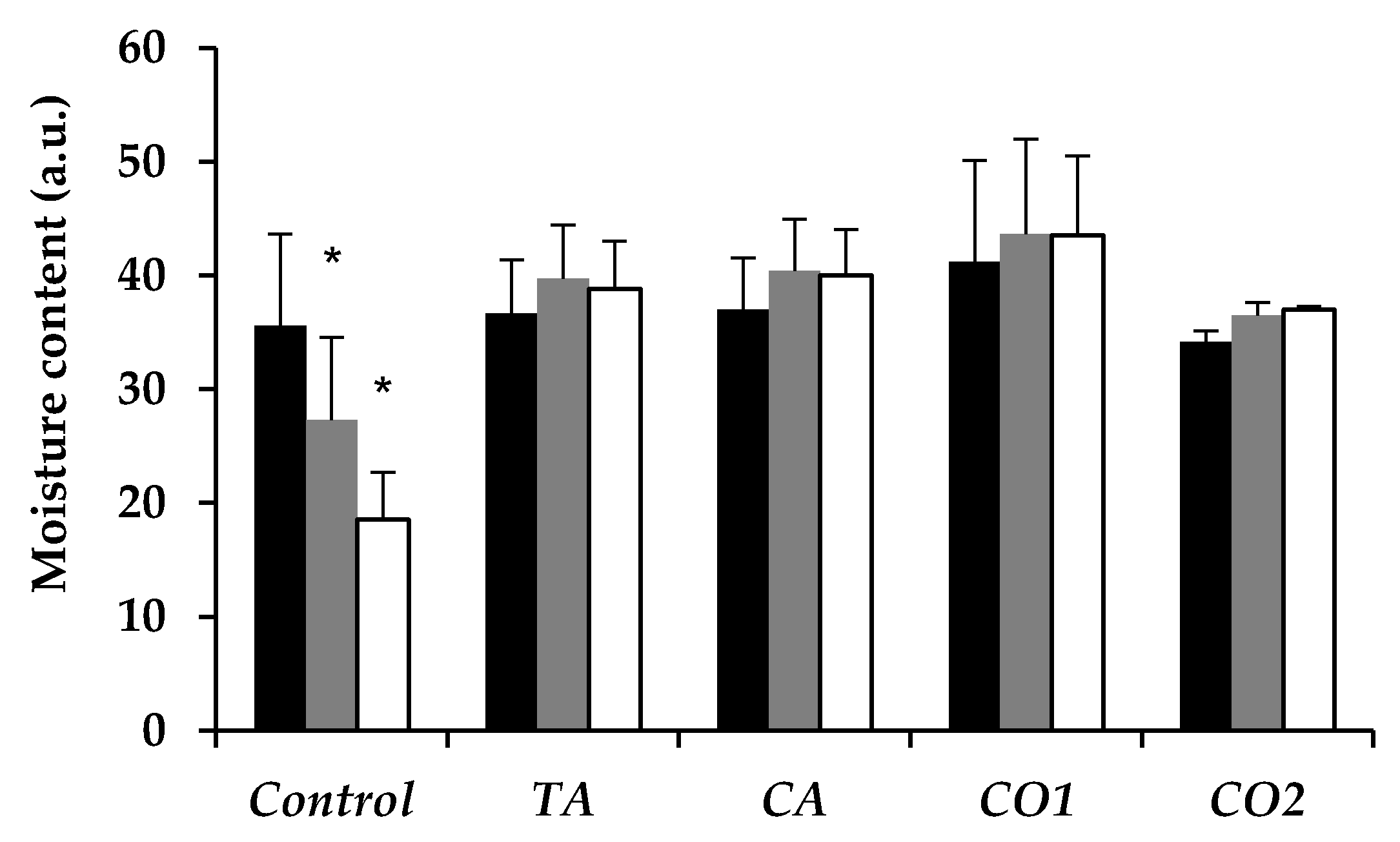

CA possessed moisturizing efficacy on a pig skin model which has structural similarities to human skin [
21]. Therefore, it would be an attractive component for ME development for topical use purposes.
ME is one of the delivery systems that is suitable for topical use. The construction of pseudoternary phase diagrams greatly helps to elucidate the ME region that exists in the diagram depending upon the composition ratios since the variety of structure of ME is a function of the formulation’s composition [
22]. The previous study indicated that among various surfactants, Tween 85 can produce ME, when the oil phase was isopropyl myristate, the co-surfactant was ethanol, and Smix ratio was 1:1 [
17,
23]. In some cases, Tween 85 produces smaller ME regions compared to the others [
17]. Therefore, there was no universal surfactant that suitable for all types of oil in ME development. For tea seed oil, Tween 85 was suggested.
In the present study, co-surfactants (ethanol and PG) and the ratios of Smix affected the ME region in the phase diagram. The results agree with the previous study where different types of co-surfactant brought about the various ME formations and ME regions in the phase diagram [
24]. Additionally, the higher proportion of surfactant in Smix, the larger area of ME region. Gao et al. reported that ME region respectively increased when the ratio of Cremophor EL to Transcutol increased from 0.5:1 to 4:1 [
25]. Similarly, Guan et al. reported that ME region increased when the ratio of Tween 20 to PEG-400 increased from 1:2 to 4:1 [
17]. However, in the present study, there was an optimum ratio of the Smix. The ME region decreased at a higher proportion of surfactant and the lower proportion of co-surfactant because there was not enough co-surfactant to ensure flexibility of interfacial layer and reduce the interfacial tension.
In the present study, the tea seed oil content affected the ME formation. This agrees with the previous study that droplet size of oil-in-water MEs were influenced by the total content of the oil phase [
26]. In additions, the surfactant to co-surfactant ratio was an important parameter in determining the size of the internal phase of the ME systems [
27].

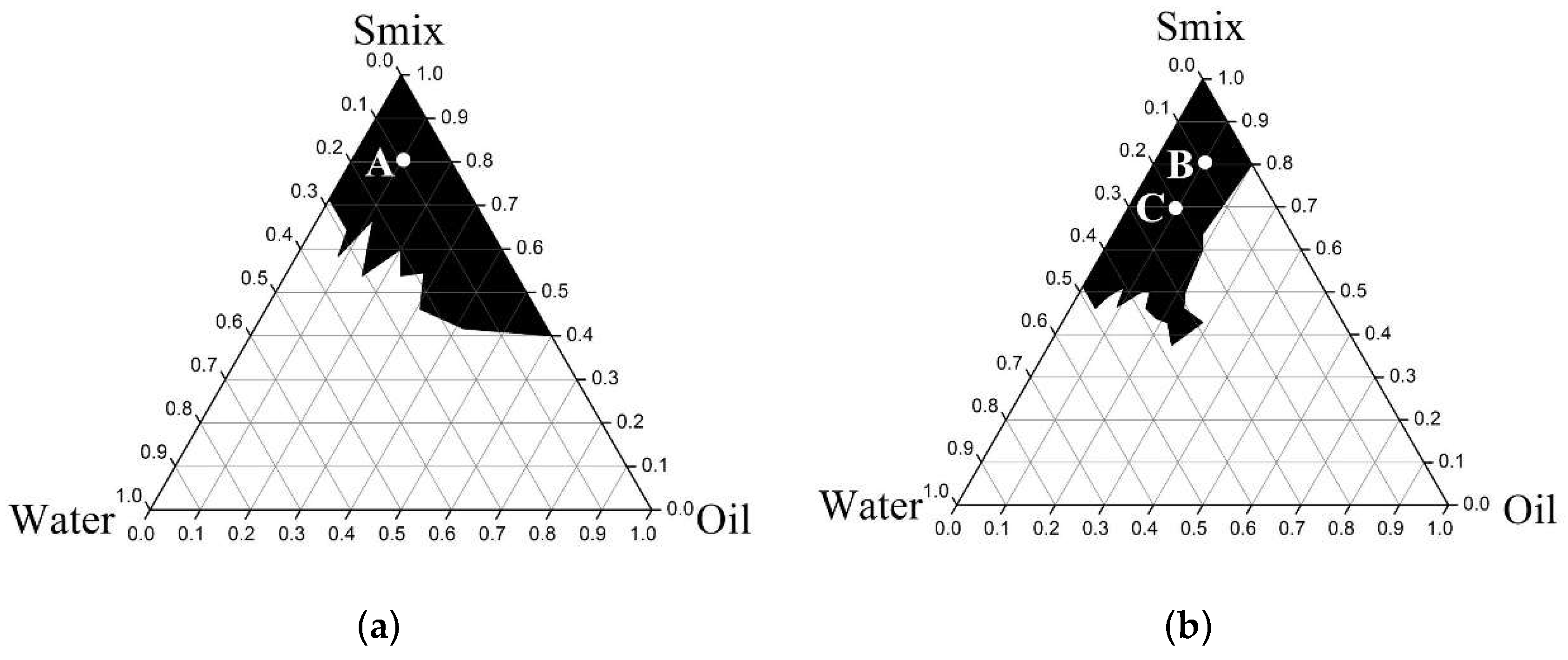

ME
A and
C were isotropic systems with a yellow color which had the same appearance as the original after stability testing. On the other hand, ME
B separated into two layers made of a ME (top) and water-rich region (bottom) which was the characteristic of a Winsor type II system. The internal droplet size of ME
B significantly increased after the heating-cooling cycles (
p < 0.05) which related well with a change of external appearance. Normally, ME containing a non-ionic surfactant is a Winsor type I system (oil in water ME with excess oil) at low temperature and turns to a Winsor type II system (water in oil ME with excess water) when the temperature increases. Increasing temperature decreases the degree of hydration of the head group of non-ionic surfactants, thereby decreasing its effective area at the interface [
28,
29]. ME
B turned into a Winsor type II system during the storage at high temperature (45 °C) which led to the phase separation.
After the stability test, the DPPH inhibition of all MEs still remained the same while lipid peroxidation inhibition was significantly decreased (
p < 0.05). These two different methodologies revealed distinctly different results. Lipid peroxidation is a complex process involving various mechanisms, including lipid radical formation, oxygen uptake, and rearrangement of the double bonds in unsaturated lipids [
30], whereas, DPPH assay was only related to the scavenging ability. In this study, the scavenging ability of MEs containing
CA did not decrease over the time but the ability to inhibit the rearrangement of the double bonds in unsaturated lipids could be reduced. In conclusion, the ME retained the radical scavenging activity; however, the antioxidant activity decreased during the storage time.
5. Conclusions
The antioxidant and moisturizing properties of CA was firstly described in the present study. CA had a significantly higher lipid peroxidation and DPPH inhibition compared to two commercial tea seed oils (CO1 and CO2). The lipid peroxidation inhibition of CA was 39.20% ± 0.63% at a concentration of 37.5 mg/mL and the IC50 against DPPH was 70.76 ± 27.14 mg/mL. The moisturizing effect of CA, TA, CO1, and CO2 were not significantly different. However, the short-term moisturizing effect of CA, TA, CO1, and CO2 was significantly higher than that of controls (untreated area) and the increasing moisturizing efficacy with time of the oils was also observed. The ME of CA was then developed and the factors affecting ME formation were investigated. The surfactant types, co-surfactant types, and Smix ratio influenced ME region based on observation of the pseudoternary phase diagrams. Tween 85 was found to be the only surfactant suitable for the ME formation. The ME containing CA were prepared by mixing CA with Smix and water. Smix was the combination of Tween 85 and ethanal (4:1) or Tween 85 and propylene glycol (2:1). The oil phase content had a strong effect, whereas, the type of co-surfactant had no effect on the internal droplet size. The radical scavenging activity and antioxidant effect of MEs were significantly higher compared to the native CA oil. Furthermore, the ME retained the radical scavenging activity after 6 cycles of heating-cooling stability test, but the antioxidant activity decreased during a storage time. It concluded that the ME of CA was suitable for topical use as carrier system in cosmetic formulations.
