# Rediscovering Majority Logic in the Post-CMOS Era: A Perspective from In-Memory Computing

## Abstract

**:**

## 1. Introduction

## 2. Memristive Logic

## 3. In-Memory Majority Logic

#### 3.1. V–R Majority Logic

#### 3.2. R–V Majority Logic

## 4. In-Memory One-Bit Full Adders Using Different Logic Primitives

## 5. In-Memory Eight-Bit Adders Using Different Logic Primitives

## 6. Conclusions

## Funding

## Conflicts of Interest

## References

- Theis, T.N.; Wong, H.P. The End of Moore’s Law: A New Beginning for Information Technology. Comput. Sci. Eng.
**2017**, 19, 41–50. [Google Scholar] [CrossRef] - Bohr, M.T.; Young, I.A. CMOS Scaling Trends and Beyond. IEEE Micro
**2017**, 37, 20–29. [Google Scholar] [CrossRef] - Shalf, J.M.; Leland, R. Computing beyond Moore’s Law. Computer
**2015**, 48, 14–23. [Google Scholar] [CrossRef] - Nikonov, D.E.; Young, I.A. Benchmarking of Beyond-CMOS Exploratory Devices for Logic Integrated Circuits. IEEE J. Explor. Solid State Comput. Devices Circuits
**2015**, 1, 3–11. [Google Scholar] [CrossRef] - Testa, E.; Soeken, M.; Amar, L.G.; De Micheli, G. Logic Synthesis for Established and Emerging Computing. Proc. IEEE
**2019**, 107, 165–184. [Google Scholar] [CrossRef] - Young, I.A.; Nikonov, D.E. Principles and trends in quantum nano-electronics and nano-magnetics for beyond-CMOS computing. In Proceedings of the 2017 47th European Solid-State Device Research Conference (ESSDERC), Leuven, Belgium, 11–14 September 2017; pp. 1–5. [Google Scholar]
- Ciubotaru, F.; Talmelli, G.; Devolder, T.; Zografos, O.; Heyns, M.; Adelmann, C.; Radu, I.P. First experimental demonstration of a scalable linear majority gate based on spin waves. In Proceedings of the 2018 IEEE International Electron Devices Meeting (IEDM), San Francisco, CA, USA, 1–5 December 2018; pp. 36.1.1–36.1.4. [Google Scholar] [CrossRef]
- Imre, A.; Csaba, G.; Ji, L.; Orlov, A.; Bernstein, G.H.; Porod, W. Majority Logic Gate for Magnetic Quantum-Dot Cellular Automata. Science
**2006**, 311, 205–208. [Google Scholar] [CrossRef] [PubMed] - Breitkreutz, S.; Kiermaier, J.; Eichwald, I.; Ju, X.; Csaba, G.; Schmitt-Landsiedel, D.; Becherer, M. Majority Gate for Nanomagnetic Logic With Perpendicular Magnetic Anisotropy. IEEE Trans. Magn.
**2012**, 48, 4336–4339. [Google Scholar] [CrossRef] - Oya, T.; Asai, T.; Fukui, T.; Amemiya, Y. A Majority-Logic Nanodevice Using a Balanced Pair of Single-Electron Boxes. J. Nanosci. Nanotechnol.
**2002**, 2, 333–342. [Google Scholar] [CrossRef] - Amarú, L.; Gaillardon, P.; De Micheli, G. Majority-based synthesis for nanotechnologies. In Proceedings of the 2016 21st Asia and South Pacific Design Automation Conference (ASP-DAC), Macau, China, 25–28 January 2016; pp. 499–502. [Google Scholar] [CrossRef] [Green Version]
- Amarú, L.; Gaillardon, P.E.; Micheli, G.D. Majority-Inverter Graph: A New Paradigm for Logic Optimization. IEEE Trans. Comput. Aided Des. Integr. Circuits Syst.
**2016**, 35, 806–819. [Google Scholar] [CrossRef] [Green Version] - Jaberipur, G.; Parhami, B.; Abedi, D. Adapting Computer Arithmetic Structures to Sustainable Supercomputing in Low-Power, Majority-Logic Nanotechnologies. IEEE Trans. Sustain. Comput.
**2018**, 3, 262–273. [Google Scholar] [CrossRef] - Pudi, V.; Sridharan, K.; Lombardi, F. Majority Logic Formulations for Parallel Adder Designs at Reduced Delay and Circuit Complexity. IEEE Trans. Comput.
**2017**, 66, 1824–1830. [Google Scholar] [CrossRef] - Amarú, L.; Gaillardon, P.; Mitra, S.; De Micheli, G. New Logic Synthesis as Nanotechnology Enabler. Proc. IEEE
**2015**, 103, 2168–2195. [Google Scholar] [CrossRef] - Parhami, B.; Abedi, D.; Jaberipur, G. Majority-Logic, its applications, and atomic-scale embodiments. Comput. Electr. Eng.
**2020**, 83, 106562. [Google Scholar] [CrossRef] - Reuben, J.; Ben-Hur, R.; Wald, N.; Talati, N.; Ali, A.; Gaillardon, P.E.; Kvatinsky, S. Memristive Logic: A Framework for Evaluation and Comparison. In Proceedings of the Power And Timing Modeling, Optimization and Simulation (PATMOS), Thessaloniki, Greece, 25–27 September 2017; pp. 1–8. [Google Scholar]
- Reuben, J.; Talati, N.; Wald, N.; Ben-Hur, R.; Ali, A.H.; Gaillardon, P.E.; Kvatinsky, S. A Taxonomy and Evaluation Framework for Memristive Logic. In Handbook of Memristor Networks; Chua, L., Sirakoulis, G.C., Adamatzky, A., Eds.; Springer International Publishing: Cham, Switzerland, 2019; pp. 1065–1099. [Google Scholar] [CrossRef]
- Simmons, J.G.; Verderber, R.R. New conduction and reversible memory phenomena in thin insulating films. Proc. R. Soc. Lond. Ser. A Math. Phys. Sci.
**1967**, 301, 77–102. [Google Scholar] [CrossRef] - Borghetti, J.; Snider, G.S.; Kuekes, P.J.; Yang, J.J.; Stewart, D.R.; Williams, R.S. ‘Memristive’ switches enable ‘stateful’ logic operations via material implication. Nature
**2010**, 464, 873–876. [Google Scholar] [CrossRef] - Zhou, F.; Guckert, L.; Chang, Y.F.; Swartzlander, E.E.; Lee, J. Bidirectional voltage biased implication operations using SiOx based unipolar memristors. Appl. Phys. Lett.
**2015**, 107, 183501. [Google Scholar] [CrossRef] - Talati, N.; Ben-Hur, R.; Wald, N.; Haj-Ali, A.; Reuben, J.; Kvatinsky, S. mMPU—A Real Processing-in-Memory Architecture to Combat the von Neumann Bottleneck. In Applications of Emerging Memory Technology: Beyond Storage; Suri, M., Ed.; Springer: Singapore, 2020; pp. 191–213. [Google Scholar] [CrossRef]
- Rahimi Azghadi, M.; Chen, Y.C.; Eshraghian, J.K.; Chen, J.; Lin, C.Y.; Amirsoleimani, A.; Mehonic, A.; Kenyon, A.J.; Fowler, B.; Lee, J.C.; et al. Complementary Metal-Oxide Semiconductor and Memristive Hardware for Neuromorphic Computing. Adv. Intell. Syst.
**2020**, 2, 1900189. [Google Scholar] [CrossRef] [Green Version] - Chang, K.C.; Chang, T.C.; Tsai, T.M.; Zhang, R.; Hung, Y.C.; Syu, Y.E.; Chang, Y.F.; Chen, M.C.; Chu, T.J.; Chen, H.L.; et al. Physical and chemical mechanisms in oxide-based resistance random access memory. Nanoscale Res. Lett.
**2015**, 10. [Google Scholar] [CrossRef] [Green Version] - Reuben, J.; Fey, D.; Wenger, C. A Modeling Methodology for Resistive RAM Based on Stanford-PKU Model With Extended Multilevel Capability. IEEE Trans. Nanotechnol.
**2019**, 18, 647–656. [Google Scholar] [CrossRef] [Green Version] - Golonzka, O.; Arslan, U.; Bai, P.; Bohr, M.; Baykan, O.; Chang, Y.; Chaudhari, A.; Chen, A.; Clarke, J.; Connor, C.; et al. Non-Volatile RRAM Embedded into 22FFL FinFET Technology. In Proceedings of the 2019 Symposium on VLSI Technology, Kyoto, Japan, 9–14 June 2019; pp. T230–T231. [Google Scholar] [CrossRef]
- Hsieh, C.C.; Chang, Y.F.; Chen, Y.C.; Shahrjerdi, D.; Banerjee, S.K. Highly Non-linear and Reliable Amorphous Silicon Based Back-to-Back Schottky Diode as Selector Device for Large Scale RRAM Arrays. ECS J. Solid State Sci. Technol.
**2017**, 6, N143–N147. [Google Scholar] [CrossRef] [Green Version] - Lin, C.Y.; Chen, P.H.; Chang, T.C.; Chang, K.C.; Zhang, S.D.; Tsai, T.M.; Pan, C.H.; Chen, M.C.; Su, Y.T.; Tseng, Y.T.; et al. Attaining resistive switching characteristics and selector properties by varying forming polarities in a single HfO
_{2}-based RRAM device with a vanadium electrode. Nanoscale**2017**, 9, 8586–8590. [Google Scholar] [CrossRef] [PubMed] - Kim, S.; Lin, C.Y.; Kim, M.H.; Kim, T.H.; Kim, H.; Chen, Y.C.; Chang, Y.F.; Park, B.G. Dual Functions of V/SiOx/AlOy/p++Si Device as Selector and Memory. Nanoscale Res. Lett.
**2018**, 13. [Google Scholar] [CrossRef] - Chen, C.; Lin, C.; Chen, P.; Chang, T.; Shih, C.; Tseng, Y.; Zheng, H.; Chen, Y.; Chang, Y.; Lin, C.; et al. The Demonstration of Increased Selectivity During Experimental Measurement in Filament-Type Vanadium Oxide-Based Selector. IEEE Trans. Electr. Devices
**2018**, 65, 4622–4627. [Google Scholar] [CrossRef] - Ben-Hur, R.; Ronen, R.; Haj-Ali, A.; Bhattacharjee, D.; Eliahu, A.; Peled, N.; Kvatinsky, S. SIMPLER MAGIC: Synthesis and Mapping of In-Memory Logic Executed in a Single Row to Improve Throughput. IEEE Trans. Comput. Aided Des. Integr. Circuits Syst.
**2019**. [Google Scholar] [CrossRef] - Adam, G.C.; Hoskins, B.D.; Prezioso, M.; Strukov, D.B. Optimized stateful material implication logic for three- dimensional data manipulation. Nano Res.
**2016**, 9, 3914–3923. [Google Scholar] [CrossRef] - Kumar, A.P.; Aditya, B.; Sony, G.; Prasanna, C.; Satish, A. Estimation of power and delay in CMOS circuits using LCT. Indones. J. Electr. Eng. Comput. Sci.
**2019**, 14, 990–998. [Google Scholar] - Rumi, Z.; Walus, K.; Wei, W.; Jullien, G.A. A method of majority logic reduction for quantum cellular automata. IEEE Trans. Nanotechnol.
**2004**, 3, 443–450. [Google Scholar] [CrossRef] - Kvatinsky, S.; Satat, G.; Wald, N.; Friedman, E.G.; Kolodny, A.; Weiser, U.C. Memristor-Based Material Implication (IMPLY) Logic: Design Principles and Methodologies. IEEE Trans. Very Larg. Scale Integr. (VLSI) Syst.
**2014**, 22, 2054–2066. [Google Scholar] [CrossRef] - Lehtonen, E.; Poikonen, J.H.; Laiho, M. Memristive Stateful Logic. In Handbook of Memristor Networks; Chua, L., Sirakoulis, G.C., Adamatzky, A., Eds.; Springer International Publishing: Cham, Switzerland, 2019; pp. 1101–1121. [Google Scholar] [CrossRef]
- Shen, W.; Huang, P.; Fan, M.; Han, R.; Zhou, Z.; Gao, B.; Wu, H.; Qian, H.; Liu, L.; Liu, X.; et al. Stateful Logic Operations in One-Transistor-One- Resistor Resistive Random Access Memory Array. IEEE Electr. Device Lett.
**2019**, 40, 1538–1541. [Google Scholar] [CrossRef] - Ielmini, D.; Wong, H.S.P. In-memory computing with resistive switching devices. Nat. Electr.
**2018**, 1, 333–343. [Google Scholar] [CrossRef] - Gupta, S.; Imani, M.; Rosing, T. FELIX: Fast and Energy-efficient Logic in Memory. In Proceedings of the International Conference on Computer-Aided Design (ICCAD ’18), San Diego, CA, USA, 5–8 November 2018; pp. 55:1–55:7. [Google Scholar] [CrossRef]
- Reuben, J.; Fey, D. A Time-based Sensing Scheme for Multi-level Cell (MLC) Resistive RAM. In Proceedings of the 2019 IEEE Nordic Circuits and Systems Conference (NORCAS): NORCHIP and International Symposium of System-on-Chip (SoC), Helsinki, Finland, 29–30 October 2019; pp. 1–6. [Google Scholar] [CrossRef] [Green Version]
- Reuben, J.; Biglari, M.; Fey, D. Incorporating Variability of Resistive RAM in Circuit Simulations Using the Stanford–PKU Model. IEEE Trans. Nanotechnol.
**2020**, 19, 508–518. [Google Scholar] [CrossRef] - Gaillardon, P.; Amaru, L.; Siemon, A.; Linn, E.; Waser, R.; Chattopadhyay, A.; De Micheli, G. The Programmable Logic-in-Memory (PLiM) computer. In Proceedings of the 2016 Design, Automation Test in Europe Conference Exhibition (DATE), Dresden, Germany, 14–18 March 2016; pp. 427–432. [Google Scholar]
- Shirinzadeh, S.; Soeken, M.; Gaillardon, P.; Drechsler, R. Logic Synthesis for RRAM-Based In-Memory Computing. IEEE Trans. Comput. Aided Des. Integr. Circuits Syst.
**2018**, 37, 1422–1435. [Google Scholar] [CrossRef] - Bhattacharjee, D.; Easwaran, A.; Chattopadhyay, A. Area-constrained technology mapping for in-memory computing using ReRAM devices. In Proceedings of the 2017 22nd Asia and South Pacific Design Automation Conference (ASP-DAC), Chiba, Japan, 16–19 January 2017; pp. 69–74. [Google Scholar] [CrossRef]
- Reuben, J. Binary Addition in Resistance Switching Memory Array by Sensing Majority. Micromachines
**2020**, 11, 496. [Google Scholar] [CrossRef] - Reuben, J.; Pechmann, S. A Parallel-friendly Majority Gate to Accelerate In-memory Computation. In Proceedings of the 2020 IEEE 31st International Conference on Application-Specific Systems, Architectures and Processors (ASAP), Manchester, UK, 6–8 July 2020; pp. 93–100. [Google Scholar]
- Fey, D.; Reuben, J. Direct state transfer in MLC based memristive ReRAM devices for ternary computing. In Proceedings of the 2020 European Conference on Circuit Theory and Design (ECCTD), Sofia, Bulgaria, 7–10 September 2020; pp. 1–5. [Google Scholar]
- Hur, R.B.; Wald, N.; Talati, N.; Kvatinsky, S. SIMPLE MAGIC: Synthesis and In-memory Mapping of Logic Execution for Memristor-aided Logic. In Proceedings of the 36th International Conference on Computer-Aided Design (ICCAD ’17), Irvine, CA, USA, 13–16 November 2017; pp. 225–232. [Google Scholar]
- Huang, P.; Kang, J.; Zhao, Y.; Chen, S.; Han, R.; Zhou, Z.; Chen, Z.; Ma, W.; Li, M.; Liu, L.; et al. Reconfigurable Nonvolatile Logic Operations in Resistance Switching Crossbar Array for Large-Scale Circuits. Adv. Mater.
**2016**, 28, 9758–9764. [Google Scholar] [CrossRef] [PubMed] - Chang, Y.; Zhou, F.; Fowler, B.W.; Chen, Y.; Hsieh, C.; Guckert, L.; Swartzlander, E.E.; Lee, J.C. Memcomputing (Memristor + Computing) in Intrinsic SiOx-Based Resistive Switching Memory: Arithmetic Operations for Logic Applications. IEEE Trans. Electr. Devices
**2017**, 64, 2977–2983. [Google Scholar] [CrossRef] - Cheng, L.; Zhang, M.Y.; Li, Y.; Zhou, Y.X.; Wang, Z.R.; Hu, S.Y.; Long, S.B.; Liu, M.; Miao, X.S. Reprogrammable logic in memristive crossbar for in-memory computing. J. Phys. D Appl. Phys.
**2017**, 50, 505102. [Google Scholar] [CrossRef] - Teimoory, M.; Amirsoleimani, A.; Shamsi, J.; Ahmadi, A.; Alirezaee, S.; Ahmadi, M. Optimized implementation of memristor-based full adder by material implication logic. In Proceedings of the 2014 21st IEEE International Conference on Electronics, Circuits and Systems (ICECS), Marseille, France, 7–10 December 2014; pp. 562–565. [Google Scholar]
- Rohani, S.G.; Taherinejad, N.; Radakovits, D. A Semiparallel Full-Adder in IMPLY Logic. IEEE Trans. Very Larg. Scale Integr. (VLSI) Syst.
**2019**, 28, 297–301. [Google Scholar] [CrossRef] - Kim, K.M.; Williams, R.S. A Family of Stateful Memristor Gates for Complete Cascading Logic. IEEE Trans. Circuits Syst. I Regul. Pap.
**2019**, 66, 4348–4355. [Google Scholar] [CrossRef] - Siemon, A.; Drabinski, R.; Schultis, M.J.; Hu, X.; Linn, E.; Heittmann, A.; Waser, R.; Querlioz, D.; Menzel, S.; Friedman, J.S. Stateful Three-Input Logic with Memristive Switches. Sci. Rep.
**2019**, 9, 14618. [Google Scholar] [CrossRef] [Green Version] - Xu, L.; Yuan, R.; Zhu, Z.; Liu, K.; Jing, Z.; Cai, Y.; Wang, Y.; Yang, Y.; Huang, R. Memristor-Based Efficient In-Memory Logic for Cryptologic and Arithmetic Applications. Adv. Mater. Technol.
**2019**, 4, 1900212. [Google Scholar] [CrossRef] - Siemon, A.; Menzel, S.; Bhattacharjee, D.; Waser, R.; Chattopadhyay, A.; Linn, E. Sklansky tree adder realization in 1S1R resistive switching memory architecture. Eur. Phys. J. Spec. Top.
**2019**, 228, 2269–2285. [Google Scholar] [CrossRef] - Revanna, N.; Swartzlander, E.E. Memristor based adder circuit design. In Proceedings of the 2016 50th Asilomar Conference on Signals, Systems and Computers, Pacific Grove, CA, USA, 6–9 November 2016; pp. 162–166. [Google Scholar]
- Wang, Z.; Li, Y.; Su, Y.; Zhou, Y.; Cheng, L.; Chang, T.; Xue, K.; Sze, S.M.; Miao, X. Efficient Implementation of Boolean and Full-Adder Functions with 1T1R RRAMs for Beyond Von Neumann In-Memory Computing. IEEE Trans. Electr. Devices
**2018**, 65, 4659–4666. [Google Scholar] [CrossRef] - Cheng, L.; Li, Y.; Yin, K.S.; Hu, S.Y.; Su, Y.T.; Jin, M.M.; Wang, Z.R.; Chang, T.C.; Miao, X.S. Functional Demonstration of a Memristive Arithmetic Logic Unit (MemALU) for In-Memory Computing. Adv. Funct. Mater.
**2019**, 29, 1905660. [Google Scholar] [CrossRef] - Kim, Y.S.; Son, M.W.; Song, H.; Park, J.; An, J.; Jeon, J.B.; Kim, G.Y.; Son, S.; Kim, K.M. Stateful In-Memory Logic System and Its Practical Implementation in a TaOx-Based Bipolar-Type Memristive Crossbar Array. Adv. Intell. Syst.
**2020**, 2, 1900156. [Google Scholar] [CrossRef] [Green Version] - Xiao, T.P.; Bennett, C.H.; Hu, X.; Feinberg, B.; Jacobs-Gedrim, R.; Agarwal, S.; Brunhaver, J.S.; Friedman, J.S.; Incorvia, J.A.C.; Marinella, M.J. Energy and Performance Benchmarking of a Domain Wall-Magnetic Tunnel Junction Multibit Adder. IEEE J. Explor. Solid State Comput. Devices Circuits
**2019**, 5, 188–196. [Google Scholar] [CrossRef]

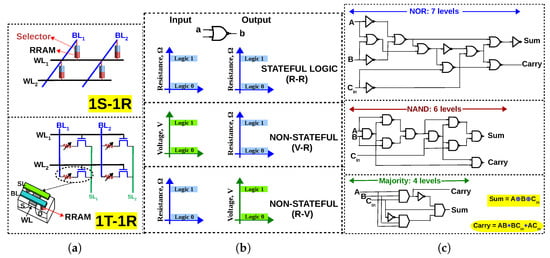

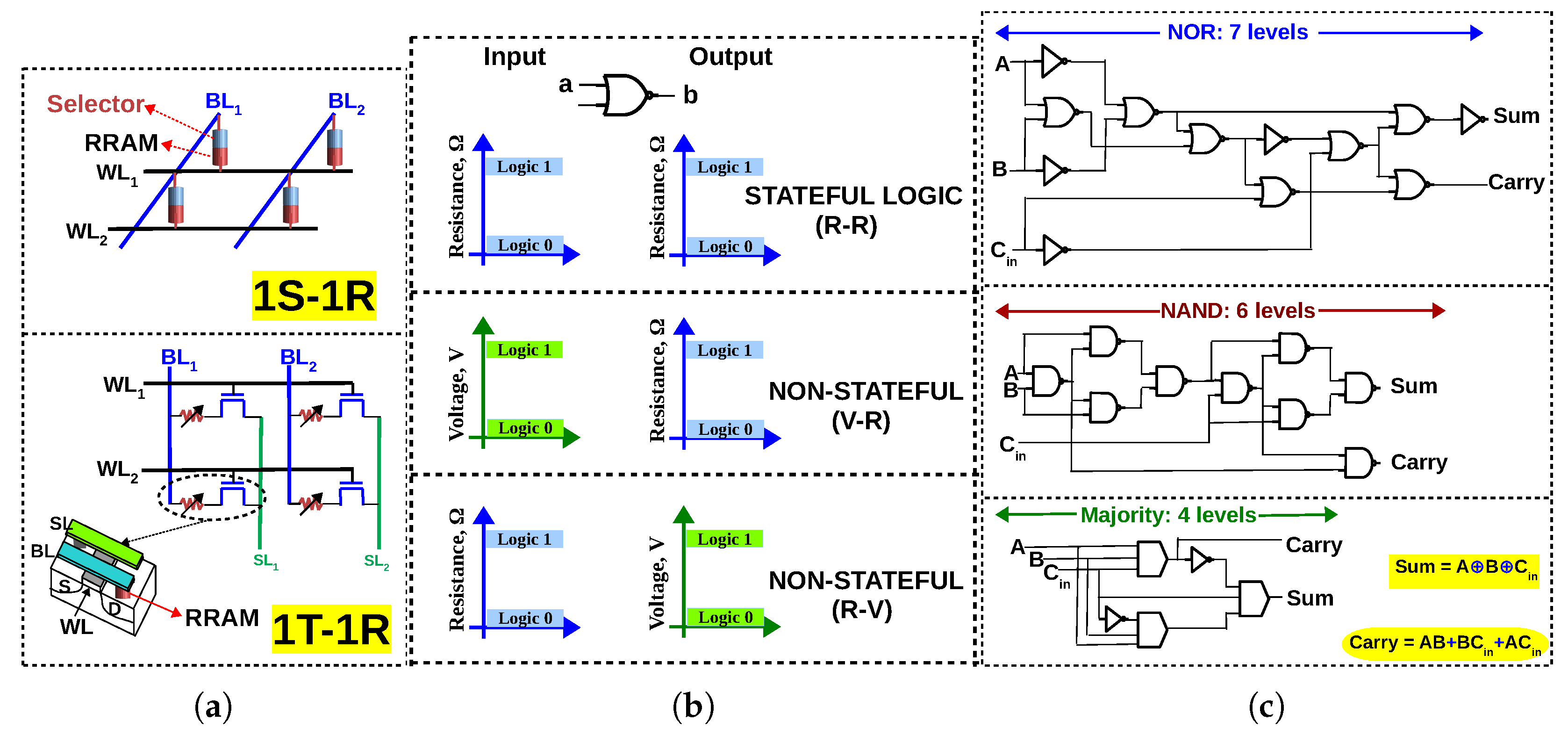

**Figure 1.**(

**a**) 1S–1R and 1T–1R configuration of memristive memory array (

**b**) If resistance is the only state variable, a memristive logic is said to be stateful. If voltage is also used in addition to resistance, it is said to be non-stateful (

**c**) 1-bit full adder in terms of NOR gates [31], NAND gates [32,33] and majority gates [34]; Majority logic achieves less logical depth than NAND/NOR for 1-bit full adder.

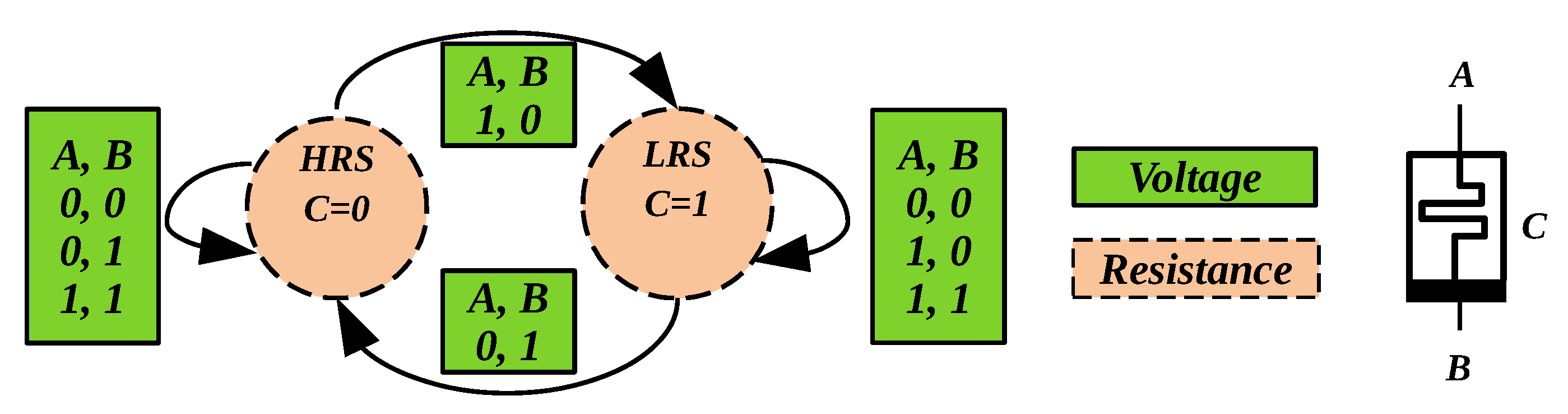

**Figure 2.**Illustration of V–R majority logic. Arrow indicates the state transition, which depends on the initial state of the RRAM cell C and the voltage applied across its terminals ($A,B$); dotted lines indicate the state variable of C, which is resistance, while A and B are voltages [18].

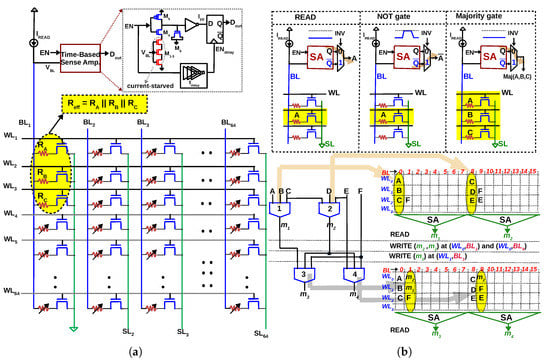

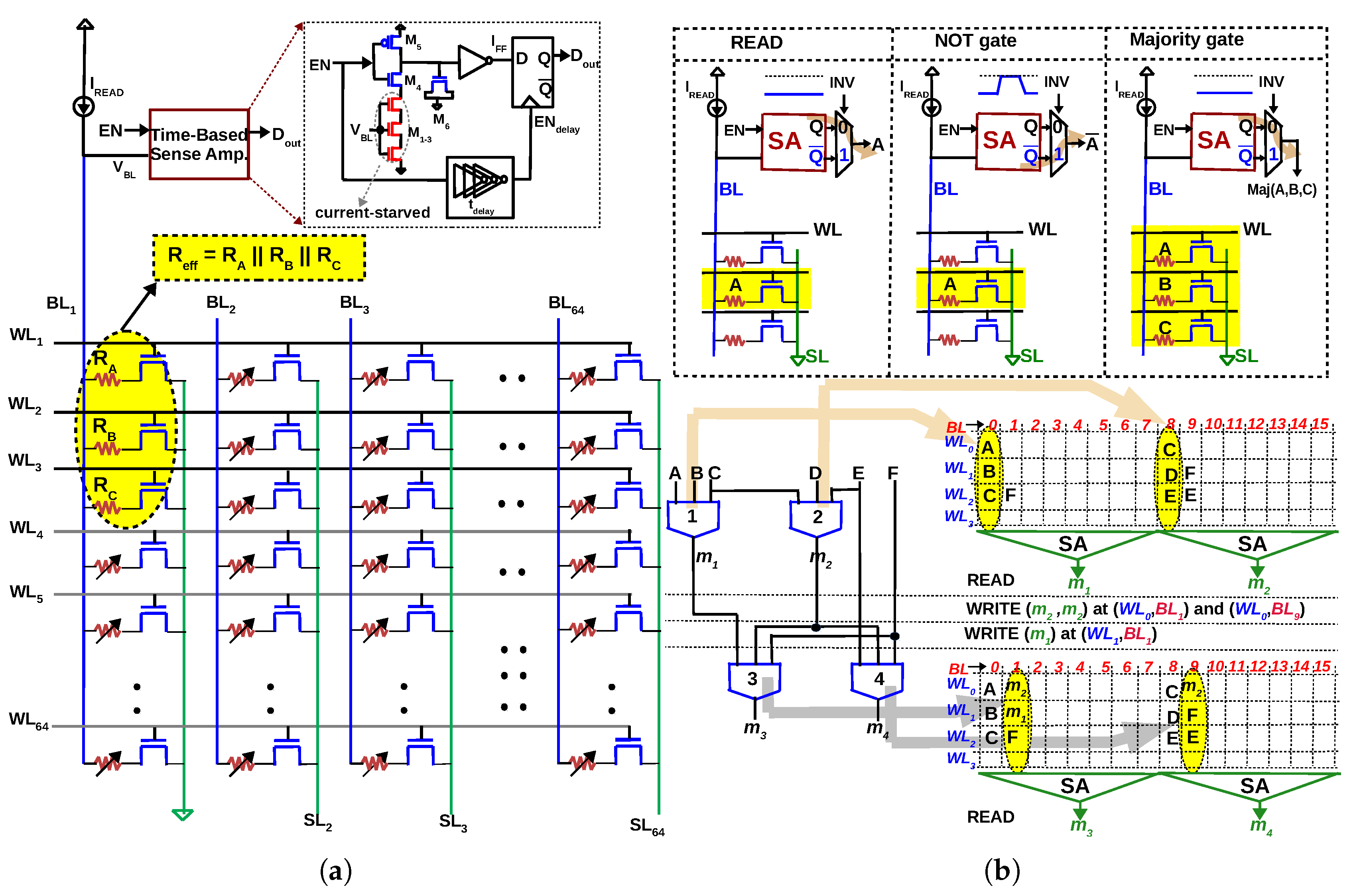

**Figure 3.**(

**a**) In-memory majority gate proposed in [45,46]: When three rows are activated ($W{L}_{1-3}$) simultaneously in a 1T-1R array, the three resistances ${R}_{A},{R}_{B},{R}_{C}$ will be in parallel (Inputs of the majority gate $A,B,C$ are represented as resistances ${R}_{A},{R}_{B},{R}_{C}$). An ‘in-memory’ majority gate can be implemented by accurately sensing the effective resistance ${R}_{eff}$ during READ. (

**b**) NOT operation implemented with a 2:1 multiplexer at the output of the SA. With majority and NOT gate implemented as READ, multiple levels of logic can be executed by writing the data back to the array, simplifying computing to READ and WRITE operations in memory. Multiple majority gates can be executed in parallel in the memory array, thereby reducing latency of in-memory computation.

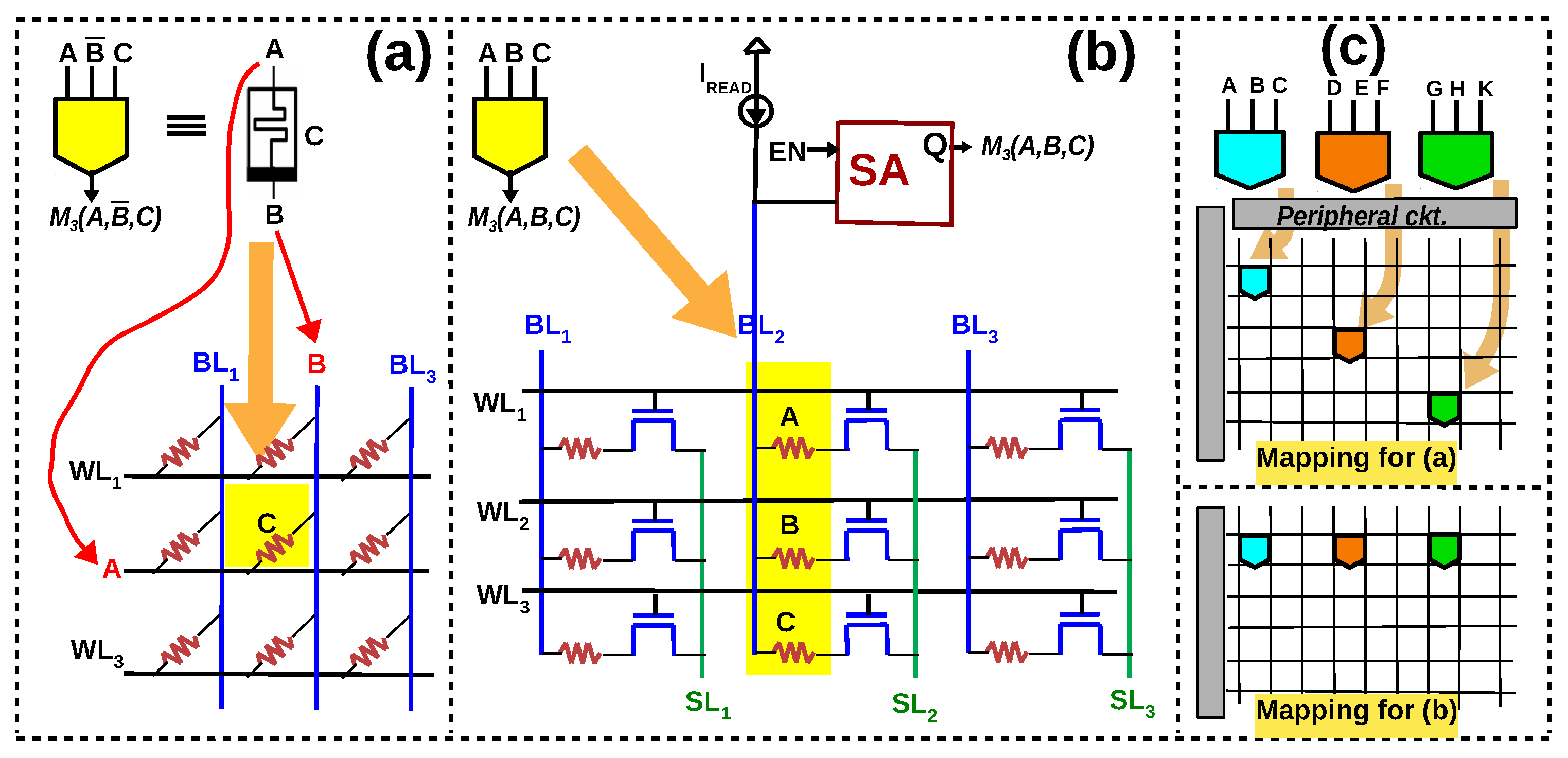

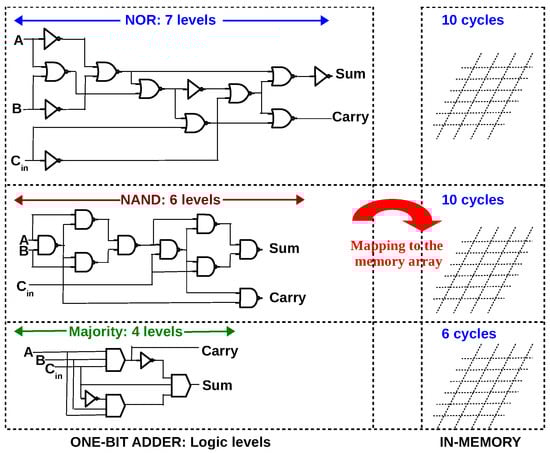

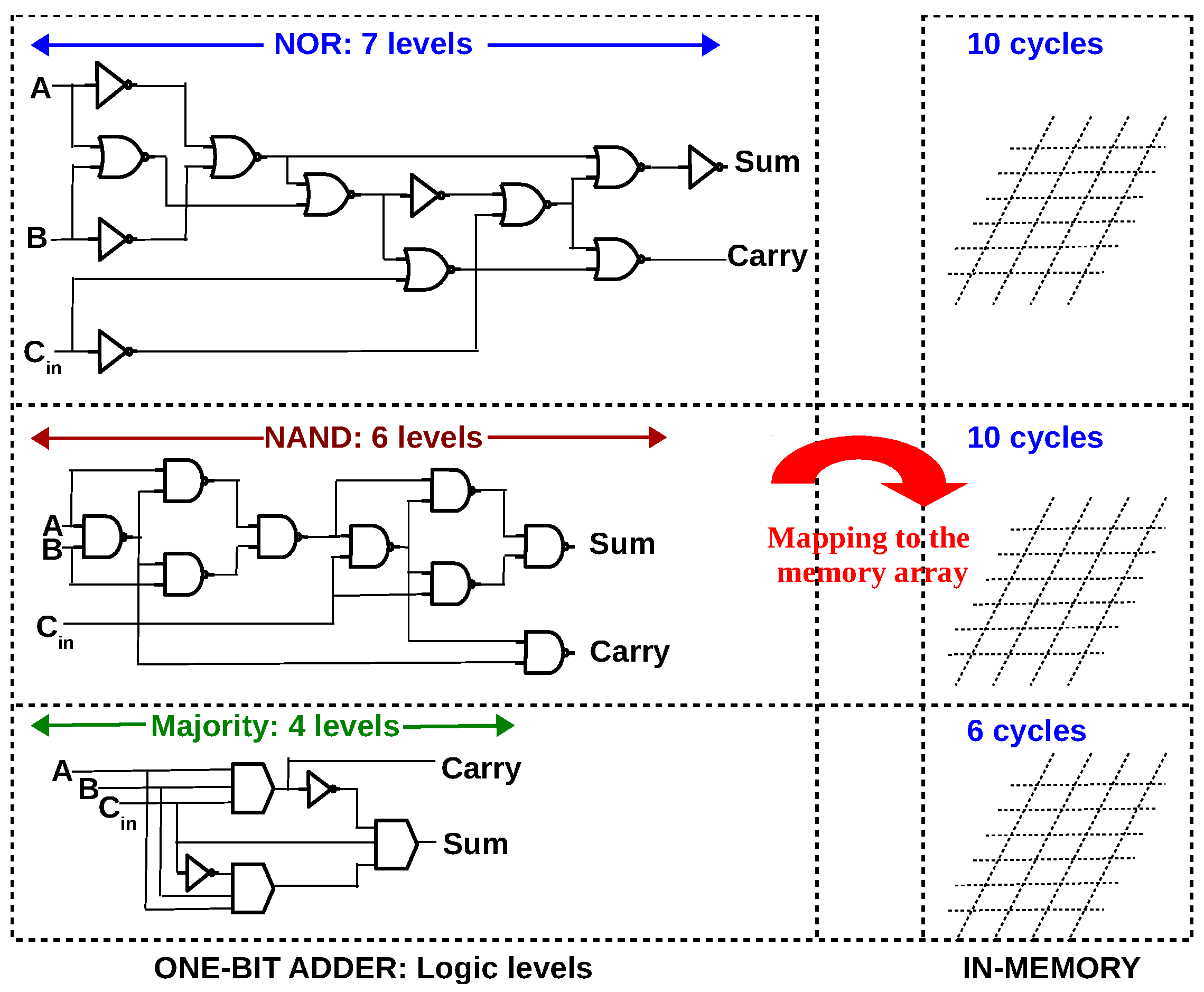

**Figure 5.**n levels of Boolean logic will require $n+x$ cycles in-memory, where x depends on the memristive logic family. It must be noted that the number of cycles required (10 cycles for NOR, NAND and 6 cycles for MAJORITY) is already optimized by executing multiple gates in parallel (see the mapping for NOR [31], NAND [49] and MAJORITY [45]).

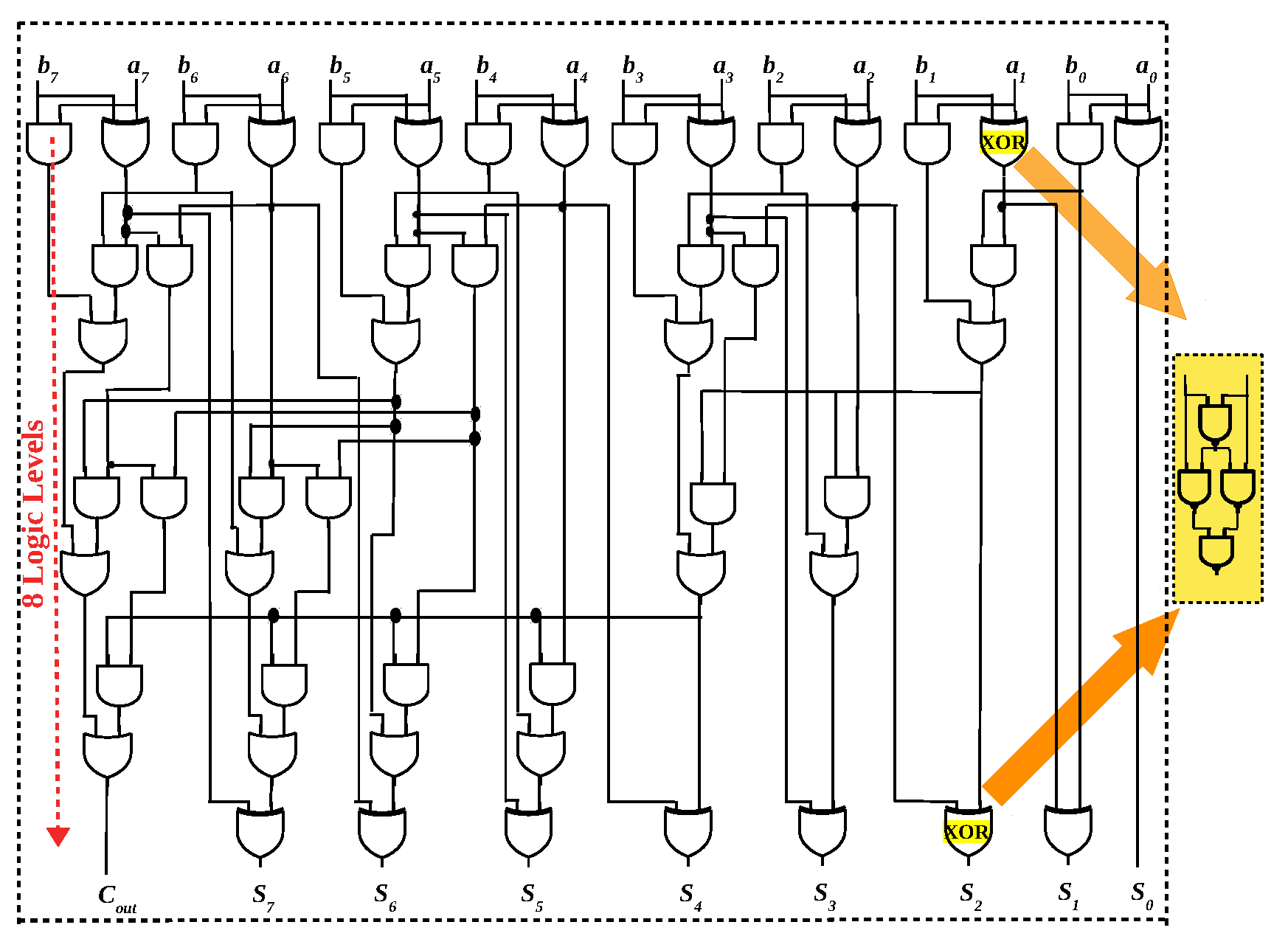

**Figure 6.**An eight-bit parallel-prefix adder (Ladner-Fischer) has 8 logic levels of AND, OR and XOR gates. If the logic family cannot execute XOR gate, it must be expressed as NAND gates, increasing the logic levels to 12.

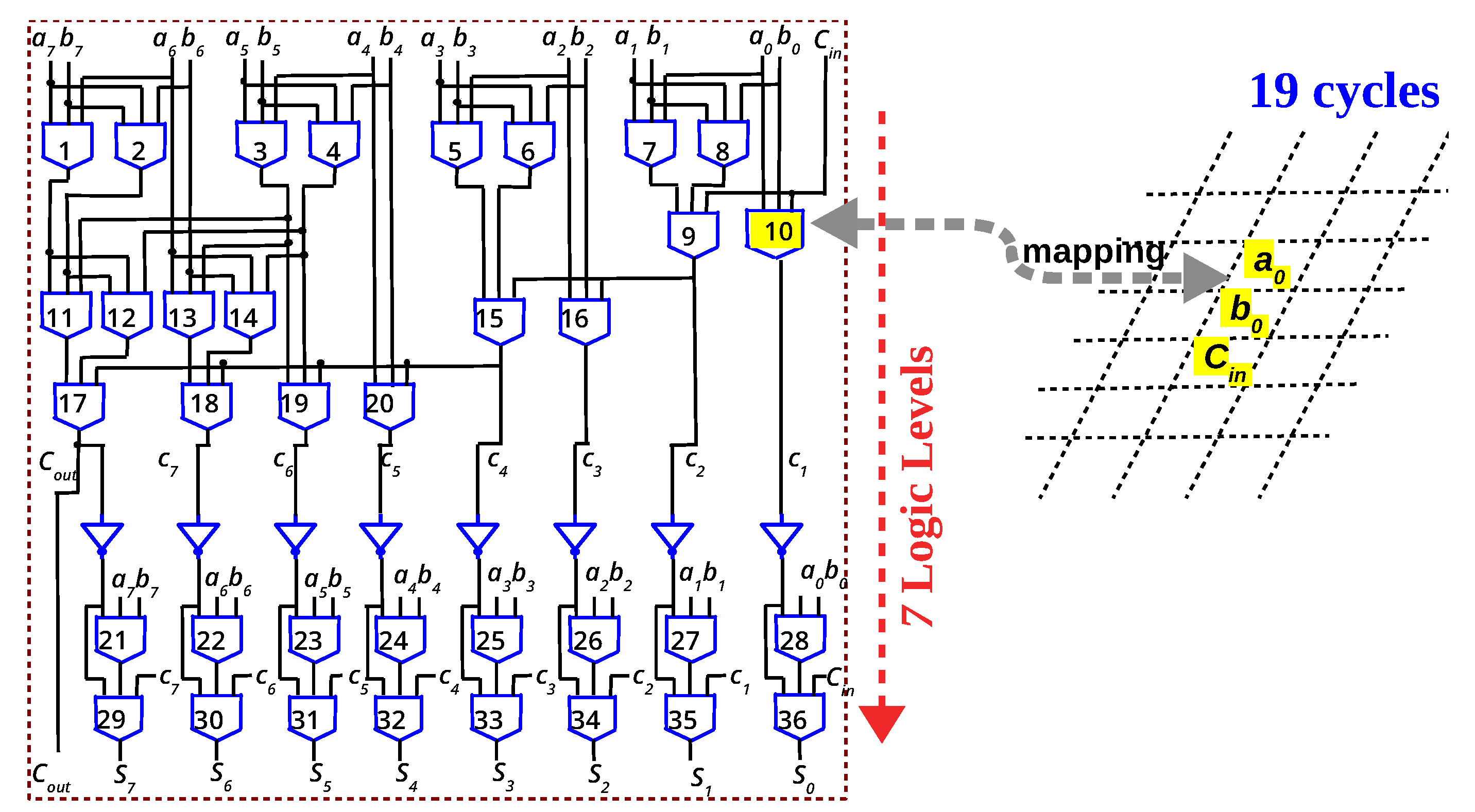

**Figure 7.**Eight-bit parallel-prefix adder (Ladner-Fischer) expressed as 7 levels of Majority+NOT gates. By executing multiple gates in parallel, the adder can be implemented in memory in 19 cycles, as elaborated in [46].

A | B | C | ${\mathit{M}}_{3}(\mathit{A},\mathit{B},\mathit{C})$ | $\overline{\mathit{B}}$ | ${\mathit{M}}_{3}(\mathit{A},\overline{\mathit{B}},\mathit{C})$ | ${\mathit{RM}}_{3}(\mathit{A},\mathit{B},\mathit{C})$ |
---|---|---|---|---|---|---|

0 | 0 | 0 | 0 | 1 | 0 | 0 |

0 | 0 | 1 | 0 | 1 | 1 | 1 |

0 | 1 | 0 | 0 | 0 | 0 | 0 |

0 | 1 | 1 | 1 | 0 | 0 | 0 |

1 | 0 | 0 | 0 | 1 | 1 | 1 |

1 | 0 | 1 | 1 | 1 | 1 | 1 |

1 | 1 | 0 | 1 | 0 | 0 | 0 |

1 | 1 | 1 | 1 | 0 | 1 | 1 |

**Table 2.**Precisely sensing ${R}_{eff}$ results in majority: Logic ‘0’ is LRS (10 k$\mathsf{\Omega}$) and logic ‘1’ is HRS (133.3 k$\mathsf{\Omega}$). Sense amplifier distinguishes between rows shaded grey and those that are not.

A | B | C | ${\mathit{M}}_{3}(\mathit{A},\mathit{B},\mathit{C})$ | ${\mathit{R}}_{\mathit{eff}}$ | ${\mathit{R}}_{\mathit{eff}}$ |
---|---|---|---|---|---|

0 | 0 | 0 | 0 | $\frac{LRS}{3}$ | 3.3 k$\mathsf{\Omega}$ |

0 | 0 | 1 | 0 | $\frac{HRS\xb7LRS}{LRS+2\xb7HRS}$ | 4.8 k$\mathsf{\Omega}$ |

0 | 1 | 0 | 0 | $\frac{HRS\xb7LRS}{LRS+2\xb7HRS}$ | 4.8 k$\mathsf{\Omega}$ |

0 | 1 | 1 | 1 | $\frac{HRS\xb7LRS}{HRS+2\xb7LRS}$ | 8.7 k$\mathsf{\Omega}$ |

1 | 0 | 0 | 0 | $\frac{HRS\xb7LRS}{LRS+2\xb7HRS}$ | 4.8 k$\mathsf{\Omega}$ |

1 | 0 | 1 | 1 | $\frac{HRS\xb7LRS}{HRS+2\xb7LRS}$ | 8.7 k$\mathsf{\Omega}$ |

1 | 1 | 0 | 1 | $\frac{HRS\xb7LRS}{HRS+2\xb7LRS}$ | 8.7 k$\mathsf{\Omega}$ |

1 | 1 | 1 | 1 | $\frac{HRS}{3}$ | 44.4 k$\mathsf{\Omega}$ |

Primitive | Structure | Latency | Ref |
---|---|---|---|

IMPLY | 1D–1R | 43 steps | [50] |

IMPLY | 1R | 35 steps | [32] |

IMPLY | 1R | 27 steps | [51] |

IMPLY | 1R | 23 steps | [52] |

IMPLY(semi-parallel) | 1T–1R | 17 steps | [53] |

IMPLY | 1T–1R | 13 steps | [54] |

ORNOR | 1T–1R | 17 steps | [55] |

NOR | 1S–1R | 10 steps | [48] |

NAND | 1S–1R | 10 steps | [49] |

XOR+NAND (unipolar memristors) | 1S–1R | 8 steps | [56] |

MAJORITY+NOT | 1T–1R | 6 steps | [45] |

Primitive | Array | Adder Type | Latency | Comment/Ref |
---|---|---|---|---|

IMPLY | 1S-1R | Ripple carry | 58 | Each step is IMPLY operation [35] |

IMPLY+OR | 1S-1R | Ripple Carry | 54 | Each step is IMPLY/OR/NOR operation [60] |

IMPLY | – | Parallel-prefix | 25 | Each step is IMPLY operation [58] |

NOR/NOT | 1T-1R | Look-Ahead | 48 | Each step has one or more NOR/NOT operations [61] |

NOR | 1S-1R | algorithm | 38 | Each step has one or more NOR operations [18] |

OR/AND | 1S-1R | Parallel-prefix | 37 | Each step has one or more OR/AND operation [57] |

ORNOR | 1S-1R | Parallel-clocking | 31 | Each step has one or more ORNOR/IMPLY operation [55] |

MAJORITY+NOT | 1T-1R | Parallel-prefix | 19 | Each step is Majority/NOT or WRITE [46] |

XOR | 1T-1R | Ripple carry | 16 * | Each step is XOR [59] |
