Open AccessArticle
Coatings 2019, 9(2), 120; https://doi.org/10.3390/coatings9020120

Thermoelectric Properties of Thin Films of Germanium-Gold Alloy Obtained by Magnetron Sputtering

Faculty of Microsystem Electronics and Photonics, Wrocław University of Science and Technology, Janiszewskiego 11/17, 50-372 Wrocław, Poland
*
Author to whom correspondence should be addressed.
Received: 3 December 2018 / Revised: 12 February 2019 / Accepted: 13 February 2019 / Published: 15 February 2019
(This article belongs to the Special Issue Novel Thin Film Materials for Thermoelectric Applications)
Full-Text   |   PDF [3032 KB, uploaded 15 February 2019]   |

Abstract

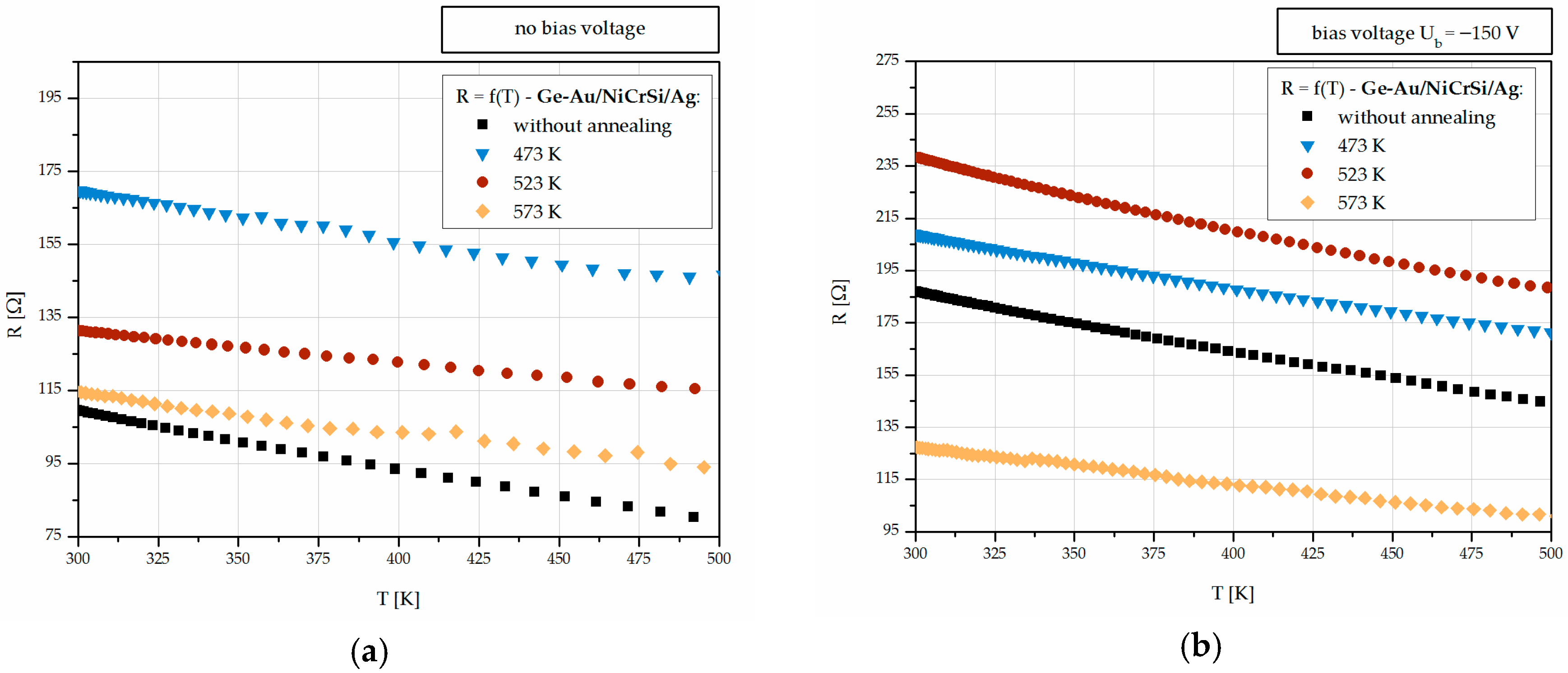

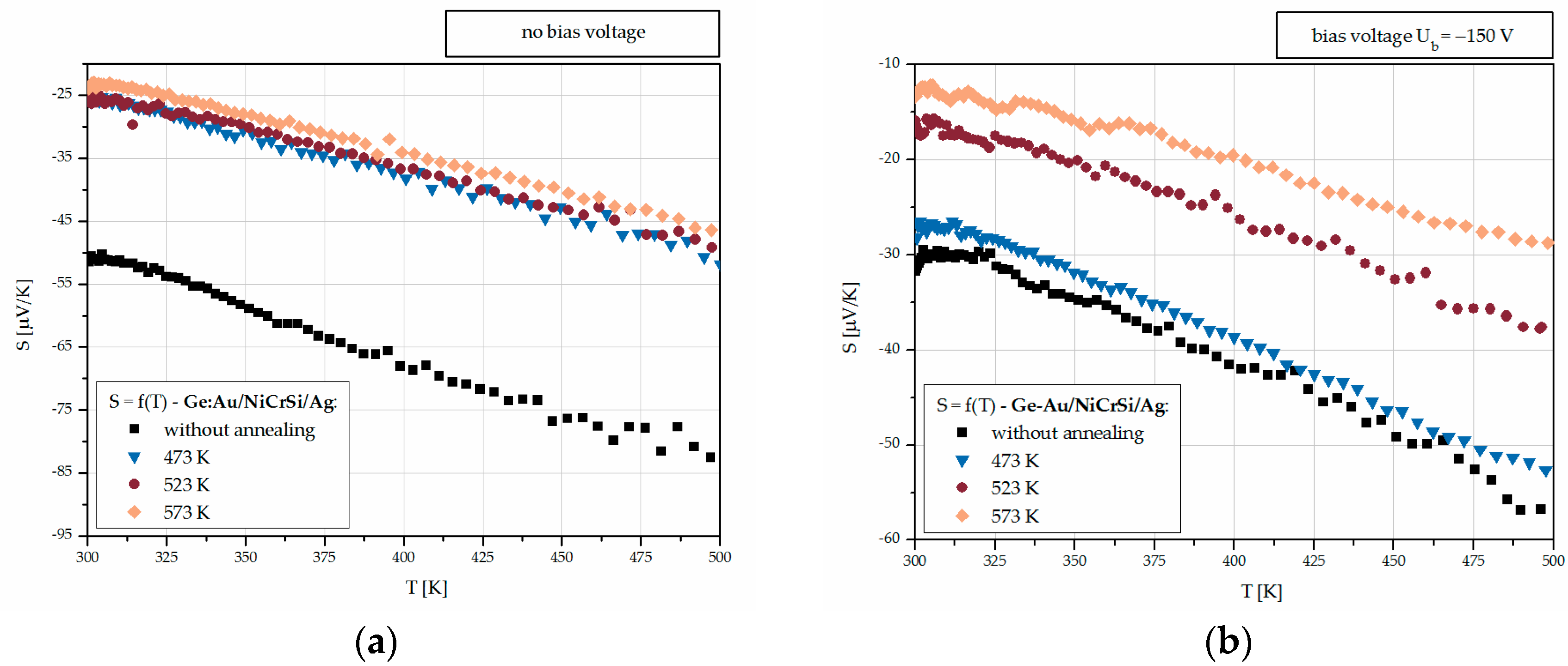

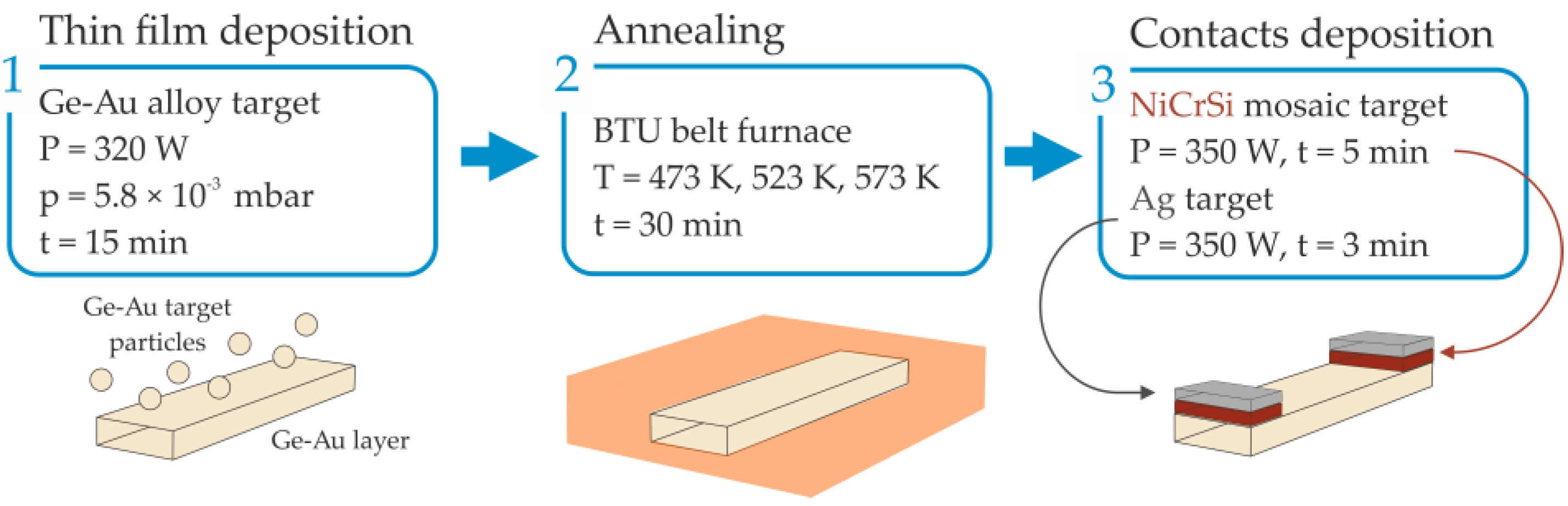

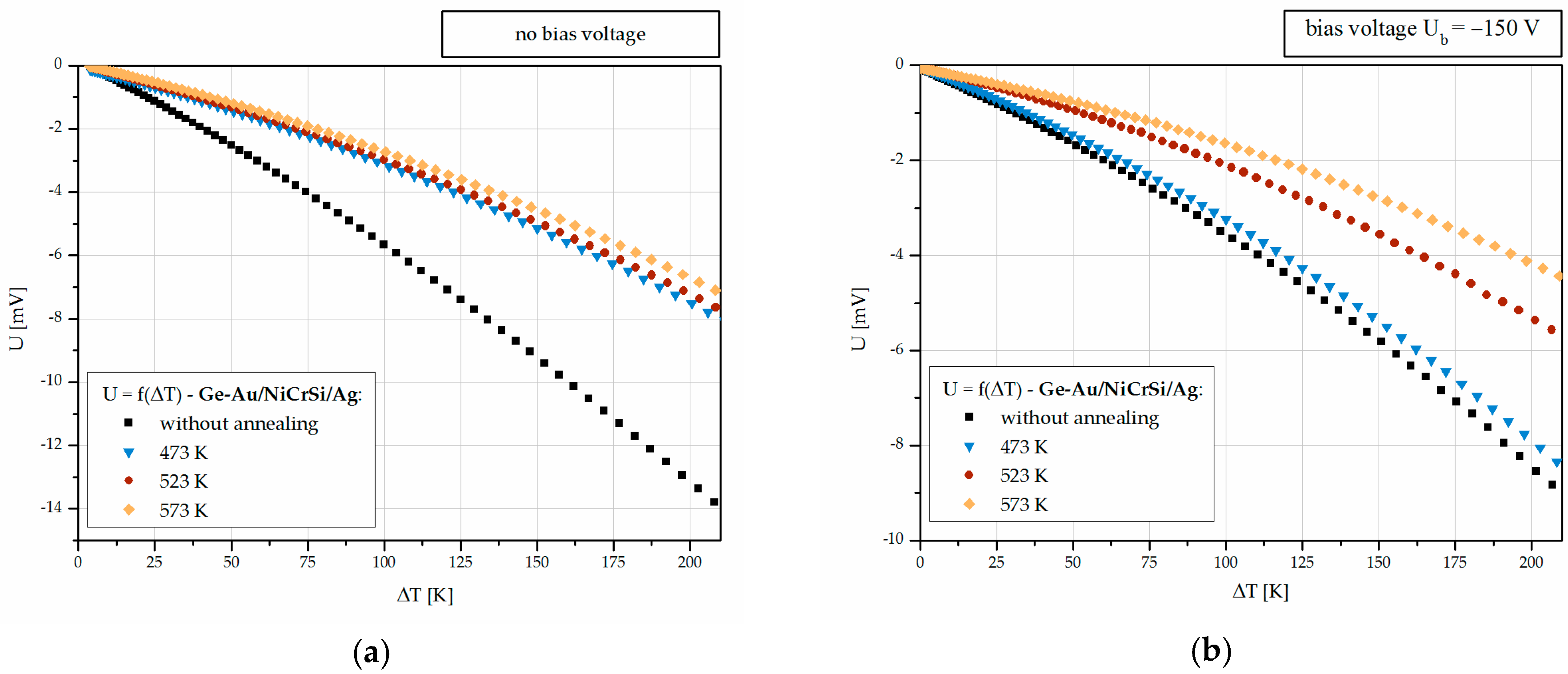

In this paper, the electric and thermoelectric properties of thin films of germanium–gold alloy (Ge–Au) are discussed in terms of choosing the optimal deposition process and post-processing conditions to obtain Ge–Au layers with the best thermoelectric parameters. Thin films were fabricated by magnetron sputtering using the Ge–Au alloy target onto glass substrates at two various conditions; during one of the sputtering processes, the external substrate bias voltage (Ub = −150 V) was used. After deposition thin films were annealed in the atmosphere of N2 at various temperatures (473, 523 and 573 K) to investigate the influence of annealing temperature on the electric and thermoelectric properties of films. Afterwards, the thermocouples were created by deposition of the NiCrSi/Ag contact pads onto Ge–Au films. In this work, particular attention has been paid to thermoelectric properties of fabricated thin films—the thermoelectric voltage, Seebeck coefficient, power factor PF and dimensionless figure of merit ZT were determined. View Full-Text
Keywords: thermoelectric; thin films; magnetron sputtering; waste heat; microgenerators thermoelectric; thin films; magnetron sputtering; waste heat; microgenerators
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Nowak, D.; Turkiewicz, M.; Solnica, N. Thermoelectric Properties of Thin Films of Germanium-Gold Alloy Obtained by Magnetron Sputtering. Coatings 2019, 9, 120.
