Next Article in Journal
Preparation and Characterization of Low Infrared Emissive Aluminum/Waterborne Acrylic Coatings
Previous Article in Journal
Effect of Sodium Phosphate and Calcium Nitrate Sealing Treatment on Microstructure and Corrosion Resistance of Wire Arc Sprayed Aluminum Coatings
Previous Article in Special Issue
Structural and Mechanical Properties of AlCoCrNi High Entropy Nitride Films: Influence of Process Pressure
Open AccessArticle

Influence of N2 Gas Flow Ratio and Working Pressure on Amorphous Mo–Si–N Coating during Magnetron Sputtering

1
Hibrid Materials Center (HMC), Department of Nanotechnology and Advanced Materials Engineering, Sejong University, 209 Neungdong-ro, Gwangjin-gu, Seoul 05006, Korea
2
Division of Advanced Materials Engineering, Kongju National University, Cheonan, Chungnam 330-717, Korea
*
Author to whom correspondence should be addressed.
Coatings 2020, 10(1), 34; https://doi.org/10.3390/coatings10010034
Received: 26 November 2019 / Revised: 20 December 2019 / Accepted: 28 December 2019 / Published: 1 January 2020
(This article belongs to the Special Issue Surface Modification and Functionalization of High-Temperature Alloys)

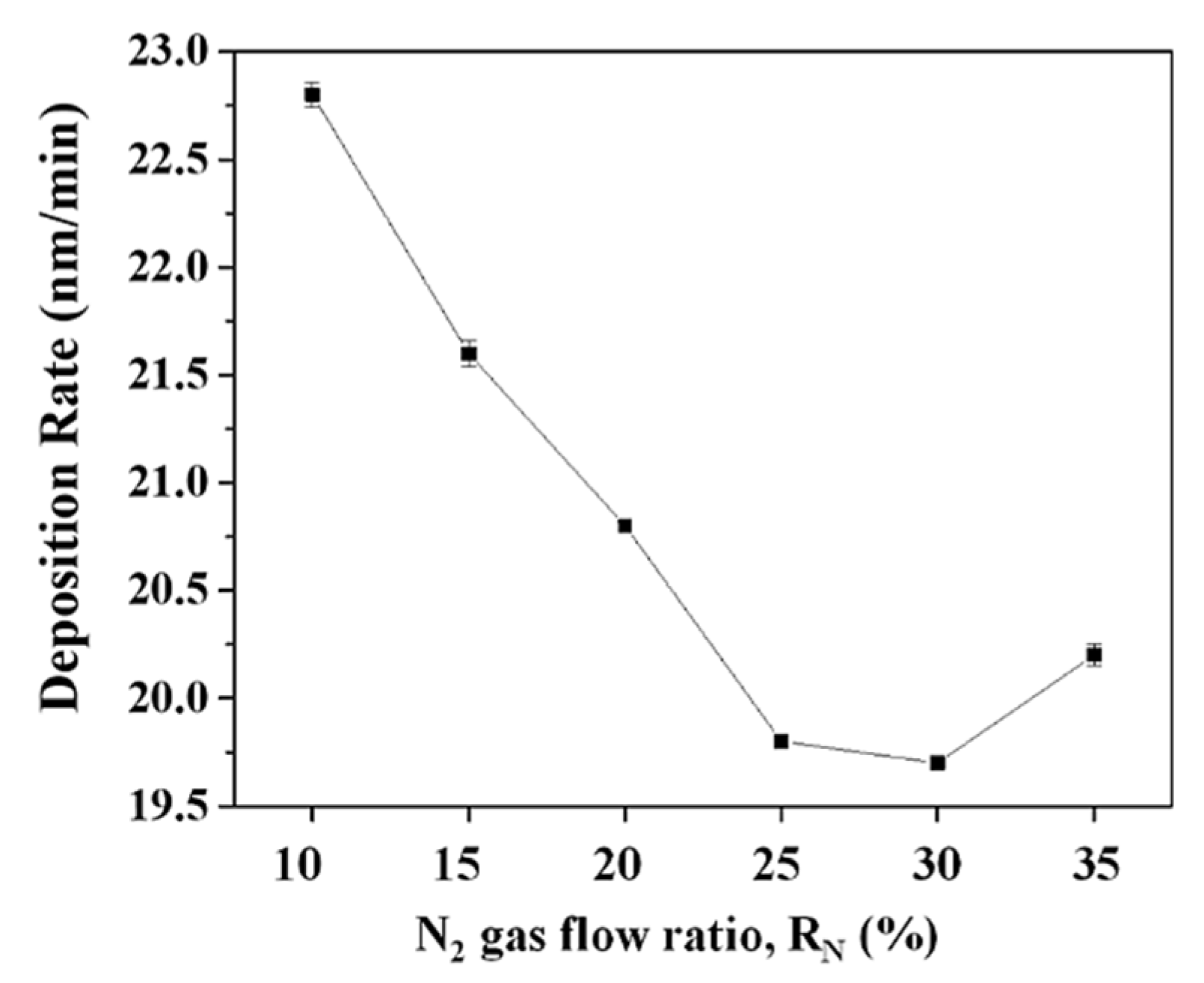

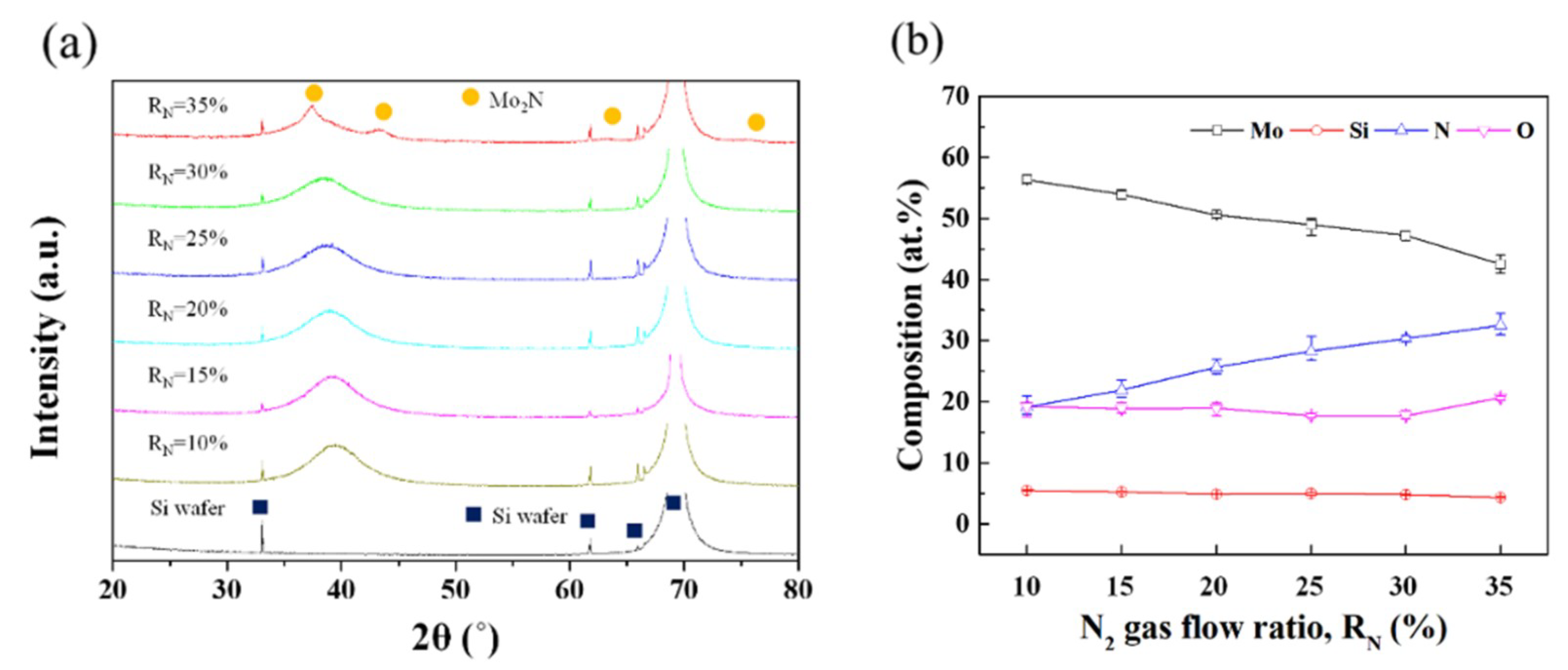

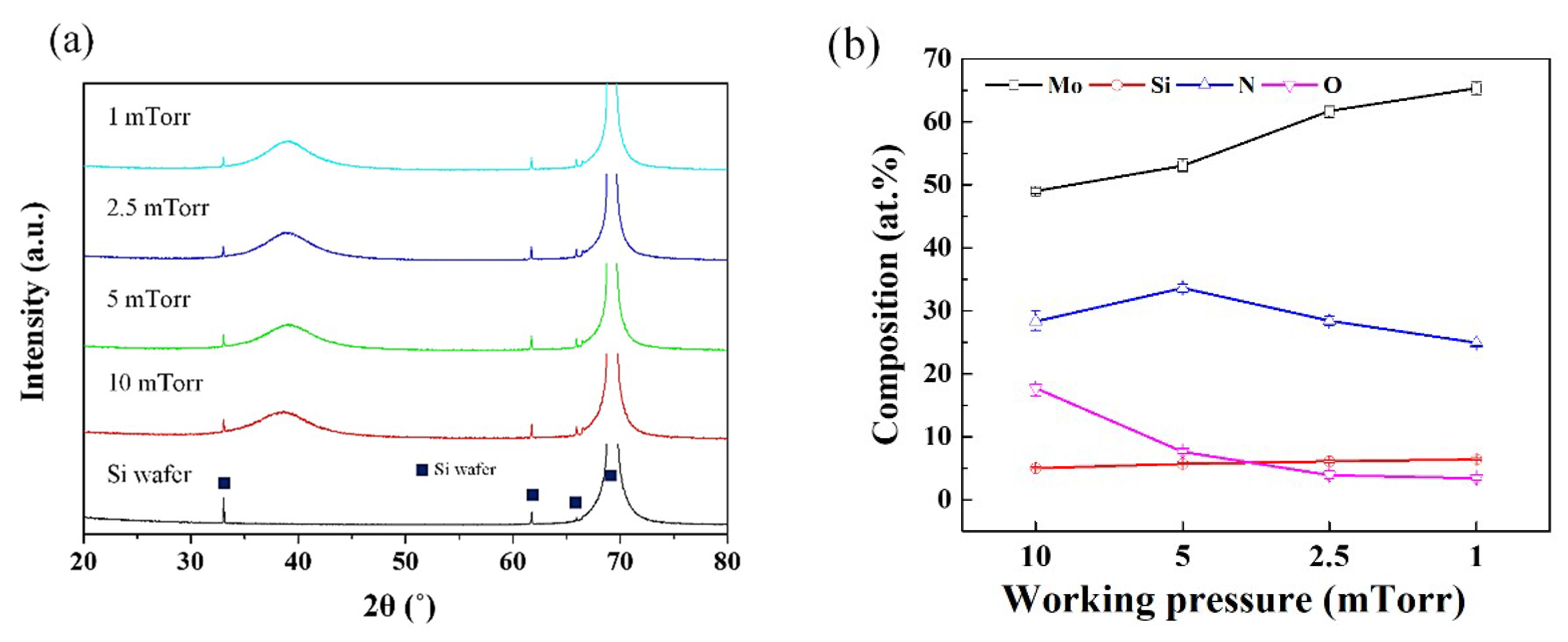

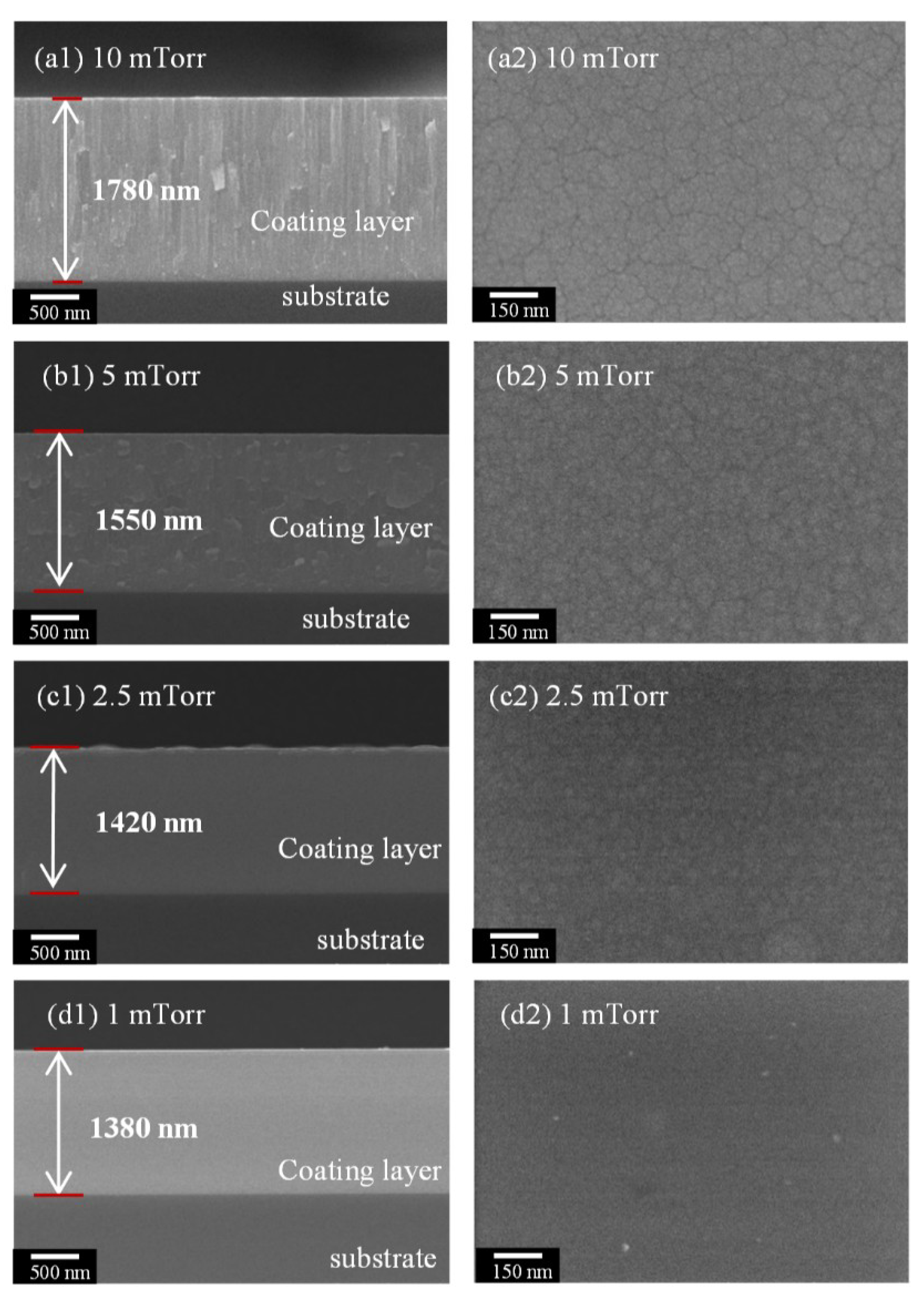

In this study, Mo–Si–N coatings were deposited on Si wafers and tungsten carbide substrates using a reactive direct current magnetron sputtering system with a MoSi powder target. The influence of sputtering parameters, such as the N2 gas flow ratio and working pressure, on the microstructure and mechanical properties (hardness (H), elastic modulus (E), and H/E ratio) of the Mo–Si–N coatings was systematically investigated using X-ray diffractometry (XRD), scanning electron microscopy (SEM), nanoindentation, and transmission electron microscopy (TEM). The gas flow rate was a significant parameter for determining the crystallinity and microstructure of the coatings. A Mo2N crystalline coating could be obtained by a high N2 gas flow ratio of more than 35% in the gas mixture, whereas an amorphous coating could be formed by a low N2 gas flow ratio of less than 25%. Furthermore, the working pressure played an important role in controlling the smooth surface and densified structure of the Mo–Si–N coating. For the amorphous Mo–Si–N coating deposited with the lowest working pressure (1 mTorr), the hardness, elastic modulus, and H/E ratio reached from 9.9 GPa, 158.8 GPa, and 0.062 up to 17.9 GPa, 216.1 GPa, and 0.083, respectively. View Full-Text
Keywords: Mo–Si–N; sputtering; amorphous coating; density; hardness Mo–Si–N; sputtering; amorphous coating; density; hardness
Show Figures

Figure 1

MDPI and ACS Style

Lim, K.S.; Kim, Y.S.; Hong, S.H.; Song, G.; Kim, K.B. Influence of N2 Gas Flow Ratio and Working Pressure on Amorphous Mo–Si–N Coating during Magnetron Sputtering. Coatings 2020, 10, 34.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
