Genomic Insights into the Distribution and Phylogeny of Glycopeptide Resistance Determinants within the Actinobacteria Phylum

Abstract

The spread of antimicrobial resistance (AMR) creates a challenge for global health security, rendering many previously successful classes of antibiotics useless. Unfortunately, this also includes glycopeptide antibiotics (GPAs), such as vancomycin and teicoplanin, which are currently being considered last-resort drugs. Emerging resistance towards GPAs risks limiting the clinical use of this class of antibiotics—our ultimate line of defense against multidrug-resistant (MDR) Gram-positive pathogens. But where does this resistance come from? It is widely recognized that the GPA resistance determinants—van genes—might have originated from GPA producers, such as soil-dwelling Gram-positive actinobacteria, that use them for self-protection. In the current work, we present a comprehensive bioinformatics study on the distribution and phylogeny of GPA resistance determinants within the Actinobacteria phylum. Interestingly, van-like genes (vlgs) were found distributed in different arrangements not only among GPA-producing actinobacteria but also in the non-producers: more than 10% of the screened actinobacterial genomes contained one or multiple vlgs, while less than 1% encoded for a biosynthetic gene cluster (BGC). By phylogenetic reconstructions, our results highlight the co-evolution of the different vlgs, indicating that the most diffused are the ones coding for putative VanY carboxypeptidases, which can be found alone in the genomes or associated with a vanS/R regulatory pair.

1. Introduction

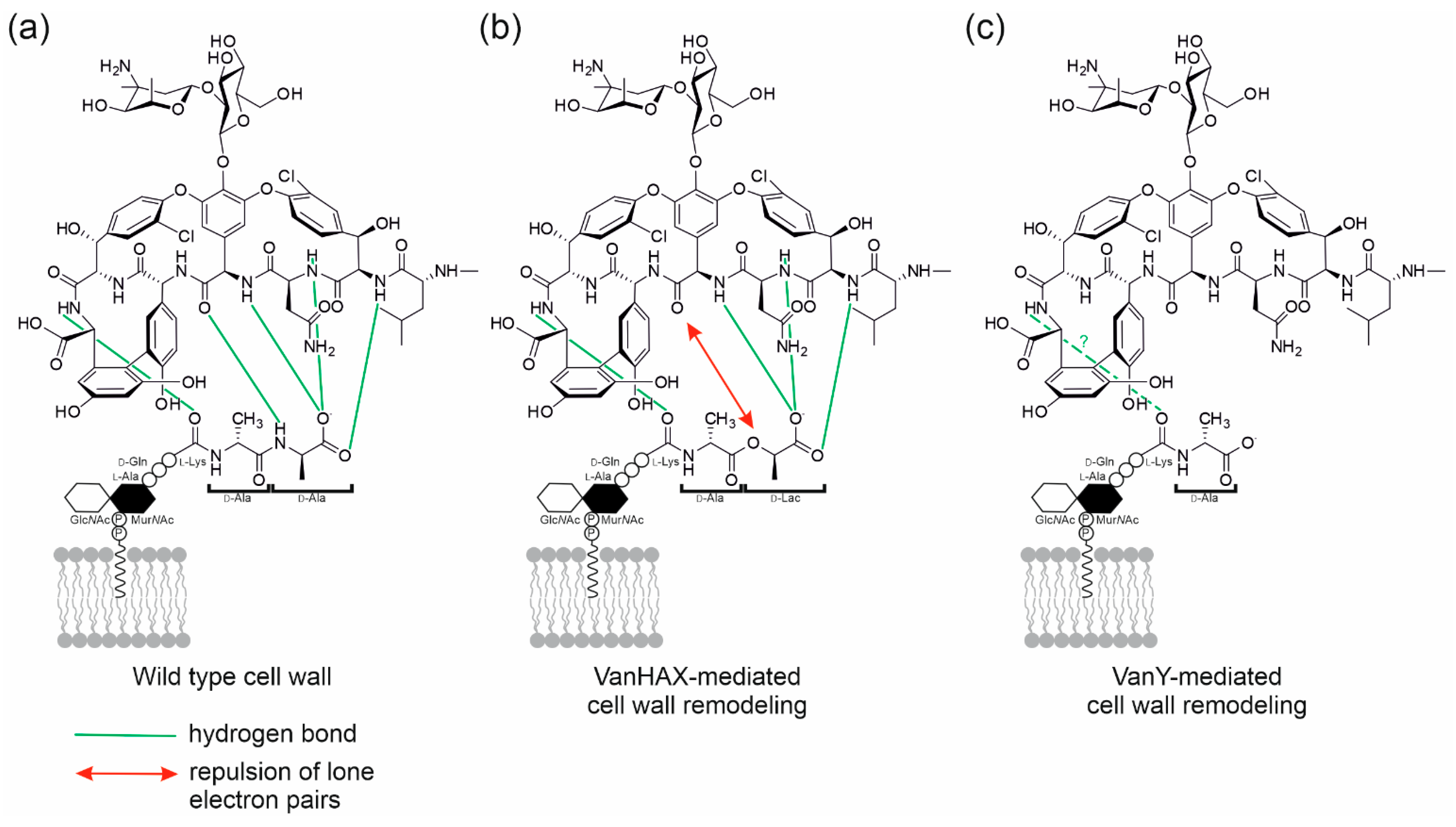

Starting with the discovery of penicillin [1], humanity has been involved in a never-ending arms race between life-threatening bacterial pathogens and antibiotics, either natural, semisynthetic or completely synthetic. An estimation made by the United Nations Interagency Coordination Group on Antimicrobial Resistance in 2014 predicted that the spread of antimicrobial resistance (AMR) will cause up to 10 million deaths per year by 2050 [2]. However, recent events might make this number even more grim: the worldwide health crisis caused by SARS-CoV-2 has led to an increase in antibiotic use and misuse, which, in turn, is likely to further accelerate AMR diffusion [3]. AMR has rendered many previously successful groups of antibiotics non-functional, leaving us hiding behind the “thin red line” of last-resort drugs, capable to combat multidrug-resistant (MDR) pathogens. Glycopeptide antibiotics (GPAs) are a class of non-ribosomally synthesized, highly cross-linked, halogenated and glycosylated natural products, which are considered frontline drugs against Gram-positive MDR pathogens such as Staphylococcus aureus, Enterococcus spp., Clostridioides difficile, etc. [4].

GPAs are produced by high G-C content soil-dwelling actinobacteria and could be divided into five types according to their chemical structures and molecular targets [5]. Types I–IV are compounds having a cross-linked heptapeptide core highly glycosylated and/or lipidated; their molecular target in pathogens is lipid II [6], a highly conserved macromolecule among bacteria that is essential for cell-wall biosynthesis [7]. Types I–IV GPAs form five hydrogen bonds with the d-alanyl-d-alanine (d-Ala-d-Ala) terminus of the lipid II pentapeptide stem (Figure 1a) [8,9,10,11]. Such binding terminates upstream transpeptidation and transglycosylation reactions, preventing the formation of mature peptidoglycan (PG). An old term describes Types I–IV GPAs very precisely: dalbaheptides [12], meaning d-Ala-d-Ala-binding antibiotics with heptapeptide structures. Lipid II is obviously involved in the cell wall biosynthesis of dalbaheptide producers as well. Thus, to avoid suicide during GPA production, producing strains need self-resistance mechanisms. This topic was recently revised in detail [13,14]. In brief, two main mechanisms of cell-wall remodeling exist in dalbaheptide-producers as well as in the resistant pathogens [15,16]. The first involves three genes—vanHAX—coding for: (i) an α-ketoacid dehydrogenase, VanH, which stereospecifically reduces pyruvate to d-lactate (d-Lac); (ii) a d-Ala-d-Lac ligase, VanA; and (iii) a d,d-dipeptidase, VanX. VanX removes the d-Ala-d-Ala termini of lipid II pentapeptide stems, while VanA prepares a pool of d-Ala-d-Lac dipeptides, which MurF, a UDP-N-acetylmuramoyl-tripeptide ligase, installs instead of the terminal d-Ala-d-Ala. As a result, GPAs form four instead of five hydrogen bonds with such d-Ala-d-Lac termini, and the repulsion of lone electron pairs between oxygen atoms contributes to make these GPA-lipid II complexes unstable (Figure 1b). The second resistance mechanism requires the expression of a d,d-carboxypeptidase VanY, which cleaves the terminal d-Ala residues of lipid II pentapeptide stems, hampering GPA complex formation with such truncated lipid II derivatives (Figure 1c). So, the formed tetrapeptide-carrying lipid II molecules are still able to enter the transpeptidation and transglycosylation steps, yielding a 3-3 crosslinked mature peptidoglycan [17]. Expression of either vanHAX or vanY (known overall as van genes) is often inducible and regulated by a VanRS two-component regulatory pair. There, a sensor histidine kinase VanS (de)phosphorylates transcriptional regulator VanR in response to the extracellular presence of GPAs, and phosphorylated VanR activates the expression of the van genes involved in cell-wall remodeling. In dalbaheptide producers, van genes are always localized inside the borders of GPA biosynthetic gene clusters (BGCs), which group genes devoted to antibiotic biosynthesis, transport and regulation, guaranteeing co-regulation of self-resistance with antibiotic production. The only exception is the chloroeremomycin BGC in Kibdelosporangium aridum A82846, which apparently does not include van genes [18].

Type V GPAs are not glycopeptides sensu stricto, since they are not glycosylated; moreover, they are not dalbaheptides, since they include also nonapeptide antibiotics (such as corbomycin and GP6738 [19,20]), and they target autolysins (named also murein hydrolases) instead of lipid II. Autolysins are enzymes breaking the bonds within the peptidoglycan to allow bacterial growth and cell division [21]; thus, type V GPAs block cell-wall remodeling, arresting cell division. Consistently, type V GPA BGCs lack the cluster-situated van genes needed to remodel lipid II termini [19,22]. van genes are also missed in the related BGC of the uncrosslinked non-glycosylated peptide antibiotic known as feglymycin [23], which inhibits peptidoglycan synthesis targeting MurA (the UDP-N-acetylglucosamine 1-carboxyvinyltransferase, catalyzing phosphoenolpyruvate transfer to UDP-N-acetylglucosamine) and MurB (the UDP-N-acetylenolpyruvoylglucosamine reductase, catalyzing the last step of the formation of UDP-N-acetylmuramic acid), both acting at the cytoplasmic step of cell-wall biosynthesis. However, type V GPA and feglymycin BGCs carry genes for a two-component regulatory pair, consisting of a sensor histidine kinase and a response regulator, which remind VanS and VanR of dalbaheptide BGCs, but whose functions remains unclear.

Intriguingly, functional van genes are also found in non-producing actinobacteria such as in Streptomyces coelicolor A3(2) [24], as well as in various other environmental non-infectious low G-C content bacteria (such as Paenibacillus popilliae [25] or Bacillus circulans [26]). As a consequence, different hypotheses have been proposed to explain van gene distribution and evolution in bacteria. The most accredited one is that pathogens such as enterococci (and the GPA non-producing environmental bacteria) might have acquired van genes from dalbaheptide producers through a series of horizontal gene transfer events, likely promoted by the selective pressure exerted by antibiotic environmental contamination [27]. An alternative hypothesis suggests that pathogens received van genes from low G-C soil Gram-positives (Firmicutes phylum), as the above-mentioned Pnb. popilliae and Bac. circulans [28], implying that in these bacteria van genes evolved independently.

To get an insight into the phylogeny of van genes, in this work we analyze their distribution and arrangement within the different orders belonging to the Actinobacteria phylum, using the genomic data available in public databases. We have investigated more than 7000 actinobacterial genomes and found van-like genes (defined hereafter vlgs) in more than one tenth of them. Thus, we can confirm that the presence of vlgs is not limited to the dalbaheptide producers, since these genes are also widely distributed among genomes of Type V GPA producers and in non-producing actinobacterial taxa, which do not need them for self-resistance. In addition, phylogenetic reconstructions made for VanY-like proteins as well as for the VanHAX triads and for the two-component VanS/VanR regulatory system, highlight the evolutionary independent stories of the corresponding gene acquisitions. Thanks to this comparative genomic analysis, novel transposon-like mobile elements carrying vlgs are here for the first time described, originating from poorly investigated orders such as Eggerthellales and Coriobacteriales. Finally, as a control, the same bioinformatic analysis was applied to more than 2000 Bacillales complete genome assemblies, which yielded only a few vlgs, often adjacent to transposase-like open reading frames (ORFs). Taken altogether, these data reveal that the phylum Actinobacteria is an incredibly vast source of variable GPA resistance determinants, which might potentially continue to move towards pathogens, contributing to the alarming diffusion of AMR. Their study might help the surveillance of AMR spread in compliance with the One-Health approach [29].

2. Results

2.1. Organization of vlgs in GPA Producers and Beyond

Until now, vlgs in actinobacteria were reported as BGC-situated in more than 20 “classical” dalbaheptide-producers [13]. The case of the GPA non-producer actinobacterium S. coelicolor A3(2)—having a whole set of vlgs [30,31]—was rather interpreted as an exception. Thanks to the abundance of genomic data on actinobacteria today, our aim is to prove or disprove the assumption that vlgs are peculiar to GPA producers, and to clarify how these genes are eventually distributed and organized among different orders belonging to Actinobacteria phylum. Thus, we screened all the genome assemblies available for actinobacteria in GenBank at the moment of this work preparation (April 2020, Supplementary Excel File S1). This search covered 28 orders of the Actinobacteria phylum (

Table 1. List of orders belonging to the Actinobacteria phylum, which genome assemblies were available in GenBank at the moment of this work preparation (April 2020, Supplementary Excel File S1) and a summary of the vlgs found in them.

Order	Number of Genome Assemblies Analyzed	Number of Genome Assembling Containing at Least One Vlg	Occurrence (%)	vanY-like	vanR-like	vanS-like	vanH	vanA	vanX
Acidimicrobiales	216	0	0	-	-	-	-	-	-
Actinomycetales	223	1	0.45	1	1	1	-	-	-
Actinopolysporales	10	0	0	-	-	-	-	-	-
Bifidobacteriales	1028	0	0	-	-	-	-	-	-
candidatus Actinomarinales	214	0	0	-	-	-	-	-	-
candidatus Nanopelagicales	26	1	3.85	1	-	-	-	-	-
Catenulisporales	3	1	34	1	1	1	1	1	1
Coriobacteriales	217	2	0.9	1	2	2	2	2	2
Corynebacteriales	707	110	15.6	122	23	25	14	14	14
Cryptosporangiales	3	2	67	-	1	1	1	1	1
Eggerthellales	106	1	0.9	-	1	1	1	1	1
Egibacterales	3	0	0	-	-	-	-	-	-
Frankiales	46	7	15	-	6	7	8	8	8
Gaiellales	3	0	0	-	-	-	-	-	-
Geodermatophilales	60	11	18	12	10	9	-	-	-
Glycomycetales	12	11	92	10	10	10	8	8	8
Jiangellales	11	10	91	12	11	10	7	7	7
Kineosporiales	12	1	8.4	1	1	1	-	-	-
Micrococcales	1741	15	0.86	2	13	13	15	15	14
Micromonosporales	200	83	42	14	86	88	5	57	56
Nakamurellales	6	6	100	6	1	1	-	-	-
Nitriliruptorales	6	1	17	1	-	-	-	-	-
Propionibacteriales	593	16	2.7	13	16	16	16	16	16
Pseudonocardiales	243	135	56	141	129	139	105	105	105
Rubrobacterales	8	1	12.5	2	1	1	-	-	-
Solirubrobacterales	45	4	8.9	6	6	6	2	2	2
Streptomycetales	1138	418	37	126	414	429	93	92	94
Streptosporangiales	228	63	28	52	67	63	7	7	6

), including two “candidate” ones (namely candidatus Actinomarinales and Nanopelagicales). We searched for vanY and vanHAX sequences, co-localized with vanRS-like two-component regulatory pairs, and then we analyzed the genetic context of these genes.

At least one vlg sequence was found in the majority of orders (22, Table 1); only the orders Acidimicrobiales, candidatus Actinomarinales, Actinopolysporales, Bifidobacteriales, Egibacteriales and Gaiellales lacked any vlgs. vlgs were most abundant (found in more than 10% of the genomic records per each order) in orders Catenulisporales, Corynebacteriales, Cryptosporangiales, Frankiales, Geodermatophilales, Glycomycetales, Jiangellales, Micromonosporales, Nakamurellales, Nitriliruptorales, Pseudonocardiales, Rubrobacterales, Streptomycetales and Streptosporangiales (Table 1, Supplementary Excel File S2). Since the known GPA producers belong to Pseudonocardiales, Streptosporangiales, Micromonosporales and Streptomycetales [5], we started to investigate vlgs organization in these orders in detail, to move then into the analysis of the still unexplored taxa.

2.1.1. Order Pseudonocardiales

Order Pseudonocardiales is the most abundant source of Types I–IV GPAs [5,32]. So far, GPA BGCs were described only in the Amycolatopsis and Kibdelosporangium genera. In our screening of 243 genomes from Pseudonocardiales spp., we found at least one vlgs sequence in 135 assemblies (Table 1, Supplementary Excel Files S1 and S2). Only 30 assemblies contained GPA BGCs (Supplementary Excel File S2). Besides the known GPA producing genera, Amycolatopsis and Kibdelosporangium [18], a GPA BGC was, for the first time, found in a species belonging to the genus Actinokineospora. Overall, no correlation between the quality and quantity of vlgs in GPA producers and non-producers was observed. The repertoire of vlgs was quite different in each strain. The following combinations were found: vanYRS, vanHAXRS, vanHAX, vanYHAX and vanYHAXRS. A significant portion of the vanY-like genes was found to be “orphan” (meaning not co-localized with any other vlgs). Sequences similar to the vanJ and vanZ genes, which were previously sporadically reported as involved in GPA resistance, but apparently without an essential role [14], were rare and always co-localized with the vanRS-like pair (except cases in Pseudonocardia sp. CNS-139—vanHAXZ arrangement; and in Pseudonocardia cypriaca DSM 45511—vanHAXJ arrangement).

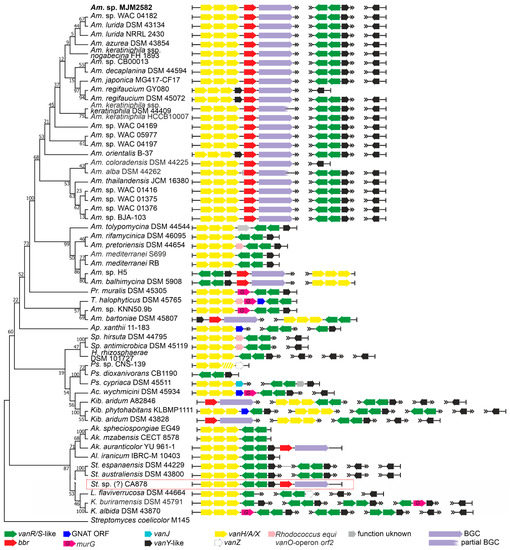

To study the arrangement of vlgs in detail, we focused on the 30 genomes of the known GPA producers and, as a control, on 25 genomes of never previously investigated non-producing Pseudonocardiales spp. (Figure 2). Thus, in the majority of the GPA-producing Amycolatopsis, the vanHAX operon was found just upstream of the bbr-orthologue (coding for a StrR-like cluster-situated-pathway-specific regulator of GPA biosynthesis [33]), in rare cases having a vanY-like gene in between (Figure 2). At the same time, genomes of these Amycolatopsis GPA producers contained two copies of vanY-like genes located outside the GPA BGCs (Figure 2). One of these copies was always co-localized with vanRS-like two-component regulatory genes. Amycolatopsis balhimycina DSM 5908 (balhimycin producer) and Amycolatopsis sp. H5 were notable exceptions: belonging to a different clade than other Amycolatopsis spp. GPA producers, they had a vanSRY-genes cluster-situated and a vanHAX operon outside the BGC (Figure 2). In Amycolatopsis bartoniae DSM 45807, only a vanY-like gene was found upstream of the bbr-orthologue, while a vanHAX operon coupled with vanRS-like two-component regulatory genes was placed somewhere else on the chromosome (Figure 2). However, according to 16S rRNA gene phylogeny (see phylogenetic framework on Figure 2), Am. bartoniae appeared to outgroup all other Amycolatopsis spp. together with Prauserella muralis DSM 45305, Tamaricihabitans halophyticus DSM 45765 and Amycolatopsis sp. KNN50.9b. Thus, it is likely that Am. bartoniae (as well as Amycolatopsis sp. KNN50.9b) might not belong to the Amycolatopsis genus at all. GPA-producing Kibdelosporangium spp. had no cluster-situated vlgs, but vanHAX operons and multiple copies of vanY-like genes were found somewhere else on the chromosome (Figure 2). Finally, in Actinokineospora auranticolor YU 961-1, vlgs were only GPA cluster-situated—a set of vanHAXRSY genes was found upstream of the bbr-orthologue (Figure 2).

Notably, in some cases (e.g., Saccharopolyspora hirsuta DSM 44795), the vanHAX operon was followed by a homologue of orf2 (a gene coding for a protein with unknown function) previously identified in the Rhodococcus equi S7B vanO operon [34]. As it does occur in the vanO operon, the orf2 homologue was in some species followed by a murG-like gene (e.g., T. halophyticus DSM 45765), coding for an essential peptidoglycan glycosyltransferase [35]. It is so far unknown how exactly MurG contributes to GPA resistance, but it might be assisting van-mediated cell-wall remodeling. In a few species, such as Pr. muralis DSM 45305, murG was following vanHAX directly. Genes coding for a GCN5-related N-acetyltransferases (GNATs) were also often found co-localized with Pseudonocardiales spp. vlgs.

Finally, we introduced in our phylogenetic framework the only metagenomics-derived GPA BGC—CA878 [36]—which was recently shown to be rather closely related to BGCs from Amycolatopsis spp. [18]. We speculated that this BGC might also belong to some unknown species of Pseudonocardiales—the organization of cluster-situated vlgs here seemed identical to the one from Ak. auranticolor YU 961-1. Fortunately, at the moment of its discovery, CA878 BGC was sequenced together with unannotated DNA flanks (ca. 26 and 3 kbp). This allowed us to annotate 9 ORFs upstream and 6 ORFs downstream of the borders of CA878 BGC (ESM Figure S1). It appeared that the vast majority of these ORFs coded for proteins with orthologues in Saccharothrix spp. (ESM Figure S1). In our opinion, it is possible that CA878 comes from an unknown species belonging to the Saccharothrix genus, further expanding the list of GPA-producing Pseudonocardiales genera.

2.1.2. Order Streptosporangiales

Order Streptosporangiales is the source of valuable lipidated dalbaheptides, such as A40926 from Nonomuraea gerenzanensis ATCC 39727, which is the precursor of second-generation dalbavancin [4,37]. In addition, N. gerenzanensis was the first model for studying the role of VanY-like carboxypeptidases in self-resistance [38,39]. Other known GPA producers are Nonomuraea coxensis DSM 45129, recently reported to produce the lipoglycopeptide A50926 [40], and Nonomuraea sp. ATCC 5507, which produces the type V kistamicin [41]. Here, we analyzed the genomic records from 228 Streptosporangiales spp. (Supplementary Excel File S1). vlgs were found in 63 out of them (Table 1, Supplementary Excel File S2). vanY-like genes were the most abundant, in almost all cases being co-localized with vanRS-like regulatory pairs (although few “orphan” ones were also found). vanHAX operons were not found so often, coming exclusively from Actinomadura spp.; anyhow, the vanHAX operon was never found associated with vanY-like genes. Accessory vlgs, such as vanJ, were found rarely and tended to be co-localized with the vanRS-like regulatory pairs. Only in one case—in Actinomadura sp. H3C3—a vanZ pseudogene was discovered, co-localized with vanRSY.

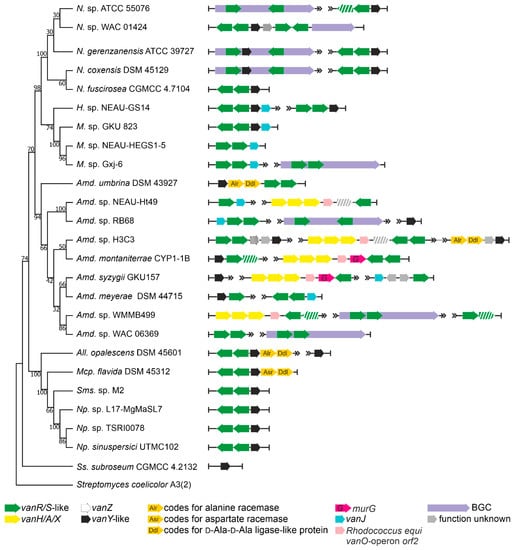

Going into more detail, we analyzed the genomes from the three known GPA producers, those from five strains carrying putative GPA-like BGCs, including Nonomuraea sp. WAC 01424 [18], together with 17 genomes of other Streptosporangiales spp. lacking any GPA BGCs (Figure 3). We found that the two Type IV GPA producers—N. gerenzanensis ATCC 39727 and N. coxensis DSM 45129—carried one BGC-situated vanY-like gene and an additional vanY-like gene, co-localized with a vanRS-like regulatory pair, distantly from the BGCs. The similarity of both distant- and cluster-encoded VanY-carboxypeptidases (amino acid sequence identity of 82.4% in N. coxensis and of 80.7% in N. gerenzanensis) was remarkable. The vanRSY-triad was found also in other Nonomuraea spp., lacking any GPA BGCs, such as in Nonomuraea fuscirosea CGMCC 4.7104 (Figure 3); it also was present on the chromosome of the kistamicin producer Nonomuraea sp. ATCC 55076 away from its BGCs, although this Type V GPA probably targets autolysins (such as corbomycin and complestatin [19]), thus not requiring van genes for self-resistance. Peculiarly, in the putative Type IV GPA producer Nonomuraea sp. WAC 01424 [18], GPA BGC seemed to be localized just downstream the vanRSY triad (which indeed was not cluster-situated in the other three GPA-producing Nonomuraea spp., Figure 3). WAC 01424 BGC carried another two-component regulatory pair, but without an additional copy of vanY.

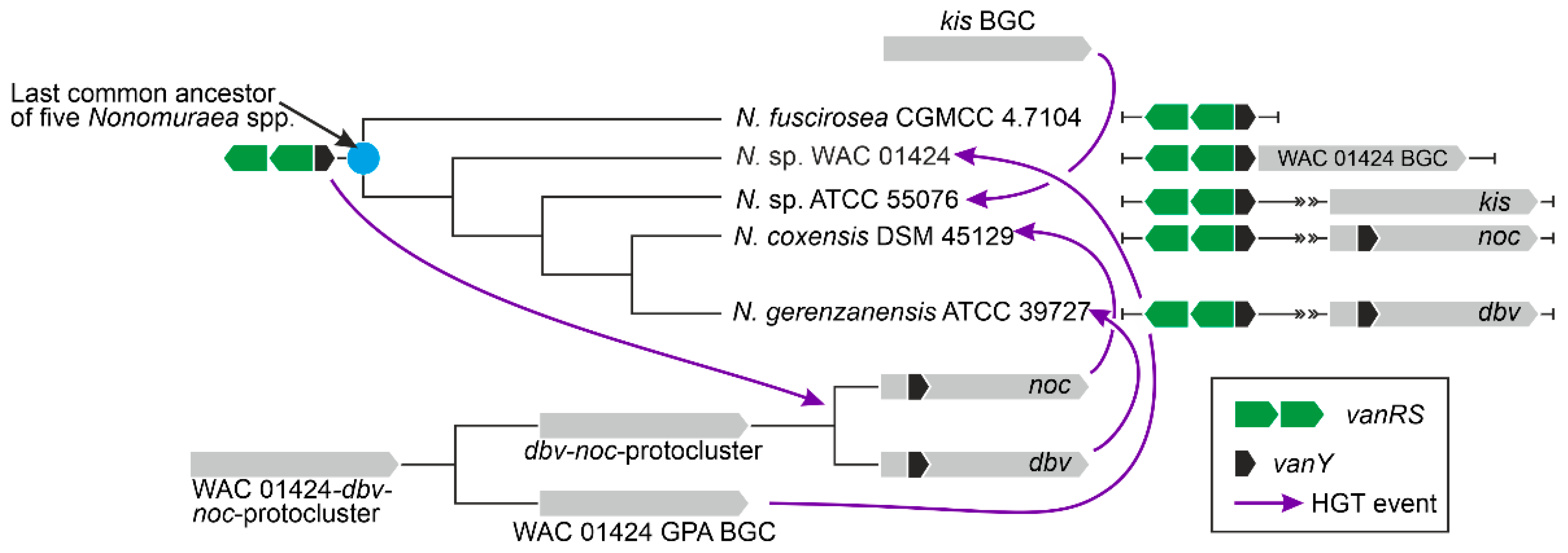

Another two findings are worth mentioning. Similar to what was observed for Pseudonocardiales, we found that all vanHAX operons (present exclusively in Actinomadura spp. among Streptosporangiales) had a homologue of the vanO operon orf2 (and sometimes a murG-like gene, too) downstream of vanX (Figure 3). Finally, the vanRSY triad was in rare cases co-localized with genes coding for alanine/aspartate racemase- and d-Ala-d-Ala-ligase (Ddl)-like proteins (e.g., Allonocardiopsis opalecscens DSM 45601 and Murinocardiopsis flavida DSM 45312, Figure 3), whose role would merit further investigation, indicating a possible alternative mechanism of cell-wall remodeling, such as the one reported in few enterococci based on the incorporation of d-Ala-d-Ser termini in the resistant peptidoglycan precursors [14].

2.1.3. Order Micromonosporales

The order Micromonosporales is rich in GPA producers coming from the genus Actinoplanes [42]. These are: (i) the clinically relevant lipo-GPA teicoplanin, coming from Actinoplanes teichomyceticus ATCC 31121 [43]; (ii) the sulfated GPA UK-68,597 [44], coming from Actinoplanes sp. ATCC 53533; and (iii) the hyperglycosylated GPA actaplanin from Actinoplanes missouriensis ATCC 23342 [45]. We screened 200 genome assemblies (Supplementary Excel File S1) and we found vlgs in 83 of them (Table 1, Supplementary Excel File S2). Complete sets of vanHAXRS genes were found only in GPA producers Apl. teichomyceticus (these vlgs were already studied experimentally [46]) and Actinoplanes sp. ATCC 53533, as well as in the GPA non-producer Actinoplanes derwentensis DSM 43941 (Figure 4).

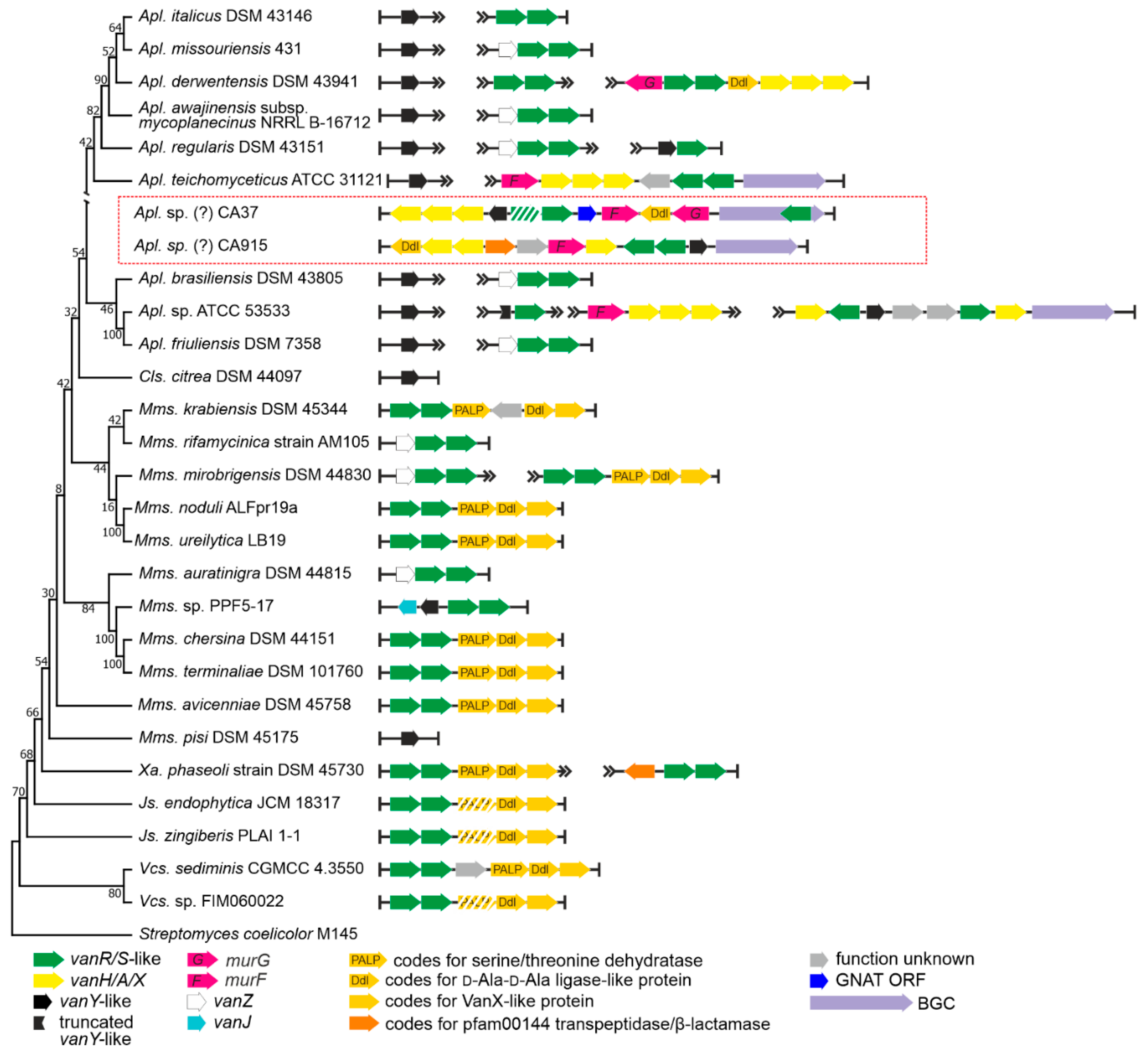

We chose a total of 26 genomes (including only two genomes of GPA producers, since the genome of Apl. missouriensis ATCC 23342 is not yet available) for more detailed examination. vanY-like genes were found in Actinoplanes spp., although they were not co-localized with the vanRS-like regulatory pairs. Instead, the vanRS-like regulatory pairs were often found co-localized with vanZ genes (like in Actinoplanes missouriensis 431, Figure 4) or found without any other close vlg (such as in Actinoplanes italicus DSM 43146). However, one peculiarity specifically attracted our attention. In the course of our screenings, a particular gene arrangement was found to occur very often in the genomes of different Micromonosporales spp., especially in those belonging to the Micromonospora genus (Figure 4, Supplementary Excel File S2). This arrangement included a triad of genes coding for a PALP (pyridoxal-phosphate dependent)-like serine-threonine dehydratase, a Ddl-like protein and a VanX-like dipeptidase (further referred to as a pdx operon). Such a triad was accompanied with a VanRS-like regulatory pair. Overall, such an arrangement strikingly resembled typical vanHAX-vanRS operons, although the gene for lactate dehydrogenase was replaced by a serine-threonine dehydratase.

Finally, two metagenome-derived GPA-BGCs were described as related to the Actinoplanes-derived ones [18]. These were CA915 and CA37 [47]. Both of them were submitted to GenBank with rather long unannotated flanking regions. As in the case of CA878 (see above), we annotated the genes present on these flanks. The majority of the BGCs flanking genes seemed to be homologous to Actinoplanes spp. genes (ESM Figure S2). Thus, CA915 and CA37 most likely belong to some unknown Actinoplanes spp.

2.1.4. Order Streptomycetales

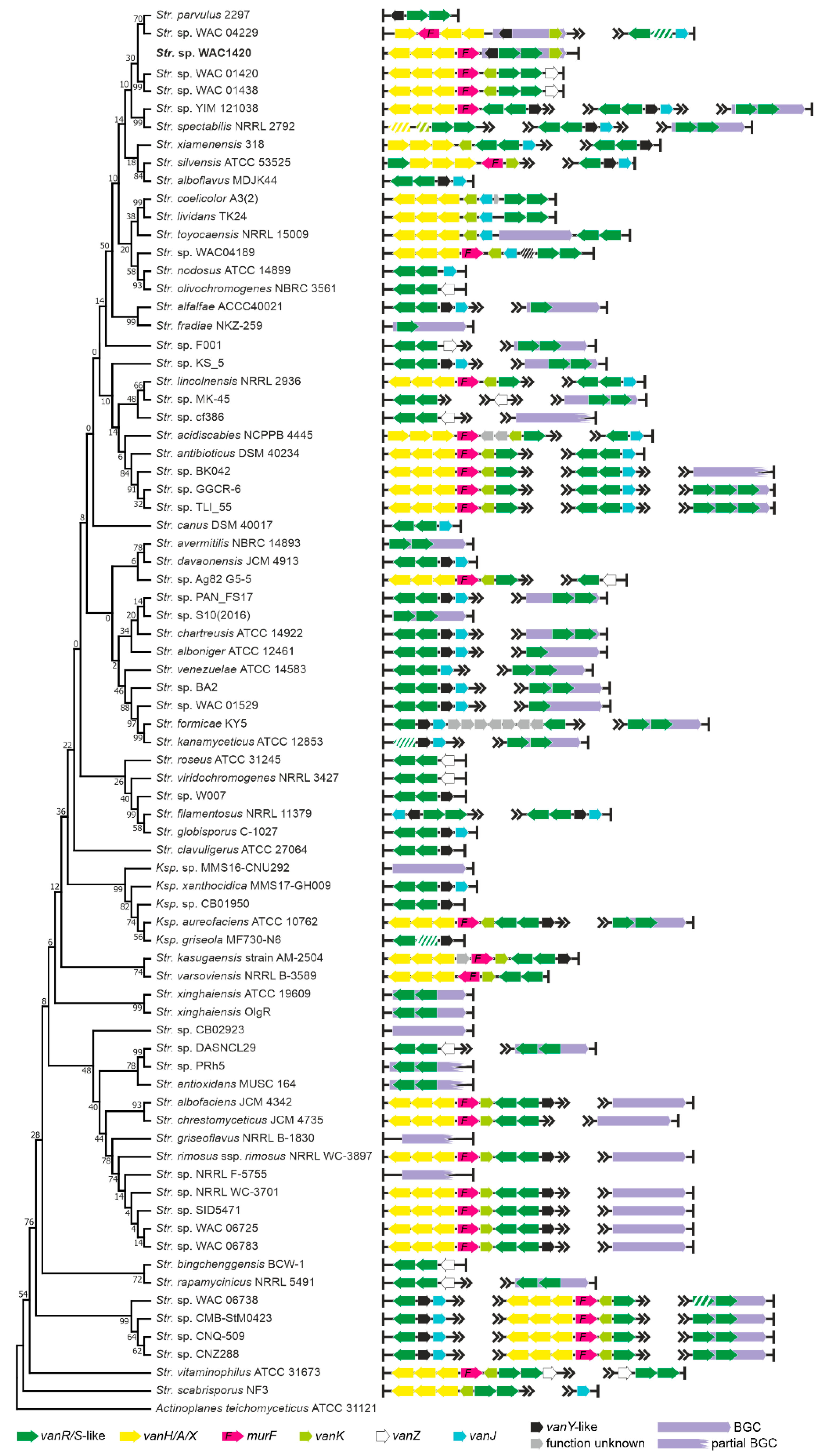

Although multiple genomes of Streptomyces spp. were sequenced (definitively more than in the other orders belonging to Actinobacteria phylum), only few Type I–IV GPA BGCs are known for this genus. These are A47934 BGCs from Streptomyces toyocaensis NRRL 15009 [48] and pekiskomycin BGCs from Streptomyces spp. WAC 04229 (WAC4229) and WAC1420 [49]. Our current analysis involved 1138 genome assemblies of Streptomycetales spp. (Supplementary Excel File S1), but no other novel BGC for Types I–IV GPA was found (Supplementary Excel File S2). On the contrary, BGCs for Type V GPAs and feg-like BGCs were found in 44 assemblies—all Streptomyces spp. except two Kitasatospora spp. Some of these BGCs were already reported [18], but we identified new ones (see Supplementary Excel File S2). vlgs were found exceptionally widespread in Streptomycetales spp.: more than one third of the analyzed genomes (418) contained vlgs (Table 1, Supplementary Excel File S2). Once again, we observed no correlation between the distribution of vlgs and of the GPA-like BGCs. More detailed analysis of 76 Streptomycetales spp. genomes (including 46 genomes carrying GPA- and feg-like BGCs) showed several different combinations, where certain strains carried a putative Type V GPA BGC and no vlgs (e.g., Streptomyces fradiae NKZ-259, Figure 5) along with strains carrying Type V GPA BGCs and a full set of vlgs (e.g., Streptomyces sp. NRRL WC-3897, Figure 5). Additionally, different combinations of vlgs were found in strains carrying no GPA-like BGCs. One peculiar trait of Streptomycetales spp. carrying the canonical vanHAX-vanRS operons was the presence of vanK, coding for an enzyme belonging to the Fem family, which adds the branch amino acid(s) to the stem pentapeptide of the peptidoglycan precursors carrying the d-Ala-d-Lac termini [50].

2.1.5. Occurrence of vlgs in GPA Non-Producing Groups

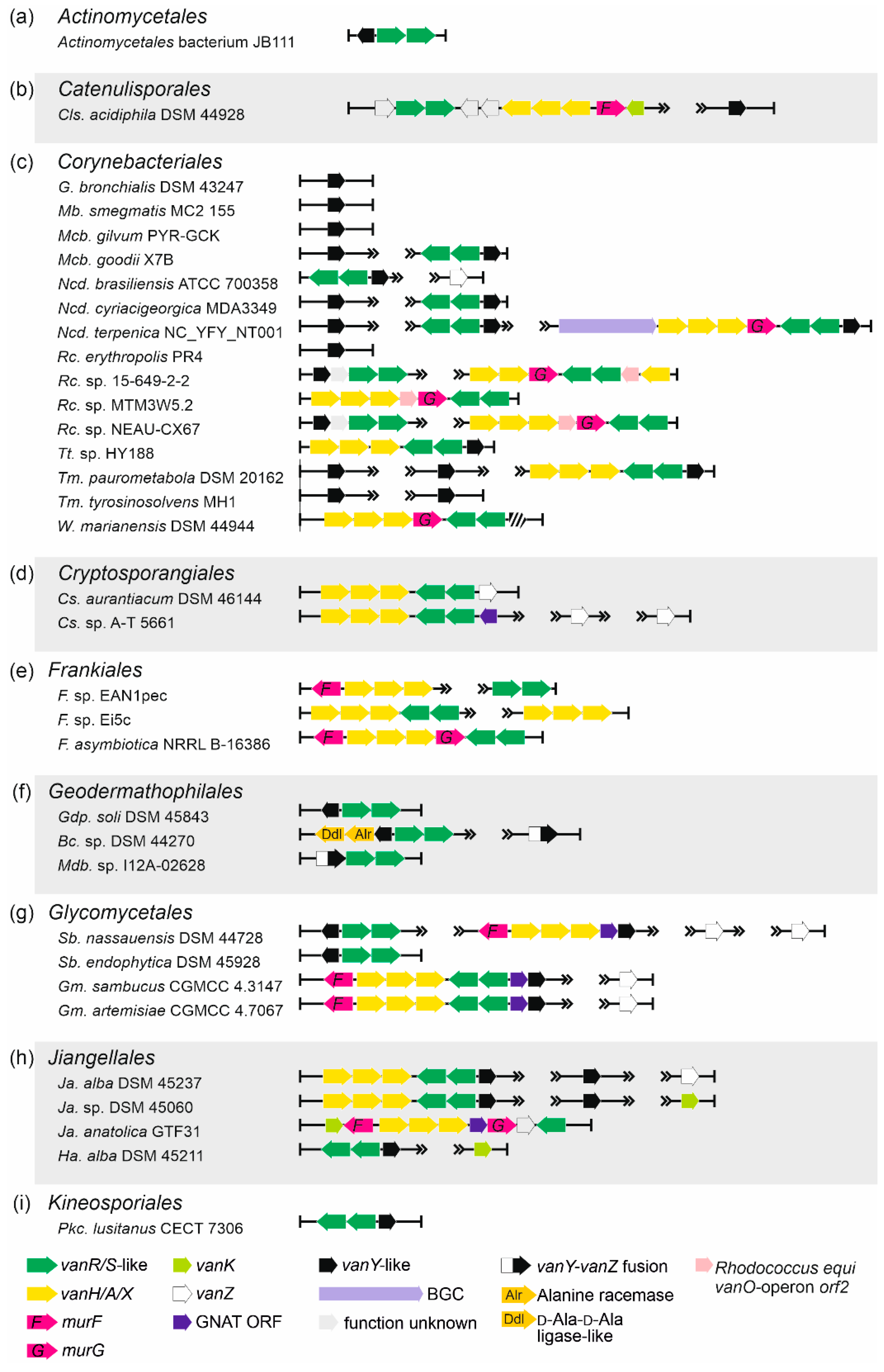

Order Actinomycetales. Although being known for various opportunistic animal and human pathogens, Actinomycetales spp. did not carry multiple vlgs. The only taxon (out of the 223 genome assembles screened, Supplementary Excel Files S1 and S2) carrying vanYRS genes was Actinomycetales bacterium JB111 (Table 1, Figure 6a).

Order Catenulisporales. Only three genomes of Catenulisporales spp. were available, and in one of them—Catenulispora acidiphila DSM 44928—a complete set of vanHAXRSY was found (Table 1, Figure 6b, Supplementary Excel Files S1 and S2).

Order Coriobacteriales. Only two genomes out of the 217 available for Coriobacteriales spp. contained a complete set of vanHAXRSY (Table 1, Supplementary Excel Files S1 and S2; see the next paragraph for a more detailed description).

Order Corynebacteriales. vlgs appeared to be quite common in Corynebacteriales spp. (707 genomes available for screening) (Table 1, Figure 6c, Supplementary Excel Files S1 and S2). Remarkably, a full set of vlgs (vanHAXRS) was discovered within the genome of Williamsia marianensis DSM 44944—a species isolated from Mariana trench (10.898 m below the sea level) in 1998 [51]. Other vlgs combinations included vanY-like genes paired with a vanRS-like regulatory pair; “orphan” vanY-like genes; and vanHAXRSY genes, often accompanied with murG genes and homologues of the vanO operon orf2 (see typical examples on Figure 6c). Peculiarly, during this analysis, a putative unknown GPA BGC was found in the genome of Nocardia terpenica NC_YFY_NT001, which is a clinical isolate derived from human cerebrospinal fluid (see CP023778 genome assembly information).

Order Cryptosporangiales. vlgs were found in two out of the three available genome assemblies of Cryptosporangiales spp. and were arranged as vanHAXRS/HAXRSZ (Table 1, Supplementary Excel Files S1 and S2); indeed, multiple copies of “orphan” vanZ-like genes were also present in the genome of Cryptosporangium. sp. A-T5661 (Figure 6d). In the genome of the latter, a gene coding for a GNAT was co-localized with vanHAXRS-genes (Figure 6d).

Order Eggerthellales. Only in one genome out of the 106 available for Eggerthellales, a vlg was found (Table 1, Supplementary Excel Files S1 and S2; see the next paragraph).

Order Frankiales. Approximately 15% of the analyzed Frankiales spp. genomes (46 in total, Supplementary Excel Files S1 and S2) possessed vlgs, arranged most often as vanHAXRS (and sometimes co-localized with murF- and murG-like genes) (Table 1, Figure 6e).

Order Geodermathophilales. A large portion of the analyzed Geodermathophilales spp. genomes (60, Supplementary Excel Files S1 and S2) carried vlgs, namely, vanY-like genes co-localized with vanRS-like regulatory pairs (Table 1). Rarely, vanYRS-like genes were found together with genes coding for a Ddl and for an alanine-racemase (as it was observed in Alr. opalescens DSM 45601, Figure 6f). Another unique feature (discovered only in Geodermathophilales spp.) was the presence of genes coding for putative VanY–VanZ fusion proteins (e.g., in Modestobacter sp. I12A-02628, Figure 6f).

Order Glycomycetales.vlgs were ubiquitously found in Glycomycetales spp. genomes (12 available in total), organized as vanYRS, vanHAXY or vanHAXRSY (Table 1, Supplementary Excel Files S1 and S2, Figure 6g). Latter arrangements were coupled with the genes coding for MurF and GNAT. Multiple copies of “orphan” vanZ-like genes were also found (Figure 6g).

Order Jiangellales.vlgs were found in more than 90% of the eleven analyzed Jiangellales spp. genomes (Table 1, Supplementary Excel Files S1 and S2). The most frequent arrangement was vanHAXRSY, although in Jiangella anatolica GTF31 vanHAXS genes were co-localized with vanK and with genes coding for MurF-, MurG- and GNAT-like proteins (Figure 6h).

Order Kineosporiales. A single set of vlgs in this order—vanRSY—was found in Pseudokineococcus lusitanus CECT 7306 (Figure 6i) among the twelve genomes analyzed (Table 1, Supplementary Excel Files S1 and S2).

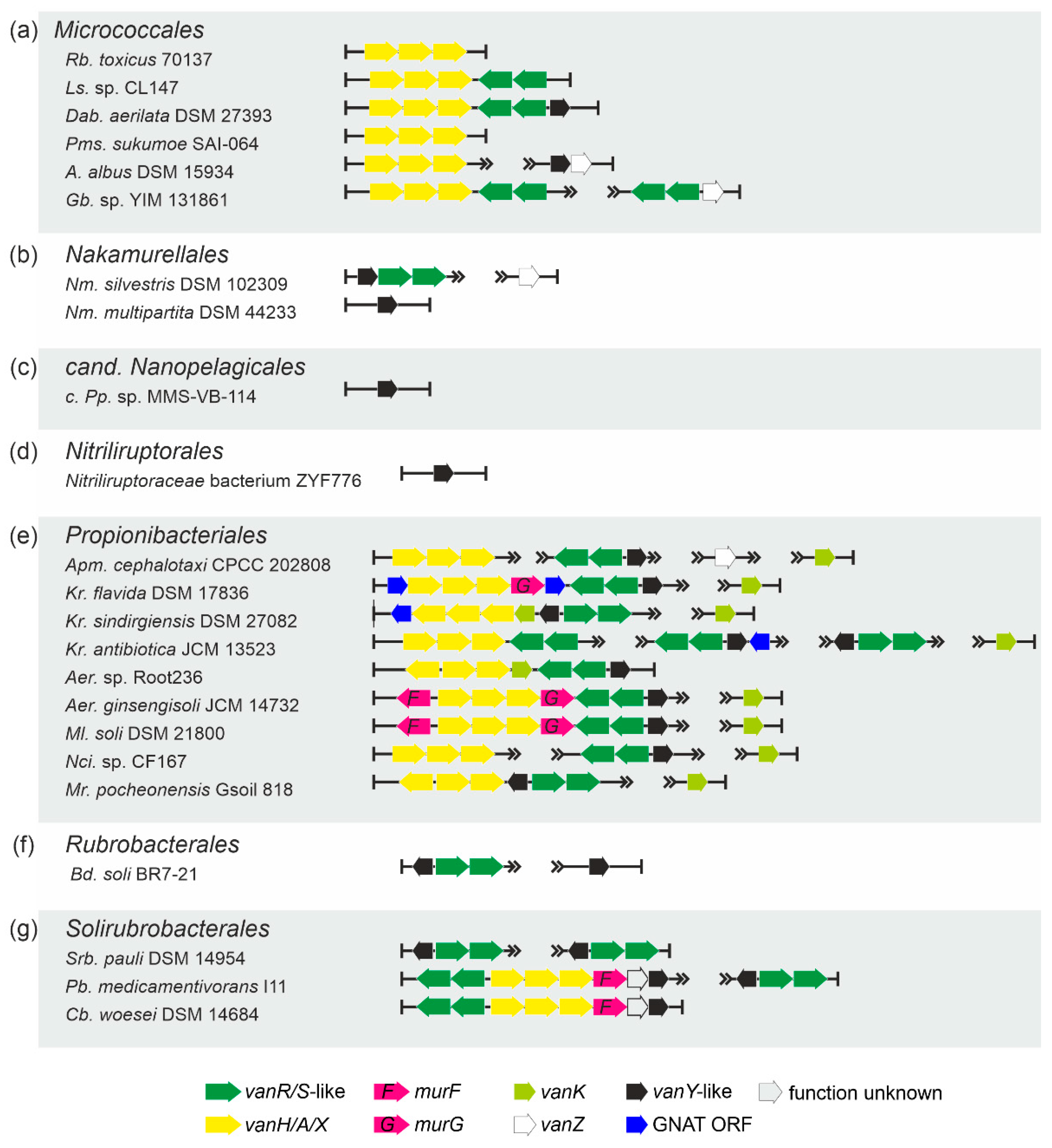

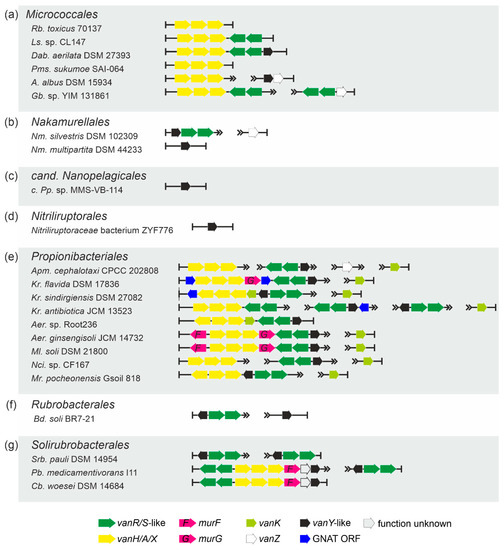

Order Micrococcales.vlgs were found in less than 1% of the analyzed Micrococcales spp. genomes (a total of 1741, Supplementary Excel Files S1 and S2) and were represented mainly as vanHAX, vanHAXRS or vanHAXRSY arrangements (Table 1, Figure 7a). vanZ-like genes, coupled with vanRS-like regulatory pairs, were also observed as well as “orphan” vanY-like genes co-localized with vanZ genes (Figure 7a).

Order Nakamurellales.vlgs were found within all the 6 genome assemblies of Nakamurella spp., either as vanYRS or as “orphan” vanY-like and vanZ genes (Table 1, Figure 7b, Supplementary Excel Files S1 and S2).

Order cand. Nanopelagicales and order Nitriliruptorales. In the few genome assemblies belonging to the species of both orders, only “orphan” vanY-like genes were rarely found (Table 1, Supplementary Excel Files S1 and S2, Figure 7c, d).

Order Propionibacteriales.vlgs were found in the genome assemblies belonging to few genera of Propionibacteriales (Table 1, Supplementary Excel File S2), although it was possible to analyze 593 genomes (Supplementary Excel File S1). There, vlgs exhibited different arrangements, summarized in Figure 7e. Genes coding for MurF, MurG and GNAT proteins were often co-localized with vlgs.

Orders Rubrobacterales and Solirubrobacterales. Only a small portion of species, belonging to both orders, carried vlgs within their genomes (Table 1, Supplementary Excel Files S1 and S2). vlgs mainly were arranged as either vanYRS or vanRSHAXY (sometimes co-localized with a murF gene, Figure 7f, g).

2.1.6. Putatively Novel Transposable Elements Carrying vlgs in Eggerthellales and Coriobacteriales spp.

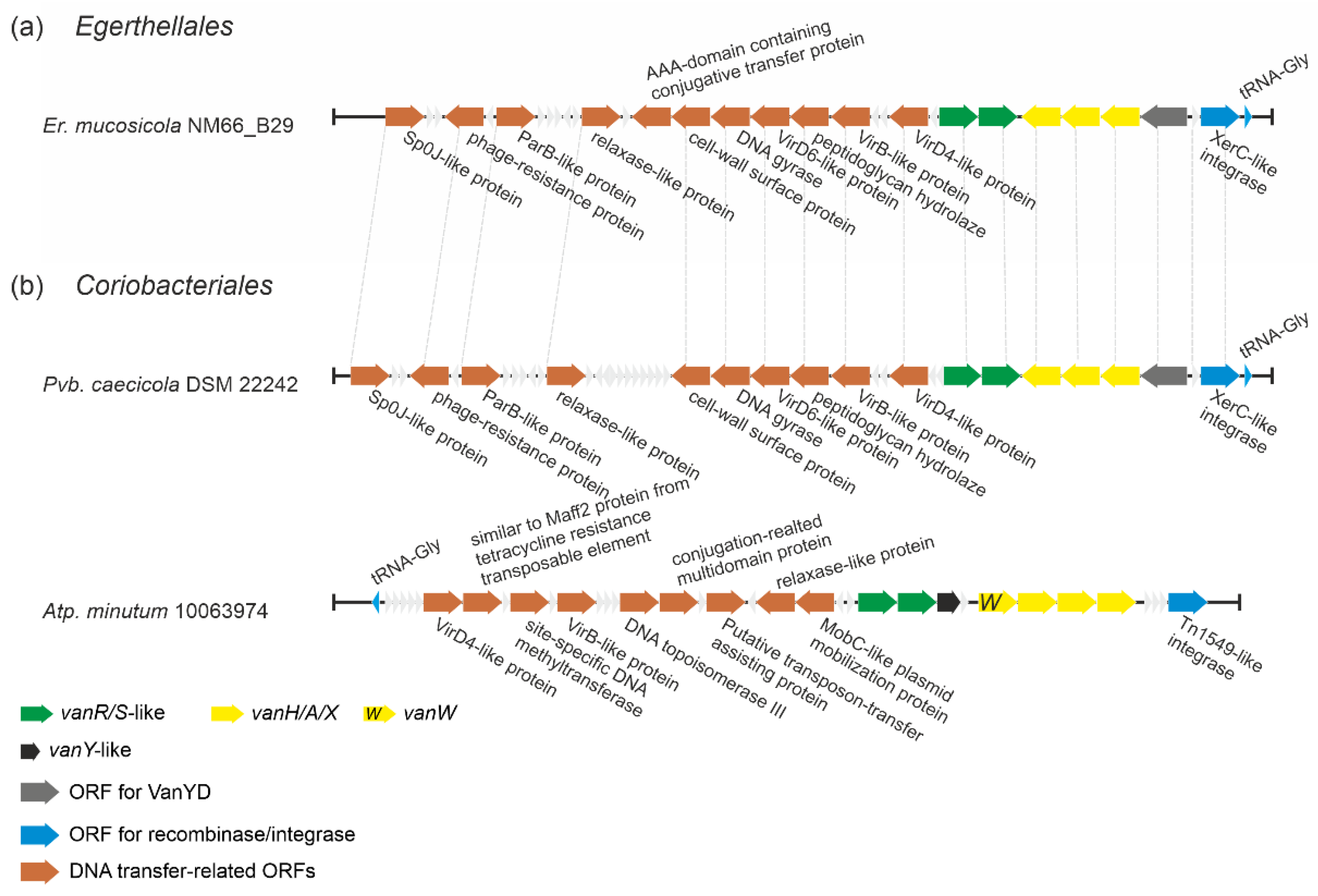

Analyzing the genomes of actinobacteria belonging to orders Eggerthellales and Coriobacteriales, we found vlgs in Enterorhabdus mucosicola NM66_B29, Parvibacter caecicola DSM 22242 and Atopobium minutum 10063974. When we examined the genetic neighborhood of these genes, it emerged that they might belong to the family of transposon-like mobile genetic elements (MGEs), involving multiple genes deputed to DNA transfer (Figure 8). Moreover, these vlgs-carrying putative MGEs were almost identical in Er. mucosicola NM66_B29 (order Eggerthellales) and Pb. caecicola DSM 22242 (order Coriobacteriales), while the MGE from Atp. minutum 10063974 (order Coriobacteriales) significantly differed from both (Figure 8). Transposons and other MGEs are believed to be one of the main sources of van genes dissemination throughout pathogens [52]. Thus, we decided to check whether MGEs from the three abovementioned species corresponded to those already known. For this, we compared putative integrases/recombinases from Er. mucosicola NM66_B29, Pb. caecicola DSM 22242 and Atp. minutum 10063974 with integrases found in known MGEs carrying van genes (ESM Table S2). It came out that the putative integrase from Atp. minutum 10063974 (EMZ42128) was identical to the integrase from Enterococcus faecalis transposon Tn1549 [53]. Further comparison of Tn1549 genes with the genes from Atp. minutum 10063974 MGE confirmed that they were identical. However, both integrases from Er. mucosicola NM66_B29 and Pb. caecicola DSM 22242 (EMZ42128 and MVX60893, respectively) were only slightly related to the transposases/integrases from Tn1549 and Enterococcus faecium insertion sequence IS1216V [54], sharing only an 18.6% and 14.6% amino acid sequence identity, respectively. Thus, MGE found in Er. mucosicola NM66_B29 and Pb. caecicola DSM 22242 might represent a novel MGE carrying van genes. Notably, this last putative MGE seemed to code for a VanYD protein [55], which is a d-Ala-d-Ala carboxypeptidase belonging to the penicillin-binding protein family, structurally unrelated to the VanY M15 peptidases (see below).

2.1.7. Occurrence of vlgs in Bacillales spp. (Firmicutes phylum)

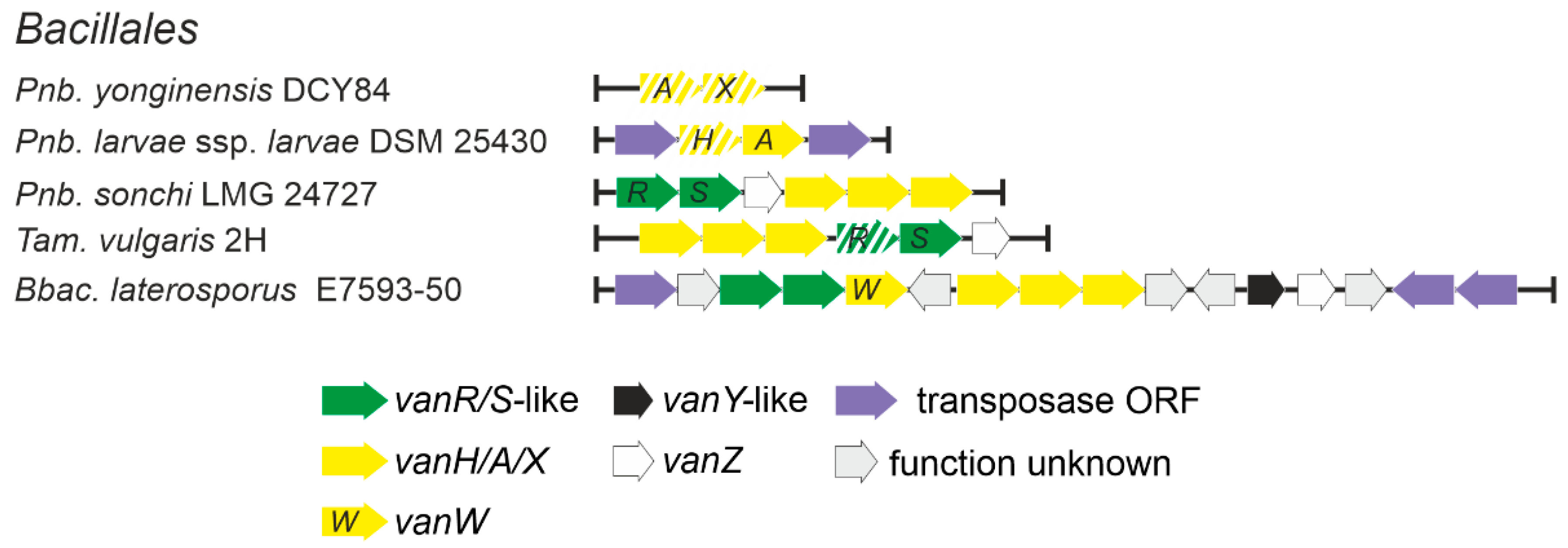

Low G-C soil Gram-positives and in particular bacilli were considered as a one of possible sources of vlgs for pathogens, as it was considered that the ancestral vanHAX cluster might have evolved into one such species (e.g., those belonging to the Paenibacillus genus) and was then disseminated to pathogens in a transposon-mediated fashion [28]. We decided to test such a hypothesis by screening 2379 full genome assemblies of Bacillales spp. (Supplementary Excel File S3), available in GenBank, searching for vlgs. The results indicated that vlgs were quite rare in Bacillales spp. genomes: vanHAXRS were found in the genomes assemblies of Brevibacillus laterosporus E7593-50, Thermoactinomyces vulgaris and Paenibacillus sonchi LMG 24727 (Figure 9, Supplementary Excel File S3). vanAX-pseudogenes were also found in Paenibacillus yonginensis DCY84, while vanHA-genes (degraded to different extents) were found in 7 strains of Paenibacillus larvae (Figure 9, Supplementary Excel File S3). Only one vanY-like gene was found in Bbac. laterosporus E7593-50. Most of the vlgs were found adjacent to transposase-related genes, except the cases of Pnb. yonginensis DCY84, Pnb. sonchi LMG 24727 and Tam. vulgaris 2H; indeed, the latter strain is known to be naturally competent for exogenous DNA [56]. Overall, such findings indicated that the occurrence of vlgs in bacilli is not comparable to their distribution in most of the orders belonging to actinobacteria, making it highly unlikely for van genes to arise independently in bacilli.

2.2. Phylogeny of VanY-like Carboxypeptidases

Surprisingly, vanY-like genes were the most common vlgs found in actinobacteria. We decided to reconstruct the phylogeny of the VanY-like proteins to comprehend such a variety and its relation to similar proteins described in low G-C Gram-positives, including pathogens such as GPA-resistant enterococci. For this purpose, we selected 251 proteins (see Section 4) coming either from actinobacteria or from low G-C Gram-positives, which, according to the MEROPS peptidase database [57,58], belonged to the M15B subfamily of the M15 family of metallopeptidases (mostly carboxypeptidases and dipeptidases). Other subfamilies are M15A, composed of a specific group of the so-called Streptomyces-type zinc-d-Ala-d-Ala carboxypeptidases [59], and M15D, to which VanX d-Ala-d-Ala dipeptidases belong (see the following section) [60,61]. To check that our selected proteins were VanY-like and no other carboxypeptidases, we controlled their sequence by CD-Search [58] and excluded those sharing the putative peptidoglycan-binding domain on the N-terminal region, which is typical of M15A proteins.

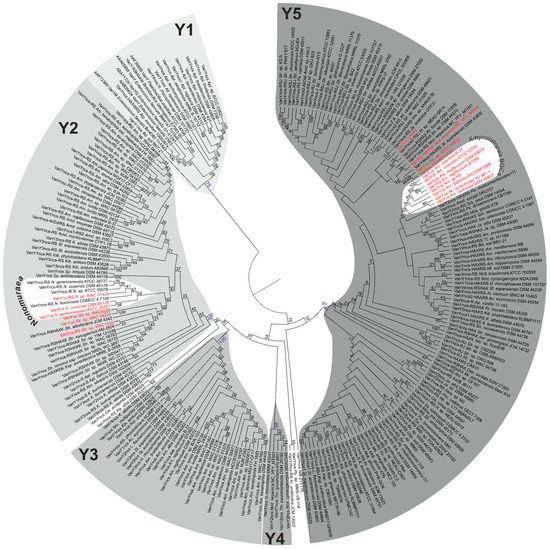

Reconstruction of the Maximum Likelihood phylogeny of VanY-like proteins from our dataset yielded a tree, where 5 distinct clusters were differentiated (Figure 10, ESM Figure S3). Cluster Y1 (Figure 10, ESM Figures S3 and S4) was the outgroup of the tree and contained VanY-like proteins originating from enterococci and other low G-C Gram-positives, consistently with previous reports [37]. Differently from what described a decade before [38], this cluster included also VanY-like proteins coming from different Actinoplanes spp., such as Bd. soli BR7-21, H. rhizosphaerae DSM 101727 and All. opalescens DSM 45601 (Figure 10, ESM Figure S4). This discrepancy is due to the increasing number of genomes that have become accessible in the meantime. Notably, all the genes corresponding to Y1 proteins in actinobacteria were ‘orphan’ (i.e., not co-localized with any other vlgs; see Figure 3, Figure 4 and Figure 7, and Supplementary Excel File S2).

In contrast, the VanY-like proteins from the large Y2 cluster were almost exclusively encoded by genes adjacent to the vanRS-like pairs and/or other vlgs (Figure 10, ESM Figure S5, Supplementary Excel File S2). They were found in the genomes of multiple orders of actinobacteria (Figure 10, ESM Figure S5, Supplementary Excel File S2). Importantly, Y2 included the VanY-like proteins from Nonomuraea GPA BGCs (including the most-studied VanY_n from N. gerenzanensis ATCC 39727 [62]) and pekiskomycin BGCs (Streptomyces spp. WAC1420, WAC4229, WAC 04229 [49]).

The next clusters—Y3 and Y4 (Figure 10, ESM Figure S6)—were composed of VanY-like proteins coming from Pseunocardiales and Corynebacteriales, respectively, with the corresponding genes again being mostly ‘orphan’.

Finally, Y5 was the last cluster defined within the tree of the VanY-like proteins. It was the biggest and most separated from the others, although the internal branching pattern was not completely clear, often lacking a trustable bootstrap support (Figure 10, ESM Figure S6). Nevertheless, genes corresponding to Y5 proteins were found either co-localized with different other vlgs or ‘orphan’. The VanY-like proteins coded by Pseudonocardiales spp. GPA BGCs, including the most-studied VanY_Ab from the balhimycin producer Am. balhimycina [63], formed a distinct subclade within Y5. The VanY-like proteins encoded within CA878, CA37, CA915, auk and Ncd. terpenica NC_YFY_NT001 BGCs were also found in Y5.

2.3. Phylogeny of VanHAX

VanH lactate dehydrogenases. For the phylogenetic reconstruction of VanH, we used a dataset of 156 VanH proteins from actinobacteria and low G-C Gram-positives, with SCO2118 lactate dehydrogenase serving as an outgroup (see Section 4). It appeared that VanH proteins were quite conserved, and a branching pattern with completely reliable bootstrap support was difficult to obtain (ESM Figure S8). Nevertheless, few features could be presumed with certainty. First, VanH proteins coded within the putative MGEs of Er. mucosicola NM66_B29 and Pvb. caecicola DSM 22242 reliably out-grouped all other proteins (ESM Figure S8). Then, a well-defined cluster (named VH1, ESM Figure S8) was composed of VanH proteins from pathogens and from low G-C soil Gram-positives. VH1 was not that close to the base of the tree, with multiple actinobacterial VanH proteins out-grouping it (ESM Figure S8). Another well-supported cluster—VH2 (ESM Figure S8)—was composed of VanH proteins coming from different Streptomyces spp., including those from A47934 BGC (Str. toyocaensis NRRL 15009) and pekiskomycin BGC (Streptomyces sp. WAC 04229). A third big cluster (VH3) was formed by VanH proteins coming from different GPA non-producing Streptomyces spp. Finally, VanH proteins coded within tei, auk, CA37 and CA915 also grouped together on the tree (ESM Figure S8).

VanA d-Ala-d-Lac-ligases. Overall, from previous works, it seems plausible that VanA d-Ala-d-Lac-ligases are a specialized evolutionary branch of d-Ala-d-Ala ligases (Ddl) involved in the “primary metabolism” of the cell wall in actinobacteria [64]. As reported above, Ddl-like proteins were also found encoded in metagenomic-sourced CA37, CA915 and in the auk BGCs; additionally, in the Micromonosporales we found a peculiar putative pdx operon (see Section 2.1.3) composed of genes for a PALP threonine dehydratase, a Ddl-like ligase and a VanX-like dipeptidase, adjacent to a vanRS-like regulatory pair. Thus, here we decided to test the phylogeny of the VanA ligases together with the above-mentioned Ddl-like proteins on a background of ‘house-keeping’ Ddl-ligases from the main actinobacterial orders. The protein set (see Section 4) used for this phylogenetic reconstruction contained 153 VanA ligases from actinobacteria and low G-C Gram-positives, 12 Ddl-like ligases from Micromonosporales spp., the 3 Ddl-like ligases from CA37, CA915 and auk BGCs, as well as 81 ‘house-keeping’ actinobacterial Ddl-ligases.

In the resulting phylogenetic tree (ESM Figure S9), the ‘house-keeping’ Ddl-ligases formed a number of distinct clades that corresponded to the orders of origin (ESM Figure S9). There, Ddl-like ligases coded in CA915, CA37 and auk BGCs grouped together with “house-keeping” Ddl-ligases from order Eggerthellales, while Ddl-like ligases from Micromonosporales (coded in putative pdx-operons) formed a distinct clade among the other clades of ‘house-keeping’ Ddl-ligases (ESM Figures S9 and S10). Most strikingly, clades for VanA ligases from low G-C Gram-positives (ESM Figure S11) and actinobacteria (ESM Figure S12) (both out-grouped by VanA ligases coded within the putative MGEs of Er. mucosicola NM66_B29 and Pvb. caecicola DSM 22242) clustered together with ‘house-keeping’ Ddl-ligases from the order Coriobacteriales (ESM Figure S9).

Composition of the main actinobacterial VanA-clade (ESM Figures S9 and S12) required further comments. The resolution of this clade was high enough to distinguish four well-supported clusters—VA1–4. VA1 was formed by the VanA ligases from GPA non-producing streptomycetes together with the one coded in A47934 GPA BGC from Str. toyocaensis NRRL 15009. Other VanA ligases from GPA non-producing streptomycetes were composed of VA2, while VA3 contained proteins from different groups of actinobacteria. Finally, VA4 was formed by VanA ligases coded within GPA BGCs of Amycolatopsis spp. VanA ligases from CA915, CA37 and tei BGCs grouped together on the tree. Notably, VanA ligases from pekiskomycin BGCs (from Str. sp. WAC 04229 and Str. sp. WAC1420) grouped together with VanA from Str. varsoviensis NRRL B-3589, which does not carry any GPA BGC.

VanX M15D dipeptidases. According to the MEROPS database, VanX dipeptidases belong to the same M15 family as VanY carboxypeptidases, but group in the M15D subfamily. The dataset used for the phylogenetic reconstruction contained 155 VanX dipeptidases coded within different vanHAX operons from actinobacteria and low G-C Gram-positives and 12 VanX-like dipeptidases coded in the putative pdx operon found in Micromonosporales. The obtained phylogenetic tree revealed that VanX-like dipeptidases coded in the pdx operon and VanX proteins from low G-C Gram-positives formed well-supported clusters (VX1 and VX2, respectively, ESM Figure S13). All other actinobacterial VanX-like dipeptidases were out-grouped by the VanX-like dipeptidases coded within the putative MGEs of Er. mucosicola NM66_B29 and Pvb. caecicola DSM 22242 (ESM Figure S13). Unfortunately, internal topology of the latter clade had non-optimal bootstrap support, since the VanX-proteins appeared well conserved (ESM Figure S14). However, it was possible to distinguish two clusters—VX3 and VX4. Interestingly, the composition of VX3 and VX4 corresponded to the clusters VA4 and VA3, respectively, of th eVanA-like ligases tree (ESM Figure S12). Finally, the VanX dipeptidases coded in pekiskomycin BGCs (from Str. sp. WAC 04229 and Str. sp. WAC1420) again grouped together with VanX from Str. varsoviensis NRRL B-3589, which is not a GPA producer.

The van genes from pathogenic enterococci often code a peculiar group of bifunctional d,d-dipeptidases/d,d-carboxypeptidases, known as VanXY [65]. In 2014, a comparative structural study of VanXY, VanX and VanY [57] assumed VanXY peptidases to be a specialized evolutionary branch of VanY carboxypeptidases in pathogens. This assumption was supported with a phylogenetic reconstruction of the M15 family dipeptidases [57]. However, rather few protein sequences were available at that time. Thus, we decided to check the phylogeny of the VanXY peptidases in relation to our VanX and VanY datasets simultaneously. We used a dataset of 425 proteins, including 7 VanXY-peptidases. The topology of the resulting tree correlated with the topologies of the trees received for the VanX and VanY datasets, separately. At the same time, the VanXY peptidases appeared to root deeply within the VanY clade (ESM Figure S15) from low G-C Gram-positives (corresponding to the Y1 cluster of VanY carboxypeptidases, Figure 10). Therefore, our large-scale reconstruction was in line with the previously made assumption about the origin of VanXY [57].

2.4. Phylogeny of VanRS-like Two-Component Regulatory Pairs

In the course of our screen for vlgs, many of them were found co-localized with vanRS-like regulatory pairs. vanRS-like regulatory pairs were also found adjacent to (i) a putative pdx operon in Micromonosporales; (ii) putative operons formed with genes coding for alanine/aspartate racemase, Ddl and VanY-like carboxypeptidase (such as in All. opalescens DSM 45601 and Mcp. flavida DSM 45312, respectively, Figure 3); or (iii) genes for β-lactamases (such as in Xa. phaseoli DSM 45730, Figure 4). Additionally, multiple BGCs for Type V GPAs and feg-like BGCs from Streptomyces, Microbispora and Actinomadura spp., as well as for Type IV GPAs from Nonomuraea spp., were found to carry vanRS-like regulatory pairs. To clarify if, how and to what extent all these VanR-like response regulators and VanS-like sensor histidine kinases are related to each other and to the VanRS proteins from low G-C Gram-positives, we reconstructed separate phylogenies of the two datasets: one for the VanR- and another for the VanS-like proteins. The first dataset contained 295 proteins, while the second was composed of 313 proteins. Such a discrepancy in numbers derives from the fact that the vanRS-like pairs often lacked one of the genes or had it impaired (as pseudogene). Overall, the final topology of both trees was quite coherent, implying the co-evolution of the VanR- and VanS-like proteins coded within one gene pair (Figure 11); this allowed us to define a set of well-supported clusters (named VS in the VanS and VR in VanR trees). Both trees showed a set of clusters formed as basal clades as well as defined crown groups. Basal clades formed VR1–4 clusters plus a Dbv6-like cluster in the VanR phylogenetic tree, and VS1–3 clusters plus a Dbv22-like cluster in the VanS phylogenetic tree. These data were consistent with what was previously reported on Dbv6/Dbv22, which is a cluster-situated two-component regulatory pair in A40926 BGC from N. gerenzanensis, not grouping with the “classic” VanRS-like proteins from other GPA BGCs [66].

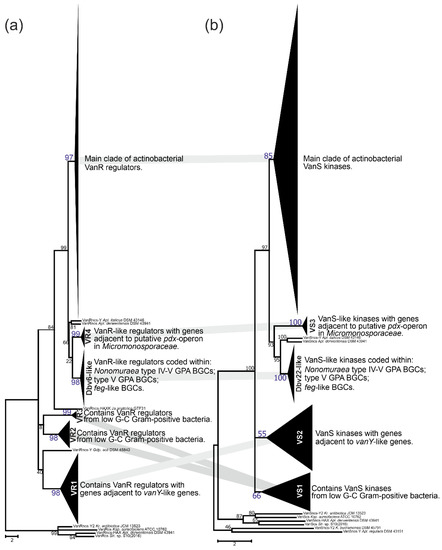

Proteins from coherent clusters VR1 (VanR-tree, Figure 11a, ESM Figure S16) and VS2 (VanS-tree, Figure 11b, ESM Figure S17) had genes co-localized with vanY-like genes, coding for Y2-cluster VanY-like proteins (Figure 10); the overall topology of Y2 was found similar to both VR1 and VS2 (ESM Figures S4, S16 and S17). Then, the VR2+3 and VS1 clusters were also coherent and contained VanS- and VanR-like proteins found in low G-C Gram-positives, as well as the ones coded within the MGEs from Coriobacteriales and Eggerthellales spp. (Figure 11, ESM Figures S18 and S19). Next pair of coherent clusters contained VanS- and VanR-like proteins coded within feg-like BGCs, Type V GPA BGCs and Type IV GPA BGCs from Nonomuraea spp. (Figure 11). Basically, both clades were formed with orthologues of either Dbv6 or Dbv22 from dbv BGCs, thus they received the corresponding naming (ESM Figures S20 and S21). Finally, the last pair of coherent basal clusters were VR4 and VS3 (Figure 11), formed by VanR- and VanS-like proteins coded adjacent to the putative pdx operon from Micromonosporales (ESM Figures S22 and S23).

Similar to what was previously observed for VanX, VanA and VanH phylogenies, the resolution of VanR and VanS trees crown groups was not perfect (ESM Figures S24 and S25). Nevertheless, we defined three additional clusters in the VanR-phylogenetic tree—VR5–7 (ESM Figures S24 and S26). VanR regulators from clusters VR5–6 were coded adjacent to vanY-like genes in different actinomycetes, while VR7 was composed of VanR-regulators coded adjacent to vanHAXYK in Streptomyces spp. VR7 contained VanR coded within pekiskomycin BGC from Str. sp. WAC1420. The resolution of the VanS tree crown group was better, allowing to distinguish five additional clusters—VS4–8 (ESM Figure S25). Here, the VS4 and VS5 clusters were formed by VanS-kinases coming from different actinobacterial orders and coded adjacent to the vanY-like genes and vanZ-like genes, respectively (ESM Figures S27 and S28). Then, proteins forming the VS6 cluster were coded adjacent to the vanHAX genes in different actinobacteria (ESM Figure S29), while VS7 was formed by VanS kinases coded adjacent to vanHAXYK genes from Streptomyces spp., including the one from pekiskomycin BGC (Str. sp. WAC1420, ESM Figure S30). Finally, proteins from VS8 were coded adjacent to vanHAXK genes in streptomycetes; VS8 also included VanS from model Str. coelicolor (ESM Figure S31).

Some other notable features in the VanS and VanR crown groups phylogenies require comments. First, both reconstructions placed VanS and VanR proteins encoded within tei and A47934 BGCs together (ESM Figures S25 and S26). Second, both trees showed evidence of a possible evolution of the VanRS-like regulatory pair, expanding its regulon control from van genes to some other genes: although the VanRS pair from All. opalescens DSM 45601 and Mcp. flavida DSM 45312 were related to the VanRS proteins coded adjacent to the vanHAX genes, the corresponding vanRS-like gene pairs actually were co-localized with genes for alanine or aspartate racemases, together with ddl and vanY-like genes.

3. Discussion

In the current work we aimed to address certain unclear issues about van genes, such as their distribution and phylogeny. Although we are aware that our results might risk generating more questions than answers, we tried in the following section to summarize what are, in our opinion, the most relevant findings.

Actinobacteria are the most likely primary sources of vlgs. First of all, the results of our screens, covering more than 7000 actinobacterial genomes and 2000 Bacillales genomes, revealed that vlgs are abundant within the Actinobacteria phylum (with an incidence of ca. 13%), while vanishingly rare in bacilli and related species belonging to the Firmicutes phylum. This disproves the idea of van-like genes and operons emerging independently in soil-dwelling actinobacteria and bacilli [28]. Abundance and context variability of actinobacterial vlgs point to the Actinobacteria phylum as to the original source of van genes. At the same time, the assumption that ubiquitous low G-C soil Gram-positives served as a bridge for vlgs to arrive in pathogens [28] seems likely. Such a transfer was probably achieved via MGEs, which often were proved to carry vlgs in low G-C soil Gram-positives and pathogens [52]. In fact, we found the classical Tn1549 transposon in the actinobacterium Atp. minutum 10063974, even though until now Tn1549-like transposons were described only in enterococci [53]. It is hard to say whether Atp. minutum 10063974 might represent the original actinobacterial source of Tn1549, or if this is an example of reverse HGT event: G-C content (estimated from vanRSYWHAX genes) of Atp. minutum 10063974 Tn1549 is the same as in Enterococcus faecalis BM4382 Tn1549—47%. However, this is comparable to the overall genome G-C content of Atp. minutum 10063974, which is ca. 48%. At the same time, two novel, putative MGEs (very similar to each other) were also found in the genomes of the actinobacteria Er. mucosicola NM66_B29 and Pvb. caecicola DSM 22242. These MGEs coded unusual transposases, carrying vlgs coding proteins that in our phylogenetic reconstructions did not cluster with Van proteins derived from low G-C Gram-positives. Once again, it is not clear if these MGEs might represent the ‘original’ actinobacterial vlg-carrying elements. The G-C content of MGEs from Er. mucosicola NM66_B29 and Pvb. caecicola DSM 22242 (as estimated from the G-C content of their vanRSHAXY-D-genes) is ca. 55%. This is higher than the usual G-C content of MGEs from low G-C Gram-positives, but lower than the overall genome G-C content of Er. mucosicola NM66_B29 and Pvb. caecicola DSM 22242 (64.6% and 62.4%, respectively). Thus, the study of vlgs in the soil mobilome requires more detailed and focused research, which could in future contribute to a better understanding of how vlgs were disseminated from actinobacteria.

vlgs are distributed in actinobacteria without any evident strict correlation to GPA BGCs distribution, although a complex co-evolution with BGCs likely occurred. Our comparative genomic analysis of the different orders belonging to the Actinobacteria phylum showed that vlgs are not necessarily co-localized with Type I–IV GPA BGCs; moreover, in the majority of the cases, vlgs were found in GPA non-producers as well as in Type V GPA producers. Consequently, it is reasonable to assume that non-cluster-situated vlgs existed independently from GPA BGCs and might actually be considered a preadaptation feature, which then facilitated the spread of GPA BGCs within the Actinobacteria phylum. Next, GPA cluster-situated vlgs are not monophyletic, meaning that different GPA BGCs likely acquired these genes from different sources of the vast actinobacterial pool. All our phylogenetic reconstructions in fact showed that cluster-situated vlgs emerged randomly on the trees, surrounded by non-cluster-situated vlgs. One of the most prominent lines of evidence came from the VanY phylogeny, where Nonomuraea spp. and Amycolatopsis spp. GPA cluster-encoded VanY carboxypeptidases belonged to distant clusters (Y2 and Y5, Figure 9), separated by multiple other non-cluster-encoded VanY proteins.

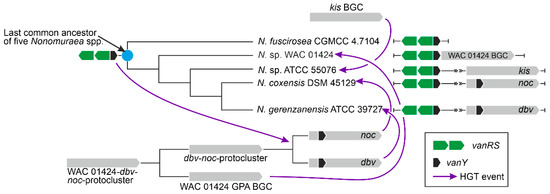

Moreover, vlgs and GPA BGCs seem to have a shared, complex co-evolution pattern. We were able to reconstruct one of the most obvious ones, observed for the self-resistance phenotype in the A40926 producer N. gerenzanensis, which relied on the expression of the cluster-situated vanY-like gene—dbv7. In the corresponding dbv7 knockout mutant, GPA resistance was significantly reduced, but not completely abolished [62]. Screening the full genome of N. gerenzanensis [67], the reason became evident: an additional vanY allele was found far away the dbv BGC. Interestingly, this allele was co-localized with a vanRS-like regulatory pair, whereas dbv7 was not. The same situation was observed for N. coxensis DSM 45129—a recently described producer of A40926-like Type IV GPA [40,68]: a cluster-situated dbv7 homologue (almost identical) and a non-cluster-situated vanRSY-triad were identified in its genome. The two other screened genomes of Nonomuraea spp.—the GPA non-producing N. fuscirosea CGMCC 4.7104 and the kistamicin producer Nonomuraea sp. ATCC 55076—contained close homologues of the vanRSY-triad. In addition, the genome of the other putative GPA producer Nonomuraea sp. WAC 01424 presented the GPA BGC just upstream the vanRSY-triad, while no vanY-allele was found in the BGC itself. Finally, in our reconstructed phylogeny of VanY-like carboxypeptidases, the dbv and noc cluster-encoded VanY-proteins out-grouped (Y1 cluster) all other ones (Figure 10). We believe that such a picture is as a result of a series of HGT events. In our hypothesis, summarized in Figure 12, first, noc and dbv protoclusters recruited the vanY gene from the vanRSY triad present in the common ancestor of Nonomuraea spp., whereas the WAC 01424 and kistamycin ancestral BGCs did not acquire it. Then, noc and dbv, through another HGT event, were introduced in the Nonomuraea ancestors already carrying the vanRSY triad. Another HGT event delivered WAC 01424 BGC to Nonomuraea sp. WAC 01424 and kistamycin BGC to Nonomuraea sp. ATCC 55076, explaining why the vanRSY triad is the only resistance determinant in these strains. Finally, no such HGT event occurred in N. fuscirosea CGMCC 4.7104, leaving this strain without any GPA BGCs but still carrying the vanRSY triad.

Is the GPA resistance the original function of vlgs? As reported above, actinobacteria are an extremely abundant source of vlgs. It is quite difficult to consider that such a variety of vlgs in GPA non-producing actinobacteria is needed to protect them versus the GPA producers, which definitively seemed quite rare. Alternatively, vlgs might have natural functions in cell-wall remodeling in response to environmental and/or developmental triggers. For instance, VanY-like M15B carboxypeptidases are extremely abundant in actinobacteria, forming diverged evolutionary lineages; it is tempting to suspect their role in, for instance, cell-wall remodeling during the life cycle (a function indeed shown for some other d-Ala-d-Ala carboxypeptidase [69]). Our finding of the so-called pdx operon, common for Micromonosporales, contributed to such an idea. This putative operon is composed of a PALP-like serine-threonine dehydratase, a Ddl ligase and a VanX-like dipeptidase genes, co-localized with a vanRS-like regulatory pair. This organization suggests an alternative mechanism of peptidoglycan precursor remodeling, which reminds the introduction of d-Ala-d-Ser termini in the cell wall of some enterococci, showing a low level of GPA resistance [14]. It is unknown whether the pdx operon is functional and if its expression leads to some cell wall remodeling, but such a case indeed merits further experimental evaluation.

To conclude, we must say that the current work only scratched the surface of actinobacterial vlgs, leaving many issues without a complete final evaluation and understanding. However, we hope that this should provoke other in silico, in vitro and in vivo studies, which will shed light on such an important question such as GPA resistance. Our findings portray actinobacteria as a Pandora’s box, hosting myriads of putative GPA resistance genes that might be transferred sooner or later to pathogens, significantly contributing to AMR. A thorough understanding of GPA resistance in actinobacteria may prove useful in the future surveillance of emerging mechanisms of resistance to clinically used GPAs. Although further experiments are necessary to show that the discovered in silico putative vlgs have a real function in vivo conferring GPA resistance, their study may reveal new insights into their biological functions in actinobacteria, augmenting our comprehension of this remarkable phylum.

4. Methods

4.1. Routine Analysis of Nucleic and Amino Acid Sequences

All routine analytic work with nucleic acid and amino acid sequences was performed using Geneious 4.8.5 [70], Mega X [71]; routine amino acid sequence alignments were performed with Clustal Omega (EMBL-EBI) [72].

4.2. vlgs Search Pipeline

To perform the search for van-like genes (named vlgs), all genome assemblies of Actinobacteria—available at the time of work preparation (April 2020) as either full sequences or uncompleted ones—were retrieved from the GenBank database (in few exceptions, genome assemblies were retrieved from RefSeq database), for a total of 7108 assemblies from species belonging to 26 established and 2 tentative orders within the Actinobacteria phylum, represented by 653,111 corresponding nucleic acid sequences. A full list of the genome assemblies and corresponding nucleic acid sequences is given in Supplementary Excel Table S1. The MultiGeneBlast tool [73] was utilized to screen the chosen set of genome assemblies for vlgs. To do that, the chosen set of genome assemblies belonging to each order was downloaded from GenBank (or RefSeq) in a genomic GenBank format (*.gbff). These files were then used to create offline MultiGeneBlast custom databases for each order belonging to the Actinobacteria phylum. MultiGeneBlast was run in a “homology” mode with the default settings, which included 25% minimal sequence coverage of the BLAST hits and 30% minimal amino acid sequence identity of BLAST hits. The maximum distance between genes in locus was increased to 40 kb (considering that vlgs inside a BGC might be separated by some other genes—such as in A47934 BGC [48]). Two input files were used as queries for the MultiGeneBlast search: one included van genes from Str. coelicolor—SCO3589-3590-3594-3595-3596 (vanSRHAX); and the other included balhimycin BGC-situated van genes from Am. balhimycina—DMA12_00360, DMA12_00365 and DMA12_00370 (vanS, vanR and vanY respectively). The first input files allowed to detect vanHAX orthologues co-localized with the vanRS-like regulatory pairs, while the second helped to detect cases when the vanY-like genes were co-localized with vanRS but lacked other van genes in their genetic neighborhood. MultiGeneBlast outputs were then carefully examined, and the amino acid sequences of the proteins coded with the so-identified vlgs were extracted. The information about these vlgs, including the corresponding protein accession numbers, nucleic acid accession numbers and taxa, are summarized in Supplementary Excel Table S2. To refine this initial screening, chosen sets of genomes for each order (highlighted in red in Supplementary Excel Table S2) were manually reexamined for vlgs using BLASTP [74] with SCO3589 (VanS), SCO3590 (VanR), SCO3592 (VanJ), SCO3593 (VanK), SCO3594 (VanH), SCO3595 (VanA), SCO3596 (VanX), CAG25753 (VanY) and ELS50663 (VanZ) as queries. These last sets of genomes were chosen to cover all the genera within a certain order and to include all the genomes carrying known and putative Type I–V GPA BGCs as well as feg-like BGCs. Selected hits were tested for orthology with queries using the Reciprocal Best Hit BLAST approach. Information received here was used to build Figure 2, Figure 3, Figure 4, Figure 5, Figure 6, Figure 7, Figure 8 and Figure 9.

4.3. Search for Putative GPA-like BGCs

The MultiGeneBlast tool [73] was used to screen all the genome assemblies for GPA-like BGCs. We utilized the same offline custom databases created for vlgs screening. MultiGeneBlast was also run in “homology” mode with the default settings; however, the maximum distance between genes in one locus was increased to 60 kb. An input file was composed of teicoplanin BGC [75] genes—tei4*, tei8*, tei15*, tei17*, tei23*, tei24*, tei28* and tei29*—coding for an ABC transporter, teicoplanin halogenase, StrR-like transcriptional regulator, prephenate dehydrogenase, l-4-hydroxyphenylglycine biosynthesis enzyme HpgT, type III polyketide synthase DpgA (involved in the biosynthesis of both l-4-hydroxyphenylglycine and l-3,5-dihydroxyphenylglycine), HmaS and Hmo (l-3,5-dihydroxyphenylglycine biosynthesis enzymes), respectively. All these genes have their orthologues in BGCs for Type I–V GPAs and in feg. MultiGeneBlast outputs were manually examined and the nucleic acid sequences containing MultiGeneBlast hits were applied for upstream antiSMASH [76] analysis. A list of the obtained putative GPA- and feg-like BGCs is given in Supplementary Excel Table S2.

4.4. Phylogenetic Reconstruction

Since the screening revealed hundreds of vlgs, it was difficult to use all the sequences for a comprehensive phylogenetic analysis. Therefore, phylogenies were reconstructed for sets of proteins coded with vlgs from the chosen genomes for each order (highlighted in red in Supplementary Excel Table S2). The final protein datasets for the reconstruction of the phylogenies of the VanY-like carboxypeptidases—VanH; VanA and Ddl; VanX and VanX-like dipeptidases; VanY-like carboxypeptidases, VanX and VanX-like dipeptidases; VanR-like regulators; and VanS-like sensor histidine kinases—are given in Supplementary FASTA Files S1–S7, respectively. Some additional information was coded in the name of each protein sequence to indicate (i) whether this protein is BGC-encoded or not; and (ii) whether this protein is coded with an ‘orphan’ gene or the corresponding gene is co-localized with other vlgs. For instance, “VanYncs-HAXRS_Tt_sp_HY188” indicates that this is VanY-like non-BGC-encoded peptidase, with the corresponding gene co-localized with vanHAXRS, coming from Tomitella sp. HY188.

The Mega X [71] package was used to perform the phylogenetic reconstructions. On the road to the representative phylogenetic tree, we always followed the next algorithm. First, multiple amino acid sequence alignments for each dataset were generated using Muscle; the obtained alignments were manually curated to preserve as much meaningful data as possible. Then the curated multiple sequence alignments were analyzed using the Mega X model finder to discover the most appropriate evolutionary models, and the best-scoring models were applied to generate the Maximum Likelihood phylogenies for each protein dataset. A similar approach was used to generate the 16S rRNA gene phylogenetic trees, which can be found in Figure 2, Figure 3, Figure 4 and Figure 5. Final topologies of either the protein or gene trees were derived from 500 bootstraps.
