Simultaneous Visualization of MiRNA-221 and Caspase-3 in Cancer Cells for Investigating the Feasibility of MiRNA-Targeted Therapy with a Dual-Color Fluorescent Nanosensor

by
Mingyao Ren
1,†,
Zhe Chen
1,†,
Chuandong Ge
1,
Wei Hu
1,
Nianxing Wang
1,
Limin Yang
2,
Mingming Luan
1,* and
Jing Xu
1,*
1
Shandong Provincial Key Laboratory of Molecular Engineering, School of Chemistry and Chemical Engineering, Qilu University of Technology (Shandong Academy of Sciences), Jinan 250353, China
2
College of Chemistry and Pharmaceutical Sciences, Qingdao Agricultural University, Qingdao 266109, China
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Biosensors 2022, 12(7), 444; https://doi.org/10.3390/bios12070444
Submission received: 24 May 2022 / Revised: 16 June 2022 / Accepted: 20 June 2022 / Published: 23 June 2022
(This article belongs to the Special Issue Application of Nanomaterials for Biosensors)
Browse Figures
Review Reports Versions Notes

Abstract

:
MiRNA-targeted therapy holds great promise for precision cancer therapy. It is important to investigate the effect of changes in miRNA expression on apoptosis in order to evaluate miRNA-targeted therapy and achieve personalized therapy. In this study, we designed a dual-color fluorescent nanosensor consisting of grapheme oxide modified with a molecular beacon and peptide. The nanosensor can simultaneously detect and image miRNA-221 and apoptotic protein caspase-3 in living cells. Intracellular experiments showed that the nanosensor could be successfully applied for in situ monitoring of the effect of miRNA-221 expression changes on apoptosis by dual-color imaging. The current strategy could provide new avenues for investigating the feasibility of miRNA-targeted therapy, screening new anti-cancer drugs targeting miRNA and developing personalized treatment plans.

1. Introduction

Cancer is a ubiquitous and devastating disease, which has led to many cancer diagnosis- and treatment-inspired research fronts focused on the creation of various detection and therapy platforms. Precision therapy provides remarkable advantages in cancer treatment due to its high cure rate, low side effects and high precision [1]. Precision therapy can uncover pathogenesis and offer personalized treatment according to the individual’s genetic information, lifestyle and living environments [2]. The importance of personalized treatment has risen to the national strategic level, and miRNA-targeted therapy is an active research field in precision medicine.
MiRNAs are small and non-coding RNAs that play critical regulatory roles in early development, physiology and pathological conditions. Aberrant expression levels of miRNAs are associated with the initiation and development of various cancers [3]. MiRNAs may play different roles as oncogenes or tumor suppressors in the human body [4,5,6,7]. Studies have shown that apoptotic genes could be regulated to induce cell apoptosis by enhancing or inhibiting the expression of specific miRNA [8,9]. In this regard, miRNAs are candidates for precision cancer therapy. Thereby, it is necessary to understand the effect of changes in miRNAs’ expression on apoptosis when studying miRNA-targeted precision cancer therapy.
Traditional approaches for detecting miRNAs (such as Northern blotting, microarray analysis and qRT-PCR) and apoptosis (such as electron microscopy, immunohistochemical analysis and Western blotting) all require cell fixation and lysis [10,11,12,13,14]. Hence, these approaches cannot really reveal the expression changes of miRNA and apoptotic markers in living cells. Moreover, these methods also have the disadvantage of being tedious and time-consuming experimental operations. Recently, fluorescent nanoprobes have become a research focus in many fields [15,16,17,18], and they have been widely used for the detection of miRNAs and apoptotic markers in living cells due to having a large number of advantages, including being non-invasive, visual identification, and extremely small consumption [19,20,21,22,23,24,25,26,27]. However, most fluorescent imaging approaches can achieve single detection of intracellular miRNA or apoptotic markers so that they cannot visually detect the effect of miRNA expression changes on cell apoptosis. Therefore, simultaneous detection of miRNA and apoptosis is of great significance in order to visualize miRNA regulation of apoptosis.
At present, many nanomaterials have been widely used for biosensing and imaging because of their good biocompatibility and strong fluorescence quenching ability, including gold nanoparticles [28,29], polydopamine [30,31], molybdenum disulfide [32,33] and grapheme oxide (GO) [34,35]. Among them, GO is a two-dimensional structure consisting of hexagonal arrangements of sp2-hybridized carbon atoms [36], with a large specific surface area and better dispersion in a wide range of solvents [37]. This makes it an ideal carrier for adsorbing biomolecules. It has been reported that GO can be functionalized with a wide range of biomolecules such as DNA, peptide chains and proteins by physical adsorption or chemical conjugation [38]. In addition, it has been pointed out that the planar carbon π system of GO can efficiently quench all types of fluorescent dyes through the photoinduced electron transfer process [39]. Hence, GO can be used as an excellent fluorescence quenching agent for fluorescence biosensors in vivo and in vitro. Herein, we reported a dual-color fluorescent nanosensor for the simultaneous detection and imaging of miRNA-221 and apoptotic marker caspase-3 in living cells (Scheme 1). In this study, the fluorescent nanosensor was developed by gradually modifying GO with a molecular beacon (MB) and a peptide. GO was selected as a good carrier to absorb the MB and peptide via the π–π stacking effect [40]. The MB had a specific stem-loop structure labeled with Cy5 and could specifically recognize the target miRNA-221. The peptide was targeted to caspase-3, which was labeled with FITC. Generally, in the absence of the targets, the fluorescent signals of the two dye molecules attached with MB and peptide were well quenched by GO. Upon meeting caspase-3 and miRNA-221, the peptide was cleaved and the MB was forced to open, thereby leading to the restoration of the fluorescence.

2. Materials and Methods

2.1. Fluorescence Quenching

To optimize the amount of GO, Cy5-modified MB (100 nM) was added to different concentrations of GO (PBS, pH 7.4). The fluorescent signal of Cy5 was recorded with λex/λem = 648/667 nm. FITC-modified peptide (300 nM) was added to various concentrations of GO-MB solutions (PBS, pH 7.4). The fluorescent signal of FITC was collected with λex/λem = 480/520 nm to determine the optimal amount of GO-MB.

2.2. Preparation of the Fluorescent Nanosensor

In total, 100 nM MB solution (PBS, pH 7.4) was added to 80 μg/mL GO solution and shaken for 1 h at room temperature. Then 300 nM peptide solutions (PBS, pH 7.4) was mixed with the above solution and further incubated for 1 h. The following mixture was further purified through repeated centrifugation and the precipitate was dispersed in PBS to obtain the fluorescent nanosensor.

2.3. Fluorescence Response of the Nanosensor

For the detection of miRNA-221, the nanosensor (80 μg/mL) was incubated with different concentrations of the perfectly matched miRNA-221 targets (0, 50, 100, 150, 200, 300, 400, 500, 1000, 2000, 2500 nM) for 1 h at 37 °C. The fluorescence of Cy5 dye was collected with 648 nm excitation and 667 nm emission. For the detection of caspase-3, the fluorescent nanosensor (80 μg/mL) was added to various concentrations of recombinant caspase-3 (0, 0.5, 1, 2, 3 and 4 units). After incubation for 4 h at 37 °C, the fluorescence of FITC dye was observed with 480 nm excitation and 520 nm emission.

2.4. Kinetic Experiments

To optimize the response time, the fully matched miRNA-221 targets (2000 nM) were added into the nanosensor solution (80 μg/mL). The fluorescence was collected with increasing incubation time (0, 10, 20, 30, 40, 50, and 60 min) at 37 °C with 648 nm excitation and 667 nm emission. The recombinant caspase-3 (4 units) was mixed with the nanosensor solution (80 μg/mL) and incubated for various times (0, 0.5, 1, 2, 3, and 4 h) at 37 °C. The fluorescence intensity of FITC-labeled peptide was collected at each time point with 480 nm excitation and 520 nm emission.

2.5. Specificity of the Nanosensor

To detect the targeting specificity of the nanosensor toward miRNA-221, the perfectly matched miRNA-221 target and other targets were investigated. The concentration of each target is 1000 nM. After culturing with the nanosensor (80 μg/mL) for 1 h at 37 °C, the fluorescence intensity of Cy5 was collected. To study the selectivity for caspase-3 detection, caspase-3 (4 units) and other interferents including 4 μg/mL hemoglobin (HGB), 4 μg/mL bovine serum albumin (BSA), 20 mM glucose (Glu), 2 mM CaCl2 and 100 mM NaCl were added to the nanosensor (80 μg/mL). The fluorescence intensity of FITC was recorded after incubation for 4 h at 37 °C.

2.6. Confocal Fluorescence Imaging

For the confocal imaging of caspase-3 and miRNA-221 in living cells with drug treatment, A549 and Hela cells were seeded in three confocal dishes and incubated for 24 h, respectively. Then one group of cells was treated with 10 μg/mL lipopolysaccharide (LPS) and another group of cells were treated with 0.1 μM staurosporine (STS) for 12 h, respectively. The cells without treatment served as the control. After the nanosensor (80 μg/mL) was added to the three groups of cells for 4 h, the confocal laser scanning microscopy (CLSM) was then captured. Green channels (caspase-3) and red channels (miRNA-221) were excited at 488 and 633 nm, and the fluorescence was monitored between 500–600 nm and 660–700 nm, respectively.
To investigate the effect of miRNA-221 level on apoptosis in living cells with transfection reagents treatment, A549 and Hela cells were sorted into three confocal dishes to obtain a cell density of 30–50% at the time of transfection, respectively. According to manufacturer’s instructions, one group was pretreated with 100 pmol miRNA-221 mimics and another group was pretreated with 500 pmol miRNA-221 inhibitors for 48 h, respectively. The group without transfection treatment was served as the control. After the 80 μg/mL nanosensor was added to the three groups of cells for 4 h, the CLSM imaging was performed using the 488 nm laser and 633 nm laser.

3. Results and Discussion

3.1. Preparation and Characterization of the Nanosensor

We first analyzed GO by Raman spectrometer. As shown in Figure S1 in the Supplementary Material, the D peak represents the defect of the carbon atomic crystal, indicating the formation of sp3 carbon in GO, and the G peak was assigned to the vibration of sp2-bonded carbon atoms. Then, the surface elemental composition of GO was analysed by X-ray photoelectron spectroscopy (XPS). As shown in Figure S2, it is mainly composed of carbon and oxygen. The oxygen-containing functional groups are mainly C-O-C, COOH and C=O. The GO and nanosensor were further analyzed by transmission electron microscopy (TEM). The result showed that the GO and nanosensor had a flaky structure with good dispersion and the size was less than 400 nm (Figure 1A). Furthermore, the atomic force microscopy (AFM) results showed that the size distribution of the GO and nanosensor was from 50 to 300 nm in width, which was consistent with the TEM data (Figure 2A,C). However, the thickness of the GO increased from 2 nm to 4 nm after MB and the peptides were modified on the surface of the GO (Figure 2B,D). In addition, Zeta potential analysis was examined to verify that the potentials of GO and the nanosensor were −6.42 mV and −0.668 mV, respectively (Figure S3). The XRD spectra measured in a range of 2θ from 5° to 70° (Figure S4) showed a diffraction peak at 2θ = 10.98° (GO) and 2θ = 10.14° (nanosensor). The diffraction peak shifted slightly toward a small angle and the peak intensity decreased after the GO was modified with the MB and peptide. All these results confirmed that the nanosensor was successfully prepared.
In order to realize the best recognizing property, the concentration of GO was further optimized. The MB (100 nM) solution was added to different concentrations of the GO solution, and then the perfectly quenched GO-MB was successful prepared. As shown in Figure 3A,C, the fluorescence of Cy5 labeled on the MB was completely quenched when the solution of GO was 50 μg/mL. Then, 300 nM of the peptide solution was added to different concentrations of GO-MB with the quenching of Cy5 fluorescence. As shown in Figure 3B,D, 80 μg/mL of the GO-MB solution perfectly quenched the fluorescence of FITC dye labeled on peptide. Hence, 80 μg/mL of GO was chosen for the following experiments. In order to study the stability of the nanosensor, the pH tolerance assay was further tested. As shown in Figure S5, the color of the nanosensor solution became darker when the treated pH value was above 8.0. What is more, the fluorescence of Cy5 labeled on the MB and FITC labeled on the peptide was enhanced significantly under alkaline conditions (Figure S6). The results indicated that the nanosensor was unstable under alkaline conditions, and the MB and peptide could detach from the GO. Therefore, considering the stability and biocompatibility of the nanosensor are prerequisites for its biological application, the nanosensor was prepared at pH 7.4.

3.2. In Vitro Studies of the Nanosensor

To investigate the capability of the nanosensor for simultaneously detecting the miRNA-221 and caspase-3, we next studied the response of the peptide to caspase-3 and the response of the MB to the perfectly complementary DNA target. As shown in Figure 4A,C, the fluorescence of the Cy5-labeled MB gradually increased with increases in the fully complementary target-221 concentrations (0–2500 nM). Similarly, Figure 4B shows that the fluorescent signal of the FITC-labeled peptide gradually increased with increasing concentrations of caspase-3 (0–4 unit). The fluorescent signal had linear correlations with the concentration of the caspase-3 target (Figure 4D). These results suggest that the response of the nanosensor toward the corresponding targets led to the fluorescent signal’s recovery. The kinetic results suggest that the fluorescent nanosensor responded rapidly to the fully matched DNA target within 10 min and reached equilibrium in 30 min (Figure 5A and Figure S7A). The fluorescent response of the nanosensor to caspase-3 was also gradually increased with time and reached equilibrium after 3 h (Figure 5B and Figure S7B).
To evaluate whether the nanosensor could specifically respond to caspase-3 and miRNA-221, we analyzed the effects of other interferents on the nanosensor. As shown in Figure 5C, the mismatched target-221 and other targets all showed slightly enhanced fluorescence compared to the control. However, the Cy5-labeled MB presented a strong fluorescent response when the nanosensor met fully complementary target-221. Similar results were also observed when the fluorescent nanosensor encountered caspase-3 and other interferents (Figure 5D). These results demonstrate that the nanosensor could simultaneously and specifically detect caspase-3 and miRNA-221.

3.3. MTT Experiment

Hela and A549 cells were chosen to investigate the cytotoxicity of the nanosensor. As shown in Figure 6, the cell viabilities of both cell lines remained over 95% after culturing the cells with the nanosensor for 24 h, which suggested that the nanosensor had good biocompatibility and little cytotoxicity. The results demonstrate that the nanosensor could be used for intracellular imaging and detection.

3.4. Imaging of MiRNA-221 and Caspase-3 in Living Cells

Hela and A549 cells were chosen to investigate the feasibility of the fluorescent nanosensor simultaneously detecting the expression levels of intracellular caspase-3 and miRNA-221. It has been reported that miRNA-221 expression was especially high as a cancer marker in cancer cells, and caspase-3 expression was increased during cell apoptosis [41,42,43,44,45]. The two cell types were all pretreated with STS and LPS. STS can promote cell apoptosis and increase the expression of caspase-3 [46]. LPS can induce cells to generate a pro-inflammatory response and upregulate oncogenic miRNA-221 expression [47]. Hela cells were separated into three parallel groups. One group was pretreated with LPS and another group was pretreated with STS. The group without drug treatment served as a control. Three groups of cells were examined by CLSM with suitable laser transmitters after incubating with the fluorescent nanosensor (80 μg/mL) for 4 h. As shown in Figure 7A, compared to the untreated Hela cells, the red fluorescence signal for miRNA-221 was significantly increased and the green fluorescence signal for caspase-3 had no change in Hela cells with LPS treatment. However, the green fluorescent intensity was significantly enhanced and the red fluorescent intensity decreased in cells with STS treatment.
WB and RT-PCR experiments were also used to examine the expressions of caspase-3 and miRNA-221 in cells. Figure 7B,C show that the results of WB and RT-PCR maintained consistency with the results of CLSM. In addition, the CLSM, WB and RT-PCR methods were also examined in A549 cells and all the experimental results were similar to those detected in Hela cells (Figure 7D–F). The results show that the fluorescent nanosensor could simultaneously monitor intracellular miRNA-221 and caspase-3.
To evaluate the feasibility of the nanosensor monitoring the intracellular miRNA-221 regulation of apoptosis, Hela and A549 cells transfected with miRNA-221 mimics or inhibitors were then examined to investigate the effect of miRNA-221 expression on caspase-3. Hela cells were divided into three parallel groups. One group was pretreated with miRNA-221 mimics to increase the expression of miRNA-221 and another group was pretreated with miRNA-221 inhibitors to decrease the expression of miRNA-221. The group with miRNA-221 NC treatment served as a control. As shown in Figure 8A, the red fluorescent signal was markedly increased and the green fluorescent signal was not observed in cells transfected with miRNA-221 mimics compared to the control. However, the green fluorescence increased and the red fluorescence decreased in cells transfected with miRNA-221 inhibitors. The analyses of RT-PCR and WB further confirmed the CLSM results (Figure 8B,C), which demonstrate that the decreased expression of miRNA-221 could promote the apoptosis of Hela cells and the fluorescent nanosensor could successfully monitor miRNA regulation of apoptosis in living cells. A549 cells behaved similarly in CLSM, WB and RT-PCR assays (Figure 8D–F). These results indicate that miRNA-221 could be a promising therapeutic target for A549 and Hela cells.

4. Conclusions

In summary, we designed a fluorescent nanosensor that can visualize miRNA regulation of apoptosis by simultaneously monitoring miRNA and caspase-3 in living cells. The nanosensor can circumvent the limitations of traditional methods and simultaneously detect the expressions of intracellular miRNA-221 and caspase-3 with good biocompatibility and high specificity. Confocal imaging results demonstrate that the nanosensor could be successfully used to visually evaluate the effect of miRNA-221 expression change on cell apoptosis by dual-color imaging. The prepared fluorescent nanosensor can offer a new approach for in situ monitoring of intracellular miRNA-regulated apoptosis, which is beneficial for evaluating the feasibility of miRNA-targeted therapies. We expect that the nanosensor will be a promising sensing platform for evaluating miRNA-targeting drugs and personalized therapy.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/bios12070444/s1, Table S1: DNA sequence and peptide information; Figure S1: Raman spectra of GO; Figure S2: XPS spectra of GO; Figure S3: Zeta potential characterization of the na-nosensor; Figure S4: XRD patterns recorded for GO and nanosensor; Figure S5: State of nanosensor solution at different pH values; Figure S6: Fluorescence intensity of MB (A) and peptide (B) modified on nanosensor at different pH values; Figure S7: The kinetic fluorescence spectra of the nanosensor in the presence of miRNA-221 (A) and caspase-3 (B).

Author Contributions

Conceptualization, M.L., N.W. and M.R.; methodology, M.L., M.R. and Z.C.; software, M.R. and Z.C.; validation, M.L. and M.R.; formal analysis, M.L., M.R., Z.C. and C.G.; investigation, M.L., M.R., Z.C. and C.G.; resources, M.L.; data curation, M.R.; writing—original draft preparation, M.L. and M.R.; writing—review and editing, M.L., M.R., Z.C., C.G. and L.Y.; visualization, M.L. and M.R.; supervision, M.L.; funding acquisition, M.L., W.H., J.X. and L.Y. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the National Natural Science Foundation of China (Nos. 21904074, 22178184, 22073053, 22174083 and 21804077), the Natural Science Foundation of Shandong Province (No. ZR2021MB007), the Young Taishan Scholar Program of Shandong Province (No. tsqn201909139) and the Program for Scientific Research Innovation Team in Colleges and Universities of Jinan (No.2021GXRC042).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The authors confirm the data supporting the findings of this study.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Friedman, A.A.; Letai, A.; Fisher, D.E.; Flaherty, K.T. Precision medicine for cancer with next-generation functional diagnostics. Nat. Rev. Cancer 2015, 15, 747–756. [Google Scholar] [CrossRef]
  2. Hodson, R. Precision medicine. Nature 2016, 537, S49. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Di Leva, G.; Garofalo, M.; Croce, C.M. MicroRNAs in cancer. Annu. Rev. Pathol-Mech. 2014, 9, 287–314. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Selcuklu, S.D.; Donoghue; Mark, T.A.; Spillane, C. miR-21 as a keyiew regulator of oncogenic processes. Biochem. Soc. T. 2009, 37, 918–925. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Mayoral, R.J.; Pipkin, M.E.; Pachkov, M.; van Nimwegen, E.; Rao, A.; Monticelli, S. MicroRNA-221–222 Regulate the Cell Cycle in Mast Cells. J. Immunol. 2009, 182, 433. [Google Scholar] [CrossRef]
  6. Boyerinas, B.; Park, S.-M.; Hau, A.; Murmann, A.E.; Peter, M.E. The role of let-7 in cell differentiation and cancer. Endocr-Relat. Cancer 2010, 17, F19–F36. [Google Scholar] [CrossRef]
  7. Chen, W.-X.; Hu, Q.; Qiu, M.-T.; Zhong, S.-L.; Xu, J.-J.; Tang, J.-H.; Zhao, J.-H. miR-221/222: Promising biomarkers for breast cancer. Tumor Biol. 2013, 34, 1361–1370. [Google Scholar] [CrossRef]
  8. Ola, M.S.; Nawaz, M.; Ahsan, H. Role of Bcl-2 family proteins and caspases in the regulation of apoptosis. Mol. Cell. Biochem. 2011, 351, 41–58. [Google Scholar] [CrossRef]
  9. Olsson, M.; Zhivotovsky, B. Caspases and cancer. Cell Death Differ. 2011, 18, 1441–1449. [Google Scholar] [CrossRef] [Green Version]
  10. Gibson, U.E.; Heid, C.A.; Williams, P.M. A novel method for real time quantitative RT-PCR. Genome Res. 1996, 6, 995–1001. [Google Scholar] [CrossRef] [Green Version]
  11. Govindarajan, R.; Duraiyan, J.; Kaliyappan, K.; Palanisamy, M. Microarray and its applications. J. Pharm. Bioallied Sci. 2012, 4, S310–S312. [Google Scholar] [CrossRef]
  12. Streit, S.; Michalski, C.W.; Erkan, M.; Kleeff, J.; Friess, H. Northern blot analysis for detection and quantification of RNA in pancreatic cancer cells and tissues. Nat. Protoc. 2009, 4, 37–43. [Google Scholar] [CrossRef]
  13. Mahmood, T.; Yang, P.-C. Western blot: Technique, theory, and trouble shooting. N. Am. J. Med. Sci. 2012, 4, 429–434. [Google Scholar] [CrossRef]
  14. Duraiyan, J.; Govindarajan, R.; Kaliyappan, K.; Palanisamy, M. Applications of immunohistochemistry. J. Pharm. Bioallied Sci. 2012, 4, S307–S309. [Google Scholar] [CrossRef]
  15. Wang, Y.; Zhao, G.; Chi, H.; Yang, S.; Niu, Q.; Wu, D.; Cao, W.; Li, T.; Ma, H.; Wei, Q. Self-Luminescent Lanthanide Metal–Organic Frameworks as Signal Probes in Electrochemiluminescence Immunoassay. J. Am. Chem. Soc. 2021, 143, 504–512. [Google Scholar] [CrossRef]
  16. Yang, L.; Yin, X.; An, B.; Li, F. Precise Capture and Direct Quantification of Tumor Exosomes via a Highly Efficient Dual-Aptamer Recognition-Assisted Ratiometric Immobilization-Free Electrochemical Strategy. Anal. Chem. 2021, 93, 1709–1716. [Google Scholar] [CrossRef]
  17. Pan, W.; Liu, X.; Wan, X.; Li, J.; Li, Y.; Lu, F.; Li, N.; Tang, B. Rapid Preparation of Au–Se–Peptide Nanoprobe Based on a Freezing Method for Bioimaging. Anal. Chem. 2019, 91, 15982–15987. [Google Scholar] [CrossRef]
  18. Wang, Y.; Wang, Y.; Wang, F.; Chi, H.; Zhao, G.; Zhang, Y.; Li, T.; Wei, Q. Electrochemical aptasensor based on gold modified thiol graphene as sensing platform and gold-palladium modified zirconium metal-organic frameworks nanozyme as signal enhancer for ultrasensitive detection of mercury ions. J. Colloid Interf. Sci. 2022, 606, 510–517. [Google Scholar] [CrossRef]
  19. Hong, C.; Baek, A.; Hah, S.S.; Jung, W.; Kim, D.-E. Fluorometric Detection of MicroRNA Using Isothermal Gene Amplification and Graphene Oxide. Anal. Chem. 2016, 88, 2999–3003. [Google Scholar] [CrossRef] [Green Version]
  20. Afzalinia, A.; Mirzaee, M. Ultrasensitive Fluorescent miRNA Biosensor Based on a “Sandwich” Oligonucleotide Hybridization and Fluorescence Resonance Energy Transfer Process Using an Ln(III)-MOF and Ag Nanoparticles for Early Cancer Diagnosis: Application of Central Composite Design. ACS Appl. Mater. Inter. 2020, 12, 16076–16087. [Google Scholar] [CrossRef]
  21. Li, X.; Li, Y.; Qiu, Q.; Wen, Q.; Zhang, Q.; Yang, W.; Yuwen, L.; Weng, L.; Wang, L. Efficient biofunctionalization of MoS2 nanosheets with peptides as intracellular fluorescent biosensor for sensitive detection of caspase-3 activity. J. Colloid Interf. Sci. 2019, 543, 96–105. [Google Scholar] [CrossRef] [PubMed]
  22. Zhao, C.; Qiu, L.; Lv, P.; Han, A.; Fang, G.; Liu, J.; Wang, S. AuNP-peptide probe for caspase-3 detection in living cells by SERS. Analyst 2019, 144, 1275–1281. [Google Scholar] [CrossRef] [PubMed]
  23. Zuo, C.; Guo, Y.; Li, J.; Peng, Z.; Bai, S.; Yang, S.; Wang, D.; Chen, H.; Xie, G. A nanoprobe for fluorescent monitoring of microRNA and targeted delivery of drugs. RSC Adv. 2021, 11, 8871–8878. [Google Scholar] [CrossRef]
  24. Liu, C.; Hu, Y.-L.; Deng, W.-J.; Pan, Q.-S.; Yi, J.-T.; Chen, T.-T.; Chu, X. A graphene oxide nanosensor enables the co-delivery of aptamer and peptide probes for fluorescence imaging of a cascade reaction in apoptotic signaling. Analyst 2018, 143, 208–214. [Google Scholar] [CrossRef] [PubMed]
  25. Luan, M.; Li, N.; Pan, W.; Yang, L.; Yu, Z.; Tang, B. Simultaneous detection of multiple targets involved in the PI3K/AKT pathway for investigating cellular migration and invasion with a multicolor fluorescent nanoprobe. Chem. Commun. 2017, 53, 356–359. [Google Scholar] [CrossRef]
  26. Luan, M.; Chang, J.; Pan, W.; Chen, Y.; Li, N.; Tang, B. Simultaneous Fluorescence Visualization of Epithelial–Mesenchymal Transition and Apoptosis Processes in Tumor Cells for Evaluating the Impact of Epithelial–Mesenchymal Transition on Drug Efficacy. Anal. Chem. 2018, 90, 10951–10957. [Google Scholar] [CrossRef] [PubMed]
  27. Yin, X.; Hou, T.; Huang, B.; Yang, L.; Li, F. Aptamer recognition-trigged label-free homogeneous electrochemical strategy for an ultrasensitive cancer-derived exosome assay. Chem. Commun. 2019, 55, 13705–13708. [Google Scholar] [CrossRef]
  28. Ma, H.; Xue, N.; Li, Z.; Xing, K.; Miao, X. Ultrasensitive detection of miRNA-155 using multi-walled carbon nanotube-gold nanocomposites as a novel fluorescence quenching platform. Sens. Actuat. B-Chem. 2018, 266, 221–227. [Google Scholar] [CrossRef]
  29. Liu, X.; Song, X.; Luan, D.; Hu, B.; Xu, K.; Tang, B. Real-Time in Situ Visualizing of the Sequential Activation of Caspase Cascade Using a Multicolor Gold–Selenium Bonding Fluorescent Nanoprobe. Anal. Chem. 2019, 91, 5994–6002. [Google Scholar] [CrossRef]
  30. Ma, S.; Qi, Y.-X.; Jiang, X.-Q.; Chen, J.-Q.; Zhou, Q.-Y.; Shi, G.; Zhang, M. Selective and Sensitive Monitoring of Cerebral Antioxidants Based on the Dye-Labeled DNA/Polydopamine Conjugates. Anal. Chem. 2016, 88, 11647–11653. [Google Scholar] [CrossRef]
  31. Liu, L.; Li, X.; Zhang, H.; Chen, H.; Abualrejal, M.M.A.; Song, D.; Wang, Z. Six-in-one peptide functionalized upconversion@polydopamine nanoparticle-based ratiometric fluorescence sensing platform for real-time evaluating anticancer efficacy through monitoring caspase-3 activity. Sensors Actuat. B-Chem. 2021, 333, 129554. [Google Scholar] [CrossRef]
  32. Oudeng, G.; Au, M.; Shi, J.; Wen, C.; Yang, M. One-Step in Situ Detection of miRNA-21 Expression in Single Cancer Cells Based on Biofunctionalized MoS2 Nanosheets. ACS Appl. Mater. Inter. 2018, 10, 350–360. [Google Scholar] [CrossRef]
  33. Cetinel, S.; Shen, W.-Z.; Aminpour, M.; Bhomkar, P.; Wang, F.; Borujeny, E.R.; Sharma, K.; Nayebi, N.; Montemagno, C. Biomining of MoS2 with peptide-based smart biomaterials. Sci. Rep. 2018, 8, 918–925. [Google Scholar] [CrossRef] [Green Version]
  34. Lu, Z.; Zhang, L.; Deng, Y.; Li, S.; He, N. Graphene oxide for rapid microRNA detection. Nanoscale 2012, 4, 5840–5842. [Google Scholar] [CrossRef]
  35. Zhang, M.; Yin, B.-C.; Wang, X.-F.; Ye, B.-C. Interaction of peptides with graphene oxide and its application for real-time monitoring of protease activity. Chem. Commun. 2011, 47, 2399–2401. [Google Scholar] [CrossRef]
  36. Novoselov, K.S.; Geim, A.K.; Morozov, S.V.; Jiang, D.; Zhang, Y.; Dubonos, S.V.; Grigorieva, I.V.; Firsov, A.A. Electric Field Effect in Atomically Thin Carbon Films. Science 2004, 306, 666–669. [Google Scholar] [CrossRef] [Green Version]
  37. Bussy, C.; Ali-Boucetta, H.; Kostarelos, K. Safety Considerations for Graphene: Lessons Learnt from Carbon Nanotubes. Accounts Chem. Res. 2013, 46, 692–701. [Google Scholar] [CrossRef]
  38. Wang, Y.; Li, Z.; Wang, J.; Li, J.; Lin, Y. Graphene and graphene oxide: Biofunctionalization and applications in biotechnology. Trends Biotechnol. 2011, 29, 205–212. [Google Scholar] [CrossRef]
  39. Liu, Y.; Liu, C.-y.; Liu, Y. Investigation on fluorescence quenching of dyes by graphite oxide and graphene. Appl. Surf. Sci. 2011, 257, 5513–5518. [Google Scholar] [CrossRef]
  40. Wang, Y.; Zhao, G.; Zhang, G.; Zhang, Y.; Wang, H.; Cao, W.; Li, T.; Wei, Q. An electrochemical aptasensor based on gold-modified MoS2/rGO nanocomposite and gold-palladium-modified Fe-MOFs for sensitive detection of lead ions. Sens. Actuat. B-Chem. 2020, 319, 128313. [Google Scholar] [CrossRef]
  41. Pineau, P.; Volinia, S.; McJunkin, K.; Marchio, A.; Battiston, C.; Terris, B.; Mazzaferro, V.; Lowe, S.W.; Croce, C.M.; Dejean, A. miR-221 overexpression contributes to liver tumorigenesis. Proc. Natl. Acad. Sci. USA 2010, 107, 264–269. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  42. Ihle, M.A.; Trautmann, M.; Kuenstlinger, H.; Huss, S.; Heydt, C.; Fassunke, J.; Wardelmann, E.; Bauer, S.; Schildhaus, H.-U.; Buettner, R.; et al. miRNA-221 and miRNA-222 induce apoptosis via the KIT/AKT signalling pathway in gastrointestinal stromal tumours. Mol. Oncol. 2015, 9, 1421–1433. [Google Scholar] [CrossRef] [PubMed]
  43. Chen, F.; Li, X.-F.; Fu, D.-S.; Huang, J.-G.; Yang, S.-E. Clinical potential of miRNA-221 as a novel prognostic biomarker for hepatocellular carcinoma. Cancer Biomark. 2017, 18, 209–214. [Google Scholar] [CrossRef] [PubMed]
  44. Meier, P.; Finch, A.; Evan, G. Apoptosis in development. Nature 2000, 407, 796–801. [Google Scholar] [CrossRef]
  45. Kerr, J.F.R.; Winterford, C.M.; Harmon, B.V. Apoptosis. Its significance in cancer and cancer Therapy. Cancer 1994, 73, 2013–2026. [Google Scholar] [CrossRef]
  46. Bertrand, R.; Solary, E.; O’Connor, P.; Kohn, K.W.; Pommier, Y. Induction of a Common Pathway of Apoptosis by Staurosporine. Exp. Cell Res. 1994, 211, 314–321. [Google Scholar] [CrossRef]
  47. Qi, W.; Li, H.; Cai, X.-H.; Gu, J.-Q.; Meng, J.; Xie, H.-Q.; Zhang, J.-L.; Chen, J.; Jin, X.-G.; Tang, Q.; et al. Lipoxin A4 activates alveolar epithelial sodium channel gamma via the microRNA-21/PTEN/AKT pathway in lipopolysaccharide-induced inflammatory lung injury. Lab. Investig. 2015, 95, 1258–1268. [Google Scholar] [CrossRef] [Green Version]
Biosensors 12 00444 sch001 550

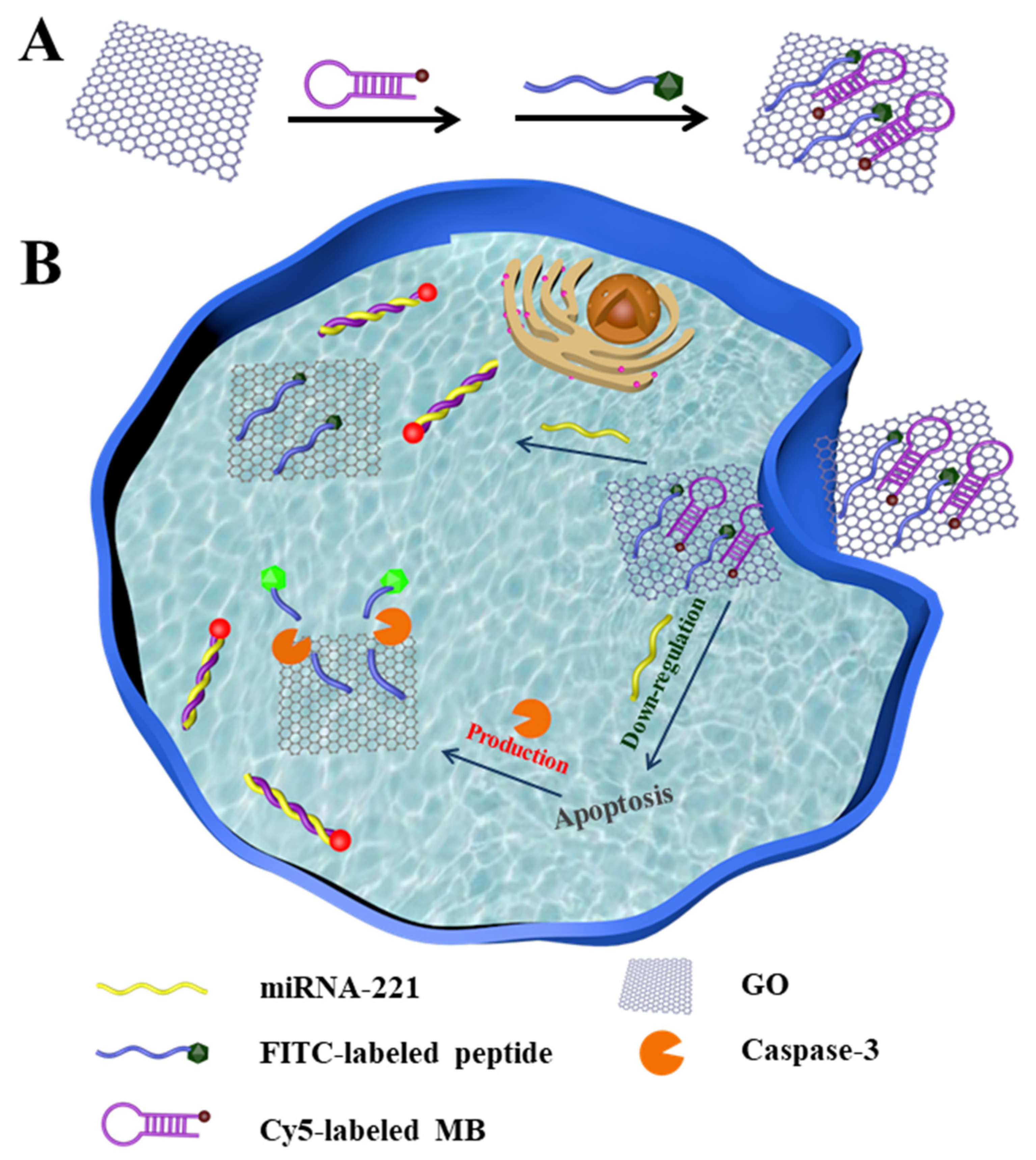

Scheme 1. (A) Preparation of the fluorescent nanosensor. (B) Simultaneous detection of miRNA-221 and caspase-3 in living cells.
Scheme 1. (A) Preparation of the fluorescent nanosensor. (B) Simultaneous detection of miRNA-221 and caspase-3 in living cells.
Biosensors 12 00444 sch001
Biosensors 12 00444 g001 550

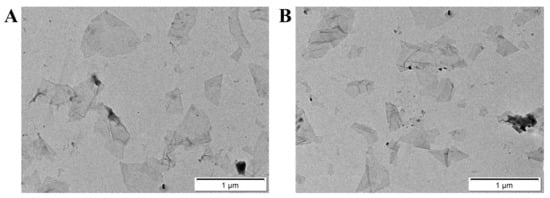

Figure 1. TEM images of GO (A) and nanosensor (B).
Figure 1. TEM images of GO (A) and nanosensor (B).
Biosensors 12 00444 g001
Biosensors 12 00444 g002 550

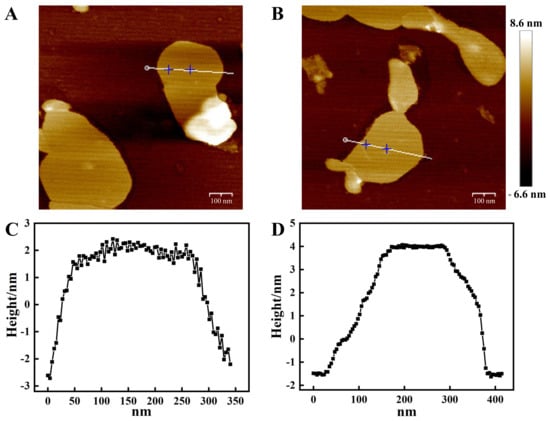

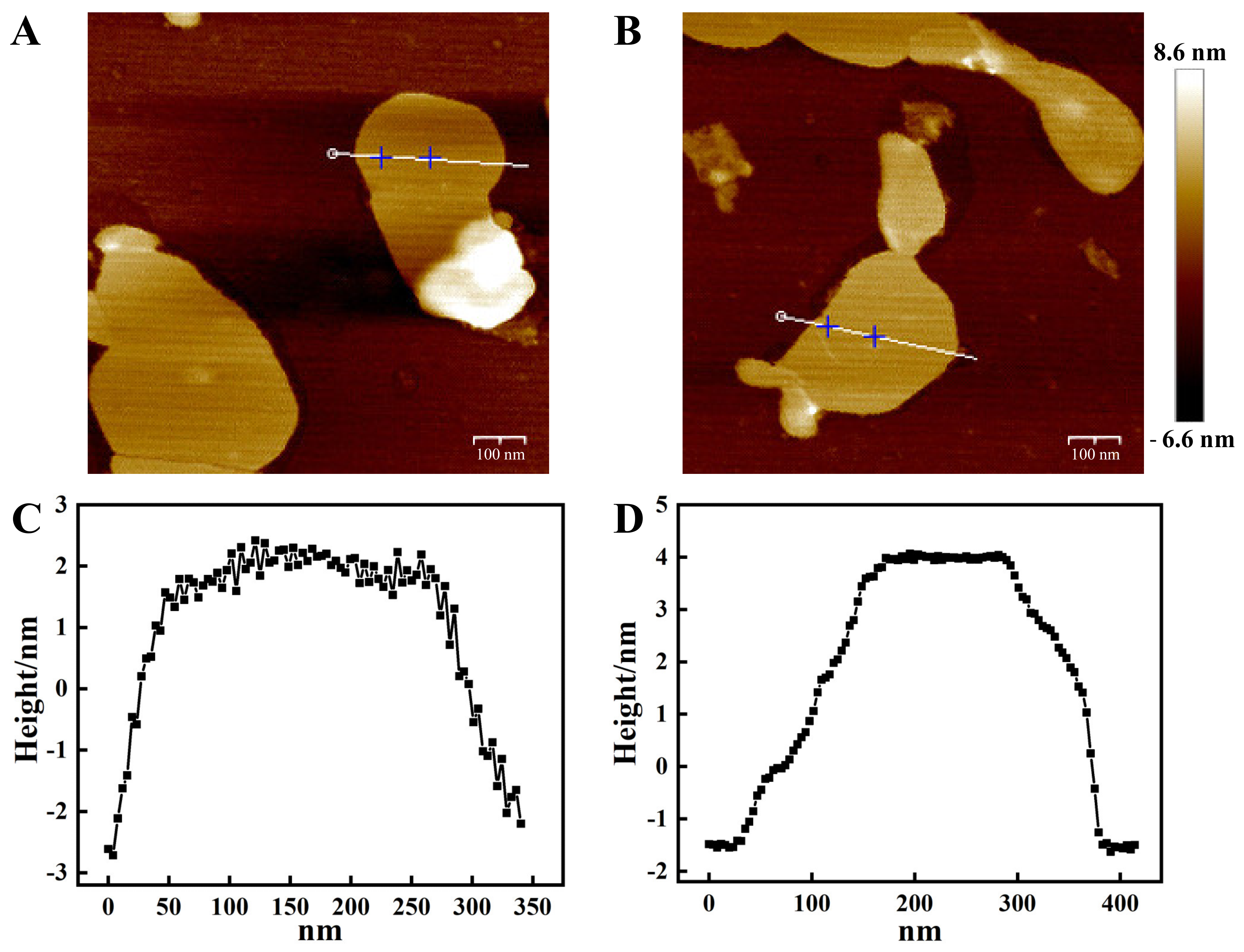

Figure 2. AFM images and height profiles of GO (A,C) and nanosensor (B,D). (Scale bar: 100 nm).
Figure 2. AFM images and height profiles of GO (A,C) and nanosensor (B,D). (Scale bar: 100 nm).
Biosensors 12 00444 g002
Biosensors 12 00444 g003 550

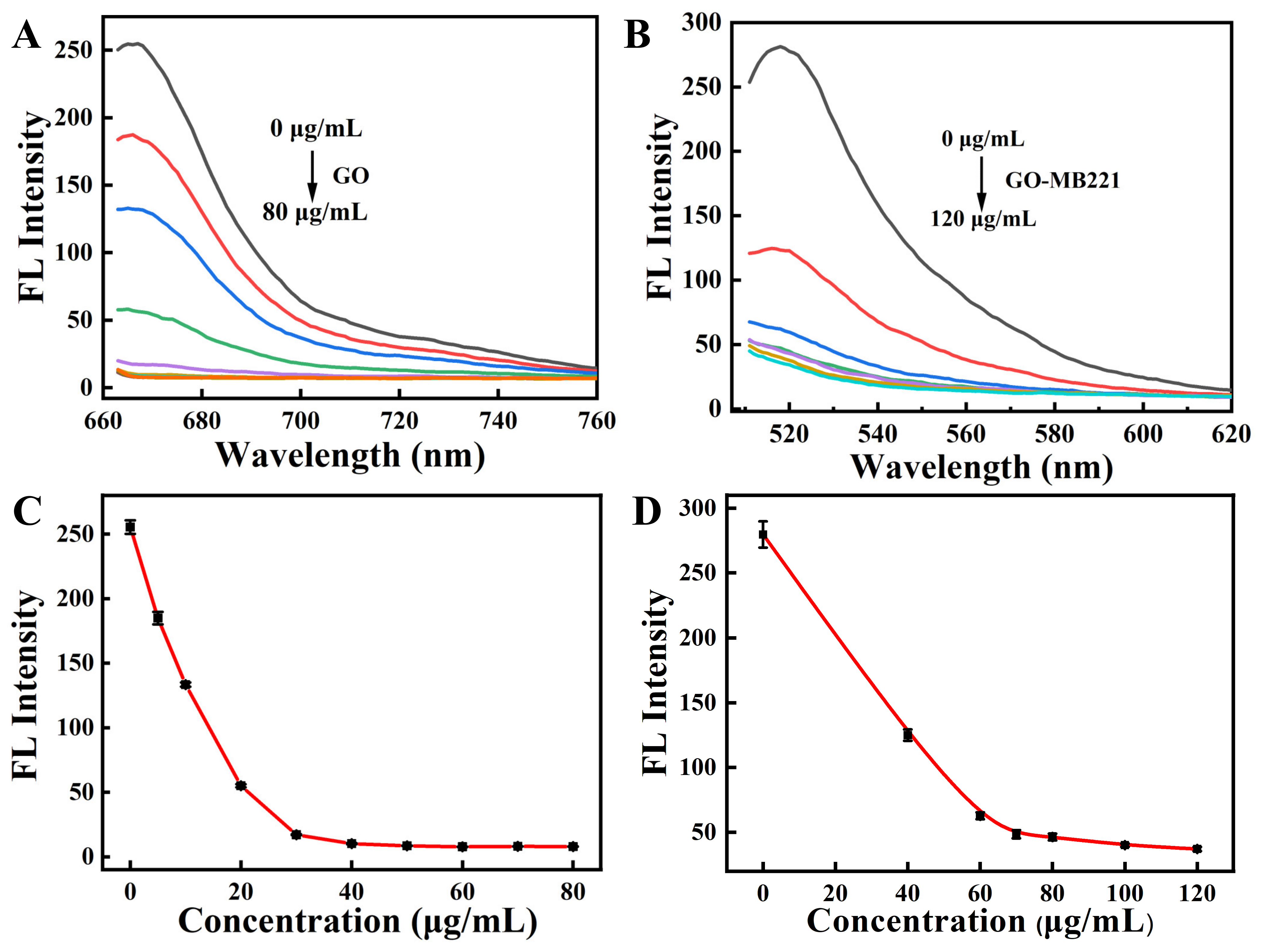

Figure 3. The fluorescence quenching spectra of the Cy5-labeled MB (100 nM) with various concentrations of GO (A) and the FITC-labeled peptide (300 nM) with various concentrations of GO-MB (B). Plot of the fluorescence intensity at various concentrations of GO (C) and GO-MB (D). (Cy5-labeled MB, λex/λem = 648 nm/667 nm; FITC-labeled peptide, λex/λem = 480 nm/520 nm.)
Figure 3. The fluorescence quenching spectra of the Cy5-labeled MB (100 nM) with various concentrations of GO (A) and the FITC-labeled peptide (300 nM) with various concentrations of GO-MB (B). Plot of the fluorescence intensity at various concentrations of GO (C) and GO-MB (D). (Cy5-labeled MB, λex/λem = 648 nm/667 nm; FITC-labeled peptide, λex/λem = 480 nm/520 nm.)
Biosensors 12 00444 g003
Biosensors 12 00444 g004 550

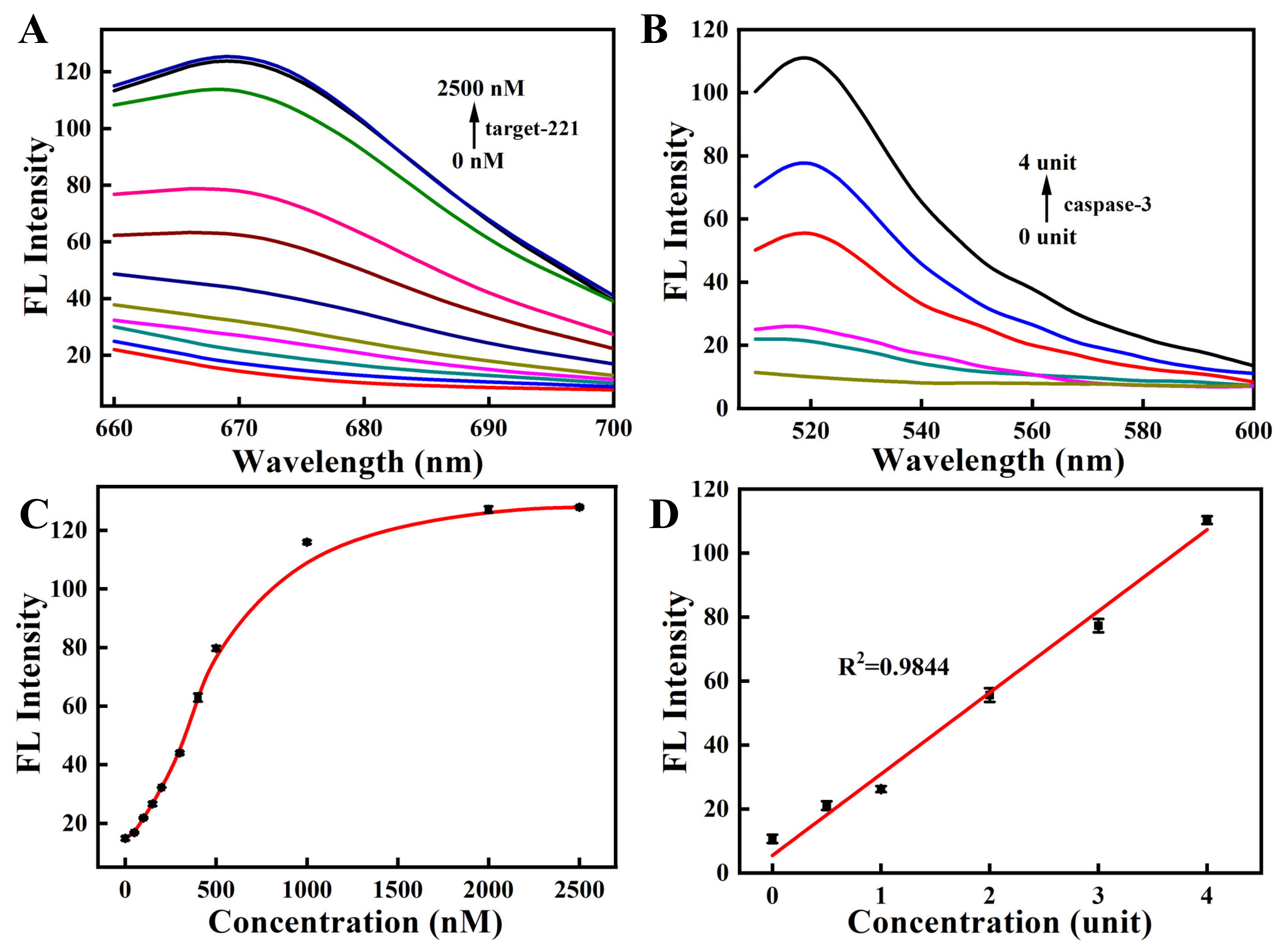

Figure 4. The fluorescence response spectra of the nanosensor with various concentrations of miRNA-221 (A) and caspase-3 (B). (Cy5-labeled MB, targeting target-221, λex/λem = 648 nm/667 nm; FITC-labeled peptide, targeting caspase-3, λex/λem = 480 nm/520 nm.) The fluorescence recovery of the nanosensor in the presence of target-221 (C) and caspase-3 (D).
Figure 4. The fluorescence response spectra of the nanosensor with various concentrations of miRNA-221 (A) and caspase-3 (B). (Cy5-labeled MB, targeting target-221, λex/λem = 648 nm/667 nm; FITC-labeled peptide, targeting caspase-3, λex/λem = 480 nm/520 nm.) The fluorescence recovery of the nanosensor in the presence of target-221 (C) and caspase-3 (D).
Biosensors 12 00444 g004
Biosensors 12 00444 g005 550

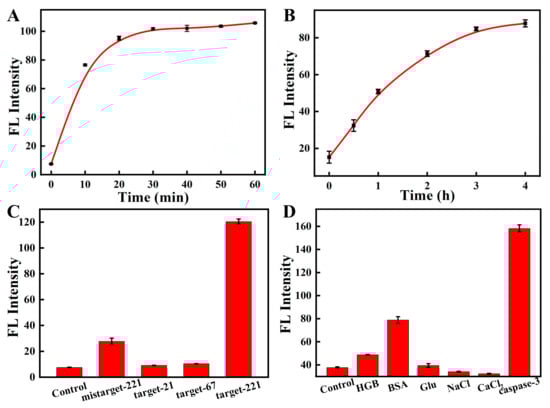

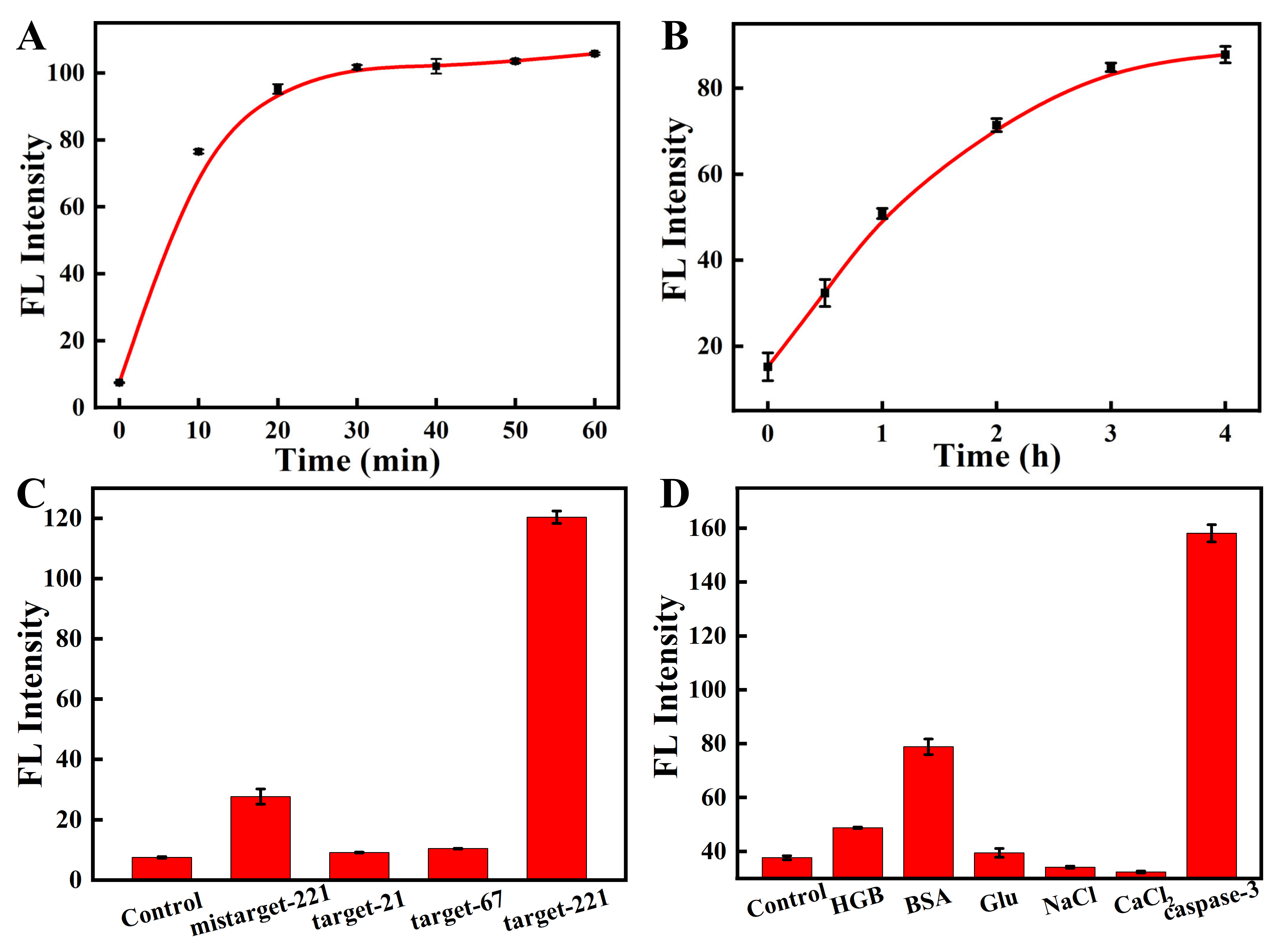

Figure 5. Kinetics of the nanosensor in the presence of target-221 (A) and caspase-3 (B). The specificity experiments of MB (C) and peptide (D) modified on the nanosensor.
Figure 5. Kinetics of the nanosensor in the presence of target-221 (A) and caspase-3 (B). The specificity experiments of MB (C) and peptide (D) modified on the nanosensor.
Biosensors 12 00444 g005
Biosensors 12 00444 g006 550

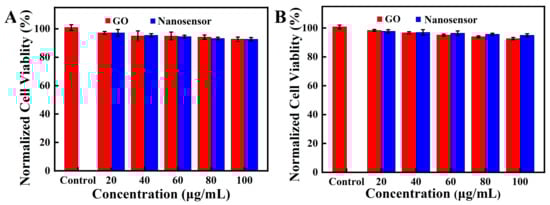

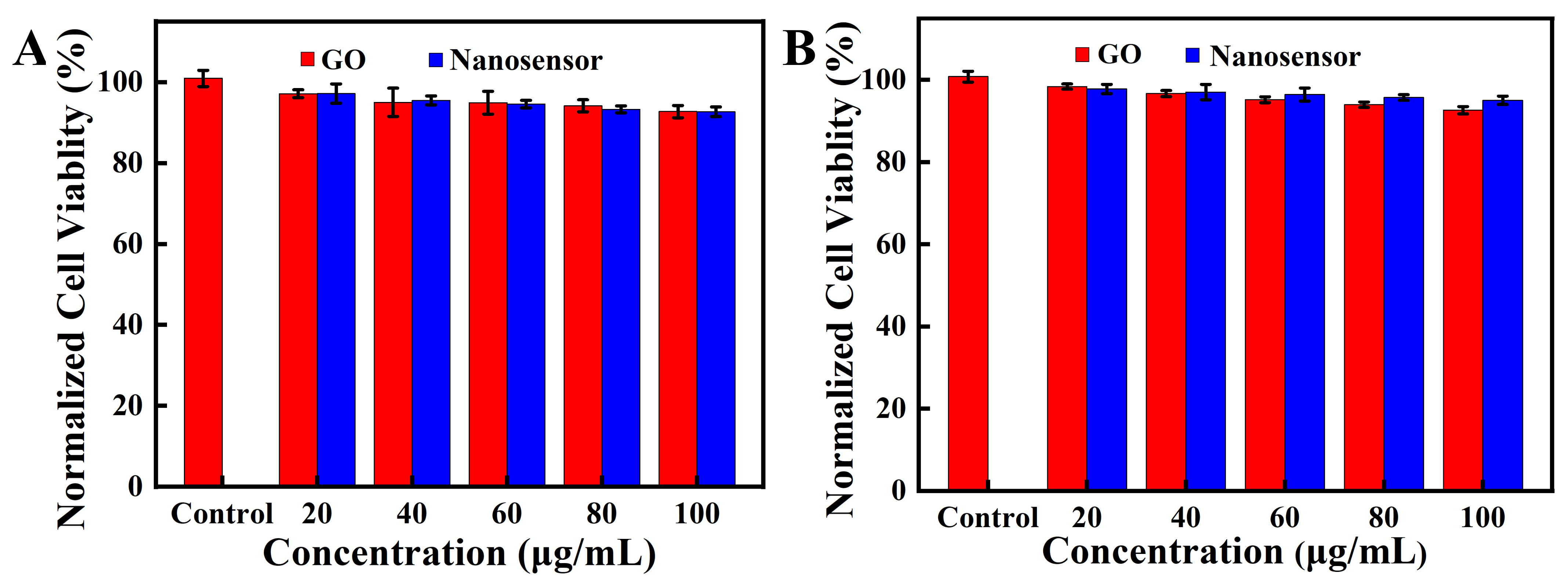

Figure 6. MTT assays of A549 cells (A) and Hela cells (B). The cells were incubated with various concentrations of GO and the nanosensor for 24 h.
Figure 6. MTT assays of A549 cells (A) and Hela cells (B). The cells were incubated with various concentrations of GO and the nanosensor for 24 h.
Biosensors 12 00444 g006
Biosensors 12 00444 g007 550

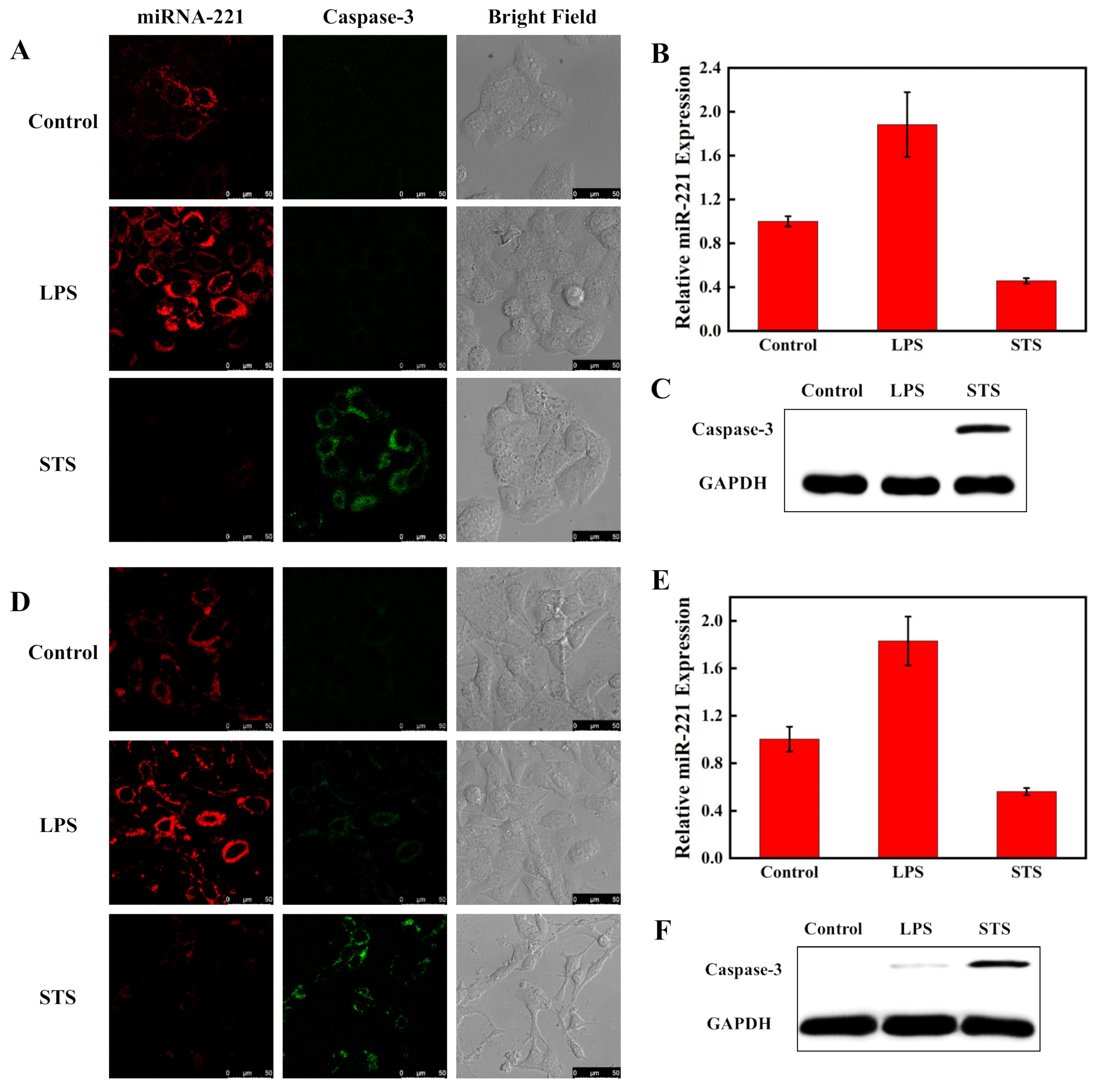

Figure 7. Confocal imaging of miRNA-221 and caspase-3 in Hela (A) and A549 cells (D). The cells were pretreated with LPS to activate the miRNA-221 level and pretreated with STS to activate the caspase-3 expression. The cells were incubated with the nanosensor for 4 h at 37 °C. The red and green channels were examined with 488 and 633 nm excitation, respectively. Scale bar is 50 μm. Analysis of miRNA-221 level by RT-PCR in Hela cells (B) and A549 cells (E) after treatment with LPS and STS. The Western blot assay of caspase-3 expression in Hela cells (C) and A549 cells (F).
Figure 7. Confocal imaging of miRNA-221 and caspase-3 in Hela (A) and A549 cells (D). The cells were pretreated with LPS to activate the miRNA-221 level and pretreated with STS to activate the caspase-3 expression. The cells were incubated with the nanosensor for 4 h at 37 °C. The red and green channels were examined with 488 and 633 nm excitation, respectively. Scale bar is 50 μm. Analysis of miRNA-221 level by RT-PCR in Hela cells (B) and A549 cells (E) after treatment with LPS and STS. The Western blot assay of caspase-3 expression in Hela cells (C) and A549 cells (F).
Biosensors 12 00444 g007
Biosensors 12 00444 g008 550

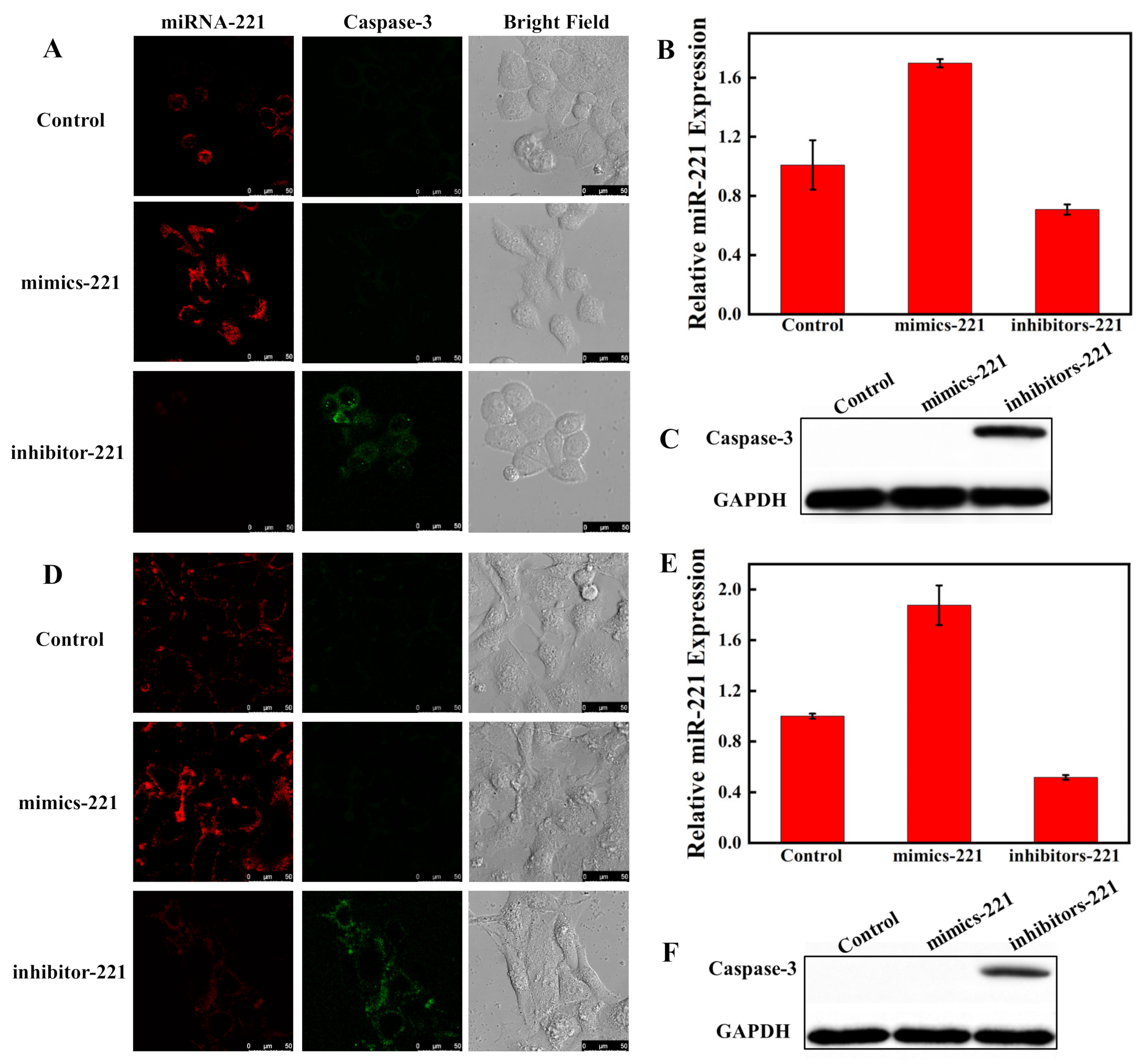

Figure 8. Visualizing miRNA regulation of apoptosis in Hela cells (A) and A549 cells (D) by CLSM. The cells were transfected with miRNA-221 mimics to activate the miRNA-221 level and transfected with miRNA-221 inhibitors to attenuate the miRNA-221 level, respectively. Scale bar: 50 μm. Analysis of miRNA-221 expression by RT-PCR in Hela cells (B) and A549 cells (E) after transfection with miRNA-221 mimics and miRNA-221 inhibitors. The Western blot assay of caspase-3 expression in Hela cells (C) and A549 cells (F).
Figure 8. Visualizing miRNA regulation of apoptosis in Hela cells (A) and A549 cells (D) by CLSM. The cells were transfected with miRNA-221 mimics to activate the miRNA-221 level and transfected with miRNA-221 inhibitors to attenuate the miRNA-221 level, respectively. Scale bar: 50 μm. Analysis of miRNA-221 expression by RT-PCR in Hela cells (B) and A549 cells (E) after transfection with miRNA-221 mimics and miRNA-221 inhibitors. The Western blot assay of caspase-3 expression in Hela cells (C) and A549 cells (F).
Biosensors 12 00444 g008
