Directly Grown Multiwall Carbon Nanotube and Hydrothermal MnO2 Composite for High-Performance Supercapacitor Electrodes

Institute of Micro-nano Structures & Optoelectronics, Wenzhou University, Wenzhou 325035, China
*
Author to whom correspondence should be addressed.
These authors contributed equally to this work.
Nanomaterials 2019, 9(5), 703; https://doi.org/10.3390/nano9050703
Received: 27 March 2019 / Revised: 26 April 2019 / Accepted: 28 April 2019 / Published: 6 May 2019
(This article belongs to the Special Issue Nanotubes for Health, Environment and Cultural Heritages)

Abstract

:
MnO2–MWNT–Ni foam supercapacitor electrodes were developed based on directly grown multiwalled carbon nanotubes (MWNTs) and hydrothermal MnO2 nanostructures on Ni foam substrates. The electrodes demonstrated excellent electrochemical and battery properties. The charge transfer resistance dropped 88.8% compared with the electrode without MWNTs. A high specific capacitance of 1350.42 F·g−1 was reached at the current density of 6.5 A·g−1. The electrode exhibited a superior rate capability with 92.5% retention in 25,000 cycles. Direct MWNT growth benefits the supercapacitor application for low charge transfer resistance and strong MWNT–current collector binding.

1. Introduction

The supercapacitor, mainly the electrical double-layer capacitor (EDLC) and the pseudocapacitor, is of interest for quick charging/discharging capacity, high power density, and long cycle life [1,2]. There are three main types of electrodes, namely, carbon nanomaterials, metal oxides/hydroxides, and polymers [3,4,5,6]. Supercapacitor devices constructed upon carbon nanomaterials, including carbon nanotube (CNT) and graphene, have been widely investigated and have shown remarkable electrochemical properties [7,8,9,10]. Wei et al. prepared a 3D nanostructure by growing carbon nanotubes between graphene layers, which exhibited good electrochemical properties with a specific capacitance of 385 F·g−1 [11]. In pseudocapacitor applications, various metal oxides, for example cobalt tetraoxide [10,12], nickel oxide [13], and manganese dioxide [14,15], have been employed for excellent multiple oxidation states during charging/discharging. Having high specific capacitance, excellent cycle stability, and an environmentally friendly nature, MnO2 is typically employed as the active material to further improve the energy efficiency of CNT-based electrodes, and CNT–MnO2 composite electrodes have shown great advantages in pseudocapacitors [16,17,18,19,20]. Hu et al. synthesized the MnO2–CNT textile composite, and the specific capacitance retention of 60% was reached after 10,000 cycles [20]. Typically, the MnO2–CNT composite electrode is made from either the addition of CNT powder [21] or by growing CNTs on catalyst film [22]. The current collector–carbon interface is considered the key source to generate electronic impedance [23]. However, the development of supercapacitor electrodes by growing CNTs directly on Ni foam, which has the advantage of lowering the substrate–CNT contact resistance, has not attracted broad attention and is less reported.
In this study, we fabricated a MnO2–MWNT–Ni foam composite electrode by the hydrothermal production of MnO2 after synthesizing multiwalled carbon nanotubes (MWNTs) directly on a catalytic nickel foam surface by chemical vapor deposition (CVD). The composite electrode showed good electrochemical properties with a specific capacitance of 1350.42 F·g−1 at 6.5 A·g −1, and 93.9% retention was reached after 4600 cycles under the areal density of 0.775 mg·cm−2. The MnO2–MWNT–Ni foam composite exhibited a unique conductive network from direct and strong contacts between the MWNTs and the current collector, significantly enhancing the structural, electronic, and electrochemical properties. The approach of direct MWNT growth is promising to enable the development of high capacitance pseudocapacitors with high energy densities and a long cycle life.

2. Materials and Methods

2.1. Synthesis of the MnO2–MWNT–Ni Foam Composite Electrode

There were three main processes in the production of the MnO2–MWNT–Ni foam composite electrode. Firstly, MWNTs were synthesized on the Ni foam directly at 680 °C with a 20/200 sccm flow rate of acetylene/argon [24,25]. Secondly, the MnO2–MWNT–Ni foam composite sample was prepared from the reaction of KMnO4 (4 × 10−3 g·mL−1) with sodium dodecyl sulfate (SDS, 2 × 10−3 g·mL−1) in a reaction kettle under 120 °C for 10 h and dried in an oven at 50 °C. In the third step, the composite material was reinforced with polytetrafluoroethylene (PTFE) and dried at 50 °C for 1 h. Two pieces of as-formed electrodes loaded with the hybrid were then pressed together at 30 MPa for 30 s. The total mass of the electrode was 0.2872 g, with the active material having a mass of 0.0062 g. The core processes of MWNT growth and MnO2 synthesis are illustrated in Figure 1.

2.2. Characterization

The MnO2–MWNT–Ni foam structure was analyzed by Scanning Electron Microscope (SEM, JEOL 6700 F, Tokyo, Japan), high-resolution Transmission Electron Microscope (TEM, JEM-2100F, JEOL, Tokyo, Japan), X-Ray Diffraction (XRD, Bruker D8, Cu Kα radiation from 10 to 80 angles, Bruker AXS Inc., Karlsruhe, Germany), and Raman spectroscopy (Renishaw Invia Raman Microscope, with an excitation wavelength of 633 nm, Renishaw plc., Wotton under Edge, Gloucestershire, UK).

2.3. Electrochemical Measurements

Cyclic voltammetrys (CVs), electrochemical impedance spectroscopy (EIS), and galvanostatic charging–discharging (GCD) properties were investigated using an electrochemical workstation (Zennium, Zahner Instruments Inc., Kronach, Germany) with the three-electrode system, while the cyclic GCD test was performed by a battery testing system (LAND, RAMBO, Wuhan, China). The Hg/HgO electrode, Pt sheet, and as-prepared sample were used as the reference, counter, and working electrodes, respectively, in 6 M KOH solution. EIS measurements were scanned (10−2–106 Hz) at the equilibrium conditions.

3. Results and Discussion

3.1. Structure Characterization

MnO2 nanoflakes were synthesized on Ni foam and MWNT–Ni foam substrates through the self-limiting reaction between KMnO4 and SDS using the wet chemical hydrothermal process [26]. The reaction can be described based on the following equation: [27,28]
2 KMnO 4 K 2 MnO 4 + MnO 2 + O 2
The unique forest-like structure of a MWNT sets up a conductive network which greatly improves the electronic conductivity of the MnO2–MWNT–Ni foam [29]. Figure 2a demonstrates SEM images of the MnO2 nanoflake film on the Ni foam surface. Figure 2b shows randomly oriented MWNTs with diameters of ~70 nm and lengths of up to 20 μm. Figure 2c illustrates the cross-section of the MnO2–MWNT–Ni foam composite. There is no obvious boundary between the MnO2–MWNT film and the substrate, indicating excellent binding properties which benefited from the synthesis of MWNTs with the Ni foam directly. The MnO2 nanoflake structures grew uniformly on the MWNTs surfaces with an overall radius of around 150 nm and the nanoflake thickness of about 100 nm (Figure 2d,e). Such nanoflakes are normally less than 10 layers, with the interplanar distance in the 0.47~0.64 nm range (Figure 2f). The MnO2 nanoflakes benefit from the movement of electrolyte ions [30], greatly enhancing the specific surface area of the nanocomposite. Energy Dispersive Spectrometer (EDS mapping for the MnO2–MWNT–Ni foam composite uniformly shows the anticipated C, O, Mn, and Ni signals (Figure 2g).
As for the XRD spectra of the MnO2–MWNT–Ni foam composite shown in Figure 3a, the characteristic diffraction peaks for the ramsdellite–MnO2 (JCPDS 42-1316) at 21.4° and 26.6° can be identified, and the weak peak at 23.7° is considered as the characteristic peak for (012) Mn2O3 (JCPDS 33-0900). The existence of Mn2O3 might be attributed to the treatment of the sample with ethanol [31]. The high specific surface and superior electrochemical stability of Mn2O3 benefit the enhancement of the specific capacitance [32,33]. The Raman spectra of the MnO2–Ni and MnO2–MWNT–Ni foams are shown in Figure 3b. The characteristic D peak at 1350 cm−1 and G peak at 1580 cm−1 are associated with MWNTs. The three peaks at 509.2, 577.3, and 659.5 cm−1 correspond to three characteristic vibrations of MnO2 compounds [34,35].

3.2. Electrochemical Measurements

Figure 4a shows the CV curves within 0–0.65 V, which exhibit clear redox peaks and gradually form a rectangular shape with the increase of the scan rate (more information regarding CVs between four types of electrodes can be found in supplementary materials Figure S1). Generally, the MnO2 electrode presents a double-layer capacitance with the CV curve of a square-like shape in K2SO4 or Na2SO4 aqueous solution [36]. However, the MnO2–MWNT–Ni foam electrode exhibited a pair of peaks in the KOH electrolyte, which are related to the insertion and extraction of hydrated K+ between the MnO2 and layers [37,38,39]. On the other hand, the NiO component on the Ni foam surface also played key role. As shown in SI-1, the Ni foam electrode exhibited such a pair of peaks, indicating the faradic pseudocapacitance of NiO [40]. Hence, the MnO2–MWNT–Ni foam electrode demonstrated both double-layer capacitance and faradic pseudocapacitance behaviors. However, due to the weakening of the NiO peaks after the MWNT growth and the overlap with the redox peaks from K+ intercalaction, it would be difficult to discriminate the two processes from the CV curve of the composite electrode. According to Figure 4c, the GCD curves show potential plateaus, which are attributed to the quasi-reversible faradic pseudocapacitance of NiO [41].
Figure 4d illustrates the EIS Nyquist plots of the MnO2–Ni foam and MnO2–MWNT–Ni foam electrodes. The impedance information, including the internal resistance (Rs), the diffusion resistance (Zw) from the electrolyte, the charge transfer resistance (Rct), the double-layer capacitance (Cdl), and the pseudocapacitance (Cl), can be derived from the EIS data [42,43,44], as shown in the equivalent circuit. Rs depends mainly on the electrolyte ionic resistance and the contact resistance between the MWNTs and the Ni foam substrate [45]. The semicircle diameter is associated with Rct. Rct is 0.411 Ω and 0.046 Ω, respectively, for the MnO2–Ni foam and the MnO2–MWNT–Ni foam electrodes, a significant reduction due to the participation of MWNTs. The improvement in electrical conductivity and the reduction of the charge transfer resistances with the addition of the MWNT layer are attributed to three aspects, namely, the superior electric properties of the MWNTs, the low charge transfer resistance through the MWNTs, and the reduction of contact resistances between the MWNTs and the current collector (Ni foam).
The MnO2–MWNT–Ni foam electrode demonstrated excellent battery properties, including high specific capacitance, excellent charging/discharging stability, as well as long cycle life. The specific capacitance is derived from the galvanostatic charging/discharging curve following the equation
C m =   i m V d t Δ V 2
where im is the current density (A/g), V d t is the integral current area, Δ V is the difference between the incipient discharge voltage and the final discharge voltage (V) [46]. In our experiment, the specific capacitance was calculated based on the total active material (0.0062 g) attached to the MWNT–Ni foam substrate measuring 2 cm × 2 cm. The energy density (E, Wh/kg) and power density (P, W/kg) can be calculated from galvanostatic tests by the following equations: E = [ C m ( Δ V ) 2 ]/2 and P = E/ Δ t . The MnO2–MWNT–Ni foam supercapacitor electrode presented the power density of 6398.5 W/kg with an energy density of 344.8 Wh/kg under the current rate value of 40 mA (current density of 6.5 A·g−1).
The cycle-life performance was tested within a potential window of 0 to 0.60 V. As shown in Figure 5a, a high specific capacitance of 1350.42 F·g−1 was reached after initial activation cycles, and the specific capacitance decreased to 1267.84 F·g−1 following 4600 cycles, exhibiting 93.9% retention. In a long cycle-life test, the electrode showed an excellent rate capability with 92.5% retention after 25,000 cycles (Figure 5b). Interestingly, the capacitance increased by 3% after retesting two weeks later. A MnO2–MWNT–Ni foam electrode with the addition of CNT powder presented a good electrochemical performance with 1.0 F·cm−2 areal capacitance and 77% retention after 3000 cycles [22]. A MnOx–CNT–Ni foam electrode with CNTs grown on an Fe catalyst film showed a specific capacitance of 462 F·g−1 [23]. A MnO2–CNT–Ni mesh electrode displayed a specific capacitance of 1072 F·g−1 [30]. Compared with the above CNT growth and addition techniques, the direct growth of MWNTs demonstrates advantages in supercapacitor developments for the reduction of the charge transfer resistance due to better MWNT–substrate contacts and long cycle life from strong MWNT adhesion. For traditional MWNT-based electrodes from CVD growth, an intermittent catalyst layer is required to grow nanotubes. Nanotubes grow upon this catalyst layer, resulting in high contact resistance and less binding strength between the MWNTs and the current collector. Meanwhile, the in situ deposition of MnO2 on MWNTs helps to stabilize the mesoporous structures over long test cycles, resulting in long-term stability.

4. Conclusions

We have successfully prepared MnO2–MWNT–Ni foam supercapacitor electrodes via hydrothermal MnO2 synthesis after growing MWNTs directly on Ni foam. The composite electrode exhibited both double-layer capacitance and faradic pseudocapacitance properties. The charge transfer resistance of the MnO2–MWNT–Ni foam electrode dropped to 0.046 Ω from 0.411 Ω for the MnO2–Ni foam electrode. In the three-electrode setup, the MnO2–MWNT–Ni foam electrode demonstrated excellent electrochemical properties with the specific capacitance of 1350.42 F·g−1 at the current density of 6.5 A·g−1 (40 mA rate value) and a high capacitance retention of 92.5% after 25,000 cycles. A power density of 6398.5 W·kg−1 was reached with an energy density of 344.8 Wh·kg−1. Direct MWNT growth shows great advantages for the supercapacitor application, as it results in a low charge transfer resistance, a reduction of the contact resistance, and strong MWNT adhesion with the current collector.

Supplementary Materials

The following is available online at https://www.mdpi.com/2079-4991/9/5/703/s1, Figure S1: Comparisons of cyclic voltammetry (CV) properties for different electrodes.

Author Contributions

L.L. and L.C. prepared and characterized the samples. W.Q. and F.X. helped to analyze the data. C.D. designed the experiments and wrote this paper.

Funding

The authors gratefully acknowledge the financial support by the National Natural Science Foundation of China (Grant No. 61620106006).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Zhang, L.L.; Zhao, X.S. Carbon-based materials as supercapacitor electrodes. Chem. Soc. Rev. 2009, 38, 2520–2531. [Google Scholar] [CrossRef] [PubMed]
  2. Snook, G.A.; Kao, P.; Best, A.S. Conducting-polymer-based supercapacitor devices and electrodes. J. Power Sources 2011, 196, 1–12. [Google Scholar] [CrossRef]
  3. Deng, T.; Zhang, W.; Arcelus, O.; Kim, J.G.; Carrasco, J.; Yoo, S.J.; Zheng, W.T.; Wang, J.F.; Tian, H.W.; Zhang, H.B.; et al. Atomic-level energy storage mechanism of cobalt hydroxide electrode for pseudocapacitors. Nat. Commun. 2017, 8, 15194. [Google Scholar] [CrossRef][Green Version]
  4. Wang, C.; Zhou, E.; He, W.; Deng, X.; Huang, J.; Ding, M.; Wei, X.; Liu, X.; Xu, X. NiCo2O4-Based Supercapacitor Nanomaterials. Nanomaterials 2017, 7, 41. [Google Scholar] [CrossRef]
  5. Ramkumar, R.; Sundaram, M.M. Electrochemical synthesis of polyaniline cross-linked NiMoO4 nanofibre dendrites for energy storage devices. New J. Chem. 2016, 40, 456–7464. [Google Scholar] [CrossRef]
  6. Ramkumar, R.; Sundaram, M.M. A biopolymer gel-decorated cobalt molybdate nanowafer: Effective graft polymer cross-linked with an organic acid for better energy storage. New J. Chem. 2016, 40, 2863–2877. [Google Scholar] [CrossRef]
  7. Lei, W.; Liu, H.P.; Xiao, J.L.; Wang, Y.; Lin, L.X. Moss-Derived Mesoporous Carbon as Bi-Functional Electrode Materials for Lithium–Sulfur Batteries and Supercapacitors. Nanomaterials 2019, 9, 84. [Google Scholar] [CrossRef] [PubMed]
  8. Zhang, Z.; Wang, L.; Li, Y.; Wang, Y.; Zhang, J.; Guan, G.; Pan, Z.; Zheng, G.; Peng, H. Nitrogen-Doped Core-Sheath Carbon Nanotube Array for Highly Stretchable Supercapacitor. Adv. Energy Mater. 2017, 7, 1601814. [Google Scholar] [CrossRef]
  9. He, N.; Yildiz, O.; Pan, Q.; Zhu, J.D.; Zhang, X.W.; Bradford, P.D.; Gao, W. Pyrolytic-carbon coating in carbon nanotube foams for better performance in supercapacitors. J. Power Sources 2017, 343, 492–501. [Google Scholar] [CrossRef]
  10. Hu, M.; Liu, Y.; Zhang, M.; Wei, H.L.; Gao, Y.H. Wire-type MnO2/Multilayer graphene/Ni electrode for high-performance supercapacitors. J. Power Sources 2016, 335, 113–120. [Google Scholar] [CrossRef]
  11. Jiang, L.; Sheng, L.; Long, C.; Fan, Z. Graphene and nanostructured MnO2 composite electrodes for supercapacitors. Carbon 2011, 49, 2917–2925. [Google Scholar]
  12. Zhang, Y.Z.; Wang, Y.; Xie, Y.L.; Cheng, T.; Lai, W.Y.; Pang, H.; Huang, W. Porous hollow Co3O4 with rhombic dodecahedral structures for high-performance supercapacitors. Nanoscale 2014, 6, 14354–14359. [Google Scholar] [CrossRef]
  13. Wang, D.C.; Ni, W.B.; Pang, H.; Lu, Q.Y.; Huang, Z.J.; Zhao, J.W. Preparation of mesoporous NiO with a bimodal pore size distribution and application in electrochemical capacitors. Electrochim. Acta 2010, 55, 6830–6835. [Google Scholar] [CrossRef]
  14. Xiao, W.; Xia, H.; Fuh, J.Y.H.; Lu, L. Growth of single-crystal α-MnO2 nanotubes prepared by a hydrothermal route and their electrochemical properties. J. Power Sources 2009, 193, 935–938. [Google Scholar] [CrossRef]
  15. Zhai, T.; Wang, F.X.; Yu, M.H.; Xie, S.L.; Liang, C.L.; Li, C.; Xiao, F.M.; Tang, R.H.; Wu, Q.X.; Lu, X.H.; et al. 3D MnO2–graphene composites with large areal capacitance for high-performance asymmetric supercapacitors. Nanoscale 2013, 5, 6790–6796. [Google Scholar] [CrossRef] [PubMed]
  16. Yan, J.; Sumboja, A.; Wang, X.; Fu, C.P.; Kumar, V.; Lee, P.S. Insights on the fundamental capacitive behavior: A case study of MnO2. Small 2014, 11, 3568–3578. [Google Scholar] [CrossRef] [PubMed]
  17. Roberts, A.J.; Slade, R.C.T. Performance loss of aqueous MnO2/carbon supercapacitors at elevated temperature: Cycling vs. storage. J. Mater. Chem. A 2013, 1, 14140–14146. [Google Scholar] [CrossRef]
  18. Hassan, S.; Suzuki, M.; Mori, S.; Moneim, A.A. MnO2/carbon nanowalls composite electrode for supercapacitor application. J. Power Sources 2014, 249, 21–27. [Google Scholar] [CrossRef]
  19. Zhu, G.; He, Z.; Chen, J.; Zhao, J.; Feng, X.M.; Ma, Y.W.; Fan, Q.L.; Wang, L.H.; Huang, W. Highly conductive three-dimensional MnO2–carbon nanotube–graphene–Ni hybrid foam as a binder-free supercapacitor electrode. Nanoscale 2014, 6, 1079–1085. [Google Scholar] [CrossRef]
  20. Hu, L.B.; Chen, W.; Xie, X.; Liu, N.; Yang, Y.; Wu, H.; Yao, Y.; Pasta, M.; Alshareef, H.N.; Cui, Y. Symmetrical MnO2–carbon nanotube–textile nanostructures for wearable pseudocapacitors with high mass loading. ACS Nano 2011, 5, 8904–8913. [Google Scholar] [CrossRef]
  21. Wang, K.; Gao, S.; Du, Z.L.; Yuan, A.B.; Lu, W.; Chen, L.W. MnO2-Carbon nanotube composite for high-areal-density supercapacitors with high rate performance. J. Power Sources 2016, 305, 30–36. [Google Scholar] [CrossRef]
  22. Zhao, D.D.; Yang, Z.; Zhang, L.Y.; Feng, X.L.; Zhang, Y.F. Electrodeposited manganese oxide on nickel foam–supported carbon nanotubes for electrode of supercapacitors. Electrochem. Solid-State Lett. 2011, 14, A93–A96. [Google Scholar] [CrossRef]
  23. Rangom, Y.; Tang, X.; Nazar, L.F. Carbon nanotube-based supercapacitors with excellent ac line filtering and rate capability via improved interfacial impedance. ACS Nano 2015, 9, 7248–7255. [Google Scholar] [CrossRef] [PubMed]
  24. Xie, F.; Dong, C.K.; Qian, W.J.; Zhai, Y.; Li, L.; Li, D.T. Electrochemical properties of nickel-metal hydride battery based on directly grown multiwalled carbon nanotubes. Int. J. Hydrogen Energy 2015, 40, 8935–8940. [Google Scholar] [CrossRef]
  25. Chen, L.L.; Li, L.; Qian, W.J.; Dong, C.K. MnO2/multiwall carbon nanotube/Ni-foam hybrid electrode for electrochemical capacitor. IOP Conf. Ser. Mater. Sci. Eng. 2018, 292, 012018. [Google Scholar] [CrossRef]
  26. Wang, J.G.; Yang, Y.; Huang, Z.H.; Kang, F.Y. A high-performance asymmetric supercapacitor based on carbon and carbon–MnO2 nanofiber electrodes. Carbon 2013, 61, 190–199. [Google Scholar] [CrossRef]
  27. Zhang, J.H.; Wang, Y.H.; Zang, J.B.; Xin, G.X.; Yuan, Y.G.; Qu, X.H. Electrophoretic deposition of MnO2-coated carbon nanotubes on a graphite sheet as a flexible electrode for supercapacitors. Carbon 2012, 50, 5196–5202. [Google Scholar] [CrossRef]
  28. Yang, C.Z.; Zhou, M.; Xu, Q. Three-dimensional ordered macroporous MnO2/carbon nanocomposites as high-performance electrodes for asymmetric supercapacitors. Phys. Chem. Chem. Phys. 2013, 15, 19730–19740. [Google Scholar] [CrossRef]
  29. Chen, J.J.; Huang, Y.; Zhang, X.; Chen, X.F.; Li, C. MnO2 grown in situ on [email protected] CNTs as electrode materials for supercapacitors. Ceram. Int. 2015, 41, 12680–12685. [Google Scholar] [CrossRef]
  30. Sun, P.; Yi, H.; Peng, T.Q.; Jing, Y.T.; Wang, R.J.; Wang, H.W.; Wang, X.F. Ultrathin MnO2 nanoflakes deposited on carbon nanotube networks for symmetrical supercapacitors with enhanced performance. J. Power Sources 2017, 341, 27–35. [Google Scholar] [CrossRef]
  31. Xiang, C.; Xiao, L.X.; Ying, J.; Chen, W.S.; Xue, L.L. Rational synthesis of alpha-MnO2 and gamma-Mn2O3 nanowires with the electrochemical characterization of alpha-MnO2 nanowires for supercapacitor. Solid State Commun. 2005, 136, 94–96. [Google Scholar]
  32. Shu, L.C.; Fan, L.; Quan, J.X.; Xiong, H.F.; Guo, H.Q. Synthesis of Mn2O3 microstructures and their energy storage ability studies. Electrochim. Acta 2013, 106, 360–371. [Google Scholar]
  33. Wen, Y.L.; Jia, J.S.; Qian, L.; Xi, J.L.; Xi, Y.Z.; Jun, Q.H. Facile synthesis of porous Mn2O3 nanocubics for high-rate supercapacitors. Electrochim. Acta 2015, 157, 108–114. [Google Scholar]
  34. Liu, Y.; Yan, D.; Zhuo, R.F.; Li, S.K.; Wu, Z.G.; Wang, J.; Ren, P.Y.; Yan, P.X.; Geng, Z.R. Design, hydrothermal synthesis and electrochemical properties of porous birnessite-type manganese dioxide nanosheets on graphene as a hybrid material for supercapacitors. J. Power Sources 2013, 242, 78–85. [Google Scholar] [CrossRef]
  35. Xia, H.; Huo, C. Electrochemical properties of MnO2/CNT nanocomposite in neutral aqueous electrolyte as cathode material for asymmetric supercapacitors. Int. J. Smart Nano Mater. 2011, 2, 283–291. [Google Scholar] [CrossRef]
  36. Simon, P.; Gogotsi, Y. Materials for electrochemical capacitors. Nat. Mater. 2008, 7, 845–854. [Google Scholar] [CrossRef]
  37. Minakshi, M. Lithium intercalation into amorphous FePO4 cathode in aqueous solutions. Electrochim. Acta 2010, 55, 9174–9178. [Google Scholar] [CrossRef]
  38. Ranjusha, R.; Nair, A.S.; Ramakrishna, S.; Anjali, P.; Sujith, K.; Subramanian, K.R.V.; Sivakumar, N.; Kim, T.N.; Nair, S.V.; Balakrishnan, A. Ultrafine MnO2 nanowire based high performance thin film rechargeable electrodes: Effect of surface morphology, electrolytes and concentrations. J. Mater. Chem. 2012, 22, 20465–20471. [Google Scholar] [CrossRef]
  39. Yin, B.; Zhang, S.; Jiang, H.; Qu, F.Y.; Wu, X. Phase-controlled synthesis of polymorphic MnO2 structures for electrochemical energy storage. J. Mater. Chem. A 2015, 3, 5722–5729. [Google Scholar] [CrossRef]
  40. Yuan, C.; Zhang, X.; Su, L.H.; Gao, B.; Shen, L.F. Facile synthesis and self-assembly of hierarchical porous NiO nano/micro spherical superstructures for high performance supercapacitors. J. Mater. Chem. 2009, 19, 5772–5777. [Google Scholar] [CrossRef]
  41. Chen, G.Z. Understanding supercapacitors based on nano-hybrid materials with interfacial conjugation. Prog. Nat. Sci. 2013, 23, 245–255. [Google Scholar] [CrossRef][Green Version]
  42. Huang, M.; Zhao, X.L.; Li, F.; Li, W.; Zhang, B.; Zhang, Y.X. Synthesis of Co3O4/SnO2@ MnO2 core–shell nanostructures for high-performance supercapacitors. J. Mater. Chem. A 2015, 3, 12852–12857. [Google Scholar] [CrossRef]
  43. Wang, J.G.; Yang, Y.; Huang, Z.H.; Kong, F.Y. Interfacial synthesis of mesoporous MnO2/polyaniline hollow spheres and their application in electrochemical capacitors. J. Power Sources 2012, 204, 236–243. [Google Scholar] [CrossRef]
  44. Barmi, M.J.; Minakshi, M. Tuning the Redox Properties of the Nanostructured CoMoO4Electrode: Effects of Surfactant Content and Synthesis Temperature. ChemPlusChem 2016, 81, 964–977. [Google Scholar] [CrossRef]
  45. Zhang, J.; Yu, Y.; Liu, L.; Wu, Y. Graphene–hollow PPy sphere 3D-nanoarchitecture with enhanced electrochemical performance. Nanoscale 2013, 5, 3052–3057. [Google Scholar] [CrossRef]
  46. Mai, L.Q.; Minhas-Khan, A.; Tian, X. Synergistic interaction between redox-active electrolyte and binder-free functionalized carbon for ultrahigh supercapacitor performance. Nat. Commun. 2013, 4, 2923. [Google Scholar] [CrossRef] [PubMed]

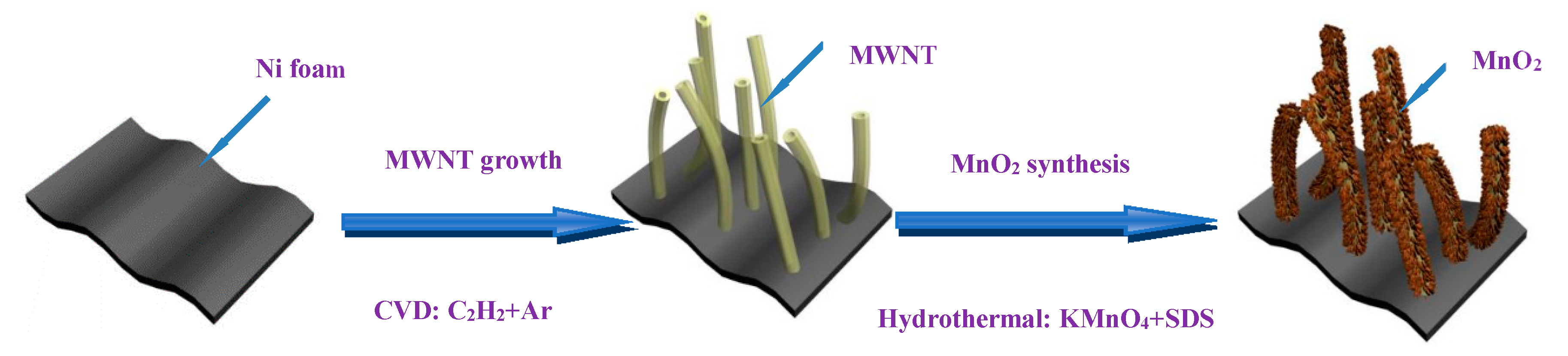

Figure 1. Production process of MnO2–MWNT–Ni foam composite. MWNT: multiwalled carbon nanotube.
Figure 1. Production process of MnO2–MWNT–Ni foam composite. MWNT: multiwalled carbon nanotube.
Nanomaterials 09 00703 g001
Figure 2. Electron micrographs of the MnO2–Ni foam and MnO2–MWNT–Ni foam composites, and EDS mapping of the MnO2–MWNT–Ni foam composite. (ad) SEM images and (ef) TEM images: (a) MnO2 synthesized on Ni Foam, (b) MWNTs grown directly on a Ni foam substrate, (c) cross-section of the MnO2–MWNT–Ni foam composite, (d,e) MnO2 synthesized uniformly on MWNTs with diameters of about 300 nm, and (f) MnO2 nanoflakes of less than 10 layers. (g) EDS mapping of the MnO2–MWNT–Ni foam composite.
Figure 2. Electron micrographs of the MnO2–Ni foam and MnO2–MWNT–Ni foam composites, and EDS mapping of the MnO2–MWNT–Ni foam composite. (ad) SEM images and (ef) TEM images: (a) MnO2 synthesized on Ni Foam, (b) MWNTs grown directly on a Ni foam substrate, (c) cross-section of the MnO2–MWNT–Ni foam composite, (d,e) MnO2 synthesized uniformly on MWNTs with diameters of about 300 nm, and (f) MnO2 nanoflakes of less than 10 layers. (g) EDS mapping of the MnO2–MWNT–Ni foam composite.
Nanomaterials 09 00703 g002aNanomaterials 09 00703 g002b

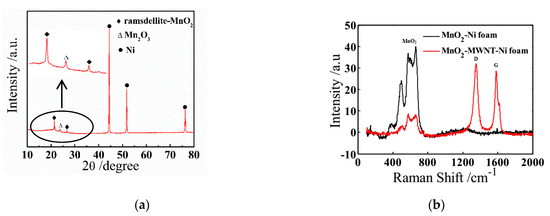

Figure 3. (a) XRD patterns of the MnO2–MWNT–Ni foam composites. (b) Raman spectra of the MnO2–Ni foam and MnO2–MWNT–Ni foam composites.
Figure 3. (a) XRD patterns of the MnO2–MWNT–Ni foam composites. (b) Raman spectra of the MnO2–Ni foam and MnO2–MWNT–Ni foam composites.
Nanomaterials 09 00703 g003

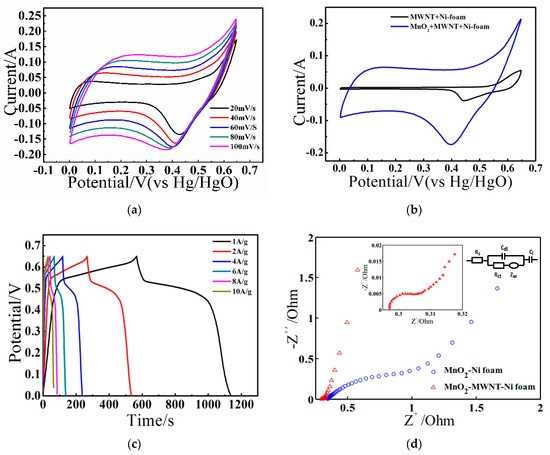

Figure 4. (a) Cyclic voltammetrys (CVs) of the MnO2–MWNT–Ni foam electrode at different scan rates. (b) CV comparison of the CNT–Ni foam electrode and the MnO2–MWNT–Ni foam electrode at 50 mV/s. (c) Charge/discharge curves of the MnO2–MWNT–Ni foam at different current densities in the electrochemical workstation. (d) Electrochemical impedance spectroscopy (EIS) curves of the MnO2–Ni foam and MnO2–MWNT–Ni foam electrodes tested in 6 M KOH.
Figure 4. (a) Cyclic voltammetrys (CVs) of the MnO2–MWNT–Ni foam electrode at different scan rates. (b) CV comparison of the CNT–Ni foam electrode and the MnO2–MWNT–Ni foam electrode at 50 mV/s. (c) Charge/discharge curves of the MnO2–MWNT–Ni foam at different current densities in the electrochemical workstation. (d) Electrochemical impedance spectroscopy (EIS) curves of the MnO2–Ni foam and MnO2–MWNT–Ni foam electrodes tested in 6 M KOH.
Nanomaterials 09 00703 g004

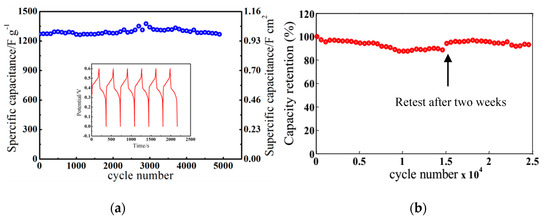

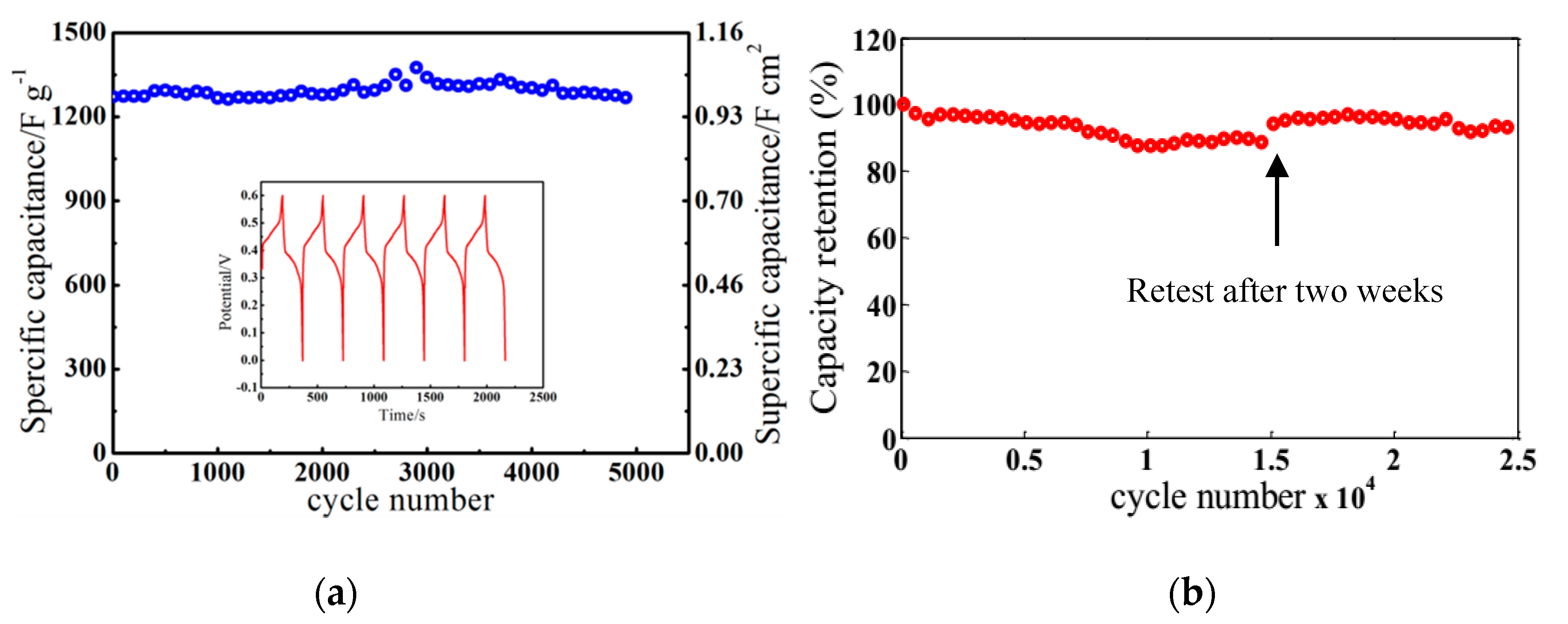

Figure 5. (a) Cycling performance of the MnO2–MWNT–Ni foam electrode. (b) Capacity retention property of the MnO2–MWNT–Ni foam electrode.
Figure 5. (a) Cycling performance of the MnO2–MWNT–Ni foam electrode. (b) Capacity retention property of the MnO2–MWNT–Ni foam electrode.
Nanomaterials 09 00703 g005
