Structural and Thermal Characterisation of Nanofilms by Time-Resolved X-ray Scattering

1
Institute for Photon Science and Synchrotron Radiation, Karlsruhe Institute of Technology, D-76021 Karlsruhe, Germany
2
Laboratory for Applications of Synchrotron Radiation, Karlsruhe Institute of Technology, D-76021 Karlsruhe, Germany
3
Institute of Microstructure Technology, Karlsruhe Institute of Technology, D-76021 Karlsruhe, Germany
4
Institute of Materials Physics, University of Muenster, D-48149 Münster, Germany
*
Author to whom correspondence should be addressed.
Nanomaterials 2019, 9(4), 501; https://doi.org/10.3390/nano9040501
Received: 1 March 2019 / Revised: 19 March 2019 / Accepted: 22 March 2019 / Published: 1 April 2019

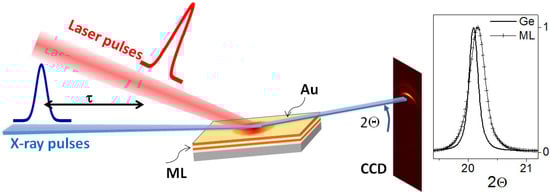

High time resolution in scattering analysis of thin films allows for determination of thermal conductivity by transient pump-probe detection of dissipation of laser-induced heating, TDXTS. We describe an approach that analyses the picosecond-resolved lattice parameter reaction of a gold transducer layer on pulsed laser heating to determine the thermal conductivity of layered structures below the transducer. A detailed modeling of the cooling kinetics by a Laplace-domain approach allows for discerning effects of conductivity and thermal interface resistance as well as basic depth information. The thermal expansion of the clamped gold film can be calibrated to absolute temperature change and effects of plastic deformation are discriminated. The method is demonstrated on two extreme examples of phononic barriers, isotopically modulated silicon multilayers with very small acoustic impedance mismatch and silicon-molybdenum multilayers, which show a high resistivity. View Full-Text
Keywords: thin films; multilayers; thermal conductivity; thermal expansion; laser heating; synchrotron pump-probe powder scattering thin films; multilayers; thermal conductivity; thermal expansion; laser heating; synchrotron pump-probe powder scattering
Show Figures

Graphical abstract

MDPI and ACS Style

Plech, A.; Krause, B.; Baumbach, T.; Zakharova, M.; Eon, S.; Girmen, C.; Buth, G.; Bracht, H. Structural and Thermal Characterisation of Nanofilms by Time-Resolved X-ray Scattering. Nanomaterials 2019, 9, 501.
