# The Key Role of Non-Local Screening in the Environment-Insensitive Exciton Fine Structures of Transition-Metal Dichalcogenide Monolayers

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Computational and Experimental Methods

#### 2.1. First-Principles Calculations and Bethe–Salpeter Equation (BSE) for Exciton Spectra

#### 2.2. Sample Fabrication and Experimental Photoluminescence (PL) Measurement

## 3. Results and Discussion

#### 3.1. Quasi-Particle Band Structures of the WSe${}_{2}$ Monolayer

#### 3.2. Theory of Exciton Fine Structures of TMD-MLs under Dielectric Screenings

#### 3.3. Exciton Fine Structures in the Approximation of Local Screening

#### 3.4. Exciton Fine Structure under Non-Local Dielectric Screening

#### 3.5. Dielectric Environmental Dependencies of Exciton Fine Structures

#### 3.6. Non-Linear Correlation between the BX-DX Splitting and Exciton-Binding Energy under Non-Local Screening

## 4. Conclusions

## Supplementary Materials

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Conflicts of Interest

## References

- Xiao, D.; Liu, G.B.; Feng, W.; Xu, X.; Yao, W. Coupled Spin and Valley Physics in Monolayers of MoS
_{2}and Other Group-VI Dichalcogenides. Phys. Rev. Lett.**2012**, 108, 196802. [Google Scholar] [CrossRef] [PubMed] - Xu, X.; Yao, W.; Xiao, D.; Heinz, T.F. Spin and pseudospins in layered transition metal dichalcogenides. Nat. Phys.
**2014**, 10, 343–350. [Google Scholar] [CrossRef] - Cao, T.; Wang, G.; Han, W.; Ye, H.; Zhu, C.; Shi, J.; Niu, Q.; Tan, P.; Wang, E.; Liu, B.; et al. Valley-selective circular dichroism of monolayer molybdenum disulphide. Nat. Commun.
**2012**, 3, 887. [Google Scholar] [CrossRef] - Zeng, H.; Dai, J.; Yao, W.; Xiao, D.; Cui, X. Valley polarization in MoS2 monolayers by optical pumping. Nat. Nanotechnol.
**2012**, 7, 490–493. [Google Scholar] [CrossRef] [PubMed] - Sallen, G.; Bouet, L.; Marie, X.; Wang, G.; Zhu, C.R.; Han, W.P.; Lu, Y.; Tan, P.H.; Amand, T.; Liu, B.L.; et al. Robust optical emission polarization in MoS
_{2}monolayers through selective valley excitation. Phys. Rev. B**2012**, 86, 081301. [Google Scholar] [CrossRef] - Wang, G.; Robert, C.; Suslu, A.; Chen, B.; Yang, S.; Alamdari, S.; Gerber, I.C.; Amand, T.; Marie, X.; Tongay, S.; et al. Spin-orbit engineering in transition metal dichalcogenide alloy monolayers. Nat. Commun.
**2015**, 6, 10110. [Google Scholar] [CrossRef] - Chernikov, A.; Berkelbach, T.C.; Hill, H.M.; Rigosi, A.; Li, Y.; Aslan, O.B.; Reichman, D.R.; Hybertsen, M.S.; Heinz, T.F. Exciton Binding Energy and Nonhydrogenic Rydberg Series in Monolayer WS
_{2}. Phys. Rev. Lett.**2014**, 113, 076802. [Google Scholar] [CrossRef] [PubMed] - Qiu, D.Y.; da Jornada, F.H.; Louie, S.G. Screening and many-body effects in two-dimensional crystals: Monolayer MoS
_{2}. Phys. Rev. B**2016**, 93, 235435. [Google Scholar] [CrossRef] - He, K.; Kumar, N.; Zhao, L.; Wang, Z.; Mak, K.F.; Zhao, H.; Shan, J. Tightly Bound Excitons in Monolayer WSe
_{2}. Phys. Rev. Lett.**2014**, 113, 026803. [Google Scholar] [CrossRef] - Latini, S.; Olsen, T.; Thygesen, K.S. Excitons in van der Waals heterostructures: The important role of dielectric screening. Phys. Rev. B
**2015**, 92, 245123. [Google Scholar] [CrossRef] - Bernardi, M.; Palummo, M.; Grossman, J.C. Extraordinary Sunlight Absorption and One Nanometer Thick Photovoltaics Using Two-Dimensional Monolayer Materials. Nano Lett.
**2013**, 13, 3664–3670. [Google Scholar] [CrossRef] [PubMed] - Kozawa, D.; Carvalho, A.; Verzhbitskiy, I.; Giustiniano, F.; Miyauchi, Y.; Mouri, S.; Castro Neto, A.H.; Matsuda, K.; Eda, G. Evidence for Fast Interlayer Energy Transfer in MoSe2/WS2 Heterostructures. Nano Lett.
**2016**, 16, 4087–4093. [Google Scholar] [CrossRef] [PubMed] - Wu, L.; Chen, Y.; Zhou, H.; Zhu, H. Ultrafast Energy Transfer of Both Bright and Dark Excitons in 2D van der Waals Heterostructures Beyond Dipolar Coupling. ACS Nano
**2019**, 13, 2341–2348. [Google Scholar] [CrossRef] [PubMed] - Lundt, N.; Klembt, S.; Cherotchenko, E.; Betzold, S.; Iff, O.; Nalitov, A.V.; Klaas, M.; Dietrich, C.P.; Kavokin, A.V.; Höfling, S.; et al. Room-temperature Tamm-plasmon exciton-polaritons with a WSe2 monolayer. Nat. Commun.
**2016**, 7, 13328. [Google Scholar] [CrossRef] [PubMed] - Peng, G.H.; Lo, P.Y.; Li, W.H.; Huang, Y.C.; Chen, Y.H.; Lee, C.H.; Yang, C.K.; Cheng, S.J. Distinctive Signatures of the Spin- and Momentum-Forbidden Dark Exciton States in the Photoluminescence of Strained WSe2 Monolayers under Thermalization. Nano Lett.
**2019**, 19, 2299–2312. [Google Scholar] [CrossRef] - Lo, P.Y.; Peng, G.H.; Li, W.H.; Yang, Y.; Cheng, S.J. Full-zone valley polarization landscape of finite-momentum exciton in transition metal dichalcogenide monolayers. Phys. Rev. Res.
**2021**, 3, 043198. [Google Scholar] [CrossRef] - Malic, E.; Selig, M.; Feierabend, M.; Brem, S.; Christiansen, D.; Wendler, F.; Knorr, A.; Berghäuser, G. Dark excitons in transition metal dichalcogenides. Phys. Rev. Mater.
**2018**, 2, 014002. [Google Scholar] [CrossRef] - Deilmann, T.; Thygesen, K.S. Finite-momentum exciton landscape in mono- and bilayer transition metal dichalcogenides. 2D Mater.
**2019**, 6, 035003. [Google Scholar] [CrossRef] - Yang, M.; Ren, L.; Robert, C.; Van Tuan, D.; Lombez, L.; Urbaszek, B.; Marie, X.; Dery, H. Relaxation and darkening of excitonic complexes in electrostatically doped monolayer WSe
_{2}: Roles of exciton-electron and trion-electron interactions. Phys. Rev. B**2022**, 105, 085302. [Google Scholar] [CrossRef] - Mueller, T.; Malic, E. Exciton physics and device application of two-dimensional transition metal dichalcogenide semiconductors. Npj 2D Mater. Appl.
**2018**, 2, 29. [Google Scholar] [CrossRef] - Robert, C.; Amand, T.; Cadiz, F.; Lagarde, D.; Courtade, E.; Manca, M.; Taniguchi, T.; Watanabe, K.; Urbaszek, B.; Marie, X. Fine structure and lifetime of dark excitons in transition metal dichalcogenide monolayers. Phys. Rev. B
**2017**, 96, 155423. [Google Scholar] [CrossRef] - Zhou, Y.; Scuri, G.; Wild, D.S.; High, A.A.; Dibos, A.; Jauregui, L.A.; Shu, C.; De Greve, K.; Pistunova, K.; Joe, A.Y.; et al. Probing dark excitons in atomically thin semiconductors via near-field coupling to surface plasmon polaritons. Nat. Nanotechnol.
**2017**, 12, 856–860. [Google Scholar] [CrossRef] [PubMed] - Park, K.D.; Jiang, T.; Clark, G.; Xu, X.; Raschke, M.B. Radiative control of dark excitons at room temperature by nano-optical antenna-tip Purcell effect. Nat. Nanotechnol.
**2018**, 13, 59–64. [Google Scholar] [CrossRef] - Mapara, V.; Barua, A.; Turkowski, V.; Trinh, M.T.; Stevens, C.; Liu, H.; Nugera, F.A.; Kapuruge, N.; Gutierrez, H.R.; Liu, F.; et al. Bright and Dark Exciton Coherent Coupling and Hybridization Enabled by External Magnetic Fields. Nano Lett.
**2022**, 22, 1680–1687. [Google Scholar] [CrossRef] - Su, H.; Xu, D.; Cheng, S.W.; Li, B.; Liu, S.; Watanabe, K.; Taniguchi, T.; Berkelbach, T.C.; Hone, J.C.; Delor, M. Dark-Exciton Driven Energy Funneling into Dielectric Inhomogeneities in Two-Dimensional Semiconductors. Nano Lett.
**2022**, 22, 2843–2850. [Google Scholar] [CrossRef] [PubMed] - Cadiz, F.; Robert, C.; Courtade, E.; Manca, M.; Martinelli, L.; Taniguchi, T.; Watanabe, K.; Amand, T.; Rowe, A.C.H.; Paget, D.; et al. Exciton diffusion in WSe2 monolayers embedded in a van der Waals heterostructure. Appl. Phys. Lett.
**2018**, 112, 152106. [Google Scholar] [CrossRef] - Wagner, K.; Zipfel, J.; Rosati, R.; Wietek, E.; Ziegler, J.D.; Brem, S.; Perea-Causín, R.; Taniguchi, T.; Watanabe, K.; Glazov, M.M.; et al. Nonclassical Exciton Diffusion in Monolayer WSe
_{2}. Phys. Rev. Lett.**2021**, 127, 076801. [Google Scholar] [CrossRef] - Combescot, M.; Betbeder-Matibet, O.; Combescot, R. Bose-Einstein Condensation in Semiconductors: The Key Role of Dark Excitons. Phys. Rev. Lett.
**2007**, 99, 176403. [Google Scholar] [CrossRef] - Combescot, M.; Combescot, R.; Dubin, F. Bose–Einstein condensation and indirect excitons: A review. Rep. Prog. Phys.
**2017**, 80, 066501. [Google Scholar] [CrossRef] - Yang, X.L.; Guo, S.H.; Chan, F.T.; Wong, K.W.; Ching, W.Y. Analytic solution of a two-dimensional hydrogen atom. I. Nonrelativistic theory. Phys. Rev. A
**1991**, 43, 1186–1196. [Google Scholar] [CrossRef] - Szmytkowski, R. Two-dimensional hydrogen-like atom in a weak magnetic field. Eur. Phys. J. Plus
**2018**, 133, 311. [Google Scholar] [CrossRef] - Trolle, M.L.; Pedersen, T.G.; Véniard, V. Model dielectric function for 2D semiconductors including substrate screening. Sci. Rep.
**2017**, 7, 39844. [Google Scholar] [CrossRef] [PubMed] - Andersen, K.; Latini, S.; Thygesen, K.S. Dielectric Genome of van der Waals Heterostructures. Nano Lett.
**2015**, 15, 4616–4621. [Google Scholar] [CrossRef] [PubMed] - Drüppel, M.; Deilmann, T.; Krüger, P.; Rohlfing, M. Diversity of trion states and substrate effects in the optical properties of an MoS2 monolayer. Nat. Commun.
**2017**, 8, 2117. [Google Scholar] [CrossRef] - Stier, A.V.; Wilson, N.P.; Velizhanin, K.A.; Kono, J.; Xu, X.; Crooker, S.A. Magnetooptics of Exciton Rydberg States in a Monolayer Semiconductor. Phys. Rev. Lett.
**2018**, 120, 057405. [Google Scholar] [CrossRef] [PubMed] - Van der Donck, M.; Peeters, F.M. Spectrum of exciton states in monolayer transition metal dichalcogenides: Angular momentum and Landau levels. Phys. Rev. B
**2019**, 99, 115439. [Google Scholar] [CrossRef] - Raja, A.; Chaves, A.; Yu, J.; Arefe, G.; Hill, H.M.; Rigosi, A.F.; Berkelbach, T.C.; Nagler, P.; Schüller, C.; Korn, T.; et al. Coulomb engineering of the bandgap and excitons in two-dimensional materials. Nat. Commun.
**2017**, 8, 15251. [Google Scholar] [CrossRef] - Kajino, Y.; Oto, K.; Yamada, Y. Modification of Optical Properties in Monolayer WS2 on Dielectric Substrates by Coulomb Engineering. J. Phys. Chem. C
**2019**, 123, 14097–14102. [Google Scholar] [CrossRef] - Peimyoo, N.; Wu, H.Y.; Escolar, J.; De Sanctis, A.; Prando, G.; Vollmer, F.; Withers, F.; Riis-Jensen, A.C.; Craciun, M.F.; Thygesen, K.S.; et al. Engineering Dielectric Screening for Potential-well Arrays of Excitons in 2D Materials. ACS Appl. Mater. Interfaces
**2020**, 12, 55134–55140. [Google Scholar] [CrossRef] - Stier, A.V.; Wilson, N.P.; Clark, G.; Xu, X.; Crooker, S.A. Probing the Influence of Dielectric Environment on Excitons in Monolayer WSe2: Insight from High Magnetic Fields. Nano Lett.
**2016**, 16, 7054–7060. [Google Scholar] [CrossRef] - Hsu, W.T.; Quan, J.; Wang, C.Y.; Lu, L.S.; Campbell, M.; Chang, W.H.; Li, L.J.; Li, X.; Shih, C.K. Dielectric impact on exciton binding energy and quasiparticle bandgap in monolayer WS2 and WSe2. 2D Mater.
**2019**, 6, 025028. [Google Scholar] [CrossRef] - Zhang, X.X.; Cao, T.; Lu, Z.; Lin, Y.C.; Zhang, F.; Wang, Y.; Li, Z.; Hone, J.C.; Robinson, J.A.; Smirnov, D.; et al. Magnetic brightening and control of dark excitons in monolayer WSe 2. Nat. Nanotechnol.
**2017**, 12, 883–888. [Google Scholar] [CrossRef] [PubMed] - Molas, M.R.; Faugeras, C.; Slobodeniuk, A.O.; Nogajewski, K.; Bartos, M.; Basko, D.; Potemski, M. Brightening of dark excitons in monolayers of semiconducting transition metal dichalcogenides. 2D Mater.
**2017**, 4, 021003. [Google Scholar] [CrossRef] - Zinkiewicz, M.; Grzeszczyk, M.; Kipczak, Ł.; Kazimierczuk, T.; Watanabe, K.; Taniguchi, T.; Kossacki, P.; Babiński, A.; Molas, M.R. The effect of dielectric environment on the brightening of neutral and charged dark excitons in WSe2 monolayer. Appl. Phys. Lett.
**2022**, 120, 163101. [Google Scholar] [CrossRef] - Molas, M.R.; Slobodeniuk, A.O.; Kazimierczuk, T.; Nogajewski, K.; Bartos, M.; Kapuściński, P.; Oreszczuk, K.; Watanabe, K.; Taniguchi, T.; Faugeras, C.; et al. Probing and Manipulating Valley Coherence of Dark Excitons in Monolayer WSe
_{2}. Phys. Rev. Lett.**2019**, 123, 096803. [Google Scholar] [CrossRef] - Chen, S.Y.; Goldstein, T.; Taniguchi, T.; Watanabe, K.; Yan, J. Coulomb-bound four- and five-particle intervalley states in an atomically-thin semiconductor. Nat. Commun.
**2018**, 9, 3717. [Google Scholar] [CrossRef] - Wang, G.; Robert, C.; Glazov, M.M.; Cadiz, F.; Courtade, E.; Amand, T.; Lagarde, D.; Taniguchi, T.; Watanabe, K.; Urbaszek, B.; et al. In-Plane Propagation of Light in Transition Metal Dichalcogenide Monolayers: Optical Selection Rules. Phys. Rev. Lett.
**2017**, 119, 047401. [Google Scholar] [CrossRef] - Liu, E.; van Baren, J.; Liang, C.T.; Taniguchi, T.; Watanabe, K.; Gabor, N.M.; Chang, Y.C.; Lui, C.H. Multipath Optical Recombination of Intervalley Dark Excitons and Trions in Monolayer WSe
_{2}. Phys. Rev. Lett.**2020**, 124, 196802. [Google Scholar] [CrossRef] - Liu, E.; van Baren, J.; Lu, Z.; Altaiary, M.M.; Taniguchi, T.; Watanabe, K.; Smirnov, D.; Lui, C.H. Gate Tunable Dark Trions in Monolayer WSe
_{2}. Phys. Rev. Lett.**2019**, 123, 027401. [Google Scholar] [CrossRef] - Liu, E.; van Baren, J.; Taniguchi, T.; Watanabe, K.; Chang, Y.C.; Lui, C.H. Valley-selective chiral phonon replicas of dark excitons and trions in monolayer WSe
_{2}. Phys. Rev. Res.**2019**, 1, 032007. [Google Scholar] [CrossRef] - Jadczak, J.; Glazov, M.; Kutrowska-Girzycka, J.; Schindler, J.J.; Debus, J.; Ho, C.H.; Watanabe, K.; Taniguchi, T.; Bayer, M.; Bryja, L. Upconversion of Light into Bright Intravalley Excitons via Dark Intervalley Excitons in hBN-Encapsulated WSe2 Monolayers. ACS Nano
**2021**, 15, 19165–19174. [Google Scholar] [CrossRef] - He, M.; Rivera, P.; Van Tuan, D.; Wilson, N.P.; Yang, M.; Taniguchi, T.; Watanabe, K.; Yan, J.; Mandrus, D.G.; Yu, H.; et al. Valley phonons and exciton complexes in a monolayer semiconductor. Nat. Commun.
**2020**, 11, 618. [Google Scholar] [CrossRef] [PubMed] - Ye, Z.; Waldecker, L.; Ma, E.Y.; Rhodes, D.; Antony, A.; Kim, B.; Zhang, X.X.; Deng, M.; Jiang, Y.; Lu, Z.; et al. Efficient generation of neutral and charged biexcitons in encapsulated WSe2 monolayers. Nat. Commun.
**2018**, 9, 3718. [Google Scholar] [CrossRef] [PubMed] - Barbone, M.; Montblanch, A.R.P.; Kara, D.M.; Palacios-Berraquero, C.; Cadore, A.R.; De Fazio, D.; Pingault, B.; Mostaani, E.; Li, H.; Chen, B.; et al. Charge-tuneable biexciton complexes in monolayer WSe2. Nat. Commun.
**2018**, 9, 3721. [Google Scholar] [CrossRef] [PubMed] - Kapuściński, P.; Delhomme, A.; Vaclavkova, D.; Slobodeniuk, A.O.; Grzeszczyk, M.; Bartos, M.; Watanabe, K.; Taniguchi, T.; Faugeras, C.; Potemski, M. Rydberg series of dark excitons and the conduction band spin-orbit splitting in monolayer WSe2. Commun. Phys.
**2021**, 4, 186. [Google Scholar] [CrossRef] - Borghardt, S.; Tu, J.S.; Taniguchi, T.; Watanabe, K.; Kardynał, B.E. Interplay of excitonic complexes in p-doped WSe
_{2}monolayers. Phys. Rev. B**2020**, 101, 161402. [Google Scholar] [CrossRef] - Li, Z.; Wang, T.; Lu, Z.; Khatoniar, M.; Lian, Z.; Meng, Y.; Blei, M.; Taniguchi, T.; Watanabe, K.; McGill, S.A.; et al. Direct Observation of Gate-Tunable Dark Trions in Monolayer WSe2. Nano Lett.
**2019**, 19, 6886–6893. [Google Scholar] [CrossRef] - Li, Z.; Wang, T.; Lu, Z.; Jin, C.; Chen, Y.; Meng, Y.; Lian, Z.; Taniguchi, T.; Watanabe, K.; Zhang, S.; et al. Revealing the biexciton and trion-exciton complexes in BN encapsulated WSe2. Nat. Commun.
**2018**, 9, 3719. [Google Scholar] [CrossRef] - Chen, S.Y.; Lu, Z.; Goldstein, T.; Tong, J.; Chaves, A.; Kunstmann, J.; Cavalcante, L.S.R.; Woźniak, T.; Seifert, G.; Reichman, D.R.; et al. Luminescent Emission of Excited Rydberg Excitons from Monolayer WSe2. Nano Lett.
**2019**, 19, 2464–2471. [Google Scholar] [CrossRef] - Florian, M.; Hartmann, M.; Steinhoff, A.; Klein, J.; Holleitner, A.W.; Finley, J.J.; Wehling, T.O.; Kaniber, M.; Gies, C. The Dielectric Impact of Layer Distances on Exciton and Trion Binding Energies in van der Waals Heterostructures. Nano Lett.
**2018**, 18, 2725–2732. [Google Scholar] [CrossRef] - Kresse, G.; Furthmüller, J. Efficient iterative schemes for ab initio total-energy calculations using a plane-wave basis set. Phys. Rev. B
**1996**, 54, 11169–11186. [Google Scholar] [CrossRef] [PubMed] - Krukau, A.V.; Vydrov, O.A.; Izmaylov, A.F.; Scuseria, G.E. Influence of the exchange screening parameter on the performance of screened hybrid functionals. J. Chem. Phys.
**2006**, 125, 224106. [Google Scholar] [CrossRef] [PubMed] - Al-Hilli, A.; Evans, B. The preparation and properties of transition metal dichalcogenide single crystals. J. Cryst. Growth
**1972**, 15, 93–101. [Google Scholar] [CrossRef] - Schutte, W.; De Boer, J.; Jellinek, F. Crystal structures of tungsten disulfide and diselenide. J. Solid State Chem.
**1987**, 70, 207–209. [Google Scholar] [CrossRef] - Le, D.; Barinov, A.; Preciado, E.; Isarraraz, M.; Tanabe, I.; Komesu, T.; Troha, C.; Bartels, L.; Rahman, T.S.; Dowben, P.A. Spin–orbit coupling in the band structure of monolayer WSe2. J. Phys. Condens. Matter
**2015**, 27, 182201. [Google Scholar] [CrossRef] - Mostofi, A.A.; Yates, J.R.; Lee, Y.S.; Souza, I.; Vanderbilt, D.; Marzari, N. Wannier90: A tool for obtaining maximally-localised Wannier functions. Comput. Phys. Commun.
**2008**, 178, 685–699. [Google Scholar] [CrossRef] - Mostofi, A.A.; Yates, J.R.; Pizzi, G.; Lee, Y.S.; Souza, I.; Vanderbilt, D.; Marzari, N. An updated version of Wannier90: A tool for obtaining maximally-localised Wannier functions. Comput. Phys. Commun.
**2014**, 185, 2309–2310. [Google Scholar] [CrossRef] - Cappellini, G.; Del Sole, R.; Reining, L.; Bechstedt, F. Model dielectric function for semiconductors. Phys. Rev. B
**1993**, 47, 9892–9895. [Google Scholar] [CrossRef] - Katsch, F.; Selig, M.; Knorr, A. Exciton-Scattering-Induced Dephasing in Two-Dimensional Semiconductors. Phys. Rev. Lett.
**2020**, 124, 257402. [Google Scholar] [CrossRef] - Riis-Jensen, A.C.; Gjerding, M.N.; Russo, S.; Thygesen, K.S. Anomalous exciton Rydberg series in two-dimensional semiconductors on high-κ dielectric substrates. Phys. Rev. B
**2020**, 102, 201402. [Google Scholar] [CrossRef] - Paur, M.; Molina-Mendoza, A.J.; Bratschitsch, R.; Watanabe, K.; Taniguchi, T.; Mueller, T. Electroluminescence from multi-particle exciton complexes in transition metal dichalcogenide semiconductors. Nat. Commun.
**2019**, 10, 1709. [Google Scholar] [CrossRef] [PubMed] - Olsen, T.; Latini, S.; Rasmussen, F.; Thygesen, K.S. Simple Screened Hydrogen Model of Excitons in Two-Dimensional Materials. Phys. Rev. Lett.
**2016**, 116, 056401. [Google Scholar] [CrossRef] [PubMed] - Kamban, H.C.; Pedersen, T.G.; Peres, N.M.R. Anisotropic Stark shift, field-induced dissociation, and electroabsorption of excitons in phosphorene. Phys. Rev. B
**2020**, 102, 115305. [Google Scholar] [CrossRef] - Kornyshev, A.A.; Rubinshtein, A.I.; Vorotyntsev, M.A. Model nonlocal electrostatics. I. J. Phys. C Solid State Phys.
**1978**, 11, 3307. [Google Scholar] [CrossRef] - Neamen, D.A. Semiconductor Physics and Devices: Basic Principles; McGraw-Hill: New York, NY, USA, 2012. [Google Scholar]
- Geick, R.; Perry, C.H.; Rupprecht, G. Normal Modes in Hexagonal Boron Nitride. Phys. Rev.
**1966**, 146, 543–547. [Google Scholar] [CrossRef] - Birey, H. Thickness dependence of the dielectric constant and resistance of Al2O3 films. J. Appl. Phys.
**2008**, 48, 5209–5212. [Google Scholar] [CrossRef] - Peimyoo, N.; Barnes, M.D.; Mehew, J.D.; Sanctis, A.D.; Amit, I.; Escolar, J.; Anastasiou, K.; Rooney, A.P.; Haigh, S.J.; Russo, S.; et al. Laser-writable high-k dielectric for van der Waals nanoelectronics. Sci. Adv.
**2019**, 5, eaau0906. [Google Scholar] [CrossRef] - Van der Donck, M.; Peeters, F.M. Interlayer excitons in transition metal dichalcogenide heterostructures. Phys. Rev. B
**2018**, 98, 115104. [Google Scholar] [CrossRef] - Rasmussen, F.A.; Thygesen, K.S. Computational 2D Materials Database: Electronic Structure of Transition-Metal Dichalcogenides and Oxides. J. Phys. Chem. C
**2015**, 119, 13169–13183. [Google Scholar] [CrossRef] - Pedersen, T.G.; Latini, S.; Thygesen, K.S.; Mera, H.; Nikolić, B.K. Exciton ionization in multilayer transition-metal dichalcogenides. New J. Phys.
**2016**, 18, 073043. [Google Scholar] [CrossRef] - Kumar, A.; Ahluwalia, P. Tunable dielectric response of transition metals dichalcogenides MX2 (M=Mo, W; X=S, Se, Te): Effect of quantum confinement. Phys. B Condens. Matter
**2012**, 407, 4627–4634. [Google Scholar] [CrossRef] - Perdew, J.P.; Burke, K.; Ernzerhof, M. Generalized Gradient Approximation Made Simple. Phys. Rev. Lett.
**1996**, 77, 3865–3868. [Google Scholar] [CrossRef] [PubMed]

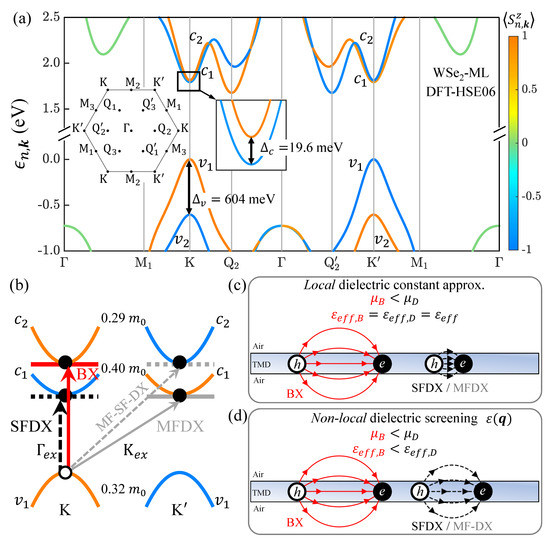

**Figure 1.**(

**a**) Valley− and spin−resolved quasi-particle band structures of WSe${}_{2}$-ML calculated by using the HSE06 exchange-correlation functionals in the DFT [62]. The blue (orange) color stands for the spin-down (spin-up) Bloch states. Left inset: the first Brillouin zone of WSe${}_{2}$-ML, with the indication of high-symmetry points. Middle inset: the close-up of the lowest conduction bands around the K valley, with the spin-splitting, ${\mathsf{\Delta}}_{c}=19.6$ meV. (

**b**) Schematics of the intra-valley BX and SFDX, and the inter-valley MFDX and MF-SF-DX states, with the valence holes located at the K valley. (

**c**) Schematics of BX and DX in a TMD-ML under a dielectric environment. In the approximation of local screening, the dielectric screening of the TMD-embedded layered system is simply characterized by a fixed dielectric constant ${\epsilon}_{eff}$, which is the same for both BX and DX. Because of the heavier reduced mass of DX, the Bohr radius (binding energy) of DX is significantly smaller (larger) than the lighter BX. (

**d**) Beyond the approximation of local screening, the non-local screenings for the BX and DX in the TMD-embedded layered system are described by the $\mathit{q}$-dependent dielectric function, $\epsilon \left(\mathit{q}\right)$, leading to the unequal effective screening for the BX and DX. The non-local screenings reduce the differences between the Bohr radii and binding energies of the BX and DX.

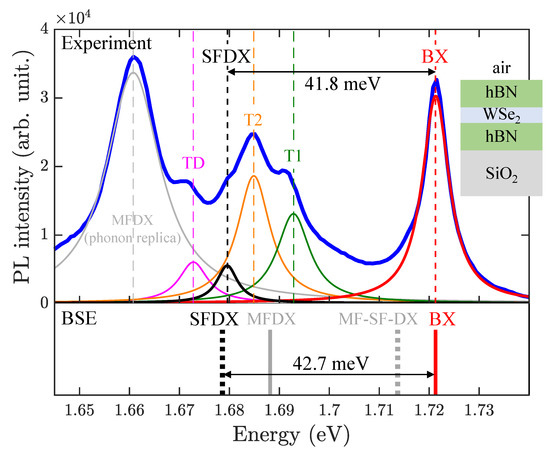

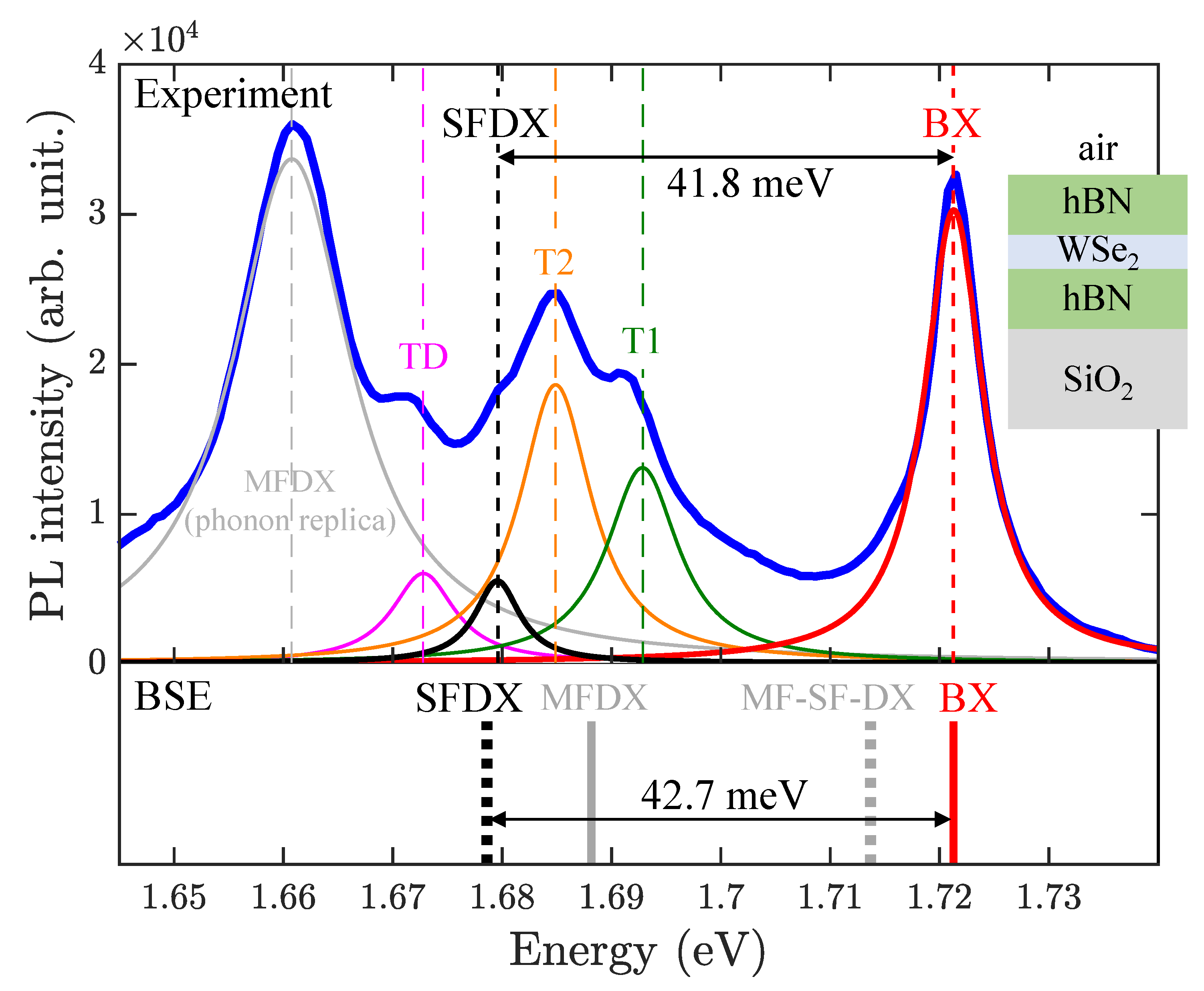

**Figure 2.**Comparison of the measured fine structure spectrum of PL at $T=10$ K (top panel) and BSE-calculated exciton fine structure (bottom panel) of hBN-encapsulated WSe${}_{2}$-ML. In the top panel, the measured PL spectrum is indicated by the blue profile. In the PL spectrum, the fitted peak by the red (black) profile is attributed to the BX (SFDX) state [46]. The BSE-calculated energy splitting of 42.7 meV between BX and SFDX states is in quantitative agreement with the fine structure of the measured 41.8 meV in the PL spectrum.

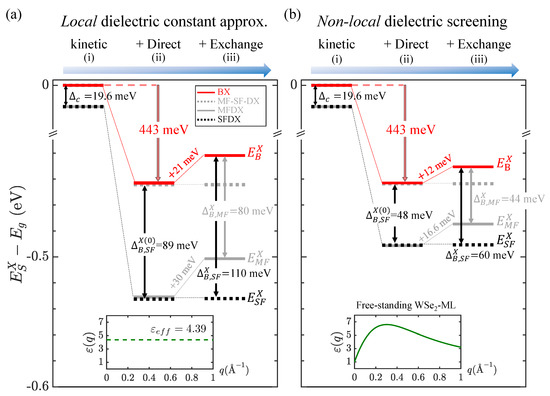

**Figure 3.**The BSE−calculated low-lying exciton fine structures of free-standing WSe${}_{2}$-ML (

**a**) with fixed ${\epsilon}_{eff}=4.39$ in the approximation of local screening and (

**b**) with the $\mathit{q}$-dependent non-local dielectric function, $\epsilon \left(\mathit{q}\right)$ (see the inset at the bottom), beyond the approximation of local screening. (i–iii) in (

**a**,

**b**): The exciton fine structure spectra calculated by solving the modified or exact BSE that take into account (i) only the kinetic energies, (ii) the kinetic energies and the direct Coulomb interaction, and (iii) all of the kinetic energies and both the direct and exchange Coulomb interactions, respectively. From the evolution of the spectra from (i), (ii), and (iii), the e-h direct interaction is the dictating mechanism of the BX-SFDX splitting. Comparing (

**a**,

**b**), the non-local screening is shown to make the overall shrinkage of the fine structure splittings between the BX and various DXs.

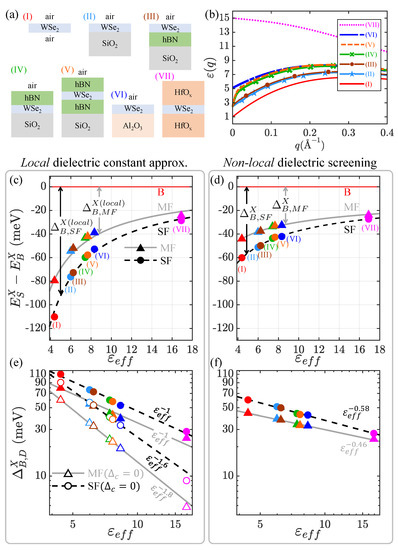

**Figure 4.**(

**a**) The WSe${}_{2}$-ML−embedded dielectric environments considered in this work. In cases (I)–(VII), all of the substrate and capping layers are considered semi-infinitely thick, except for the hBN layer, whose thickness is set at 10 nm. (

**b**) The calculated q-dependent dielectric functions for dielectric systems (I)–(VII). (

**c**) The calculated relative energy levels of the BX, MFDX, and SFDX states of the WSe${}_{2}$-ML under the dielectric screenings of (I)–(VII), indicated by filled triangles (MFDX) and circles (SFDX) in different colors, in the approximation of local screening with the fitted dielectric constants, ${\epsilon}_{eff}$. Dark dashed and gray solid curves are for eye-guiding; (

**d**) is the same as (

**c**), but under the non-local dielectric screening described by $\epsilon \left(q\right)$. (

**e**) [(

**f**)]: The log–log plot for the BX-DX splittings, ${\Delta}_{B,D}^{X}={E}_{B}^{X}-{E}_{D}^{X}$, given by (

**c**) [(

**d**)], fitted by the power law of ${\Delta}_{B,D}^{X}\propto {\epsilon}_{eff}^{-n}$ with the exponent n. The white-filled symbols in (

**e**) are the calculated splittings, disregarding ${\Delta}_{c}$. Taking into account the non-local screening, the exponent is decreased to the small values of $n\sim 0.58,0.46$, indicating the weak environmental dependence of the BX-DX splitting.

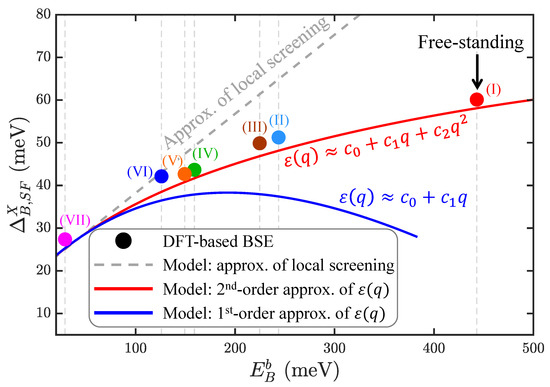

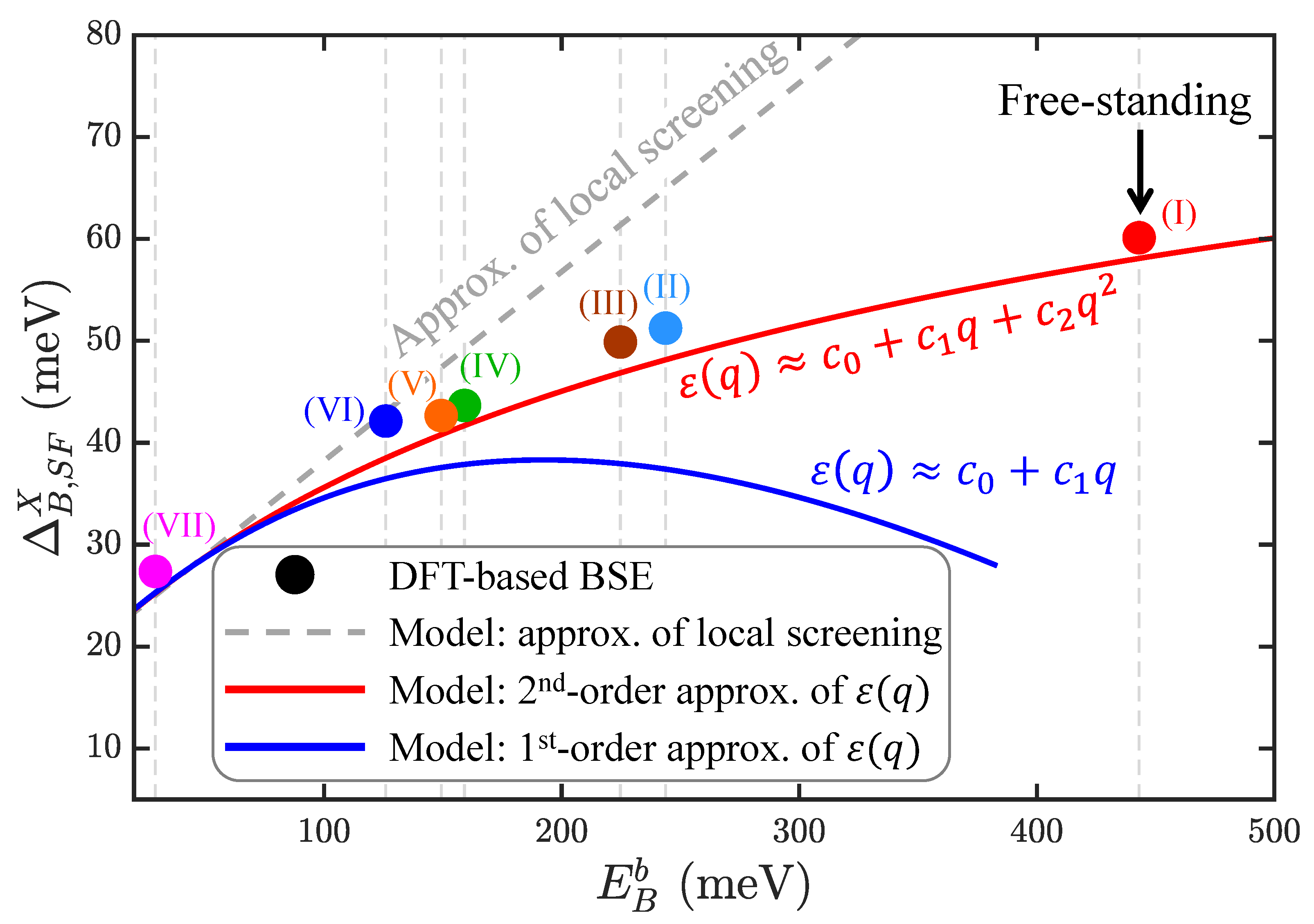

**Figure 5.**The non-linear correlation between the BX-SFDX splittings (${\Delta}_{B,SF}^{X}$) and binding energies of BX (${E}_{B}^{b}$) of WSe${}_{2}$-ML, changing the dielectric environments from (I) to (VII) in Figure 4a. The colored circles were obtained by solving DFT-based BSE for the WSe${}_{2}$-MLs in the multi-layered dielectric structures with full consideration of the non-local dielectric functions. The gray dashed line is the predicted linear ${\Delta}_{B,SF}^{X}$−${E}_{B}^{b}$ by the conventional hydrogen model in the approximation of local screening. The red and blue solid lines are the non-linear correlations simulated by the extended hydrogen model with the expanded non-local dielectric functions in the first- and second-order approximations of $\epsilon \left(q\right)$, respectively. The sub-linear correlation between ${\Delta}_{B,SF}^{X}$ and ${E}_{B}^{b}$ manifests the insensitive environmental dependence of the exciton fine structures as the consequence of non-local dielectric screening.

**Table 1.**Effective masses of the conduction electrons and valence holes in the K- or Q-valleys, the reduced masses of the bright exciton (${\mu}_{B}$), and that of the spin-forbidden dark exciton (${\mu}_{SF}$) in the free electron mass ${m}_{0}$ unit. The method for determining the effective mass is detailed in the supporting information (See Figure S6 and Table S4 for the fitting results).

Effective Masses of Carriers (${\mathit{m}}_{0}$) | Reduced Masses of Excitons (${\mathit{m}}_{0}$) | ||||
---|---|---|---|---|---|

${m}_{{v}_{1},K}$ | ${m}_{{c}_{1},K}$ | ${m}_{{c}_{2},K}$ | ${m}_{{c}_{1},Q}$ | ${\mu}_{B}$ | ${\mu}_{SF}$ |

0.32 | 0.40 | 0.29 | 0.51 | 0.15 | 0.18 |
