Metallic nanoparticles (NPs) have been important in catalysis [1
], biosensors [2
], pharmacology [3
], and artistic methodology [4
] due to their versatility and nontoxicity [6
] to humans. Most metallic NPs feature unique optical, electronic, and chemical properties that vary based on the NPs’ size, shape, and elemental composition [8
]. Over the past few decades, a prominent optical property of metallic NPs that has been exploited across nearly all scientific disciplines is the surface plasmon resonance phenomena [10
]. Light interacting with the NP surface will excite the outermost electrons and cause an oscillation about the metallic core, which subsequently creates an observable signal, known as the plasmon band, in the absorption spectrum. For example, gold NPs (Au-NPs) typically exhibit the plasmon band as a broadened absorption peak centered around 520 nm while Ag-NPs show a peak at 400 nm [11
]. By varying the characteristics of the NP interacting with light, including aspect ratio, shape, and/or composition of the NP, the plasmon band absorption maximum can be systematically varied, resulting in solutions varying in color across the visible spectrum [11
]. Solutions of spherical Au NPs, for example, exhibit shades of red while nanorods and nanocages in solution will appear blue—all due to the surface plasmon resonance effect of the different materials [12
]. Solutions of pure Ag-NPs have surface plasmon band peaks at 400 nm while Au-NP solutions show the same feature at 530 nm [13
One strategy for color control within solutions and solid matrices is to employ mixtures of NPs or NPs with alloyed centers [14
]. The Lycurgus cup of the 4th century remains a remarkable and historical example of utilizing NP-color control via the mixture of gold and silver within precursor materials used to construct the cup. Indeed, TEM analysis of this Roman glass goblet reveals the apparently inadvertent inclusion of gold and silver alloyed NPs within the glass framework that allows for the cup to transition between red and green dependent on incident light [15
]. More recently, the alloying of Au and Cu together also causes the absorbance peaks of Au and Cu to form an intermediate absorbance peak between 530 nm and 570 nm [16
]. Similarly, Au-Ag alloyed NPs have been demonstrated to shift the plasmon band of the NPs, opening a wider variety of optical properties produced by Au-NPs [11
]. While Au-NPs with diameters around 20 nm produce colors within the red spectrum, the addition of Ag blueshifts the plasmon band to produce colors in the green and blue ranges [19
]. The potential tunability of the surface plasmon, and the related optical effects, have encouraged the pursuit of these color-control strategies across a wide swath of disciplines.
Recently, one of the applications of Au-NPs that seeks to exploit the surface plasmon effect is their use as an alternative colorant within ceramic glazes [4
]. Ceramic glazes traditionally achieve color by incorporating heavy metals such as Pb, Cd, Co, and Cr that are toxic to humans and the environment [21
]. The substitution of non-toxic Au-NPs as a colorant in ceramic glazes was shown to be resistant to surface leaching while also producing vibrant colored glazes comparable to traditional metals [4
]. Additionally, because the plasmon effect is a dominant optical feature observable even with low concentrations of Au-NP within the glaze, it often requires at least an order of magnitude less metal (Au) than traditional heavy metals in other glazes [4
]. Similarly, Ag-NPs have previously been demonstrated to produce colors in the green to light blue range in ceramic glazes, depending on their starting doping state [22
]. It follows then that the incorporation of mixtures of both Au and Ag NPs, or the use of alloyed NPs, may represent strategies toward achieving greater color range and control. In addition to significantly expanding the NP-based colorant spectrum of the ceramic glaze, it also allows for improved cost effectiveness of using NPs as an alternative colorant system for ceramics. Gold remains an expensive precious metal, thereby limiting its accessibility and practicality for this particular application. The dilution of Au (~$
1276 USD per ounce) content in the NPs via the substitution of Ag (~$
16.44 USD per ounce) is extremely notable (nearly 8000% price difference) if the desired coloring effects can be achieved through the use of noble metal NP blends. While extensive research has been devoted to Au NP alloys, including the introduction of more affordable metals such as Ag, Al, and Cu [11
], there are not many color systems in place that intentionally blend distinctly different NP systems for ceramic colorant control in that they must persist through the high temperatures curing process.
Even though Au-NPs have been established as an alternative coloring agent for ceramics, there are a number of complicating factors for their widespread use in this capacity. It is problematic that Au-NPs within ceramic glazes are typically fired in kilns with operating temperatures that typically exceed 1200 °C, a condition that can alter NP size/shape and subsequently affect the desired color. During cooling cycles, NPs of varying sizes can uncontrollably precipitate and alter the colorant effects as well. Both of these processes can culminate in a lack of control over desired coloring effects and subsequently restrict the versatility of NP-based coloring in ceramics. An additional issue with the use of Au-NP colorants in ceramics is that access to as-prepared Au-NPs is not ubiquitous and the continual synthesis of Au-NPs is not practical given their susceptibility toward the kiln temperatures. Similarly, the use of alloyed NPs in this manner is work-intensive, requires confirmatory characterization, and the material remains susceptible to the same problems during sintering—uncontrolled partial or complete thermal decomposition and reformation (during cooling). To circumvent these issues, an important development was the previously communicated finding that NPs could nucleate and grow from their respective metallic salts in situ (i.e., within the glaze) during kiln firing [22
]. That is, the incorporation of HAuCl4
within the glaze formulation prior to sintering resulted in observable Au-NPs and Ag-NPs, respectively. This phenomenon was demonstrated in varying degrees in both oxidative and reductive firing environments [22
In this work, the simultaneous incorporation of gold and silver salt mixtures within ceramic glazes is explored as a strategy of NP-based color control not otherwise thought possible due to the size limitations of particles due to sintering. The possibility of combining the properties of red-spectrum producing Au-NPs with green-spectrum oriented Ag-NPs is shown to be a robust, versatile, and environmentally friendly colorant system that significantly expands the current catalog of NP-based ceramic glazes while also drastically reducing the cost of employing NP-based colorants in ceramics. Absorption and reflectance spectroscopy, in conjunction with transmission electron microscopy, are used to establish the methodology, formulation, and execution of an Au NP system that is then attenuated with Ag NPs for color control within ceramic glazes.
3. Results and Discussion
The study was initiated by preparing standard ceramic glaze mixtures doped with different ratios of HAuCl4
salts, traditional precursor salts used to form NPs in solution [4
]. The salt ratios of HAuCl4
(Au:Ag) incorporated in the glaze formulations included the following: 100:0 (100% Au), 80:20, 60:40, 40:60, 20:80, and 0:100 (100% Ag). As described in the Experimental Details section, ceramic testing tiles were immersed in the glaze mixtures containing the different salt ratios prior to being fired under oxidative conditions in the kiln. An oxidative environment was examined first as it is a more ubiquitous operational mode for amateur ceramic artists and hobbyists. Figure 1

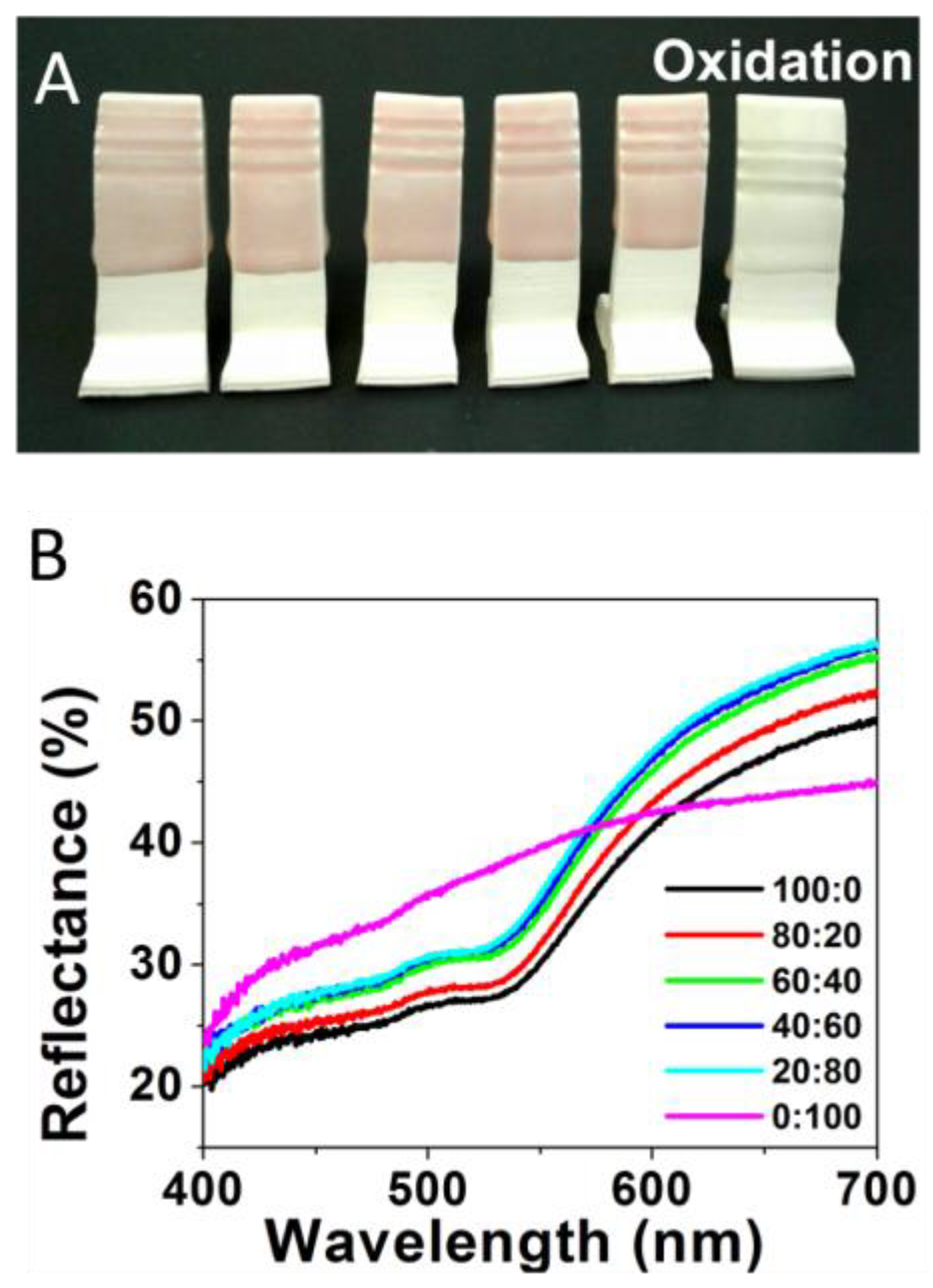

A shows the faint coloring of the glazed tiles featuring the various Au:Ag salt ratios after being fired in oxidative conditions. Only extremely subtle color changes are observed across the samples, with all the tiles exhibiting pastel pink/reddish color, a color traditionally attributed to Au-NPs [4
]. The only exception is the 100% Ag sample (Figure 1
A, far right), which resulted in a mostly white/clear glaze. These results demonstrate the expected limited application of silver within an oxidative firing environment (though some Ag-NP could be found via TEM) while apparently maintaining the formation of low concentrations of Au-NPs to produce a light pink shade. Metallic silver remains more susceptible to oxidation throughout the entire process.
The color trend for samples formed under oxidative conditions is reiterated upon corresponding reflectance spectroscopy measurements performed on the same tiles. Representative reflectance spectra are shown in Figure 1
B. Unlike absorbance spectroscopy, a high degree of reflectance shown on a reflectance spectrum is illustrative of the transmitted or reflected wavelengths of light that mirror what a human eye would observe. As expected, reflectance spectra of the tiles from the oxidative environment, regardless of Ag content in the salt ratio, shows a relatively static change in color profiles. Chromaticity diagrams and CIE Lab color are shown in Figure S1
, with the majority color peaks (for gold-containing samples) existing within 3 nm of one another—593 to 596 nm. The five samples containing any amount of Au are all relatively similar, which can clearly be seen by the lack of change in their colors. As previously mentioned, the most distinct sample is the 100% Ag sample, which has a stronger green and blue region as compared to the Au-containing samples.
The brighter coloring (higher overall reflectance) of the tiles from the oxidative firing suggests a significantly low concentration of NPs in all the glaze materials is minimizing color effects derived from surface plasmon resonance effects. To ascertain the NP content within each of the glazes, each sample was ground into a fine dust and suspended in ethanol in preparation for TEM analysis (Experimental Details). Figure 2

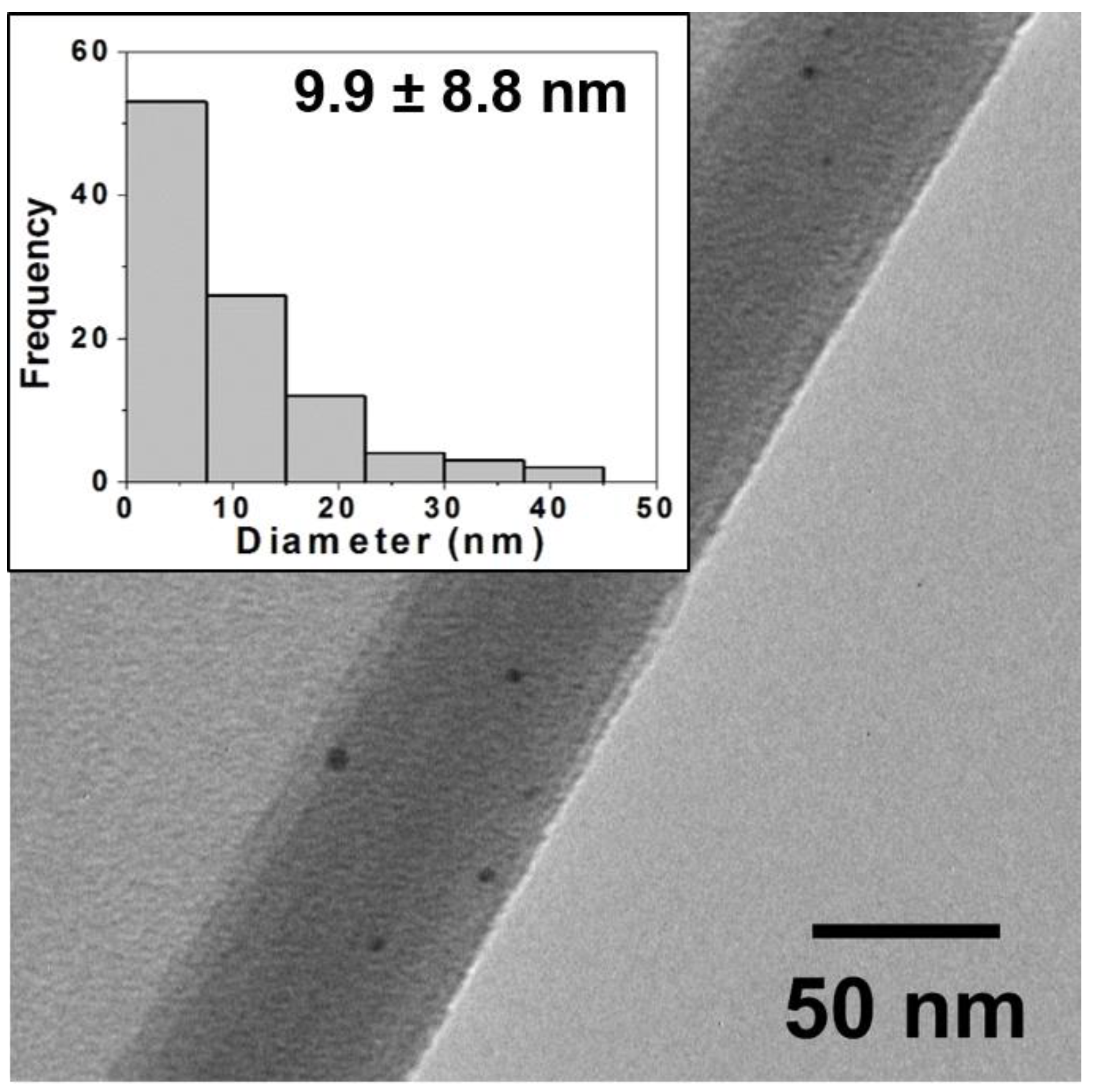

shows a TEM image and corresponding histogram analysis of core size for the 60:40 sample that is representative of all the samples containing gold. TEM imaging of the samples indicates that the color, albeit rather muted, can be attributed to the presence of NPs formed from the salts during sintering. Additional TEM images and corresponding histogram analysis for the other ratios in the oxidation environment are provided in the Supplementary Materials (Figure S2
). In examining the results from the oxidation firing, regardless of the sample, histogram analysis shows a wide distribution of core sizes (i.e., high standard deviation). However, the distribution of the 100% Au-NPs (100:0) shows a size distribution with 24.0 ± 9.7 nm average diameter Au-NPs that is then immediately skewed toward smaller diameter NPs with the introduction of any Ag content into the glaze mixture. The consistently bleak coloring of these samples is consistent with prior work that has shown the oxidative environment is less conducive to NP formation [22
]. These results suggest that the necessary nucleation/growth cycle for formation of NPs from a salt precursor requires the metal cation to be reduced, which is notably challenged by the oxidative firing conditions. In this respect, TEM analysis revealing the presence of any NPs is surprising. It is hypothesized that the metal cations are reduced via a process called getter reduction, where impurities within the glaze (or kiln itself) act as sacrificial reducing agents that transfer electrons to the metal cations within the glaze as they undergo thermal degradation. The significantly higher reduction potential of Au+3/0
(+1.52V vs. NHE) versus that of Ag+1/0
(+0.80 vs. NHE) suggests that the Au+3
cations would be favored to be reduced over the Ag+1
cations, thereby facilitating Au-NP at the expense of Ag-NPs even with a mixed ratio of starting salts. These phenomena could possibly explain the lack of change in the oxidative samples containing any Ag salt until the Au salt is completely absent and eliminates the competition for free electrons. That said, the 100% Ag oxidative sample is still a pale shade of green and suggests that this mechanism and this environment results in minimal formation of all NPs but particularly diminishes formation of Ag-NPs. These results demonstrate the more limited application of Ag within an oxidative firing environment, while establishing that some formation of Au-NPs is still able to produce a light pink hue in the ceramic.

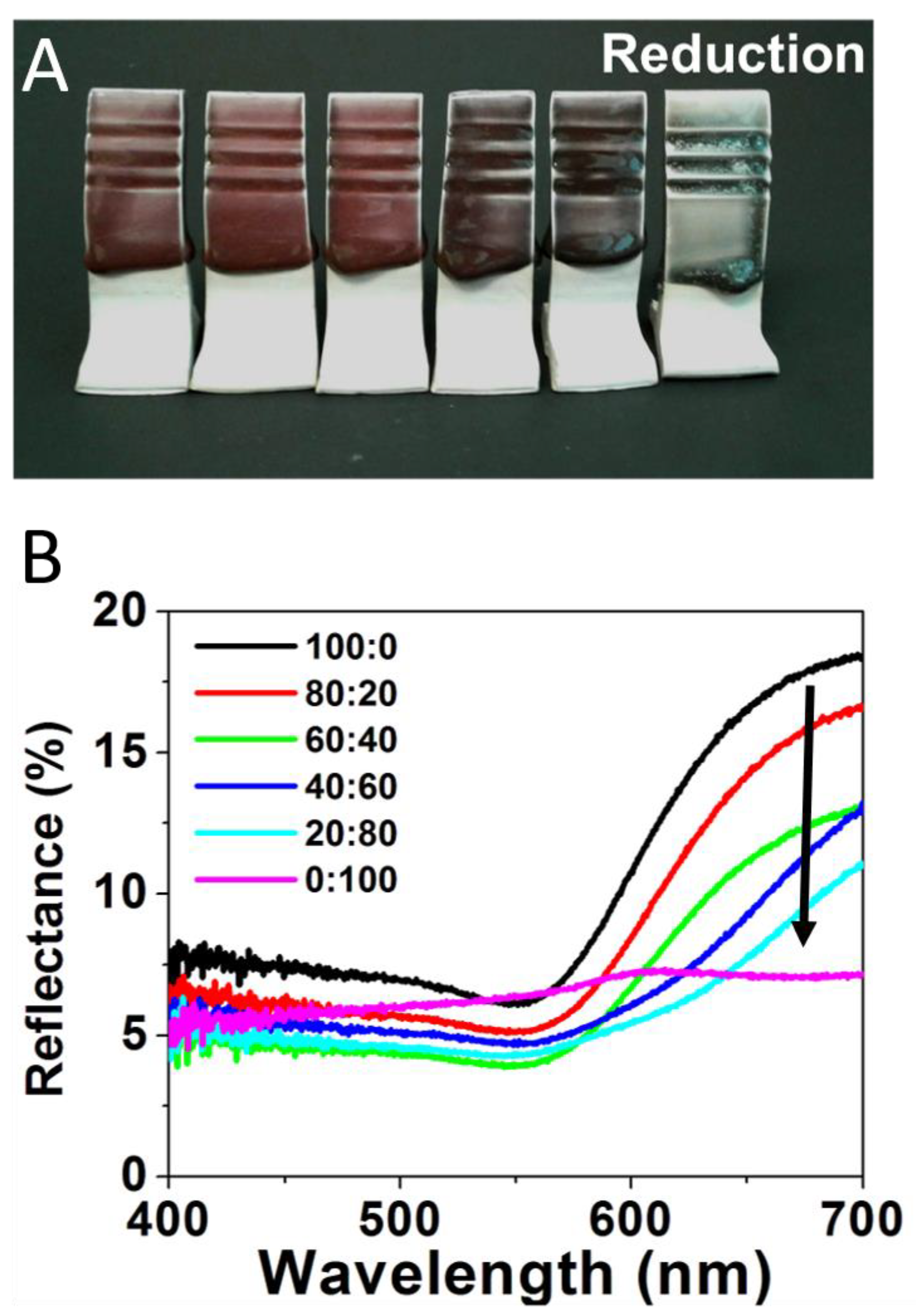

repeats the same experiment utilizing a range of Au:Ag glaze mixtures for tiles fired in a reductive environment, with results showing a striking difference in the vibrancy of the color produced. In the reduction-fired samples, the 100:0 glaze mixture (Figure 3
A—far left) creates a deep red color, consistent with previous reports employing Au-NPs in ceramic glazes [5
]. The majority Au ratios (i.e., 80:20 and 60:40) maintain this general shade of red as well, but act as a brightener, yielding a more desirable red than just the pure Au-NP sample. However, upon significant introduction of the Ag content (40:60), a transition to a dark purple, which intensifies at the 20:80 ratio, is observed. The pure Ag content (0:100) glaze results in a blue-green color (Figure 3
A—far right). Corresponding reflectance spectra, shown in Figure 3
B, again reinforce the observed visual color trend. For these reduction samples, the gradual change in reflectance spectra directly corresponds to the systematic changes in the Au:Ag precursor salt ratios. Red wavelengths (635—700 nm) are stronger as the sample has more Au content—a property that is severely attenuated when gold is absent (0:100) and only Ag-NPs supposedly form. Accordingly, the 0:100 sample has a pronounced broad green region (520–560 nm) relative to its overall spectrum compared to the other samples. These results suggest that, in a reductive kiln, increasing amounts of silver will allow for dark yet vibrant red to green color gradients.
Here, again, after firing TEM imaging and analysis reveals the source of the vibrant colors in the reductive samples is directly attributable to the surface plasmon effect of embedded NPs that have formed during the reductive firing. Figure 4

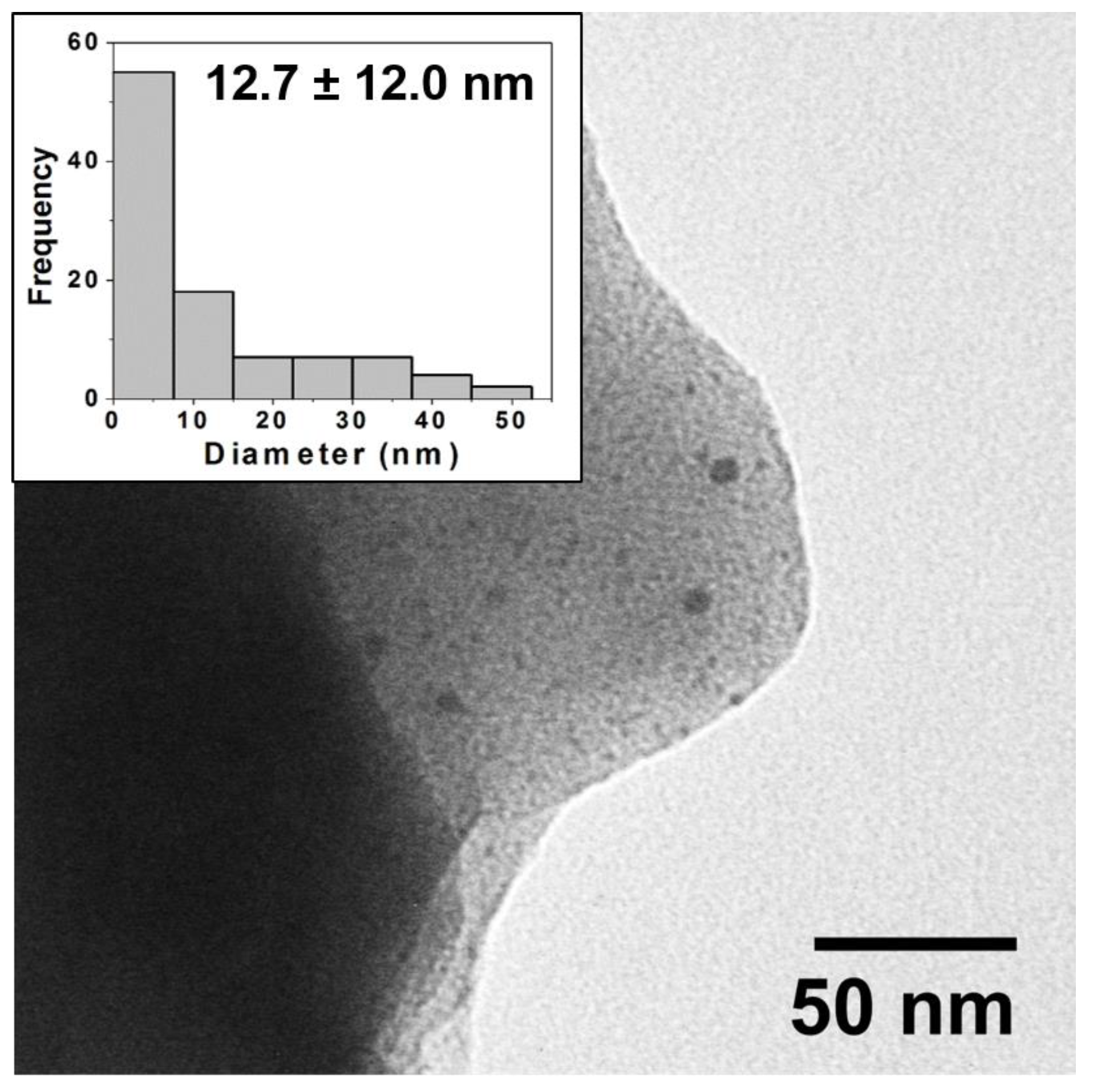

shows an example of a TEM image and corresponding histogram analysis for the reductive 80:20 sample with a clear indication of the presence of NPs. Again, chromaticity diagrams and CIE Lab color values were obtained (Figure S3
) that show a broader range of majority color reflectance peaks (from 611 to 648 nm in the red ranges and 579 nm for the greenish 0:100 tile). Additional TEM images and corresponding histogram analysis for the other ratios in the reductive environment are provided in the Supplementary Materials (Figure S4
). TEM analysis again reveals the presence of NPs through all the samples with some notable differences from the prior oxidation experiment, most notably the apparently significantly higher concentration of NPs that intensifies the surface plasmon-based color observed as well as an interesting trend in particle diameter across the different ratios. Figure 5

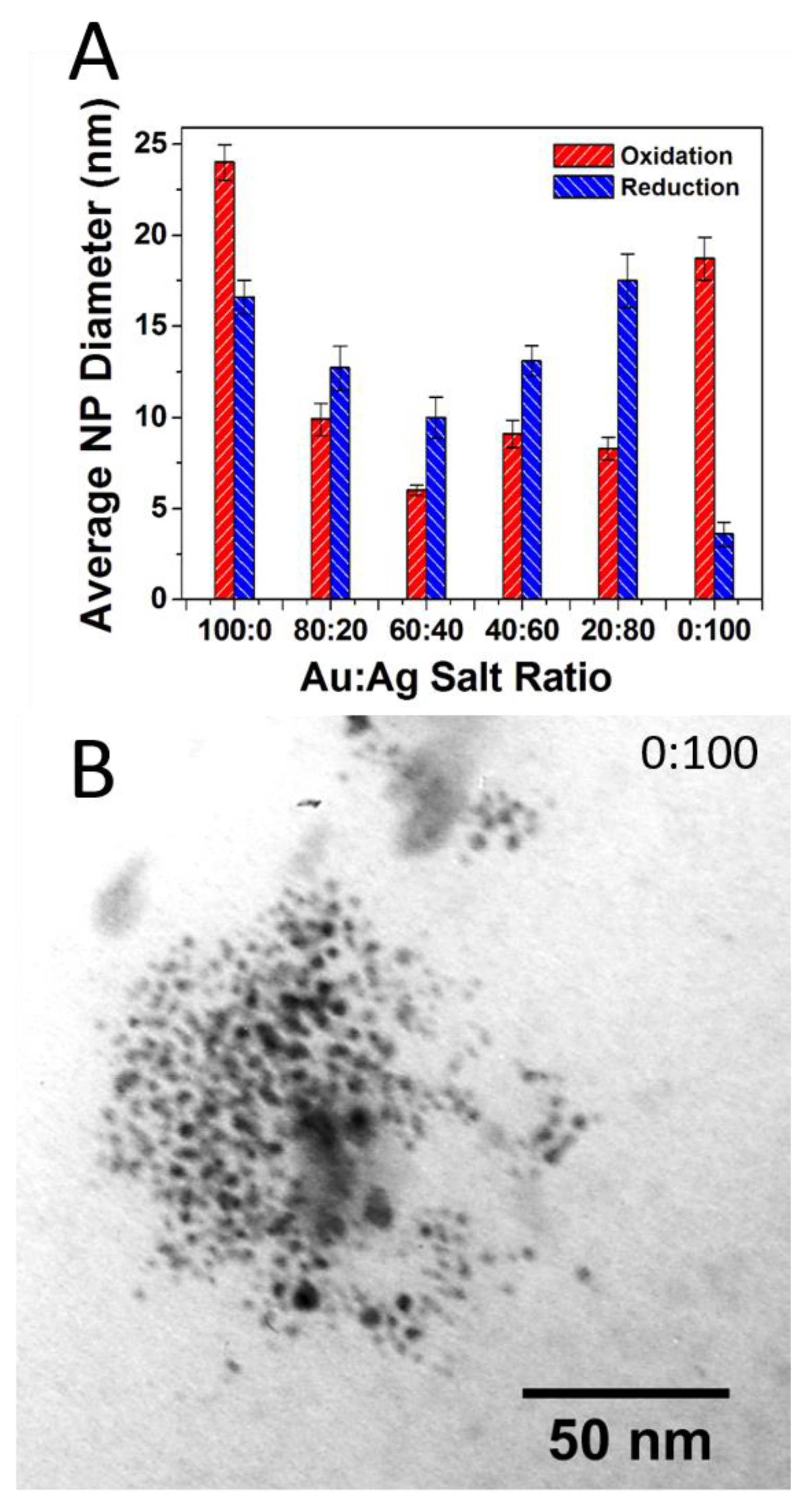

A summarizes the average diameter of each ratio fired in both an oxidation and reductive environment. Interestingly, the average diameters are highest at 100:0 (oxidation) and 0:100 (oxidation), with smaller average diameters ranging between 12 and 18 nm observed at the mixed ratios and an incredibly small size and distribution for the 0:100 reduction sample. Unlike the 100:0 sample in the oxidative environment (Supplementary Materials—Figure S2
), the 0:100 oxidative sample also shows a flat size distribution centered around relatively large diameter Ag NPs (18.7 ± 11.8 nm). TEM imaging clearly reveals the presence of NPs with only AgNO3
salt incorporated into the glaze formulation, suggesting the formation of Ag-NPs (Figure 5
B). In the prepared 0:100 samples, there is a presence of NPs, albeit at lower incidence (concentration) compared to the pure gold sample.
While this work has established that NPs form from salts within the glaze during reductive firing, a remaining question is if the plasmonic coloring from samples using mixtures of Au and Ag salts are producing Au-Ag alloyed NPs or rather showing the collective contributions of distinct, co-existing Au-NPs and Ag-NPs in different combinations and sizes within the glaze. To address this question, select samples (80:20 and 20:80 ratios) fired in reductive environments were analyzed via TEM equipped with energy dispersive spectroscopy (EDS) for elemental analysis. Figure 6

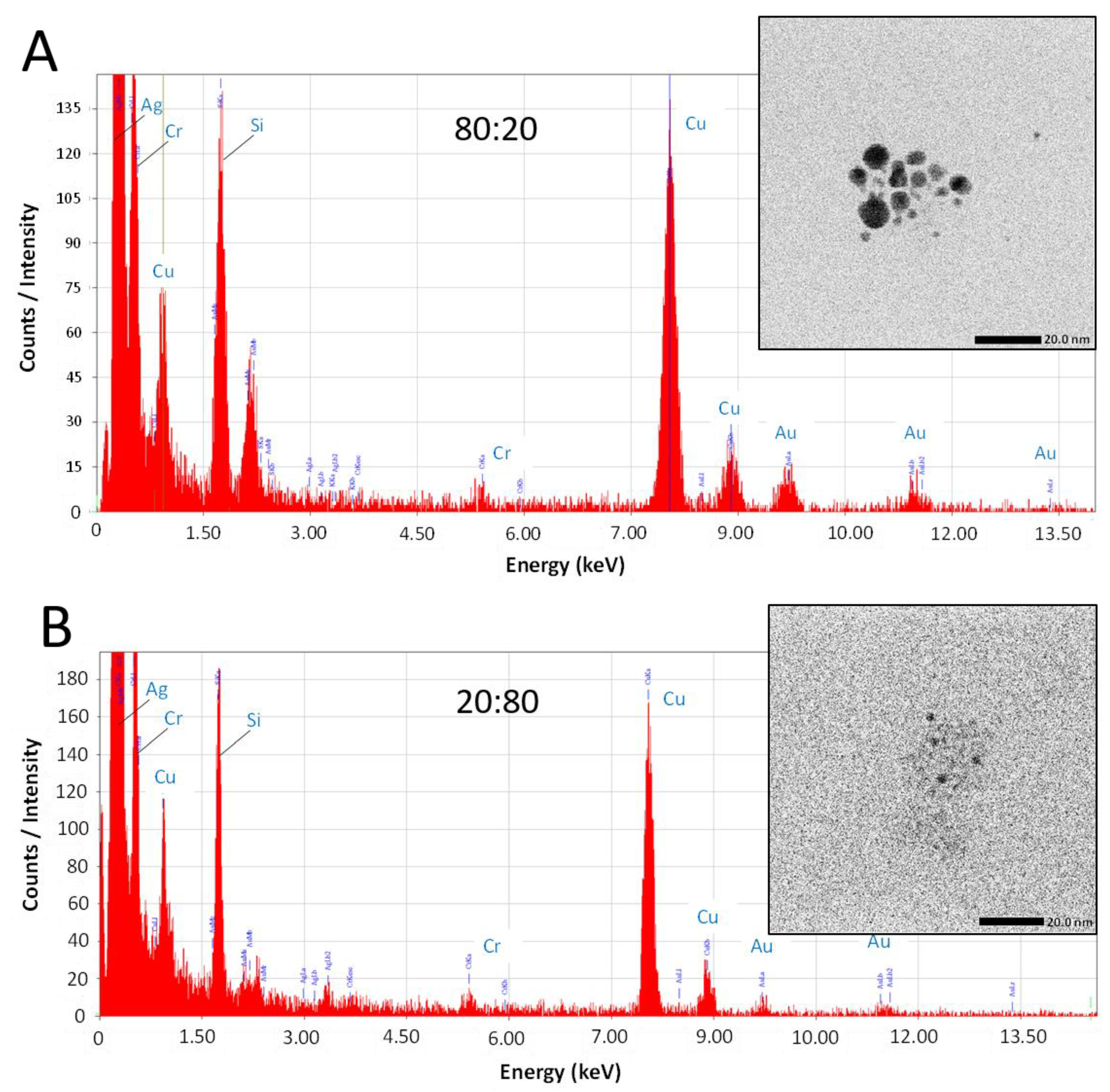

shows representative examples of the results from this type of analysis. TEM imaging (Figure 6
—insets) clearly show the presence of NPs in both samples. EDS analysis of the areas reveals typical EDS signatures for the presence of gold and silver in the scanned fields. Other signals can be attributed to the coating of the TEM imaging grid (Cu) and the non-noble metal normal impurities of the ceramic matrix (Si, Cr). Shown in Figure 7

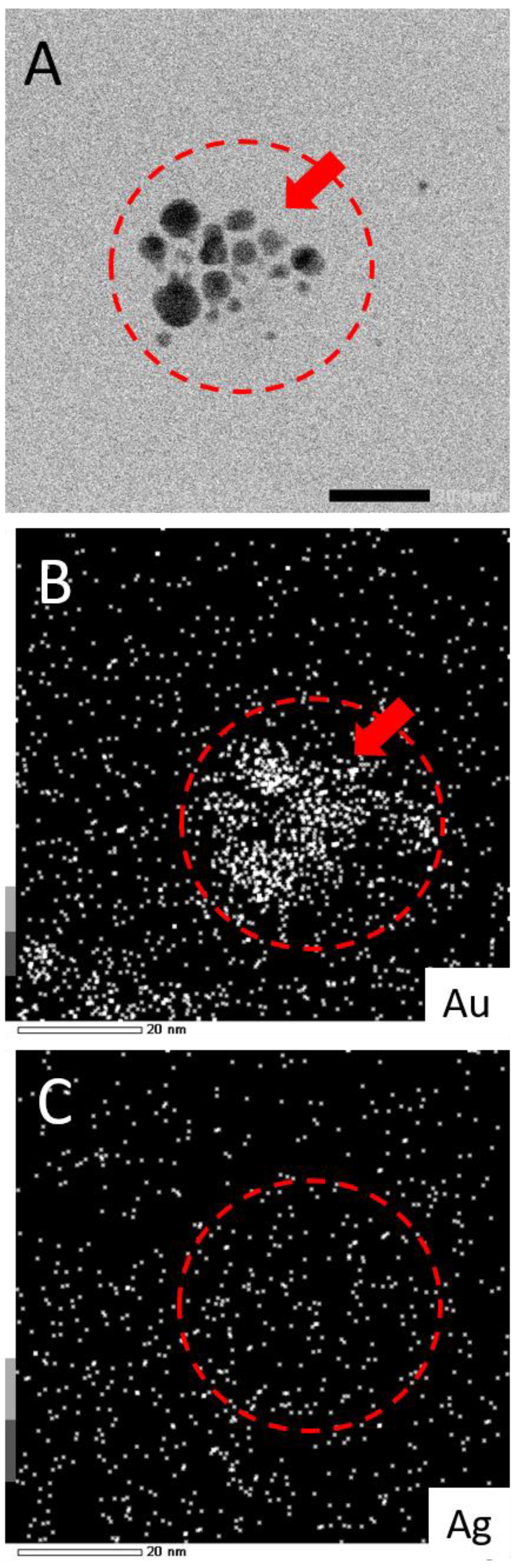

, the elemental mapping provided by the EDS of the 80:20 sample TEM image (Figure 7
A) is instructive. Elemental mapping of Au for that image (Figure 7
B) shows a high density of Au signal that corresponds to the same area as the imaged NPs, suggesting a major component of the NPs is Au. Elemental mapping of Ag for the same area (Figure 7
C), however, shows signals evenly dispersed across the field and the absence of any high density of Ag signal. These results suggest that the 80:20 ratio results in evidence of Au-NPs and the apparent absence of Ag-NPs. That said, a similar dispersed Ag signal was found in the EDS analysis of the 0:100 or 100% Ag sample (not shown) even though in-house TEM analysis taken immediately of the sample shows the presence of Ag NPs (Figure 5
B). Interestingly, when higher silver ratio (i.e., 20:80 and 0:100) samples are imaged after 48 h or more, there is little or no evidence of the same Ag-NPs in the samples (Figures S6 and S7
). Given these results, it is strongly suspected that the Ag NPs, once liberated from the ceramic matrix with no stabilizing ligands, are susceptible to oxidation and subsequent degradation whereas the Au-NPs are more resistant to oxidation. Additionally, the keV (200 keV) required to perform the EDS showed live-stream disintegration of NPs, including in the 0:100 sample that would be consistent with observing a dispersed Ag signal across the field. Even with in-house TEM imaging of the 0:100 sample (80 keV), Ag-NPs were much more difficult to observe, particularly on aged samples and lighter “holes” (low electron density) were often observed with these samples (Supplementary Materials
), possibly the remnants of Ag-NPs after degradation. These observations, coupled with the fact that Au-NPs persist and can be analyzed, supports the notion that the observed coloring effects and color control can be attributed to the collective presence of both Au NPs and Ag NPs present and stabilized in the glaze rather than alloyed NPs.
The findings of this study demonstrate that gold and silver salts at specific ratios can be incorporated within ceramic glaze formulations that, during reductive firing, promote significant nucleation and growth of Au and Ag NPs within the glaze that subsequently expand the range of available color produced. The surface plasmon effects of the embedded NPs allow for specific tuning of vibrant coloring of the glaze with the manipulation of the Au:Ag salt precursor ratio. The significant difference between the reductive and oxidative results may be explained by the reduction potentials of each metal. In a reduction kiln, the production of primarily CO is able to extract oxygen from the sample surface, leaving behind electrons and forming CO2. The electrons then reduce the metal to their neutral state, thus allowing for the nucleation and formation of NPs that, in turn, exhibit a minor plasmon effect for color. In the reductive environment, there is enough CO to reduce both Au and Ag, potentially facilitating the simultaneous or sequential formation of Au and or Ag NPs or mixtures of the two. As such, different combinations of metal salts in the reductive kiln are able to produce embedded NPs that exhibit a range of distinct hues. The oxidative kiln, however, has little to no production CO and, as previously explained, must rely on a notably weaker reduction mechanism toward NP nucleation that produces much less vibrant coloration.
In summary, this work has demonstrated that the use of Au and Ag salt ratios within glaze formulations provides an unprecedented level of control over the resulting NP plasmon-based colorant effects, which are more brilliant with the use of a reductive firing environment. Overall, the formation of NPs derived from salts and in situ formation represents an alternative colorant strategy in ceramics that is practical, affordable, and environmentally friendly.
