Article

Application of ZnO Nanocrystals as a Surface-Enhancer FTIR for Glyphosate Detection

by
Anderson L. Valle
1,
Anielle C. A. Silva
2,3,*,
Noelio O. Dantas
2,3,
Robinson Sabino-Silva
4,
Francielli C. C. Melo
1,
Cleumar S. Moreira
5,
Guedmiller S. Oliveira
6,
Luciano P. Rodrigues
7 and
Luiz R. Goulart
1,*
1
Nanobiotechnology Laboratory, Institute of Genetics and Biochemistry, Federal University of Uberlândia, Uberlândia 38402-022, MG, Brazil
2
Laboratory of New Insulating and Semiconductors Materials, Institute of Physics, Federal University of Uberlândia, Uberlândia 38408-100, MG, Brazil
3
Laboratory of New Nanostructured and Functional Materials, Institute of Physics, Federal University of Alagoas, Maceió 57072-970, AL, Brazil
4
Institute of Biomedical Sciences, Federal University of Uberlândia, Uberlândia 38402-022, MG, Brazil
5
Electrical Engineering Department, Federal Institute of Paraíba, João Pessoa 58015-020, PB, Brazil
6
Institute of Chemistry, Federal University of Uberlândia, Uberlândia 38402-022, MG, Brazil
7
Institute of Engineering, Science and Technology, Federal University of Jequitinhonha and Mucuri’s Valleys, Janaúba 39447-814, MG, Brazil
*
Authors to whom correspondence should be addressed.
Nanomaterials 2021, 11(2), 509; https://doi.org/10.3390/nano11020509
Submission received: 14 December 2020 / Revised: 12 January 2021 / Accepted: 13 January 2021 / Published: 17 February 2021
(This article belongs to the Section Environmental Nanoscience and Nanotechnology)
Browse Figures
Review Reports Versions Notes

Abstract

:
Glyphosate detection and quantification is still a challenge. After an extensive review of the literature, we observed that Fourier transform infrared spectroscopy (FTIR) had practically not yet been used for detection or quantification. The interaction between zinc oxide (ZnO), silver oxide (Ag2O), and Ag-doped ZnO nanocrystals (NCs), as well as that between nanocomposite (Ag-doped ZnO/AgO) and glyphosate was analyzed with FTIR to determine whether nanomaterials could be used as signal enhancers for glyphosates. The results were further supported with the use of atomic force microscopy (AFM) imaging. The glyphosate commercial solutions were intensified 10,000 times when incorporated the ZnO NCs. However, strong chemical interactions between Ag and glyphosate may suppress signaling, making FTIR identification difficult. In short, we have shown for the first time that ZnO NCs are exciting tools with the potential to be used as signal amplifiers of glyphosate, the use of which may be explored in terms of the detection of other molecules based on nanocrystal affinity.

Graphical Abstract

1. Introduction

Glyphosate ((N-phosphonomethyl) Glycine) is the most commercialized herbicide worldwide, with the amount used globally reaching billions tons [1]. It has seen a dramatic increase in usage since genetically modified glyphosate-resistant crops were introduced late in the 20th century [2]. A commercial formulation of glyphosate (GLIFOTAL TR) consists of isopropylamine salt and the surfactant polyoxyethylene amine [3]. This herbicide was considered “toxicologically harmless” for animals and the environment [4,5,6] due to its ability to degrade in soil microbes and bind to soil colloids [7]. However, at present it is back in focus due to its carcinogenic effects (according to the International Agency for Research on Cancer) based on evidence from agriculture exposure and laboratory animal data [8].
As a matter of fact, there are more than eighty methods used to detect glyphosate [9]; however, its detection and quantification processes are generally expensive and slow, which means that governmental control measures are ineffective. European Union (EU) authorities have been regularly monitoring glyphosate levels in cereals since 2010. Still, the challenge in testing glyphosate residues on imported genetically modified soybeans (GMS) remains, and Brazil is one of the biggest producers of GMS. Even in Europe, only a small number of testing laboratories can detect glyphosate [10].
Glyphosate’s capacity to adsorb strongly onto clay minerals [11] and organic or mineral particles in water [12,13] and its high affinity with metal cations impose great difficulties on its detection without pretreatment methods [14]. The behavior of glyphosate has been examined by several research groups, showing the tendency of transitions in some trivalent metal ions and divalent alkaline-earth metal ions to form 1:1 (e.g., Ca(II) and Cu(II) [15,16]) and 2:1 metal chelates with glyphosate in solution [17]. In the commonly used density functional theory, molecular modeling methods show that zinc is the most stable element to form tetrahedral and octahedral complexes with glyphosate. Thus, the affinity dominances of various elements are as follows: Zn > Cu > Co > Fe > Cr > Al > Ca > Mg [18].
It is known that most agricultural soils contain Zn (10–300 mg kg−1) [19] and that an increase in glyphosate use has an effect on the availability of Zn on soils [20]. On the other hand, the interaction of glyphosate with Ag has barely been discussed and has generally been used only for biosensing purposes [21,22,23]. Zinc is usually found bonded with oxygen (ZnO), with the resulting compound widely used as an additive in several products and materials applied in foods and the degradation of pollutants [24]. Zinc Oxide (ZnO) nanoparticles can be amorphous or crystalline, the difference being that nanocrystals (NCs) are highly stable and do not present genotoxicity, unlike amorphous nanoparticles [25]. ZnO nanocrystals (NCs) are also used in electronic devices because they have supercapacitor properties [26].
Thus, in this work, the interaction of glyphosate molecules with Ag-doped ZnO, silver oxide (Ag2O) nanocrystals, and nanocomposite (Ag-doped ZnO/AgO) will be investigated, with implications possibly relevant to biosensing applications. These interactions were investigated by Fourier transform infrared spectroscopy (FTIR) and atomic force microscopy (AFM), and the results have shown for the first time that ZnO NCs can be used as FTIR enhancers, enabling glyphosate detection using several technologies.

2. Materials and Methods

2.1. Synthesis and Characterization of Nanocrystals

ZnO, Ag2O, and Ag-doped ZnO nanocrystals and a nanocomposite (Ag-doped ZnO/AgO) were synthesized by coprecipitation methodology patented according to process number BR 10 2018 007714 7-National Institute of Industrial Property in the absence of surfactants [27]. Structural properties were investigated using X-ray diffraction (XRD) (DRX-6000, Shimadzu, Kyogo, Japan) with monochromatic radiation Cu-Kα1 (λ = 1.54056 Å). The AgO phase percentage was determined by the ratio of the integrated intensities of AgO/ZnO diffraction peaks from XRD results. We also used FTIR and AFM to characterize nanomaterials.

2.2. Characterization of GLIFOTAL TR with Nanocrystals and Nanocomposite

Samples were prepared from a 10−2 (v/v) dilution of GLIFOTAL TR (1:100 ultrapure water). Nanomaterials were also diluted in ultrapure water (10 mg mL−1), which was mixed with GLIFOTAL TR dilutions. The final solution was stirred manually at a medium speed. To prove interaction properties, NCs were also diluted in ultrapure water (1.5 mg mL−1).

2.3. Fourier Transform Infrared Spectroscopy (FTIR)

Samples’ spectra were recorded in a 4000–400 cm−1 range using an FTIR spectrophotometer (Vertex 70, Bruker Optik, Ettlingen, Germany) with a microattenuated total reflectance (ATR) accessory. The crystal material in the ATR unit was a diamond disc used as an internal reflection element. The sample penetration depth ranged between 0.1 and 2 μm. The samples were dropped 2 µL twice and dried using a triple dental syringe to obtain FTIR spectra at room temperature. The air spectrum was used as a background in the FTIR analysis. The sample spectra analyses were obtained with 2 cm−1 of resolution and 34 scans.

2.4. Atomic Force Microscopy (AFM)

AFM imaging was performed to view the interaction of GLIFOTAL with NCs and nanocomposite. For evaluation, we dropped 3 µL of GLIFOTAL TR NCs 10−4 (v/v) solution onto a mica sheet surface and submitted it to an AFM with a high resolution scanning probe [28]. Mica sheets and the nanofilm formed by GLIFOTAL TR when the sheets were overlapped were used as control groups.

2.5. Enhancement Properties Analysis

FTIR spectra were obtained in order to investigate glyphosate’s interactions with its commercial formulation (GLIFOTAL TR), nanocrystals (ZnO, Ag-doped ZnO, and Ag2O), and nanocomposite (Ag-doped ZnO/AgO) at four dilutions in 10−2 (v/v) (usually used for soil applications), 10−4 (v/v), 10−6 (v/v), and 10−8 (v/v). GLIFOTAL TR is formed by Isopropylammonium N (phosphonomethyl)-Glycine at 480 g L−1 (48% m/v), with the acid equivalent at 360 g L−1 (36% m/v) and the other ingredients at 673.4 g L−1 (67.34% m/v).

3. Results

X-ray diffraction was used to investigate the structural properties of the nanocrystals and nanocomposite. Figure 1 shows the XRD patterns of nanomaterials at room temperature. In Figure 1A, observed that the diffraction patterns are characteristic of ZnO wurtzite crystal structure (JCPDS card No. 36-1451). The silver oxide standards correspond to the cubic crystalline structure of Ag2O nanocrystals (JCPDS 76-1393).
In order to investigate the effect of the incorporation of Ag into ZnO, zooming in on the diffraction peak of (100) shows smaller angular shifts relative to the ZnO in nanocomposite and Ag-doped ZnO, as shown in Figure 1B. This result confirms silver’s substitution of zinc into ZnO’s crystalline structure, since Ag+2 has an ionic radius (1.26 Å) larger than that of Zn+2 (0.74 Å). The magnification also shows a typical AgO peak (JCPDS no: 43-1038) in the nanocomposite (blue line). The AgO phase percentage estimated in the nanocomposite is 22.4%. The nanocomposite formed consists of Ag-doped ZnO and AgO NCs (Ag-doped ZnO/AgO) [27].
In order to investigate the interactions of nanomaterials with glyphosate functional groups, the infrared spectroscopy technique was used. The nanomaterials were mixed with GLIFOTAL TR in ultrapure water at three dilutions: 10−2 (v/v) (which is usually used for soil applications), 10−4 (v/v), and 10−6 (v/v). Figure 2A shows the FTIR spectra of the nanomaterials studied. The characteristic bands were represented between 400–600 cm−1 related to Zn-O and Ag-O bonds [29,30]. Figure 2B observes the spectra of GLIFOTAL TR (10−2, 10−4, and 10−6 (v/v)) and GLIFOTAL TR Ag2O NCs in 10−2 (v/v) concentrations. These bands of nanomaterials are low in intensity compared to the GLIFOTAL TR bands. This analysis also shows that even a low Ag2O NCs concentration can reduce the FTIR vibrational signal.
Figure 3A shows the FTIR spectra of GLIFOTAL TR in three different concentrations (10−2, 10−4, and 10−6 (v/v)) and the GLIFOTAL TR nanomaterials at a concentration of 10−6 (v/v). Figure 3B shows the FTIR spectra of glyphosate in various concentrations and mixed with nanomaterials at 10−6.
The enhancement property was observed when ZnO NCs were added to the GLIFOTAL TR solutions diluted at 10−6 (v/v) (480 ng mL−1), at which point the solution’s bands were more intense than those of solutions diluted at 10−2 (v/v) without NCs. On the other hand, with the addition of Ag-doped ZnO, a slight suppression of the glyphosate bands was observed, decreasing even more when the nanocomposite was incorporated. That being said, all of the glyphosate’s vibration modes were observed. Therefore, ZnO NCs are exciting tools with the potential to be used as signal amplifiers of GLIFOTAL TR.
Figure 4 shows the vibration modes of glyphosate’s molecular group. It observes that their intensity changes when they interact with each sample, considering the most and least diluted concentrations of GLIFOTAL TR (10−6 and 10−2 (v/v)), respectively. Each bond that composes each glyphosate functional group’s molecular structure may present higher or lower energy after an interaction with the samples. Each color represents a specific vibration mode; blue represents the highest intensity, while red represents the lowest intensity.
In Figure 4A, R is the Pearson’s correlation among the samples and their respective glyphosate vibrational mode intensity; the closer the correlation is to 1, the more significant the positive correlation is. The first three columns, composed of GLIFOTAL TR in different concentrations, show the analytical limitations of the technique without nanomaterials, since just 10−2 (v/v) dilution could be observed (shown by more intense coloring). In this group, GLIFOTAL TR (10−2) shows high-intensity bands at 1568, 1557, 1170, 1081, and 1031 cm−1. The nanomaterials’ interaction with the GLIFOTAL TR solution shows that, while ZnO NCs enhanced the herbicide’s bands, the nanomaterials with Ag diminished it. To understand where the nanocrystals interacted with the glyphosate structure, the intensities of the FTIR bands were calculated for each vibrational mode and normalized by the lowest dilution. Thus, the ratio’s columns in Figure 4B represent the values of the nanomaterials’ columns divided by the values of the GLIFOTAL TR (10−2) column.
AFM images of the samples are shown in Figure 5. The AFM images for the control group show a smooth surface and roughness for GLIFOTAL TR. The right panels show the two-dimensional AFM images. ZnO NCs in water were commonly found ungrouped, dispersed on water, and in association with GLIFOTAL TR. This specific interaction is evidenced by a single nonclustered unit. Alternatively, the samples containing Ag are always seen in clusters in water when associated with GLIFOTAL TR. In water, it was observed that nanomaterials presented different degrees of aggregation. While ZnO and Ag-doped ZnO NCs were well dispersed, Ag2O NCs and nanocomposite were not.
In the AFM images of nanocrystal/GLIFOTAL TR groups, different aggregation degrees were observed when nanomaterials were associated with GLIFOTAL TR, and these were more intense for samples containing Ag (Ag-doped ZnO, nanocomposite, and Ag2O). Thus, nanomaterials’ interactions with Ag (Ag-doped ZnO, nanocomposite, and Ag2O) and glyphosate are relatively more intense, facilitating aggregation.

4. Discussion

Glyphosate detection and quantification is expensive and slow [31,32]. Governmental control of the process is ineffective because multiresidue methods cannot detect glyphosate. The impact of this knowledge gap on the health system and the public economy is unknown. Hence, the concept of “glyphosate’s paradox” was raised, which means that despite glyphosate being the most widely used agrochemical globally, it is also the least analytically well-determined agrochemical [7,33].
The regulatory rules regarding the maximum residue limit (MRL) for both crops and water adopted by each country differ significantly. For example, the value established by the United States Environmental Protection Agency (EPA) for soybeans was 20 mg kg−1. Independent of the compound’s structure or activity, the European Union has set the MRL of pesticides at 0.1 ng mL−1, while the EPA’s MRL, established in terms of the persistence and toxicity of each pesticide individually, was 700 ng mL−1 [34]. The Canadian Drinking Water Guideline recommends an MRL of 280 ng mL−1, and the Brazilian Surveillance Agency (ANVISA) recommends an MRL of 500 ng mL−1. It is important to emphasize that analyses on current approvals by the EU and USA regarding glyphosate levels suggest that the established acceptable daily intake levels are inaccurate and dangerously high [35], mainly because agencies have used information studies performed by industries benefitting from these high intake levels. These facts have raised questions about how safe high glyphosate levels are, and these questions are further complicated by the fact that many technical approaches present limits of detection (LODs) which are low compared to which each agency would be interested in controlling.
In this way, we have shown in this investigation that ZnO NCs may be used as an enhancing agent for the FTIR glyphosate detection methodology for the first time. The opposite effect was observed with Ag-doped ZnO NCs and nanocomposite (Ag-doped ZnO/AgO), since the Ag ion on the other hand, acted as a chelating agent in glyphosate, leading to full signal suppression. Thus, interestingly, we have also shown for the first time that nanocomposite mixed into water has almost no effect on FTIR, suggesting that the ZnO NCs did impact the glyphosate structure and induce a differential vibrational intensity.
It is known that ZnO interacts with glyphosate and has a direct effect on the environment, impacting the nutrient uptake and translocation of “nontarget” plants more than Fe and Mn [36], reducing weed control between 43 and 59 percent if done in the same solution before application, reducing the biomass of Zn by 88 to 96 percent when applied alone, or reducing 41 percent of the biomass of Zn in coapplication [37]. Foliar absorption is too greatly reduced when glyphosate is used in solutions with Zn, Ca, Fe, Mg, and Mn [38]. Comparing N, P, K, Cu, and Zn, N and Zn foliar nutrient levels decreased the most during observed postglyphosate application, and both were correlated with glyphosate concentration [39,40]. A sunflower reduces the absorption and translocation of radiolabeled Fe59, Zn65, and Mn54 [36,41]. Plants intoxicated by glyphosate present the same morphological alterations as those observed for N, B, Fe, and Zn deficiency [42,43,44,45]. These reports corroborate with our findings and indicate that Zn’s intense interaction with glyphosate may be a problem for glyphosate detection in soils. It remains to be demonstrated whether ZnO NCs would have a stronger binding affinity than the Zn ions found in soil.
After interaction with a nanocrystal, the vibrational modes of some glyphosate structures were diminished, indicating that they lost degrees of freedom. In contrast, others showed an increased intensity, probably indicating freer functional groups. The C=O of free COOH and C=O of H bonded COOH chemical bonds has the lowest intensity, followed by the NH2 and P-O of PO3H, neither of which are strong interactions with nanomaterials. When GLIFOTAL TR did not interact with nanocrystals, its vibrational status was low (1732 cm−1), but it increased by 1% when interacting with ZnO NCs.
These data suggest that while Ag fully interacts with glyphosate, ZnO NCs do not interact in corresponding 1732 cm−1, 1720 cm−1, and 1268 cm−1 wavenumber regions. Stronger interactions were related to bands at 1568 cm−1, 1557 cm−1, 1170 cm−1, 1081 cm−1, and 1031 cm−1. Pearson’s correlation (R) showed that interactions containing Ag are stronger than reactions with ZnO NCs (see Figure 4). These results were confirmed in AFM images, especially because they showed a higher interaction of Ag with glyphosate. On the other hand, glyphosate molecules were aggregated around ZnO. In both cases, the NCs aggregated not only glyphosate but also everything that composes GLIFOTAL TR. This interaction is strong enough to retrieve all nanocrystals, water, surfactants, or any other material at the mica sheet’s surface.
The band at 1170 cm−1 is attributed to R-PO(OH)2. This group can form strong complexes with metal that may result in adsorption, photodegradation, biodegradation processes, and the formation of soluble and insoluble complexes [18]. Therefore, based on FTIR results, the phosphate groups of the glyphosate molecules were binding on the surface of ZnO NCs.
It is reported in the literature that the use of ZnO NCs placement on the surface of multiwalled carbon nanotubes can enhance electrochemiluminescence signals to detect glyphosate [46]. Detection could reach limits lower than 1 μmol L−1. Alongside this, these methods are cheaper, faster, and more sensitive than many spectroscopic tests. A sensor for detecting pesticides in water using the ZnCdSe quantum dot’s photoluminescence intensity has also been developed [47]. However, to our knowledge, our investigation is the first to report the use of ZnO NCs as an FTIR enhancer to improve glyphosate detection. These results demonstrate that glyphosate infrared modes could be intensified due to the interaction between glyphosate and nanocrystals. The signal is likely reinforced due to a preconcentration of glyphosate molecules around of nanocrystal.
There are accurate and sensitive technologies related to atomic absorption spectrometry, electrothermal atomization atomic absorption spectrometry [48,49], flame atomic absorption spectrometry [50,51,52], and fading spectrophotometry. All of them suffer due to their requirement for well-established laboratory settings, their high complexity, and extended testing times. These spectrophotometric techniques could have their minimum limit of detection enhanced by ZnO NCs.
On the other hand, glyphosate’s ability to interact with ZnO NCs is changed in the presence of Ag (as seen with samples of Ag-doped ZnO and nanocomposite). We suggest that Ag interacts with phosphonate and carboxylate groups, resulting in signal suppression. Comparing our results with those of the PVP-capped silver nanocubes system for removing glyphosate from water [53], we corroborated those results in many aspects. It is possible that our nanomaterials could also be efficiently used for glyphosate removal from water. The difference between our work and the latter one is that while the latter has shown different absorption peaks for glyphosate FTIR spectra for PVP-capped silver nanocubes binding in a chemical process, our nanomaterials were relatively stable and homogeneous, suggesting that our NCs efficiently immobilized glyphosate in a physical process, since there was no change in the IR bands.
Ag2O NCs are separated from the primary Ag2O NCs aggregates, which are then surrounded by glyphosate. For this reason, we believe that Ag2O NCs could also be used to promote the removal of glyphosate from water. A photoluminescence study [53] has previously shown that silver nanocubes degrade the glyphosate present in drinking water. The study confirmed that silver nanoparticles could fully degrade glyphosate, evidenced by the intensity of photoluminescence spectra that gradually decreased as the glyphosate concentration diminished [54], concluding that the adsorption of the amine group of glyphosate is bound onto silver, leading to the aggregation of Ag2O NCs.
The characterization of glyphosate removal is not simple, mainly because it has never been found in a noncomplexed form in nonlaboratory situations. This means that it needs to be unbound first. In this context, the interaction between glyphosate and other metals is pH-dependent [55,56,57,58,59,60,61]. Glyphosate exists in a zwitterion form, with adjuvants or surfactants to improve its activity. It is an amino phosphonic analog of the natural amino acid glycine and can be protonated, presenting different ionic states depending on pH. Like an amino acid, it has a carboxylic acid and an amino group; the phosphonic acid can be ionized, while the second can be protonated [62]. Glyphosate assumes the following protonation states: pKa1 = 0.47, pKa2 = 5.69, and pKa3 = 11.81 [63], whereas at pH 6.0, both the phosphonate and the amino group are protonated [64], suggesting that strategies for glyphosate separation or purification based on pH changes are possible.
Finally, glyphosate has more than 1000 analogs [65]. Still, there are only two very similar analogs, which are useful to the same extent as glyphosate (N-hydroxy-glyphosate and N-amino-glyphosate) [66]. Once the phosphonates strongly adsorb onto almost all mineral surfaces [67], we believe that the enhancing properties of ZnO NCs could also be applied to them. On the other hand, we do not expect the same for amino-carboxylates, for which the interactions with mineral surfaces are weak, especially at a near-neutral pH [67]. Although the present data indicate that ZnO NCs can be used as an FTIR enhancer, enabling glyphosate detection for various technologies, this is a proof-of-concept study in the context of environmental water. Therefore, further studies are required to validate this glyphosate detection in agriculture and human/animal toxicology fields due to potential metabolization and the need to analyze the effect of soil and biofluids resulting from the acquired spectra. In this context, denoising and artificial intelligence algorithms can be applied to real-time detection, improving occupational safety.

5. Conclusions

In this work, we demonstrated for the first time that ZnO NCs may be used as enhancing agents for glyphosate detection using FTIR spectroscopy. Nanomaterials with Ag altered the ability of glyphosate to interact with ZnO NCs because Ag ions interact with phosphate and carboxyl groups, resulting in signal suppression. Thus, ZnO NCs are exciting tools for the signal amplification of GLIFOTAL TR, and nanomaterials with Ag (Ag-doped ZnO, nanocomposite, and Ag2O) could also be used to promote the removal of glyphosate from water. Therefore, we have demonstrated several advantages of ZnO NCs and nanocomposites.

Author Contributions

A.C.A.S., L.P.R., and L.R.G. conceived the research hypothesis and the study. A.C.A.S., L.R.G., G.S.O., and L.P.R. reviewed and edited all parts of the final document for publication. A.L.V., A.C.A.S., and C.S.M. wrote the manuscript. A.C.A.S. and N.O.D. synthesized and characterized the nanomaterials. A.L.V., A.C.A.S., F.C.C.M., and R.S.-S. collected FTIR and AFM data. L.P.R., G.S.O., A.C.A.S., N.O.D., and L.R.G. analyzed and interpreted the results. A.C.A.S., N.O.D., and L.R.G. acquired funding. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Conselho Nacional de Desenvolvimento Científico e Tecnológico (CNPq), Coordenação de Aperfeiçoamento de Pessoal de Nível Superior (CAPES), and Fundação de Amparo à Pesquisa do Estado de Minas Gerais (FAPEMIG) (CNPq/CAPES/FAPEMIG, grant numbers CNPq-465669/2014-0, CNPq-Universal Project Nr. 432866/2016-7; Scholarship in Research Productivity 1D under the Nr. 311568/2017-3, Productivity 2 Nr. 311596/2017-7 and FAPEMIG-CBB-APQ-03613-17).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not require ethical approval.

Data Availability Statement

Not applicable.

Acknowledgments

The authors gratefully acknowledge Dental Research Center Biomechanics, Biomaterials and Cell Biology (CPBIO), School of Dentistry, Institute of Physics (INFIS) and Institute of Chemistry (IQ), Federal University of Uberlândia (UFU).

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

Zinc oxide (ZnO); Silver oxide (Ag2O); Nanocrystals (NCs); Nanocomposite (Ag doped ZnO/AgO); Fourier transform infrared spectroscopy (FTIR); Atomic force microscopy (AFM); Surface enhancement FTIR (SE-FTIR); European Union (EU); Genetically-modified soybeans (GMS); X-ray diffraction (XRD); Maximum residue limit (MRL); Environmental Protection Agency (EPA); Brazilian Surveillance Agency (ANVISA); Limits of detection (LODs).

References

  1. Benbrook, C.M. Trends in glyphosate herbicide use in the United States and globally. Environ. Sci. Eur. 2016, 28, 1–15. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Giesy, J.P.; Dobson, S.; Solomon, K.R. Ecotoxicological risk assessment for Roundup® herbicide. Rev. Environ. Contam. Toxicol. 2000, 167, 35–120. [Google Scholar] [CrossRef]
  3. Tsui, M.T.K.; Chu, L.M. Aquatic toxicity of glyphosate-based formulations: Comparison between different organisms and the effects of environmental factors. Chemosphere 2003, 52, 1189–1197. [Google Scholar] [CrossRef]
  4. Kujawa, M. Glyphosate. Environmental Health Criteria 159, 177 Seiten, 3 Abbildungen und 25 Tabellen; World Health Organization: Geneva, Switzerland, 1994; Volume 40, p. 166. [Google Scholar] [CrossRef]
  5. Tsui, M.T.K.; Chu, L.M. Environmental fate and non-target impact of glyphosate-based herbicide (Roundup®) in a subtropical wetland. Chemosphere 2008, 71, 439–446. [Google Scholar] [CrossRef] [PubMed]
  6. Williams, G.M.; Kroes, R.; Munro, I.C. Safety evaluation and risk assessment of the herbicide roundup and its active ingredient, glyphosate, for humans. Regul. Toxicol. Pharmacol. 2000, 31, 117–165. [Google Scholar] [CrossRef] [Green Version]
  7. González-Martínez, M.Á.; Brun, E.M.; Puchades, R.; Maquieira, Á.; Ramsey, K.; Rubio, F. Glyphosate immunosensor. Application for water and soil analysis. Anal. Chem. 2005, 77, 4219–4227. [Google Scholar] [CrossRef]
  8. IARC. Monographs Volume 112: Evaluation of Five Organophosphate Insecticides and Herbicides—IARC. Available online: https://www.iarc.fr/news-events/iarc-monographs-volume-112-evaluation-of-five-organophosphate-insecticides-and-herbicides/ (accessed on 12 December 2020).
  9. Valle, A.L.; Mello, F.C.C.; Alves-Balvedi, R.P.; Rodrigues, L.P.; Goulart, L.R. Glyphosate detection: Methods, needs and challenges. Environ. Chem. Lett. 2019, 17, 291–317. [Google Scholar] [CrossRef]
  10. Poulsen, M.E.; Christensen, H.B.; Hermann, S.S. Proficiency test on incurred and spiked pesticide residues in cereals. Accredit. Qual. Assur. 2009, 14, 477–485. [Google Scholar] [CrossRef]
  11. Hance, R.J. Herbicide usage and soil properties. Plant. Soil 1976, 45, 291–293. [Google Scholar] [CrossRef]
  12. Thompson, D.G.; Cowell, J.E.; Daniels, R.J.; Staznik, B.; Macdonald, L.M. Liquid chromatographic method for quantitation of glyphosate and metabolite residues in organic and mineral soils, stream sediments, and hardwood foliage. J. Assoc. Off. Anal. Chem. 1989, 72, 355–360. [Google Scholar] [CrossRef]
  13. Rueppel, M.L.; Brightwell, B.B.; Schaefer, J.; Marvel, J.T. Metabolism and degradation of glyphosate in soil and water. J. Agric. Food Chem. 1977, 25, 517–528. [Google Scholar] [CrossRef] [PubMed]
  14. Moraes, F.C.; Mascaro, L.H.; Machado, S.A.S.; Brett, C.M. Direct electrochemical determination of glyphosate at copper phthalocyanine/multiwalled carbon nanotube film electrodes. Electroanalysis 2010, 22, 1586–1591. [Google Scholar] [CrossRef]
  15. Smith, P.H.; Hahn, F.E.; Hugi, A.; Raymond, K.N. Crystal structures of two salts of N-(phosphonomethyl)glycine and equilibria with hydrogen and bicarbonate ions. Inorg. Chem. 1989, 28, 2052–2061. [Google Scholar] [CrossRef]
  16. Clarke, E.T.; Rudolf, P.R.; Martell, A.E.; Clearfield, A. Structural investigation of the Cu(II) chelate of N-phosphonomethylglycine. X-ray crystal structure of Cu(II) [O2CCH2NHCH2PO3]·Na(H2O)3.5. Inorganica Chim. Acta 1989, 164, 59–63. [Google Scholar] [CrossRef]
  17. Madsen, H.E.L.; Christensen, H.H.; Gottlieb-Petersen, C.; Andresen, A.F.; Smidsrød, O.; Pontchour, C.-O.; Phavanantha, P.; Pramatus, S.; Cyvin, B.N.; Cyvin, S.J. Stability Constants of Copper(II), Zinc, Manganese(II), Calcium, and Magnesium Complexes of N-(Phosphonomethyl)glycine (Glyphosate). Acta Chem. Scand. 1978, 32, 79–83. [Google Scholar] [CrossRef] [Green Version]
  18. Caetano, M.S.; Ramalho, T.C.; Botrel, D.F.; Da Cunha, E.F.; De Mello, W.C. Understanding the inactivation process of organophosphorus herbicides: A DFT study of glyphosate metallic complexes with Zn2+, Ca2+, Mg2+, Cu2+, Co3+, Fe3+, Cr3+, and Al3+. Int. J. Quantum Chem. 2012, 112, 2752–2762. [Google Scholar] [CrossRef]
  19. Sadeghzadeh, B.; Rengel, Z. Zinc in soils and crop nutrition. In The Molecular and Physiological Basis of Nutrient Use Efficiency in Crops; Wiley-Blackwell: Hoboken, NJ, USA, 2011; pp. 335–375. ISBN 081381992X. [Google Scholar]
  20. Singh, M.S.; Abrol, I.P. Transformation and availability of zinc in alkali soils. Fert News 1986, 37, 17–27. [Google Scholar]
  21. Polavarapu, L.; Pérez-Juste, J.; Xu, Q.-H.; Liz-Marzán, L.M. Optical sensing of biological, chemical and ionic species through aggregation of plasmonic nanoparticles. J. Mater. Chem. C 2014, 2, 7460–7476. [Google Scholar] [CrossRef]
  22. Rawat, K.A.; Majithiya, R.P.; Rohit, J.V.; Basu, H.; Singhal, R.K.; Kailasa, S.K. Mg2+ ion as a tuner for colorimetric sensing of glyphosate with improved sensitivity via the aggregation of 2-mercapto-5-nitrobenzimidazole capped silver nanoparticles. RSC Adv. 2016, 6, 47741–47752. [Google Scholar] [CrossRef]
  23. De Góes, R.E.; Muller, M.; Fabris, J.L. Spectroscopic detection of glyphosate in water assisted by laser-ablated silver nanoparticles. Sensors 2017, 17, 954. [Google Scholar] [CrossRef] [Green Version]
  24. Fox, M.A.; Dulay, M.T. Heterogeneous photocatalysis. Chem. Rev. 1993, 93, 341–357. [Google Scholar] [CrossRef]
  25. Reis, É.; Rica, D.M.; De Rezende, A.A.A.; Santos, D.V.; De Oliveria, P.F.; Nicolella, H.D.; Tavares, D.C.; Silva, A.C.A.; Dantas, N.O.; Spanó, M.A. Assessment of the genotoxic potential of two zinc oxide sources (amorphous and nanoparticles) using the in vitro micronucleus test and the in vivo wing somatic mutation and recombination test. Food Chem. Toxicol. 2015, 84, 55–63. [Google Scholar] [CrossRef] [PubMed]
  26. Morais, P.V.; Gomes, V.F.; Silva, A.C.A.; Dantas, N.O.; Schöning, M.J.; Siqueira, J.R. Nanofilm of ZnO nanocrystals/carbon nanotubes as biocompatible layer for enzymatic biosensors in capacitive field-effect devices. J. Mater. Sci. 2017, 52, 12314–12325. [Google Scholar] [CrossRef]
  27. Fonseca, B.B.; Silva, P.L.A.P.A.; Silva, A.C.A.; Dantas, N.O.; De Paula, A.T.; Olivieri, O.C.L.; Beletti, M.E.; Rossi, D.A.; Goulart, L.R. Nanocomposite of Ag-Doped ZnO and AgO nanocrystals as a preventive measure to control biofilm formation in eggshell and salmonella spp. Entry into eggs. Front. Microbiol. 2019, 10, 217. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  28. Dantas, N.O.; dos Santos Silva, A.; Silva, A.C.A.; de Freitas Neto, E.S. Atomic and magnetic force microscopy of semiconductor and semimagnetic nanocrystals grown in colloidal solutions and glass matrices. Opt. Imaging Technol. Methods Appl. 2012, 109–132. [Google Scholar]
  29. Kołodziejczak-Radzimska, A.; Jesionowski, T. Zinc oxide—From synthesis to application: A review. Materials 2014, 7, 2833–2881. [Google Scholar] [CrossRef] [Green Version]
  30. Siddiqui, M.R.H.; Adil, S.F.; Assal, M.; Ali, R.; Al-Warthan, A.A. Synthesis and characterization of silver oxide and silver chloride nanoparticles with high thermal stability. Asian J. Chem. 2013, 25, 3405–3409. [Google Scholar] [CrossRef]
  31. Ibáñez, M.; Pozo, Ó.J.; Sancho, J.V.; López, F.J.; Hernández, F. Re-evaluation of glyphosate determination in water by liquid chromatography coupled to electrospray tandem mass spectrometry. J. Chromatogr. A 2006, 1134, 51–55. [Google Scholar] [CrossRef]
  32. De Llasera, M.G.; Gómez-Almaraz, L.; Vera-Avila, L.; Peña-Alvarez, A. Matrix solid-phase dispersion extraction and determination by high-performance liquid chromatography with fluorescence detection of residues of glyphosate and aminomethylphosphonic acid in tomato fruit. J. Chromatogr. A 2005, 1093, 139–146. [Google Scholar] [CrossRef]
  33. Cuhra, M.; Bøhn, T.; Cuhra, P. Glyphosate: Too much of a good thing? Front. Environ. Sci. 2016, 4, 28. [Google Scholar] [CrossRef] [Green Version]
  34. Winfield, T.W.; Bashe, W.J. Determination of Glyphosate in Drinking Water by Direct-Aqueous-Injection HPLC. Post-Column Derivatization, and Fluorescence Detection: Test Method; United States Environmental Protection Agency: Washington, DC, USA, 1990; p. 547.
  35. Fagan, J.; Antoniou, M.; Habib, M.; Howard, C.V.; Jennings, R.C.; Leifert, C.; Nodari, R.O.; Robinson, C.J.; Fagan, J. Teratogenic effects of glyphosate-based herbicides: Divergence of regulatory decisions from scientific evidence. J. Environ. Anal. Toxicol. 2012, 4, 6. [Google Scholar] [CrossRef] [Green Version]
  36. Eker, S.; Ozturk, L.; Yazici, A.; Erenoglu, B.; Römheld, V.; Cakmak, I. Foliar-applied glyphosate substantially reduced uptake and transport of iron and manganese in sunflower (Helianthus annuus L.) Plants. J. Agric. Food Chem. 2006, 54, 10019–10025. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  37. Scroggs, D.; Stewart, A.; Miller, D.; Leonard, B.; Griffin, J.; Blouin, D. Response of weeds to zinc-glyphosate mixtures. La. Agric. 2008, Summer, 51. [Google Scholar]
  38. Bernards, M.L.; Thelen, K.D.; Penner, D.; Muthukumaran, R.B.; McCracken, J.L. Glyphosate interaction with manganese in tank mixtures and its effect on glyphosate absorption and translocation. Weed Sci. 2005, 53, 787–794. [Google Scholar] [CrossRef]
  39. França, A.; Freitas, M.; D’Antonino, L.; Fialho, C.; Silva, A.; Reis, M.; Ronchi, C. Nutrient content in arabica coffee cultivars subjected to glyphosate drift. Planta Daninha 2010, 28, 877–885. [Google Scholar] [CrossRef] [Green Version]
  40. Wang, Y.; Zhou, D.; Sun, R.-J.; Cang, L.; Hao, X.-Z. Cosorption of zinc and glyphosate on two soils with different characteristics. J. Hazard. Mater. 2006, 137, 76–82. [Google Scholar] [CrossRef]
  41. Ozturk, L.; Yazıcı, M.A.; Eker, S.; Gökmen, Ö.Ö.; Römheld, V.; Cakmak, I. Glyphosate inhibition of ferric reductase activity in iron deficient sunflower roots. New Phytol. 2008, 177, 899–906. [Google Scholar] [CrossRef] [Green Version]
  42. Eurípedes Malavolta Manual de Nutrição Mineral de Plantas—Malavolta, 1st ed.; Agronômica Ceres: Ouro Fino, MG, Brazil, 2006; Volume 1.
  43. Franzen, D.W.; O’Barr, J.H.; Zollinger, R.K. Interaction of a foliar application of iron HEDTA and three postemergence broadleaf herbicides with soybeans stressed from chlorosis. J. Plant. Nutr. 2003, 26, 2365–2374. [Google Scholar] [CrossRef]
  44. Neumann, G.; Kohls, S.; Landsberg, E.; Stock-oliveira Souza, K.; Yamada, T.; Römheld, V. Relevance of glyphosate transfer to non-target plants via the rhizosphere. J. Plant Dis. Prot. 2006, 963–969. [Google Scholar]
  45. Santos, L.D.T.; de Siqueira, C.H.; de Barros, N.F.; Ferreira, F.A.; Ferreira, L.R.; Machado, A.F.L. Growth and concentration of nutrients in the aerial tissue of eucalypt under glyphosate drift effect. CERNE 2007, 13, 347–352. [Google Scholar]
  46. Bozorgzadeh, S.; Haghighi, B. Enhanced electrochemiluminescence of ZnO nanoparticles decorated on multiwalled carbon nanotubes in the presence of peroxydisulfate. Microchim. Acta 2016, 183, 1487–1492. [Google Scholar] [CrossRef]
  47. Bakar, N.A.; Salleh, M.M.; Umar, A.A.; Yahaya, M. The detection of pesticides in water using ZnCdSe quantum dot films. Adv. Nat. Sci. Nanosci. Nanotechnol. 2011, 2, 25011. [Google Scholar] [CrossRef] [Green Version]
  48. Miles, C.J.; Moye, H.A. Extraction of glyphosate herbicide from soil and clay minerals and determination of residues in soils. J. Agric. Food Chem. 1988, 36, 486–491. [Google Scholar] [CrossRef]
  49. Sancho, J.V.; López, F.J.; Hernández, F.H.; Hogendoorn, E.; Van Zoonen, P. Rapid determination of glufosinate in environmental water samples using 9-fluorenylmethoxycarbonyl precolumn derivatization, large-volume injection and coupled-column liquid chromatography. J. Chromatogr. A 1994, 678, 59–67. [Google Scholar] [CrossRef]
  50. Nedelkoska, T.; Low, G.C. High-performance liquid chromatographic determination of glyphosate in water and plant material after pre-column derivatisation with 9-fluorenylmethyl chloroformate. Anal. Chim. Acta 2004, 511, 145–153. [Google Scholar] [CrossRef]
  51. Hidalgo, C.; Rios, C.; Hidalgo, M.; Salvadó, V.; Sancho, J.V.; Hernández, F.H. Improved coupled-column liquid chromatographic method for the determination of glyphosate and aminomethylphosphonic acid residues in environmental waters. J. Chromatogr. A 2004, 1035, 153–157. [Google Scholar] [CrossRef]
  52. Kudzin, Z.H.; Gralak, D.K.; Drabowicz, J.; Luczak, J. Novel approach for the simultaneous analysis of glyphosate and its metabolites. J. Chromatogr. A 2002, 947, 129–141. [Google Scholar] [CrossRef]
  53. Sarkar, S.; Das, R. PVP capped silver nanocubes assisted removal of glyphosate from water—A photoluminescence study. J. Hazard. Mater. 2017, 339, 54–62. [Google Scholar] [CrossRef]
  54. Muneer, M.; Boxall, C. Photocatalyzed degradation of a pesticide derivative glyphosate in aqueous suspensions of titanium dioxide. Int. J. Photoenergy 2008, 2008, 197346. [Google Scholar] [CrossRef] [Green Version]
  55. McConnell, J.S.; Hossner, L.R. pH-Dependent adsorption isotherms of glyphosate. J. Agric. Food Chem. 1985, 33, 1075–1078. [Google Scholar] [CrossRef]
  56. McConnell, J.S.; Hossner, L.R. Erratum or corrections: Ph-Dependent adsorption isotherms of glyphosate. J. Agric. Food Chem. 1991, 39, 824. [Google Scholar] [CrossRef]
  57. Sheals, J.; Granström, M.; Sjöberg, S.; Persson, P. Coadsorption of Cu(II) and glyphosate at the water–goethite (α-FeOOH) interface: Molecular structures from FTIR and EXAFS measurements. J. Colloid Interface Sci. 2003, 262, 38–47. [Google Scholar] [CrossRef]
  58. Sheals, J.; Sjöberg, S.; Persson, P. Adsorption of glyphosate on goethite: Molecular characterization of surface complexes. Environ. Sci. Technol. 2002, 36, 3090–3095. [Google Scholar] [CrossRef] [PubMed]
  59. Dideriksen, K.; Stipp, S. The adsorption of glyphosate and phosphate to goethite: A molecular-scale atomic force microscopy study. Geochim. Cosmochim. Acta 2003, 67, 3313–3327. [Google Scholar] [CrossRef]
  60. Morillo, E.; Undabeytia, T.; Maqueda, C.; Ramos, B.A. Glyphosate adsorption on soils of different characteristics. Influence of copper addition. Chemosphere 2000, 40, 103–107. [Google Scholar] [CrossRef]
  61. Subramaniam, V.; Hoggard, P.E. Metal complexes of glyphosate. J. Agric. Food Chem. 1988, 36, 1326–1329. [Google Scholar] [CrossRef]
  62. Chenier, P.J. Survey of Industrial Chemistry; Springer: New York, NY, USA, 2002. [Google Scholar]
  63. Peixoto, M.M.; Bauerfeldt, G.F.; Herbst, M.H.; Pereira, M.S.; Da Silva, C.O. Study of the stepwise deprotonation reactions of glyphosate and the corresponding pKaValues in aqueous solution. J. Phys. Chem. A 2015, 119, 5241–5249. [Google Scholar] [CrossRef]
  64. Liu, B.; Dong, L.; Yu, Q.; Li, X.; Wu, F.; Tan, Z.; Luo, S. Thermodynamic study on the protonation reactions of glyphosate in aqueous solution: Potentiometry, calorimetry and NMR spectroscopy. J. Phys. Chem. B 2016, 120, 2132–2137. [Google Scholar] [CrossRef]
  65. Pollegioni, L.; Schonbrunn, E.; Siehl, D. Molecular basis of glyphosate resistance—Different approaches through protein engineering. FEBS J. 2011, 278, 2753–2766. [Google Scholar] [CrossRef] [Green Version]
  66. Singh, B.K. Plant amino acids: Biochemistry and biotechnology. In Books in Soils, Plants, and the Environment; CRC Press: New York, NY, USA, 1998; p. 648. ISBN 9780824702045. [Google Scholar]
  67. Stone, A.T.; Knight, M.A.; Nowack, B. Speciation and chemical reactions of phosphonate chelating agents in aqueous media. ACS Symp. Ser. 2002, 806, 59–94. [Google Scholar] [CrossRef]
Nanomaterials 11 00509 g001 550

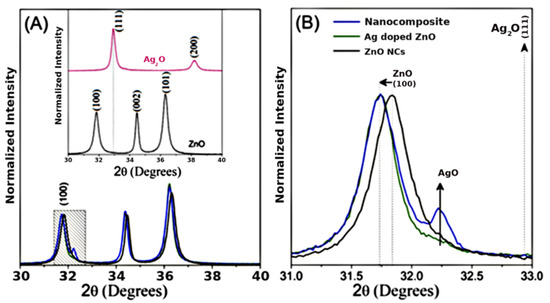

Figure 1. (A) X-ray diffraction (XRD) patterns of nanocomposite (blue line), zinc oxide (ZnO) (black line), Ag-doped ZnO (green line), and silver oxide (Ag2O) (pink line) nanocrystals. (B) The inset shows a magnification around the (100) diffraction plane.
Figure 1. (A) X-ray diffraction (XRD) patterns of nanocomposite (blue line), zinc oxide (ZnO) (black line), Ag-doped ZnO (green line), and silver oxide (Ag2O) (pink line) nanocrystals. (B) The inset shows a magnification around the (100) diffraction plane.
Nanomaterials 11 00509 g001
Nanomaterials 11 00509 g002 550

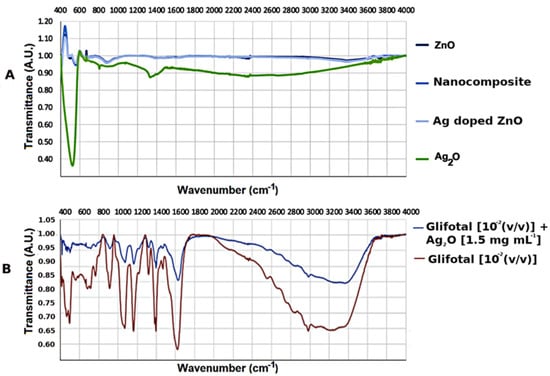

Figure 2. (A) Fourier transform infrared spectroscopy (FTIR) spectra of ZnO nanocrystals (NCs), Ag-doped ZnO, nanocomposite, and Ag2O NCs. (B) FTIR spectra of commercial formulation of glyphosate (GLIFOTAL TR) and GLIFOTAL TR Ag2O NCs at 10−2 (v/v).
Figure 2. (A) Fourier transform infrared spectroscopy (FTIR) spectra of ZnO nanocrystals (NCs), Ag-doped ZnO, nanocomposite, and Ag2O NCs. (B) FTIR spectra of commercial formulation of glyphosate (GLIFOTAL TR) and GLIFOTAL TR Ag2O NCs at 10−2 (v/v).
Nanomaterials 11 00509 g002
Nanomaterials 11 00509 g003 550

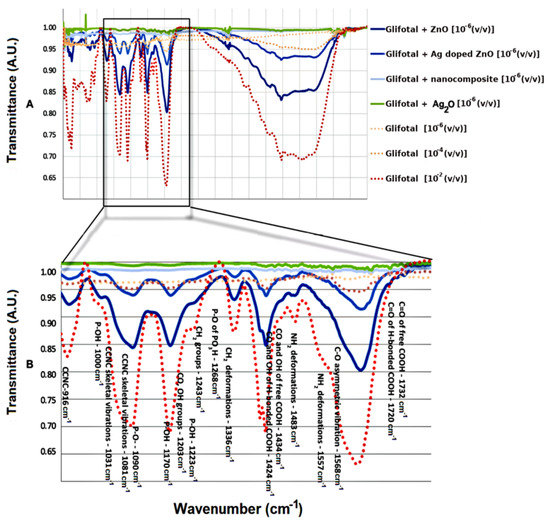

Figure 3. (A) FTIR spectra of GLIFOTAL TR at 10−2, 10−4, and 10−6 (v/v) and GLIFOTAL TR/ NCs at 10−6 (v/v). (B) Spectrum amplification.
Figure 3. (A) FTIR spectra of GLIFOTAL TR at 10−2, 10−4, and 10−6 (v/v) and GLIFOTAL TR/ NCs at 10−6 (v/v). (B) Spectrum amplification.
Nanomaterials 11 00509 g003
Nanomaterials 11 00509 g004 550

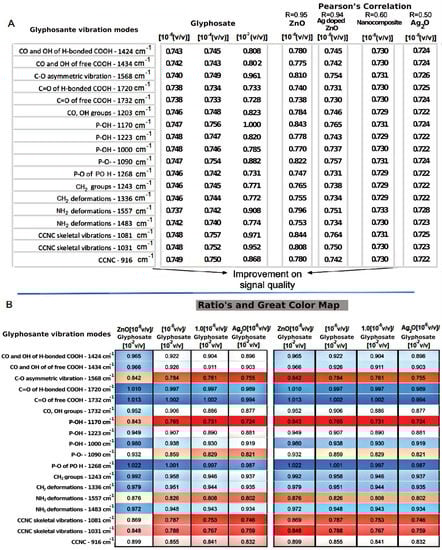

Figure 4. (A) The frequency mode of each molecular group that makes up glyphosate before and after interacting with nanomaterials. (B) An energy color scale related to frequency intensity changes when interacting with nanomaterials (ZnO, Ag2O, and Ag-doped ZnO (Ag ZnO)), and nanocomposite (ZnO AgO).
Figure 4. (A) The frequency mode of each molecular group that makes up glyphosate before and after interacting with nanomaterials. (B) An energy color scale related to frequency intensity changes when interacting with nanomaterials (ZnO, Ag2O, and Ag-doped ZnO (Ag ZnO)), and nanocomposite (ZnO AgO).
Nanomaterials 11 00509 g004
Nanomaterials 11 00509 g005 550

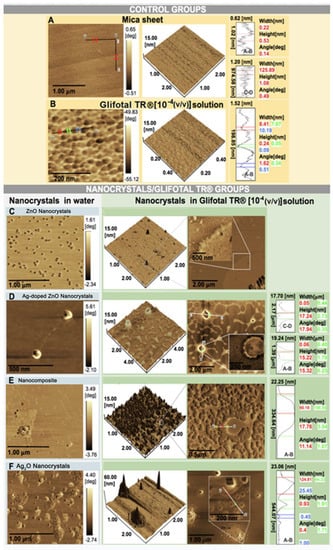

Figure 5. Atomic force microscopy (AFM) images of the control groups (mica and GLIFOTAL TR) and the nanocrystal/GLIFOTAL TR groups (ZnO, Ag-doped ZnO, nanocomposite, and Ag2O) in 10−4 (v/v).
Figure 5. Atomic force microscopy (AFM) images of the control groups (mica and GLIFOTAL TR) and the nanocrystal/GLIFOTAL TR groups (ZnO, Ag-doped ZnO, nanocomposite, and Ag2O) in 10−4 (v/v).
Nanomaterials 11 00509 g005
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Valle, A.L.; Silva, A.C.A.; Dantas, N.O.; Sabino-Silva, R.; Melo, F.C.C.; Moreira, C.S.; Oliveira, G.S.; Rodrigues, L.P.; Goulart, L.R. Application of ZnO Nanocrystals as a Surface-Enhancer FTIR for Glyphosate Detection. Nanomaterials 2021, 11, 509. https://doi.org/10.3390/nano11020509

AMA Style

Valle AL, Silva ACA, Dantas NO, Sabino-Silva R, Melo FCC, Moreira CS, Oliveira GS, Rodrigues LP, Goulart LR. Application of ZnO Nanocrystals as a Surface-Enhancer FTIR for Glyphosate Detection. Nanomaterials. 2021; 11(2):509. https://doi.org/10.3390/nano11020509

Chicago/Turabian Style

Valle, Anderson L., Anielle C. A. Silva, Noelio O. Dantas, Robinson Sabino-Silva, Francielli C. C. Melo, Cleumar S. Moreira, Guedmiller S. Oliveira, Luciano P. Rodrigues, and Luiz R. Goulart. 2021. "Application of ZnO Nanocrystals as a Surface-Enhancer FTIR for Glyphosate Detection" Nanomaterials 11, no. 2: 509. https://doi.org/10.3390/nano11020509

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
