Red GaPAs/GaP Nanowire-Based Flexible Light-Emitting Diodes

High School of Engineering Physics, Peter the Great St. Petersburg Polytechnic University, Polytechnicheskaya 29, 195251 St. Petersburg, Russia
Department of Physics, Alferov University, Khlopina 8/3, 194021 St. Petersburg, Russia
Laboratory of Quantum Optoelectronics, National Research University Higher School of Economics, Kantemirovskaya 3A, 194100 St. Petersburg, Russia
Centre of Nanosciences and Nanotechnologies, UMR 9001 CNRS, University Paris-Saclay, 10 Boulevard Thomas Gobert, 91120 Palaiseau, France
Department of Chemistry, ITMO University, Lomonosova 9, 197101 St. Petersburg, Russia
N.E. Bauman Moscow State Technical University, 2nd Baumanskaya str. 5/1, 105005 Moscow, Russia
Skolkovo Institute of Science and Technology, Bolshoy Boulevard 30/1, 121205 Moscow, Russia
Department of Chemistry and Materials Science, Aalto University, FI-00076 Espoo, Finland
Institute of Chemistry, Saint Petersburg State University, Universitetskaya Emb. 7/9, 199034 St. Petersburg, Russia
Author to whom correspondence should be addressed.
Nanomaterials 2021, 11(10), 2549;
Submission received: 20 August 2021 / Revised: 14 September 2021 / Accepted: 21 September 2021 / Published: 29 September 2021


We demonstrate flexible red light-emitting diodes based on axial GaPAs/GaP heterostructured nanowires embedded in polydimethylsiloxane membranes with transparent electrodes involving single-walled carbon nanotubes. The GaPAs/GaP axial nanowire arrays were grown by molecular beam epitaxy, encapsulated into a polydimethylsiloxane film, and then released from the growth substrate. The fabricated free-standing membrane of light-emitting diodes with contacts of single-walled carbon nanotube films has the main electroluminescence line at 670 nm. Membrane-based light-emitting diodes (LEDs) were compared with GaPAs/GaP NW array LED devices processed directly on Si growth substrate revealing similar electroluminescence properties. Demonstrated membrane-based red LEDs are opening an avenue for flexible full color inorganic devices.

1. Introduction

Nowadays, liquid crystal displays (LCDs) are still dominating in screen technologies, since they gradually displaced bulky cathode ray tubes in the 2000s [1,2,3]. However, in the last few years, organic light-emitting diode (OLED) displays have grown rapidly [4,5], following 30 years of intensive material and device development and heavy investment in advanced manufacturing technologies [6,7,8,9,10,11,12]. Despite the significant progress, OLEDs are still inferior to inorganic materials in terms of luminance, efficiency, and long-term stability, especially in blue and red spectral regions. Therefore, OLED technology has a limited application area, and the most attractive usage revealing advantages of organic materials is flexible devices for wearable flexible applications. Indeed, rigid III-V LED and LCD technologies are difficult to adapt for deformable devices, so OLED solutions are preferable. Possible flexible display and lighting applications are numerous and very diverse [13], including: medical devices for light-based treatments [14], wearable health monitors [15], and an abundance of potential uses in the fashion industry [16], etc.
However, there are some specific application fields, where OLEDs fail to fully satisfy the specifications [3]. For example, augmented reality (AR) devices require fast, very bright and compact light sources. Inorganic microLEDs fulfill these requirements [17,18,19], and provide an additional transparency functionality, tremendously simplifying the optical configuration [20,21]. Another important display application preferable for inorganic materials are wristbands, requiring flexibility, high luminance to guarantee sunlight readability, and a good off-axis performance. Though III-V microLED displays are probably the best candidate, they are still under development [20,21] because of the complexity of a commercial device fabrication. III-V microLEDs are also the best solution for vehicle displays, i.e., central cluster panels and head-up displays, requiring a very high reliability and sunlight readability for the driver safety.
In spite of this high demand, III-V microLED technology still requires development to be implemented in practical applications. Among the most important issues of flexible III-V microLED device fabrication are the transfer to a flexible substrate of the synthesized structures and the application of flexible transparent conductive contacts. III-V technology is mostly based on thin films, which demands complex growth and post-growth procedures to fabricate flexible devices [20,22], while conventional transparent contacts such as ITO have limited flexibility or low performance and stability (e.g., poly(3,4-ethylenedioxythiophene) polystyrene sulfonate (PEDOT:PSS)). Therefore, an alternative approach for III-V microLEDs was introduced: nanowire (NW) array devices [23,24]. Benefiting from the high substrate-independency of the NW geometry, flexible [25] and stretchable [26] microLED devices were demonstrated. While for thin film microLEDs the practical application of large area devices is compromised by the necessity of complex post-growth structuring, polydimethylsiloxane (PDMS)/NW membranes of several square inches area were fabricated using a very inexpensive and simple processing [27]. The PDMS/NW membranes provide good mechanical and material performance, and single-walled carbon nanotube (SWCNT) films can serve as excellent highly stretchable transparent electrodes [28] to these membranes. Moreover, expensive substrates used for synthesis of NW arrays can be reused after transfer, saving valuable materials and reducing fabrication costs [29]. Thus, III-V NW/PDMS membrane LEDs with SWCNT electrodes is a promising technology for highly stretchable, semitransparent, light-weight LEDs of large area for future components of miniLED displays. Taking into account the recent progress in blue and green membrane LEDs [24,30,31], flexible LEDs in the red spectral region is the crucial point of the technology.
Here, to the best of our knowledge for the first time we fabricate flexible red GaPAs/GaP NW/PDMS membrane LEDs. The flexible LED was first designed on the basis of numerical simulations and fabricated following previously reported methods [26,27] which were adapted to the challenging geometry of self-catalyzed NWs grown on Si substrates. For comparison, we also studied GaPAs/GaP NWs-based LEDs before array release from the growth Si substrate.

2. Results and Discussion

2.1. Modeling of GaPAs/GaP NW LEDs

The optimal material composition and geometry parameters of the emitters and active region were defined by the calculation of axial p-i-n GaPAs/GaP NW LED heterostructure. We studied the device function using a drift-diffusion model taking into account the Fermi distribution of electrons and holes, and the Shockley-Read-Hall and radiative recombination. Based on literature data for the parameters of GaP, GaAs, and their solid solutions, we modeled GaPxAs1-x. The calculation model and the most relevant modeling results are presented in Supporting Information Section S1 (refer Figures S1–S3, Table S1 contain used values for effective masses). Modeling was performed for the fixed doping level of the emitters and the active region, 1018 and 1015 cm−3, respectively.
We used the developed numerical model for axial p-i-n GaPAs/GaP NW heterostructure to evaluate the dependency of the internal quantum efficiency (IQE) and power efficiency (PE) of electroluminescence (EL) signal on the material composition (Figure 1a,b) and lengths of the radiative GaPAs insertion and emitter segments (Figure 1c,d). This evaluation allows defining the optimal NW LED design. The EL conditions are considered as the low pumping regime, i.e., the radiative recombination occurs from the lowest energy level, so the photon energy is almost equal to the band gap energy. Efficiency map in Figure 1a demonstrates that the range of P content in the emitters, corresponding to high efficiency of NW LED, is relatively broad. At the same time, the IQE shows the maximum when the P molar composition of the emitters exceeds by at least 20–30% that of the active region insertion. We associate this value with the minimal value required for an efficient carrier localization in the GaPAs insertion, which prevents carriers from passing over the active region. The insets in Figure 1a show energy band diagrams for two typical situations in which the bandgap of the insertion is lower (respectively, higher) than that of the emitters, explaining the conclusion from the Figure 1a that the IQE is above 90% for the higher P content in the emitters.
However, excessive P content contrast between the emitters and the insertion leads to dramatic thermalization losses, i.e., the energy lost by the carriers, when they slide to the fundamental energy level in the active region. Therefore, the maximum power efficiency (PE) for the P content in emitters below 45% is achieved at 20% P content contrast (i.e., for GaP<0.45As>0.55 in the emitters and GaP<0.25As>0.75 in the active region insertion) (Figure 1b). However, in the case of high P content (x > 0.4) in the emitters, the preferable composition of the active region lies in the range of GaP0.25As0.75–GaP0.45As0.55 due to the change of the main electronic valley. The optimal composition is defined by the fitting Equations:
x e m = 4 x i n s 0.58   ( for   the   higher   part ) x e m = 0.8 x i n s + 0.24   ( for   the   lower   part )
there x e m and x i n s are the P content in the emitters and in the active region insertion, respectively. The conclusion from the Figure 1b is that the optimal x i n s corresponding to the x e m = 1 (pure GaP emitters) lies in the range of (0.35–0.4), providing the LED emission in the red spectral range. In this case, there is no optical absorption in the emitter layers. Moreover, electron confinement prevents the injection of minor carriers to emitters, which suppresses the undesirable nonradiative recombination in the emitters.
Considering numerical modeling, the optimal parameters of red NW LEDs lie in the following ranges: the active region insertion length of 80–200 nm and composition of GaP0.2<x<0.4As0.8>1−x>0.6; doping level of the emitters and the active region, 1018 and 1015 cm−3, respectively; the total emitter lengths of less than 4 µm, while the composition can be chosen as pure GaP, which is preferable for the NW synthesis convenience.

2.2. GaPAs/GaP NW LED Array Synthesis

In accordance with the results of numerical calculations, axially heterostructured GaPAs/GaP NWs used in this study were grown on p-type (1020 cm−3) Si (111) substrates in a solid-source molecular beam epitaxy (MBE) Veeco GEN-III setup via the self-catalyzed vapor–liquid–solid (VLS) growth mechanism using Ga as a catalyst. Prior to the growth, Si substrates were treated with the modified Shiraki cleaning procedure [32], finalized with a formation of a thin surface oxide layer in boiling ammonia-peroxide water mixture (1:1:3). To promote formation of pinholes in the oxide layer required for vertical NW growth, substrates were thermally annealed in the MBE chamber for 30 min at a temperature of 780 °C [33].
NW growth was initiated by simultaneous opening of Ga and P2 shutters. Ga-cell beam equivalent pressure (BEP) was kept constant at 8×10−8 Torr throughout the growth and corresponded to a 3.17 nm/min GaP planar growth rate. The growth of n-GaP/i-GaPAs/p-GaP axial NW heterostructures was performed via controlling the dopant fluxes and the growth temperature: to form n- and p-doped emitters, top and bottom NW segments were intentionally doped with Be (TBe = 780 °C) and Si (TSi = 1200 °C) using standard effusion cells, respectively [27,34]. The NW growth was initiated with a synthesis of p-type doped GaP segments with a height of 1.2–1.5 µm at V/III BEP ratio of 12 and the elevated growth temperature of 640 °C, which prevents catalytic droplet inflation due to high solubility of Be in Ga [35]. The estimated doping level is 1018 cm−3. In further growth stages, the substrate temperature was reduced by 10 °C in order to obtain stable formation of the GaPAs insertion and n-type GaP segment.
A thin ~100–150 nm GaP0.35As0.65 intrinsically doped segment was grown between GaP emitters using the procedure described in [36]. This design corresponds to the high efficiency of LED in accordance with numerical calculations. To obtain the required chemical composition of the GaP0.35As0.65 insertion, the As/P BEP ratio was set to six. During the GaPAs insertion growth, the cumulative As and P to Ga ratio was set to 42; it should be noted that this value also prevents catalytic droplet inflation [36]. Group V fluxes were switched by closing/opening both molecular beam shutters and cracking source needle valves. Our previous study on the formation of GaPAs segments in GaP NWs under identical growth conditions [36] shows that the GaPAs segment diameter is determined by VLS growth front area and equal to the GaP NW underneath.
Top GaP NW segments (height ~1.5 µm) forming n-emitters were grown with a V/III beam equivalent pressure ratio of 18. Finally, NW growth was interrupted by closing both Ga and P2 shutters and subsequent sample cooling. An in situ analysis of the NW crystal structure performed with reflection high energy electron diffraction (RHEED) patterns demonstrated that the described growth conditions yielded stable formation of GaP NWs with a zinc-blende structure as it was previously reported in [36,37,38].
Representative scanning electron microscopy (SEM) (Carl Zeiss SMT AG Company, Oberkochen, Germany) images of the synthesized p-i-n GaPAs/GaP NW array samples on Si, obtained with a Zeiss SUPRA 25 SEM setup, are shown in Figure 2. The NW array has about 0.11 NW/µm2 density (Figure 2a), 100 nm average wire diameter and 3–4 µm height (Figure 2b). The morphology of NW arrays was rather inhomogeneous that is typical for a self-catalyzed growth on non-patterned substrates. It can be noted that the self-catalyzed NW array presents irregular morphology due to the substrate silicon surface oxide layer non-uniformity [39]. Depending on the NW nucleation condition droplet consumption can occur for part of NWs leading to the interruption of growth and formation of bulge-shaped NW tips.
Photoluminescence spectra of the synthesized NW demonstrated main line position at 650 nm (see Supporting Information Section S2 for details, Figure S4 shows photoluminescence data), which confirms the composition of GaP0.35As0.65 insertions. We also observed a parasitic 3D growth resulting in a formation of 0.5–1 µm sized GaP particles on the substrate. However, these 3D particles do not participate in the LED on Si substrate, nor in the flexible LED operation, since the particles were buried in SU-8 and not transferred to PDMS/NW membranes after release (see device fabrication section for the details).

2.3. Sylgard Preparation

For the polymer membrane formation, a commercial PDMS (Dow Corning Sylgard 184, Midland, MI, USA) was mixed in a base to a curing agent ratio of 10 to 1.

2.4. Fabrication of the Reference NW LED on Si Substrate

At the first step we processed GaPAs/GaP NW array LED devices directly on Si growth substrate (denoted further as ‘LEDs-on-Si’) in order to test their performance on the rigid substrate and compare it with flexible PDMS/NW membranes released from the substrate. Firstly, p-contact was made via a thin Al layer deposition on the back side of the Si substrate and consequent rapid annealing at 300 °C temperature in the N2 atmosphere. The NWs on Si were encapsulated into epoxy-based photoresist SU-8 to provide planarization for further transparent top indium tin oxide (ITO) contact application. This process was carried out as follows. The SU-8 layer was spin-coated onto the sample surface to fill the volume between NWs and cover NW tips. After the ultraviolet (UV) exposure of photoresist, the sample was annealed at 95 °C on a hot plate for 5 min and then at 200 °C for 10 min to cure the SU-8 layer. Release of NW tips buried in SU-8 was achieved iteratively by O2 plasma etching and SEM control. Then, 5 mm2 of ITO contact mesas of 100 nm thickness were deposited to the n-doped segments of NWs via magnetron sputtering through the mask with use of BOC Edwards Auto 500 system (Edwards, Burgess Hill, UK). The workflow schematic is presented in Figure 3.

2.5. Fabrication of Flexible PDMS/NW LED

In order to encapsulate 4 µm long GaPAs/GaP NWs into PDMS we used the G-coating method suitable for a thin PDMS membrane fabrication [34]. For further electrical contacting, the tips of NWs were opened via O2/CF4 plasma etching, thus achieving a homogeneous thickness of PDMS membranes, about 3 µm thick, so the highest parts of NWs were revealed above the membrane surface (Figure 4a). Transparent flexible contact pads to the top n-doped segments of NWs (Figure 4a) were based on SWCNT films [40,41], the size of square contact pads was about 1 mm2. The SWCNTs were synthesized by the aerosol (floating catalyst) CVD method described in detail elsewhere ([42,43]) and downstream of the reactor in the form of randomly oriented nanotube film on microporous nitrocellulose filters. After the top contact application, the PDMS/NW membranes were mechanically peeled from Si substrate with the help of a razor blade. The peeled membranes were flipped for a bottom contact application, then again 1 mm2 SWCNT contact pads were applied to the PDMS/NW membranes directly opposite to the previously applied top contact pads (Figure 4b). As a result, the PDMS/NW membranes had several areas contacted with SWCNT on both sides of the membrane. For electrical measurements small silver lacquer droplets were applied to the SWCNT contact pads (Figure 4c). A photo of a representative flexible LED is presented in Figure 4d.
Few samples possessed small (about 100 µm in diameter) tears in the PDMS membrane. Although it can be expected that an LED can be electrically shunted through these tears, we have never observed shunts even when the SWCNT films were put directly on a tear, probably because the 3 µm thickness of the PDMS membrane is sufficient to avoid undesirable penetration of the SWCNT film through these holes.
It is worth noting that PDMS/NW membranes were also released using removable cap film providing mechanical support for the membrane. In practice, thin PDMS/NW membranes are very fragile for a manual mechanical peeling, so the release procedure requires gentle operations, and microscale damages of the membranes can appear during the release process. A strong mechanical support of a thick cap film can significantly facilitate the release procedure. Meanwhile, the supporting cap film needs to be removable; indeed, for future applications of LED membranes in multi-color devices (e.g., in combination with blue or green color light-emitting membranes [24,44]), after the PDMS/NW membrane release, the cap film material should be removed for further processing. In our work, we suggested to use polyurethane (PU) as a promising candidate for cap film material, since it can be dissolved in dimethylformamide (DMF) without critical degradation of PDMS membrane material, while III-V NWs and SWCNT films are chemically inert to DMF (see Supplementary Materials Section S3 for details, Figure S5 demonstrate PU synthesis scheme).

2.6. Electroluminescence Characterization

The fabricated samples of LEDs-on-Si and flexible LEDs were tested in a probe station using a Keithley 2400 sourcemeter (Keithley Instruments, Solon, OH, USA). In the case of LEDs-on-Si, the upper contact connection was performed with a probe directly positioned on the ITO contact pad, the bottom contact connection was made to the metallized Si substrate with the conductive table of the probe station. The flexible LED samples were contacted in a similar manner: the upper contact connection was performed with a probe tip touching silver lacquer droplet on a SWCNT contact pad of the top side of the flexible LED, the bottom contact connection was to the corresponding opposite SWCNT contact pad (also furnished with a silver lacquer droplet) lying on a special Au/Ge metal film contacted with another probe. In this configuration of electric connection, we minimized the effect of possible parasitic electrical barriers. It should be noted that flexible LEDs cannot be bonded by a standard method with metallic wires, e.g., in a bonding machine or with a deposition of metallic contact bars to a remote contact pad, since the PDMS softness and temperature regime prohibit contact annealing for higher than 250 °C for PDMS and 100 °C for SWCNT (these values are taken from our tests). Therefore, some flexible devices based on PDMS/NW membranes exhibit significant parasitic electrical barriers in I-V curves and electron beam induced current maps [45], and electrical characterization of NW/PDMS membranes requires careful experiment preparation and result data analysis.
EL measurements were carried out at room temperature in the same probe station setup at a constant voltage applied to LED samples. EL spectra were acquired with a AvaSpec-ULS2048XL-EVO-RS spectrometer (Avantes, Louisville, CO, USA), and a monochromator Horiba FHR1000 with a cooled CCD matrix Horiba Symphony for LEDs-on-Si and flexible LEDs, respectively.

2.7. LEDs-on-Si Characterization

Figure 5a illustrates a current-voltage (I-V) curve of a representative LEDs-on-Si that exhibits a rectifying behavior at forward bias. High opening voltage of about 5 V indicates the presence of parasitic potential barriers. These barriers at both Si substrate/NW and NW/ITO interfaces lead to a reversed Schottky diode characteristic [34,46], limiting the LED performance. The calculated current density corresponding to an individual ITO contact pad (mesa) is estimated at 250 A/cm2 (20 nA/NW) at 8 V forward bias. A typical EL spectrum measured at 8 V is shown in Figure 5b. The main EL line lies at 650 nm, which corresponds to the red spectral range.

2.8. Flexible LED Characterization

Similar to LEDs-on-Si, the measured I-V curves for flexible LEDs demonstrated rectifying behavior in both forward and reverse bias (Figure 6a). It can be explained by Schottky nature of the SWCNT contact to n-GaP, which were studied and proven in [34]. The parasitic Schottky barrier is undesirable for a high LED performance. One possible solution to this problem can be a pre-deposition of a thin metallic layer to the n-GaP emitters, effectively reducing potential barrier to n-GaP material: a similar method was used for p-GaN shell of InGaN/GaN blue and green NW LEDs, covered with 5/5 nm Ni/Au [47,48]. After metallization, the NWs can be contacted with SWCNT or other conductive materials without forming a Schottky barrier [24,26]. The search for a proper thin metallic layer composition for ohmic contact to n-GaP will be the subject of our future studies.
The knee voltages were found to be about 7 and 2.5 V for the forward and reverse bias, respectively. It should be noted that the reversed opening voltage is lower than for the LEDs-on-Si (about 7.5 V), which means that SWCNT/p-GaP contact has a lower parasitic potential barrier in comparison with the p-GaP/Si substrate interface.
The fabricated flexible LEDs demonstrated EL in the red spectral range (inset in Figure 6a). The EL spectra were measured at 8 V of forward bias (0.045 mA current), a representative spectrum is shown in Figure 6b. The main EL line is positioned at 670 nm wavelength, corresponding to the direct bandgap transition of GaP1−xAsx with x = 0.35 content [49]. A rather broad full width at half maximum (FWHM) can be attributed to the inhomogeneous distribution of NW parameters, including non-uniform As content in the GaPAs segment [36]. The inhomogeneous distribution of NW arrays can also explain the 20 nm redshift of the flexible LED EL peak position in comparison with the LEDs-on-Si EL (Figure 5b). Note that 3D GaP islands (see Figure 2) were fully buried into the polymer matrix and were not contacted by the top SWCNT film contact. This prevented the direct injection of carriers into 3D islands and, thus, they did not affect the EL signal.
The flexible LED operation current density was roughly estimated at 50 A/cm2 (4 nA/NW), i.e., 5 times lower than for the LEDs-on-Si. It should be noted that for a stable LED operation the current density value at 5–10 A/cm2 is preferable since small diameter GaPAs/GaP NWs embedded into a PDMS membrane can suffer overheat problems due to the low heat capacity of small diameter NWs and bad thermal conductivity of the PDMS matrix, and the Joule heating can destroy NWs [50]. To achieve the improved performance, flexible LEDs based on GaPAs/GaP NW/PDMS membranes require further development of both work current density decreasing and improved heat evacuation. Meanwhile, the applications require a high LED power, which can be achieved at low current density by an increase in the NW array density.
During EL measurements the NWs were degrading because of the high Joule heating and weak heat evacuation preventing a long measurement experiment. Effective heat management can be achieved by lowering series resistance (including parasitic Schottky barriers), improving heat conductive properties of contacts or PDMS matrix by adding fillers such as diamond nanoparticles [51]. Another solution can be the application of impulse instead of constant voltage, however, it will lead to a decrease in LED intensity, which can be undesirable for highly bright purposes (i.e., AR). Flexible LED breakdown caused by overheating did not allow us to study EL dependence on applied current.

3. Conclusions

In conclusion, we developed and demonstrated flexible red LEDs based on vertical GaPAs nanowire arrays embedded in a PDMS membrane and contacted with transparent SWCNT films. Axial geometry of GaPAs/GaP NW LEDs was studied numerically and successfully synthesized via MBE growth. We compared experimental flexible LED EL performance with fabricated LEDs-on-Si (based on the same vertical GaPAs nanowire array samples and processed directly on the Si growth substrates, encapsulated into SU-8 epoxy resin and contacted with ITO pads). Both LEDs-on-Si and flexible LEDs have dominant EL lines at 650 and 670 nm, respectively. The measured current densities at working condition appeared to be 5 times lower for flexible LEDs in comparison to LEDs-on-Si (50 and 250 A/cm2, respectively), while the working voltage is similar for both flexible LEDs and LEDs-on-Si with an 8 V value.
Further development of flexible LEDs should be aimed at the decreasing of working current density and improvement of heat evacuation leading to a low device lifetime due to the overheat degradation. Improvement of the heat management and strategies to lower working current densities will be the subject of further studies.
The demonstrated flexible red LEDs can be employed for the development of light-weight transparent full color displays for future applications in wearable, biomedical, and vehicle-integrated devices.

Supplementary Materials

The following are available online at, Figure S1. (a) Band gap of the conductive subbands (reproduced from [1]), calculated (b) effective electronic (blue line) and hole (green line) state density, and (c) electron affinity for different P content x in the GaPxAs1−x compound. Figure S2. Carrier mobility in GaPxAs1−x vs. P content x. Doping level is 1018 cm−3. Figure S3. (a) Carrier lifetime in GaPxAs1−x for SRH recombination process; (b) and the corresponding radiative recombination rate. Figure S4. PL spectrum taken from the p-i-n-heterostructured GaP/GaPAs NW epitaxial array. Figure S5. Scheme of PU synthesis. Table S1. Electron and hole effective masses depending on the valley and direction.

Author Contributions

Conceptualization, V.N., M.T. and I.M.; methodology, V.N., M.T. and I.M.; software, A.M.; validation, A.G.N., R.I., G.C., M.T. and I.M.; formal analysis, V.N. and A.M.; investigation, V.N., V.F., A.M., F.K., K.S., E.M., N.A.-M., T.S. and D.K.; resources, A.G.N., M.T. and I.M.; data curation, V.N., V.F., A.M., F.K. and I.M.; writing—original draft preparation, V.N., V.F., A.M. and K.S.; writing—review and editing, V.N., D.K., A.G.N., M.T. and I.M.; visualization, V.F., A.M., F.K., K.S. and I.M.; supervision, V.N., S.M., A.G.N. M.T., I.M.; project administration, V.N., R.I., G.C., M.T. and I.M.; funding acquisition, V.N., V.F., R.I., E.M., A.G.N., M.T. and I.M. All authors have read and agreed to the published version of the manuscript.


V.N. thanks the Russian Foundation for Basic Research (RFBR project No. 19-32-60040) for PDMS/MW membrane fabrication and optical measurements. V.F. thanks the Russian Foundation for Basic Research (RFBR project No. 19-32-60037) for the support of the MBE growth. V.N. and F.K. thank the support from the Russian Foundation for Basic Research (grant 20-32-90182) for electrical measurements. V.N., F.K., R.I. and I.M. thank the Russian Scientific Foundation (RSF project No. 20-19-00256) for chemical treatment of PDMS. V.N., V.F., A.M., F.K. and K.S. thank the Ministry of Science and Higher Education of the Russian Federation (FSRM-2020-0005) for the general support. E.M. thanks the Basic Research Program at the National Research University Higher School of Economics (HSE University) in 2021 for optical measurements. N.A.-M. and M.T. thank ITN Marie Curie project INDEED (grant No. 722176) for GaPAs NW/PDMS membrane investigation. This work received financial support from Partenariats Hubert Curien Kolmogorov project No. 43784UJ and Indo French Centre for the Promotion of Advanced Research (CEFIPRA) Project No. 6008-1. A.G.N. acknowledges the Russian Scientific Foundation (RSF project No. 21-72-20050) for synthesis of SWCNTs.

Data Availability Statement

The data presented in this study are available on request from the corresponding author. The data are not publicly available due to the author’s readiness to provide it on request.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Schadt, M. Milestone in the history of field-effect liquid crystal displays and materials. Jpn. J. Appl. Phys. 2009, 48, 03B001. [Google Scholar] [CrossRef]
  2. Yang, D.; Wu, S. Fundamentals of Liquid Crystal Devices; John Wiley & Sons, Ltd.: Hoboken, NJ, USA, 2014. [Google Scholar]
  3. Huang, Y.; Hsiang, E.-L.; Deng, M.-Y.; Wu, S.-T. Mini-LED, micro-LED and OLED displays: Present status and future perspectives. Light Sci. Appl. 2020, 9, 105. [Google Scholar] [CrossRef] [PubMed]
  4. Lee, J.-H.; Chen, C.-H.; Lee, P.-H.; Lin, H.-Y.; Leung, M.; Chiu, T.-L.; Lin, C.-F. Blue organic light-emitting diodes: Current status, challenges, and future outlook. J. Mater. Chem. C 2019, 7, 5874–5888. [Google Scholar] [CrossRef]
  5. OLED Accounts for 60 Pct of World’s Market for Smartphone Displays: IHS Markit. Available online: (accessed on 24 June 2021).
  6. Tang, C.W.; VanSlyke, S.A. Organic electroluminescent diodes. Appl. Phys. Lett. 1987, 51, 913–915. [Google Scholar] [CrossRef]
  7. Baldo, M.A.; O’Brien, D.F.; You, Y.; Shoustikov, A.; Sibley, S.; Thompson, M.E.; Forrest, S.R. Highly efficient phosphorescent emission from organic electroluminescent devices. Nature 1998, 395, 151–154. [Google Scholar] [CrossRef]
  8. Adachi, C.; Baldo, M.A.; Thompson, M.E.; Forrest, S.R. Nearly 100% internal phosphorescence efficiency in an organic light-emitting device. J. Appl. Phys. 2001, 90, 5048–5051. [Google Scholar] [CrossRef] [Green Version]
  9. Uoyama, H.; Goushi, K.; Shizu, K.; Nomura, H.; Adachi, C. Highly efficient organic light-emitting diodes from delayed fluorescence. Nature 2012, 492, 234–238. [Google Scholar] [CrossRef] [PubMed]
  10. Sasabe, H.; Nakanishi, H.; Watanabe, Y.; Yano, S.; Hirasawa, M.; Pu, Y.-J.; Kido, J. Extremely low operating voltage green phosphorescent organic light-emitting devices. Adv. Funct. Mater. 2013, 23, 5550–5555. [Google Scholar] [CrossRef]
  11. Kim, K.-H.; Kim, J.-J. Origin and control of orientation of phosphorescent and TADF dyes for high-efficiency OLEDs. Adv. Mater. 2018, 30, 1705600. [Google Scholar] [CrossRef]
  12. Kim, K.-H.; Lee, S.; Moon, C.-K.; Kim, S.-Y.; Park, Y.-S.; Lee, J.-H.; Woo Lee, J.; Huh, J.; You, Y.; Kim, J.-J. Phosphorescent dye-based supramolecules for high-efficiency organic light-emitting diodes. Nat. Commun. 2014, 5, 4769. [Google Scholar] [CrossRef] [Green Version]
  13. Schlingman, K.; Chen, Y.; Carmichael, R.S.; Carmichael, T.B. 25 years of light-emitting electrochemical cells: A flexible and stretchable perspective. Adv. Mater. 2021, 33, 2006863. [Google Scholar] [CrossRef] [PubMed]
  14. Shen, J.; Chui, C.; Tao, X. Luminous fabric devices for wearable low-level light therapy. Biomed. Opt. Express 2013, 4, 2925. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Yokota, T.; Zalar, P.; Kaltenbrunner, M.; Jinno, H.; Matsuhisa, N.; Kitanosako, H.; Tachibana, Y.; Yukita, W.; Koizumi, M.; Someya, T. Ultraflexible organic photonic skin. Sci. Adv. 2016, 2, e1501856. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Kgatuke, M.; Hardy, D.; Townsend, K.; Salter, E.; Downes, T.; Harrigan, K.; Allcock, S.; Dias, T. Exploring the role of textile craft practice in interdisciplinary e-textiles development through the design of an illuminated safety cycling jacket. Proceedings 2019, 32, 12. [Google Scholar] [CrossRef] [Green Version]
  17. Templier, F. GaN-based emissive microdisplays: A very promising technology for compact, ultra-high brightness display systems. J. Soc. Inf. Disp. 2016, 24, 669–675. [Google Scholar] [CrossRef]
  18. Ou, F.; Chong, W.C.; Xu, Q.; Chen, Y.; Li, Q.; Zhang, L. P-125: Monochromatic active matrix micro-LED micro-displays with >5000 Dpi pixel density fabricated using monolithic hybrid integration process. SID Symp. Dig. Tech. Pap. 2018, 49, 1677–1680. [Google Scholar] [CrossRef]
  19. Bibl, A.; Higginson, J.A.; Law, H.F.S.; Hu, H.H. Method of Fabricating a Micro Device Transfer Head. U.S. Patent No. 9,620,478, 10 April 2017. [Google Scholar]
  20. Park, S.-I.; Xiong, Y.; Kim, R.-H.; Elvikis, P.; Meitl, M.; Kim, D.-H.; Wu, J.; Yoon, J.; Yu, C.-J.; Liu, Z.; et al. Printed assemblies of inorganic light-emitting diodes for deformable and semitransparent displays. Science 2009, 325, 977–981. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  21. Cok, R.S.; Meitl, M.; Rotzoll, R.; Melnik, G.; Fecioru, A.; Trindade, A.J.; Raymond, B.; Bonafede, S.; Gomez, D.; Moore, T.; et al. Inorganic light-emitting diode displays using micro-transfer printing. J. Soc. Inf. Disp. 2017, 25, 589–609. [Google Scholar] [CrossRef]
  22. Huang, Y.; Tan, G.; Gou, F.; Li, M.-C.; Lee, S.-L.; Wu, S.-T. Prospects and challenges of mini-LED and micro-LED displays. J. Soc. Inf. Disp. 2019, 27, 387–401. [Google Scholar] [CrossRef]
  23. Pan, C.; Dong, L.; Zhu, G.; Niu, S.; Yu, R.; Yang, Q.; Liu, Y.; Wang, Z.L. High-resolution electroluminescent imaging of pressure distribution using a piezoelectric nanowire LED array. Nat. Photonics 2013, 7, 752–758. [Google Scholar] [CrossRef]
  24. Dai, X.; Messanvi, A.; Zhang, H.; Durand, C.; Eymery, J.; Bougerol, C.; Julien, F.H.; Tchernycheva, M. Flexible light-emitting diodes based on vertical nitride nanowires. Nano Lett. 2015, 15, 6958–6964. [Google Scholar] [CrossRef] [Green Version]
  25. Nadarajah, A.; Word, R.C.; Meiss, J.; Könenkamp, R. Flexible inorganic nanowire light-emitting diode. Nano Lett. 2008, 8, 534–537. [Google Scholar] [CrossRef]
  26. Kochetkov, F.M.; Neplokh, V.; Mastalieva, V.A.; Mukhangali, S.; Vorob’ev, A.A.; Uvarov, A.V.; Komissarenko, F.E.; Mitin, D.M.; Kapoor, A.; Eymery, J.; et al. Stretchable transparent light-emitting diodes based on InGaN/GaN quantum well microwires and Carbon nanotube films. Nanomaterials 2021, 11, 1503. [Google Scholar] [CrossRef]
  27. Kochetkov, F.M.; Neplokh, V.; Fedorov, V.V.; Bolshakov, A.D.; Sharov, V.A.; Eliseev, I.E.; Tchernycheva, M.; Cirlin, G.E.; Nasibulin, A.G.; Islamova, R.M.; et al. Fabrication and electrical study of large area free-standing membrane with embedded GaP NWs for flexible devices. Nanotechnology 2020, 31, 46LT01. [Google Scholar] [CrossRef]
  28. Gilshteyn, E.P.; Romanov, S.A.; Kopylova, D.S.; Savostyanov, G.V.; Anisimov, A.S.; Glukhova, O.E.; Nasibulin, A.G. Mechanically tunable single-walled carbon nanotube films as a universal material for transparent and stretchable electronics. ACS Appl. Mater. Interfaces 2019, 11, 27327–27334. [Google Scholar] [CrossRef]
  29. Borgstrom, M.T.; Magnusson, M.H.; Dimroth, F.; Siefer, G.; Hohn, O.; Riel, H.; Schmid, H.; Wirths, S.; Bjork, M.; Aberg, I.; et al. Towards nanowire tandem junction solar cells on silicon. IEEE J. Photovolt. 2018, 8, 733–740. [Google Scholar] [CrossRef] [Green Version]
  30. Jeong, J.; Jin, D.K.; Cha, J.; Kang, B.K.; Wang, Q.; Choi, J.; Lee, S.W.; Mikhailovskii, V.Y.; Neplokh, V.; Amador-Mendez, N.; et al. Selective-area remote epitaxy of ZnO microrods using multilayer–monolayer-patterned graphene for transferable and flexible device fabrications. ACS Appl. Nano Mater. 2020, 3, 8920–8930. [Google Scholar] [CrossRef]
  31. Jeong, J.; Jin, D.K.; Choi, J.; Jang, J.; Kang, B.K.; Wang, Q.; Park, W.I.; Jeong, M.S.; Bae, B.-S.; Yang, W.S.; et al. Transferable, flexible white light-emitting diodes of GaN p–n junction microcrystals fabricated by remote epitaxy. Nano Energy 2021, 86, 106075. [Google Scholar] [CrossRef]
  32. Ishizaka, A.; Shiraki, Y. Low temperature surface cleaning of silicon and its application to silicon MBE. J. Electrochem. Soc. 1986, 133, 666–671. [Google Scholar] [CrossRef]
  33. Matteini, F.; Tütüncüoglu, G.; Potts, H.; Jabeen, F.; Fontcuberta i Morral, A. Wetting of Ga on SiO x and its impact on GaAs nanowire growth. Cryst. Growth Des. 2015, 15, 3105–3109. [Google Scholar] [CrossRef]
  34. Neplokh, V.; Kochetkov, F.M.; Deriabin, K.V.; Fedorov, V.V.; Bolshakov, A.D.; Eliseev, I.E.; Mikhailovskii, V.Y.; Ilatovskii, D.A.; Krasnikov, D.V.; Tchernycheva, M.; et al. Modified silicone rubber for fabrication and contacting of flexible suspended membranes of N-/p-GaP nanowires with a single-walled carbon nanotube transparent contact. J. Mater. Chem. C 2020, 8, 3764–3772. [Google Scholar] [CrossRef] [Green Version]
  35. Zhang, Y.; Sun, Z.; Sanchez, A.M.; Ramsteiner, M.; Aagesen, M.; Wu, J.; Kim, D.; Jurczak, P.; Huo, S.; Lauhon, L.J.; et al. Doping of self-catalyzed nanowires under the influence of droplets. Nano Lett. 2018, 18, 81–87. [Google Scholar] [CrossRef]
  36. Bolshakov, A.D.; Fedorov, V.V.; Sibirev, N.V.; Fetisova, M.V.; Moiseev, E.I.; Kryzhanovskaya, N.V.; Koval, O.Y.; Ubyivovk, E.V.; Mozharov, A.M.; Cirlin, G.E.; et al. Growth and characterization of GaP/GaPAs nanowire heterostructures with controllable composition. Phys. Status Solidi (RRL)—Rapid Res. Lett. 2019, 13, 1900350. [Google Scholar] [CrossRef]
  37. Koval, O.Y.; Fedorov, V.V.; Bolshakov, A.D.; Fedina, S.V.; Kochetkov, F.M.; Neplokh, V.; Sapunov, G.A.; Dvoretckaia, L.N.; Kirilenko, D.A.; Shtrom, I.V.; et al. Structural and optical properties of self-catalyzed axially heterostructured GaPN/GaP nanowires embedded into a flexible silicone membrane. Nanomaterials 2020, 10, 2110. [Google Scholar] [CrossRef] [PubMed]
  38. Koval, O.Y.; Fedorov, V.V.; Bolshakov, A.D.; Eliseev, I.E.; Fedina, S.V.; Sapunov, G.A.; Udovenko, S.A.; Dvoretckaia, L.N.; Kirilenko, D.A.; Burkovsky, R.G.; et al. XRD evaluation of wurtzite phase in MBE grown self-catalyzed GaP nanowires. Nanomaterials 2021, 11, 960. [Google Scholar] [CrossRef]
  39. Fedorov, V.V.; Berdnikov, Y.; Sibirev, N.V.; Bolshakov, A.D.; Fedina, S.V.; Sapunov, G.A.; Dvoretckaia, L.N.; Cirlin, G.; Kirilenko, D.A.; Tchernycheva, M.; et al. Tailoring morphology and vertical yield of self-catalyzed GaP nanowires on template-free Si substrates. Nanomaterials 2021, 11, 1949. [Google Scholar] [CrossRef] [PubMed]
  40. Khabushev, E.M.; Krasnikov, D.V.; Zaremba, O.T.; Tsapenko, A.P.; Goldt, A.E.; Nasibulin, A.G. Machine learning for tailoring optoelectronic properties of single-walled carbon nanotube films. J. Phys. Chem. Lett. 2019, 10, 6962–6966. [Google Scholar] [CrossRef] [PubMed]
  41. Goldt, A.E.; Zaremba, O.T.; Bulavskiy, M.O.; Fedorov, F.S.; Larionov, K.V.; Tsapenko, A.P.; Popov, Z.I.; Sorokin, P.; Anisimov, A.S.; Inani, H.; et al. Highly efficient bilateral doping of single-walled carbon nanotubes. J. Mater. Chem. C 2021, 9, 4514–4521. [Google Scholar] [CrossRef]
  42. Anisimov, A.S.; Nasibulin, A.G.; Jiang, H.; Launois, P.; Cambedouzou, J.; Shandakov, S.D.; Kauppinen, E.I. Mechanistic investigations of single-walled carbon nanotube synthesis by ferrocene vapor decomposition in carbon monoxide. Carbon N. Y. 2010, 48, 380–388. [Google Scholar] [CrossRef]
  43. Iakovlev, V.Y.; Krasnikov, D.V.; Khabushev, E.M.; Kolodiazhnaia, J.V.; Nasibulin, A.G. Artificial Neural network for predictive synthesis of single-walled carbon nanotubes by aerosol CVD method. Carbon N. Y. 2019, 153, 100–103. [Google Scholar] [CrossRef]
  44. Kapoor, A.; Guan, N.; Vallo, M.; Messanvi, A.; Mancini, L.; Gautier, E.; Bougerol, C.; Gayral, B.; Julien, F.H.; Vurpillot, F.; et al. Green electroluminescence from radial m-plane InGaN quantum wells grown on GaN wire sidewalls by metal–organic vapor phase epitaxy. ACS Photonics 2018, 5, 4330–4337. [Google Scholar] [CrossRef]
  45. Zhang, H.; Dai, X.; Guan, N.; Messanvi, A.; Neplokh, V.; Piazza, V.; Vallo, M.; Bougerol, C.; Julien, F.H.; Babichev, A.; et al. Flexible photodiodes based on nitride core/shell p–n junction nanowires. ACS Appl. Mater. Interfaces 2016, 8, 26198–26206. [Google Scholar] [CrossRef]
  46. Cowley, A.M. Depletion capacitance and diffusion potential of gallium phosphide schottky-barrier diodes. J. Appl. Phys. 1966, 37, 3024–3032. [Google Scholar] [CrossRef]
  47. Lin, Y.C.; Chang, S.J.; Su, Y.K.; Tsai, T.Y.; Chang, C.S.; Shei, S.C.; Kuo, C.W.; Chen, S.C. InGaN/GaN light emitting diodes with Ni/Au, Ni/ITO and ITO p-type contacts. Solid-State Electron. 2003, 47, 849–853. [Google Scholar] [CrossRef]
  48. Messanvi, A.; Zhang, H.; Neplokh, V.; Julien, F.H.; Bayle, F.; Foldyna, M.; Bougerol, C.; Gautier, E.; Babichev, A.; Durand, C.; et al. Investigation of photovoltaic properties of single core–shell GaN/InGaN Wires. ACS Appl. Mater. Interfaces 2015, 7, 21898–21906. [Google Scholar] [CrossRef]
  49. Craford, M.G.; Shaw, R.W.; Herzog, A.H.; Groves, W.O. Radiative recombination mechanisms in GaAsP diodes with and without nitrogen doping. J. Appl. Phys. 1972, 43, 4075–4083. [Google Scholar] [CrossRef]
  50. Guan, N.; Amador-Mendez, N.; Kunti, A.; Babichev, A.; Das, S.; Kapoor, A.; Gogneau, N.; Eymery, J.; Julien, F.H.; Durand, C.; et al. Heat dissipation in flexible nitride nanowire light-emitting diodes. Nanomaterials 2020, 10, 2271. [Google Scholar] [CrossRef]
  51. Hajiali, F.; Shojaei, A. Network structure and mechanical properties of polydimethylsiloxane filled with nanodiamond—Effect of degree of silanization of nanodiamond. Compos. Sci. Technol. 2017, 142, 227–234. [Google Scholar] [CrossRef]

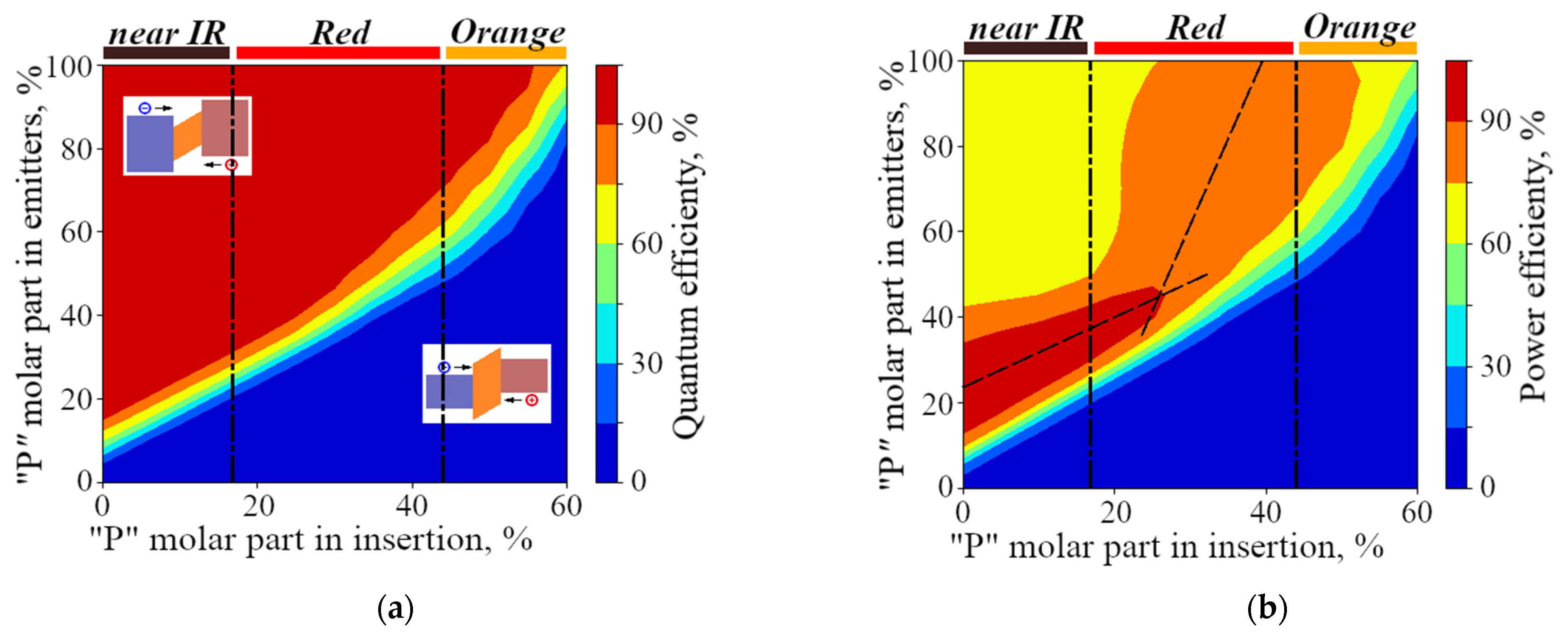

Figure 1. Calculated maps of internal quantum efficiency (IQE) and power efficiency (PE) dependent on P content in emitters and active region insertion (a,b), and nanowire (NW) (c,d) length display IQE and PE maps, respectively, dependent on the total NW length and the insertion length. For the lengths of NWs less than 5 µm the dependency on both lengths is negligible for the insertion length lying in the range of (80–200) nm.
Figure 1. Calculated maps of internal quantum efficiency (IQE) and power efficiency (PE) dependent on P content in emitters and active region insertion (a,b), and nanowire (NW) (c,d) length display IQE and PE maps, respectively, dependent on the total NW length and the insertion length. For the lengths of NWs less than 5 µm the dependency on both lengths is negligible for the insertion length lying in the range of (80–200) nm.
Nanomaterials 11 02549 g001aNanomaterials 11 02549 g001b

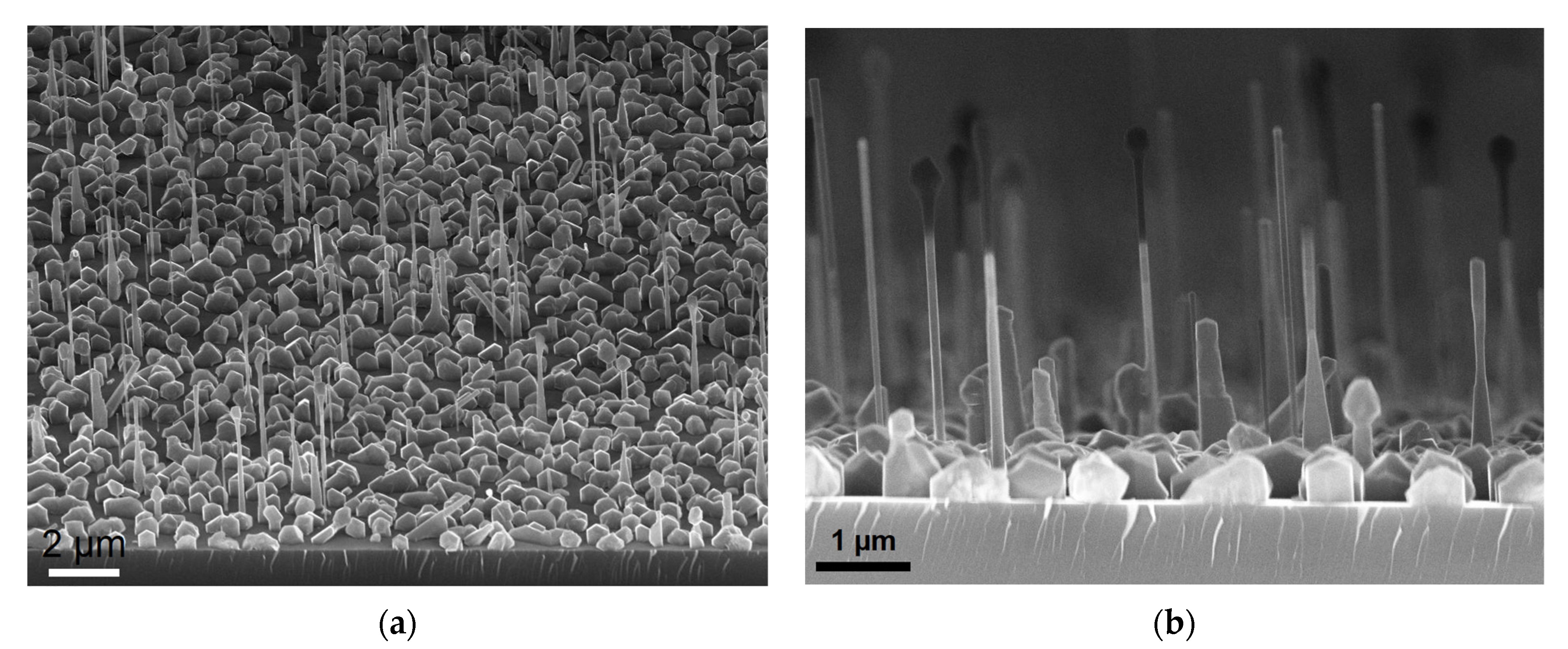

Figure 2. SEM images of a representative as-grown GaPAs/GaP NW light-emitting diode (LED) array in a 45° (a) and side view (b).
Figure 2. SEM images of a representative as-grown GaPAs/GaP NW light-emitting diode (LED) array in a 45° (a) and side view (b).
Nanomaterials 11 02549 g002
Figure 3. Workflow schematic for NW LED-on-Si.
Figure 3. Workflow schematic for NW LED-on-Si.
Nanomaterials 11 02549 g003

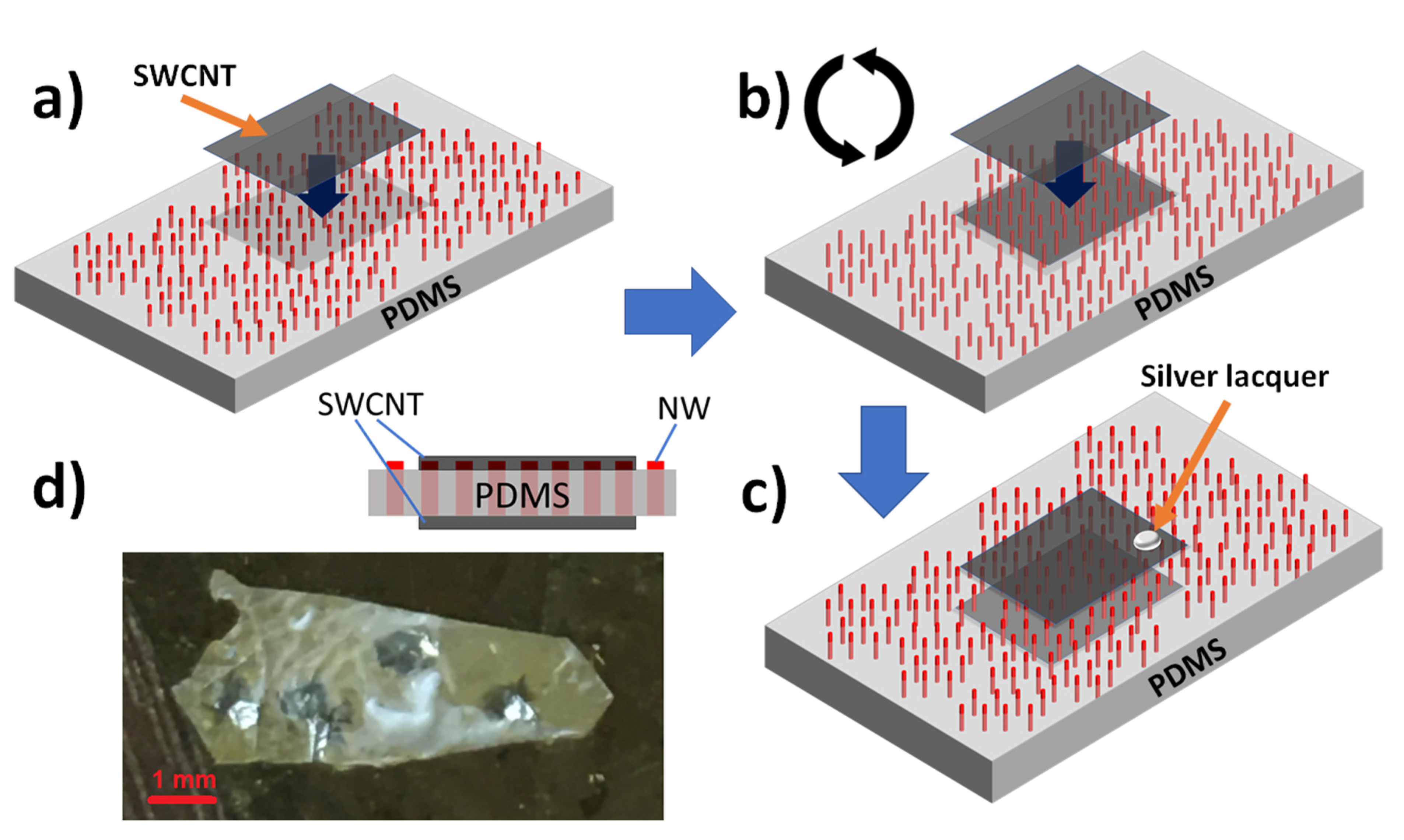

Figure 4. (ac) Workflow schematic of single-walled carbon nanotubes (SWCNT) contact application for flexible LED, (d) photo of a representative flexible LED. The insert schematically shows the cross-section of the membrane NWs-based LED.
Figure 4. (ac) Workflow schematic of single-walled carbon nanotubes (SWCNT) contact application for flexible LED, (d) photo of a representative flexible LED. The insert schematically shows the cross-section of the membrane NWs-based LED.
Nanomaterials 11 02549 g004

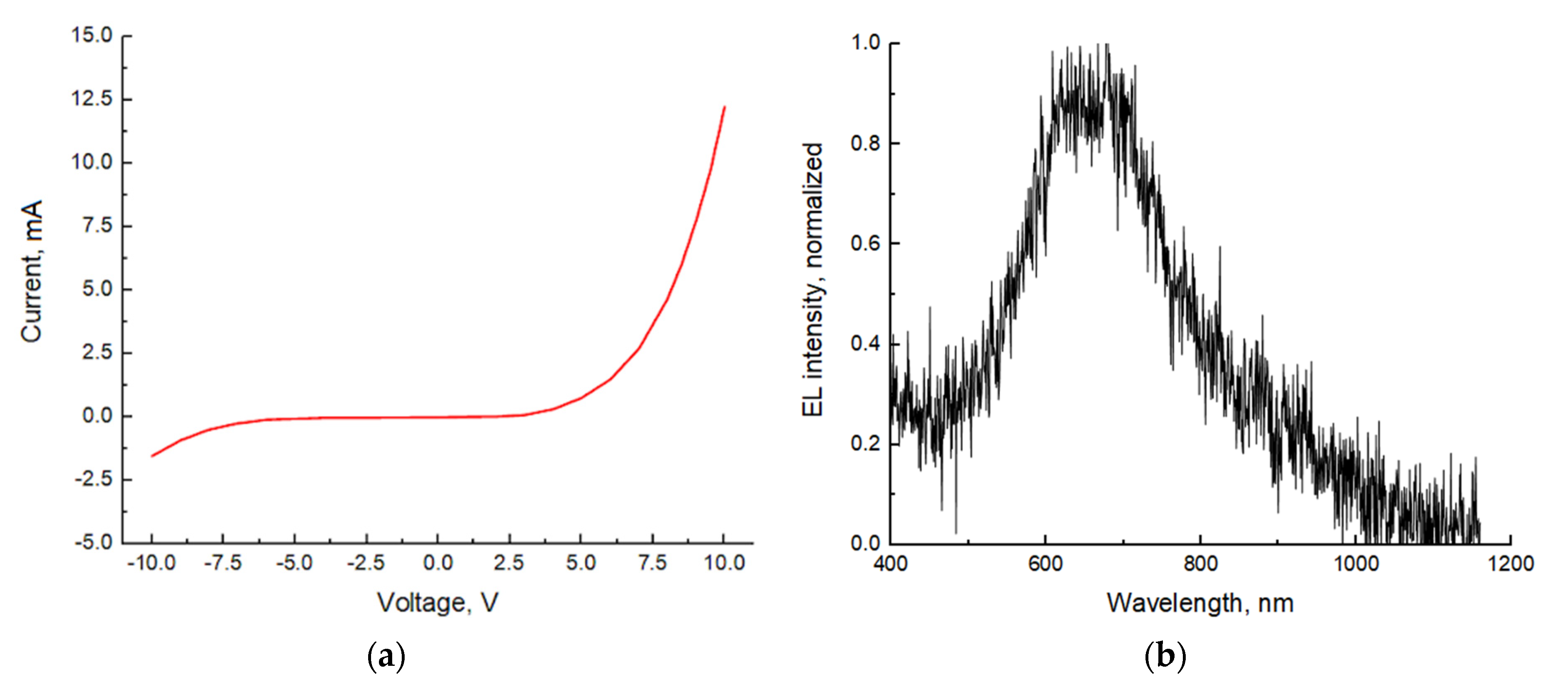

Figure 5. I-V curve of an individual ITO contact pad (a) and electroluminescence (EL) spectrum (b) of a representative LED-on-Si.
Figure 5. I-V curve of an individual ITO contact pad (a) and electroluminescence (EL) spectrum (b) of a representative LED-on-Si.
Nanomaterials 11 02549 g005

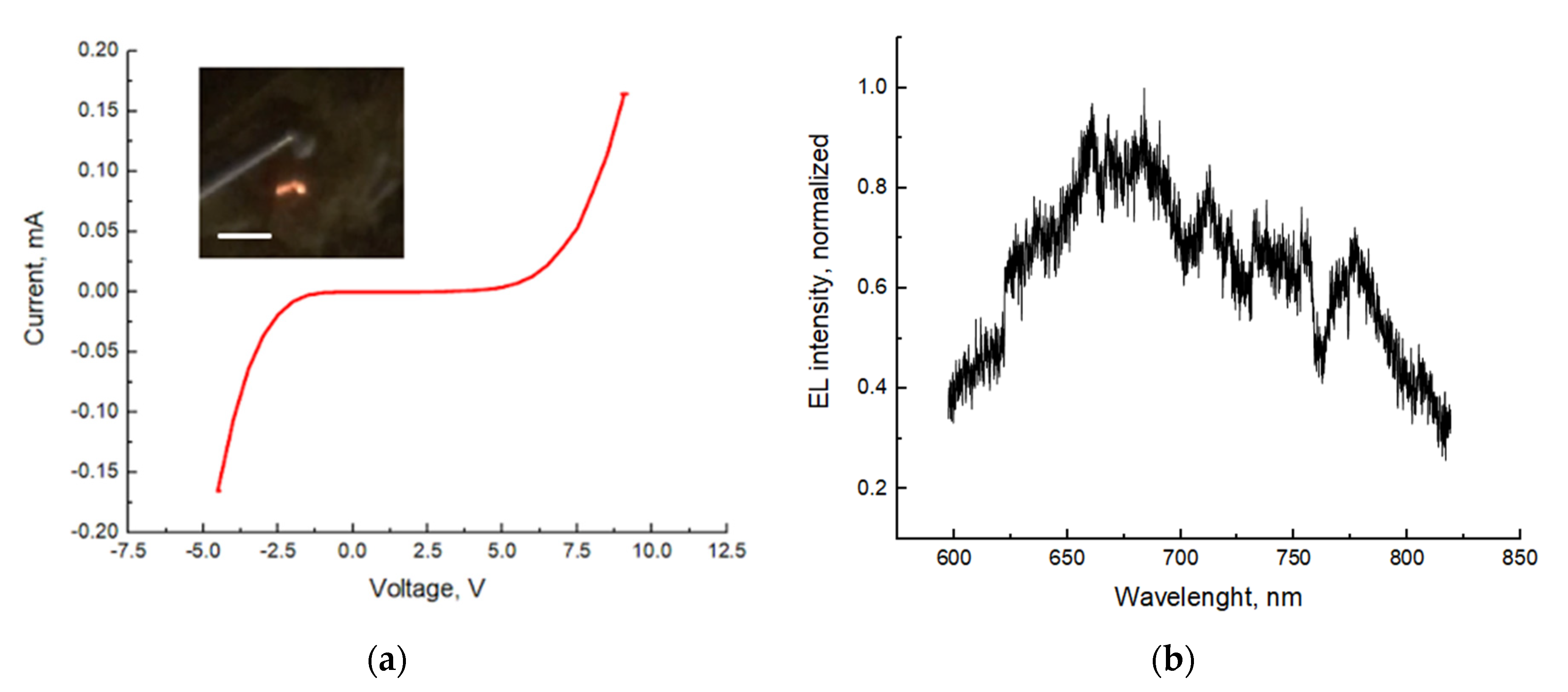

Figure 6. I-V curve (a) and EL spectrum (b) of a representative flexible LED. The inset in (a) demonstrates a photo of the working device, the scale bar is 3 μm.
