Article

Oxidative Desulfurization of Petroleum Distillate Fractions Using Manganese Dioxide Supported on Magnetic Reduced Graphene Oxide as Catalyst

1
Institute of Chemical Sciences, University of Peshawar, Khyber Pukhtunkhwa 25120, Pakistan
2
Department of Chemical Engineering, University of Malaya, Kuala Lumpur 50603, Malaysia
3
Institute of Electronic Structure and Laser, Foundation for Research and Technology-Hellas, N. Plastira 100, Vasilika Vouton, GR-700 13 Heraklion, Greece
*
Authors to whom correspondence should be addressed.
Nanomaterials 2021, 11(1), 203; https://doi.org/10.3390/nano11010203
Submission received: 21 December 2020 / Revised: 9 January 2021 / Accepted: 11 January 2021 / Published: 14 January 2021
(This article belongs to the Special Issue Nanostructured Carbons for Environmental and Energy Technologies)

Abstract

:
In this study, oxidative desulfurization (ODS) of modeled and real oil samples was investigated using manganese-dioxide-supported, magnetic-reduced graphene oxide nanocomposite (MnO2/MrGO) as a catalyst in the presence of an H2O2/HCOOH oxidation system. MnO2/MrGO composite was synthesized and characterized by scanning electron microscope (SEM), energy dispersive X-ray spectroscopy (EDX), Fourier transform infrared spectroscopy (FTIR), and X-ray diffraction (XRD) analyses. The optimal conditions for maximum removal of dibenzothiophene (DBT) from modeled oil samples were found to be efficient at 40 °C temperature, 60 min reaction time, 0.08 g catalyst dose/10 mL, and 2 mL of H2O2/formic acid, under which MnO2/MrGO exhibited intense desulfurization activity of up to 80%. Under the same set of conditions, the removal of only 41% DBT was observed in the presence of graphene oxide (GO) as the catalyst, which clearly indicated the advantage of MrGO in the composite catalyst. Under optimized conditions, sulfur removal in real oil samples, including diesel oil, gasoline, and kerosene, was found to be 67.8%, 59.5%, and 51.9%, respectively. The present approach is credited to cost-effectiveness, environmental benignity, and ease of preparation, envisioning great prospects for desulfurization of fuel oils on a commercial level.

Graphical Abstract

1. Introduction

Oxidative desulfurization (ODS) is currently enjoying popularity as a highly efficient and conveniently operating alternative or complementary to hydrodesulfurization (HDS) technique for resilient sulfur compounds removal from petroleum distillate fractions used as transportation fuels [1,2]. The process is performed at ambient operating conditions in two steps, i.e., oxidation of sulfur-containing compounds followed by extraction via a polar solvent [3]. ODS converts sulfur-containing compounds into highly polar sulfones, which can be easily separated by a polar solvent like acetic acid, dimethyl sulfoxide, and methanol [4]. ODS process offers manifold advantages over the conventional HDS one, which can be operated at liquid phase under mild operating conditions, i.e., close to ambient. In this context, the use of hydrogen gas, a specialized high-pressure and high-temperature reactor, as well as high efficiency and selectivity for alkylated dibenzothiophene removal, are not considered as requirements [5]. Due to the electron-donating character of alkyl groups in alkylated dibenzothiophenes, the high electron density in a sulfur atom increases its ease of oxidation, and therefore, alkylated dibenzothiophenes are conveniently treated during the ODS process, unlike in the case of HDS [6].
In the ODS process, the selective oxidation of sulfur compounds is achieved by various types of oxidants, such as H2O2, molecular oxygen, hydrogen peroxide, formic acid, tert-butyl hydroperoxide, ozone, perchlorate, hypochlorite, potassium permanganate, and nitrogen oxide [7,8,9]. Since ODS efficiency can be further enhanced by using a variety of catalysts, different types of catalyst-oxidant systems like NaClO/Mn–Co–Mo/Al2O3 [10], H2O2/Mo/γ–Al2O3 [11], H2O2/WOx/ZrO2 [12], H2O2/V2O5 [4], H2O2/activated carbon TBHP/(Me3TACN)Mn [13], TBHP/Bi–Mo/Siral [14], TBHP/Ti–MCM-41 and MMO/GO [15], and various types of polyoxometalate [16,17] have been studied. Each of these catalytic ODS systems follows different oxidation mechanisms of sulfur compounds [18]. Sulfur removal has also been investigated by photooxidation using various photocatalysts [19,20].
In general, metal oxide catalysts lead to the formation of peroxo-complexes, which further oxidizes dibenzothiophene (DBT) in the non-polar phase. Commonly used metal oxides for ODS of modeled and real oil samples include MoO2, MnO2, PdO, TiO2, CoO, etc. [21,22,23]. In order to enhance their catalytic activity and increased surface area, metal oxides are loaded on various supports. For this purpose, studies have been reported in the literature, including supporting materials such as montmorillonite (MMT), TiO2, Al2O3, and graphene oxide (GO) [24]. The utilization of graphene-related materials as support frameworks for functional nanoparticles has emerged as a promising research area, utilizing a combination of properties such as high specific surface area, lightweight, chemical inertness, mechanical robustness, and excellent electrical and thermal conductivity [25]. Many studies have shown that when using graphene derivatives as supports, the catalyst’s activity is manifoldly enhanced due to their unique mechanical, morphological, and electrical properties, in addition to their high specific surface area [26]. Other studies have demonstrated that GO exhibits high compatibility with oxidative adsorptive desulfurization systems [27], while reduced GO (rGO) can also enhance the activation of oxidants during the ODS process [28]. Likewise, due to the matching of 2D geometry and charge complementarity, rGO is expected to be an excellent support for metal oxide [15].
Hence, in the current study, ODS of DBT was performed using a composite of manganese dioxide-supported and magnetic-reduced graphene oxide (MnO2/MrGO) in the presence of an HCOOH/H2O2 oxidation system under ambient operating conditions. The composite catalyst was characterized by scanning electron microscope (SEM), Fourier-transform infrared spectroscopy (FTIR), energy dispersive X-ray (EDX), and X-ray diffraction (XRD) techniques. DBT conversion was investigated under various reaction conditions like different reaction times and temperatures, oxidant and catalyst dose, etc. Finally, the activity of the catalyst was also tested for ODS of real gasoline, diesel, and kerosene samples under the optimized conditions set.

2. Experimental

2.1. Chemicals and Reagents

All chemicals and reagents used were of analytical grade. Graphite powder, potassium permanganate (KMnO4) 99%, sulfuric acid (H2SO4) 98%, hydrogen peroxide (H2O2) 30% (v/v), iron (III) chloride hexahydrate (FeCl3·6H2O) 98%, iron (II) sulfate heptahydrate (FeSO4·7H2O) 99%, ammonia (NH4OH) 25%–28%, diamine hydrate (H2NNH2·H2O) 80%, manganese sulfate monohydrate (MnSO4·H2O) 99%, potassium hydroxide (KOH) 85%, formic acid (HCOOH) 95%, and n-heptane 99% were purchased from Sigma-Aldrich, St. Louis, MO, USA. Methanol (CH3OH) 99% was provided by Fisher Scientific, Pittsburgh, PA, USA. Gasoline (RON 92), kerosene, and diesel oil were collected from a Shell oil filling station in Peshawar City, Pakistan.

2.2. Preparation of MnO2/MrGO Composite Catalyst

Graphene oxide was synthesized from commercial graphite powder by a modified Hummers method [22]. More specifically, powder graphite (2 g) was dispersed in a mixture of H2SO4 (92 mL) and NaNO3 (1 g). The mixture was cooled down to less than 10 °C, over an ice bath. KMnO4 (12 g) was added to the mixture, stirred for 30 min, and then allowed to settle down overnight. Deionized water (184 mL) was added to the suspension and heated up to 95 °C for 15 min; after this, H2O2 was added dropwise till the color of the suspension changed to yellow, which indicated the formation of graphene oxide in the suspension.
For the reduction of graphene oxide, the mixture was refluxed at 90 °C for 4 h in the presence of diamine hydrate as a reducing agent. A black precipitate of reduced graphene oxide (rGO) was then produced. rGO was collected by filtration, washed thoroughly with deionized water, and finally, dried under vacuum.
Reduced graphene oxide was magnetized through in-situ magnetization [29] to prepare magnetic-reduced graphene oxide (MrGO). To this end, about 0.1 g of rGO was dispersed in 50 mL of distilled water and then added to an aqueous solution of FeCl3.6H2O and FeSO4.7H2O (2:1) at 90 °C. The mixture was turned alkaline by the addition of 15 mL of ammonia solution, and then H2O2 was added under vigorous stirring until the black precipitate of magnetic reduced graphene oxide was formed, which was collected, washed, and dried.
MnO2/MrGO nanocomposite was synthesized by dispersing MrGO in a solution of manganese sulfate monohydrate (MnSO4·H2O) at 80 °C and a mixture of KMnO4 (0.16 g) and KOH (0.23 g), dissolved in deionized water (5 mL), followed by rapid addition to the mixture. The mixture was refluxed for 1.5 h, and a black precipitate of 1.69 g of MrGO-MnO2 nanocomposite was formed, which was separated by an external magnet, washed, and dried in an oven under vacuum. About 1 g dry mass was recovered and stored in vials.

2.3. Characterization of the Catalyst

The catalyst MnO2/MrGO, synthesized in the lab, was characterized by SEM, EDX and XRD, and FTIR analyses. SEM and EDX analyses were carried out using a SEM (Model JEOL-Jsm-5910; Tokyo, Japan), while XRD patterns were conducted using X-ray diffractometer (XRD; model JDX-9C, JOEL, Tokyo, Japan) with CuKα radiation (1.54178 A° wavelength) and a nickel filter. FTIR analysis of the catalyst was carried out by an FTIR spectrophotometer (Schimadzu-A60, Kyoto, Japan).

2.4. ODS Activity of the Catalyst

ODS of the modeled oil sample (0.03 g DBT in 15 mL n-heptane) with a concentration of 1200 ppm DBT was conducted with ultrasonication in the presence of MnO2/MrGO catalyst and H2O2-HCOOH oxidation system. In a typical experiment, DBT in solution (15 mL), the catalyst (0.06 g), and H2O2 and HCOOH (2 mL) in 1:1 were taken in a two-neck flask fitted with a reflux condenser. The flask was put in an ultrasonic bath and sonicated for 1 h, under atmospheric pressure at ambient temperature (about 27 °C). After oxidation, the catalyst was collected by the external magnetic field, and the sample was subjected to analysis for change in DBT concentration (ppm).
Catalytic ODS experiments were further carried out under different conditions of temperature, reaction time, catalyst dose, and oxidant concentration, in order to optimize the process parameters. The catalytic ODS of the real oil samples was studied under optimized conditions, using the same procedure as adopted for the modeled oil sample.

2.5. Analyses

The concentration of DBT in the modeled oil sample was analyzed by HPLC (Sykam, Eresing, Germany), equipped with BDS Hypersil C18 column (dim. 250 × 4.6 mm) and a UV detector. Methanol was used as the mobile phase; analysis was carried out at λmax of 320 nm. % DBT conversion was calculated using Equation (1),
D B T   c o n v e r s i o n   ( % ) =   C o C C o   ×   100
where Co and C represent the initial and post ODS concentrations of DBT, respectively.
Total sulfur in gasoline, kerosene, and diesel oil was determined by a CHNS elemental analyzer (EL-III, Hanau, Germany) provided with an auto-sampler and a TCD detector. The percentage of desulfurization in real oil samples was calculated using the relation as given above (Equation (1)).

3. Results and Discussion

3.1. Characterization of the Catalyst

FTIR spectra of GO and MnO2/MrGO are displayed in Figure 1. The spectrum of GO shows prominent peaks at 3618.87 cm−1, which corresponds to O–H stretching vibrations of carboxylic acids [30]. Characteristic absorption peaks appearing at 1428.84, 1624.18, 1007.33, and 1488.84 cm−1 in the FTIR spectra of pure GO showed the presence of carboxyl O=C=O, C=O aromatic, C=C, alkoxy C–O stretching vibrations, and epoxy C–O, respectively [30]. Furthermore, the FTIR absorption band of pure GO at 3618.87 cm−1, displayed in Figure 1a, is due to the presence of OH of the absorbed molecules of water. Compared with Figure 1b, it shows an additional sharp peak at around 552.16 cm−1 which is attributed to Fe–O vibrations of Fe3O4 [31,32]. Another sharp peak at 630.71 cm−1 appears in Figure 1 for the Fe3O4–rGO–MnO2 sample, which is absent in the other spectra. This fact is attributed to some interactions between iron and manganese atoms [30,33].
The mineralogical composition of the catalyst was studied by EDX; the EDX profiles of GO and MnO2/MrGO composite are given in Figure 2a,b. From the data, it is clear that although GO consists of C and O as its major elements (59% and 38%, respectively), trace quantities of Si, S, Mn, and Fe are also indicated with a total amount of less than 1%, which may be due to impurities in the commercial graphite. In the case of MnO2/MrGO, the major elements present were C (10%), O (28%), Fe (58%), and Mn (2%). The presence of Mn clearly confirms the successful synthesis of MnO2/MrGO composite. Moreover, the data show that the percentage weight of Mn in MnO2/MrGO is close to its theoretical weight% loaded in MrGO.
The SEM micrographs of GO and MnO2/MrGO, are presented in Figure 3a,b. The micrograph of GO shows a rough, layered, and wrinkled morphology, while major fissures and caves are visible. The texture resembles layered sheets like the two-dimensional structure of graphene oxide [34]. The void spaces between the layer and edge can be also seen in the image, suggesting that the material can offer a high surface area for the reaction, while some bulk aggregates on the surface of GO in Figure 3b correspond to the proper agglomeration of catalyst. More interestingly, the surface of MnO2/MrGO differs compared with that of pure GO, as shown in Figure 3b. It shows a uniform spreading of MnO2 particles on the MrGO matrix, illustrating their successful composition. On the other hand, the micrograph of MnO2/MrGO shows an irregular, non-uniform particle size distribution. Figure 3c shows the field emission scanning electron microscope (FESEM) image of MnO2/MrGO with up to 200 nm magnification, which clearly reveals that magnetic iron oxide and MnO2 nanoparticles resemble fine granular particles with the particle size below 50 nm, which are dispersed on graphene flakes. The size of the graphene flakes is non-uniform, but some are nearly 400–800 nm in diameter.
The crystallinity and composition of GO and MnO2/MrGO composite were investigated by XRD analysis, as shown in Figure 4a,b. The XRD pattern of GO (Figure 4a) shows sharp peaks, indicating better crystallinity. The characteristic GO peak appears at 10.5° 2θ, confirming its successful preparation [30]. A sharp peak at 26.7° corresponds to the existence of some unoxidized graphite fractions in the sample [35]. In the case of MnO2/MrGO, the sharp peaks centered at 30°, 35°, and 57° correspond to crystalline patterns of magnetite (α-Fe3O4) and peaks positioned at 43°, 53°, and 63° indicate maghemite (β-Fe2O3), which agree with the corresponding standard JCPDS card No. 75-0033 and card No. 39-1346, respectively [36]. These confirm the presence of magnetic iron oxides loaded on the surface of GO. Several low intense peaks positioned at 28.6, 37.5, 49.8, 60.1, and 69.1° are attributed to the characteristic crystalline patterns of manganese dioxide (α-MnO2) which match with its reference card No.01-072-1982 [37]. The low intensity of these peaks may be due to the small concentration of MnO2 in the composite catalyst.

3.2. ODS Activity of MnO2/MrGO

ODS activity of MnO2/MrGO composite catalyst was investigated using a modeled oil sample, while the catalyst’s activity was determined in terms of the percentage conversion of DBT. DBT removal was investigated under different conditions of time, initial concentration, temperature, catalyst dose, oxidant dose, and catalyst recycling.
It was shown that the catalyst’s activity is strongly affected by DBT concentration because of the interaction between the reactive active sites of the catalyst and the reactant [38]. DBT oxidation was conducted at different initial concentrations ranging from 600 to 2000 ppm, while other experimental conditions, i.e., catalyst dose (0.08 g), reaction temperature (40 °C), reaction time (1 h), and oxidant ratio were kept constant. The results are shown in Figure 5a, indicating that when the initial concentration of DBT was raised from 600 ppm to 1200 ppm, DBT removal linearly increased from 57.45% to 80.11%, albeit with a further increase of the initial DBT concentration, the efficiency declined. It should be mentioned that because the fixed catalyst amount bears a limited number of active sites, which can only carry a proportional number of DBT molecules, over a certain concentration, i.e., 1200 ppm, the number of active sites are insufficient for DBT oxidation [39]. On this basis, the modeled oil sample with 1200 ppm DBT concentration was employed for further study.
DBT conversion was investigated as a function of temperature in the range of 25 °C to 60 °C, keeping other parameters constant. The extracted results are displayed in Figure 5b, which exhibit that maximum DBT conversion of up to 80% is achieved at 40 °C, whereas above and below 40 °C, DBT conversion declines. It is proved that higher temperatures lead to side reactions and cause rapid dissociation of H2O2, which leaves DBT unoxidized [40], leading to a lower DBT conversion degree. The majority of literature studies report on the optimum temperature of catalytic ODS in the range of 60 °C to 70 °C. Likewise, the obtained high DBT conversion of 80% at 40 °C demonstrates superior efficiency of the current catalyst-oxidation system. The increase of DBT removal from the modeled oil sample with increasing temperature and reaction time is in agreement with the literature [41].
DBT conversion under different catalyst doses ranging from 0.05 g/15 mL to 0.3 g/15 mL of the modeled oil sample is shown in Figure 5c. The results indicate that maximum DBT conversion of 79% is attained at the catalyst dose of 0.08 g/15 mL, although with further increase in the catalyst dose, a decline in DBT conversion is observed. Although a high catalyst dose provides more active sites for interaction with DBT, leading to higher desulfurization efficiency [42], in the current study, the high activity of the catalyst and the strong oxidizing power of oxidant seem to favor high DBT removal at very low catalyst dosage. The catalyst dose above the optimum level may lead to agglomeration, which blocks the active sites, hence causing a decrease in DBT conversion activity.
In the ODS process, the amount of oxidant consumed directly affects the efficiency and the processing cost [2]. Formic acid and H2O2 have been used as oxidants for ODS of modeled or real oil samples in the presence of various catalysts during the process when H2O2 reacts with HCOOH to produce performic acid, which further oxidizes DBT to sulfones [43]. The effect of different concentrations of H2O2 and formic acid was tested in the presence of MnO2/MrGO catalyst by using different volumes, i.e., 0.5, 1.0, 1.5, 2.0, and 2.5 mL of both species. In Figure 5d, it is proved that for both H2O2 and formic acid, the maximum sulfur conversion of up to 80% is attained when the volume is 2 mL. It has been reported that using an excess amount of aqueous oxidant is helpful for DBT conversion and assists in the extraction of the oxidized product [44]. Apart from the reduction potential, S in DBT acts as a soft base according to the Pearson theory, which would prefer to react with a soft acid [45,46].
The effect of reaction time on the catalytic ODS of the modeled oil sample is demonstrated in Figure 5e. It is obvious that DBT conversion rises from 71% to 80% when the reaction time increases from 15 min to 30 min but remains constant till 60 min and then decreases onward from 80% to 69% when the time increases. This could be explained by describing the interaction of oxidizing agents as time proceeds. The reaction of HCOOH and H2O2 with DBT to produce sulfones needs enough time to be completed and promoted as time increases. However, beyond the optimum time, i.e., 15 min, the drop in sulfur removal degree may be ascribed to the oxidant decomposition, particularly of H2O2, which is no longer available for oxidation. Hence, the exclusive loss of all oxidants, the equilibrium change, and the oxidation power of reaction media decreases which result a decline in DBT conversion as time progresses [47].

3.3. Effect of Temperature and Kinetic Study

The kinetics of oxidative conversion of DBT in the modeled oil sample in the presence of MnO2/MrGO catalysts was studied by applying pseudo-first-order and pseudo-second-order kinetic models to DBT conversion data. The pseudo-first-order kinetic model was used in the following form:
L n C t C o = K t
where Co and Ct are the DBT concentrations (mg/L) at equilibrium and at respective time t, and K1 is the pseudo-first-order rate constant that was calculated from the intercept of the plot of Ln.Ct/Co versus time (t). Figure 6a,b shows the pseudo-first-order and pseudo-second-order kinetic models, respectively, for catalytic ODS of DBT in the presence of MnO2/MrGO catalysts, whereas the kinetic parameters are given in Table 1. As evident from Figure 6a, a nonlinear plot was obtained for pseudo-first-order kinetic model, having an R2 value of less than 0.99, which indicates that the catalytic ODS of the modeled oil sample does not follow pseudo-first-order kinetics. The oxidative conversion of DBT was also interpreted by the pseudo-second-order kinetic model, which is given by Equation (2),
t q t = 1 k 2 q 2 + 1 q e t
A plot of t/qt against time (t) was constructed for DBT conversion which gives the linear line (Figure 6b) with an R2 value of 0.99. The value of qexp. is also very close to qcalc., indicating that catalytic ODS of DBT follows pseudo-second-order kinetics. The values of pseudo-first-order and pseudo-second-order rate constants and other kinetic parameters for DBT conversion are listed in Table 1, which represent the reactivity of the sulfur compounds model in the presence of MnO2/MrGO catalyst.

3.4. Regeneration and Recycling of the Catalyst

Catalyst recycling is crucial for controlling the processing cost in terms of practical implementation. Regeneration of MnO2/MrGO was assessed by carrying out five multiple ODS experiments under similar optimized conditions. Upon the completion of each experiment, the catalyst was recovered by an external magnetic field, washed with n-heptane and methanol several times to remove leftovers of any DBT or DBT-sulfones from the catalyst’s surface. The catalyst was dried in an oven at 110 °C and then reused in another batch experiment. The result shows (Figure 7) that DBT conversion efficiency remained almost the same after four consecutive cycles but then abruptly fell. The loss of sulfur removal efficiency up to 11% after the fifth cycle was comparable with some earlier reports [15], which were not adopted in the current study, taking into account cost and safety.
The large drop in the catalyst efficiency for the fifth cycle may be attributed to a decrease in the availability of active sites on the catalyst surface. The DBT or DBTO2 formed during the ODS process may be adsorbed on catalyst surface at the active sites, i.e., MnO2 through π-complexation [48], which cannot be removed by simply washing with methanol and heptane during the regeneration step. In each cycle, a slight decrease in active sites occurs, which consequently results in a large drop in efficiency for the fifth cycle.

3.5. Catalytic ODS of Commercial Oil Sample

The catalytic ODS of commercial oil samples, including gasoline, kerosene, and diesel oil, having total sulfur contents of 3950 ppm, 6120 ppm, and 6530 ppm, respectively, was studied under optimized conditions for the modeled oil sample. Figure 8 shows that the total sulfur removal attained by catalytic ODS, in the case of gasoline, kerosene, and diesel oil, was 59%, 51%, and 67%, respectively. These results imply that the catalyst also performed well in the case of real oil samples, as in the modeled oil sample. The efficiency of the present catalytic ODS system in the case of real oil samples is comparable with those reported in the literature [44]. As reported, the ODS process, which includes the extraction step to remove sulfur content for straight run gas oil (SRGO) and diesel oil, presented high sulfur content up to 70% and 96%, respectively [49]. Another study reported on the ODS of gasoline oil, in which the sulfur content was removed up to 56.3% at 55 °C after 30 min of reaction time, followed by an extraction stage, which is a costly and time-consuming process [50].
According to the data, it is speculated that among gasoline, kerosene, and diesel oil samples, the highest sulfur removal is attained in the case of gasoline, followed by diesel oil and kerosene oil. The highest desulfurization yield is also attained in the case of diesel oil by MnO2/MrGO catalysts. This is possibly due to its high sulfur content because more sulfur-containing active sites of the catalysts are available to interact compared to the cases of kerosene or gasoline [51]. Similarly, the high level of sulfur removal in the case of gasoline is explained based on the nature of sulfur compounds. Mostly in gasoline, sulfur compounds are simpler and more susceptible to oxidation compared to those contained in high boiling point fractions [52]. However, in the case of kerosene oil, not only the sulfur content is low but also the prevailing sulfur compounds are more complex, implying high resistance to oxidation and therefore lower level of sulfur removal [53]. The efficiency of the current catalytic ODS system surpasses those reported for ODS of modeled and real oil samples in terms of cost-effectiveness, simplified operation, and utilization of H2O2/HCOOH as oxidant.

3.6. Suggested Mechanism for ODS of DBT by MnO2/MrGO

In order to confirm the catalytic role of MnO2/MrGO composite, ODS of the modeled oil sample was examined separately in the presence of GO, MrGO, and MnO2/MrGO composite as catalysts using H2O2/HCOOH as the oxidation system. In Figure 9, it is apparent that in the presence GO, MrGO, and MnO2/MrGO, DBT conversion was found to be 41%, 53%, and 80%, respectively. These results show that the ODS activity of GO is very small; moreover, the incorporation of magnetic iron oxide causes only a slight increase (about 12%) in the ODS activity of GO. In contrast, the ODS activity was enhanced to 80% with the incorporation of MnO2. Therefore, it may be suggested that the GO and the magnetic iron oxide may contribute to the DBT removal through the adsorption process [54]; however, the active component in the catalyst is MnO2, which causes a marked increase in the ODS activity of the composite catalyst.
The advantage of the composite catalysts containing both MrGO and MnO2 is evident because DBT removal is sufficiently increased compared to only GO as the catalyst. Several studies showed that metal oxides loaded on GO and other such supports (i.e., zeolites or alumina) increase the desulfurization yield in the presence of different oxidation systems [55,56]. In ODS reaction, these metal oxides lead to the formation of peroxo species, which can oxidize sulfur compounds. For example, using MoOx/Al2O3 as a catalyst with H2O2 as the oxidizing agent, DBT oxidation takes place through the formation of hydroperoxymolybdate species, which were formed upon the electrophilic attack of H2O2 over octamolybdate and heptamolybdate species [57]. In the current system, manganese dioxide supported on MrGO is assumed to enhance the oxidation of DBT, leading to higher desulfurization yield than GO because MnO2/MrGO offered high DBT removal efficiency.

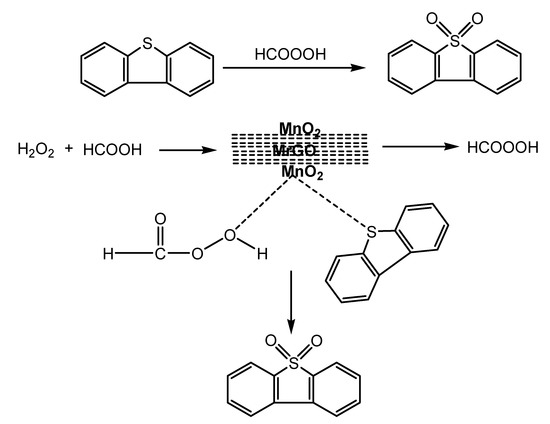

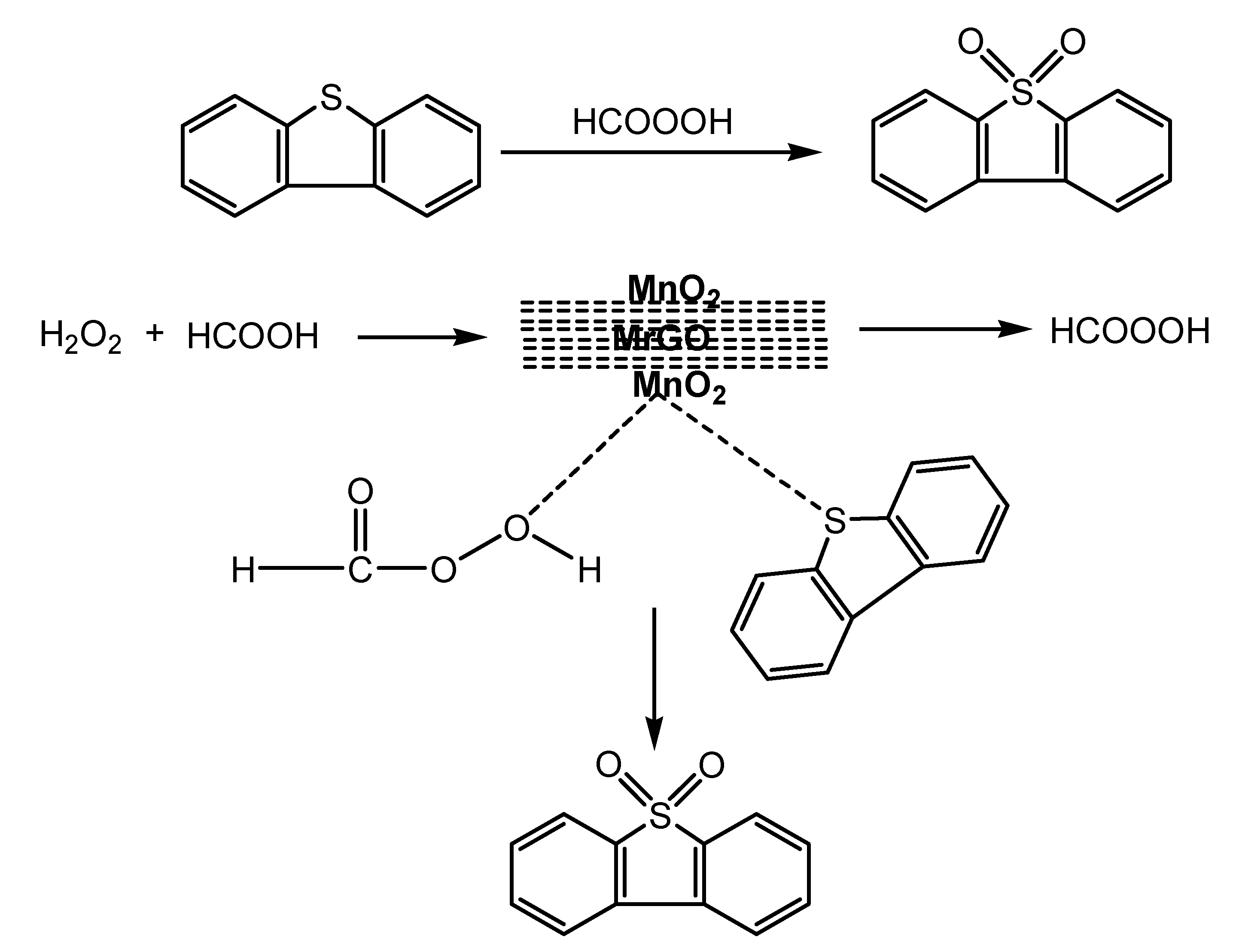

An appropriate pathway is presented for a better understanding of the mechanism of ODS by the H2O2/formic acid system in the presence of MnO2/MrGO as the catalyst. In the current study, the reaction is initiated by MnO2, involving the heterolytic cleavage of H2O2, and thus producing active hydroxyl radical (OH.); hydroxyl radicals are strong oxidizing agents [40], which further attack formic acid to produce performic acid. Performic acid offers its oxygens to DBT in order to form DBT sulfoxide and then DBT sulfone. It is also possible that the peroxyl group, produced by the reaction between H2O2 and HCOOH, interacts with the surface of MnO2, which carries out the selective oxidation of the S atom when DBT is adsorbed on the catalyst’s surface [58]. The proposed mechanism is presented in Scheme 1.
Here, GO acts as support, but due to its two-dimensional geometry, electron transfer capability, and ability to form π-complexes with sulfur compounds, it further enhances the desulfurization yield [59].
The comparison between the efficiency of the current catalytic ODS processes using MnO2/MrGO catalyst and those reported in the literature are provided in Table 2. Various catalytic ODS processes that removed sulfur from modeled and real oil samples using different types of catalysts through the ODS process operated at longer reaction times and temperatures. In the current study, the ODS of modeled and commercial oil samples was operated at mild operating conditions, i.e., 60 min at 40 °C with high desulfurization yield, which is comparable to the reported ones. The current process exhibits high sulfur removal efficiency in a relatively shorter duration and lower temperature. In addition, the current process does not require an extraction step, which makes it economically feasible and a less time-consuming process. These results have suggested that the combination of MnO2 and GO could be an excellent support offering enhanced ODS activity [34].

4. Conclusions

To summarize, the ODS of modeled and commercial oil samples was investigated using a MnO2/MrGO composite as the catalyst. The higher desulfurization efficiency attained was up to 80% in 15 min at 40 °C, using 0.08 g of MnO2/MrGO as the catalyst. The catalytic ODS was found to follow the pseudo-second-order kinetic model. MnO2/MrGO catalyst realized high desulfurization efficiency for the fuel oil sample and decreased the sulfur content up to 67.8%, 59.5%, and 51.9% in cases of diesel, gasoline, and kerosene oil, respectively. The current study accredited that ease of operation, low cost, availability of raw materials, operation at mild conditions, and high efficiency can be envisioned for fuel processing on an industrial level.

Author Contributions

Original concept and initial draft: W.A. and A.U.R.; materials synthesis, adsorption, and analysis of experiments: R.I. and M.Y.; processing, structural characterizations, and data analysis: M.M.S., G.K., and R.I.; supervision and coordination of experiments: B.M.J. and I.A.; funding acquisition: G.K. and R.I. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the National Priorities Research Program grant No. NPRP11S-1128-170042 from the Qatar National Research Fund (member of The Qatar Foundation). This work was co-funded by Malaysia–Thailand Joint Authority under grant number IF062-2019 and Fundamental Research Grant Scheme FP050-2019A from the University of Malaya during the progression of this study.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data sharing not applicable, all the data created for this study is already displayed in the article.

Conflicts of Interest

The authors declare that there are no conflicts of interest regarding the publication of this manuscript.

Abbreviations

GOGraphene oxide
rGOreduced Graphene oxide
MrGOMagnetic reduce graphene oxide
TBHPTertiary butyl hydroperoxide
SRGOStraight run gas oil
MMTMontmorillonite
RONResearch Octane Number

References

  1. Farshi, A.; Shiralizadeh, P. Sulfur reduction of heavy fuel oil by oxidative desulfurization (ODS) method. Pet. Coal 2015, 57, 295–302. [Google Scholar]
  2. Muhammad, Y.; Shoukat, A.; Rahman, A.U.; Rashid, H.U.; Ahmad, W. Oxidative desulfurization of dibenzothiophene over Fe promoted Co–Mo/Al2O3 and Ni–Mo/Al2O3 catalysts using hydrogen peroxide and formic acid as oxidants. Chin. J. Chem. Eng. 2018, 26, 593–600. [Google Scholar] [CrossRef]
  3. Tam, P.S.; Kittrell, J.R.; Eldridge, J.W. Desulfurization of fuel oil by oxidation and extraction 1. Enhancement of extraction oil yield. Ind. Eng. Chem. Res. 1990, 29, 321–324. [Google Scholar] [CrossRef]
  4. Bakar, W.A.; Ali, R.; Kadir, A.; Mokhtar, W.N.A.W. Effect of transition metal oxides catalysts on oxidative desulfurization of model diesel. Fuel Process. Technol. 2012, 101, 78–84. [Google Scholar] [CrossRef]
  5. Huang, D.; Zhai, Z.; Lu, Y.; Yang, L.; Luo, G. Optimization of composition of a directly combined catalyst in dibenzothiophene oxidation for deep desulfurization. Ind. Eng. Chem. Res. 2007, 46, 1447–1451. [Google Scholar] [CrossRef]
  6. Rajendran, A.; Cui, T.Y.; Fan, H.X.; Yang, Z.F.; Feng, J.; Li, W.Y. A comprehensive review on oxidative desulfurization catalysts targeting clean energy and environment. J. Mater. Chem. A 2020, 8, 2246–2285. [Google Scholar] [CrossRef]
  7. Feng, M. Review on recent patents in sulfur removal from liquid fuels by oxidative desulfurization (ODS) process. Recent Pat. Chem. Eng. 2010, 3, 30–37. [Google Scholar] [CrossRef]
  8. Li, S.W.; Gao, R.M.; Zhang, R.L.; Zhao, J.S. Template method for a hybrid catalyst material POM@ MOF-199 anchored on MCM-41: Highly oxidative desulfurization of DBT under molecular oxygen. Fuel 2016, 184, 18–27. [Google Scholar] [CrossRef]
  9. Zeelani, G.G.; Ashrafi, A.; Dhakad, A.; Gupta, G.; Pal, S.L. Catalytic oxidative desulfurization of liquid fuels: A review. Int. Res. J. Eng. Technol. 2016, 3, 331–336. [Google Scholar]
  10. Subhan, S.; Muhammad, Y.; Sahibzada, M.; Subhan, F.; Tong, Z. Studies on the selection of a catalyst–oxidant system for the energy-efficient desulfurization and denitrogenation of fuel oil at mild operating conditions. Energy Fuels 2019, 33, 8423–8439. [Google Scholar] [CrossRef]
  11. García-Gutiérrez, J.L.; Fuentes, G.A.; Hernández-Terán, M.E.; Garcia, P.; Murrieta-Guevara, F.; Jiménez-Cruz, F. Ultra-deep oxidative desulfurization of diesel fuel by the Mo/Al2O3-H2O2 system: The effect of system parameters on catalytic activity. Appl. Catal. A Gen. 2008, 334, 366–373. [Google Scholar] [CrossRef]
  12. Figueras, F.; Palomeque, J.; Loridant, S.; Fèche, C.; Essayem, N.; Gelbard, G. Influence of the coordination on the catalytic properties of supported W catalysts. J. Catal. 2004, 226, 25–31. [Google Scholar] [CrossRef]
  13. Barker, J.E.; Ren, T. Sulfide oxygenation by tert-butyl hydroperoxide with mononuclear (Me3TACN) Mn catalysts. Tetrahedron Lett. 2005, 46, 6805–6808. [Google Scholar] [CrossRef]
  14. Prasad, V.; Jeong, K.-E.; Chae, H.-J.; Kim, C.-U.; Jeong, S.-Y. Oxidative desulfurization of 4, 6-dimethyl dibenzothiophene and light cycle oil over supported molybdenum oxide catalysts. Catal. Commun. 2008, 9, 1966–1969. [Google Scholar] [CrossRef]
  15. Menzel, R.; Iruretagoyena, D.; Wang, Y.; Bawaked, S.M.; Mokhtar, M.; Al-Thabaiti, S.A.; Basahel, S.N.; Shaffer, M.S. Graphene oxide/mixed metal oxide hybrid materials for enhanced adsorption desulfurization of liquid hydrocarbon fuels. Fuel 2016, 181, 531–536. [Google Scholar] [CrossRef]
  16. Rezvani, M.A.; Khandan, S. Synthesis and characterization of new sandwich-type polyoxometalate/nanoceramic nanocomposite, Fe2W18Fe4@FeTiO3, as a highly efficient heterogeneous nanocatalyst for desulfurization of fuel. Solid State Sci. 2019, 98, 106036. [Google Scholar] [CrossRef]
  17. Zhang, L.; Song, S.; Yang, N.; Tantai, X.; Xiao, X.; Jiang, B.; Sun, Y. Porous hybrid nanoflower self-assembled from polyoxometalate and polyionene for efficient oxidative desulfurization. Ind. Eng. Chem. Res. 2019, 58, 3618–3629. [Google Scholar] [CrossRef]
  18. Ahmad, W.; Ahmad, I. Mechanisms of desulfurization by nanomaterials. In Nanotechnology in Oil and Gas Industries; Springer: Berlin/Heidelberg, Germany, 2018; pp. 211–243. [Google Scholar]
  19. Zhou, R.; Guzman, M.I. CO2 reduction under periodic illumination of ZnS. J. Phys. Chem. C 2014, 118, 11649–11656. [Google Scholar] [CrossRef]
  20. Chen, X.-F.; Kou, S.-C. Sulfur dioxide degradation by composite photocatalysts prepared by recycled fine aggregates and nanoscale titanium dioxide. Nanomaterials 2019, 9, 1533. [Google Scholar] [CrossRef] [Green Version]
  21. Deng, C.; Wu, P.; Zhu, L.; He, J.; Tao, D.; Lu, L.; He, M.; Hua, M.; Li, H.; Zhu, W. High-entropy oxide stabilized molybdenum oxide via high temperature for deep oxidative desulfurization. Appl. Mater. Today 2020, 20, 100680. [Google Scholar] [CrossRef]
  22. Ma, C.; Dai, B.; Xu, C.; Liu, P.; Qi, L.; Ban, L. Deep oxidative desulfurization of model fuel via dielectric barrier discharge plasma oxidation using MnO2 catalysts and combination of ionic liquid extraction. Catal. Today 2013, 211, 84–89. [Google Scholar] [CrossRef]
  23. Ouyang, R.; Liu, W.; Fu, G.; Liu, C.; Hu, L.; Wang, H. Linkages between ENSO/PDO signals and precipitation, streamflow in China during the last 100 years. Hydrol. Earth Syst. Sci. 2014, 18, 3651. [Google Scholar] [CrossRef] [Green Version]
  24. Bineesh, K.V.; Kim, D.K.; Cho, H.J.; Park, D.W. Synthesis of metal-oxide pillared montmorillonite clay for the selective catalytic oxidation of H2S. J. Ind. Eng. Chem. 2010, 16, 593–597. [Google Scholar] [CrossRef]
  25. Betiha, M.A.; Rabie, A.M.; Ahmed, H.S.; Abdelrahman, A.A.; El-Shahat, M.F. Oxidative desulfurization using graphene and its composites for fuel containing thiophene and its derivatives: An update review. Egypt. J. Pet. 2018, 27, 715–730. [Google Scholar] [CrossRef]
  26. Hajjar, Z.; Kazemeini, M.; Rashidi, A.; Bazmi, M. Graphene based catalysts for deep hydrodesulfurization of naphtha and diesel fuels: A physiochemical study. Fuel 2016, 165, 468–476. [Google Scholar] [CrossRef]
  27. Zhang, Y.; Wang, R. Nanocarbon materials for oxidative-adsorptive desulfurization using air oxygen under mild conditions. Diam. Relat. Mater. 2017, 73, 161–168. [Google Scholar] [CrossRef]
  28. Gu, Q.; Wen, G.; Ding, Y.; Wu, K.-H.; Chen, C.; Su, D. Reduced graphene oxide: A metal-free catalyst for aerobic oxidative desulfurization. Green Chem. 2017, 19, 1175–1181. [Google Scholar] [CrossRef]
  29. Ullah, R.; Ahmad, W.; Ahmad, I.; Khan, M.; Iqbal Khattak, M.; Hussain, F. Adsorption and recovery of hexavalent chromium from tannery wastewater over magnetic max phase composite. Sep. Sci. Technol. 2020, 1–14. [Google Scholar] [CrossRef]
  30. Luo, X.; Wang, C.; Luo, S.; Dong, R.; Tu, X.; Zeng, G. Adsorption of as (III) and as (V) from water using magnetite Fe3O4-reduced graphite oxide–MnO2 nanocomposites. Chem. Eng. J. 2012, 187, 45–52. [Google Scholar] [CrossRef]
  31. Chandra, V.; Park, J.; Chun, Y.; Lee, J.W.; Hwang, I.-C.; Kim, K.S. Water-dispersible magnetite-reduced graphene oxide composites for arsenic removal. ACS Nano 2010, 4, 3979–3986. [Google Scholar] [CrossRef]
  32. Chumming, J.; Xiangqin, L. Electrochemical synthesis of Fe3O4-PB nanoparticles with core-shell structure and its electrocatalytic reduction toward H2O2. J. Solid State Electrochem. 2009, 13, 1273–1278. [Google Scholar] [CrossRef]
  33. Gupta, K.; Bhattacharya, S.; Chattopadhyay, D.; Mukhopadhyay, A.; Biswas, H.; Dutta, J.; Ray, N.R.; Ghosh, U.C. Ceria associated manganese oxide nanoparticles: Synthesis, characterization and arsenic (V) sorption behavior. Chem. Eng. J. 2011, 172, 219–229. [Google Scholar] [CrossRef]
  34. Dizaji, A.K.; Mokhtarani, B.; Mortaheb, H.R. Deep and fast oxidative desulfurization of fuels using graphene oxide-based phosphotungstic acid catalysts. Fuel 2019, 236, 717–729. [Google Scholar] [CrossRef]
  35. Chen, W.H.; Huang, C.J.; Lin, C.H.; Huang, C.P. Catalytic degradation of chlorpheniramine over GO-Fe3O4 in the presence of H2O2 in water: The synergistic effect of adsorption. Sci. Total Environ. 2020, 736, 139468. [Google Scholar] [CrossRef] [PubMed]
  36. Anyika, C.; Asri, N.A.M.; Majid, Z.A.; Yahya, A.; Jaafar, J. Synthesis and characterization of magnetic activated carbon developed from palm kernel shells. Nanotechnol. Environ. Eng. 2017, 2, 16. [Google Scholar] [CrossRef]
  37. Dinh, V.P.; Le, N.C.; Nguyen, T.P.T.; Nguyen, N.T. Synthesis of α-MnO2 Nanomaterial from a Precursor γ-MnO2: Characterization and Comparative Adsorption of Pb(II) and Fe(III). J. Chem. 2016, 2016, 8285717. [Google Scholar] [CrossRef] [Green Version]
  38. Subhan, S.; Rahman, A.U.; Yaseen, M.; Rashid, H.U.; Ishaq, M.; Sahibzada, M.; Tong, Z. Ultra-fast and highly efficient catalytic oxidative desulfurization of dibenzothiophene at ambient temperature over low Mn loaded Co-Mo/Al2O3 and Ni-Mo/Al2O3 catalysts using NaClO as oxidant. Fuel 2019, 237, 793–805. [Google Scholar] [CrossRef]
  39. Sikarwar, P.; Kumar, U.A.; Gosu, V.; Subbaramaiah, V. Catalytic oxidative desulfurization of DBT using green catalyst (Mo/MCM-41) derived from coal fly ash. J. Environ. Chem. Eng. 2018, 6, 1736–1744. [Google Scholar] [CrossRef]
  40. Hussain, F.; Ahmad, W.; Ahmad, I.; Guo, S. Enhanced and Facile Desulfurization of Commercial Oil Using Air-Assisted Performic Acid Oxidation System. Environ. Eng. Sci. 2019, 36, 1404–1411. [Google Scholar] [CrossRef]
  41. Hasan, Z.; Jeon, J.; Jhung, S.H. Oxidative desulfurization of benzothiophene and thiophene with WOx/ZrO2 catalysts: Effect of calcination temperature of catalysts. J. Hazard. Mater. 2012, 205, 216–221. [Google Scholar] [CrossRef]
  42. Cheng, K.P.; Yang, H.; Wang, J.H.; Liu, H.P.; Qiao, C.Z. Immobilization of acidic ionic liquid on silica gel for catalytic oxidative desulfurization of fuel oils (II): Desulfurization. In Advanced Materials Research; Trans Tech Publications Ltd.: Freienbach, Switzerland, 2015; pp. 183–187. [Google Scholar]
  43. Hao, L.; Benxian, S.; Zhou, X. An improved desulfurization process based on H2O2/formic acid oxidation system followed by liquid-liquid extraction. Part 1. Coker gas oil feedstocks. Pet. Sci. Technol. 2005, 23, 991–999. [Google Scholar] [CrossRef]
  44. Imtiaz, A.; Waqas, A.; Muhammad, I. Desulfurization of liquid fuels using air-assisted performic acid oxidation and emulsion catalyst. Chin. J. Catal. 2013, 34, 1839–1847. [Google Scholar] [CrossRef]
  45. Gao, J.J.; Li, H.Q.; Zhang, H.X.; Lu, Y.Z.; Meng, H.; Li, C.X. Removal mechanism of thiophenic compounds in model oil by inorganic Lewis acids. Ind. Eng. Chem. Res. 2012, 51, 4682–4691. [Google Scholar] [CrossRef]
  46. Xiao, J.; Li, Z.; Liu, B.; Xia, Q.; Yu, M. Adsorption of benzothiophene and dibenzothiophene on ion-impregnated activated carbons and ion-exchanged Y zeolites. Energy Fuels 2008, 22, 3858–3863. [Google Scholar] [CrossRef]
  47. Haghighat Mamaghani, A.; Fatemi, S.; Asgari, M. Investigation of influential parameters in deep oxidative desulfurization of dibenzothiophene with hydrogen peroxide and formic acid. Int. J. Chem. Eng. 2013, 2013, 951045. [Google Scholar] [CrossRef] [Green Version]
  48. Ren, X.; Liu, Z.; Dong, L.; Miao, G.; Liao, N.; Li, Z.; Xiao, J. Dynamic catalytic adsorptive desulfurization of real diesel over ultra-stable and low-cost silica gel-supported TiO2. AICHE J. 2018, 64, 2146–2159. [Google Scholar] [CrossRef]
  49. Palomeque-Santiago, J.F.; López-Medina, R.; Oviedo-Roa, R.; Navarrete-Bolaños, J.; Mora-Vallejo, R.; Montoya-de la Fuente, J.A.; Martínez-Magadán, J.M. Deep oxidative desulfurization with simultaneous oxidative denitrogenation of diesel fuel and straight run gas oil. Appl. Catal. B Environ. 2018, 236, 326–337. [Google Scholar] [CrossRef]
  50. Zhao, D.; Wang, Y.; Duan, E. Oxidative desulfurization of fuel oil by pyridinium-based ionic liquids. Molecules 2009, 14, 4351–4357. [Google Scholar] [CrossRef] [Green Version]
  51. Wang, X.J.; Li, F.T.; Liu, J.X.; Kou, C.G.; Zhao, Y.; Hao, Y.J.; Zhao, D. Preparation of TiO2 in ionic liquid via microwave radiation and in situ photocatalytic oxidative desulfurization of diesel oil. Energy Fuels 2012, 26, 6777–6782. [Google Scholar] [CrossRef]
  52. Zhou, C.; Wang, Y.; Huang, X.; Wu, Y.; Chen, J. Optimization of ultrasonic-assisted oxidative desulfurization of gasoline and crude oil. Chem. Eng. Process. Process Intensif. 2020, 147, 107789. [Google Scholar] [CrossRef]
  53. Wang, H.; Jibrin, I.; Zeng, X. Catalytic oxidative desulfurization of gasoline using phosphotungstic acid supported on MWW zeolite. Front. Chem. Sci. Eng. 2019, 14, 1–15. [Google Scholar] [CrossRef]
  54. Svinterikos, E.; Zuburtikudis, I.; Al-Marzouqi, M. Carbon nanomaterials for the adsorptive desulfurization of fuels. J. Nanotechnol. 2019, 2019. [Google Scholar] [CrossRef] [Green Version]
  55. Ismagilov, Z.; Yashnik, S.; Kerzhentsev, M.; Parmon, V.; Bourane, A.; Al-Shahrani, F.; Hajji, A.; Koseoglu, O. Oxidative desulfurization of hydrocarbon fuels. Catal. Rev. 2011, 53, 199–255. [Google Scholar] [CrossRef]
  56. Bhutto, A.W.; Abro, R.; Gao, S.; Abbas, T.; Chen, X.; Yu, G. Oxidative desulfurization of fuel oils using ionic liquids: A review. J. Taiwan Inst. Chem. Eng. 2016, 62, 84–97. [Google Scholar] [CrossRef]
  57. Ahmad, W.; Ahmad, I. Desulphurization of transportation fuels by per-formic acid oxidant using MoOx loaded on ZSM-5 catalyst. J. Power Energy Eng. 2017, 5, 87–99. [Google Scholar] [CrossRef] [Green Version]
  58. Ali, A.H.; Zaera, F. Kinetic study on the selective catalytic oxidation of 2-propanol to acetone over nickel foils. J. Mol. Catal. A Chem. 2002, 177, 215–235. [Google Scholar] [CrossRef]
  59. Zhu, Y.; Li, X.; Zhu, M. Mesoporous graphitic carbon nitride as photo-catalyst for oxidative desulfurization with oxygen. Catal. Commun. 2016, 85, 5–8. [Google Scholar] [CrossRef]
  60. Dou, S.Y.; Wang, R. Ultradeep desulfurization of model oil through the oxidative adsorption process using Dawson-type polyoxometalates and graphene oxide multifunctional composites. Appl. Organomet. Chem. 2019, 33, e4924. [Google Scholar] [CrossRef]
  61. Zhang, G.; Liu, B.; Zhou, H.; Yang, Y.; Chen, W.; Zhao, J. Graphene wrapped phthalocyanine: Enhanced oxidative desulfurization for dibenzothiophene in fuel. Appl. Organomet. Chem. 2018, 32, e4477. [Google Scholar] [CrossRef]
  62. Li, S.; Mominou, N.; Wang, Z.; Liu, L.; Wang, L. Ultra-deep desulfurization of gasoline with cuw/tio2–go through photocatalytic oxidation. Energy Fuels 2016, 30, 962–967. [Google Scholar] [CrossRef]
  63. Julião, D.; Mirante, F.; Ribeiro, S.O.; Gomes, A.C.; Valenca, R.; Ribeiro, J.C.; Pillinger, M.; de Castro, B.; Gonçalves, I.S.; Balula, S.S. Deep oxidative desulfurization of diesel fuels using homogeneous and SBA-15-supported peroxophosphotungstate catalysts. Fuel 2019, 241, 616–624. [Google Scholar] [CrossRef]
  64. Abdi, G.; Ashokkumar, M.; Alizadeh, A. Ultrasound-assisted oxidative-adsorptive desulfurization using highly acidic graphene oxide as a catalyst-adsorbent. Fuel 2017, 210, 639–645. [Google Scholar] [CrossRef]
  65. Liu, Y.-Y.; Leus, K.; Sun, Z.; Li, X.; Depauw, H.; Wang, A.; Zhang, J.; Van Der Voort, P. Catalytic oxidative desulfurization of model and real diesel over a molybdenum anchored metal-organic framework. Microporous Mesoporous Mater. 2019, 277, 245–252. [Google Scholar] [CrossRef]
  66. Zhou, M.; Meng, W.; Li, Y.; Wang, Q.; Li, X.; Zang, S. Extractive and catalytic oxidative desulfurization of gasoline by methyltrioxorhenium in ionic liquids. Energy Fuels 2014, 28, 516–521. [Google Scholar] [CrossRef]
  67. Yu, G.; Lu, S.; Chen, H.; Zhu, Z. Diesel fuel desulfurization with hydrogen peroxide promoted by formic acid and catalyzed by activated carbon. Carbon 2005, 43, 2285–2294. [Google Scholar] [CrossRef]

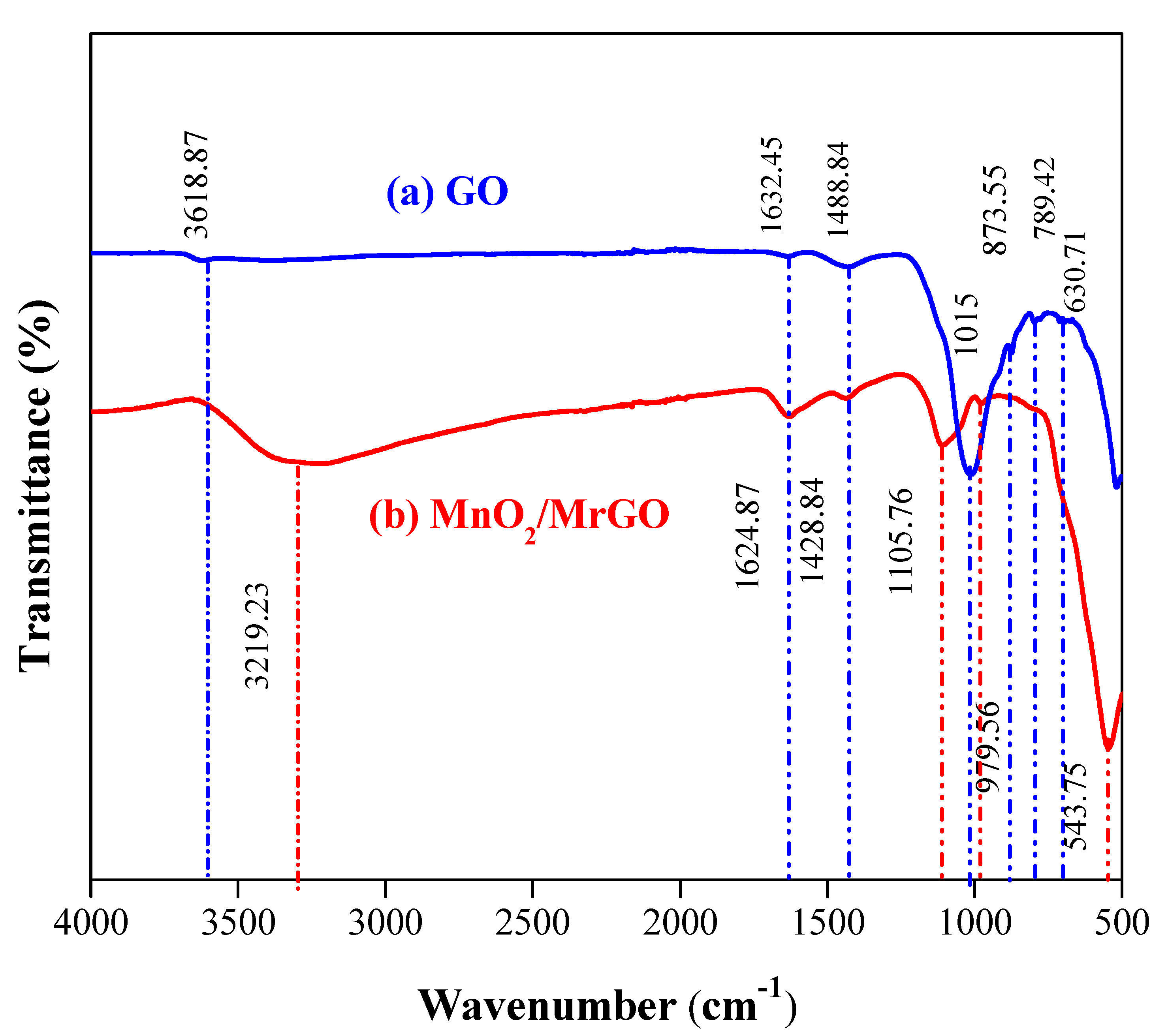

Figure 1. Fourier-transform infrared spectroscopy (FTIR) spectra of (a) graphene oxide (GO) and (b) MnO2/MrGO.
Figure 1. Fourier-transform infrared spectroscopy (FTIR) spectra of (a) graphene oxide (GO) and (b) MnO2/MrGO.
Nanomaterials 11 00203 g001

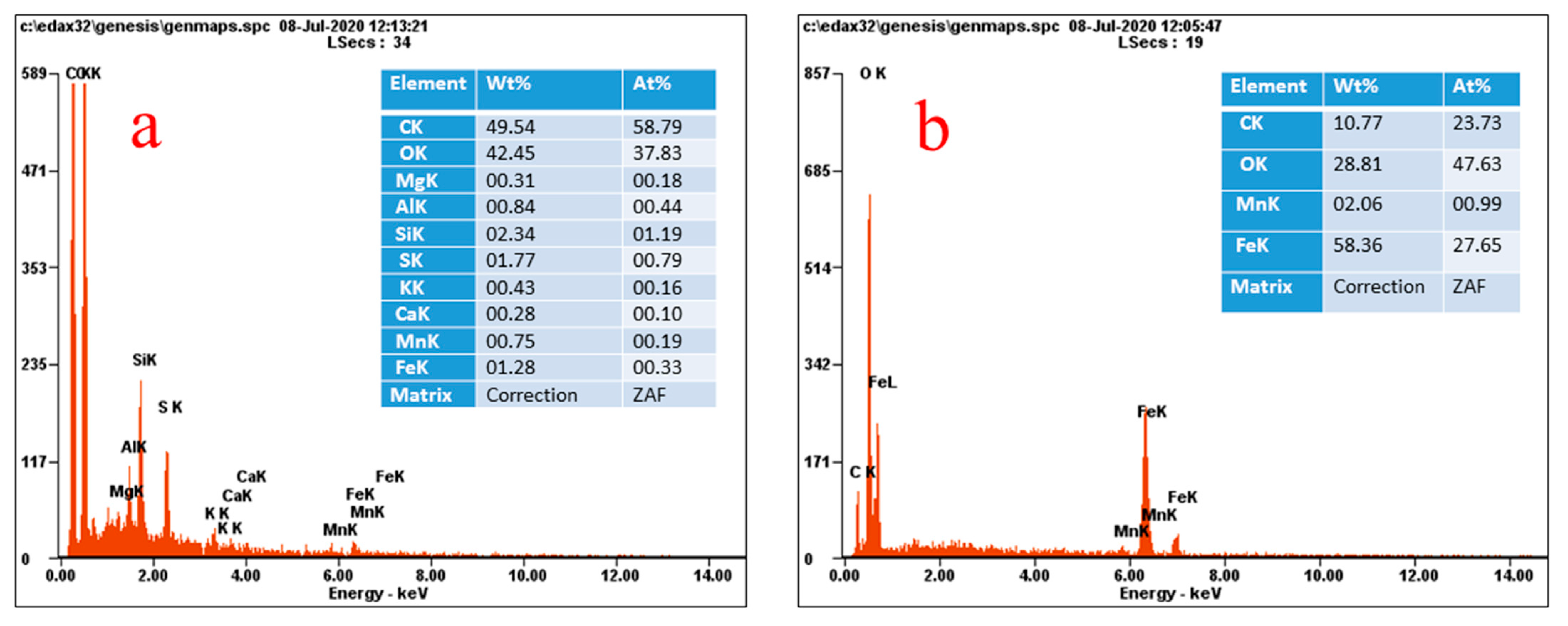

Figure 2. Energy dispersive X-ray (EDX) spectra of (a) GO and (b) MnO2/MrGO.
Figure 2. Energy dispersive X-ray (EDX) spectra of (a) GO and (b) MnO2/MrGO.
Nanomaterials 11 00203 g002

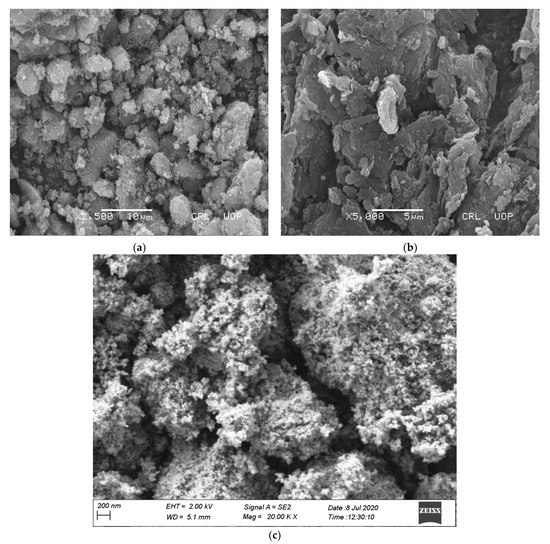

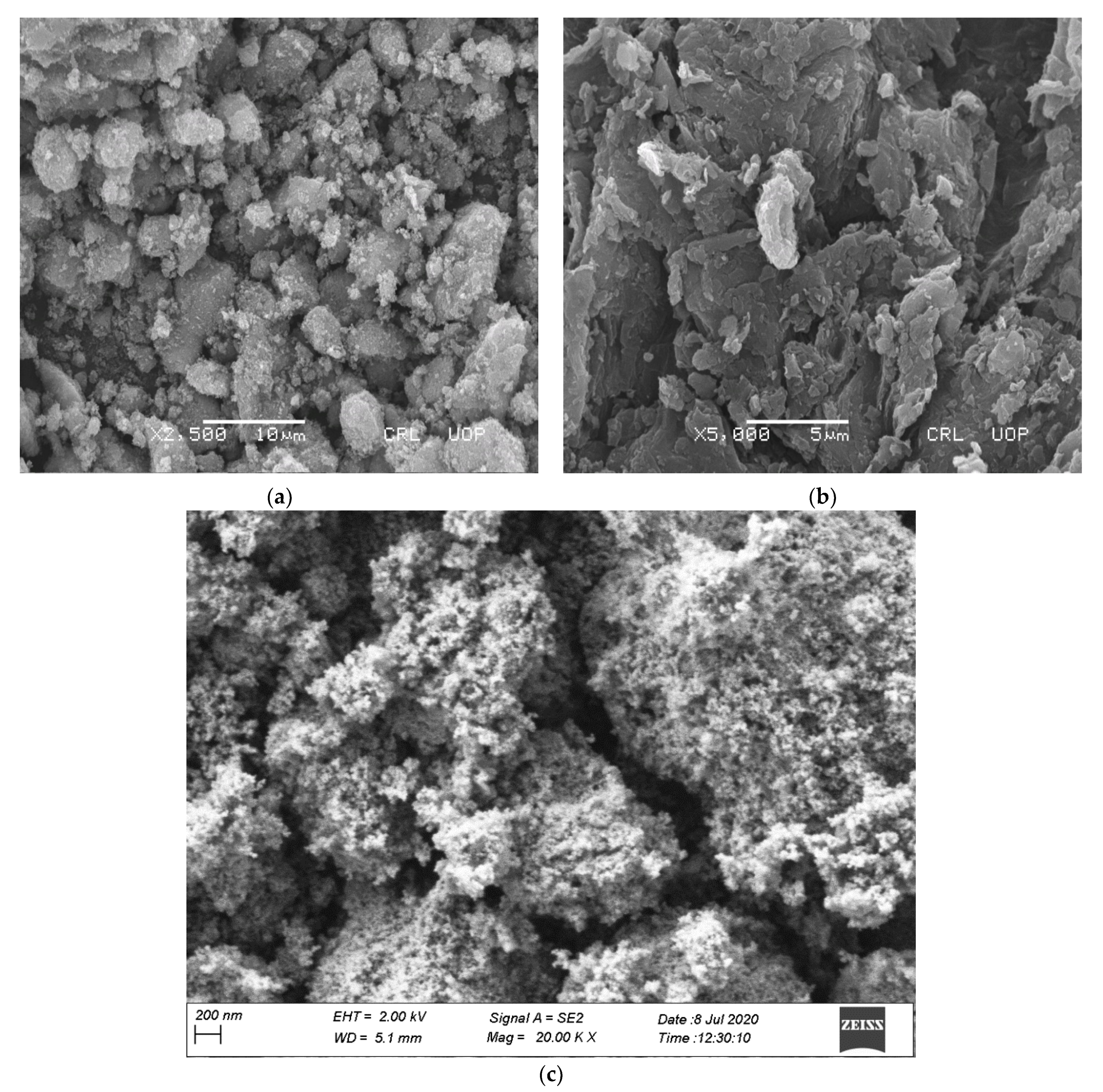

Figure 3. Scanning electron microscope (SEM) images of (a) GO, (b) MnO2/MrGO, and (c) field emission scanning electron microscope (FESEM) image of MnO2/MrGO.
Figure 3. Scanning electron microscope (SEM) images of (a) GO, (b) MnO2/MrGO, and (c) field emission scanning electron microscope (FESEM) image of MnO2/MrGO.
Nanomaterials 11 00203 g003

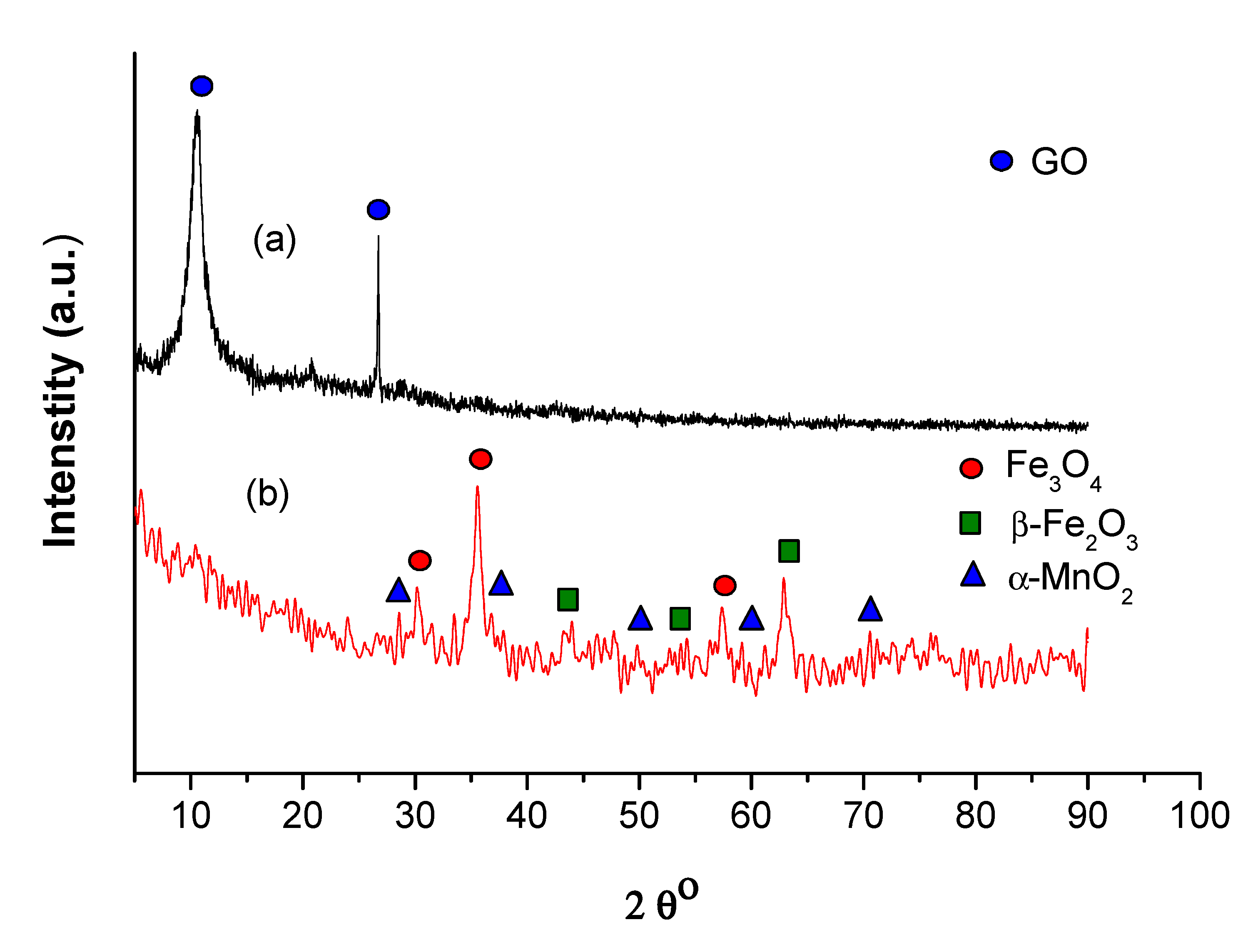

Figure 4. X-ray diffraction patterns (XRD) of (a) GO and (b) MnO2/MrGO.
Figure 4. X-ray diffraction patterns (XRD) of (a) GO and (b) MnO2/MrGO.
Nanomaterials 11 00203 g004

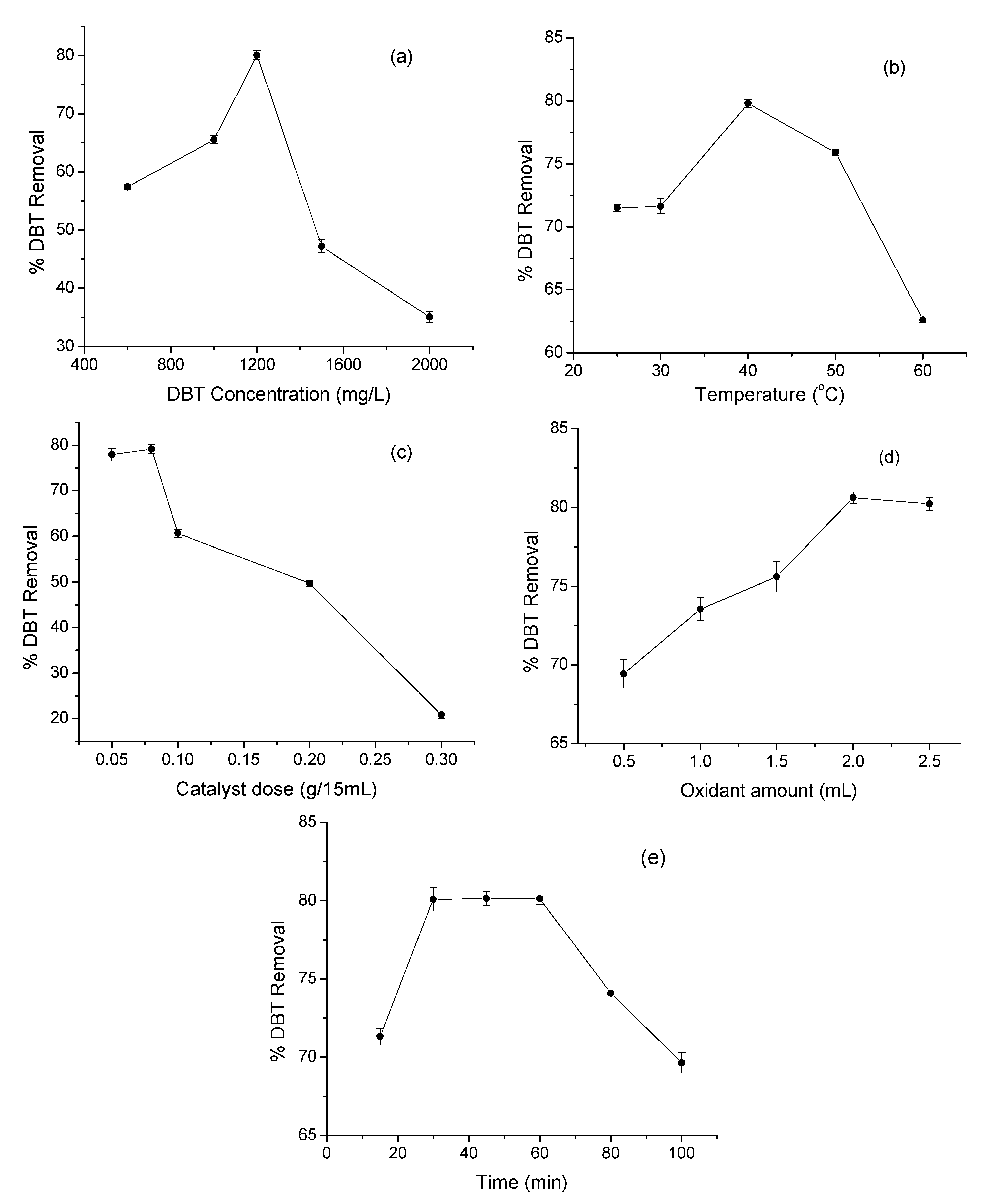

Figure 5. Effect of (a) dibenzothiophene (DBT) initial concentration, (b) temperature, (c) catalyst dose, (d) amount of oxidant, and (e) time on % DBT removal in the presence of MnO2/MrGO catalyst.
Figure 5. Effect of (a) dibenzothiophene (DBT) initial concentration, (b) temperature, (c) catalyst dose, (d) amount of oxidant, and (e) time on % DBT removal in the presence of MnO2/MrGO catalyst.
Nanomaterials 11 00203 g005

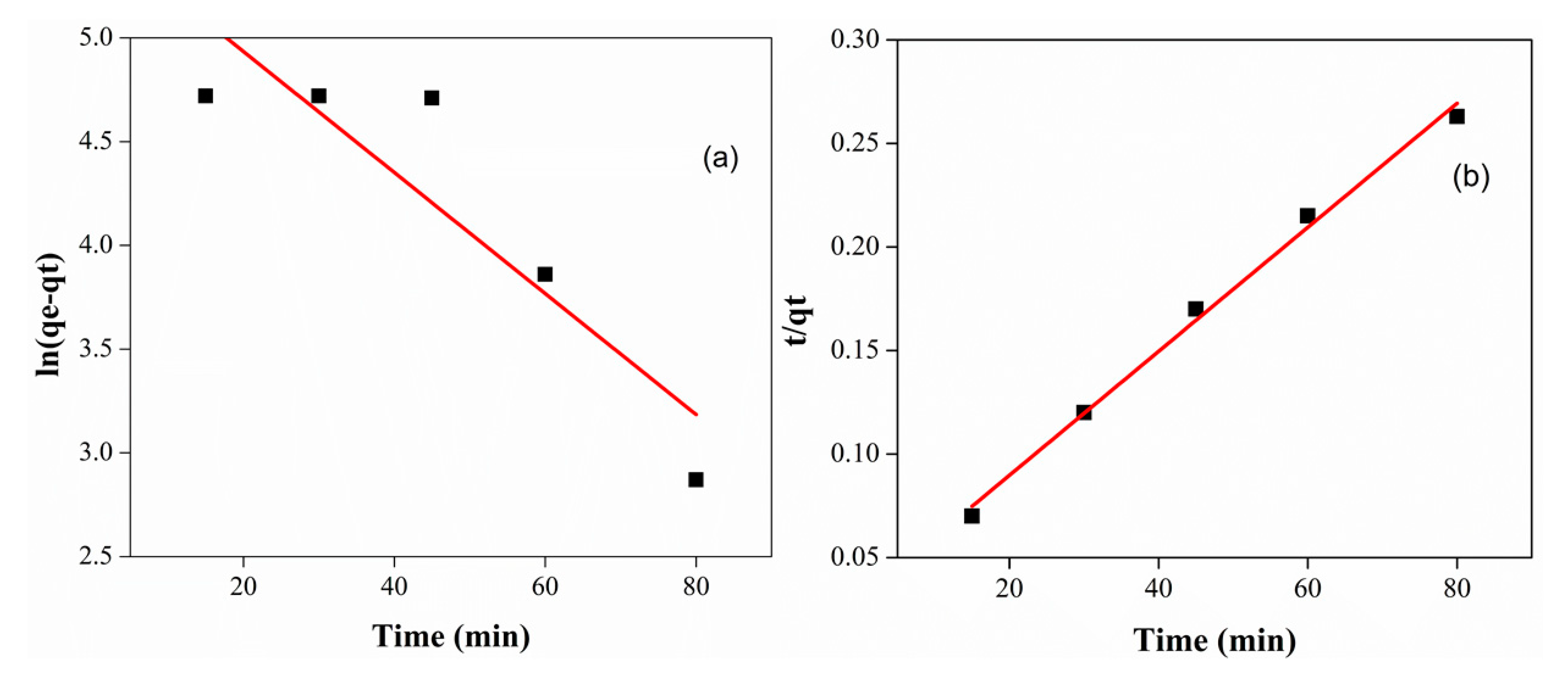

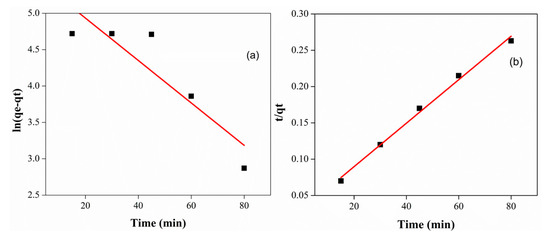

Figure 6. (a) Pseudo-first-order and (b) pseudo-second-order kinetic models for catalytic oxidative desulfurization (ODS) of DBT in the presence of MnO2/MrGO catalysts.
Figure 6. (a) Pseudo-first-order and (b) pseudo-second-order kinetic models for catalytic oxidative desulfurization (ODS) of DBT in the presence of MnO2/MrGO catalysts.
Nanomaterials 11 00203 g006

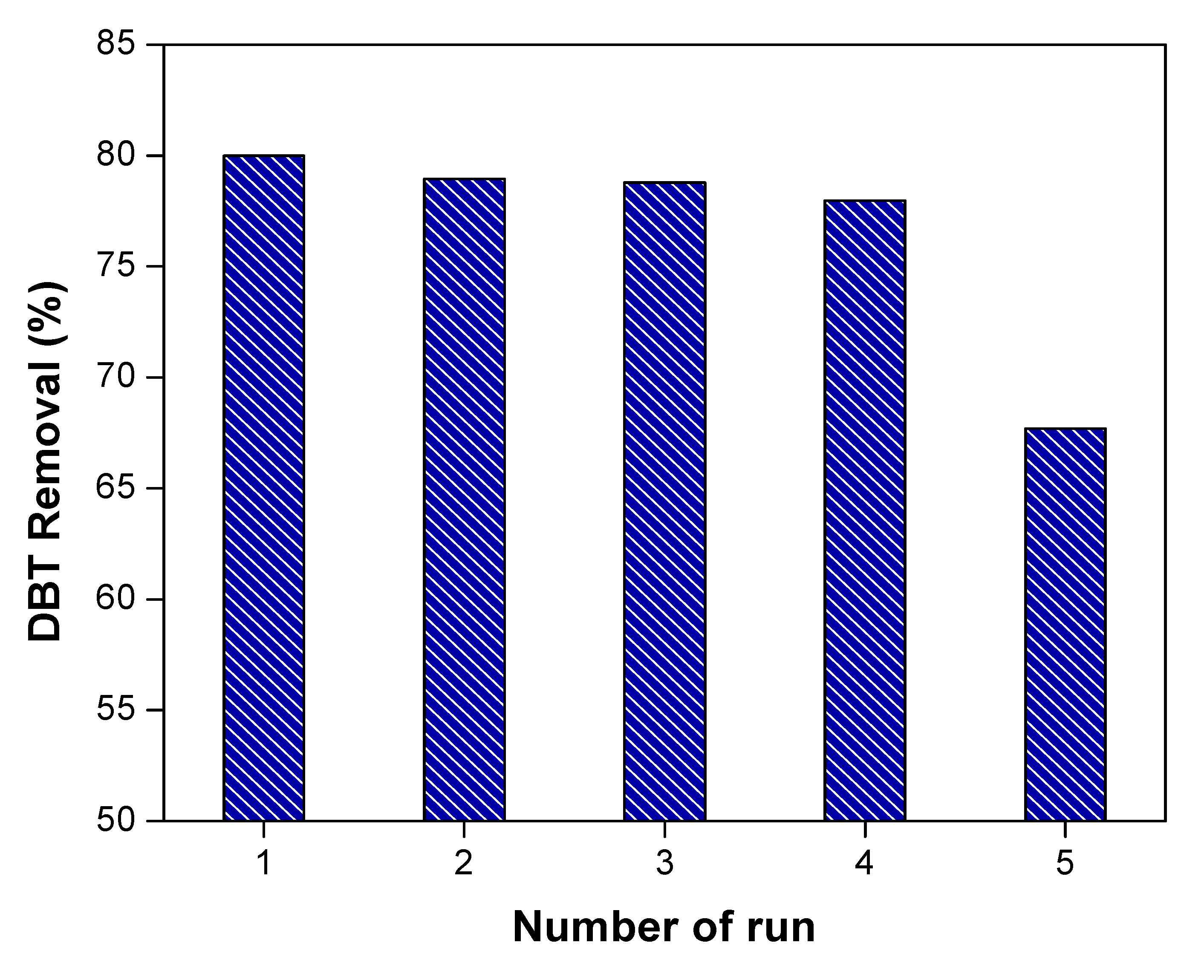

Figure 7. The effect of catalyst recycling (1–5 runs) on DBT conversion. Conditions: 15 mL of 1200 ppm DBT solution, 2 mL H2O2/HCOOH, 0.08 g catalyst, and 15 min reaction time at 40 °C.
Figure 7. The effect of catalyst recycling (1–5 runs) on DBT conversion. Conditions: 15 mL of 1200 ppm DBT solution, 2 mL H2O2/HCOOH, 0.08 g catalyst, and 15 min reaction time at 40 °C.
Nanomaterials 11 00203 g007

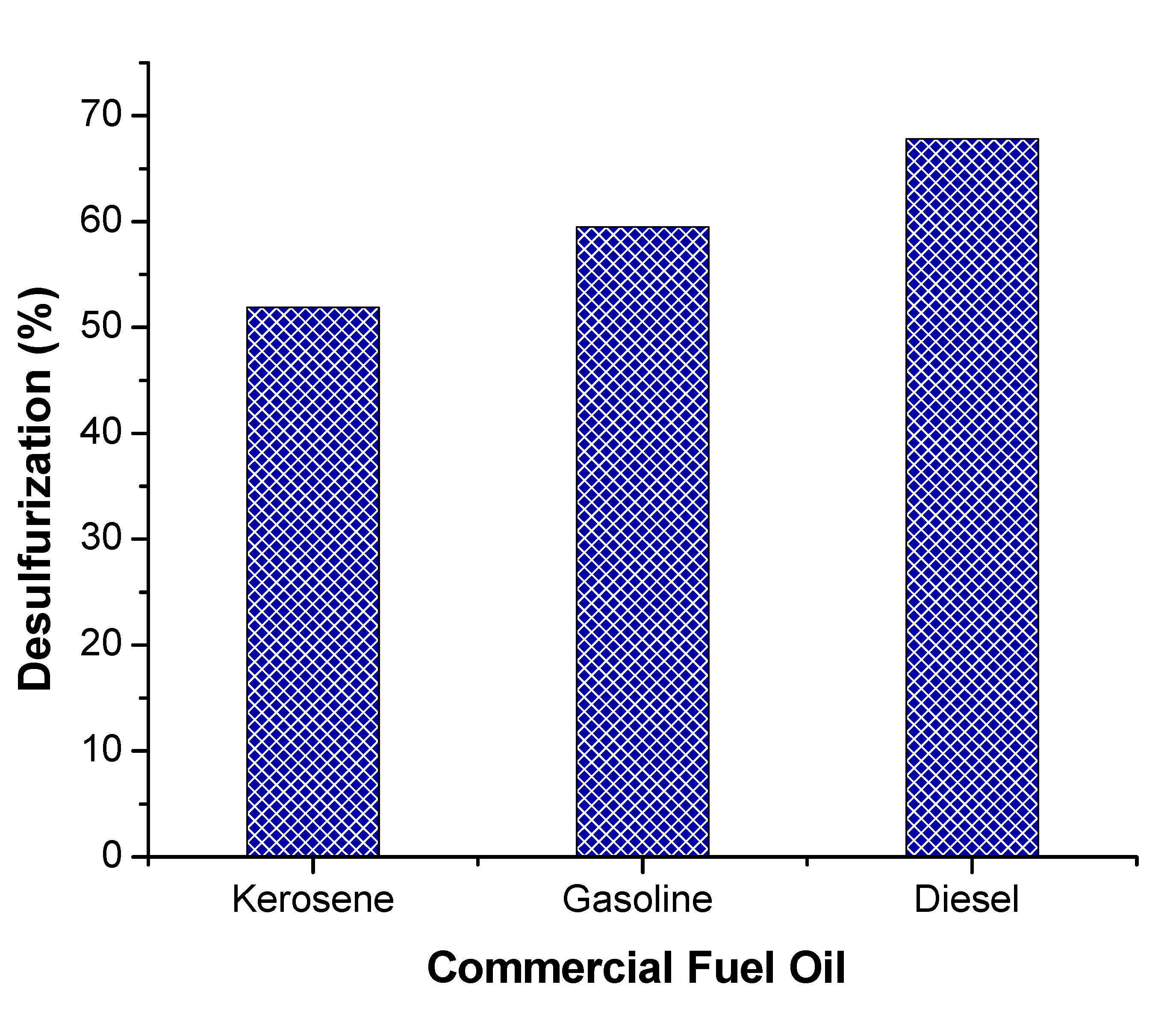

Figure 8. Desulfurization (%) of commercial fuel oil at 40 °C temperature and reaction time of 60 min in the presence of MnO2/MrGO, fuel volume (15 mL), catalyst weight (0.08 g), oxidant volume (2 mL), reaction time (15 min), and temperature (40 °C).
Figure 8. Desulfurization (%) of commercial fuel oil at 40 °C temperature and reaction time of 60 min in the presence of MnO2/MrGO, fuel volume (15 mL), catalyst weight (0.08 g), oxidant volume (2 mL), reaction time (15 min), and temperature (40 °C).
Nanomaterials 11 00203 g008

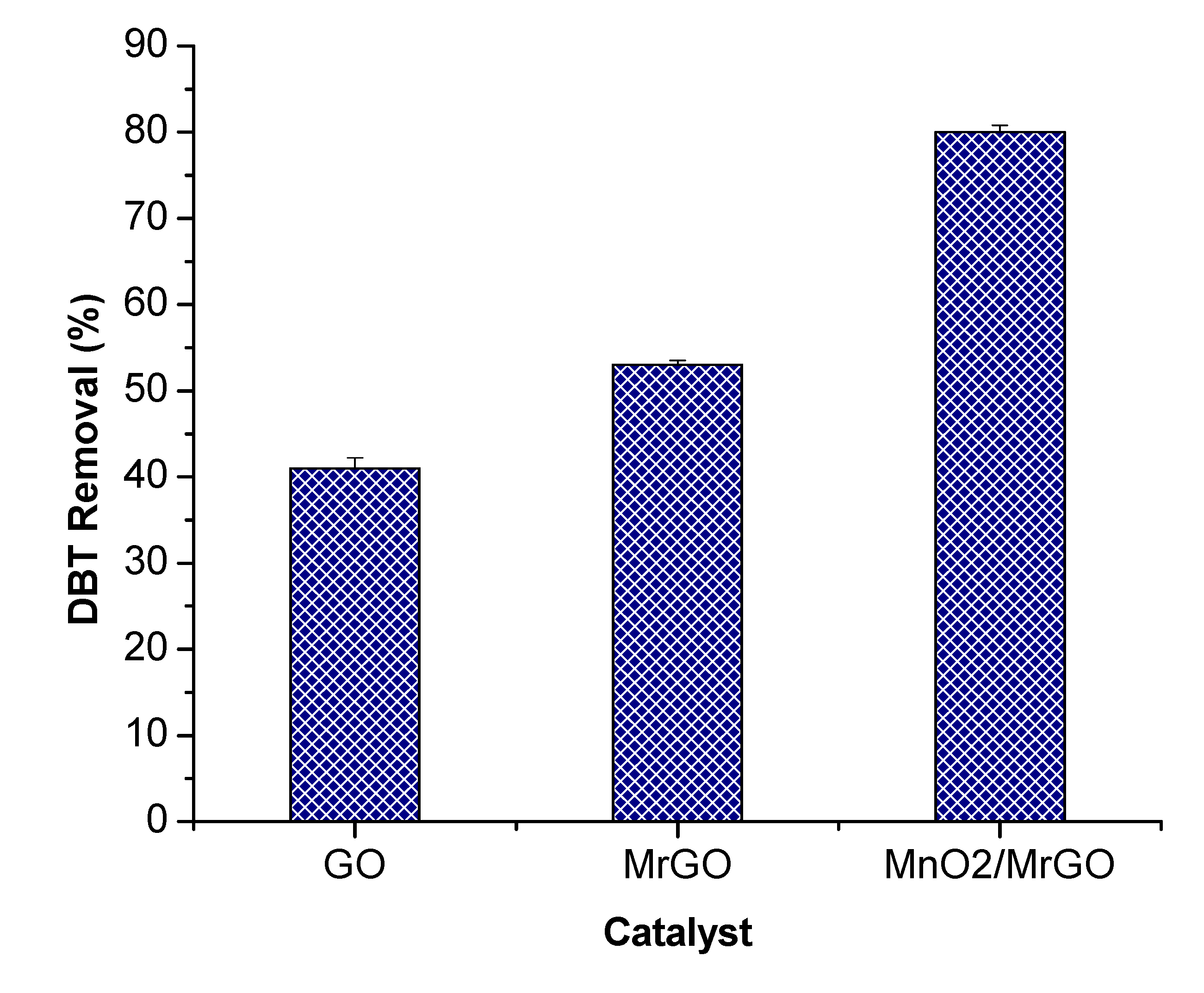

Figure 9. ODS of the modeled oil sample in the presence of GO, MrGO, and MnO2/MrGO.
Figure 9. ODS of the modeled oil sample in the presence of GO, MrGO, and MnO2/MrGO.
Nanomaterials 11 00203 g009
Scheme 1. Mechanism of ODS in the presence of MnO2/MrGO.
Scheme 1. Mechanism of ODS in the presence of MnO2/MrGO.
Nanomaterials 11 00203 sch001
Table 1. Kinetic parameters for ODS of model oil in the presence of MnO2/MrGO catalysts.
Table 1. Kinetic parameters for ODS of model oil in the presence of MnO2/MrGO catalysts.
Order of Reactionqe
(Experimental)
qe
(Calculated)
K
(min−1)
R2
Pseudo-first-order 326.54247.150.0290.75
Pseudo-second-order334.443570.00280.99
Table 2. A comparative analysis of the performance of ODS processes containing various catalysts and supports.
Table 2. A comparative analysis of the performance of ODS processes containing various catalysts and supports.
CatalystsOxidant UsedSubstrate TempTimeDesulfurization (%)Ref.
Polyoxometalate K6 [α-P2W18O62]·14H2O and K6P2W18O62/GOOctanal/airDBT, BT and 4,6-DMDBT60 °C-96.10[60]
HPW-GOH2O2DBT, BT and 4,6-DMDBT60 °C30 min100%[34]
MPc/RGOO2DBT60 °C180 min97.5%[61]
CuW/TiO2–GOH2O2Gasoline oil40 °C1 h100%[62]
SBA-15-supported peroxophospho-tungstate catalystsH2O2DBT, Gasoline70 °C2 h98%, 89%[63]
GO/COOHH2O2/HCOOHDBT25 °C300 min95%[64]
Molybdenum anchored/MOFTBHPDBT, diesel fuels70 °C14.4 h−185%, 74%[65]
Methyltrioxorhenium in ionic liquidH2O2Thiophene, gasoline60 °C2 h99%, 91%[66]
Activated carbonH2O2/HCOOH,DBT, diesel fuels60 °C1 h98%[67]
K6P2W18O62/GO,Air/n-octanolDBT60 °C2 h92.99%[60]
MnO2/MrGOH2O2/HCOOHDBT Real oil samples40 °C15 min80%Current study
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Ahmad, W.; Ur Rahman, A.; Ahmad, I.; Yaseen, M.; Mohamed Jan, B.; Stylianakis, M.M.; Kenanakis, G.; Ikram, R. Oxidative Desulfurization of Petroleum Distillate Fractions Using Manganese Dioxide Supported on Magnetic Reduced Graphene Oxide as Catalyst. Nanomaterials 2021, 11, 203. https://doi.org/10.3390/nano11010203

AMA Style

Ahmad W, Ur Rahman A, Ahmad I, Yaseen M, Mohamed Jan B, Stylianakis MM, Kenanakis G, Ikram R. Oxidative Desulfurization of Petroleum Distillate Fractions Using Manganese Dioxide Supported on Magnetic Reduced Graphene Oxide as Catalyst. Nanomaterials. 2021; 11(1):203. https://doi.org/10.3390/nano11010203

Chicago/Turabian Style

Ahmad, Waqas, Atiq Ur Rahman, Imtiaz Ahmad, Muhammad Yaseen, Badrul Mohamed Jan, Minas M. Stylianakis, George Kenanakis, and Rabia Ikram. 2021. "Oxidative Desulfurization of Petroleum Distillate Fractions Using Manganese Dioxide Supported on Magnetic Reduced Graphene Oxide as Catalyst" Nanomaterials 11, no. 1: 203. https://doi.org/10.3390/nano11010203

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
