Silica-Coated Magnetic Iron Oxide Nanoparticles Grafted onto Graphene Oxide for Protein Isolation

1
Department of Bioscience and Biotechnology, Konkuk University, Seoul 05029, Korea
2
Laboratory of Biofuel and Biomass Research, VNU-HCMU University of Technology, 268 Ly Thuong Kiet street, district 10, Ho Chi Minh 700000, Vietnam
*
Author to whom correspondence should be addressed.
Nanomaterials 2020, 10(1), 117; https://doi.org/10.3390/nano10010117
Received: 28 November 2019 / Revised: 4 January 2020 / Accepted: 6 January 2020 / Published: 8 January 2020
(This article belongs to the Special Issue Nano-Hybrids: Synthesis, Characterization and Applications)

Abstract

:
In this study, silica-coated magnetic iron oxide nanoparticles ([email protected]2) were covalently conjugated onto graphene oxide (GO/[email protected]2) for protein isolation. First, MNPs were precisely coated with a silica layer on the surface by using the reverse microemulsion method, followed by incubation with 3-glycidyloxypropyltrimethoxysilane (GPTS) to produce the GPTS-functionalized [email protected]2 (GPTS-coated [email protected]2) that display epoxy groups on the surface. The silica shell on the MNPs was optimized at 300 µL of Igepal®CO-520, 5 mg of MNP, 100 µL of TEOS, 100 µL of NH4OH and 3% of 3-glycidyloxypropyltrimethoxysilane (GPTS). Simultaneously, polyethyleneimine (PEI) was covalently conjugated to GO to enhance the stability of GO in aqueous solutions and create the reaction sites with epoxy groups on the surface of GPTS-coated [email protected]2. The ratio of PEI grafted GO and GPTS-coated [email protected]2 (GO/MNP ratio) was investigated to produce GO/[email protected]2 with highly saturated magnetization without aggregation. As a result, the GO/MNP ratio of 5 was the best condition to produce the GO/[email protected]2 with 9.53 emu/g of saturation superparamagnetization at a magnetic field of 2.0 (T). Finally, the GO/[email protected]2 were used to separate bovine serum albumin (BSA) to investigate its protein isolation ability. The quantity of BSA adsorbed onto 1 mg of GO/[email protected]2 increased sharply over time to reach 628 ± 9.3 µg/mg after 15 min, which was 3.5-fold-higher than that of GPTS-coated [email protected]2. This result suggests that the GO/[email protected]2 nanostructure can be used for protein isolation.

1. Introduction

Graphene oxide (GO) has attracted significant attention in recent decades due to its attractive properties, such as its large surface area, high electron transport capability, elasticity, thermal conductivity, mechanical strength, and tunable optical properties [1]. As a result, graphene oxide is utilized in many applications, such as catalysis [2], sensing [3], energy [4], drug delivery [5], and biomedical applications—deep brain stimulators [6], blood glucose sensors [7], tissue engineering [8,9], gene therapy [10], cell imaging [11], cancer therapies [12], and to differentiate and image stem cells [13]. However, the separation of GO from solution is a time-consuming and complicated process [14].
Magnetic iron oxide nanoparticles (MNPs) with diameters of 20 nm or less are superparamagnetic [15] and have been attracted due to their superparamagnetism, high field irreversibility, high saturation field, extra anisotropy contributions or shifted loops after field cooling non-toxicity and biocompatibility [16,17]. As a result, the MNP was applied in various biomedical applications such as drug delivery [18,19], chemotherapy [17] and bioimaging [15]. There are several routes for chemical synthesis of superparamagnetic MNP: co-precipitation, microemulsion, sonochemical, hydrothermal and so on [17]. Among these methods, the synthesis of MNP by coprecipitation is facile and can be easily scaled up. However, the size of MNP is widely distributed and agglomerated because of Oswald ripening [17]. The MNP synthesized by microemulsion (water-in-oil) is formed inside of water droplets and can be well controlled in size by controlling the size of these water droplets in microemulsion system. However, these NPs may not be useful for drug delivery purposes [17]. In addition, the synthesis of MNP by sonochemical was limited by large-scale synthesis [17]. The hydrothermal method is reported to produce MNPs of uniform sizes and can easily be scaled up [17]. However, the magnetic force of each single MNP is too weak under the externally applied magnetic field and limiting their practical application [15,17,20,21].
Recently, the combination of GO with nanoparticles, forming graphene–nanoparticle hybrid structures, has been shown to offer many additional unique physicochemical properties that are markedly advantageous for applications, such as supercapacitors, electrode materials, drug carriers, and bioimaging [22]. Among these graphene-nanoparticle hybrid materials, MNP-decorated GO nanocomposites (GO-MNP) have been synthesized by several groups for removing hazard materials [23,24,25], sensing/biosensing [26,27,28,29,30], enrichment and adsorption of peptide or protein [31,32], sample manipulation for bio-separation [30,33], bioimaging [34] and drug delivery [35,36] applications. GO-MNP nanocomposites are formed through in situ reduction of iron salt precursors [37,38] or assembly of the MNPs on the GO surface [39,40]. The former approach, however, is challenging, as there is minimal control over the size, size distribution, and location of MNPs on the GO sheets. The latter approach enables well-controlled size, size distribution, morphology, and controlled decoration ratio on the edge of the GO sheets [40]. Ye et al. prepared GO/MNP nanocomposite by simply drop-wise adding MNP into GO solution through electrostatic interaction [31]. The covalent conjugation of MNP and GO were reported for preparing GO/MNP using “click” chemistry by Zhang et al. [23]. The surface modification of MNP was; however, complicated. In addition, Zhang et al. covalently bound MNPs to a reduced GO sheet by modifying the MNP with hydrophilic 2,3-dimercaptosuccinnic acid (DMSA), followed by assembly onto GO-grafted PEI sheets [40]. However, the mechanism of DMSA adsorption onto the MNP remains unclear. In addition, the GO-MNP composites agglomerated, resulting in gradual precipitation from their aqueous suspension [35].
Recently, silica-coated magnetic iron oxide MNPs ([email protected]2) have been successfully developed and used in biomedical applications, such as macromolecular separation [41]. The silica layer not only improves the stability in aqueous solution, but also facilitates surface modification with different functional groups [42,43]. [email protected]2 can be prepared by several methods, such as Stöber [44] or reverse microemulsion [45]. However, the magnetic properties of individual [email protected]2 are weak due to an excess of amorphous silica that lowers the individual magnetic force, thereby limiting their practical application [20,21]. To overcome the weak magnetic force of [email protected]2 and the difficult separation of GO, we develop a new nanomaterial by conjugating [email protected]2 to GO platform by covalent bonding in this study. A reverse microemulsion method was used to control the silica coating on the MNPs to produce [email protected]2 with highly saturated magnetization. [email protected]2 were covalently bound to GO to form the MNP functionalized GO. The presence of GO as a platform for conjugating to [email protected]2 facilitates the isolation and separation of biomaterial from solution. In this process, PEI was first covalently conjugated to GO to enhance the stability of GO in aqueous solutions. MNPs were precisely coated with a silica layer on the surface, followed by incubation with 3-glycidyloxypropyltrimethoxysilane (GPTS) to produce the GPTS-functionalized [email protected]2 (GPTS-coated [email protected]2) that display epoxy groups on the surface. GPTS-coated [email protected]2 were conjugated onto the surface of PEI grafted GO to produce GO/[email protected]2 with highly saturated magnetization. Finally, the GO/[email protected]2 were used to separate bovine serum albumin (BSA) to investigate its protein isolation ability.

2. Materials and Methods

2.1. Chemicals and Materials

Graphene oxide (GO) was purchased from Graphene Laboratory Inc. (Ronkonkoma, NY, USA). Cyclohexane, Igepal®CO-520 (Igepal, Mn = 441), branched polyethyleneimine (PEI, 25k), N-Hydroxysuccinimide (NHS), N-(3-Dimethylaminopropyl)-N′-ethyl carbodiimide hydrochloride (EDC), tetraethyl orthosilicate (TEOS), 3-Glycidyloxypropyltrimethoxysilane (GPTS), ethyl alcohol (EtOH), bovine serum albumin (BSA) and phosphate buffer saline (PBS) were purchased from Sigma-Aldrich (St. Louis, MO, USA) and used without further purification. Fe3O4 nanoparticles (MNP) with superparamagnetic property were purchased from Ocean Nanotech (San Diego, CA, USA). Aqueous ammonium hydroxide (NH4OH, 27%) was purchased from Daejung (Siheung, Korea). DI water was purified using a Direct-Q Millipore water purification system (Sam Woo S&T Co., Ltd., Seongnam, Gyeonggi-do, Korea.)

2.2. Characterization

Transmission electron microscope (TEM) images of the sample were taken using a Libra 120 field-emission transmission electron microscope (Carl Zeiss, German) with a maximum accelerated voltage of 120 kV. Optical properties of our materials were observed by an Optizen POP UV/Vis Spectrometer (Mecasys, Seoul, Korea). Magnetic measurement was carried out using a PPMS-9 vibrating sample magnetometer (Quantum Design, San Diego, CA, USA) at room temperature. Attenuated total reflection-Fourier transform infrared spectra of our materials was recorded on a NicoletTM iSTM 50 Fourier transform infrared spectroscopy (FTIR) Spectrometer (Thermo Fisher, Waltham, MA, USA).

2.3. Optimized Preparation of Silica-Coated Magnetic Fe3O4 Nanoparticles

2.3.1. Effect of Igepal®CO-520 Volume on Silica-Coated Magnetic Fe3O4 Nanoparticles

MNPs were coated with silica by the reverse microemulsion method. Various volumes of Igepal®CO-520 (0.1 to 5 mL) were added into 11 mL cyclohexane and sonicated for 10 min. Subsequently, 5 mg of MNPs in chloroform was added to the solution and mixed for several minutes to disperse the MNPs into the Igepal®CO-520 solution. Next, NH4OH (100 µL) and TEOS (100 µL) were added drop-wise, and the mixture was incubated for 16 h at 25 ℃. Next, the mixture was precipitated by adding 20 mL EtOH and centrifuged at 8500 rpm for 30 min. The precipitate was washed five times with EtOH. Finally, the [email protected]2 were re-dispersed into EtOH to obtain a 1 mg/mL [email protected]2 solution.

2.3.2. Effect of Quantity of MNPs on Silica-Coated Magnetic Fe3O4 Nanoparticles

A volume of 0.3 mL of Igepal®CO-520 was added into 11 mL cyclohexane and sonicated for 10 min. Subsequently, various quantities of MNPs in chloroform (1, 3, 5, 7 and 10 mg) were added to the solution and mixed for several minutes to disperse the MNPs into the Igepal®CO-520 solution. Next, NH4OH (100 µL) and TEOS (100 µL) were added drop-wise, and the mixture was incubated for 16 h at 25 ℃. Next, the mixture was precipitated by adding 20 mL EtOH and centrifuged at 8500 rpm for 30 min. The precipitate was washed five times with EtOH. Finally, the [email protected]2 were re-dispersed into EtOH to obtain a 1 mg/mL [email protected]2 solution.

2.3.3. Effect of TEOS Volume on Silica-Coated Magnetic Fe3O4 Nanoparticles

A volume of 0.3 mL of Igepal®CO-520 was added into 11 mL cyclohexane and sonicated for 10 min. Subsequently, 5 mg of MNPs in chloroform was added to the solution and mixed for several min to disperse the MNPs into the Igepal®CO-520 solution. Next, NH4OH (100 µL) and various volumes of TEOS (10, 50, 100, 150 and 200 µL) were added drop-wise, and the mixture was incubated for 16 h at 25 °C. Next, the mixture was precipitated by adding 20 mL EtOH and centrifuged at 8500 rpm for 30 min. The precipitate was washed five times with EtOH. Finally, the [email protected]2 were re-dispersed into EtOH to obtain a 1 mg/mL [email protected]2 solution.

2.3.4. Effect of GPTS Concentration on Silica-Coated Magnetic Fe3O4 Nanoparticles

[email protected]2 were re-dispersed into dimethylfuran (DMF) to obtain a 1 mg/mL [email protected]2 solution. Epoxy groups were introduced onto the surface of [email protected]2 by incubating with various concentrations of GPTS (1, 2, 3, 5%) in DMF for 1 h. GPTS-coated [email protected]2 were collected by centrifuging at 15,000 rpm for 30 min, washed several times, and dispersed into DMF to obtain a 5 mg/mL GPTS-coated [email protected]2 solution.

2.4. Preparation of Graphene Oxide Grafted with Polyethyleneimine (PEI grafted GO)

GO (2.5 mg in 0.5 mL H2O) was added to a PEI solution (400 µg PEI in 9.5 mL H2O) to obtain a final concentration of 40 µg/mL of PEI. The mixture was sonicated for 30 min and incubated at 60 °C for 12 h. Then, the mixture was centrifuged at 17,000 rpm for 1 h, and the precipitate was washed five times with PBS solution to remove the unbound PEI. PEI-adsorbed to GO was re-dispersed in a 0.5 mL PBS.
EDC (20 mg) and NHS (14 mg) in 0.5 mL PBS were added into the PEI-adsorbed GO solution to activate the carboxyl groups for 1 h. PEI (20 mg) was added to the mixture. The mixture was incubated for 2 h at room temperature to conjugate PEI onto the GO surface. An ethanolamine solution (100 µL, 1 M) was added to the mixture and incubated for 1 h to block the unreacted carboxyl groups. PEI grafted GO was collected by centrifugation at 17,000 rpm for 30 min and re-dispersed in 5 mL PBS.

2.5. Preparation of Silica-Coated Magnetic Nanoparticles Grafted onto Graphene Oxide (GO/[email protected])

GPTS-coated [email protected]2 solution (250 µg) was added to the PEI-grafted GO solution (250 to 2500 µg) and vigorously mixed for 2 h at 25 °C. An ethanolamine solution (100 µL, 1.0 M) was added to the mixture and incubated for 1 h to block the unreacted epoxy groups. GO/[email protected]2 was collected by centrifugation 3 times at 8500 rpm for 15 min, followed by applying a magnetic force for 5 min and washing 5 times with PBS.

2.6. BSA Isolation by GO/[email protected]2

BSA was adsorbed into GO/[email protected]2 by incubation. Briefly, 1 mg of GO/[email protected]2 in PBS was incubated with 1% BSA in PBS buffer (100 µL) for 2 h. BSA adsorbed GO/[email protected]2 was collected by applying a magnetic separator. The BSA adsorbed GO/[email protected]2 was washed several times with PBS, and the supernatant was collected and diluted to 50 mL. The concentration of BSA in supernatant was determined by UV–Vis spectroscopy at 280 nm. Similarly, [email protected]2-GPTS was used as a control sample for BSA isolation.

3. Results and Discussion

Superparamagnetic MNPs (~20 nm) were coated with a silica layer using the reverse microemulsion method. The surface of [email protected]2 was modified with epoxy groups by incubating them with GPTS ([email protected] SiO2-GPTS). Simultaneously, PEI was first adsorbed on the GO surface for 24 h at 60 °C, and stabilized the GO surface so that GO can be well dispersed in an aqueous solution (PEI adsorbed GO). Subsequently, the COOH groups of the GO surface were coupled with the NH2 groups of PEI using EDC/NHS (PEI grafted GO). Finally, GPTS-coated [email protected]O2 were conjugated to the surface of PEI grafted GO by coupling the PEI NH2 groups with the epoxy groups on the surface of GPTS-coated [email protected]2, producing GO/[email protected]2 nanocomposites (Figure 1).

3.1. Optimized Preparation of Silica-Coated Magnetic Nanoparticles ([email protected]2)

The coating of the silica layer on the MNP surface via the reverse microemulsion method was optimized by varying experimental parameters such as Igepal CO-520 and TEOS volumes, as well as the number density of MNPs.

3.1.1. Effect of Igepal®CO-520 Volume on Silica-Coated Magnetic Fe3O4 Nanoparticles

In this study, the average diameter of superparamagnetic MNPs is 20.6 ± 1.0 nm (n = 20) as determined by ImageJ software analysis on TEM images (Figure 2a(i)). Figure 2a(ii–viii) shows TEM images of [email protected]2 synthesized with varying Igepal®CO-520 volumes (100 to 5000 µL). At a low surfactant volume (100 µL), aggregated core-free silica nanoparticles and superparamagnetic [email protected]2 were formed in Figure 2a(ii). According to the previous report, Igepal®CO-520 self-assembles into micelles in cyclohexane due to its hydrophilic groups (Figure S1). The oleic acid that adsorbed on the surface of superparamagnetic MNP during synthesis was exchanged to Igepal®CO-520 in the cyclohexane [46]. Therefore, at low volume Igepal®CO-520 cannot self-assemble into micelles for [email protected]2 formation. At volume that concentration is higher than the surfactant CMC (200 to 500 µL), superparamagnetic [email protected]2 were well obtained with diameters of 30.2 ± 1.7, 37.7 ± 1.4, 37.4 ± 1.5, and 32.1 ± 1.8 nm with 200, 300, 400, and 500 µL of surfactant, respectively (Figure 2b). However, Igepal®CO-520 micelles could fuse at extremely high volumes (>2500 µL) [47], resulting in aggregated [email protected]2 and core-free silica nanoparticles (bare SiO2 NPs). As a result, 300 µL of Igepal®CO-520 was applied for further study.

3.1.2. Effect of Quantity of MNPs on Silica-Coated Magnetic Fe3O4 Nanoparticles

To obtain superparamagnetic [email protected]2 without the presence of bare SiO2 NPs, the ratio of MNP and micelle number density is a critical parameter. Varying the MNP quantity (1 to 10 mg) revealed that bare SiO2 NPs were produced with 1 mg of MNPs (Figure 3). The diameter of [email protected]2 when 1 mg of MNP was used equaled 46.3 ± 1.1 nm, which is larger than the diameter of 37.7 ± 1.4 nm when 5 mg of MNP was used. This result indicates that the silica layer of MNPs is thicker and TEOS was excess in solution at 1 mg of MNP than at 5 mg of MNP. Along with the disappearance of the bare SiO2 NPs, the diameter of [email protected]2 decreased with increasing quantity of MNP (Figure 3c). However, at high quantity of MNP at 7 mg or 10 mg, the TEOS in solution was not enough to produce the silica layer on the surface of all MNPs. [email protected]2 was became irregular shape (Figure 3a). Therefore, 5 mg of MNPs was chosen for further study.

3.1.3. Effect of TEOS Volume on Silica-Coated Magnetic Fe3O4 Nanoparticles

The volume of TEOS precursor is an important factor that affected on the thickness of silica shell of superparamagnetic MNP and the formation of bare SiO2 NP formation in the solution [46,48]. When TEOS is then added to the mixture, it converts to hydrolyzed TEOS adsorbed onto the superparamagnetic MNP surface, which results in transfer of the superparamagnetic MNPs into the water phase [46]. Finally, the hydrolyzed TEOS on the superparamagnetic MNP surface undergoes a condensation reaction to form the silica shell [46]. As the TEOS content increased from 10 to 100 μL, the diameter of [email protected]2 and thickness of silica shell on the surface of MNP increased. It reached a plateau at 100 µL of TEOS in Figure 4. The silica layer was negligible at 10 µL, while the silica layer was not uniform at 50 µL of TEOS. The [email protected]2 with uniform thickness of silica layer on the surface was obtained at 100 µL of TEOS. The [email protected]2 diameter increased to 24.2 ± 2.0, 31.1 ± 2.3, and 37.7 ± 1.4 nm with 10, 50, and 100 µL of TEOS, respectively (Figure 4b). Increasing the volume of TEOS further caused the formation of bare SiO2 NPs, while the diameter of [email protected]2 was insignificantly different (Figure 4b,c). So, 100 µL of TEOS was chosen for further study.

3.1.4. Effect of GPTS Concentration on Silica-Coated Magnetic Fe3O4 Nanoparticles

To conjugate the [email protected]2 onto the GO-grafted PEI, superparamagnetic [email protected]2 must be modified with GPTS to create GPTS-coated [email protected]2 that displayed epoxy groups on the surface, enabling conjugation with the –NH2 groups of PEIs. The superparamagnetic [email protected]2 were incubated in a toluene solution containing 1 to 3% GPTS for 1 h. The diameter remained unchanged and no bare SiO2 was obtained after GPTS treatment (Figure S2). So, 3% GPTS was chosen for further study.

3.2. Preparation of Graphene Oxide Grafted Polyethyleneimine (GO-grafted PEI)

GO is utilized as a platform structure for conjugating to GPTS-coated [email protected]2 in our study. However, GO was easily aggregated in aqueous solution. Therefore, GO was dispersed in solutions of PEI in our study to improve it stability aqueous solution [49,50,51]. GO was incubated with PEI to enables dispersion of GO in aqueous solutions due to its intrinsic hydrophilicity [52]. Therefore, two sizes of branched PEI (molecular weights of 600 (PEI 600), and 25,000 (PEI 25k) were investigated for GO grafting. In Figure S3, GO was dispersed well in PEI 25k but aggregated in PEI 600, as seen in the optical images. This suggests that the low molecular weight of PEI 600 cannot stabilize and dispersed GO in aqueous solutions. TEM images and the absorbance spectra of PEI 25k grafted GO are shown in Figure S3. PEI grafted GO displays a smoother and flatter surface than bare GO. The absorbance spectra of PEI grafted GO shows a significant increase in absorbance intensity in the UV region (Figure S3), indicating the presence of PEI on the surface of GO.
To increase the linking chain position on the surface, GO was first conjugated with PEI to modify the GO surface with –NH2 groups due to its excellent cationic polymer [53,54,55]. To confirm that PEI 25k is covalently bound to GO, we used attenuated total reflection-Fourier transform infrared spectroscopy (ATR-FTIR) to characterize the functional groups of PEI grafted GO. FTIR spectra of GO, and PEI 25k grafted GO, are shown in Figure S3. The presence of various oxygen functionalities is present in the GO sample. A broadband and high absorbance intensity from 3000–3700 cm−1 was assigned to the stretching of the hydroxyl group (–OH) [56]. Narrow intense peaks at 1715 cm−1 and 1621 cm−1 represent characteristic stretching of –COO groups and C=C vibration of aromatic chains on the GO surface. GO also showed peaks at 1352, 1216, 1036, and 974 cm−1 representing the carboxyl/carbonyl, epoxy, and alkoxy groups, respectively [14,56,57,58].
In contrast, PEI grafted GO exhibited additional peaks at 3100, 2928, and 2821 cm−1, which are attributed to the stretching of amide B and stretching and bending of –CH2 from PEI. In addition, the disappearance of the 1715 cm−1 peak and occurrence of new peaks at 1640 cm−1 (Amide I) and 1544 cm−1 (Amide II) indicate that the carboxyl groups reacted with the primary amine groups to generate the amide bonds. This result indicates that the conjugation of PEI to the GO surface was successful.

3.3. Conjugation of Silica-Coated Magnetic Nanoparticles on Graphene Oxide Grafted Polyethyleneimine

PEI grafted GO was reacted with GPTS-coated [email protected]2 by incubating 250 µg of GPTS-coated [email protected]2 with PEI grafted GO (250 to 2500 µg) at weight-to-weight ratios (GO/MNP) of 2:1, 3:1, 4:1, 5:1, 6:1, 8:1, and 10:1 (Figure 5a and Figure S4). At a low GO/MNP ratio, GPTS-coated [email protected]2 were aggregated on the GO surface and precipitated. At the highest GO/MNP ratio (10:1), the density of MNPs on the GO surface was too low to impart magnetic properties. Overall, the surface density of GPTS-coated [email protected]2 decreased with increasing GO content. Therefore, a GO/MNP ratio of 5:1 was chosen for subsequent studies.
The conjugation of GPTS-coated [email protected]2 onto PEI-grafted GO was confirmed by determining the functional groups with ATR-FTIR (Figure 5b). The GPTS-coated [email protected]2 showed a typical spectrum with peaks at 949 cm−1 and 1053 cm−1 that are attributed to the oxirane group from the GPTS and Si-O from the silica [59]. The intensity ratio of peaks at 949 to 1053 cm−1 is 1.67. When GPTS-coated [email protected]2 were conjugated to PEI grafted GO, the peak ratio between 949 to 1053 cm−1 decreased to 1.05. This result indicates that the oxirane peak of GPTS-coated [email protected]2 reacted with the primary amine groups of PEI. The optical properties of GO/[email protected]2 nanomaterial was showed in Figure 5c. The UV–Vis spectra of GO/[email protected]2 showed the combination properties of both GPTS-coated [email protected]2 with the strong absorbance at ~210, 250 and 350 nm and PEI grafted GO at 280 nm. Therefore, GPTS-coated [email protected]2 were successfully conjugated onto the PEI-grafted GO to generate the GO/[email protected]2.

3.4. The Magnetization and Protein Isolation of Silica-Coated Magnetic Nanoparticles on Graphene Oxide Grafted Polyethyleneimine

The magnetic property of the GO/[email protected]2 was investigated by using a PPMS-9 vibrating sample magnetometer. The saturation magnetization of the GO/[email protected]2 was determined to be 9.53 emu/g at magnetic field of 2.0 (T), which is higher than the magnetization of MNPs in previous reports [40,60] (Figure 6a). The magnetization as the function of applied field showed a reversible S-shape and no remnant magnetization is obtained, indicating a superparamagnetic behavior of the GO/[email protected]2. The magnetic property of the GO/[email protected]2 was dramatically improved compared to that of MNP in the inset of Figure 6a. After applying of magnet for 5 min, the GO/[email protected]2 was easily collected, while the [email protected]2 still dispersed in aqueous solution. It indicated that the presence of GO as the platform for conjugating the [email protected]2 facility the collection of MNP.
For application, GO has been shown to be a suitable platform for protein and nucleic acid adsorption [14,61]. However, the separation of GO from solution is a time-consuming and complicated process [14]. As mentioned above, the [email protected]2 was easily collected when conjugated on the surface of GO in our study, Therefore, we used the GO/[email protected]2 nanocomposites with superparamagnetic property as an isolation material to investigate the isolation of protein in solution. BSA is used as a model protein to investigate the isolation ability of the GO/[email protected]2 nanocomposites. The GPTS-coated [email protected]2 was utilized as a control material in our study. As shown in Figure S5, BSA solution exhibited an absorbance peak at 280 nm because of its protein property. This peak was linearly proportional to the BSA concentration in the range of 0 to 100 µM (Figure 6b). The quantity of BSA that adsorbed onto the nanomaterials in our study was observed according to the incubation time. According to the previous report, GO is an amphiphile with both hydrophilic edges and hydrophobic basal plane [62]. The π–π stacking interaction between tyrosine or tryptophan residues of BSA and hydrophobic basal plane have an important role for BSA absorbed on GO/[email protected]2 [62]. Indeed, BSA adsorbed on 1 mg of GO/[email protected]2 and GPTS-coated [email protected]2 initially increased sharply and achieved a maximum value in Figure 6b. The capability of adsorbed BSA per mg of GO/[email protected]2 was 628 ± 9.3 µg/mg after 15 min incubation, adsorbing 65%–69% of the BSA from solution (Figure 6b). The BSA adsorption capability of GPTS-coated [email protected]2 was 178 ± 154 µg/mg, which was 3.5-fold less than that of the GO/[email protected]2. This result indicates that BSA can be easily adsorbed onto the GO/[email protected]2 nanocomposite and collected due to the presence of GO as a platform and MNP as a magnetic separator material. In our previous report, we used graphene oxide conjugated magnetic beads to extract total RNA and miRNA from non-small cell lung cancer cells [14]. Therefore, we believed that it is also possible to isolate RNA and miRNA from a matrix containing sugars, DNA and other biomolecules by using GO/[email protected]2 nanomaterial. In conclusion, this result suggests that the GO/[email protected]2 nanostructure can be used for protein and nucleic isolation.

4. Conclusions

The silica-coated magnetic iron oxide nanoparticles conjugated to graphene oxide for protein separation were successfully prepared. The silica shell on the superparamagnetic MNPs was optimized by adjusting experimental conditions (300 µL of Igepal®CO-520, 5 mg of MNP, 100 µL of TEOS, and 100 µL of NH4OH in cyclohexane) to produce [email protected]2 with highly saturated magnetization. [email protected]2 were incubated with GPTS to produce GPTS-coated [email protected]2 with surface functionalized epoxy groups. GO was incubated and covalently conjugated with PEI to enhance the stability of GO in aqueous solution and introduce reactive functional groups. GPTS-coated [email protected]2 were conjugated onto the surface of GO-grafted PEI at a GO/MNP ratio of 5. The saturation superparamagnetization value of the GO/[email protected]2 nanocomposite was 9.53 emu/g at a magnetic field of 2.0 (T). The GO/[email protected]2 nanocomposite was used to separate BSA from solution. The quantity of BSA adsorbed onto 1 mg of GO/[email protected]2 increased sharply and achieved a maximum value of 65%–69% after 15 min. This result suggests that the preparation method for GO/[email protected]2 can be used to fabricate nanocomposites for protein isolation.

Supplementary Materials

The following are available online at https://www.mdpi.com/2079-4991/10/1/117/s1. Figure S1. Molecular structure of Igepal®CO-520. Figure S2. Effects of GPTS concentration on the silica coating of the magnetic nanoparticles. (a) TEM images, (b) particle size and (c) silica shell thickness of [email protected]2 synthesized at different GPTS concentrations: (i) 0%, (ii) 1%, (iii) 2%, (iv) 3%, and (v) 5% in the presence of 0.3 mL of Igepal®CO-520, 5 mg of MNP, 100 µL of TEOS and 100 µL of NH4OH. Figure S3. (a) Optical images of GO incubated with PEI 600, PEI 25k. (b) TEM images, (c) UV–Vis absorbance and (d) ATR-FTIR of (i) GO and (ii) PEI 25k-grafted GO. Figure S4. Absorbance spectra of GO/[email protected]2 with various ratios of PEI-grafted GO and GPTS-coated [email protected]2, (i) 2:1, (ii) 3:1, (iii) 4:1, (iv) 5:1, (v) 6:1, (vi) 8:1 and (vii) 10:1. Figure S5. (a) Absorbance spectra and (b) calibration curves of BSA protein at different concentrations.

Author Contributions

X.-H.P. and B.-H.J. conceived and designed the experiments. X.-H.P., E.H., H.-M.K., J.A. and A.J. performed the experiments. X.-H.P., and E.H. analyzed the data. T.A.T.T. and D.Q.N. contributed reagents/materials/analysis tools. X.-H.P., B.S.S. and B.-H.J. wrote the paper. B.-H.J. supervised. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the KU Research Professor Program of Konkuk University and funded by Science, ICT & Future Planning (NRF 2016M3A9B6918892), and Ministry of Science and ICT (NRF-2019R1G1A1006488).

Acknowledgments

The authors are grateful for the financial support from the NRF of Korea. Further, the author thanks the financial support by Konkuk University.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Ghosal, K.; Sarkar, K. Biomedical applications of graphene nanomaterials and beyond. ACS Biomater. Sci. Eng. 2018, 4, 2653–2703. [Google Scholar] [CrossRef]
  2. Lu, Y.-H.; Zhou, M.; Zhang, C.; Feng, Y.-P. Metal-embedded graphene: A possible catalyst with high activity. J. Phys. Chem. C 2009, 113, 20156–20160. [Google Scholar] [CrossRef]
  3. Wang, B.; Chang, Y.-H.; Zhi, L.-J. High yield production of graphene and its improved property in detecting heavy metal ions. New Carbon Mater. 2011, 26, 31–35. [Google Scholar] [CrossRef]
  4. Zhao, X.; Hayner, C.M.; Kung, M.C.; Kung, H.H. Flexible holey graphene paper electrodes with enhanced rate capability for energy storage applications. ACS Nano 2011, 5, 8739–8749. [Google Scholar] [CrossRef] [PubMed]
  5. Liu, K.; Zhang, J.-J.; Cheng, F.-F.; Zheng, T.-T.; Wang, C.; Zhu, J.-J. Green and facile synthesis of highly biocompatible graphene nanosheets and its application for cellular imaging and drug delivery. J. Mater. Chem. 2011, 21, 12034–12040. [Google Scholar] [CrossRef]
  6. Lu, Y.; Lyu, H.; Richardson, A.G.; Lucas, T.H.; Kuzum, D. Flexible neural electrode array based-on porous graphene for cortical microstimulation and sensing. Sci. Rep. 2016, 6, 33526. [Google Scholar] [CrossRef]
  7. Wang, J. Electrochemical glucose biosensors. Chem. Rev. 2008, 108, 814–825. [Google Scholar] [CrossRef]
  8. Sayyar, S.; Murray, E.; Thompson, B.C.; Gambhir, S.; Officer, D.L.; Wallace, G.G. Covalently linked biocompatible graphene/polycaprolactone composites for tissue engineering. Carbon 2013, 52, 296–304. [Google Scholar] [CrossRef][Green Version]
  9. Kumar, S.; Raj, S.; Sarkar, K.; Chatterjee, K. Engineering a multi-biofunctional composite using poly(ethylenimine) decorated graphene oxide for bone tissue regeneration. Nanoscale 2016, 8, 6820–6836. [Google Scholar] [CrossRef]
  10. Sarkar, K.; Madras, G.; Chatterjee, K. Dendron conjugation to graphene oxide using click chemistry for efficient gene delivery. RSC Adv. 2015, 5, 50196–50211. [Google Scholar] [CrossRef][Green Version]
  11. Sheng, Y.; Tang, X.; Peng, E.; Xue, J. Graphene oxide based fluorescent nanocomposites for cellular imaging. J. Mater. Chem. B 2013, 1, 512–521. [Google Scholar] [CrossRef]
  12. Zhang, L.; Xia, J.; Zhao, Q.; Liu, L.; Zhang, Z. Functional graphene oxide as a nanocarrier for controlled loading and targeted delivery of mixed anticancer drugs. Small 2010, 6, 537–544. [Google Scholar] [CrossRef]
  13. Lee, W.C.; Lim, C.H.Y.X.; Shi, H.; Tang, L.A.L.; Wang, Y.; Lim, C.T.; Loh, K.P. Origin of enhanced stem cell growth and differentiation on graphene and graphene oxide. ACS Nano 2011, 5, 7334–7341. [Google Scholar] [CrossRef]
  14. Pham, X.-H.; Baek, A.; Kim, T.H.; Lee, S.H.; Rho, W.-Y.; Chung, W.-J.; Kim, D.-E.; Jun, B.-H. Graphene oxide conjugated magnetic beads for RNA extraction. Chem. Asian J. 2017, 12, 1883–1888. [Google Scholar] [CrossRef] [PubMed]
  15. Dulińska-Litewka, J.; Łazarczyk, A.; Hałubiec, P.; Szafrański, O.; Karnas, K.; Karewicz, A. Superparamagnetic iron oxide nanoparticles—Current and prospective medical applications. Materials 2019, 12, 617. [Google Scholar] [CrossRef] [PubMed][Green Version]
  16. Kodama, R.H. Magnetic nanoparticles. J. Magn. Magn. Mater. 1999, 200, 359–372. [Google Scholar] [CrossRef]
  17. Mahmoudi, M.; Sant, S.; Wang, B.; Laurent, S.; Sen, T. Superparamagnetic iron oxide nanoparticles (SPIONs): Development, surface modification and applications in chemotherapy. Adv. Drug Deliv. Rev. 2011, 63, 24–46. [Google Scholar] [CrossRef][Green Version]
  18. Laurent, S.; Saei, A.A.; Behzadi, S.; Panahifar, A.; Mahmoudi, M. Superparamagnetic iron oxide nanoparticles for delivery of therapeutic agents: Opportunities and challenges. Expert Opin. Drug Deliv. 2014, 11, 1449–1470. [Google Scholar] [CrossRef]
  19. Wahajuddin, S.A. Superparamagnetic iron oxide nanoparticles: Magnetic nanoplatforms as drug carriers. Int. J. Nanomed. 2012, 7, 3445–3471. [Google Scholar] [CrossRef][Green Version]
  20. Yang, H.-H.; Zhang, S.-Q.; Chen, X.-L.; Zhuang, Z.-X.; Xu, J.-G.; Wang, X.-R. Magnetite-containing spherical silica nanoparticles for biocatalysis and bioseparations. Anal. Chem. 2004, 76, 1316–1321. [Google Scholar] [CrossRef]
  21. Im, S.H.; Herricks, T.; Lee, Y.T.; Xia, Y. ACS Biomaterials Science & Engineering Synthesis and characterization of monodisperse silica colloids loaded with superparamagnetic iron oxide nanoparticles. Chem. Phys. Lett. 2005, 401, 19–23. [Google Scholar] [CrossRef]
  22. Bai, S.; Shen, X. Graphene-inorganic nanocomposites. RSC Adv. 2012, 2, 64–98. [Google Scholar] [CrossRef]
  23. Zhang, W.; Shi, X.; Zhang, Y.; Gu, W.; Li, B.; Xian, Y. Synthesis of water-soluble magnetic graphene nanocomposites for recyclable removal of heavy metal ions. J. Mater. Chem. A 2013, 1, 1745–1753. [Google Scholar] [CrossRef]
  24. Zhu, J.; Wei, S.; Gu, H.; Rapole, S.B.; Wang, Q.; Luo, Z.; Haldolaarachchige, N.; Young, D.P.; Guo, Z. One-pot synthesis of magnetic graphene nanocomposites decorated with [email protected] nanoparticles for fast chromium removal. Environ. Sci. Technol. 2012, 46, 977–985. [Google Scholar] [CrossRef]
  25. Yao, Y.; Miao, S.; Liu, S.; Ma, L.P.; Sun, H.; Wang, S. Synthesis, characterization, and adsorption properties of magnetic Fe3O4@graphene nanocomposite. Chem. Eng. J. 2012, 184, 326–332. [Google Scholar] [CrossRef]
  26. Tang, D.; Tang, J.; Li, Q.; Su, B.; Chen, G. Ultrasensitive aptamer-based multiplexed electrochemical detection by coupling distinguishable signal tags with catalytic recycling of DNase I. Anal. Chem. 2011, 83, 7255–7259. [Google Scholar] [CrossRef]
  27. Lin, C.-W.; Wei, K.-C.; Liao, S.-S.; Huang, C.-Y.; Sun, C.-L.; Wu, P.-J.; Lu, Y.-J.; Yang, H.-W.; Ma, C.-C.M. A reusable magnetic graphene oxide-modified biosensor for vascular endothelial growth factor detection in cancer diagnosis. Biosens. Bioelectron. 2015, 67, 431–437. [Google Scholar] [CrossRef]
  28. Lin, Y.; Zhou, Q.; Li, J.; Shu, J.; Qiu, Z.; Lin, Y.; Tang, D. Magnetic graphene nanosheet-based microfluidic device for homogeneous real-time electronic monitoring of pyrophosphatase activity using enzymatic hydrolysate-induced release of copper ion. Anal. Chem. 2016, 88, 1030–1038. [Google Scholar] [CrossRef]
  29. Wang, J.; Li, J.; Yan, G.; Gao, M.; Zhang, X. Preparation of a thickness-controlled Mg-MOFs-based magnetic graphene composite as a novel hydrophilic matrix for the effective identification of the glycopeptide in the human urine. Nanoscale 2019, 11, 3701–3709. [Google Scholar] [CrossRef]
  30. Sharafeldin, M.; Bishop, G.W.; Bhakta, S.; El-Sawy, A.; Suib, S.L.; Rusling, J.F. Fe3O4 nanoparticles on graphene oxide sheets for isolation and ultrasensitive amperometric detection of cancer biomarker proteins. Biosens. Bioelectron. 2017, 91, 359–366. [Google Scholar] [CrossRef][Green Version]
  31. Ye, N.; Xie, Y.; Shi, P.; Gao, T.; Ma, J. Synthesis of magnetite/graphene oxide/chitosan composite and its application for protein adsorption. Mater. Sci. Eng. C 2014, 45, 8–14. [Google Scholar] [CrossRef] [PubMed]
  32. Yin, P.; Sun, N.; Deng, C.; Li, Y.; Zhang, X.; Yang, P. Facile preparation of magnetic graphene double-sided mesoporous composites for the selective enrichment and analysis of endogenous peptides. Proteomics 2013, 13, 2243–2250. [Google Scholar] [CrossRef] [PubMed]
  33. Yan, H.; Xu, Y.; Lu, Y.; Xing, W. Reduced graphene oxide-based solid-phase extraction for the enrichment and detection of microRNA. Anal. Chem. 2017, 89, 10137–10140. [Google Scholar] [CrossRef] [PubMed]
  34. Shi, X.; Gong, H.; Li, Y.; Wang, C.; Cheng, L.; Liu, Z. Graphene-based magnetic plasmonic nanocomposite for dual bioimaging and photothermal therapy. Biomaterials 2013, 34, 4786–4793. [Google Scholar] [CrossRef]
  35. Cong, H.-P.; He, J.-J.; Lu, Y.; Yu, S.-H. Water-soluble magnetic-functionalized reduced graphene oxide sheets: In situ synthesis and magnetic resonance imaging applications. Small 2010, 6, 169–173. [Google Scholar] [CrossRef]
  36. Yang, X.; Zhang, X.; Ma, Y.; Huang, Y.; Wang, Y.; Chen, Y. Superparamagnetic graphene oxide–Fe3O4nanoparticles hybrid for controlled targeted drug carriers. J. Mater. Chem. 2009, 19, 2710–2714. [Google Scholar] [CrossRef]
  37. Shen, J.; Hu, Y.; Shi, M.; Li, N.; Ma, H.; Ye, M. One step synthesis of graphene oxide-magnetic nanoparticle composite. J. Phys. Chem. C 2010, 114, 1498–1503. [Google Scholar] [CrossRef]
  38. Szabó, T.; Bakandritsos, A.; Tzitzios, V.; Devlin, E.; Petridis, D.; Dékány, I. Magnetically modified single and turbostratic stacked graphenes from Tris(2,2′-bipyridyl) Iron(II) Ion-Exchanged Graphite Oxide. J. Phys. Chem. B 2008, 112, 14461–14469. [Google Scholar] [CrossRef]
  39. He, F.; Fan, J.; Ma, D.; Zhang, L.; Leung, C.; Chan, H.L. The attachment of Fe3O4 nanoparticles to graphene oxide by covalent bonding. Carbon 2010, 48, 3139–3144. [Google Scholar] [CrossRef]
  40. Zhang, Y.; Chen, B.; Zhang, L.; Huang, J.; Chen, F.; Yang, Z.; Yao, J.; Zhang, Z. Controlled assembly of Fe3O4 magnetic nanoparticles on graphene oxide. Nanoscale 2011, 3, 1446–1450. [Google Scholar] [CrossRef]
  41. Borlido, L.; Azevedo, A.M.; Roque, A.C.A.; Aires-Barros, M.R. Magnetic separations in biotechnology. Biotechnol. Adv. 2013, 31, 1374–1385. [Google Scholar] [CrossRef] [PubMed]
  42. Deng, Y.-H.; Wang, C.-C.; Hu, J.-H.; Yang, W.-L.; Fu, S.-K. Investigation of formation of silica-coated magnetite nanoparticles via sol-gel approach. Colloid Surf. A Phys. Eng. Asp. 2005, 262, 87–93. [Google Scholar] [CrossRef]
  43. Morel, A.-L.; Nikitenko, S.I.; Gionnet, K.; Wattiaux, A.; Lai-Kee-Him, J.; Labrugere, C.; Chevalier, B.; Deleris, G.; Petibois, C.; Brisson, A.; et al. Sonochemical approach to the synthesis of Fe3O4@SiO2 core-shell nanoparticles with tunable properties. ACS Nano 2008, 2, 847–856. [Google Scholar] [CrossRef] [PubMed]
  44. Stöber, W.; Fink, A.; Bohn, E. Controlled growth of monodisperse silica spheres in the micron size range. J. Colloid Interface Sci. 1968, 26, 62–69. [Google Scholar] [CrossRef]
  45. Zhang, M.; Cushing, B.L.; O’Connor, C.J. Synthesis and characterization of monodisperse ultra-thin silica-coated magnetic nanoparticles. Nanotechnology 2008, 19, 085601. [Google Scholar] [CrossRef]
  46. Ding, H.L.; Zhang, Y.X.; Wang, S.; Xu, J.M.; Xu, S.C.; Li, G.H. Fe3O4@SiO2 Core/Shell nanoparticles: The silica coating regulations with a single core for different core sizes and shell thicknesses. Chem. Mater. 2012, 24, 4572–4580. [Google Scholar] [CrossRef]
  47. Ghosh, S.K.; Khatua, P.K.; Bhattacharya, S.C. Aggregation of non ionic surfactant igepal in aqueous solution: Fluorescence and light scattering studies. Int. J. Mol. Sci. 2003, 4, 562–571. [Google Scholar] [CrossRef][Green Version]
  48. Noval, V.E.; Carriazo, J.G. Fe3O4-TiO2 and Fe3O4-SiO2 core-shell powders synthesized from industrially processed magnetite (Fe3O4) microparticles. Mater. Res. 2019, 22, e20180660. [Google Scholar] [CrossRef][Green Version]
  49. Li, D.; Müller, M.B.; Gilje, S.; Kaner, R.B.; Wallace, G.G. Processable aqueous dispersions of graphene nanosheets. Nat. Nanotechnol. 2008, 3, 101. [Google Scholar] [CrossRef]
  50. Yang, S.-T.; Chang, Y.; Wang, H.; Liu, G.; Chen, S.; Wang, Y.; Liu, Y.; Cao, A. Folding/aggregation of graphene oxide and its application in Cu2+ removal. J. Colloid Interface Sci. 2010, 351, 122–127. [Google Scholar] [CrossRef]
  51. Deng, D.; Jiang, X.; Yang, L.; Hou, X.; Zheng, C. Organic solvent-free cloud point extraction-like methodology using aggregation of graphene oxide. Anal. Chem. 2014, 86, 758–765. [Google Scholar] [CrossRef] [PubMed]
  52. Geng, J.; Yin, Y.; Liang, Q.; Zhu, Z.; Luo, H. Polyethyleneimine cross-linked graphene oxide for removing hazardous hexavalent chromium: Adsorption performance and mechanism. Chem. Eng. J. 2019, 361, 1497–1510. [Google Scholar] [CrossRef]
  53. Chen, B.; Liu, M.; Zhang, L.; Huang, J.; Yao, J.; Zhang, Z. Polyethylenimine-functionalized graphene oxide as an efficient gene delivery vector. J. Mater. Chem. 2011, 21, 7736–7741. [Google Scholar] [CrossRef]
  54. Feng, L.; Zhang, S.; Liu, Z. Graphene based gene transfection. Nanoscale 2011, 3, 1252–1257. [Google Scholar] [CrossRef] [PubMed]
  55. Zhang, L.; Lu, Z.; Zhao, Q.; Huang, J.; Shen, H.; Zhang, Z. Enhanced chemotherapy efficacy by sequential delivery of siRNA and anticancer drugs using PEI-grafted graphene oxide. Small 2011, 7, 460–464. [Google Scholar] [CrossRef] [PubMed]
  56. Choi, E.-Y.; Han, T.H.; Hong, J.; Kim, J.E.; Lee, S.H.; Kim, H.W.; Kim, S.O. Noncovalent functionalization of graphene with end-functional polymers. J. Mater. Chem. 2010, 20, 1907–1912. [Google Scholar] [CrossRef]
  57. Ren, P.-G.; Yan, D.-X.; Ji, X.; Chen, T.; Li, Z.-M. Temperature dependence of graphene oxide reduced by hydrazine hydrate. Nanotechnology 2010, 22, 055705. [Google Scholar] [CrossRef]
  58. Xu, Y.; Bai, H.; Lu, G.; Li, C.; Shi, G. Flexible graphene films via the filtration of water-soluble noncovalent functionalized graphene sheets. J. Am. Chem. Soc. 2008, 130, 5856–5857. [Google Scholar] [CrossRef]
  59. Ma, S.; Liu, W.; Wei, Z.; Li, H. Mechanical and thermal properties and morphology of epoxy resins modified by a silicon compound. J. Macromol. Sci. A 2010, 47, 1084–1090. [Google Scholar] [CrossRef]
  60. Pham, X.-H.; Kyeong, S.; Jang, J.; Kim, H.-M.; Kim, J.; Jung, S.; Lee, Y.-S.; Jun, B.-H.; Chung, W.-J. Facile method for preparation of silica coated monodisperse superparamagnetic microspheres. J. Nanomater. 2016, 2016, 9. [Google Scholar] [CrossRef][Green Version]
  61. Lu, C.-H.; Yang, H.-H.; Zhu, C.-L.; Chen, X.; Chen, G.-N. A graphene platform for sensing biomolecules. Angew. Chem. Int. Ed. 2009, 48, 4785–4787. [Google Scholar] [CrossRef] [PubMed]
  62. Chen, X.; Hai, X.; Wang, J. Graphene/graphene oxide and their derivatives in the separation/isolation and preconcentration of protein species: A review. Anal. Chim. Acta 2016, 922, 1–10. [Google Scholar] [CrossRef] [PubMed]

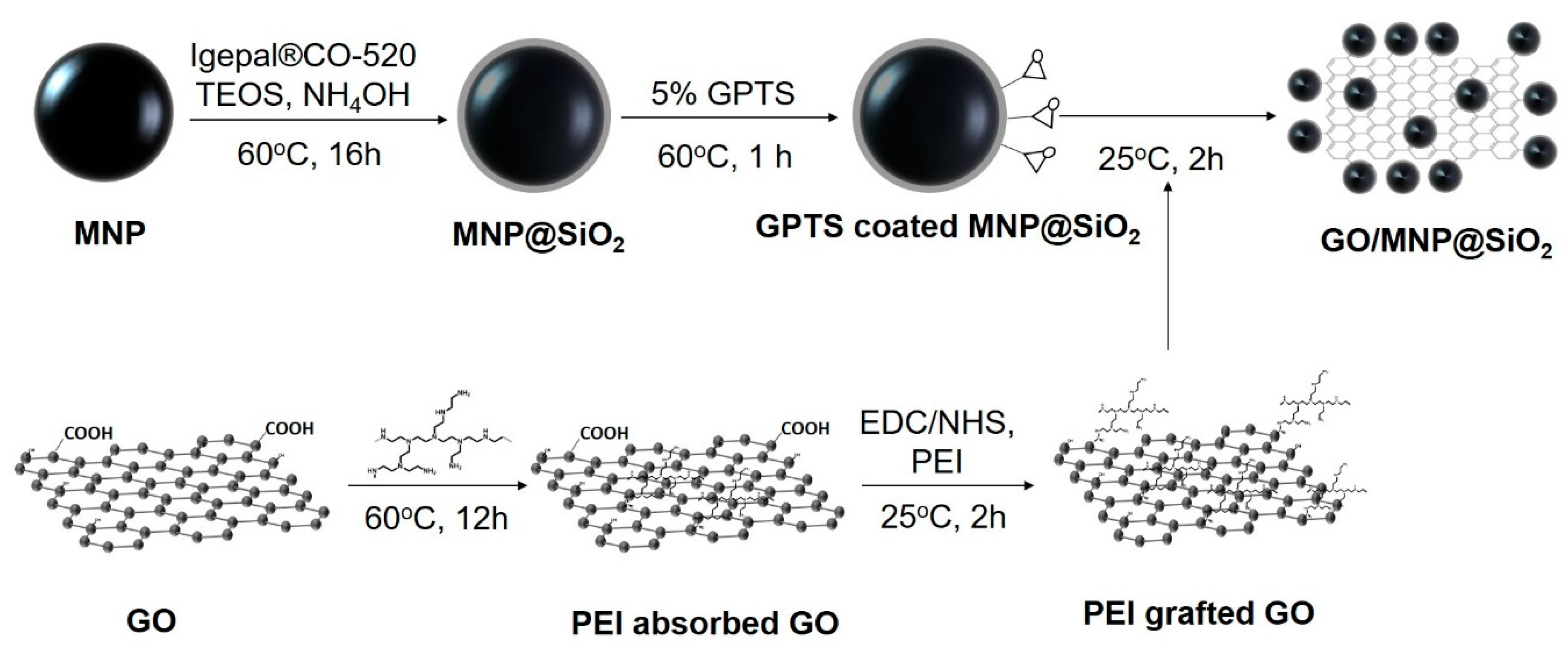

Figure 1. Schematic of the preparation of silica-coated superparamagnetic iron oxide nanoparticles grafted graphene oxide nanostructures (GO/[email protected]2).
Figure 1. Schematic of the preparation of silica-coated superparamagnetic iron oxide nanoparticles grafted graphene oxide nanostructures (GO/[email protected]2).
Nanomaterials 10 00117 g001

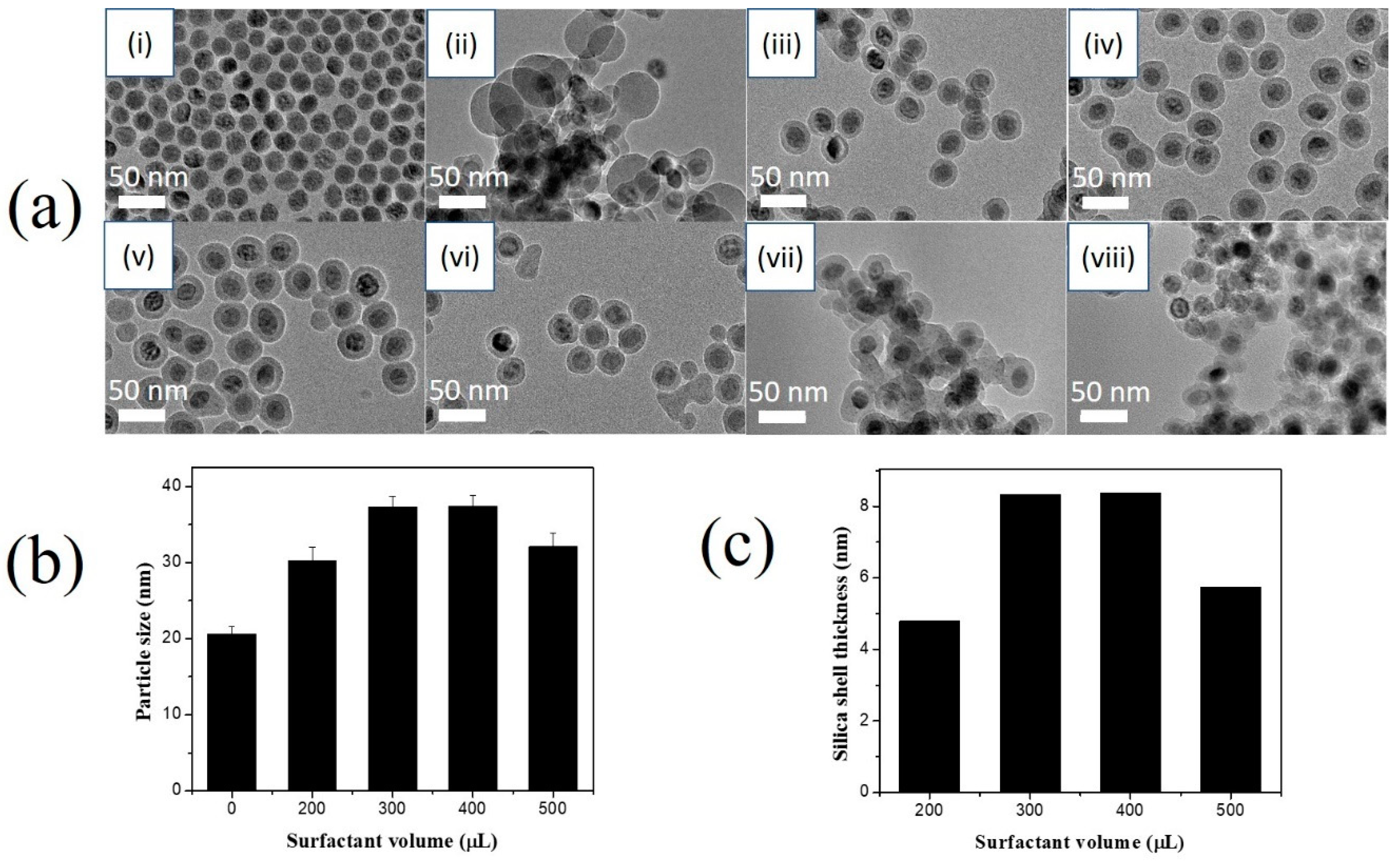

Figure 2. Effects of reverse microemulsion conditions on the silica coating of the magnetic nanoparticles. (a) Transmission electron microscope (TEM) images, (b) particle size and (c) silica shell thickness of [email protected]2 synthesized at different Igepal®CO-520 surfactant volumes: (i) 0 µL, (ii) 100 µL, (iii) 200 µL, (iv) 300 µL, (v) 400 µL, (vi) 500 µL, (vii) 2500 µL, and (viii) 5000 µL in the presence of 5 mg of MNPs, 100 µL of TEOS, and 100 µL of NH4OH.
Figure 2. Effects of reverse microemulsion conditions on the silica coating of the magnetic nanoparticles. (a) Transmission electron microscope (TEM) images, (b) particle size and (c) silica shell thickness of [email protected]2 synthesized at different Igepal®CO-520 surfactant volumes: (i) 0 µL, (ii) 100 µL, (iii) 200 µL, (iv) 300 µL, (v) 400 µL, (vi) 500 µL, (vii) 2500 µL, and (viii) 5000 µL in the presence of 5 mg of MNPs, 100 µL of TEOS, and 100 µL of NH4OH.
Nanomaterials 10 00117 g002

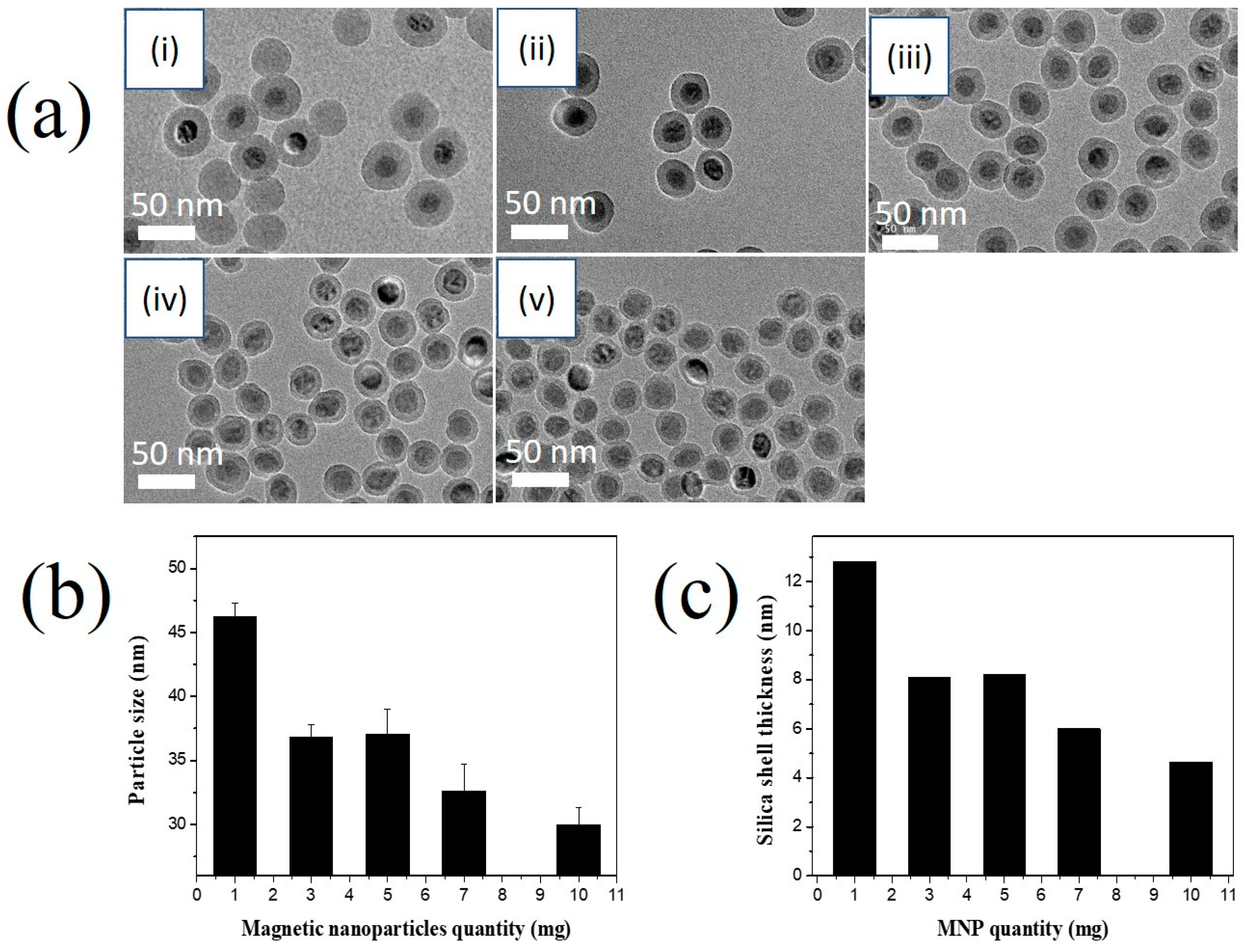

Figure 3. Effects of reverse microemulsion conditions on the silica coating of the magnetic nanoparticles. (a) TEM images (b) particle size and (c) silica shell thickness of [email protected]2 synthesized at different quantity of MNP: (i) 1 mg, (ii) 3 mg, (iii) 5 mg, (iv) 7 mg, and (v) 10 mg in the presence of 0.3 mL of Igepal®CO-520, 100 µL of TEOS, and 100 µL of NH4OH.
Figure 3. Effects of reverse microemulsion conditions on the silica coating of the magnetic nanoparticles. (a) TEM images (b) particle size and (c) silica shell thickness of [email protected]2 synthesized at different quantity of MNP: (i) 1 mg, (ii) 3 mg, (iii) 5 mg, (iv) 7 mg, and (v) 10 mg in the presence of 0.3 mL of Igepal®CO-520, 100 µL of TEOS, and 100 µL of NH4OH.
Nanomaterials 10 00117 g003

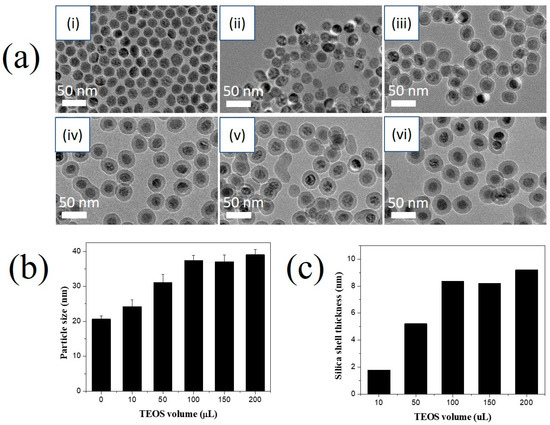

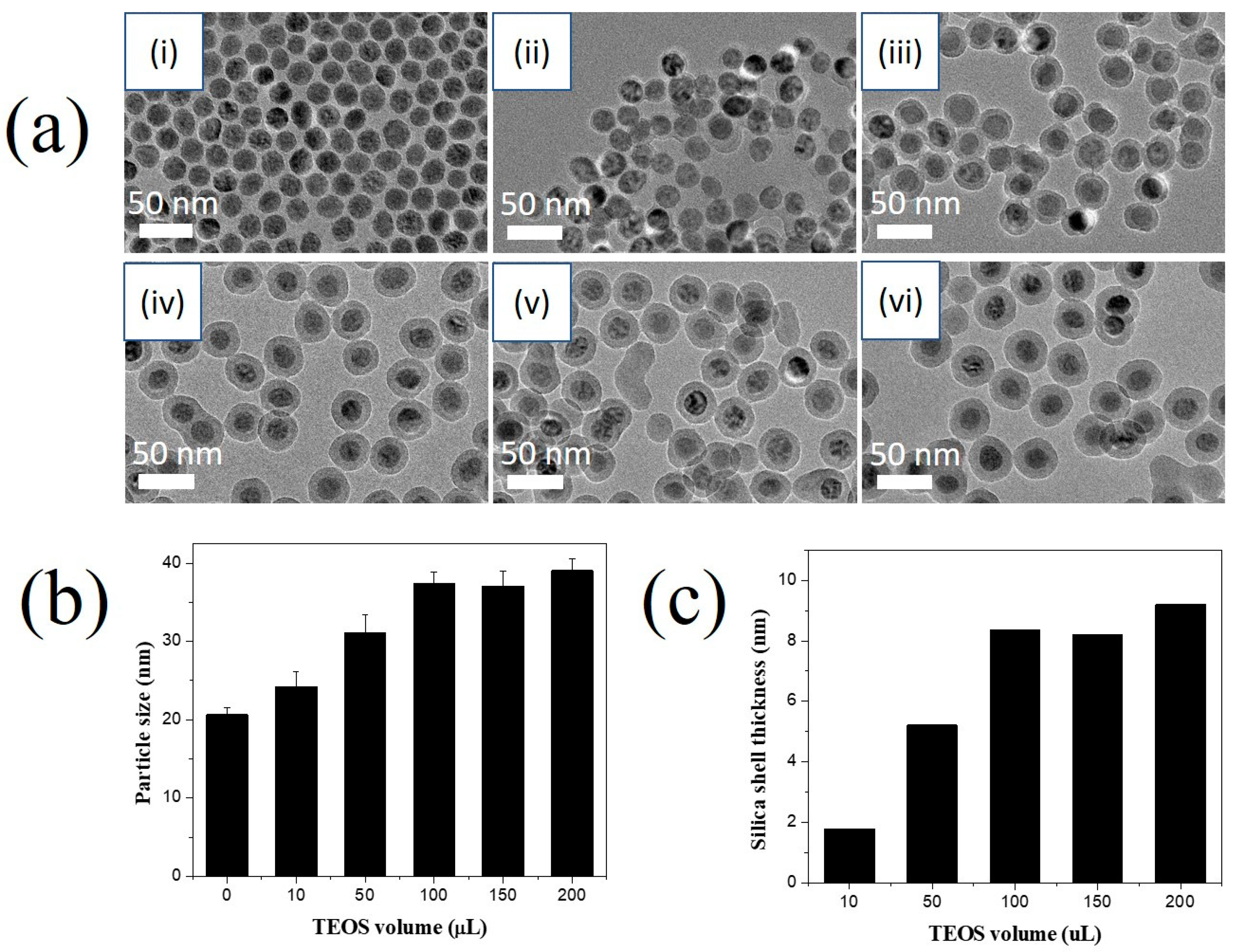

Figure 4. Effects of reverse microemulsion conditions on the silica coating of the magnetic nanoparticles. (a) TEM images (b) particle size and (c) silica shell thickness of [email protected]2 synthesized at different volume of TEOS: (i) 0 µL, (ii) 10 µL, (iii) 50 µL, (iv) 100 µL, (v) 150 µL, and (vi) 200 µLin the presence of 0.3 mL of Igepal®CO-520, 5 mg of MNP, and 100 µL of NH4OH.
Figure 4. Effects of reverse microemulsion conditions on the silica coating of the magnetic nanoparticles. (a) TEM images (b) particle size and (c) silica shell thickness of [email protected]2 synthesized at different volume of TEOS: (i) 0 µL, (ii) 10 µL, (iii) 50 µL, (iv) 100 µL, (v) 150 µL, and (vi) 200 µLin the presence of 0.3 mL of Igepal®CO-520, 5 mg of MNP, and 100 µL of NH4OH.
Nanomaterials 10 00117 g004

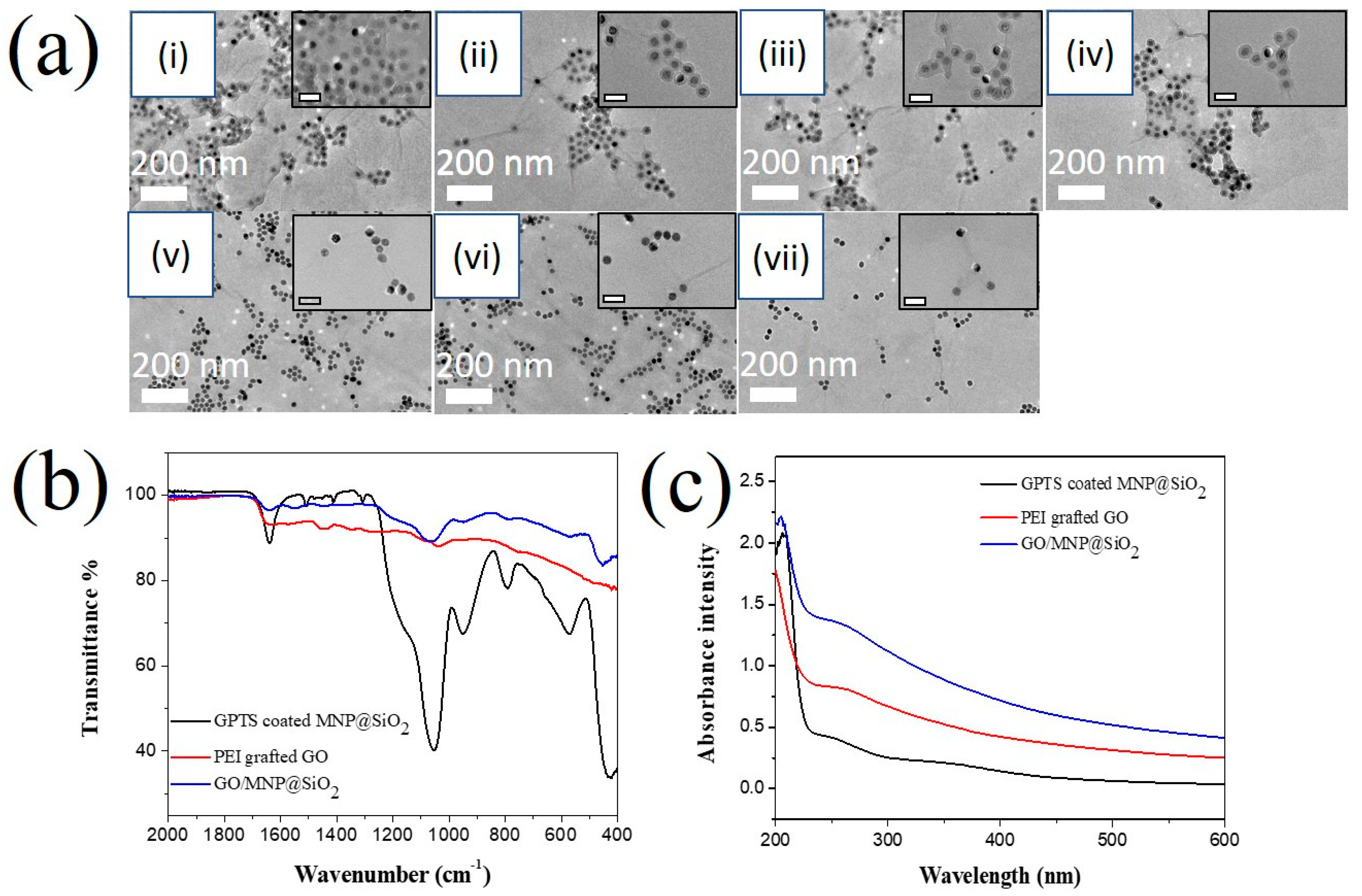

Figure 5. (a) TEM images of GO/[email protected]2 coated with various ratios of PEI grafted GO and GPTS-coated [email protected]2 (i) 2:1, (ii) 3:1, (iii) 4:1, (iv) 5:1, (v) 6:1, (vi) 8:1, and (vii) 10:1. The scale bar in inset is 50 nm. (b) Attenuated total reflection-Fourier transform infrared spectra and (c) UV–Vis spectra of GPTS-coated [email protected]2, PEI grafted GO, and GO/[email protected]2.
Figure 5. (a) TEM images of GO/[email protected]2 coated with various ratios of PEI grafted GO and GPTS-coated [email protected]2 (i) 2:1, (ii) 3:1, (iii) 4:1, (iv) 5:1, (v) 6:1, (vi) 8:1, and (vii) 10:1. The scale bar in inset is 50 nm. (b) Attenuated total reflection-Fourier transform infrared spectra and (c) UV–Vis spectra of GPTS-coated [email protected]2, PEI grafted GO, and GO/[email protected]2.
Nanomaterials 10 00117 g005

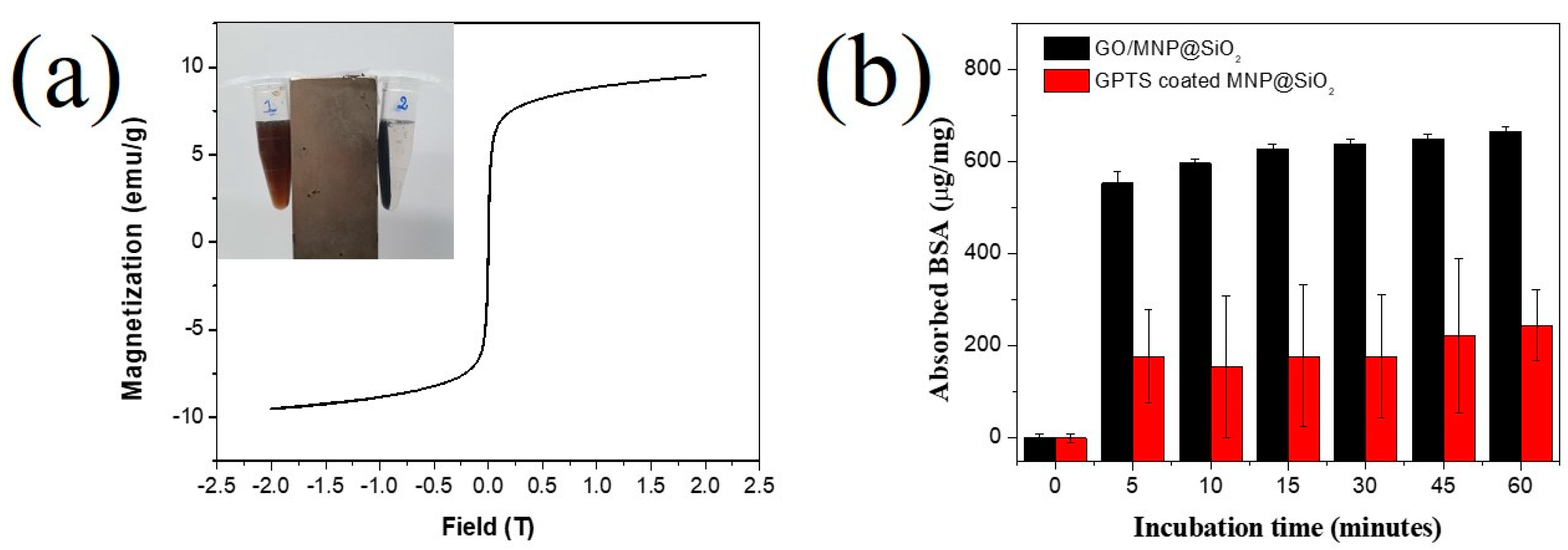

Figure 6. (a) Superparamagnetic hysteresis loop of GO/[email protected]2 used to determine saturation magnetization. The inset is photo of GPTS-coated [email protected]2 (left) and GO/[email protected]2 (right) when applying magnet for 5 min. (b) Adsorbed BSA per 1 mg of GO/[email protected]2 and GPTS-coated [email protected]2 incubated at various times.
Figure 6. (a) Superparamagnetic hysteresis loop of GO/[email protected]2 used to determine saturation magnetization. The inset is photo of GPTS-coated [email protected]2 (left) and GO/[email protected]2 (right) when applying magnet for 5 min. (b) Adsorbed BSA per 1 mg of GO/[email protected]2 and GPTS-coated [email protected]2 incubated at various times.
Nanomaterials 10 00117 g006
