Conducting research on microorganisms and cell cultures requires aqueous media that support their life functions. These media are often called buffers or cell culture media (CCM) when storage and growth are considered, respectively. While buffers are typically multicompound electrolytes, CCM are additionally enriched with nutrients, growth factors, hormones, and other biologically active substances required for in vitro growth, storage, or propagation of living cells. The ingredients of CCM have to mimic the composition of the nutrients, vitamins, minerals, and growth stimuli present in the natural environment of the microorganisms and tissue or the extracellular fluid in the case of cell cultures [1
Three phases in the cell culture growth process can be distinguished, namely: the lag phase, when little or no increase in cell number is observed; the logarithmic growth phase, when the cell number increases exponentially; and the stationary phase, also called the plateau phase, when the number of cells remains constant. Cells are able to grow and divide in the CCM when it has a suitable composition, stable pH and nutrients, as well as the appropriate gas atmosphere (CO2
). Cell growth is limited mainly by the availability of nutrients and overcompaction of the culture, leading to a decrease in the number of living cells (death phase) [2
]. For optimizing the CCM properties corresponding to cell growth and survival, other factors, including temperature, humidity, stability of buffer components, and specific illumination, are also of high importance [1
]. Bacterial or fungal infection of CCM can lead to death of cultivated cells. Thus, to grow cells in CCM, it is necessary to respect the principles of sterile work—in laboratory practice, all manipulations are performed in laminar flow chamber in clean rooms. Moreover, to maintain the cell culture, regular check-ups and medium replacements are performed.
Knowledge of interactions between light and various cultured organisms is essential for therapeutic [4
] or detection [5
] purposes. The most common optical methods are used to monitor cell growth condition and are based on densitometry evaluation [3
]. Optical density measurements of a small volume of cultured cells suspended in culture medium, usually at λ = 600 nm (OD600), are made in order to determine the growth kinetics, especially the determination of entering the plateau phase. This method can also be used for establishing conditions when the cells reproduce the fastest or show the expected morphological changes [3
]. When the cultured cells change their morphological or cytological properties, or when they stop growing, the biochemical composition of the medium may also exhibit detectable differences. In most the cases, factors such as microbiological infection, use of inadequate media (lack of growth factors or other stimulants), presence of chemical contamination, or improper growth conditions (temperature, humidity, CO2
atmosphere) are considered to be responsible for disturbing cell life functions. For this reason, some media contain a pH-dependent dye, changing their color when they become older, they accumulate cell metabolites, or there are products of nutrient degradation. This effect seems to be important mainly in colorimetric and spectrophotometric analyses, especially when the color of the used media disturbs the measurement [2
]. For the majority of living cells, monitoring is performed in the visible and near-infrared spectral range (λ = 390–700 nm) to reduce the energy supplied to the cells and to maintain the properties of the dyes used in the analysis. Real-time analysis of tissues (millimeters to centimeters in depth) is carried on, in turn, in the near-infrared range (λ = 650–900 nm) to distinguish the absorption peaks corresponding to the absorption of blood or water [7
]. However, changes in the optical properties of the used buffers or CCM, apart from the color or turbidity changes, are typically not investigated, since they may not be crucial for achieving the research aim, which is usually cell growth with no microbiological and mycological infection.
Several optical fiber sensors have been reported for microorganism monitoring [9
]. These sensors mainly rely on a label-free sensing mechanism, where changes in optical properties or the thickness of the growing biological films are monitored in the vicinity of the sensor surface [10
]. For these devices, the influence of the optical properties of the applied buffers or CCM is important to identify sensitivity and the limit of detection, but it is usually neglected. For measurements and numerical analyses, the optical properties of these liquids are considered to be equivalent to those of water, which may have a negative impact on the performance of these devices and the interpretation of data obtained during measurements.
There is also a number of fluorescence-based systems where CCM are applied and a change in their properties is crucial for the system’s performance. The photonic explorer for bioanalysis with biologically localized embedding (PEBBLE) is considered to be one of the most developed methods of the real-time imaging of living cells [8
]. In this method, the response comes from the fluorescent dye incorporated into the analyzed cell. The fluorescence intensity is not only dependent on the fluorescence quantum yield of the dye and the excitation source but also on absorbance (i.e., optical path length, solute concentration, and molar extinction coefficient) [15
]. The detected fluorescent signal originates from in-vitro-cultivated cells and can be partially absorbed or scattered by other cells. The optofluidic resonator rings laser, where riboflavin dissolves in water has been considered an active medium, should also be mentioned here [16
]. Use of fluorescent proteins as a viable gain medium for optical amplification has been demonstrated [17
]. In this type of optofluidic application, proteins as well as bacteria and cells genetically modified with a fluorescent label need to stay in buffer or CCM. However, the putative impact of the optical properties of the medium is usually omitted for aqueous solutions. The fluorescent emission peak of the analyzed fluorescent probe can be strongly shifted due to the environment (i.e., polarity of the solute) [15
]. For these purposes, the study of the optical properties of such media, which include scattering and material dispersion, are also highly demanded.
In this study, we examined for the first time the optical properties of a set of solutions commonly used as buffers and CCM. We determined their optical transmission range, scattering properties, and refractive indices. As a reference, pure water was used for comparison with the obtained results. The influence of the long-term handling of these liquids on the investigated properties is also discussed based on the preliminary experimental results.
3. Results and Discussion

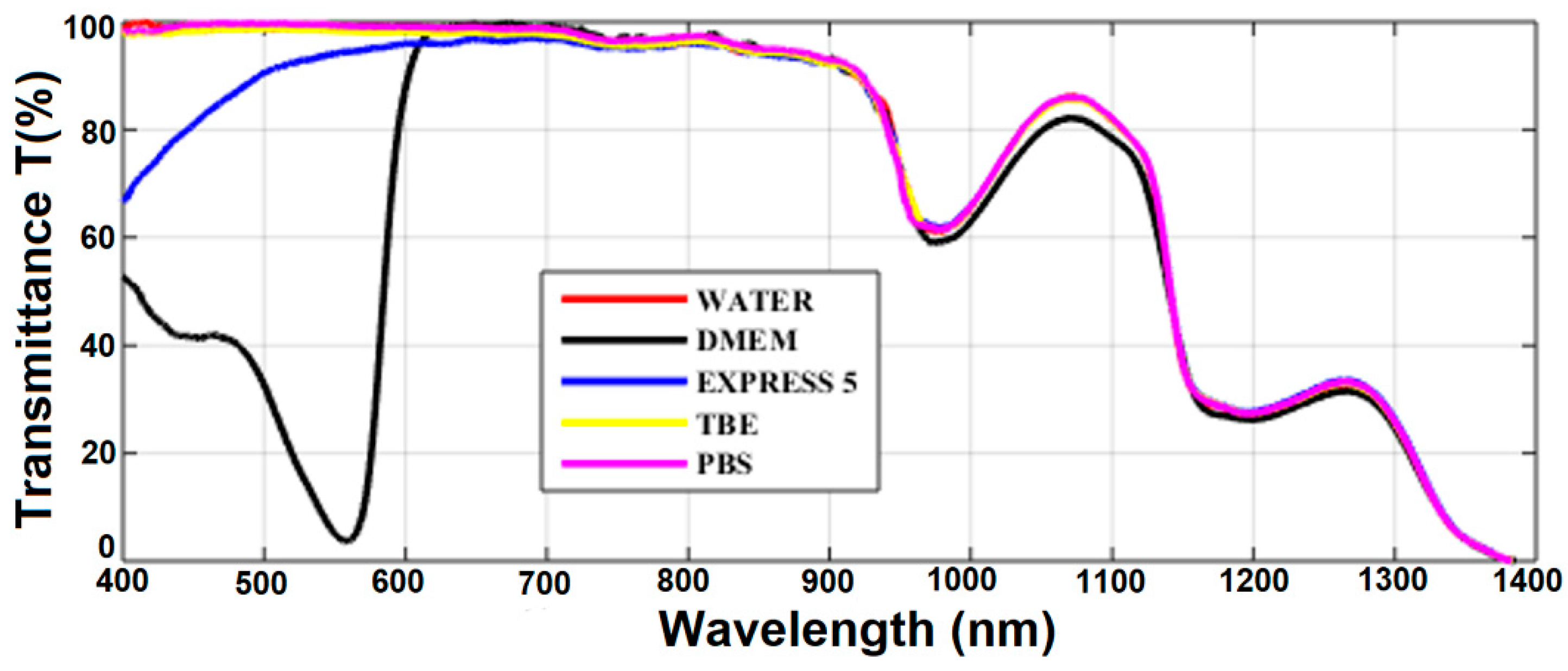

Transmission spectra for all the considered liquids are presented in Figure 3
. In general, transmission of all the liquids was limited by the transmission spectrum of water, which is the main ingredient of all of them. The IR part of the spectra (λ > 700 nm) followed typical water transmission characteristics with two absorption peaks at 950 and 1200 nm and almost no transmission at 1400 nm. Transmission spectra of TBE and PBS were similar to that of water in the visible range as well. Simple salts (TRIS, boric acid, EDTA, NaCl, phosphate buffer, and KCl) added to water did not change its absorption in the visible spectral range. However, compared with buffers, the transmission of CCM was significantly different. EXPRESS 5 showed a significantly reduced transition below 600 nm, which is related to the absorption of nutrients (e.g., glucose, sodium pyruvate). The DMEM transmission characteristics had, in turn, a very broad and deep absorption peak with a maximum at 560 nm. This peak was caused by a high concentration of phenol red dye—phenolsulfonphthalein absorption in pH 8.2 (λmax
= 570 nm).

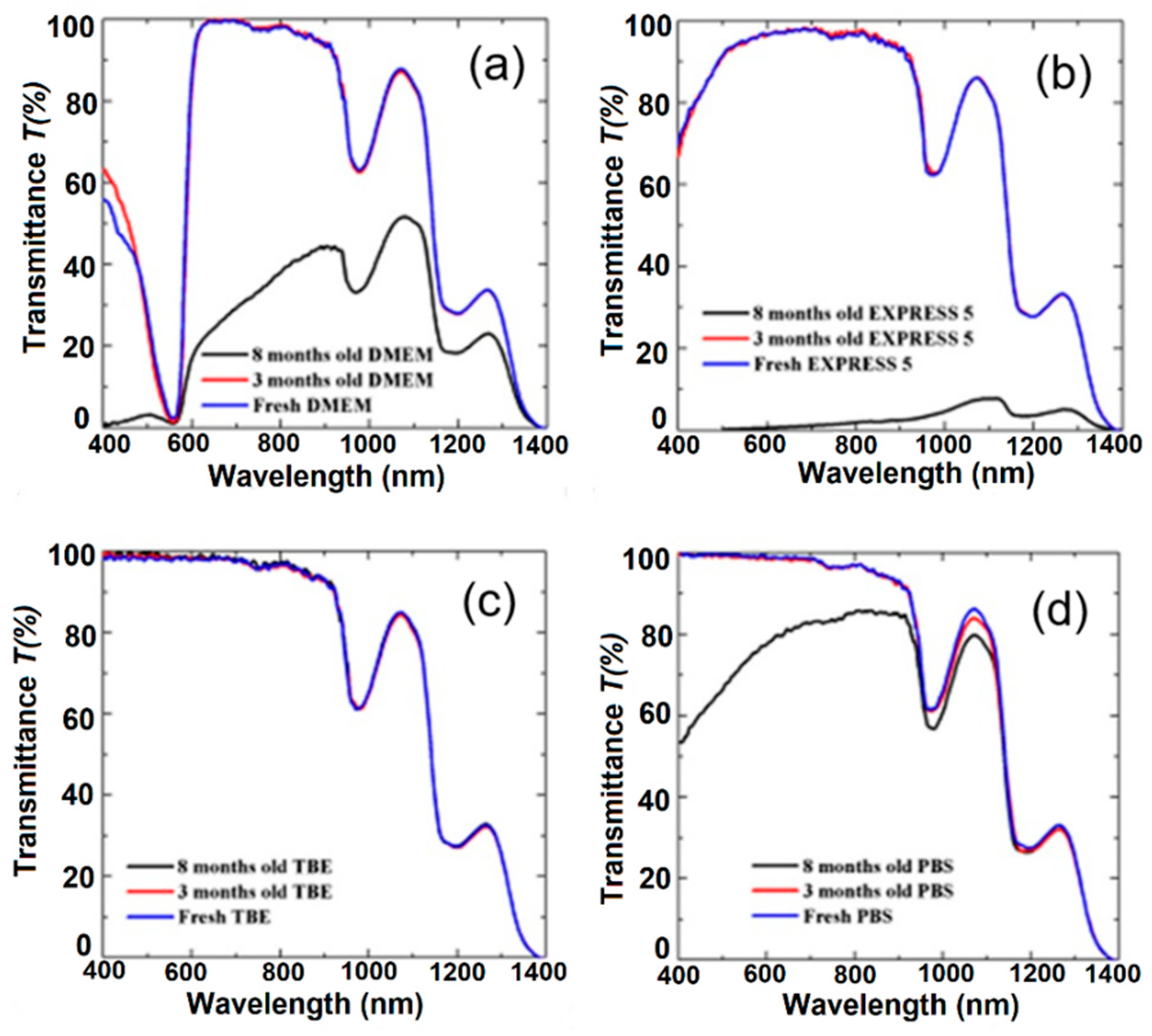

To verify the influence of long-term handling on buffers and CCM, we also measured their transmission after 3 and 8 months (Figure 4
). During 8-month-long storage, all the media were kept in the dark and at a temperature of 4 °C. For the TBE buffer (Figure 4
c), we did not observe any change in transmission. This buffer was stable during the 8-month-long storage. High stability is related to the composition of TBE, which contains TRIS, boric acid, and EDTA, offering slightly alkaline pH conditions. Moreover, the presence of EDTA is very important due to its chelator activity, particularly for magnesium ions (Mg2+
). These ions act as cofactors and are required for the activation of many enzymes; therefore, the absence of Mg2+
may block bacteria growth. In the case of PBS, we observed a gradual reduction of the transmission peak centered at 1100 nm (Figure 4
d). The visible part of the spectrum remained unchanged after the first 3 months, and later between the third and eighth months, we noticed a reduction in transmission from 10% to 25% at λ = 600 nm and λ = 400 nm, respectively. This effect was possibly induced by the crystallization of salts in the buffer. However, in comparison with the CCM, the process was less intense.
For CCM, we observed a well-visible reduction of transmission properties for both of the liquids. Their transmission properties remained comparable for the first 3 months, but between the third and eighth months, an intensive decrease of transmission was observed. For EXPRESS 5, this effect was related to strong light scattering caused by medium degradation and/or by bacterial or fungi infection. CCM are usually used for no longer that 1 month from the date of first use and it is recommended by the manufacturer to use them within 2–4 weeks. Moreover, CCM should be used in a clean-room environment and a chamber with laminar flow to reduce the likelihood of infection. Every use of the medium increases the probability of bacterial or fungi infection. The observed effect may have been caused by nutrient degradation due to the half-life of the molecules or the fact that the media were measured at normal atmosphere (with a low CO2 concentration, ~0.4%). In cell cultures, the CO2 concentration in the incubator is at a much higher level (usually 5% or 10%), and the CO2 dissolved in the medium is converted into H+ and HCO3− ions, which helps to stabilize the pH. CCM that are not kept in an atmosphere with a high CO2 concentration show limited pH buffering properties and are more likely to degrade.

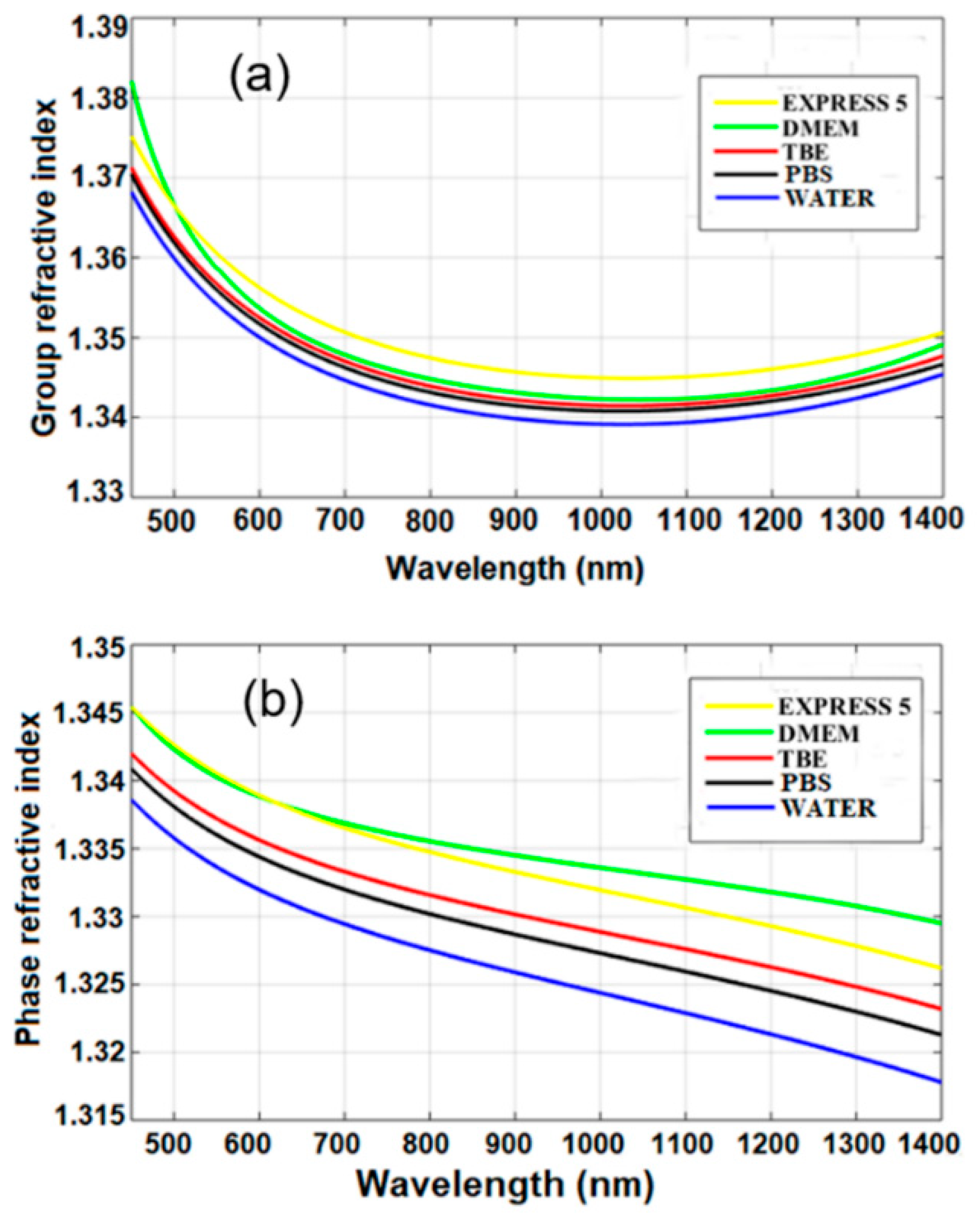

Group and phase refractive indices of water and the other investigated liquids were calculated according to Equation (1) and using interferograms, as shown in Figure 5
. The obtained material dispersion of water was similar to that previously reported by Chen et al. [11
], which confirms the correctness of our experimental results. The calculated Sellmeier coefficients are given in Table 2
Based on the obtained results, we can conclude that n in the near-infrared range of the CCM and buffers was higher than that of water by up to Δn = 0.012. The higher n was induced by added chemical and biochemical nutrients. The n of buffers was, on average, higher only by 0.08% than that of water. The n of CCM was, on average, higher by 0.2% than that of water, and the difference corresponds to the added biochemical nutrients which increase their n. In the case of standard biological applications, these differences can be negligible. However, they should be taken into account when using those media for label-free biosensing devices.
The influence of long-term handling on the nD
was investigated next and the obtained results are shown in Table 3
. No significant changes for any of the considered media were observed. An increase of nD
for 8-months-stored PBS was probably a result of salt crystallization. This measurement supported data obtained in the case of transmission measurements, where the same sample behaved differently.

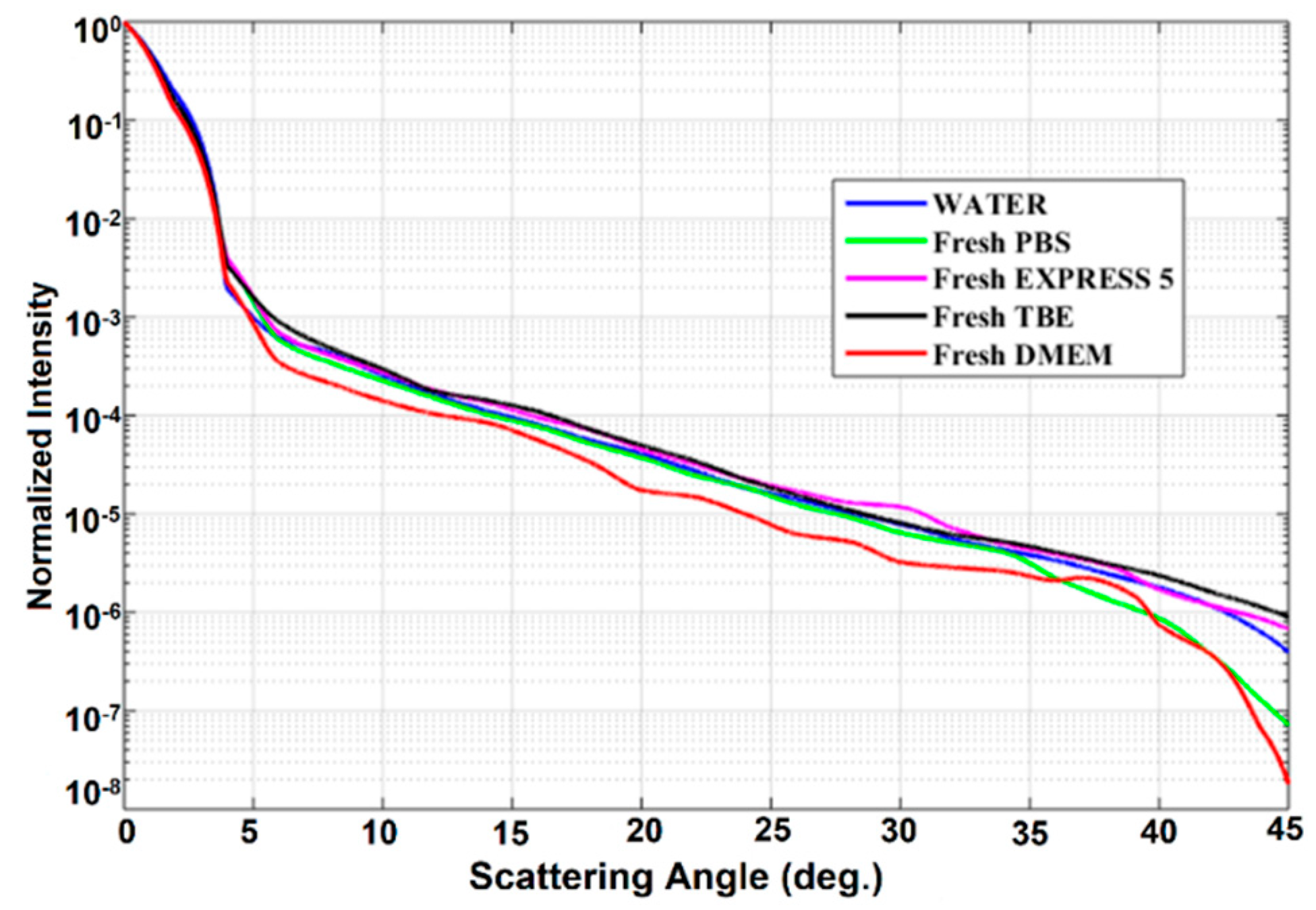

Scattering losses in the investigated liquids were analyzed next. Normalized intensity Pα/P0
, defined as the ratio between the intensity measured at angle α and the intensity at angle α = 0, was used to show the scattering of culture cell media and buffers (Figure 6
). Also, the scattering properties of water are shown here for reference. We observed that normalized intensity decreased exponentially with the angle. For an angle higher than 45°, scattering intensity dropped nearly to zero. The obtained characteristics of fresh samples were very similar to those of water. It seems that the biochemical nutrients present in the CCM do not induce any additional scattering with respect to that of water, mostly due to the fact that their size is much smaller than the wavelength of the laser source.

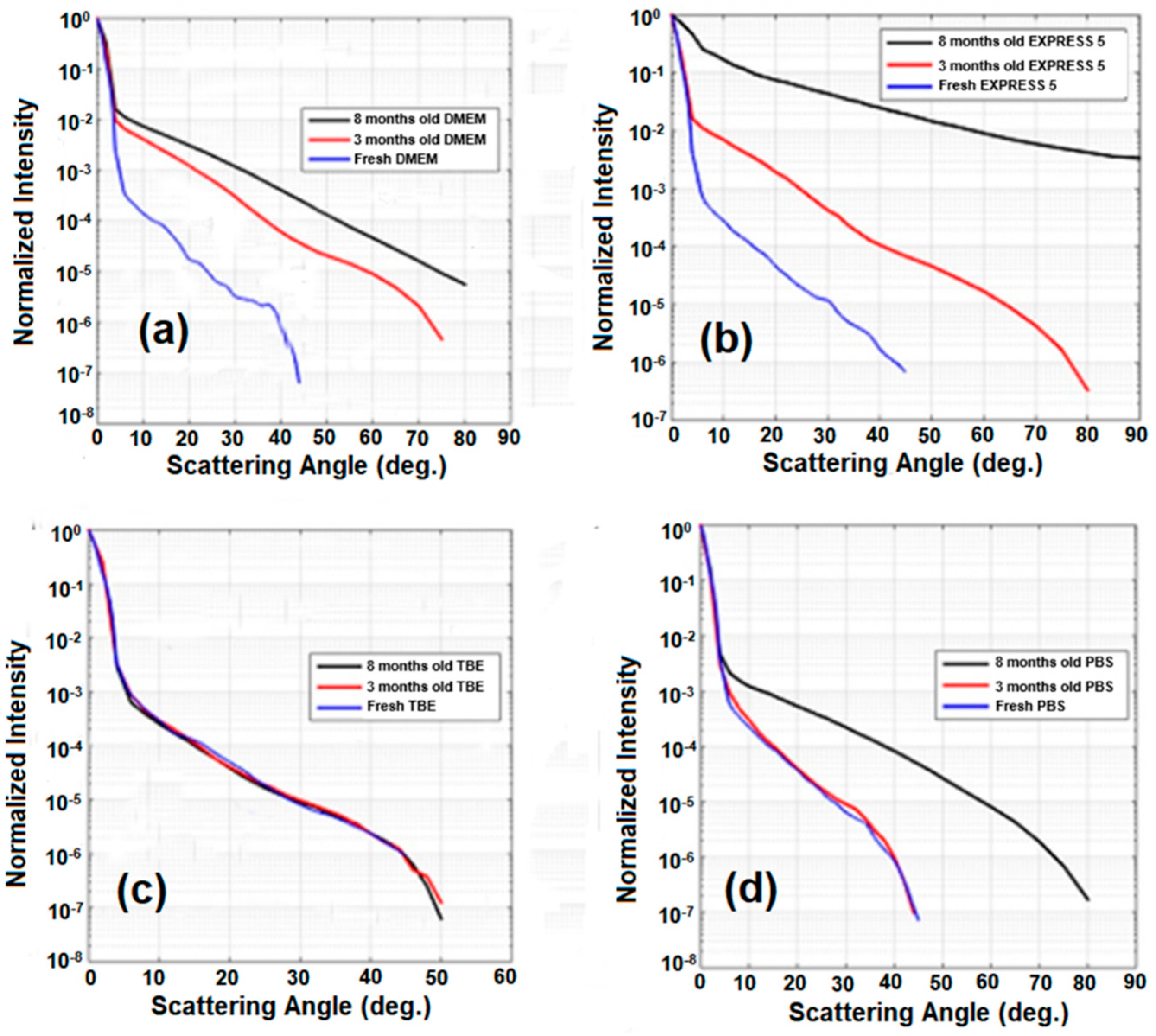

Similar experiments were repeated after 3 and 8 months (Figure 7
). For DMEM, EXPRESS 5, and PBS, we observed a significant increase of scattering. Only in the case of TBE did scattering remain unchanged. These results agree with the measurements of the transmission of the liquids, where DMEM, EXPRESS 5, and PBS changed in time, while TBE remained unchanged. This behavior is related to the presence of substances enabling microorganism growth (such as nutrients and simple salts) in DMEM and EXPRESS 5, or salt crystallization in the case of PBS. Moreover, in CCM, after longer storage, the nutrients decomposed due to their limited half-life, causing media degradation. The stability of TBE was significantly higher due to the EDTA chelating properties and its slightly alkaline pH.
We have measured the optical properties of selected commercially available buffers, such as PBS and TBE, as well as selected cell culture media—EXPRESS 5 and DMEM. These liquids are widely used in biomedical research for the growth and storage of live cells. In particular, we verified to what extent the optical properties of the liquids correspond to those of water, which are often assumed to be equivalent in numerical modeling. The transmission properties of buffers are comparable to those of water, but cell culture media show a significant reduction of transmission in a spectral range below 550 nm. This property may strongly limit the application of these media in devices where florescence is measured (sensors) or used as a gain medium (optofluidic laser). Measurements of material dispersion, in turn, have shown that refractive indices of these liquids are significantly higher than that of water due to the presence of biochemical nutrients, as well as the weak acid and salt of this acid. The differences in the near-infrared range may reach up to 0.012 and 0.006 for culture media and buffers, respectively. They might be negligible for biological experiments, but when these liquids are used in label-free biosensors, the differences may be important and should be taken into account at the sensor-design stage. The measured properties are, in particular, important for the development of label-free optical biosensors as well as for optical active fiber systems, where fluorescent proteins or genetically modified bacteria are considered as a gain medium [16
]. In the latter case, accurate knowledge of the optical properties of the media is required for the proper design of optical fibers with an active liquid core. In addition, we have also shown that scattering for the examined liquids in the visible spectral range is similar to that of water; therefore, only from this point of view water can be considered as equivalent in properties.
In general, buffers and CCM have good optical properties and can be used as optical medium for various biophotonic systems, including novel ones that employ various genetically modified cells, where the media are required to sustain cell living functions and growth. However, the long-term stability of these media must be also taken into account. We observed their significant change in properties after 8 months of storage. The changes concern CCM and PBS, where they may be originated by infection or degradation and salt crystallization, respectively. The change was only limited for the TBE buffer, which can be explained by the slightly alkaline pH and the presence of EDTA (Mg2+ ion chelator) inactivating bacterial enzymes and blocking the multiplication of bacteria. For the majority of the investigated media, scattering increased with time. The main reason for those phenomena in the case of CCM was the degradation of the biological components of the liquids and the putative development of bacteria and/or fungi. The components enable not only the growth of cells of interest but also the rapid growth of bacteria, which may strongly influence the optical properties of the liquid. The probable source of microorganism infection may be inappropriate CCM handling, as the spectrophotometric analyses were performed out of the laminar or clean room—the same conditions as in many photonic labs. The significant change in optical properties during long-term handling can produce misleading results in optical measurements. Moreover, monitoring the optical parameters of the liquids, such as transmission or scattering, may be used to identify degradation or infection, especially when long-term experiments are considered.
