Influence of Initial Phase Modulation on the Sensitivity of the Optical Fiber Sagnac Acoustic Emission Sensor

1
State Key Laboratory of Mechanics and Control of Mechanical Structures, Nanjing University of Aeronautics and Astronautics, Nanjing 210016, China
2
College of Electrical and Information Engineering, Anhui University of Technology, Maanshan 243002, China
*
Author to whom correspondence should be addressed.
Appl. Sci. 2019, 9(5), 1018; https://doi.org/10.3390/app9051018
Received: 26 January 2019 / Revised: 1 March 2019 / Accepted: 6 March 2019 / Published: 12 March 2019
(This article belongs to the Special Issue Recent Progress in Fiber Optic Sensors: Bringing Light to Measurement)

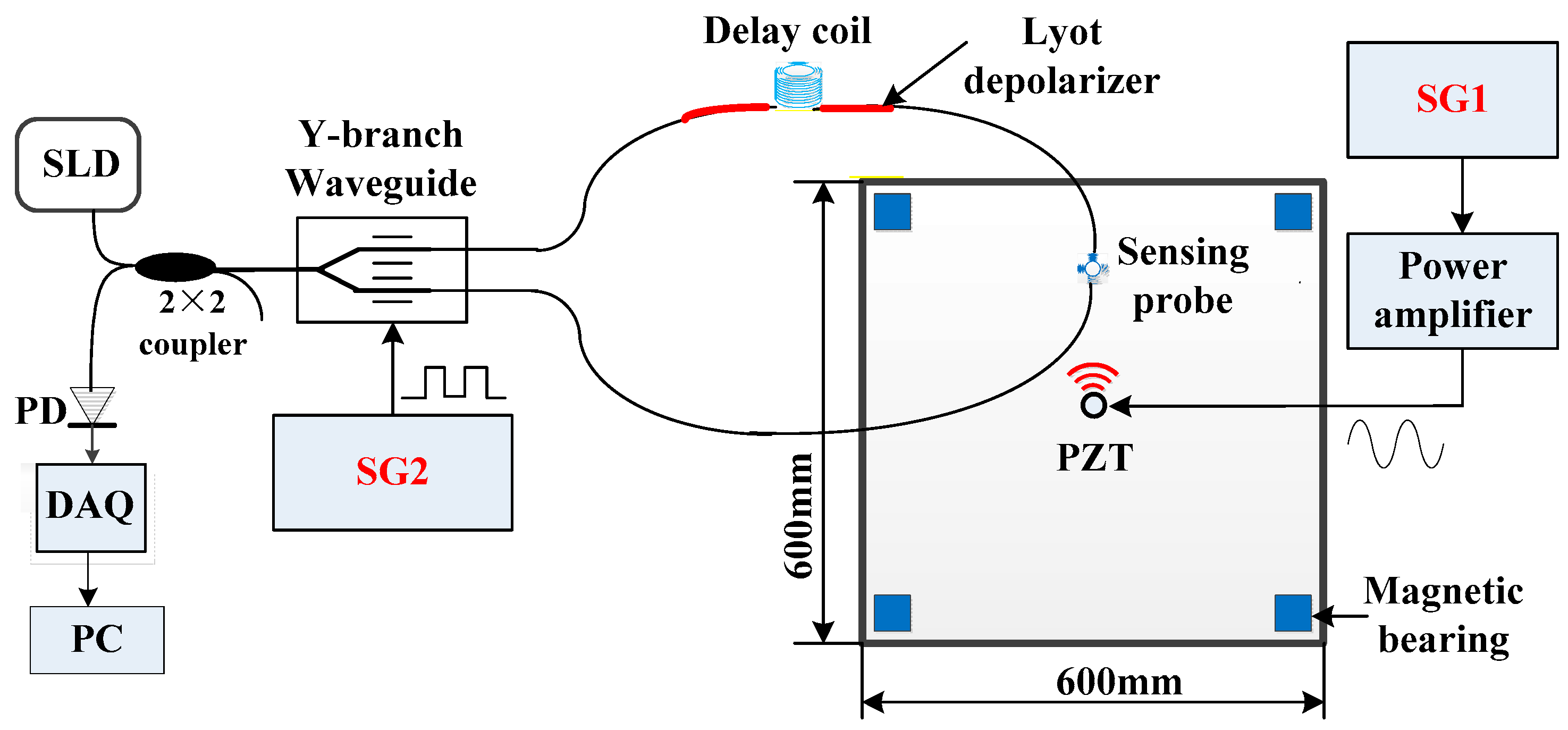

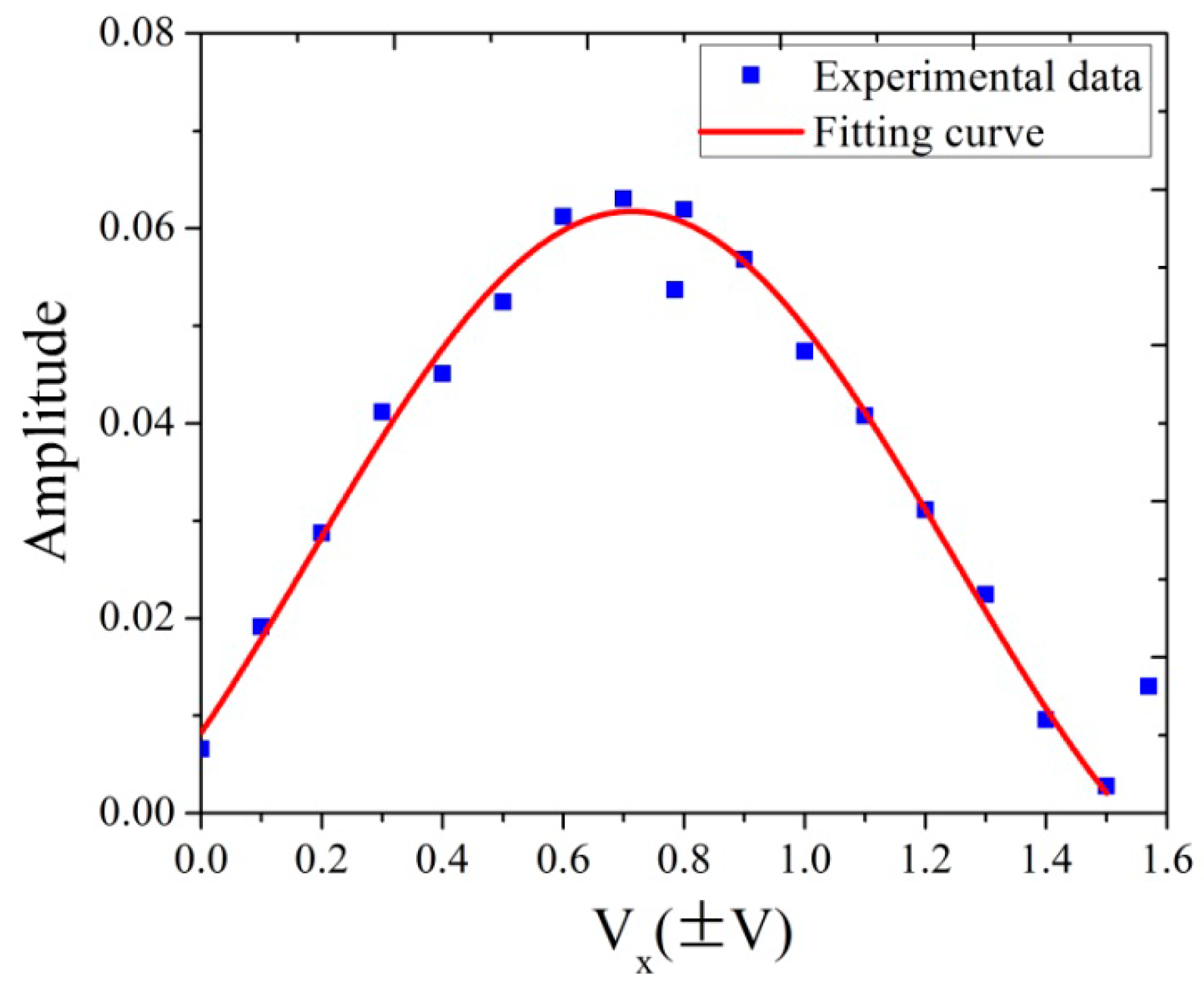

Improving the phase sensitivity of the optical fiber Sagnac sensor is very important for accurately detecting weak signals of acoustic emission. Theoretical analysis shows that the initial phase of the sensor is π under ideal conditions, and the maximum phase sensitivity is obtained when the bias phase is π/2. In this work, an experimental system was built with an aluminum alloy plate as the experimental object. The initial phase of the sensor was modulated by a Y-branch waveguide, and the fitting curve of the experimental data was in good agreement with the curve of the numerical simulation. Moreover, our experiments show there was a single value for the bias phase of π/2, which significantly deviated from the theoretical value. The results show that the greatest phase sensitivity of the sensor not only could be increased by nearly nine times through modulating the initial phase, but also could suppress the harmonic interferences in the sensing system. This study can provide a useful reference for improving the phase sensitivity of the optical fiber Sagnac AE sensor in practical applications. View Full-Text
Keywords: optical fiber Sagnac sensor; phase sensitivity; acoustic emission; phase modulation; harmonic interference optical fiber Sagnac sensor; phase sensitivity; acoustic emission; phase modulation; harmonic interference
Show Figures

Figure 1

MDPI and ACS Style

Cheng, Z.; Zeng, J.; Liang, D.; Chang, C.; Wang, B. Influence of Initial Phase Modulation on the Sensitivity of the Optical Fiber Sagnac Acoustic Emission Sensor. Appl. Sci. 2019, 9, 1018.
