Crossover Effect in Cement-Based Materials: A Review
Abstract
:1. Introduction
2. Methods of Accelerating Strength Gain
2.1. Effect of Elevated Temperature Curing on Strength Gain
2.2. Effect of Steam Curing on Strength Gain
2.3. Effect of Autoclaving on Strength Gain
2.4. Effect of Hot Water Curing on Strength Gain
2.5. Effect of Curing Period on Strength Gain

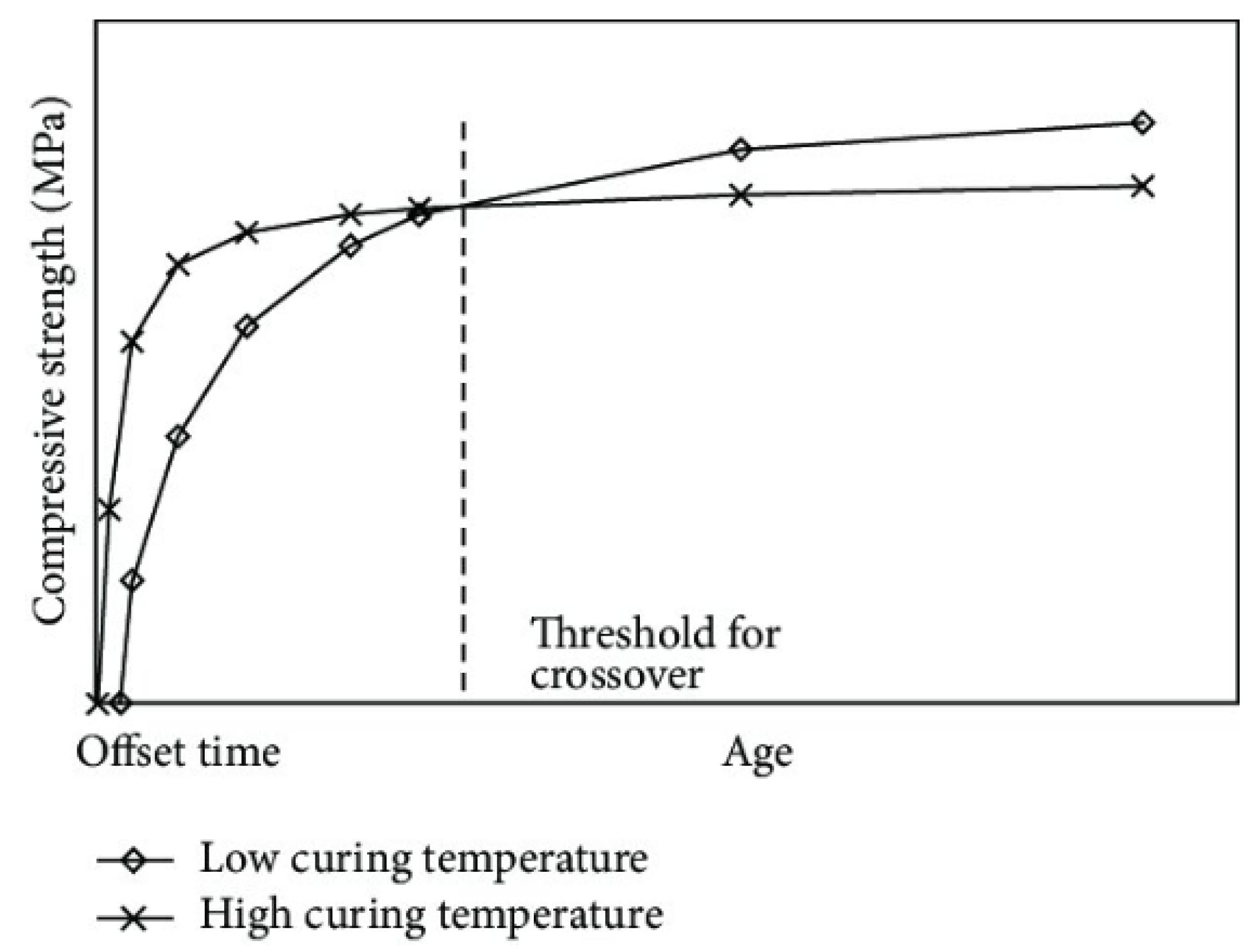

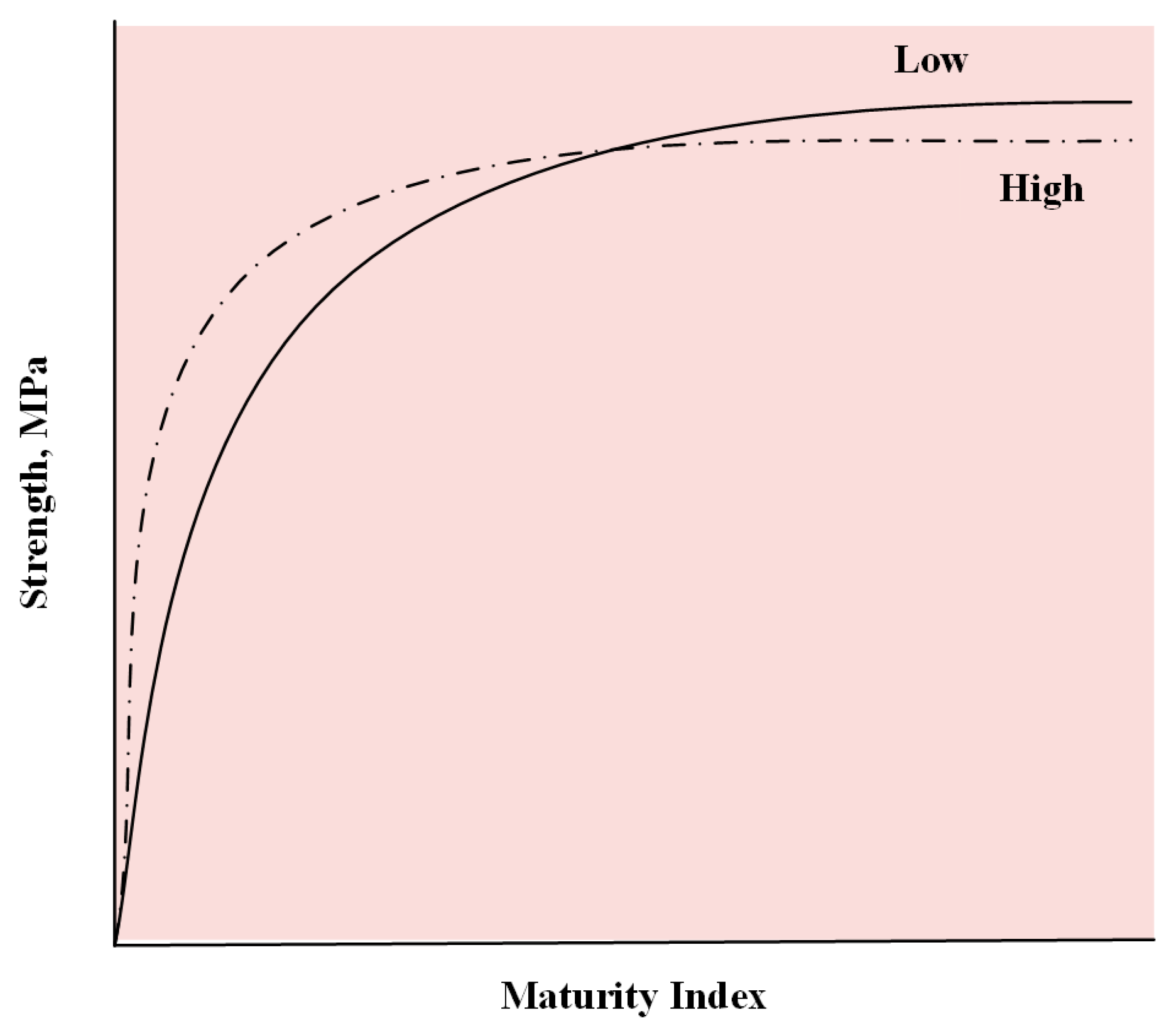

3. COE and Mechanism
4. Effect of Different Types of Portland Cements on COE Phenomenon
5. Effect of Cementitious Materials on COE Phenomenon for Prolonged Curing
5.1. Ordinary Portland Cement (OPC)
5.2. Blast Furnace Slag, Fly Ash and Silica Fume
6. Effect of Cementitious Materials on COE Phenomenon Due to Different Initial Curing Temperatures
6.1. Blast Furnace Slag

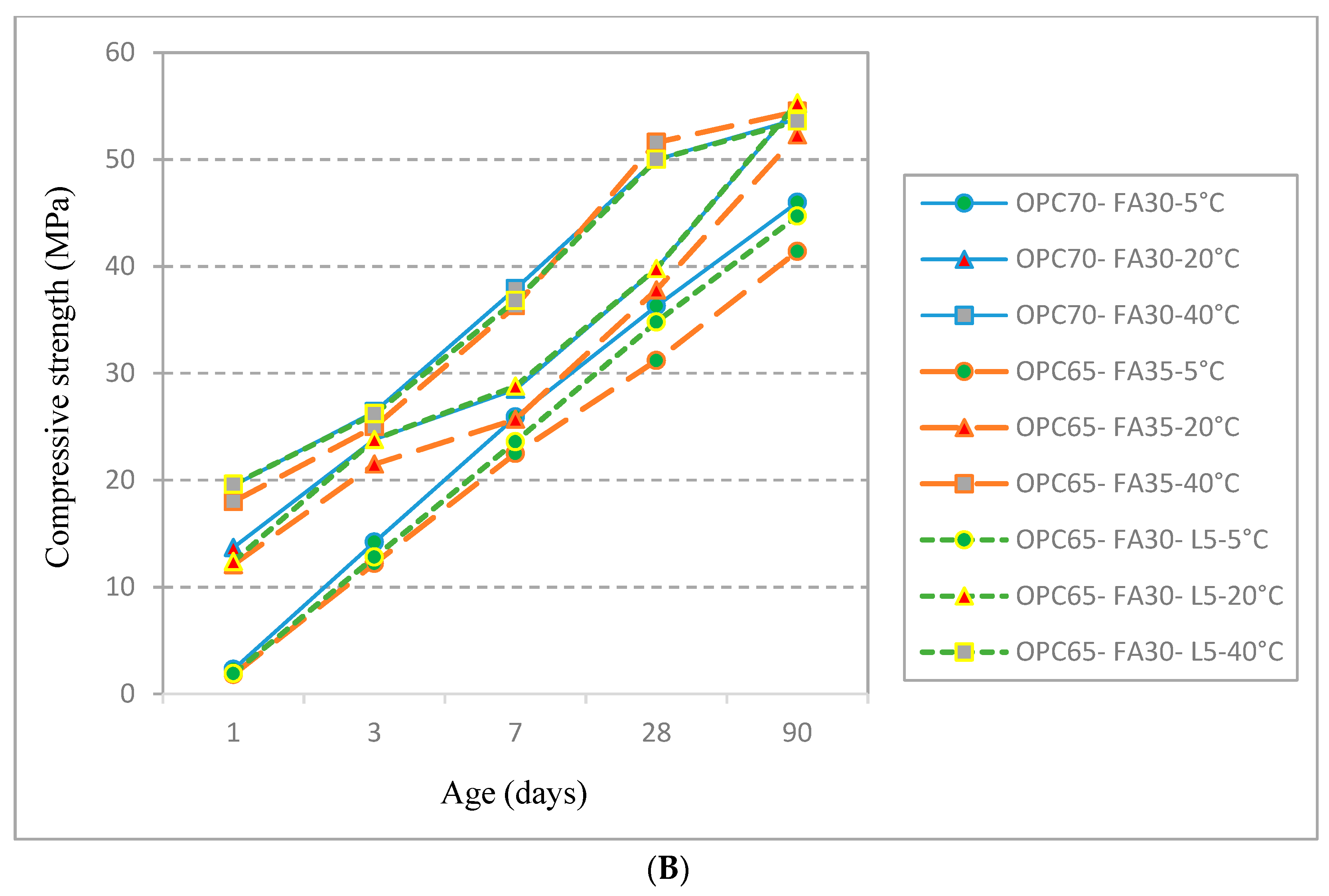

6.2. Ternary Blended Cements

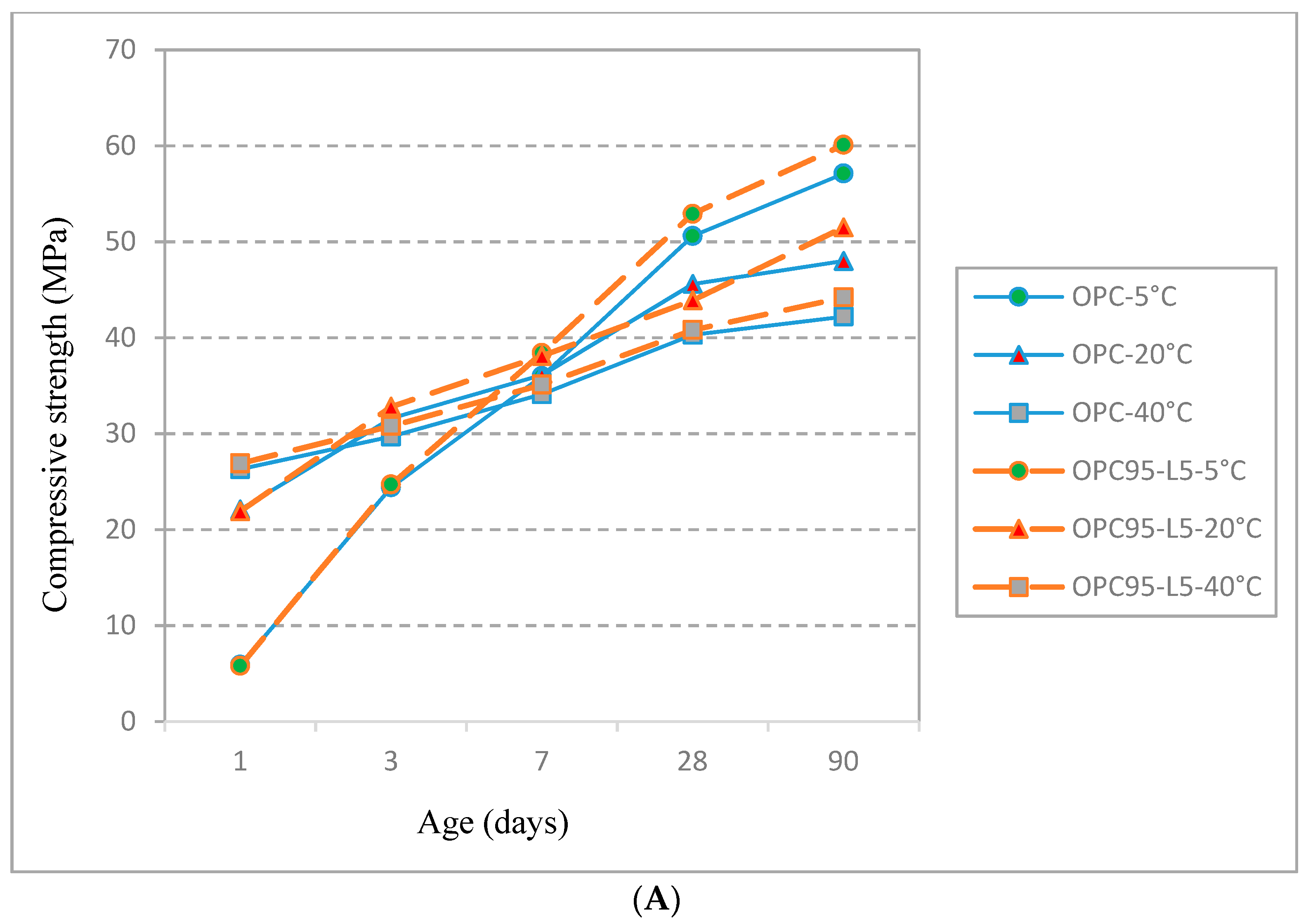

6.3. Natural Pozzolan and Limestone Powder
7. Materials Controlling COE Phenomenon
8. Conclusions
- (1)
- Pure and blended cement products subjected to accelerated curing temperatures show faster hydration and non-homogeneous scattering of hydration products that may result in the COE of their compressive strengths.
- (2)
- The COE in compressive strengths of pure and blended cement products depends on the initial curing temperatures from lower to higher values and the amount of internal water present for hydration.
- (3)
- The detection of the COE depends on the duration of testing, loss of water loss, temperature and techniques of curing, porosity, type of cement used, proportions of mineral additions, mineralogical characteristics of mineral additions and specific surface and composition of cement used.
- (4)
- The COE in pure and blended cement products can appear even after 7 days onwards.
- (5)
- The compressive strength loss at later ages in accelerated cured specimens ranges from 2.2% to 31% at 40–60 °C for accelerated prolong curing.
- (6)
- The COE due to accelerated curing can occur at curing temperature as low as 40 °C.
- (7)
- The COE can be controlled using slag blended cement with 80% replacement of GGBFS by OPC, 25–50% addition of slag powder in blended cement mortars, type V Portland cement concrete under an accelerated curing temperature of up to 50 °C as well as blended mortars with different percentages of natural pozzolan.
9. Recommendations for Future Studies
- COE phenomenon was studied mainly on CBMs containing pure OPC or OPC-slag blended cements. Further studies on the CBMs incorporating other types of SCMs are required.
- The mechanism of COE phenomenon is still unclear. A quantitative study in terms of microstructure and chemistry of materials exhibiting COE may help to understand this phenomenon.
- The existing data of the accelerated curing is mainly for short time. While, COE may happen at later ages. In addition, the most elevated temperatures reported in the literature for curing of CBMs are in the range of 40–60 °C. Therefore, studies are required to investigate the effect of elevated temperatures more than 60 °C for long terms.
Author Contributions
Funding
Conflicts of Interest
Abbreviations
CBMs | cement-based materials |
COE | crossover effect |
SCMs | supplementary cementitious materials |
References
- Hosseini, P.; Booshehrian, A.; Delkash, M.; Ghavami, S.; Zanjani, M. Use of nano-SiO2 to improve microstructure and compressive strength of recycled aggregate concretes. Nanotechnol. Constr. 2009, 3, 215–221. [Google Scholar]
- Cervera, M.; Faria, R.; Oliver, J.; Prato, T. Numerical modelling of concrete curing, regarding hydration and temperature phenomena. Comput. Struct. 2002, 80, 1511–1521. [Google Scholar] [CrossRef]
- Al-Gahtani, A. Effect of curing methods on the properties of plain and blended cement concretes. Constr. Build. Mater. 2010, 24, 308–314. [Google Scholar] [CrossRef]
- Çakır, Ö.; Aköz, F. Effect of curing conditions on the mortars with and without GGBFS. Constr. Build. Mater. 2008, 22, 308–314. [Google Scholar] [CrossRef]
- Neville, A.; Brooks, J. Concrete Technology Revised Edition—2001 Standards Update; Pearson Education Limited: Paris, France, 1990. [Google Scholar]
- Li, B.; Mao, J.; Lv, J.; Zhou, L.J.E.J.o.E.; Engineering, C. Effects of micropore structure on hydration degree and mechanical properties of concrete in later curing age. Eur. J. Environ. Civ. Eng. 2016, 20, 544–559. [Google Scholar] [CrossRef]
- Silva, R.; De Brito, J.; Dhir, R.J.E.J.o.E.; Engineering, C. The influence of the use of recycled aggregates on the compressive strength of concrete: A review. Eur. J. Environ. Civ. Eng. 2015, 19, 825–849. [Google Scholar] [CrossRef]
- Kim, J.-K.; Han, S.H.; Song, Y.C. Effect of temperature and aging on the mechanical properties of concrete: Part I. Experimental results. Cem. Concr. Res. 2002, 32, 1087–1094. [Google Scholar] [CrossRef]
- Fall, M.; Célestin, J.; Pokharel, M.; Touré, M. A contribution to understanding the effects of curing temperature on the mechanical properties of mine cemented tailings backfill. Eng. Geol. 2010, 114, 397–413. [Google Scholar] [CrossRef]
- Carino, N.J.; Malhotra, V. Handbook on Nondestructive Testing of Concrete, 2nd ed.; CRC Press: Boca Raton, FL, USA, 2003. [Google Scholar]
- Escalante-Garcıa, J.; Sharp, J. The microstructure and mechanical properties of blended cements hydrated at various temperatures. Cem. Concr. Res. 2001, 31, 695–702. [Google Scholar] [CrossRef]
- Ogirigbo, O.R.; Black, L. Influence of slag composition and temperature on the hydration and microstructure of slag blended cements. Constr. Build. Mater. 2016, 126, 496–507. [Google Scholar] [CrossRef] [Green Version]
- Da Luz, C.A.; Hooton, R.D. Influence of curing temperature on the process of hydration of supersulfated cements at early age. Cem. Concr. Res. 2015, 77, 69–75. [Google Scholar] [CrossRef]
- Ezziane, K.; Bougara, A.; Kadri, A.; Khelafi, H.; Kadri, E. Compressive strength of mortar containing natural pozzolan under various curing temperature. Cem. Concr. Compos. 2007, 29, 587–593. [Google Scholar] [CrossRef]
- Castellano, C.C.; Bonavetti, V.L.; Donza, H.A.; Irassar, E.F. The effect of w/b and temperature on the hydration and strength of blastfurnace slag cements. Constr. Build. Mater. 2016, 111, 679–688. [Google Scholar] [CrossRef]
- Escalante-García, J.I.; Sharp, J.H. Effect of temperature on the hydration of the main clinker phases in portland cements: Part i, neat cements. Cem. Concr. Res. 1998, 28, 1245–1257. [Google Scholar] [CrossRef]
- De Weerdt, K.; Haha, M.B.; Le Saout, G.; Kjellsen, K.; Justnes, H.; Lothenbach, B. The effect of temperature on the hydration of composite cements containing limestone powder and fly ash. Mater. Struct. 2012, 45, 1101–1114. [Google Scholar] [CrossRef]
- Castellano, C.; Bonavetti, V.; Irassar, E. Effect of curing temperature on hydration and strength of cement paste with granulated blast-furnace slag. Rev. Constr. 2007, 6, 4–15. [Google Scholar]
- Yang, K.-H.; Mun, J.-S.; Cho, M.-S. Effect of Curing Temperature Histories on the Compressive Strength Development of High-Strength Concrete. Adv. Mater. Sci. Eng. 2015, 2015, 12. [Google Scholar] [CrossRef]
- Lothenbach, B.; Winnefeld, F.; Alder, C.; Wieland, E.; Lunk, P. Effect of temperature on the pore solution, microstructure and hydration products of Portland cement pastes. Cem. Concr. Res. 2007, 37, 483–491. [Google Scholar] [CrossRef]
- Lee, H.-S.; Wang, X.-Y.; Zhang, L.-N.; Koh, K.-T.J.M. Analysis of the optimum usage of slag for the compressive strength of concrete. Materials 2015, 8, 1213–1229. [Google Scholar] [CrossRef]
- Escalante-Garcia, J.-I.; Sharp, J. The chemical composition and microstructure of hydration products in blended cements. Cem. Concr. Compos. 2004, 26, 967–976. [Google Scholar] [CrossRef]
- Paya, J.; Monzo, J.; Borrachero, M.; Peris-Mora, E. Mechanical treatment of fly ashes. Part I: Physico-chemical characterization of ground fly ashes. Cem. Concr. Res. 1995, 25, 1469–1479. [Google Scholar] [CrossRef]
- Erdoǧdu, S.; Kurbetci, S. Optimum heat treatment cycle for cements of different type and composition. Cem. Concr. Res. 1998, 28, 1595–1604. [Google Scholar]
- Türkel, S.; Alabas, V. The effect of excessive steam curing on Portland composite cement concrete. Cem. Concr. Res. 2005, 35, 405–411. [Google Scholar] [CrossRef]
- Neville, A.M. Properties of Concrete; Longman: London, UK, 1995; Volume 4. [Google Scholar]
- Kjellsen, K.; Detwiler, R. Later-age strength prediction by a modified maturity model. ACI Mater. J. 1993, 90, 220–227. [Google Scholar]
- Newman, J.; Choo, B.S. Advanced Concrete Technology 3: Processes; Butterworth-Heinemann: Oxford, UK, 2003. [Google Scholar]
- Khan, M.S.; Abbas, H. Performance of concrete subjected to elevated temperature. Eur. J. Environ. Civ. Eng. 2016, 20, 532–543. [Google Scholar] [CrossRef]
- Sajedi, F.; Razak, H.A. Thermal activation of ordinary Portland cement–slag mortars. Mater. Des. 2010, 31, 4522–4527. [Google Scholar] [CrossRef]
- Namarak, C.; Satching, P.; Tangchirapat, W.; Jaturapitakkul, C. Improving the compressive strength of mortar from a binder of fly ash-calcium carbide residue. Constr. Build. Mater. 2017, 147, 713–719. [Google Scholar] [CrossRef]
- Yazıcı, H.; Aydın, S.; Yiğiter, H.; Baradan, B. Effect of steam curing on class C high-volume fly ash concrete mixtures. Cem. Concr. Res. 2005, 35, 1122–1127. [Google Scholar] [CrossRef]
- Aldea, C.-M.; Young, F.; Wang, K.; Shah, S.P. Effects of curing conditions on properties of concrete using slag replacement. Cem. Concr. Res. 2000, 30, 465–472. [Google Scholar] [CrossRef]
- Liu, B.; Xie, Y.; Li, J. Influence of steam curing on the compressive strength of concrete containing supplementary cementing materials. Cem. Concr. Res. 2005, 35, 994–998. [Google Scholar] [CrossRef]
- Hanif, A.; Kim, Y.; Usman, M.; Park, C.J.M. Optimization of Steam-Curing Regime for Recycled Aggregate Concrete Incorporating High Early Strength Cement—A Parametric Study. Materials 2018, 11, 2487. [Google Scholar] [CrossRef] [PubMed]
- Mindess, S.; Young, J.F. Concrete Prentice-Hall; Pearson College: Victoria Englewood, BC, Canada, 1981; p. 481. [Google Scholar]
- Ozkul, M.H. Efficiency of accelerated curing in concrete. Cem. Concr. Res. 2001, 31, 1351–1357. [Google Scholar] [CrossRef]
- Chithra, S.; Dhinakaran, G. Effect of hot water curing and hot air oven curing on admixed concrete. Int. J. Chemtech Res. 2014, 6, 1516–1523. [Google Scholar]
- Agarwal, S. Pozzolanic activity of various siliceous materials. Cem. Concr. Res. 2006, 36, 1735–1739. [Google Scholar] [CrossRef]
- Carino, N.J. The maturity method: Theory and application. Cem. Concr. Aggreg. 1984, 6, 61–73. [Google Scholar]
- Sajedi, F.; Razak, H.A. Effects of curing regimes and cement fineness on the compressive strength of ordinary Portland cement mortars. Constr. Build. Mater. 2011, 25, 2036–2045. [Google Scholar] [CrossRef] [Green Version]
- Aprianti, E.; Shafigh, P.; Zawawi, R.; Hassan, Z.F.A. Introducing an effective curing method for mortar containing high volume cementitious materials. Constr. Build. Mater. 2016, 107, 365–377. [Google Scholar] [CrossRef]
- Mehta, P.K. Microstructure and properties of hardened concrete, 3rd ed.; McGraw-Hill: New York, NY, USA, 2006; pp. 41–80. [Google Scholar]
- Brooks, J.; Al-Kaisi, A. Early strength development of Portland and slag cement concretes cured at elevated temperatures. Mater. J. 1990, 87, 503–507. [Google Scholar]
- Ma, W.; Sample, D.; Martin, R.; Brown, P.W. Calorimetric study of cement blends containing fly ash, silica fume, and slag at elevated temperatures. Cem. Concr. Aggreg. 1994, 16, 93–99. [Google Scholar]
- Verbeck, G.J. Structures and physical properties of cement paste, Invited Paper. In Proceedings of the 5th International Symposium on the Chemistry of Cement, Tokyo, Japan, 7–11 October 1968; pp. 1–32. [Google Scholar]
- Pimenta Teixeira, K.; Perdigão Rocha, I.; De Sá Carneiro, L.; Flores, J.; Dauer, E.A.; Ghahremaninezhad, A. The Effect of Curing Temperature on the Properties of Cement Pastes Modified with TiO2 Nanoparticles. Materials 2016, 9, 952. [Google Scholar] [CrossRef] [PubMed]
- Tank, R.C.; Carino, N.J. Rate constant functions for strength development of concrete. Mater. J. 1991, 88, 74–83. [Google Scholar]
- Alexander, K.M. Concrete strength, cement hydration and the maturity rule. Aust. J. Appl. Sci. 1962, 13, 277–284. [Google Scholar]
- Carino, N. Temperature Effects on the Strength–Maturity Relation of Mortar, Report No. NBSIR 81-2244; National Bureau of Standards: Washington, DC, USA, 1981. [Google Scholar]
- Carino, N.J.; Lew, H. Temperature effects on strength-maturity relations of mortar. J. Proc. 1983, 80, 177–182. [Google Scholar]
- Kjellsen, K.O.; Detwiler, R.J.; Gjørv, O.E. Pore structure of plain cement pastes hydrated at different temperatures. Cem. Concr. Res. 1990, 20, 927–933. [Google Scholar] [CrossRef]
- Lee, C.; Lee, S.; Nguyen, N. Modeling of Compressive Strength Development of High-Early-Strength-Concrete at Different Curing Temperatures. Int. J. Concr. Struct. Mater. 2016, 10, 205–219. [Google Scholar] [CrossRef] [Green Version]
- Yi, S.-T.; Moon, Y.-H.; Kim, J.-K. Long-term strength prediction of concrete with curing temperature. Cem. Concr. Res. 2005, 35, 1961–1969. [Google Scholar] [CrossRef]
- Kim, J.-K.; Moon, Y.-H.; Eo, S.-H. Compressive strength development of concrete with different curing time and temperature. Cem. Concr. Res. 1998, 28, 1761–1773. [Google Scholar] [CrossRef]
- Kjellsen, K.O.; Detwiler, R.J. Reaction kinetics of Portland cement mortars hydrated at different temperatures. Cem. Concr. Res. 1992, 22, 112–120. [Google Scholar] [CrossRef]
- Mindess, S.; Young, J. Concrete; Prentice Hall: Upper Saddle River, NJ, USA, 1981. [Google Scholar]
- Mohamed, O.A.J.S. Effect of Mix Constituents and Curing Conditions on Compressive Strength of Sustainable Self-Consolidating Concrete. Sustainability 2019, 11, 2094. [Google Scholar] [CrossRef]
- Strunge, J.; Knoefel, D.; Dreizler, I. Influence of alkalis and sulfur on the properties of cement: I, Effect of the SO sub 3 content on the cement properties. ZKG 1985, 38, 150–158. [Google Scholar]
- Voglis, N.; Kakali, G.; Chaniotakis, E.; Tsivilis, S. Portland-limestone cements. Their properties and hydration compared to those of other composite cements. Cem. Concr. Compos. 2005, 27, 191–196. [Google Scholar] [CrossRef]
- Popovics, S. Concrete Materials: Properties, Specifications, and Testing; William Andrew: Amsterdam, The Netherlands, 1992. [Google Scholar]
- Aïtcin, P.C. 2-Phenomenology of cement hydration. In Science and Technology of Concrete Admixtures; Aïtcin, P.-C., Flatt, R.J., Eds.; Woodhead Publishing: Cambridge, UK, 2016; pp. 15–25. [Google Scholar]
- Bougara, A.; Lynsdale, C.; Ezziane, K. Activation of Algerian slag in mortars. Constr. Build. Mater. 2009, 23, 542–547. [Google Scholar] [CrossRef]
- Schindler, A.K. Effect of temperature on hydration of cementitious materials. Mater. J. 2004, 101, 72–81. [Google Scholar]
- Wade, S.A.; Nixon, J.M.; Schindler, A.K.; Barnes, R.W. Effect of temperature on the setting behavior of concrete. J. Mater. Civ. Eng. 2010, 22, 214–222. [Google Scholar] [CrossRef]
- Ezziane, K.; Kadri, E.-H.; Bougara, A.; Bennacer, R. Analysis of Mortar Long-Term Strength with Supplementary Cementitious Materials Cured at Different Temperatures. ACI Mater. J. 2010, 107, M37. [Google Scholar]
- Wang, C.C. Modelling of the compressive strength development of cement mortar with furnace slag and desulfurization slag from the early strength. Constr. Build. Mater. 2016, 128, 108–117. [Google Scholar] [CrossRef]
Number | Name of Mix | Curing Condition | Age at Which COE Occurred | COE (%) |
---|---|---|---|---|
1 | OM-WH-ac | Water bath heated followed by air curing under room temperature | 90 days | 7.14 |
2 | OM-WH-wc | Curing at water bath heated and then water curing | 90 days | 5.13 |
3 | OM-OH-ac | Oven heated curing and then air curing under room temperature | 56 days | 4.30 |
4 | OM-OH-wc | Oven heated curing and then water curing | 90 days | 4.70 |
5 | OM-G6/WH-ac | Water bath heated followed by air curing under room temperature | 56 days | 5.0 |

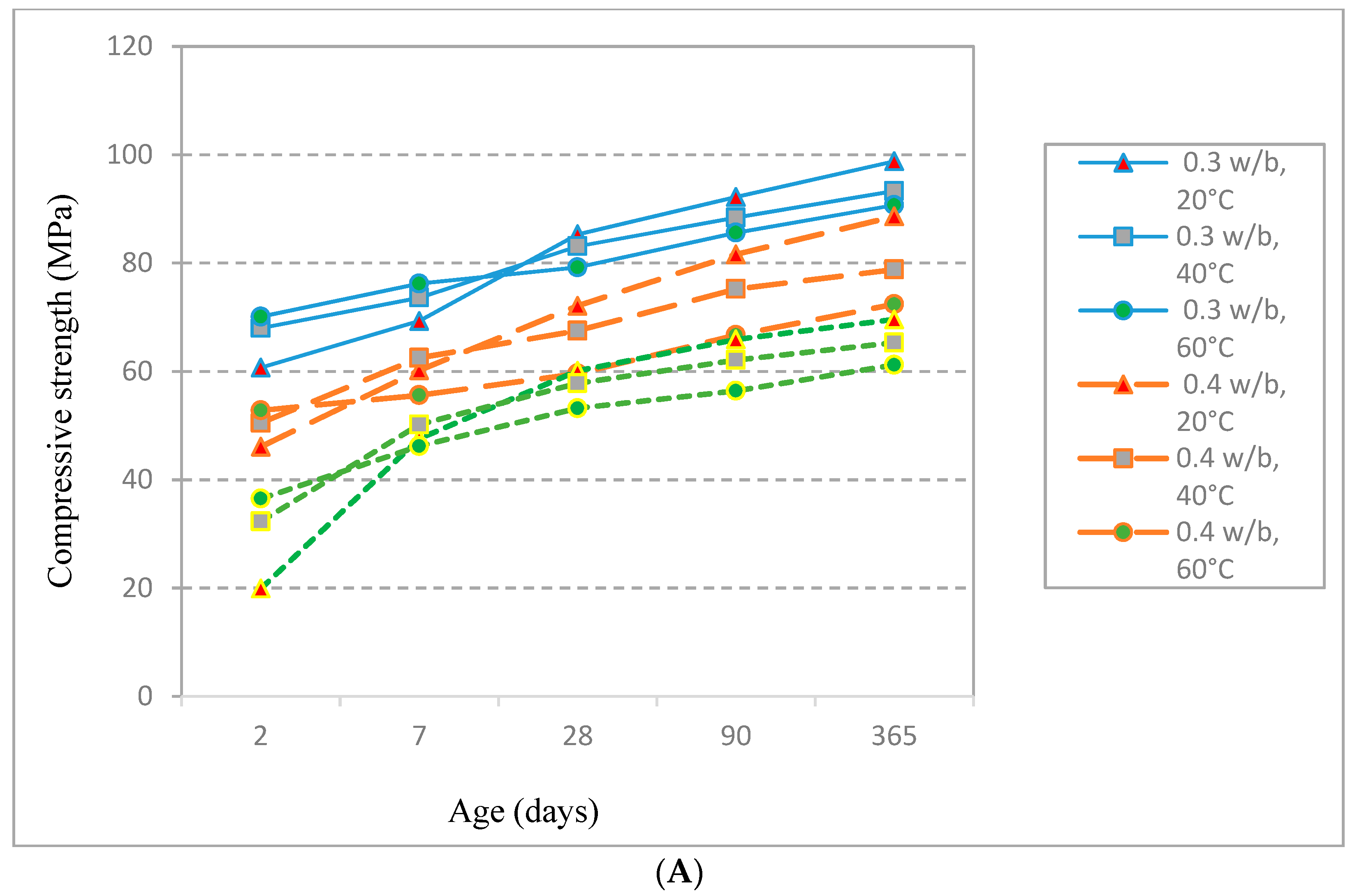

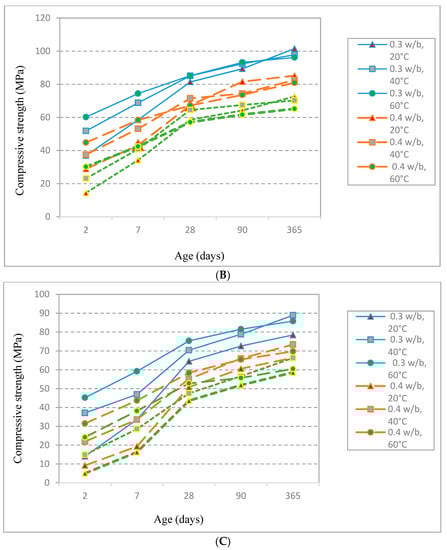

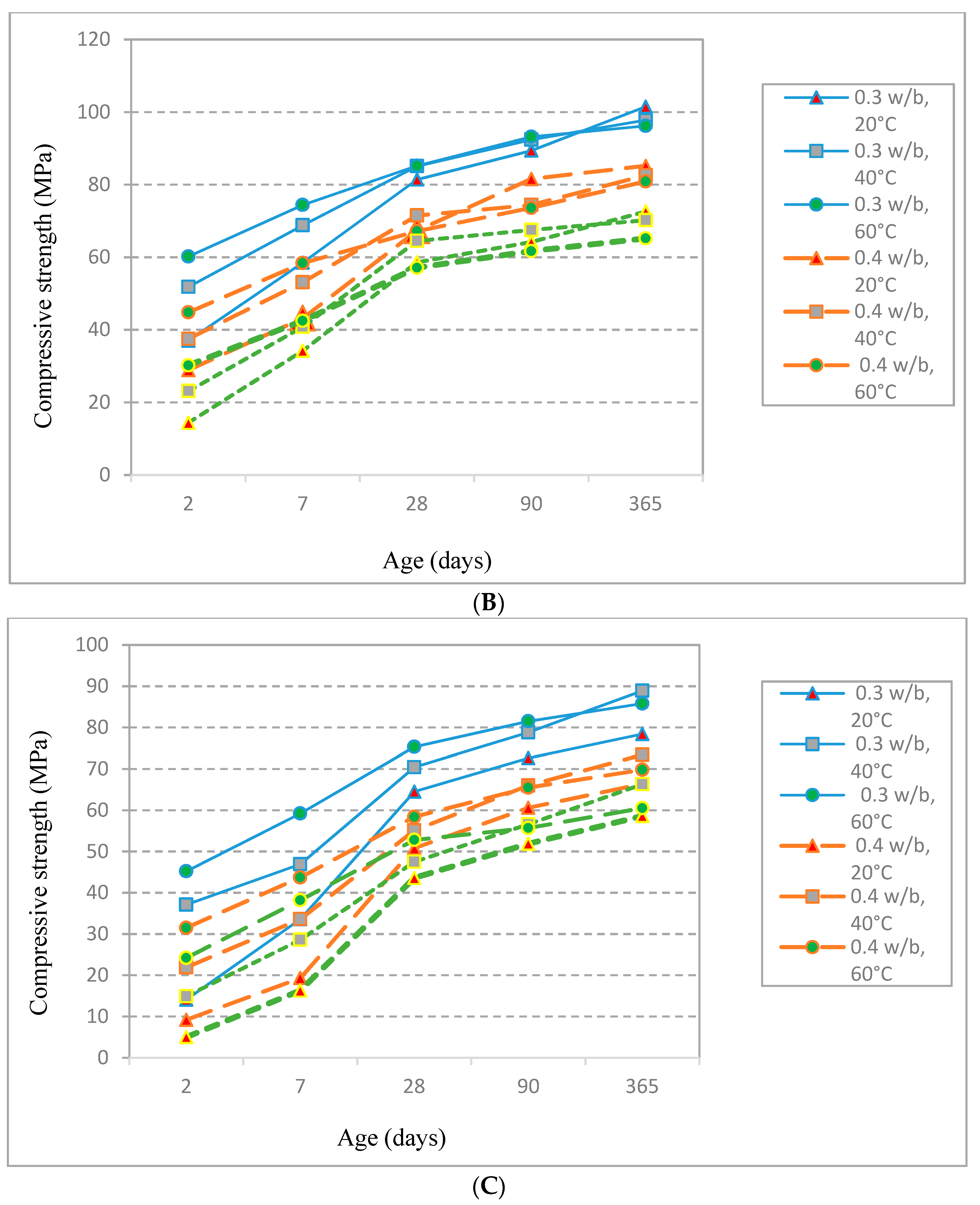

Paste Name | w/b Ratio | Age at Which COE Occurred | COE (%) |
---|---|---|---|
OPC paste | 0.3 | 28 | 7.2 |
90 | 7.2 | ||
365 | 8.2 | ||
0.4 | 7 | 7.6 | |
28 | 17.3 | ||
90 | 18.3 | ||
365 | 18.3 | ||
0.5 | 7 | 2.9 | |
28 | 11.5 | ||
90 | 14.4 | ||
365 | 12 | ||
BFS40 | 0.3 | 365 | 5.2 |
0.4 | 28 | 0.1 | |
90 | 9.8 | ||
365 | 5 | ||
0.5 | 28 | 2.6 | |
90 | 3.9 | ||
365 | 10.2 | ||
BFS80 | No COE was observed at all w/b ratios up to 365 days |

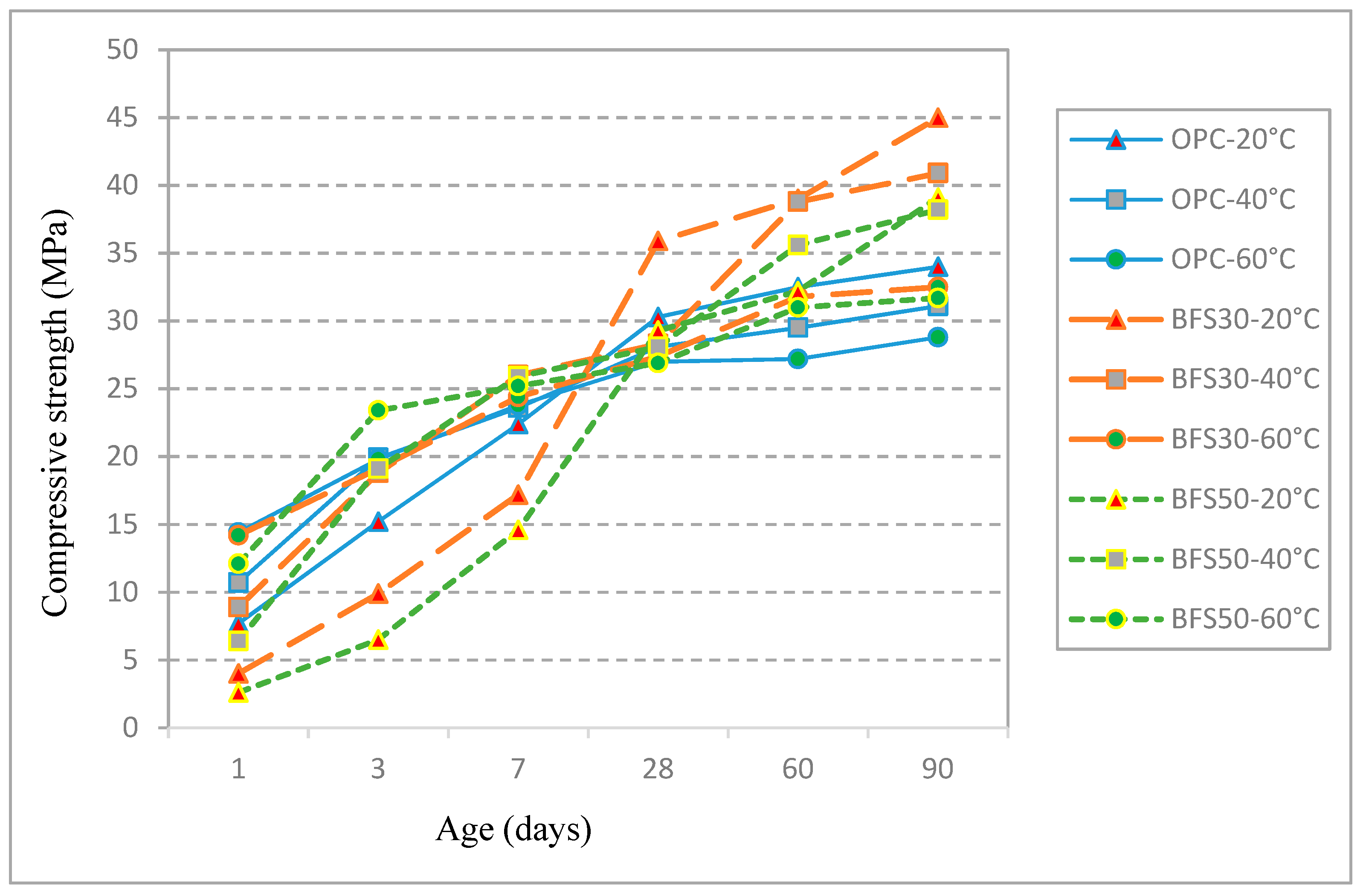

Paste Name | % Age Replacement | Age at Which COE Occurred | % Age of COE |
---|---|---|---|
OPC | 0 | 28 | 10.9 |
60 | 16.3 | ||
90 | 15.3 | ||
BFS30 | 30 | 28 | 23.7 |
60 | 18.5 | ||
90 | 27.8 | ||
BFS50 | 50 | 28 | 18.2 |
60 | 3.7 | ||
90 | 18.9 |

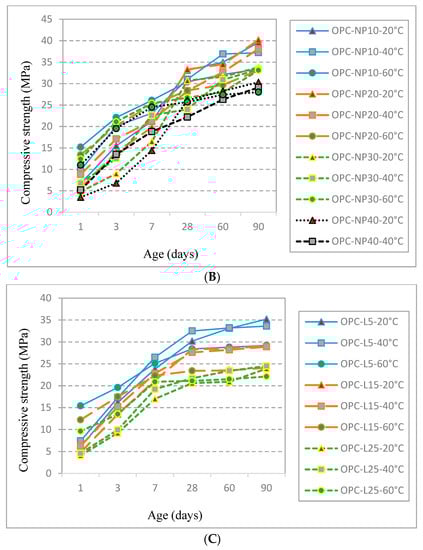

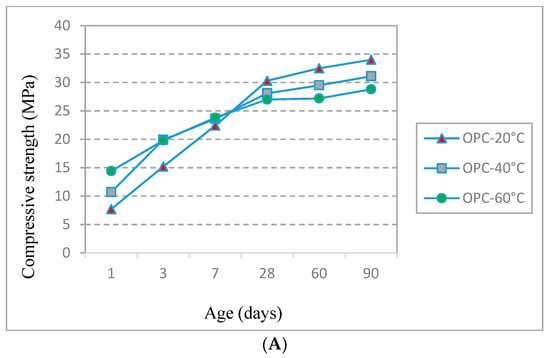

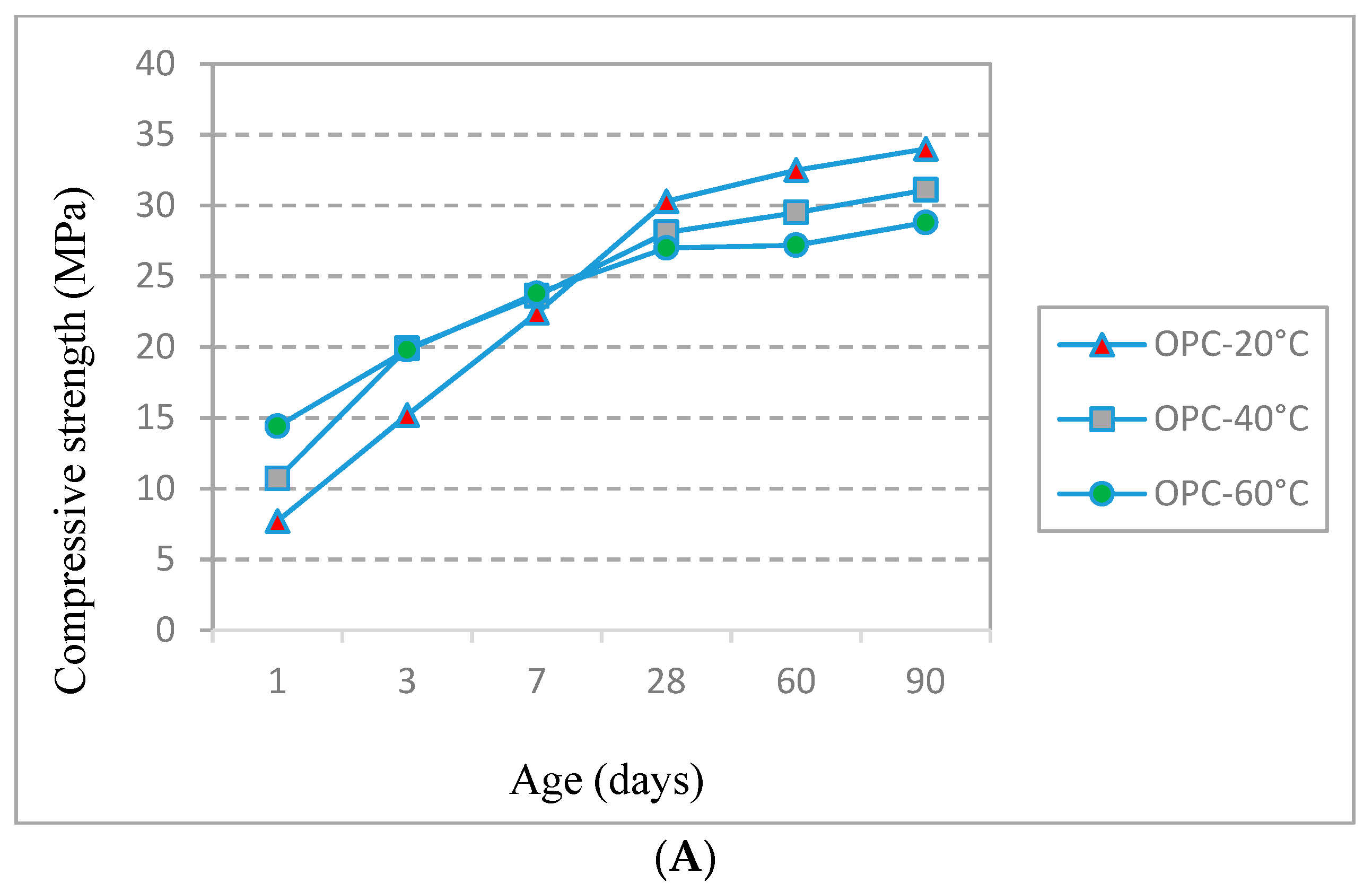

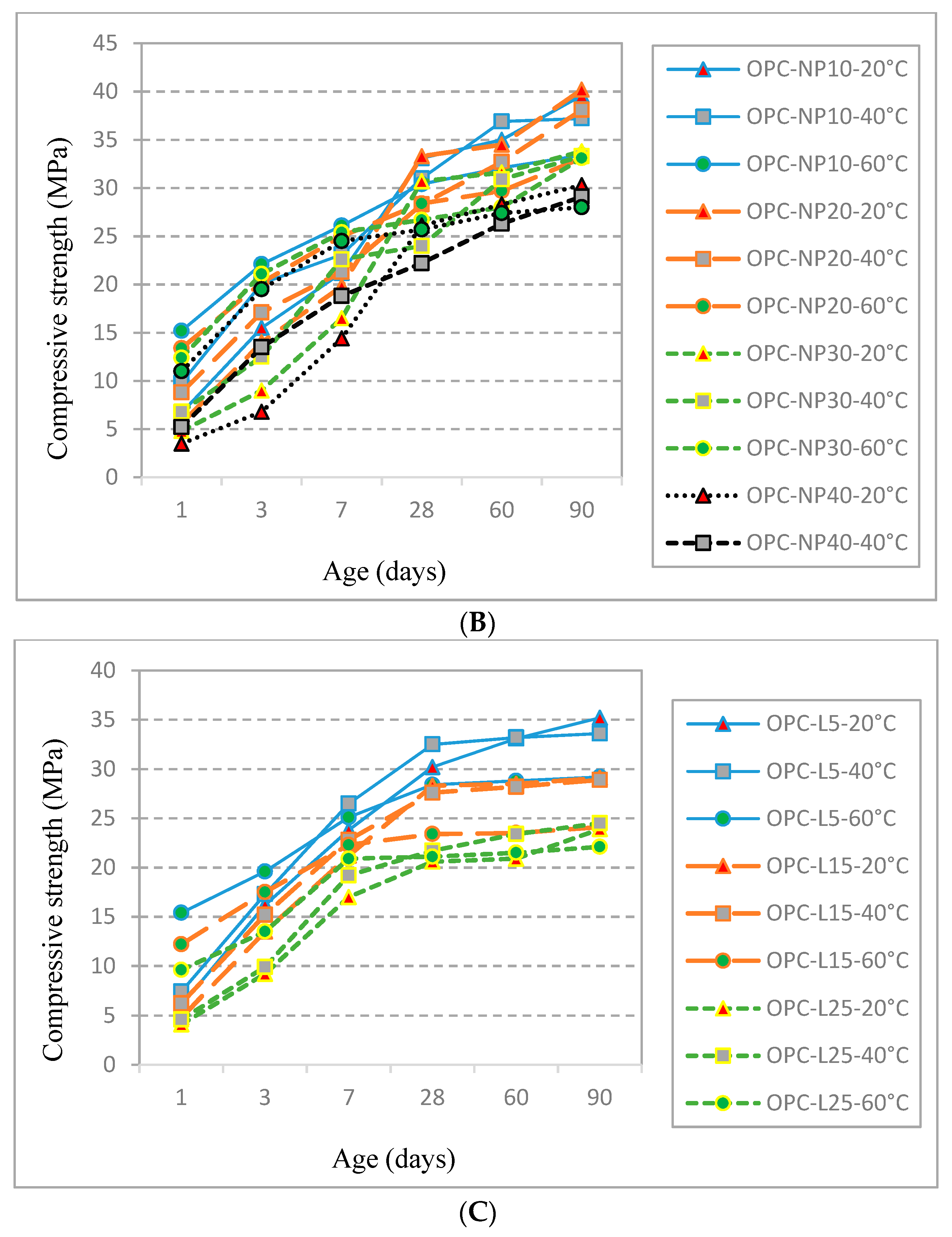

Paste Name | Age at Which COE Occurred | COE (%) |
---|---|---|
OPC | 28 | 10.9 |
60 | 16.3 | |
90 | 15.3 | |
OPC-NP10 | 28 | 8.2 |
60 | 8.3 | |
90 | 15.7 | |
OPC-NP20 | 28 | 14.7 |
60 | 13.9 | |
90 | 17.7 | |
OPC-NP30 | 28 | 13 |
60 | 11.4 | |
90 | 2.1 | |
OPC-NP40 | 28 | 1.5 |
60 | 3.2 | |
90 | 17.6 | |
OPC-L5 | 28 | 6 |
60 | 13 | |
90 | 17.1 | |
OPC-L15 | 28 | 17.3 |
60 | 17.5 | |
90 | 17.2 | |
OPC-L25 | 90 | 7.5 |
