Utilization of Industrial Ferronickel Slags as Recycled Concrete Aggregates

Abstract

The scope of this study focuses on the use of two different types of industrial byproducts such as slags (FeNi and Electric Arc Furnace slag) combined with natural sand as concrete aggregates as well as the evaluation of their suitability on the final physicomechanical behavior of the produced concrete specimens. For this reason, twelve concrete specimens were prepared using variable concentrations of these slags which were compared to concrete specimens made by natural rocks as aggregates (limestones). The mineralogical, petrographic, chemical and morphological characteristics of these raw materials were related to the physicomechanical characteristics of the produced concrete specimens. Those concrete specimens containing aggregates of higher amount of Electric Arc Furnace slags seems to present better mechanical strength both in 7 and in 28 days of curing regarding the other mixtures and regarding the specimens made by natural rocks as aggregates (limestones). This is due to the mineralogical, textural and morphological characteristics of the tested slags, which lead to a better bonding between them and the cement paste making them at the same time a promising alternative in the production of green concrete for construction applications. The compact texture of slags is responsible for the stronger bonding with the aggregates in relation to the unevenly distributed porosity of the natural aggregates. Wüstite presents negative effect on the final mechanical strength of concrete specimens which is documented both by the microscope images and by the three-dimensional study of the produced concretes.

1. Introduction

Concrete is the most used and cost-effective construction material in the world with an annual production of about 33 billion tons [1], and in view of the global population growth [2], the usage trend for building new infrastructures is estimated to increase up to 6% [3]. The basic components of concrete are made up of cement—a mixture of clinker and gypsum, aggregates and water, all of whom significantly affect the workability, durability and mechanical performance of the final product. From the environmental point of view, the cement production technology has a strong impact on energy consumption and increased CO₂ levels, ~8% of the global anthropogenic emissions [4], mainly associated with the high calcination temperature (~1450 °C) of raw materials (limestone and clay minerals) necessary for the cement clinker formation. The latter has the role of the hydraulic binder and is by far the most important ingredient in concrete, constituting about 7% to 15% of its total volume. Aggregates, on the other hand, also raise environmental concerns related with their extraction and processing as they make up more than the half of the concrete’s volume, approximately 60–75% [5]. Moreover, the quality of the hardened concrete depends upon the suitable use of both fine and coarse aggregates, usually consisting of natural sand and gravel or crushed stone and their efficient bond with the surrounding cement paste. Bearing all this in mind, it is obvious that for the huge concrete volumes produced every year, vast amounts of natural resources are required both for aggregates and cement leading to severe environmental problems.

Based on the ecological footprint caused by the unsustainable linear production model—take, make and dispose—which is clearly impacting climate change, waste management and natural resource depletion, a worldwide challenge have become even more apparent in driving change. Accordingly, a new legally binding agreement was adopted in December 2015 by the United Nations known as the Paris Climate Change Agreement aiming to reduce the greenhouse gas emissions on a global base [6]. The objective of the net-zero CO₂ emissions by 2050–2070 applying to heavy industry as well, including the steel, cement, chemicals and other materials sectors. Under this prism, the circular economy initiatives published by the European Commission in March 2020 [7] can certainly offer successful and realistic decarbonization pathways not only in overcoming strict legislation and financial burden, but also in the development of a sustainable future with considerable social and economic benefits in the upcoming years.

One of the targets of the circular economy action plan is waste recycling and industrial by-products utilization, a practice that cement manufacturing industries has already made progress on either through the implementation of different production processes or as well through the adoption of synergy practices.

A great example of the industrial symbiosis is the steel slags valorization that have attracted the construction sector during the last decades as they have the potential to be used as partial replacement of cement clinker due to their pozzolanic characteristics, but as well as aggregates replacement in the formation of concrete. The latter application field though is more favorable as little, or no processing of the aggregates is required against the use as a binder material where grinding of these by-products is prerequisite and associated with high energy consumptions [3]. Thereafter, different types of coarse and/or fine slag aggregates have been investigated for the manufacturing of eco-friendly concrete which may found use in various construction applications such as asphaltic pavement structures, road bases and surfaces or in other concrete shaped applications, e.g., breakwater blocks and dams.

Moreover, the European Waste Framework Directive [8,9] makes clear the importance of industrial by-products valorization such as iron and steel slag aggregates that contributes to waste minimization and resource conservations. Ferrous containing slags, are silicate melts that are formed during the manufacturing of crude steel and crude iron, mainly due to the combination of slagging agents and fluxes used to remove impurities from iron ore and other metal feeds of the smelting furnaces [10]. The hot slags are tapped from the liquid metal and transported to a slag damp where they are stockpiled, after cooling (open-air or water spraying) and processed to solid material. In Europe, ~45 Mt of blast furnace slags and steel slags were produced in 2018 [11], whereas in the U.S., steel slag production is estimated in the range of 8 to 12 Mt [10]. The most common produced metallurgical slags are steel, ferronickel, copper, lead, zinc, phosphorous and stainless steel slags. An important parameter affecting the physical and chemical properties of the slag by-products is by far the source ore and the metal processing method used by each country. Greece for example is the one of the largest ferronickel (FeNi) producer in Europe utilizing the domestic laterite ore deposits [12]. The pyrometallurgical process comprises of two main stages: (a) preheating of the feeding materials in rotary kilns and (b) reduction and smelting (1600–1700 °C) of output calcine in electric arc furnaces (EAFs). This process leads to the production of two co-existing materials: the ferronickel product and the slag. Given the fact that the EAF slag produced make up about 80–90% of the feeds material’s mass [13], it is apparent that large quantities are generated, which concerns steel production industries.

During the past decades, extensive work has been published on the utilization of steel slags as alternative aggregates in Portland concretes. Depending on the physical characteristics of the slag aggregates, e.g., density, granulometric size and shape, and the application field of the final product interesting findings are reported by scientists with emphasis on mechanical, physico-chemical and environmental properties of slag-containing concrete. Durability studies of concrete mixes containing electric arc furnace (EAF) slag aggregates include systematic tests of compressive strength, water penetration, freeze–thaw cycles, leaching tests and chemical reactivity of the slag with the surrounding cement components [3,14,15,16,17]. For example, Manso et al. [18] found that the high porosity of EAF slag used in this work reveals a low-quality concrete in terms of freezing resistance, thus suggesting the additional use of specific admixtures. Leaching tests, on the other hand, showed a beneficial cloistering effect of fluorides and chromium in the concrete mix. In a recent study, conducted by Chatzopoulos et al. [19], conventional sand and gravel were replaced by EAF and ladle furnace (LD) slags, individually or in combination, resulting in the production of a durable concrete. From the 14 test samples prepared, all quality indexes investigated remained either stable or improved in comparison to the reference concrete. The most efficient mixture was achieved when sand was replaced with 30% by volume of EAF and LD slag sand, respectively, and gravel by 50% of EAF gravel aggregates leading to concretes with reduced carbonate and chloride penetration. However, granulated blast furnace slags (GBFS) attract also special scientific interest as due to their finer grain size they can be utilized instead of natural fine aggregates (e.g., river sand). Patra et al. [20] for examples state that incorporation of GBFS (<5 mm) up to 40% was feasible, whereas higher percentages (up to 60%) lead to reduced workability of the concrete mixes attributed to the higher water absorption of GBFS. Nevertheless, the authors suggest the use of superplasticizers to achieve the appropriate workability as compressive strength shows increased values (up to 45 MPa) in case of 60% replacement most probably due to the pozzolanic effect of the steel slag used. An interesting experimental approach on the production of an eco-friendly concrete was done by Anastasiou et al. [21] aiming on the maximum valorization of alternative raw materials. Fly ash was incorporated as cement replacement, EAF slag and recycled aggregates from construction demolition wastes (CDW) as coarse and fine aggregates, respectively. They found that the use of CDW increases the porosity of concrete with subsequent decrease in strength and durability compared to a reference mix, while the synergy of CDW with EAF slag partly overcomes these drawbacks reaching compressive strength values of about 30 MPa at 28 days. In spite the poor bonding between aggregate-binder, the formed concrete might be used in lower-demand applications. Blended concretes have been also studied using FeNi slag aggregates in different grain sizes and by substituting ordinary binding materials as presented for example by Kim et al. [22]. They found that early strength of the test samples was affected, but with time hydration reaction can overcome this issue. According to Sun et al. [23], natural aggregates can feasibly be replaced by FeNi slag as the final concrete mix conforms with type C50 due to the obtained mechanical strength reaching 55 MPa at 28 days of curing. However, best engineering results are observed with the use of blast furnace slag as well. Lately, Nuruzzaman et al. [24] investigated the combined use of FeNi slag and ground FeNi slag as supplementary binder for enhancing the sustainability of self-compacting concrete. After assessing strength, permeability and microstructure of the produced concrete samples, they came to the conclusion that a replacement of cement up to 30% by ground FeNi slag and, respectively, of sand by 50% replacement of FeNi slag is feasible as they presented high durability.

There is still room for further research on the production of eco-friendly concretes from different types of slags and/or other industrial by-products in relation to the technical properties of the new concrete mixes as for sure environmental benefits are anticipated. As the economy and the smelting industry developed rapidly, the quantity of smelter slag has been increasing for a long time. Common smelting furnace slag includes steel smelting slag, red mud, copper smelting slag, lead slag, ferronickel slag, sulfuric acid slag, etc. Approximately 30 million tons of ferronickel slag are emitted each year, accounting for more than a fifth of the global production [3,25,26]. The large stockpiles of nickel slag not only occupy land and pollute the environment, but also bring about severe challenges to the sustainable development of the nickel smelting industry [27,28]. Furthermore, it is essential to develop and utilize smelter slag through environmental-friendly technologies [29,30]. Different types of industrial by-products were studied in the past few decades in order to find suitable alternatives of natural sand in concrete. Blast furnace slag, steel slag, copper slag, foundry slag and ferronickel slag are the most common types of by-product slags that can be used as fine aggregate in concrete. Rashad et al. [31] showed that the use of blast furnace slag as a replacement of natural sand improved the compressive strength of mortar. The physical and chemical properties of the by-product slag can vary significantly depending on the type of the ore, the smelting process and temperature, and the cooling method. The amount of literature available on the use of ferronickel slag in concrete is very limited. Sato et al. [32] pointed out that freeze–thaw resistance of concrete decreased with the use of 50% ferronickel slag replacing natural coarse aggregate. The reason was attributed to the increase of bleeding and the resulting reduction in air content of concrete with the increase of ferronickel slag. Tomosawa et al. [33] pointed out a deleterious expansion due to the alkali-silica reaction of concrete containing 50% ferronickel slag aggregate and recommended to use low alkali cement to mitigate this expansion. Improved frost resistance of concrete was reported by the partial or full replacement of sand by ferronickel slag aggregate [34,35] showed that ferronickel slag could be used as a suitable replacement of natural aggregates in hot mix asphalt and in base and sub-base layers of roads. It was also reported that ferronickel slag could be used to make composites with waste glass. These composites were described as safe to use as any toxic elements in the slag were chemically locked in the composite [36].

It can be observed from the above literature review that utilization of ferronickel slags from different sources was attempted in different applications. The aim of this study is double. From the one hand is the significant improvement of the sustainability of concrete production by reducing the use of natural aggregates and simultaneously by the increase of use of industrial by-products (i.e., slags) enhances the green policy of industries as well as their financial benefits. On the other hand, by the prediction of the concrete behavior through the tools of petrography and mineralogy the human footprint on the environment reduces. A comprehensive study is necessary in order to understand the properties of concrete using these aggregates. The workability of fresh concrete, physic-mechanical properties of hardened concrete using these aggregates as a supplementary cementing material are evaluated in this study. Thus, this work presents an innovative study on a green concrete using two industrial by-products evaluating the engineering properties.

2. Materials and Methods

The present study emerged after the constructive cooperation of research institutions with industrial companies having as main goal their interconnection and in order to bring significant results both in constructions and in the wider society through the reuse of slags as high-quality aggregates.

2.1. Materials

In this study, the morphological and mechanical characteristics of alternative aggregates (slags) of variable concentrations were evaluated for their use as concrete aggregates and linked with the performance of the resultant produced high-strength concrete specimens. More specifically, the alternative aggregates were FeNi and Electric Arc Furnace slags. Furthermore, micritic limestone was used as concrete aggregate in order to produce specimens containing only natural aggregates (standard concrete). Moreover, cement of Type II ASTM C 150 (Lafarge) [37] was used as well as potable tap water, free of impurities such as salt, silt, clay and organic matter, was also used for mixing and curing the concrete. The pH value of water was 7.0. Natural washed sand was also used for the concrete production whose concentration varies from 5.5 to 7.5%. The water/cement ratio was 0.33.

2.2. Methods

2.2.1. Methods for Raw Materials

The mineralogical and textural characteristics of the used raw materials were examined in polished thin sections with a polarizing microscope according to EN-932-3 [38] standard for petrographic description of aggregates. Thin sections were prepared to study the mineralogical composition and textural characteristics of the studied materials. The thin sections were examined under a petrographic microscope (Leitz Ortholux II POL-BK Ltd., Midland, ON, Canada) for mean grain size and grain shape. The bulk mineral composition of the studied samples was also determined by X-ray Diffraction (XRD), using a Bruker D8 advance diffractometer, with Ni-filtered CuKα radiation. Random powder mounts were prepared by gently pressing the powder into the cavity holder. The scanning area for bulk mineralogy of specimens covered the 2θ interval 2–70°, with a scanning angle step size of 0.015° and a time step of 0.1 s. The mineral phases were determined using the DIFFRACplus EVA 12^® software (Bruker-AXS, Gmbtl, Karlsruhe, Germany) based on the ICDD Powder Diffraction File of PDF-2 2006. Furthermore, loss on ignition (LOI) of the studied samples was determined according to the ASTM D7348-13 standard [39]. Additionally, an XRF (X-ray Fluorescence) spectrometer and a sequential spectrometer cited at the Laboratory of Electron Microscopy and Microanalysis (University of Patras, Greece) were used for the determination of the major and trace elements of the studied zeolite. An amount of 0.8 g of dried ground sample was mixed with 0.2 g of wax (acting as binder) and was pressed to a pellet under 15 tones. Pressed pellets were analyzed with a RIGAKU ZSX PRIMUS II spectrometer, which is equipped with Rh-anode. In order to examine the mineralogical and textural characteristics of the tested slags, a scanning electron microscope (JEOL JSM-6300 SEM) equipped with energy dispersive (EDS: Model: 6699, Det. Area: 10 mm², Resol.: 138 eV) using the INCA software was used. The scanning electron microscope used is located in the Laboratory of Electron Microscopy and Microanalysis (University of Patras, Greece). Operating conditions were accelerating voltage 25 kV and beam current 3.3 nA, with a 4 μm beam diameter. The total counting time was 60 s and dead-time 40%. Synthetic oxides and natural minerals were used as standards for the analyses, where the detection limits are ~0.1% and accuracy better than 5% was obtained. Moreover, the specific gravity of the raw materials (slags) used as aggregates were calculated according to ASTM C1567 standard [40].

2.2.2. Methods for the Produced Concrete

Twelve concrete cylindrical specimens were made from two different types of slags and three standard concretes were made containing natural aggregates (limestones) according to ACI-211.1-91 [41]. The aggregates were crushed through standard sieves a separated into the size classes of 2.00–4.75, 4.45–9.5 and 9.5–19.1 mm. After 24 h, the samples were removed from the mold and were cured in water for 28 days. Curing temperature was 20 ± 3 °C. In the present study, concrete mixtures were prepared with variations in the quantitative proportions of the different types of slags as shown in Figure 1 and

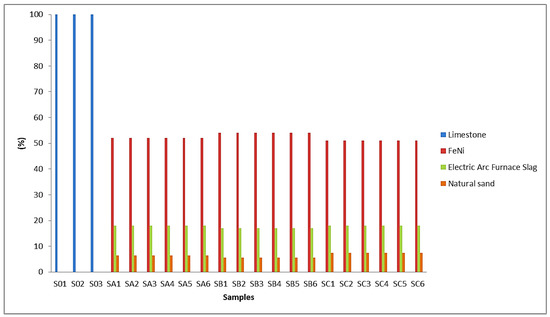

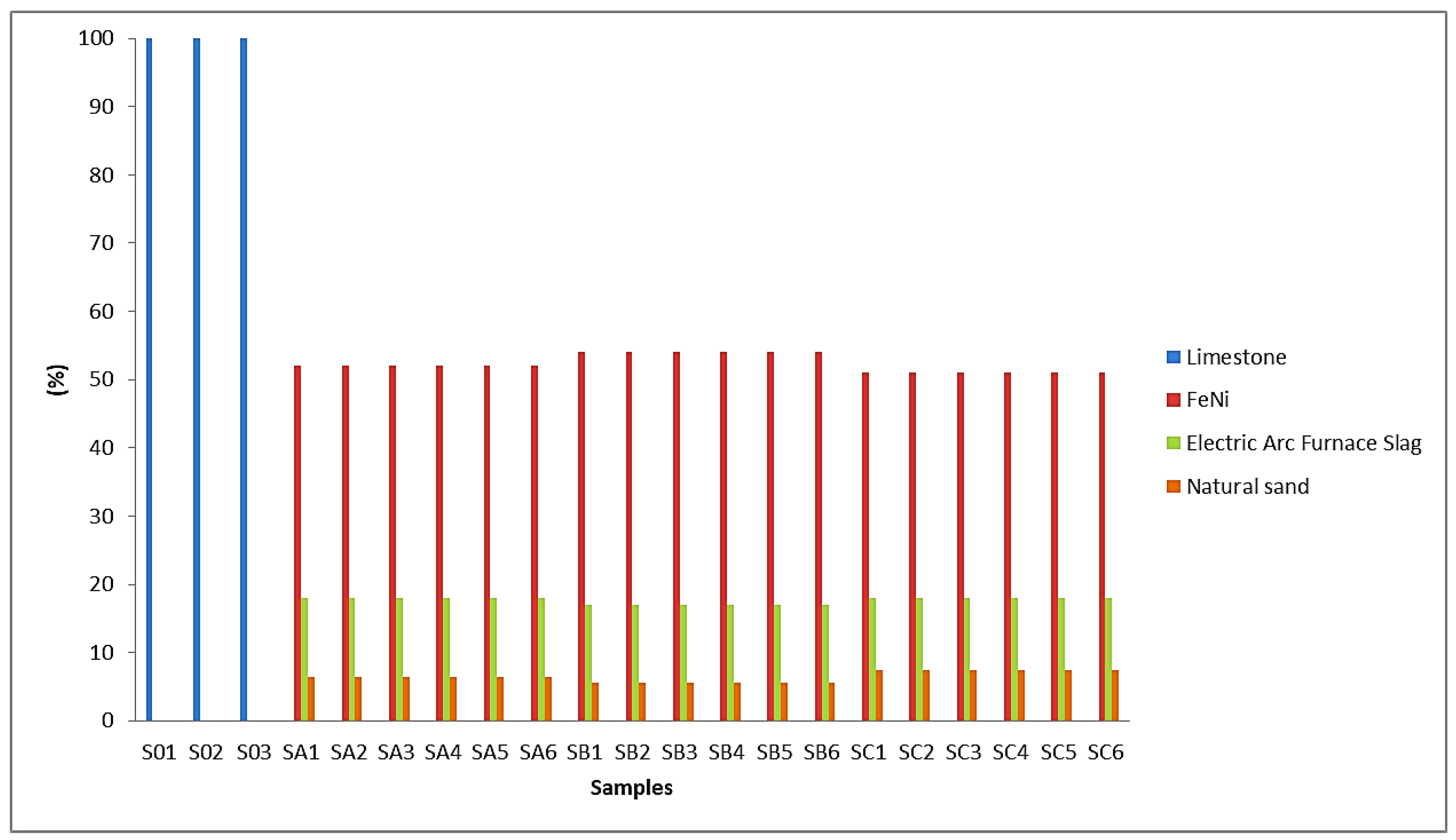

Table 1. Aggregates’ concentration of concrete samples.

Samples	Limestone (%)	FeNi (%)	Electric Arc Furnace Slag (%)	Natural Sand (%)
S01	100	-	-	-
S02	100	-	-	-
S03	100	-	-	-
SA1	-	52	18	6.5
SA2	-	52	18	6.5
SA3	-	52	18	6.5
SA4	-	52	18	6.5
SA5	-	52	18	6.5
SA6	-	52	18	6.5
SB1	-	54	17	5.5
SB2	-	54	17	5.5
SB3	-	54	17	5.5
SB4	-	54	17	5.5
SB5	-	54	17	5.5
SB6	-	54	17	5.5
SC1	-	51	18	7.5
SC2	-	51	18	7.5
SC3	-	51	18	7.5
SC4	-	51	18	7.5
SC5	-	51	18	7.5
SC6	-	51	18	7.5

.

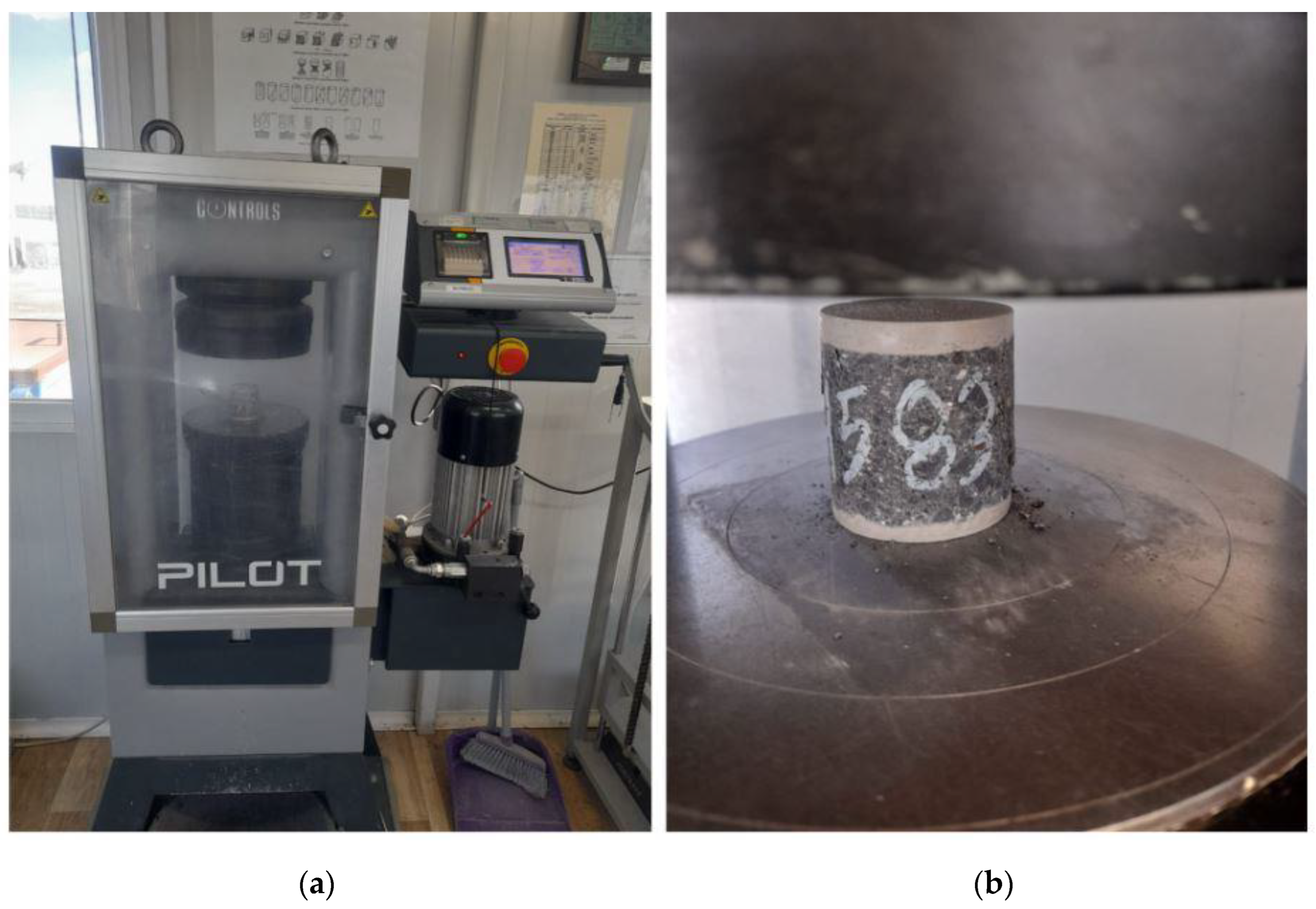

These specimens were tested in a compression testing machine. The compressive strength of concrete is calculated by the division of the value of the load at the moment of failure over the area of specimen both at 7 and 28 days. In this work, our aim was to study the process of hydration of cement at 7 and 28 days because they are the key days to come up to a reliable conclusion on a micro scale regarding the relationship of cement paste with aggregates in concrete, especially comparing different mixtures of raw materials. The compression test was elaborated according to ASTM C42/C42M-12 [42] in a compressive strength Pilot machine-Controls (Model C13C02) with maximum load 1500 kN (Figure 2a). The cylindrical specimens used for this test had 50 mm diameter and 55 mm high (Figure 2b). After the compressive strength test, the textural characteristics of concretes were examined. Polished thin sections were studied in a polarizing microscope according to ASTM C856–17 [43]. The surface texture of aggregate samples was studied by using Secondary Electron Images (SEI) according to BS 812 Part 1 [44] which outlines six qualitative categories, e.g., glassy, smooth, granular, rough, crystalline, honeycomb and porous. Furthermore, two physical properties of the produced concrete specimens were calculated, the water absorption as well as the density according to ASTM Standard C642 [45].

In this stage, the examination of the concrete textural features was carried out when using polished thin sections in a petrographic microscope (ASTM C856–17) [43]. A 3D depiction of the petrographic characteristics of the concrete as well as of the studied slags was carried out by the 3D Builder software using thin sections.

3. Results

3.1. Raw Materials Characterization

The microscopic observation of the studied slags under polarizing microscope is in accordance with the results of the X-ray diffraction analysis. In general, the studied slags present heterogeneous texture due to uneven aggregate of minerals or usually multi organic fragments. Slags are rich in opaque minerals, mainly wustite and spinels, while microcrystalline to cryptocrystalline, mainly anisotropic calcium-alumino silicate phases, as well as silica minerals complete the overall mineral composition (Figure 3a–c). Alternations of isotropics with anisotropic minerals that form banded structures are also observed. Some grains display different composition around their margins and more specifically they present microcrystalline material possibly alumina-calcium-silicate (anisotropic) in coexistence with an amorphous mass (isotropic). The shape of the opaque minerals and of those of the spinel group usually appears polygonal to spherical with peculiar-sub-dominated plains. The spinel group minerals appear more with dark brown or red to black color and less amber, which indicate their more ferritic-chromit character and less aluminum (Figure 3d). The anisotropic minerals predominate in a prismatic shape, euhedral or subhedral with the exception of silicon dioxide ores which are usually unhedral. Anisotropic minerals usually appear with gray, white and yellow colors, while olivine crystals were observed less frequently (Figure 3a).

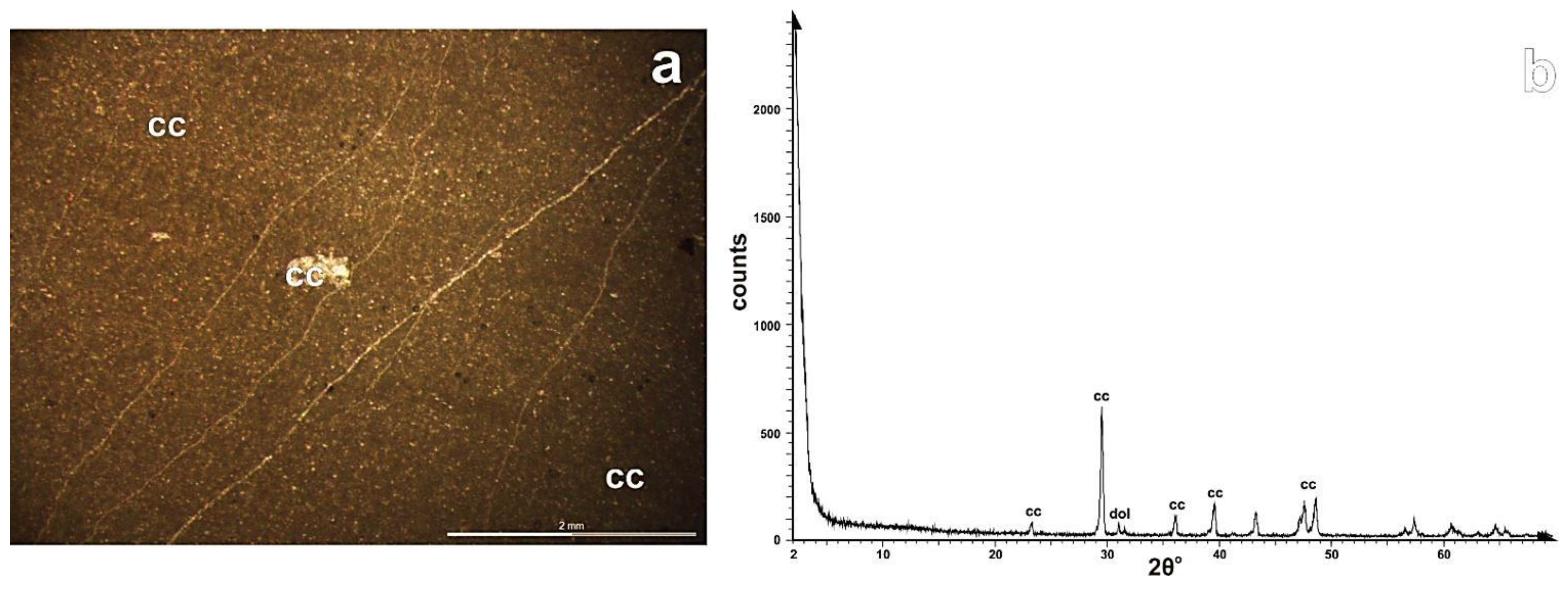

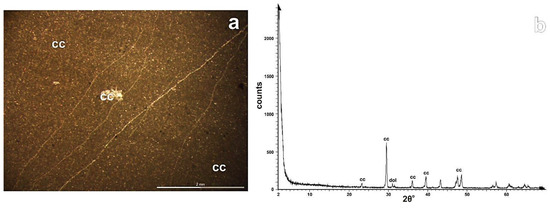

The carbonate aggregates (limestones) used as components of the produced concrete specimens do not present many cracks or impurities in their structure as can be seen from the petrographic study. More specifically, limestones used display micritic texture with numerous of fossils and veinlets of microcrystalline calcite and stylolitic porosity filled with clay minerals and Fe-oxides (Figure 4a,b).

The results of the qualitative and semi-quantitative analysis of the tested slags are presented in

Table 2. *** Mineral composition % of the studied FeNi slag.

Name	Chemical Formula	Percentages (%)
Spinel group	(Mg, Fe, Mn, Ni)(Cr, Al, Fe, V)O4	35
Wustite	FeO	45
Merwinite	C3MS2	7
Beta dicalcium silicate	C2S	11
Gehlenite	C2AS	<3

*** In the semi-quantitative analysis, the amorphous phases are not included. It was calculated <30%.

and

Table 3. *** Mineral composition % of the studied Electric Arc Furnace slag.

Name	Chemical Formula	Percentages (%)
Spinel group	(Mg, Fe, Mn, Ni)(Cr, Al, Fe, V)O4	27
Wustite	FeO	30
Merwinite	C3MS2	5
Beta, gamma dicalcium silicate	C2S	18
Gehlenite	C2AS	17
Quartz	SiO2	<2
periclase	MgO	<2

*** In the semi-quantitative analysis, the amorphous phases are not included. It was calculated <30%.

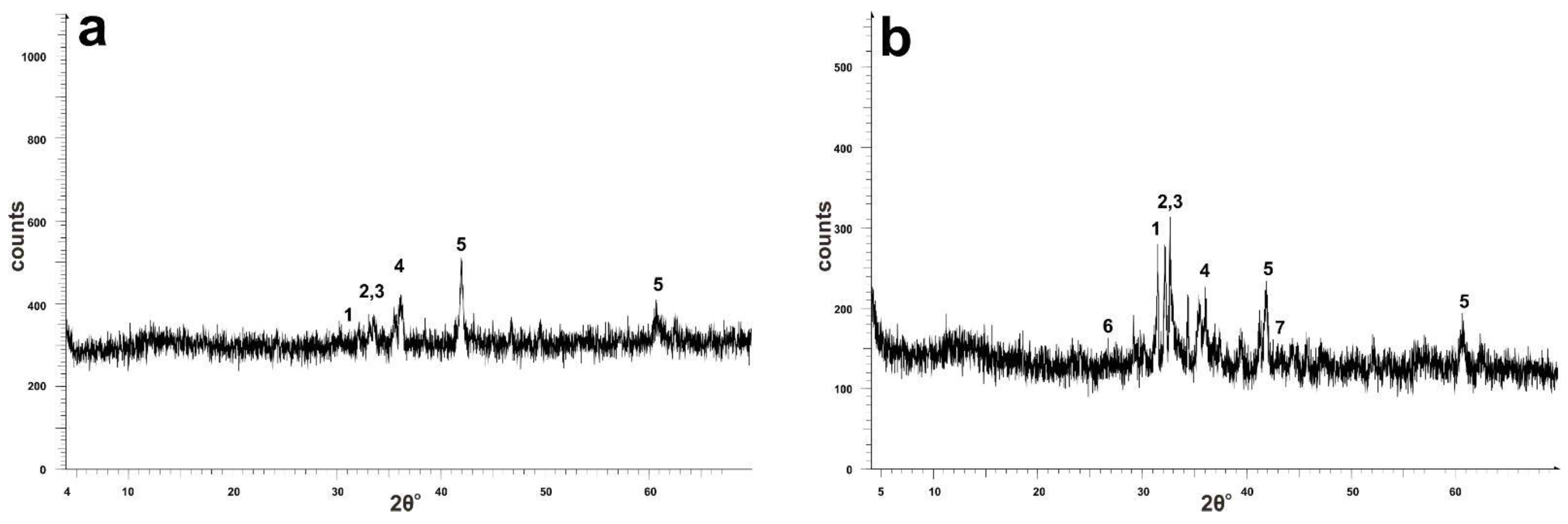

and Figure 5a,b. Similar qualitative phase composition was detected in the studied samples with mainly quantitative variations. In general, wüstite, spinel group minerals and lime-alumino silicate phases constitute their modal composition. The highest percentages of the wüstite-spinel phases occur in FeNi slag, which reflects to the geochemical effects, as it contains the lowest percentages of calcium, silicon and higher levels of Fe. Indications derived from the mineralogical analysis of the samples for participation of amorphous phase in their mass in percentages up to ~20–30%.

Results of the chemical composition analyses of the studied slag samples were performed by X-ray Fluoroscence (XRF) are presented in

Table 4. Results of the chemical composition of the tested samples (<DL: <below detection limit).

Oxides	FeNi	ELECTRIC ARC FURNACE SLAG
SiO2	3.77	11.81
TiO2	0.02	0.57
Al2O3	0.43	7.29
Fe2O3t	37.25	10.41
MnO	<DL	1.74
MgO	2.30	1.74
CaO	10.21	26.85
Na2O	0.04	0.10
K2O	0.04	0.03
P2O5	0.33	0.39
LOI	0	1.21
ppm Cr	2561	4537
Co	379	31
Ni	1327	20
Cu	27	156
Zn	12	115
Rb	<DL	<DL
Sr	39	486
Y	15	34
Zr	<DL	86
Nb	<DL	<DL
Pb	<DL	<DL
Ba	171	1203
V	31	207
W	37	28
La	1	12
Ce	58	94
Th	<DL	<DL
Sc	<DL	<DL

. The results of XRF analyses shows that the FeNi slag contains higher amount of Fe₂O₃ (37.25 wt.% compared to the ELECTRIC ARC FURNACE SLAG slag (10.41 wt.%). The ELECTRIC ARC FURNACE SLAG slag displays higher amounts of SiO₂, Al₂O₃ and CaO (11.81 wt.%, 7.29 wt.% and 26.85 wt.%, respectively) in contrast to FeNi slag which contains significantly lower amounts (3.77 wt.%, 0.43 wt.% and 10.21 wt.%, respectively). Regarding the alkalies, they are not significant differences between the two types of slags (Table 3). ELECTRIC ARC FURNACE SLAG slag presents LOI (loss on ignition) 1.21, while the FeNi slag does not present any value of LOI. As for the trace elements, FeNi slag is more enriched in Ni, while ELECTRIC ARC FURNACE SLAG slag is more enriched in Cr, Sr, Ba and V (Table 4).

The slags have basicity value which range from 2.42 (ELECTRIC ARC FURNACE SLAG) to 3.31 (FeNi) which as calculated according to the following equation:

Basicity = (%CaO + %MgO)/%SiO₂

where %CaO, %MgO and %SiO₂ are the contents of those mentioned oxides (wt%) in the studied slags.

Analyses with Scanning Electron Microscope (SEM) and Energy Dispersive X-ray mapping were conducted to determine the distributions of several major elements (Si, Al, Ca, Mg, Fe, Cr, K and Na) in the studied slags. SEM observations are in accordance with the petrographic features and XRD analyses as indicated in Figure 5 where spherical crystals of wϋstite and curved subhedral spinels are shown. These minerals are surrounded by microcrystalline calc-silicate phases (C₂S). FeNi slag presents uniformly distributed porosity of brick type (Figure 6). Regarding ELECTRIC ARC FURNACE SLAG slag, in Figure 7 it is proved that it consists of spherical crystals of wϋstite, elongated spinels, calc-silicate phase (C₂S) and microcrystalline gehlenite (Figure 7a).

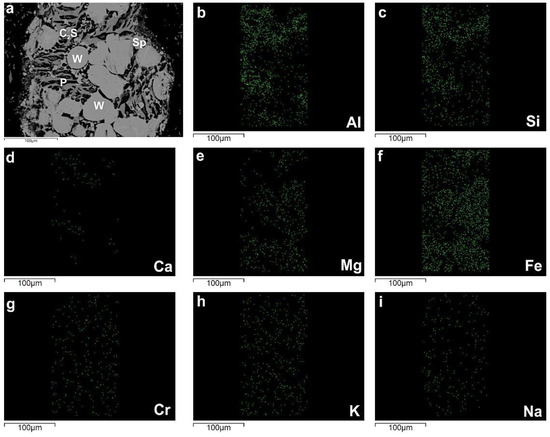

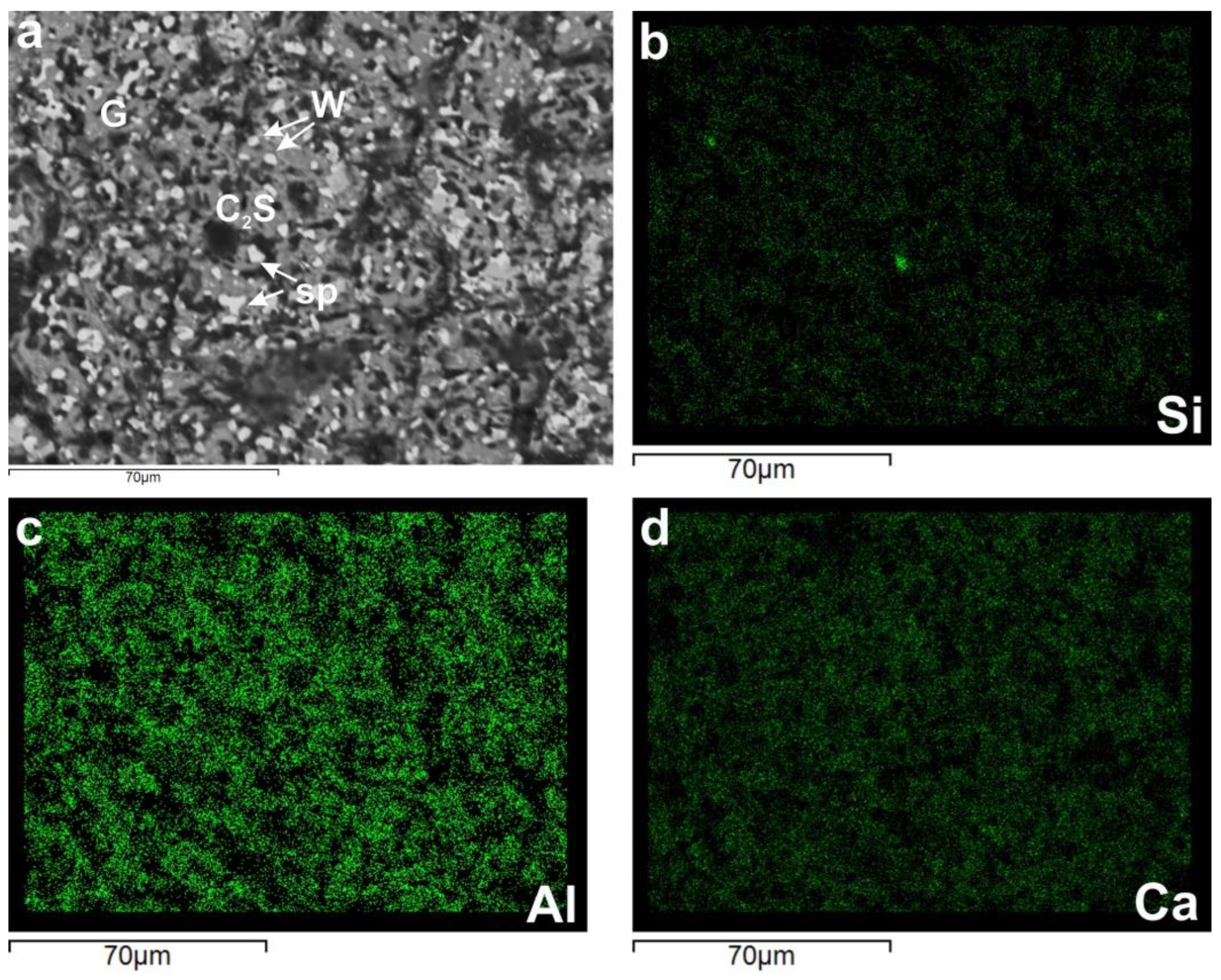

The results of SEM-X-ray mapping are presented in Figure 6 and Figure 7. The SEM-X-ray mapping analysis result in FeNi slag indicates that Fe is uniformly distributed on the entire surface of the slag (Figure 6f). In addition to Mg, components in the slag that are in lower amounts are Si, Cr, Ca, K and Na (Figure 6b–e,g–i). Regarding ELECTRIC ARC FURNACE SLAG slag, the mapping results are in accordance with the chemical compositions and the petrographic results. More specifically, slag composition is relatively uniform, in which Ca and Al are present as the major component of the slag, while Si is in smaller amounts (Figure 7b–d).

The specific gravity of the tested slags (both of two types) and of the natural aggregates (limestone) is identified. As can be seen from

Table 5. Results of the specific gravity test of the tested slags.

Samples	Specific Gravity (T/m3) of FeNi	Specific Gravity (T/m3) of Electric Arc Furnace Slag
S01	2.70 (limestone)
S02	2.70 (limestone)
S03	2.70 (limestone)
SA1	4.51	3.61
SA2	4.51	3.61
SA3	4.61	3.59
SA4	4.51	3.61
SA5	4.51	3.61
SA6	4.61	3.59
SB1	4.59	3.52
SB2	4.54	3.70
SB3	4.56	3.60
SB4	4.59	3.52
SB5	4.54	3.70
SB6	4.56	3.60
SC1	4.59	3.45
SC2	4.62	3.51
SC3	4.70	3.56
SC4	4.72	3.61
SC5	4.71	3.70
SC6	4.69	3.70

, the specific gravity of FeNi slags presents higher values than of those of ELECTRIC ARC FURNACE SLAG slags in all tested samples. More specifically, as for the SA group, its specific gravity values range from 4.51 to 4.61 T/m³ regarding FeNi slags while from 3.59 to 3.61 T/m³ regarding ELECTRIC ARC FURNACE SLAG slags. Similarly, the values range of SB group is from 4.54 to 4.59 and from 3.52 to 3.70 in FeNi and ELECTRIC ARC FURNACE SLAG slags respectively. As for the SC group, the range of specific gravity values is from 4.59 to 4.72 and from 3.45 to 3.70 in FeNi and ELECTRIC ARC FURNACE SLAG slags, respectively. The lowest value of this property is found in a FeNi slag of SC group, while the highest value in ELECTRIC ARC FURNACE SLAG slags of SB and SC groups. Regarding the measured specific gravity of the tested limestones used as concrete aggregates is 2.70 T/m³, intensively lower than that of the investigated slags.

3.2. Results of Concrete Specimens

Regarding the physical properties of investigated concrete specimens such as density, concrete specimens produced by natural aggregates (limestones) show density from 2621 to 2709 kg/m³ (Figure 8a,

Table 6. Results of the physical and mechanical tests of the produced concrete specimens.

Samples	Density (kg/m3)	Water Absorption (%)	Uniaxial Compressive Strength of 7 Days (MPa)	Uniaxial Compressive Strength of 28 Days (MPa)
S01	2650	0.32	38.00	48.50
S02	2709	0.31	36.00	47.00
S03	2621	0.35	36.55	47.50
SA1	3093	0.86	62.24	83.42
SA2	3113	0.68	64.94	80.02
SA3	3129	1.08	64.13	75.88
SA4	3098	0.90	66.35	82.48
SA5	3112	0.71	64.94	80.06
SA6	3125	1.07	64.15	75.80
SB1	3140	1.59	56.91	61.74
SB2	3095	1.57	49.15	57.85
SB3	3179	1.01	49.14	57.43
SB4	3141	1.12	53.90	61.70
SB5	3098	1.57	50.02	58.02
SB6	3181	1.60	49.53	57.12
SC1	3065	1.19	55.17	57.84
SC2	3064	1.09	45.53	57.50
SC3	3060	1.37	48.35	53.26
SC4	3129	1.48	55.18	63.59
SC5	3166	1.13	54.37	66.85
SC6	3169	1.49	46.80	52.84

). As for the specimens made from various percentages of two different slags (FeNi and ELECTRIC ARC FURNACE SLAG), samples of SA group present values of density range from 3093 to 3125 kg/m³, samples of SB group values from 3095 to 3181 kg/m³ and these of SC group from 3060 to 3169 kg/m³ (Figure 8a). Samples of SA group display water absorption, which ranges from 0.68 to 1.08%, samples of SB group from 1.01 to 1.59% and these of SC group from 1.09 to 1.48% (Figure 8b, Table 6). Furthermore, the uniaxial compressive strength (UCS) of the produced concrete specimens was measured. The compressive strength of the standard concrete specimens (produced by natural aggregates) ranges from 36.00 to 38.00 MPa in 7 days and from 47.00 to 48.50 MPa in 28 days (Figure 8c). In 7 days, the UCS of SA group ranges from 62.24 to 66.35 MPa, while in 28 days ranges from 75.80 to 83.42 MPa simultaneously indicating these samples as those presenting the highest concrete strength (Figure 8c,d, Table 6). As for the SB group, the UCS in 7 days it ranges from 50.02 to 56.91 MPa and from 57.12 to 61.74 MPa in 28 days (Figure 8c,d). The UCS of SC group in 7 days ranges from 45.53 to 55.18 MPa and in 28 days from 52.84 to 66.85 MPa (Figure 8c,d, Table 6).

As for the concrete specimens made by slags, the presence of fractures between the slags and the cement paste is partially observed (Figure 8). Moreover, samples SA1-SA6 and SC1-SC6 are characterized by satisfactory bonding with the cement paste (Figure 9a–d,f,h). On the contrary, samples SB1-SB6 presents lower microroughness and unsatisfactory bonding with the cement paste, which indicated from the zone around wüstite grains which acts as detachment zone during the load (Figure 9e,g). During the petrographic study of the concrete specimens, a large number of wüstite and spinel crystals were found to have been detached from the cement paste on a large scale after loading, while in none of the studied slags crystalline microcracks were found penetrating their mass. The general microroughness of the mineral components of the slags does not show any increase which is likely to work adversely within the concrete.

All the above are enhanced either through the processing of microscopic images after the 3D depiction or through the study of the transition zone between the aggregate and the cement paste as it is shown in Figure 10a–d. The grains of C₂S phases and spinels (Figure 10 a,c,d) seem to present good cohesion with the cement paste. In addition, it is observed that the grains of wϋstite have lower microroughness compared to that of the cement paste, where this alternation of the concrete components leads to the better cohesion among them (Figure 10b).

4. Discussion

Different types of industrial byproducts have been studied in the past few decades in order to find suitable alternatives of natural aggregates in concrete. Blast furnace slag, steel slag, copper slag and foundry slag can be used as concrete aggregates. In this study, different types of slags have been evaluated in various mixtures in order to identify the optimum combination of recycled raw materials such as slags for their use in several construction applications of high demands. For this reason, at the same time, a standard concrete of the same category was prepared containing only natural carbonate aggregates in order to carry out a direct comparative study between these types of concrete specimens so that a wider application of such type of by products could be established. At first, when studying the aggregate properties, significant differences regarding their physical and mechanical properties are identified. More specifically, slags used as aggregates display better properties in terms of their mechanical strength, while limestones present advantages in terms of water absorption and physical properties in order to be used as concrete aggregates. The density of slags used as aggregates appears significantly increased compared to natural aggregates that lead to the characterization of slags as heavy weight aggregates, while the same applies to their density. The water absorption of slags is particularly high compared to that of common limestones used as aggregates. This parameter must be taken into account when studying the composition of concrete, so that no reduced workability can be observed from the absorption of water by the aggregates. Several researchers have studied the influence of the aggregate type on the final concrete strength which is directly depends on their properties [46,47,48]. During the microscopic study of the raw materials where they were studied as aggregates, significant differences are identified both between the natural aggregates and the slags as well as between slags of different origins. More specifically, natural aggregates are less compact and contain numerous microcracks, and thus they penetrate their entire mass compared to slags where they are more compact, and they display less intargranular microcracks. However, the porosity in the micro-scale seems to be increased in the whole of the studied slags in relation to the carbonate rocks in which the porosity is more uniformly distributed, something that probably affects in all the properties but also in their final relationship with the cement paste. However, there are significant differences between the slags during their microscopic observation where the FeNi slags show significantly higher percentage of wϋstite and spinel than those of ELECTRIC ARC FURNACE SLAG, while at the same time, the FeNi slags show lower percentage of calc silicate phases than those of the ELECTRIC ARC FURNACE SLAG significantly affecting to the properties of aggregates. Moreover, a significant difference during the microscopic study is found in the porosity which seems to be greater in the FeNi slags in contrast to the corresponding ones of ELECTRIC ARC FURNACE SLAG, something that is mainly attributed to their special mineral characteristics.

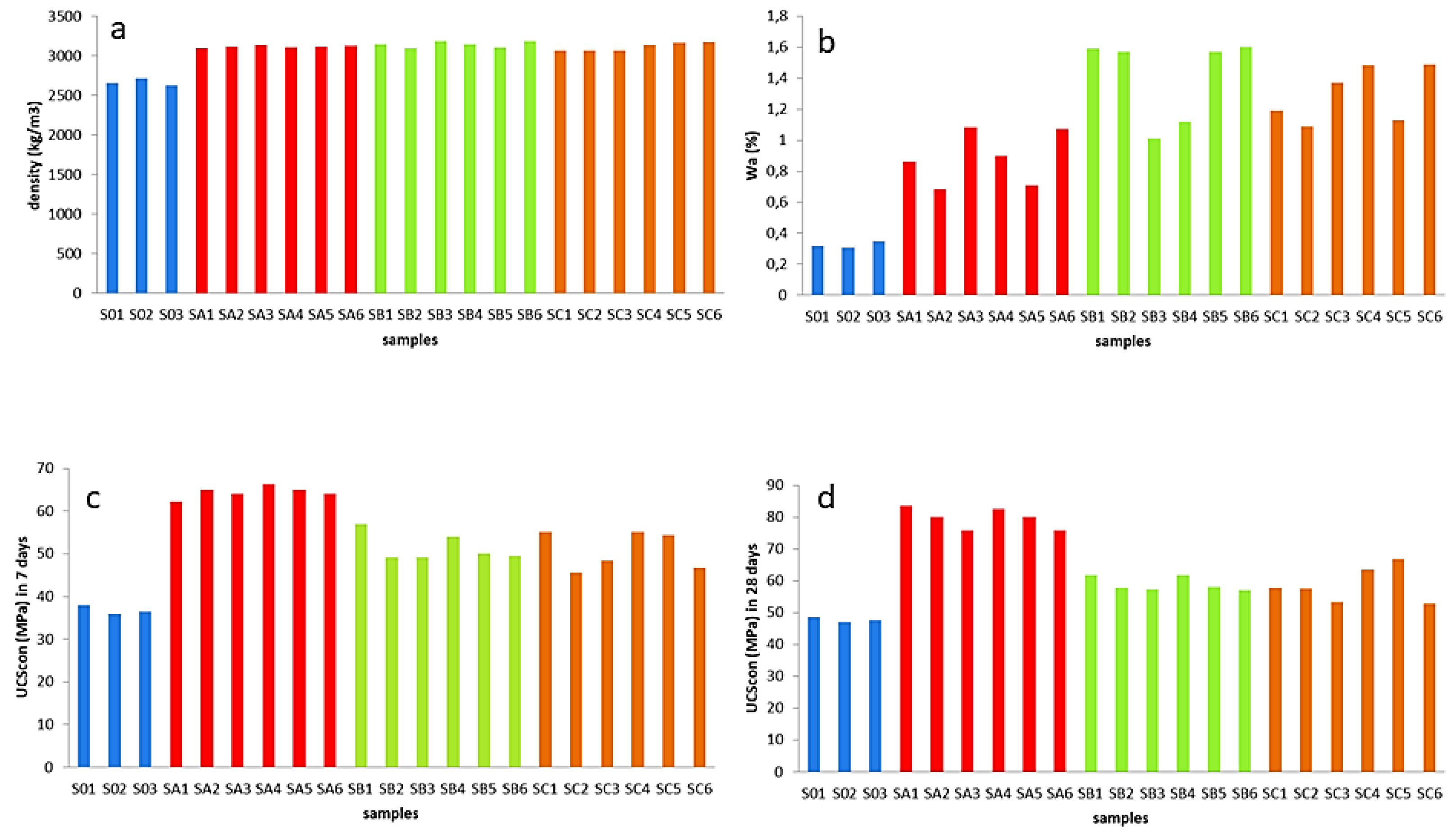

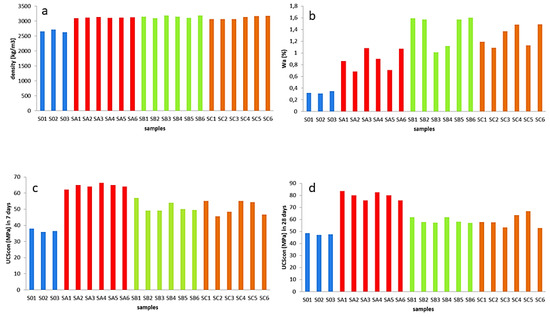

Test results of the compressive strength from different concrete mixtures in 7 and 28 days are plotted in Figure 8c,d. The replacement of limestone aggregates with slags in concrete seems to significantly increase their compressive strength both in 7 and 28 days in all cases. The 28-day compressive strength levels of concrete specimens made by slags as aggregates present range of values from 52 MPa to 83 MPa compared to the corresponding concretes produced only by natural aggregates which do not exceed 40 MPa, i.e., much lower than expected, which is initially attributed to the higher hardness of slags as shown in the comparative table with the properties of the aggregates (natural and recycled).

In general, it seems that when slag is used regardless its source in all the aggregate grain sizes, then the density of the mixture can exceed 3000 kg/m³ in relation to the corresponding concrete specimens which have been produced only by natural raw materials (density values up to 2650 kg/m³). In most cases, however, the use of aggregate slag implies the production of concrete with density greater than 2700 kg/m³, which must be taken into account when designing such type of constructions. The uniaxial compressive strength of concrete specimens produced by slags is better than of those produced by natural aggregates with an increase of 20% in concrete with lower percentage of ELECTRIC ARC FURNACE SLAG slag and with higher percentage of FeNi slag. This increase reaches the percentage of 30% in the cases where it participates in a higher percentage of ELECTRIC ARC FURNACE SLAG slags and a lower percentage of FeNi slags. This is due to all the special characteristics of the slags in relation to their physical and especially to their mechanical characteristics directly dependent on their microscopic characteristics where slags present a compact texture without microcracks and uniformly distributed porosity which seems to affect the smooth crystallization process of the cement and therefore on its stronger bonding with the aggregates in relation to the unevenly distributed porosity of the natural aggregates. During the petrographic study of concrete, when studying the micro scale where the failures are born, significant differences in the microcracks’ process are identified after the breaking of the concrete specimens. During the microscopic study of the oriented thin sections during the uniaxial compressive strength test of concrete specimens produced by natural aggregates microcracks are shown to break the carbonate aggregates trangranularly and intragranularly, something that in concrete specimens made by slags was not found in any of the examined mixtures. This fact is attributed to both mechanical of aggregate materials as well as in their mineralogical characteristics. Among the mixtures produced by different types of slags, significant differences in their mechanical strength were observed. The differences in the final compressive strength of the produced concretes are observed as significant even with small variations in the percentage participation of the different types of slag, something that reveals the strong influence of the special mineralogical characteristics on the final quality of the produced concrete specimens.

The superiority of mixtures of SA group in contrast to that of SB group (higher percentage of ELECTRIC ARC FURNACE SLAG slag) and that of SC group (lower percentage of natural sand) is evident both in 7 days and in 28 days of curing. This difference on the final concrete strength where different types of slags are participated is precisely related to their different weights and their different densities as the slag aggregates which are characterized as heavy weight aggregates produce heavy weight type concretes and as their weight increases it seems their durability to be reduced linearly.

The differences in all properties of the produced concretes which are identified between the groups SA, SB, SC can be interpreted by studying and evaluating the particular microscopic characteristics of both raw materials (slags and natural rocks) and the produced concrete specimens. The hydration of ladle slags with a content of hydraulically active mineral and the glass phase is taking place after adding water, without having to supply an alkali-activator. The hydraulic properties of slags are incommensurable compared to Portland cement however hydrating abilities are affected by the chemical composition. Samples SB do not present high compressive strength, while the other samples present better compressive strength after 28 days of hydration. Samples in which compressive strength values are higher than those of SB group contain mineral dicalcium silicate in this group. This mineral occurs in Portland clinker [1] and due to its hydration there are the so [32] called C-S-H phases formed. These phases are bearers of strength in the hydrated cement. Additionally, it is evident that mixtures containing higher amount of ELECTRIC ARC FURNACE SLAG slag and lower amount of FeNi slag (SA and SC group) yield increased mechanical concrete properties compared to the SB group, which seems to be related to the increased concentration of wϋstite and mervinite in FeNi slags (Table 1 and Table 2). The presence of wüstite in the concrete as it was detected through the microscopic study seems to act as a surface of weakness within the structure of the cement paste as the cubic system to which it belongs creates some plan surfaces capable of acting as levels of failure during uniaxial loads. The fact of the negative effect mainly of wüstite on the final mechanical strength of concrete specimens is documented both by the microscope images and by the three-dimensional study of the produced concretes. More specifically, as shown in Figure 9b, an extensive zone of detachment from the adhesive cement is located around the wüstite, which is found throughout the range of concrete. This fact indicates the existence of a point of weakness inside the concrete where during the uniaxial loading they act exactly as detachment points resulting in faster breaking. In addition, as shown in the three-dimensional study, the wüstite crystals do not show a particularly significant microtopography in relation to the rest of the mortar, while at the same time it presents extensive flat areas which may also function as slip levels during loading. The spinel shows similar behavior to wüstite as shown in Figure 8a and Figure 9a. In contrast to wüstite and spinel, the presence of C₂S phases seems to have a significant positive effect on the mechanical concrete strength as no significant detachment zones are found perimetrically during the fracture while the three-dimensional microtopography seems to be satisfactory and evenly distributed throughout the surface (Figure 9d) creating formations which seem to mechanically trap the cement mortar. An extra significant parameter for uniaxial compressive strength of concrete with the increased percentage of FeNi slags seems to be the existence of merwinite when is regarded as a low hydraulically active mineral [49,50]. It seems to significantly affect the hydraulic properties of the cement and its smooth hydration reaction, resulting in a significant reduction in its mechanical strength and around these crystals to identify areas of reaction and weakness.

As it is shown through the study of the X-ray diffraction patterns of raw materials it seems that the compressive strength of samples prepared from the slags Electric Arc Furnace Slag were secured primarily by the presence of b-C₂S phase. The b-C₂ S phase is considered the most important for ensuring the strength of products with water activated ladle slags. The Electric Arc Furnace Slag slags which after adding water have sufficient strength are in accordance with condition C/S. The low ratio C/S shows these slags which is hydraulically inactive. The other type of slags has a satisfactory C/S ratio but its hydraulicity is low. Additionally, in contrast to mervinite and wϋstite, the presence of gelenite in an increased percentage in the ELECTRIC ARC FURNACE SLAG slag seems to have a significant effect on both the properties of slags and on the behavior of the produced concrete. As can be seen through the microscopic study of the microstructure of concrete, strong adhesion with the cement paste is detected, which is probably due to the partial hydration reaction of these mineral phases and its special morphological characteristics. Additionally, the difference between FeNi and ELECTRIC ARC FURNACE SLAG slag can be observed not only in their mineralogical composition but also in their chemical composition and thus even the study of their chemical composition could potentially be used as a predictor of slag behavior in concrete. More specifically, FeNi slags show intensively lower percentage of free CaO compared to their respective ELECTRIC ARC FURNACE SLAG slag participation and the diversity in their composition confirms the strong heterogeneity of these slags and imbalances in their solidification the hardening of the hydrated slags is also involved in the presence of the amorphous phase, especially in the case of slags containing free CaO as Calcium hydroxide is the activator of the latent hydraulicity for the amorphous phase [51].

5. Conclusions

This paper examines industrial byproducts (ferronickel slags) to evaluate their suitability as concrete aggregates, with the ultimate goal of the production of environmentally friendly concrete from now on. The main conclusions of this study are given in the remarks below:

➢

The determinant factor for the final mechanical behavior of concrete seems to be the mineralogical and microstructural characteristics of slags used as aggregates. In contrast to wüstite and spinel, the presence of C₂S phases seems to have a significant positive effect on the concrete strength as no significant detachment zones are found perimetrically during the fracture.

➢

Natural aggregates are less compact as they contain numerous microcracks and hence they penetrate their entire mass compared to slags where they are more compact and they display less intargranular microcracks, making them suitable for concrete aggregates.

➢

The participation of slags in concrete mixtures improves their mechanical strength as the replacement of limestone aggregates with slags in concrete seems to significantly increase their compressive strength both in 7 and 28 days in all mixtures.

➢

Mixtures containing higher amount of ELECTRIC ARC FURNACE SLAG slag due to their lower concentration of wϋstite and mervinite present increased mechanical concrete properties.
