Article

Experimental Study on the Pullout Resistance of Smooth Steel Strip Reinforcement with Transverse Members

by
Jung-Geun Han
1,2,
Kwang-Wu Lee
3,
Jong-Young Lee
1,
Gigwon Hong
4,* and
Jeongjun Park
5,*
1
School of Civil and Environmental Engineering, Urban Design and Studies, Chung-Ang University, Seoul 06974, Korea
2
Department of Intelligent Energy and Industry, Chung-Ang University, Seoul 06974, Korea
3
Department of Infrastructure Safety Research, Korea Institute of Civil Engineering and Building Technology, Goyang-si 10223, Korea
4
Department of Civil and Disaster Prevention Engineering, Halla University, Wonju-si 26404, Korea
5
Incheon Disaster Prevention Research Center, Incheon National University, Incheon 22012, Korea
*
Authors to whom correspondence should be addressed.
Appl. Sci. 2021, 11(6), 2776; https://doi.org/10.3390/app11062776
Submission received: 23 February 2021 / Revised: 15 March 2021 / Accepted: 16 March 2021 / Published: 19 March 2021
(This article belongs to the Special Issue Advances in Geotechnical Engineering Ⅱ)
Browse Figures
Review Reports Versions Notes

Abstract

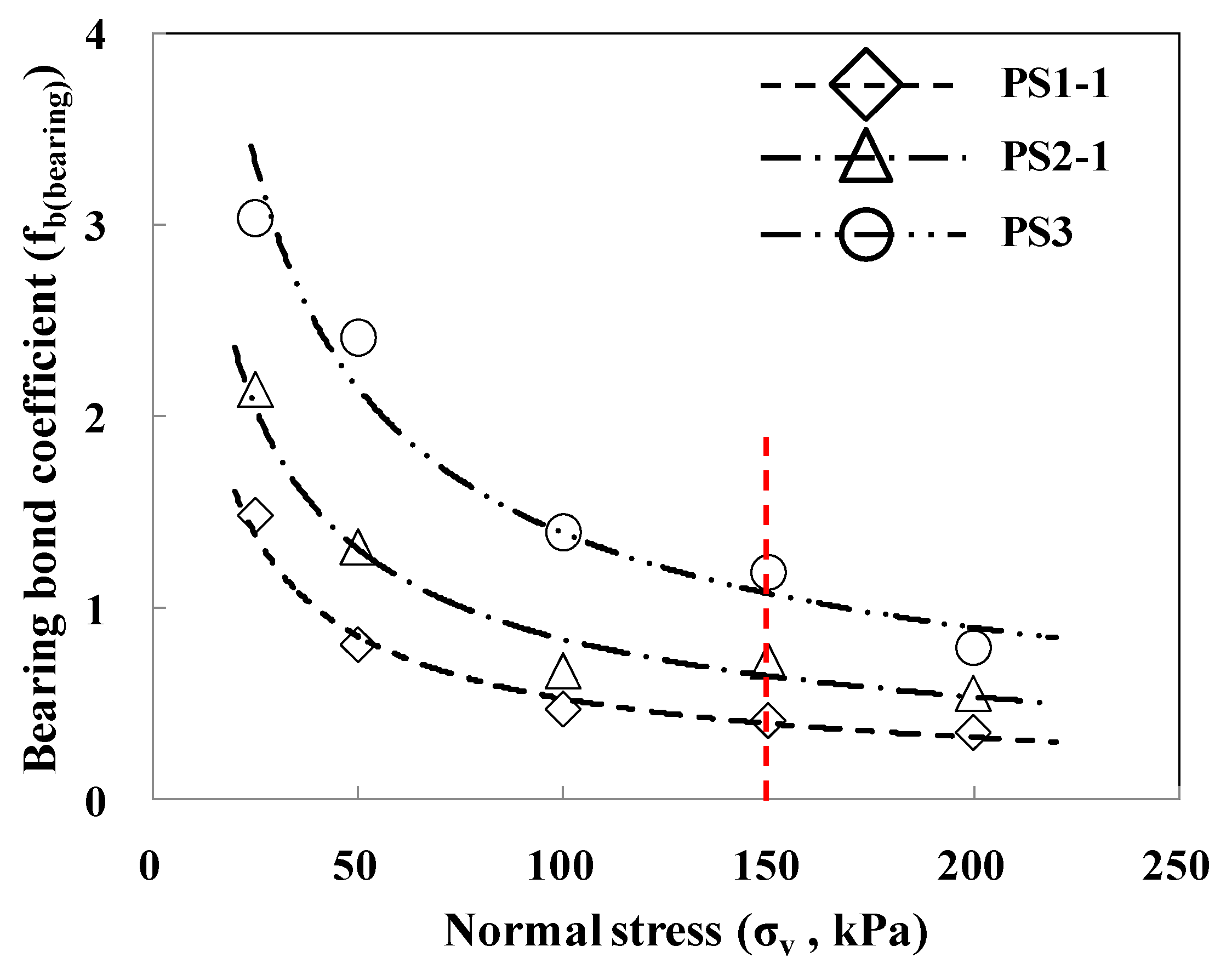

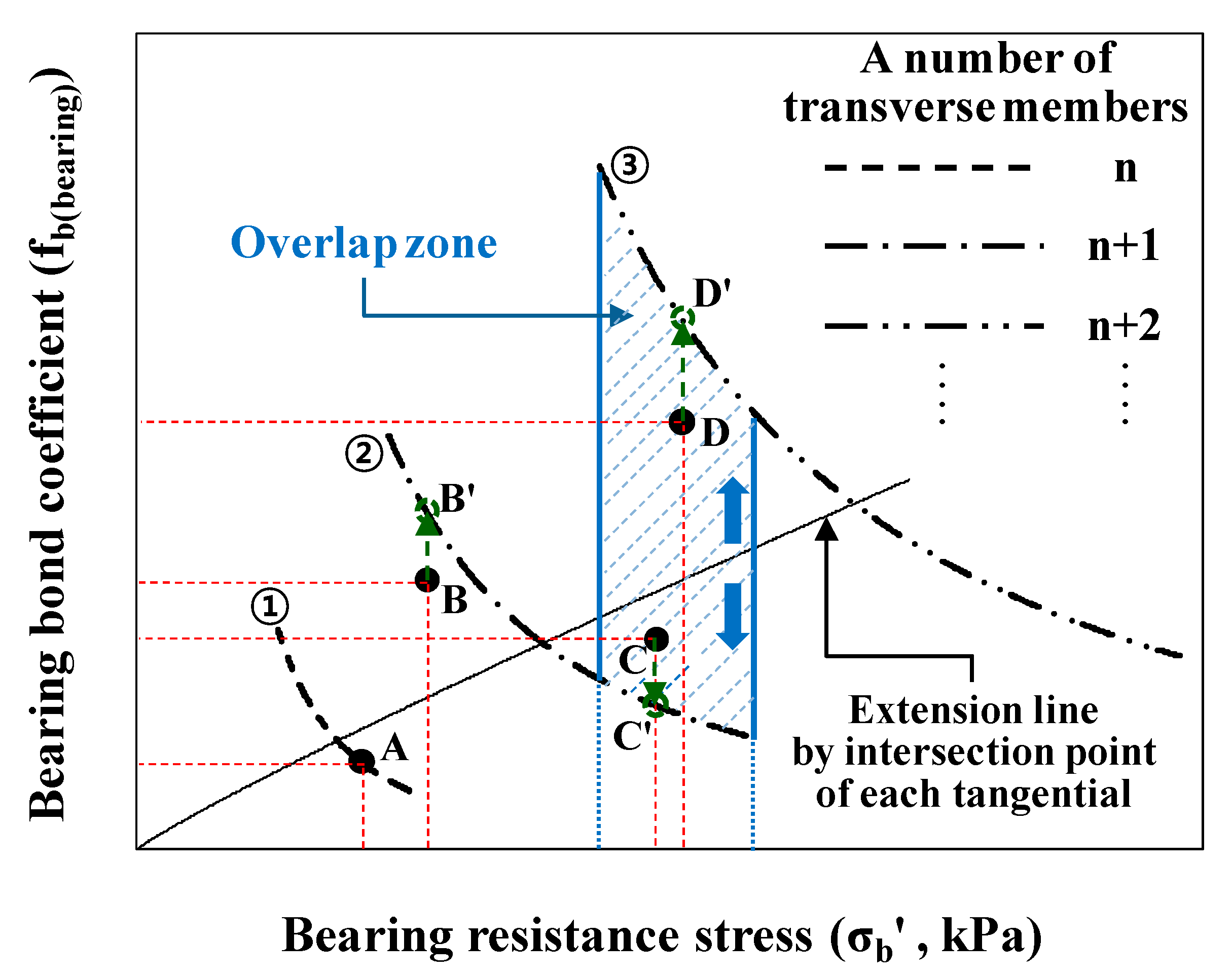

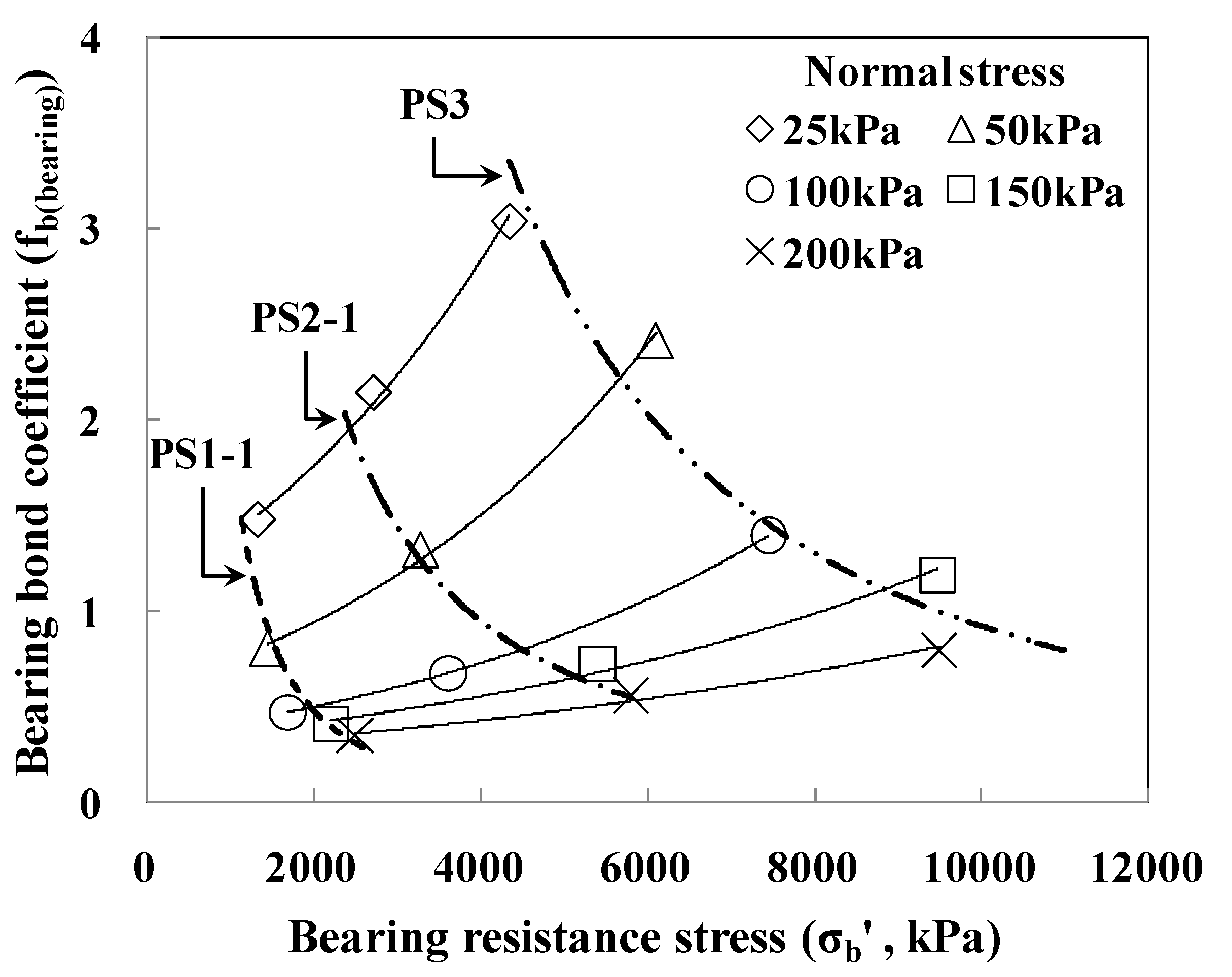

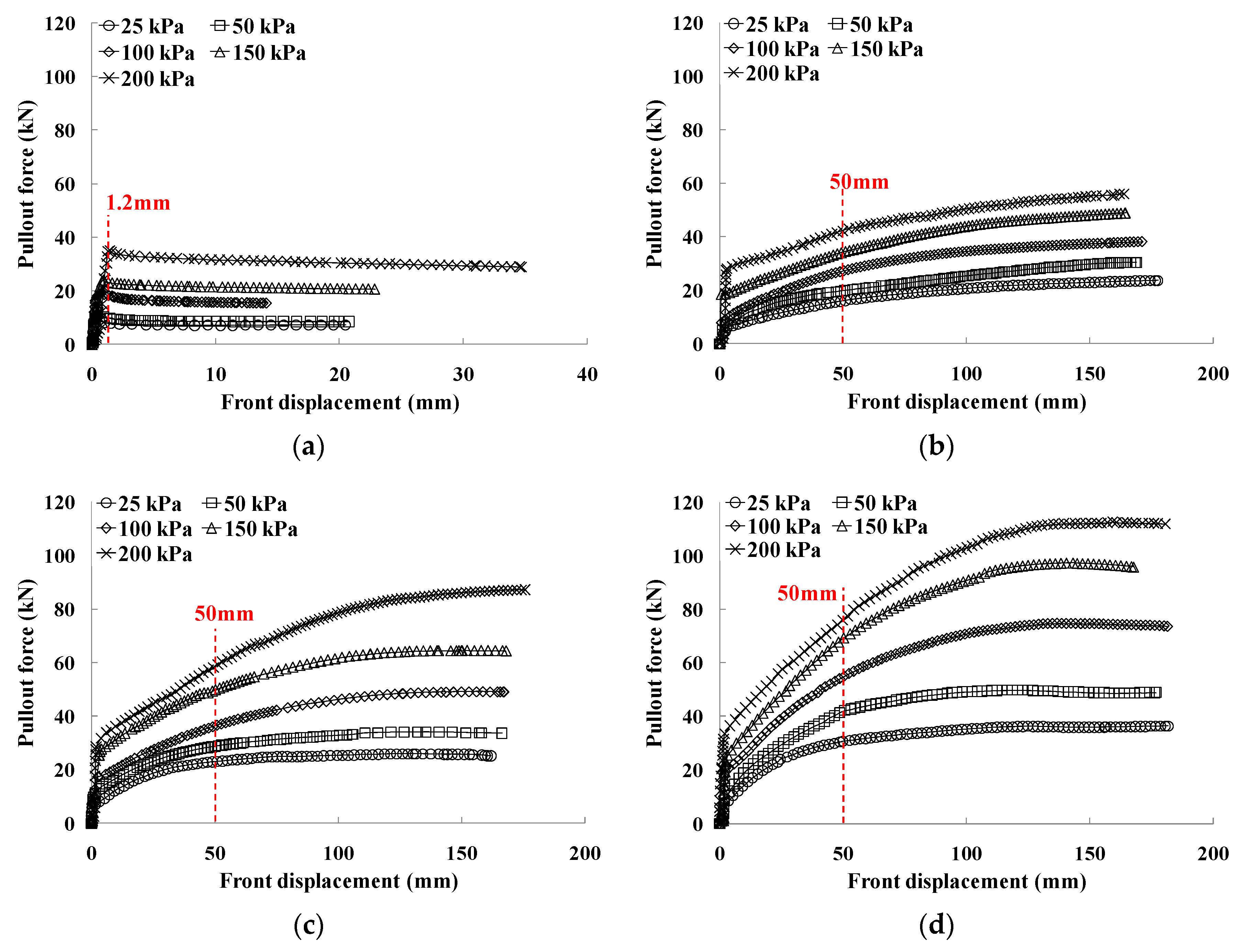

This paper presents an experimental study on the pullout resistance of a newly improved reinforcement. The applied reinforcement was a smooth steel strip reinforcement with transverse members used to improve the pullout-resistance problems of the smooth steel strip reinforcement. The pullout and bearing resistance of the improved reinforcement were evaluated using results of large-scale pullout tests. The evaluation result confirmed that the bearing resistance of the improved reinforcement was about 33–66% of the total pullout resistance, and it had an evenly distributed friction and bearing resistance. The bearing bond coefficient, considering the interference effect, gradually converged when normal stress was higher than a certain value. This result confirmed that the increment of interference effect is caused by the increment of the transverse member and normal stress. In the pullout-resistance evaluation of the improved reinforcement, a number of transverse members can be predicted using the relationship between bearing-resistance stress and the bearing bond coefficient due to normal stress, which can be applied as a reasonable prediction method.
Keywords: reinforced earth wall; inextensible reinforcement; large-scale pullout test; pullout resistance; interference; bearing bond coefficient reinforced earth wall; inextensible reinforcement; large-scale pullout test; pullout resistance; interference; bearing bond coefficient
