# Extensive Benchmarking of DFT+U Calculations for Predicting Band Gaps

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Methods and Materials

#### 2.1. DFT+U

#### 2.2. Materials

## 3. Technical Details

**q**-point sampling, hybrid functional (HSE06) calculations were performed for two representative materials (TiO${}_{2}$ and NbNO) to compare the computational costs of HSE06 and U calculations. The results of this analysis are detailed in Appendix B.

## 4. Results and Discussion

#### 4.1. Determination of the States Requiring Hubbard Corrections

#### 4.2. Hubbard U Parameters from First Principles

#### 4.3. Band Gaps from DFT+U Calculations

## 5. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Conflicts of Interest

## Appendix A. Convergence Tests for the Self-Consistent Calculation of Hubbard Parameters

**q**-points are equivalent to the

**k**-points for a given material and hence, the most computationally expensive option (in this case the spacing between the $\mathbf{q}$-points is also 0.04 Å${}^{-1}$). Since we enforce a consistent

**k**-point sampling density in our calculations,

**k**-points are unique for each material in this study. Thus, when we choose the number of

**q**-points for the sampling of the BZ corresponding to the primitive cell, we look at the ${N}_{\mathbf{k}}/{N}_{\mathbf{q}}$ ratio by which we divide the

**k**-points for each material and truncate down to the nearest integer value. For example, if the

**k**-point mesh is $6\times 5\times 5$ and we have a ${N}_{\mathbf{k}}/{N}_{\mathbf{q}}$ ratio of 2, then the resulting

**q**-point mesh is $3\times 2\times 2$. The ${N}_{\mathbf{k}}/{N}_{\mathbf{q}}$ ratios tested, as well as their subsequent

**q**meshes for each material are shown in Table A1. From the

**q**-point mesh testing, a ${N}_{\mathbf{k}}/{N}_{\mathbf{q}}$ ratio of 2 was selected with a convergence threshold of $\le 0.1$ eV. By selecting a higher ${N}_{\mathbf{k}}/{N}_{\mathbf{q}}$ ratio than 1, we are able to speed up Hubbard parameter calculations and reduce the computational cost.

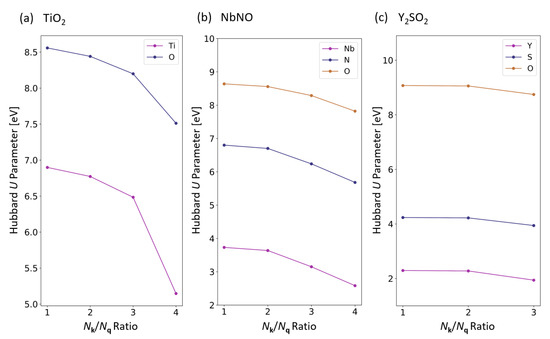

**Figure A1.**Dependence of the Hubbard U parameter on the ${N}_{\mathbf{k}}/{N}_{\mathbf{q}}$ ratio showing the results of ${N}_{\mathbf{k}}/{N}_{\mathbf{q}}$ testing for 3 representative materials: (

**a**) TiO${}_{2}$, (

**b**) NbNO, and (

**c**) Y${}_{2}$SO${}_{2}$. For each plot, the

**q**points density increases from right to left, where at ${N}_{\mathbf{k}}/{N}_{\mathbf{q}}$=1, the

**q**-point mesh matches the

**k**-point mesh. In panel (

**c**), Y${}_{2}$SO${}_{2}$ does not have a ${N}_{\mathbf{k}}/{N}_{\mathbf{q}}$ ratio of 4 plotted because its ${N}_{\mathbf{k}}/{N}_{\mathbf{q}}$ ratio of 3 results in a

**q**mesh equivalent to that produced using a ${N}_{\mathbf{k}}/{N}_{\mathbf{q}}$ ratio of 4 (see Table A1).

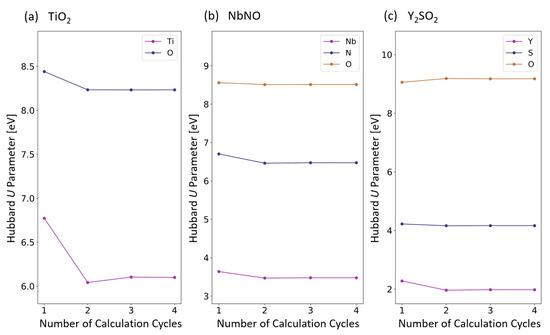

**Figure A2.**Convergence of the Hubbard U parameter with respect to the number of self-consistent cycles for 3 representative materials from our dataset: (

**a**) TiO${}_{2}$, (

**b**) NbNO, and (

**c**) Y${}_{2}$SO${}_{2}$.

**Table A1.**Comparison of

**q**-point meshes for each material (TiO${}_{2}$, NbNO, Y${}_{2}$SO${}_{2}$), corresponding to ${N}_{\mathbf{k}}/{N}_{\mathbf{q}}$ ratios of 1, 2, 3, and 4. For the case where ${N}_{\mathbf{k}}/{N}_{\mathbf{q}}$=1, the

**q**-point mesh is equivalent to the

**k**-point mesh.

Formula | k-Point | ${\mathit{N}}_{\mathit{k}}/{\mathit{N}}_{\mathit{q}}$ Ratio | |||
---|---|---|---|---|---|

Mesh | 1 | 2 | 3 | 4 | |

TiO${}_{2}$ | $9\times 6\times 6$ | $9\times 6\times 6$ | $4\times 3\times 3$ | $3\times 2\times 2$ | $2\times 1\times 1$ |

NbNO | $6\times 5\times 5$ | $6\times 5\times 5$ | $3\times 2\times 2$ | $2\times 1\times 1$ | $1\times 1\times 1$ |

Y${}_{2}$SO${}_{2}$ | $8\times 8\times 4$ | $8\times 8\times 4$ | $4\times 4\times 2$ | $2\times 2\times 1$ | $2\times 2\times 1$ |

## Appendix B. Computational Cost Comparison of HSE06 and Hubbard Parameter Calculations

**q**-points relative to the

**k**-points of a given material by setting a ratio ${N}_{\mathbf{k}}/{N}_{\mathbf{q}}$ higher than 1 [139]. For the current HSE06 calculations, ${N}_{\mathbf{k}}/{N}_{\mathbf{q}}$ was set to 3 for each material [140]. The resulting $\mathbf{k}$- and $\mathbf{q}$-point meshes for the U linear-response and HSE06 calculations are listed in Table A2 (we stress that the $\mathbf{q}$-point sampling has different physical meaning in these two types of calculations). The Hubbard parameters calculations reported in Table A2 were performed using a ${N}_{\mathbf{k}}/{N}_{\mathbf{q}}$ ratio of 2, as discussed in Appendix A.

**Table A2.**Comparison of the computational costs of the one-shot U linear-response and HSE06 calculations for TiO${}_{2}$ and NbNO. The ratio between the time for HSE06 (${t}_{\mathrm{HSE}}06$) and U (${t}_{U}$) calculations is given by ${t}_{\mathrm{HSE}}06/{t}_{U}$, and the band gaps ${E}_{\mathrm{g}}$ calculated using HSE06 are also reported (in eV).

Formula | No. of Atoms | k-Points | U Calculation | HSE06 Calculation | Ratio | |||
---|---|---|---|---|---|---|---|---|

per Unit Cell | Mesh | q-Points | ${\mathit{t}}_{\mathit{U}}$ | q-Points | ${\mathit{E}}_{\mathbf{g}}$ | ${\mathit{t}}_{\mathbf{HSE}}06$ | ${\mathit{t}}_{\mathbf{HSE}}06/{\mathit{t}}_{\mathit{U}}$ | |

TiO${}_{2}$ | 6 | $9\times 6\times 6$ | $4\times 3\times 3$ | 3 h 46 m | $3\times 2\times 2$ | 3.30 | 10 h 1 m | 2.7 |

NbNO | 12 | $6\times 6\times 6$ | $3\times 2\times 2$ | 7 h 35 m | $2\times 2\times 2$ | 2.68 | 61 h 52 m | 8.2 |

## References and Notes

- Hohenberg, P.; Kohn, W. Inhomogeneous electron gas. Phys. Rev.
**1964**, 136, B864. [Google Scholar] [CrossRef] [Green Version] - Kohn, W.; Sham, L. Self-consistent equations including exchange and correlation effects. Phys. Rev.
**1965**, 140, A1133. [Google Scholar] [CrossRef] [Green Version] - Perdew, J.; Levy, M. Physical content of the exact Kohn-Sham orbital energies: Band gaps and derivative discontinuities. Phys. Rev. Lett.
**1983**, 51, 1884–1887. [Google Scholar] [CrossRef] - Perdew, J.; Zunger, A. Self-interaction correction to density-functional approximations for many-electron systems. Phys. Rev. B
**1981**, 23, 5048. [Google Scholar] [CrossRef] [Green Version] - Cohen, A.; Mori-Sánchez, P.; Yang, W. Insights into current limitations of Density Functional Theory. Science
**2008**, 321, 792. [Google Scholar] [CrossRef] [Green Version] - De P.R. Moreira, I.; Illas, F.; Martin, R. Effect of Fock exchange on the electronic structure and magnetic coupling in NiO. Phys. Rev. B
**2002**, 65, 155102. [Google Scholar] - Corà, F.; Alfredsson, M.; Mallia, G.; Middlemiss, D.; Mackrodt, W.; Dovesi, R.; Orlando, R. The performance of hybrid density functionals in solid state chemistry. Struct. Bonding
**2004**, 113, 171. [Google Scholar] - Feng, X.B.; Harrison, N. Metal-insulator and magnetic transition of NiO at high pressures. Phys. Rev. B
**2004**, 69, 035114. [Google Scholar] [CrossRef] - Alfredsson, M.; Price, G.; Catlow, C.; Parker, S.; Orlando, R.; Brodholt, J. Electronic structure of the antiferromagnetic B1-structured FeO. Phys. Rev. B
**2004**, 70, 165111. [Google Scholar] [CrossRef] - Chevrier, V.; Ong, S.; Armiento, R.; Chan, M.; Ceder, G. Hybrid density functional calculations of redox potentials and formation energies of transition metal compounds. Phys. Rev. B
**2010**, 82, 075122. [Google Scholar] [CrossRef] - Seo, D.H.; Urban, A.; Ceder, G. Calibrating transition-metal energy levels and oxygen bands in first-principles calculations: Accurate prediction of redox potentials and charge transfer in lithium transition-metal oxides. Phys. Rev. B
**2015**, 92, 115118. [Google Scholar] [CrossRef] [Green Version] - Tolba, S.; Gameel, K.; Ali, B.; Almossalami, H.; Allam, N. Density Functional Calculations-Recent Progresses of Theory and Application; IntechOpen: London, UK, 2018. [Google Scholar]
- Skone, J.; Govoni, M.; Galli, G. Self-consistent hybrid functional for condensed systems. Phys. Rev. B
**2014**, 89, 195112. [Google Scholar] [CrossRef] [Green Version] - Skone, J.; Govoni, M.; Galli, G. Nonempirical range-separated hybrid functionals for solids and molecules. Phys. Rev. B
**2016**, 93, 235106. [Google Scholar] [CrossRef] [Green Version] - Bischoff, T.; Wiktor, J.; Chen, W.; Pasquarello, A. Nonempirical hybrid functionals for band gaps of inorganic metal-halide perovskites. Phys. Rev. Mater.
**2019**, 3, 123802. [Google Scholar] [CrossRef] [Green Version] - Kronik, L.; Stein, T.; Refaely-Abramson, S.; Baer, R. Excitation gaps of finite-sized systems from optimally tuned range-separated hybrid functionals. J. Chem. Theory Comput.
**2012**, 8, 1515–1531. [Google Scholar] [CrossRef] [PubMed] - Wing, D.; Ohad, G.; Haber, J.; Filip, M.; Gant, S.; Neaton, J.; Kronik, L. Band gaps of crystalline solids from Wannier-localization based optimal tuning of a screened range-separated hybrid functional. arXiv
**2020**, arXiv:2012.03278. [Google Scholar] - Lorke, M.; Deák, P.; Frauenheim, T. Koopmans-compliant screened exchange potential with correct asymptotic behavior for semiconductors. Phys. Rev. B
**2020**, 102, 235168. [Google Scholar] [CrossRef] - Perdew, J.; Kurth, S.; Zupan, A.; Blaha, P. Accurate Density Functional with Correct Formal Properties: A Step Beyond the Generalized Gradient Approximation. Rev. Phys. Lett.
**1999**, 82, 2544. [Google Scholar] [CrossRef] [Green Version] - Sun, J.; Ruzsinszky, A.; Perdew, J. Strongly constrained and appropriately normed semilocal density functional. Phys. Rev. Lett.
**2015**, 115, 036402. [Google Scholar] [CrossRef] [Green Version] - Kitchaev, D.; Peng, H.; Liu, Y.; Sun, J.; Perdew, J.; Ceder, G. Energetics of MnO
_{2}polymorphs in density functional theory. Phys. Rev. B**2016**, 93, 045132. [Google Scholar] [CrossRef] [Green Version] - Hinuma, Y.; Hayashi, H.; Kumagai, Y.; Tanaka, I.; Oba, F. Comparison of approximations in density functional theory calculations: Energetics and structure of binary oxides. Phys. Rev. B
**2017**, 96, 094102. [Google Scholar] [CrossRef] [Green Version] - Ekholm, M.; Gambino, D.; Jönsson, H.; Tasnádi, F.; Alling, B.; Abrikosov, I. Assessing the SCAN functional for itinerant electron ferromagnets. Phys. Rev. B
**2018**, 98, 094413. [Google Scholar] [CrossRef] [Green Version] - Tran, F.; Baudesson, G.; Carrete, J.; Madsen, G.; Blaha, P.; Schwarz, K.; Singh, D. Shortcomings of meta-GGA functionals when describing magnetism. Phys. Rev. B
**2020**, 102, 024407. [Google Scholar] [CrossRef] - Dabo, I.; Ferretti, A.; Poilvert, N.; Li, Y.; Marzari, N.; Cococcioni, M. Koopmans’ condition for density-functional theory. Phys. Rev. B
**2010**, 82, 115121. [Google Scholar] [CrossRef] - Ferretti, A.; Dabo, I.; Cococcioni, M.; Marzari, N. Bridging density-functional and many-body perturbation theory: Orbital-density dependence in electronic-structure functionals. Phys. Rev. B
**2014**, 89, 195134. [Google Scholar] [CrossRef] - Borghi, G.; Ferretti, A.; Nguyen, N.; Dabo, I.; Marzari, N. Koopmans-compliant functionals and their performance against reference molecular data. Phys. Rev. B
**2014**, 90, 075135. [Google Scholar] [CrossRef] [Green Version] - Nguyen, N.; Colonna, N.; Ferretti, A.; Marzari, N. Koopmans-compliant spectral functionals for extended systems. Phys. Rev. X
**2018**, 8, 021051. [Google Scholar] [CrossRef] [Green Version] - Colonna, N.; Nguyen, N.; Ferretti, A.; Marzari, N. Koopmans-Compliant Functionals and Potentials and Their Application to the GW100 Test Set. J. Chem. Theory Comput.
**2019**, 15, 1905. [Google Scholar] [CrossRef] - Colonna, N. Paul Scherrer Institute, Villigen, Switzerland; Marzari, N., Ed.; École Polytechnique Fédérale de Lausanne: Lausanne, Switzerland, Private communication; 2021. [Google Scholar]
- Anisimov, V.; Zaanen, J.; Andersen, O. Band theory and Mott insulators: Hubbard U instead of Stoner I. Phys. Rev. B
**1991**, 44, 943. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Anisimov, V.; Aryasetiawan, F.; Liechtenstein, A. First-principles calculations of the electronic structure and spectra of strongly correlated systems: The LDA+U method. J. Phys. Condens. Matter
**1997**, 9, 767. [Google Scholar] [CrossRef] [Green Version] - Dudarev, S.; Botton, G.; Savrasov, S.; Humphreys, C.; Sutton, A. Electron-energy-loss spectra and the structural stability of nickel oxide: An LSDA+U study. Phys. Rev. B
**1998**, 57, 1505. [Google Scholar] [CrossRef] - Cococcioni, M.; de Gironcoli, S. Linear response approach to the calculation of the effective interaction parameters in the LDA+U method. Phys. Rev. B
**2005**, 71, 035105. [Google Scholar] [CrossRef] [Green Version] - Campo, V.L., Jr.; Cococcioni, M. Extended DFT+U+V method with on-site and inter-site electronic interactions. J. Phys. Condens Matter
**2010**, 22, 055602. [Google Scholar] - Ricca, C.; Timrov, I.; Cococcioni, M.; Marzari, N.; Aschauer, U. Self-consistent DFT+U+V study of oxygen vacancies in SrTiO
_{3}. Phys. Rev. Res.**2020**, 2, 023313. [Google Scholar] [CrossRef] - Timrov, I.; Agrawal, P.; Zhang, X.; Erat, S.; Liu, R.; Braun, A.; Cococcioni, M.; Calandra, M.; Marzari, N.; Passerone, D. Electronic structure of Ni-substituted LaFeO
_{3}from near edge X-ray absorption fine structure experiments and first-principles simulations. Phys. Rev. Res.**2020**, 2, 033265. [Google Scholar] [CrossRef] - Timrov, I.; Marzari, N.; Cococcioni, M. Self-consistent Hubbard parameters from density-functional perturbation theory in the ultrasoft and projector-augmented wave formulations. Phys. Rev. B
**2021**, 103, 045141. [Google Scholar] [CrossRef] - Cococcioni, M.; Marzari, N. Energetics and cathode voltages of LiMPO
_{4}olivines (M = Fe, Mn) from extended Hubbard functionals. Phys. Rev. Mater.**2019**, 3, 033801. [Google Scholar] [CrossRef] [Green Version] - Tancogne-Dejean, N.; Rubio, A. Parameter-free hybridlike functional based on an extended Hubbard model: DFT+U+V. Phys. Rev. B
**2020**, 102, 155117. [Google Scholar] [CrossRef] - Lee, S.H.; Son, Y.W. First-principles approach with a pseudohybrid density functional for extended Hubbard interactions. Phys. Rev. Res.
**2020**, 2, 043410. [Google Scholar] [CrossRef] - Grüning, M.; Marini, A.; Rubio, A. Density functionals from many-body perturbation theory: The band gap for semiconductors and insulators. J. Chem. Phys.
**2006**, 124, 154108. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Hedin, L. New method for calculating the one-particle Green’s function with application to the electron-gas problem. Phys. Rev.
**1965**, 139, A796. [Google Scholar] [CrossRef] - Caruso, F.; Rinke, P.; Ren, X.; Scheffler, M.; Rubio, A. Unified description of ground and excited states of finite systems: The self-consistent GW approach. Phys. Rev. B
**2012**, 86, 081102. [Google Scholar] [CrossRef] [Green Version] - Ren, X.; Marom, N.; Caruso, F.; Scheffler, M.; Rinke, P. Beyond the GW approximation: A second-order screened exchange correction. Phys. Rev. B
**2015**, 92, 081104. [Google Scholar] [CrossRef] [Green Version] - Caruso, F.; Dauth, M.; van Setten, M.; Rinke, P. Benchmark of GW approaches for the GW100 test set. J. Chem. Theory Comput.
**2016**, 12, 5076–5087. [Google Scholar] [CrossRef] [Green Version] - Georges, A.; Kotliar, G. Hubbard model in infinite dimensions. Phys. Rev. B
**1992**, 45, 6479. [Google Scholar] [CrossRef] [PubMed] - Georges, A.; Kotliar, G.; Krauth, W.; Rozenberg, M.J. Dynamical mean-field theory of strongly correlated fermion systems and the limit of infinite dimensions. Rev. Mod. Phys.
**1996**, 68, 13. [Google Scholar] [CrossRef] [Green Version] - Anisimov, V.; Poteryaev, A.; Korotin, M.; Anokhin, A.; Kotliar, G. First-principles calculations of the electronic structure and spectra of strongly correlated systems: Dynamical mean-field theory. J. Phys. Condens. Matter
**1997**, 9, 7359. [Google Scholar] [CrossRef] - Liechtenstein, A.; Katsnelson, M. Ab initio calculations of quasiparticle band structure in correlated systems: LDA++ approach. Phys. Rev. B
**1998**, 57, 6884. [Google Scholar] [CrossRef] [Green Version] - Kotliar, G.; Savrasov, S.; Haule, K.; Oudovenko, V.; Porcollet, O.; Marianetti, C. Electronic structure calculations with dynamical mean-field theory. Rev. Mod. Phys.
**2006**, 78, 865. [Google Scholar] [CrossRef] [Green Version] - Perdew, J.; Yang, W.; Burke, K.; Yang, Z.; Gross, E.; Scheffler, M.; Scuseria, G.; Henderson, T.; Zhang, I.; Ruzsinszky, A.; et al. Understanding band gaps of solids in generalized Kohn-Sham Theory. Proc. Natl. Acad. Sci. USA
**2017**, 114, 2801–2806. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Gaspari, R.; Labat, F.; Manna, L.; Adamo, C.; Cavalli, A. Semiconducting and optical properties of selected binary compounds by linear response DFT+U and hybrid functional methods. Theor. Chem. Acc.
**2016**, 135, 73. [Google Scholar] [CrossRef] - Ozkilinc, O.; Kayi, H. Effect of chalcogen atoms on the electronic band gaps of donor-acceptor-donor type semiconducting polymers: A systematic DFT investigation. J. Mol. Modeling
**2019**, 25, 167. [Google Scholar] [CrossRef] [PubMed] - Paudel, T.; Lambrecht, W. First-principles calculation of the O vacancy in ZnO: A self-consistent gap-corrected approach. Phys. Rev. B
**2008**, 77, 205202. [Google Scholar] [CrossRef] - Lalitha, S.; Karazhanov, S.; Ravindran, P.; Senthilarasu, S.; Sathyamoorthy, R.; Janabergenov, J. Electronic structure, structural and optical properties of thermally evaporated CdTe thin films. Phys. B
**2007**, 387, 227–238. [Google Scholar] [CrossRef] [Green Version] - Gautam, G.; Carter, E. Evaluating transistion metal oxides within DFT-SCAN and SCAN+U frameworks for solar thermochemical applications. Phys. Rev. Mater.
**2018**, 2, 095401. [Google Scholar] [CrossRef] - Long, O.; Gautam, G.; Carter, E. Evaluating optimal U for 3d transition-metal oxides within the SCAN+U framework. Phys. Rev. Mater.
**2020**, 4, 045401. [Google Scholar] [CrossRef] - Dederichs, P.; Blügel, S.; Zeller, R.; Akai, H. Ground states of condensed systems: Application to cerium impurities. Phys. Rev. Lett.
**1984**, 53, 2512. [Google Scholar] [CrossRef] - McMahan, A.; Martin, R.; Satpathy, S. Calculated Hamiltonian for La
_{2}CuO_{4}and solution in the impurity Anderson approximation. Phys. Rev. B**1988**, 38, 6650. [Google Scholar] [CrossRef] - Gunnarsson, O.; Andersen, O.; Jepsen, O.; Zaanen, J. Density-functional calculation of the parameters in the Anderson model: Application to Mn in CdTe. Phys. Rev. B
**1989**, 39, 1708. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Hybertsen, M.; Schlüter, M.; Christensen, N. Calculation of Coulomb-interaction parameters for La
_{2}CuO_{4}using a constrained-density-functional approach. Phys. Rev. B**1989**, 39, 9028. [Google Scholar] [CrossRef] [PubMed] - Gunnarsson, O. Calculations of parameters in model Hamiltonians. Phys. Rev. B
**1990**, 41, 514. [Google Scholar] [CrossRef] - Pickett, W.; Erwin, S.; Ethridge, E. Reformation of the LDA+U method for a local-orbital basis. Phys. Rev. B
**1998**, 58, 1201. [Google Scholar] [CrossRef] [Green Version] - Solovyev, I.; Imada, M. Screening of Coulomb interactions in transition metals. Phys. Rev. B
**2005**, 71, 045103. [Google Scholar] [CrossRef] [Green Version] - Nakamura, K.; Arita, R.; Yoshimoto, Y.; Tsuneyuki, S. First-principles calculation of effective onsite Coulomb interactions of 3d transition metals: Constrained local density functional approach with maximally localized Wannier functions. Phys. Rev. B
**2006**, 74, 235113. [Google Scholar] [CrossRef] [Green Version] - Shishkin, M.; Sato, H. Self-consistent parametrization of DFT+U framework using linear response approach: Application to evaluation of redox potentials of battery cathodes. Phys. Rev. B
**2016**, 93, 085135. [Google Scholar] [CrossRef] - Springer, M.; Aryasetiawan, F. Frequency-dependent screened interaction in Ni within the random-phase approximation. Phys. Rev. B
**1998**, 57, 4364. [Google Scholar] [CrossRef] - Kotani, T. Ab initio random-phase-approximation calculation of the frequency-dependent effective interaction between 3d electrons: Ni, Fe, and MnO. J. Phys. Condens. Matter
**2000**, 12, 2413. [Google Scholar] [CrossRef] - Aryasetiawan, F.; Imada, M.; Georges, A.; Kotliar, G.; Biermann, S.; Lichtenstein, A. Frequency-dependent local interactions and low-energy effective models from electronic structure calculations. Phys. Rev. B
**2004**, 70, 195104. [Google Scholar] [CrossRef] [Green Version] - Aryasetiawan, F.; Karlsson, K.; Jepsen, O.; Scönberger, U. Calculations of Hubbard U from first-principles. Phys. Rev. B
**2006**, 74, 125106. [Google Scholar] [CrossRef] [Green Version] - Sasioglu, E.; Friedrich, C.; Blügel, S. Effective Coulomb interaction in transition metals from constrained random-phase approximation. Phys. Rev. B
**2011**, 83, 121101(R). [Google Scholar] [CrossRef] [Green Version] - Vaugier, L.; Jiang, H.; Biermann, S. Hubbard U and Hund exchange J in transition metal oxides: Screening versus localization trends from constrained random phase approximation. Phys. Rev. B
**2012**, 86, 165105. [Google Scholar] [CrossRef] [Green Version] - Amadon, B.; Applencourt, T.; Bruneval, F. Screened Coulomb interaction calculations: cRPA implementation and applications to dynamical screening and self-consistency in uranium dioxide and cerium. Phys. Rev. B
**2014**, 89, 125110. [Google Scholar] [CrossRef] [Green Version] - Mosey, N.; Carter, E. Abinitio evaluation of Coulomb and exchange parameters for DFT+U calculations. Phys. Rev. B
**2007**, 76, 155123. [Google Scholar] [CrossRef] - Mosey, N.; Liao, P.; Carter, E. Rotationally invariant ab initio evaluation of Coulomb and exchange parameters for DFT+U calculations. J. Chem. Phys.
**2008**, 129, 014103. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Andriotis, A.; Sheetz, R.; Menon, M. LSDA+U method: A calculation of the U values at the Hartree-Fock level of approximation. Phys. Rev. B
**2010**, 81, 245103. [Google Scholar] [CrossRef] - Agapito, L.; Curtarolo, S.; Buongiorno Nardelli, M. Reformation of DFT+U as a pseudohybird density functional for accelerated materials discovery. Phys. Rev. X
**2015**, 5, 011006. [Google Scholar] - Timrov, I.; Marzari, N.; Cococcioni, M. Hubbard parameters from density-functional perturbation theory. Phys. Rev. B
**2018**, 98, 085127. [Google Scholar] [CrossRef] [Green Version] - Tablero, C. Representations of the occupation number matrix on the LDA/GGA+U method. J. Phys. Condens. Matter
**2008**, 20, 325205. [Google Scholar] [CrossRef] [Green Version] - Amadon, B.; Jollet, F.; Torrent, M. γ and β cerium: LDA+U calculations of ground-state parameters. Phys. Rev. B
**2008**, 77, 155104. [Google Scholar] [CrossRef] - Ricca, C.; Timrov, I.; Cococcioni, M.; Marzari, N.; Aschauer, U. Self-consistent site-dependent DFT+U study of stoichiometric and defective SrMnO
_{3}. Phys. Rev. B**2019**, 99, 094102. [Google Scholar] [CrossRef] [Green Version] - Floris, A.; Timrov, I.; Himmetoglu, B.; Marzari, N.; de Gironcoli, S.; Cococcioni, M. Hubbard-corrected density functional perturbation theory with ultrasoft pseudopotentials. Phys. Rev. B
**2020**, 101, 064305. [Google Scholar] [CrossRef] [Green Version] - Timrov, I.; Aquilante, F.; Binci, L.; Cococcioni, M.; Marzari, N. Pulay forces in density-functional theory with extended Hubbard functionals: From nonorthogonalized to orthogonalized manifolds. Phys. Rev. B
**2020**, 102, 235159. [Google Scholar] [CrossRef] - O’Regan, D.; Hine, N.; Payne, M.; Mostofi, A. Projector self-consistent DFT+U using nonorthogonal generalized Wannier functions. Phys. Rev. B
**2010**, 82, 081102(R). [Google Scholar] [CrossRef] [Green Version] - Korotin, D.; Kukolev, V.; Kozhevnikov, A.; Novoselov, D.; Anisimov, V. Electronic correlations and crystal structure distortions in BaBiO
_{3}. J. Phys. Condens. Matter**2012**, 24, 415603. [Google Scholar] [CrossRef] [Green Version] - Shick, A.B.; Liechtenstein, A.I.; Pickett, W.E. Implementation of the LDA+U method using the full-potential linearized augmented plane-wave basis. Phys. Rev. B
**1999**, 60, 10763. [Google Scholar] [CrossRef] [Green Version] - Bengone, O.; Alouani, M.; Blöchl, P.; Hugel, J. Implementation of the projector augmented-wave LDA+U method: Application to the electronic structure of NiO. Phys. Rev. B
**2000**, 62, 16392. [Google Scholar] [CrossRef] [Green Version] - Rohrbach, A.; Hafner, J.; Kresse, G. Electronic correlation effects in transition-metal sulfides. J. Phys. Condens. Matter
**2003**, 15, 979. [Google Scholar] [CrossRef] - Wang, Y.C.; Chen, Z.H.; Jiang, H. The local projection in the density functional theory plus U approach: A critical assessment. J. Chem. Phys.
**2016**, 144, 144106. [Google Scholar] [CrossRef] [PubMed] - Kulik, H.; Cococcioni, M.; Scherlis, D.; Marzari, N. Density Functional Theory in transition-metal chemistry: A self-consistent Hubbard U approach. Phys. Rev. Lett.
**2006**, 97, 103001. [Google Scholar] [CrossRef] [Green Version] - Kulik, H.; Marzari, N. A self-consistent Hubbard U density-functional theory approach to the addition-elimination reactions of hydrocarbons on bare FeO
^{+}. J. Chem. Phys.**2008**, 129, 134314. [Google Scholar] [CrossRef] [Green Version] - Yu, M.; Yang, S.; Wu, C.; Marom, N. Machine learning the Hubbard U parameter in DFT+U using Bayesian optimization. NPJ Comp. Mat.
**2020**, 6, 180. [Google Scholar] [CrossRef] - Kulik, H.; Marzari, N. Systematic study of first-row transition-metal diatomic molecules: A self-consistent DFT+U approach. J. Chem. Phys.
**2010**, 133, 114103. [Google Scholar] [CrossRef] [Green Version] - Löwdin, P.O. On the non-orthogonality problem connected with the use of atomic wave functions in the theory of molecules and crystals. J. Chem. Phys.
**1950**, 18, 365. [Google Scholar] [CrossRef] - Heyd, J.; Scuseria, G.; Ernzerhof, M. Hybrid functionals based on a screened Coulomb potential. J. Chem. Phys.
**2003**, 118, 8207. [Google Scholar] [CrossRef] [Green Version] - Heyd, J.; Scuseria, G.; Ernzerhof, M. Erratum: “Hybrid functionals based on a screened Coulomb potential” [J. Chem. Phys. 118, 8207 (2003)]. J. Chem. Phys.
**2006**, 124, 219906. [Google Scholar] [CrossRef] [Green Version] - Xiong, Y.; Campbell, Q.; Fanghanel, J.; Badding, C.; Wang, H.; Kirchner-Hall, N.; Theibault, M.; Timrov, I.; Mondschein, J.; Seth, K.; et al. Optimizing accuracy and efficacy in data-driven materials discovery for the solar production of hydrogen. arXiv
**2021**, arXiv:2102.01154. [Google Scholar] - Wu, Y.; Lazic, P.; Hautier, G.; Persson, K.; Ceder, G. First principles high throughput screening of oxynitrides for water-splitting photocatalysts. Energy Environ. Sci.
**2012**, 6, 157. [Google Scholar] [CrossRef] [Green Version] - Huo, Z.; Wei, S.; Yin, W. High-throughput screening of chalcogenide single perovskites by first-principles calculations for photovoltaics. J. Phys. D Appl. Phys.
**2018**, 51, 474003. [Google Scholar] [CrossRef] - Kar, M.; Körzdörfer, T. Computational high throughput screening of inorganic cation based halide perovskites for perovskite only tandem solar cells. Mater. Res. Express
**2020**, 7, 055502. [Google Scholar] [CrossRef] - Varley, J.; Miglio, A.; Ha, V.; van Setten, M.; Rignanese, G.; Hautier, G. High-throughput design of non-oxide p-type transparent conducting materials: Data mining, search strategy, and identification of boron phosphide. Chem. Mater.
**2017**, 29, 2568–2573. [Google Scholar] [CrossRef] - Jain, A.; Ong, S.; Hautier, G.; Chen, W.; Richards, W.; Dacek, S.; Cholia, S.; Gunter, D.; Skinner, D.; Ceder, G.; et al. Commentary: The Materials Project: A materials genome approach to accelerating materials innovation. APL Mater.
**2013**, 1, 011002. [Google Scholar] [CrossRef] [Green Version] - Giannozzi, P.; Baroni, S.; Bonini, N.; Calandra, M.; Car, R.; Cavazzoni, C.; Ceresoli, D.; Chiarotti, G.; Cococcioni, M.; Dabo, I.; et al. Quantum ESPRESSO: A modular and open-source software project for quantum simulations of materials. J. Phys. Condens. Matter
**2009**, 21, 395502. [Google Scholar] [CrossRef] [PubMed] - Giannozzi, P.; Andreussi, O.; Brumme, T.; Bunau, O.; Buongiorno Nardelli, M.; Calandra, M.; Car, R.; Cavazzoni, C.; Ceresoli, D.; Cococcioni, M.; et al. Advanced capabilities for materials modelling with Quantum ESPRESSO. J. Phys. Condens. Matter
**2017**, 29, 465901. [Google Scholar] [CrossRef] [Green Version] - Giannozzi, P.; Baseggio, O.; Bonfà, P.; Brunato, D.; Car, R.; Carnimeo, I.; Cavazzoni, C.; de Gironcoli, S.; Delugas, P.; Ferrari Ruffino, F.; et al. Quantum ESPRESSO toward the exascale. J. Chem. Phys.
**2020**, 152, 154105. [Google Scholar] [CrossRef] [Green Version] - Perdew, J.; Burke, K.; Ernzerhof, M. Generalized gradient approximation made simple. Phys. Rev. Lett.
**1996**, 77, 3865. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Garrity, K.; Bennett, J.; Rabe, K.; Vanderbilt, D. Pseudopotentials for high-throughput DFT calculations. Comput. Mater. Sci.
**2014**, 81, 446. [Google Scholar] [CrossRef] [Green Version] - We used pseudopotentials from the GBRV library of the form: X_pbe_v1.uspp.F.UPF, where X is the atomic symbol.
- Marzari, N.; Vanderbilt, D.; De Vita, A.; Payne, M. Thermal contraction and disordering of the Al(110) surface. Phys. Rev. Lett.
**1999**, 82, 3296. [Google Scholar] [CrossRef] [Green Version] - Dhoundiyal, H.; Das, P.; Bhatnagar, M. Electrical and magnetic properties of V
_{2}O_{5}microstructure formed by self-assembled nanorods. Phys. B Condens. Matter**2021**, 603, 412622. [Google Scholar] [CrossRef] - Mehraj, S.; Ansari, M.S. Annealed SnO
_{2}thin films: Structural, electrical and their magnetic properties. Thin Solid Films**2015**, 589, 57–65. [Google Scholar] [CrossRef] - Joseph, A.; Anjitha, C.; Aravind, A.; Aneesh, P. Structural, optical and magnetic properties of SnS
_{2}nanoparticles and photo response of p-Si/n-SnS_{2}heterojunction diode. Appl. Surface Sci.**2020**, 528, 146977. [Google Scholar] [CrossRef] - Imada, M.; Fujimori, A.; Tokura, Y. Metal-insulator transitions. Rev. Mod. Phys.
**1998**, 70, 1039. [Google Scholar] [CrossRef] [Green Version] - We note that in this case we decided to apply the Hubbard U correction only to p states and not to s states of the group III-IV elements at the CBM. The reason is that the current implementation of the DFT+U approach that we use does not support multi-channel Hubbard corrections for the same element. In any case, since s states are very delocalized, we do not expect that the U correction for these states will be very important; however, this assumption requires verification.
- Yu, K.; Carter, E. Communication: Comparing ab initio methods of obtaining effective U parameters for closed-shell materials. J. Chem. Phys.
**2014**, 140, 121105. [Google Scholar] [CrossRef] [PubMed] - Bennett, J.; Hudson, B.; Metz, I.; Liang, D.; Spurgeon, S.; Cui, Q.; Mason, S. A systematic determination of hubbard U using the GBRV ultrasoft pseudopotential set. Comput. Mater. Sci.
**2019**, 170, 109137. [Google Scholar] [CrossRef] - Mo, S.; Ching, W. Electronic and optical properties of three phases of titanium dioxide: Rutile, anatase, and brookite. Phys. Rev. B
**1995**, 51, 13023. [Google Scholar] [CrossRef] - Robertson, J. Band offsets of wide-band-gap oxides and implications for future electronic devices. J. Vac. Sci. Tech. B
**2000**, 18, 1785. [Google Scholar] [CrossRef] - Xiong, K.; Robertson, J. Point defects in HfO
_{2}high K gate oxide. Microelectron. Eng.**2005**, 80, 408–411. [Google Scholar] [CrossRef] - Hieu, N.V.; Lichtman, D. Bandgap radiation induced photodesorption from V
_{2}O_{5}powder and vanadium oxide surfaces. J. Vac. Sci. Technol.**1981**, 18, 49–53. [Google Scholar] [CrossRef] - Chun, W.; Ishikawa, A. Conduction and valence band positions of Ta
_{2}O_{5}, TaON, and Ta_{3}N_{5}by UPS and electrochemical methods. J. Phys. Chem.**2003**, 107, 1798–1803. [Google Scholar] [CrossRef] - Granqvist, C. Electrochromic tungsten oxide films: Review of progress 1993-1998. Solar Energy Mat. Solar Cells
**2000**, 60, 201–262. [Google Scholar] [CrossRef] - Fang, C.; de Groot, R.; Haas, C. Bulk and surface electronic stucture of 1T-TiS
_{2}and 1T-TiSe_{2}. Phys. Rev. B**1997**, 56, 4455. [Google Scholar] [CrossRef] [Green Version] - Moustafa, M.; Zandt, T.; Janowitz, C.; Manzke, R. Growth and band gap determination of the ZrS
_{x}Se_{2-x}single crystal series. Phys. Rev. B**2009**, 80, 035206. [Google Scholar] [CrossRef] - Traving, M.; Seydel, T.; Kipp, L.; Skibowski, M.; Starrost, F.; Krasovskii, E.; Perlov, A.; Schattke, W. Combined photoemission and inverse photoemission study of HfS
_{2}. Phys. Rev. B**2001**, 63, 035107. [Google Scholar] [CrossRef] [Green Version] - Bhattacharya, R.; Lee, C.; Pollak, F.; Schleich, D. Optical study of amorphous MoS
_{3}: Determination of the fundamental energy gap. J. Non-Crystalline Solids**1987**, 91, 235–242. [Google Scholar] [CrossRef] - Dismukes, J.; White, J. The preparation, properties, and crystal structures of some scandium sulfides in the range Sc
_{2}S_{3}-ScS. Inorg. Chem.**1964**, 3, 1220–1228. [Google Scholar] [CrossRef] - Tamura, S.; Ueno, K.; Hato, K. Niobium oxynitride prepared by thermal NH
_{3}nitridation as a photoanode materials for solar water splitting. Mater. Res. Bull.**2019**, 112, 221–225. [Google Scholar] [CrossRef] - Mikami, M.; Nakamura, S.; Itoh, M.; Nakajima, K.; Shishido, T. Lattice dynamics and optical properties of yttrium oxysulfide. J. Lumin.
**2003**, 102-103, 7–12. [Google Scholar] [CrossRef] - Park, Y.; Kim, K. Sputtering growth and optical properties of [100]-oriented tetragonal SnO
_{2}and its Mn alloy films. J. Appl. Phys.**2003**, 94, 6401. [Google Scholar] [CrossRef] - Ma, F.; Jiao, Y.; Gao, G.; Gu, Y.; Bilic, A.; Sanvito, S. Substantial band-gap tuning and a strain-controlled semiconductor to gapless/band-inverted semimetal transition in rutile lead/stannic dioxide. ACS Appl. Mater. Intefaces
**2016**, 39, 25667–25673. [Google Scholar] [CrossRef] [Green Version] - Nanishi, Y.; Saito, Y.; Yamaguchi, T. RF-molecular beam epitaxy growth and properties of InN and related alloys. Jpn. J. Appl. Phys.
**2003**, 42, 2549. [Google Scholar] [CrossRef] - Boyko, T.; Hunt, A.; Zerr, A.; Moewes, A. Electronic structure of spinel-type nitride compounds Si
_{3}N_{4}, Ge_{3}N_{4}, and Sn_{3}N_{4}with tunable band gaps: Application to light emitting diodes. Phys. Rev. Lett.**2013**, 111, 097402. [Google Scholar] [CrossRef] - Ray, S.; Karanjai, M.; DasGupta, D. Structure and photoconductive properties of dip-deposited SnS and SnS
_{2}thin films and their conversion to tin dioxide by annealing in air. Thin Solid Films**1999**, 350, 72–78. [Google Scholar] [CrossRef] - Ching, W.; Ren, S. Electronic structures of Si
_{2}N_{2}O and Ge_{2}N_{2}O crystals. Phys. Rev. B**1981**, 24, 5788. [Google Scholar] [CrossRef] - Kirchner-Hall, N.; Zhao, W.; Xiong, Y.; Timrov, I.; Dabo, I. Extensive Benchmarking of DFT+U Calculations for Predicting Band Gaps. Mater. Cloud Arch.
**2021**. [Google Scholar] [CrossRef] - The computational cost of DFT+U calculations is negligible with respect to the cost of linear-response calculations of Hubbard parameters. Therefore, here we neglect the former, and compare only the latter with respect to the cost of HSE06 calculations.
- Yan, Q.; Yu, J.; Suram, S.; Zhou, L.; Shinde, Z.; Newhouse, P.; Chen, W.; Li, G.; Persson, K.; Gregoire, J.; et al. Solar fuels photoanode materials discovery by integrating high-throughput theory and experiment. Proc. Natl. Acad. Sci. USA
**2017**, 114, 3040. [Google Scholar] [CrossRef] [PubMed] [Green Version] - The
**k**-points sampling of NbNO was slightly adjusted from 6 × 5 × 5 to 6 × 6 × 6 for the HSE06 calculations to make it divisible by 3.

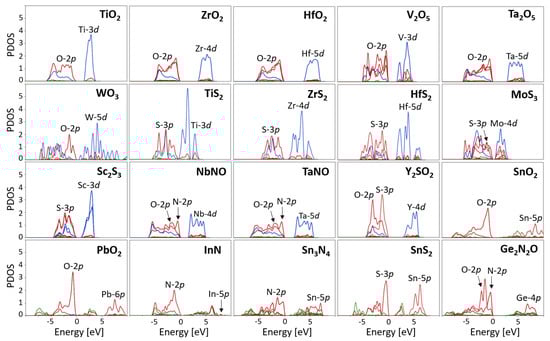

**Figure 1.**PDOS (in states/eV/cell) for all materials studied in this work obtained from standard DFT calculations. PDOS are color-coordinated such that s states are green, p states are red, and d states are blue. Note that cases where there are multiple lines of the same color indicate non-equivalent atoms. The zero of energy corresponds to the top of valence bands (except for InN which comes out to be metallic at the semilocal DFT level, and hence the zero of energy corresponds in this case to the Fermi level).

**Figure 2.**Comparison of the computationally predicted band gaps (from DFT and DFT+U) and the experimental band gaps for materials containing (

**a**) TM elements, and (

**b**) p-block (group III-IV) elements of the periodic table. The dashed black line indicates where the computational band gap equals the experimental band gap. Data was fit to first order polynomials so that data points from DFT and different DFT+U calculations could be more easily compared using the resulting solid trendlines (note that all data points were included in these fits). DFT+U calculations were performed using atomic and ortho-atomic projectors. On panel (

**a**), the legend also indicates whether U corrections are applied to only d states of the TM elements (U-TM), or to the d states of TM and p states of light elements (U-All). On panel (

**b**), the legend also indicates whether U corrections are applied to p states of light elements (U-Light), or to p states of light and p-block (group III-IV) elements (U-All). Note that in panel (

**b**), the “DFT+U Ortho-Atomic U-Light” trendline (blue) is dashed so that the “DFT+U Ortho-Atomic U-All” trendline (orange) can also be seen.

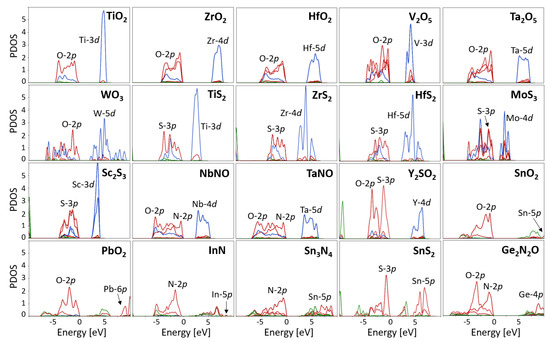

**Figure 3.**PDOS (in states/eV/cell) for all materials studied in this work obtained using DFT+U with ortho-atomic projectors. The U correction was applied both to the d states of TM elements and to the p states of the light and p-block (group III-IV) elements (i.e., U-All). PDOS are color-coordinated such that s states are green, p states are red, and d states are blue. The zero of energy corresponds to the top of valence bands.

Formula | Space Group | |
---|---|---|

1 | TiO${}_{2}$ | $P{4}_{2}/mnm$ |

2 | ZrO${}_{2}$ | $P{2}_{1}/c$ |

3 | HfO${}_{2}$ | $P{2}_{1}/c$ |

4 | V${}_{2}$O${}_{5}$ | $Pmmn$ |

5 | Ta${}_{2}$O${}_{5}$ | $C2/c$ |

6 | WO${}_{3}$ | $Pm\overline{3}m$ |

7 | SnO${}_{2}$ | $P{4}_{2}/mnm$ |

8 | PbO${}_{2}$ | $P{4}_{2}/mnm$ |

9 | InN | $P{6}_{3}mc$ |

10 | Sn${}_{3}$N${}_{4}$ | $Fd\overline{3}m$ |

11 | TiS${}_{2}$ | $P\overline{3}m1$ |

12 | ZrS${}_{2}$ | $P\overline{3}m1$ |

13 | HfS${}_{2}$ | $P\overline{3}m1$ |

14 | MoS${}_{3}$ | $P{2}_{1}/m$ |

15 | Sc${}_{2}$S${}_{3}$ | $Fddd$ |

16 | SnS${}_{2}$ | $P\overline{3}m1$ |

17 | NbNO | $P{2}_{1}/c$ |

18 | TaNO | $P{2}_{1}/c$ |

19 | Ge${}_{2}$N${}_{2}$O | $Cmc{2}_{1}$ |

20 | Y${}_{2}$SO${}_{2}$ | $P\overline{3}m1$ |

**Table 2.**Comparison of the Hubbard U parameters (in eV) as computed using DFPT with atomic and ortho-atomic Hubbard projectors. Numbered atoms (e.g., O1, O2) indicate nonequivalent atoms which require individual U values.

Formula | Hubbard U (Ortho-Atomic) [eV] | Hubbard U (Atomic) [eV] | ||||
---|---|---|---|---|---|---|

TiO${}_{2}$ | Ti($3d$): 6.10, | O($2p$): 8.23 | Ti($3d$): 3.81, | O($2p$): 15.89 | ||

ZrO${}_{2}$ | Zr($4d$): 2.72, | O1($2p$): 9.20, | O2($2p$): 8.79 | Zr($4d$): 1.07, | O1($2p$): 33.67, | O2($2p$): 27.20 |

HfO${}_{2}$ | Hf($5d$): 2.74, | O1($2p$): 9.58, | O2($2p$): 9.41 | Hf($5d$): 1.14, | O1($2p$): 47.79, | O2($2p$): 38.18 |

V${}_{2}$O${}_{5}$ | V($3d$): 5.37, | O1($2p$): 7.42, | O2($2p$): 7.65, | V($3d$): 3.70, | O1($2p$): 12.96, | O2($2p$): 10.09, |

O3($2p$): 7.06 | O3($2p$): 11.12 | |||||

Ta${}_{2}$O${}_{5}$ | Ta1($5d$): 3.06, | Ta2($5d$): 3.07, | O1($2p$): 8.99, | Ta1($5d$): 1.54, | Ta2($5d$): 1.55, | O1($2p$): 30.11, |

O2($2p$): 8.36, | O3($2p$): 8.20 | O2($2p$): 30.10, | O3($2p$): 19.03, | O4($2p$): 17.79 | ||

WO${}_{3}$ | W($5d$): 3.99, | O($2p$): 8.27 | W($5d$): 2.80, | O($2p$): 15.18 | ||

TiS${}_{2}$ | Ti($3d$): 5.61, | S($3p$): 3.85 | Ti($3d$): 4.45, | S($3p$): 6.39 | ||

ZrS${}_{2}$ | Zr($4d$): 2.61, | S($3p$): 3.96 | Zr($4d$): 1.62, | S($3p$): 8.36 | ||

HfS${}_{2}$ | Hf($5d$): 2.61, | S($3p$): 3.75 | Hf($5d$): 1.81, | S($3p$): 9.65 | ||

MoS${}_{3}$ | Mo($4d$): 3.28, | S1($3p$): 3.31, | S2($3p$): 4.61, | Mo($4d$): 3.87, | S1($3p$): 6.08, | S2($3p$): 5.62, |

S3($3p$): 4.62 | S3($3p$): 5.53 | |||||

Sc${}_{2}$S${}_{3}$ | Sc1($3d$): 3.28, | Sc2($3d$): 3.37, | S1($3p$): 3.83, | Sc1($3d$): 1.69, | Sc2($3d$): 1.77, | S1($3p$): 8.72, |

S2($3p$): 3.88 | S2($3p$): 9.15, | S3($3p$): 9.17 | ||||

NbNO | Nb($4d$): 3.48, | N($2p$): 6.47, | O($2p$): 8.51 | Nb($4d$): 2.17, | N($2p$): 9.85, | O($2p$): 19.94 |

TaNO | Ta($5d$): 3.10, | N($2p$): 6.66, | O($2p$): 8.87 | Ta($5d$): 1.88, | N($2p$): 11.51, | O($2p$): 26.04 |

Y${}_{2}$SO${}_{2}$ | Y($4d$): 1.98, | S($3p$): 4.16, | O($2p$): 9.17 | Y($4d$): 0.59, | S($3p$): 28.16, | O($2p$): 47.87 |

SnO${}_{2}$ | O($2p$): 10.19, | Sn($5p$): 1.26 | O($2p$): 95.85, | Sn($5p$): 0.67 | ||

PbO${}_{2}$ | O($2p$): 9.58, | Pb($6p$): 1.20 | O($2p$): 39.60, | Pb($6p$): 0.58 | ||

InN | N($2p$): 6.52, | In($5p$): 1.17 | N($2p$): 28.91, | In($5p$): 0.62 | ||

Sn${}_{3}$N${}_{4}$ | N($2p$): 6.56, | Sn1($5p$): 1.43, | Sn2($5p$): 1.23 | N($2p$): 24.14, | Sn1($5p$): 1.01, | Sn2($5p$): 0.81 |

SnS${}_{2}$ | S($3p$): 3.88, | Sn($5p$): 1.37 | S($3p$): 7.66, | Sn($5p$): 1.16 | ||

Ge${}_{2}$N${}_{2}$O | O($2p$): 10.35, | N($2p$): 6.62, | Ge($4p$): 1.18 | O($2p$): 103.08, | N($2p$): 31.57, | Ge($4p$): 0.72 |

**Table 3.**Comparison of the band gaps (in eV) as computed using DFT and DFT+U (using ortho-atomic and atomic projectors) and as measured in experiments for compounds containing TM elements, with the mean absolute error (MAE) given for each method. DFT+U results obtained with ortho-atomic and atomic projectors are split into two columns each: (1) band gaps predicted with U corrections applied only to the d states of TM elements (U-TM), and (2) band gaps predicted with U corrections applied to the d states of TM and p states of light elements (U-All). The computationally predicted band gaps with the closest values to the experimental band gaps are highlighted in bold.

Formula | Expt. | DFT | DFT+U (Ortho-Atomic) | DFT+U (Atomic) | ||
---|---|---|---|---|---|---|

U-TM | U-All | U-TM | U-All | |||

TiO${}_{2}$ | 3 [118] | 1.85 | 2.60 | 3.95 | 2.28 | 4.96 |

ZrO${}_{2}$ | 5.8 [119] | 3.67 | 4.16 | 5.81 | 4.04 | 11.75 |

HfO${}_{2}$ | 6 [120] | 4.11 | 4.68 | 6.55 | 4.59 | 15.44 |

V${}_{2}$O${}_{5}$ | 2.35 [121] | 2.01 | 2.69 | 3.50 | 1.69 | 2.82 |

Ta${}_{2}$O${}_{5}$ | 3.9 [122] | 3.12 | 3.41 | 4.85 | 3.22 | 8.08 |

WO${}_{3}$ | 2.6 [123] | 0.69 | 0.99 | 2.20 | 0.81 | 3.62 |

TiS${}_{2}$ | 1 [124] | 0.02 | 1.53 | 1.86 | 1.03 | 1.56 |

ZrS${}_{2}$ | 1.7 [125] | 1.13 | 1.92 | 2.27 | 1.45 | 2.81 |

HfS${}_{2}$ | 2.85 [126] | 1.30 | 2.16 | 2.51 | 1.78 | 3.73 |

MoS${}_{3}$ | 1.35 [127] | 0.62 | 0.98 | 1.52 | 0.19 | 0.58 |

Sc${}_{2}$S${}_{3}$ | 2 [128] | 1.08 | 2.04 | 2.55 | 1.61 | 3.36 |

NbNO | 2.1 [129] | 1.65 | 2.05 | 2.58 | 1.67 | 3.04 |

TaNO | 2.5 [129] | 1.95 | 2.36 | 3.03 | 2.07 | 4.05 |

Y${}_{2}$SO${}_{2}$ | 4.6 [130] | 3.11 | 3.23 | 4.38 | 3.14 | 11.88 |

MAE | 1.10 | 0.66 | 0.55 | 0.87 | 2.68 |

**Table 4.**Comparison of the band gaps (in eV) as computed using DFT and DFT+U (using ortho-atomic and atomic projectors) and as measured in experiments for compounds containing group III-IV elements (Ge, In, Sn, Pb), with the mean absolute error (MAE) given for each method. DFT+U calculations using ortho-atomic projectors are split into two columns: (1) band gaps predicted with U corrections applied only to the p states of light elements O, N, and S (U-Light), and (2) band gaps predicted with U corrections applied to the p states of group III-IV and light elements (U-All). For atomic calculations, band gaps were predicted with U corrections applied only to the p states of light elements (U-Light). The computationally predicted band gaps with the closest values to the experimental band gaps are highlighted in bold.

Formula | Expt. | DFT | DFT+U (Ortho-Atomic) | DFT+U (Atomic) | |
---|---|---|---|---|---|

U-Light | U-All | U-Light | |||

SnO${}_{2}$ | 3.4 [131] | 0.65 | 4.69 | 4.65 | 15.81 |

PbO${}_{2}$ | 1.5 [132] | 0.09 | 1.10 | 1.06 | 10.27 |

InN | 0.8 [133] | 0 | 0.85 | 0.80 | 8.87 |

Sn${}_{3}$N${}_{4}$ | 1.6 [134] | 0.21 | 2.09 | 2.08 | 9.63 |

SnS${}_{2}$ | 2.4 [135] | 1.53 | 2.00 | 1.98 | 3.00 |

Ge${}_{2}$N${}_{2}$O | 3.78 [136] | 2.61 | 5.03 | 4.99 | 15.46 |

MAE | 1.40 | 0.65 | 0.63 | 8.26 |

Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations. |

© 2021 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).

## Share and Cite

**MDPI and ACS Style**

Kirchner-Hall, N.E.; Zhao, W.; Xiong, Y.; Timrov, I.; Dabo, I.
Extensive Benchmarking of DFT+*U* Calculations for Predicting Band Gaps. *Appl. Sci.* **2021**, *11*, 2395.
https://doi.org/10.3390/app11052395

**AMA Style**

Kirchner-Hall NE, Zhao W, Xiong Y, Timrov I, Dabo I.
Extensive Benchmarking of DFT+*U* Calculations for Predicting Band Gaps. *Applied Sciences*. 2021; 11(5):2395.
https://doi.org/10.3390/app11052395

**Chicago/Turabian Style**

Kirchner-Hall, Nicole E., Wayne Zhao, Yihuang Xiong, Iurii Timrov, and Ismaila Dabo.
2021. "Extensive Benchmarking of DFT+*U* Calculations for Predicting Band Gaps" *Applied Sciences* 11, no. 5: 2395.
https://doi.org/10.3390/app11052395
