Reasons for the High Electrical Conductivity of Bismuth Ferrite and Ways to Minimize It

1
Research Institute of Physics, Southern Federal University, Rostov-on-Don 344090, Russia
2
Faculty of Physics, Southern Federal University, Rostov-on-Don 344090, Russia
3
Department of Physical electronics, Chechen State University, pr. Dudaev Boulevard, 17a, Grozny 366007, Russia
4
I. I. Vorovich Mathematics, Mechanics and Computer Sciences Institute, Southern Federal University, Rostov-on-Don 344090, Russia
5
Department of Microelectronics Engineering, National Kaohsiung University of Science and Technology, Kaohsiung 807, Taiwan
*
Author to whom correspondence should be addressed.
The author has passed away.
Appl. Sci. 2021, 11(3), 1025; https://doi.org/10.3390/app11031025
Submission received: 12 December 2020 / Revised: 18 January 2021 / Accepted: 20 January 2021 / Published: 23 January 2021
(This article belongs to the Special Issue Physics and Mechanics of New Materials and Their Applications 2020)

Abstract

:
The reasons for the high electrical conductivity of bismuth ferrite due to its natural composite structure, structural non-stoichiometry, redox processes, and the boundary position in the perovskite family have been considered. It has been shown that it is possible to significantly (2–3 orders of magnitude) reduce the conductivity of BiFeO3 by introducing large-sized ions of rare-earth elements (REE: La, Pr, Nd, Sm, Eu, Gd with 0.94 ≤ R ¯ ≤ 1.04 Å) in amounts of up to 10 mol %. An interpretation of the observed effects has been given. A consideration about the appropriateness of taking into account the presented results when developing devices using materials of the BiFeO3/REE type has been expressed.

1. Introduction

Features of modern technology: intensification of processes associated with an increase in operating temperatures, pressures, frequencies; acceleration of energy transformations; and the pursuit of multifunctionality of high-tech products all determine tougher technical, economic and environmental requirements demanded for the material and technological base used in industry. In this regard, multiferroic media with coexisting special electrical and magnetic properties are of increasing scientific and practical interest. These objects are promising for applications in spintronics, as well as in areas related to artificial intelligence with other high-tech areas of the real sector of world economies [1,2]. At the same time, the most attractive are compositions containing transition metal ions, which cause magnetic phase transitions and ions with an unshared pair of s electrons capable of exhibiting a ferroelectric state, such as Bi, Pb, one of such compounds is BiFeO3 [3]. BiFeO3 has a relatively simple structure (rhombohedrally distorted perovskite, space group–R3c), high temperatures of ferroelectric (Tc = 1083 K) and antiferromagnetic (TN = 643 K) transitions, which, in many respects, define it as the most convenient object of experimental research [4,5,6]. However, a number of features of this compound, high electrical conductivity and the presence of a spin modulation cell that is not commensurate with the period of the unit cell, make it extremely difficult to perform a comprehensive study of this material or put it into practice in the areas most in demand.
In a number of works it has been shown experimentally [7,8] and theoretically [9] that under the conditions of solid-phase synthesis and sintering using conventional ceramic technology (without externally applied pressure) BiFeO3 is not thermodynamically stable. The resulting product inevitably contains one or another amount of impurities, which, of course, leads to a decrease in its electrical resistance. At the same time, a low level of reproducibility and inconsistency of the results obtained by various groups of researchers becomes another important problem, which is due to the critical dependence of the target product not only on the conditions of synthesis and sintering, but also on the whole of its thermodynamic history.
Based on a series of experiments, the features of BiFeO3 phase formation have been studied in detail [10]. It has been shown that a significant role is played by processes caused by the structural non-stoichiometry of the objects, the appearance of which, due to both the high stability of the intermediate phases and the loss of oxygen as a result of partial reduction of the elements with a variable oxidation state, can also influence the BiFeO3 macroresponses and its electrical conductivity. Based on the results obtained we proposed the methods for optimizing the technology of obtaining materials involving BiFeO3.
In this paper, we examine in greater detail the reasons for the increased conductivity of BiFeO3 and the possibility of minimizing it by variations in the cationic composition upon modification of this multiferroic with rare-earth elements (REE).

2. Materials and Methods

The objects of study were solid solutions (SS) of the Bi1-xREExFeO3 composition (REE, lanthanides, Ln: La, Pr, Nd, Sm, Eu, Gd, Tb, Dy, Ho, Er, Tu, Yb, Lu; x = 0.0–0.5; Δx = 0.025, 0.05, 0.10).
The main method for preparing studied SS was solid-phase synthesis with intermediate grinding and granulation of dispersed crystalline powders and subsequent sintering using conventional ceramic technology (without externally applied pressure). Optimum technological procedures ensuring the purity (or the minimum number of ballast phases), experimental density close to the theoretical one, and the integrity of ceramics were chosen on a series of the samples of each composition, varying temperature, duration and frequency of firing. Specific modes of the synthesis and sintering of the SS were: T1 = (1060 ÷ 1180) K, τ1 = (5 ÷ 10) hours; T2 = (1070 ÷ 1180) K, τ2 = (5 ÷ 10) hours, Tsint = (1140 ÷ 1270) K, τsint = 2 h (depending on the composition). Technological regimes for the preparing of studied SS are presented in [11].
Some SS were subjected to mechanically activating procedures performed with the help of a planetary mill of the AGO-2 brand. Before sintering the samples, the powders were formed in the shape of columns with a diameter of 12 mm and a height of 20 mm. Sintered ceramic billets were machined (plane cutting, grinding on flat surfaces and ends) in order to obtain measuring samples with a diameter of 10 mm and a height of 1 mm. Each composition of such samples contained (5 ÷ 10) pieces. Before metallization, the samples were calcined at a temperature of Tcalc = 770 K for 0.5 h to remove residual organic substances and degrease surfaces in order to increase the adhesion of the metal coating with ceramics. The electrodes were applied by double burning of a silver-containing paste at a temperature of 1070 K for 0.5 h.
X-ray diffraction studies at room temperature were performed by powder diffraction using DRON-3 and ADP-1 diffractometers (Coкα–radiation; Mn–filter; Bragg-Brentano focusing scheme). We studied bulk and ground ceramic objects, which allowed us to exclude the influence of the surface effects, strength and textures that arise in the process of obtaining ceramics. The calculation of the structural parameters was performed according to a standard method. X-ray density (ρX-ray) was determined by the formula: ρX-ray = 1.66·M/V, where M is the weight of the formula unit in grams, V is the volume of the perovskite cell in Å. The measurement errors of the structural parameters were as follows: linear Δa = Δb = Δc = ±(0.002 ÷ 0.004) Å; angular Δα = 3′; and volume ΔV = ±0.05Å3V/V·100% = 0.07%).
The experimental (ρexp) density of the samples was determined by hydrostatic weighing, where octane was used as a liquid medium. The relative density (ρrel) was calculated by the formula: (ρexpX-ray)·100%. Densities of the studied SS are presented in [12].
The real and imaginary parts of the relative permittivity and dielectric loss tangent (ε′/ε0, ε″/ε0, tgδ) at frequencies of (20–2·106) were studied on a special bench using a precision LCR- meter of Agilent E4980A in the intervals of (300–900) K temperatures.
The electrical resistance R (Ohm) was measured at direct current at room temperature using an Agilent 4339B High Resistance Meter. The electrical resistivity, ρv, was calculated by the formula: ρv = R·S/l = R·πd2/4l, and the electrical conductivity, σ, was calculated by the formula: σ = 1/ρv, where l is the sample thickness (m); S is the flat surface area of the sample (m2); d is the diameter of the sample (m).

3. Results

3.1. About the Causes of the High Conductivity of BiFeO3

Figure 1 shows the temperature dependences of ε′/ε0, ε′′/ε0 BiFeO3 and BiFeO3/REE on different frequencies of the ac field.
The following facts are noteworthy: the enormous values of these quantities in the interval of (400 ÷ 800) K (1); the formation of a low-temperature relaxation maximum ε′/ε0 at (400 ÷ 500) K, not associated with any of the known phase transitions (2); rapid growth of ε′/ε0 at 600 K at all frequencies; the form in the range of (600 ÷ 700) K of a “dome” of this characteristic (3); the beginning of the formation of a “dome” ε′′/ε0 at high frequencies at 800 K(4).
To describe the process of low-temperature dielectric relaxation according to the data obtained from the dependences ε′/ε0 (T) and tanδ (T), the graphs lnω (1/Tm) (Tm are the temperatures of the extrema ε′/ε0 and tanδ measured at the frequency f = ω/2π) presented in Figure 2.
The presented dependences satisfy the Arrhenius law, which allows one to characterize the relaxation process using the activation energy, Ea, and the average frequency of overcoming the potential barrier, ω0. For the two plotted dependences, these parameters take significantly different values (Ea = 1.38 and 0.68 eV, ω0 = 2.8 × 1016 and 2.97 × 1014 rad/s, respectively), indicating two independent relaxation processes occurring in the object. Based on the literature data, it can be argued that such values are typical for the Maskwell-Wagner relaxation [13,14,15], associated with the accumulation of free charges on the interface of components in spatially inhomogeneous media on the background of interlayer, interphase, and intraphase structural rearrangements. The reason for the development of this situation, as well as the appearance of two relaxation processes, is the natural composite structure of BiFeO3, which is formed on the basis of at least two (not counting BiFeO3 itself) Bi-, Fe-containing compounds (Bi25FeO39, Bi2Fe4O9) that almost always accompany the formation of BiFeO3, remain in it (in different amounts) in the form of ballast phases [7,16,17,18,19,20,21,22,23,24,25] (we will talk about this in more detail below).
A brief mention of the physical mechanisms of macroevents developing in such heterogeneous media should be made. It is known that in such materials an increase in the permittivity caused by the Maxwell-Wagner polarization is detected [23], and it is associated with the accumulation of charges at the boundaries of inhomogeneities in dielectrics [26]. Moreover, the increase in dielectric permittivity is always due to the electrical conductivity of the components (crystallites) of a heterogeneous dielectric [27,28]. In experimental works [29,30,31], a gigantic increase in the permittivity is associated with relaxation polarization processes. In works [31,32] an analysis of the growth of the low-frequency permittivity of a heterogeneous dielectric, which is a randomly inhomogeneous object, is made using finite elements and Monte Carlo methods. The author shows that the greatest increase in the dielectric permittivity occurs in the so-called “reciprocal composite”, that is, in two-layer structures in which the dielectric permittivity of one component is significantly greater than that of the second one, whereas the specific conductivity of the second component is much higher than that of the first one. A number of works [33,34] develop the ideas presented in [31]. Meanwhile, the physical nature of the gigantic increase in the effective dielectric permittivity is understandable: it is connected, as mentioned above, with the charge accumulation at the interfaces of the components of a heterogeneous dielectric. At the initial moment, after applying an electric voltage to the sample, the electric induction in the layers is the same, which means the distribution of the field strength is inversely proportional to the dielectric permittivity of the layers. However, after completion of the processes, the densities of the conduction currents are equalized, and the field strength in the layers becomes inversely proportional to the specific conductivities of the layers, which leads to an increase in the charge accumulated at the boundaries precisely in the “reciprocal composite”. The same physical mechanisms lead to an increase in effective electrical conductivity.
In the work of A.V. Turik and co-workers [35] it is quite rightly pointed out that in the works [30,36] and even in the most detailed work [31] devoted to the giant growth of ε, the possibility of achieving giant electrical conductivities is not even mentioned. It should be noted that in the work [37] an analysis of this possibility is performed, but only for some types of heterogeneous dielectrics. A complete analysis of this problem in the literature is not available, which has served as an incentive to focus on this issue in greater detail.
To predict the necessary conditions for giant dielectric amplification, it is sufficient to use the simplest model of an electrically inhomogeneous dielectric considered by Hippel [28]. Using the methods of impedance spectroscopy, for the electrical conductivity of a dielectric sample consisting of two parallel layers with significantly different capacitances and resistances, in ac fields with a circular frequency ω [35], we obtained the following formula:
G = [ R 1 + R 2 + ω 2 ( τ 1 2 R 2 + τ 2 2 R 1 ) ] / [ ( R 1 + R 2 ) 2 + ω 2 ( τ 2 R 1 + τ 1 R 2 ) ] 2 ,
and for capacity
C = [ τ 1 R 1 + τ 2 R 2 + ω 2 ( τ 1 τ 2 ( τ 2 R 1 + τ 1 R 2 ) ) ] / [ ( R 1 + R 2 ) 2 + ω 2 ( τ 2 R 1 + τ 1 R 2 ) ] 2 ,
where τ 1 = R 1 C 1 ; τ 2 = R 2 C 2 . Here R1 and C1—resistance and capacitance of the first layer, R2 and C2—resistance and capacitance of the second layer.
From (1) and (2) for static values of G and C at ω → 0 it can be written:
G s = 1 / ( R 1 + R 2 ) ,   C s = [ τ 1 R 1 + τ 2 R 2 ] / [ ( R 1 + R 2 ) 2 + R 1 + τ 1 R 2 ) ] 2 ,
and for high-frequency values of G and C at ω →∞ it can be written
G = ( τ 1 2 R 2 + τ 2 2 R 1 ) / ( τ 2 R 1 + τ 1 R 2 ) 2 ,   C = τ 1 τ 2 / ( τ 2 R 1 + τ 1 R 2 ) 2 ,
Thus, the two-layer Maxwell-Wagner capacitor is a dielectric with monotonically decreasing real parts of the capacitance with an increase in frequency and the complex permittivity. In this case, the imaginary part of the dielectric permittivity has a relaxation maximum [31,35].
One of the mechanisms of the appearance of enormous electrical conductivity in BiFeO3 is the peculiar structure of BiFeO3 conditioned by the features of the state diagram of the Bi2O3–Fe2O3 binary system (Figure 3) with three bismuth ferrites of different quantitative elemental composition [31,38]. BiFeO3 begins to form in the temperature range of 770 ≤ T1 ≤ 820 K; Bi25FeO39 (sillenite phase) appears earlier at lower temperatures of ~720 K and is an intermediate compound; Bi2Fe4O9 (mullite phase) is present in BiFeO3 at the stage of improving its structure (920 ÷ 1020 K) as a concomitant compound. Its formation is the result of structural A- non-stoichiometry of BiFeO3 [39], a phenomenon typical of oxygen-octahedral compounds with the ReO3 structure [40] and perovskite [41,42,43] containing ions of variable valence. A specific feature of such substances is the ability of a crystallographic shift to exclude an appearance of anionic vacancies (for various reasons), and in complex oxides (of the perovskite type), their equal number of cuboctahedral positions. Thus, a decrease in the A-O positions is nothing more than a self-organizing compensatory mechanism for eliminating point defects (vacancies) due to the organization of extended defects–crystallographic shift planes, while maintaining the highly ordered structure of anion-deficient oxides. In this case, the excess A-component, depending on its size factor and thermodynamic background, can be placed in regular B-positions; at irregular locations, forming an autoisomorphic substance [44] or an internal multiplicative [45] SS of implementation; in intergranular layers; or precipitate in the form of impurities [46].
In our case, probably as a result of the deficiency of A-positions (according to our calculations, it is at least 3%), excessive Bi3+ ions appear, which displace Fe3+ ions from oxygen octahedra (as follows from [47], the placement of Bi3+ in A- and B-positions is possible), thereby creating the prerequisites for the formation of the Bi2Fe4O9 compound (with a higher Fe content). In BiFeO3, the appearance of the above described vacancies in the A- and O-sublattices may be due to the partial sublimation of volatile Bi2O3 in the synthesis process of the compound [48] (according to the scheme Bi3+1−xxFe3+O2−3−1.5x1.5x, ☐ is a vacancy), partial reduction of Fe3+ → Fe2+ (according to the scheme Bi3+Fe3+1−x Fe2+xO2−3−x/2x/2), the traditional loss of the part of oxygen in oxygen-octahedral media.
Another mechanism for increasing σ of BiFeO3 is based on structural instability due to its boundary position in a family of oxides with a perovskite type structure (OSP) (Figure 4, where μ is the degree of stretching of A-O bonds and compression of B-O bonds due to the discrepancy between the sizes of ions and the sizes of voids of the closest packing [47,49,50]), as well as the proximity of sintering and incongruent (with decomposition) melting temperatures [38,51]. This can lead to a slight violation of the stoichiometry of BiFeO3 due to the formation of a noticeable amount of difficult to remove ballast phases [19,20], including unreacted initial components [52]. This is facilitated by the narrow concentration-thermal interval of the existence of the BiFeO3 [8,9] phase, and quite wide crystallization regions of Bi2Fe4O9 and Bi25FeO39 compounds [7,16,51,53], as well as the complexity of the reaction in the equimolar mixture of Bi2O3 + Fe2O3 [17,18].
In [9] calculations of the thermodynamic potentials for the reactions of BiFeO3 formation, from which it follows that it is not the most stable of the possible compounds in the Bi2O3–Fe2O3 system, are provided. In [8] the results of a study of its temperature stability during being obtained by the “wet” low-temperature method are presented, and it is noted that at elevated temperatures (>970 K) this compound decomposes slowly. Attempts to obtain pure BiFeO3-based material using exotic, more energy-consuming and labor-intensive methods than the solid-phase reaction method in combination with conventional ceramic technology at the sintering stage, were also made in [19,20,54,55,56,57,58,59]. However, it was not possible to synthesize a pure, single-phase, thermodynamically stable product suitable for producing ceramics.

3.2. About Ways to Minimize the Conductivity of BiFeO3

One of the ways to stabilize BiFeO3 and optimize its properties is its introduction [60,61,62,63] into the REE composition. In this case, an increase in magnetoelectric coefficients is associated with the special magnetic properties of REE: despite the fact that their own ferromagnetic ordering occurs only at very low temperatures, the magnetic nature (f-ferromagnetism) of REE manifests itself in an increase in exchange interactions between other ferromagnetic ions, for instance, Fe3+, which leads to an increase in the Néel temperature. This is facilitated by smaller (compared to Bi) radii of REE [44].
The introduction of sufficiently rigid highly ionized REE ions instead of easily deformable ions, for example, Bi, inevitably leads to a decrease in the Curie temperature and a convergence of the temperatures of the ferroelectric and antiferromagnetic transitions, which is highly desirable for practical applications. In addition, the substitution of part of Bi3+ ions will lead to some increase in compositional disorder in the system, which will contribute to their manufacturability. The latter can be ensured by non-volatility and small-sized REE compared to Bi3+. The thermal stability of BiFeO3 modified with REE is increased, the range of optimal sintering temperatures widened, the phenomena associated with the melting of the synthesized product practically disappeared, the amount of impurities decreased. All these were prerequisites for the expected decrease in σ in BiFeO3/REE.
Figure 5 shows the dependences of the electrical conductivity (at room temperature) on the concentration of REE introduced into BiFeO3, and Figure 6 the same dependence on the radii of the modifying elements.
It can be seen that by doping BiFeO3 with REE, in many cases it is possible to reduce σ and increase ρv by 2 ÷ 3 orders of magnitude. In this case, large-sized REE (tab.) with radii close to 0.99 Å, introduced in amounts of up to 10 mol %, turned out to be the most effective. This is explained, in our opinion, by the creation of the most favorable dimensional conditions for the existence of BiFeO3 and, as a consequence, a decrease in impurity phases (which an increase in σ is associated with) and stabilization of the rhombohedral structure typical of BiFeO3. Figure 7 shows the dependences of the structural characteristics of SS with large REE on the content (x) of the latter. It is clearly seen that in all the cases the state diagrams contain five concentration regions corresponding to successive structural transformations Rh + O1 + O2O1 + O2O2 with small variations in phase filling, and Figure 8 illustrates the dependences of the position of the boundaries of the existence of the pure Rh- phase, its mixture with the O1- and O2- phases, the values (ΔRA/Rmin)·100% (where ΔRA = RBiRREE, Rmin = RREE), the differences of (ΔV) between Vexp and Vtheor on the radius, R, REE. At lower R (<0.99 Å), the shift of the Rh- boundary toward lower REE concentrations is obviously a consequence of a significant deviation of the conditions from those necessary for the formation of SS of substitution (ΔRA/Rmin should be equal, according to various estimates, to less than 15% [64] or 28 ± 2% [65]). The latter is associated with the loss of stability of the region of the Rh- and O1,2- phases coexistence due to the greater instability of the structure of multiphase SS compared to single-phase ones.
The reasonableness of the made assumptions is also confirmed by the “behavior” of ΔV value (Figure 8b,d), which characterizes the structural nonstoichiometry of BiFeO3. At low contents (~5 mol %) of REE, its effect is minimal, and ΔV0.05 on the background of a noticeable spread in ΔV values practically does not depend on R of REE.
For larger values, in the region with R > 0.99Å ΔV changes little, contributing to the stabilization of the Rh-phase, and at R < 0.99 Å in the case with x = 0.10 ΔV0.10 logically increases with decreasing R, destabilizing Rh-, Rh +O1,2- phases.
It should be also noted that our preliminary estimation calculations have shown that the introduction of the above mentioned REE into BiFeO3 in small quantities leads to a decrease in the chemical bond parameter μ, characterizing its strength, and in BiFeO3 equal to the critical value for OSP ~ 1.04, which “shifts” BiFeO3 into the region of OSP (Figure 4), preventing the possible loss of stability of its structure and favoring an increase in its electrical resistance.
This question should be considered in greater detail. During isovalent substitution, the parameters of the reduced perovskite cell change linearly according to SS concentrations. This is fixed by the so-called Vegard rule [66] and follows directly from the model of quasielastic cation–anion bonds in the cubic perovskite lattice [47,67,68]. Thus, we can write aBi,Ln(x) = (1−x)aBi + xaLn, where a is the parameter of the given perovskite cell. It is convenient to associate the loss of stability of the perovskite structure with reaching the breaking point of the stretched (A-O) bonds and breaking them at some critical relative strain of ∆crit/LO, where ∆crit is the critical deformation of the bond, and LO is the length of the unstrained bond [47]. In the general case, the degree of the bond deformation is characterized by the values of ∆Bi = aBi,Ln/ 2 LA(Bi-O); ∆L = aBi,Ln/ 2 LA(L-O) and the corresponding relative quantities of ∆Bi/LBi-O and Ln/LLn-O.
Following [47,67,68], the average parameter of the given perovskite cell, a, is (nAaA + nBaB)/(nA + nB), where nA,B are the valencies of A, -B- ions. At nA = nB = 3 (our case) a = (aA + aB)/2. Taking into account that aA= 2 LA-O, aB = 2LB-O [47], we obtained a = ( 2 LA-O + 2LB-O)/2. In the Table 1, the LA values for Bi and REE, as well as a BiFeO 3 , a L n FeO 3 , and ∆Bi,Ln and μ calculated using these data are presented. To calculate μ, we use the formulas: μ i = 7/2· n s + 9 2 n p 2 · B i for Sp-atoms and μ i = (2· n s + 6 n d 3 )∆Ln/L(Ln-O) for ds2—valence electrons. In the first case, nS= 0, nB= 3 → μi = 9/2·9; 0.07/2.78 = 1.04~1.0 and μ = Σεiμi = 1 (fractions of ions in A- positions), since in BiFeO3 μ = μi. In the second case, nd = 1, nS = 2 → μi = (2 2 + 6·13)·0.11/2.69 = 0.36 (LaFeO3). In SS μ = ε i · μ i = ( 1 x ) μ Bi + x μ L n . Figure 9 shows the dependences of the calculated μ values in Bi1−xREExFeO3 SS with x = 0.1; 0.2; 0.3 on the radii of Bi and REE. A sharp decrease in μ upon introduction of REE into the BiFeO3 structure can be seen, while the minimum value of μ is realized in SS with La. Thus, the modification of BiFeO3 with REE, contributing to a decrease in μ, favors the stability of the structure, stabilization of the stoichiometric composition of BiFeO3 and, as a consequence, a decrease in the electrical conductivity of the material.

4. Conclusions

Solid solutions of the composition Bi1-xREExFeO3 (rare-earth elements, lanthanides, Ln: La, Pr, Nd, Sm, Eu, Gd, Tb, Dy, Ho, Er, Tu, Yb, Lu; x = 0.0–0.5; Δx = 0.025, 0.05, 0.10) were prepared by two-stage solid-phase synthesis followed by sintering by conventional ceramic technology with varying annealing temperatures. Comprehensive studies of the structure and specific electrical conductivity of the obtained experimental samples have been carried out.
The study of the temperature dependences of ε′/ε0, ε′′/ε0 BiFeO3 and BiFeO3/REE on different frequencies of the ac field showed the presence of a low-temperature relaxation maximum ε′/ε0 (T) at (400 ÷ 500) K, which is not associated with any of the known phase transitions in BiFeO3 and satisfies the Arrhenius law with Ea = 1.38 and 0.68 eV, ω0 = 2.8·1016 and 2.97·1014 rad/s, for ε′/ε0 (T) and tanδ (T), respectively. The results obtained allowed us to make conclusions about the presence of Maskwell-Wagner relaxation, as well as to consider the physical mechanisms of macroevents developing in such heterogeneous media.
The possibility of a significant (by 2–3 orders of magnitude) decrease in the electrical conductivity of BiFeO3 by introducing into it large-size ions of rare-earth elements (La, Pr, Nd, Sm, Eu, Gd with 0.94 ≤ R ≤ 1.04 Å) in amounts up to 10-mol % was presented. Preliminary estimates showed that the observed effect is due to a decrease in the chemical bond strength (μ < 1.04) in BiFeO3 upon its modification and stabilization of the structure due to the shift of BiFeO3 into the region of existence of the perovskite structure.
The presented results should be taken into account when developing devices using BiFeO3/REE materials.

Author Contributions

K.P.A.—original draft preparation, writing—review and editing, investigation; V.P.S.—review and validation; A.V.T., A.A.P.—discussion of results and data curation; L.A.S.—X-ray investigation; S.I.D., A.G.R., D.D.R.—data curation; I.A.V.—resources, L.A.R.—conceptualization, S.V.H., I.A.P., S.-H.C., H.-Y.W.—discussion of results. All authors have read and agreed to the published version of the manuscript.

Funding

This work was financially supported by the Ministry of Science and Higher Education of the Russian Federation (State assignment in the field of scientific activity, Southern Federal University, 2020); Ministry of Science and Technology of the Republic of China (MOST108-2221-E-992-026-, MOST109-2221-E-992-091-).

Data Availability Statement

The data presented in this study are openly available in [Mendeley Data] at [doi:10.17632/3fcxt2pr5f.1; doi:10.17632/my9jrdjc6p.1], reference number [11,12].

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Wang, K.F.; Liu, J.-M.; Ren, Z.F. Multiferroicity: The coupling between magnetic and polarization orders. Adv. Phys. 2009, 58, 321–448. [Google Scholar] [CrossRef]
  2. Eerenstein, W.; Mathur, N.D.; Scott, J.F. Multiferroic and magnetoelectric materials. Nat. Cell Biol. 2006, 442, 759–765. [Google Scholar] [CrossRef]
  3. Catalan, G.; Scott, J.F. Physics and Applications of Bismuth Ferrite. Adv. Mater. 2009, 21, 2463–2485. [Google Scholar] [CrossRef]
  4. Seidel, J.; Maksymovych, P.; Batra, Y.; Katan, A.; Yang, S.Y.; He, Q.; Baddorf, A.P.; Kalinin, S.V.; Yang, C.-H.; Yang, J.-C.; et al. Domain Wall Conductivity in La-DopedBiFeO3. Phys. Rev. Lett. 2010, 105, 197603. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Rojac, T.; Bencan, A.; Malic, B.; Tutuncu, G.; Jones, J.L.; Daniels, J.E.; Damjanovic, D. BiFeO3 Ceramics: Processing, Electrical, and Electromechanical Properties. J. Am. Ceram. Soc. 2014, 97, 1993–2011. [Google Scholar] [CrossRef]
  6. Karpinsky, D.; Shilyaeva, Y.I.; Trukhanov, S.V.; Trukhanov, A.; Zhaludkevich, A.L.; Latushka, S.; Zhaludkevich, D.V.; Khomchenko, V.; Alikin, D.; Abramov, A.; et al. Peculiarities of the Crystal Structure Evolution of BiFeO3–BaTiO3 Ceramics across Structural Phase Transitions. Nanomaterials 2020, 10, 801. [Google Scholar] [CrossRef]
  7. Maître, A.; François, M.; Gachon, J.C. Experimental study of the Bi2O3-Fe2O3 pseudo-binary system. J. Phase Equilibria Diffus. 2004, 25, 59–67. [Google Scholar] [CrossRef]
  8. Carvalho, T.; Tavares, P.B. Synthesis and thermodynamic stability of multiferroic BiFeO3. Mater. Lett. 2008, 62, 3984–3986. [Google Scholar] [CrossRef]
  9. Phapale, S.; Mishra, R.; Das, D. Standard enthalpy of formation and heat capacity of compounds in the pseudo-binary Bi2O3–Fe2O3 system. J. Nucl. Mater. 2008, 373, 137–141. [Google Scholar] [CrossRef]
  10. Shilkina, L.A.; Verbenko, I.A.; Abubakarov, A.G.; Reznichenko, L.A.; Razumovskaya, O.N.; Sorokun, T.N.; Aleshin, V.A. Features of phase formation in the preparation of bismuth ferrite. In Advanced Materials; Chang, S.-H., Parinov, I.A., Topolov, V.Y., Eds.; Springer Proceedings in Physics: Cham, Switzerland, 2016; Volume 175, pp. 79–86. [Google Scholar] [CrossRef]
  11. Andryushin, K. Technological regimes for the preparing of solid solutions Bi1−xREExFeO3 (REE—La, Pr, Nd, Sm, Eu, Gd, Tb, Dy, Ho, Er, Tm, Yb, Lu). Mendeley Data 2021, V1. [Google Scholar] [CrossRef]
  12. Andryushin, K. Densities of the solid solutions Bi1−xREExFeO3 (REE—La, Pr, Nd, Sm, Eu, Gd, Tb, Dy, Ho, Er, Tm, Yb, Lu). Mendeley Data 2021, V1. [Google Scholar] [CrossRef]
  13. Garnett, J.C.M. Colours in metal glasses and in metallic films. Philoso. Trans. R. Soc. A 1904, 203, 385–420. [Google Scholar] [CrossRef] [Green Version]
  14. Turik, A.V.; Pavlenko, A.V.; Reznichenko, L.A. Maxwell–Wagner relaxation and magnetodielectric properties of Bi0.5La0.5MnO3 ceramics. Phys. Solid State 2016, 58, 1549–1551. [Google Scholar] [CrossRef]
  15. Turik, A.V.; Radchenko, G.S. Maxwell-wagner relaxation of elastic constants of layered polar dielectrics. Phys. Solid State 2003, 45, 1060–1064. [Google Scholar] [CrossRef]
  16. Selbach, S.M.; Einarsrud, M.-A.; Grande, T. On the Thermodynamic Stability of BiFeO3. Chem. Mater. 2009, 21, 169–173. [Google Scholar] [CrossRef]
  17. Fedulov, S.A.; Venevtsev, Y.N.; Zhdanov, G.S.; Smazhevskaya, E.G. Vysokotemperaturnyye rentgenovskiye i termograficheskiye issledovaniya ferrita vismuta. [English translation: High-temperature X-ray and thermographic studies of bismuth ferrite. Crystallography]. Kristallografiya 1961, 6, 795–796. (In Russian) [Google Scholar]
  18. Mukherjee, J.L.; Wang, F.F.Y. Kinetics of Solid-State Reaction of Bi2O3 and Fe2O3. J. Am. Ceram. Soc. 1971, 54, 31–34. [Google Scholar] [CrossRef]
  19. Achenbach, G.D.; James, W.J.; Gerson, R. Preparation of Single-Phase Polycrystalline BiFeO3. J. Am. Ceram. Soc. 1967, 50, 437. [Google Scholar] [CrossRef]
  20. Valant, M.; Axelsson, A.A.-K.; Alford, N. Peculiarities of a Solid-State Synthesis of Multiferroic Polycrystalline BiFeO3. Chem. Mater. 2007, 19, 5431–5436. [Google Scholar] [CrossRef]
  21. Shamir, N.; Gurewitz, E.; Shaked, H. The magnetic structure of Bi2Fe4O9—Analysis of neutron diffraction measurements. Acta Crystallogr. 1978, 34, 662–666. [Google Scholar] [CrossRef] [Green Version]
  22. Pavelko, A.A.; Khasbulatov, S.V.; Reznichenko, L.A.; Shilkina, L.; Gadjiev, G.G.; Bakmaev, A.; Omarov, Z.; Verbenko, I.; Alyoshin, V.; Parinov, I.A.; et al. Features of the Formation of the Crystal Structure, Grain Structure, Dielectric and Thermophysical Properties of Bismuth Ferrite Doped with Erbium. Appl. Sci. 2018, 8, 2183. [Google Scholar] [CrossRef] [Green Version]
  23. Verbenko, I.A.; Gufan, Y.M.; Kubrin, S.P.; Amirov, A.A.; Pavelko, A.; Aleshin, V.A.; Shilkina, L.A.; Razumovskaya, O.N.; Reznichenko, L.A.; Osipenko, I.A.; et al. The crystal and grain structure and physical properties of Bi1−xAxFeO3 (A = La, Nd) solid solutions. Bull. Russ. Acad. Sci. Phys. 2010, 74, 1141–1143. [Google Scholar] [CrossRef]
  24. Andryushin, K.P.; Pavelko, A.; Verbenko, I.A.; Razumovskaya, O.N.; Shilkina, L.A.; Aleshin, V.A.; Reznichenko, L.A. Thermal stability and electrical conductivity of multiferroics BiFeO3/REEs. Bull. Russ. Acad. Sci. Phys. 2011, 75, 1082–1084. [Google Scholar] [CrossRef]
  25. Khasbulatov, S.V.; Pavelko, A.A.; Shilkina, L.A.; Reznichenko, L.A.; Gadjiev, G.G.; Bakmaev, A.G.; Magomedov, M.-R.M.; Omarov, Z.M.; Aleshin, V.A. Phase composition, microstructure, and thermophysical and dielectric properties of multiferroic Bi1−xDyxFeO3. Thermophys. Aeromech. 2016, 23, 445–450. [Google Scholar] [CrossRef]
  26. Kittel, C. Introduction to Solid State Physics; John Wiley and Sons: New York, NY, USA, 1953; 396p. [Google Scholar]
  27. Koops, C.G. On the Dispersion of Resistivity and Dielectric Constant of Some Semiconductors at Audiofrequencies. Phys. Rev. 1951, 83, 121–124. [Google Scholar] [CrossRef]
  28. Von Hippel, A.R.; Morgan, S.O. Dielectrics and Waves. J. Electrochem. Soc. 1955, 102, 68C. [Google Scholar] [CrossRef]
  29. Liu, J.; Duan, C.-G.; Yin, W.-G.; Mei, W.N.; Smith, R.W.; Hardy, J.R. Large dielectric constant and Maxwell-Wagner relaxation inBi2∕3Cu3Ti4O12. Phys. Rev. B 2004, 70, 144106. [Google Scholar] [CrossRef]
  30. Lemanov, V.V.; Sotnikov, A.V.; Smirnova, E.P.; Weihnacht, M. Giant dielectric relaxation in SrTiO3-SrMg1/3Nb2/3O3 and SrTiO3-SrSc1/2Ta1/2O3 solid solutions. Phys. Solid State 2002, 44, 2039–2049. [Google Scholar] [CrossRef]
  31. Tuncer, E.; Nettelblad, B.; Gubañski, S.M. Non-Debye dielectric relaxation in binary dielectric mixtures (50-50): Randomness and regularity in mixture topology. J. Appl. Phys. 2002, 92, 4612–4624. [Google Scholar] [CrossRef]
  32. Tuncer, E.; Gubański, S.M.; Nettelblad, B. Dielectric relaxation in dielectric mixtures: Application of the finite element method and its comparison with dielectric mixture formulas. J. Appl. Phys. 2001, 89, 8092–8100. [Google Scholar] [CrossRef]
  33. Tuncer, E.; Serdyuk, Y.V.; Gubanski, S.M. Comparing dielectric properties of binary composite structures obtained with different calculation tools and methods. In Proceedings of the Annual Report Conference on Electrical Insulation and Dielectric Phenomena, Kitchener, ON, Canada, 14–17 October 2001; pp. 665–668. [Google Scholar] [CrossRef]
  34. Tuncer, E.; Gubański, S.M.; Nettelblad, B. Electrical properties of 4 × 4 binary dielectric mixtures. J. Electrost. 2002, 56, 449–463. [Google Scholar] [CrossRef]
  35. Bogatin, A.S.; Turik, A.V. Protsessy Relaksatsionnoy Polyarizatsii v Dielektrikakh s Bol’shoy Skvoznoy Provodimost’yu; [English translation: Relaxation Polarization Processes in Dielectrics with High through Conduction]; Feniks: Rostov-on-Don, Russia, 2013; 256p. (In Russian) [Google Scholar]
  36. Emets, Y.P. Dispersion of permittivity of two-component media. J. Exp. Theor. Phys. 2002, 94, 1149–1159. [Google Scholar] [CrossRef]
  37. Turik, A.V.; Radchenko, G.S.; Chernobabov, A.I.; Turik, S.A.; Suprunov, V.V. Dielectric spectra of disordered ferroelectric systems: Polycrystals and composites. Phys. Solid State 2006, 48, 1157–1159. [Google Scholar] [CrossRef]
  38. Haumont, R.; Kornev, I.A.; Lisenkov, S.; Bellaiche, L.; Kreisel, J.; Dkhil, B. Phase stability and structural temperature dependence in powdered multiferroic BiFeO3. Phys. Rev. B 2008, 78, 134108. [Google Scholar] [CrossRef]
  39. Abubakarov, A.G.; Shilkina, L.A.; Verbenko, I.A.; Reznichenko, L.A.; Dudkina, S.I. Effect of nonstoichiometry on the structure and dielectric properties of bismuth ferrite. Bull. Russ. Acad. Sci. Phys. 2014, 78, 713–715. [Google Scholar] [CrossRef]
  40. Rao, C.N.R.; Gopalakrishnan, J.; Banks, E. New Directions in Solid State Chemistry: Structures, Synthesis, Properties, Reactivity and Materials Design. Phys. Today 1988, 41, 112. [Google Scholar] [CrossRef] [Green Version]
  41. Reznichenko, L.A.; Shilkina, L.A.; Gagarina, E.S.; Yuzyuk, Y.I.; Razumovskaya, O.N.; Kozinkin, A.V. Crystallographic shear in niobium oxides of different compositions. Crystallogr. Rep. 2004, 49, 820–827. [Google Scholar] [CrossRef]
  42. Kravchenko, O.Y.; Gadzhiev, G.G.; Omarov, Z.; Reznichenko, L.A.; Abdullaev, K.K.; Razumovskaya, O.N.; Shilkina, L.A.; Komarov, V.D.; Verbenko, I.A. Phase composition, microstructure, and properties of Na1−yNbO3−y/2 ceramics. Inorg. Mater. 2011, 47, 679–685. [Google Scholar] [CrossRef]
  43. Kravchenko, O.Y.; Gadzhiev, G.G.; Omarov, Z.; Reznichenko, L.A.; Abdullaev, K.K.; Razumovskaya, O.N.; Shilkina, L.A.; Komarov, V.D.; Verbenko, I.A. Phase transformations and properties of Ag1−yNbO3−y/2 (0 ≤ y ≤ 0.20) ceramics. Inorg. Mater. 2011, 47, 919–925. [Google Scholar] [CrossRef]
  44. Bokiy, G.B. Vvedeniye v kristallokhimiyu; [English translation: Introduction to Crystal Chemistry]; Moscow Government University Press: Moscow, Russia, 1954. (In Russian) [Google Scholar]
  45. Letwein, F.; Zomer-Kulachevsky, S. Kristallografiya; [English translation: Crystallography]; Higher School: Moscow, Russia, 1968; 378p. (In Russian) [Google Scholar]
  46. Reznichenko, L.A.; Shilkina, L.A.; Razumovskaya, O.N.; Dudkina, S.I.; Gagarina, E.S.; Borodin, A.V. Dielectric and Piezoelectric Properties of NaNbO3-Based Solid Solutions. Inorg. Mater. 2003, 39, 139–151. [Google Scholar] [CrossRef]
  47. Fesenko, E.G. Semejstvo Perovskita i Segnetoehlektrichestvo; [English translation: The Perovskite Family and Ferroelectricity]; Atomizdat: Moscow, Russia, 1972; 248p. (In Russian) [Google Scholar]
  48. Kartavtseva, M.S.; Gorbenko, O.Y.; Kaul’, A.R.; Savinov, S.A. Investigation of BiFeO3 Multiferroic thin films prepared by metalloorganic chemical vapor deposition. J. Surf. Investig. X-ray Synchrotron Neutron Tech. 2008, 2, 1–11. [Google Scholar] [CrossRef]
  49. Shuvaev, A.T. Issledovaniye soyedineniy so strukturoy perovskita po rentgenovskim spektram. [English translation: Investigation of compounds with a perovskite structure using X-ray spectra]. Proc. USSR Acad. Sci. Phys. Ser. 1959, 23, 569–572. [Google Scholar]
  50. Fesenko, E.G.; Shuvaev, A.T. Usloviya sushchestvovaniya struktury tipa perovskita i segnetoelektricheskogo sostoyaniya s uchetom khraktera khimicheskoy svyazi. [English translation: Conditions for the existence of a perovskite-type structure and a ferroelectric state, taking into account the nature of the chemical bond]. Proc. USSR Acad. Sci. Phys. Ser. 1969, 33, 1133–1138. (In Russian) [Google Scholar]
  51. Speranskaya, E.I.; Skorikov, V.M.; Rode, E.Y.; Terekhova, V.A. The phase diagram of the system bismuth oxide-ferric oxide. Russ. Chem. Bull. 1965, 14, 873–874. [Google Scholar] [CrossRef]
  52. Miller, A.; Gusev, A.A.; Verbenko, I.A.; Shilkina, L.A.; Reznichenko, L.A. Properties of mechanically activated bismuth ferrite. Bull. Russ. Acad. Sci. Phys. 2012, 76, 798–800. [Google Scholar] [CrossRef]
  53. Palai, R.; Katiyar, R.S.; Schmid, H.; Tissot, P.; Clark, S.J.; Robertson, J.; Redfern, S.A.T.; Catalan, G.; Scott, J.F. βphase andγ−βmetal-insulator transition in multiferroic BiFeO3. Phys. Rev. B 2008, 77, 014110. [Google Scholar] [CrossRef] [Green Version]
  54. Kumar, M.; Yadav, K.; Varma, G. Large magnetization and weak polarization in sol–gel derived BiFeO3 ceramics. Mater. Lett. 2008, 62, 1159–1161. [Google Scholar] [CrossRef]
  55. Mazumder, R.; Chakravarty, D.; Bhattacharya, D.; Sen, A. Spark plasma sintering of BiFeO3. Mater. Res. Bull. 2009, 44, 555–559. [Google Scholar] [CrossRef]
  56. Xu, J.-H.; Ke, H.; Jia, D.; Wang, W.; Zhou, Y. Low-temperature synthesis of BiFeO3 nanopowders via a sol–gel method. J. Alloys Compd. 2009, 472, 473–477. [Google Scholar] [CrossRef]
  57. Farhadi, S.; Zaidi, M. Bismuth ferrite (BiFeO3) nanopowder prepared by sucrose-assisted combustion method: A novel and reusable heterogeneous catalyst for acetylation of amines, alcohols and phenols under solvent-free conditions. J. Mol. Catal. A Chem. 2009, 299, 18–25. [Google Scholar] [CrossRef]
  58. He, X.; Gao, L. Synthesis of pure phase BiFeO3 powders in molten alkali metal nitrates. Ceram. Int. 2009, 35, 975–978. [Google Scholar] [CrossRef]
  59. Wang, Y.P.; Zhou, L.; Zhang, M.; Chen, X.; Liu, J.-M.; Liu, Z.G. Room-temperature saturated ferroelectric polarization in BiFeO3 ceramics synthesized by rapid liquid phase sintering. Appl. Phys. Lett. 2004, 84, 1731–1733. [Google Scholar] [CrossRef]
  60. Murashov, V.A.; Rakov, D.N.; Economov, N.A.; Zvezdin, A.K.; Dubenko, I.S. Quadratic magnetoelectric effect in single crystals (Bi, La) FeO3. Solid State Phys. 1990, 32, 2156–2159. [Google Scholar]
  61. Uniyal, P.; Yadav, K. Study of dielectric, magnetic and ferroelectric properties in Bi1−xGdxFeO3. Mater. Lett. 2008, 62, 2858–2861. [Google Scholar] [CrossRef]
  62. Nalwa, K.; Garg, A.; Upadhyaya, A. Effect of samarium doping on the properties of solid-state synthesized multiferroic bismuth ferrite. Mater. Lett. 2008, 62, 878–881. [Google Scholar] [CrossRef]
  63. Xu, J.; Wang, G.; Wang, H.; Ding, D.; He, Y. Synthesis and weak ferromagnetism of Dy-doped BiFeO3 powders. Mater. Lett. 2009, 63, 855–857. [Google Scholar] [CrossRef]
  64. Goldschmidt, V.M. Geochemistry; Muir, A., Ed.; Clarendon Press: Oxford, UK, 1954; 730p. [Google Scholar]
  65. Sakhnenko, V.P.; Dergunova, N.V.; Reznichenko, L.A. Energeticheskaya Kristallokhimiya Tverdykh Rastvorov Soyedineniy Kislorodno-Oktaedricheskogo Tipa i Modelirovaniye P’yezokeramicheskikh Materialov.; [English translation: Energy crystal chemistry of solid solutions of compounds of the oxygen-octahedral type and modeling of piezoceramic materials]; Publisher of Rostov State Pedagogical University: Rostov-on-Don, Russia, 1999; 321p. (In Russian) [Google Scholar]
  66. Vegard, L. Die Konstitution der Mischkristalle und die Raumfüllung der Atome. Eur. Phys. J. A 1921, 5, 17–26. [Google Scholar] [CrossRef]
  67. Sakhnenko, V.P.; Fesenko, E.G.; Shuvaev, A.T.; Shuvaeva, E.T.; Geguzina, G.A. Mezhatomnyye rasstoyaniya v okislakh so strukturoy tipa perovskita. [English translation: The interatomic bond distances calculation in the complex oxides with perovskite structure]. Crystallography 1972, 17, 316–322. (In Russian) [Google Scholar]
  68. Dergunova, N.V.; Sakhnenko, V.P.; Fesenko, E.G. Raschet parametrov kristallicheskoy reshetki tverdykh rastvorov okislov so strukturoy perovskita. [English translation: Calculation of the Lattice Parameters of Oxide Solid Solutions with the Perovskite Structure]. Crystallography 1978, 23, 94–98. (In Russian) [Google Scholar]
Figure 1. Temperature dependences of ε′/ε0, ε″/ε0 BiFeO3 and BiFeO3/REEx (x = 0.1) in the frequency range of (25 ÷ 2·106) Hz of the ac field.
Figure 1. Temperature dependences of ε′/ε0, ε″/ε0 BiFeO3 and BiFeO3/REEx (x = 0.1) in the frequency range of (25 ÷ 2·106) Hz of the ac field.
Applsci 11 01025 g001
Figure 2. Arrhenius plots describing relaxation processes on ε′/ε0 (T) and tanδ (T) dependences of BiFeO3 ceramics.
Figure 2. Arrhenius plots describing relaxation processes on ε′/ε0 (T) and tanδ (T) dependences of BiFeO3 ceramics.
Applsci 11 01025 g002
Figure 3. Phase diagram of the Bi2O3-Fe2O3 binary system.
Figure 3. Phase diagram of the Bi2O3-Fe2O3 binary system.
Applsci 11 01025 g003
Figure 4. Diagram of directional parameters υ (characterizing the energy profitability of attaching atoms to each other along the directions of the highest concentration of electron density) and strength µ and the region of existence of oxides with a perovskite-type structure (OSP).
Figure 4. Diagram of directional parameters υ (characterizing the energy profitability of attaching atoms to each other along the directions of the highest concentration of electron density) and strength µ and the region of existence of oxides with a perovskite-type structure (OSP).
Applsci 11 01025 g004

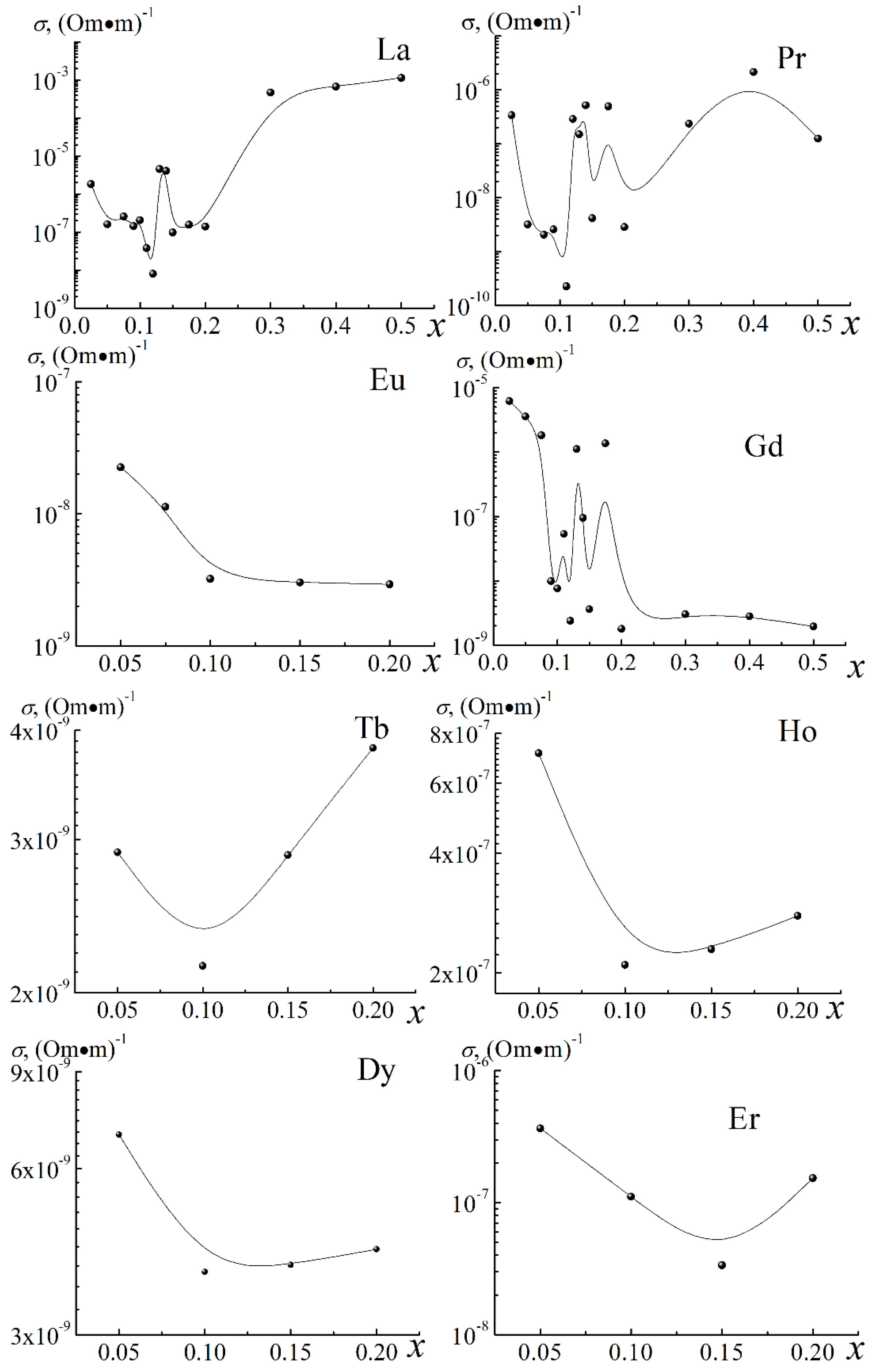

Figure 5. Dependences of the electrical conductivity σ of BiFeO3/REE–La, Pr, Eu, Gd, Tb, Ho, Dy, Er on the concentration of introduced x of REE (experimental points are marked with markers; solid lines serve as a guide to the eye).
Figure 5. Dependences of the electrical conductivity σ of BiFeO3/REE–La, Pr, Eu, Gd, Tb, Ho, Dy, Er on the concentration of introduced x of REE (experimental points are marked with markers; solid lines serve as a guide to the eye).
Applsci 11 01025 g005
Figure 6. Dependences of the values of specific electrical conductivity σ, BiFeO3/REE on radii, R, REE (experimental points are marked with markers; solid lines serve as a guide to the eye).
Figure 6. Dependences of the values of specific electrical conductivity σ, BiFeO3/REE on radii, R, REE (experimental points are marked with markers; solid lines serve as a guide to the eye).
Applsci 11 01025 g006
Figure 7. Dependences of the parameters of the perovskite cell of BiFeO3 modified with La (a), Pr (b), Nd (c), Sm (d), Eu (e), Gd (f), respectively: 1, 2, 3–a, α, V–parameters and volume of rhombohedral cell (Rh phase); 4, 5, 6–c, a, V–parameters and volume of the pseudotetragonal cell (orthorhombic phase O1 of the PbZrO3 type), 7, 8, 9, 10–b, a, β, V–parameters and volume of the monoclinic cell (orthorhombic phase O2 of the type GdFeO3).
Figure 7. Dependences of the parameters of the perovskite cell of BiFeO3 modified with La (a), Pr (b), Nd (c), Sm (d), Eu (e), Gd (f), respectively: 1, 2, 3–a, α, V–parameters and volume of rhombohedral cell (Rh phase); 4, 5, 6–c, a, V–parameters and volume of the pseudotetragonal cell (orthorhombic phase O1 of the PbZrO3 type), 7, 8, 9, 10–b, a, β, V–parameters and volume of the monoclinic cell (orthorhombic phase O2 of the type GdFeO3).
Applsci 11 01025 g007
Figure 8. Dependences of the position of the boundary (x) of the existence of a pure Rh-phase, its mixture with O1,2-phases, the relative difference between RBi and RREER) on the radius, R, of REE (a); (b) Dependences of the difference between Vexp. and Vtheor.V) on the ionic radius, R, REE in SS with x = 0.05, 0.10, 0.15.
Figure 8. Dependences of the position of the boundary (x) of the existence of a pure Rh-phase, its mixture with O1,2-phases, the relative difference between RBi and RREER) on the radius, R, of REE (a); (b) Dependences of the difference between Vexp. and Vtheor.V) on the ionic radius, R, REE in SS with x = 0.05, 0.10, 0.15.
Applsci 11 01025 g008
Figure 9. Dependences of μREE on radii, R, in BiFeO3 SS with x = 0.1; 0.2; 0.3.
Figure 9. Dependences of μREE on radii, R, in BiFeO3 SS with x = 0.1; 0.2; 0.3.
Applsci 11 01025 g009
Table 1. Main crystal chemical characteristics of A-elements (A-Bi, La, Pr, Nd, Sm, Eu, Gd, Ho).
Table 1. Main crystal chemical characteristics of A-elements (A-Bi, La, Pr, Nd, Sm, Eu, Gd, Ho).
A-ElementR, Åμ, rel. UnitsLA-O, Åa, ÅA-O, ÅA-O/LA-O, rel. UnitsElectronic Configurations of Outer Layers
Bi1.201.042.733.950.0700.030(S2)p3
La1.040.362.693.930.1100.040(f0)ds2
Pr1.000.390.653.900.1160.044(f2)ds2
Nd0.990.400.633.880.1200.045(f3)ds2
Sm0.970.442.623.880.1300.050(f5)ds2
Eu0.970.472.603.860.1400.054(f6)ds2
Gd0.940.502.593.860.1480.057(f7)ds2
Ho0.860.522.553.830.1500.059(f10)ds2
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Andryushin, K.P.; Sakhnenko, V.P.; Turik, A.V.; Shilkina, L.A.; Pavelko, A.A.; Dudkina, S.I.; Rudskaya, A.G.; Rudskiy, D.D.; Verbenko, I.A.; Hasbulatov, S.V.; et al. Reasons for the High Electrical Conductivity of Bismuth Ferrite and Ways to Minimize It. Appl. Sci. 2021, 11, 1025. https://doi.org/10.3390/app11031025

AMA Style

Andryushin KP, Sakhnenko VP, Turik AV, Shilkina LA, Pavelko AA, Dudkina SI, Rudskaya AG, Rudskiy DD, Verbenko IA, Hasbulatov SV, et al. Reasons for the High Electrical Conductivity of Bismuth Ferrite and Ways to Minimize It. Applied Sciences. 2021; 11(3):1025. https://doi.org/10.3390/app11031025

Chicago/Turabian Style

Andryushin, Konstantin P., Vladimir P. Sakhnenko, Anatoliy V. Turik, Lidiya A. Shilkina, Alexey A. Pavelko, Svetlana I. Dudkina, Angela G. Rudskaya, Daniil D. Rudskiy, Iliya A. Verbenko, Sidek V. Hasbulatov, and et al. 2021. "Reasons for the High Electrical Conductivity of Bismuth Ferrite and Ways to Minimize It" Applied Sciences 11, no. 3: 1025. https://doi.org/10.3390/app11031025

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
