Designing Light for Night Shift Workers: Application of Nonvisual Lighting Design Principles in an Industrial Production Line
2. Materials and Methods

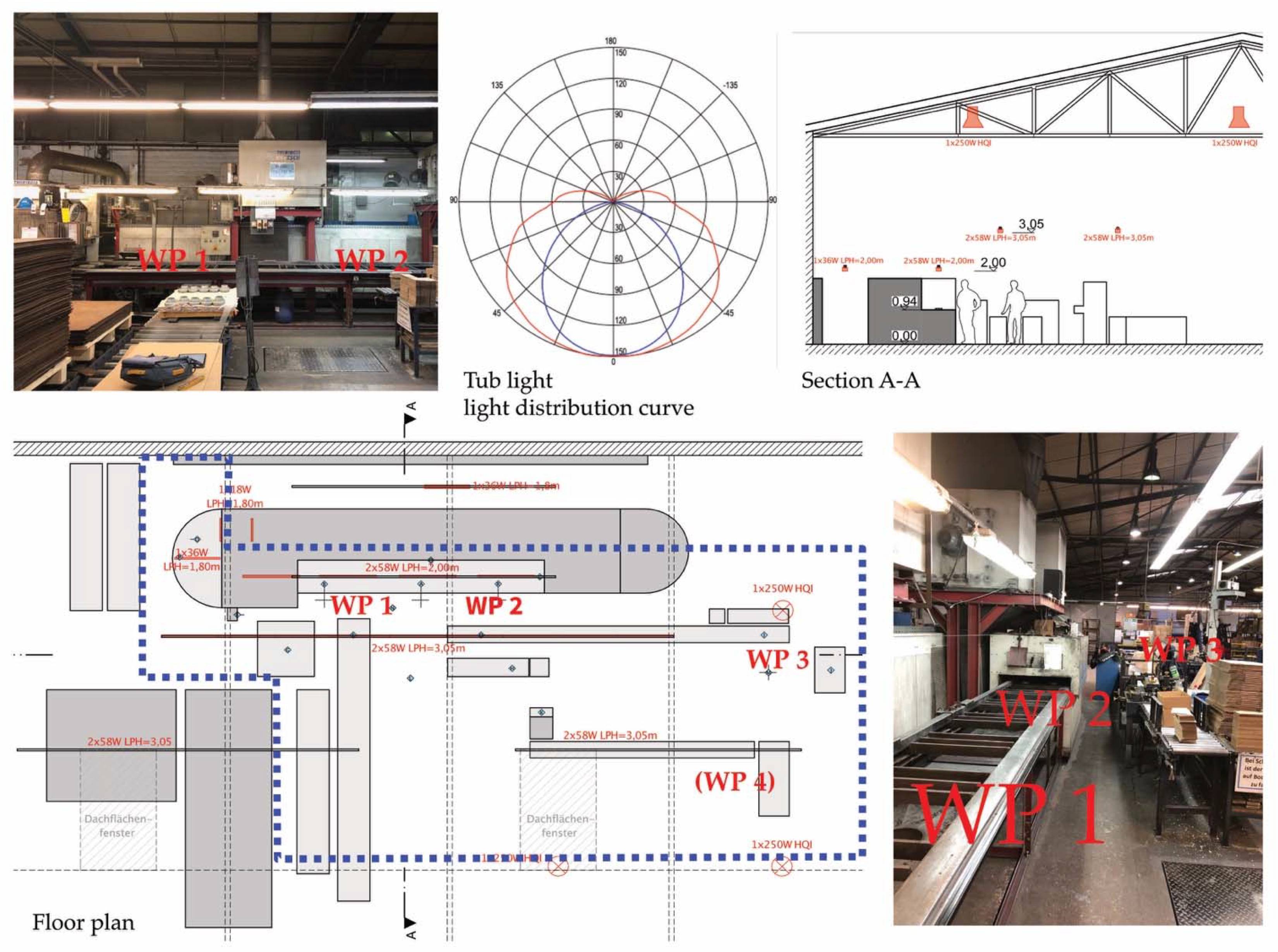

2.1. Project Description
2.2. Task Definition
2.3. Software and Measurement Equipment

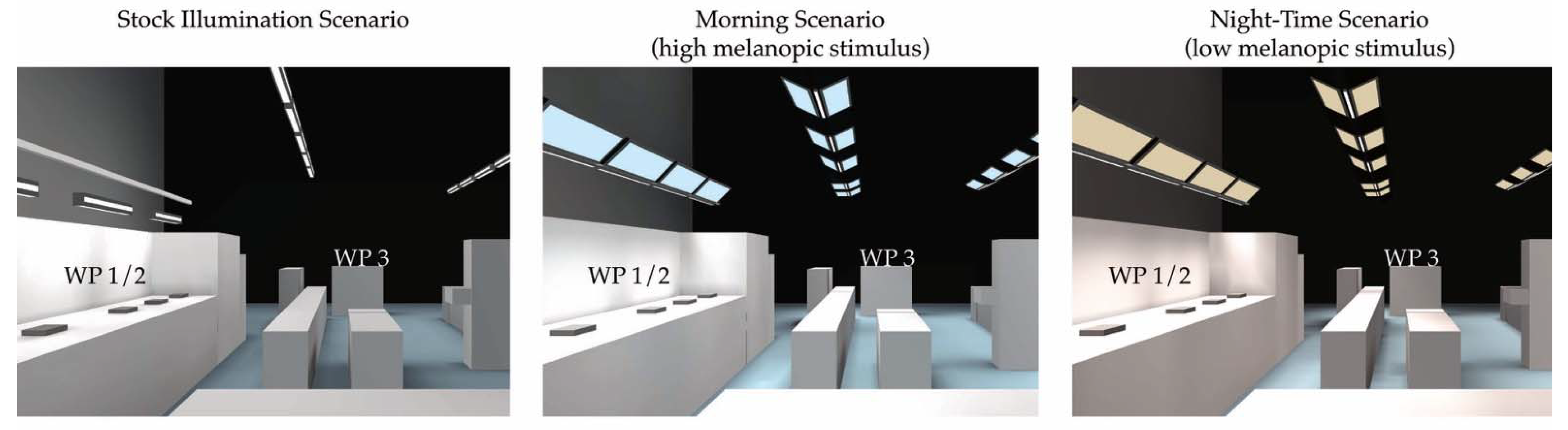

2.4. Nonvisual Lighting Simulation
3.1. Stock Lighting Evaluation

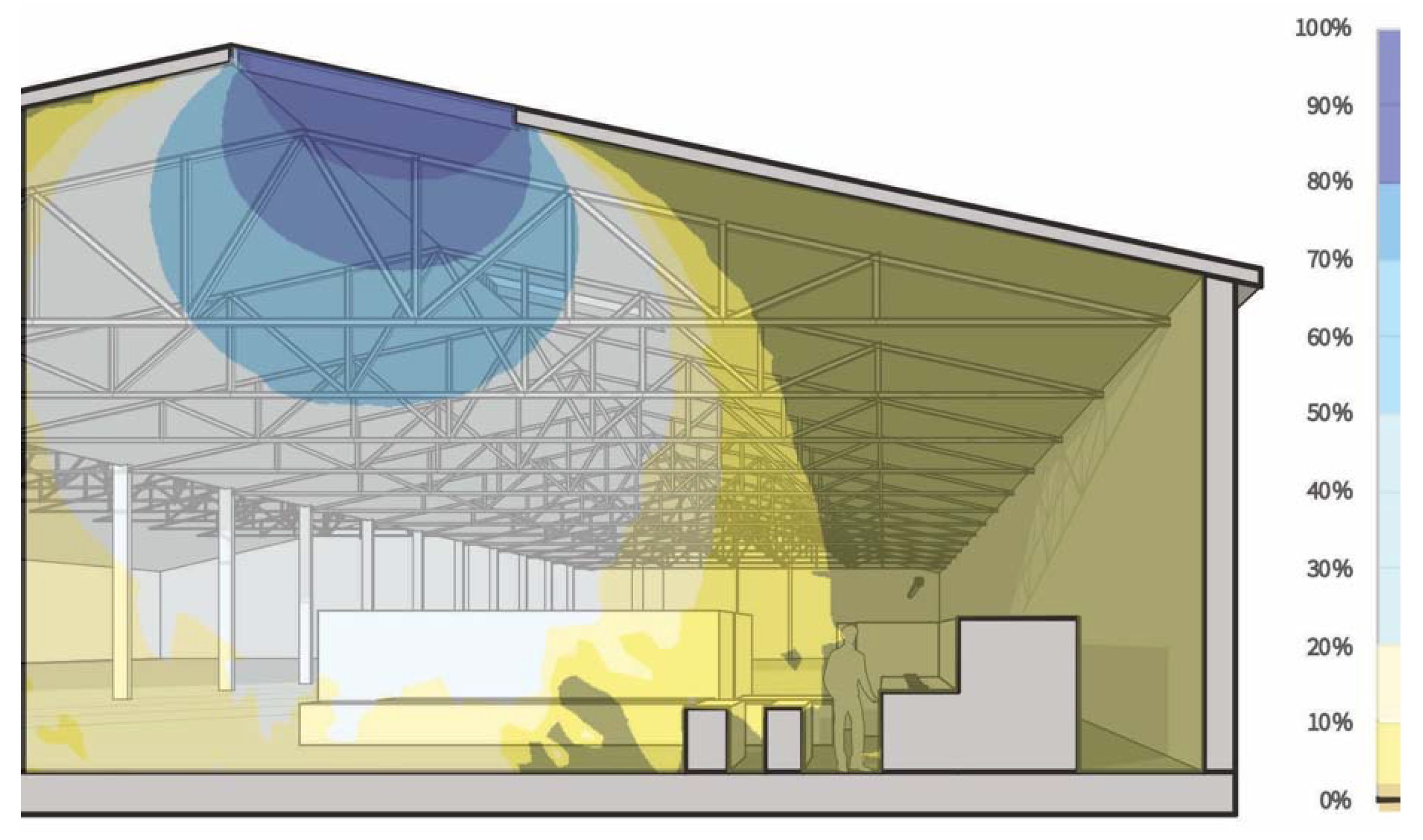

3.1.2. Daylight Simulation
3.1.3. Evaluation Result

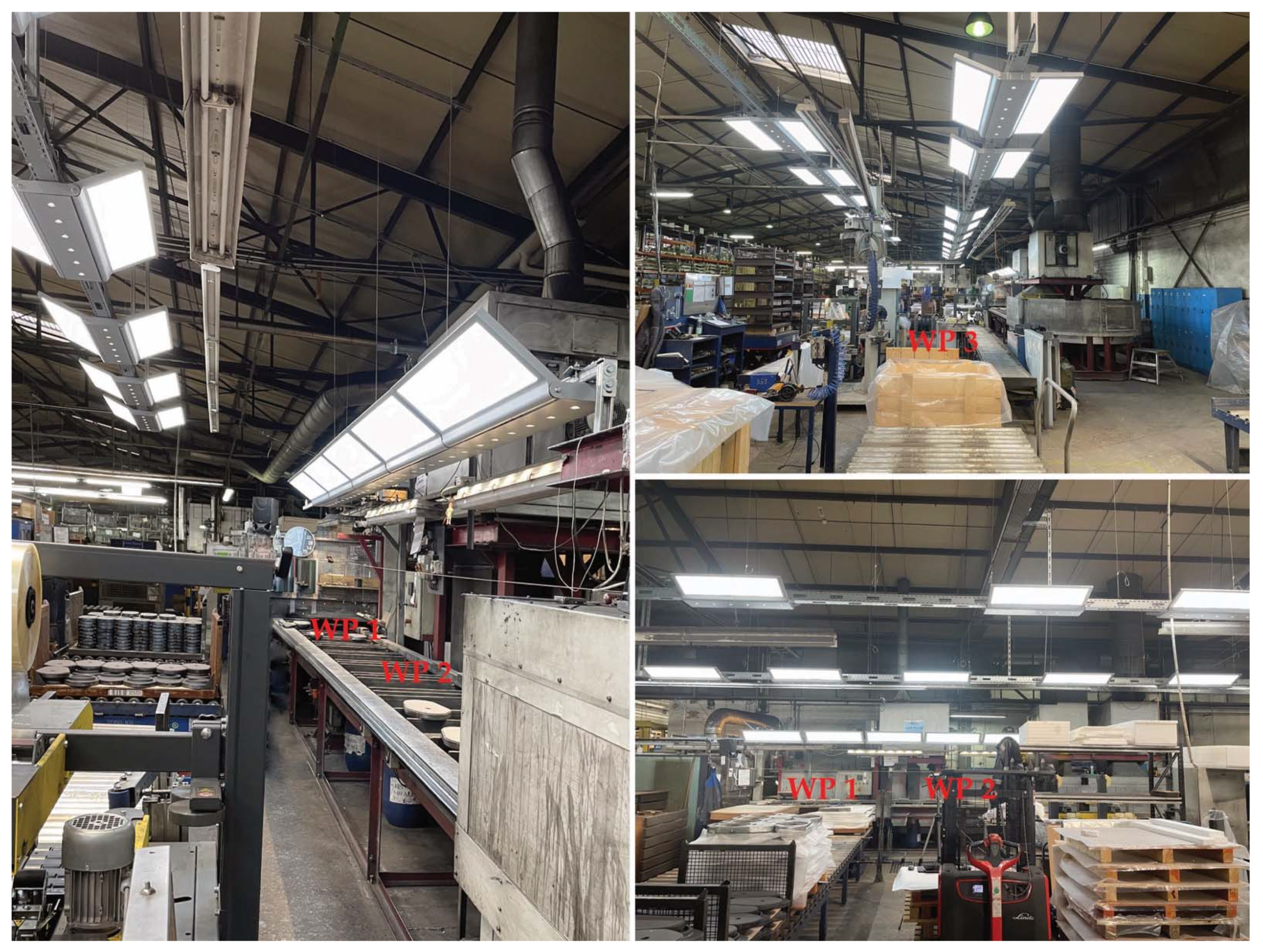

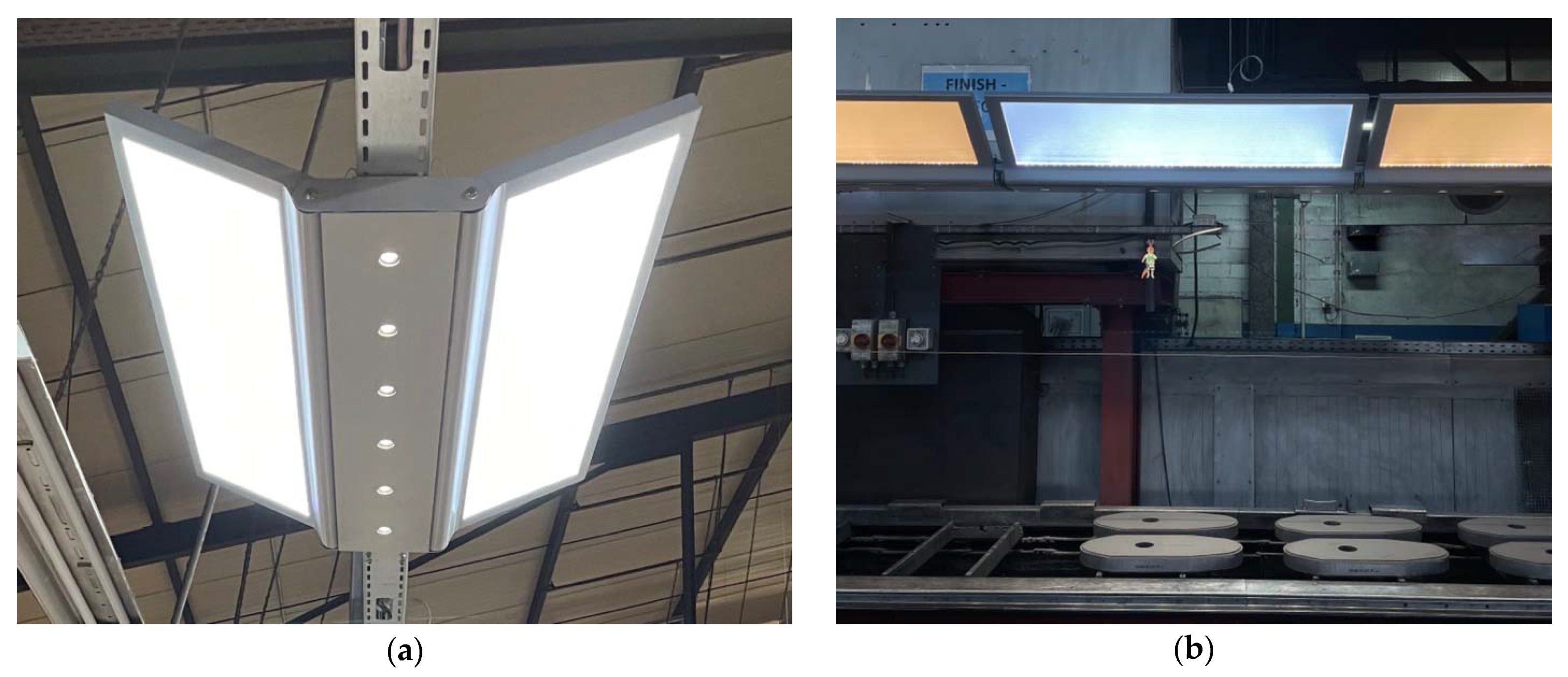

3.2. Luminaire Drosa

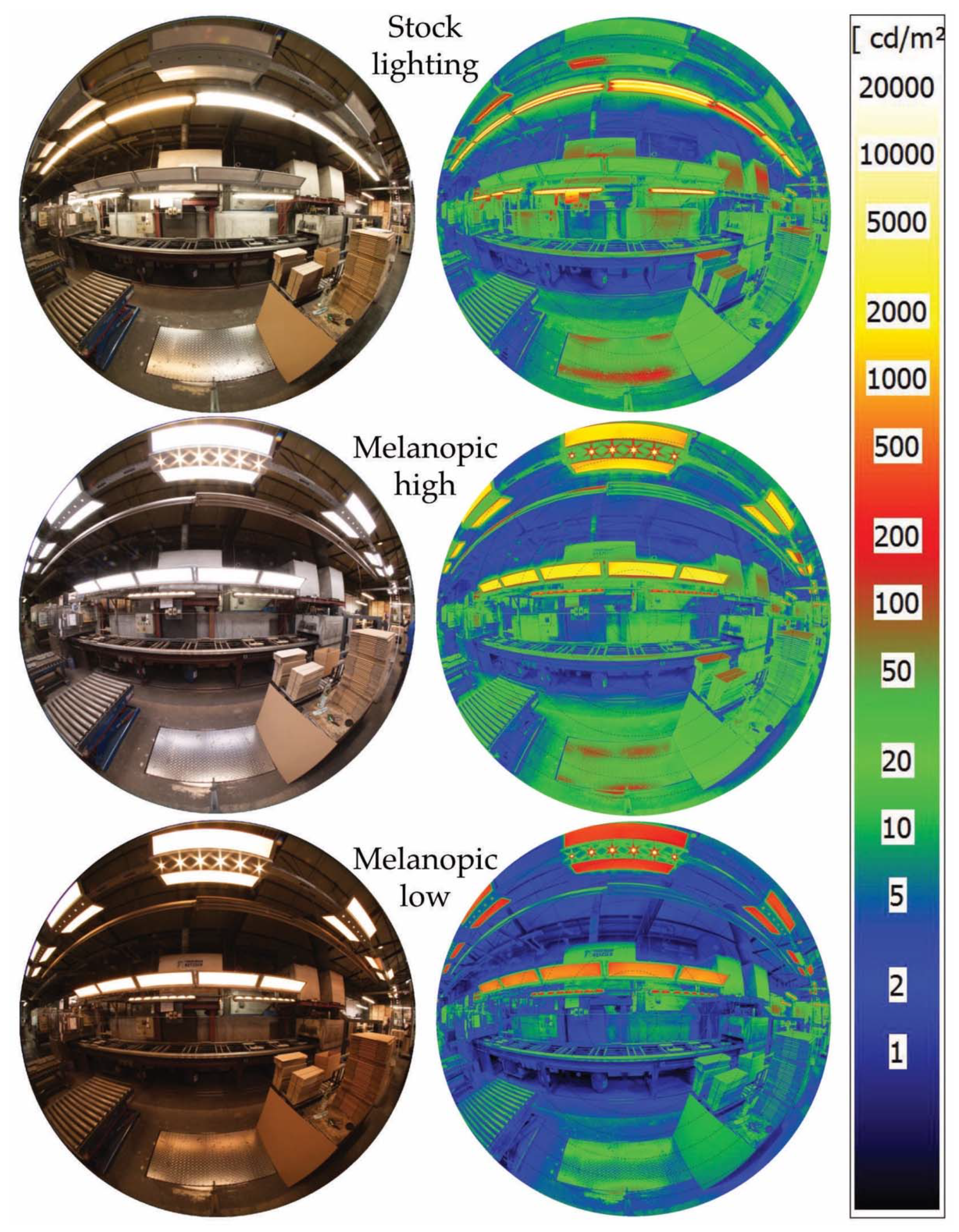

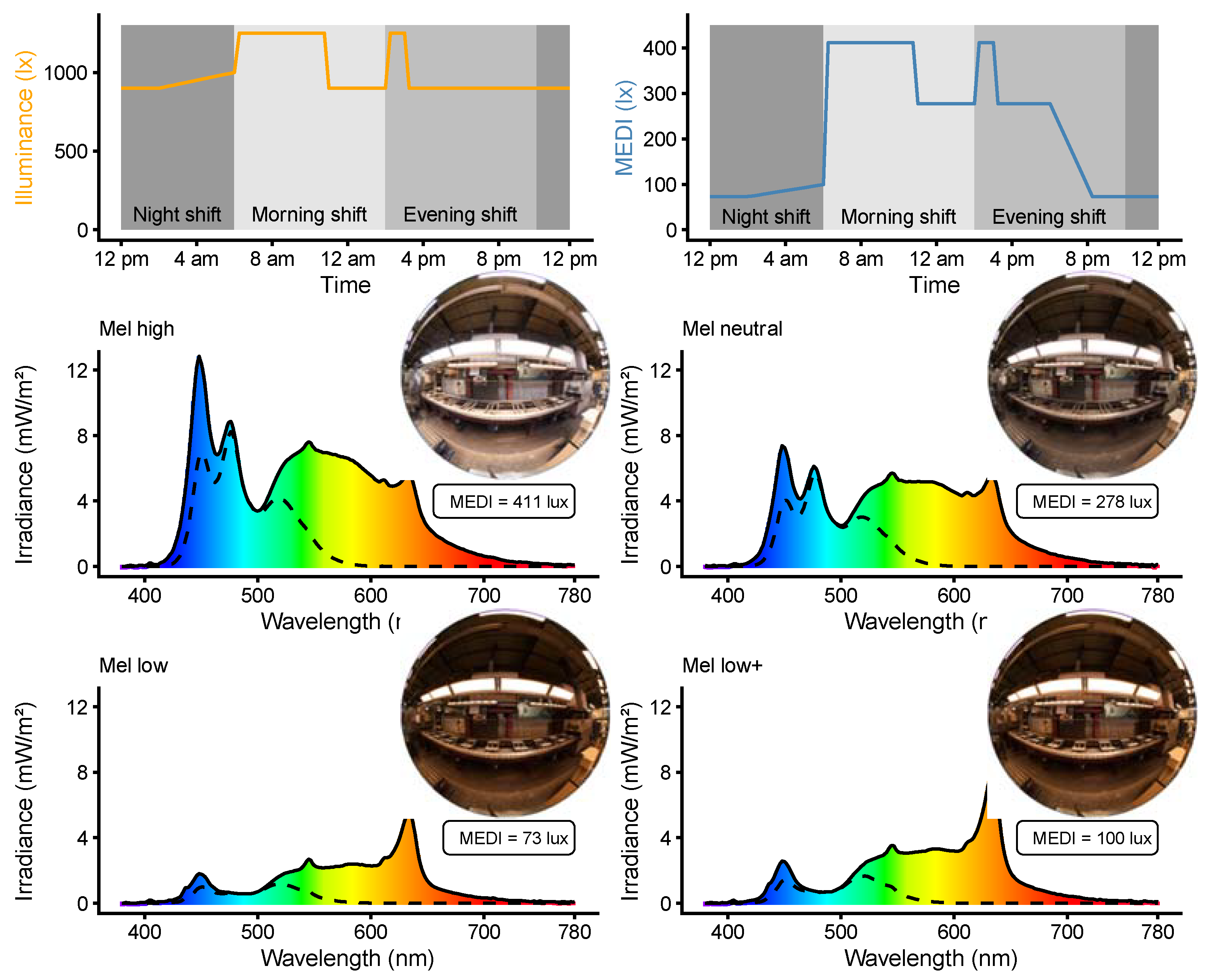

3.4. Spectral Illuminance Measurements, Automation Scenario, and Luminance Distribution
- From 6:15 a.m. to 10:45 a.m., the melanopic stimulus was set high for the morning shift for activation and synchronization (Mel high).
- From 11:00 a.m. to 2:00 p.m., the light was in a neutral setting for the morning shift (Mel neutral).
- From 2:15 p.m. to 3:15 p.m., the setting was identical to A., but for the evening shift for activation (Mel high).
- From 3:30 p.m. until one hour before sundown, the setting was identical to B., but for the evening shift (Mel neutral).
- From one hour after sunset, until 2:00 a.m., the melanopic stimulus was set minimal for the night shift (Mel low).
- At 6:00 a.m., the melanopic stimulus was still set low, but higher compared to E (Mel low+).

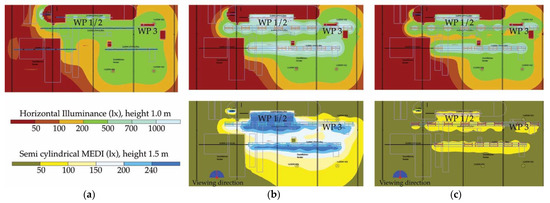

4.1. Nonvisual Lighting Simulation
4.2. Lighting Design and Automation Rationale
- Provide an activating and synchronizing stimulus during the morning hours. According to the technical specification DIN SPEC 67600 , a melanopic stimulus of 240 lx MEDI is recommended for synchronization, and it activates the user by increasing alertness, wellbeing, and performance. The specification predates the MEDI notation; therefore, the recommendation was converted from 250 lx at 8000 K fluorescent light. Khalsa et al.  showed that the morning hours are best to phase shift the internal clock backward, with a phase response curve constructed from a laboratory experiment. This is supposed to counter opposing phase shifts through light and activity at night.
- Provide an activating and circadian amplitude strengthening stimulus at the beginning of the evening shift. The activating effect mirrors the one in the morning. At that time of day, workers would also still be able to receive at least similar levels of daylight, if they were outside. Kozaki et al.  showed that increased daytime illuminance reduces the suppression of melatonin through the light the following night. This stimulus might similarly benefit the workers in our project.
- At night (starting at one hour after sunset), the melanopic stimulus is to be minimal. This reduces both the suppression of melatonin and the forward phase shift induced by light at night [50,51]. On the negative side, the stronger activating effect of the stock lighting is also reduced. As a target stimulus, we set 100 lx as the upper threshold. While there is no recommendation for this particular value, we decided on it as a realistic lower threshold regarding the high visual illuminance requirement (Table 1) .
- Starting with the middle of the night shift, the visual stimulus is increased to promote alertness. Sleepiness inevitably rises during the night shift . Some studies show, however, that alertness can be increased by a brighter light, independent of the melanopic stimulus and its detrimental effect on phase shift and melatonin suppression at night [50,52,53]. We do not expect this effect to fully compensate for the increasing sleepiness during the shift, but it might have an attenuating effect. If possible, the melanopic stimulus should not cross the threshold of 100 lx set for the night.
Data Availability Statement
Conflicts of Interest

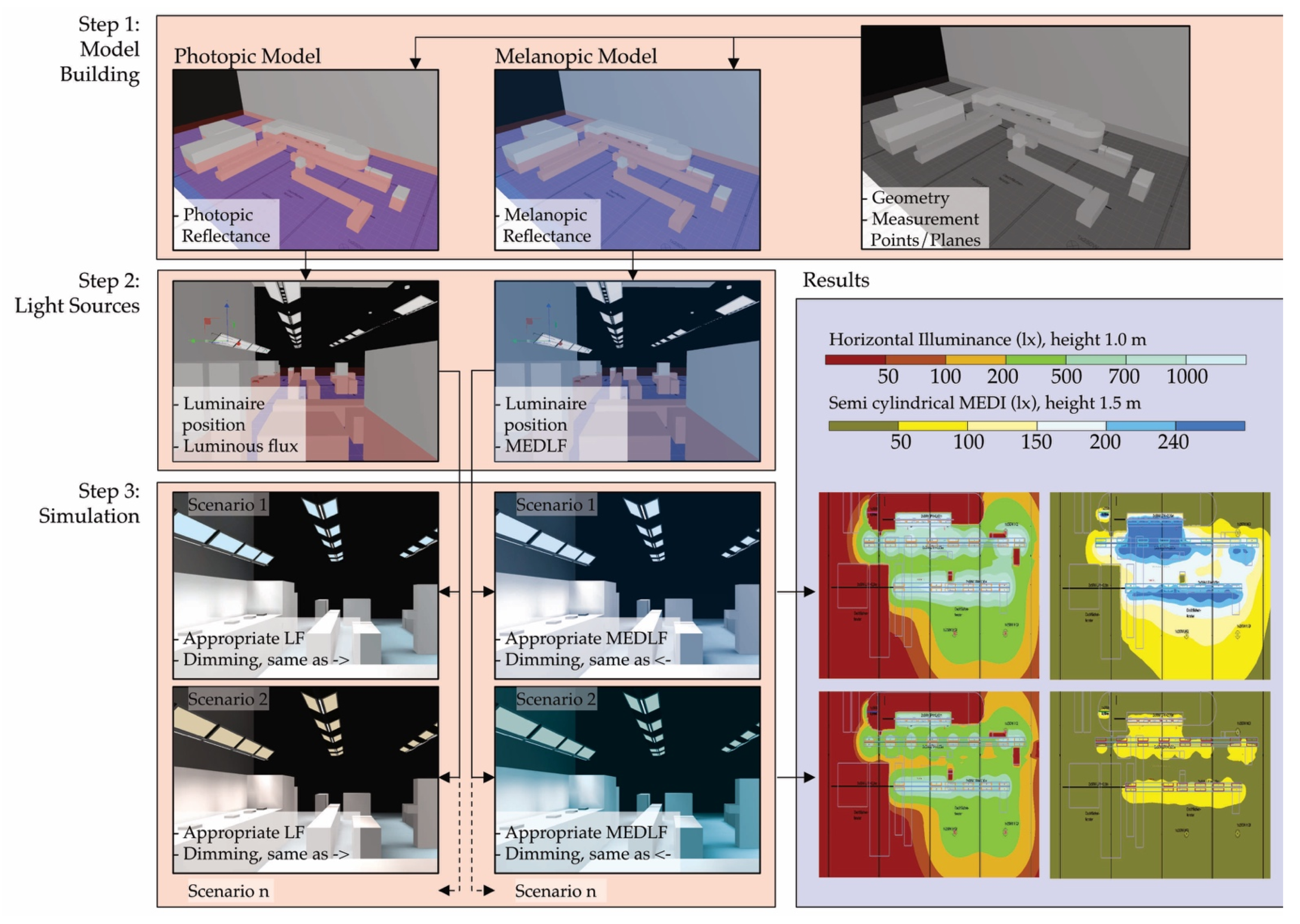

Appendix A. Nonvisual Lighting Simulation Process
