Article

Evaluating Biosedimentation for Strength Improvement in Acidic Soil

by
Ahmed Hassan Saad
1,
Haslinda Nahazanan
1,*,
Zainuddin Bin Md Yusoff
1,
Muskhazli Mustafa
2,
Mohamed Hamdy Elseknidy
3 and
Angham Ali Mohammed
1
1
Department of Civil Engineering, Faculty of Engineering, Universiti Putra Malaysia, Serdang 43400, Malaysia
2
Department of Biology, Faculty of Science, Universiti Putra Malaysia, Serdang 43400, Malaysia
3
Department of Chemical and Environmental Engineering, Faculty of Engineering, Universiti Putra Malaysia, Serdang 43400, Malaysia
*
Author to whom correspondence should be addressed.
Appl. Sci. 2021, 11(22), 10817; https://doi.org/10.3390/app112210817
Submission received: 29 September 2021 / Revised: 27 October 2021 / Accepted: 1 November 2021 / Published: 16 November 2021
(This article belongs to the Special Issue New Frontiers in Sustainable Geotechnics)
Browse Figures
Versions Notes

Abstract

:
Marine clay soils are problematic soils in the construction industry when they are subjected to construction loads. When these soils are loaded, they lose their structure. This leads to the soil being unable to withstand loads of any magnitude without exhibiting significant, permanent deformations. In order to stabilize the marine soil, new methods for soil improvement were built upon biogrouting by incorporating physical, biological and chemical treatments into the soil. However, the biggest challenge of this method is the bacteria migration through the soil medium. To overcome this issue, the electrokinetic phenomenon can be utilized alongside biogrouting to prevent the bacteria migration. In this regard, the present study applied electrobiogrouting stabilization to investigate the improvement of acidic marine clay soil with a pH of 3.69. To accomplish this, two large-scale physical models with dimensions of 500 × 300 × 1200 mm were fabricated to examine the influence of two different treated distances between the inlet and outlet—450 mm (D45) and 600 mm (D60)—on the stability of the treated soil. It was observed that the shear strength of the treated soil improved significantly. The shear strength at the D45 treated distance increased from 3.65 kPa (untreated soil) to 28.14 kPa (treated soil). However, the strength increased by increasing the treated distance. In addition, compressibility and soil electrical conductivity were reduced significantly, and the Atterberg limits were significantly enhanced from OH to OL. The reasons for the enhancement of treated soil were the formation of CaCO3, which filled the soil voids, and that the water content was reduced. To address issues with marine clay soil, this study aims to minimize the high cost of a special foundation system and the use of non-environmentally friendly materials such as calcium-based binders, aside from the reduction of deformations caused by loading. The findings of this study can be used for acidic soils and the improvement of soil’s geotechnical behavior in general.

1. Introduction

Marine clay soil is a type of soil that results from the weathering and erosion of limestone or dolomite, which contains a high content of magnesium, calcium and iron. This soil has high water content and soluble salt that makes it difficult for concrete to set and is porous. They regularly plunge to huge depths of more than 30 m, as shown in Figure 1 [1]. Due to its high-water content [2] and a high amount of organic materials that can exceed 10.0% of the total dry weight [3], it has low undrained shear strength. Additionally, marine clay soils are a thixotropic substance, meaning that when the water content increases, the thixotropy strength ratio increases [4]. Moreover, acidic clay soils with pH levels less than 4.0 show a considerable loss in shear strength [5]. As a result, significant settling occurs both before and after construction [2,6]. Thus, several treatment approaches using lime [7], basalt fibers [8] and biomineralization [9] have been emphasized and oriented toward the enhancement of “environmental soil treatment” that is ecologically friendly and resource-efficient over previous procedures [10].
In this respect, biomineralization treatment is one of the numerous environmentally friendly and cost-effective soil improvement strategies that may be used to reinforce weak soils without requiring their replacement or the deployment of a special foundation system [7,11]. Microbially induced carbonate precipitation (MICP) was studied to treat weak and loose soils, including a 7-m sand column [10], an upscaling sand treatment beneath footing [12] and a 15-cm clay specimen [13]. For MICP, species of the Bacillus family have the ability to precipitate calcium carbonate (CaCO3) by the hydrolysis of urea (CO(NH2)2) into ammonium (NH4+) and carbonate (CO32−) ions [14,15]. They result in an increase in the pH level of their cell contents due to the precipitation ability of calcium carbonate (CaCO3) in the surrounding microenvironment [16]. The following are the reaction equations [17,18]:
CO(NH2)2 + H2O → 2NH3 + CO2
Ammonia (NH3) and dissolved inorganic carbon are generated in large amounts by the urease enzyme. Meanwhile, the pH rises, and the production of ammonia (NH3) and dissolved inorganic carbon continues until the urea (CO(NH2)2) reduces dramatically:
2NH3 + 2H2O → 2NH4+ + 2OH
2OH− + CO2 ⇌ HCO3− + OH− ⇌ CO3− + H2O
Alkalinity accumulates with the hydrolysis reaction within bacterial cells:
Cell-Ca2+− + CO3− → Cell-CaCO3
Sporosarcina pasteurii, also known as Bacillus pasteurii [18], is a bacillus family bacterium that produces urease enzymes intracellularly. S. pasteurii is an aerobic endospore-forming soil bacterium with a diameter of 0.5–1.2 μm and a length of 1.3–4.0 μm [19]. It can also survive in extremely alkaline (pH 10) circumstances, making it a relevant agent source for the MICP phenomena [20,21]. Sporosarcina pasteurii, on the other hand, has a peak activity in urease enzyme synthesis in pH ranges from 8 to 9 [22,23,24], while precipitation requires a pH of 9 [25]. Sporosarcina pasteurii also possesses a mechanical pressure resistance of 0.50 J/cm3 [26]. In general, the precipitation rate of calcium carbonates (CaCO3) during the MICP phenomenon is influenced by the bacterial type, cell concentrations, the pH value of the surrounding microenvironment, calcium concentration, urea concentration, temperature and humidity [27,28].
Soil treatment with the MICP phenomenon increased the strength by up to 570 kPa for sand soil [10] and 92 kPa for clay soil [29], with the carbonate concentration up to 60 kg/m3 of soil specimen [10]. The period of treatment has a minor impact on clay treatment, as evidenced by the fact that the calcium carbonate (CaCO3) content for 14 days of treatment was 6% greater than the calcium carbonate (CaCO3) content for 7 days [29]. Laboratory investigations revealed that the calcium carbonate concentration improved the soil’s hydraulic and mechanical properties, with a reduction in the permeability, void ratio, liquid limit, plastic limit and collapse index [30,31]. As a result, there was improved structural stability, performance and deformability [32].
Electrokinetic treatment efficiently resists the zeta potential phenomena which is caused by the negative charged surface of the clay and the low hydraulic conductivity [33], where the soil saturation level has a large impact on electrokinetic effectiveness [34,35]. In addition to that, it was used to improve surcharge preloading consolidation in the clay [36,37]. A pH gradient was created across the electrodes, and electrical conductivity was increased [37]. These benefits were employed to treat soils in conjunction with biomineralization [38]. Furthermore, electrokinetic treatment employing the MICP phenomenon increased the strength of soft clay by up to 10 times, with an associated calcium carbonate (CaCO3) concentration of 10–16% of the soil specimen [39] as specialized techniques, and materials which requires substantial and considerable development [40,41].
In this regard, the present study aims to conduct electrokinetic (EK) stabilization of soft acidic soil using the MICP phenomenon on a large-scale specimen to enhance the physical properties of marine clay soil.

2. Materials and Methods

2.1. Bacterial Strain Preparation

In this study, Bacillus pasteurii bacteria (ATCC-6453) were utilized and harvested using NH4-YE (ATCC Medium 1376) medium, with the following ingredients produced for 1 L. In 200 mL of desalinated water, 10 g ammonium sulphate was dissolved, 20 g yeast extract was dissolved in 200 mL desalinated water, and 0.13 M Tris buffer (C4H11NO3) was dissolved in 600 mL desalinated water. The three components were autoclaved individually for 20 min at 121 °C to sterilize them. After cooling, each component was mixed in an Erlenmeyer flask. The pH of the medium was determined to be 9.0, which is ideal for Bacillus pasteurii growth. The bacteria were then transferred to the broth in an incubator shaker set at 30 °C with 200 rpm shaking, and the Erlenmeyer flask was sealed for aerobic reduplication. The broth changed into a turbid dark yellow solution after 24–48 h, as illustrated in Figure 2, with the desired cell number for the bacterial concentration being 2.0 × 107 cells/mL.

2.2. Soil Sampling

The soil type used in the study was chosen based on the area’s history of severe geotechnical issues. Soil samples were obtained from the Malacca riverside at depths ranging from 2.5 to 4.5 m, with the sample site depicted in Figure 3. The groundwater level was 2 m deep from ground level following the river water level. The samples were kept in accordance with Part-1 1377 of the BSI instructions and recommendations [42], and the soil samples were described in accordance with Part-2 1377 of the BSI instructions [43] to avoid uncertainties caused by sample transfer. Table 1 displays the soil’s engineering characteristics. A one-dimensional consolidation test revealed soil permeability of 1.88 × 10−7 cm/s [44]. With a pH of 3.69, the soil was very acidic. As indicated in Table 2, the samples were also analyzed for X-ray fluorescence (XRF) to determine the chemical composition of the soil.

2.3. Biosedimentation Procedure

The physical model dimensions were set in terms of seepage velocity through the targeted soil sample for treatment and longitudinal elongation of the sample to investigate the treatment response with distance and to facilitate the samples’ collection. The proposed electrode cell positions were designed to allow the treatment response to be evaluated along the flow direction as well as surrounding the electrode containers.
Figure 4 shows the dimensions of the used container. Acrylic glass was used to construct the set-up, which contained two specimens measuring 450 mm and 600 mm in length. In addition, two chambers of acrylic glass were attached within the container, allowing it to function as an electrolyte solution holder. Each chamber had a perforated wall with two fixed graphite bars on one side. The flow between the two compartments was appropriately allowed. Moreover, to regulate the pH value, a pH controller system was added in the cathode chamber and was adjusted using a Tris buffer.
For a consistent fluid level inside the system, the surplus fluids created by the electro-osmotic flow were manually evacuated. As a result, the specimen did not produce the hydraulic gradient effect. Electro-osmotic flow usually occurs from the anode to the cathode chamber.
A power source with a direct current of 35–40 V was used in the system. A voltameter was also used to detect the change in voltage potential along the specimen. Vane blades were employed to estimate the shear strengths across the soil sample after 7 treatment days, in line with BSI1377-7-3 [45]. A thermometer was added to the cathode chamber to track temperature changes during the electrokinetic biosedimentation operation. In addition, the water content of each part was measured, and the CaCO3 percent was determined using the EDX test.
As illustrated in Figure 3, to eliminate any ambiguities, two treatment lengths between electrode cells of 600 mm (D60) and 450 mm (D45) were investigated using two physical models under the same conditions for the EK effect, treatment period and solutions. As shown in Table 3, the soil samples were analyzed at the end of the treatment period to investigate any micromechanical changes. The experimental work design is shown in Figure 5.

3. Results and Discussions

3.1. Physical Observations

3.1.1. pH Value

It was found that the pH value in both electrode cells and along the soil specimen rose over time as the treatment progressed. According to earlier studies [46,47,48,49,50], the pH of the negative electrode, which had the solution combination of urea CO(NH2)2 and bacteria cells, rose slightly during the first 2 days of the treatment and then progressively declined within a pH value of slightly greater than 9.0. The pH values of the mediums inside the physical model rose after treatment, regardless of the length of the treated distances, as shown in Figure 6 for D45 (450 mm) and D60 (600 mm). The pH of the soil, on the other hand, was below 6.5, indicating that the bacterial activity inside the soil was restricted and not at its peak. Additionally, the pH along the specimen dropped as the distance extended by 150 mm, with the pH value for D45 being greater than that for D60. The high rate of NH3 and NH4OH generation by Bacillus pasteurii bacteria was the cause of the pH rise, as indicated in chemical Equations (1) and (2), which is consistent with van Paasen’s [51] findings.

3.1.2. Precipitations

Regardless of the length of the treated distance, it was observed that the cementitious material calcium carbonate (CaCO3) was significantly precipitated in the zone of the anode compared with the zone of the cathode, as shown in Figure 7. The precipitation occurred due to the chemical reaction between calcium carbonates (CaCO3) and urea (CO(NH2)2) in the presence of the urease enzyme produced by Bacillus pasteurii bacteria, as shown in the series of chemical reactions from 1 to 4, which was infiltrated into the soil under the EK effect, consistent with the findings from prior research [27,30,52,53]. In addition, at the positive electrode cell, the perforated plate was clogged by calcium carbonate (CaCO3) precipitation after treatment, as shown in Figure 8.

3.2. Macro-Mechanical Results

3.2.1. Fines Activity

In general, the Atterberg limits were decreased considerably following treatment, with the liquid limit dropping by about 36% for both treatment distances D45 and D60 when compared with natural soil (N). In addition, as shown in Figure 9, the fines classification for D45 and D60 had changed from organic clay with high flexibility to that of moderate plasticity. The reasons for this were the buildup of CaCO3 on the surface of the soil particles, as well as the water migration outside the soil specimen due to the electro-kinetic action, as evidenced by earlier research [37,38]. In Table 4, all of the data are tallied and compared to natural soil (N). Table 4 summarizes all of the findings and compares them to natural soil (N).

3.2.2. Soil Compressibility

The 1-D consolidation test yielded a set of coefficients and indices, which are summarized in Table 5 and Table 6. The consolidation characteristics were considerably improved after D45 treatment compared with D60 treatment. In general, compared with natural soil’s compressibility, the soil compressibility decreased substantially following treatment (N). Furthermore, compared with natural soil’s permeability, the permeability after treatment increased by eight times for both D45 and D60. This was due to the buildup of CaCO3 on the soil surface and the dissipation of water outside the soil specimen during the MICP and EK processes, which was observed by Keykha et al. [39].

3.2.3. Specific Gravity and Density

The soil characteristics of the D45 and D60 soil specimens were considerably improved following treatment, as indicated in Table 7. The bulk density for D45 and D60 rose from 1560 kg/m3 to 1710 kg/m3 and 1670 kg/m3, respectively. For both D45 and D60, the void ratio fell substantially. D60, on the other hand, maintained the same specific gravity of 2.51 as natural soil (N). Furthermore, the modulus of elasticity (Young’s modulus) for both D45 and D60 was considerably increased, reaching up to two times that of natural soil (N). That was owing to the filling of soil voids by CaCO3, as well as a reduction in the water content, both of which occurred as a result of the electrokinetic effect, as validated by research [37,38].

3.2.4. Shear Strength

The shear strength of the treated soil improved as a result of this technique, which is thought to be related to calcium carbonate precipitation (CaCO3). It was observed that the strength of the soil samples changed with the distance between the anode and the cathode, with maximum shear strengths of 28.14 and 14.50 kPa for D45 and D60, respectively, at the anode. Furthermore, as shown in Figure 10, the shear strength fell by as much as 36% for D45 and 23% for D60 from the maximum undrained shear strength as the treatment distance increased. This fluctuation in strength corresponded to the rate of calcium carbonate precipitation, with more CaCO3 precipitation resulting in a higher shear strength. Both van Paassan et al. [53] and Keykha et al. [39] agreed that the void ratio was lowered owing to the buildup of CaCO3 inside it and that the water content was considerably reduced by dissipation outside the voids of the soil specimen, which assisted in the shear strength’s enhancement.

3.3. Micro-Mechanical Results

3.3.1. XRD Results

The results of the X-ray diffraction (XRD) analysis showed no changes for the soil specimen mineralogy after the treatment for D45 compared to natural soil (N), and both were majorly formed by quartz, kaolinite and illite. Because the EK had little effect on the chemical composition and mineralogy of soil particles, it only changed the ions in the solution. Furthermore, the MICP solutions and their precipitation had a minor chemical interaction with the soil minerals. Therefore, it can be concluded that the biomineralization process under the electrokinetic method did not affect the recreation of soil minerals, as shown in Figure 11 with the peaks.

3.3.2. XRF Results

The results of X-ray powder fluorescence (XRF) showed that the amount of calcium carbonate (CaCO3) rose significantly by 1.18% of the total weight of the sample, as shown in Table 8, indicating the effectiveness of the biomineralization process utilizing the electrokinetic technique and the movement of the materials inside the soil specimen. In addition, the calcium carbonate (CaCO3) decreased as the distance between the anode and cathode increased from 1.18% to 0.83% for D45 and D60, respectively. Furthermore, for the fixed distance between the cathode and anode, the calcium carbonate (CaCO3) percentage from the total weight decreased upon getting closer to the cathode, changing from 1.18% at 400 mm to 0.12% at 50 mm from the cathode cell for D45-1 and D45-3, respectively.

3.3.3. SEM-EDX Results

The coating rate of the interfacial of clay particles rose when the SEM sample was collected closer to the anode cell, indicating that the precipitated quantity of calcium carbonate (CaCO3) covered the interfacial of the clay particles. Following the coating rate, the edges of the clay layers sharpened and grew more interlocked. Figure 12 illustrates the calcium carbonate (CaCO3) coating dispersion in the mapping picture for D60. Figure 13c, at a distance of 50 mm from the cathode cell for D45, shows that the soil particles got smaller as the amount of calcium carbonate (CaCO3) precipitated decreased. Furthermore, as demonstrated in Figure 13a and Figure 12d for D45 and D60, respectively, the quantity of calcium carbonate (CaCO3) precipitated increased as the treatment distance between the cathode and anode cells decreased. To explain this, upon getting further away from the anode and the direction of ion migration within the soil specimen during the treatment process, the range of the EK effect decreased [37,38].

3.4. Chemical Observations

During the treatment, bubbles surrounding the graphite bars were seen to form shortly after the electric current was turned on. Following treatment, the graphite rods at the cathode were found to be considerably eroded, as illustrated in Figure 14. After erosion, the cross-section of graphite rods was 25% of the initial cross-section. The negative electrode liquid’s color also changed to black, as seen in Figure 15. Furthermore, as the depth of the solution increased, the color of the solution became darker. This was due to the heavy weight of the chemical compounds produced from the chemical reaction with the graphite rod under the EK effect.

4. Conclusions

Substantial construction projects impact the economy, society and the environment over their life cycles [54], where weak soil stability plays a key role in construction sustainability. As marine clay is a weak soil, it is normally found in coastal regions around the world, such as; seas, lakes, ocean shores and riverbanks. It usually extends to enormous depths underneath the earth’s surface. It is also notorious for being involved in landslides and large settlements. Special foundation systems, such as piles or soil replacements, are usually costly solutions compared with the proposed structure cost itself and require high quality control to meet their purpose: balance the essentials to be generated among the economic and environmental aspects [54,55]. Conducting electrokinetic (EK) stabilization of soft acidic soil using the MICP phenomenon on a large-scale specimen is very important for improving soil environmentally. Nevertheless, no study has measured or assessed this previously mentioned experiment that encourages soil improvement adoption. This study aimed to cover this gap by highlighting the use of electrokinetic (EK) stabilization of soft acidic soil using the MICP for achieving soil project sustainability.
The feasibility of large-scale marine clay soil treatment was examined, where the following conclusions were drawn:
  • For the distance effect, as the distance increased by 150 mm between the two electrode cells, the shear strength decreased by 50%, where the maximum undrained shear strength was achieved by D45, which was 28.14 kPa, and 14.50 kPa was achieved for D60 at the anode cell.
  • Furthermore, the variation in shear strength after treatment along the soil specimen from the anode to the cathode was significant, where it decreased gradually until it reached the minimum values at the cathode. The minimum values were lowered by more than a half of the maximum values for both D45 and D60.
  • For the compressibility, both D45 and D60’s compressibility indices were reduced significantly compared with natural soil (N), where for the fines activity, all Atterberg limits were also significantly enhanced, and the soil changed from OH to OL for D45 and D60. Therefore, the treated soil could sustain loads with lesser deformations compared with non-treated soils.
  • In addition, the pH value increased gradually and remained higher than 9.0, which guaranteed bacterial activity during the treatment process. This was due to the high rate of bacterial activity in the first 48 h in the production of NH3.
  • After treatment for both the D45 and D60 specimens, the perforated walls were clogged at both the anode and cathode but were more significant for the anode. This was a result of the maximum accumulation of CaCO3 precipitation at the anode side compared with the cathode side by at least 10 times.
  • For soil electric conductivity, it was observed that the soil resistance increased gradually until the end of the treatment from 25–30 V to 55–60 V. This reflected the increase in soil density, as the electrical potential deference increased significantly after treatment.
  • XRF detected that the precipitation of calcium carbonate (CaCO3) was achieved for both D45 and D60, with higher precipitation for D45. However, XRD detected that the soil mineralogy remained the same after EK treatment with biomineralization. The precipitation was 1.18% of the specimen’s total weight for D45 and 0.83% for D60.
  • SEM-EDX showed soil texture enhancement, and mapping images showed the coating of particles by calcium carbonate (CaCO3), which was the reason for void reduction and strength enhancement after treatment, and therefore the soil properties were enhanced in terms of compressibility.
Based on the results, biocementitiousness for acidic soil helped for shear strength improvement and soil compressibility, which led to a significant reduction in deformations caused by different loading processes. Accordingly, this method could help in strengthening weak clayey or acidic soils even without replacement. That aside, it would reduce the construction time of foundations and limit the costs of special foundation systems significantly. In addition, the method of treatment in this article helps with the reduction of soil permeability, which could help with the enhancement of water structure stability by increasing the hydraulic gradient underneath the water structures.
The effect of changing the urea injecting location along the soil specimen is to be studied in future research to demonstrate its effect on the treatment process and MICP rate. In addition, proposing new injection methods could be covered in prospective studies that would help increase the MICP treatment range and quality.

Author Contributions

Conceptualization, A.H.S. and H.N.; methodology, A.H.S., H.N. and M.M.; validation, A.H.S., H.N., Z.B.M.Y. and M.M.; formal analysis, A.H.S. and H.N.; investigation, A.H.S.; resources, H.N.; data curation, A.H.S.; writing—original draft preparation, A.H.S. and H.N.; writing—review and editing, A.H.S., H.N., Z.B.M.Y., M.M., M.H.E. and A.A.M.; supervision, H.N., Z.B.M.Y. and M.M; project administration, H.N.; funding acquisition, H.N. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Putra Grant Scheme (Geran Putra): GP/2018/9635200, Universiti Putra Malaysia.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

All relevant data are within the manuscript.

Acknowledgments

The authors acknowledge the technical support by Mohd Razali and Azleen Ahmad in both the geotechnical laboratory and biology laboratory of Universiti Putra Malaysia.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Bo, M.W.; Arulrajah, A.; Sukmak, P.; Horpibulsuk, S. Mineralogy and geotechnical properties of Singapore marine clay at Changi. Soils Found. 2015, 55, 600–613. [Google Scholar] [CrossRef] [Green Version]
  2. Indraratna, B. Interpretation of field and laboratory shear strength data of a soft marine clay. Q. J. Eng. Geol. Hydrogeol. 2007, 30, 197–203. [Google Scholar] [CrossRef]
  3. Lu, T.; Bryant, W.R. Comparison of vane shear and fall cone strengths of soft marine clay. Mar. Georesour. Geotechnol. 1997, 15, 67–82. [Google Scholar] [CrossRef]
  4. Yang, S.; Andersen, K.H. Thixotropy of Marine Clays. Geotech. Test. J. 2016, 39, 331–339. [Google Scholar] [CrossRef]
  5. Gratchev, I.; Towhata, I. Stress-strain characteristics of two natural soils subjected to long-term acidic contamination. Soils Found. 2013, 53, 469–476. [Google Scholar] [CrossRef] [Green Version]
  6. Wu, H.N.; Huang, R.Q.; Sun, W.J.; Shen, S.L.; Xu, Y.S.; Liu, Y.B.; Du, S.J. Leaking behavior of shield tunnels under the Huangpu River of Shanghai with induced hazards. Nat. Hazards 2014, 70, 1115–1132. [Google Scholar] [CrossRef]
  7. Saadat, M.; Bayat, M. Prediction of the unconfined compressive strength of stabilised soil by Adaptive Neuro Fuzzy In-ference System (ANFIS) and Non-Linear Regression (NLR). Geomech. Geoeng. 2019, 1–12. [Google Scholar] [CrossRef]
  8. Hadi Sahlabadi, S.; Bayat, M.; Mousivand, M.; Saadat, M. Freeze–Thaw Durability of Cement-Stabilized Soil Reinforced with Polypropylene/Basalt Fibers. J. Mater. Civ. Eng. 2021, 33, 04021232. [Google Scholar] [CrossRef]
  9. Whiffin, V.S.; van Paassen, L.A.; Harkes, M.P. Microbial Carbonate Precipitation as a Soil Improvement Technique. Geomicrobiol. J. 2007, 24, 417–423. [Google Scholar] [CrossRef]
  10. DeJong, J.T.; Soga, K.; Banwart, S.A.; Whalley, W.R.; Ginn, T.R.; Nelson, D.C.; Mortensen, B.M.; Martinez, B.C.; Barkouki, T. Soil engineering in vivo: Harnessing natural biogeochemical systems for sustainable, multi-functional engineering solutions. J. R. Soc. Interface 2011, 8, 1–15. [Google Scholar] [CrossRef] [Green Version]
  11. Choi, S.G.; Chu, J.; Brown, R.C.; Wang, K.; Wen, Z. Sustainable Biocement Production via Microbially Induced Calcium Carbonate Precipitation: Use of Limestone and Acetic Acid Derived from Pyrolysis of Lignocellulosic Biomass. ACS Sustain. Chem. Eng. 2017, 5, 5183–5190. [Google Scholar] [CrossRef]
  12. DeJong, J.T.; Mortensen, B.M.; Martinez, B.C.; Nelson, D.C. Bio-mediated soil improvement. Ecol. Eng. 2010, 36, 197–210. [Google Scholar] [CrossRef]
  13. Keykha, H.; Huat, B.B.K.; Asadi, A. Electro-biogrouting stabilisation of soft soil. Environ. Geotech. 2015, 2, 292–300. [Google Scholar] [CrossRef]
  14. Keykha, H.; Asadi, A.; Huat, B.B.K.; Kawasaki, S. Laboratory Conditions for Maximal Calcium Carbonate Precipitation Induced by Sporosarcina pasteurii and Sporosarcina aquimarina Bacteria. Environ. Geotech. 2018, 6, 1–20. [Google Scholar] [CrossRef]
  15. DeJong, J.T.; Fritzges, M.B.; Nüsslein, K. Microbially Induced Cementation to Control Sand Response to Undrained Shear. J. Geotech. Geoenviron. Eng. 2006, 132, 1381–1392. [Google Scholar] [CrossRef]
  16. Hammes, F.; Boon, N.; de Villiers, J.; Verstraete, W.; Siciliano, S.D. Strain-Specific Ureolytic Microbial Calcium Carbonate Precipitation. Appl. Environ. Microbiol. 2003, 69, 4901–4909. [Google Scholar] [CrossRef] [Green Version]
  17. Achal, V.; Mukherjee, A.; Kumari, D.; Zhang, Q. Biomineralization for sustainable construction—A review of processes and applications. EarthScience Rev. 2015, 148, 1–17. [Google Scholar] [CrossRef]
  18. Li, D.; Tian, K.L.; Zhang, H.L.; Wu, Y.Y.; Nie, K.Y.; Zhang, S.C. Experimental investigation of solidifying desert aeolian sand using microbially induced calcite precipitation. Constr. Build. Mater. 2018, 172, 251–262. [Google Scholar] [CrossRef]
  19. Keykha, H.; Huat, B.B.K.; Asadi, A.; Zareian, M.; Kawasaki, S. Electrokinetic properties of pasteurii and aquimarina bacteria. Environ. Geotech. 2014, 2, 181–188. [Google Scholar] [CrossRef]
  20. Dhami, N.K.; Reddy, M.S.; Mukherjee, A. Biomineralization of calcium carbonates and their engineered applications: A review. Front. Microbiol. 2013, 4, 314. [Google Scholar] [CrossRef] [Green Version]
  21. Bhaduri, S.; Debnath, N.; Mitra, S.; Liu, Y.; Kumar, A. Microbiologically induced calcite precipitation mediated by sporosarcina pasteurii. J. Vis. Exp. 2016, 2016, e53253. [Google Scholar] [CrossRef] [Green Version]
  22. Achal, V.; Mukherjee, A.; Basu, P.C.; Sudhakara Reddy, M. Strain improvement of Sporosarcina pasteurii for enhanced urease and calcite production. J. Ind. Microbiol. Biotechnol. 2009, 36, 981–988. [Google Scholar] [CrossRef] [PubMed]
  23. Sarayu, K.; Iyer, N.R.; Murthy, A.R. Exploration on the biotechnological aspect of the ureolytic bacteria for the production of the cementitious materials—A review. Appl. Biochem. Biotechnol. 2014, 172, 2308–2323. [Google Scholar] [CrossRef] [PubMed]
  24. Meier, A.; Kastner, A.; Harries, D.; Wierzbicka-Wieczorek, M.; Majzlan, J.; Büchel, G.; Kothe, E. Calcium carbonates: Induced biomineralization with controlled macromorphology. Biogeosciences 2017, 14, 4867–4878. [Google Scholar] [CrossRef] [Green Version]
  25. Stocks-Fischer, S.; Galinat, J.K.; Bang, S.S. Microbiological precipitation of CaCO3. Soil Biol. Biochem. 1999, 31, 1563–1571. [Google Scholar] [CrossRef]
  26. Grabiec, A.M.; Starzyk, J.; Stefaniak, K.; Wierzbicki, J.; Zawal, D. On possibility of improvement of compacted silty soils using biodeposition method. Constr. Build. Mater. 2017, 138, 134–140. [Google Scholar] [CrossRef]
  27. Khodadadi, H.; Bilsel, H. Application of microorganisms for improvement of liquefiable sand. In Proceedings of the 3rd international conference on new developments in soil mechanics and geotechnical engineering, Near East University, Nicosia, North Cyprus, 28–30 June 2012; pp. 857–863. [Google Scholar]
  28. Peng, Y.; Ding, X.-M.; Xiao, Y.; Chu, J.; Deng, W.-T. Study of particle breakage behaviour of calcareous sand by dyeing tracking and particle image segmentation method. Rock Soil Mech. 2019, 40, 2663–2672. [Google Scholar] [CrossRef]
  29. Keykha, H.; Asadi, A.; Zareian, M. Environmental Factors Affecting the Compressive Strength of Microbiologically Induced Calcite Precipitation-Treated Soil. Geomicrobiol. J. 2017, 34, 889–894. [Google Scholar] [CrossRef]
  30. Umar, M.; Kassim, K.A.; Ping Chiet, K.T.; Chiet, K.T.P.; Ping Chiet, K.T.; Chiet, K.T.P. Biological process of soil im-provement in civil engineering: A review. J. Rock Mech. Geotech. Eng. 2016, 8, 767–774. [Google Scholar] [CrossRef] [Green Version]
  31. Kaur, G.; Dhami, N.K.; Goyal, S.; Mukherjee, A.; Reddy, M.S. Utilization of carbon dioxide as an alternative to urea in biocementation. Constr. Build. Mater. 2016, 123, 527–533. [Google Scholar] [CrossRef]
  32. Valencia González, Y.; Carvalho-Camapum, J.; Lara-Valencia, L.A. Influence of biomineralization on a profile of a tropical soil affected by erosive processes. DYNA 2015, 82, 221–229. [Google Scholar] [CrossRef]
  33. Jamshidi-Zanjani, A.; Khodadadi, A.; Sheta, K.W. Review of Enhancement Techniques on Medical Images. Int. J. Adv. Comput. Electron. Technol. 2017, 4, 26–30. [Google Scholar] [CrossRef]
  34. Virkutyte, J.; Sillanpää, M.; Latostenmaa, P. Electrokinetic soil remediation—Critical overview. Sci. Total Environ. 2002, 289, 97–121. [Google Scholar] [CrossRef]
  35. Cameselle, C. Enhancement of Electro-Osmotic Flow during the Electrokinetic Treatment of a Contaminated Soil. Electrochim. Acta 2015, 181, 31–38. [Google Scholar] [CrossRef]
  36. Saad, A.H.; Nahazanan, H.; Yusoff, Z.M.; Huat, B.K.; Mustafa, M. Properties of Biomineralization Process in Various Types of Soil and Their Limitations. Int. J. Eng. Adv. Technol. 2019, 9, 4261–4268. [Google Scholar]
  37. Micic, S.; Shang, J.Q.; Lo, K.Y.; Lee, Y.N.; Lee, S.W. Electrokinetic strengthening of a marine sediment using intermittent current. Can. Geotech. J. 2001, 38, 287–302. [Google Scholar] [CrossRef]
  38. Moghadam, M.J.; Moayedi, H.; Sadeghi, M.M.; Hajiannia, A. A review of combinations of electrokinetic applications. Environ. Geochem. Health 2016, 38, 1217–1227. [Google Scholar] [CrossRef]
  39. Keykha, H.; Huat, B.B.K.K.; Asadi, A. Electrokinetic Stabilization of Soft Soil Using Carbonate-Producing Bacteria. Geotech. Geol. Eng. 2014, 32, 739–747. [Google Scholar] [CrossRef] [Green Version]
  40. Švajlenka, J.; Kozlovská, M. Perception of User Criteria in the Context of Sustainability of Modern Methods of Construction Based on Wood. Sustainability 2018, 10, 116. [Google Scholar] [CrossRef] [Green Version]
  41. Švajlenka, J.; Kozlovská, M.; Pošiváková, T. Analysis of Selected Building Constructions Used in Industrial Construction in Terms of Sustainability Benefits. Sustainability 2018, 10, 4394. [Google Scholar] [CrossRef] [Green Version]
  42. British Standards Institution. General Requirements and Sample Preparation (BS1377-1); British Standards Institution: London, UK, 1990. [Google Scholar]
  43. British Standards Institution. Classification Tests (BS1377-2); British Standards Institution: London, UK, 1990. [Google Scholar]
  44. Kulhawy, F.H.; Mayne, P.W. Manual on Estimating Soil Properties for Foundation Design: EL-6800; Electric Power Research Institute: Washington, DC, USA, 1990; p. 299. [Google Scholar]
  45. British Standards Institution. BS:1377-7 Shear Strength Tests (Total Stress); Part 7; British Standards Institution: London, UK, 1990; pp. 1–52. [Google Scholar]
  46. Achal, V.; Pan, X. Influence of Calcium Sources on Microbially Induced Calcium Carbonate Precipitation by Bacillus sp. CR2. Appl. Biochem. Biotechnol. 2014, 173, 307–317. [Google Scholar] [CrossRef] [PubMed]
  47. Al-Thawadi, S.M.; Cord-Ruwisch, R. Calcium Carbonate Crystals Formation by Ureolytic Bacteria Isolated from Australian Soil and Sludge. J. Adv. Sci. Eng. Res. 2012, 2, 12–26. [Google Scholar]
  48. Fujita, Y.; Taylor, J.L.; Gresham, T.L.T.T.; Delwiche, M.E.; Colwell, F.S.; Mcling, T.L.; Petzke, L.M.; Smith, R.W. Stimulation of microbial urea hydrolysis in groundwater to enhance calcite precipitation. Environ. Sci. Technol. 2008, 42, 3025–3032. [Google Scholar] [CrossRef]
  49. Wang, L.; Wang, J.; Xu, Y.; Chen, P.; Yuan, J.; Qian, X. Novel surface treatment of concrete bricks using acid-resistance mineral precipitation. Constr. Build. Mater. 2018, 162, 265–271. [Google Scholar] [CrossRef]
  50. Tobler, D.J.; Maclachlan, E.; Phoenix, V.R. Microbially mediated plugging of porous media and the impact of differing injection strategies. Ecol. Eng. 2012, 42, 270–278. [Google Scholar] [CrossRef]
  51. Van Paassen, L.A. Biogrout: Ground Improvement by Microbially Induced Carbonate Precipitation. Ph.D. Thesis, Delft University of Technology, Delft, The Netherlands, 2009. [Google Scholar]
  52. Lauchnor, E.G.; Schultz, L.N.; Bugni, S.; Mitchell, A.C.; Cunningham, A.B.; Gerlach, R. Bacterially Induced Calcium Carbonate Precipitation and Strontium Coprecipitation in a Porous Media Flow System. Environ. Sci. Technol. 2013, 47, 1557–1564. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  53. Al Qabany, A.; Soga, K. Effect of chemical treatment used in MICP on engineering properties of cemented soils. Géotechnique 2013, 63, 331–339. [Google Scholar] [CrossRef]
  54. Emmanuel Oke, A.; Omoregie Aghimien, D.; Olusola Olatunji, S. Implementation of Value Management as an Economic Sustainability Tool for Building Construction in Nigeria. Int. J. Manag. Value Supply Chain 2015, 6, 55–64. [Google Scholar] [CrossRef]
  55. Martens, M.L.; Carvalho, M.M. Key factors of sustainability in project management context: A survey exploring the project managers’ perspective. Int. J. Proj. Manag. 2017, 35, 1084–1102. [Google Scholar] [CrossRef]
Applsci 11 10817 g001 550

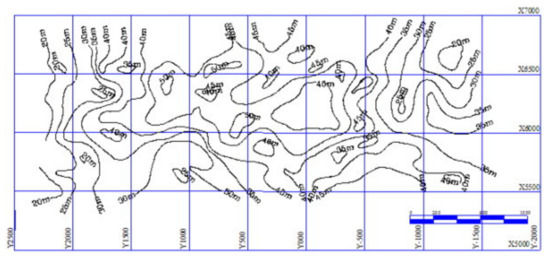

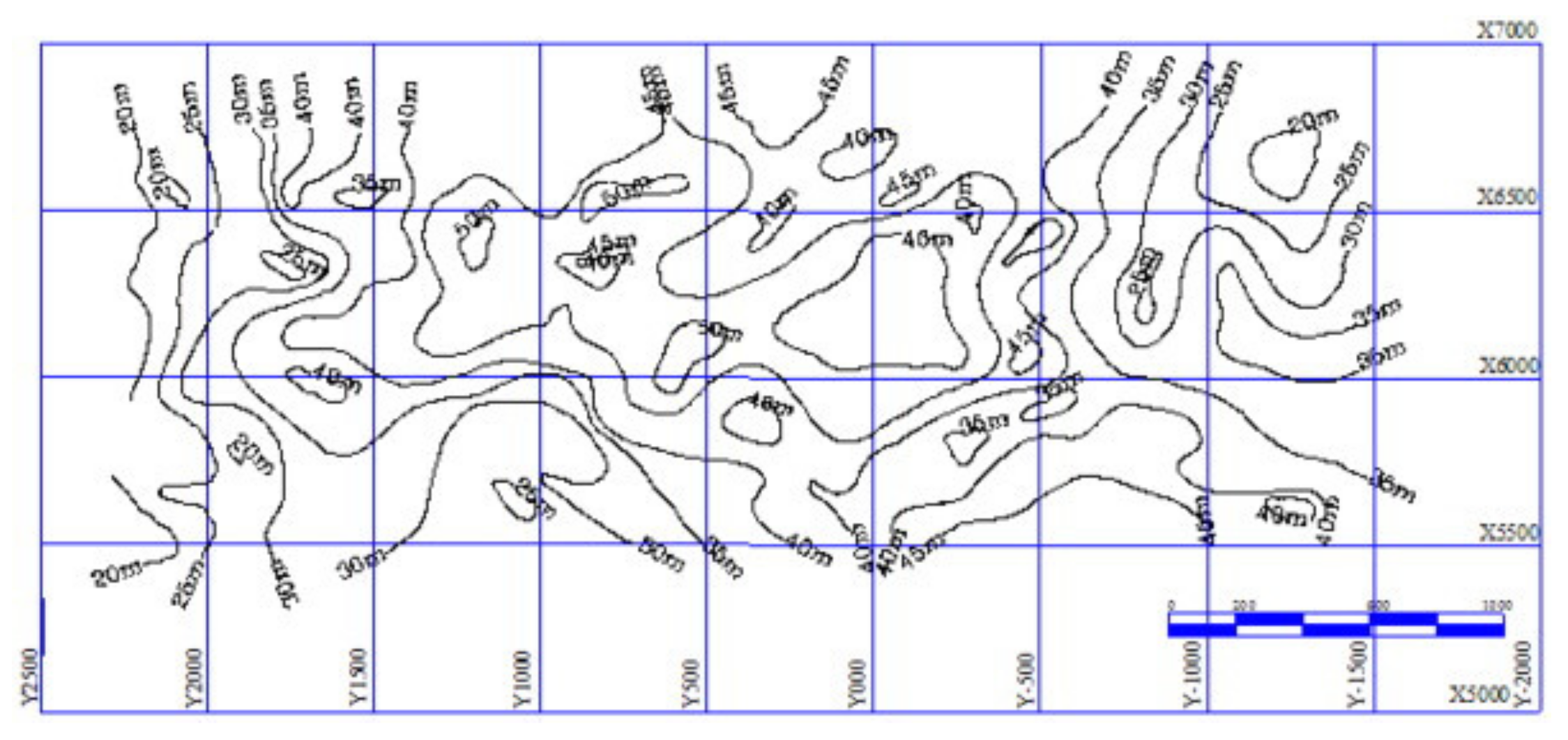

Figure 1. Typical isoline showing marine clay’s total thickness [1].
Figure 1. Typical isoline showing marine clay’s total thickness [1].
Applsci 11 10817 g001
Applsci 11 10817 g002 550

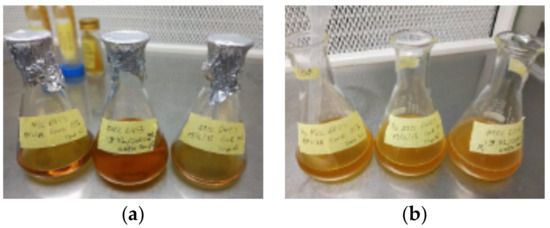

Figure 2. Bacterial broth (a) before culturing and (b) after 24–48 h in the incubator.
Figure 2. Bacterial broth (a) before culturing and (b) after 24–48 h in the incubator.
Applsci 11 10817 g002
Applsci 11 10817 g003 550
Figure 3. (a) Location of Malacca on the Peninsular Malaysia map and (b) location of the sampling site for marine clay soil at Malacca River in Malaysia.
Figure 3. (a) Location of Malacca on the Peninsular Malaysia map and (b) location of the sampling site for marine clay soil at Malacca River in Malaysia.
Applsci 11 10817 g003
Applsci 11 10817 g004 550

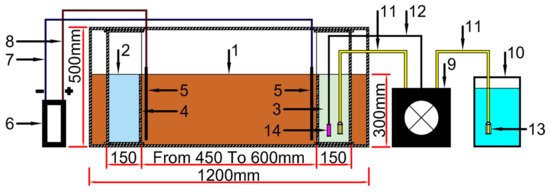

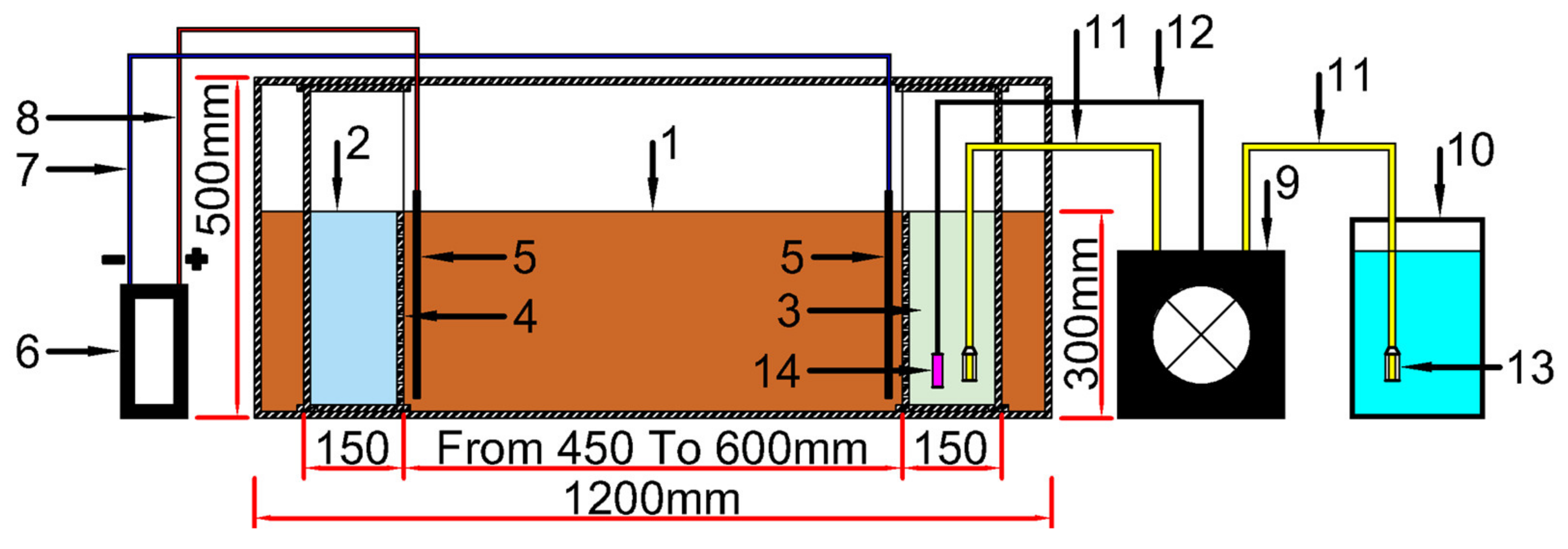

Figure 4. The physical model dimensions show the following: (1) soil sample, (2) anode (CaCl2 solution), (3) cathode (urea and bacteria solution), (4) perforated wall of the cell, (5) graphite rod, (6) power supply, (7) wire of positive current, (8) wire of negative current, (9) pump and pH meter, (10) pH controller solution (tris buffer solution), (11) pump outflow pipe, (12) pH meter wire, (13) check valve and (14) pH meter sensor.
Figure 4. The physical model dimensions show the following: (1) soil sample, (2) anode (CaCl2 solution), (3) cathode (urea and bacteria solution), (4) perforated wall of the cell, (5) graphite rod, (6) power supply, (7) wire of positive current, (8) wire of negative current, (9) pump and pH meter, (10) pH controller solution (tris buffer solution), (11) pump outflow pipe, (12) pH meter wire, (13) check valve and (14) pH meter sensor.
Applsci 11 10817 g004
Applsci 11 10817 g005 550

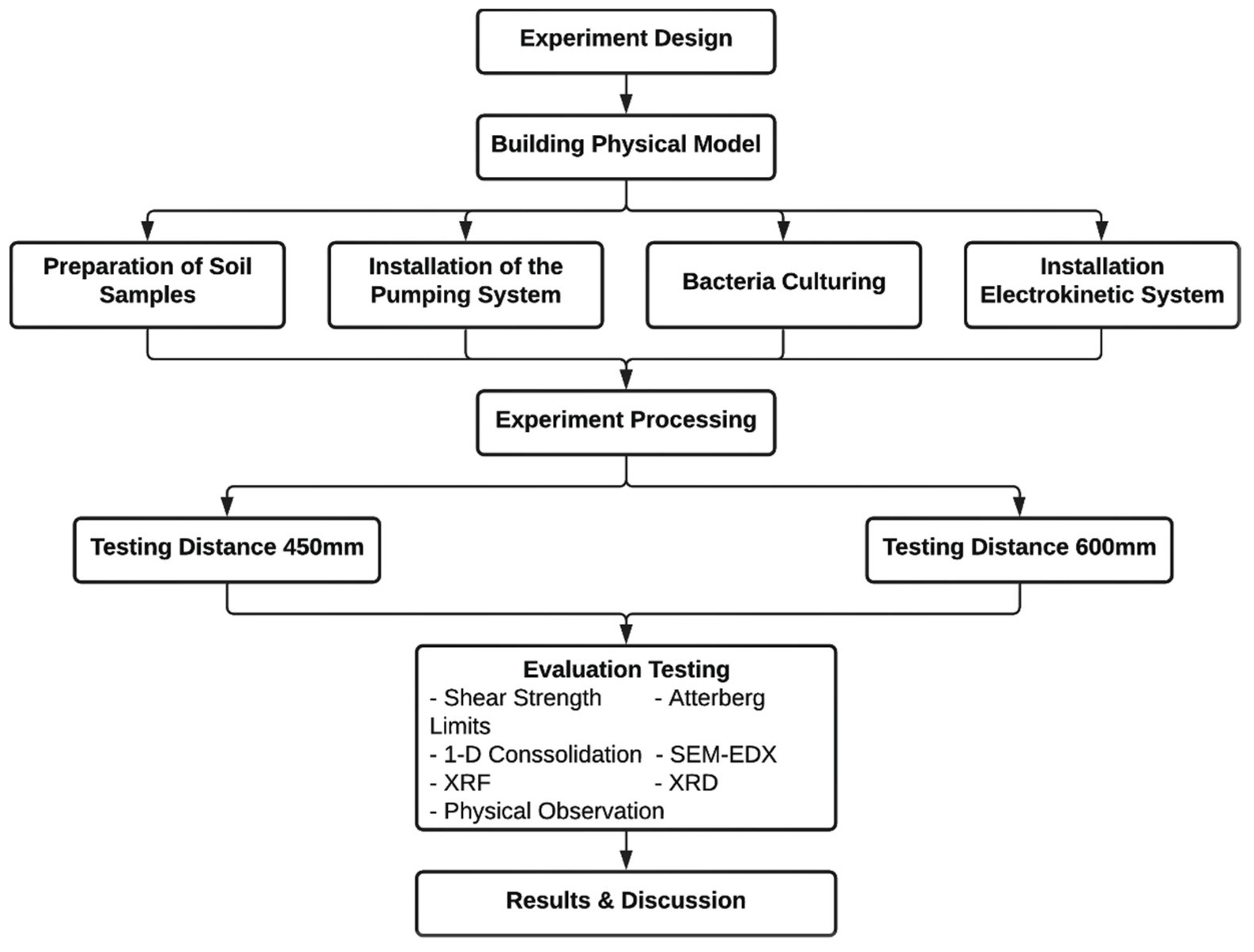

Figure 5. The experimental work’s design.
Figure 5. The experimental work’s design.
Applsci 11 10817 g005
Applsci 11 10817 g006 550

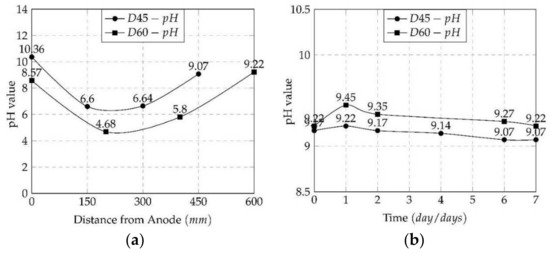

Figure 6. The pH values for D45 and D60 (a) along the specimen and (b) inside the cathode cell.
Figure 6. The pH values for D45 and D60 (a) along the specimen and (b) inside the cathode cell.
Applsci 11 10817 g006
Applsci 11 10817 g007 550

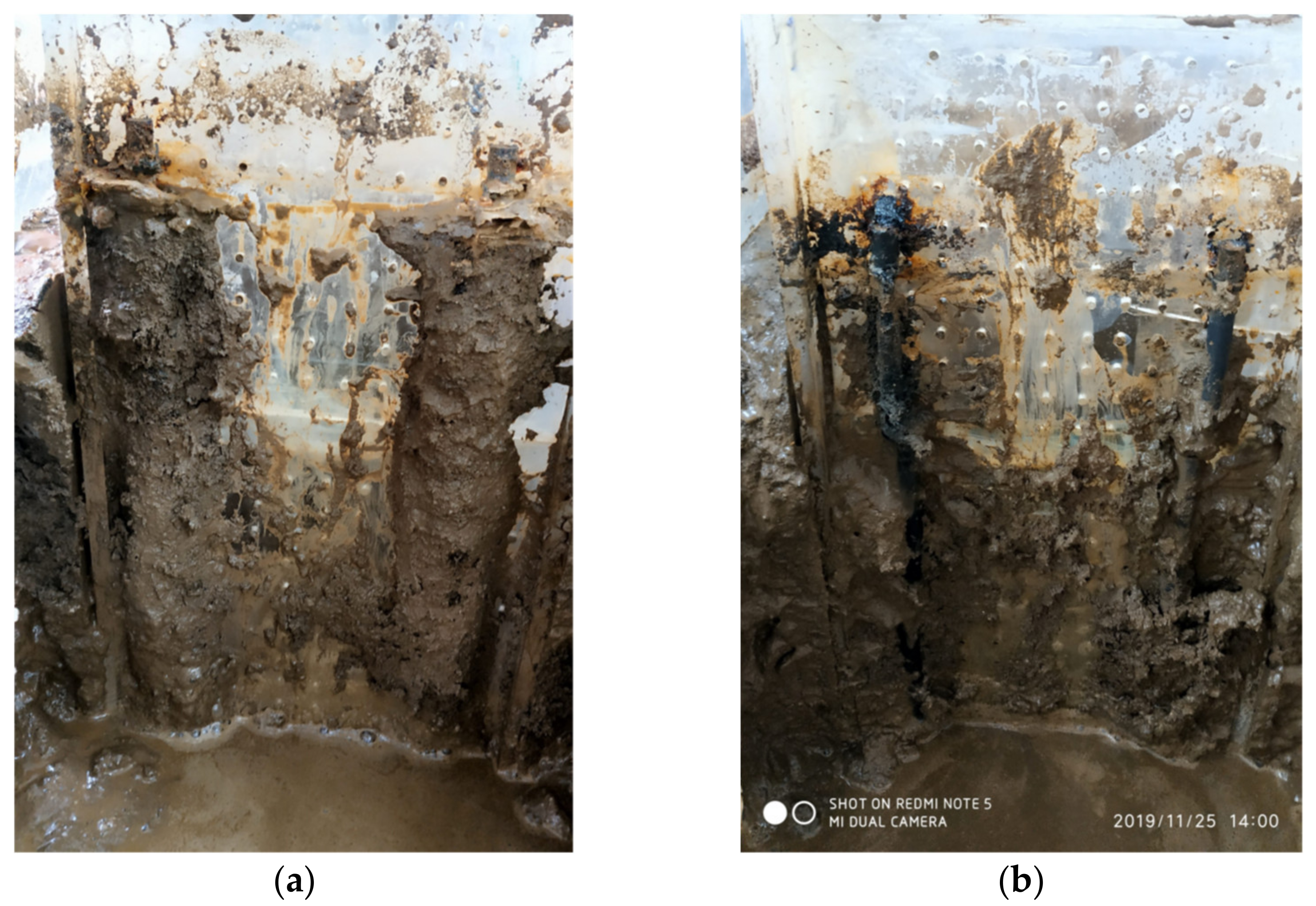

Figure 7. The precipitation of calcium carbonate (CaCO3) at both (a) the anode and (b) the cathode for D60’s test.
Figure 7. The precipitation of calcium carbonate (CaCO3) at both (a) the anode and (b) the cathode for D60’s test.
Applsci 11 10817 g007
Applsci 11 10817 g008 550

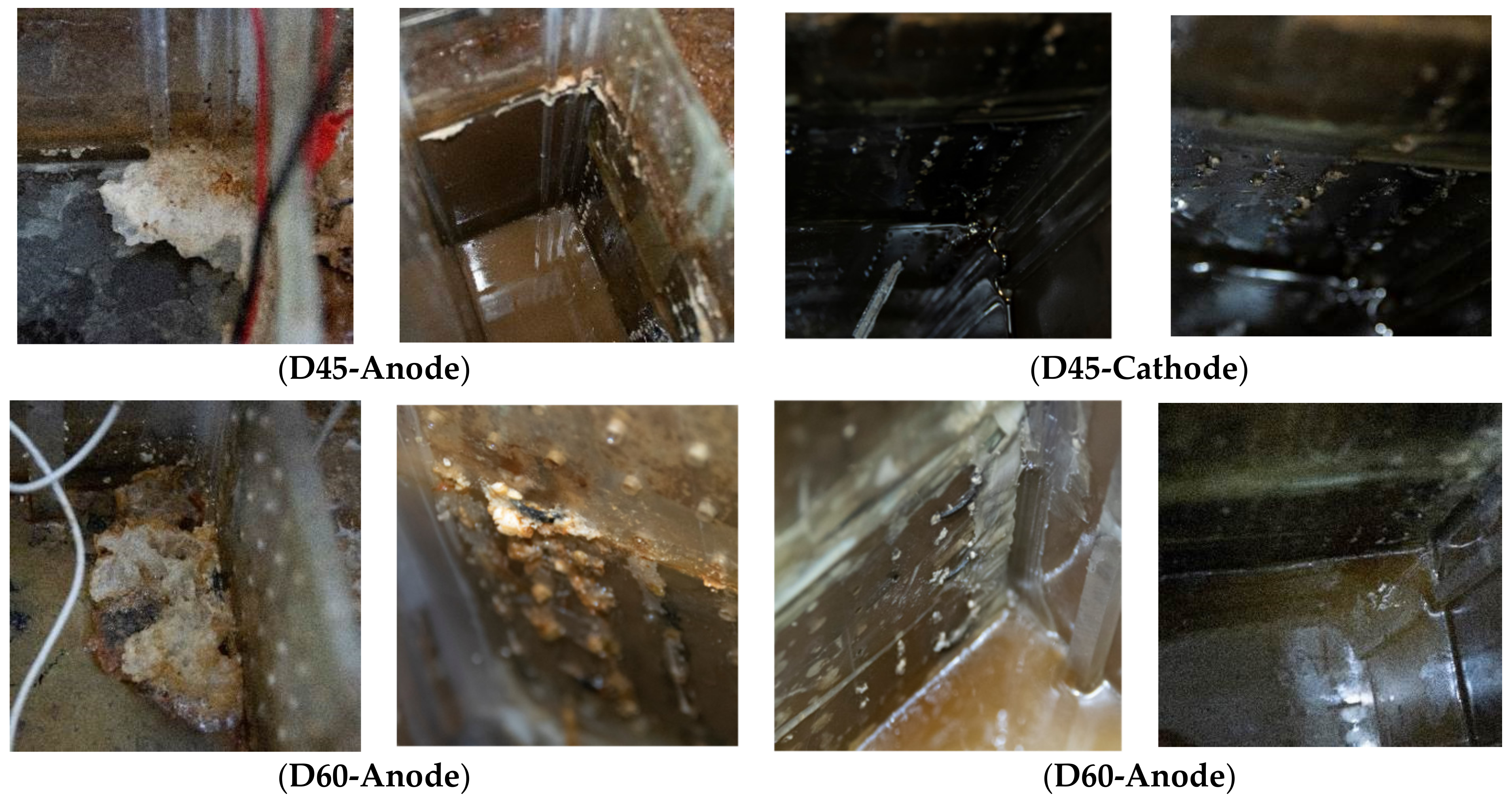

Figure 8. The clogging because of the anode’s perforated wall calcium carbonate (CaCO3) precipitation for the two treated distances at 450 mm (D45) and 600 mm (D60) in the tests.
Figure 8. The clogging because of the anode’s perforated wall calcium carbonate (CaCO3) precipitation for the two treated distances at 450 mm (D45) and 600 mm (D60) in the tests.
Applsci 11 10817 g008
Applsci 11 10817 g009 550

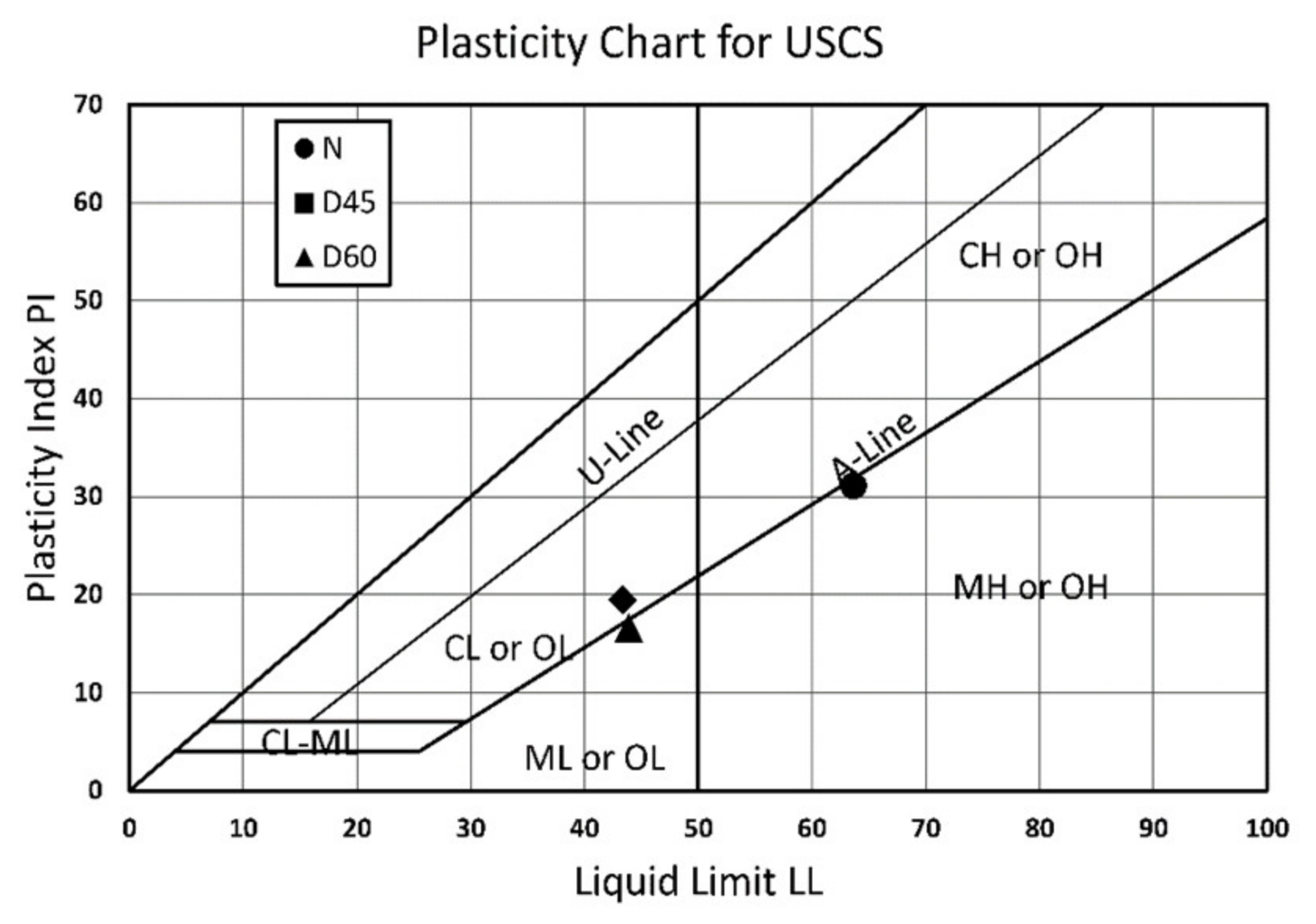

Figure 9. Atterberg limits and soil classification for untreated soil (N) and treated distances of 450 mm (D45) and 600 mm (D60).
Figure 9. Atterberg limits and soil classification for untreated soil (N) and treated distances of 450 mm (D45) and 600 mm (D60).
Applsci 11 10817 g009
Applsci 11 10817 g010 550

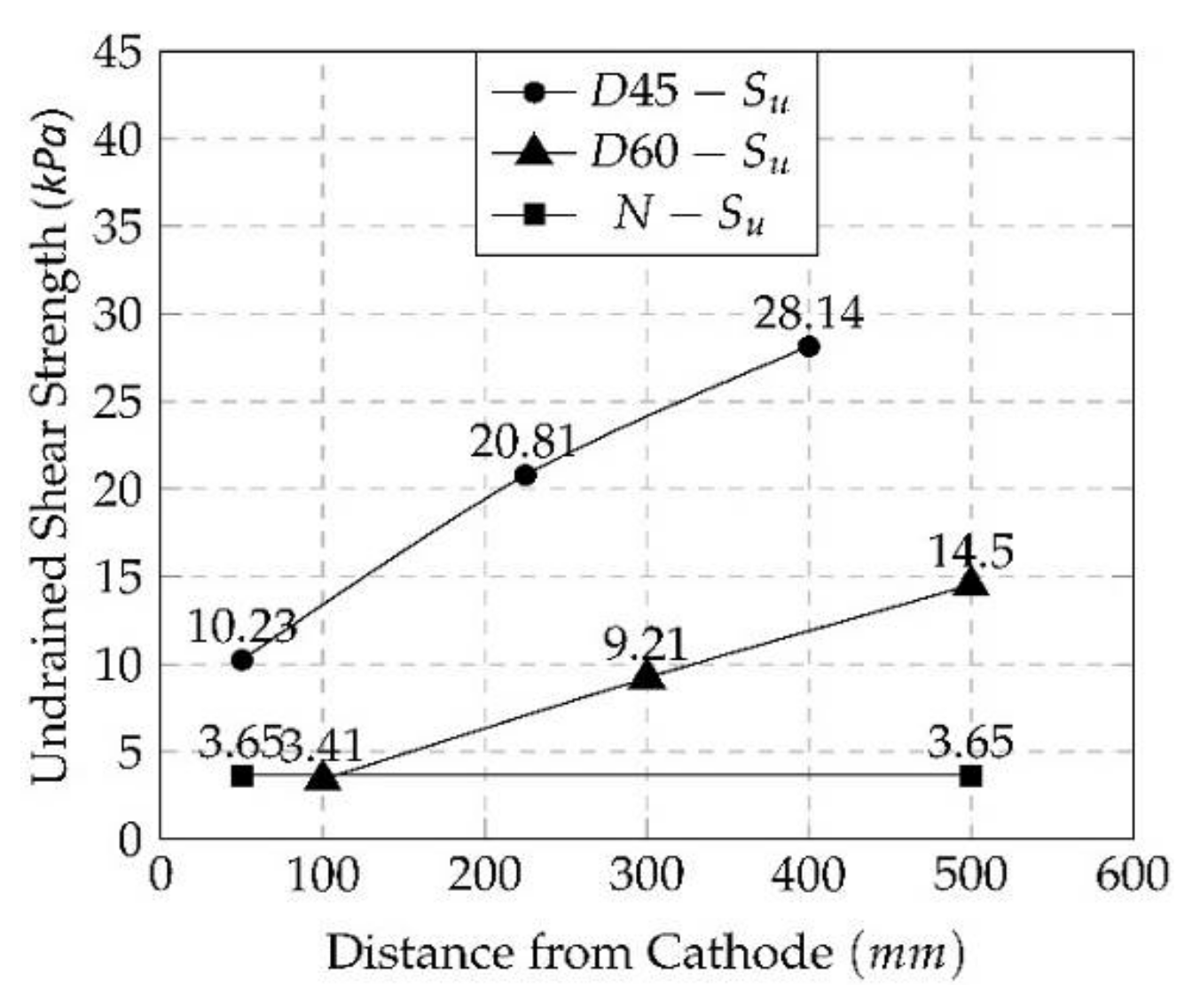

Figure 10. Shear strength after 7 days of biomineralization treatment under the EK method for D45 and D60.
Figure 10. Shear strength after 7 days of biomineralization treatment under the EK method for D45 and D60.
Applsci 11 10817 g010
Applsci 11 10817 g011 550

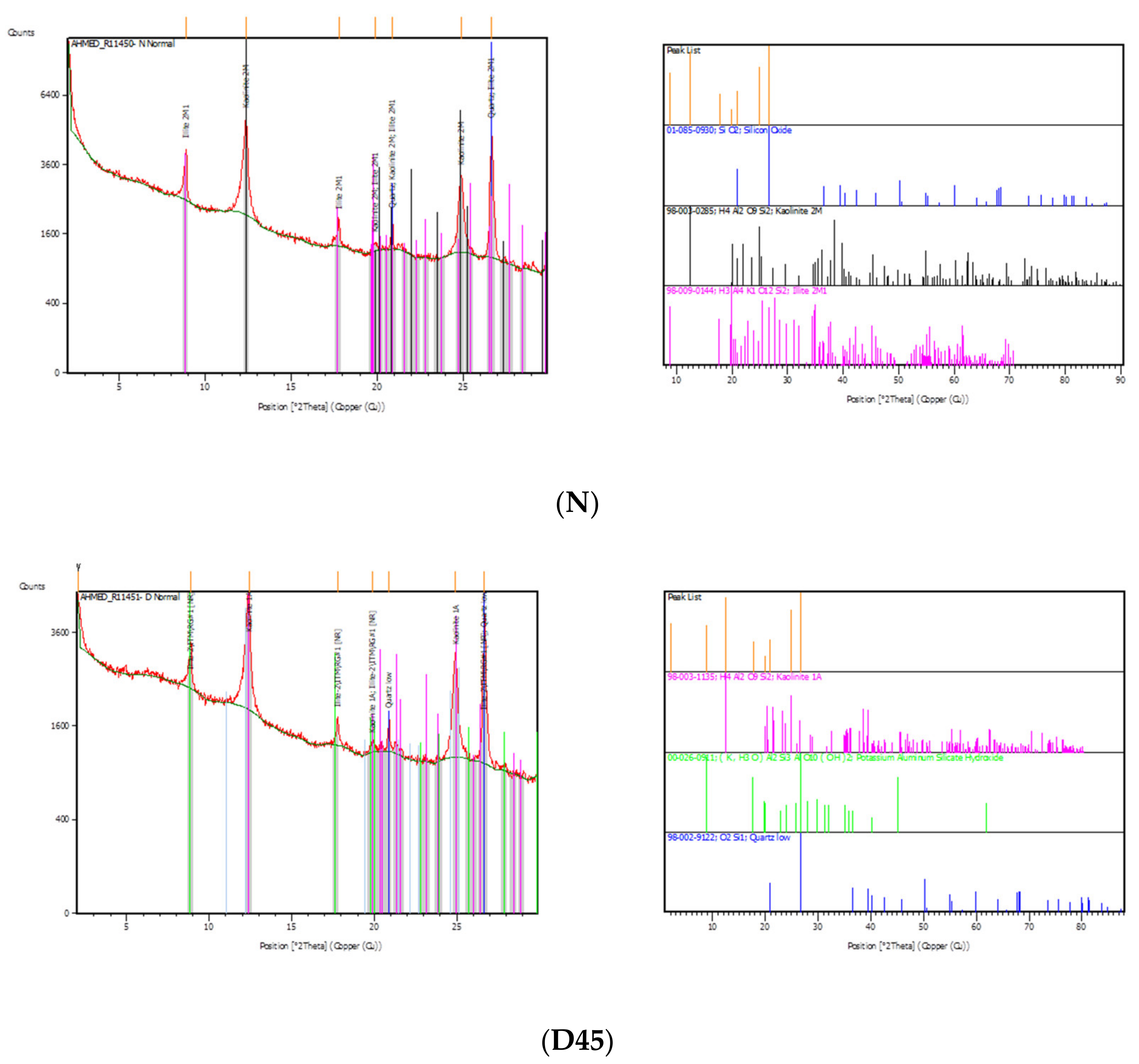

Figure 11. XRD results and peaks for both untreated soil (N) and the treated distance of 450 mm (D45).
Figure 11. XRD results and peaks for both untreated soil (N) and the treated distance of 450 mm (D45).
Applsci 11 10817 g011
Applsci 11 10817 g012 550

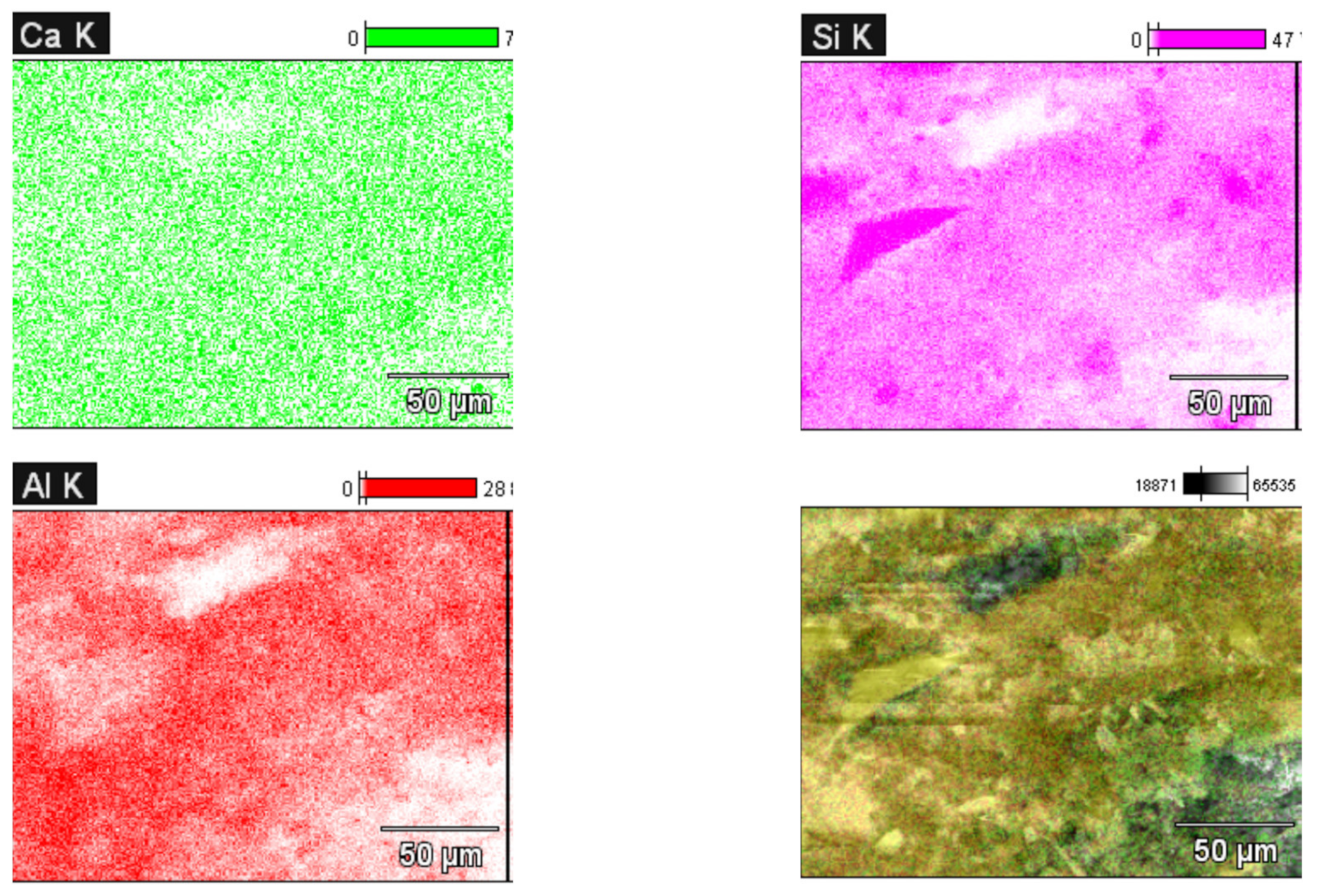

Figure 12. SEM-EDX mapping for a treated distance of 600 mm (D60), showing Ca, Si, Al and their overlapping mapping with the SEM image.
Figure 12. SEM-EDX mapping for a treated distance of 600 mm (D60), showing Ca, Si, Al and their overlapping mapping with the SEM image.
Applsci 11 10817 g012
Applsci 11 10817 g013 550

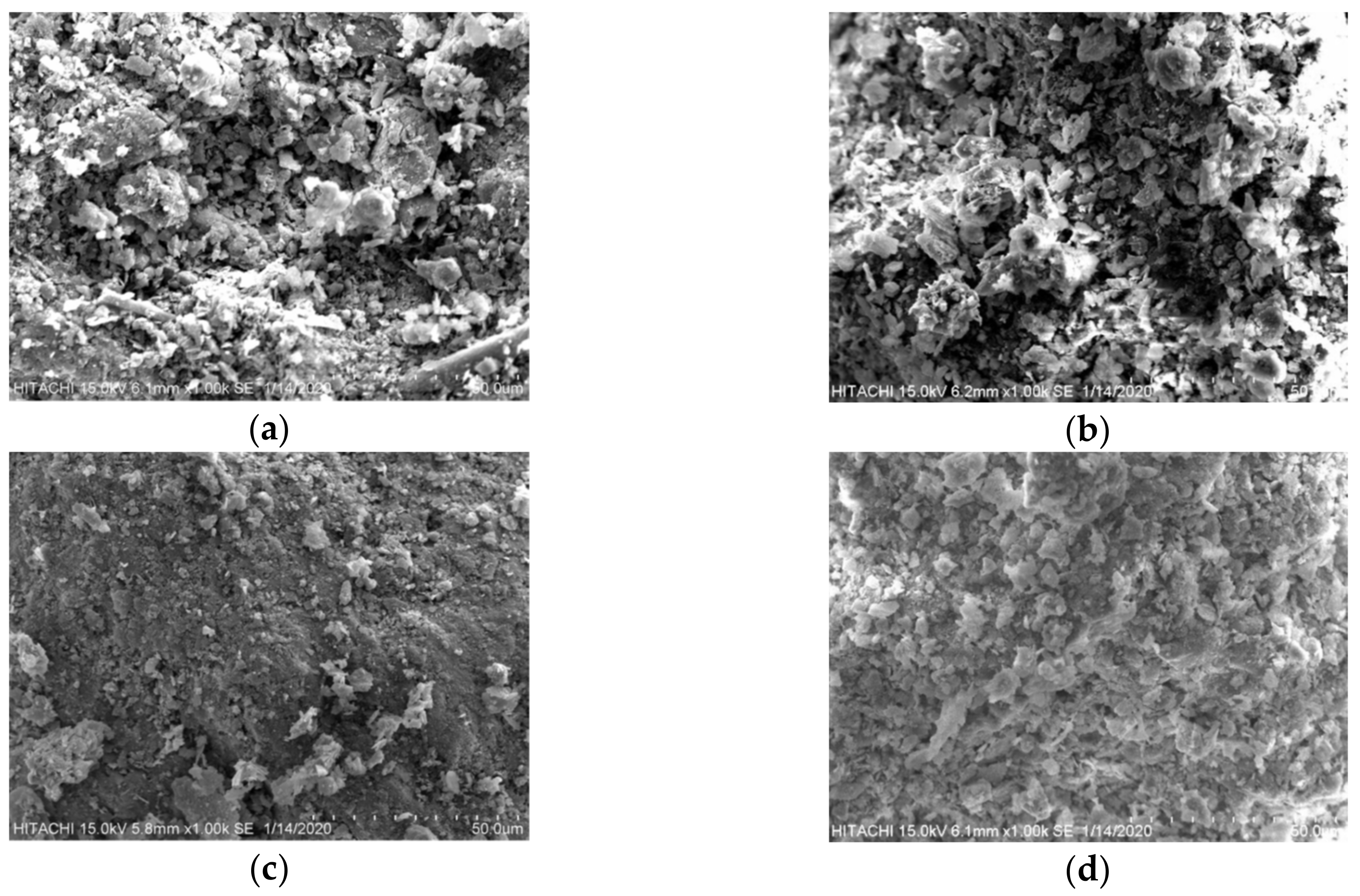

Figure 13. SEM-EDX results for a treated distance of 450 mm (D45) at (a) 400 mm, (b) 225 mm and (c) 50 mm, as well as for (d) a treated distance of 600 mm (D60) at 500 mm.
Figure 13. SEM-EDX results for a treated distance of 450 mm (D45) at (a) 400 mm, (b) 225 mm and (c) 50 mm, as well as for (d) a treated distance of 600 mm (D60) at 500 mm.
Applsci 11 10817 g013
Applsci 11 10817 g014 550

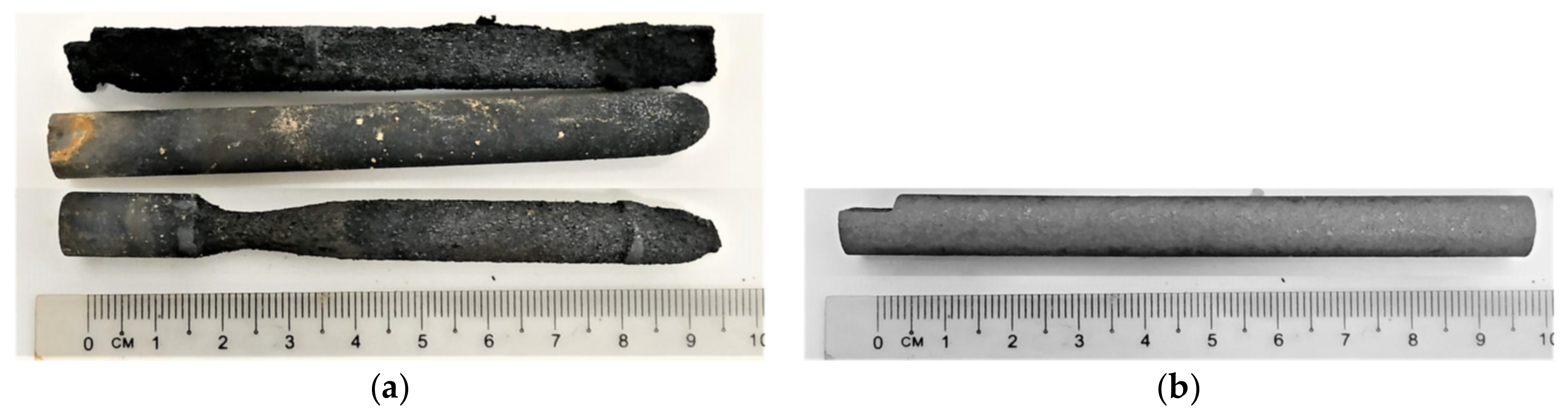

Figure 14. Erosion of the graphite bars (a) after treatment compared with (b) the initial condition.
Figure 14. Erosion of the graphite bars (a) after treatment compared with (b) the initial condition.
Applsci 11 10817 g014
Applsci 11 10817 g015 550

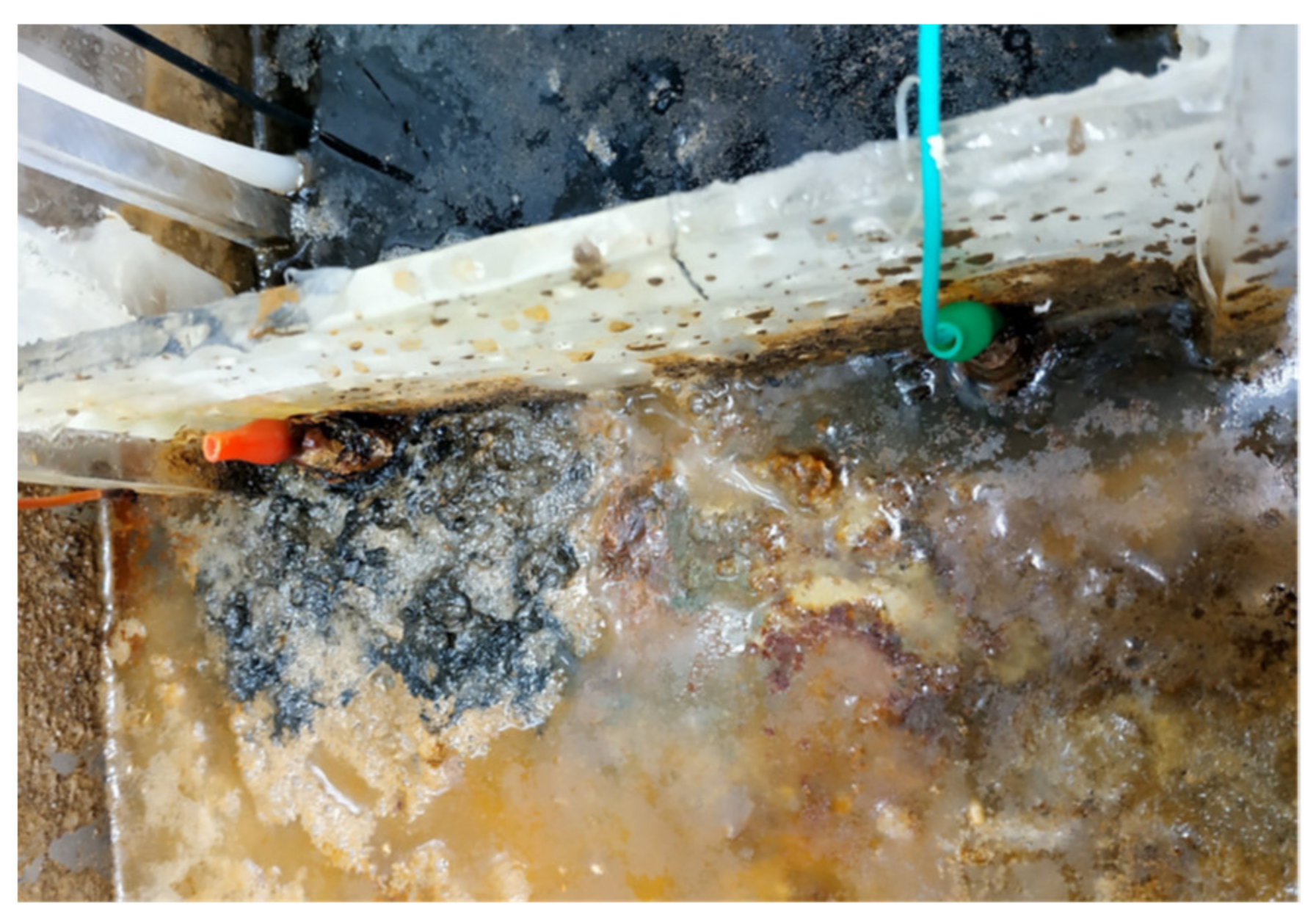

Figure 15. The negative electrode solution and the zone around the graphite bars are colored black after treatment.
Figure 15. The negative electrode solution and the zone around the graphite bars are colored black after treatment.
Applsci 11 10817 g015
Table
Table 1. Engineering characteristics of the soil samples.
Table 1. Engineering characteristics of the soil samples.
Properties (Unit)Value
Specific gravity Gs 2.57
Liquid limit (%)63.66
Plastic limit (%)32.57
Plasticity index (%)31.09
Hydraulic conductivity (cm/s)1.88 × 10−7
Ɣd (kg/cm3)945
pH3.69
Clay (%)47.7
Mineral compositionQuartz, kaolinite and illite
Undrained shear strength (kPa) 3.65
Water content (%)67
Organic content2.15%
Table
Table 2. Chemical composition of the soil samples.
Table 2. Chemical composition of the soil samples.
CompoundSiO2Al2O3Fe2O3K2OSO3MgO
Percentage (%)56.2322.8111.292.821.921.55
Table
Table 3. Test procedure summary.
Table 3. Test procedure summary.
No.CodeActivatesLocationDuration
1A1Injection of CaCO3 and CO(NH2)2Anode chamber1–7
2A2Cultured bacteria injectionCathode chamber1–7
3A3Electrical potential measurementAcross the specimens1–7
4A4Vane shear testAcross the specimens14
5A5Measurement of water contentAcross the specimens14
6A6Measurement of CaCO3 percentAcross the specimens14
Table
Table 4. Atterberg limits and soil classification for untreated soil (N) and treated distances of 450 mm (D45) and 600 mm (D60).
Table 4. Atterberg limits and soil classification for untreated soil (N) and treated distances of 450 mm (D45) and 600 mm (D60).
Code
(Unit)		wc
(%)		wLL
(%)		wPL
(%)		PILICIUSCS
N6763.6632.5731.11.151−0.101OH
D4549.0743.3723.9419.441.52−0.24OL
D6048.0243.8827.2716.621.89−0.15OL
Table
Table 5. Conducted and derived consolidation parameters for N, D45 and D60.
Table 5. Conducted and derived consolidation parameters for N, D45 and D60.
CodeCCCRCαϵCr
N0.279950.104500.033510.01462
D450.241860.105550.038520.03282
D600.207960.094240.041210.02371
Table
Table 6. Conducted and derived permeability and compression parameters for N, D45 and D60.
Table 6. Conducted and derived permeability and compression parameters for N, D45 and D60.
CodeCVkmvav
(Unit)(m2/year)(m/s)(m2/ton)(m2/ton)
N2.557781.9 × 1090.029160.07146
D458.101578.2 × 1090.011100.01792
D603.626196.4 × 1090.010270.02255
Table
Table 7. Specific gravity, density, void ratio, modulus of elasticity and preconsolidation stress for N, D45 and D60 after treatment.
Table 7. Specific gravity, density, void ratio, modulus of elasticity and preconsolidation stress for N, D45 and D60 after treatment.
CodeGSƔwetƔdryeoEPc’
(Unit) (t/m2)(t/m2) (kPa)(kPa)
N2.511.560.941.682130.6442
D452.631.711.151.294848.07320
D602.511.691.141.214670.79380
Table
Table 8. Chemical composition of untreated soil (N) and treated distances of 450 mm (D45) and 600 mm (D60) after treatment.
Table 8. Chemical composition of untreated soil (N) and treated distances of 450 mm (D45) and 600 mm (D60) after treatment.
Compound(Unit)Al2O3SiO2CaCO3TiO2K2OSO3ClOthers
N(%)27.8863.46---1.6-7.06
D45-1(%)28.7862.971.180.35---6.72
D45-2(%)31.0858.050.71--2.47-7.69
D45-3(%)31.0261.220.120.56---7.08
D60(%)29.1458.240.83----11.79
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Saad, A.H.; Nahazanan, H.; Yusoff, Z.B.M.; Mustafa, M.; Elseknidy, M.H.; Mohammed, A.A. Evaluating Biosedimentation for Strength Improvement in Acidic Soil. Appl. Sci. 2021, 11, 10817. https://doi.org/10.3390/app112210817

AMA Style

Saad AH, Nahazanan H, Yusoff ZBM, Mustafa M, Elseknidy MH, Mohammed AA. Evaluating Biosedimentation for Strength Improvement in Acidic Soil. Applied Sciences. 2021; 11(22):10817. https://doi.org/10.3390/app112210817

Chicago/Turabian Style

Saad, Ahmed Hassan, Haslinda Nahazanan, Zainuddin Bin Md Yusoff, Muskhazli Mustafa, Mohamed Hamdy Elseknidy, and Angham Ali Mohammed. 2021. "Evaluating Biosedimentation for Strength Improvement in Acidic Soil" Applied Sciences 11, no. 22: 10817. https://doi.org/10.3390/app112210817

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
