Experimental Validation of a Thermo-Electric Model of the Photovoltaic Module under Outdoor Conditions
Abstract
:1. Introduction
1.1. Literature Review of the Existing Studies
1.2. Aims and Specifics of the Current Research
2. Materials and Methods

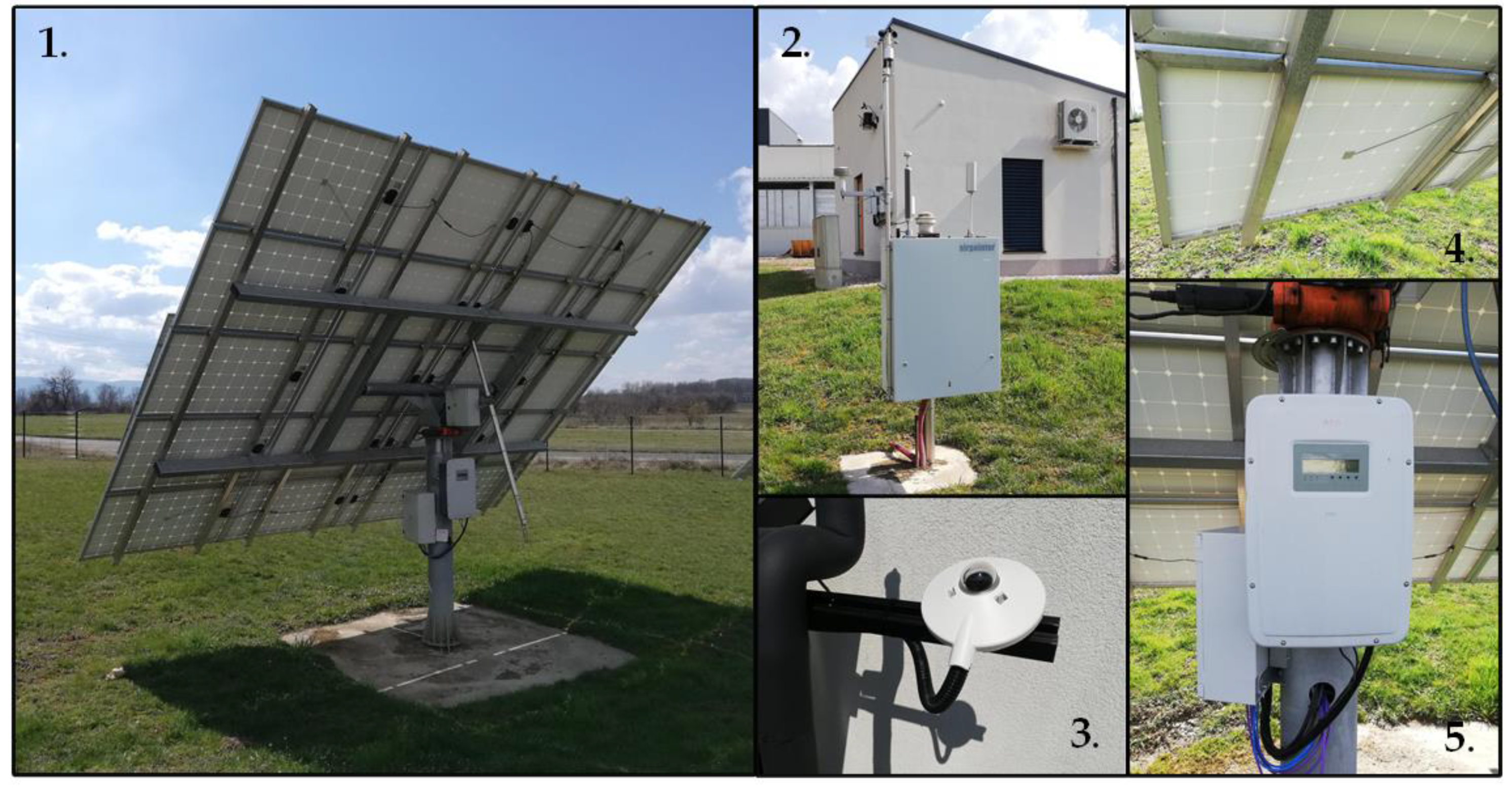

2.1. Experimental Set-Up

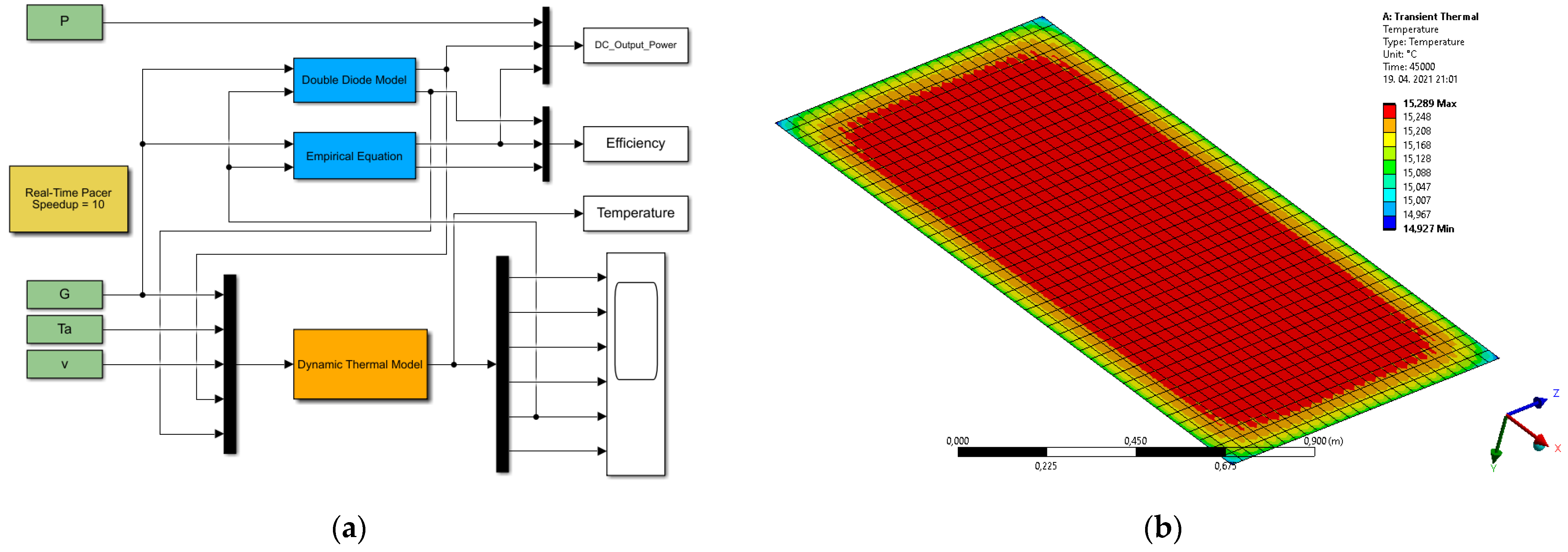

2.2. Dynamic Electric Model of the Photovoltaic Module
2.3. Dynamic Temperature Model of the Photovoltaic Module
3. Results

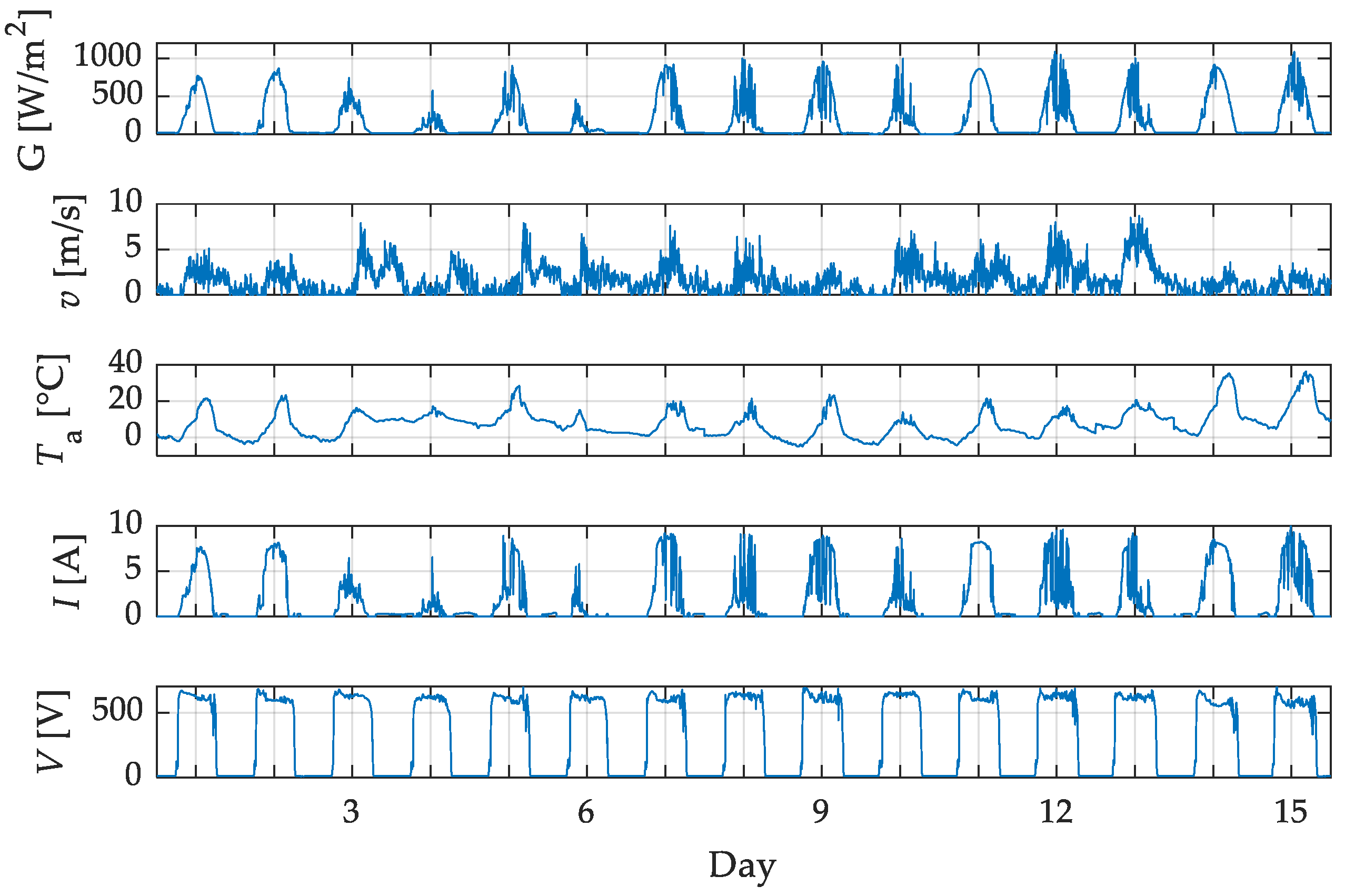

Meteorological and Experimental Data

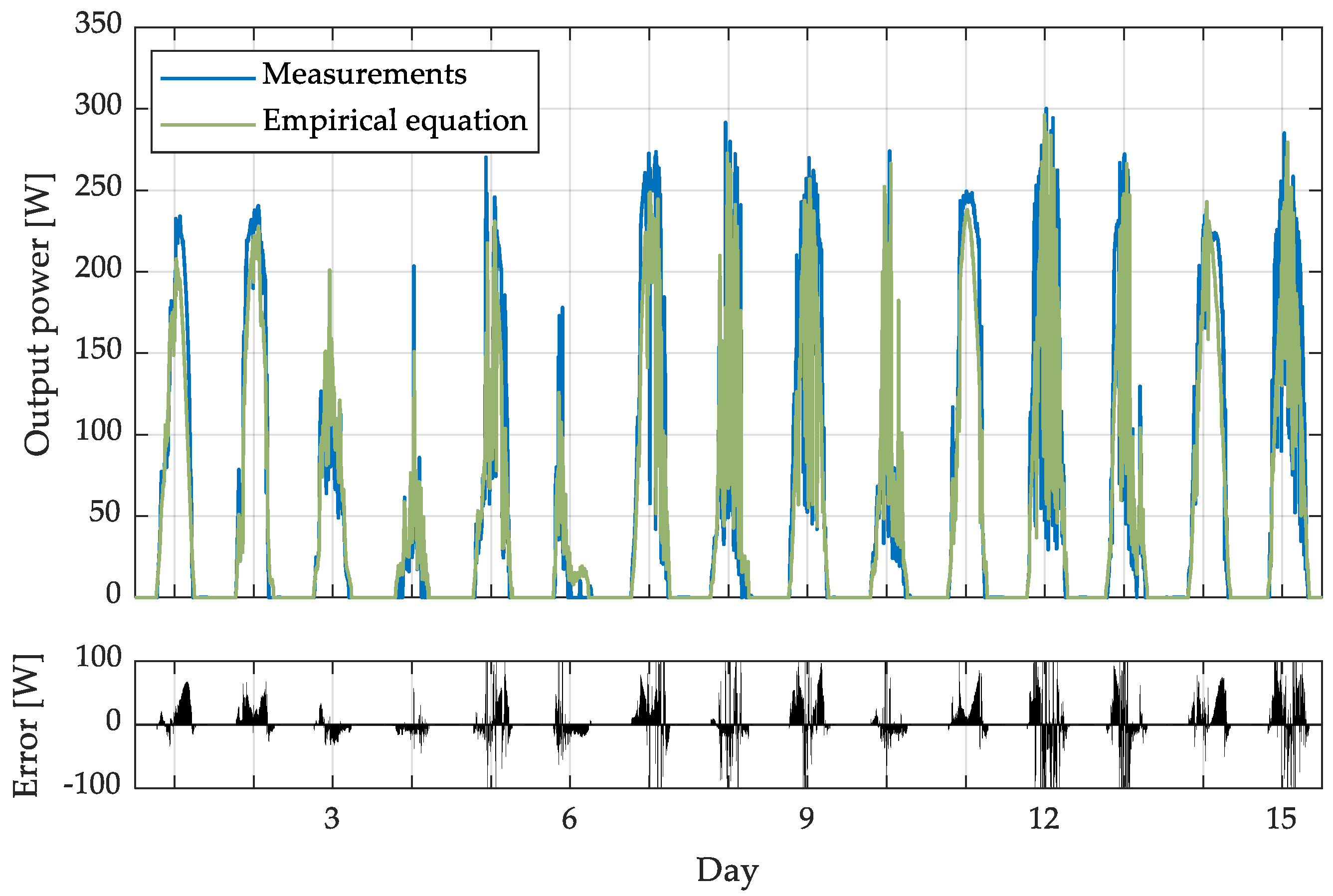

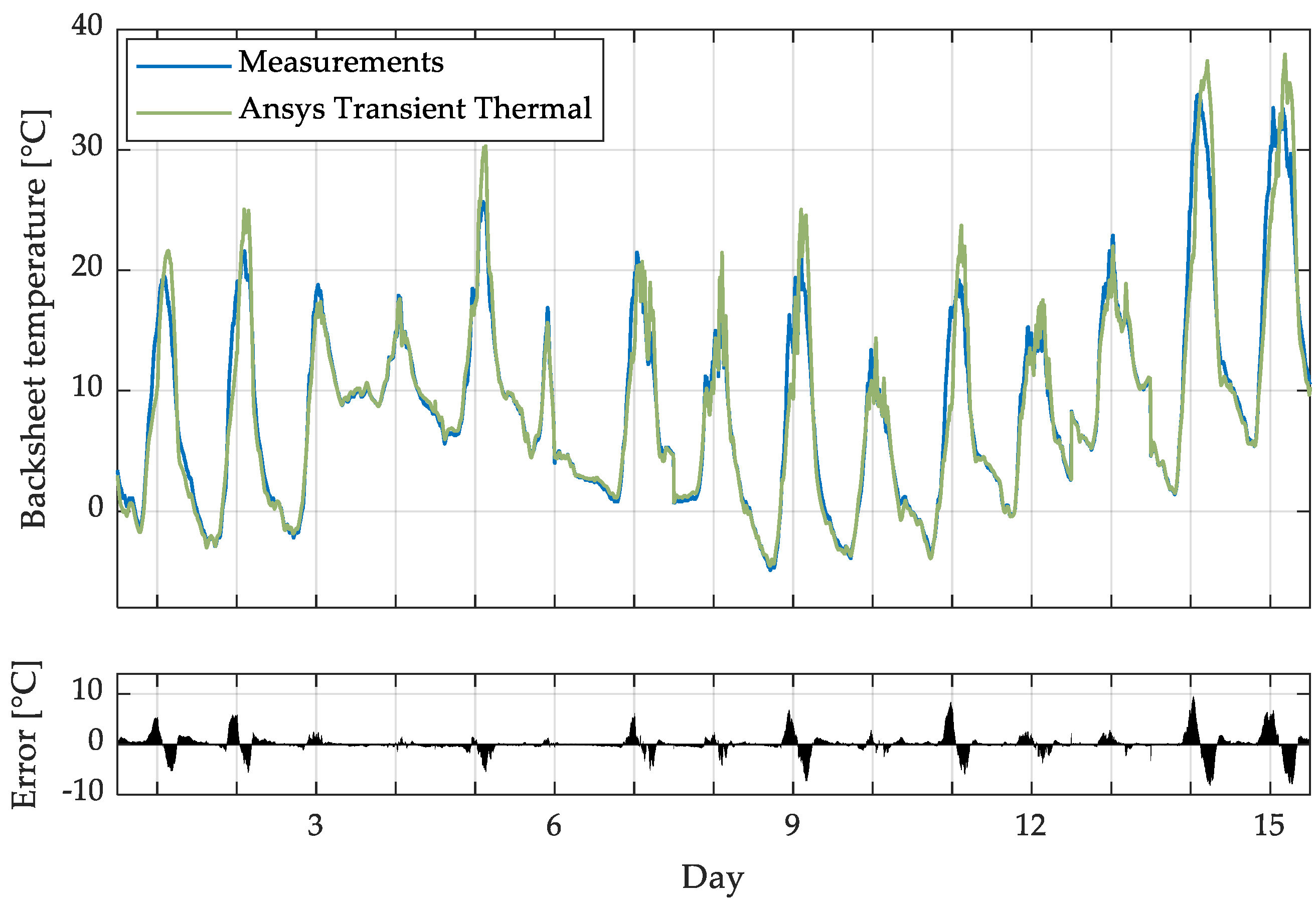

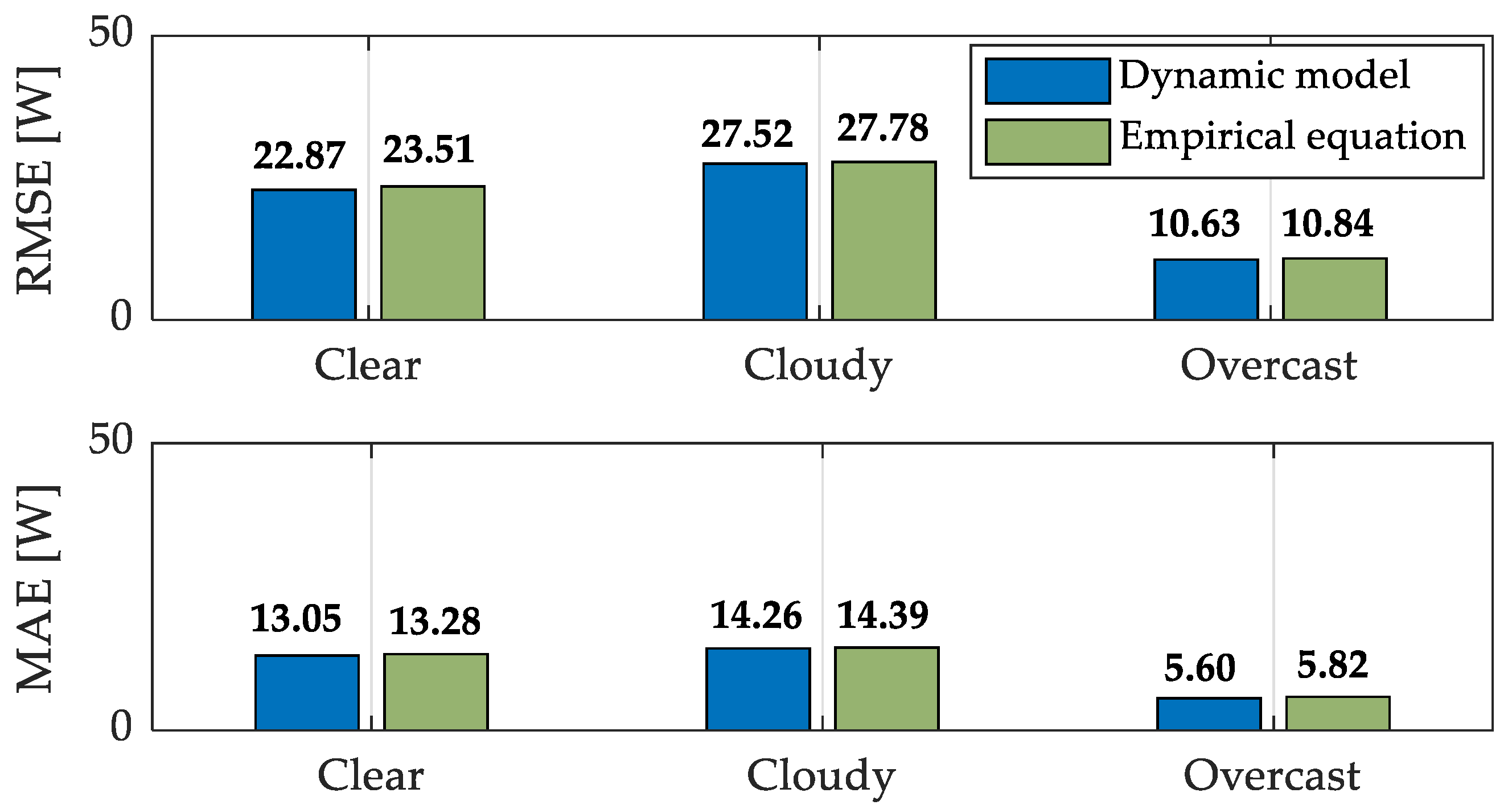

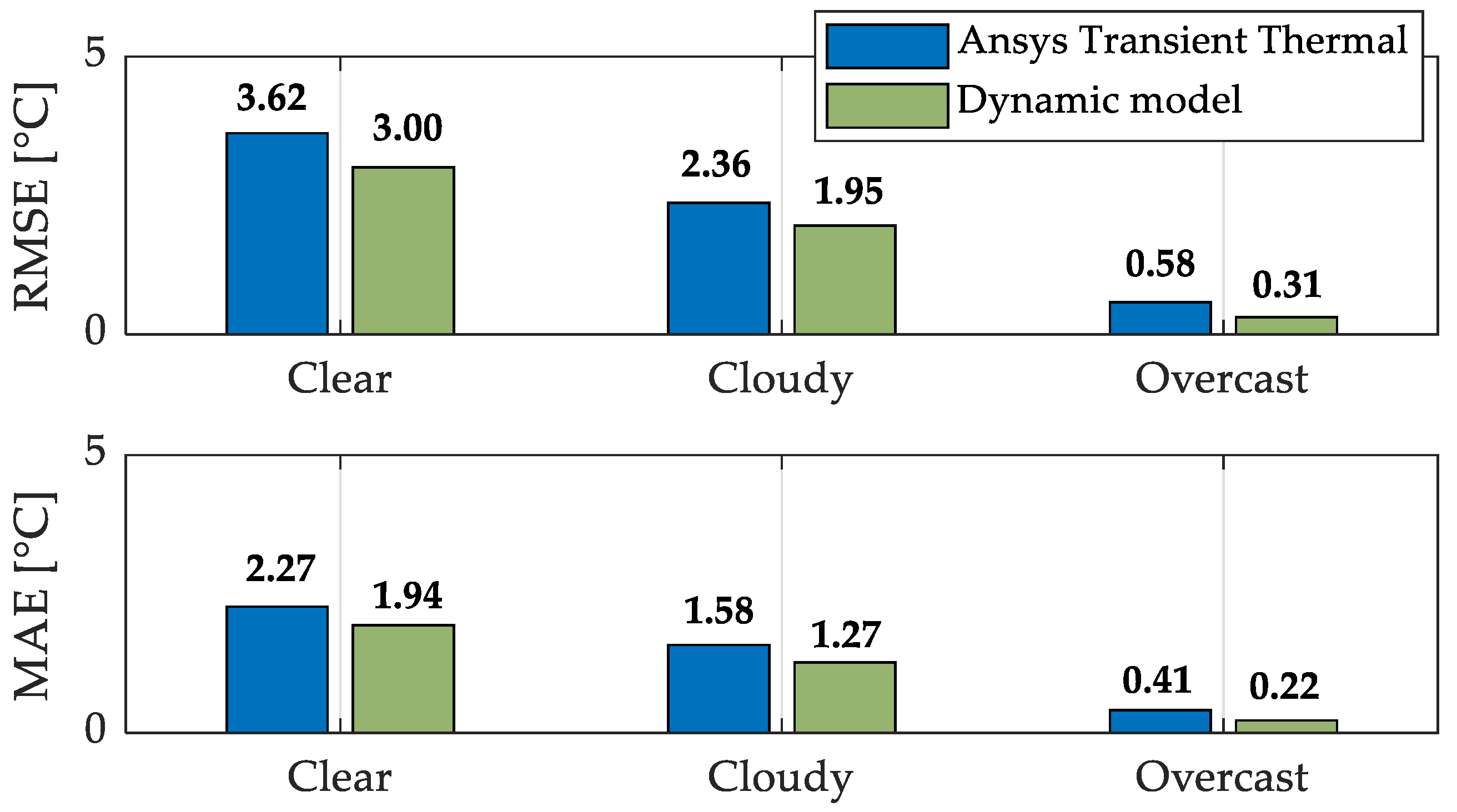

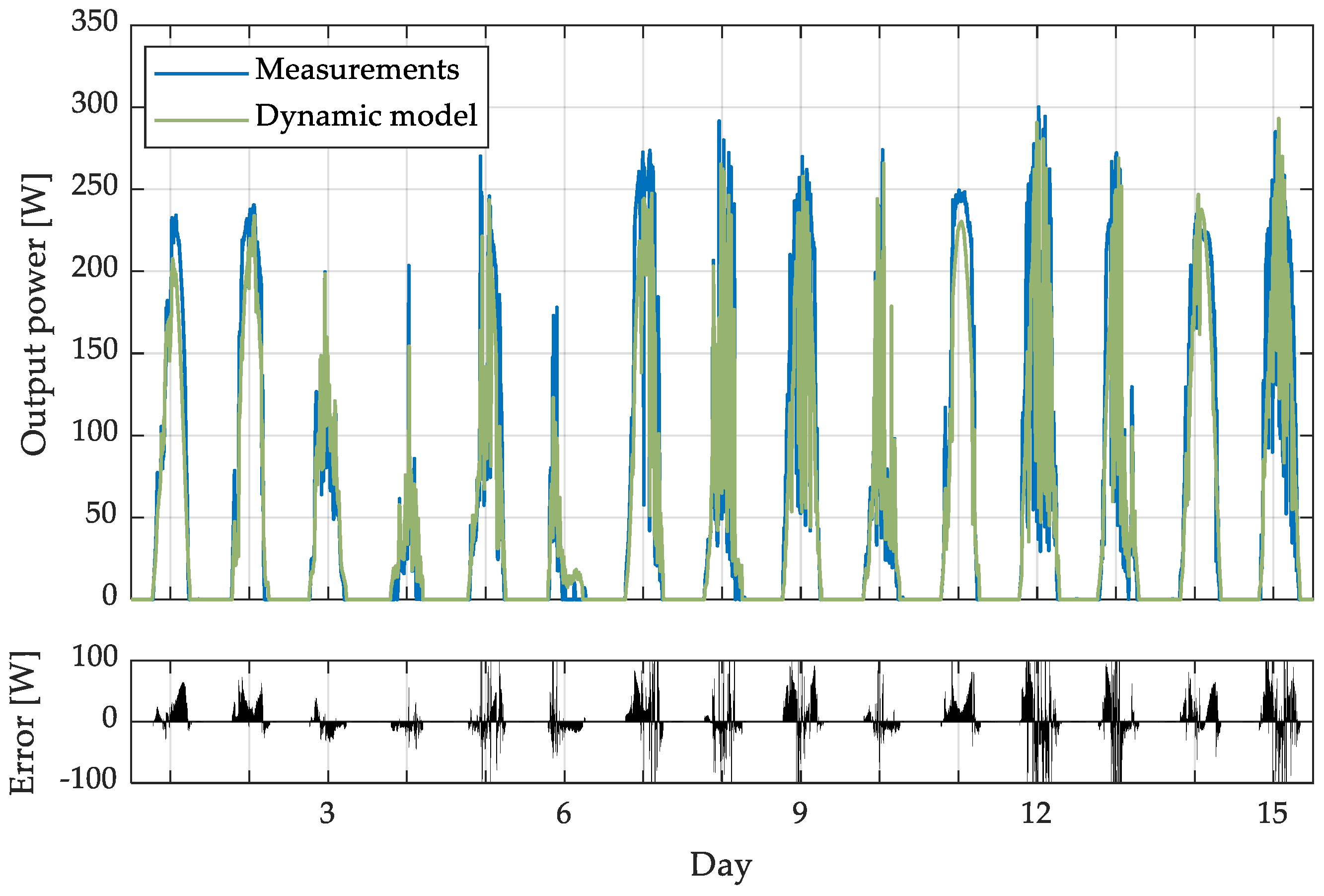

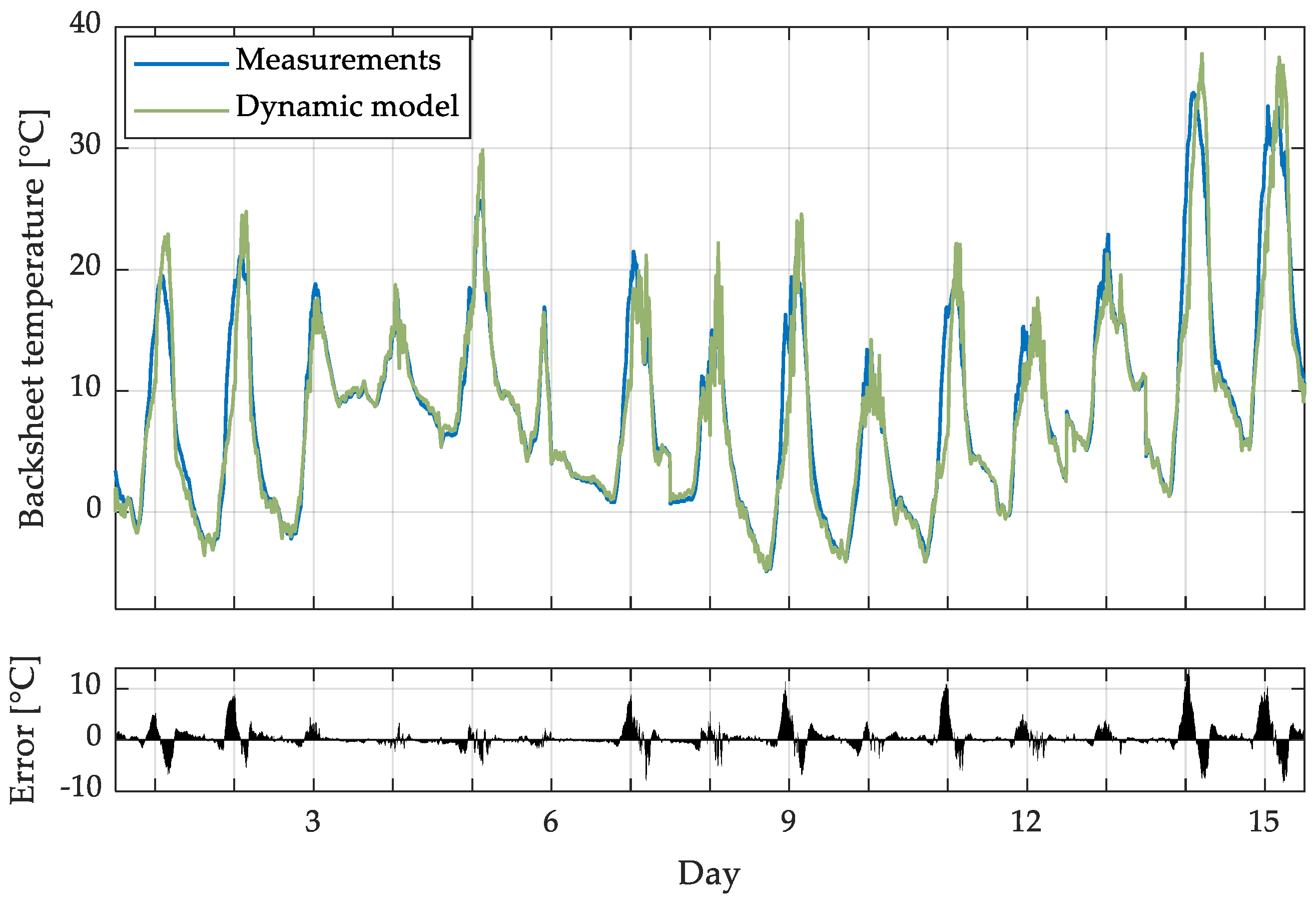

4. Discussion
5. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Conflicts of Interest
Nomenclature
PV | photovoltaic |
PV/T | photovoltaic/thermal |
STC | standard test condition |
RMSE | root mean square error |
MAE | mean absolute error |
NOCT | nominal operating cell temperature |
MPPT | maximum power point tracking |
EVA | ethylene-vinyl acetate |
Quantities used in equations: | |
APV | surface area of the PV module |
C | heat capacity |
d | thickness |
Eg0 | bandwidth of cell material |
FF | fill factor |
G | solar radiation |
GSTC | input signal |
hcond | conductive heat transfer coefficient |
hconv | convective heat transfer coefficient |
I01 | reverse saturation current of the first diode |
I02 | reverse saturation current of the second diode |
IDC | direct current |
IMPP,STC | |
Iph | photocurrent |
ISC | short-circuit current |
ISC,STC | maximal output current |
K | Boltzmann constant (1.38065 × 1023 J/K) |
k | thermal conductivity |
Ki | extinction coefficient |
n | real refractive index |
n1 | the diode ideality factor of the first diode |
n2 | the diode ideality factor of the second diode |
NS | number of series-connected PV cells |
PDC | direct output power |
PSTC | output power under STC conditions |
q | electron charge (1.602 × 1019 C) |
Rs | series resistance |
Rsh | shunt resistance |
T | operating temperature of the PV module |
Ta | ambient temperature |
TSTC | output signal |
v | wind speed |
VDC | direct voltage |
VMPP,STC | |
VOC | open-circuit voltage |
VOC,STC | open-circuit voltage under STC conditions |
VT1 | thermal voltage of the first diode |
VT2 | thermal voltage of the second diode |
α | absorptivity |
Θ1 | angle of incidence |
Θ2 | angle of reflection |
temperature coefficient of PMPP | |
temperature coefficient of ISC | |
temperature coefficient of VOC | |
ρ | density |
τg | transmissivity |
φ1 | heat flux ratio |
φ2 | thermal radiation flux |
Appendix A
References
- Deželak, K.; Bracinik, P.; Sredenšek, K.; Seme, S. Proportional-Integral Controllers Performance of a Grid-Connected Solar PV System with Particle Swarm Optimization and Ziegler–Nichols Tuning Method. Energies 2021, 14, 2516. [Google Scholar] [CrossRef]
- Garcia-Torres, F.; Vazquez, S.; Moreno-Garcia, I.M.; Gil-de-Castro, A.; Roncero-Sanchez, P.; Moreno-Munoz, A. Microgrids Power Quality Enhancement Using Model Predictive Control. Electronics 2021, 10, 328. [Google Scholar] [CrossRef]
- González, I.; Calderón, A.J.; Portalo, J.M. Innovative Multi-Layered Architecture for Heterogeneous Automation and Monitoring Systems: Application Case of a Photovoltaic Smart Microgrid. Sustainability 2021, 13, 2234. [Google Scholar] [CrossRef]
- Dairi, A.; Harrou, F.; Sun, Y.; Khadraoui, S. Short-Term Forecasting of Photovoltaic Solar Power Production Using Variational Auto-Encoder Driven Deep Learning Approach. Appl. Sci. 2020, 10, 8400. [Google Scholar] [CrossRef]
- Wang, J.; Li, K.-J.; Liang, Y.; Javid, Z. Optimization of Multi-Energy Microgrid Operation in the Presence of PV, Heterogeneous Energy Storage and Integrated Demand Response. Appl. Sci. 2021, 11, 1005. [Google Scholar] [CrossRef]
- Damianaki, K.; Christodoulou, C.A.; Kokalis, C.-C.A.; Kyritsis, A.; Ellinas, E.D.; Vita, V.; Gonos, I.F. Lightning Protection of Photovoltaic Systems: Computation of the Developed Potentials. Appl. Sci. 2021, 11, 337. [Google Scholar] [CrossRef]
- Seritan, G.C.; Enache, B.A.; Adochiei, F.C.; Argatu, F.C.; Christodoulou, C.; Vita, V.; Toma, A.R.; Gandescu, C.H.; Hathazi, F.I. Performance evaluation of photovoltaic panels containing cells with different bus bars configurations in partial shading conditions. Rev. Roum. Sci. Tech. Électrotechnique Énergétique 2020, 65, 67–70. [Google Scholar]
- Mussa, M.; Saleh, I. 1, Impact of Temperature Variation on PV-module Parameters and Performance. In Proceedings of the Sharjah Solar Energy Conference, Sharjah, United Arab Emirates, 16–22 February 2001. [Google Scholar]
- Kane, A.; Vishal, V. Performance enhancement of building integrated photovoltaic module using thermoelectric cooling. Int. J. Renew. Energy Res. 2013, 3, 320–324. [Google Scholar]
- Li, C.; Spataru, S.V.; Zhang, K.; Yang, Y.; Wei, H. A Multi-State Dynamic Thermal Model for Accurate Photovoltaic Cell Temperature Estimation. IEEE J. Photovolt. 2020, 10, 1465–1473. [Google Scholar] [CrossRef]
- Wiesenfarth, M.; Gamisch, S.; Kraus, H.; Bett, A.W. Investigation on 3-dimensional temperature distribution in a FLATCON-type CPV module. AIP Conf. Proc. 2013, 1556, 189–193. [Google Scholar]
- M’Sirdi, N.K.; Benabdellatif, M.; Tina, G.M.; Naamane, A. Dynamic Coupled Electrical and Thermal Model for PV-T Solar Energy Collectors. In Proceedings of the 5th International Symposium on Environment-Friendly Energies and Applications (EFEA), Roma, Italy, 24–26 September 2018; pp. 1–8. [Google Scholar]
- Hammami, M.; Torretti, S.; Grimaccia, F.; Grandi, G. Thermal and Performance Analysis of a Photovoltaic Module with an Integrated Energy Storage System. Appl. Sci. 2017, 7, 1107. [Google Scholar] [CrossRef] [Green Version]
- Kant, K.; Shukla, A.; Sharma, A.; Biwole, P.H. Heat transfer studies of photovoltaic panel coupled with phase change material. Solar Energy 2016, 140, 151–161. [Google Scholar] [CrossRef]
- Jung, D.E.; Lee, C.; Kim, K.H.; Do, S.L. Development of a Predictive Model for a Photovoltaic Module’s Surface Temperature. Energies 2020, 13, 4005. [Google Scholar] [CrossRef]
- Kratzenberg, M.G.; Beyer, H.G.; Colle, S.; Albertazzi, A. Uncertainty Calculations in Pyranometer Measurements and Application. In Proceedings of the International Solar Energy Conference (ASME), Denver, CO, USA, 8–13 July 2006; pp. 689–698. [Google Scholar]
- Coquilla, R.V.; Obermeier, J.; White, B.R. Calibration Procedures and Uncertainty in Wind Power Anemometers. Wind Eng. 2007, 31, 303–316. [Google Scholar] [CrossRef]
- Ross, A.G. Flat-plate photovoltaic module and array engineering. In Proceedings of the 1982 Annual Meeting of the American Section of the International Solar Energy Society, Houston, TX, USA, 1–5 June 1982; pp. 4321–4324. [Google Scholar]
- Faiman, D. Assessing the outdoor operating temperature of photovoltaic modules. Prog Photovolt. Res. Appl 2008, 16, 307–315. [Google Scholar] [CrossRef]
- King, D.; Boyson, W.; Kratochvil, J. Photovoltaic array performance model. Tech. Rep. 2004, 3535. [Google Scholar]
- Migliorini, L.; Molinaroli, L.; Simonetti, R.; Manzolini, G. Development and experimental validation of a comprehensive thermoelectric dynamic model of photovoltaic modules. Solar Energy 2017, 144, 489–501. [Google Scholar] [CrossRef]
- Barry, J.; Böttcher, D.; Pfeilsticker, K.; Herman-Czezuch, A.; Kimiaie, N.; Meilinger, S.; Schirrmeister, C.; Deneke, H.; Witthuhn, J.; Gödde, F. Dynamic model of photovoltaic module temperature as a function of atmospheric conditions. Adv. Sci. Res. 2020, 17, 165–173. [Google Scholar] [CrossRef]
- Yu, Q.; Hu, M.; Li, J.; Wang, Y.; Pei, G. Development of a 2D temperature-irradiance coupling model for performance characterizations of the flat-plate photovoltaic/thermal (PV/T) collector. Ren. Ener. 2020, 153, 404–419. [Google Scholar] [CrossRef]
- Perović, B.D.; Klimenta, D.O.; Jevtić, M.D.; Milovanović, M.J. A thermal model for open-rack mounted photovoltaic modules based on empirical correlations for natural and forced convection. Ther. Sci. 2019, 23, 3551–3566. [Google Scholar] [CrossRef] [Green Version]
- Zouine, M.; Akhsassi, M.; Erraissi, N.; Aarich, N.; Bennouna, A.; Mustapha, R.; Outzourhit, A. Mathematical Models Calculating PV Module Temperature Using Weather Data: Experimental Study. Lect. Notes Elec. Eng. 2018, 519, 630–639. [Google Scholar]
- Brihmat, F.; Mekhtoub, S. PV Cell Temperature/ PV Power Output Relationships Homer Methodology Calculation. Int. J. Sci. Res. Eng. Technol. 2014, 1, 0-0. [Google Scholar]
- Krauter, S.; Preiss, A. Comparison of module temperature measurement methods. In Proceedings of the 34th IEEE Photovoltaic Specialists Conference (PVSC), Philadelphia, PA, USA, 7–12 June 2009; pp. 333–338. [Google Scholar]
- Liao, W.; Heo, Y.; Xu, S. Evaluation of Temperature Dependent Models for PV Yield Prediction. In Proceedings of the 4th Building Simulation and Optimization Conference, Cambridge, UK, 11–12 September 2018. [Google Scholar]
- Pantic, L.S.; Pavlović, T.M.; Milosavljević, D.D.; Radonjic, I.S.; Radovic, M.K.; Sazhko, G. The assessment of different models to predict solar module temperature, output power and efficiency for Nis, Serbia. Energy 2016, 109, 38–48. [Google Scholar] [CrossRef]
- Osma-Pinto, G.; Ordóñez-Plata, G. Dynamic thermal modelling for the prediction of the operating temperature of a PV panel with an integrated cooling system. Ren. Ener. 2020, 152, 1041–1054. [Google Scholar] [CrossRef]
- Martínez, M.A.; Andújar, J.M.; Enrique, J.M. Temperature Measurement in PV Facilities on a Per-Panel Scale. Sensors 2014, 14, 13308–13323. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Siddiqui, M.U.; Arif, A.F.M.; Kelley, L.; Dubowsky, S. Three-dimensional thermal modeling of a photovoltaic module under varying conditions. Solar Energy 2012, 86, 2620–2631. [Google Scholar] [CrossRef]
- Vergura, S. A Complete and Simplified Datasheet-Based Model of PV Cells in Variable Environmental Conditions for Circuit Simulation. Energies 2016, 9, 326. [Google Scholar] [CrossRef]
- Olukan, T.A.; Emziane, M. A Comparative Analysis of PV Module Temperature Models. Energy Procedia 2014, 62, 694–703. [Google Scholar] [CrossRef] [Green Version]
- Bellia, H.; Youcef, R.; Fatima, M. A detailed modeling of photovoltaic module using MATLAB. NRIAG J. Ast. Geo. 2014, 3, 53–61. [Google Scholar] [CrossRef] [Green Version]
- Farivar, G.; Asaei, B. A New Approach for Solar Module Temperature Estimation Using the Simple Diode Model. IEEE Trans. Energy Convers. 2011, 26, 1118–1126. [Google Scholar] [CrossRef]
- Bana, S.; Saini, R.P. A mathematical modeling framework to evaluate the performance of single diode and double diode based SPV systems. Energy Rep. 2016, 2, 171–187. [Google Scholar] [CrossRef] [Green Version]
- Alam, M.S.; Alouani, A.T.; Azeem, M.F. Efficient prediction of maximum PV module output power through dynamic modeling. Sustain. Energy Technol. Assess. 2015, 11, 27–35. [Google Scholar] [CrossRef]
- Hansen, C.; King, B. Determining series resistance for equivalent circuit models of a PV module. IEEE J. Photovolt. 2019, 9, 538–543. [Google Scholar] [CrossRef]
- Photovoltaic Modules—PVF 260. Available online: http://www.pvfuture.eu/static/uploaded/pdf/PVF60M_SLO.pdf (accessed on 26 April 2021).
- Armstrong, A.; Hurley, W.G. A thermal model for photovoltaic panels under varying atmospheric conditions. Appl. Therm. Eng. 2010, 30, 1488–1495. [Google Scholar] [CrossRef]
- Lobera, D.T.; Valkealahti, S. Dynamic thermal model of solar PV systems under varying climatic conditions. Solar Energy 2013, 93, 183–194. [Google Scholar] [CrossRef]
- Dhimish, M.; Alrashidi, A. Photovoltaic Degradation Rate Affected by Different Weather Conditions: A Case Study Based on PV Systems in the UK and Australia. Electronics 2020, 9, 650. [Google Scholar] [CrossRef] [Green Version]
- Du, Y.; Fell, C.J.; Duck, B.; Chen, D.; Liffman, K.; Zhang, Y.; Gu, M.; Zhu, Y. Evaluation of photovoltaic panel temperature in realistic scenarios. Energy Convers. Manag. 2016, 108, 60–67. [Google Scholar] [CrossRef]
- Jiang, Y.; Lu, L. Experimentally Investigating the Effect of Temperature Differences in the Particle Deposition Process on Solar Photovoltaic (PV) Modules. Sustainability 2016, 8, 1091. [Google Scholar] [CrossRef] [Green Version]
- Kudelas, D.; Taušová, M.; Tauš, P.; Gabániová, Ľ.; Koščo, J. Investigation of Operating Parameters and Degradation of Photovoltaic Panels in a Photovoltaic Power Plant. Energies 2019, 12, 3631. [Google Scholar] [CrossRef] [Green Version]
- Frick, A.; Makrides, G.; Schubert, M.; Schlecht, M.; Georghiou, G.E. Degradation Rate Location Dependency of Photovoltaic Systems. Energies 2020, 13, 6751. [Google Scholar] [CrossRef]
- Rajput, P.; Malvoni, M.; Manoj Kumar, N.; Sastry, O.S.; Jayakumar, A. Operational Performance and Degradation Influenced Life Cycle Environmental–Economic Metrics of mc-Si, a-Si and HIT Photovoltaic Arrays in Hot Semiarid Climates. Sustainability 2020, 12, 1075. [Google Scholar] [CrossRef] [Green Version]
- Sartori, E. Convection coefficient equations for forced air flow over flat surfaces. Solar Energy 2006, 80, 1063–1071. [Google Scholar] [CrossRef]
- Ceylan, I.; Yilmaz, S.; İnanç, Ö.; Ergün, A.; Gürel, A.E.; Acar, B.; Aksu, A.I. Determination of the heat transfer coefficient of PV panels. Energy 2019, 175, 978–985. [Google Scholar] [CrossRef]
- Santbergen, R.; van Zolingen, R.J.C. The absorption factor of crystalline silicon PV cells: A numerical and experimental study. Sol. Energy Mater. Sol. Cells 2008, 92, 432–444. [Google Scholar] [CrossRef]
- Green, M.A. Self-consistent optical parameters of intrinsic silicon at 300K including temperature coefficients. Sol. Energy Mater. Sol. Cells 2008, 92, 1305–1310. [Google Scholar] [CrossRef]
Uncertainty | Calibration | |
---|---|---|
Temperature sensor: DS18x20 | ±0.5 °C (from −10 to 85 °C) | 6 years ago |
Wind speed sensor: VMT107A | ±0.5 m/s | 6 years ago |
Solar radiation sensor—pyranometer: Kipp&Zonen SP Lite 2 | <1% | 6 years ago |
Ambient temperature sensor: TPR 159 (Pt100) | ±0.15 °C | 6 years ago |
AC measurement—Power Meter: Siemens Sentron PAC4200 | Current: ±0.2% Voltage: ±0.2% | 3 months ago |
DC measurement—Hall Effect Sensor: T201DCH100 | Current: ±0.5% Voltage: ±0.5% | 3 months ago |
PV Future—PVF 60M | |
---|---|
Dimensions (l × w × s) [mm] | 993 × 1648 × 40 |
Cell size [mm2] | 156 × 156 |
PMPP [W] | 260 |
VMPP [V] | 31 |
IMPP [A] | 8.45 |
VOC [V] | 37.8 |
ISC [A] | 8.9 |
[%/°C] | 0.040 |
[%/°C] | −0.330 |
[%/°C] | −0.445 |
NOCT [°C] | 45 |
Number of series connected cells | 60 |
ρ [kg/m3] | C [J/kgK] | k [W/mK] | d [mm] | |
---|---|---|---|---|
Glass | 3000 | 500 | 1.8 | 4 |
EVA | 960 | 2090 | 0.35 | 0.4 |
PV cell | 2330 | 677 | 148 | 0.3 |
Tedlar (PVF) | 1200 | 1250 | 0.2 | 0.4 |
