Methodological and On-Site Applied Construction Layout Plan with Batter Boards Stake-Out Methods Comparison: A Case Study of Romania

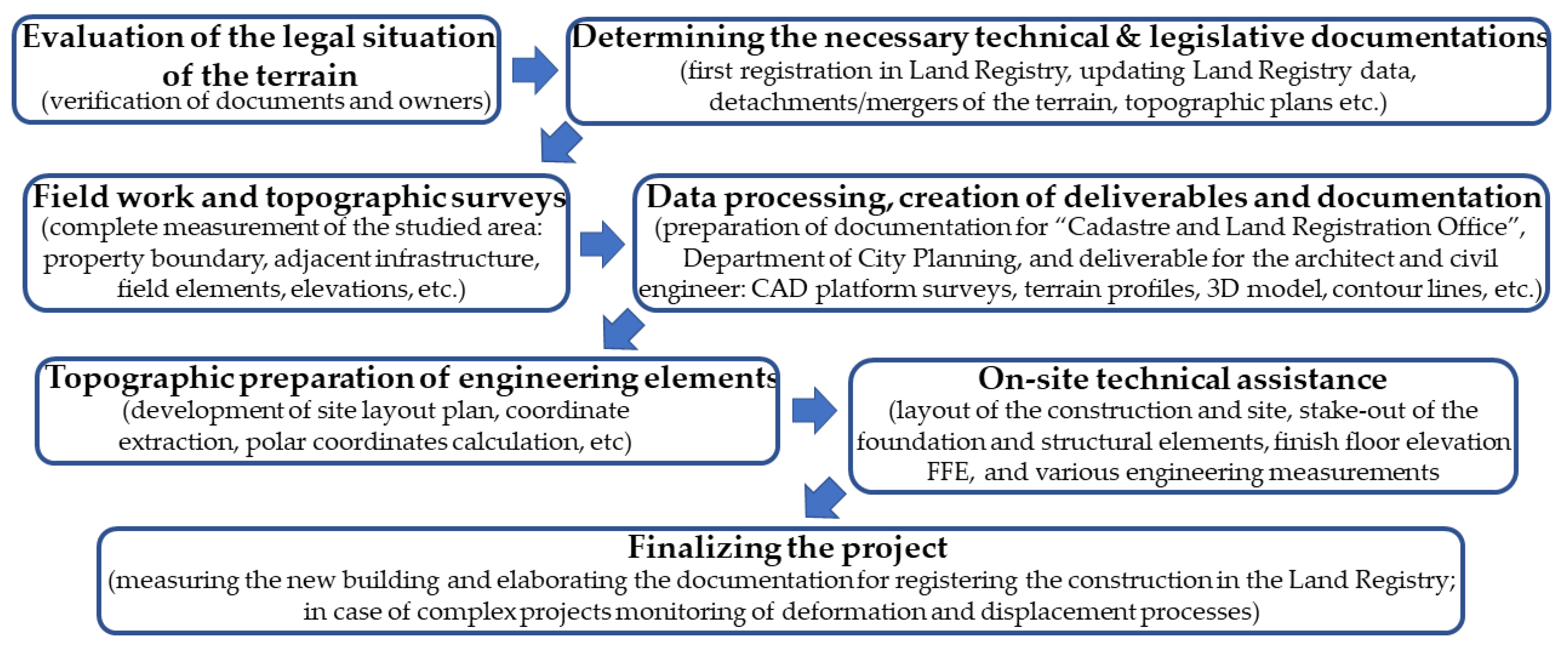

The layout or stake-out is one of the most important assignments of the surveying engineer, and it is of vital importance in the building process, as the designed geometries of the structure ensure the verticality and the correct positioning inside the terrain. The mission of the surveying engineer involves both legal and technical aspects, and the correct planning of the layout process must take into consideration aspects regarding the site conditions, instrumentation used, the required and achievable accuracies, network design and survey methods used. Given the vast applications of geodesy and topography in different domains and industries, the study incorporates general notions and technical aspects regarding the workflow in cadastre and construction surveying, guidelines for an efficient design of site layout plan with on-site applicability, as well as a novel comparison between four methods of construction lines geometry layout on batter boards. The results of this study aim to further consolidate the importance of accurate and efficient construction layout projects, with comprehensive design plans, methods and instrumentation selection, as well as recommendations. The presented discussions and conclusions are of interest to the geodetic community as well as the construction industry, and due to the pragmatic and experimental nature of the research, incorporates technical notes and original results of professional and academic importance.
