Article

A Novel Sensorless Control for Multiphase Induction Motor Drives Based on Singularly Perturbed Sliding Mode Observer-Experimental Validation

by
Mahmoud A. Mossa
1,*,
Hamdi Echeikh
2,
Atif Iqbal
3,
Ton Duc Do
4 and
Ameena Saad Al-Sumaiti
5
1
Electrical Engineering Department, Faculty of Engineering, Minia University, Minia 61111, Egypt
2
Electrical Engineering department, National Engineering School of Monastir, Monastir 5035, Tunisia
3
Department of Electrical Engineering, Qatar University, Doha 2713, Qatar
4
Department of Robotics and Mechatronics, School of Engineering and Digital Sciences (SEDS), Nazarbayev University, Nur-Sultan 010000, Kazakhstan
5
Advanced Power and Energy Center, Electrical Engineering and Computer Science, Khalifa University, Abu Dhabi 127788, UAE
*
Author to whom correspondence should be addressed.
Appl. Sci. 2020, 10(8), 2776; https://doi.org/10.3390/app10082776
Submission received: 28 January 2020 / Revised: 3 April 2020 / Accepted: 4 April 2020 / Published: 16 April 2020
(This article belongs to the Section Electrical, Electronics and Communications Engineering)
Browse Figures
Versions Notes

Abstract

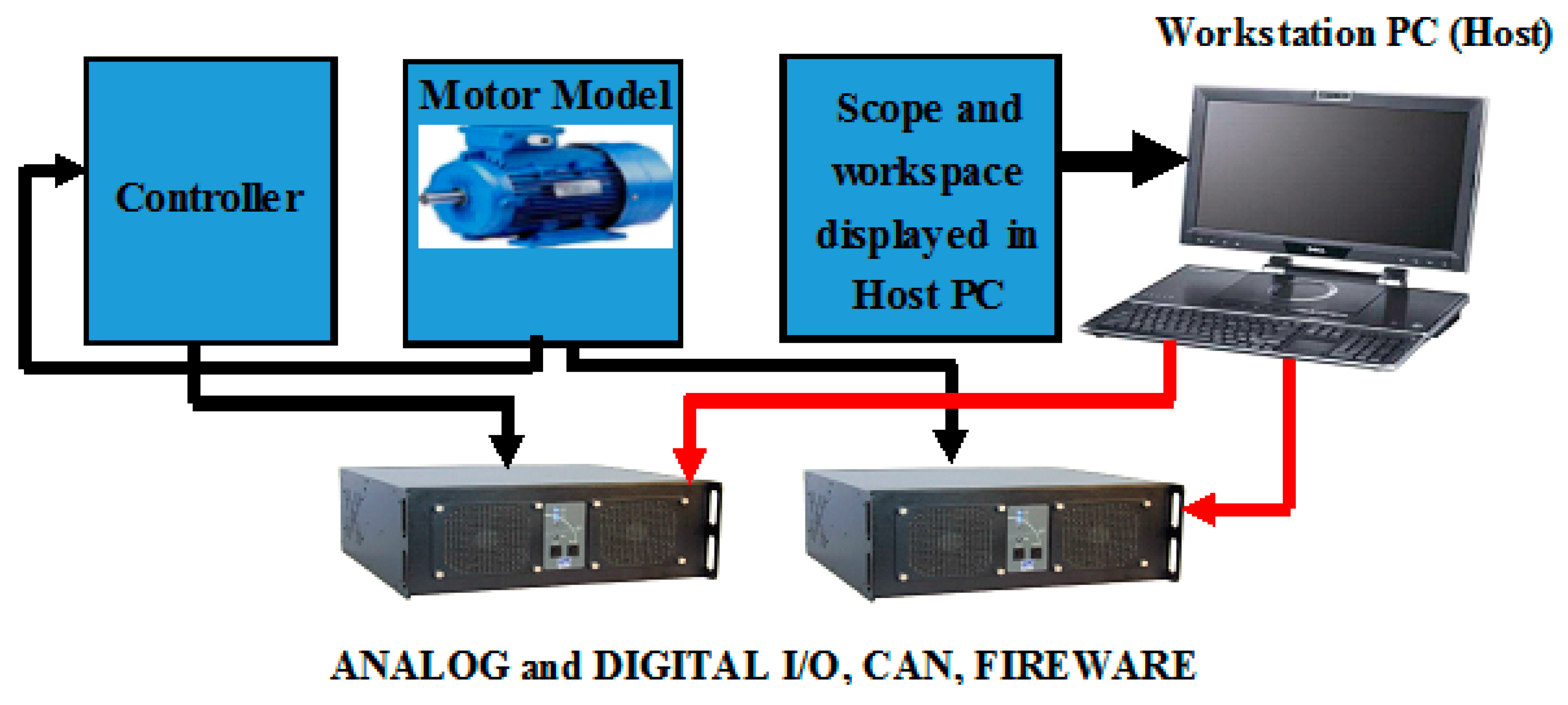

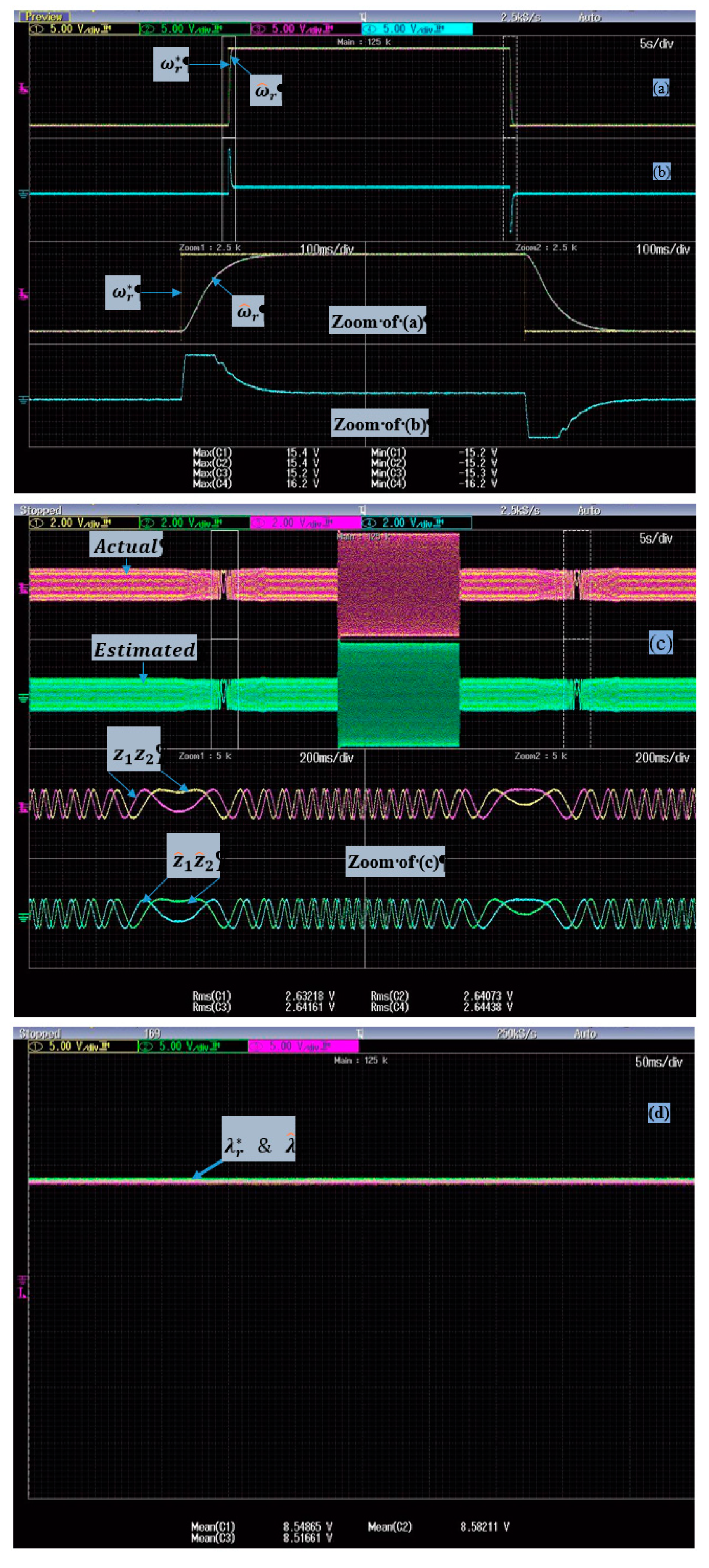

This paper aims to develop an innovative sensorless control approach for a five-phase induction motor (IM) drive. The operation principle of the sensorless scheme is based on the sliding mode theory, within which a sliding mode observer (SMO) estimates the speed and rotor resistance simultaneously. The operation methodology of the proposed control technique is formulated using the mathematical model of the machine and the two-time-scale approach. The observation technique offers a simple and robust solution of speed and rotor resistance estimation for the sensorless control approach of the multiphase drive. The paper considers the five-phase induction motor (IM) as a case study; however, the proposed control algorithm can be employed by different types of multiphase machines. To test the applicability of the proposed sensorless control approach, the drive performance is firstly validated using MATLAB/Simulink-based simulation. Then, the simulation results are verified using real-time simulation and experimentally using TMS320C32 DSP-based control board. The obtained results confirm and validate the ability of the proposed control procedure in achieving a robust dynamic performance of the drive against the system uncertainties such as parameter variation.
Keywords: multiphase machine; five-phase IM; sliding mode observer; sensorless operation; experimental validation multiphase machine; five-phase IM; sliding mode observer; sensorless operation; experimental validation
