Application of Machine Learning Method to Quantitatively Evaluate the Droplet Size and Deposition Distribution of the UAV Spray Nozzle
Abstract
:Featured Application
Abstract
1. Introduction
2. Materials and Methods

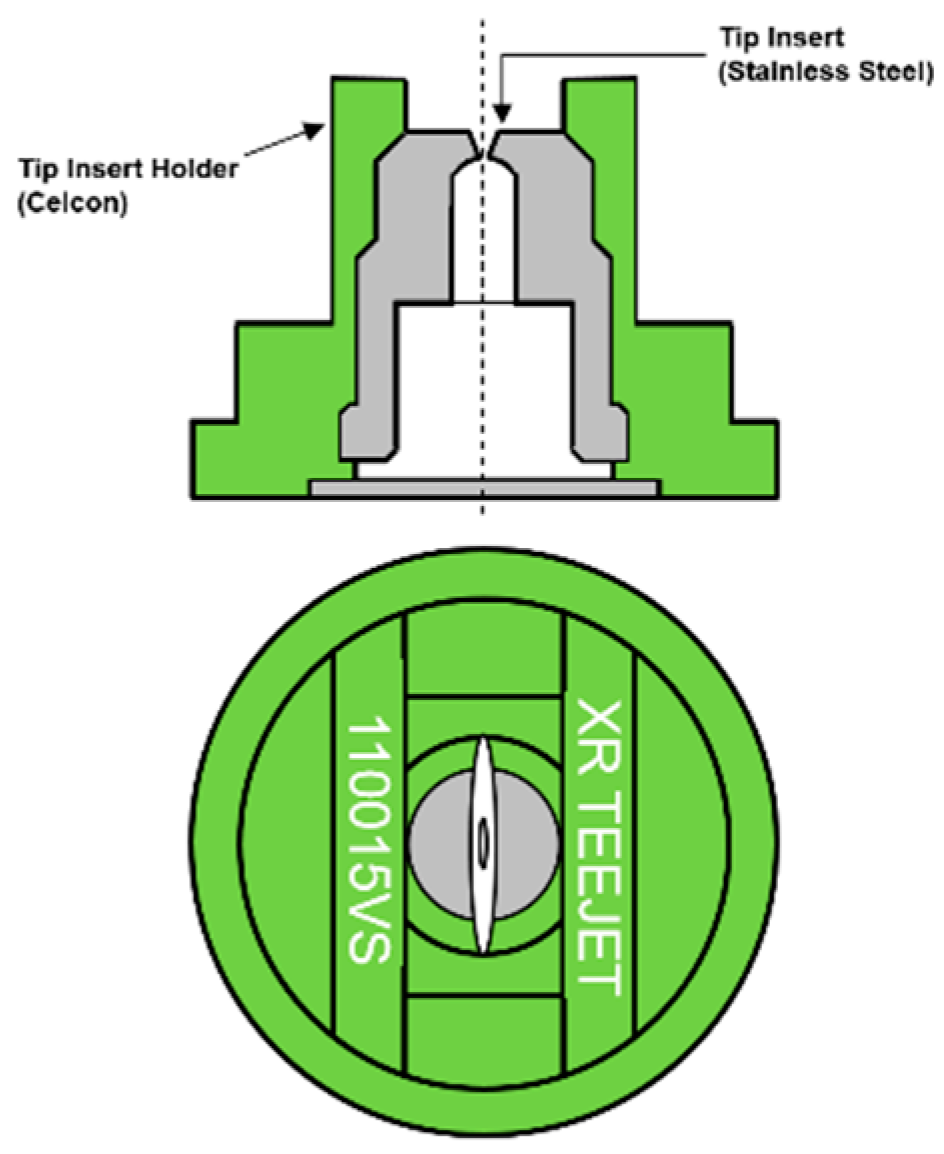

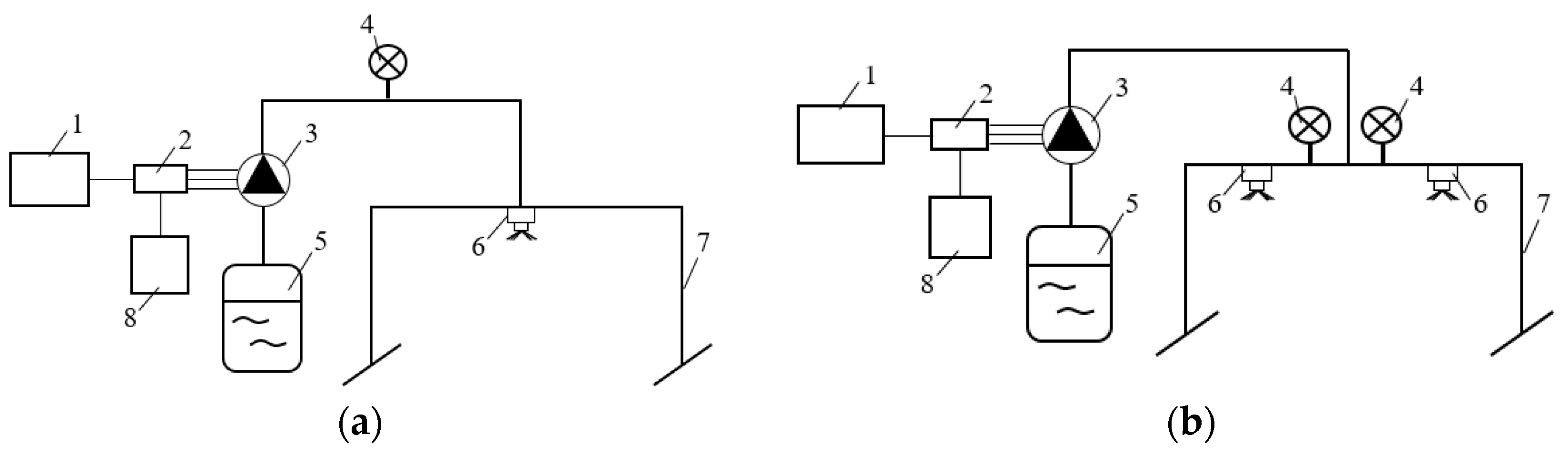

2.1. Spray System

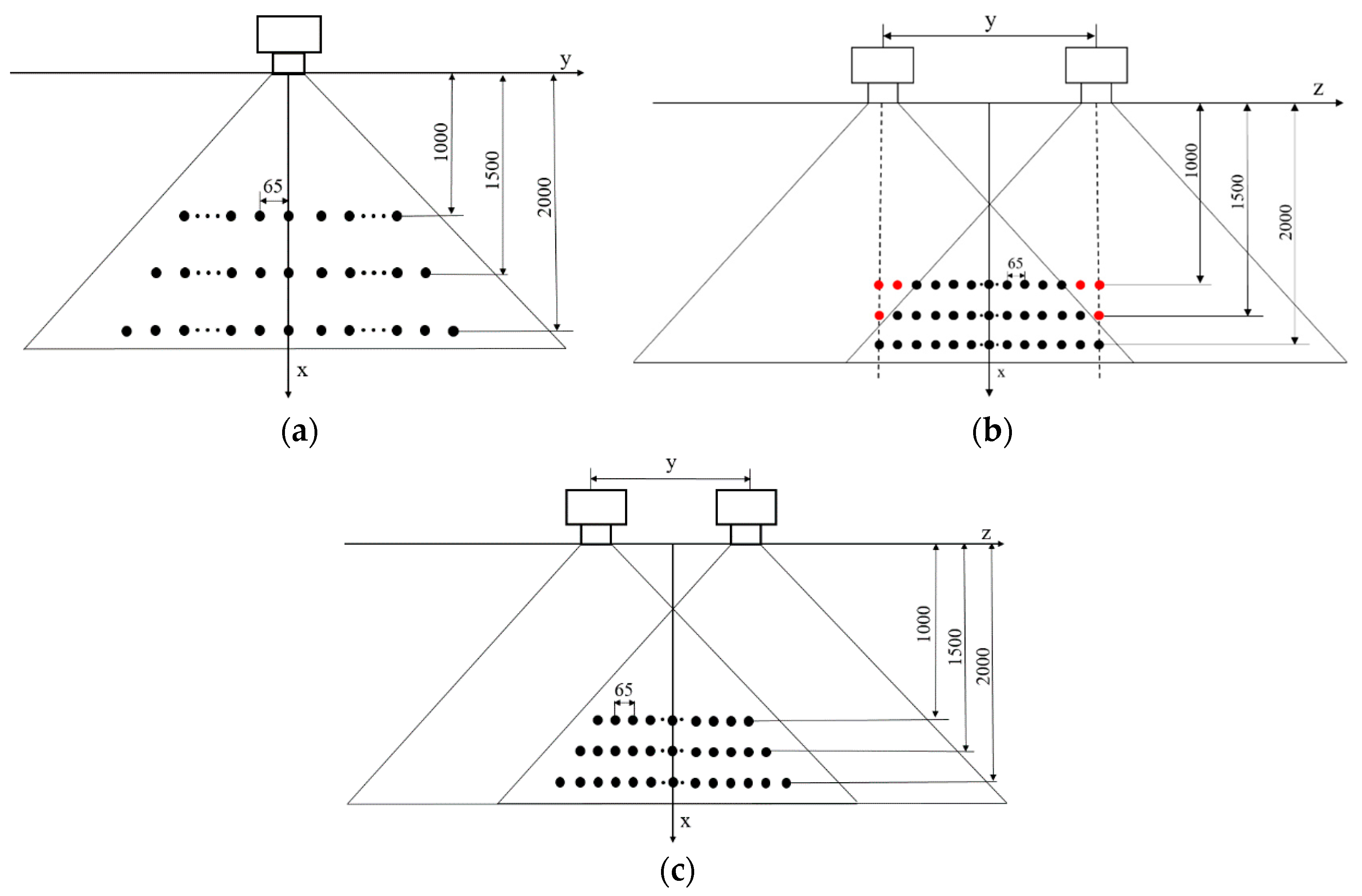

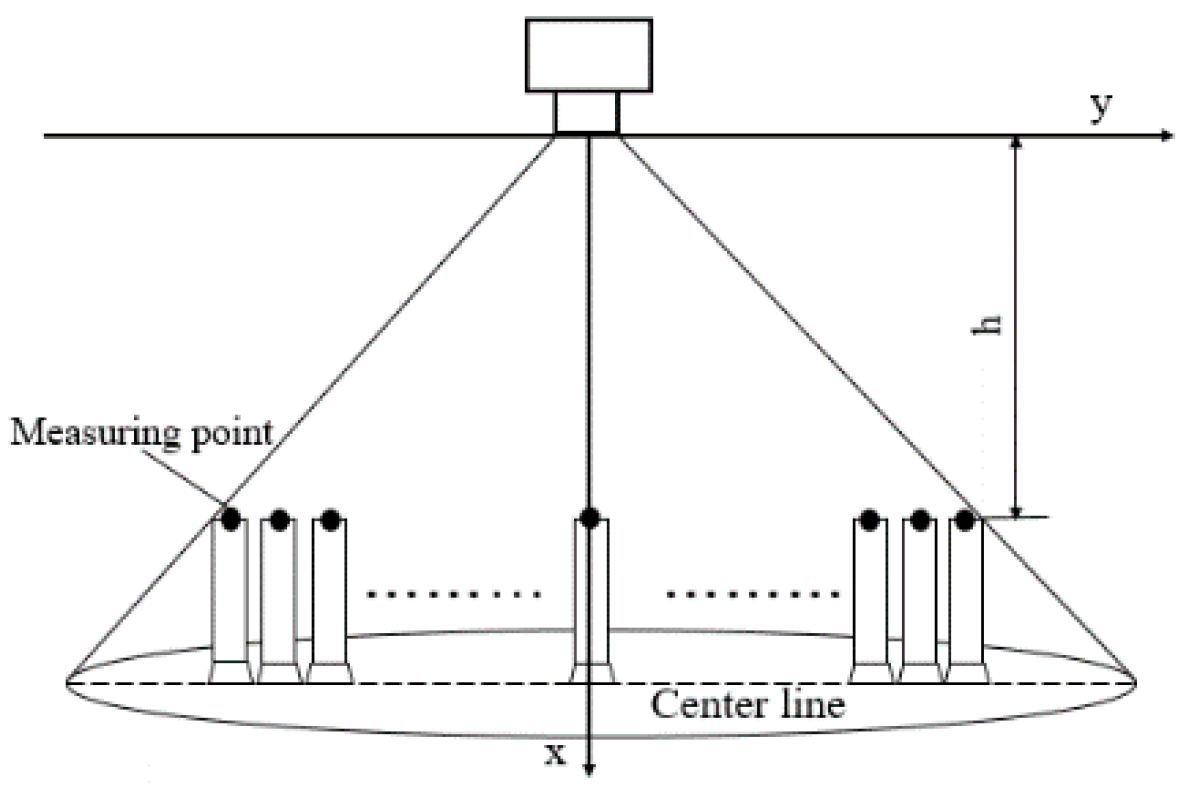

2.2. Equipment and Data Collection Methods
2.3. Machine Learning Methods
2.4. Performance Evaluation
3. Results
3.1. Evaluation of Droplet Size for TEEJET XR110015VS Nozzle
3.2. Evaluation of Droplet Size for Twin Nozzles Condition
3.3. Evaluation of Deposition Distribution for Twin Nozzles Condition

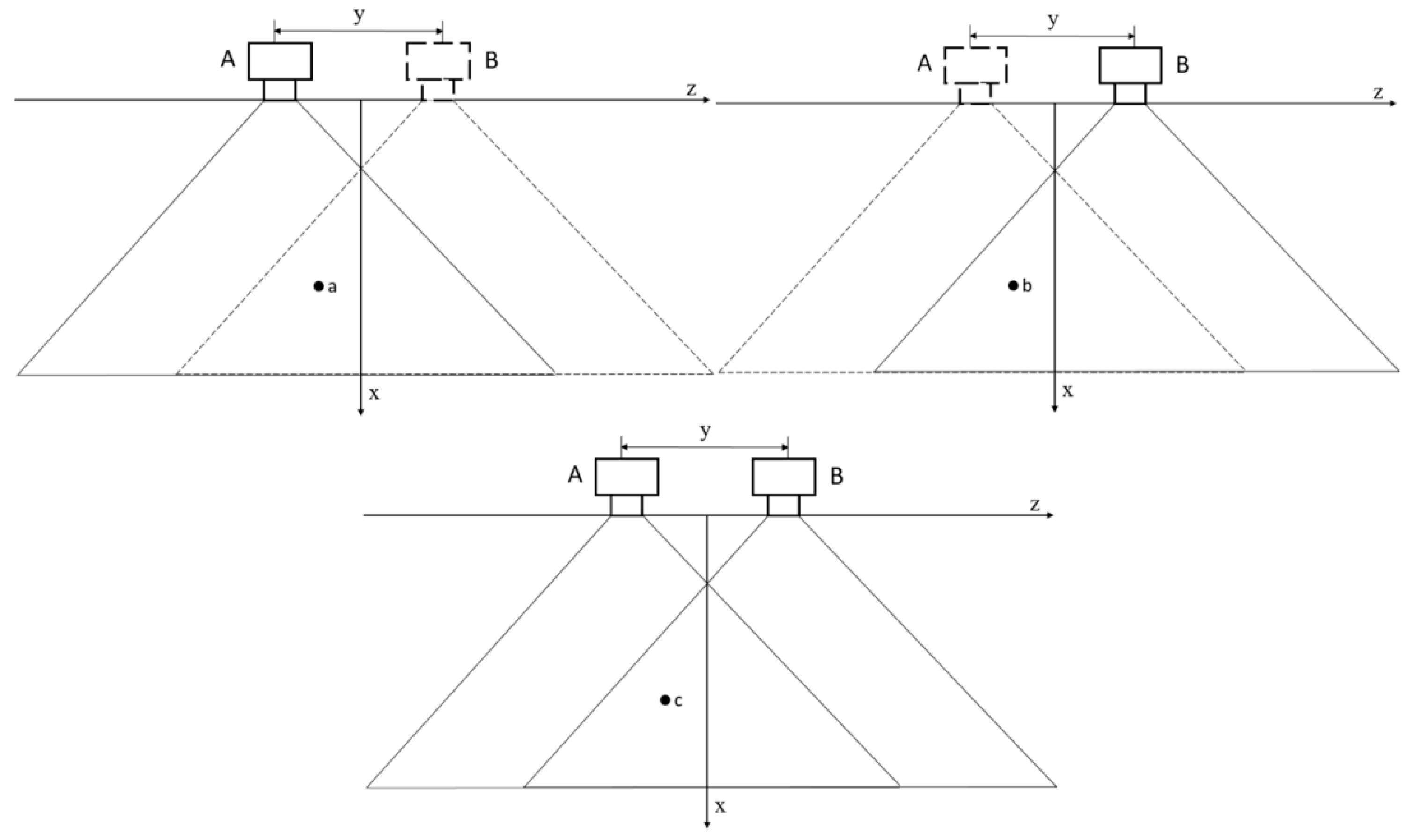

3.4. Droplet Size Prediction of Overlapping Area for Twin Nozzles Condition
4. Conclusions
Author Contributions
Funding
Conflicts of Interest
References
- Huang, Y.; Hoffmann, W.C.; Lan, Y.; Wu, W.; Fritz, B.K. Development of a Spray System for an Unmanned Aerial Vehicle Platform. Appl. Eng. Agric. 2009, 25, 803–809. [Google Scholar] [CrossRef]
- He, X.; Bonds, J.; Herbst, A.; Langenakens, J. Recent Development of Unmanned Aerial Vehicle for Plant Protection in East Asia. Int. J. Agric. Biol. Eng. 2017, 10, 18–30. [Google Scholar]
- Zhang, Y.; Lian, Q.; Zhang, W. Design and Test of a Six-Rotor Unmanned Aerial Vehicle (Uav) Electrostatic Spraying System for Crop Protection. Int. J. Agric. Biol. Eng. 2017, 10, 68–76. [Google Scholar]
- Hilz, E.; Vermeer, A.W.P. Spray Drift Review: The Extent to Which a Formulation Can Contribute to Spray Drift Reduction. Crop Prot. 2013, 44, 75–83. [Google Scholar] [CrossRef]
- Lou, Z.; Xin, F.; Han, X.; Lan, Y.; Duan, T.; Fu, W. Effect of Unmanned Aerial Vehicle Flight Height on Droplet Distribution, Drift and Control of Cotton Aphids and Spider Mites. Agron. -Basel 2018, 8, 187. [Google Scholar] [CrossRef] [Green Version]
- Wang, J.; Lan, Y.; Zhang, H.; Zhang, Y.; Wen, S.; Yao, W.; Deng, J. Drift and Deposition of Pesticide Applied by Uav on Pineapple Plants under Different Meteorological Conditions. Int. J. Agric. Biol. Eng. 2018, 11, 5–12. [Google Scholar] [CrossRef] [Green Version]
- Dhouib, I.; Jallouli, M.; Annabi, A.; Marzouki, S.; Gharbi, N.; Elfazaa, S.; Lasram, M.M. From Immunotoxicity to Carcinogenicity: The Effects of Carbamate Pesticides on the Immune System. Environ. Sci. Pollut. Res. 2016, 23, 9448–9458. [Google Scholar] [CrossRef]
- Hewitt, A. Droplet Size and Agricultural Spraying .1. Atomization, Spray Transport, Deposition, Drift, and Droplet Size Measurement Techniques. At. Sprays 1997, 7, 235–244. [Google Scholar] [CrossRef]
- Tuck, C.R.; Ellis, M.C.B.; Miller, P.C.H. Techniques for Measurement of Droplet Size and Velocity Distributions in Agricultural Sprays. Crop Prot. 1997, 16, 619–628. [Google Scholar] [CrossRef]
- Ferguson, J.C.; O’Donnell, C.C.; Chauhan, B.S.; Adkins, S.W.; Kruger, G.R.; Wang, R.; Urach Ferreira, P.H.; Hewitt, A.J. Determining the Uniformity and Consistency of Droplet Size across Spray Drift Reducing Nozzles in a Wind Tunnel. Crop Prot. 2015, 76, 1–6. [Google Scholar] [CrossRef]
- Law, S.E. Agricultural Electrostatic Spray Application: A Review of Significant Research and Development During the 20th Century. J. Electrost. 2001, 51, 25–42. [Google Scholar]
- Wang, C.; He, X.; Wang, X.; Wang, Z.; Wang, S.; Li, L.; Bonds, J.; Herbst, A.; Wang, Z. Testing Method and Distribution Characteristics of Spatial Pesticide Spraying Deposition Quality Balance for Unmanned Aerial Vehicle. Int. J. Agric. Biol. Eng. 2018, 11, 18–26. [Google Scholar] [CrossRef] [Green Version]
- Nuyttens, D.; Baetens, K.; De Schampheleire, M.; Sonck, B. Effect of Nozzle Type, Size and Pressure on Spray Droplet Characteristics. Biosyst. Eng. 2007, 97, 333–345. [Google Scholar] [CrossRef]
- Zhou, J.; He, X.; Landers, A.J. Dosage Adjustment for Pesticide Application in Vineyards. Trans. ASABE 2012, 55, 2043–2049. [Google Scholar] [CrossRef]
- Creech, C.F.; Henry, R.S.; Fritz, B.K.; Kruger, G.R. Influence of Herbicide Active Ingredient, Nozzle Type, Orifice Size, Spray Pressure, and Carrier Volume Rate on Spray Droplet Size Characteristics. Weed Technol. 2015, 29, 298–310. [Google Scholar] [CrossRef]
- Guler, H.; Zhu, H.; Ozkan, H.E.; Derksen, R.C.; Yu, Y.; Krause, C.R. Spray Characteristics and Drift Reduction Potential with Air Induction and Conventional Flat-Fan Nozzles. Trans. ASABE 2007, 50, 745–754. [Google Scholar] [CrossRef]
- Oh, H.; Kim, K.; Kim, S. Characterization of Deposition Patterns Produced by Twin-Nozzle Electrospray. J. Aerosol Sci. 2008, 39, 801–813. [Google Scholar] [CrossRef]
- Kang, F.; Wang, Y.; Li, S.; Jia, Y.; Li, W.; Zhang, R.; Zheng, Y. Establishment of a Static Nozzle Atomization Model for Forest Barrier Treatment. Crop Prot. 2018, 112, 201–208. [Google Scholar] [CrossRef]
- Wang, L.; Chen, D.; Yao, Z.; Ni, X.; Wang, S. Research on the Prediction Model and Its Influencing Factors of Droplet Deposition Area in the Wind Tunnel Environment Based on UAV Spraying. IFAC PapersOnLine 2018, 51, 274–279. [Google Scholar]
- Hong, S.-W.; Zhao, L.; Zhu, H. Cfd Simulation of Pesticide Spray from Air-Assisted Sprayers in an Apple Orchard: Tree Deposition and Off-Target Losses. Atmos. Environ. 2018, 175, 109–119. [Google Scholar] [CrossRef]
- Mosavi, A.; Ozturk, P.; Chau, K.-w. Flood Prediction Using Machine Learning Models: Literature Review. Water 2018, 10, 1536. [Google Scholar] [CrossRef] [Green Version]
- Kong, W.; Zhang, C.; Huang, W.; Liu, F.; He, Y. Application of Hyperspectral Imaging to Detect Sclerotinia Sclerotiorum on Oilseed Rape Stems. Sensors 2018, 18, 123. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- McKinney, B.A.; Reif, D.M.; Ritchie, M.D.; Moore, J.H. Machine Learning for Detecting Gene-Gene Interactions: A Review. Appl. Bioinform. 2006, 5, 77–88. [Google Scholar] [CrossRef] [PubMed]
- Yildiz, B.; Bilbao, J.I.; Sproul, A.B. A Review and Analysis of Regression and Machine Learning Models on Commercial Building Electricity Load Forecasting. Renew. Sustain. Energy Rev. 2017, 73, 1104–1122. [Google Scholar] [CrossRef]
- Aamir, M.A.; Awais, M.M.; Watkins, A.P. Application of Artificial Neural Networks Modeling to Sprays and Spray Impingement Heat Transfer. At. Sprays 2002, 12, 359–386. [Google Scholar] [CrossRef]
- Junior, C.R.G.; Gomes, P.H.; Mano, L.Y.; de Oliveira, R.B.; de L. F. de Carvalho, A.C.P.; Faical, B.S. A Machine Learning-Based Approach for Prediction of Plant Protection Product Deposition; Faical, B.S., Ed.; IEEE: Piscataway, NJ, USA, 2017; pp. 234–239. [Google Scholar] [CrossRef]
- Taghavifar, H.; Khalilarya, S.; Jafarmadar, S. Diesel Engine Spray Characteristics Prediction with Hybridized Artificial Neural Network Optimized by Genetic Algorithm. Energy 2014, 71, 656–664. [Google Scholar] [CrossRef]
- Shin, H.T.; Lee, Y.P.; Jurng, J. Spherical-Shaped Ice Particle Production by Spraying Water in a Vacuum Chamber. Appl. Therm. Eng. 2000, 20, 439–454. [Google Scholar] [CrossRef]
- Wolf, R.E. Comparing Downwind Spray Droplet Deposits of Four Flat-Fan Nozzle Types Measured in a Wind Tunnel and Analyzed Using Dropletscan (Tm) Software. Appl. Eng. Agric. 2005, 21, 173–177. [Google Scholar] [CrossRef]
- Barbosa, R.N.; Griffin, J.L.; Hollier, C.A. Effect of Spray Rate and Method of Application in Spray Deposition. Appl. Eng. Agric. 2009, 25, 181–184. [Google Scholar] [CrossRef]
- Guo, S.; Li, J.; Yao, W.; Zhan, Y.; Li, Y.; Shi, Y. Distribution Characteristics on Droplet Deposition of Wind Field Vortex Formed by Multi-Rotor UAV. PloS ONE 2019, 14. [Google Scholar] [CrossRef] [Green Version]
- Engineers, A.S.O.A. Procedure for Measuring Distribution Uniformity and Calibrating Granular Broadcast Spreaders; ASAE Standards: St Joseph, MI, USA, 1995. [Google Scholar]
- Lu, Y.; Zhang, L.; Feng, X.; Zeng, Y.; Fu, B.; Yao, X.; Li, J.; Wu, B. Recent Ecological Transitions in China: Greening, Browning, and Influential Factors. Sci. Rep. 2015, 5, 1–8. [Google Scholar]
- Amisigo, B.A.; van de Giesen, N.; Rogers, C.; Andah, W.E.I.; Friesen, J. Monthly Streamflow Prediction in the Volta Basin of West Africa: A Sisonarmax Polynomial Modelling. Phys. Chem. Earth 2008, 33, 141–150. [Google Scholar] [CrossRef]
- Steed, C.A.; Swan, J.E.; Jankun-Kelly, T.J.; Fitzpatrick, P.J. Guided Analysis of Hurricane Trends Using Statistical Processes Integrated with Interactive Parallel Coordinates; IEEE: Piscataway, NJ, USA, 2009; pp. 19–26. [Google Scholar] [CrossRef] [Green Version]
- Chatterjee, S.; Hadi, A.S. Influential Observations, High Leverage Points, and Outliers in Linear Regression. Stat. Sci. 1986, 1, 379–416. [Google Scholar] [CrossRef]
- Wang, H.F.; Hu, D.J. Comparison of Svm and Ls-Svm for Regression; IEEE: New York, NY, USA, 2005; pp. 279–283. [Google Scholar]
- Suykens, J.A.K.; De Brabanter, J.; Lukas, L.; Vandewalle, J. Weighted Least Squares Support Vector Machines: Robustness and Sparse Approximation. Neurocomputing 2002, 48, 85–105. [Google Scholar] [CrossRef]
- AK, S.J. Least Squares Support Vector Machines; World Scientific: Singapore, 2002. [Google Scholar]
- Deng, W.; Yao, R.; Zhao, H.; Yang, X.; Li, G. A Novel Intelligent Diagnosis Method Using Optimal Ls-Svm with Improved Pso Algorithm. Soft Comput. 2019, 23, 2445–2462. [Google Scholar] [CrossRef]
- Huang, G.B.; Zhu, Q.Y.; Siew, C.K. Extreme Learning Machine: Theory and Applications. Neurocomputing 2006, 70, 489–501. [Google Scholar] [CrossRef]
- Lan, Y.; Soh, Y.C.; Huang, G.-B. Constructive Hidden Nodes Selection of Extreme Learning Machine for Regression. Neurocomputing 2010, 73, 3191–3199. [Google Scholar] [CrossRef]
- Zhu, Q.Y.; Qin, A.K.; Suganthan, P.N.; Huang, G.B. Evolutionary Extreme Learning Machine. Pattern Recognit. 2005, 38, 1759–1763. [Google Scholar] [CrossRef]
- Schalkoff, R.J. Artificial Neural Networks; McGraw-Hill Higher Education: New York, NY, USA, 1997. [Google Scholar]
- Ding, J.; Zhang, J.; Huang, W.; Chen, S. Laser Gyro Temperature Compensation Using Modified Rbfnn. Sensors 2014, 14, 18711–18727. [Google Scholar] [CrossRef]
- Er, M.J.; Wu, S.Q.; Lu, J.W.; Toh, H.L. Face Recognition with Radial Basis Function (Rbf) Neural Networks. IEEE Trans. Neural Netw. 2002, 13, 697–710. [Google Scholar]
- Staiano, A.; Tagliaferri, R.; Pedrycz, W. Improving Rbf Networks Performance in Regression Tasks by Means of a Supervised Fuzzy Clustering. Neurocomputing 2006, 69, 1570–1581. [Google Scholar] [CrossRef]
- Nagelkerke, N.J.D. A Note on a General Definition of the Coefficient of Determination. Biometrika 1991, 78, 691–692. [Google Scholar] [CrossRef]
Calibration Set | Prediction Set | |||||||
---|---|---|---|---|---|---|---|---|
Groups | Sum | Range | Mean | S.D. | Sum | Range | Mean | S.D. |
A | 46 | 151.26–182.19 | 165.25 | 8.13 | 15 | 150.53–172.00 | 163.09 | 5.64 |
B | 72 | 154.20–183.00 | 170.99 | 7.08 | 24 | 156.23–182.30 | 170.79 | 7.06 |
C | 72 | 1.0829–3.2137 | 1.9144 | 0.4711 | 24 | 1.1818–3.1031 | 1.8962 | 0.4609 |
D | 66 | 154.20–183.82 | 171.15 | 7.49 | 22 | 156.23–182.74 | 170.95 | 7.44 |
Groups | Spray Height | |||
---|---|---|---|---|
Nozzle Spacing | 1 m | 1.5 m | 2 m | |
A | \ | 158.21 ± 5.30 µm c | 162.58 ± 5.24 µm b | 171.48 ± 5.65 µm a |
B | 0.5 m | 161.15 ± 4.96 µm d | 171.33 ± 6.85 µm c | 173.12 ± 7.02 µm b |
0.6 m | 163.03 ± 4.92 µm d | 172.98 ± 3.97 µm b | 178.55 ± 2.97 µm a | |
0.7 m | 167.87 ± 4.00 µm c | 168.71 ± 3.96 µm c | 178.48 ± 3.99 µm a | |
C | 0.5 m | 2.8265 ± 0.2591 mL/cm2 a | 1.9069 ± 0.1819 mL/cm2 c | 1.6924 ± 0.2573 mL/cm2 d |
0.6 m | 2.6962 ± 0.3879 mL/cm2 a | 1.8879 ± 0.2492 mL/cm2 d | 1.5997 ± 0.2267 mL/cm2 d | |
0.7 m | 2.1961 ± 0.2630 mL/cm2 b | 1.6391 ± 0.1728 mL/cm2 d | 1.5222 ± 0.1721 mL/cm2 d | |
D | 0.5 m | 161.15 ± 4.96 µm d | 171.33 ± 6.85 µm c | 172.17 ± 6.40 µm b |
0.6 m | 161.72 ± 4.76 µm d | 172.98 ± 3.97 µm b | 178.56 ± 2.97 µm a | |
0.7 m | 165.59 ± 3.91 µm d | 167.72 ± 3.63 µm c | 178.37 ± 3.46 µm a |
Model | Parameter [a] | Accuracy of Calibration Set | Accuracy of Prediction Set | ||
---|---|---|---|---|---|
RC2 | RMSEC (μm) | RP2 | RMSEP(μm) | ||
REGRESS | 3 | 0.9382 | 2.2011 | 0.9201 | 1.9761 |
LS-SVM | (24.169, 2.445 × 104) | 0.9378 | 2.2026 | 0.9201 | 1.8939 |
ELM | 9 | 0.7413 | 4.1362 | 0.6795 | 3.8519 |
RBFNN | 763 | 0.9395 | 1.9960 | 0.9253 | 1.9183 |
Model | Parameter [a] | Accuracy of Calibration Set | Accuracy of Prediction Set | ||
---|---|---|---|---|---|
RC2 | RMSEC (μm) | Rp2 | RMSEP(μm) | ||
REGRESS | 4 | 0.9206 | 1.9949 | 0.9204 | 2.0602 |
LS-SVM | (7.159, 1.490 × 106) | 0.9382 | 1.7634 | 0.9154 | 2.2450 |
ELM | 36 | 0.8727 | 2.5271 | 0.7602 | 3.5839 |
RBFNN | 130 | 0.8667 | 2.5843 | 0.7850 | 3.3721 |

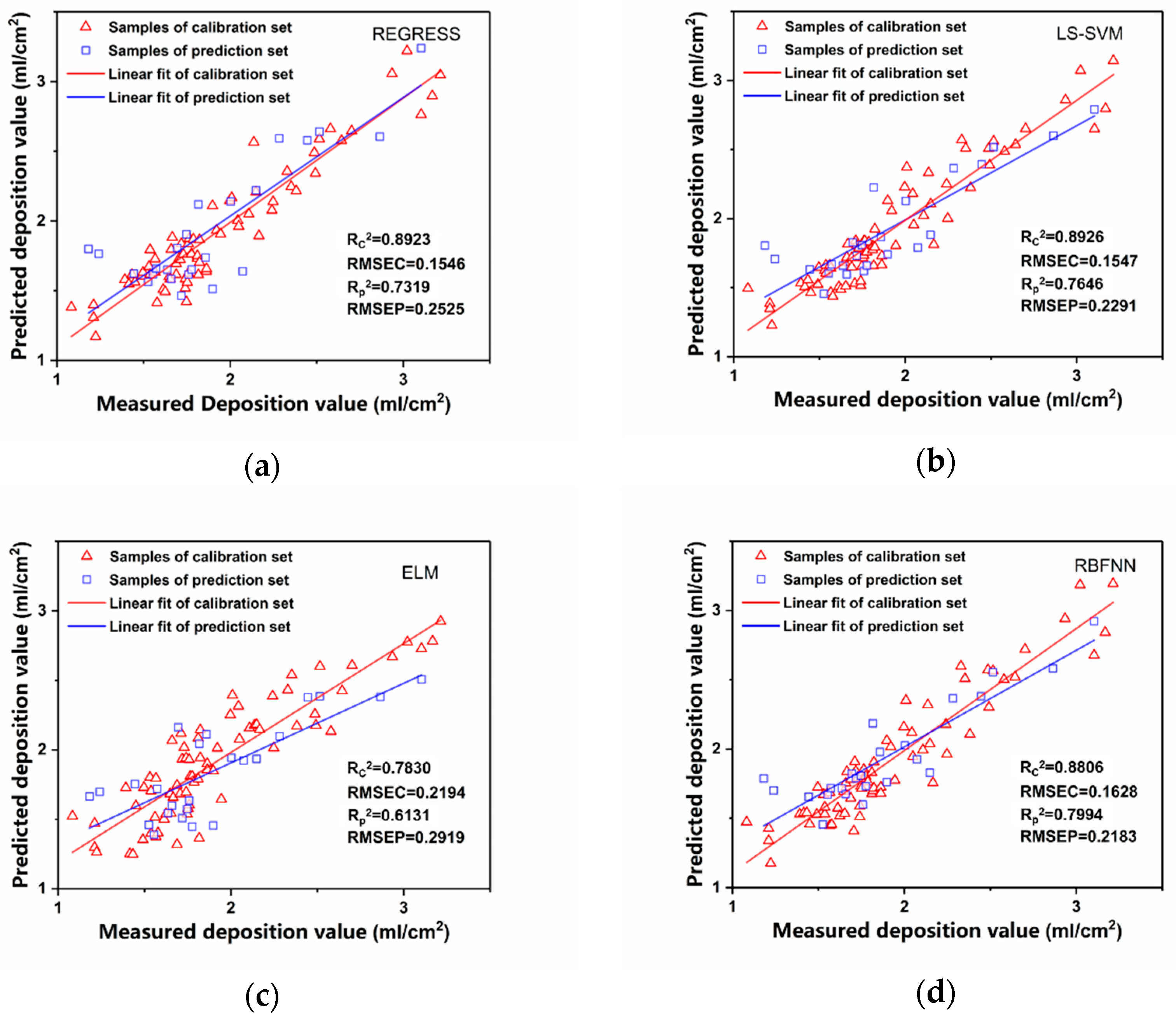

Model | Parameter [a] | Accuracy of Calibration Set | Accuracy of Prediction Set | ||
---|---|---|---|---|---|
RC2 | RMSEC (mL/cm2) | Rp2 | RMSEP (mL/cm2) | ||
REGRESS | 3 | 0.8923 | 0.1546 | 0.7319 | 0.2525 |
LS-SVM | (2.664, 314.218) | 0.8926 | 0.1547 | 0.7646 | 0.2291 |
ELM | 18 | 0.7830 | 0.2194 | 0.6131 | 0.2919 |
RBFNN | 358 | 0.8806 | 0.1628 | 0.7994 | 0.2183 |

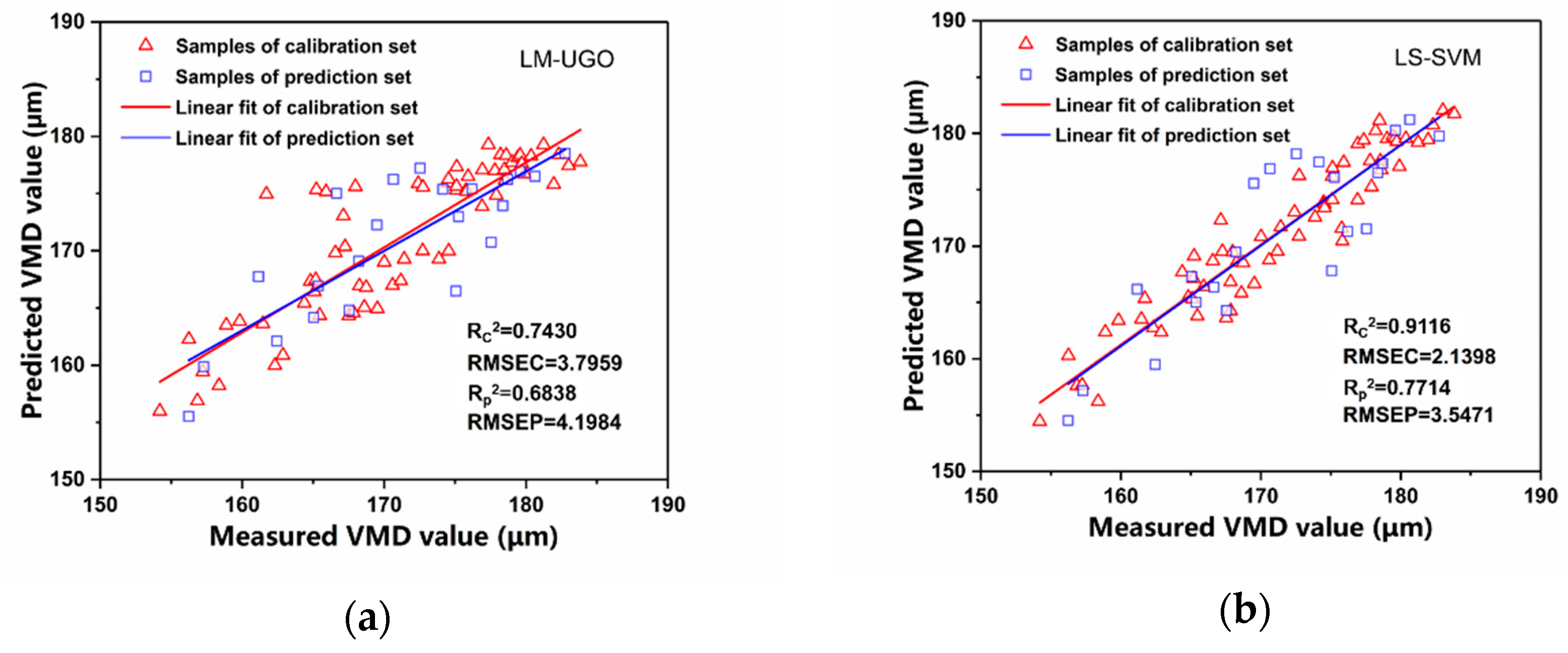

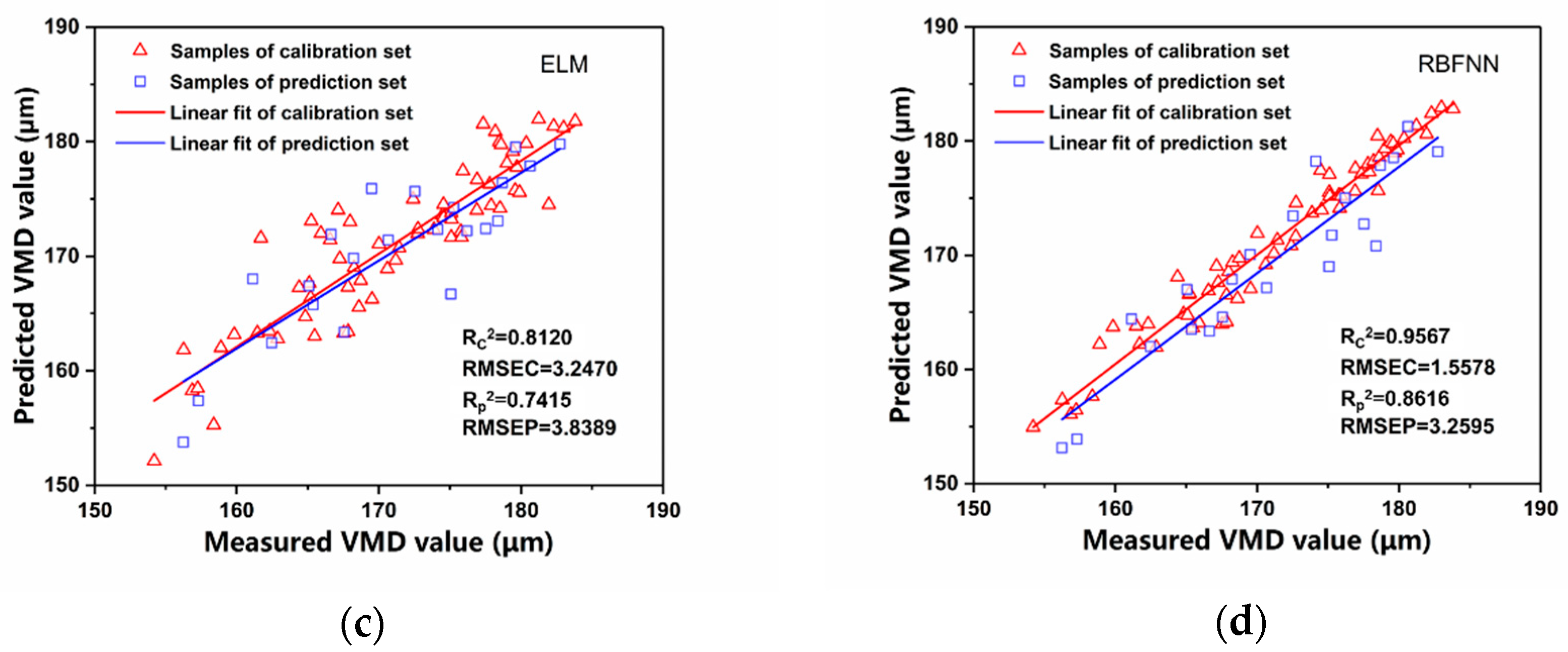

Model | Parameter [a] | Accuracy of Calibration Set | Accuracy of Prediction Set | ||
---|---|---|---|---|---|
RC2 | RMSEC (μm) | Rp2 | RMSEP(μm) | ||
LM-UGO | / | 0.7430 | 3.7959 | 0.6838 | 4.1984 |
LS-SVM | (0.599, 22.789) | 0.9116 | 2.1398 | 0.7714 | 3.5471 |
ELM | 36 | 0.8120 | 3.2470 | 0.7415 | 3.8389 |
RBFNN | 35 | 0.9567 | 1.5578 | 0.8616 | 3.2595 |
