A Mechanism of Gold Nanoparticle Aggregation by Immunoglobulin G Preparation

Featured Application

Aggregation instability of conjugates of gold nanoparticles and antibodies is a frequent problem. Widely used screening antibody clones to find the most stable conjugates is an extensive approach to solve the problem. We have found that a partial destruction of antibodies may cause the decrease in the stability of conjugates. So the control of the preparations used and removing products of the antibodies decay will assist in the creation of nanoconjugate-based systems with enhanced functionality.

Abstract

Conjugates of gold nanoparticles (GNPs) and antibodies are widely used in various fields of biochemistry and microbiology. However, the procedure for obtaining such conjugates remains precarious, and the properties of conjugates differ significantly for different antibody clones. One of the most common problems is the aggregation of GNPs in the course of their conjugation with antibodies. This article considers an example of the conjugation of monoclonal antibodies with non-stable aggregating product. The composition of the antibody preparation was studied using electrophoresis, asymmetrical flow field-flow fractionation, and ultracentrifugation. It was shown that the component that causes the aggregation of the GNPs is the light chains of immunoglobulins that appear due to the spontaneous decay of the antibodies. After separation of the fraction with a molecular weight of less than 30 kDa, stable conjugates of antibodies with GNPs were obtained. The high functional activity of the obtained conjugates was confirmed by immunochromatography.

1. Introduction

Due to the unique physical and chemical properties of gold nanoparticles (GNPs), they are widely used in biochemistry, medicine, and analytical chemistry [1,2,3,4,5,6]. GNPs have high surface energy, which determines the possibility of their modification [7,8]. As a rule, GNPs are modified using biological macromolecules such as proteins and nucleic acids [9,10]. GNPs in complexes with bioreceptor molecules (antibodies, aptamers, etc.) are used as analytical markers [11,12]. To obtain nanoconjugates, a large number of covalent sewing techniques have been developed, but for biological macromolecules, physical adsorption methods remain the most popular [13,14,15].

The interaction of macromolecules and nanoparticles depends on the chemical nature of the adsorbed substance, the composition of the medium, and other factors. Electrostatic, hydrophobic, van der Waals, and donor–acceptor interactions can contribute to this process [6]. The high affinity of gold for sulfur-containing groups leads to the formation of a self-organizing monolayer of thiol-containing molecules on gold surfaces [16]. Proteins are effective stabilizers for GNPs. Even physical sorption of proteins on the surface of gold is characterized by a high binding constant (K_d –up to 10⁻⁹ M) [17,18]. As well as proteins contain many groups with different natures, their interaction with the surfaces of particles occurs by several mechanisms.

Despite the long history of the use of GNPs, the synthesis of their conjugates with biomolecules is not a strictly delineated procedure to this day. The syntheses often lead to unstable conjugates being unsuitable for use. Particularly relevant is the question of obtaining conjugates of GNPs with antibodies. The high variability of the composition of antibodies impedes the development of a universal technique for obtaining such conjugates. Fairly often, the conjugates are unstable and quickly lose activity during storage [19,20], which is primarily a result of the process of particle aggregation [21].

Aggregation of metal nanoparticles is accompanied by significant changes in their adsorption spectra. This property has been successfully used in various homogeneous biosensors [22,23,24]. However, for heterogeneous bioanalytical systems, for example, immunochromatographical ones, aggregation of nanoconjugates leads to a lost of their mobility and analytical signals. For this reason, obtaining stable non-aggregating conjugates of metal nanoparticles with antibodies is an important task. To solve this problem, a number of covalent conjugation methods have been developed, for example, using 2-(N-morpholino) ethanesulfonic acid and 3-(N-morpholino)propanesulfonic acid [25]. However, simple physical adsorption is still the most commonly used method for obtaining such conjugates [26]. In this regard, there is a need for studying factors that affect the aggregation of nanoparticles during their conjugation with antibodies.

In this paper we consider an example of obtaining conjugates of a monoclonal antibody preparation with GNPs with non-stable aggregating product. The reasons for reducing their stability are investigated, and a method for solving this problem is proposed.

2. Materials and Methods

The following main reagents were used in the work: tween–20, sodium azide, and hydrochloric acid (Chimmed, Moscow, Russia), Tris (Sigma-Aldrich, St. Louis, USA), chloroauric acid (Sigma-Aldrich, USA), bovine serum albumin (BSA)—Boval Biosolutions (Fort Worth, USA), monoclonal antibodies 2H3C6 (Mab 2H3C6) against secretory protein MPT64 of Mycobacterium tuberculosis, and monoclonal antibody 2H2F6 against the structural protein of the sharkey plum virus (Mab2H2F6), which is manufactured by the Central Tuberculosis Research Institute (Moscow, Russia). Protein concentration was determined using the Micro BCA Protein Assay Kit (Thermo Fisher Scientific, Waltham, USA) according to the manufacturer’s protocol (https://assets.thermofisher.com/TFS-Assets/LSG/manuals/MAN0011237_Micro_BCA_Protein_Asy_UG.pdf).

2.1. Obtaining GNPs

To obtain GNPs with an average diameter of 25 nm, a variant of the Frens method based on the reduction of Au (III) by citrate was applied [27]. Chloroauric acid (2.95 mL of 0.34% water solution) was added to 97.5 mL of boiling deionized water. The mixture was boiled for 2 min with stirring. Then, 1.44 mL of a 1% sodium citrate solution was added, stirred at maximum speed, boiled for 30 min, cooled to room temperature, and stored at +4 °C.

2.2. Determination of GNP Sizes by Transmission Electron Microscopy

GNP preparations were applied to 200 mesh hexagonal copper grids coated with formvar film (SPI Supplies, West Chester, USA). Microscopic analysis was performed on a JEM–100 CX/SEG instrument (Jeol, Akishima, Japan). The obtained microphotographs were scanned to produce 1200 dpi black and white images, and 152 images of particles were processed using the Image Tool program (University of Texas Health Science Center at San Antonio, San Antonio, USA).

2.3. Preparation and Purification of Monoclonal Antibodies

Monoclonal antibodies were obtained by fusion of spleen immune cells of hyperimmune mice with HAT-sensitive myeloma SP2/0. Cell cultures were grown in 96-well plates in 5% CO₂ in a CO₂ incubator (Queue, East Lyme, USA) in RPMI1640 culture media with sequential addition of HAT (hypoxanthine-aminopterin-thymidine) and HT (hypoxanthine-thymidine) supplements (Sigma-Aldrich, USA). The growth was controlled basing on changes in the number of cells in the wells; a preliminary comparative assessment of growth in different wells was performed using an inverted microscope (Olympus, Shinjuku, Japan). The medium for in vitro growth of hybridomas contained 10% fetal serum (from which immunoglobulins were removed by chromatography).

Immunoaffinity chromatography on Sepharose with covalently bound to proteins A and G (HiTrap HP, GE Healthcare) was used for cleaning fetal serum and monoclonal antibodies. Supernatants of hybridomas or fetal serum were passed through columns with the suitable sorbent in FPLC (Pharmacia, Stockholm, Sweden). The columns were washed with PBS. Elution of bound antibodies was initiated by a chaotropic agent—0.3 M glycine (pH 3.0). After the regeneration sorbent by PBS the procedure was repeated. The collected samples were dialyzed against PBS overnight at 4 °C. Concentration of immunoglobulins was carried out on ultrafiltration cells (Amicon, Tampa, USA) onto Biomax 10000NMWL, PBGC 02, 510 filters (Millipore, Burlington, USA).

2.4. Obtaining of Flocculation Dependence

To determine the stabilizing concentration of proteins, the flocculation method was used. Protein solutions in concentrations from 0 to 20 μg/mL were added to the GNPs preparation, mixed, and incubated at room temperature. Then 10% NaCl was added to each sample, mixed, and, after a 10-min incubation, the optical density of the solution was measured at 580 nm.

2.5. Immobilization of Antibodies on GNPs for Immunochromatography

The GNP solution was adjusted with potassium carbonate (0.2 M) to a pH of 8.5–9.0. Thereafter, IgG was added to the solution to a final concentration of 10 μg/mL. The mixture was incubated for 30 min; then, 10% BSA (1/40 by volume) was added and retained for another 10 min with vigorous stirring. GNPs were precipitated by centrifugation at 10,000× g and 4 °C for 15 min. A precipitate was taken, and 10 mM Tris-HCl buffer, pH 8.5, with 1% BSA and 1% sucrose, was added.

2.6. SDS Electrophoresis in Polyacrylamide Gel

Electrophoretic analysis of the antibody preparation was performed according to the Laemmli method [28]; 12.5% or 15% polyacrylamide gels were used. The polymerization was initiated by the addition of ammonium persulfate and tetramethylethylenediamine to a final concentration of 0.1%. Samples for electrophoresis were prepared as follows: concentrated sample buffer (0.25 M Tris-HCl, 8% SDS, 40% glycerol, 0.004% bromophenol blue, and 5% mercaptoethanol, pH 6.8) was added to the protein solution (v/v = 1:4) and incubated at 100 °C for 5 min. Electrophoresis was performed on a plate 1 mm thick and 13 cm wide at a current strength of 20 mA until the leading dye entered the separating gel. Then, the current strength was increased to 40 mA. After electrophoresis, the gel was placed in 10% acetic acid for 30 min to fix the proteins and remove SDS. Next, the gels were stained with a Coomassie solution (0.2% Coomassie Blue R–250, 20% isopropanol, 10% acetic acid) for 1 h, and excess dye was removed by heating the colored gel in a bath of distilled water.

2.7. Characterization of the Proteins Solutions by Asymmetrical Flow Field-Flow Fractionation (AF4)

The fractionations were performed by a Wyatt Eclipse 3+ Separation System (Wyatt Technology, Santa Barbara, CA, USA) with an autosampler and pump (Agilent Technologies, Santa Clara, CA, USA). A 5-kDa MW cutoff regenerated cellulose membrane (Microdyn-Nadir, Wiesbaden, Germany) was used for separation in the 275-mm channel with a 350-μm thick spacer. The channel was sequentially connected with a UV/VIS detector (Agilent Technologies, USA), Dawn HELEOS II multi-angle light-scattering detector, and Optilab T-Rex refractometer (both from Wyatt Technology, Santa Barbara, USA).

Solutions of BSA and IgG fraction 10–30 kDa (the fraction was additionally concentrated 20 times by centrifugation through 3 kDa filters) in 10 mM Na-carbonate buffer, pH = 9.0, were prepared, and 80 μL of the solutions were loaded into the AF4 system at a rate of 0.2 mL/min. The focusing time during the loading was 2 min. The carrier fluids were the same as the buffers for the preparation of BSA and IgG solutions. The main flow rate in the channel was 1 mL/min, and the focus flow rate was 1 mL/min. Separation was performed at a linear rate gradient of the cross flow from 5 to 0.1 mL/min (10 min). The registered data were analyzed using ChemStation v.B.04.03 (Agilent Technologies, Santa Clara, USA) and Astra v.6.1.1.17 (Wyatt Technology, Santa Barbara, USA) software.

The described above AF4 measurements were conducted using the Shared-Access Equipment Centre “Industrial Biotechnology” of the Federal Research Centre “Fundamentals of Biotechnology” Russian Academy of Sciences (A.N. Bach Institute of Biochemistry RAS), Moscow, Russia.

2.8. Production of Immunochromatographic Test Systems

For the formation of the immunochromatographic system, a set of mdi Easypack membranes from Advanced Microdevices (Ambala Cantt, India) was used, including a CNPC-SN12 L2-P25 working membrane (pore size 15 μm), a PT-R5 conjugate membrane, and a GFB-R4 membrane for applying a sample adsorbing membrane AP 045. The PT-R5 membrane was also used for BSA deposition.

The recombinant antigen of M. tuberculosis, MTB64, was used to form the analytical zone, and 2 μL of a solution of protein in 50 mm phosphate buffer was applied on 1 cm of the strip. The GNP conjugate with antibodies was applied in a dilution corresponding to optical density at 520 nm = 2, in a volume of 10 μL per 1 cm of the band. For the application of reagents, an IsoFlow dispenser from Imagene Technology (Hanover, USA) was used. After applying the reagents, the membranes were dried for at least 24 h in a room with controlled temperature and humidity. Membrane sheets coated with immunoreagents were cut into individual test strips 3.5 mm wide.

3. Results and Discussion

Transmission electron microscopy of GNPs

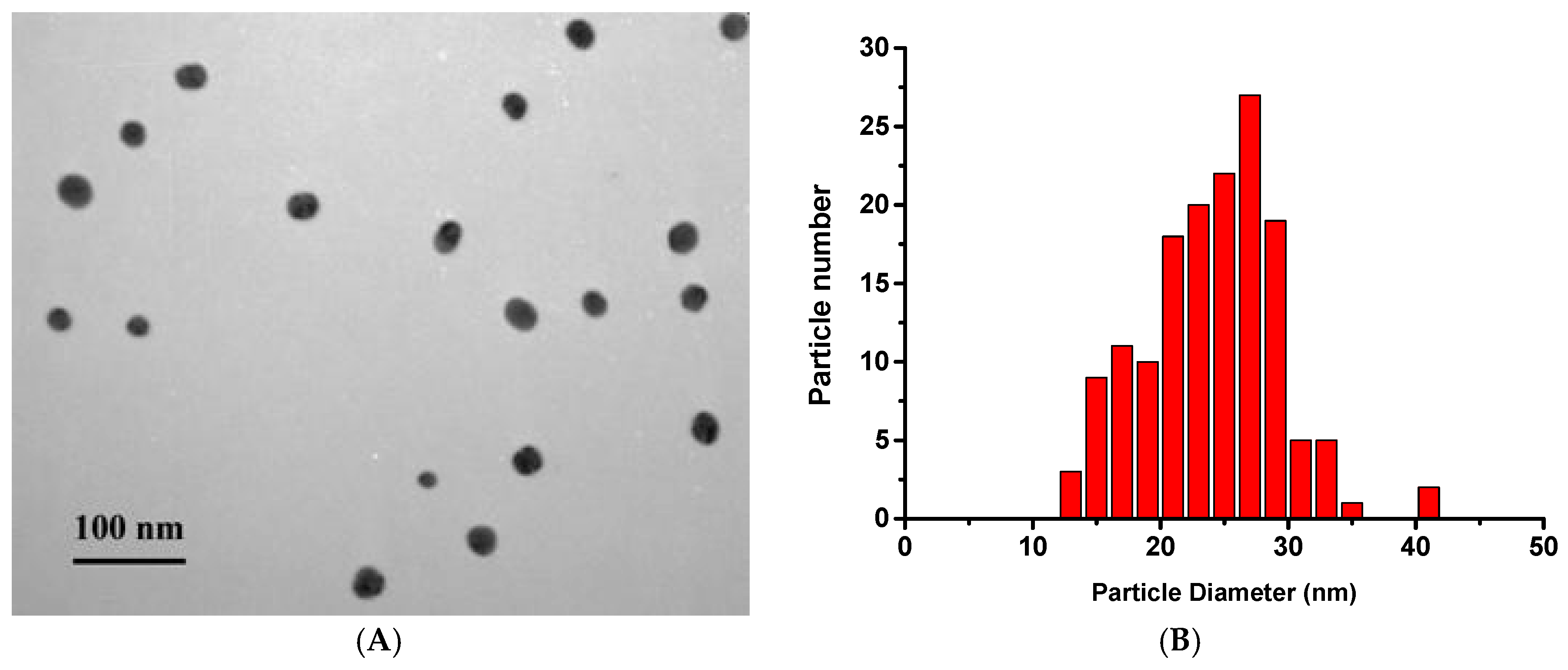

Dimensional characteristics of GNPs were evaluated by transmission electron microscopy. According to the data obtained, the synthesized preparation had an average diameter of nanoparticles about 24.9 nm, the average deviation was 5.3 nm in a sample of 152 particles. The corresponding distribution is shown in Figure 1.

3.1. Flocculation Dependence

The protein adsorption on GNPs is often controlled by the optical density of the colloidal solution at 580 nm after the addition of 10% NaCl [29]. Typically, optical density increases with increasing protein concentration, reaches a maximum, and begins to decline, reaching a plateau. It is believed that reaching a plateau of flocculation dependence corresponds to the composition of conjugates with maximum binding ability that are necessary for highly sensitive immunoassays in noncompetitive formats. We obtained this form of the flocculation curve upon conjugation of Mab 2H2F6 antibodies with GNPs. The preparation of antibodies Mab 2H2F6 did not cause aggregation of nanoparticles (and changes in the optical density of the colloidal solution) by itself. When 10% NCl was added, changes in optical density were observed depending on the concentration of antibodies (see Figure 2A).

When antibodies Mab 2H3C6 were added to the colloidal solution of the GNPs, a fundamentally different dependence was observed: Nanoparticles were aggregated immediately after mixing with antibodies (Figure 2B). This flocculation did not require the addition of 10% NaCl and reflected the unsuitability of the conjugates for further analytical use due to their instability. Monoclonal antibodies do not always behave this way. As a rule, conjugation of monoclonal antibodies with GNPs produces stable nonaggregating conjugates (as was the case with Mab2H2F6). However, it is known that the aggregation stability of GNPs with monoclonal antibodies is significantly different for different antibody preparations [30]. We thus studied the cause of the aggregation of nanoconjugates with the used Mab 2H3C6 preparation.

3.2. Centrifugation and Optical Spectroscopy

To determine the cause of the destabilization of the colloid by monoclonal antibodies, Mab2H3C6 was first filtered through Amicon Ultra centrifugal filters with different transmittance. In each centrifugation, the antibodies were concentrated four times and then diluted with 10 mm Tris-HCl buffer, pH 8.5 to the original volume.

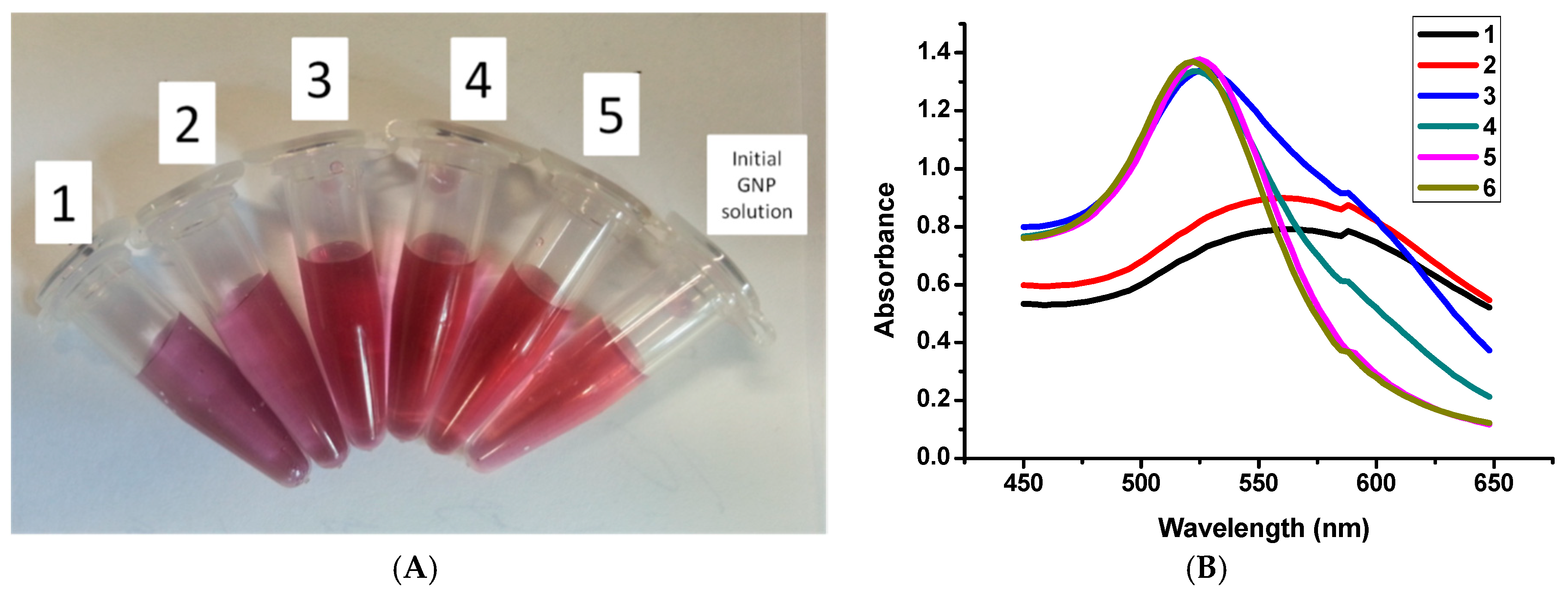

It was found that filtering Mab2H3C6 through filters that pass molecules of less than 30 kDa reduces the aggregation ability of the preparation (Figure 3). For samples 1 and 2 (first and second centrifugation cycles) the aggregates having spectral peak at 580 nm, as it follows from [31], were formed and the colloidal solution became unstable and turbid. Sample 3 (third cycle) had an additional adsorption at 580 nm and the main peak at 525 nm. Spectra for samples 4 and 5 (fourth and fifth cycles) approaching a native colloidal solution of naked GNPs, which indicates a non-aggregated state.

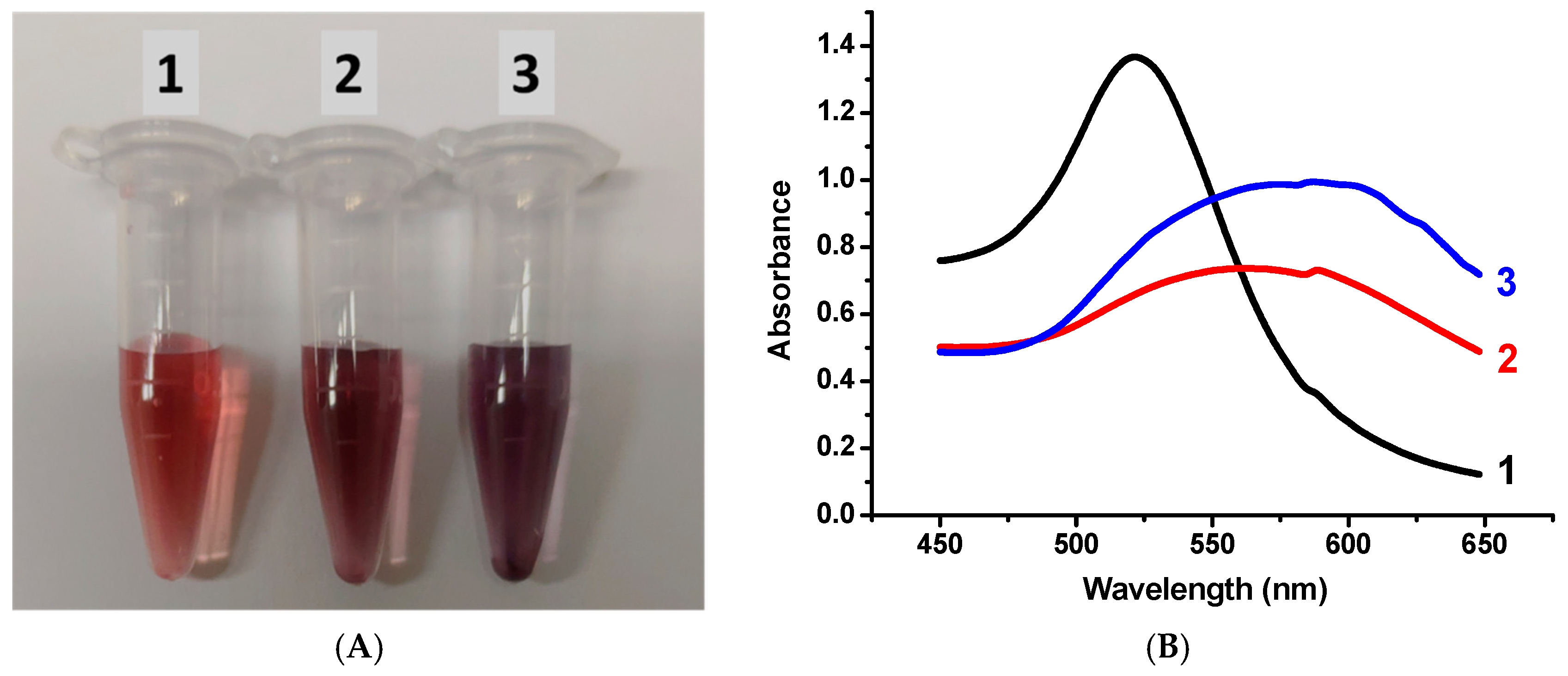

In the case of filters with a cutoff threshold of up to 10 kDa, the aggregating ability of the preparation was preserved even after six centrifugation cycles (Figure 4). In addition, the fraction of the solution that passed through the 30 kDa filters, when mixed with GNPs, caused their immediate aggregation (Figure 4, curve 3). From these data it follows that the reason for the aggregation was high molecular weight impurities with a mass of not less than 10 kDa and not more than 30 kDa. Note that the monoclonal antibody preparations were purified by affinity chromatography on a column of streptococcal protein G and should not have contained foreign macromolecular impurities.

3.3. SDS Electrophoresis in Polyacrylamide Gel

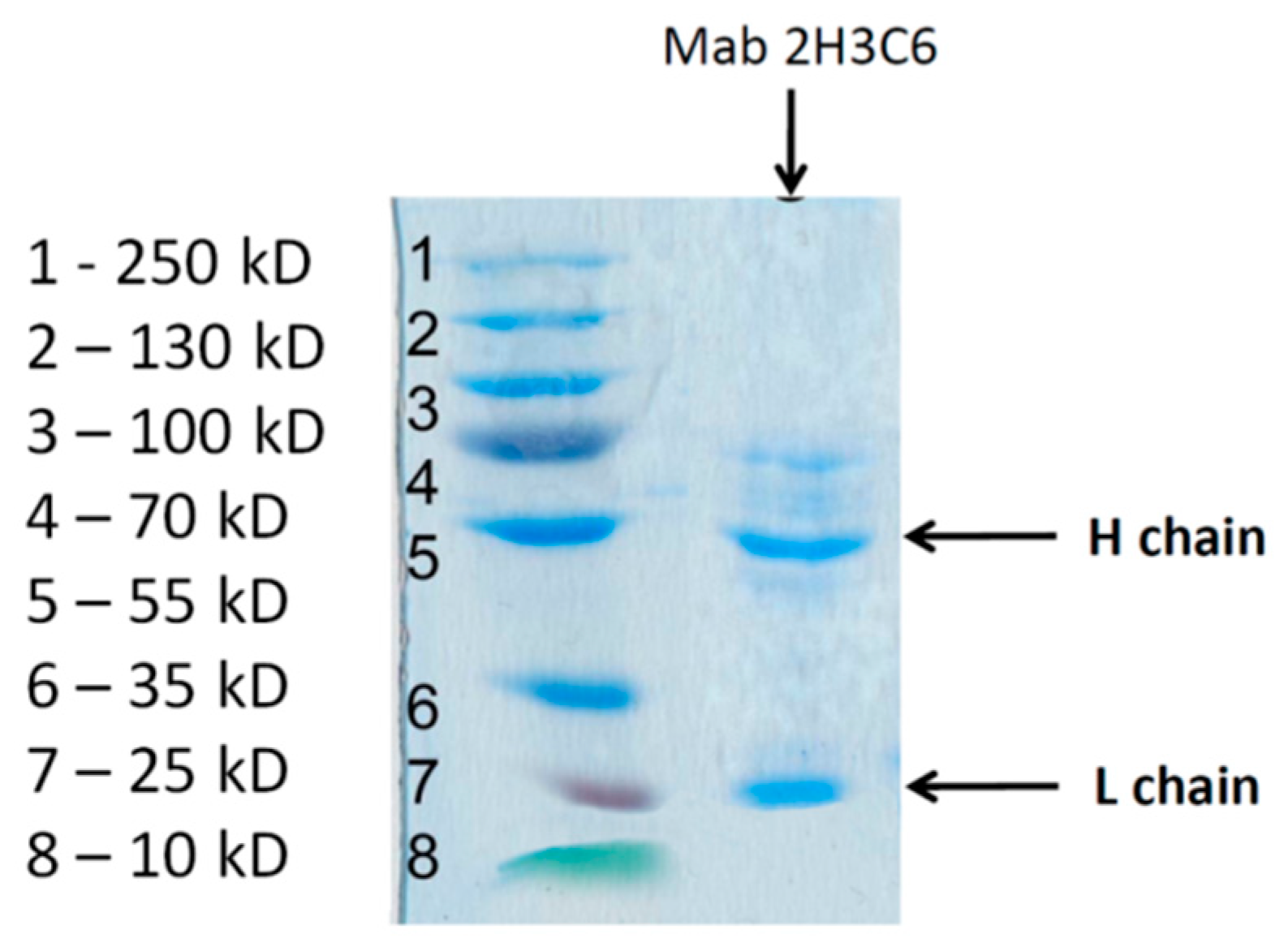

To establish the high molecular weight composition of the Mab 2H3C6 solution, denaturing polyacrylamide gel electrophoresis was performed. The results presented in Figure 5 show two major bands corresponding to light chains (25 kDa) and heavy chains (50 kDa) of IgG. Extraneous impurities in the range of molecular masses of 10–30 kDa were not observed. Therefore, we hypothesized that compounds aggregating NPPs were fragments of decayed antibodies, namely their light chains.

3.4. Asymmetrical Flow Field-Flow Fractionation

It is well known that immunoglobulins are susceptible to spontaneous decomposition during storage [32]. However, the rate of this process depends on many factors [33,34,35,36]. It was necessary to confirm the presence of fragments of the antibodies in the initial solution because these fragments could be formed only during electrophoresis. Therefore, we additionally investigated the fraction 10–30 kDa obtained after centrifugation of a monoclonal antibody preparation (clone 2H3C6) by a nondestructive method—asymmetrical flow field-flow fractionation (AF4). Using the Micro BCA Protein Assay Kit, we have shown that the content of IgG fragments in the obtained fraction 10–30 kDa was 1.7% (by weight) from the initial IgG content. The fraction was additionally concentrated 20 times by centrifugation through 3 kDa filters. The obtained sensograms (Figure 6) confirmed the presence of a fraction of protein molecules with a molecular weight lower than that of BSA (66 kDa). The main peak of the AF4 sensogram for the studied preparation accords to IgG fragments with a molecular weight about 25 kDa, which we associated with IgG light chains (L). A minor peak in the 50 kDa region was also detected, which may be associated with partial transmission of IgG heavy chains by Amicon Ultra 30 kDa filters or by aggregation of IgG light chains.

3.5. Aggregation Stability of GNPs with Various Fractions of the 2H3C6 Preparation

We associated the aggregation of GNPs precisely with the presence of IgG (L), since the fraction of the 2H3C6 preparation that did not pass through Amicon Ultra 30 kDa filters and thus contained heavy chains and full-sized IgG, did not cause aggregation of GNPs.

Thus, to obtain nonaggregating conjugates of GNPs with Mab2H3C6, it is necessary to separate the fraction with a molecular weight of less than 30 kDa from the antibody preparation. For example, after 6-fold centrifugation through Amicon Ultra 30 kDa, Mab 2H3C6 preparations did not aggregate GNPs, and stable conjugates were obtained.

Heavy chains did not cause aggregation of nanoparticles. It follows from the result of the experiment with the separated fraction of compounds with molecular weight >30 kDa. This fraction containing heavy chains did not aggregate GNPs. The obtained fraction was additionally centrifuged through filters with cut-off 100 kDa to separate heavy chains (50–55 kDa) and full-sized IgG (150–160 kDa). None of these two fractions aggregated GNPs.

3.6. Immunochromatography

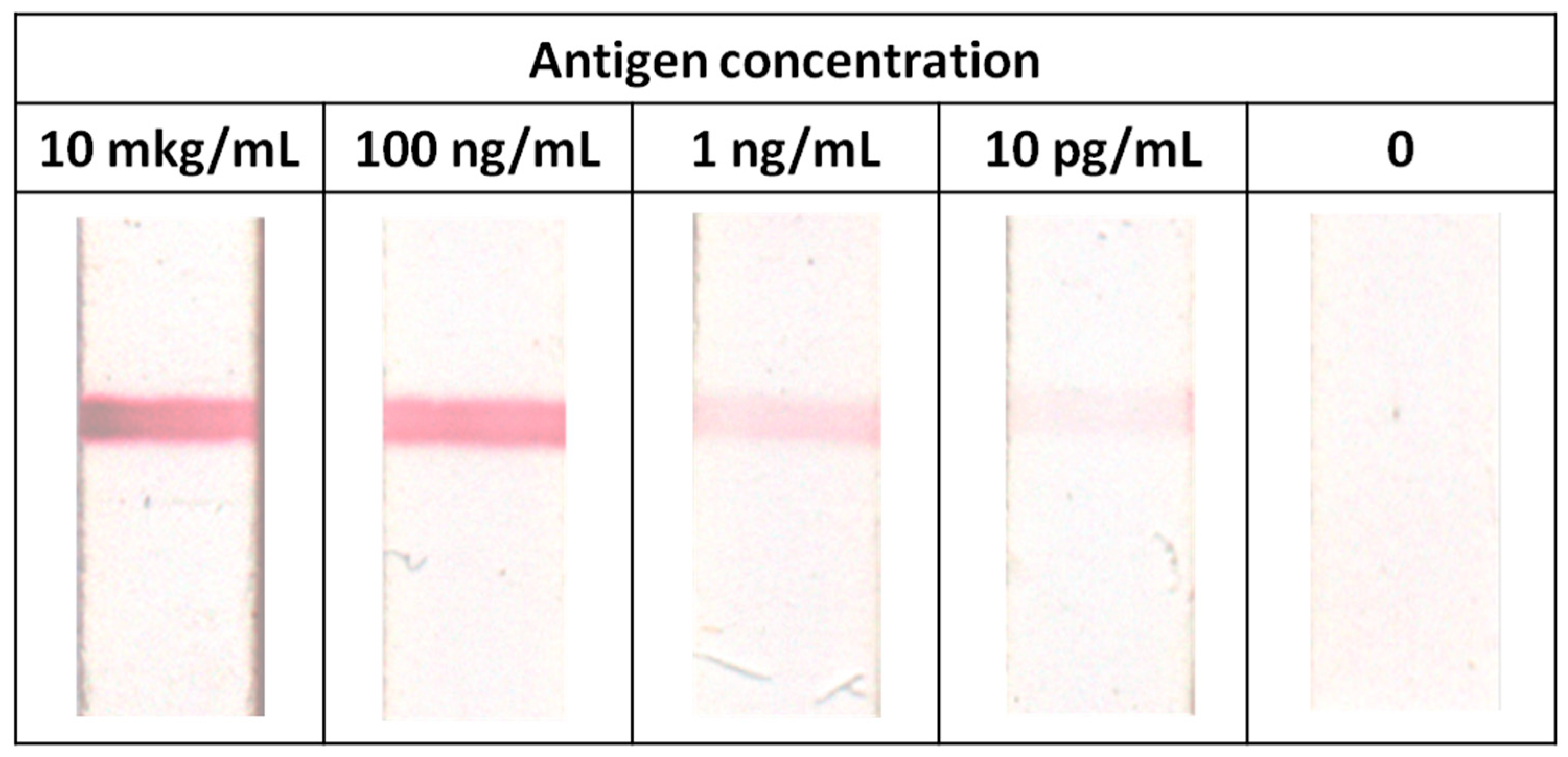

The binding of antibodies to particles and the preservation of their functional activity were confirmed by immunochromatography. For this, the obtained conjugates were passed through nitrocellulose membranes with an immobilized antigen: recombinant protein MPT64 of M. tuberculosis. The results shown in Figure 7 confirm the high binding ability of the obtained GNP conjugates with Mab 2H3C6 (binding was recorded at antigen concentrations up to 10 pg/mL). At the same time, conjugates obtained by the method without the centrifugation of Mab2H3C6 through Amicon Ultra 30 kDa were not suitable for immunochromatography due to the sticking of aggregated particles in the pores of the nitrocellulose membrane.

Thus, the addition of a stage of antibody purification from the fraction <30 kDa to the method for producing conjugates led to solving the problem of GNPs and obtaining stable conjugates with high binding ability.

4. Conclusions and Outlook

Clarification of the general regulations of GNPs aggregation by antibodies requires additional studies, including the characterization of various aggregating monoclonal preparations. Differences between aggregating and non-aggregating preparations could be directly related to the amino acid composition and its influence on the structure of proteins, as well as to the peculiarities of synthesis and transformation of immunoglobulins, leading to the presence of fragments of antibodies in the preparations.

Thus, high affinity of sulfur-containing chemical groups to gold surfaces [37,38], structural changes of antibodies in the course of their immobilization on gold surfaces and GNPs [39], the effect of immobilized proteins on the electrical properties of metal surfaces, potentially manifesting itself in decreased stability of colloidal solutions [40,41] were described.

J. Goossens et al. [42], studying the aggregation of GNPs by nanobodies (molecules with an incomplete structure of immunoglobulins), suggest two possible mechanisms for the aggregation phenomenon: (1) sorption of the protein on GNP leads to its denaturation, the appearance of hydrophobic groups on the surface and the aggregation provoked by these groups, and (2) cross-linking of GNPs by positively charged antibody fragments. Different isoelectric points of whole antibodies and their fragments can affect the variability of the aggregation stability.

The presence of free light chains immunoglobulins in the preparation can be caused by either violations of the ratio of heavy and light chain synthesis in antibody-producing cells, or fragmentation of native molecules in contaminated preparations. The variation in synthesis of heavy and light chains for a significant part of monoclones was noted in [43,44]. Control of the absence of antibodies destruction during their storage should be considered as an important element in assessing the reactants quality in the manufacture of immunochromatographic test systems. Such techniques as asymmetrical flow field-flow fractionation, size-exclusion chromatography, AgNPs-based array [24], etc. could be used for this purpose.

Aggregation instability of conjugates of GNPs and antibodies is a frequent problem when developing analytical systems based thereon. Often, the problem is solved by screening various antibody clones to find the most stable conjugates. Our work demonstrated that a partial destruction of antibodies might be the reason for the decrease in the stability of conjugates. Therefore, in the case of a problem of conjugate aggregation, antibody preparations should be purified from fragments of their decay. This proposal can help developers build nanoconjugate-based systems with enhanced functionality.
