# Numerical Simulation of an InP Photonic Integrated Cross-Connect for Deep Neural Networks on Chip

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Photonic Deep Neural Network with Weight-SOAs

_{j}= f(∑W

_{ij}x

_{i}+ b

_{j}), where f is the activation function, x

_{i}is the ith element of the input vector, W

_{ij}is the weight factor for the input value x

_{i}and b

_{j}is the bias in the jth neuron, with the weighted addition given by ∑W

_{ij}x

_{i}. The output of one full layer of M neurons can be expressed as a vector: y = f(W·x + b), where x is the input vector with N elements, W is the M × N weight matrix, b, a bias vector with M elements, with matrix multiplication W·x. Figure 1b illustrates the corresponding photonic implementation with SOAs. In this instance, the input x is encoded onto several channels at different wavelengths and the individual input is weighted with the given gain/attenuation provided by an SOA. The weighted signals are then combined into a WDM signal and sent to the nonlinear function to provide a single wavelength neuron output. The nonlinear activation function can be realized in several ways, e.g., by employing the combination of a photodetector and a modulator [26], saturable absorbers [25], excitable lasers [28,29], wavelength converters [30], and phase change materials [31]. In this simulation work, we use a photodetector and off-line processing for nonlinear function and we mainly focus on the operation of weighted addition for the matrix multiplication. Utilizing photodetectors at the output of the matrix multiplication, the detected summation of all the weighted signals results in

_{0}/v

_{π}) ∙ x ∙ exp [h·(I)]

_{0}is the PD characteristic impedance and v

_{π}the voltage at π phase shift. The vector h (I) has N elements, the ith element h(I

_{i}) is the gain integrated over the length of the SOA for weighting input x

_{i}, where the injection current is I

_{i}. The outputs are then sent to the nonlinear function which processes the signal and produces the outputs of the neuron.

## 3. Optical Cross-Connect: Implementation and Simulation

## 4. Implementation of Weight Calibration and Weighted Addition

_{max}), while when all the weight-SOAs are OFF (zero injected current), the induced optical crosstalk by that the corresponding channels will be the minimum (XTalk

_{min}). Due to the complexity of operation conditions, we consider the average between these two scenarios in order to generate the weight control curve, in order to minimize the error induced by the optical interference.

_{min}), but one of these weight-SOAs is injected with currents from 0 mA to 70 mA, we record the signal peak power at channel 1, 193.1 THz, from the monitoring power meter as shown in Figure 2a. Then, we also record the signal power when all the weight-SOAs are set to ON (XTalk

_{max}), and one of these weight-SOAs is injected with currents from 0 mA to 70 mA. The blue and red solid lines in Figure 3a plot the simulated result in the condition of XTalk

_{min}and XTalk

_{max}, respectively. For comparison, we also superimpose the measured curves in both cases: the blue crosses curve represents the experiment points with all SOAs ON, and the red triangles curve plots the experimental results with all SOAs OFF.

## 5. Image Classification via a Three-Layer Photonic Deep Neural Network

^{6}optical power levels at the photonic MMU input. The trained weight matrix is mapped to the matrix multiplication on the photonic components. The simulated structure of one layer of neurons is shown in Figure 5a, which is used to replace the photonic matrix multiplication unit in Figure 2e. The same chip is indeed capable of eight channel inputs, but we used four inputs for this classification problem. A total of 16 weight-SOAs in this matrix multiplication unit are used to assign the trained weight matrix from the trained DNN model to the PDNN. The hyperbolic tangent activation function is implemented offline after the O/E conversion. The output from the first hidden layer serves as input to the second layer (via the arbitrary waveform generator) and the output from the second hidden layer serves as input to the third (output) layer. Finally, the output of the third layer, after the SoftMax transfer function, $P\left(y=j\right)={e}^{{y}_{j}}/\sum _{j=1}^{n}{e}^{{y}_{j}}$, provides the predicted probability of the output samples y of belonging to class j. Figure 5c presents the output data at the output (i) of the 1st neuron in the 1st layer, (ii) of the 2nd layer and (iii) of the 3rd layer, with the blue line being the simulation results and red line the expectations and resulting in errors of 0.123, 0.051 and 0.055 respectively. These errors represent the performance of layers of photonic neurons. Higher error at the first layer may be due to the high optical signal noise ratio (OSNR) required multilevel encoding of the input signal, while a better performance at the 2nd and 3rd layer is attributed to the filtering of the signal level into lower levels after the first hidden layer. Also, the output of the first layer appears to be the most important for this classification problem, and therefore the utilization of three layers is slightly overstated.

#### 5.1. Energy Consumption Versus Physical Layer Impairments

## 6. Conclusions

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## References

- McAfee, A.; Brynjolfsson, E. Big Data: the Management Revolution. Harv. Bus. Rev.
**2012**, 90, 60–66, 68, 128. [Google Scholar] [PubMed] - Philip Chen, C.L.; Zhang, C.-Y. Data-Intensive Applications, Challenges, Techniques and Technologies: A Survey on Big Data. Inf. Sci. (Ny)
**2014**, 275, 314–347. [Google Scholar] [CrossRef] - Masci, J.; Meier, U.; Cire, D. Stacked Convolutional Auto-Encoders for Hierarchical Feature Extraction. In Proceedings of the Artificial Neural Networks and Machine Learning-ICANN 2011; Honkela, T., Duch, W., Girolami, M., Kaski, S., Eds.; Springer: Berlin, Germany, 2011; pp. 52–59. [Google Scholar]
- Lawrence, S.; Giles, C.L.; Tsoi, A.C.; Back, A.D. Face Recognition: A Convolutional Neural-Network Approach. IEEE Trans. Neural Netw.
**1997**, 8, 98–113. [Google Scholar] [CrossRef][Green Version] - Hill, T.; O’Connor, M.; Remus, W. Neural Network Models for Time Series Forecasts. Manag. Sci.
**1996**, 42, 1082–1092. [Google Scholar] [CrossRef] - Chow, T.T.; Zhang, G.Q.; Lin, Z.; Song, C.L. Global Optimization of Absorption Chiller System by Genetic Algorithm and Neural Network. Energy Build.
**2002**, 34, 103–109. [Google Scholar] [CrossRef] - Zeng, H.; Edwards, M.D.; Liu, G.; Gifford, D.K. Convolutional Neural Network Architectures for Predicting DNA–Protein Binding. Bioinformatics
**2016**, 32, i121–i127. [Google Scholar] [CrossRef] - Ball, N.M.; Brunner, R.J. Data Mining and Machine Learning in Astronomy. Int. J. Mod. Phys. D
**2010**, 19, 1049–1106. [Google Scholar] [CrossRef][Green Version] - Cannas, B.; Fanni, A.; Marongiu, E.; Sonato, P. Disruption Forecasting at JET Using Neural Networks. Nucl. Fusion
**2004**, 44, 68–76. [Google Scholar] [CrossRef] - Fischer, M.M.; Gopal, S. Artificial Neural Networks: A New Approach to Modeling Interregional Telecommunication Flows. J. Reg. Sci.
**1994**, 34, 503–527. [Google Scholar] - Akopyan, F.; Sawada, J.; Cassidy, A.; Alvarez-Icaza, R.; Arthur, J.; Merolla, P.; Imam, N.; Nakamura, Y.; Datta, P.; Nam, G.J.; et al. TrueNorth: Design and Tool Flow of a 65 mW 1 Million Neuron Programmable Neurosynaptic Chip. IEEE Trans. Comput. Des. Integr. Circuits Syst.
**2015**, 34, 1537–1557. [Google Scholar] [CrossRef] - Benjamin, B.V.; Gao, P.; McQuinn, E.; Choudhary, S.; Chandrasekaran, A.R.; Bussat, J.; Alvarez-Icaza, R.; Arthur, J.V.; Merolla, P.A.; Boahen, K. Neurogrid: A Mixed-Analog-Digital Multichip System for Large-Scale Neural Simulations. Proc. IEEE
**2014**, 102, 699–716. [Google Scholar] [CrossRef] - Furber, S.B.; Galluppi, F.; Temple, S.; Plana, L.A. The SpiNNaker Project. Proc. IEEE
**2014**, 102, 652–665. [Google Scholar] [CrossRef] - Neckar, A.; Fok, S.; Benjamin, B.V.; Stewart, T.C.; Oza, N.N.; Voelker, A.R.; Eliasmith, C.; Manohar, R.; Boahen, K. Braindrop: A Mixed-Signal Neuromorphic Architecture with a Dynamical Systems-Based Programming Model. Proc. IEEE
**2019**, 107, 144–164. [Google Scholar] [CrossRef] - Zhang, C.; Li, P.; Sun, G.; Guan, Y.; Xiao, B.; Cong, J. Optimizing FPGA-Based Accelerator Design for Deep Convolutional Neural Networks. In Proceedings of the FPGA 2015–2015 ACM/SIGDA International Symposium on Field-Programmable Gate Arrays, Monterey, CA, USA, 22–24 February 2015; ACM Press: New York, NY, USA, 2015; pp. 161–170. [Google Scholar]
- Han, S.; Liu, X.; Mao, H.; Pu, J.; Pedram, A.; Horowitz, M.A.; Dally, W.J. EIE: Efficient Inference Engine on Compressed Deep Neural Network. In Proceedings of the 2016 ACM/IEEE 43rd Annual International Symposium on Computer Architecture (ISCA), Seoul, Korea, 18–22 June 2016; pp. 243–254. [Google Scholar]
- Jouppi, N.P.; Borchers, A.; Boyle, R.; Cantin, P.; Chao, C.; Clark, C.; Coriell, J.; Daley, M.; Dau, M.; Dean, J.; et al. In-Datacenter Performance Analysis of a Tensor Processing Unit. In Proceedings of the Proceedings-International Symposium on Computer Architecture, Toronto, ON, Canada, 24–28 June 2017; ACM Press: New York, NY, USA, 2017; pp. 1–12. [Google Scholar]
- Kravtsov, K.S.; Fok, M.P.; Prucnal, P.R.; Rosenbluth, D. Ultrafast All-Optical Implementation of a Leaky Integrate-and-Fire Neuron. Opt. Express
**2011**, 19, 2133–2147. [Google Scholar] [CrossRef] - Bueno, J.; Maktoobi, S.; Froehly, L.; Fischer, I.; Jacquot, M.; Larger, L.; Brunner, D. Reinforcement Learning in a Large-Scale Photonic Recurrent Neural Network. Optica
**2018**, 5, 756–760. [Google Scholar] [CrossRef][Green Version] - Nakayama, J.; Kanno, K.; Uchida, A. Laser Dynamical Reservoir Computing with Consistency: An Approach of a Chaos Mask Signal. Opt. Express
**2016**, 24, 8679–8692. [Google Scholar] [CrossRef] - Stabile, R.; Rohit, A.; Williams, K.A. Monolithically Integrated 8 × 8 Space and Wavelength Selective Cross-Connect. J. Light. Technol.
**2014**, 32, 201–207. [Google Scholar] [CrossRef] - Smit, M.; Leijtens, X.; Ambrosius, H.; Bente, E.; van der Tol, J.; Smalbrugge, B.; de Vries, T.; Geluk, E.-J.; Bolk, J.; van Veldhoven, R.; et al. An Introduction to InP-Based Generic Integration Technology. Semicond. Sci. Technol.
**2014**, 29, 083001. [Google Scholar] [CrossRef] - Vandoorne, K.; Dambre, J.; Verstraeten, D.; Schrauwen, B.; Bienstman, P. Parallel Reservoir Computing Using Optical Amplifiers. IEEE Trans. Neural Netw.
**2011**, 22, 1469–1481. [Google Scholar] [CrossRef] - Vandoorne, K.; Mechet, P.; Van Vaerenbergh, T.; Fiers, M.; Morthier, G.; Verstraeten, D.; Schrauwen, B.; Dambre, J.; Bienstman, P. Experimental Demonstration of Reservoir Computing on a Silicon Photonics Chip. Nat. Commun.
**2014**, 5, 3541. [Google Scholar] [CrossRef][Green Version] - Shen, Y.; Harris, N.C.; Skirlo, S.; Prabhu, M.; Baehr-Jones, T.; Hochberg, M.; Sun, X.; Zhao, S.; Larochelle, H.; Englund, D.; et al. Deep Learning with Coherent Nanophotonic Circuits. Nat. Photonics
**2017**, 11, 441–446. [Google Scholar] [CrossRef] - Tait, A.N.; De Lima, T.F.; Zhou, E.; Wu, A.X.; Nahmias, M.A.; Shastri, B.J.; Prucnal, P.R. Neuromorphic Photonic Networks Using Silicon Photonic Weight Banks. Sci. Rep.
**2017**, 7, 1–10. [Google Scholar] [CrossRef] [PubMed] - Shi, B.; Calabretta, N.; Stabile, R. Deep Neural Network Through an InP SOA-Based Photonic Integrated Cross-Connect. IEEE J. Sel. Top. Quantum Electron.
**2020**, 26, 1–11. [Google Scholar] [CrossRef] - Peng, H.-T.; Nahmias, M.A.; de Lima, T.F.; Tait, A.N.; Shastri, B.J. Neuromorphic Photonic Integrated Circuits. IEEE J. Sel. Top. Quantum Electron.
**2018**, 24, 1–15. [Google Scholar] [CrossRef] - Nahmias, M.A.; Peng, H.-T.; de Lima, T.F.; Huang, C.; Tait, A.N.; Shastri, B.J.; Prucnal, P.R. A TeraMAC Neuromorphic Photonic Processor. In Proceedings of the 2018 IEEE Photonics Conference (IPC), Reston, VA, USA, 30 September–4 October 2018; pp. 1–2. [Google Scholar]
- Mourgias-Alexandris, G.; Tsakyridis, A.; Passalis, N.; Tefas, A.; Vyrsokinos, K.; Pleros, N. An all-Optical Neuron with Sigmoid Activation Function. Opt. Express
**2019**, 27, 9620. [Google Scholar] [CrossRef] - LeCun, Y.; Bottou, L.; Bengio, Y.; Haffner, P. Gradient-Based Learning Applied to Document Recognition. Proc. IEEE
**1998**, 86, 2278–2323. [Google Scholar] [CrossRef][Green Version] - Lowery, A.J. Amplified Spontaneous Emission in Semiconductor Laser Amplifiers. Validity of the Transmission-Line Laser Model. IEE Proc. Part J. Optoelectron.
**1990**, 137, 241–247. [Google Scholar] [CrossRef] - Stabile, R.; Rohit, A.; Williams, K.A. Dynamic Multi-Path WDM Routing in a Monolithically Integrated 8 × 8 Cross-Connect. Opt. Express
**2014**, 22, 435–442. [Google Scholar] [CrossRef][Green Version] - Fisher, R.A. The Use of Multipe Measurements in Taxonomic Problems. Ann. Eugen.
**1936**, 7, 179–188. [Google Scholar] [CrossRef] - Chan, T.-H.; Jia, K.; Gao, S.; Lu, J.; Zeng, Z.; Ma, Y. PCANet: A Simple Deep Learning Baseline for Image Classification? IEEE Trans. Image Process.
**2015**, 24, 5017–5032. [Google Scholar] [CrossRef][Green Version]

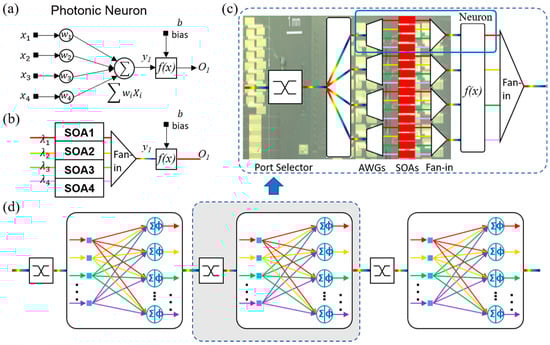

**Figure 1.**Photonic deep neural network based on the broadcast-and-weight architecture. (

**a**) The artificial neuron model. (

**b**) The implementation via arrays of semiconductor optical amplifiers (SOAs). (

**c**) One full layer of neurons by exploiting one wavelength division multiplexing (WDM) input, with a shaded photonic integrated circuit micrography at the back, to underline that part of the circuitry that is realized on chip. (

**d**) Scheme of a three-layer photonic deep neural network. The included port selector may be used to select the desired input source.

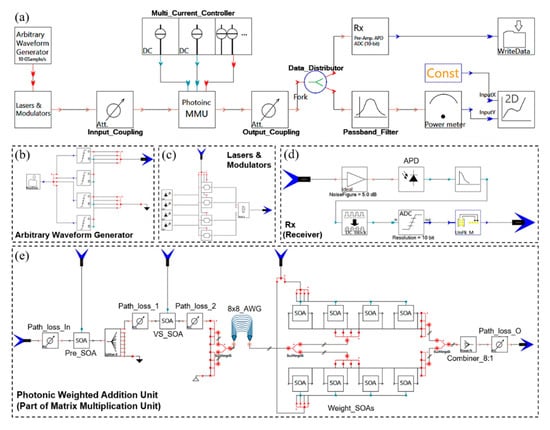

**Figure 2.**Photonic deep neural network (PDNN) simulation scheme on software VPIphotonics. (

**a**) System for examining the PDNN. (

**b**) Arbitrary waveform generator. (

**c**) Lasers and modulators. (

**d**) Receiver. (

**e**) One photonic weighted addition unit (part of the matrix multiplication unit, MMU).

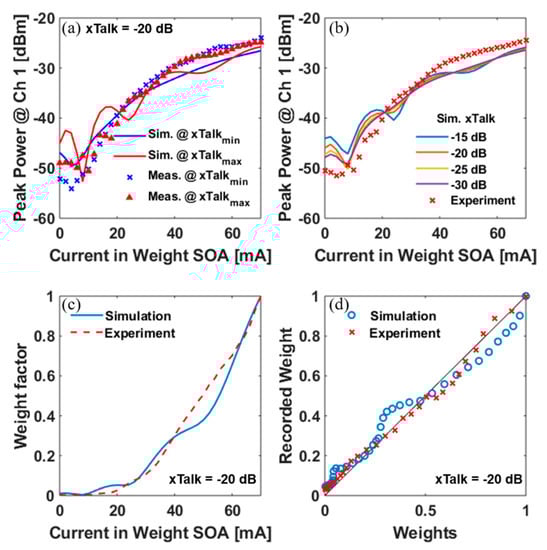

**Figure 3.**Weight calibration. (

**a**) Peak power of channel at 193.1 THz with minimum crosstalk (blue) and maximum crosstalk (red), in simulation (solid line), or experiment (cross/triangle points), versus the injection current at the weight-SOA. (

**b**) Mean peak power of channel at 193.1 THz from the two curves obtained in (

**a**), and with simulated crosstalk at −15 dB, −20 dB, −25 dB and −30 dB. (

**c**) Weight control curves, in simulation (solid line) and experiment (dash line), with crosstalk of −20 dB and reference power level at −25 dBm. (

**d**) Correlation between the weight assigned by the weight-SOA and the obtained weight at the output, in simulation (blue circles) and experiments (red crosses). The black line is a reference line for perfect matching.

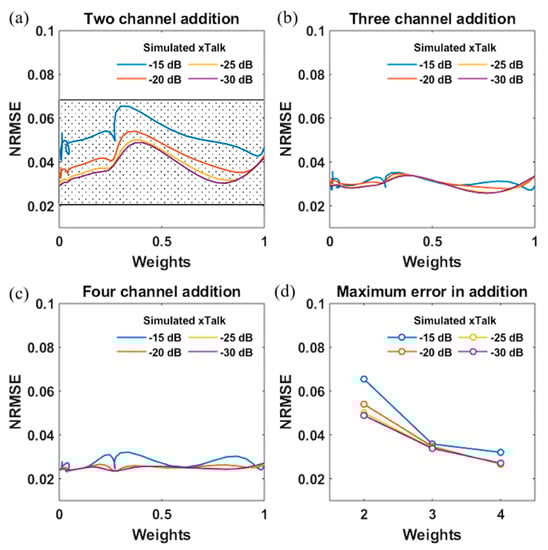

**Figure 4.**(

**a**) Two-channel weighted addition, (

**b**) three-channel addition, and (

**c**) four-channel addition when tuning weights in channel 1 and fixed weight on other channels; (

**d**) Maximum error versus the number of channels in weighted addition. Optical crosstalk levels are −15 dB (blue), −20 dB (red), −25 dB (yellow) and −30 dB (violet).

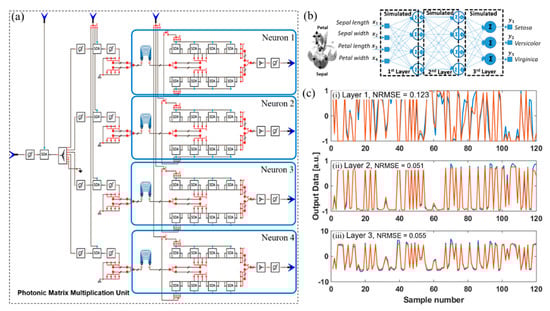

**Figure 5.**(

**a**) The simulation structure of one layer of neurons; (

**b**) Trained 3-layer deep neural network (DNN) employed to solve the iris flower classification. (

**c**) Output data obtained from Neuron 1 at (i) Layer 1, (ii) Layer 2, and (iii) Layer 3, with calculated errors between simulated computation (blue line) and the expected computation (red line), resulting in errors of 0.123, 0.051, and 0.055, respectively.

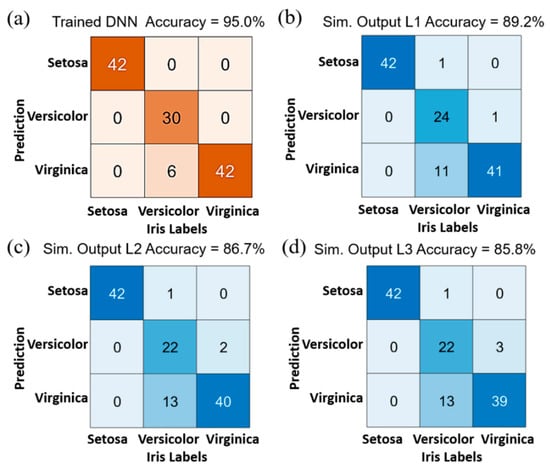

**Figure 6.**(

**a**) Label prediction of the trained DNN, indicating an accuracy of 95%. (

**b**) Simulated image prediction using photonic DNN as the 1st hidden layer, with an accuracy of 89.2%. (

**c**) Simulated label prediction using photonic DNN as the 1st and 2nd hidden layers, with an accuracy of 86.7%. (

**d**) Simulated label prediction of the 3-layer photonic DNN, with an accuracy of 85.8%.

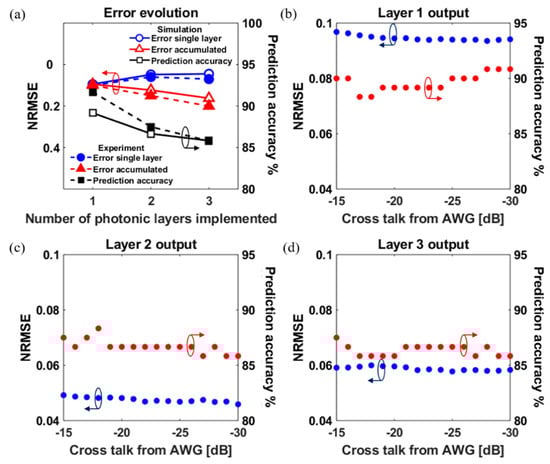

**Figure 7.**Error evolution: (

**a**) Normalized root mean square error (NRMSE) versus the number of implemented photonic layers in simulation (solid line filled points) and experiment (dashed line open points), from single photonic layer (circles), the accumulation (triangles) and the corresponding prediction accuracy (squares). Crosstalk tuning: The induced error (blue circles) and the final prediction accuracy (red circles) versus the crosstalk from AWGs, recorded simulation results from (

**b**) output of layer 1, (

**c**) output of layer 2, and (

**d**) output of layer 3.

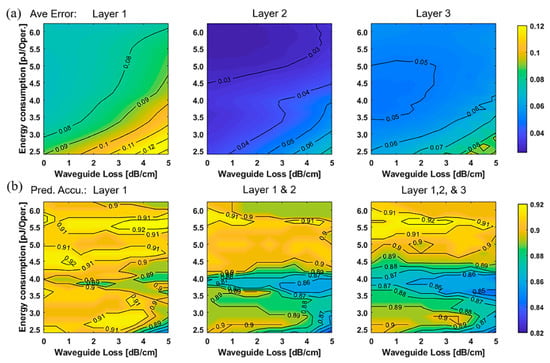

**Figure 8.**Investigation performance of the PDNN on computing energy and waveguide loss. (

**a**) Calculated average NRMSE from output data obtained from Layers 1–3; (

**b**) Corresponding prediction accuracy when Layer 1, Layers 1,2, and Layers 1–3 are implemented with photonic neuron layers.

Parameters | Value | Unit | Parameters | Value | Unit |
---|---|---|---|---|---|

Device Section Length | 1000 × 10^{−6} | m | Nonlinear Gain Coefficient | 1.0 × 10^{−23} | m^{3} |

Active Region Type | MQW | Nonlinear Gain Time Constant | 5.00 × 10^{−13} | s | |

Active Region Width | 2.0 × 10^{−6} | m | Carrier Density Transparency | 1.0 × 10^{24} | m^{−3} |

Active Region Thickness | 250 × 10^{−6} | m | Linear Recombination | 1.0 × 10^{8} | s^{−1} |

Active Region Thickness MQW | 100 × 10^{−6} | m | Bimolecular Recombination | 1.0 × 10^{−16} | m^{3}/s |

Active Region Thickness SCH | 200 × 10^{−6} | m | Auger Recombination | 2.1 × 10^{−41} | m^{6}/s |

Current Injection Efficiency | 1 | Carrier Capture Time Constant | 3.0 × 10^{−11} | s | |

Nominal Frequency | 193.7 | THz | Carrier Escape Time Constant | 1.0 × 10^{−10} | s |

Group Index | 3.52 | Initial Carrier Density | 8.0 × 10^{23} | m^{−3} | |

Polarization Model | TE | Chirp Model | Linewidth Factor | ||

Internal Loss | 3000 | m^{−1} | Linewidth Factor | 3 | |

Confinement Factor | 0.3 | Linewidth Factor MQW | 3 | ||

Confinement Factor MQW | 0.07 | Differential Index | −1.0 × 10^{−26} | m^{3} | |

Confinement Factor SCH | 0.56 | Differential Index MQW | −1.0 × 10^{−26} | m^{3} | |

Gain Shape Model | Flat | Differential Index SCH | −1.5 × 10^{−26} | m^{3} | |

Gain Model | Logarithmic | Carrier Density Ref. Index | 1.0 × 10^{24} | m^{−3} | |

Gain Coefficient Linear | 4.00 × 10^{−20} | m^{2} | Noise Model | Inversion Parameter | |

Gain Coefficient Logarithmic | 6.9 × 10^{4} | m^{−1} | Inversion Parameter | 1.2 |
