Evidence-Based Analysis of Cyber Attacks to Security Monitored Distributed Energy Resources

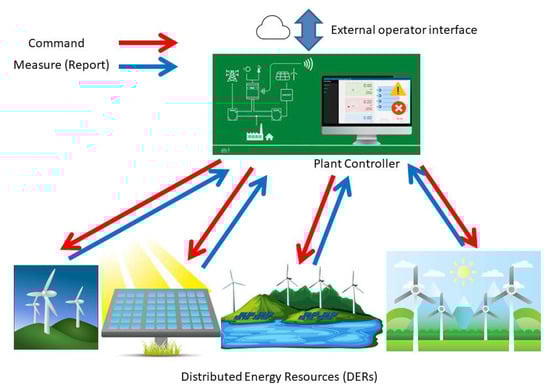

1.1. DER Control and Attack Processes
1.2. Related Work
1.3. Structure of the Paper
2.1. MITRE Knowledge Bases

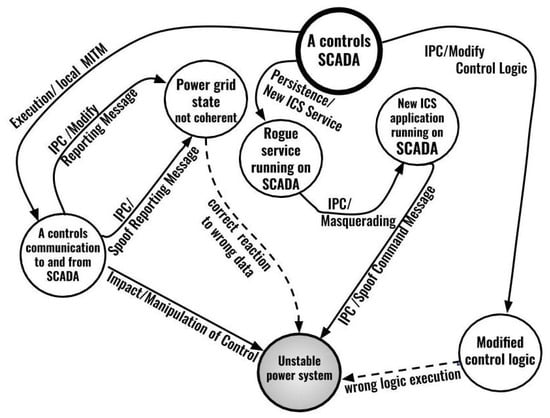

2.2. Attack Graphs

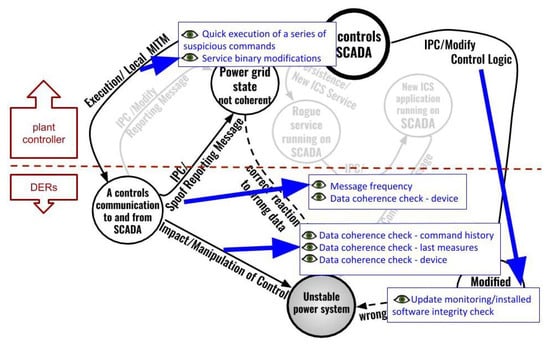

2.3. Security Analytics

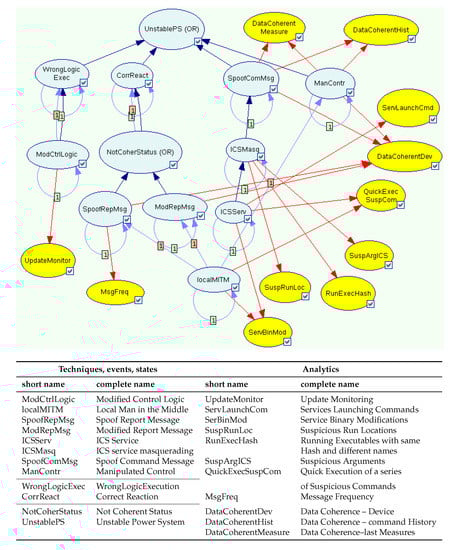

2.4. Dynamic Bayesian Networks
3. Case Study Analysis
3.1. Inference Tasks
- Monitoring can support the security analyst or system in online diagnosis and early detection, providing a means to compute in real time the chance that an attack attempt is taking place, according to the observations gathered by the analytics. It is enabled by the filtering approach that consists of computing , i.e., the probability of event X at time t, given the observations at all instants up to t. This means tracking the probability of the system states, taking into account the stream of observations (see Figure 5a). When this probability value exceeds a given threshold, the analyst/system can infer that an attack attempt is in progress.
- Prediction can support the analyst/system in identifying, on the basis of evidence obtained from the analytics, the subset of techniques that the attacker will more likely exploit in the future, thereby enabling the setup of defensive actions. The filtering approach is used in this case for computing for some horizon (see Figure 5b), i.e., predicting a future state, taking into consideration evidence gathered up to now (filtering is a special case of prediction with ).

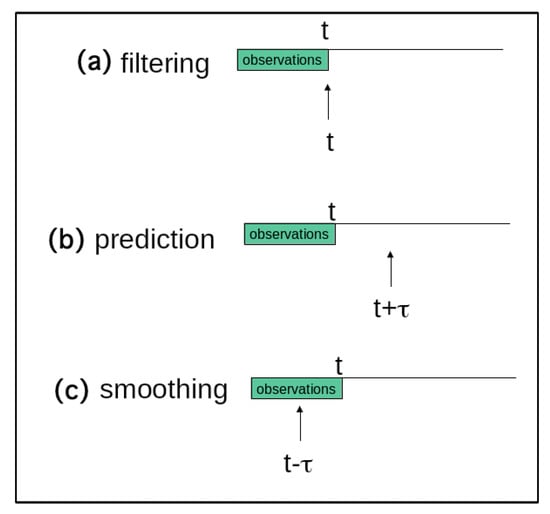

- Offline diagnosis allows determining the probable causes of security events, either online, using filtering, or offline with smoothing. The latter consists of computing for some , i.e., estimating what happened steps in the past given all the evidence (observations) up to now (see Figure 5c). Therefore, while filtering enables diagnosis in real time, smoothing makes it possible to conduct a deeper post-incident investigation based on evidence collected by the monitoring system during the DER operation.

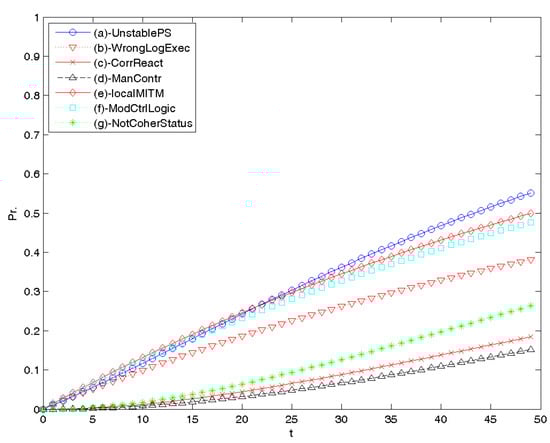

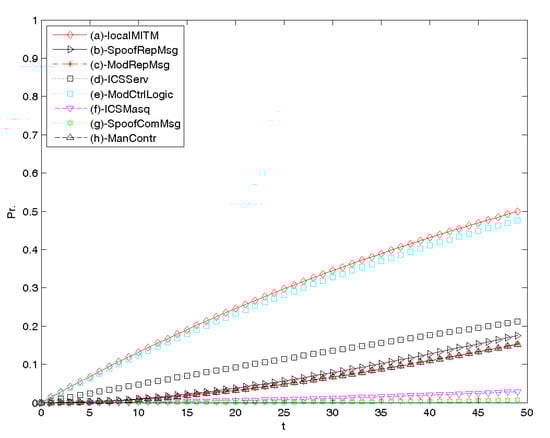

3.2. Inference Results

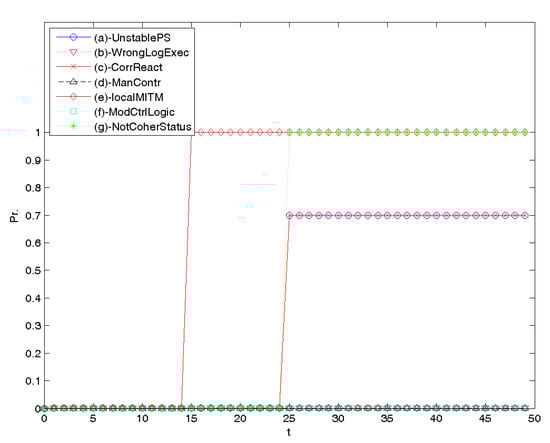

3.3. Monitoring and Online Diagnosis
4. Discussion and Conclusions
Conflicts of Interest
|ARP||Address Resolution Protocol|
|CAR||Cyber Analytics Repository|
|CVSS||Common Vulnerability Scoring System|
|DBN||Dynamic Bayesian Network|
|DER||Distributed Energy Resource|
|DSO||Distribution System Operator|
|ICS||Industrial Control System|
|ICT||Information and Communication Technology|
|IoT||Internet of Things|
|IPC||Impair Process Control|
|MITM||Man in the Middle|
|SCADA||Supervisory Control and Data Acquisition|
|SGU||Significant Grid User|
|TSO||Transmission System Operator|
Appendix A. Detailed Analysis of Experimental Results

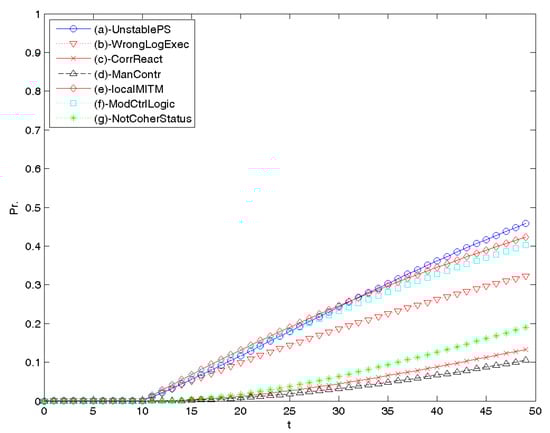

Appendix A.1. No Evidence

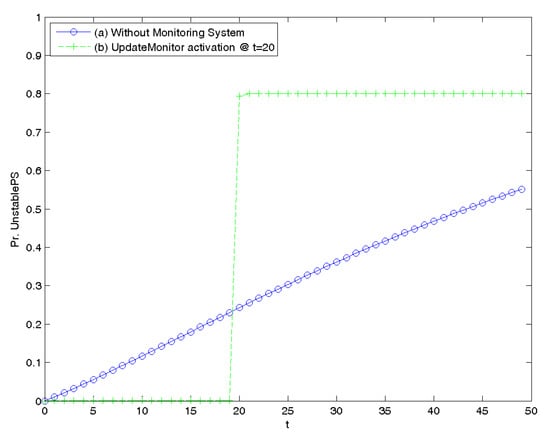

Appendix A.2. With vs. without a Monitoring System
Appendix A.3. Attack Path

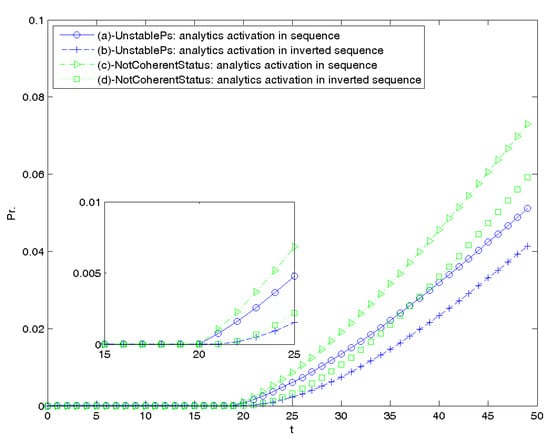

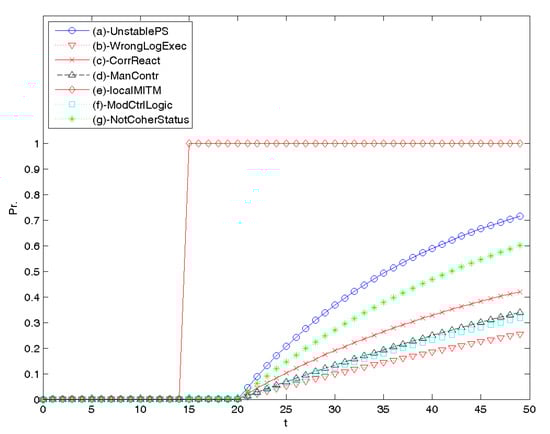

Appendix A.4. Order of Alerts

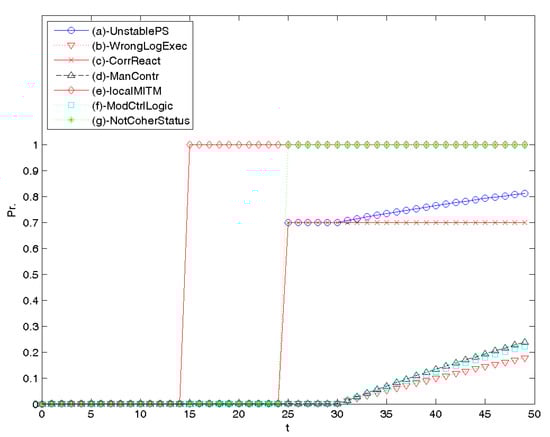

- Correct order: at , quick execution of a series of suspicious commands raises an alert (suggesting a local MITM at plant controller is in progress) and at something wrong is detected in the message frequency of DER reporting messages (which is a sign that the attacker might be trying to do some spoofing);
- Reverse order: at , the analytic message frequency raises an alert, at quick execution of a series of suspicious commands does.
Appendix A.5. Predictions
