Regulation of Latency and Reactivation by Human Cytomegalovirus miRNAs

by
Nicole L. Diggins
,
Rebecca L. Skalsky
and
Meaghan H. Hancock
*
Vaccine and Gene Therapy Institute, Oregon Health and Science University, Beaverton, OR 97006, USA
*
Author to whom correspondence should be addressed.
Pathogens 2021, 10(2), 200; https://doi.org/10.3390/pathogens10020200
Submission received: 28 January 2021 / Revised: 9 February 2021 / Accepted: 10 February 2021 / Published: 13 February 2021
(This article belongs to the Special Issue Cytomegalovirus (CMV) Infection and Latency)
Browse Figures
Versions Notes

Abstract

:
Human cytomegalovirus (HCMV) encodes 22 mature microRNAs (miRNAs), which regulate a myriad of cellular processes, including vesicular trafficking, cell cycle progression, apoptosis, and immune evasion, as well as viral gene expression. Recent evidence points to a critical role for HCMV miRNAs in mediating latency in CD34+ hematopoietic progenitor cells through modulation of cellular signaling pathways, including attenuation of TGFβ and EGFR signaling. Moreover, HCMV miRNAs can act in concert with, or in opposition to, viral proteins in regulating host cell functions. Here, we comprehensively review the studies of HCMV miRNAs in the context of latency and highlight the novel processes that are manipulated by the virus using these small non-coding RNAs.

1. Introduction

Human cytomegalovirus (HCMV), a prototypic member of the beta-herpesvirus family, has a large, double-stranded DNA genome of approximately 230 kbp that encodes for greater than 170 proteins, as well as numerous long and small non-coding RNAs [1,2,3]. CMVs have co-evolved with their hosts over millions of years, and as such a careful balance between virus replication, viral latency, and host immune control has emerged. This intricate balance between virus and host results in a CMV seroprevalence of approximately 40–90% across different human populations [4]. While T-cell-mediated immunity helps keep viral replication in check in an immunocompetent host [5,6], immunocompromised individuals, such as those undergoing solid organ or hematopoietic stem cell transplants, are susceptible to CMV reactivation from latency and virus replication in numerous tissues and organs, causing significant morbidity and mortality [7,8].
CMVs can infect a remarkable breadth of cell types [9,10] and diverse transcriptional programs are elicited that represent distinct modes of infection. In many cell types, such as fibroblasts and smooth muscle cells, CMVs undergo lytic replication, whereby viral gene expression follows a strict program of immediate early (IE) followed by early (E) and then late (L) genes [11]. Subsequent virion assembly and egress results in the release of new virus particles that can go on to infect neighboring or infiltrating cells. A much more protracted replication cycle happens in endothelial and epithelial cells, which may be sources of long-term viral shedding and immune stimulation [12].
CMV latency, defined by maintenance of viral genomes in the absence of new virion production, is established when infected monocytes traffic to the bone marrow and seed infection of CD34+ hematopoietic progenitor cells (HPCs). The mechanisms by which the virus enters and exits latency have long been unclear, and the difficulty in enriching for rare latently infected cells in vivo has limited the study of natural latency. However, the development of in vitro systems that mimic aspects of the bone marrow stroma and maintain HPCs in their progenitor state has allowed for investigation into the role of specific gene products in latency and reactivation [13,14,15,16,17,18,19,20,21]. Transcriptional profiling during latent infection has suggested widespread, although very mild, gene expression from the latent genome [22,23,24]. Reactivation from latency occurs following encounters with external stimuli, such as proinflammatory cytokines, which alter the intracellular environment in a manner that favors efficient re-expression of IE, E, and L viral gene products [19,25,26,27]. The signaling pathways and viral and cellular gene products required for reactivation continue to be investigated and cellular differentiation along the myeloid lineage is necessary for navigating the reactivation process [27,28]. HCMV drives myeloid-specific differentiation, as well as trafficking of infected HPCs out of the bone marrow and their differentiation into tissue-specific macrophages through unknown mechanisms, which leads to the full cascade of viral gene expression and production of new infectious virions [5].
Over the past two decades, miRNAs have emerged as potent and cell-type-specific regulators of the host cell environment. These miRNAs are small, ~22 nucleotide non-coding RNAs that post-transcriptionally regulate gene expression [29]. Mature miRNAs are generated from hairpin secondary structures that arise from longer RNA polymerase II or polymerase III transcripts [30]. In the nucleus, primary (pri-) miRNAs are cleaved into precursor (pre-) miRNAs via the microprocessor complex, consisting of DGCR8 and the ribonuclease Drosha. Pre-miRNAs are then exported to the cytoplasm, whereupon a second cleavage event by the RNAse III endonuclease Dicer results in miRNA duplexes. The miRNA is subsequently loaded into an argonaute (Ago) protein, thereby releasing the passenger strand, and forming the minimal RNA-induced silencing complex (RISC). RISC utilizes the miRNA seed sequence region (nucleotides 2 through 8) to recognize and bind complementary regions of targeted transcripts. Association of RISC with a target RNA results in translational repression through inhibition of translation initiation or elongation factors or mRNA decay through recruitment of deadenylation factors [31,32]. Because of the short regions of complementarity utilized by miRNAs, they have the capacity to target up to hundreds of different genes [33], making them powerful regulators of gene expression. In fact, individual deletion of most major cellular miRNA families results in a wide array of defects in eukaryotic organisms [34,35,36].
miRNAs are encoded not only by eukaryotic organisms but also viruses, which utilize small RNAs to aid in their replication cycles [37]. Of the over 250 identified viral miRNAs to date, most are encoded by members of the herpesvirus family, including alpha, beta, and gamma herpesviruses. The first herpesvirus miRNAs were identified in cells latently infected with Epstein–Barr virus (EBV) [38] and subsequent functional studies have implicated the EBV miRNAs in latency maintenance [39,40,41]. Alpha and gamma herpesvirus miRNAs are found clustered in viral genomic regions that are known to be expressed during latency, suggesting roles in maintaining latent infection [42,43,44,45]. In contrast, CMV miRNAs are encoded throughout the viral genome rather than in discrete locations associated with CMV latent gene expression [46,47]. These observations would suggest roles for CMV miRNAs at multiple stages throughout infection; however, these discrepancies may also be due to our still-limited understanding of CMV gene expression during latent infection in vivo.
In order to successfully establish a latent infection, HCMV must enter CD34+ HPCs, maintain its genome, and simultaneously support essential cellular functions to avoid cell death and detection by the innate and adaptive immune responses. Moreover, reactivation requires that the viral genome remains responsive only to appropriate reactivation cues while avoiding sub-optimal activation signals. Their non-immunogenic nature, along with the ability to target potentially hundreds of different transcripts, suggests that HCMV miRNAs could be key regulators of protein expression during latency, where other viral factors may not reach the expression threshold necessary to exert their functions. Notably, targets of HCMV miRNAs have been identified that play key roles in regulating CD34+ HPC proliferation and hematopoiesis, along with entry into and exit from latency.

2. HCMV miRNAs Expressed In Vitro and In Vivo

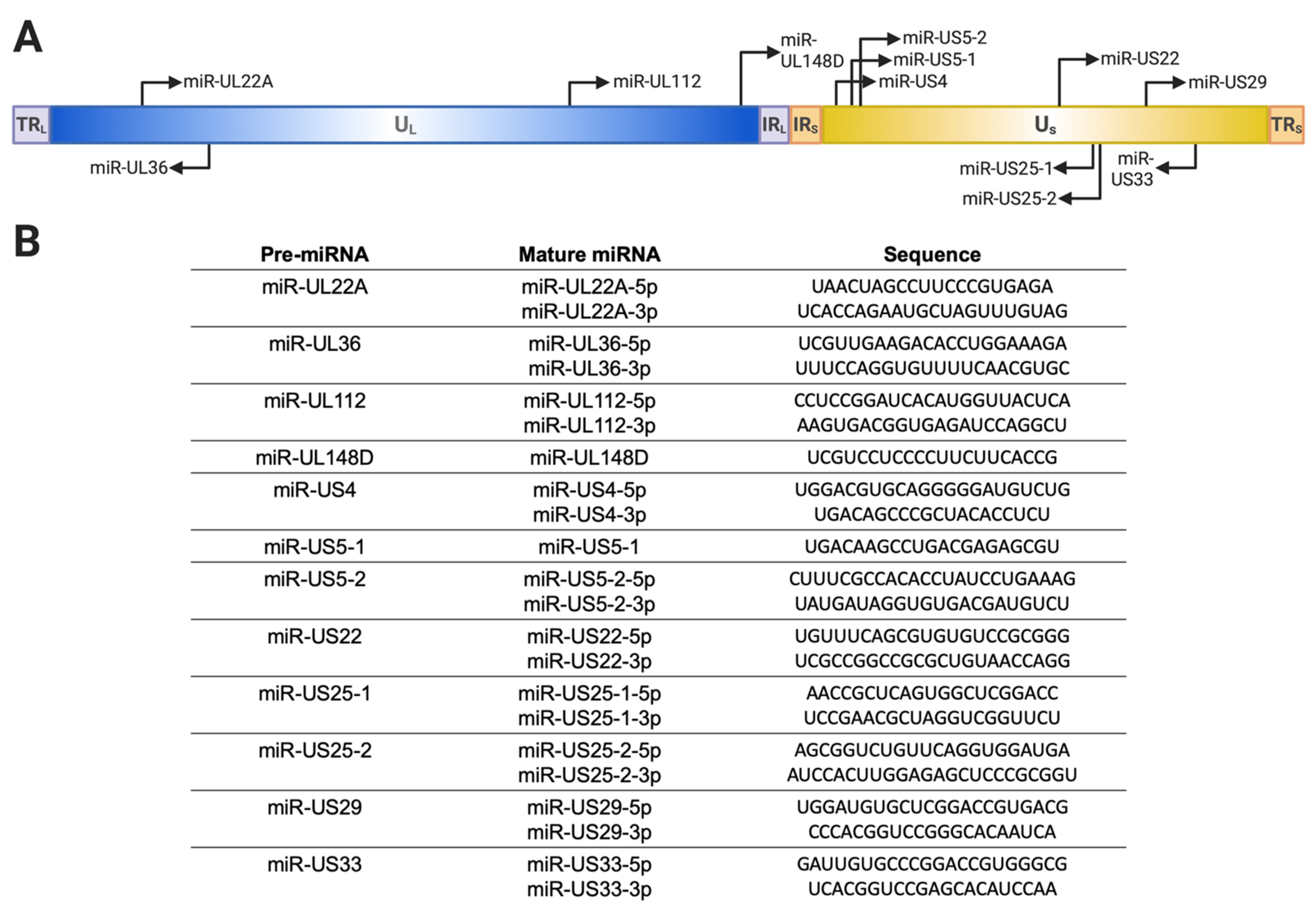

HCMV miRNAs were first described by Pfeffer et al. [48], who identified 9 pre-miRNA sequences in lytically infected cells; these were later independently confirmed by multiple groups [46,47,49]. Subsequently, next-generation sequencing analysis of lytically infected human fibroblasts revealed 22 mature HCMV miRNAs arising from a total of 12 pre-miRNAs (Figure 1) and further confirmed incorporation of the HCMV miRNAs into RISC [47]. miRNA expression has also been assessed in latently infected CD14+ monocytes and CD34+ HPCs using qRT-PCR [15,50,51,52]. These studies demonstrated that all HCMV miRNAs are expressed and abundantly detected at early times after infection of CD34+ HPCs (2–4 dpi). However, by 10–14 dpi, only a few miRNAs, such as miR-UL112-3p, miR-UL22A, and miR-UL148D, remain abundantly detectable. Given that only ~1 in 1000 to 1 in 10,000 cells contain viral genomes capable of reactivation [53], the expression pattern of HCMV miRNAs in truly latently infected cells awaits the ability to detect and enrich for these cells.
HCMV miRNAs have been examined as potential biomarkers and as a means to predict CMV DNAemia in a number of disease settings, including during hematopoietic and solid organ transplantation. HCMV miRNAs have been detected in plasma and serum [54,55,56,57,58,59], whole blood [60], extracellular vesicles isolated from serum [61], saliva [62], and purified monocytes and PBMCs [52] in healthy and diseased individuals. The most commonly detected miRNAs, miR-US25-1, miR-UL112-3p, and miR-UL22A, are also amongst the most highly expressed during lytic and latent infection. HCMV miRNAs have also been detected in astrocytic tumors [63] and glioblastoma tissue [64].

3. HCMV miRNAs Involved in Latency Establishment and Maintenance

In order to establish latency, expression of the viral IE proteins, essential for launching the lytic cascade of viral gene expression, must be suppressed. HCMV miRNAs are involved in inhibiting IE gene expression through a variety of mechanisms. One of the first identified targets of HCMV miR-UL112-3p is the UL123 transcript, encoding the major immediate early lytic protein IE72; pre-expression of miR-UL112-3p limits IE72 protein levels and limits viral DNA copy numbers in infected cells [65]. Further studies demonstrated that mutation of the miR-UL112-3p binding site within the UL123 transcript alleviated miR-UL112-3p-mediated reduction of IE72 protein levels [66]. Interestingly, infection of CD14+ monocytes with the IE72 miR-UL112-3p binding site mutant revealed that miRNA targeting of IE72 is not needed for latency establishment or reactivation in vitro, but is important to limit IE gene expression and cytotoxic T cell recognition [67]. Thus, miR-UL112-3p targeting of IE72 may play an important role in maintaining the pool of latently infected cells within the host (Figure 2). Although not directly tested in the context of latent infection, miR-UL112-3p also targets HCMV UL112/UL113 and UL120/UL121 [65]. Moreover, other HCMV miRNAs target viral transcripts, potentially contributing to the establishment or maintenance of latent infection. Additionally, miR-US5-1 and miR-US5-2 target US7 [68], while miR-UL36 targets UL138 [69]. Of note, an miR-US5-2 homolog (miR-Rh183-1) encoded by Rhesus CMV (RhCMV) also targets the RhCMV US7 homolog (Rh186) [70]. The region encompassing this miRNA can be removed from the viral genome and the virus can still infect rhesus macaques and induce T cell responses to heterologous antigens [71], suggesting that reducing US7 expression through miRNA targeting is not essential for infection in vivo.
In addition to directly regulating HCMV genes, HCMV miRNAs target a wide array of cellular transcripts, thereby altering the host cell environment during the establishment of latency. Pan et al. [51] showed that a miR-UL148D mutant virus was unable to establish latency in CD34+ HPCs and instead underwent a lytic infection cycle. The authors identified one direct target of miR-UL148D, IER5, which regulates the CDK-1 phosphatase CDC25B. During infection of CD34+ HPCs with a miR-UL148D mutant, levels of IER5 protein were significantly increased, while CDC25B showed a concordant decrease in expression. Studies have shown that CDC25B activates CDK-1 through dephosphorylation [72], which in turn inhibits transcription of HCMV UL123 (IE72) [73]. Using the myeloid cell line Kasumi-3, the authors show that infection with the miR-UL148D mutant virus does not inhibit IE1 gene expression due to the enhanced phosphorylation of CDK-1 that occurs upon reduced CDC25B expression [51] (Figure 2). Thus, by interfering with expression of a cellular immediate early response gene, HCMV miR-UL148D indirectly regulates viral IE gene expression and latency establishment.
Latency establishment and maintenance require that the infected cells block host apoptotic responses. High-throughput analysis of HCMV miRNA targets in lytically infected human fibroblasts identified multiple targets related to apoptosis signaling, including FAS, FADD, CASP3, and CASP7 [74]. Additional studies performed in the absence of infection or using cell lines that are not permissive for HCMV latency have suggested that HCMV miRNAs can inhibit apoptosis through suppression of SLC25A6/ANT3 [75] and immediate early gene X-1 (IEX1) [76]. More recently, HCMV miR-US5-1 and miR-UL112-3p were shown to target FOXO3a [77], a member of the mammalian Forkhead Box O family of transcription factors that promotes mitochondrial-dependent and -independent mechanisms of apoptosis induction [78,79]. FOXO3a binds to the promoters of pro-apoptotic regulators such as Bcl-2-like protein 11 (Bim) and stimulates its expression [80]. The activity of FOXO3a is regulated by PI3K/AKT and MEK/ERK signaling, which mediate phosphorylation and translocation of FOXO3a to the cytoplasm [81,82,83]. The FOXO3a transcript is downregulated by HCMV miR-US5-1 and miR-UL112-3p and the protein is targeted for phosphorylation and inactivation by the HCMV FLT3L homolog UL7 [77]. Both the miRNAs and UL7 are expressed at early times post-infection of CD34+ HPC [15,77] and reduce FOXO3a levels and activity to limit the induction of apoptosis [77] in this cell type (Figure 2). This study demonstrates a coordination between an HCMV protein and HCMV miRNAs to promote survival of infected cells in a way that supports the establishment of HCMV latency.
While limiting IE gene expression and preventing apoptosis are critical steps in latency establishment, very little is known about the viral and cellular factors required to maintain the latent genome in CD34+ HPCs. Recently, TGFβ signaling was identified as an important antiviral response during latency that affects viral genome maintenance [16]. HCMV miR-UL22A-5p and miR-UL22A-3p target SMAD3, a key transcription factor downstream of TGFβ binding to the TGFβ receptor (Figure 3). HCMV lacking the miR-UL22A hairpin does not block canonical TGFβ signaling in CD34+ HPCs and fails to reactivate from latency. Further examination determined that miR-UL22A mutant genomes were lost during latency, accounting for the lack of reactivation. A miR-UL22A mutant virus engineered to express an shRNA targeting SMAD3 from the miR-UL22A locus reverted the ΔmiR-UL22A phenotype to that of wild type (WT)—canonical TGFβ signaling was blocked in CD34+ HPCs and viral genomes were maintained and capable of reactivation [16]. These data indicate that targeting SMAD3 is an essential function of miR-UL22A during latent infection of CD34+ HPCs in order to maintain viral genomes capable of reactivation. Altogether, the studies described here emphasize the complexities surrounding HCMV miRNA regulation of both host and viral factors that contribute to the ability of HCMV to enter into and maintain latency in CD34+ HPCs.

4. HCMV miRNAs Involved in Regulating CD34+ HPC Proliferation and Myelopoiesis

In order to regulate latency in CD34+ HPCs, the virus must participate in maintaining the quiescent state of the progenitor cell. Conversely, upon reactivation stimuli, the virus drives cell differentiation through the myeloid lineage. Additionally, because HCMV is not known to tether its genome to the host chromosomes during cell division, HCMV also actively limits the proliferation of the infected HPC. Thus, the virus carefully manipulates the homeostasis of infected CD34+ HPCs to aid in specific steps of its lifecycle, and evidence is emerging to suggest this occurs in part through the actions of viral miRNAs.
HCMV miR-US22 targets EGR-1 [15], which is an important modulator of CD34+ HPC proliferation [85]. EGR-1 is critical for promoting “stemness”—self renewal and a lack of differentiation—of CD34+ HPCs in the bone marrow niche in vivo [86,87]. Expression of an EGR-1 shRNA phenocopies the effect of miR-US22 in limiting proliferation of CD34+ HPCs [15]. Given that miR-US22 is not expressed during latent infection, this suggests that expression of miR-US22 either at the initial stages of infection or upon reactivation is important for limiting the proliferation of cells harboring viral genomes.
As an additional mechanism to limit cell proliferation during latent infection, HCMV miR-US25-1 targets RhoA, a GTPase critical for regulating actin dynamics [88]. miR-US25-1 directly targets the 3′ UTR of RhoA, thereby reducing protein expression, attenuating downstream signaling through myosin light chain II, and limiting the formation of the contractile ring required for cytokinesis (Figure 3). Notably, ΔmiR-US25-1-infected CD34+ HPCs proliferate significantly more than WT-infected cells, and reactivate from latency with a lower frequency compared to WT. Given that the ΔmiR-US25-1-infected cells proliferate more extensively, the lower frequency of reactivation is due to a lower proportion of genome-containing cells at the end of the latency culture [88]. Thus, miR-US25-1 targeting of RhoA uncovers a novel means of enriching for viral-genome-containing cells during latency. Along with RhoA, additional cell cycle regulators have been identified as targets of miR-US25-1 [89], suggesting that the miRNA may regulate proliferation during infection using multiple mechanisms.
HCMV-infected CD34+ HPCs not only show significant reduction in proliferation, but specific myeloid differentiation programs are also blocked by infection. For many years, it has been observed that HCMV infection is myelosuppressive, both in vitro and in vivo [16,90,91,92,93,94], but the mechanisms surrounding this myelosuppression were unknown. Recently, it was determined that latently infected CD34+ HPCs secrete the myelosuppressive cytokine TGFβ [16,95]. TGFβ expression is negatively regulated by the transcriptional repressor NAB1, which brings HDAC2 and other chromatin modifiers to the TGFβ promoter [96,97]. NAB1 is a target of HCMV miR-US5-2, and expression of either miR-US5-2 or a NAB1 siRNA induced the expression and secretion of TGFβ and limited myeloid colony formation in CD34+ HPCs [16] (Figure 3). In support of these findings, a miR-US5-2 mutant virus showed decreased TGFβ secretion and enhanced proliferation and myeloid colony formation compared to WT-infected CD34+ HPCs. Thus, through increased TGFβ production via downregulation of a transcriptional repressor, miR-US5-2 is capable of mediating myelosuppression in the local microenvironment during latent infection. Interestingly, HCMV also blocks canonical TGFβ signaling through targeting SMAD3 using the latently-expressed miRNAs miR-UL22A-5p and -3p (see above). Thus, while the virus stimulates TGFβ secretion, it protects itself from the consequences of TGFβ signaling within the infected cell (Figure 3). These data illustrate the incredible power that HCMV miRNAs can exert during latent infection to regulate both the intracellular and extracellular environment.

5. HCMV miRNAs Involved in Reactivation from Latency

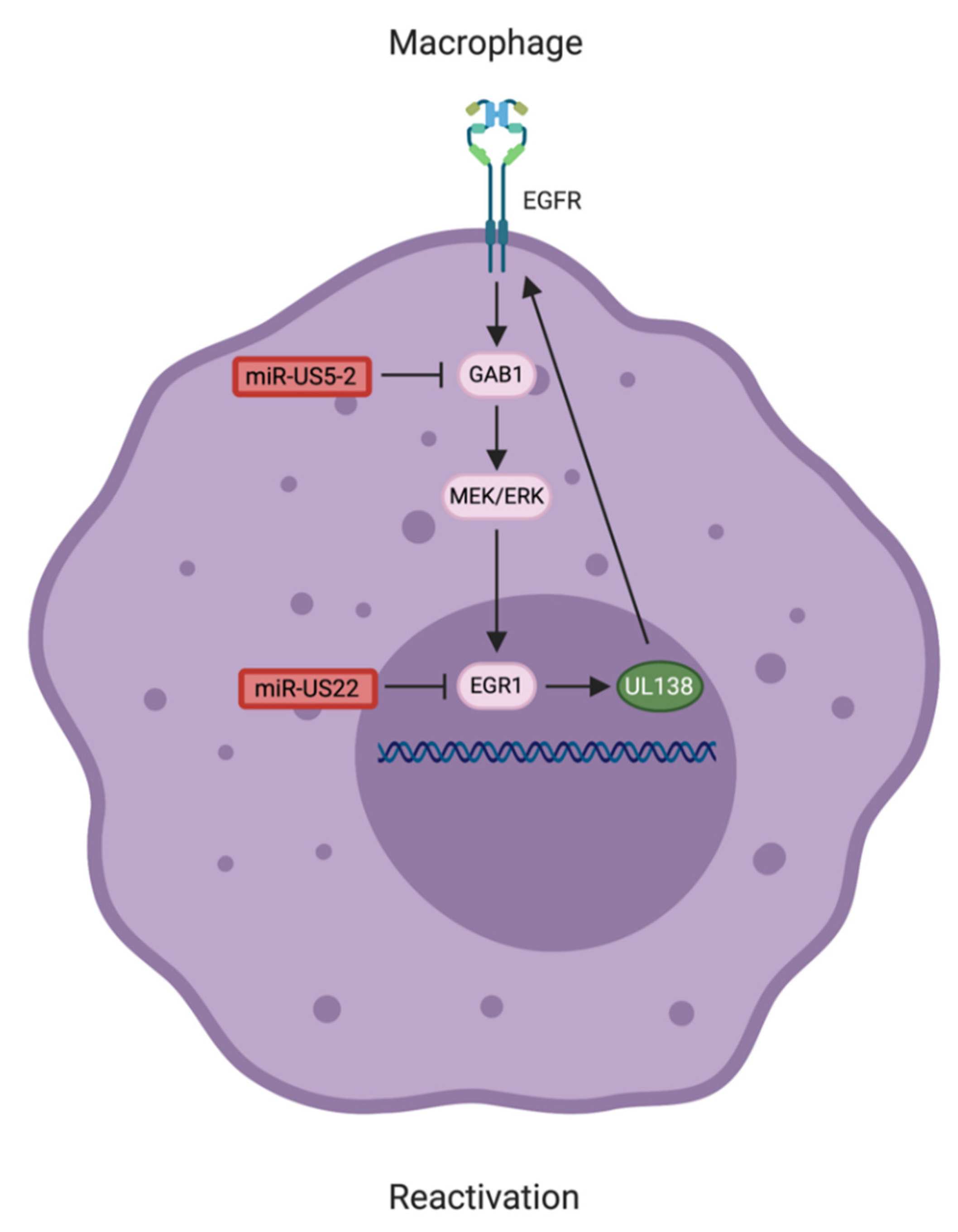

Reactivation from latency is a complex and multistep process that results in attenuation of host signaling pathways important for latency maintenance and the stimulation of other pathways involved in viral gene expression and cellular differentiation. Modelling HCMV reactivation from latency in CD34+ HPCs in vitro has proved technically difficult, and thus less is known about the role of HCMV miRNAs in this process. However, one HCMV miRNA implicated in the reactivation process is miR-US22, which targets the immediate early transcription factor EGR-1. Expression of miR-US22 reduces EGR-1 protein levels and blocks the EGFR/MEK/ERK-mediated stimulation of an EGR-1 transcriptional reporter [15]. Buehler et al. [14] determined that EGR-1 is involved in the expression of the latency-associated gene UL138. UL138 plays a role in maintaining the surface expression of EGFR and enhancing signaling through the MEK/ERK/EGR-1 pathway. Consequently, a feed-forward loop of EGFR signaling–UL138 expression forms during HCMV latency that is critical for maintaining the latent state [14,98]. While miR-US22 is not detected during latent infection of CD34+ HPCs [15], it is thought to be re-expressed following reactivation when viral gene expression is re-initiated. The miR-US22-mediated downregulation of EGR-1 may contribute to breaking the EGFR-UL138 signaling loop, and thus augmenting the viral reactivation process, although this remains to be directly tested. Additionally, miR-US5-2, through downregulating the EGFR adaptor protein GAB1, also indirectly regulates EGR-1 and UL138 expression [99]; however, the relevance of this interaction in latency and reactivation remains to be investigated. Collectively, these studies highlight a role for EGFR signaling as a critical switch between HCMV latency and reactivation [14,15,99]. Modulation of this signaling pathway at multiple stages of the viral life cycle is accomplished by an intricate interplay between HCMV proteins and miRNAs (Figure 4).

6. HCMV miRNAs Involved in Evasion of Host Immune Responses

The most direct evidence of HCMV miRNA involvement in immune evasion during latency comes from the study of miR-UL148D and one of its targets, the activin receptor ACVR1B [50] (Figure 2). Using a monocyte infection model, Lau et al. [50] determined that ACVR1B levels were increased in cells infected with a ΔmiR-UL148D virus. While the lack of miR-UL148D expression had no effect on latency or reactivation in this model (in contrast to the work of Pan et al. [51], who demonstrated a lack of latency establishment in CD34+ HPCs infected with a ΔmiR-UL148D virus; see above), the authors demonstrated a significant upregulation of IL-6 secretion in response to activin A stimulation when miR-UL148D was deleted from the virus. Thus, miR-UL148D targeting of ACVR1B is involved in limiting proinflammatory cytokine levels during infection of monocytes.
Regulation of cytokine expression and release is a recurring theme among HCMV miRNAs. As mentioned above, miR-US5-2 targets NAB1, enhancing secretion of TGFβ during latent infection [16]. In lytic infection models, HCMV utilizes miR-US5-1 and miR-UL112-3p to limit the production of IL-6 and Regulated upon Activation, Normal T Cell Expressed and Presumably Secreted (RANTES) through regulation of IKKα and IKKβ expression and signaling through NFκB [100]. Additionally, miR-UL148D reduces production and secretion of RANTES by targeting the transcript directly [101]. As a means to limit secretion of TNFα and likely other cytokines, HCMV miRNAs significantly restructure the endocytic recycling compartment [102]. Although not all of these targets have been validated in latency models, these miRNAs could play a significant role in modulating the secretome of latently infected cells.
Finally, one of the earliest cellular targets identified for an HCMV miRNA is MHC class I-related chain B (MICB), a ligand for NK cells that triggers degranulation and killing of the interacting cell [103]. By targeting MICB for downregulation in infected cells, miR-UL112-3p partially inhibits NK-cell-mediated cytotoxicity in vitro [103]. Whether targeting MICB is important to protect latently infected cells from NK cell killing remains to be determined.

7. Cellular miRNAs Involved in Regulating Latency

While viral miRNAs target cellular and viral genes to regulate latency and reactivation in CD34+ HPCs, it is worth noting that specific cellular miRNAs are also involved in regulating HCMV IE gene expression. Members of the miR-200 family, including miR-200b, miR-200c, and miR-429, target the UL122 (IE86) transcript (Figure 2). Mutation of the cellular miRNA binding site in the UL122 transcript resulted in increased IE86 protein expression and enhanced lytic replication in CD34+ HPCs [84]. The miR-200 family members are more highly expressed in less-differentiated cells; thus, these data suggest that HCMV may have evolved to utilize cellular miRNAs to contribute to the regulation of IE expression in specific cell types. How the virus overcomes this repression during viral reactivation remains to be determined. HCMV latent infection downregulates expression of miR-92a, resulting in increased GATA-2 and IL-10 expression, which enhances viral DNA content in infected cells [104]. Additionally, miR-UL112-3p was found to act cooperatively with the cellular miRNA miR -376a for optimal downregulation of MICB during infection [105]. Finally, HCMV encodes a region between UL144 and UL145 that binds cellular miR-17 and miR-20a and reduces their levels during lytic infection. Termed the miRNA decay element (miRDE), the function of this region is not completely understood but may play a role in cell cycle regulation [106]. Since miR-17 family members play important roles in CD34+ HPC biology [107], it is possible that the miRDE region has important functions during HCMV latency that remain to be discovered.

8. Conclusions and Future Perspectives

In comparison to other herpesviruses, the species specificity and challenges inherent in HCMV latency model systems has hampered the understanding of HCMV miRNA targets during latency. Despite these challenges, the role of HCMV miRNAs in manipulating CD34+ HPC proliferation and myelopoiesis, as well as entry into and exit from latency, are beginning to be appreciated (Table 1). While originally considered fine-tuners of protein expression, study of HCMV miRNAs has uncovered a significant impact for these viral small non-coding RNAs on the host cell and its microenvironment. Emerging evidence points to a complex interplay between the viral proteins and miRNAs expressed during latent infection in regulating signaling pathways to establish (Figure 2), maintain (Figure 3), and reactivate from latency (Figure 4). It is inevitable that a more complete understanding of the HCMV miRNA targetome during latent infection will uncover further novel and exploitable means of viral miRNA regulation of host gene expression, providing greater insight into how HCMV regulates CD34+ HPC biology.

Author Contributions

Writing—original draft preparation, M.H.H. and N.L.D.; Writing—review and editing, M.H.H., N.L.D. and R.L.S. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by grants from the National Institute of Health NIAID R37 AI21640, P01 AI27335 and R01 AI1436120 (R.L.S.).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data sharing not applicable.

Acknowledgments

All figures were created with BioRender.com. The authors would like to acknowledge the researchers whose work is presented here and apologize for any unintended omissions.

Conflicts of Interest

The authors declare no conflict of interest.
