Beyond Prescriptive Codes: A Validated Linear–Static Methodology for Seismic Design of Soft-Storey RC Structures

Abstract

Reinforced concrete buildings with masonry-induced soft-storey irregularities exhibit extreme seismic vulnerability, a critical risk often underestimated by conventional code-based design. Standard equivalent static methods typically fail to capture the intense concentration of seismic demand at the flexible ground level, leading to unconservative designs that do not meet performance objectives. This research proposes a corrective linear–static methodology to address this deficiency. A new Equivalent Lateral Force profile (ELF_i1) was developed, derived from modal analyses of 235 representative soft-storey archetypes to accurately account for stiffness heterogeneity. This profile was integrated with a realistic response modification coefficient (R_i1 = 5.04), determined to be 37% lower than the normative R-factor (R = 8) prescribed by code. Nonlinear static analyses confirmed that conventional design resulted in “irreparable” damage (mean Global Damage Index = 0.82). In contrast, redesigning the structure using the proposed ELF_i1 and R_i1 methodology successfully mitigated damage concentration, upgrading structural performance to a “repairable” state (mean Global Damage Index = 0.52). Finally, Incremental Dynamic Analysis validated the approach; the redesigned structure satisfied FEMA P695 collapse prevention criteria, achieving an Adjusted Collapse Margin Ratio (ACMR) of 2.10. This study confirms the proposed method is a robust and practical design alternative for soft-storey mechanisms within a simplified linear framework.

1. Introduction

This research aims to develop a linear–static calculation model for reinforced concrete buildings with soft stories. The objective is for this model to accurately approximate the seismic response that is predicted by more complex nonlinear analyses, all while maintaining the required design performance. Such structures often show pronounced stiffness discontinuities that amplify seismic demand on the first level. The practical application of nonlinear analysis in routine design is fundamentally constrained by its significant demands. It requires specialised expertise and robust material data for constitutive modelling, resources rarely available in typical design projects. If the lateral force profile in a linear–static model reflects these stiffness variations, it could approximate nonlinear response effectively. Supported by established seismic design principles favouring simplicity and safety, the proposed model achieves a balanced force distribution and ensuring reliable yet economical structural performance.

The urgency of this contribution is underscored by the destructive impact of recent earthquakes. In February 2023, Türkiye experienced two catastrophic events (Mw 7.8 and 7.5) that caused more than 50,000 deaths and widespread structural collapse across 11 provinces [1,2]. Similarly, the 2017 Mexico earthquake (Mw 7.1) and the 2016 Pedernales earthquake in Ecuador (Mw 7.8) revealed the high vulnerability of urban building stocks, leading to thousands of casualties and severe economic disruption [3]. These tragedies highlight the need for efficient yet robust seismic design strategies that safeguard human lives while promoting resilient urban development.

Beyond the magnitude of seismic forces themselves, the degree of damage sustained by buildings is strongly influenced by intrinsic structural characteristics. Among these, the presence of irregularities plays a decisive role in amplifying vulnerability, often determining whether a structure experiences repairable damage or catastrophic collapse. These irregularities are defined as discontinuities or abrupt changes in the geometric configuration, stiffness, mass, or strength of a building, and they significantly influence the structure’s response to lateral loads [4]. Past earthquake observations reveal that many collapsed structures had irregular mass distribution along their height, which amplified inertia forces and P-Δ effects, contributing to failure [5]. In analytical studies, vertical irregularities have been shown to notably degrade seismic performance compared to more uniform structures [5]. For example, in a recent pushover analysis comparing different irregularity types, buildings with only a mass irregularity fared better than those with a stiffness irregularity, such as a soft storey, which suffered significantly larger drifts and higher vulnerability [6]. This suggests that while extra mass can intensify seismic demands, a sudden loss of stiffness at one level represents an even more critical weakness.

Recent numerical investigations have explored diverse strategies to enhance seismic response. It has been demonstrated that specific geometric modifications in reinforced concrete frames—such as reducing slab cross-sections—can effectively facilitate ductile failure mechanisms, thereby mitigating brittle damage in critical nodes [7]. Conversely, research on hybrid high-performance systems indicates that integrating coupled steel-concrete composite walls significantly amplifies lateral load-carrying capacity and stiffness compared to conventional framing [8]. While these studies highlight the effectiveness of advanced optimisation and composite materials, such solutions often entail complex analysis and specialised construction techniques that may prove unfeasible for standard residential projects.

Seismic standards such as the ASCE 7-22 [4], Eurocode 8, and Ecuador’s NEC-15 [9] include provisions to mitigate the soft storey irregularity. ASCE 7-22 defines a soft storey irregularity as a storey with lateral stiffness less than 70% of that of the storey immediately above, or less than 80% of the average stiffness of the three stories above when applicable. An extreme soft storey irregularity exists when the lateral stiffness falls below 60% of the storey above or below 70% of the average stiffness of the three stories above [10], and it requires advanced analysis and prohibits such extreme cases in high seismic design categories [4] NEC-15 likewise adopts the ~70% stiffness threshold [9] and penalises soft-storey buildings with an extra design shear (~11.11% increase) via configuration coefficients, while cautioning that added strength alone may not ensure adequate performance. Collectively, these codes aim to reduce drift concentration in soft stories and improve collapse resistance. An study highlighted that ASCE 7-22’s stiffness-based criterion has been shown to capture soft-storey risks consistent with observed damage [11].

Although seismic design codes include provisions for strength, detailing, and geometric configuration, their implementation in practice remains frequently limited. This is because design standards typically rely on a simplified set of idealised structural systems, whereas real-world construction involves a much broader range of configurations, materials, and hybrid solutions that fall outside these normative assumptions. This is particularly true in developing contexts, where architectural demands frequently dictate building layouts, leading to irregular geometries such as soft stories [12]. Although these irregularities are formally recognised by the codes, the prescribed mitigation strategies—ranging from the incorporation of shear walls or steel bracings to the use of energy dissipation devices—require specialised design expertise, advanced analysis, and increased construction costs [13]. Similarly, strengthening through oversized structural members with penalisation and amplification factors [14] further raises technical and economic demands. Consequently, despite the availability of code-based guidelines, their practical application becomes limited in regions with resource constraints, informal construction practices, or limited professional oversight. This gap highlights the need for simplified approaches that account for architectural realities while offering more accessible and economically viable alternatives for enhancing seismic resilience in buildings with soft-storey irregularities.

2. Materials and Methods

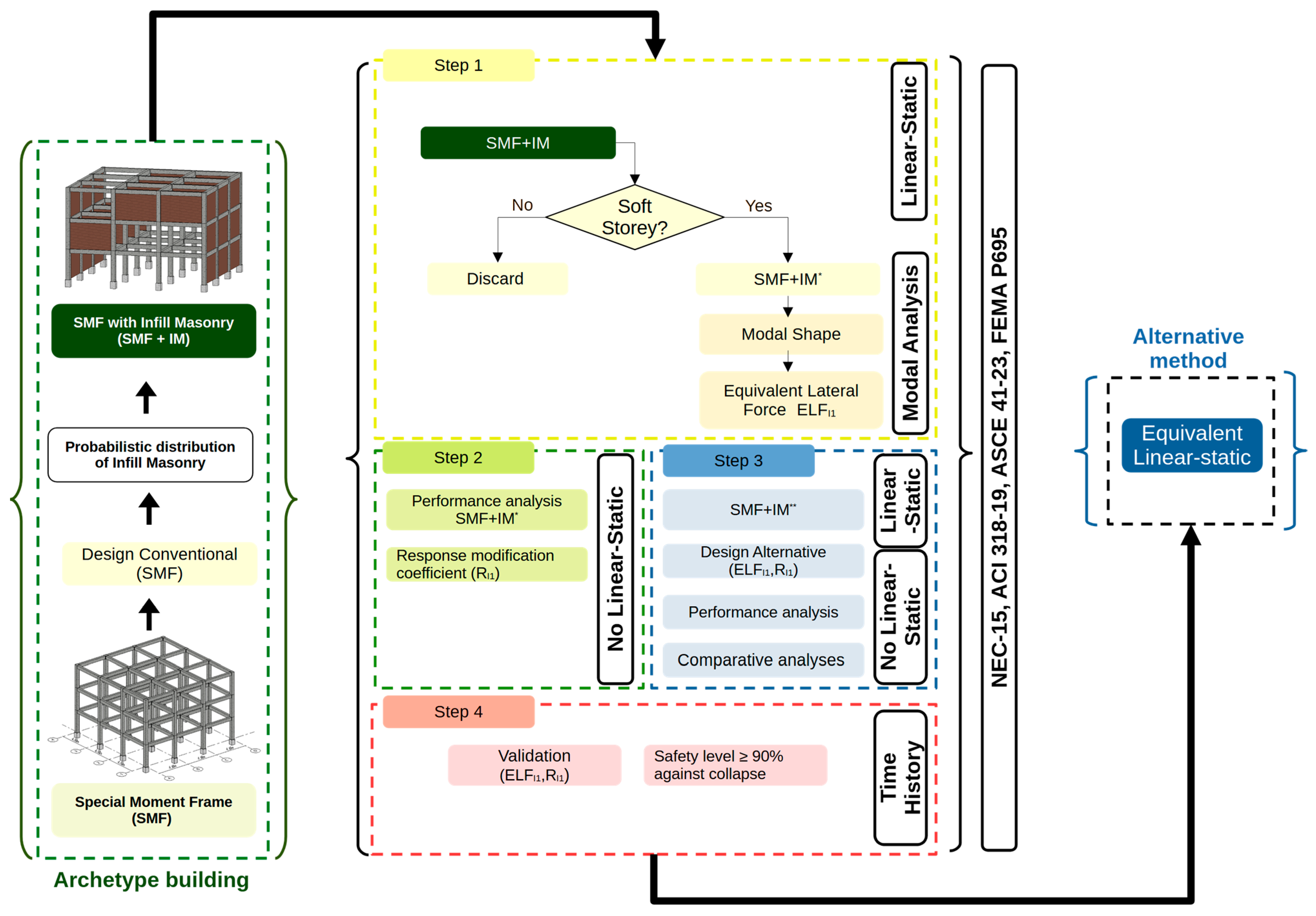

The research employs a systematic methodological framework structured into five sequential stages (Figure 1): Archetype Definition and Structural Modelling, Seismic Response Assessment, Performance Quantification, Alternative Design Formulation, and Validation against Collapse Safety Requirements. This process facilitates a rigorous transition from a conventional bare frame model to the nonlinear characterisation and reliability assessment of soft-storey frames with masonry infills (SMF + IM).

2.1. Archetype Definition and Structural Modelling

2.1.1. Archetype Building and Conventional Design

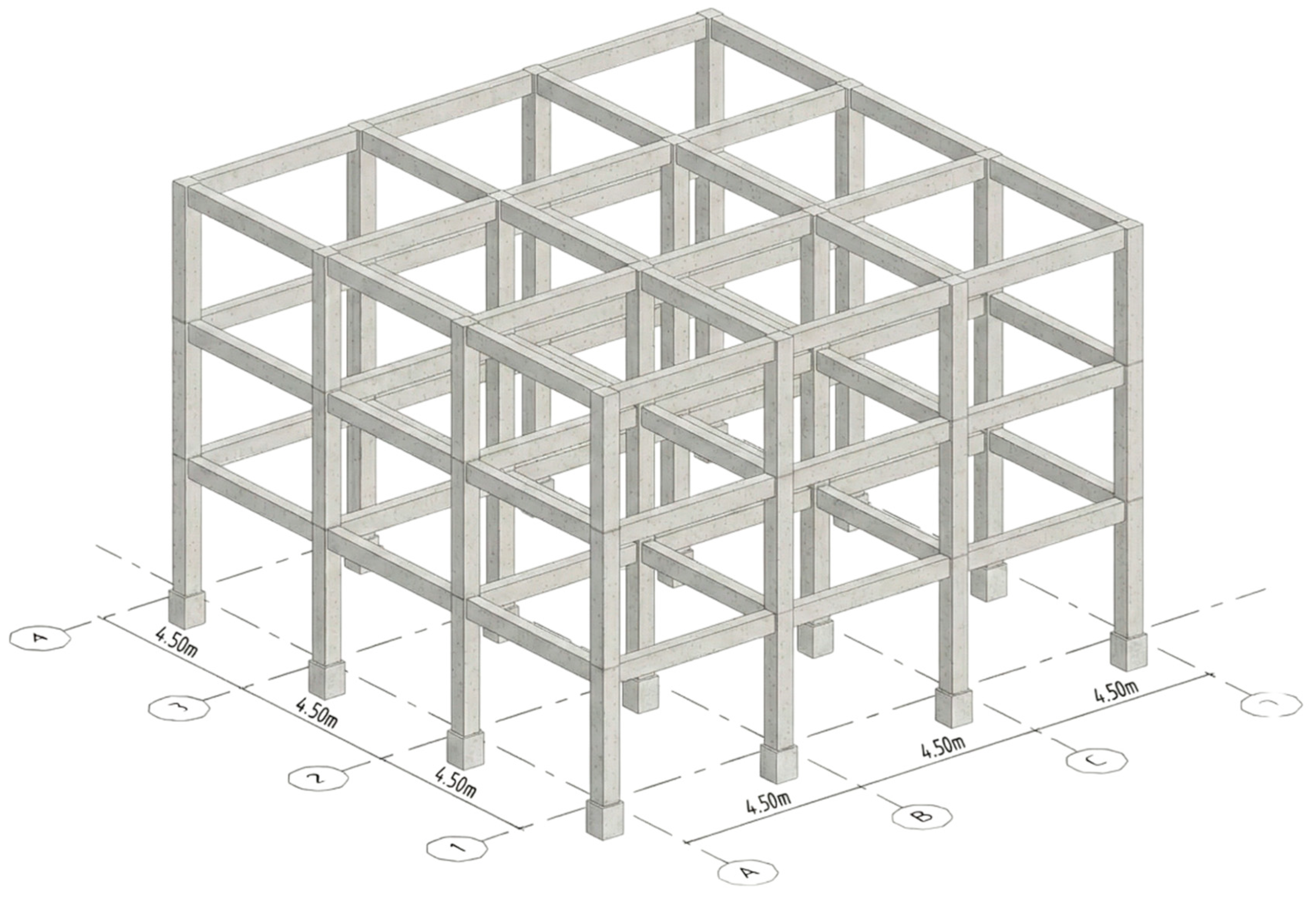

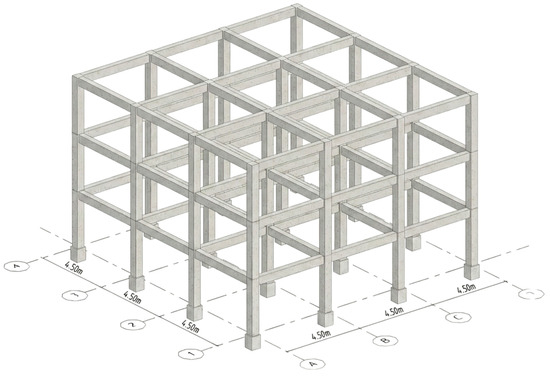

The study centres on a representative three-storey reinforced concrete special moment-resisting frame (SMF) (Figure 2) with soft-storey irregularity at the ground level, reflecting common construction practice and seismic hazard in Quito [2,15]. To ensure a systematic evaluation of the irregularity, the structural configuration was defined following the archetype development methodology outlined in FEMA P-695 [16] and FEMA P-2012 [17]. This approach fixes geometric and material parameters to isolate the dominant stiffness contrast governing the failure mechanism, thereby applying a principle of dimensional reduction. The initial bare frame was designed via linear–elastic analysis strictly in accordance with the Ecuadorian Construction Code (NEC-15) and ACI 318-19 [18] to establish the normative reference. Design parameters, including material properties, and geometric configurations are tabulated (

Table 1. Lateral and gravitational loads.

Parameter	Unit	Value
City	-	Quito
Soil Type	-	D
Use	-	Residential
Seismic zone	°	V
Response modification factor (R)	-	8
Seismic coefficient	%	0.1488
Dead load (typical floor)	kN/m2	6.86
Dead load (terrace)	kN/m2	4.22
Live load (typical floor)	kN/m2	1.96
Live load (terrace)	kN/m2	0.98

,

Table 2. Material Properties.

Parameter	Unit	Value
Compressive strength f′c	MPa	21
Modulus of elasticity Ec	MPa	18,474.54
Yield strength fy	MPa	420

and

Table 3. Building geometry.

Parameter	Unit	Value
Number of stories	u	3
Number of bays	u	3
Storey height	m	3
Floor area	m2	182.25

) to ensure replicability.

2.1.2. Masonry Infill Modelling and Configuration Selection

Masonry infill panels were incorporated only in the upper floors to induce the soft-storey condition at the ground level. Three infill states were considered—full (100%), partial (60%), and absent (0%)—distributed across six wall locations, yielding an initial population of 729 configurations. To capture the variability and relative frequency of masonry arrangements observed in practice, a finite-population sampling with 95% confidence and 5% margin of error determined a sample size of 252. A systematic sampling scheme with step size k ≈ 3 was then applied, resulting in a final subset of 243 representative models, referred to as SMF + IM (Special Moment Frame + Infill Masonry), which preserves the probabilistic distribution of the original configuration space.

The nonlinear interaction between the RC frame and the infills was represented using the bi-puntal macro-model proposed by Crisafulli [19]. Mechanical properties—including compressive and shear strength—were calibrated against experimental data summarised in

Table 4. Infill masonry properties adopted in the study case.

Parameter	Unit	Value
Wall thickness (tw)	mm	150.00
Modulus of elasticity (Emθ)	MPa	1600.546
Equivalent strut width (bw)	Mm	169.454
Shear strength (fws)	MPa	0.670
Compressive strength (f′w)	MPa	2.040
Masonry strength (fmθ)	MPa	1.042
Strain at max stress (ε′m)	mm/mm	0.0020
Ultimate strain (ε′u)	mm/mm	0.0150
Initial shear strength (τ0)	MPa	0.0462
Friction coefficient (μ)	-	0.23
Maximum shear stress (τmax)	MPa	0.1151

, and adjusted for openings following Smyrou [20].

To ensure the fidelity of the numerical simulations, the mechanical properties of the masonry panels were rigorously calibrated against experimental programmes conducted in Quito, specifically deriving compressive strengths for units (f_b), mortar (f_i), and panels (f_w,exp) from local non-structural block masonry tests. As detailed in Table S2 (Supplementary Materials), the adopted parameters (f_b = 2 MPa, f_j = 10 MPa) yield equivalent panel strengths of 1.79–1.99 MPa. These values align squarely with the experimental range (0.8–3.3 MPa) and correspond well with predictive models such as Eurocode 6 [21] and Hendry and Malek [22], exhibiting error margins (1–38%) consistent with expected material variability. Furthermore, the selected equivalent-strut formulation is substantiated by recent literature as an effective tool for capturing the specific stiffness discontinuities and damage-driven softening mechanisms characteristic of soft-storey behaviour, thereby ensuring the global response remains reliable under large-scale parametric analysis.

This rigorous calibration of the constitutive laws against physical benchmarks serves as the primary validation of the modelling approach. By anchoring the Crisafulli macro-model input parameters (specifically compressive strength, diagonal cracking strength, and shear modulus) to local experimental datasets [23,24], it ensures that the numerical nonlinearities reflect the specific material behaviour of the region rather than generic theoretical assumptions.

2.2. Seismic Response Assessment: Modal and Static Analysis

2.2.1. Model Filtering, Soft-Storey Characterisation, and Modal Force Derivation

The SMF + IM models were initially subjected to a filtering procedure to ensure that only the configurations exhibiting a clear soft-storey mechanism were retained. This mechanism was identified by a pronounced concentration of interstorey drift at the ground storey, obtained from the elastic modal deformation profile of each system.

For the selected models, spectral modal analysis was performed to determine the fundamental vibration period and the corresponding modal shape vector ${\mathsf{\Phi }}_{1\mathrm{i}}$. To ensure reproducibility, the modal vector was mass-normalised according to: $\sum _{\mathrm{i}=1}^{\mathrm{n}}{\mathrm{m}}_{\mathrm{i}}{{\mathsf{\Phi }}_{1\mathrm{i}}}^2=1$, where ${\mathrm{m}}_{\mathrm{i}}$ is the seismic mass of storey $\mathrm{i}$. The conventional modal lateral-force pattern [25] was then computed from the first-mode shape using:

$${{\mathrm{F}}_{\mathrm{i}}}^{\mathrm{m}\mathrm{o}\mathrm{d}\mathrm{a}\mathrm{l}}=\mathrm{V}\times {\displaystyle \frac{\mathrm{W}\mathrm{i}\times {\mathsf{\Phi }}_{1\mathrm{i}}}{{\sum }_{\mathrm{j}=1}^{\mathrm{n}}\mathrm{W}\mathrm{j}\times {\mathsf{\Phi }}_{1\mathrm{i}}}}$$

(1)

where $\mathrm{V}$ is the design base shear. This expression provides the baseline ELF distribution associated with the dominant mode of the infilled system (SMF + IM) prior to accounting for the stiffness redistribution induced by the masonry infills.

2.2.2. Formulation of the Equivalent Lateral Force Profile (ELF_i1)

The modal force vector derived in Equation (1) was subsequently adjusted to incorporate the influence of masonry infills on the interstorey drift distribution. At each storey, the total lateral force demand $\mathrm{F}$ was decomposed into the portion carried directly by the infill panel ${\mathrm{f}}_{\mathrm{i}\mathrm{m}}$ and the portion to be resisted by the bare frame (SMF). Interstorey drift compatibility between the SMF and SMF + IM systems yield:

$$\mathsf{\delta }={\displaystyle \frac{\mathrm{F}-{\mathrm{f}}_{\mathrm{i}\mathrm{m}}}{{\mathrm{k}}_1}}\mathrm{o}\mathrm{r}\mathsf{\delta }={\displaystyle \frac{\mathrm{F}}{{\mathrm{k}}_2}}$$

(2)

where ${\mathrm{k}}_1$ is the lateral stiffness of the bare frame, and ${\mathrm{k}}_2$ is the lateral stiffness of the same storey including masonry infill.

Accordingly, the corrected Equivalent Lateral Force pattern applied to the SMF model is given by:

$${{\mathrm{F}}_{\mathrm{i}}}^{{\mathrm{E}\mathrm{L}\mathrm{F}}_{\mathrm{i}1}}={{\mathrm{F}}_{\mathrm{i}}}^{\mathrm{m}\mathrm{o}\mathrm{d}\mathrm{a}\mathrm{l}}-{\mathrm{f}}_{\mathrm{i}\mathrm{m}}$$

(3)

which redistributes the first-mode lateral forces to reproduce the soft-storey deformation observed in the SMF + IM system while maintaining global equilibrium. The resulting ELF_i1 profile constitutes the load vector employed in all subsequent linear–static analyses.

2.2.3. Non-Linear Static (Adaptive Pushover) Assessment

Adaptive pushover analyses were performed on representative configurations of the SMF + IM models using the derived ELF_i1 loading profile. The analysis followed the Capacity Spectrum Method (ATC-40) to establish the performance point, systematically evaluating the structural capacity against seismic demand and capturing the nonlinear response of the soft-storey.

2.3. Performance and Ductility Quantification

2.3.1. Local and Global Damage Criteria

The performance and ductility of the structural system were quantified by applying both local and global damage criteria. For Reinforced Concrete elements, performance was evaluated using strain-based thresholds to characterise states from initial yielding to ultimate collapse, in line with established international practice (

Table 5. Strain Limits to Evaluate Performance.

Performance Level	Strain Limit	Observation
Yielding of reinforcing steel	0.002	Onset of yielding
Service compression of concrete	0.004	Onset of cover spalling
Service tension of reinforcing steel	0.015 (1)	(1) Elements subjected to axial loads
	0.010 (2)	(2) Elements subjected to non-axial loads
Damage control in confined concrete compression	0.025	Fracture of transverse confinement reinforcement
Damage control in reinforcing steel tension	0.060	Slip between reinforcing steel and concrete at the critical section
Ultimate strain limit of reinforcing steel	0.100	Fracture of reinforcing steel, therefore the section is no longer capable of carrying gravitational load

). Damage to Masonry Infills was assessed based on equivalent strut axial deformations, benchmarked against experimental drift thresholds that detail performance from elastic behaviour to collapse prevention (

Table 6. Drift Results.

Drift Distortion	Damage Level	Type of Response	Damage Description
≤0.10	No damage	Elastic	Slight cracks at the corners
≤0.28	Slight	Inelastic, with stiffness degradation, maximum strength reached	Growth of initial cracks and appearance of localised compression cracks in both directions
≤0.40	Moderate	Inelastic, post-peak with strength and stiffness degradation	Cracks of appreciable length
≤1.00	Severe	Inelastic, post-peak with marked strength degradation	Extended cracking and crushing, portions of surface spalling
≥1.00	Collapse prevention	Inelastic, post-peak with marked strength degradation until total loss	Partial detachment of masonry units

). For a comprehensive synthetic measure, local performance was aggregated into a Global Damage Index (GDI) which was calibrated against established performance limit states: Serviceable, Repairable, Irreparable, and Collapse (

Table 7. Relationship Between the Damage Index and the Performance Limit State.

Damage Index (D.I.)	Performance Limit State
D.I. ≤ 0.33	Serviceable
0.33 ≤ D.I. ≤ 0.66	Repairable
0.66 ≤ D.I. ≤ 1.00	Irreparable
D.I. ≥ 1.00	Collapse

).

2.3.2. Adjusted Response Modification Coefficient (R_I1)

The seismic response modification coefficient (R) was determined from the capacity curves. The adjusted coefficient (R_I1) was calculated as a product of the ductility factor (R_µ), overstrength ratio (Ω), and redundancy factor (R_R) (Equation (4)). This coefficient explicitly reflects the reduced ductility capacity identified in the nonlinear analyses, serving as a critical indicator for the design alternatives.

$$\mathrm{R}={\mathrm{R}}_{\mathrm{\mu }}\times {\mathrm{R}}_{\mathrm{\Omega }}\times {\mathrm{R}}_{\mathrm{R}}$$

(4)

2.4. Design Recalibration and Retrofit Strategy

2.4.1. Alternative Design Methodology

The strengthened design alternative aimed to mitigate the soft-storey mechanism by recalibrating the design demand. This was achieved by integrating the ELF_i1 load profile with the adjusted response modification coefficient R_I1 to formulate a more realistic seismic design basis.

2.4.2. Structural Redesign of the Ground Storey

The ground-storey elements were redesigned iteratively to enhance their stiffness and ductility (e.g., through modified column section dimensions and reinforcement ratios). The modifications were guided by moment–curvature analyses to ensure the modified sections maintained adequate capacity without major architectural changes.

2.4.3. Comparative Performance Evaluation

The redesigned configuration was subjected to the same ELF_i1 pushover analysis framework. A comparative assessment was then conducted, contrasting the global response parameters, local deformation demands, and seismic performance indicators of the original and redesigned archetypes.

2.5. Validation: Nonlinear Dynamic Time-History Analysis

2.5.1. Nonlinear Dynamic Analysis and Collapse Intensity

The validation was executed through Nonlinear Dynamic Time-History Analyses on a reduced, representative set of nine structural models, selected in compliance with FEMA P695 [16]. The selection utilised the FEMA P695 Far-Field suite, ensuring a statistically consistent basis for collapse assessment compatible with NEC-15 Soil Type D (V_s30 = 180–360 m/s). Following FEMA protocols, compatibility is enforced at the ensemble level rather than through individual spectrum matching, preserving natural record variability. The twenty-two motions were first PGV-normalised to minimise inter-record dispersion, then collectively scaled such that the ensemble median spectrum matches the NEC-15 Maximum Considered Earthquake demand at the fundamental period (T₁). This approach rigorously aligns the aggregate seismic intensity with site-specific design requirements while adhering to established performance-based guidelines. Collapse was defined as the state where more than 50% of the ground motions exceeded the structural resistance.

2.5.2. Safety Level Against Collapse

The structural reliability was quantified using the Adjusted Collapse Margin Ratio (ACMR), which is the ratio between the median collapse intensity and the design-level seismic intensity. The ELF_i1 and ELF NEC approach was validated if the minimum required safety margin, specified as ACMR ≥ 90% (FEMA P695), was achieved.

3. Results

3.1. Archetype Definition and Model Development

3.1.1. Linear–Elastic Reference Response (SMF Model)

The linear–elastic analysis of the bare reinforced concrete frame demonstrates a regular and code-compliant structural behaviour, adopted as the reference model (

Table 8. Shear Base, Displacement and Storey-Drift SMF.

Floor Level	Inertial Force kN	Displacement m	Storey-Drift %
3	279.29	0.0235	1.25
2	279.78	0.0173	1.96
1	139.84	0.0075	1.50
Ground floor	698.92	-	-

). The base shear distribution under NEC-15 loading reached 698.92 kN at the ground floor, with values of 279.29 kN at the third floor, 279.78 kN at the second, and 139.84 kN at the first. Lateral displacements were 0.0235 m at the third floor, 0.0173 m at the second, and 0.0075 m at the first, corresponding to drift ratios of 1.25%, 1.96%, and 1.50%, respectively. All of these values remain below the 2% drift limit established by NEC-SE-DS (2015) [9], confirming performance in accordance with normative requirements.

3.1.2. Infill Configuration Sampling (SMF + IM Models)

The 729 possible infill permutations were generated through a combinatorial analysis, accounting for the binary presence (full or empty) or partial configuration (openings) in the six available bays of the upper storeys. This variability reflects common constructive practices in Ecuador. As the computational cost of analysing all 729 models was prohibitive, a representative sample size was determined using statistical sampling theory. For a 95% confidence level and a 5% margin of error, the required sample size was calculated as 252. This set was subsequently refined to 243 representative models through systematic sampling characterisation.

3.1.3. Final Model Validation and Soft-Storey

The initial 243-model sample was refined to a final set of 235 models by filtering statistical outliers that exhibited atypical modal responses inconsistent with the target soft-storey mechanism. For instance, Model 75 (featuring an entirely empty second storey) induced modal distortions that skewed the dataset, disproportionately increasing the variance (Figure 3a). The exclusion of these 8 outlier models reduced the variance and standard deviation by nearly half (

Table 9. Assessment of Displacement Estimators.

Estimator	Initial Sample		Final Sample
	Nv. + 3.00	Nv. + 3.00	Nv. + 6.00	Nv. + 9.00
No	243	235	235	235
Mean	0.006165	0.006106	0.008177	0.008706
Mode	0.005873	0.005873	0.006991	0.007232
Median	0.006073	0.006068	0.007925	0.00834
Variance	1.38 × 10−7	3.78 × 10−8	9.33 × 10−7	1.23 × 10−6
Deviation	0.000372	0.000194	0.000966	0.001109
% Standard Deviation	6.0	3.2	11.8	12.7
Kurtosis	12.87	0.44	0.49	0.43
Skewness	3.32	0.88	1.14	1.09

). This filtering process enhanced the statistical robustness of the mean as a central estimator and consolidated a coherent dataset representative of the intended structural behaviour.

The normative verification indicated that the stiffness ratio between the first and second levels (K₁/K₂ = 0.34) is far below the 70% threshold established by NEC-15, and even when adjusted by the dispersion range (0.328–0.350), the condition of soft storey remains, in agreement with the ASCE 7-22 [3] classification of irregularity type I (

Table 10. Ground-floor soft-storey verification.

Storey Floor	Inertial Forces (kN)	Shear Forces (kN)	Mean Displacement (m)	${∆}_{\mathit{i}}$ (m)	${\mathit{K}}_{\mathit{i}}$ (kN/m)	$\frac{{\mathit{K}}_{\mathit{i}}}{{\mathit{K}}_{\mathit{i}+1}}$
3	279.29	279.29	0.00533	0.00046	607,159.54	-
2	279.78	559.07	0.00487	0.00104	537,574.15	0.89
1	139.84	698.92	0.00383	0.00383	182,408.81	0.34

). Consequently, the final set of 235 models is validated as an appropriate and representative basis for subsequent dynamic analyses and for the formulation of equivalent lateral load profiles (Figure 3b).

3.1.4. Modal Characteristics of the Archetype

A modal analysis was performed for the complete set of 235 validated SMF + IM configurations to quantify the contribution of translational and torsional modes to the seismic response and to verify the suitability of using a first-mode–based lateral load profile (ELF₁). All models exhibited a consistent dynamic pattern governed by a dominant translational mode in the longitudinal direction (Ux), with deformation concentrated at the ground storey—the characteristic soft-storey mechanism targeted in this study.

Across the entire dataset, the first vibration mode mobilised between 98.5% and 99.0% of the effective mass in Ux, confirming its clear dominance in the global response. Higher modes did not contribute additional effective translational mass; their reported values correspond only to cumulative mass and not to independent modal participation. The second and third modes showed limited influence, contributing ~90% cumulative mass in Uy (not governing in the analysed direction) and 3–5% in torsion (Rz), which indicates minimal torsional coupling (More detains in Supplementary Materials, Table S3).

3.2. Seismic Response Assessment

3.2.1. Sensitivity of Modal Response to Infill Patterns

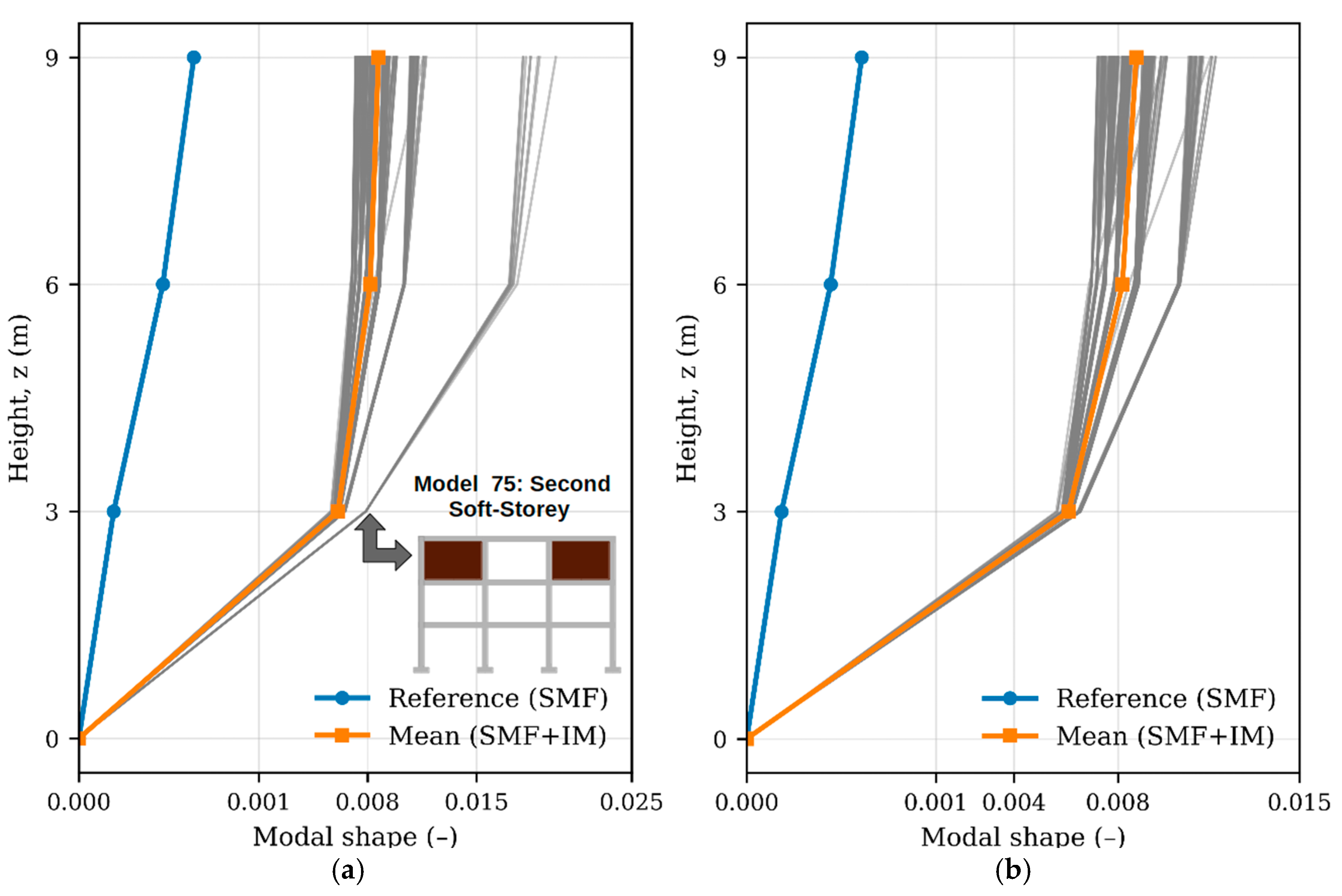

The inclusion of masonry significantly alters the distribution of normalised lateral forces and the dynamic behaviour of the structure, as the additional stiffness provided by the infill walls redistributes the seismic demand, concentrating it at the ground floor and reducing the relative participation of the upper storeys (Figure 4). In the reference model (SMF), the Fi/V coefficients were 0.20 at the first storey and 0.40 at the upper levels, reflecting a regular pattern; however, with the incorporation of masonry, the coefficient at the first level progressively increased to 0.37 in configurations with high wall density, whilst at the third level it decreased to minimum values of 0.23 in low-density cases. The average scenario showed an intermediate profile with coefficients of 0.31, 0.41, and 0.29, confirming the concentration of demand at the ground floor. This effect is supported by Figure 4, which demonstrates the sensitivity of the ELF profile to wall density. Similarly, the fundamental vibration periods shifted from 0.49 s in the bare frame to a range between 0.28 s and 0.45 s in models with masonry, implying a reduction of 8% to 41% and reflecting the substantial increase in stiffness.

3.2.2. Impact of Masonry Infill on Seismic Demand and Force Profiles

A critical finding is that while the conceptual framework of the Equivalent Lateral Force method is applicable, the normative force distribution is insufficient for frames with significant stiffness irregularities. The conventional ELF profile must be adjusted to account for the stiffness of redistribution introduced by the masonry. This adjustment, derived from the relative stiffness of the system with and without masonry (Equations (1)–(3)), is essential for accurately capturing the concentration of forces at the flexible storey (

Table 11. Equivalent lateral force coefficients per storey.

Floor Level	SMF	SMF + IMmin	SMF + IMFmean	SMF + IMmax
3	0.399	0.07	0.03	0.06
2	0.400	−0.15	−0.15	−0.30
1	0.200	1.08	1.12	1.23
Base	-	-	-	-

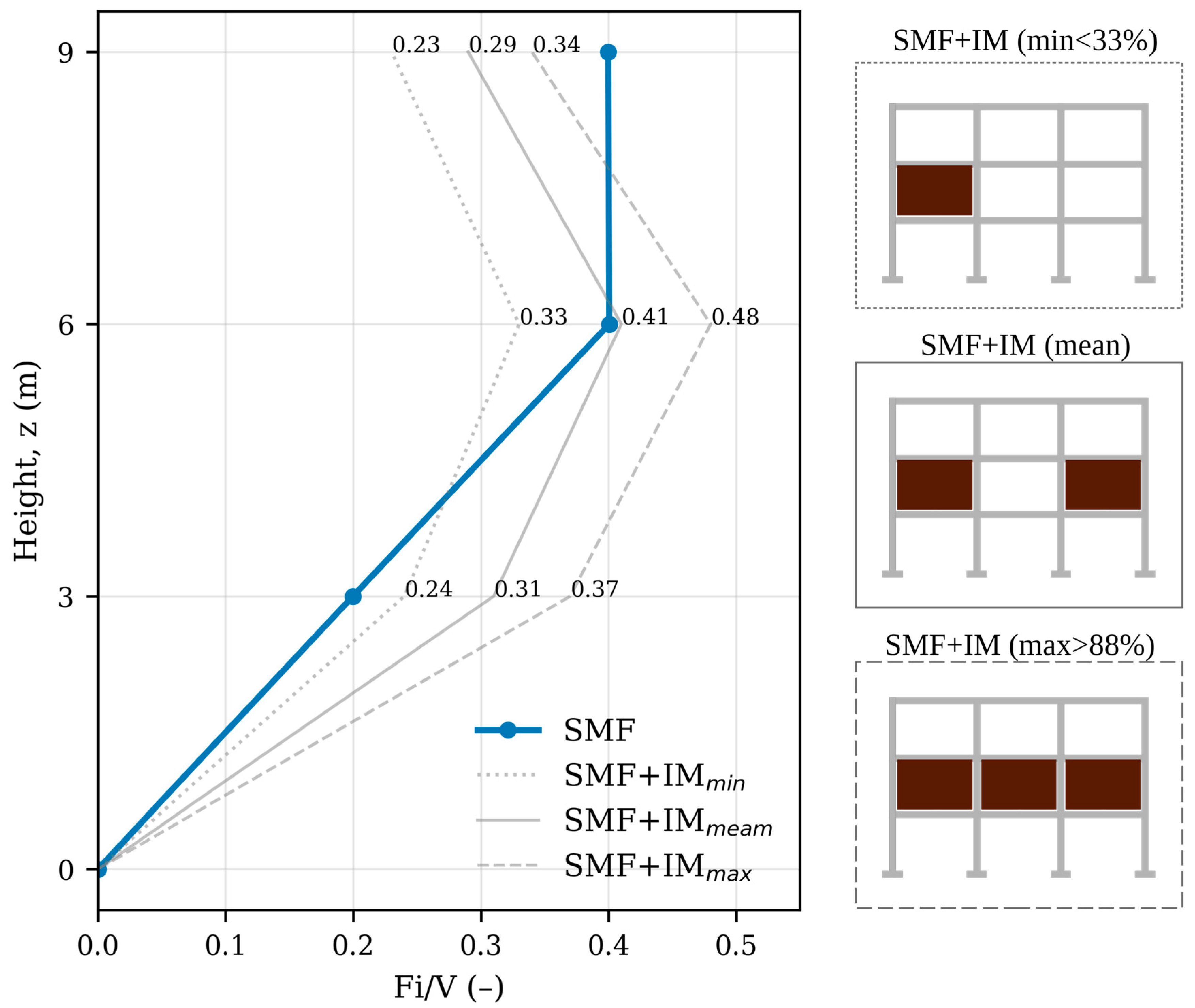

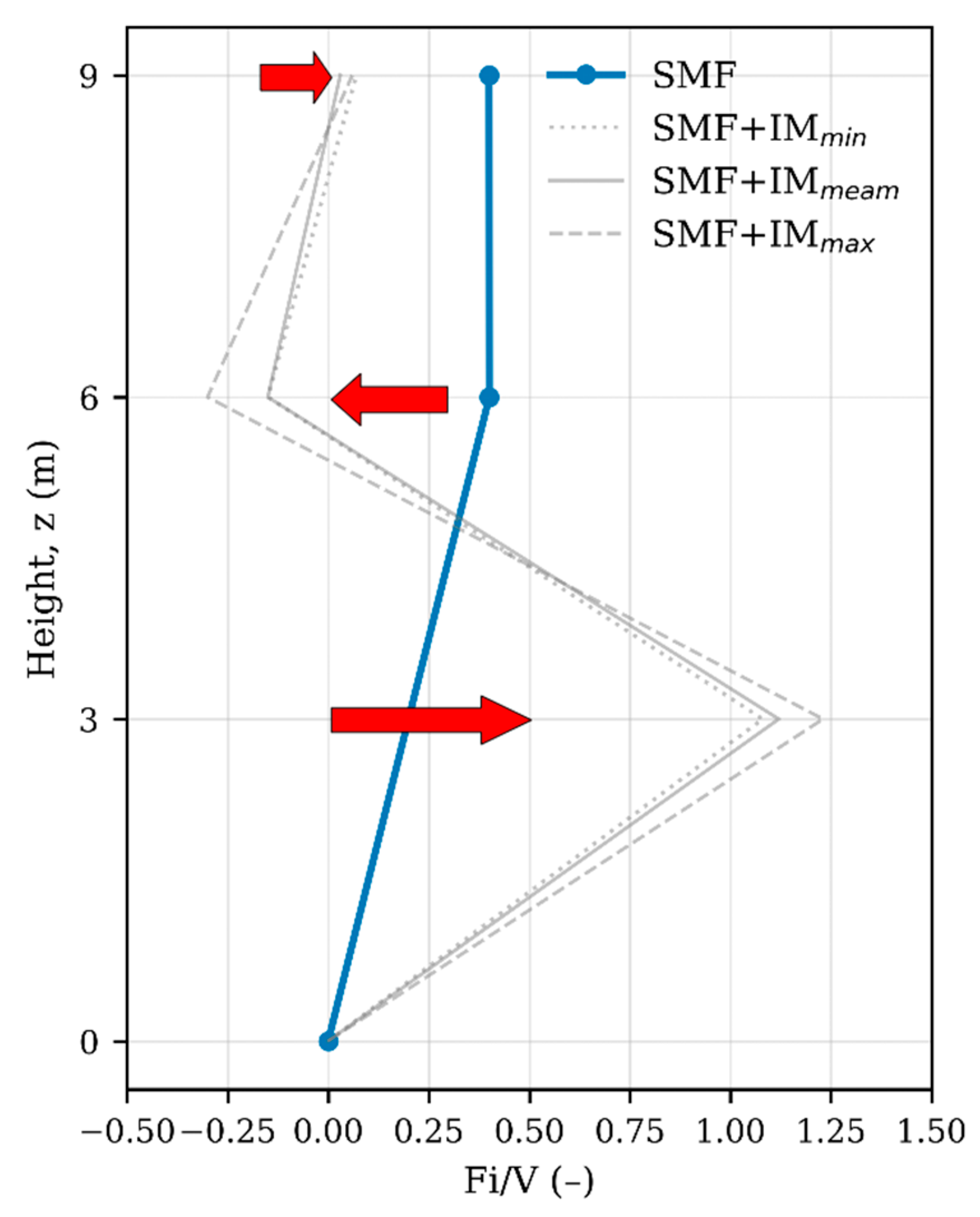

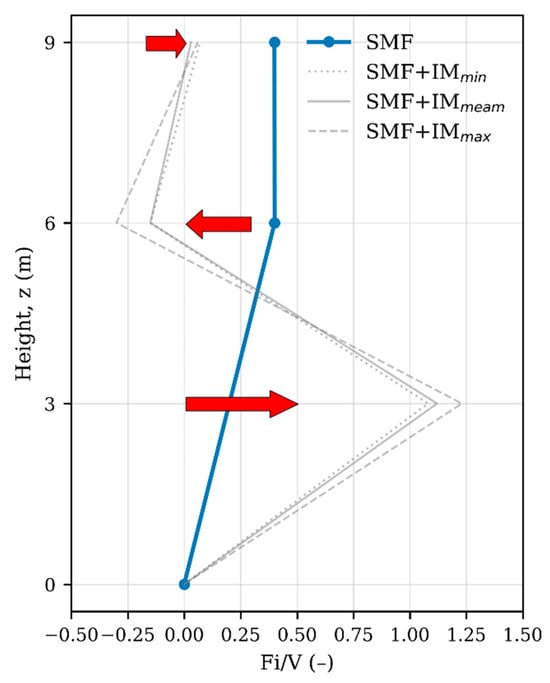

and Figure 5). The inclusion of masonry amplifies the seismic demand in the first storey from 20% in the bare frame to values exceeding unity (1.08–1.23), thereby concentrating the demand in the soft-storey level. Conversely, the second storey develops negative coefficients (–0.15 to –0.30), which reveal a counter-phase effect. The third storey, in turn, contributes only marginally, with coefficients between 0.03 and 0.07.

3.3. Performance Quantification of the Original System

3.3.1. Assessment of the Response Modification Coefficient in Soft-Storey Structures

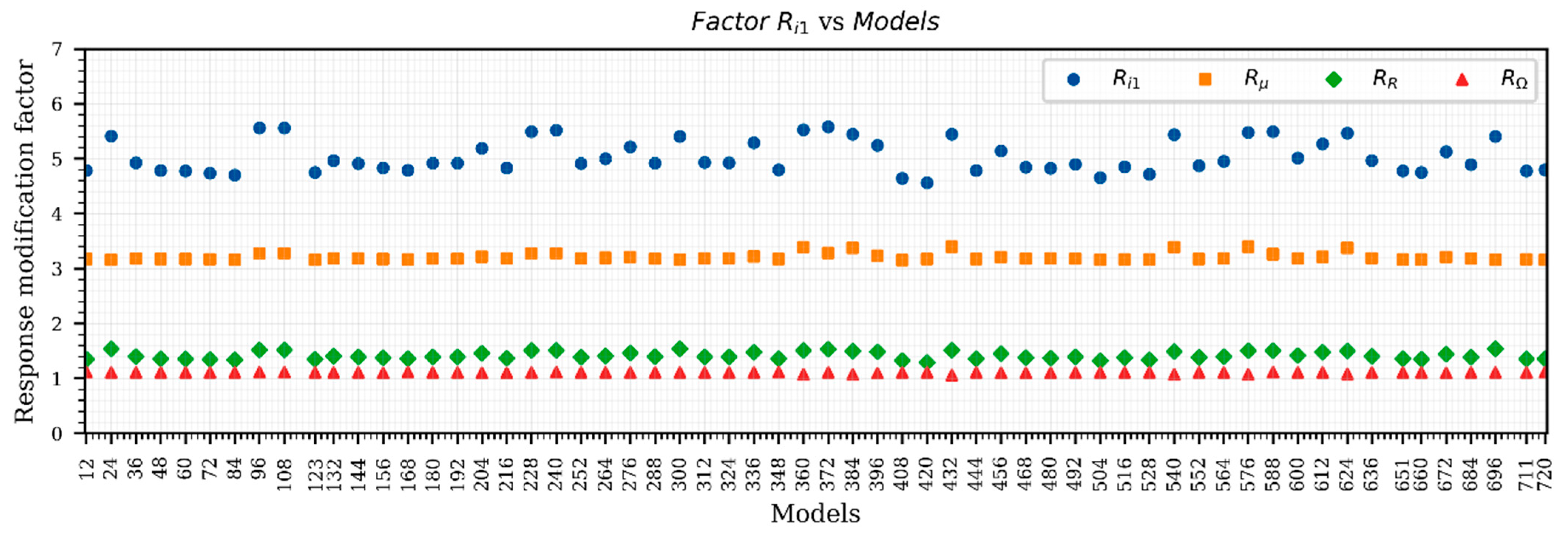

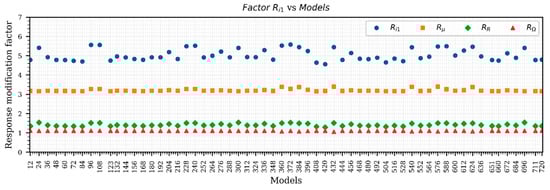

The analysis of the 235 numerical models yielded an average response modification coefficient of R_i1 = 5.04, notably lower than the R = 8 value prescribed by the NEC-15 [9] for special moment frames. This deviation, representing an overestimation of approximately 37%, evidences that the soft-storey irregularity substantially reduces the system’s capacity to dissipate seismic energy. The decomposition of the global reduction factor into its constituent components—ductility (Rμ), overstrength (R_Ω), and redundancy (R_RED)—illustrated in Figure 6, reveals that ductility dominates the overall behaviour and is the most severely affected parameter.

3.3.2. Capacity Curves and Performance Points

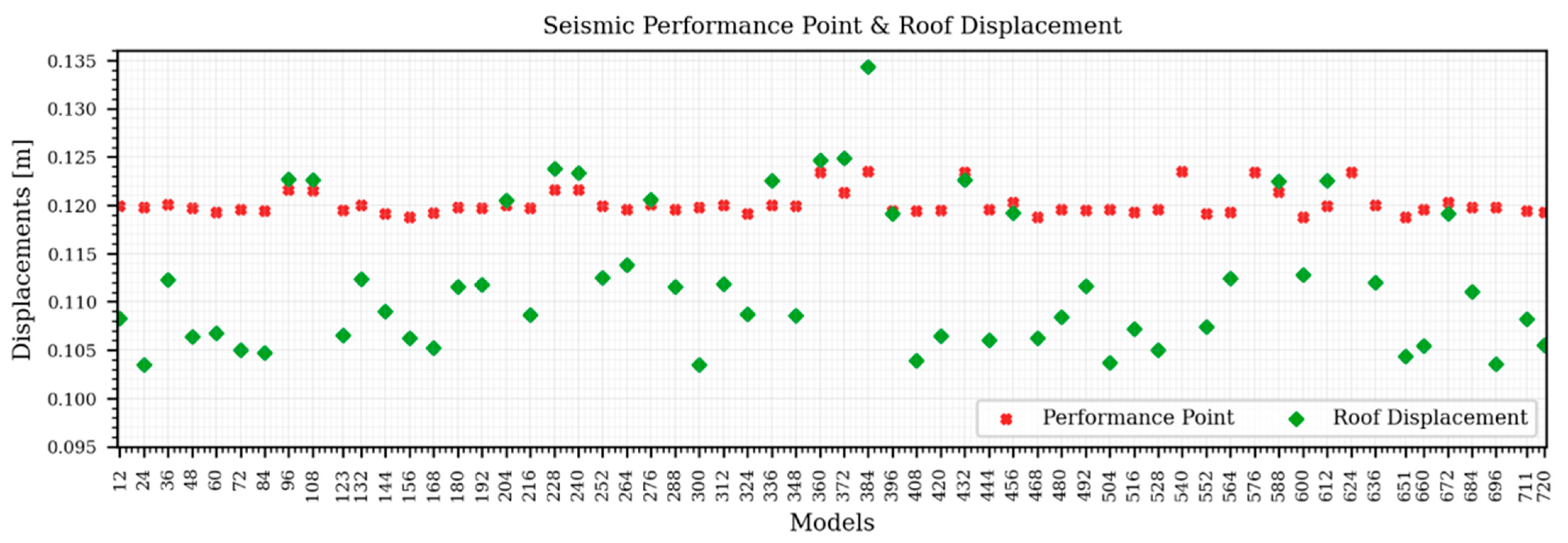

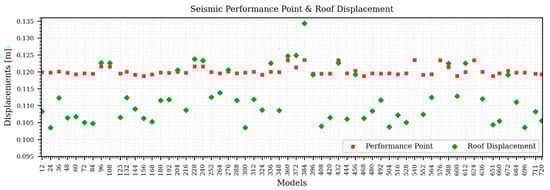

For the computationally intensive nonlinear static (PushOver) analysis, a representative subset of 60 models was selected from the full sample of 235. This subset was established through stratified sampling to ensure it encapsulated the primary statistical distribution of the full set, spanning the minimum, mean, and maximum stiffness ranges identified in the modal analysis. The ‘control group’ refers to these 60 models with their original NEC-15 design. This control group exhibited an average spectral displacement of 0.120 m at the performance point, associated with a roof deformation of 0.135 m, indicating a high concentration of inelastic demand in the soft-storey columns (Figure 7).

3.3.3. Local Damage Analysis: Columns

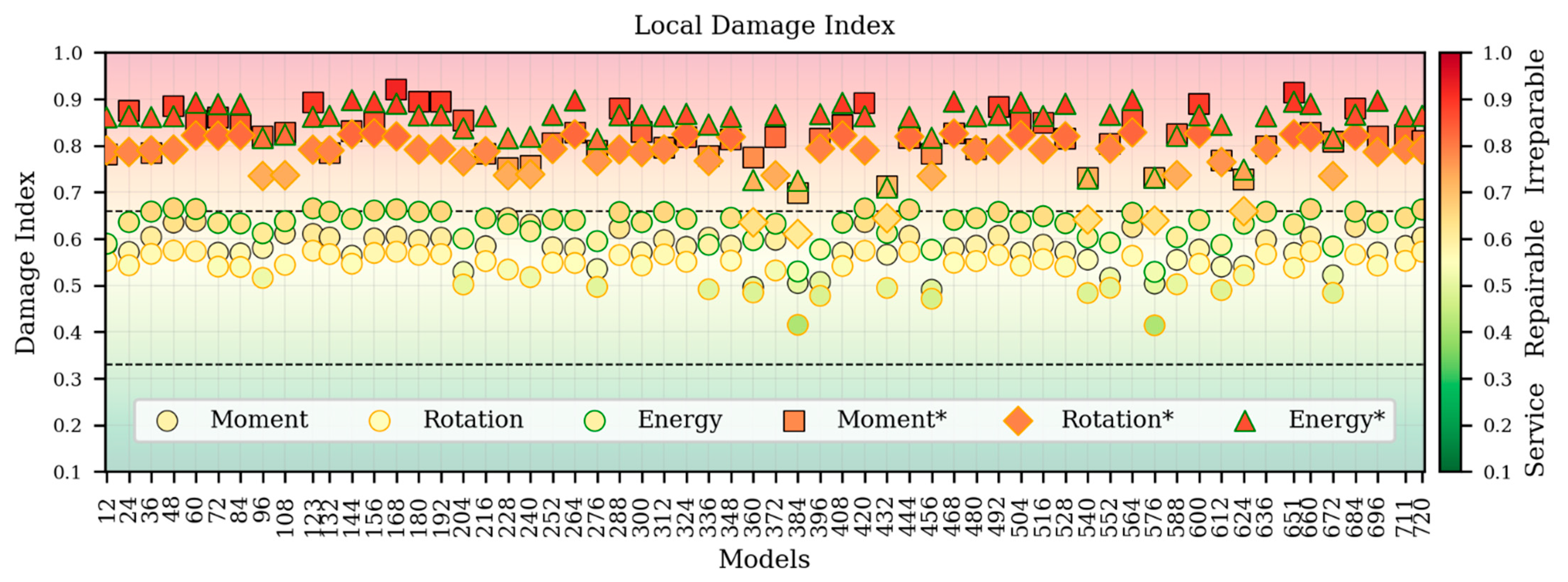

The analysis of the ground-storey critical columns showed that, in the 60 models belonging to the control group, all interior columns, except those located at the corners, reached an irreparable damage state, exceeding the 66% damage index threshold. This outcome confirms that the concentration of inter-storey drift at the first level produces a highly localised inelastic demand on the vertical elements of the interior frame. To examine the local deterioration in detail, a representative interior column located along Axis B was selected, as it exhibited the maximum plastic curvature, the highest cumulative rotation, and structural symmetry with respect to the building’s central axis. This selection criterion ensured that the observed behaviour was characteristic of the global inelastic response and provided a consistent basis for comparison between models.

In contrast, the redesigned models (Figure 8) exhibited damage indices associated with moment, rotation, and strain-energy dissipation within the range of 0.33–0.66, corresponding to a repairable damage state according to the adopted classification. These results demonstrate a systematic reduction in local deterioration and a more uniform distribution of inelastic demand along the first-storey columns, resulting in a more controlled structural response.

3.3.4. Local Damage Analysis: Masonry Infills

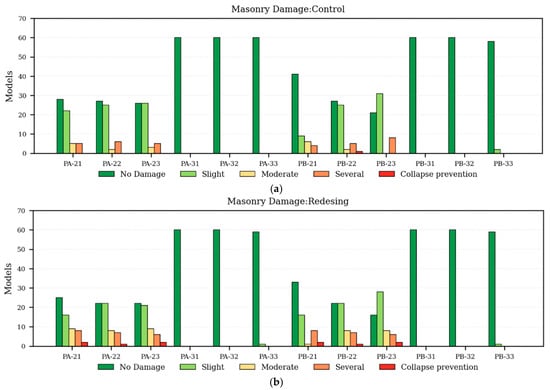

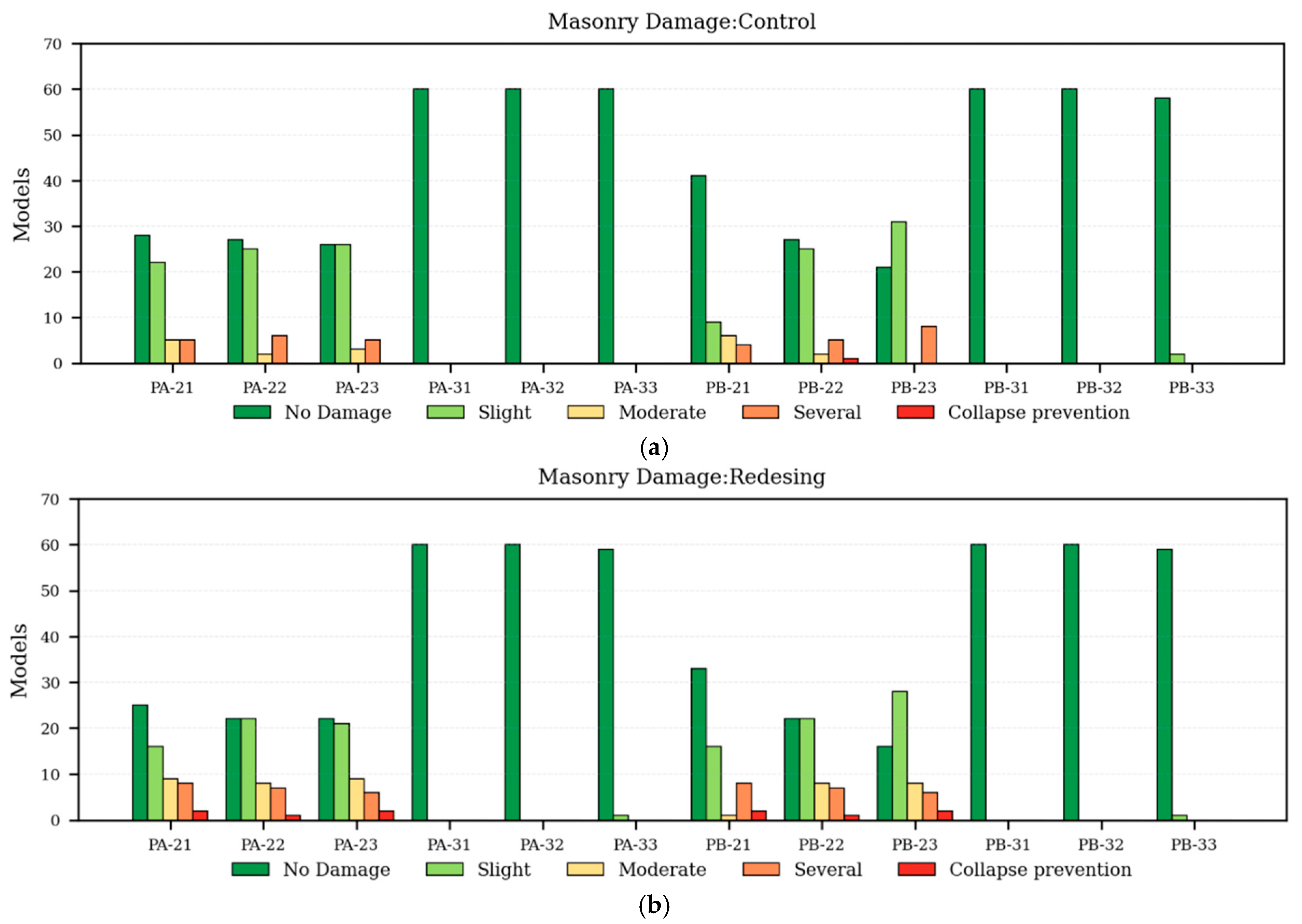

The analysis of the equivalent struts in the internal (PA-32, PA-33) and external (PA-22, PA-23) frames revealed distinct damage patterns in the control configurations (Figure 9). In the control models designed under the NEC, the third storey remained practically undamaged, whereas in the second storey, approximately 44% of the panels exhibited slight to moderate deterioration due to their proximity to the flexible zone. This spatial distribution of damage (Figure 9) confirms that the concentration of inelastic incursions occurs predominantly in the level immediately above the soft storey.

3.3.5. Global Damage Index (GDI)

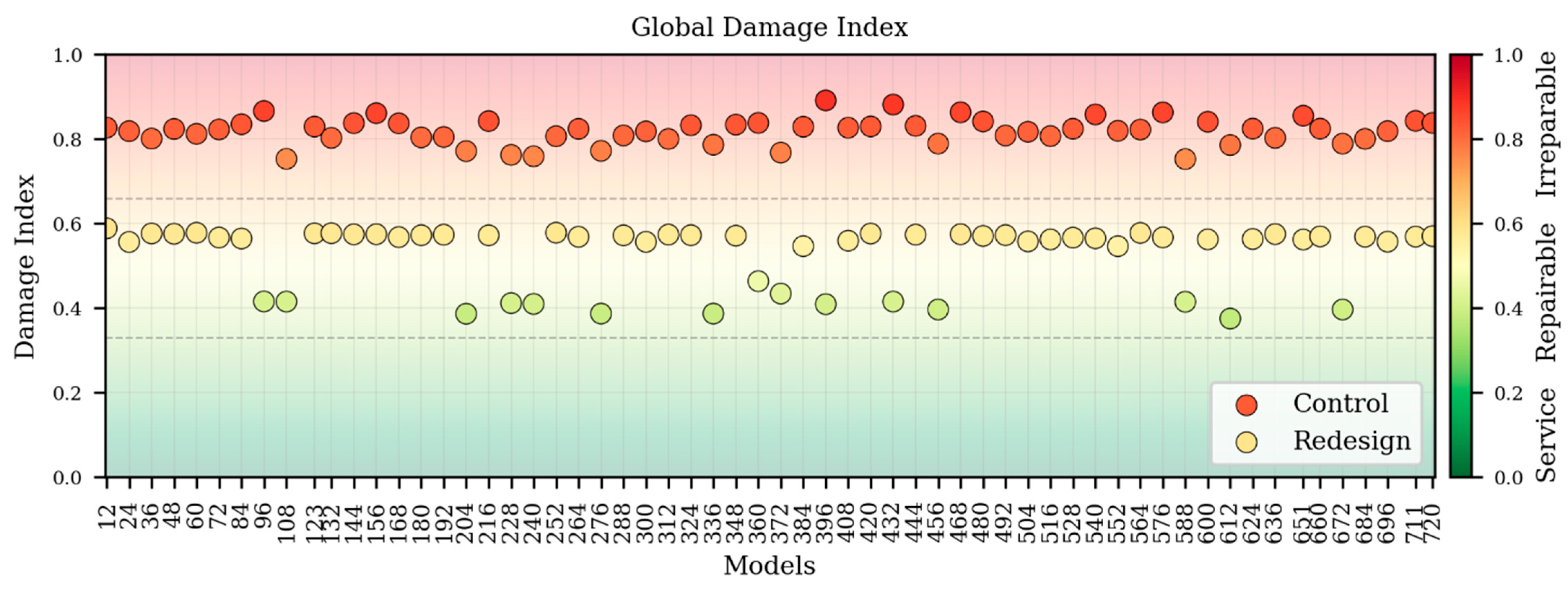

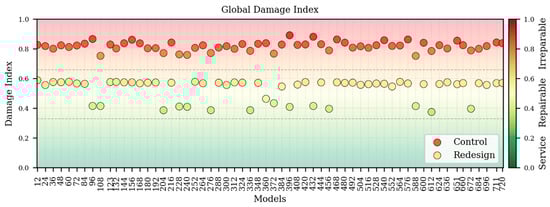

The analysis of the global damage index (Figure 10) for the control group revealed a mean index value of 0.82, with a range between 0.75 and 0.90. This indicates that all models experienced irreparable damage when subjected to the design earthquake defined by the NEC. This outcome confirms that the soft-storey typology fails to maintain acceptable structural performance under such seismic demands.

3.4. Alternative Design and Comparative Assessment

3.4.1. Comparison of Lateral Load Distributions (ELF_i1 vs. NEC)

The adoption of the adjusted equivalent lateral force profile (ELF_i1) revealed marked differences compared to the NEC-15 distribution, even when considering the penalty for vertical irregularity (ELF NEC*). The redesigned models exhibited an increase in base shear, reaching 1118.25 kN, against 698.92 kN for NEC and 776.58 kN for NEC*, representing increments of 60% and 44%, respectively (

Table 12. Comparison of equivalent lateral force distributions.

Floor	ELF NEC		ELF NEC *		ELFi1
Level	Fi/V	Fi (kN)	Fi/V	Fi (kN)	Fi/V	Fi (kN)
3	0.399	279.29	0.40	309.89	0.03	33.54
2	0.400	279.78	0.40	310.87	−0.15	−169.79

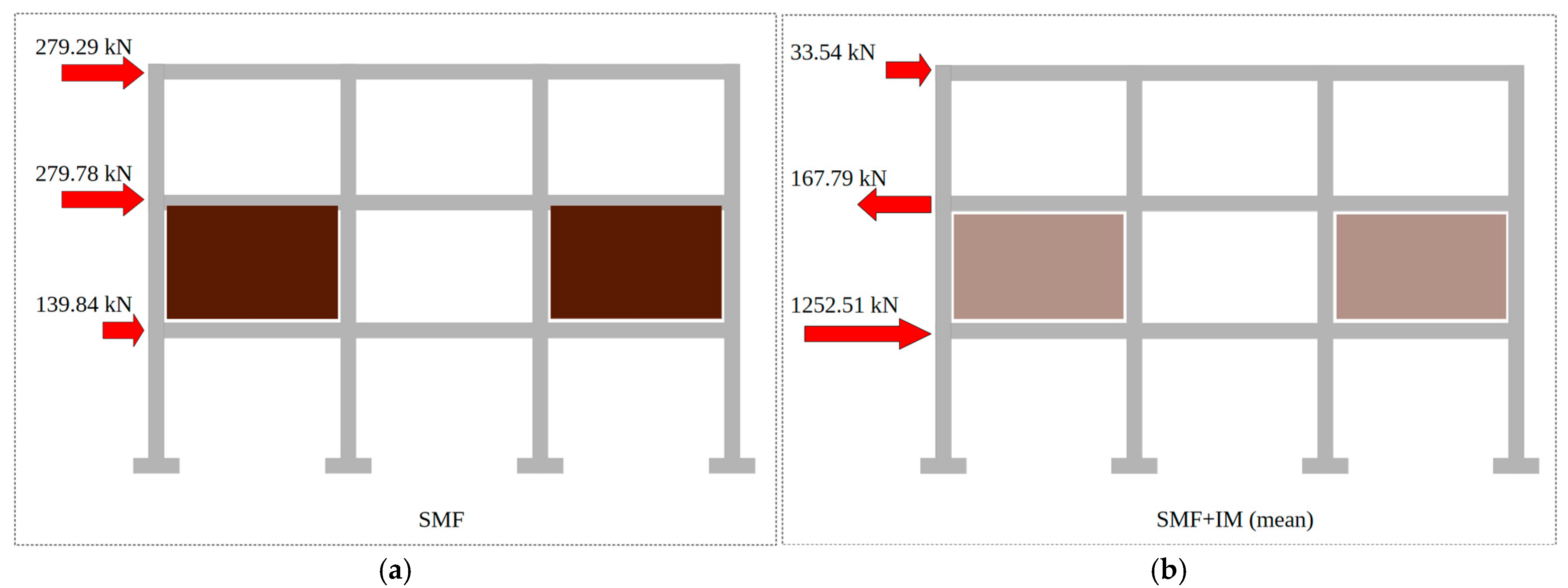

1	0.200	139.84	0.20	155.34	1.12	1252.51
Base shear (kN)	698.92		776.58		1118.25
Difference%	160.0%		144.0%		-

Note: An asterisk (*) indicates the alternative in which the penalisation prescribed by the NEC-15 standard is applied.

). The redistribution concentrated predominantly at the first storey, where the lateral demand increased to 1252.50 kN (1.12 Fi/V), equivalent to 12% more than the total base shear (Table 12). This behaviour, also illustrated in the proposed distribution (Figure 11), confirms that ELFI_i1 reflects the soft-storey mechanism more accurately than the normative distributions.

3.4.2. Parametric Analysis for Ground-Storey Redesign

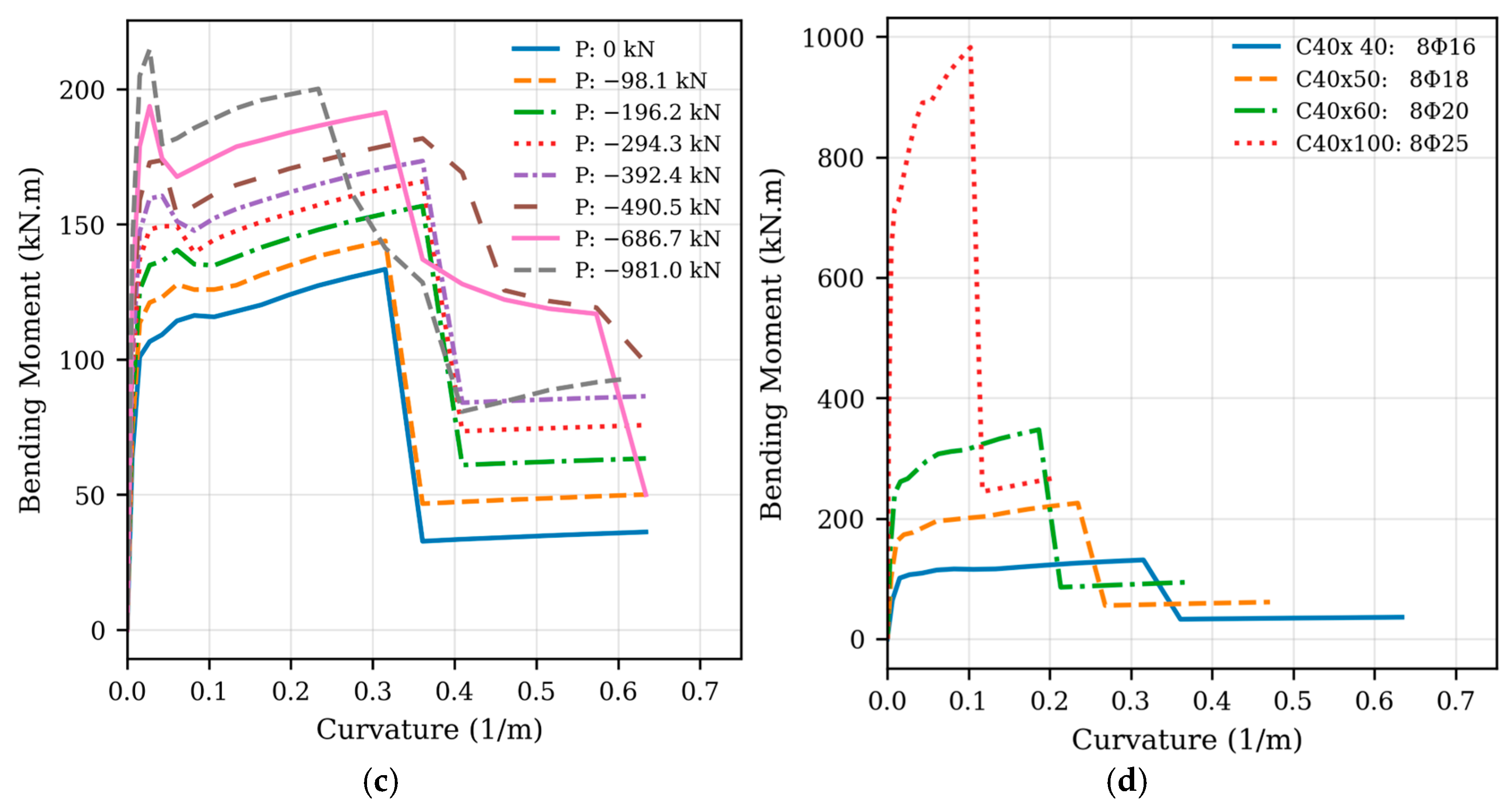

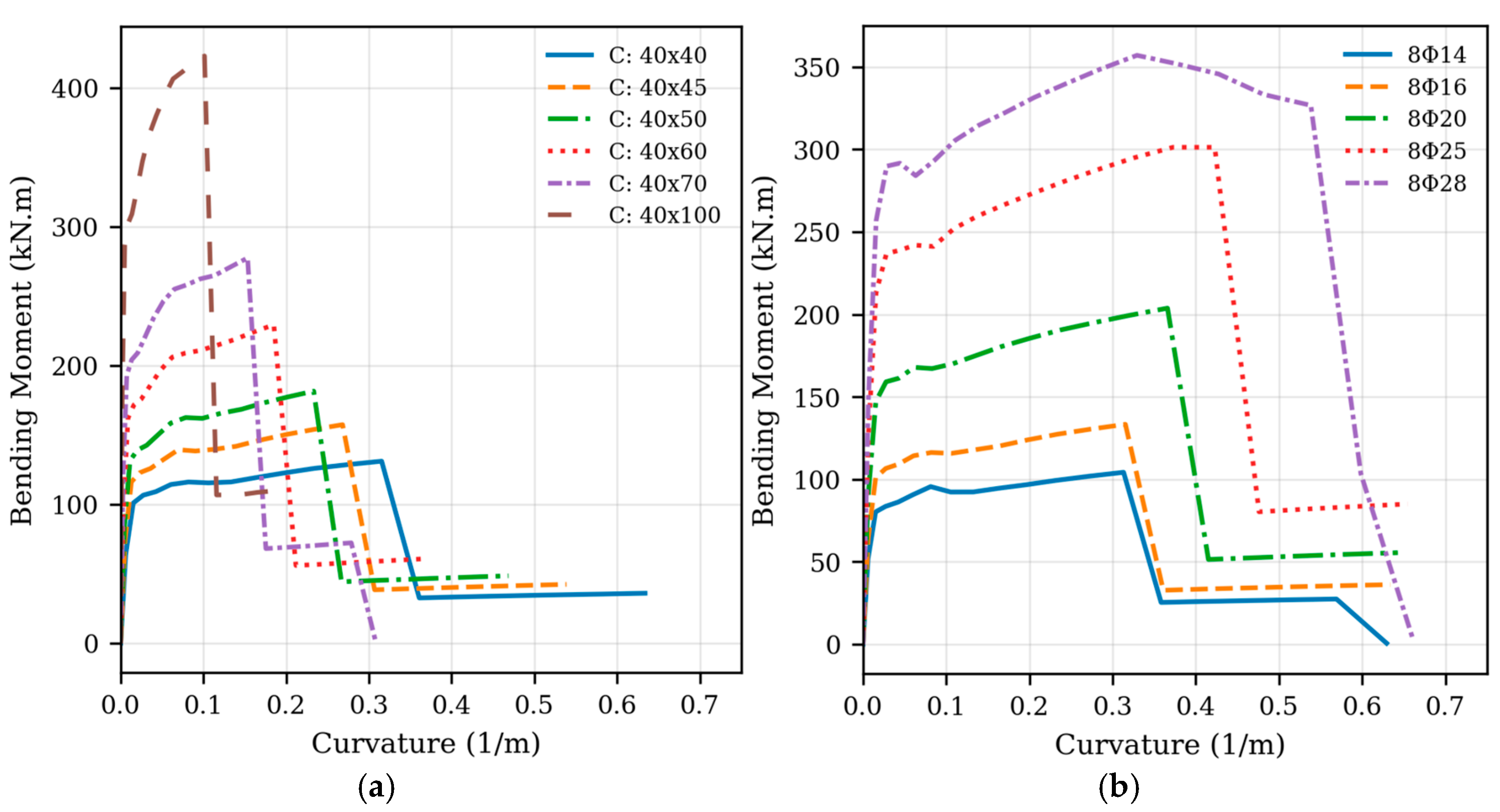

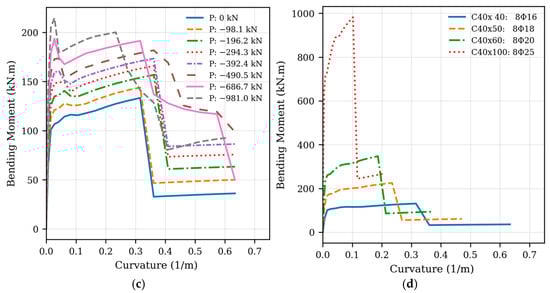

The moment–curvature analysis conducted for the ground-storey columns provided a detailed evaluation of how different strengthening strategies influenced both resistance and ductility (Figure 12). The parametric study utilised a baseline square cross-section of 400 × 400 mm, reinforced with 12 longitudinal bars of 14 mm diameter (12Φ14), corresponding to a reinforcement ratio of approximately 1.15%. Increasing the section depth while maintaining the longitudinal reinforcement area constant (Figure 12a) resulted in a 35% strength gain but a 40% reduction in ductility. This behaviour is attributed to the enlarged compression zone, which shifts the failure mechanism towards a more brittle, Compression-Controlled State. As the neutral axis deepens, the tensile steel achieves a lower strain at the point of concrete crushing, thereby limiting the element’s post-yield deformation capacity and the corresponding rotational ductility of the member. When the longitudinal reinforcement ratio was increased while maintaining the same geometry (Figure 12b), both strength and ductility improved—by about 30% and 25%, respectively. Conversely, raising the axial load (Figure 12c) produced only a moderate gain in resistance (20%) coupled with a loss of ductility (30%). The combined alternative (Figure 12d) achieved the highest strength increase (45%) but exhibited the most severe loss of ductility (50%).

3.4.3. Comparative Analysis of Internal Forces

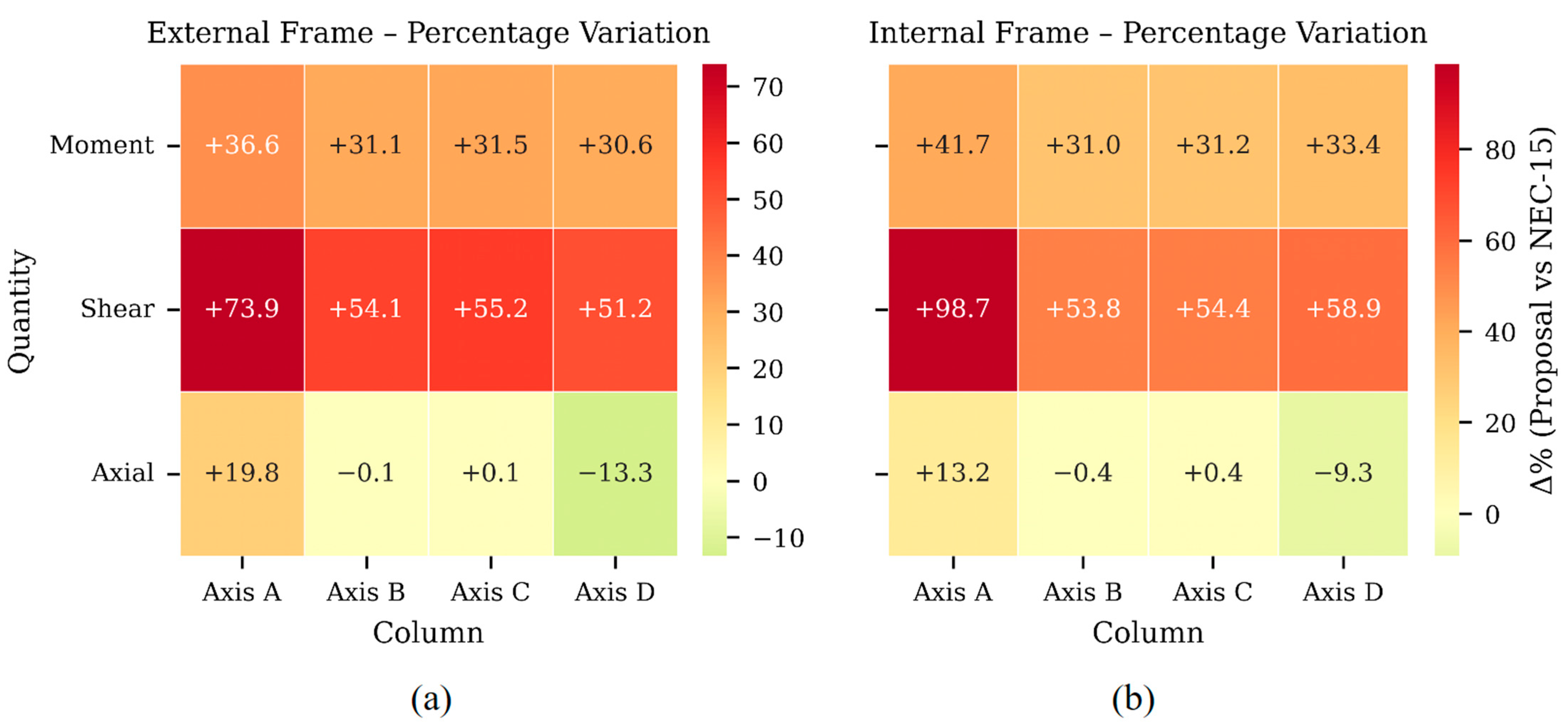

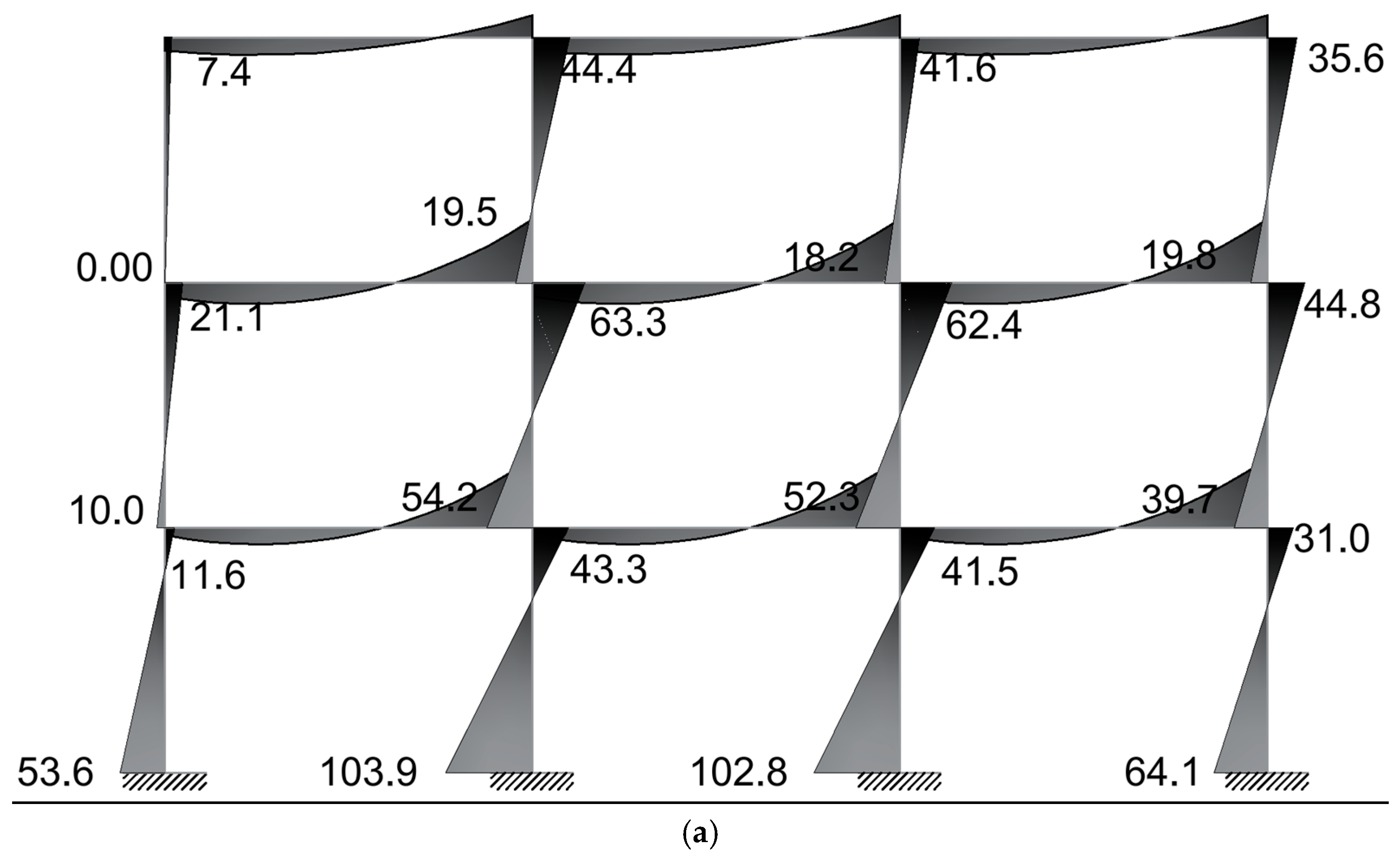

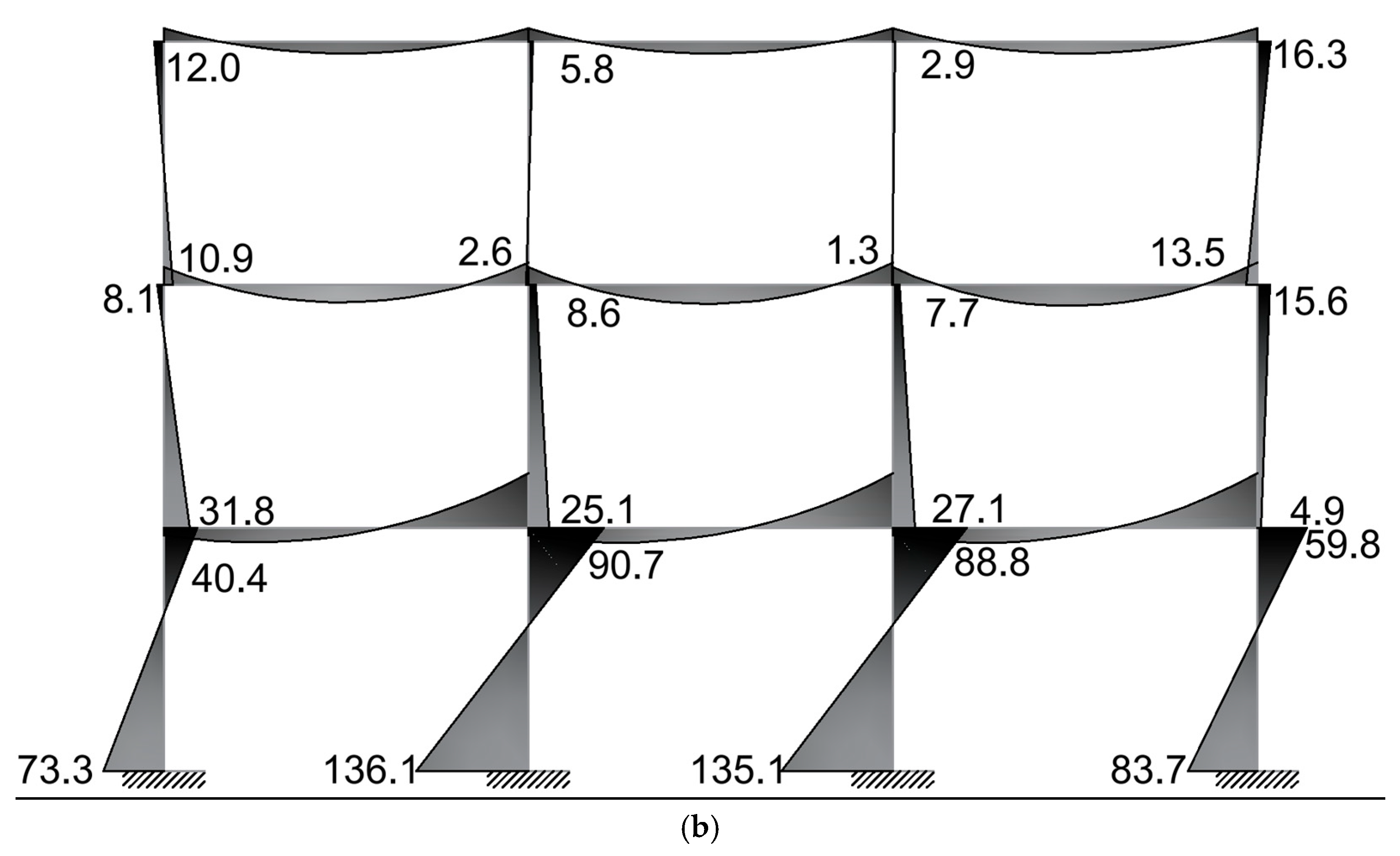

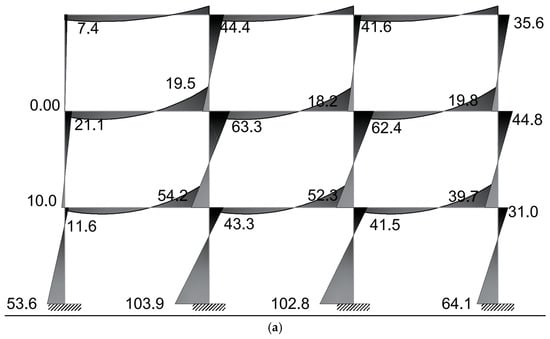

The comparison between the conventional model (ELF NEC-15) and the adjusted configuration (ELF_i1) revealed significant redistributions of internal actions in the ground-storey columns (Figure 13 and Figure 14). The adjusted load pattern systematically increased flexural demands across all columns. In the external frame, the bending moment rose between +30.6% and +36.6%, while in the internal frame the increase ranged from +31.0% to +41.7%, reaching the maximum at Axis A. Correspondingly, the peak moment rose from 103.36 kN·m to 137.88 kN·m, representing an average increase of approximately 35%.

Shear forces exhibited even stronger amplification. The external frame showed increments between +51.2% and +73.9%, whereas the internal frame reached +53.8% to +98.7%, with the largest rise again at Axis A. In contrast, axial forces displayed minor variations, generally within ±5%, with overall deviations in the range of −9.3% to +19.8%. These numerical trends demonstrate that the adjusted ELF_i1 profile produces marked amplification of flexural and shear actions at the first storey, while axial gravity effects remain nearly unchanged.

3.4.4. Comparative Performance of Redesigned System

The redesigned group—integrating the ELF_i1 profile and strengthened columns—showed significant performance improvements. The mean spectral displacement at the performance point was reduced to 0.101 m (a 16% reduction from the control group’s 0.120 m). Locally, the redesigned models (Figure 10) exhibited damage indices predominantly within the 0.33–0.66 range, corresponding to a reparable state. In the masonry (Figure 11), axial deformations increased, affecting between 57% and 58% of the panels, indicating the reinforcement effectively transferred demand to the upper storeys as intended. Globally (Figure 12), the redesigned group exhibited a mean GDI of 0.52 (ranging from 0.38 to 0.60). Approximately 87% of these models remained within the repairable-damage range, and none exceeded the irreparable threshold.

3.5. Validation Via Nonlinear Dynamic Analysis

The capacity curves from the nonlinear static analyses revealed two distinct behaviours, justifying the selection of nine representative models for the dynamic analysis in accordance with FEMA P695 [16]. The incremental dynamic analysis (IDA) performed with 22 ground-motion records yielded a mean collapse intensity of SCT = 0.94 g, with a dispersion coefficient β₁ = 0.34 and ε₀ = −0.10. The cumulative collapse curve (Figure 15) indicated that the average collapse intensity occurred at SCT = 0.94 g, with individual results ranging between 0.82 g and 1.05 g.

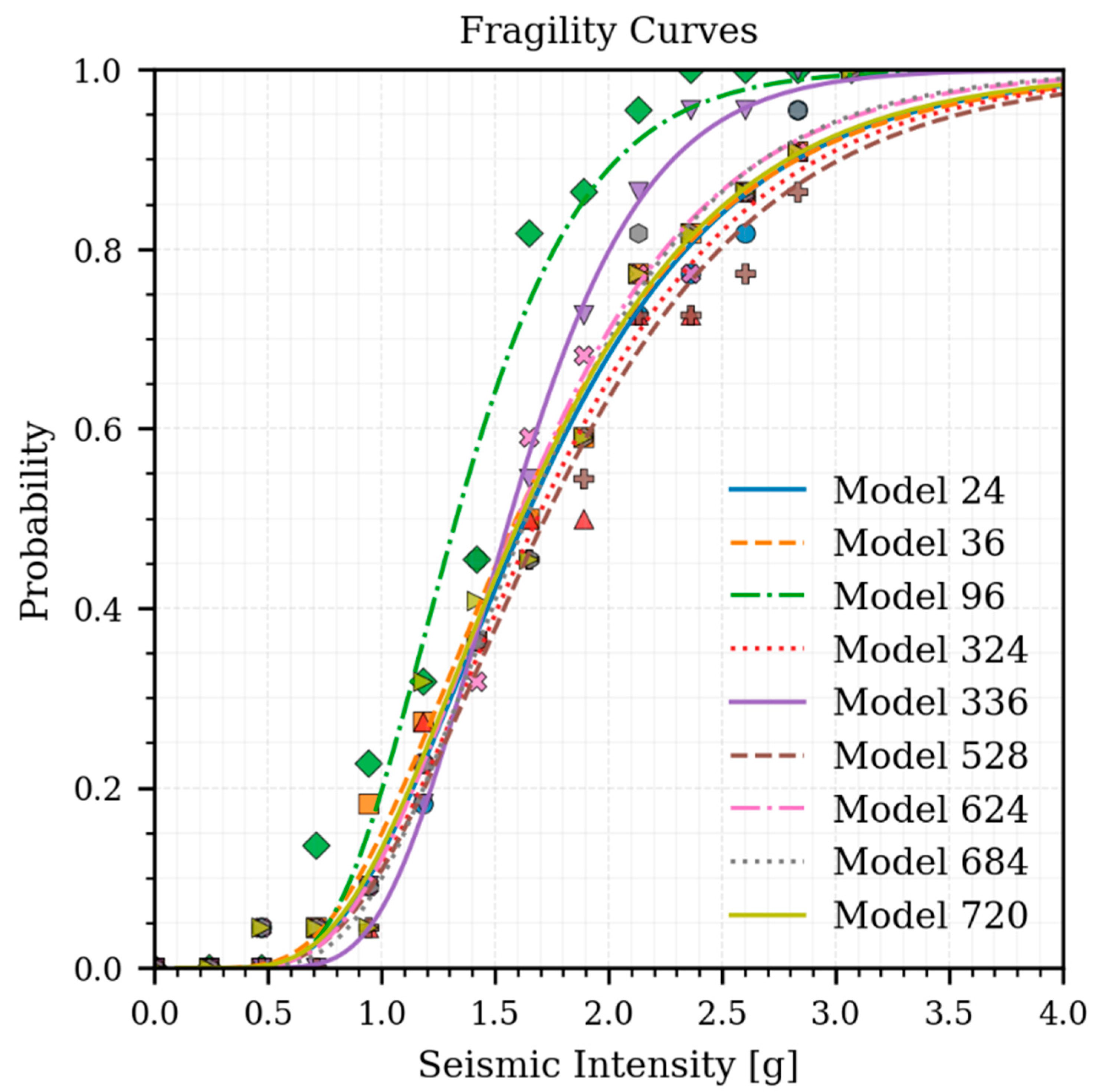

The computed Adjusted Collapse Margin Ratio (ACMR = 2.10) exceeded the minimum threshold prescribed by the procedure (ACMRmin = 1.74), confirming the statistical reliability and a safety margin greater than 90% against global collapse. This validation supports the adoption of the ELF_i1 lateral-force profile and the coefficient R_i1 = 5.04 as reliable design parameters. The results confirm that while the normative R = 8 factor does not accurately represent this typology, the proposed design approach (ELF_i1 and R_i1) ensures consistency with FEMA P695 safety criteria.

4. Discussion

4.1. Deficiencies in Conventional Seismic Design for Vertical Irregularities

The findings from this investigation highlight a critical deficiency in conventional seismic design practices for structures with significant vertical irregularities. Our results confirm that for soft-storey buildings, standard response modification coefficients (R-factors) are often unconservative. This aligns with the work by Guevara-Perez [26], who previously identified the failure of these coefficients to represent the amplified seismic demand concentrated at the flexible ground level. This inadequacy, therefore, underscores the risk of premature failure mechanisms not anticipated by prescriptive code-based approaches.

The results of this investigation confirm that the proposed lateral force distribution offers a more realistic and necessary alternative to conventional code-based formulations for structures with soft-storey irregularities induced by infill masonry. Our analysis demonstrates that the profile accurately reproduces the concentration of inter-storey drifts and internal forces at the first level. This contrasts sharply with standard equivalent static methods, which tend to underestimate these crucial demands. The underestimation arises because simplified code procedures often neglect the significant stiffness irregularities caused by the presence of masonry infills on upper floors, potentially leading to unsafe designs, a concern echoed in recent research on irregular structures [27].

4.2. Mechanics of the Proposed ELF_i1 Lateral Forcce Profile

The proposed ELF_i1 lateral force profile provides a more representative, and analytically pragmatic tool for the seismic design of structures with masonry-induced soft-storey irregularity than conventional code-based approaches. A seismic design methodology can only be considered safe and effective if it accurately accounts for the actual physical mechanisms of the structure, such as the critical frame-masonry interaction that dictates force redistribution.

The proposed profile meets this standard. Its foundation rests on key findings from nonlinear analysis: modal analysis confirms the principal deformation mechanism is a displacement concentration at the ground floor, a behaviour ca used by the heterogeneous stiffness from upper-storey masonry. Conventional code-based formulations significantly underestimate the seismic demands on this critical soft storey [12]. In contrast, the ELF_i1 profile accurately captures this behaviour by transferring a larger, more realistic portion of the seismic demand to the first storey.

The profile addresses this gap by incorporating the influence of infill walls, derived from nonlinear static analysis. Recent studies emphasise that irregular infill distribution significantly impacts structural behaviour, potentially inducing severe torsional effects or soft-storey mechanisms not captured by linear methods [28]. While advanced nonlinear dynamic analysis provides the most accuracy, its complexity can be prohibitive for routine design. Our proposed profile, grounded in nonlinear behaviour yet applicable within a linear static framework, provides a practical and more reliable tool for preliminary design and assessment, improving upon purely elastic approaches. By capturing the ground floor’s high flexibility and force concentration, the profile offers a necessary refinement for analysing and designing buildings with masonry-induced soft storeys.

The modal analysis of the archetype structure identified the governing dynamic characteristics that define the seismic response. The first modal shape confirmed the dominance of a soft-storey mechanism, exhibiting a significant concentration of displacements at the ground floor. This finding is critical, as it contrasts directly with the bare-frame model, which demonstrated inherently regular structural behaviour. This confirms that the critical irregularity is not intrinsic to the frame but arises from the heterogeneous stiffness distribution induced by the inclusion of infill masonry on the upper storeys.

This stiffness heterogeneity directly influences the effective redistribution of forces throughout the structure. The concentration of deformation at the flexible base, coupled with a reduction in forces in the stiffer upper levels, is justified by the rigidity imparted by the infill masonry, which conditions the global structural behaviour. This modal behaviour, which incorporates the frame-masonry interaction, is a critical factor often simplified in previous shear distribution models and elastic-based approaches [29]. Consequently, this dynamic characterisation forms the fundamental basis for defining a more representative equivalent lateral force profile. This profile, derived from the observed modal properties, provides the foundation for a simplified analytical model that acknowledges the direct relationship between mode shapes, infill-induced stiffness, and seismic vulnerability.

4.3. Validation of Numerical Assumptions and Robustness

A primary concern in numerical investigations is the sensitivity of global results to macro-modelling assumptions. However, the reliability of the presented findings is substantiated by the explicit calibration of the infill properties against local experimental datasets described in Section 2.1.2 which validation is shared as complementary material (Table S2). The close agreement between the simulated panel strengths and the physical values obtained from Quito-based testing campaigns confirms that the stiffness contributions driving the soft-storey mechanism are not artefacts of arbitrary assumptions, but reflections of actual material typologies. Consequently, the observed concentration of drift and the resulting redistribution of shear forces are mechanically consistent with the calibrated stiffness contrasts. By rooting the numerical inputs in empirically verified ranges, this study mitigates the uncertainty inherent in macro-modelling, ensuring that the proposed ELF_i1 profile addresses a genuine structural vulnerability rather than a numerical singularity.

The analytical soundness of this approach is further validated by two points. First, the reduced value of the effective response modification coefficient (R_i1) observed in the models confirms that current normative coefficients are inadequate for this structural typology. Second, capacity curve analysis validates that the proposed linear–static ELF_i1 approach, much like other modified distribution methods [30], successfully reproduces the global deformation trends and internal force concentrations predicted by more complex nonlinear analyses.

Furthermore, the stability of the proposed design coefficients (ELF_i1 and R_i1) was confirmed through a comprehensive parameter sensitivity assessment. By evaluating these coefficients across 235 statistically sampled configurations—spanning a broad spectrum of infill distributions and stiffness contrasts—the study demonstrates that the derived values are consistent and robust. This extensive numerical variation confirms that the proposed coefficients are stable generalisations for the topology, rather than artefacts of a specific geometric arrangement or stiffness ratio.

4.4. Performance Assessment and Design Implications

The successful reduction in the global damage index, achieved through targeted reinforcement of ground-storey columns, validates our proposed strengthening strategy. This empirical evidence supports the conclusions by Lee et al. [31], demonstrating that such localised retrofitting can substantially enhance global structural performance and mitigate collapse potential. Furthermore, the consistency between the observed behaviour and our nonlinear analysis provides a strong justification for developing more refined analytical tools. This supports the pursuit of methods like the linear–static equivalent dissipation approach [32], is a crucial step in bridging advanced analysis with routine design applications.

Ultimately, these results reinforce the foundational principle of balancing strength and ductility. While our reinforcement strategy increased strength, its primary contribution to collapse prevention was the enhancement of ductile behaviour, allowing for controlled energy. The critical importance of this enhanced ductility is further underscored by recent comparative research. Mostafaei et al. [33] utilised Incremental Dynamic Analysis to demonstrate that standard reinforced concrete frames typically exhibit a more brittle post-yield response and a lower collapse capacity compared to steel structures. By effectively correcting the soft-storey irregularity, the proposed ELF_i1 methodology counteracts this inherent material vulnerability, ensuring the RC frame maintains structural stability and achieves safety margins comparable to more ductile systems. This work, therefore, argues for a shift towards performance-based assessment and retrofitting that prioritises both component-level ductility and global system integrity.

Therefore, the ELF_i1 profile is a highly representative tool for preliminary design. While its validation is currently numerical, it offers a significant practical advantage by providing a robust analytical solution, avoiding the need for the costly physical retrofits common in other methodologies [34,35].

While international standards like ASCE 7-22 [4] and Eurocode 8 [21] typically mandate complex dynamic analyses for significant vertical stiffness irregularities, this study validates a simplified linear–static alternative. The proposed ELFi1 methodology achieved an Adjusted Collapse Margin Ratio (ACMR) of 2.10, surpassing the FEMA P695 acceptable threshold (ACMR ≥ 1.74). This demonstrates that the method provides safety margins comparable to rigorous code-compliant dynamic procedures but with significantly reduced computational demand.

Regarding scale, the method is calibrated for low-rise archetypes (up to three storeys), which represent approximately 62% of the local residential building stock. The dominance of the first translational mode validates this static approach for low-rise structures; however, extrapolation to high-rise buildings requires caution, as higher-mode effects may necessitate profile recalibration.

4.5. Limitations and Future Directions

The findings of this investigation must be considered within the context of its specific limitations, which also define the directions for future validation. The validation of the profile was conducted on a specific three-storey structural archetype and relied exclusively on nonlinear numerical simulations, thereby lacking direct experimental validation. Furthermore, the analysis did not consider the potential influence of key variables, such as variability in masonry strength, geometric irregularities, or three-dimensional structural effects.

Consequently, the methodology’s generalisability requires confirmation. To ensure the robustness of this novel linear–static methodology, future research must extend the framework to taller typologies. Crucially, benchmarking against nonlinear time-history analyses is essential. This comparison will confirm the procedure’s reliability in addressing soft-storey vulnerabilities under diverse seismic records, validating its application beyond current limits. It is also essential to provide empirical validation of the numerical results, ideally through experimental shake-table tests. Finally, the profile should be integrated into probabilistic frameworks to assess its impact on fragility and loss estimations, thereby confirming its utility in performance-based design. Addressing these analytical boundaries will validate the broader applicability of the proposed seismic design adjustments.

5. Conclusions

The findings indicate that standard equivalent static methods tend to underestimate drift demands in masonry-induced soft-storey buildings by neglecting frame–masonry interaction. To mitigate this, the study proposes the ELF_i1 lateral force profile, which explicitly incorporates stiffness heterogeneity. Sensitivity analysis across 235 configurations suggests that the derived response modification coefficient (R_i1 = 5.04) maintains stability within the tested range. Numerical results demonstrate that the ELF_i1 profile facilitates force redistribution, shifting the structural behaviour towards a more ductile state. Furthermore, the design yielded an Adjusted Collapse Margin Ratio of 2.10, satisfying FEMA P695 criteria for the analysed archetypes. Consequently, the ELF_i1 methodology represents a promising linear–static tool for addressing soft-storey mechanisms. However, as these results rely on numerical simulation of low-rise structures, future research must prioritise experimental validation and extension to taller typologies to fully establish generalisability.
