Barriers to Building Information Modeling (BIM) Implementation in Late-Adopting EU Countries: The Case of Portugal
Abstract
1. Introduction
2. Literature Review of Barriers to BIM Implementation

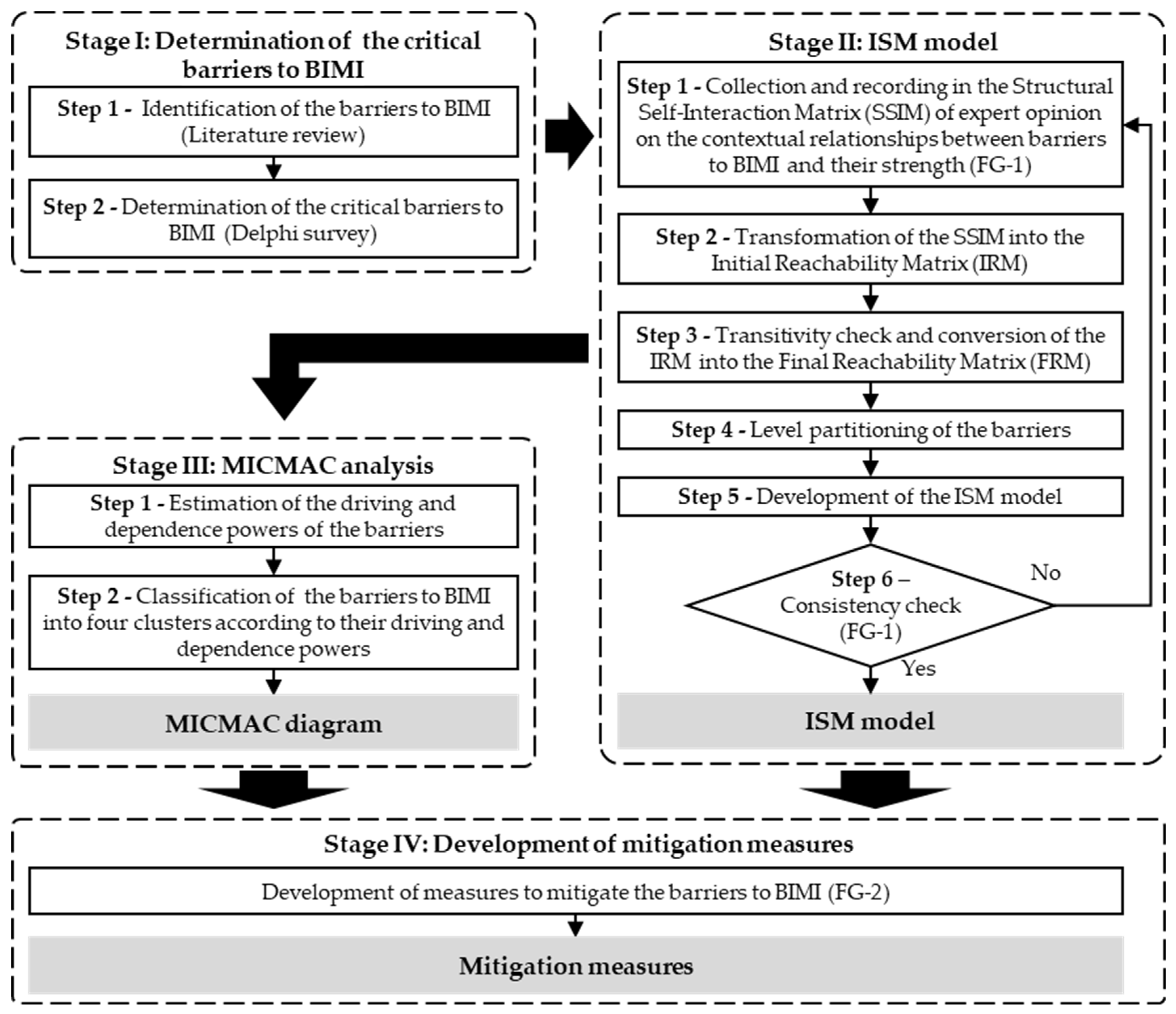

3. Research Methodology and Materials
3.1. Research Methodology

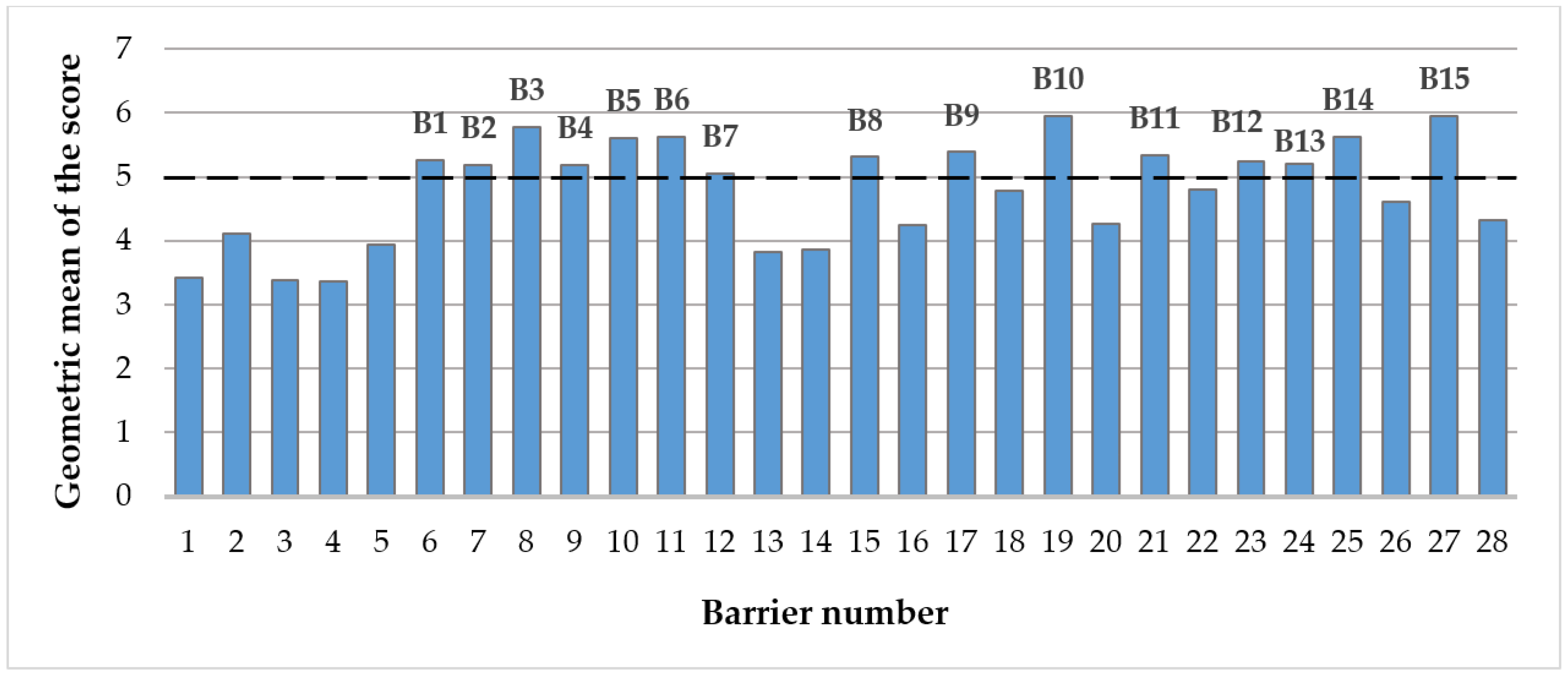

3.2. Stage I: Determination of the Critical Barriers to BIMI
3.3. Stage II: ISM Model
3.4. Stage III: MICMAC Analysis
3.5. Stage IV: Development of Mitigation Measures
4. Results

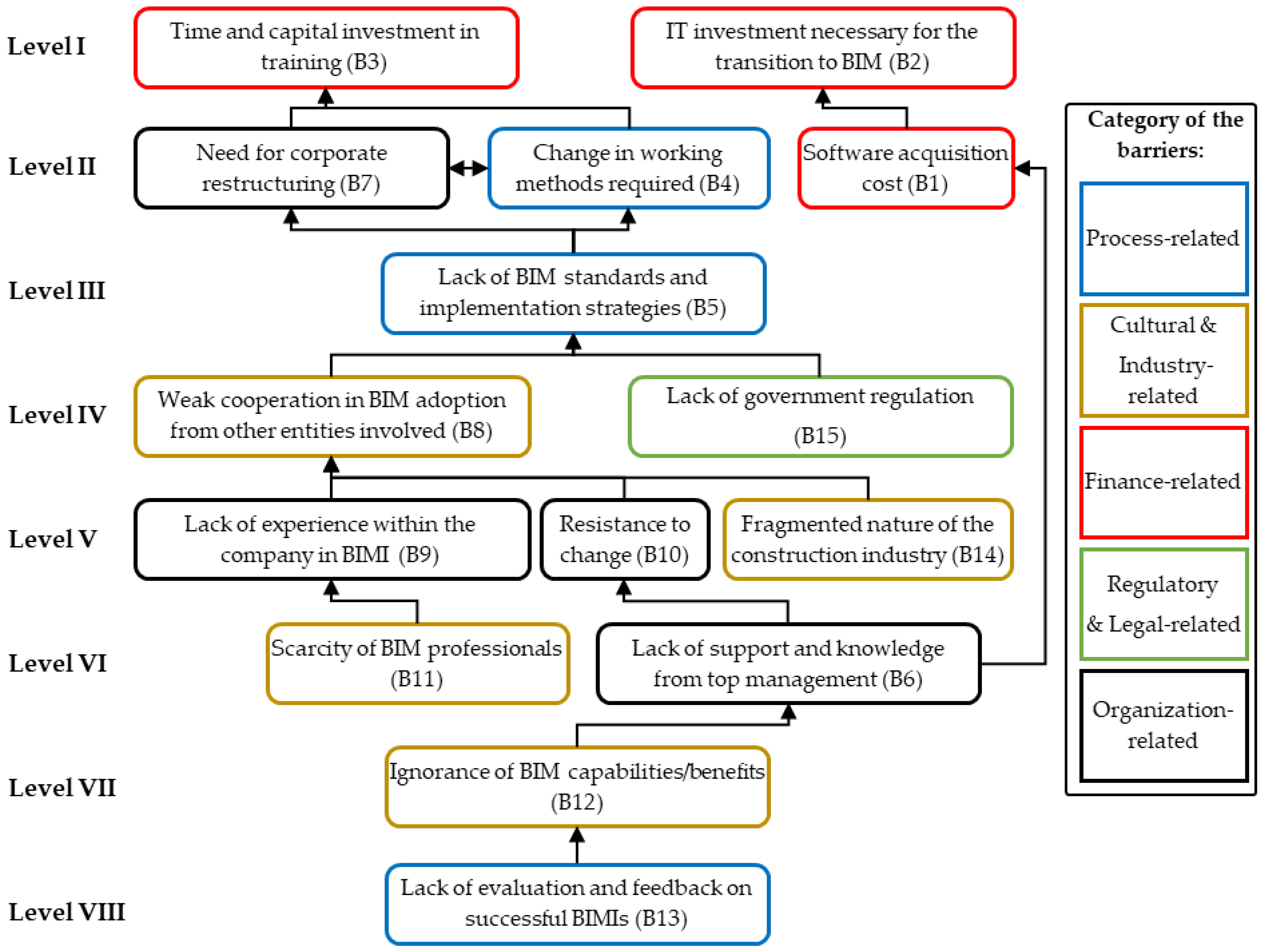

4.1. ISM Model

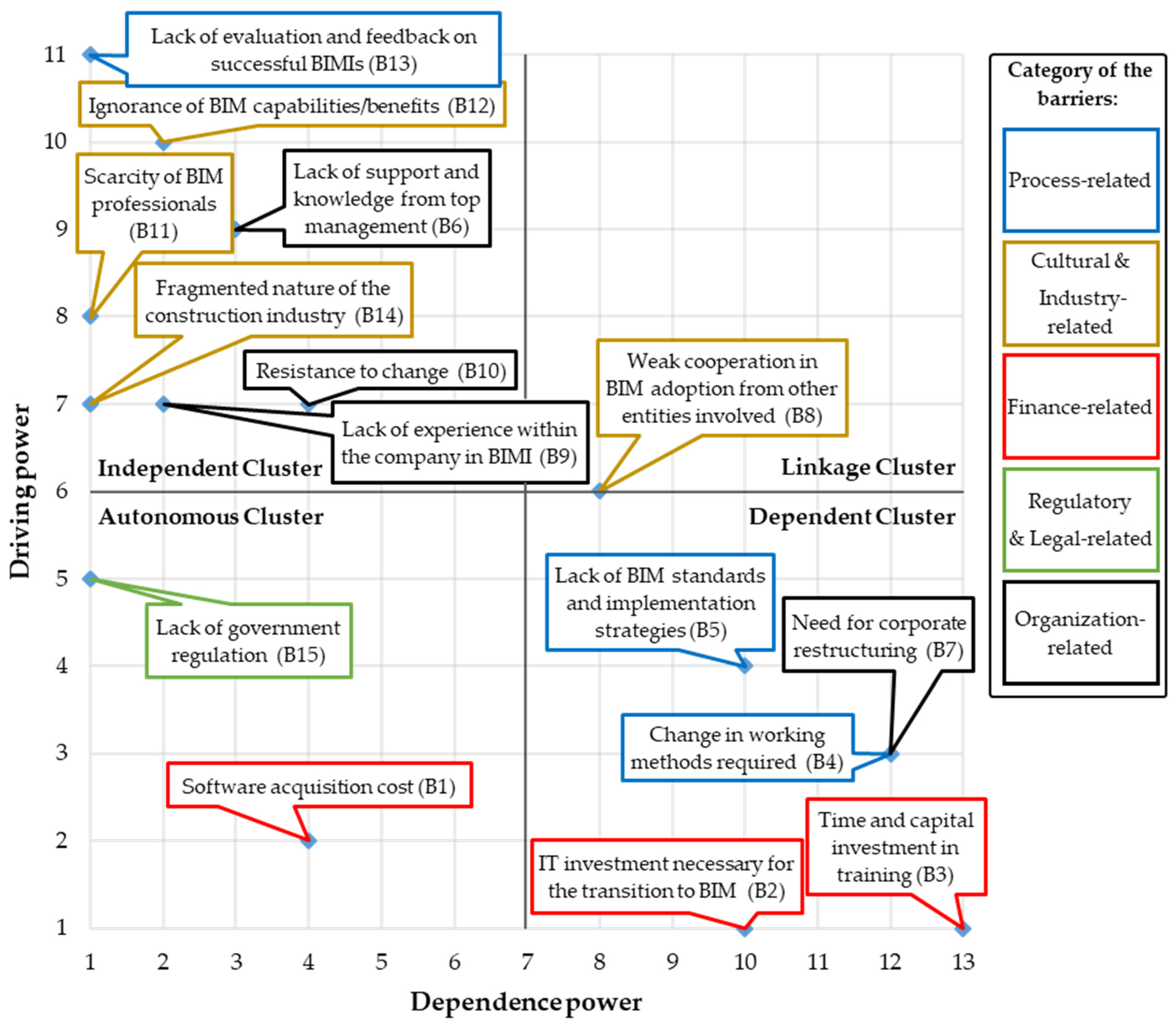

4.2. MICMAC Diagram
5. Discussion and Mitigation Measures
5.1. Discussion
5.1.1. ISM Model
5.1.2. MICMAC Analysis
5.1.3. Category of the Barriers
5.2. Mitigation Measures
6. Conclusions and Implications
Author Contributions
Funding
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
- EU BIM Task Group. Handbook for the Introduction of Building Information Modelling by the European Public Sector—Strategic Action for Construction Sector Performance: Driving Value, Innovation and Growth; EU BIM Task Group: Brussels, Belgium, 2017. [Google Scholar]
- IMPIC. Relatório Do Setor Da Construção Em 2021—1o Semestre; IMPIC: Lisboa, Portugal, 2021. [Google Scholar]
- Euroestat Construction Sector. Gross Value Added of the Construction Sector in the EU; Euroestat Construction Sector: Lombardia, Italy, 2018. [Google Scholar]
- Olawumi, T.O.; Chan, D.W.M.; Wong, J.K.W.; Chan, A.P.C. Barriers to the Integration of BIM and Sustainability Practices in Construction Projects: A Delphi Survey of International Experts. J. Build. Eng. 2018, 20, 60–71. [Google Scholar] [CrossRef]
- Loosemore, M. Construction Innovation: Fifth Generation Perspective. J. Manag. Eng. 2015, 31, 368. [Google Scholar] [CrossRef]
- Sun, C.; Xu, H.; Jiang, S. Understanding the Risk Factors of BIM Technology Implementation in the Construction Industry: An Interpretive Structural Modeling (ISM) Approach. Eng. Constr. Archit. Manag. 2020, 27, 3289–3308. [Google Scholar] [CrossRef]
- Zhou, Y.; Yang, Y.; Yang, J.B. Barriers to BIM Implementation Strategies in China. Eng. Constr. Archit. Manag. 2019, 26, 554–574. [Google Scholar] [CrossRef]
- Seaden, G.; Manseau, A. Public Policy and Construction Innovation. Build. Res. Inf. 2001, 29, 182–196. [Google Scholar] [CrossRef]
- Sun, C.; Jiang, S.; Skibniewski, M.J.; Man, Q.; Shen, L. A Literature Review of the Factors Limiting the Application of BIM in the Construction Industry. Technol. Econ. Dev. Econ. 2017, 23, 764–779. [Google Scholar] [CrossRef]
- Jones, S.A.; Young, N.W., Jr.; Bernstein, H.M. Building Information Modeling (BIM): Transforming Design and Construction to Achieve Greater Industry Productivity; McGraw-Hill Construction: London, UK, 2008; ISBN 978-1-934926-25-3. [Google Scholar]
- Onososen, A.; Musonda, I. Barriers to BIM-Based Life Cycle Sustainability Assessment for Buildings: An Interpretive Structural Modelling Approach. Buildings 2022, 12, 324. [Google Scholar] [CrossRef]
- Boton, C.; Rivest, L.; Ghnaya, O.; Chouchen, M. What Is at the Root of Construction 4.0: A Systematic Review of the Recent Research Effort. Arch. Comput. Methods Eng. 2021, 28, 2331–2350. [Google Scholar] [CrossRef]
- Charef, R.; Emmitt, S.; Alaka, H.; Fouchal, F. Building Information Modelling Adoption in the European Union: An Overview. J. Build. Eng. 2019, 25, 13. [Google Scholar] [CrossRef]
- Rezahoseini, A.; Ahmadi, E.; Saremi, P.; BagherPour, M. Implementation of Building Information Modeling (BIM) Using Hybrid Z-DEMATEL-ISM Approach. Adv. Civ. Eng. 2021, 2021, 6686761. [Google Scholar] [CrossRef]
- Mitera-Kiełbasa, E.; Zima, K. BIM Policy Trends in Europe: Insights from a Multi-Stage Analysis. Appl. Sci. 2024, 14, 4363. [Google Scholar] [CrossRef]
- Olanrewaju, O.I.; Chileshe, N.; Babarinde, S.A.; Sandanayake, M. Investigating the Barriers to Building Information Modeling (BIM) Implementation within the Nigerian Construction Industry. Eng. Constr. Archit. Manag. 2020, 27, 2931–2958. [Google Scholar] [CrossRef]
- Kassem, M.; Succar, B. Macro BIM Adoption: Comparative Market Analysis. Autom. Constr. 2017, 81, 286–299. [Google Scholar] [CrossRef]
- Gu, N.; London, K. Understanding and Facilitating BIM Adoption in the AEC Industry. Autom. Constr. 2010, 19, 988–999. [Google Scholar] [CrossRef]
- Kassem, M.; Brogden, T.; Dawood, N. BIM and 4D Planning: A Holistic Study of the Barriers and Drivers to Widespread Adoption. J. Constr. Eng. Proj. Manag. 2012, 2, 1–10. [Google Scholar] [CrossRef]
- Chan, C.W. Barriers of Implementing BIM in Construction Industry from the Designers’ Perspective: A Hong Kong Experience. J. Syst. Manag. Sci. 2014, 4, 24–40. [Google Scholar]
- Rogers, J.; Chong, H.-Y.; Preece, C. Adoption of Building Information Modelling Technology (BIM). Eng. Constr. Archit. Manag. 2015, 22, 91–107. [Google Scholar] [CrossRef]
- Hosseini, M.R.; Banihashemi, S.; Chileshe, N.; Namzadi, M.O.; Udaeja, C.; Rameezdeen, R.; McCuen, T. BIM Adoption within Australian Small and Medium-Sized Enterprises (SMEs): An Innovation Diffusion Model. Constr. Econ. Build. 2016, 16, 71–86. [Google Scholar] [CrossRef]
- Bosch-Sijtsema, P.; Isaksson, A.; Lennartsson, M.; Linderoth, H.C.J. Barriers and Facilitators for BIM Use among Swedish Medium-Sized Contractors—“We Wait until Someone Tells Us to Use It”. Vis. Eng. 2017, 5, 3. [Google Scholar] [CrossRef]
- Ayinla, K.O.; Adamu, Z. Bridging the Digital Divide Gap in BIM Technology Adoption. Eng. Constr. Archit. Manag. 2018, 25, 1398–1416. [Google Scholar] [CrossRef]
- Gamil, Y.; Rahman, I.A.R. Awareness and Challenges of Building Information Modelling (BIM) Implementation in the Yemen Construction Industry. J. Eng. Des. Technol. 2019, 17, 1077–1084. [Google Scholar] [CrossRef]
- Ma, G.; Jia, J.; Ding, J.; Shang, S.; Jiang, S. Interpretive Structural Model Based Factor Analysis of BIM Adoption in Chinese Construction Organizations. Sustainability 2019, 11, 1982. [Google Scholar] [CrossRef]
- Chan, D.W.M.; Olawumi, T.O.; Ho, A.M.L. Perceived Benefits of and Barriers to Building Information Modelling (BIM) Implementation in Construction: The Case of Hong Kong. J. Build. Eng. 2019, 25, 100764. [Google Scholar] [CrossRef]
- Ma, X.; Darko, A.; Chan, A.P.C.; Wang, R.; Zhang, B. An Empirical Analysis of Barriers to Building Information Modelling (BIM) Implementation in Construction Projects: Evidence from the Chinese Context. Int. J. Constr. Manag. 2020, 2020, 1842961. [Google Scholar] [CrossRef]
- Saka, A.B.; Chan, D.M. Profound Barriers to Building Information Modelling (BIM) Adoption in Construction Small and Medium-Sized Enterprises (SMEs): An Interpretive Structural Modelling Approach. Constr. Innov. 2020, 20, 261–284. [Google Scholar] [CrossRef]
- Farooq, U.; Ur Rehman, S.K.; Javed, M.F.; Jameel, M.; Aslam, F.; Alyousef, R. Investigating BIM Implementation Barriers and Issues in Pakistan Using ISM Approach. Appl. Sci. 2020, 10, 7250. [Google Scholar] [CrossRef]
- Manzoor, B.; Othman, I.; Gardezi, S.S.S.; Altan, H.; Abdalla, S.B. Bim-Based Research Framework for Sustainable Building Projects: A Strategy for Mitigating Bim Implementation Barriers. Appl. Sci. 2021, 11, 5397. [Google Scholar] [CrossRef]
- Siebelink, S.; Voordijk, H.; Endedijk, M.; Adriaanse, A. Understanding Barriers to BIM Implementation: Their Impact across Organizational Levels in Relation to BIM Maturity. Front. Eng. Manag. 2021, 8, 236–257. [Google Scholar] [CrossRef]
- Olanrewaju, O.I.; Kineber, A.F.; Chileshe, N.; Edwards, D.J. Modelling the Relationship between Building Information Modelling (BIM) Implementation Barriers, Usage and Awareness on Building Project Lifecycle. Build. Environ. 2022, 207, 108556. [Google Scholar] [CrossRef]
- Durdyev, S.; Ashour, M.; Connelly, S.; Mahdiyar, A. Barriers to the Implementation of Building Information Modelling (BIM) for Facility Management. J. Build. Eng. 2022, 46, 103736. [Google Scholar] [CrossRef]
- Alemayehu, S.; Nejat, A.; Ghebrab, T.; Ghosh, S. A Multivariate Regression Approach toward Prioritizing BIM Adoption Barriers in the Ethiopian Construction Industry. Eng. Constr. Archit. Manag. 2022, 29, 2635–2664. [Google Scholar] [CrossRef]
- Munianday, P.; Rahman, R.A.; Esa, M. Case Study on Barriers to Building Information Modelling Implementation in Malaysia. J. Facil. Manag. 2023, 21, 511–534. [Google Scholar] [CrossRef]
- Matarneh, R.; Hamed, S. Barriers to the Adoption of Building Information Modeling in the Jordanian Building Industry. Open J. Civ. Eng. 2017, 7, 325–335. [Google Scholar] [CrossRef]
- Hosseini, M.R.; Azari, E.; Tivendale, L.; Chileshe, N. Barriers to Adoption of Building Information Modeling (BIM) in Iran: Preliminary Results. In Proceedings of the International Conference on Engineering Project And Production Management (EPPM), Queensland, Australia, 24 September 2015; pp. 384–394. [Google Scholar]
- Chileshe, N.; Rameezdeen, R.; Hosseini, M.R. Drivers for Adopting Reverse Logistics in the Construction Industry: A Qualitative Study. Eng. Constr. Archit. Manag. 2016, 23, 134–157. [Google Scholar] [CrossRef]
- Papadonikolaki, E. Loosely Coupled Systems of Innovation: Aligning BIM Adoption with Implementation in Dutch Construction. J. Manag. Eng. 2018, 34, 05018009. [Google Scholar] [CrossRef]
- Tan, T.; Chen, K.; Xue, F.; Lu, W. Barriers to Building Information Modeling (BIM) Implementation in China’s Prefabricated Construction: An Interpretive Structural Modeling (ISM) Approach. J. Clean. Prod. 2019, 219, 949–959. [Google Scholar] [CrossRef]
- Chen, G.X.; Shan, M.; Chan, A.P.C.; Liu, X.; Zhao, Y.Q. Investigating the Causes of Delay in Grain Bin Construction Projects: The Case of China. Int. J. Constr. Manag. 2019, 19, 1354514. [Google Scholar] [CrossRef]
- Schoonenboom, J.; Johnson, R.B. How to Construct a Mixed Methods Research Design. Kolner Z. Soz. Sozpsychol. 2017, 69, 107–131. [Google Scholar] [CrossRef]
- Abowitz, D.A.; Toole, T.M. Mixed Method Research: Fundamental Issues of Design, Validity, and Reliability in Construction Research. J. Constr. Eng. Manag. 2010, 136, 108–116. [Google Scholar] [CrossRef]
- Warfield, J.N. Developing Subsystem Matrices in Structural Modeling. IEEE Trans. Syst. Man Cybern. 1974, SMC-4, 74–80. [Google Scholar] [CrossRef]
- Sushil Interpreting the Interpretive Structural Model. Glob. J. Flex. Syst. Manag. 2012, 13, 87–106. [CrossRef]
- Duperrin, J.-C.; Godet, M. Méthode de Hiérarchisation Des Éléments d’un Système: Essai de Prospective Du Système de l’énergie Nucléaire Dans Son Contexte Sociétal; CEA: Gif-sur-Yvette, France, 1973. [Google Scholar]
- Ambekar, S.; Roy, D.; Hiray, A.; Prakash, A.; Patyal, V.S. Barriers to Adoption of Reverse Logistics: A Case of Construction, Real Estate, Infrastructure and Project (CRIP) Sectors. Eng. Constr. Archit. Manag. 2021, 29, 2878–2902. [Google Scholar] [CrossRef]
- Needham, R.D.; de Loë, R.C. The Policy Delphi: Purpose, Structure, and Application. Can. Geogr./Le Géographe Can. 1990, 34, 133–142. [Google Scholar] [CrossRef]
- Morgan, D.L. Focus Groups. Annu. Rev. Sociol. 1996, 22, 129–152. [Google Scholar] [CrossRef]
- Kitzinger, J. Qualitative Research: Introducing Focus Groups. Bmj 1995, 311, 299. [Google Scholar] [CrossRef]
- Alghuried, A. Measuring the Benefits and Barriers of the Implementation of BIM in Sustainable Practice in the Construction Industry of Saudi Arabia. Sustainability 2023, 15, 14323. [Google Scholar] [CrossRef]
- Durdyev, S.; Hosseini, M.R. Causes of Delays on Construction Projects: A Comprehensive List. Int. J. Manag. Proj. Bus. 2019, 13, 20–46. [Google Scholar] [CrossRef]
- Saliu, L.O.; Monko, R.; Zulu, S.; Maro, G. Barriers to the Integration of Building Information Modeling (BIM) in Modular Construction in Sub-Saharan Africa. Buildings 2024, 14, 2448. [Google Scholar] [CrossRef]
- Waqar, A.; Qureshi, A.H.; Alaloul, W.S. Barriers to Building Information Modeling (BIM) Deployment in Small Construction Projects: Malaysian Construction Industry. Sustainability 2023, 15, 2477. [Google Scholar] [CrossRef]
- Dossick, C.S.; Neff, G. Organizational Divisions in BIM-Enabled Commercial Construction. J. Constr. Eng. Manag. 2010, 136, 459–467. [Google Scholar] [CrossRef]
- Pimentel, M.; Arantes, A.; Cruz, C.O. Barriers to the Adoption of Reverse Logistics in the Construction Industry: A Combined ISM and MICMAC Approach. Sustainability 2022, 14, 15786. [Google Scholar] [CrossRef]
- Ribeiro, A.M.; Arantes, A.; Cruz, C.O. Barriers to the Adoption of Modular Construction in Portugal: An Interpretive Structural Modelling Approach. Buildings 2022, 12, 1509. [Google Scholar] [CrossRef]
- Kivits, R.A.; Furneaux, C. BIM: Enabling Sustainability and Asset Management through Knowledge Management. Sci. World J. 2013, 2013, 14. [Google Scholar] [CrossRef]
- Hosseini, M.R.; Azari, E.; Tivendale, L.; Banihashemi, S.; Chileshe, N. Building Information Modeling (BIM) in Iran: An Exploratory Study. J. Eng. Proj. Prod. Manag. 2016, 6, 78–89. [Google Scholar] [CrossRef]
- Piroozfar, P.; Farr, E.R.P.; Zadeh, A.H.M.; Timoteo Inacio, S.; Kilgallon, S.; Jin, R. Facilitating Building Information Modelling (BIM) Using Integrated Project Delivery (IPD): A UK Perspective. J. Build. Eng. 2019, 26, 100907. [Google Scholar] [CrossRef]
- Mohammadi, M.; Rashidi, M.; Mousavi, V.; Yu, Y.; Samali, B. Application of TLS Method in Digitization of Bridge Infrastructures: A Path to BrIM Development. Remote Sens. 2022, 14, 1148. [Google Scholar] [CrossRef]
- Mohammadi, M.; Rashidi, M.; Yu, Y.; Samali, B. Integration of TLS-Derived Bridge Information Modeling (BrIM) with a Decision Support System (DSS) for Digital Twinning and Asset Management of Bridge Infrastructures. Comput. Ind. 2023, 147, 103881. [Google Scholar] [CrossRef]
- Nagy, G.; Ashraf, F. HBIM Platform & Smart Sensing as a Tool for Monitoring and Visualizing Energy Performance of Heritage Buildings. Dev. Built Environ. 2021, 8, 100056. [Google Scholar] [CrossRef]
- Gara, F.; Nicoletti, V.; Arezzo, D.; Cipriani, L.; Leoni, G. Model Updating of Cultural Heritage Buildings Through Swarm Intelligence Algorithms. Int. J. Archit. Herit. 2023, 19, 259–275. [Google Scholar] [CrossRef]
- Saka, A.B.; Chan, D.M.; Siu, F.M.F. Drivers of Sustainable Adoption of Building Information Modelling (BIM) in the Nigerian Construction Small and Medium-Sized Enterprises (SMEs). Sustainability 2020, 12, 3710. [Google Scholar] [CrossRef]
Author, Country | Main Aim | Methodologies | Main Barriers and Findings |
---|---|---|---|
Gu and London [18], Australia | Assess the role of BIM in the AEC industry and identify challenges to its adoption | Literature review and assessment of BIM in the industry | Issues with data organization, communication standards, security, a lack of clarity around roles and responsibilities, and a need for better training and support |
Kassem, Brogden, and Dawood [19], UK | Analyze barriers and drivers for BIM and 4D technology adoption | Literature review and survey of AEC professionals | Unclear benefits, resistance to change, lack of experience, inconsistent adoption, contract limitations, and time and cost concerns. The paper highlights that overcoming non-technical barriers is crucial to bridging the gap between technology and end users. |
C. W. Chan [20], Hong Kong | Examine BIM use among design companies for public housing projects and barriers to adoption thereof | Questionnaire survey | Lack of skilled staff, inadequate training, no standards, and low client demand. The study suggests that the government, industry, and educational bodies should collaborate to set clear BIM standards and offer targeted training to improve adoption. |
Rogers, Chong, and Preece [21], Malaysia | Explore BIM adoption by consulting companies, focusing on perceptions and drivers for adoption | Focus group, surveys, Pearson analysis | Lack of well-trained personnel, lack of guidance and government support. Companies are willing to adopt BIM, driven primarily by market demand and the pursuit of competitive advantage. |
M. R. Hosseini, Banihashemi, et al. [22], Australia | Examine BIMI in small and medium-sized enterprises (SMEs) using innovation diffusion theory | Questionnaire survey and partial least squares structural equation modeling (PLS-SEM) | Reluctance to implementation on account of uncertain return on investment (ROI) and low interest in BIM from supply chain entities |
Bosch-Sijtsema et al. [23], Sweden | Explore constraints and driving forces of BIMI with respect to mid-sized contractors | Interview and questionnaire survey | Partners that do not use BIM, a lack of demand from clients, and an absence of internal demand in the company |
Ayinla and Adamu [24], UK | Investigate BIM adoption in SMEs, mainly focusing on reasons for delays in adoption | Mixed-method approach with online questionnaires and expert interviews | Cost, organizational culture, lack of expertise, low client demand, and legal and technology challenges |
Olawumi et al. [4], eight different countries | Explore barriers to BIM and sustainability integration across eight countries | Delphi survey, descriptive and inferential analysis, and interrater agreement | Resistance to change, lengthy adaptation period, lack of BIM and sustainability workflow understanding |
Gamil and Rahman [25], Yemen | Investigate practitioners’ awareness of BIM and identify the main barriers of BIMI throughout the project’s life cycle | Literature review, questionnaire survey, and descriptive analysis | Financial restrictions, lack of BIM knowledge, improper introduction of BIM concepts, lack of awareness of BIM benefits, and no governmental enforcement |
G. Ma et al. [26], China | Investigate institutional and technological factors affecting BIM adoption | Literature review, ISM, and MICMAC analysis | Insufficient corporate and project leadership, inadequate software functionality, limited financial support, lack of trust and respect, and challenges related to complexity, interoperability, and compatibility |
D. W. M. Chan, Olawumi, and Ho [27], Hong Kong | Identify benefits and barriers to BIMI | Questionnaire survey and comparative analysis | Resistance to change, inadequate organizational support, and lack of industry-wide standards. Key benefits of BIM include improved cost estimation and control, more efficient construction planning and management, and enhanced design and project quality. |
Zhou, Yang, and Yang [7], China | Recommend strategies for advancing BIM adoption based on international experiences | Literature review and mapping of barriers | Insufficient government leadership, organizational and legal challenges, high costs, resistance to changing traditional practices, and lack of external motivation |
Olanrewaju et al. [16], Nigeria | Evaluate the perceptions of professionals regarding BIM barriers | Literature review, questionnaire, descriptive statistics, and factor analysis | Few studies available, lack of knowledge, an absence of government policies, and high cost of implementation |
Ma et al. [28], China | Explore BIM barriers at the project level in the AEC industry | Questionnaire survey, descriptive statistics, and principal component analysis (PCA) | Lack of experience and capabilities, technical conditions, system inertia, additional input, changes in work routines, and implementation risks |
Saka and Chan [29], Nigeria | To analyze BIMI barriers for SMEs in the construction industry | ISM and MICMAC analysis | Lack of implementation strategies, low awareness, unclear benefits, interoperability issues, and no government mandate |
Sun, Xu, and Jiang [6], China | Identify and categorize BIM barriers and make recommendations for adoption | Literature review, ISM, questionnaire, and expert interviews | Data ownership issues, incomplete BIM system standardization, lack of industry insurance, shortage of skilled BIM technicians, limited project experience, inadequate BIM infrastructure, misalignment in stakeholders’ views on BIM, changes in delivery models, and software functionality issues |
Farooq et al. [30], Pakistan | Assess the current state of BIMI, and identify barriers and potential | Questionnaire survey, ISM, and MICMAC analysis | High initial costs, dissatisfaction with existing practices, and communication gaps within entities. The study concluded that BIM is more economical and efficient than traditional management techniques. |
Manzoor et al. [31], Malaysia | Develop strategies for overcoming BIM adoption barriers | Literature review and questionnaire survey | Lack of BIM training, standards, guidelines, expertise, high costs, and insufficient research on BIM. The study also identified strategies to mitigate these barriers and a research framework to guide effective BIMI and sustainability. |
Siebelink et al. [32], nine Western European countries | Improve the understanding of the barriers to BIMI and the maturity levels of BIM within organizations. | Multiple case study | Motivation, competence, and time capacity barriers exist at all organizational levels. Middle management is key to overcoming these barriers. Low BIM maturity is hampered by insufficient top management support. High maturity deals with more external challenges to maximizing BIM benefits. |
Olanrewaju et al. [33], Nigeria | Examine BIM barriers in building projects, focusing on awareness | Literature review, questionnaire survey, and PLS-SEM analysis | Cost and standards, processes and economics, technology and business, training and personnel |
Durdyev et al. [34], New Zealand | Prioritize barriers to BIM adoption during the facility management phase | Parsimonious fuzzy analytic hierarchy process (AHP) and expert interviews | High cost of software, hardware, and training; lack of expertise; and unfamiliarity with BIM. The study concludes that additional resources are needed to overcome these challenges and expand BIM adoption in facility management. |
Onososen and Musonda [11], South Africa | Analyze barriers to BIM integration in sustainability assessments | ISM and MICMAC analysis | Poor interoperability of BIM tools, high investment cost, and complexity |
Alemayehu et al. [35], Ethiopia | Investigates perceived BIM barriers and their significance, focusing on respondents’ personal and professional attributes | Literature review, survey, Relative Importance Index (RII), exploratory factor analysis (EFA), and regression model | Project complexity, low BIM maturity, liability, licensing, and maintenance issues |
Munianday, A. Rahman, and Esa [36], Malaysia | Explore challenges faced by BIM adopters | Case study approach, in-depth interviews, and NVivo software analysis | Time and financial investment, resistance to workflow, and approach changes. Human resources and capital are the most critical elements influencing the adoption of new technologies and innovations. |
No. | Barrier | References |
---|---|---|
1 | Lacking functionalities of BIM tools | [6,7,19,26,32] |
2 | Complexity of BIM tools | [4,11,19,25,31] |
3 | BIM-related project risks, and engineering and information defects | [4,18,25,29,35] |
4 | Immaturity of BIM technology | [23,28,34,52] |
5 | Interoperability difficulties of the software | [4,6,11,18,19,20,22,23,24,25,26,27,29,30,31,33] |
6 | Software acquisition cost | [4,6,7,19,20,21,22,23,24,25,26,29,30,31,33,53] |
7 | IT investment necessary for the transition to BIM | [4,6,20,23,25,26,27,29,30,31,33,34,36,54] |
8 | Time and capital investment in training | [4,22,23,25,26,28,33,34,52] |
9 | Change in work method required | [6,7,21,25,28,31,32] |
10 | Lack of BIM standards and implementation strategies | [4,7,21,22,25,26,27,28,29,31,33] |
11 | Lack of support and knowledge from top management | [4,6,23,24,25,26,28,29,30,32] |
12 | Need for corporate restructuring | [4,7,20,32] |
13 | Lack of internal communication protocols | [4,7,20,32] |
14 | Current methods provide satisfactory results | [4,28,29,30] |
15 | Weak cooperation in BIM adoption from other stakeholders | [4,20,23,25,26,27,28,31,32,33] |
16 | Lack of IT structure in the firm | [20,28] |
17 | Lack of experience within the firm for BIMI | [4,6,7,20,21,23,24,25,28,30,31,32,33] |
18 | Weak cooperation from other industry partners | [32,54] |
19 | Resistance to change | [6,7,22,23,24,27,29,30,31,32,33,55] |
20 | Lack of available BIM training | [18,20,25,27,28,30,31,33] |
21 | Scarcity of BIM-capable professionals | [4,6,22,27,28,30,33,52] |
22 | Lack of client demand | [4,7,20,22,23,24,25,28,29,31,32,33] |
23 | Ignorance of BIM capabilities/benefits | [22,24,25,26,29,31] |
24 | Lack of evaluation and feedback for successful BIMI | [4,6,7,23,26,27,28,31,33] |
25 | Fragmented nature of the construction industry | [4,32] |
26 | BIM data ownership and rights | [4,6,7,20,24,31,33] |
27 | Lack of government regulation | [4,7,20,21,22,24,25,26,28,29,30,31,32,33,35] |
28 | Concerns related to the safety and insurance framework of BIM | [6,7,20,27,31] |
Code | Barrier—Description |
---|---|
B1 | Software acquisition cost—Decision-makers may lack awareness of the long-term benefits of BIM [16], and high initial software procurement costs may contribute to a perceived negative ROI [4]. |
B2 | IT investment necessary for the transition to BIM—Given the significant computing power required by the BIM process, most businesses must upgrade their existing hardware, network, and other inadequate infrastructure components [4]. |
B3 | Time and capital investment in training—Successful BIMI requires companies to offer comprehensive training to their employees, as BIM tools, workflows, and protocols diverge from traditional practices. Early-stage training poses the most significant challenge to BIM success [10]. |
B4 | Change in working methods required—BIM procedures differ from traditional practices [6]; inadequate BIMI strategies exacerbate the challenges associated with adapting to new work methods. |
B5 | Lack of BIM standards and implementation strategies—Lack of BIM standards and information on BIMI strategies poses great obstacles for companies transitioning to BIM [27,31]. |
B6 | Lack of support and knowledge from top management—Top management is accountable for strategic decisions impacting the company’s success. Having years of experience and knowledge of traditional methods, they often tend to be risk-averse when it comes to engaging in BIM [24]. |
B7 | Need for company restructuring—According to Ossick and Neff [56], project managers play a crucial role in BIMI. However, traditionally, projects have operated as separate entities within companies. Therefore, it is essential to restructure and clearly define the organizational framework of companies to facilitate cooperation and collaboration between projects for the success of BIMI. |
B8 | Weak cooperation in BIM adoption from other entities involved—Construction projects involve multiple entities with specific interests in successful project development. While BIM is intended to increase collaboration and communication, it demands the active participation of all entities [7]. |
B9 | Lack of experience within the company for BIMI—Kassem et al. [19] argue that successful technology implementation relies on an adequately trained and experienced workforce to avoid increased costs and delays motivated by corrections and adjustments [6]. |
B10 | Resistance to change—Resistance to change undermines change objectives, potentially leading to procedural failure. However, technological advancements and innovative methods offer a competitive edge to adopters. Chan et al. [27] have identified cultural resistance to change as a significant barrier. |
B11 | Scarcity of BIM professionals—Professionals with BIM skills are rare, primarily because of the industry’s failure to provide adequate training and development opportunities, particularly for recent graduates. This also stems from the lack of BIM in the curricula offered by universities, as Rogers et al. [21] identified. |
B12 | Ignorance of BIM capabilities/benefits—A lack of understanding of the benefits of BIM undermines its success potential, as companies and their employees fail to recognize the need for change and the advantages it could offer them [37]. |
B13 | Lack of evaluation and feedback on successful BIMIs—BIM promotes new and improved working and relationship processes compared to traditional ones; therefore, further evaluation and feedback on successful implementation is needed [28]. |
B14 | Fragmented nature of the construction industry—The construction industry is often fragmented, with knowledge from projects not consistently shared across teams or companies. This hinders collaboration, an essential element of successful BIMI [6]. |
B15 | Lack of government regulation—The absence of mature regulations and contractual legislation for BIM and a lack of government incentives such as subsidies or tax reductions represent a major barrier to its widespread adoption [6]. |
B(i/j) | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1 | V | O | O | O | A | O | O | O | O | O | O | O | O | O | |
2 | O | O | O | A | O | A | O | O | O | A | O | O | O | ||
3 | A | A | A | O | O | A | O | A | O | O | O | O | |||
4 | A | A | X | O | A | A | O | O | O | A | O | ||||
5 | O | V | A | O | O | A | O | A | A | A | |||||
6 | V | O | O | V | O | A | A | O | O | ||||||
7 | A | A | A | O | O | A | A | O | |||||||
8 | A | A | A | O | O | A | O | ||||||||
9 | O | A | O | O | O | O | |||||||||
10 | O | A | A | O | O | ||||||||||
11 | O | O | O | O | |||||||||||
12 | A | O | O | ||||||||||||
13 | O | O | |||||||||||||
14 | O | ||||||||||||||
15 |
B(i/j) | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1 | 1 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
2 | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
3 | 0 | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
4 | 0 | 0 | 1 | 1 | 0 | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
5 | 0 | 0 | 1 | 1 | 1 | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
6 | 1 | 1 | 1 | 1 | 0 | 1 | 1 | 0 | 0 | 1 | 0 | 0 | 0 | 0 | 0 |
7 | 0 | 0 | 0 | 1 | 0 | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
8 | 0 | 1 | 0 | 0 | 1 | 0 | 1 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
9 | 0 | 0 | 1 | 1 | 0 | 0 | 1 | 1 | 1 | 0 | 0 | 0 | 0 | 0 | 0 |
10 | 0 | 0 | 0 | 1 | 0 | 0 | 1 | 1 | 0 | 1 | 0 | 0 | 0 | 0 | 0 |
11 | 0 | 0 | 1 | 0 | 1 | 0 | 0 | 1 | 1 | 0 | 1 | 0 | 0 | 0 | 0 |
12 | 0 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 1 | 0 | 1 | 0 | 0 | 0 |
13 | 0 | 0 | 0 | 0 | 1 | 1 | 1 | 0 | 0 | 1 | 0 | 1 | 1 | 0 | 0 |
14 | 0 | 0 | 0 | 1 | 1 | 0 | 1 | 1 | 0 | 0 | 0 | 0 | 0 | 1 | 0 |
15 | 0 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1 |
B(i/j) | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | DVP |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1 | 1 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 2 |
2 | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1 |
3 | 0 | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1 |
4 | 0 | 0 | 1 | 1 | 0 | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 3 |
5 | 0 | 0 | 1 | 1 | 1 | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 4 |
6 | 1 | 1 | 1 | 1 | 1* | 1 | 1 | 1* | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 9 |
7 | 0 | 0 | 1* | 1 | 0 | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 3 |
8 | 0 | 1 | 1* | 1* | 1 | 0 | 1 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 6 |
9 | 0 | 1* | 1 | 1 | 1* | 0 | 1 | 1 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 7 |
10 | 0 | 1* | 1* | 1 | 1* | 0 | 1 | 1 | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 7 |
11 | 0 | 1* | 1 | 1* | 1 | 0 | 1* | 1 | 1 | 0 | 1 | 0 | 0 | 0 | 0 | 8 |
12 | 1* | 1 | 1* | 1* | 1* | 1 | 1* | 1* | 0 | 1 | 0 | 1 | 0 | 0 | 0 | 10 |
13 | 1* | 1* | 1* | 1* | 1 | 1 | 1 | 1* | 0 | 1 | 0 | 1 | 1 | 0 | 0 | 11 |
14 | 0 | 1* | 1* | 1 | 1 | 0 | 1 | 1 | 0 | 0 | 0 | 0 | 0 | 1 | 0 | 7 |
15 | 0 | 0 | 1* | 1* | 1 | 0 | 1 * | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 5 |
DEP | 4 | 10 | 13 | 12 | 10 | 3 | 12 | 8 | 2 | 4 | 1 | 2 | 1 | 1 | 1 |
Barrier | Reachability Set | Antecedent Set | Intersection Set | Level |
---|---|---|---|---|
B2 | B2 | B: 1, 2, 6, 8, 9, 10, 11, 12, 13, 14 | B2 | I |
B3 | B3 | B: 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15 | B3 | I |
B1 | B1 | B: 1, 6, 12, 13 | B1 | II |
B4 | B: 4, 7 | B: 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15 | B: 4, 7 | II |
B7 | B: 4, 7 | B: 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15 | B: 4, 7 | II |
B5 | B5 | B: 5, 6, 8, 9, 10, 11, 12, 13, 14, 15 | B5 | III |
B8 | B8 | B: 6, 8, 9, 10, 11, 12, 13, 14 | B8 | IV |
B15 | B15 | B15 | B15 | IV |
B9 | B9 | B: 9, 11 | B9 | V |
B10 | B10 | B: 6, 10, 12, 13 | B10 | V |
B14 | B14 | B14 | B14 | V |
B6 | B6 | B: 6, 12, 13 | B6 | VI |
B11 | B11 | B11 | B11 | VI |
B12 | B12 | B: 12, 13 | B12 | VII |
B13 | B13 | B13 | B13 | VIII |
B(i,j) | B2 | B3 | B1 | B4 | B7 | B5 | B8 | B15 | B9 | B10 | B14 | B6 | B11 | B12 | B13 |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
B2 | I | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
B3 | 0 | I | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
B1 | 1 | 0 | II | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
B4 | 0 | 1 | 0 | II | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
B7 | 0 | 1 | 0 | 1 | II | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
B5 | 0 | 1 | 0 | 1 | 1 | III | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
B8 | 1 | 1 | 0 | 1 | 1 | 1 | IV | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
B15 | 0 | 1 | 0 | 1 | 1 | 1 | 0 | IV | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
B9 | 1 | 1 | 0 | 1 | 1 | 1 | 1 | 0 | V | 0 | 0 | 0 | 0 | 0 | 0 |
B10 | 1 | 1 | 0 | 1 | 1 | 1 | 1 | 0 | 0 | V | 0 | 0 | 0 | 0 | 0 |
B14 | 1 | 1 | 0 | 1 | 1 | 1 | 1 | 0 | 0 | 0 | V | 0 | 0 | 0 | 0 |
B6 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 0 | 0 | 1 | 0 | VI | 0 | 0 | 0 |
B11 | 1 | 1 | 0 | 1 | 1 | 1 | 1 | 0 | 1 | 0 | 0 | 0 | VI | 0 | 0 |
B12 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 0 | 0 | 1 | 0 | 1 | 0 | VII | 0 |
B13 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 0 | 0 | 1 | 0 | 1 | 0 | 1 | VIII |
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content. |
© 2025 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).
Share and Cite
Lourenço, M.P.; Arantes, A.; Costa, A.A. Barriers to Building Information Modeling (BIM) Implementation in Late-Adopting EU Countries: The Case of Portugal. Buildings 2025, 15, 1651. https://doi.org/10.3390/buildings15101651
Lourenço MP, Arantes A, Costa AA. Barriers to Building Information Modeling (BIM) Implementation in Late-Adopting EU Countries: The Case of Portugal. Buildings. 2025; 15(10):1651. https://doi.org/10.3390/buildings15101651
Chicago/Turabian StyleLourenço, Miguel Pereira, Amílcar Arantes, and António Aguiar Costa. 2025. "Barriers to Building Information Modeling (BIM) Implementation in Late-Adopting EU Countries: The Case of Portugal" Buildings 15, no. 10: 1651. https://doi.org/10.3390/buildings15101651
APA StyleLourenço, M. P., Arantes, A., & Costa, A. A. (2025). Barriers to Building Information Modeling (BIM) Implementation in Late-Adopting EU Countries: The Case of Portugal. Buildings, 15(10), 1651. https://doi.org/10.3390/buildings15101651
