# Mechanical Properties of Prefabricated Cold-Formed Steel Stud Wall Panels Sheathed with Fireproof Phenolic Boards under Out-of-Plane Loading

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Experimental Program

#### 2.1. Experimental Parameters and Plan

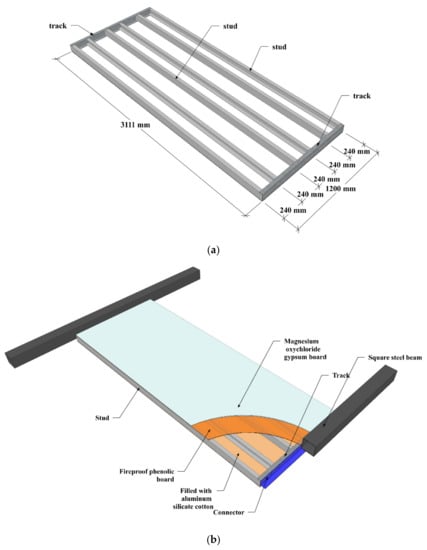

#### 2.2. Test Specimen

^{2}. The cold-formed light-gauge steel studs have a length of 3110 mm, and the cross-section size is 89 mm × 41 mm × 0.8 mm. The tracks have a length of 1200 mm, and the section size is 90.6 mm × 41 mm × 0.8 mm. The detailed dimensions of the steel frame are shown in Figure 4. The fireproof phenolic boards were then pasted on the upper and lower surfaces of the steel frame with the silicone sealant, as shown in Figure 4b. Subsequently, the gypsum board was pasted on the outside of the fireproof phenolic board, and the inner space of the wall was filled with aluminum silicate cotton, as presented in Figure 4b. Finally, the LSF wall panel was connected to the steel beam through the connector and bolts, as shown in Figure 4b.

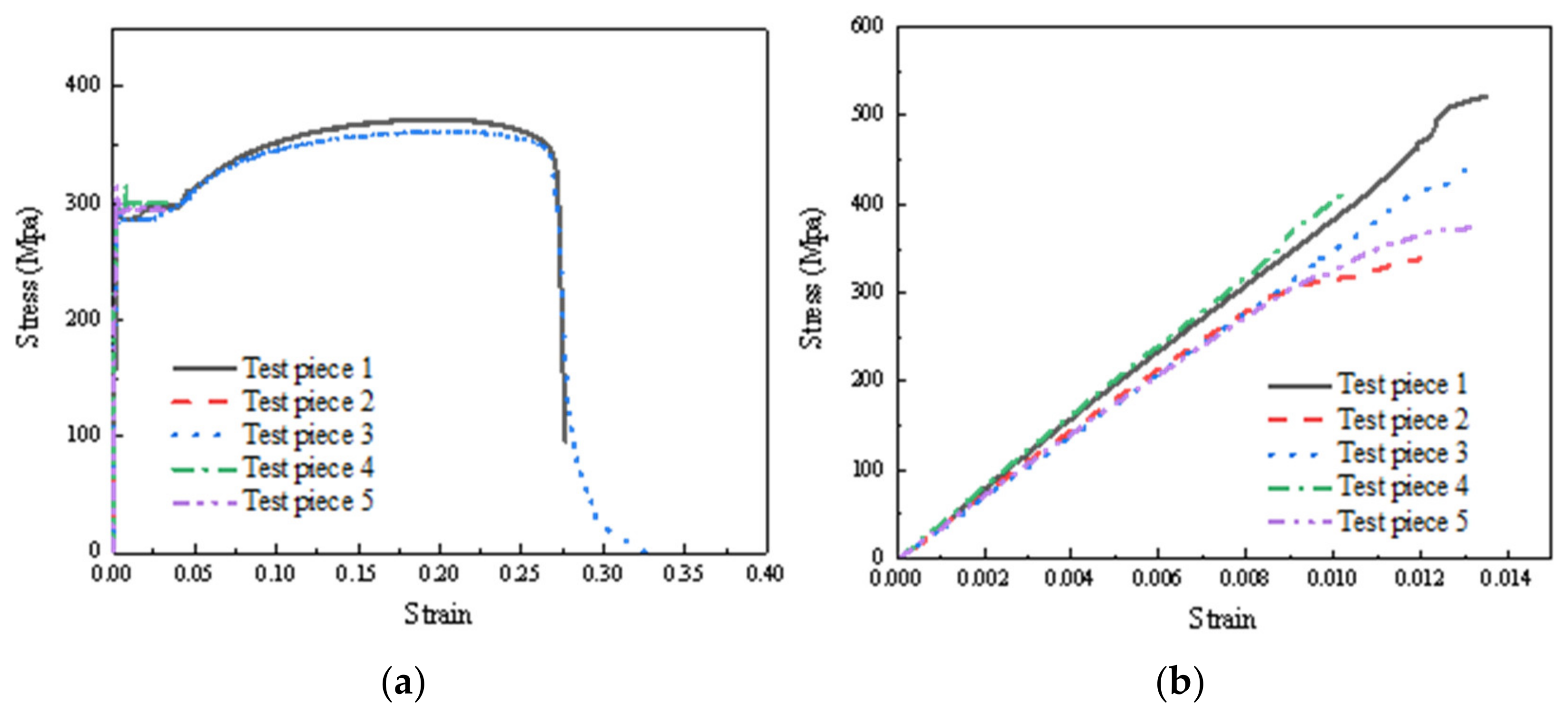

#### 2.3. Material Properties

#### 2.4. Loading Plan

^{2}following the GB50009-2012 [46], which could meet the design requirements in most areas of China. Subsequently, 1.57, 1.4, and 1.42 were selected for the gust factor, the structural shape factor of wind load, and the height variation coefficient of wind pressure under the worst condition, respectively. The standard value of wind load is calculated according to Equation (1).

_{gz}is the gust factor, μ

_{s}

_{1}is the structural shape factor of wind load, μ

_{z}is the height variation coefficient of wind pressure, ω

_{01}is the basic wind pressure, and w

_{k}

_{1}is the standard value of wind load, which is 3.121 KN/m

^{2}. In this study, the load levels corresponding to different displacements of each specimen can be compared with the wind load standard value of 3.121 KN/m

^{2}for checking the serviceability limit state.

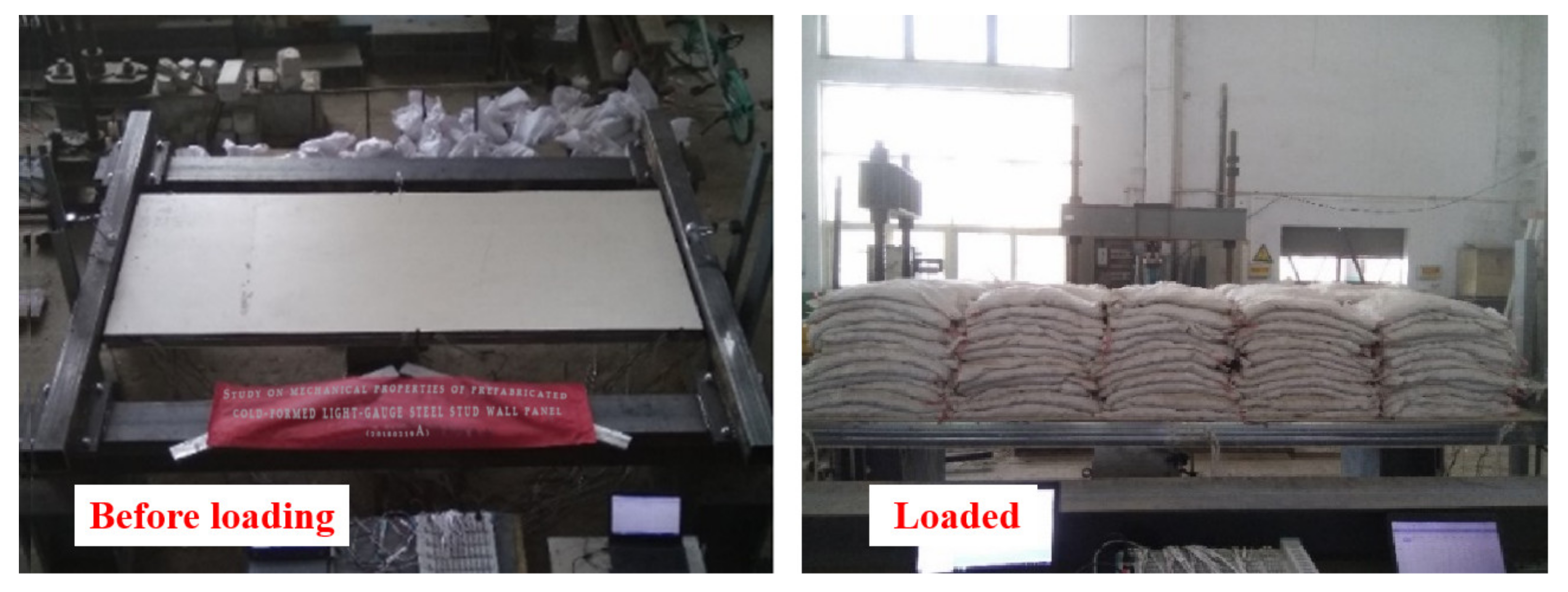

^{2}. A gap of 20 mm was maintained between the bags to prevent the arching effect of weights. Each bag was paved to ensure uniform contact with the wall panel. During loading, each level of load lasted 5 min, and the last level of load lasted 30 min. During unloading, the step-by-step method was adopted until the load was zero and the interval time of the step was 3 min. In addition, the applying maximum load of each specimen and loading levels are determined according to the above calculated standard value of wind load, estimated bearing capacity of the wall and connector, and the safety of the test process. The applying maximum loads of all specimens except for specimen QB2-I-Y-2.5-4-3 are larger than the calculated standard value of wind load of 3.121 KN/m

^{2}to check the serviceability limit state of the specimen. For specimen QB2-I-Y-2.5-4-3, its estimated bearing capacity connector is relatively low because of the small thickness of its connector and fewer screws connected to steel beams, so its applying maximum load is set to be relatively low to avoid the possible danger caused by sudden connector failure. Specimens QB1-I-L-2.5-5-1, QB2-I-Y-2.5-4-3, QB3-I-L-1.5-3-1, QB4-I-Y-2.5-4-2, QB5-II-L-2.5-3-1, and QB6-II-Y-2.5-4-3 implemented 8-levels loading (3.216 KN/m

^{2}), 12-levels loading (4.824 KN/m

^{2}), 4-levels loading (1.608 KN/m

^{2}), 10-levels loading (4.020 KN/m

^{2}), 8-levels loading (3.216 KN/m

^{2}), and 12-levels loading (4.824 KN/m

^{2}), respectively. All tests were conducted in the structural laboratory of the School of Civil Engineering, Zhengzhou University. In this study, a total of 150 bags were prepared and the mass of a dry gravel bag was 10 kg. The typical images of the specimen before and after loading are shown in Figure 6. It is worth noticing that under the wind load carried by building structures as specified in the GB50009-2012 [46], wall panels need to meet the requirements of the normal service stage, while the wall panels are commonly in the elastic stage. Thus applying maximum load was designed within the elastic range.

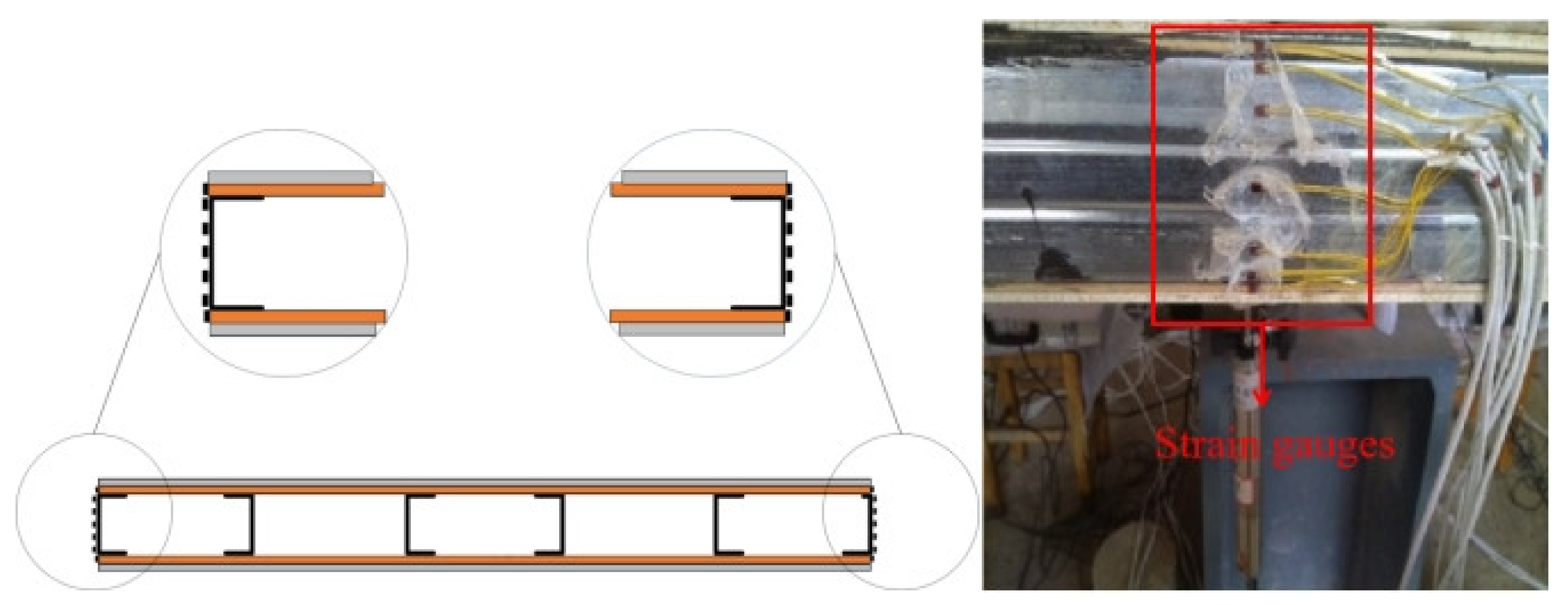

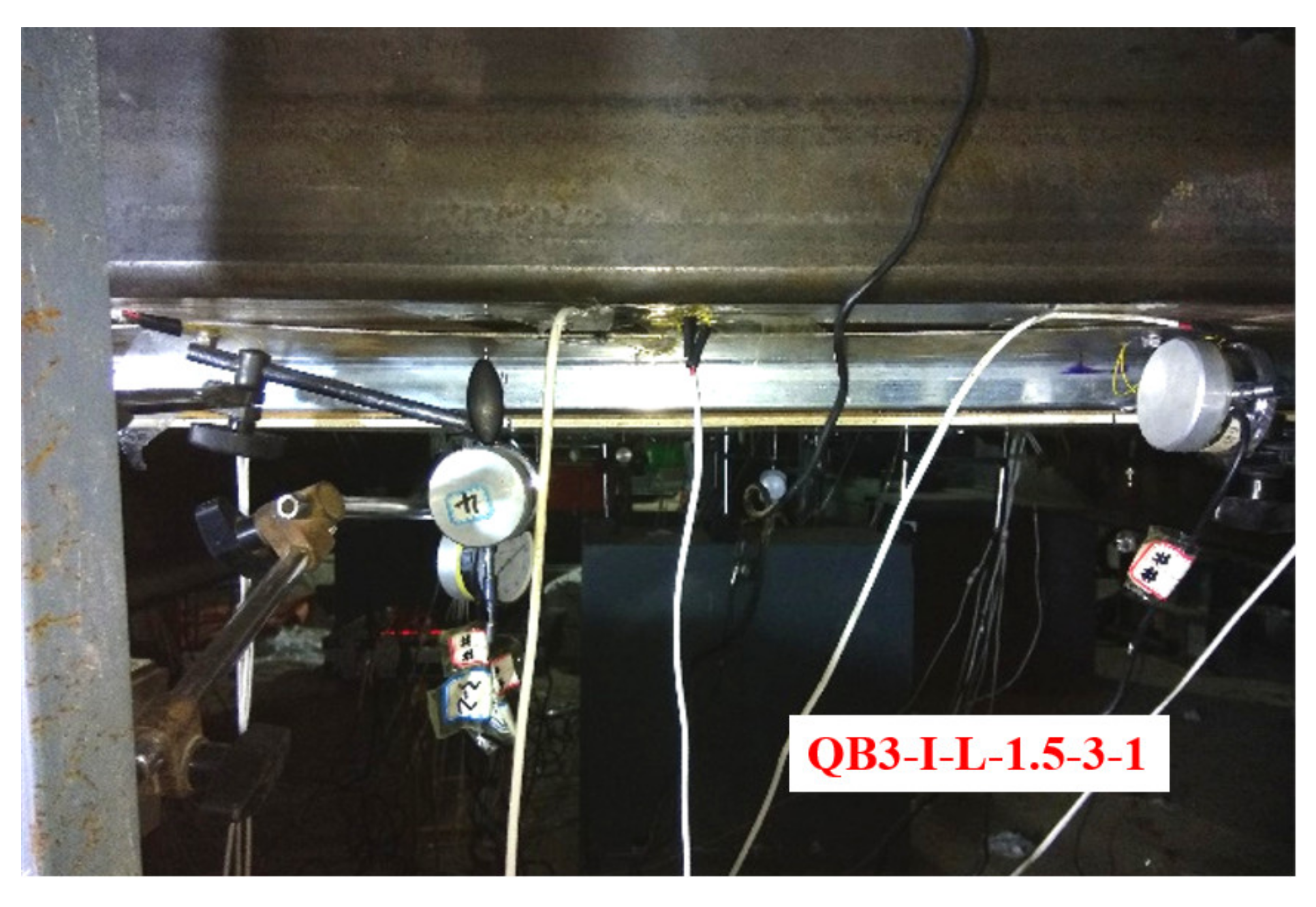

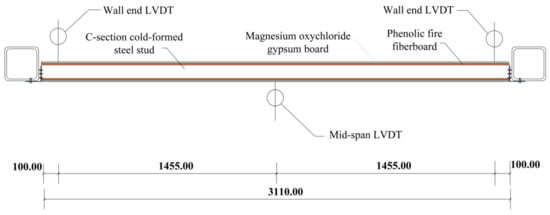

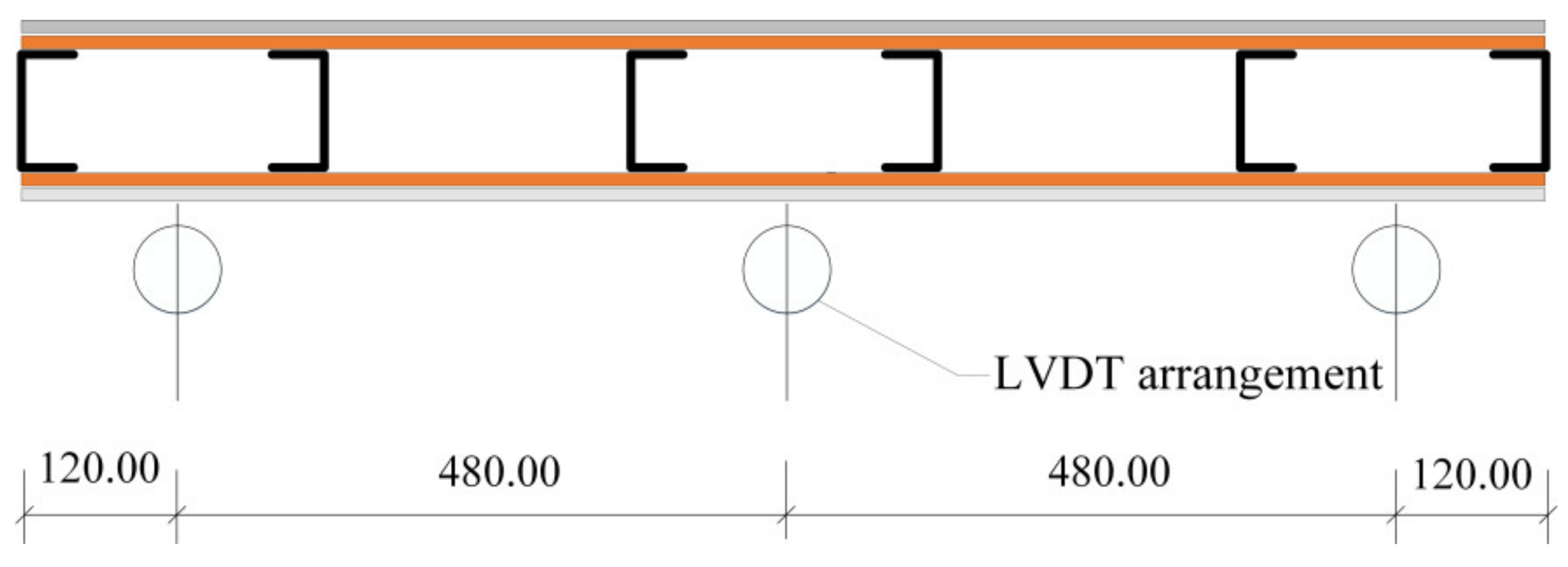

#### 2.5. Measuring Instrument Arrangement

## 3. Results and Discussion

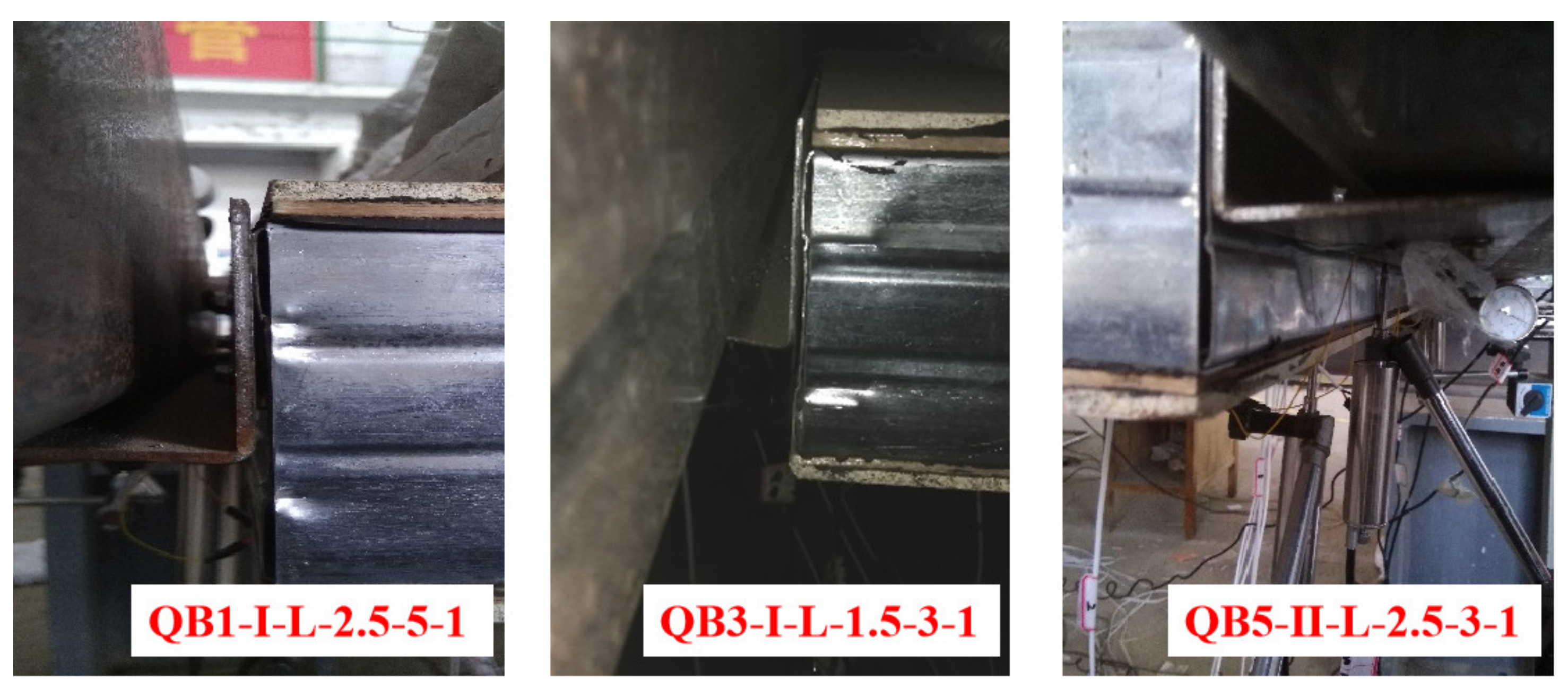

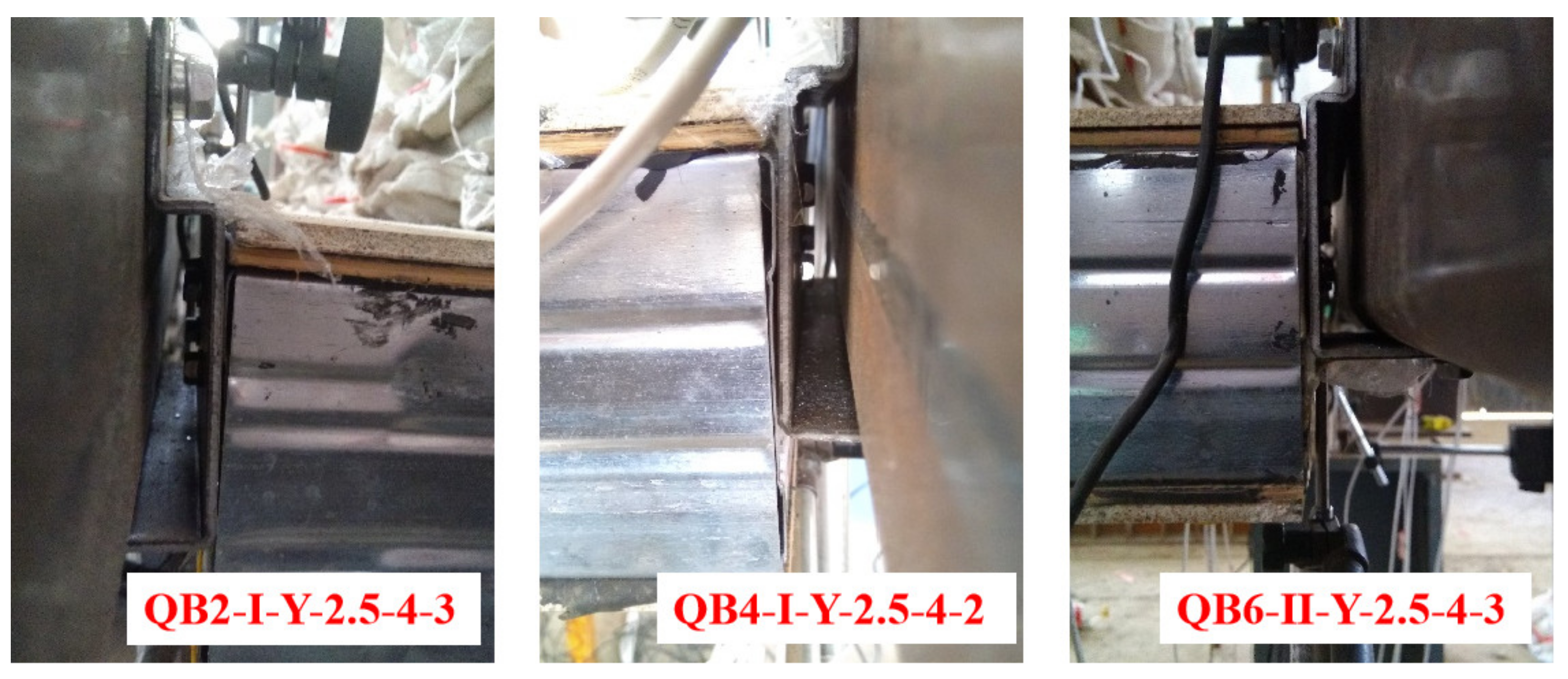

#### 3.1. Experimental Phenomena

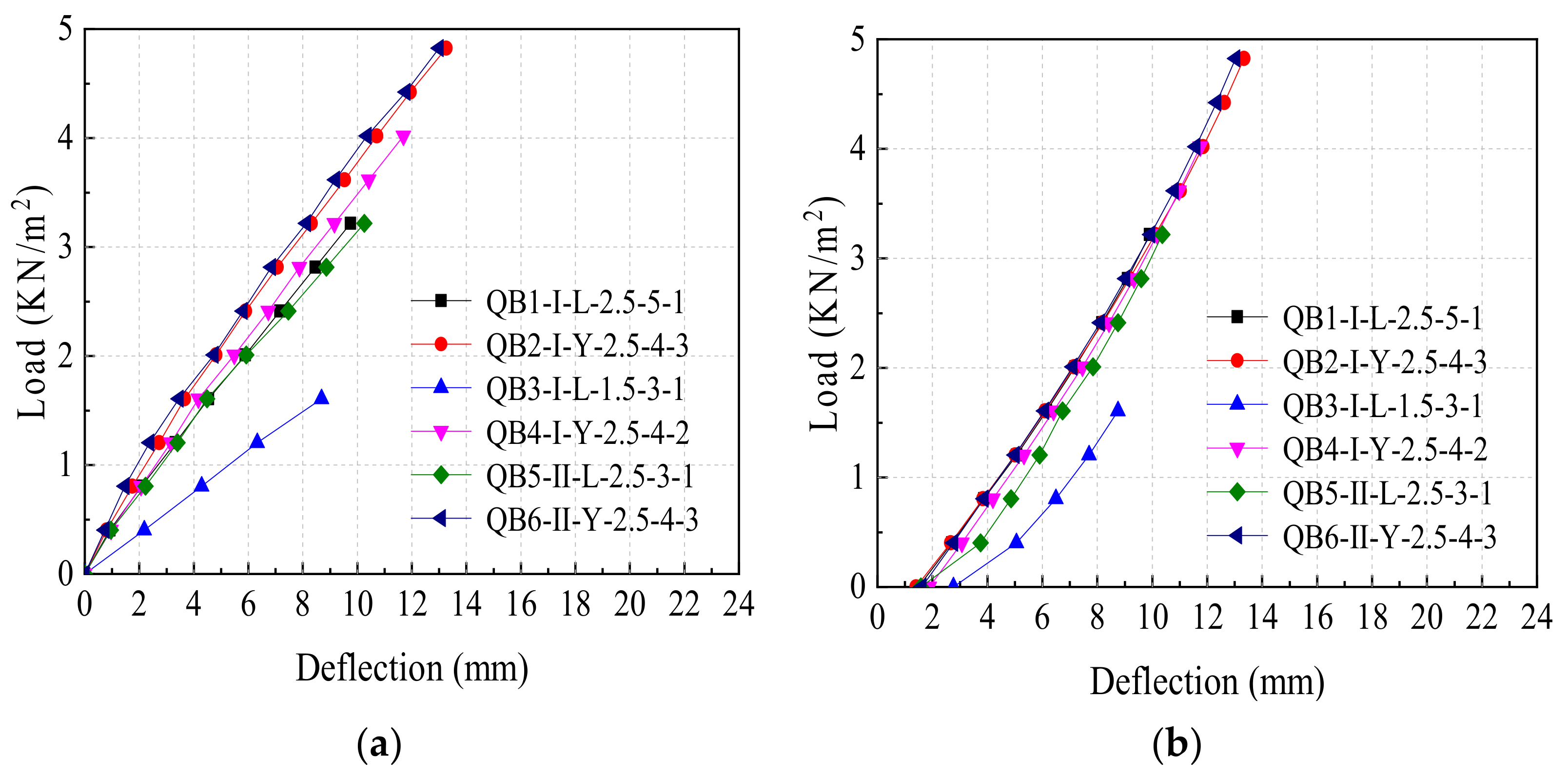

#### 3.2. Load-Span Deflection Curve

^{2}), I is the equivalent moment of inertia of the mid-span section of the wall (m

^{4}), k is the coefficient that characterizes the restraint at both ends and load form (dimensionless), w is the applied area load of each level (KN/m

^{2}), b is the width of the specimen (m), l is the effective span of the specimen (m), and f is the measured mid-span deflection of the specimen (mm).

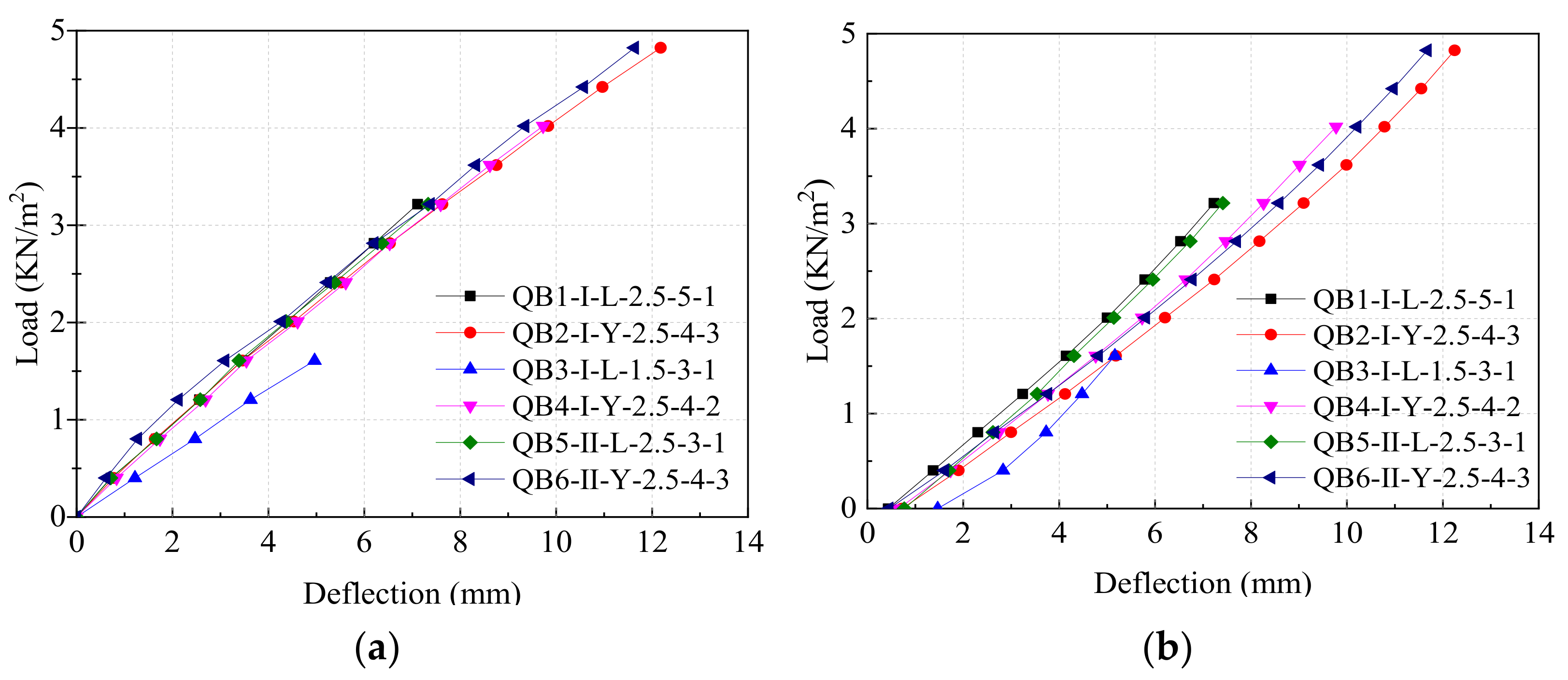

#### 3.3. Bending Stiffness

#### 3.3.1. Arrangement of Light-Gauge Steel Studs

#### 3.3.2. Connection Mode

#### 3.4. Strain Distribution

## 4. Theoretical Study of the Stress of LSF Wall Panels

#### 4.1. Symmetric Slip Theory

#### 4.1.1. The Basic Assumptions

- (1)
- Fireproof phenolic boards, silicone sealant, and cold-formed light-gauge steel studs are all elastomers. Phenolic boards and the light-gauge steel studs are in continuous and uniform contact through the silicone sealant in the longitudinal direction and maintain the same curvature. Furthemore, the longitudinal slip is a linear elastic process.
- (2)
- Under the condition of small elastic deformation, the top and lower interfaces are stressed symmetrically.
- (3)
- The out-of-plane stiffness, the bending moment, and the shear stress of the fireproof phenolic board can be ignored.

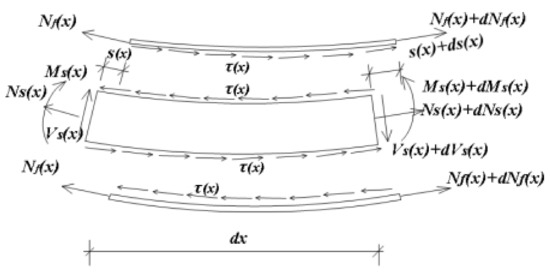

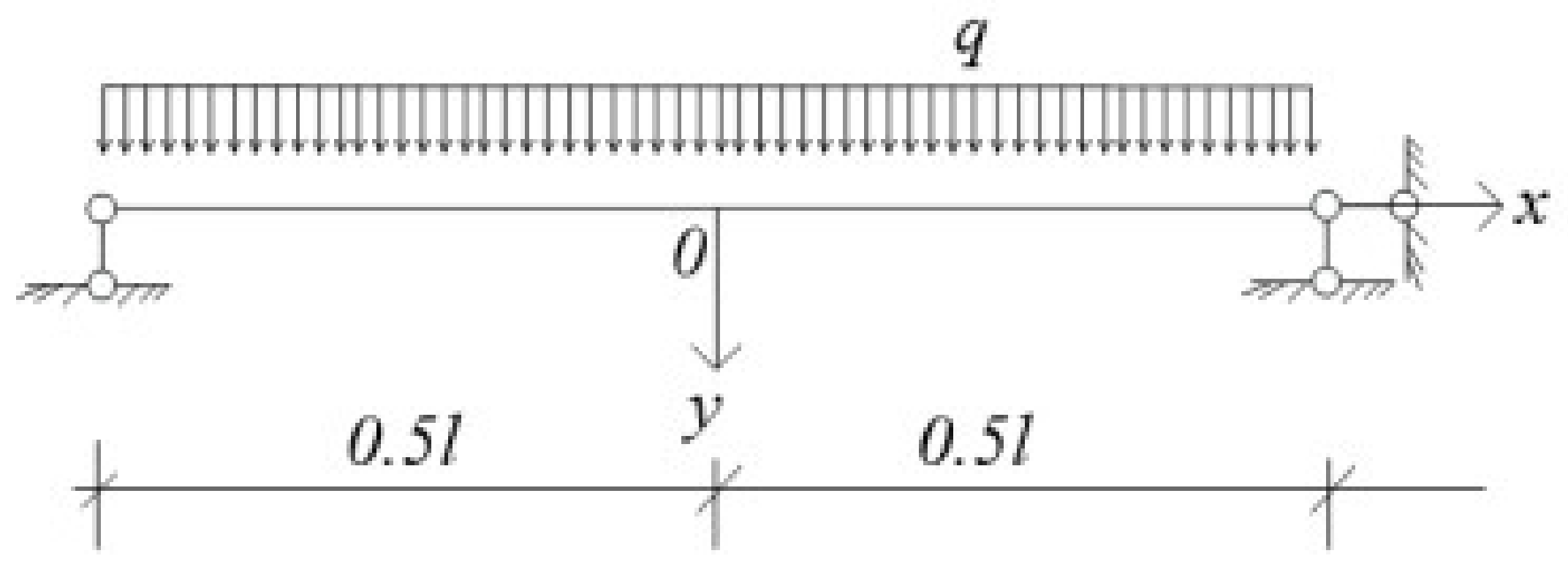

#### 4.1.2. Differential Equation of Symmetrical Slip

_{i}is the total bonding width of wall width, and N

_{f}(x) is the axial stress of single-sided phenolic boards. According to Assumption (1), τ(x) is expressed as:

_{f}(x) is the longitudinal strain of the phenolic board, and ε

_{s}(x) is the longitudinal strain of the light-gauge steel studs. According to Assumption (3), the longitudinal strain at the centroid of the fireproof phenolic board at the top compression position can be expressed as follows:

_{f}is the elastic modulus of the phenolic board, and A

_{f}is the cross-section area of the single side phenolic board. Because the axial forces of the top and lower fireproof phenolic boards are self-balanced, the longitudinal strain at the top flange of cold-formed light-gauge steel studs is expressed as follows:

_{s}is the elastic modulus of the light-gauge steel studs, I

_{s}the total moment of inertia of the section of light-gauge steel studs, h

_{s}is the height of the section of light-gauge steel studs, and M

_{s}(x) is the total bending moment of the section of light-gauge steel studs. The simultaneous of Equations (7)–(9) is expressed as follows:

_{c}is the distance between the centroid of the section of light-gauge steel studs and the centroid of the phenolic board section. The differential equation of elastic slip of LSF wall can be expressed by Equation (12), which can be obtained by the simultaneous of Equations (6), (10) and (11).

#### 4.1.3. Solution of the Mechanical Characteristic Quantity of Interface Slip under Load

#### 4.1.4. Composite Section Stiffness and Sheathing Effect Coefficient of LSF Wall Panels

_{f}is the moment of inertia of the whole section of the top and lower phenolic board to the centroid of the composite section after conversion according to the elastic modulus.

_{0}is the mid-span deflection of the wall without considering slip. The expression of sheathing effect coefficient is obtained by the inverse solution:

_{0i}can then be calculated by substituting B

_{0i}into Equation (23).

#### 4.2. Calculation of Elastic Deflection of LSF Wall Panels and Bending Normal Stress of Longitudinal Light-Gauge Steel Studs under Wind Load

#### 4.2.1. Calculation of Mid-Span Elastic Deflection of LSF Wall Panels

#### 4.2.2. Calculation of Elastic Bending Normal Stress of Longitudinal Light-Gauge Steel Studs

#### 4.2.3. Strength Checking of the Adhesive Layer between Phenolic Boards and Light-Gauge Steel Studs

#### 4.3. Comparison between the Proposed Method and the Existing Methods

#### 4.3.1. Transformed-Section Method without Considering Interface Slip

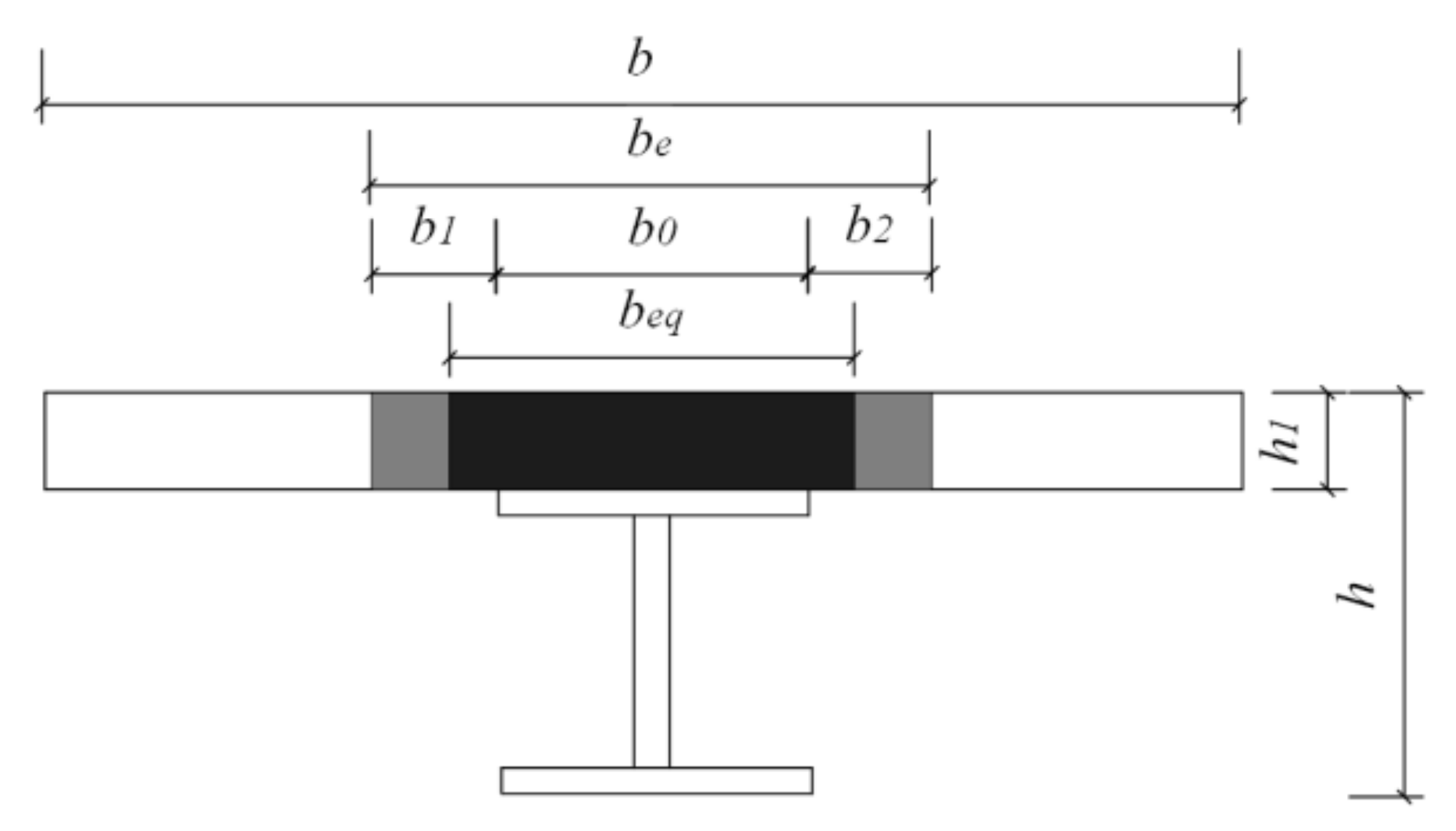

_{0}is the width of the top flange of the beam without panel support, b

_{1}and b

_{2}are the calculated width of the flange plate on both sides of the beam, and the smaller value of 1/6 of the beam span l and 6 times of the flange plate thickness h

_{1}is taken as b

_{1}and b

_{2}, respectively. The calculation equation for the converted width of the flange plate is as follows:

_{E}is the ratio of elastic modulus of beam material E

_{s}to the elastic modulus of flange plate material E

_{f}. When the combined section of the two materials is converted into the section of the beam material, the deflection and section stress can be calculated according to the material mechanics method.

#### 4.3.2. Reduced Stiffness Method Considering Interface Slip

_{s}is the elastic modulus of beam material, I

_{eq}is the moment of inertia of the converted section, and ζ is the stiffness reduction coefficient, which is calculated according to the following equation:

_{cf}is the flange plate section area within the effective width, A is the beam cross-section area, I is the moment of inertia of the beam section, I

_{cf}is the moment of inertia of flange plate section within the effective width, d

_{c}is the distance between the centroid of the beam section and the centroid of the flange plate section, h is the height of the composite section, l is the calculated span, k is the stiffness coefficient of the connector between the flange plate and the beam, p is the average spacing of connectors, and n

_{s}is the number of longitudinal columns of connectors. In the elastic stage, the elastic resistance moment of the reduced section considering the interface slip [45] is as follows:

_{eq}is the elastic resistance moment of the section calculated according to the transformed-section method and ζ is the stiffness reduction coefficient, which is calculated as follows:

_{w}is the section area of steel beam web; A

_{ft}and A

_{fs}are the section area of the top and lower flange of steel beam, respectively; h

_{f1}and h

_{f2}are the thickness of the top and lower flange, respectively.

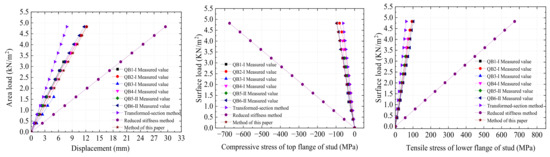

#### 4.3.3. Comparison of Calculated Results

## 5. Conclusions

- In the elastic stress stage under out-of-plane loads, the asymmetric arrangement of light-gauge steel studs of the LSF wall does not affect the overall elastic bending stiffness of wall panels. Thus, the symmetrical arrangement is recommended for practical applications.
- In the elastic stress stage under out-of-plane loads, increasing the thickness of the L-shaped connect-or and the number of self-tapping screws can improve the out-of-plane stiffness of the prefabricated LSF wall system. The overall out-of-plane stiffness of the prefabricated LSF wall system and the stiffness contribution of a single special-shaped connector can be increased by increasing the number of special-shaped connectors from two to three. The symmetrical arrangement of light-gauge steel studs of LSF wall is beneficial to improving the out-of-plane stiffness of the connectors. In addition, special-shaped connectors have greater out-of-plane stiffness than L-shaped connectors.
- Based on the sheathing effect of the wall panel and the symmetric slip theory of the interface between the fireproof phenolic board and light-gauge steel studs, the equations for calculating the elastic deflection in span and the elastic bending stress of light-gauge steel studs of the LSF wall are derived theoretically under out-of-plane loading. Compared with the transformed-section method and the reduced stiffness method in China’s steel structure design standards, the results obtained from the calculation of the method proposed in this paper are closer to the experimentally measured data.

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Conflicts of Interest

## References

- Sutarja, I.N.; Ardana, M.D.W.; Putra, I.D.G.A.D. The Post-disaster House: Simple Instant House using Lightweight Steel Structure, Bracing, and Local Wood Wall. Int. J. Eng.
**2021**, 34, 348–354. [Google Scholar] [CrossRef] - Nadim, W.; Goulding, J.S. Offsite production in the UK: The way forward? a UK construction industry perspective. Constr. Innov.
**2010**, 10, 181–202. [Google Scholar] [CrossRef] - Wang, H.; Zhang, Y.-Q.; Gao, W.-J.; Kuroki, S. Life cycle environmental and cost performance of prefabricated buildings. Sustainability
**2020**, 12, 2609. [Google Scholar] [CrossRef] [Green Version] - Chiang, Y.H.; Chan, E.H.W.; Ka-Leung Lok, L. Prefabrication and barriers to entry-a case study of public housing and institutional buildings in Hong Kong. Habitat Int.
**2006**, 30, 482–499. [Google Scholar] [CrossRef] - Hong, J.-K.; Shen, Q.-P.; Li, Z.-D.; Zhang, B.-Y.; Zhang, W.-Q. Barriers to promoting prefabricated construction in china: A cost–benefit analysis. J. Clean. Prod.
**2018**, 172, 649–660. [Google Scholar] [CrossRef] - Liu, W.-H.; Zhang, H.; Wang, Q.; Hua, T.-R.; Xue, H. A review and scient metric analysis of global research on prefabricated buildings. Adv. Civ. Eng.
**2021**, 2021, 8869315. [Google Scholar] [CrossRef] - Zhou, M.; Chen, Y.-Y.; Su, X.-L.; An, L. Rapid construction and advanced technology for a COVID-19 field hospital in Wuhan, China. Civ. Eng.
**2021**, 174, 29–34. [Google Scholar] [CrossRef] - Bhatti, A.Q.; Wahab, A. Analysis and design of emergency field isolation hospital building using innovative rapidly construction prefabricated units to treat patients infected with COVID-19. Innov. Infrastruct. Solut.
**2021**, 6, 90. [Google Scholar] [CrossRef] - Chinese Standard GB/T51232-2016; Technical Standard for Prefabricated Steel Structure Building. China Architecture and Building Press: Beijing, China, 2016.
- Chinese Standard JG/T544-2018; Light-Gauge Steel Framing Wall Panel. Standards Press of China: Beijing, China, 2018.
- Vitale, P.; Spagnuolo, A.; Lubritto, C.; Arena, U. Environmental performances of residential buildings with a structure in cold formed steel or reinforced concrete. J. Clean. Prod.
**2018**, 189, 839–852. [Google Scholar] [CrossRef] - Dani, A.A.; Roy, K.; Masood, R.; Fang, Z.; Lim, J.B.P. A Comparative Study on the Life Cycle Assessment of New Zealand Residential Buildings. Buildings
**2022**, 12, 50. [Google Scholar] [CrossRef] - Dias, Y.; Mahendran, M. Shape optimisation of cold-formed steel framed wall studs with sheathing restraints. Thin-Walled Struct.
**2020**, 158, 107135. [Google Scholar] [CrossRef] - Roy, K.; Lau, H.H.; Ting, T.; Chen, B.; Lim, J.B.P. Flexural capacity of gapped built-up cold-formed steel channel sections including web stiffeners. J. Constr. Steel Res.
**2020**, 172, 106154. [Google Scholar] [CrossRef] - Chen, B.; Roy, K.; Fang, Z.; Uzzaman, A.; Chi, Y.; Lim, J.B.P. Web crippling capacity of fastened cold-formed steel channels with edge-stiffened web holes, un-stiffened web holes and plain webs under two-flange loading. Thin-Walled Struct.
**2021**, 163, 107666. [Google Scholar] [CrossRef] - Ananthi, G.B.G.; Vishuvardhan, S.; Knight, G. Experimental, theoretical and numerical study on thin walled steel single and compound channel sections in axial compression. Indian J. Eng. Mater. Sci.
**2015**, 22, 570–580. [Google Scholar] - Ananthi, G.B.G. A Study on Cold-Formed Steel Compound Angle Section Subjected to Axial Compression. KSCE J. Civ. Eng.
**2018**, 22, 1803–1815. [Google Scholar] [CrossRef] - Ananthi, G.B.G.; Palani, G.S.; Iyer, N.R. Numerical and Theoretical Studies on Cold-Formed Steel Unlipped Channels Subjected to Axial Compression. Lat. Am. J. Solids Struct.
**2015**, 12, 1–17. [Google Scholar] [CrossRef] [Green Version] - Roy, K.; Lim, J.B.P. Numerical investigation into the buckling behaviour of face-to-face built-up cold-formed stainless steel channel sections under axial compression. Structures
**2019**, 20, 42–73. [Google Scholar] [CrossRef] - Ananthi, G.B.G.; Roy, K.; Lim, J.B.P. Tests and Finite Element Modelling of Cold-Formed Steel Zed and Hat Section Columns Under Axial Compression. Int. J. Steel Struct.
**2021**, 21, 1305–1331. [Google Scholar] [CrossRef] - Ananthi, G.B.G.; Roy, K.; Lim, J.B.P. Experimental and numerical study of an innovative 4-channels cold-formed steel built-up column under axial compression. Steel Compos. Struct.
**2022**, 42, 513–538. [Google Scholar] [CrossRef] - Ananthi, G.B.G.; Roy, K.; Lim, J.B.P. Behaviour and strength of back-to-back built-up cold-formed steel unequal angle sections with intermediate stiffeners under axial compression. Steel Compos. Struct.
**2022**, 42, 1–22. [Google Scholar] - Shi, Y.; Ran, X.-W.; Xiao, W.; Ke, K.; Xiang, Y.; Deng, R. Experimental and numerical study of the seismic behavior of cold-formed steel walls with diagonal braces. Thin-Walled Struct.
**2020**, 159, 107318. [Google Scholar] [CrossRef] - Wu, H.-H.; Sui, L.; Zhou, T.-H.; Lu, L.-F.; Li, X.-H. Estimation of lateral stiffness for gypsum-filled cold-formed steel shear walls. Structures
**2021**, 32, 28–37. [Google Scholar] [CrossRef] - Ariyanayagam, A.D.; Mahendran, M. Fire tests of non-load bearing light gauge steel frame walls lined with calcium silicate boards and gypsum plasterboards. Thin-Walled Struct.
**2017**, 115, 86–99. [Google Scholar] [CrossRef] - Selvaraj, S.; Madhavan, M. Criteria for selection of sheathing boards in cold-formed steel wall panels subjected to bending: Construction applications and performance-based evaluation. Pract. Period. Struct. Des. Constr.
**2021**, 26, 04020044. [Google Scholar] [CrossRef] - Gunalan, S.; Mahendran, M. Experimental investigation of post-fire mechanical properties of cold-formed steels. Thin-Walled Struct.
**2014**, 84, 241–254. [Google Scholar] [CrossRef] [Green Version] - Batista Abreu, J.C.; Vieira, L.M.C.; Abu-Hamd, M.H.; Schafer, B.W. Review: Development of performance-based fire design for cold-formed steel. Fire Sci. Rev.
**2014**, 3, 1. [Google Scholar] [CrossRef] [Green Version] - Keerthan, P.; Mahendran, M. Numerical modelling of non-load-bearing light gauge cold-formed steel frame walls under fire conditions. J. Fire Sci.
**2012**, 30, 375–403. [Google Scholar] [CrossRef] [Green Version] - Ranawaka, T.; Mahendran, M. Experimental study of the mechanical properties of light gauge cold-formed steels at elevated temperatures. Fire Saf. J.
**2009**, 44, 219–229. [Google Scholar] [CrossRef] [Green Version] - Imran, M.; Mahendran, M.; Keerthan, P. Mechanical properties of cold-formed steel tubular sections at elevated temperatures. J. Constr. Steel Res.
**2018**, 143, 131–147. [Google Scholar] [CrossRef] - Fang, Z.; Roy, K.; Liang, H.; Poologanathan, K.; Ghosh, K.; Mohamed, A.M.; Lim, J.B.P. Numerical Simulation and Design Recommendations for Web Crippling Strength of Cold-Formed Steel Channels with Web Holes under Interior-One-Flange Loading at Elevated Temperatures. Buildings
**2021**, 11, 666. [Google Scholar] [CrossRef] - Steau, E.; Mahendran, M.; Poologanathan, K. Elevated temperature thermal properties of carbon steels used in cold-formed light gauge steel frame systems. J. Build. Eng.
**2020**, 28, 101074. [Google Scholar] [CrossRef] - Li, Q.; Xia, M.-X.; Peng, H.; He, X.-J. Structural Silicone Sealant Aging Failure Analysis and the Practical Failure Model. Build. Energy Effic.
**2016**, 44, 30–34, 39. [Google Scholar] - Buyl, F.D. Silicone sealants and structural adhesives. Int. J. Adhes. Adhes.
**2001**, 21, 411–422. [Google Scholar] [CrossRef] - Telue, Y.; Mahendran, M. Behaviour of cold-formed steel wall frames lined with plasterboard. J. Constr. Steel Res.
**2001**, 57, 435–452. [Google Scholar] [CrossRef] [Green Version] - Telue, Y.; Mahendran, M. Behaviour and design of cold-formed steel wall frames lined with plasterboard on both sides. Eng. Struct.
**2004**, 26, 567–579. [Google Scholar] [CrossRef] [Green Version] - Nithyadharan, M.; Kalyanaraman, V. Behaviour of cold-formed steel shear wall panels under monotonic and reversed cyclic loading. Thin-Walled Struct.
**2012**, 60, 12–23. [Google Scholar] [CrossRef] - Peterman, K.D. Experiments on the Stability of Sheathed Cold-Formed Steel Studs under Axial Load and Bending. Ph.D. Thesis, Johns Hopkins University, Baltimore, MD, USA, 2012. [Google Scholar]
- Selvaraj, S.; Madhavan, M. Studies on cold-formed steel stud panels with gypsum sheathing subjected to out-of-plane bending. J. Struct. Eng.
**2018**, 144, 100–117. [Google Scholar] [CrossRef] - Selvaraj, S.; Madhavan, M. Bracing effect of sheathing in point-symmetric cold-formed steel flexural members. J. Constr. Steel Res.
**2019**, 157, 450–462. [Google Scholar] [CrossRef] - Selvaraj, S.; Madhavan, M. Investigation on sheathing-fastener connection failures in cold-formed steel wall panels. Structures
**2019**, 20, 176–188. [Google Scholar] [CrossRef] - Selvaraj, S.; Madhavan, M. Investigation on sheathing effect and failure modes of gypsum sheathed cold-formed steel wall panels subjected to bending. Structures
**2019**, 17, 87–101. [Google Scholar] [CrossRef] - Chinese Standard GB/T228.1-2010; Metallic Materials-Tensile Testing-Part 1: Method of Test at Room Temperature. Standards Press of China: Beijing, China, 2010.
- ASTM D638-2008; Standard Test Method for Tensile Properties of Plastics. ASTM International: West Conshohocken, PA, USA, 2008.
- Chinese Standard GB50009-2012; Load Code for the Design of Building Structures. China Architecture and Building Press: Beijing, China, 2012.
- Yang, Y.-Z. Study on the Properties of the Light-Gauge Steel Truss Girder-OSB Composite Floor. Ph.D. Thesis, Chongqing University, Chongqing, China, 2014. [Google Scholar]
- Shen, H.-S.; Teng, J.-G.; Yang, J. Interfacial stresses in beams and slabs bonded with thin plate. J. Eng. Mech.
**2001**, 127, 399–406. [Google Scholar] [CrossRef] - Smith, S.T.; Teng, J.-G. Interfacial stresses in plated beams. Eng. Struct.
**2001**, 23, 857–871. [Google Scholar] [CrossRef] - Yang, J.; Ye, J.-Q. An improved closed-form solution to interfacial stresses in plated beams using a two-stage approach. Int. J. Mech. Sci.
**2010**, 52, 13–30. [Google Scholar] [CrossRef] [Green Version] - Liu, M.; Dawood, M. A closed-form solution of the interfacial stresses and strains in steel beams strengthened with externally bonded plates using ductile adhesives. Eng. Struct.
**2018**, 154, 66–77. [Google Scholar] [CrossRef] - Stratford, T.; Cadei, J. Elastic analysis of adhesion stresses for the design of a strengthening plate bonded to a beam. Constr. Build. Mater.
**2006**, 20, 34–45. [Google Scholar] [CrossRef] [Green Version] - Narayanamurthy, V.; Chen, J.F.; Cairns, R. A general analytical method for the analysis of interfacial stresses in plated beams under arbitrary loading. Adv. Struct. Eng.
**2010**, 13, 975–988. [Google Scholar] [CrossRef] - Teng, J.-G.; Yu, T.; Fernando, D. Strengthening of steel structures with fiber-reinforced polymer composites. J. Constr. Steel Res.
**2012**, 78, 131–143. [Google Scholar] [CrossRef] - Chinese Standard GB51367-2019; Standard for Design of Strengthening Steel Structure. China Architecture and Building Press: Beijing, China, 2019.
- Sun, X.-F. Mechanics of Materials, 6th ed.; Higher Education Press: Beijing, China, 2009; ISBN 9787040513622. [Google Scholar]
- Xue, J.-Y. Design Principle of Steel and Concrete Composite Structure; Science Press: Beijing, China, 2010; ISBN 9787030275660. [Google Scholar]
- Nie, J.-G.; Cai, C.-S.; Wang, T. Stiffness and capacity of steel-concrete composite beams with profiled sheeting. Eng. Struct.
**2005**, 27, 1074–1085. [Google Scholar] [CrossRef] - Nie, J.-G.; Cai, C.-S. Steel–concrete composite beams considering shear slip effects. J. Struct. Eng.
**2003**, 129, 495–506. [Google Scholar] [CrossRef] [Green Version] - Chinese Standard GB 50017-2017; Code for Design of Steel Structures. China Planning Press: Beijing, China, 2017.
- Nie, J.-G. Steel Concrete Composite Beam Structure-Experiment, Theory and Application; Science Press: Beijing, China, 2004; ISBN 9787030152893. [Google Scholar]

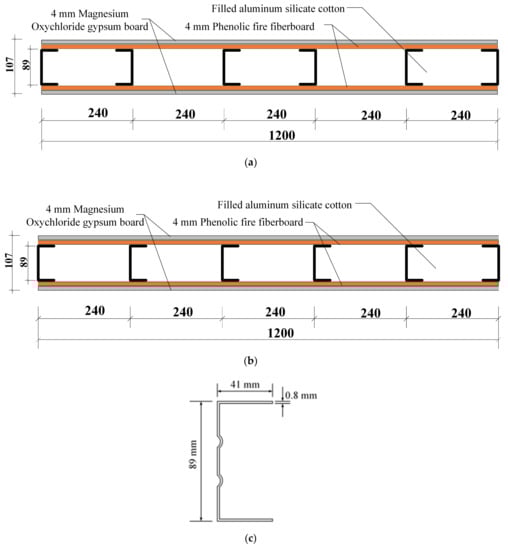

**Figure 1.**LSF walls section and stud section. (

**a**) Type-I walls section structure (symmetrical arrangement of light-gauge steel studs). (

**b**) Type-II walls section structure (asymmetric arrangement of light-gauge steel studs). (

**c**) Cross-section of light-gauge steel stud.

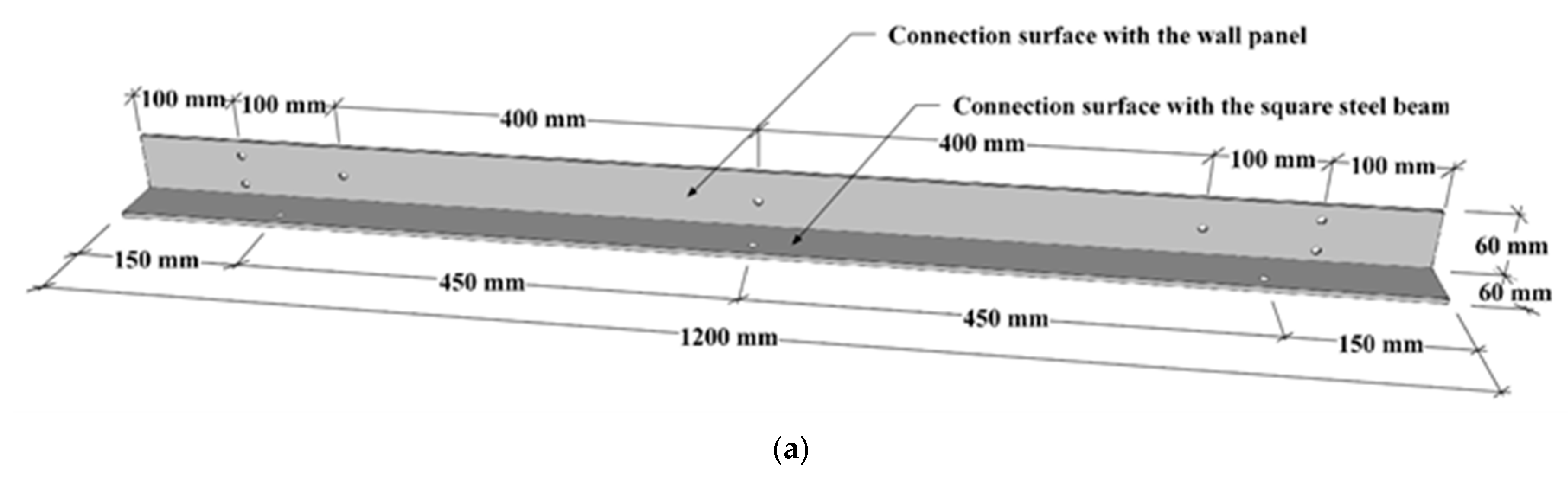

**Figure 2.**Dimension of L-shaped connector and hole positions (mm). (

**a**) Hole positions of L-shaped connector connected with steel beam by three self-drilling screws. (

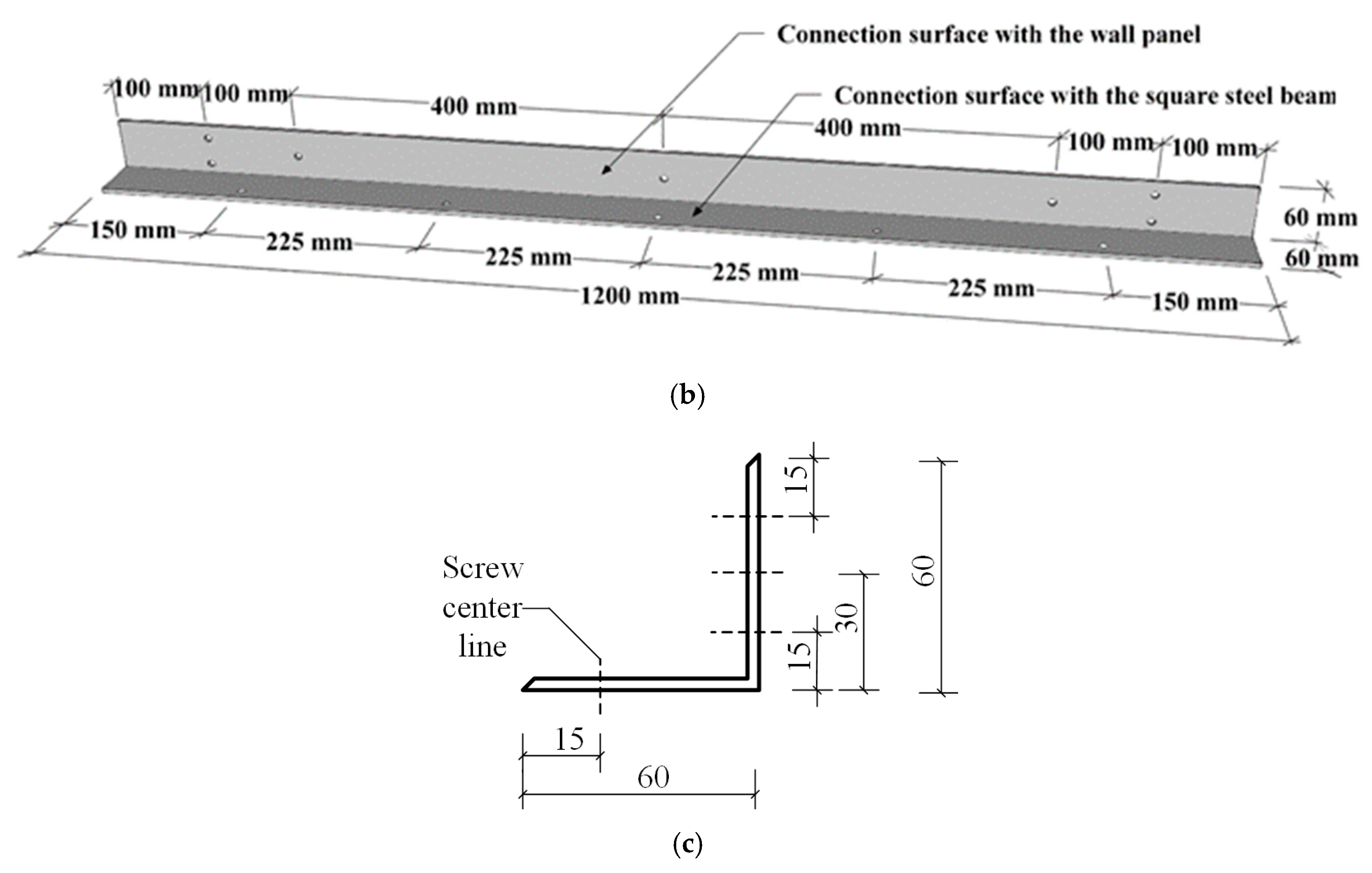

**b**) Hole positions of L-shaped connector connected with steel beam by five self-drilling screws. (

**c**) Section dimension of L-shaped connector.

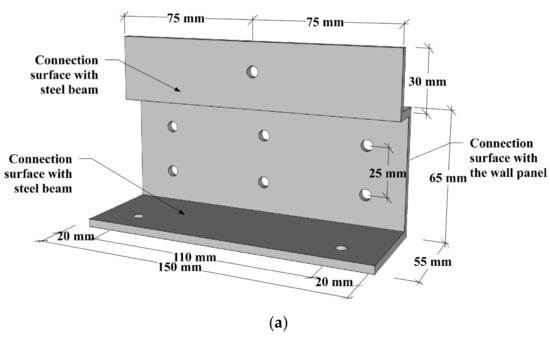

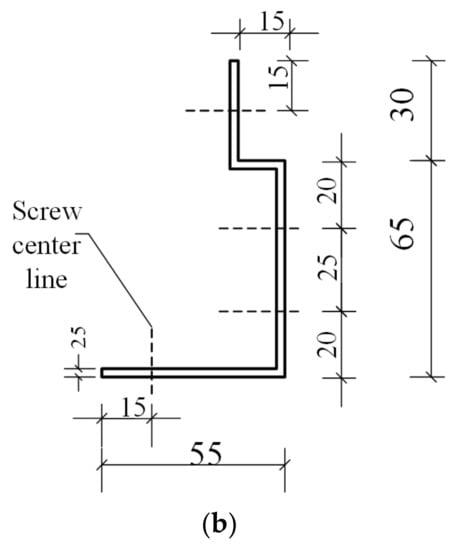

**Figure 3.**Dimension of special-shaped connector and hole positions (mm). (

**a**) Hole positions of special-shaped connector. (

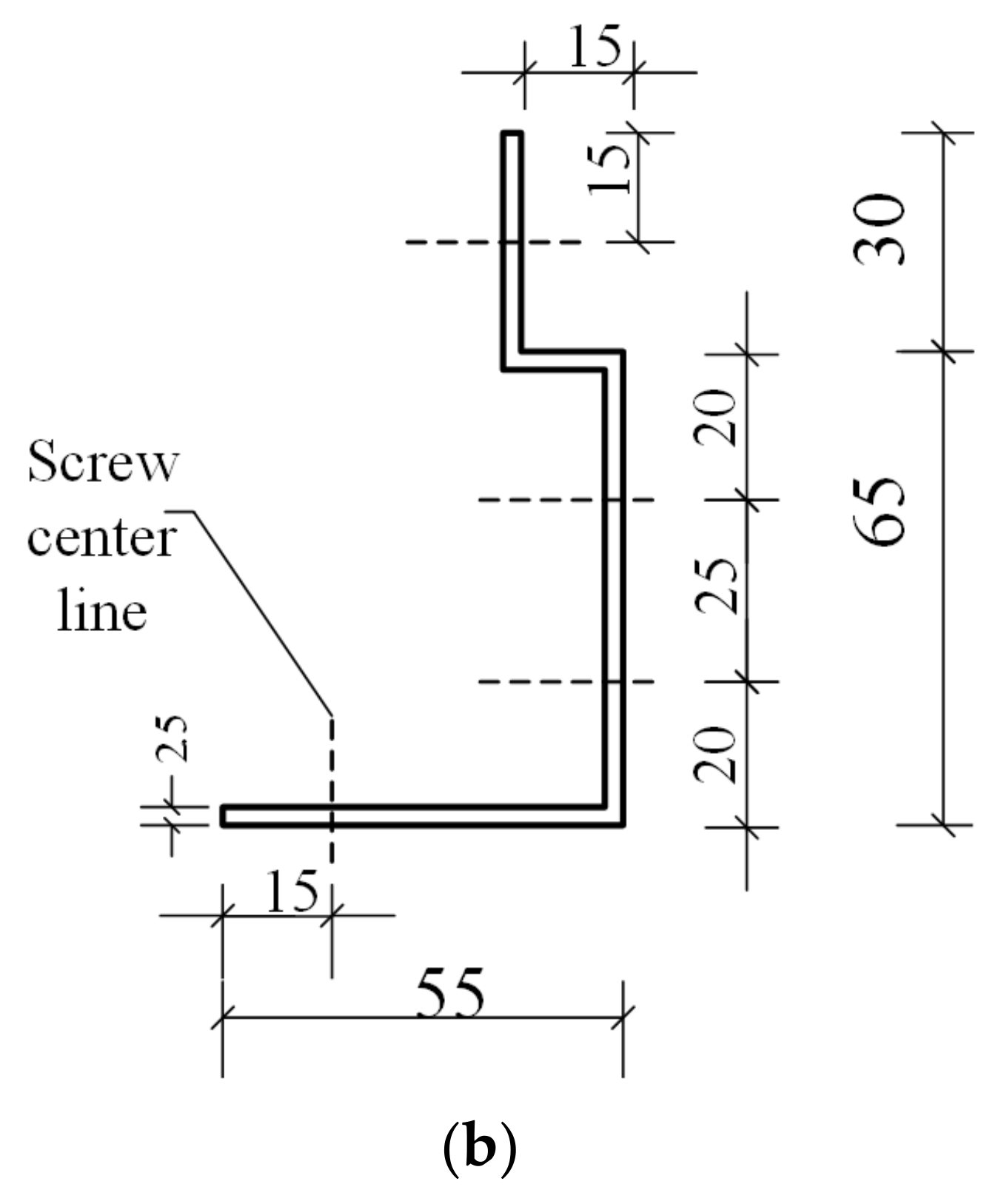

**b**) Section dimension of special-shaped connector.

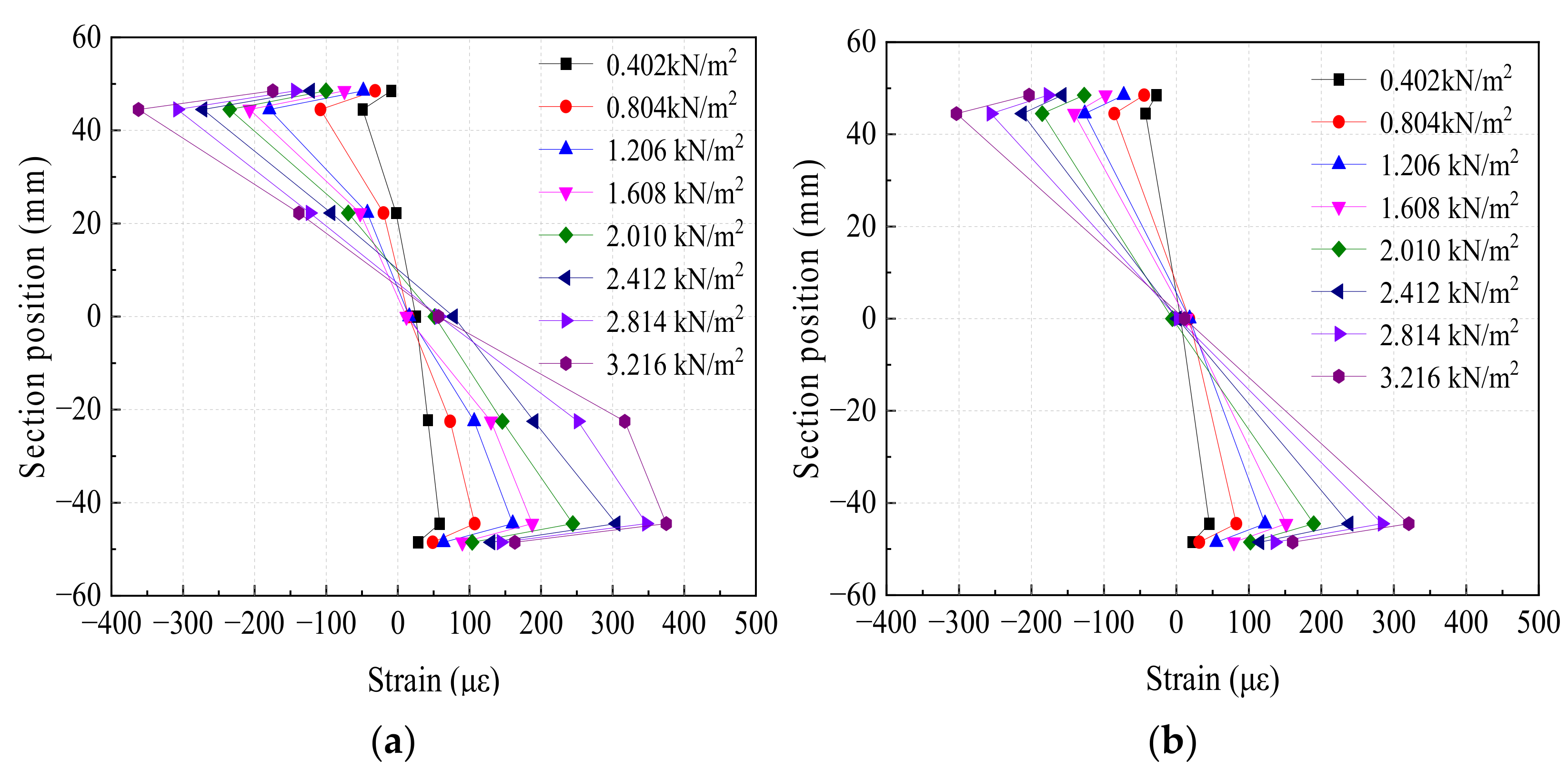

**Figure 15.**Strain distribution curves of mid-span section. (

**a**) QB1-I-L-2.5-5-1 (

**b**) QB5-II-L-2.5-3-1.

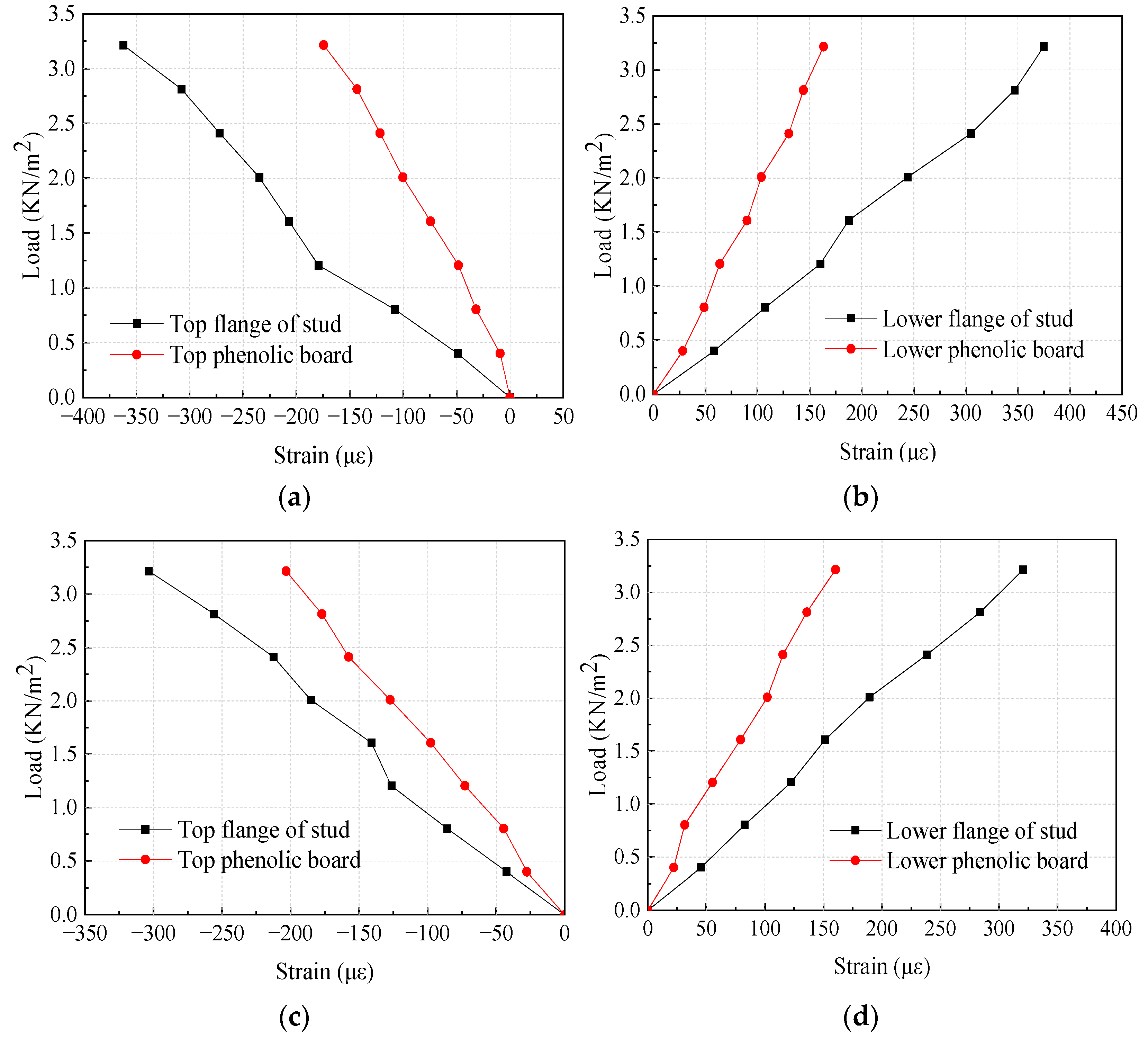

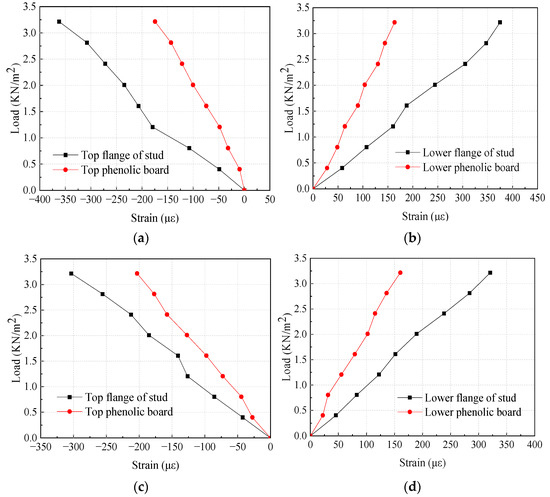

**Figure 16.**Strain load curves. (

**a**) Strain of top flanges of light-gauge steel studs and top phenolic board of QB1-I-L-2.5-5-1; (

**b**) Strain of lower flanges of light-gauge steel studs and lower phenolic board of QB1-I-L-2.5-5-1; (

**c**) Strain of top flanges of light-gauge steel studs and top phenolic board of QB5-II-L-2.5-3-1; (

**d**) Strain of lower flanges of light-gauge steel studs and lower phenolic board of QB5-II-L-2.5-3-1.

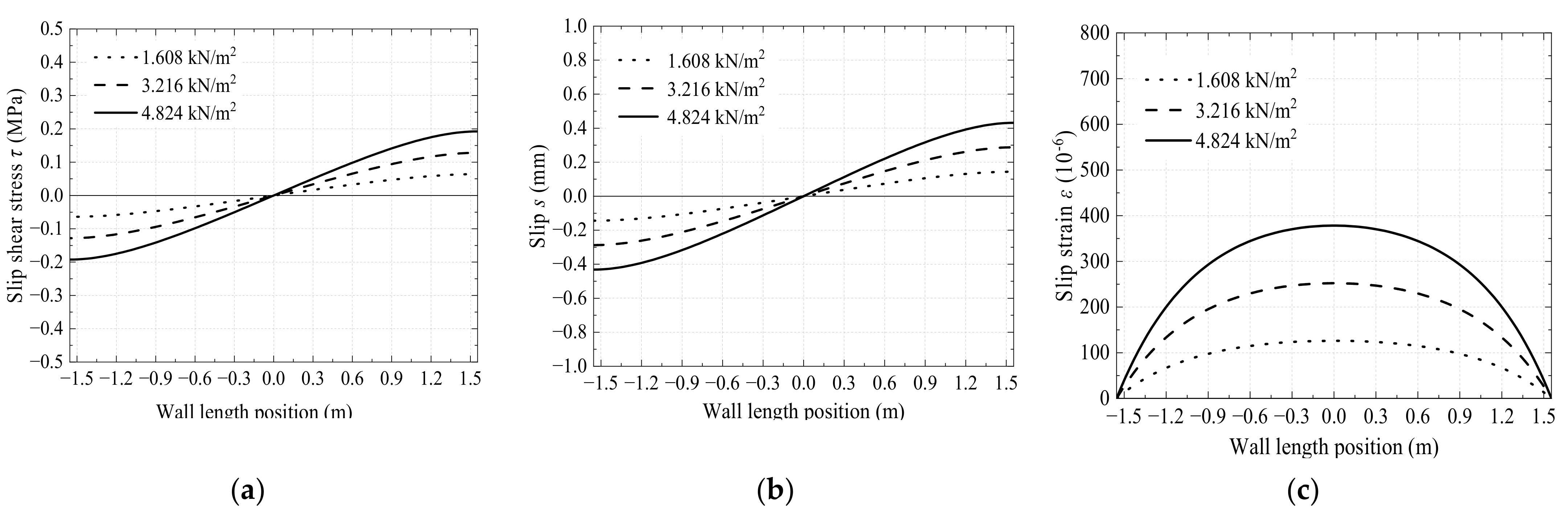

**Figure 19.**Distribution of mechanical parameters of slip along wall span. (

**a**) Slip shear stress distribution. (

**b**) Slip distribution. (

**c**) Slip strain distribution.

Specimen | Wall Type | Connector Section | Thickness of Connector (mm) | Number of Single Side Connectors | Number of Single Side Screws Connected to Steel Beams |
---|---|---|---|---|---|

QB1-I-L-2.5-5-1 | Type I | L-shape | 2.5 | 1 | 5 |

QB2-I-Y-2.5-4-3 | Type I | Special-shaped | 2.5 | 3 | 12 |

QB3-I-L-1.5-3-1 | Type I | L-shape | 1.5 | 1 | 3 |

QB4-I-Y-2.5-4-2 | Type I | Special-shaped | 2.5 | 2 | 8 |

QB5-II-L-2.5-3-1 | Type II | L-shape | 2.5 | 1 | 3 |

QB6-II-Y-2.5-4-3 | Type II | Special-shaped | 2.5 | 3 | 12 |

Material | Yield Stress (Mpa) | Ultimate Stress (Mpa) | Young’s Modulus (GPa) | Poisson’s Ratio |
---|---|---|---|---|

Cold-formed steel | 302.4 | 377.3 | 178.3 | 0.32 |

Fireproof phenolic board | / | 424.8 | 33.76 | 0.27 |

Silicone sealant | / | 1.13 | 0.00067 | 0.50 |

Loading Series | Loading Uniform Area Load (KN/m^{2}) | Unloading Uniform Area Load (KN/m^{2}) |
---|---|---|

0-level | 0 | 4.824 |

1-level | 0.402 | 4.422 |

2-level | 0.804 | 4.020 |

… | … | … |

11-level | 4.422 | 0.402 |

12-level | 4.824 | 0 |

Specimen | Applying Maximum Load (KN/m^{2}) | Loading Bending Stiffness of Specimen (KN·m^{2}) | Unloading Bending Stiffness of Specimen (KN·m^{2}) | Mid-Span Deflection (mm) |
---|---|---|---|---|

QB1-I-L-2.5-5-1 | 3.216 | 40753 | 47535 | 9.75 |

QB2-I-Y-2.5-4-3 | 4.824 | 45166 | 52295 | 13.26 |

QB3-I-L-1.5-3-1 | 1.608 | 23492 | 33666 | 8.68 |

QB4-I-Y-2.5-4-2 | 4.020 | 42865 | 48616 | 11.70 |

QB5-II-L-2.5-3-1 | 3.216 | 38882 | 47691 | 10.25 |

QB6-II-Y-2.5-4-3 | 4.824 | 45662 | 52517 | 13.00 |

Wall Specimen | Applying Maximum Load (KN/m ^{2}) | Mid-Span Deflection (mm) | Loading Bending Stiffness (KN·m ^{2}) | Unloading Bending Stiffness (KN·m ^{2}) |
---|---|---|---|---|

QB1-I-L-2.5-5-1 | 3.216 | 7.11 | 48866 | 52570 |

QB2-I-Y-2.5-4-3 | 4.824 | 12.18 | 42980 | 46449 |

QB3-I-L-1.5-3-1 | 1.608 | 4.96 | 31274 | 48852 |

QB4-I-Y-2.5-4-2 | 4.020 | 9.73 | 45129 | 49175 |

QBn-I average value | / | / | 42062 | 49262 |

QB5-II-L-2.5-3-1 | 3.216 | 7.33 | 47463 | 47470 |

QB6-II-Y-2.5-4-3 | 4.824 | 11.64 | 44029 | 47862 |

QBn-II average value | / | / | 45746 | 47666 |

Specimen | Elastic Bending Stiffness of Specimen (KN·m ^{2}) | Elastic Bending Stiffness of Wall Panel (KN·m^{2}) | Ratio of Bending Stiffness of Specimen to the Wall Panel |
---|---|---|---|

QB1-I-L-2.5-5-1 | 47535 | 52570 | 0.904 |

QB2-I-Y-2.5-4-3 | 52295 | 46449 | 1.126 |

QB3-I-L-1.5-3-1 | 33666 | 48852 | 0.689 |

QB4-I-Y-2.5-4-2 | 48616 | 49175 | 0.987 |

QB5-II-L-2.5-3-1 | 47691 | 54131 | 0.881 |

QB6-II-Y-2.5-4-3 | 52517 | 47862 | 1.097 |

Specimen | Measured Bending Stiffness B _{0i} (KN·m^{2}) | Measured Conversion m _{0i} | Calculated Value m | Ratio of Calculated Value to Measured Value |
---|---|---|---|---|

QB1-I-L-2.5-5-1 | 684.5 | 0.699 | 0.549 | 0.79 |

QB2-I-Y-2.5-4-3 | 604.8 | 0.588 | 0.93 | |

QB3-I-L-1.5-3-1 | 636.1 | 0.631 | 0.87 | |

QB4-I-Y-2.5-4-2 | 640.3 | 0.637 | 0.86 | |

QB5-II-L-2.5-3-1 | 618.1 | 0.606 | 0.91 | |

QB6-II-Y-2.5-4-3 | 623.2 | 0.613 | 0.90 | |

Average value | 634.5 | 0.629 | 0.88 |

Load (KN/m^{2}) | f_{0} (mm) | f_{1}/f_{0} | f_{2}/f_{0} | f_{3}/f_{0} |
---|---|---|---|---|

0.402 | 0.81 | 0.805 | 3.030 | 1.255 |

0.804 | 1.74 | 0.750 | 2.824 | 1.169 |

1.206 | 2.69 | 0.728 | 2.740 | 1.135 |

1.608 | 3.65 | 0.715 | 2.695 | 1.116 |

2.010 | 4.43 | 0.736 | 2.772 | 1.148 |

2.412 | 5.41 | 0.725 | 2.729 | 1.130 |

2.814 | 6.37 | 0.718 | 2.703 | 1.119 |

3.216 | 7.41 | 0.705 | 2.655 | 1.100 |

3.618 | 8.57 | 0.686 | 2.583 | 1.070 |

4.020 | 9.64 | 0.677 | 2.551 | 1.056 |

4.422 | 10.77 | 0.667 | 2.511 | 1.040 |

4.824 | 11.91 | 0.658 | 2.478 | 1.026 |

Average value | / | 0.714 | 2.689 | 1.114 |

_{1}represents the mid-span deflection calculated by the transformed-section method; f

_{2}represents the mid-span deflection calculated by the reduced stiffness method; f

_{3}represents the mid-span deflection calculated by the method presented in this paper; f

_{0}represents the average measured mid-span deflection of 6 wall panel specimens.

**Table 9.**Comparison of compressive stress at top flange of longitudinal light-gauge steel studs in mid-span.

Load (KN/m^{2}) | σ_{sc}_{0} (MPa) | σ_{sc}_{1}/σ_{sc}_{0} | σ_{sc}_{2}/σ_{sc}_{0} | σ_{sc}_{3}/σ_{sc}_{0} |
---|---|---|---|---|

0.402 | −7.84 | 0.656 | 7.166 | 1.023 |

0.804 | −16.30 | 0.631 | 6.888 | 0.984 |

1.206 | −24.21 | 0.637 | 6.959 | 0.994 |

1.608 | −30.34 | 0.678 | 7.404 | 1.057 |

2.010 | −35.98 | 0.714 | 7.803 | 1.114 |

2.412 | −42.29 | 0.730 | 7.968 | 1.138 |

2.814 | −49.80 | 0.723 | 7.893 | 1.127 |

3.216 | −57.18 | 0.719 | 7.857 | 1.122 |

3.618 | −62.28 | 0.743 | 8.115 | 1.159 |

4.020 | −67.54 | 0.761 | 8.314 | 1.187 |

4.422 | −77.63 | 0.728 | 7.956 | 1.136 |

4.824 | −88.80 | 0.695 | 7.588 | 1.083 |

Mean value | / | 0.701 | 7.659 | 1.094 |

_{sc}

_{1}represents the compressive stress at top flange of longitudinal light-gauge steel studs in mid-span calculated by the transformed-section method; σ

_{sc}

_{2}represents the compressive stress at top flange of longitudinal light-gauge steel studs in mid-span calculated by the reduced stiffness method; σ

_{sc}

_{3}represents the compressive stress at top flange of longitudinal light-gauge steel studs in mid-span calculated by the method presented in this paper; σ

_{sc}

_{0}represents the average measured compressive stress at top flange of longitudinal light-gauge steel studs in mid-span of six specimens.

**Table 10.**Comparison of tensile stress at the lower flange of longitudinal light-gauge steel studs in mid-span.

Load (KN/m^{2}) | σ_{st}_{0} (MPa) | σ_{st1}/σ_{st0} | σ_{st2}/σ_{st0} | σ_{st3}/σ_{st0} |
---|---|---|---|---|

0.402 | 9.04 | 0.569 | 6.214 | 0.887 |

0.804 | 17.44 | 0.590 | 6.440 | 0.920 |

1.206 | 25.91 | 0.595 | 6.502 | 0.928 |

1.608 | 31.89 | 0.645 | 7.044 | 1.006 |

2.010 | 39.50 | 0.651 | 7.107 | 1.015 |

2.412 | 48.88 | 0.631 | 6.893 | 0.984 |

2.814 | 56.83 | 0.633 | 6.916 | 0.988 |

3.216 | 63.84 | 0.644 | 7.037 | 1.005 |

3.618 | 69.73 | 0.664 | 7.248 | 1.035 |

4.020 | 76.21 | 0.675 | 7.368 | 1.052 |

4.422 | 87.45 | 0.647 | 7.064 | 1.009 |

4.824 | 98.12 | 0.629 | 6.867 | 0.981 |

Mean value | / | 0.631 | 6.892 | 0.984 |

_{st}

_{1}represents the tensile stress at the lower flange of longitudinal light-gauge steel studs in mid-span calculated by the reduced section method; σ

_{st}

_{2}represents the tensile stress at the lower flange of longitudinal light-gauge steel studs in mid-span calculated by the reduced stiffness method; σ

_{st}

_{3}represents the tensile stress at the lower flange of longitudinal light-gauge steel studs in mid-span calculated by the method presented in this paper; σ

_{st}

_{0}represents the average measured tensile stress at the lower flange of longitudinal light-gauge steel studs in mid-span of six specimens.

Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations. |

© 2022 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).

## Share and Cite

**MDPI and ACS Style**

Zhao, G.; Chen, W.; Zhao, D.; Li, K.
Mechanical Properties of Prefabricated Cold-Formed Steel Stud Wall Panels Sheathed with Fireproof Phenolic Boards under Out-of-Plane Loading. *Buildings* **2022**, *12*, 897.
https://doi.org/10.3390/buildings12070897

**AMA Style**

Zhao G, Chen W, Zhao D, Li K.
Mechanical Properties of Prefabricated Cold-Formed Steel Stud Wall Panels Sheathed with Fireproof Phenolic Boards under Out-of-Plane Loading. *Buildings*. 2022; 12(7):897.
https://doi.org/10.3390/buildings12070897

**Chicago/Turabian Style**

Zhao, Gengqi, Wanqiong Chen, Dapeng Zhao, and Ke Li.
2022. "Mechanical Properties of Prefabricated Cold-Formed Steel Stud Wall Panels Sheathed with Fireproof Phenolic Boards under Out-of-Plane Loading" *Buildings* 12, no. 7: 897.
https://doi.org/10.3390/buildings12070897
