# Integrated Cost-Analysis Approach for Seismic and Thermal Improvement of Masonry Building Façades

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Integrated Approach at the Mesoscale Level

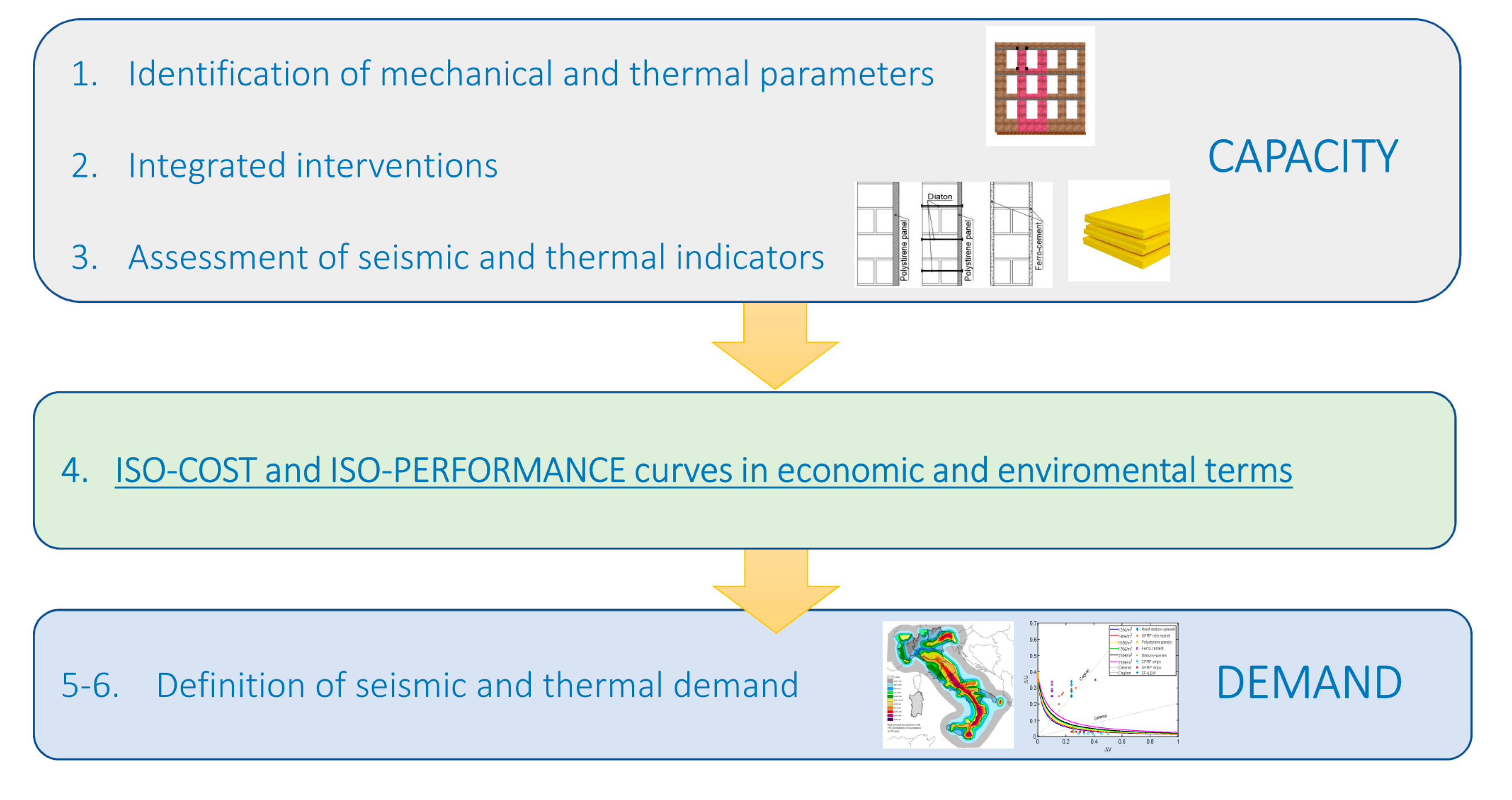

#### 2.1. Procedure

- Acquisition of the structural and thermal parameters needed for the analysis (mechanical parameters, such as tensile strength, shear strength, etc. and thermal parameters, such as thermal conductivity, thicknesses, etc.)
- Definition of a set of integrated interventions, namely retrofitting strategies that have positive effects on either the seismic response, or the thermal performance or both of them.
- Identification of a performance indicator at mesoscale level: as for the structural behavior, the variation of base shear capacity $\mathsf{\Delta}V$ and the corresponding variation of ductility capacity $\mathsf{\Delta}\mu $ are considered, defined by well-known methods (non-linear static analysis); as for the thermal side, the variation of thermal transmittance $\mathsf{\Delta}U$ is taken into account.
- Economic and environmental iso-cost curves representing the relationships between the thermal capacity indicator ($\mathsf{\Delta}U$) and the structural capacity indicators ($\mathsf{\Delta}V$ or $\mathsf{\Delta}\mu )$. For each integrated intervention, after an economic budget (investment) or an environmental impact in terms of CO
_{2eq}are fixed, one can calculate, as explained in Section 2.2 and Section 2.3, the corresponding pair of capacity indicators. That represents a single point in the graphs $\mathsf{\Delta}U$−$\mathsf{\Delta}V$ or $\mathsf{\Delta}U$−$\mathsf{\Delta}\mu $. By varying the economic budget or the environmental impact, several points are obtained. Finally, the curves fitting these points can be regarded as iso-cost curves. Moreover, the iso-performance curves, that will be the subject of future work, will express, for the same seismic or energetic performance, the economic investment needed or the environmental impact caused by each integrated intervention. - Definition of dimensionless parameters ${c}_{U}$ and ${c}_{R}$, defined in [28], to identify the demand for thermal and seismic performances respectively, with the expressions:$${c}_{U}=\frac{D{D}_{i}}{D{D}_{max}};{c}_{R}=\frac{PG{A}_{i}}{PG{A}_{max}},$$
- The hypothesis of a correlation between energy efficiency demand and seismic demand, through demand curves identified by these analytical expressions:$$\mathsf{\Delta}U=\alpha \frac{{c}_{U}}{{c}_{R}}\mathsf{\Delta}V;\mathsf{\Delta}U=\alpha \frac{{c}_{U}}{{c}_{R}}\mathsf{\Delta}\mu .$$

#### 2.2. Thermal Performance Indicator

- ${R}_{si}$ is the thermal resistance of the internal surface,$\left[{\mathrm{m}}^{2}\mathrm{K}/\mathrm{W}\right];$
- $\frac{{s}_{i}}{{\lambda}_{i}}$ is the resistance of the i-th layer,$\left[{\mathrm{m}}^{2}\mathrm{K}/\mathrm{W}\right]$, where ${\mathrm{s}}_{\mathrm{i}}$ is the thickness of the i-th wall layer $\left[\mathrm{m}\right]$;
- ${R}_{se}$ is the resistance of the external surface,$\left[{\mathrm{m}}^{2}\mathrm{K}/\mathrm{W}\right]$.

- ${A}_{g}$ is the glass area [${\mathrm{m}}^{2}$];
- ${U}_{g}$ is the glass heat transmission [$\mathrm{W}/{\mathrm{m}}^{2}\mathrm{K}$];
- ${A}_{t}$ is the area of the support [${\mathrm{m}}^{2}$];
- ${U}_{t}$ is the support heat transmission [$\mathrm{W}/{\mathrm{m}}^{2}\mathrm{K}$];
- ${l}_{g}$ is the glass perimeter [$\mathrm{m}$];
- ${\mathsf{\Psi}}_{g}$ is the spacer heat transmission [$\mathrm{W}/\mathrm{mK}$].

- (a)
- select the thermal characteristics of the frame support ${U}_{f}$;
- (b)
- select the thermal characteristics of the glass ${U}_{g}$;
- (c)
- cross the values of ${U}_{f}$ and ${U}_{g}$ by selecting the percentage of the support with respect to the entire opening and find the value of ${U}_{w}$ of the opening with the chosen characteristics.

- ${A}_{m}$ is the area of the masonry element [${\mathrm{m}}^{2}$];
- ${U}_{m}$ is the thermal transmittance of the masonry portion [$\mathrm{W}/{\mathrm{m}}^{2}\mathrm{K}$];
- ${A}_{w}$ is the area of the window [${\mathrm{m}}^{2}$];
- ${U}_{w}$ is the thermal transmittance of the window [$\mathrm{W}/{\mathrm{m}}^{2}\mathrm{K}$];
- $l$ is the perimeter of the wall [$\mathrm{m}$];
- $\mathsf{\Psi}$ is the linear thermal transmittance [$\mathrm{W}/\mathrm{mK}$].

#### 2.3. Structural Performance Indicators

## 3. Application of the Integrated Approach at Mesoscale Level

#### 3.1. Case of Study

#### 3.2. Assumptions on the Integrated Interventions

#### 3.3. The Procedure of Estimation of the Varied Mechanical and Thermal Properties

- $s$ is the wall thickness;
- ${A}_{h},{A}_{v}$ are the reinforcement area placed in horizontal and vertical direction per unit of length;
- ${p}_{h},{p}_{v}$ are the spacings between horizontal or vertical strips.

- ${V}_{R,max}=0.3\xb7{f}_{k}\xb7s\xb7b$.

**.**, the values of the thermal transmittance are analogously calculated (Table 3 and Table 4). All the interventions cause a reduction of the thermal transmission; the best improvement is obtained with the polystyrene panel. The corresponding base shear capacity and ductility values are reported in Table 5, Table 6, Table 7 and Table 8.

#### 3.4. Cost Analysis

#### 3.4.1. Economic Cost Analysis

#### 3.4.2. Environmental Cost Analysis

_{2eq}emissions that are normally produced when retrofitting interventions are made. The CO

_{2eq}emission is one of the main indicators chosen to measure building sustainability.

_{2eq}emissions related to the phase of production of the materials for intervention are considered. Although this analysis can be extended to the entire life of the building, this paper neglects that aspect, which will be considered in future works. The assumed parameter of CO

_{2eq}emission varies from 5 kgCO

_{2eq}/m

^{3}to 35 kgCO

_{2eq}/m

^{3}. The specific environmental costs for each material are reported in Table 12.

_{0}and α

_{1}are reported in Table 13 and in Table 14, whilst Figure 6 shows the environmental regression curves for $\mathsf{\Delta}$U$-\mathsf{\Delta}\mu $ ($\mathsf{\Delta}$U$-\mathsf{\Delta}V$).

## 4. Definition of Demand Curves and Discussion of Results

_{2}). The optimal point for each location is given by the intersection of the lines with the hyperboles. The decision-makers can act through two aspects: which hyperbole should be considered (i.e., which level of economic or environmental cost) and which “tuning parameter” α has to be assumed (i.e., the slope of the line graphs) to give more importance to the thermal or to the seismic aspect, provided that the location influences the inclination of the line through the coefficients of Equation (1).

^{2}one should expect in Rocchetta di Vara an increase of base shear strength by 7%, of ductility by 10% and of thermal transmittance by 8%, whereas with a budget of 300 €/m

^{2}the expected increase of base shear and thermal transmittance are respectively by 14% and 17%. It should be noticed that the information gathered by this procedure is able to give an overall look at the improvement obtained by integrated approaches. An alternative way to proceed is to define the capacity curves by keeping constant the type of intervention and tuning its thickness, or coupling two interventions, one with more impact on the structural performance, and the other more effective from a thermal point of view. This procedure, which will be investigated in the future, will allow us to refine the decisional practice about the intervention to adopt.

^{2}stands between that obtained for 100 €/m

^{2}and that for 300 €/m

^{2}(Figure 8). This aspect is due to the fact that for the FRP interventions, beyond a threshold value, the increase of the cost (and therefore of the entity of the intervention) does not imply an increment of ductility, but instead a decrement of it. In other words, a greater thickness of FRP strips worsens the structural performance. This influence is stronger with respect to the other interventions and therefore the fitted curves do not follow a monotonic trend. A way to avoid this apparently counter-intuitive response is, as mentioned above, to plot the fitted curves for interventions with similar and monotonic effects.

## 5. Conclusions

## Author Contributions

## Funding

## Conflicts of Interest

## References

- De Falco, A.; Giresini, L.; Sassu, M. Temporary Preventive Seismic Reinforcements on Historic Churches: Numerical Modeling of San Frediano in Pisa. Appl. Mech. Mater.
**2013**, 351, 1393–1396. [Google Scholar] [CrossRef] - Casapulla, C.; Maione, A.; Argiento, L.U. Seismic analysis of an existing masonry building according to the multi-level approach of the italian guidelines on cultural heritage. Ing. Sismica
**2017**, 34, 40–59. [Google Scholar] - Casapulla, C.; Argiento, L.U. In-plane frictional resistances in dry block masonry walls and rocking-sliding failure modes revisited and experimentally validated. Compos. Part B Eng.
**2018**, 132, 197–213. [Google Scholar] [CrossRef] - Alecci, V.; De Stefano, M.; Galassi, S.; Lapi, M.; Orlando, M. Evaluation of the American Approach for Detecting Plan Irregularity. Adv. Civ. Eng.
**2019**, 2019, 1–10. [Google Scholar] [CrossRef] [Green Version] - Alecci, V.; De Stefano, M. Building irregularity issues and architectural design in seismic areas. Frat. Integrità Strutt.
**2018**, 13, 161–168. [Google Scholar] [CrossRef] - Gattesco, N.; Boem, I.; Dudine, A. Diagonal compression tests on masonry walls strengthened with a GFRP mesh reinforced mortar coating. Bull. Earthq. Eng.
**2014**, 13, 1703–1726. [Google Scholar] [CrossRef] - Giresini, L.; Sassu, M.; Butenweg, C.; Alecci, V.; De Stefano, M. Vault macro-element with equivalent trusses in global seismic analyses. Earthq. Struct.
**2017**, 12, 409–423. [Google Scholar] [CrossRef] - Giresini, L.; Solarino, F.; Paganelli, O.; Oliveira, D.V.; Froli, M. One-sided rocking analysis of corner mechanisms in masonry structures: Influence of geometry, energy dissipation, boundary conditions. Soil Dyn. Earthq. Eng.
**2019**, 123, 357–370. [Google Scholar] [CrossRef] - Giresini, L.; Casapulla, C.; Denysiuk, R.; Matos, J.C.; Sassu, M. Fragility curves for free and restrained rocking masonry façades in one-sided motion. Eng. Struct.
**2018**, 164, 195–213. [Google Scholar] [CrossRef] - Giresini, L. Design strategy for the rocking stability of horizontally restrained masonry walls. In Proceedings of the COMPDYN 2017, 6th ECCOMAS Thematic Conference on Computational Methods in Structural Dynamics and Earthquake Engineering, Rhodes Island, Greece, 15–17 June 2017. [Google Scholar]
- Alecci, V.; Stipo, G.; La Brusco, A.; De Stefano, M.; Rovero, L. Estimating elastic modulus of tuff and brick masonry: A comparison between on-site and laboratory tests. Constr. Build. Mater.
**2019**, 204, 828–838. [Google Scholar] [CrossRef] - Giresini, L.; Sassu, M.; Sorrentino, L. In situ free-vibration tests on unrestrained and restrained rocking masonry walls. Earthq. Eng. Struct. Dyn.
**2018**, 47, 3006–3025. [Google Scholar] [CrossRef] - Giresini, L.; Puppio, M.L.; Taddei, F. Experimental pull-out tests and design indications for strength anchors installed in masonry walls. Mater. Struct.
**2020**, 53, 1–16. [Google Scholar] [CrossRef] - Goncalves, M. Insulating Solid Masonry Walls. Available online: www.cebq.org (accessed on 26 May 2020).
- Schiavi, A.; Cellai, G.; Secchi, S.; Brocchi, F.; Grazzini, A.; Prato, A.; Mazzoleni, F. Stone masonry buildings: Analysis of structural acoustic and energy performance within the seismic safety criteria. Constr. Build. Mater.
**2019**, 220, 29–42. [Google Scholar] [CrossRef] - Sassu, M.; Giresini, L.; Bonannini, E.; Puppio, M.L. On the Use of Vibro-Compressed Units with Bio-Natural Aggregate. Buildings
**2016**, 6, 40. [Google Scholar] [CrossRef] [Green Version] - Mistretta, F.; Piras, M.V.; Fadda, M.L. A Reliable Visual Inspection Method for the Assessment of R.C. Structures Through Fuzzy Logic Analysis. In Life-Cycle of Structural Systems: Design, Assessment, Maintenance and Management—Proceedings of the 4th International Symposium on Life-Cycle Civil Engineering, Tokyo, Japan, 14–16 November 2014; Taylor & Francis Group: London, UK, 2015; pp. 1154–1160. [Google Scholar]
- Andreini, M.; Sassu, M. Mechanical behaviour of full unit masonry panels under fire action. Fire Saf. J.
**2011**, 46, 440–450. [Google Scholar] [CrossRef] [Green Version] - Meloni, P.; Mistretta, F.; Stochino, F.; Carcangiu, G. Thermal Path Reconstruction for Reinforced Concrete Under Fire. Fire Technol.
**2019**, 55, 1451–1475. [Google Scholar] [CrossRef] - Kumar, R.; Gardoni, P. Renewal theory-based life-cycle analysis of deteriorating engineering systems. Struct. Saf.
**2014**, 50, 94–102. [Google Scholar] [CrossRef] - Biswas, W. Carbon footprint and embodied energy consumption assessment of building construction works in Western Australia. Int. J. Sustain. Built Environ.
**2014**, 3, 179–186. [Google Scholar] [CrossRef] [Green Version] - Sharma, N.; Tabandeh, A.; Gardoni, P. Resilience analysis: A mathematical formulation to model resilience of engineering systems. Sustain. Resilient Infrastruct.
**2017**, 3, 49–67. [Google Scholar] [CrossRef] [Green Version] - Galadanci, A.S.; Ianakiev, A.; Kromanis, R.; Robinson, J. Energy investigation framework: Understanding buildings from an energy perspective view. J. Build. Eng.
**2020**, 28, 101046. [Google Scholar] [CrossRef] - Ma, Z.; Cooper, P.; Daly, D.; Ledo, L. Existing building retrofits: Methodology and state-of-the-art. Energy Build.
**2012**, 55, 889–902. [Google Scholar] [CrossRef] - Calvi, G.; Sousa, L.; Ruggeri, C. Energy Efficiency and Seismic Resilience: A Common Approach. In Multi-Hazard Approaches to Civil Infrastructure Engineering; Gardoni, P., LaFave, J.M., Eds.; Springer: Berlin/Heidelberg, Germany, 2016; pp. 165–208. [Google Scholar]
- Global Alliance for Buildings and Construction. Global Status Report. 2018. Available online: https://www.unenvironment.org/resources/report/global-status-report-2018 (accessed on 23 July 2020).
- Sassu, M.; Stochino, F.; Mistretta, F. Assessment Method for Combined Structural and Energy Retrofitting in Masonry Buildings. Buildings
**2017**, 7, 71. [Google Scholar] [CrossRef] [Green Version] - Mistretta, F.; Stochino, F.; Sassu, M. Structural and thermal retrofitting of masonry walls: An integrated cost-analysis approach for the Italian context. Build. Environ.
**2019**, 155, 127–136. [Google Scholar] [CrossRef] - Hasik, V.; Escott, E.; Bates, R.; Carlisle, S.; Faircloth, B.; Bilec, M.M. Comparative whole-building life cycle assessment of renovation and new construction. Build. Environ.
**2019**, 161, 106218. [Google Scholar] [CrossRef] - Italian Institute of Geophysics and Volcanology: Map of Seismic Hazard. Available online: https.www.ingv.it (accessed on 26 May 2020).
- EN ISO 15927-6 Hygrothermal Performance of Buildings—Calculation and Presentation of Climatic Data—Part 6: Accumulated Temperature Differences (Degree-Days); International Organization for Standardization: Geneva, Switzerland, 2007; pp. 1–13.
- UNI EN ISO 6946:2008. Componenti ed Elementi per Edilizia—Resistenza Termica e Trasmittanza Termica—Metodo di Calcolo; International Organization for Standardization: Geneva, Switzerland, 2008; pp. 1–28. [Google Scholar]
- UNI 10351:1994. Building Materials. Thermal Conductivities and Vapour Permeabilities; International Organization for Standardization: Geneva, Switzerland, 1994; pp. 1–21. [Google Scholar]
- EN ISO 10077-1:2006. Thermal Performance of Windows, Doors and Shutters—Calculation of Thermal Transmittance; International Organization for Standardization: Geneva, Switzerland, 2006; pp. 1–35. [Google Scholar]
- UNI EN ISO 10211:2008. Thermal Bridge in Buildings—Thermal Flow and Surface Temperatures—Calculation Methods; International Organization for Standardization: Geneva, Switzerland, 2008; pp. 1–55. [Google Scholar]
- UNI EN ISO 14683:2008. Thermal Bridges in Building Construction—Linear Thermal Transmittance—Simplified Methods and Default Values; International Organization for Standardization: Geneva, Switzerland, 2008; pp. 1–27. [Google Scholar]
- Gruppo Sismica, s.r.l. 3D MACRO—Computer Program for Modelling the Seismic Behavior of Masonry Buildings. Modellazione di Pannelli Murari Rinforzati nel Piano con Reti Fibrenet in GFRP e Malta di Calce; Gruppo Sismica s.r.l.: Catania, Italy, 2020. [Google Scholar]
- Pantò, B.; Giresini, L.; Sassu, M.; Calio, I. Non-linear modeling of masonry churches through a discrete macro-element approach. Earthq. Struct.
**2017**, 12, 223–236. [Google Scholar] [CrossRef] - Ministero delle Infrastrutture e dei Trasporti. Circolare Applicativa 21 Gennaio 2019, n. 7; Ministero delle Infrastrutture e dei Trasporti: Codroipo, Italy, 2019.
- National Research Council. CNR-DT 200/2004: Guide for the Design and Construction of Externally Bonded FRP Systems for Strengthening Existing Structures; National Research Council: Rome, Italy, 2004; pp. 80–110. [Google Scholar]

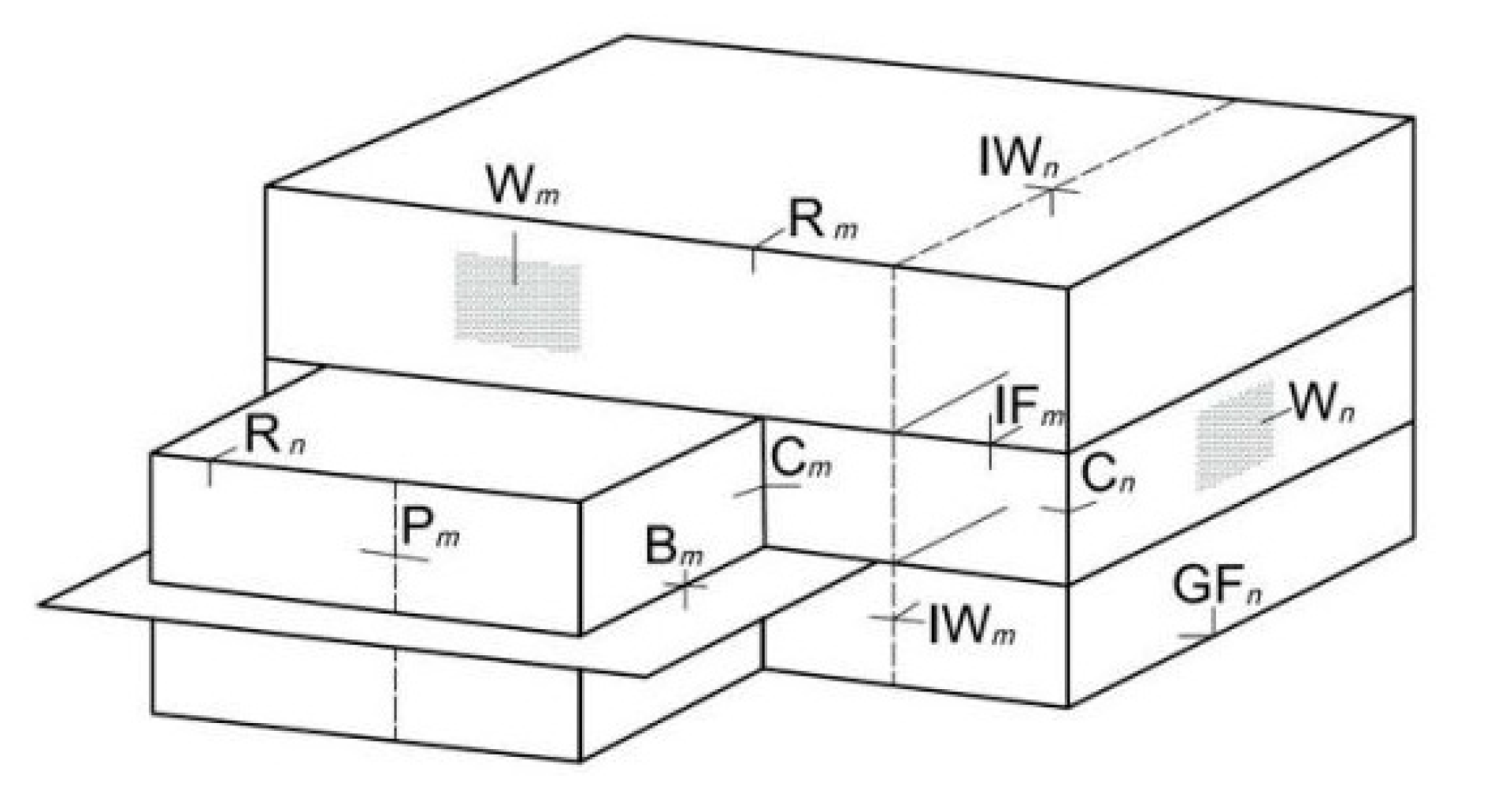

**Figure 2.**Disposition of the most common linear thermal bridging (Figure 1, paragraph 5.4 UNI EN ISO 14683).

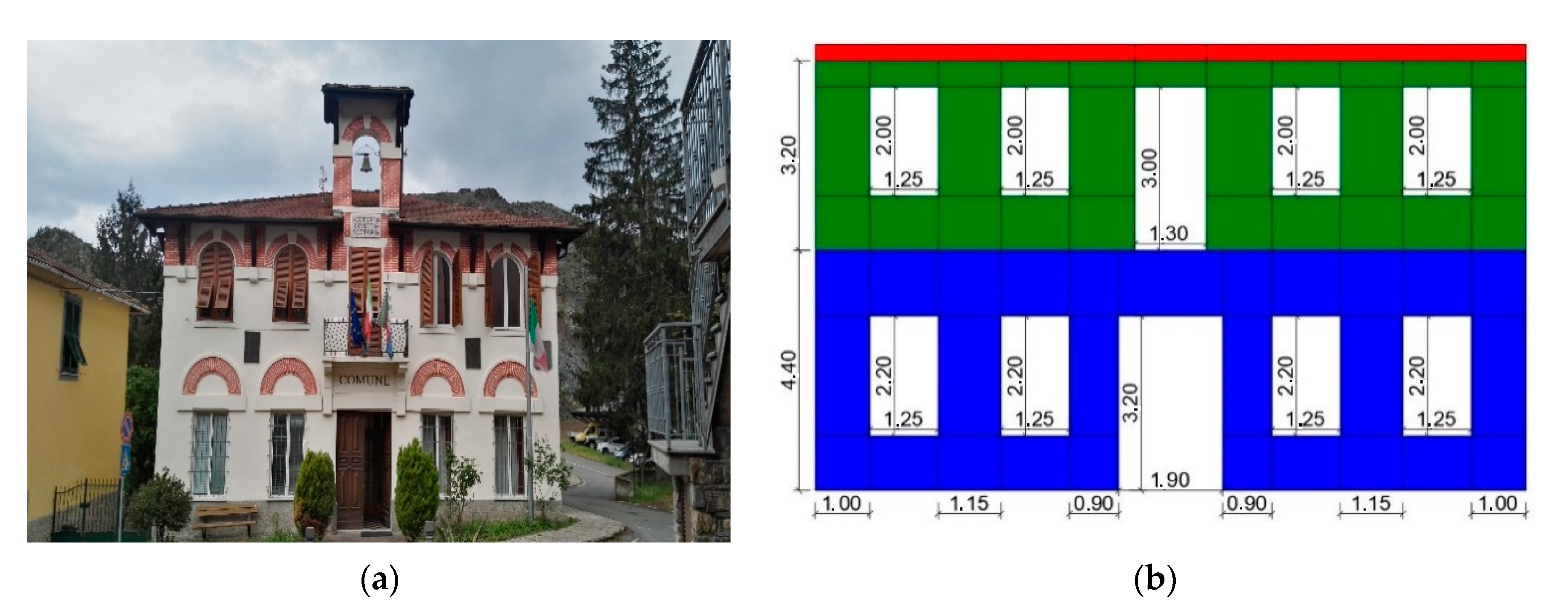

**Figure 3.**Façade selected as a case study for the integrated meso-scale approach (

**a**); macro-element model of the façade (units in m) (

**b**).

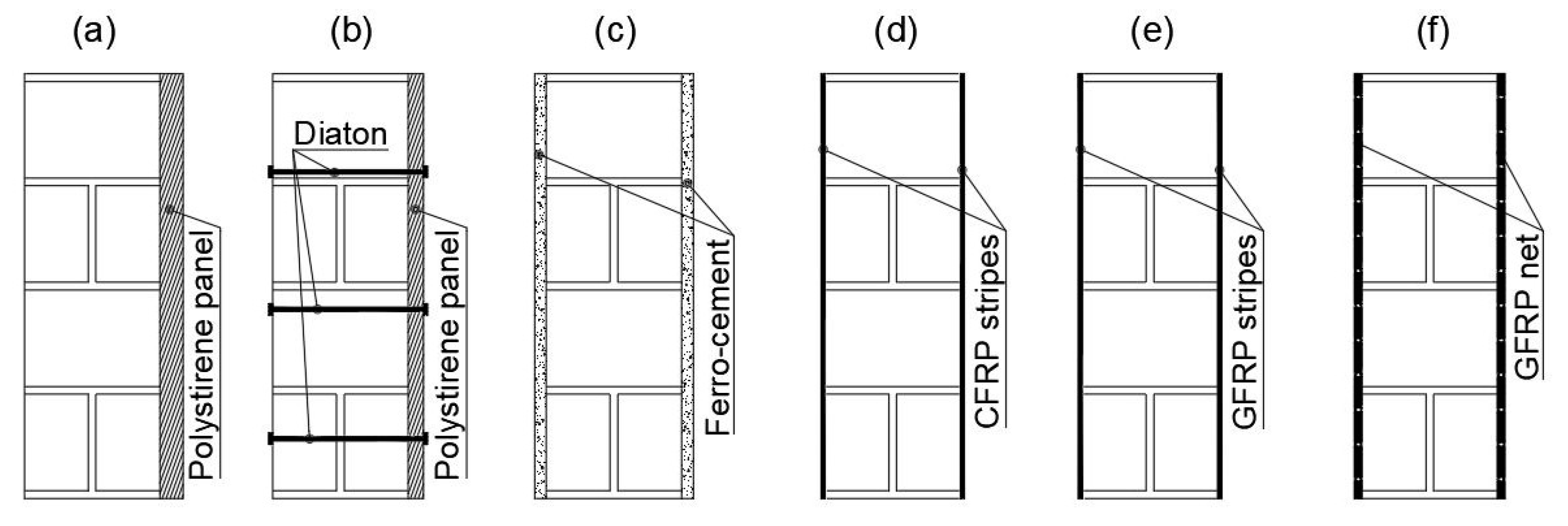

**Figure 4.**Types of integrated interventions assumed in the case study: polystyrene panel (

**a**), polystyrene panel and diatons (

**b**); ferro-cement (

**c**); CFRP (

**d**) and GFRP (

**e**) stripes; GFRP net (

**f**).

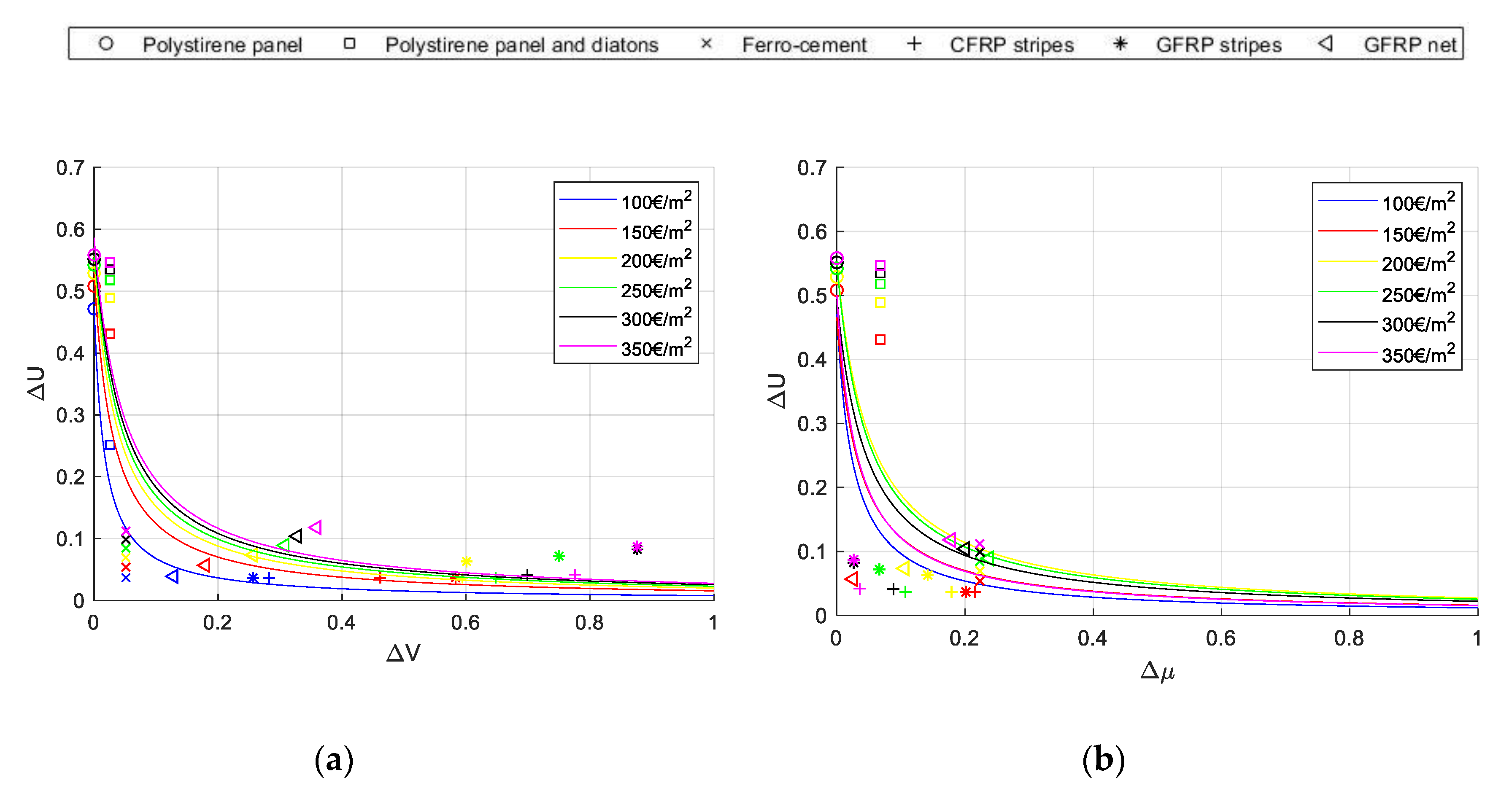

**Figure 5.**Iso-cost $\mathsf{\Delta}U-\mathsf{\Delta}V$ (

**a**) and $\mathsf{\Delta}U-\mathsf{\Delta}\mu $ (

**b**) regression curves.

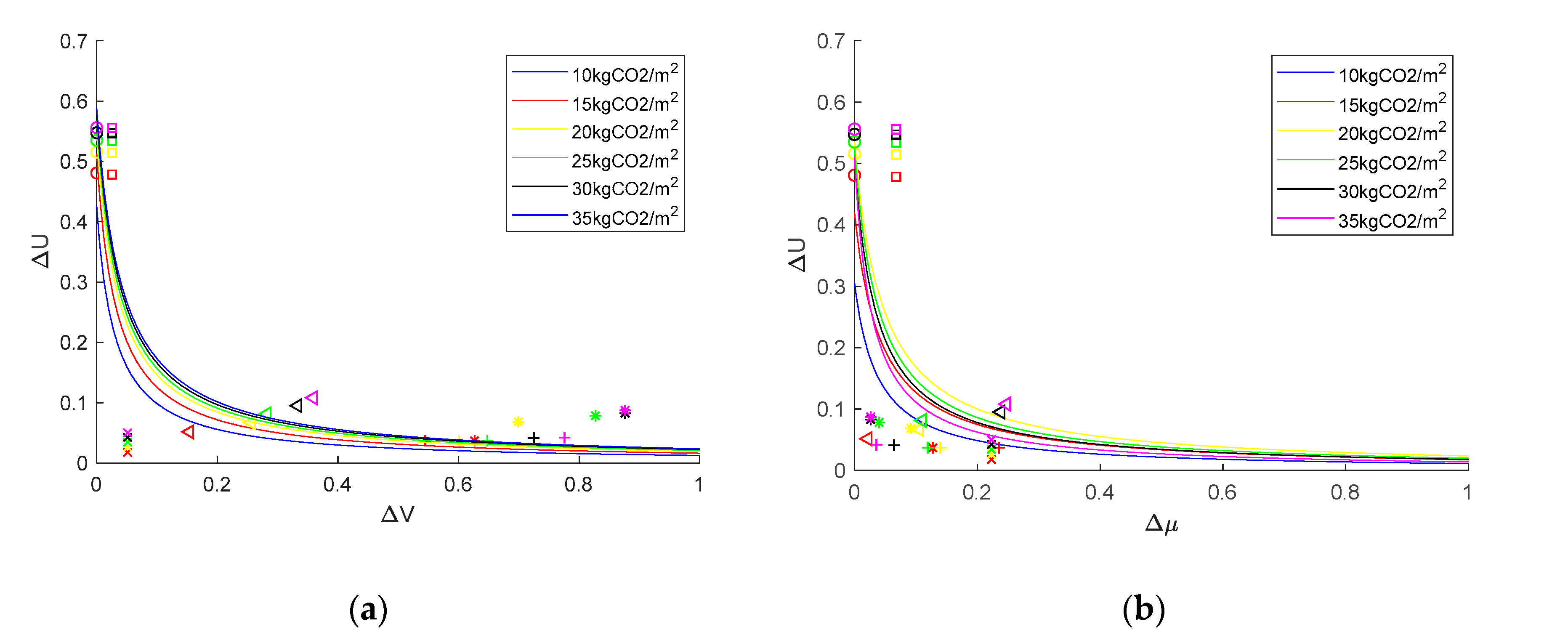

**Figure 6.**Environmental iso-cost $\mathsf{\Delta}U-\mathsf{\Delta}V$ (

**a**) and $\mathsf{\Delta}U-\mathsf{\Delta}\mu $ (

**b**) regression curves.

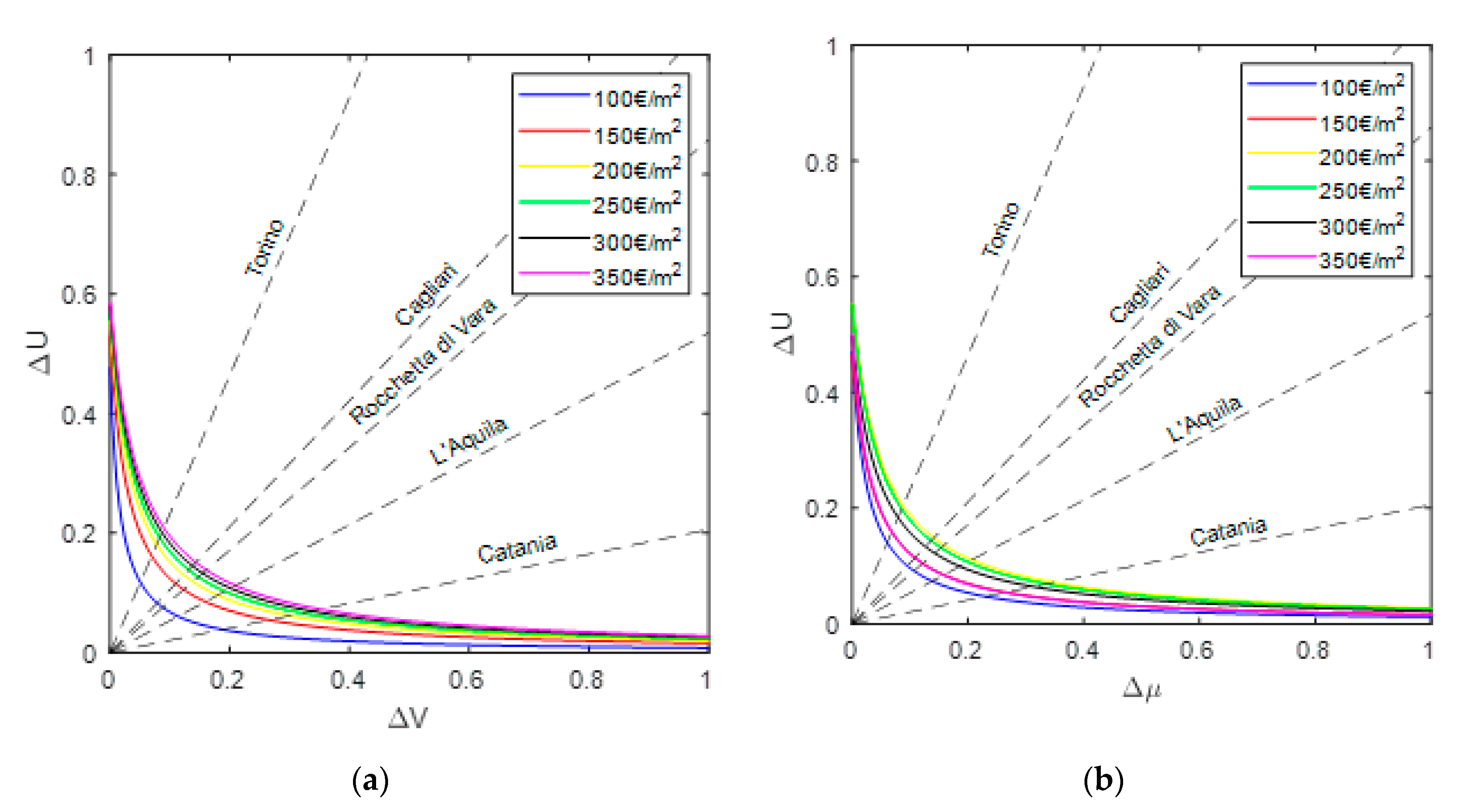

**Figure 7.**Economic performance curves for planes $\mathsf{\Delta}U-\mathsf{\Delta}V$ (

**a**) and $\mathsf{\Delta}U-\mathsf{\Delta}\mu $ (

**b**).

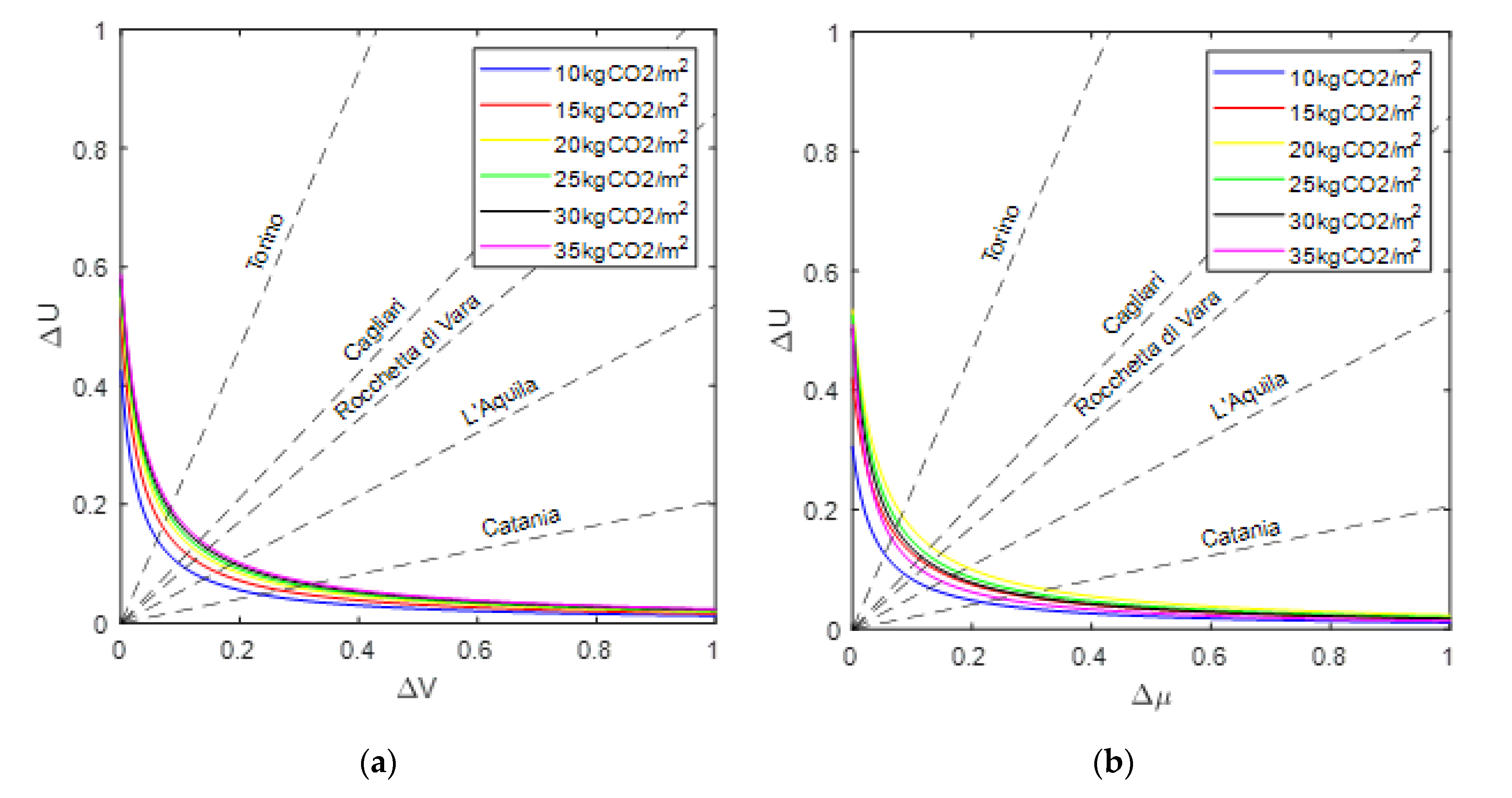

**Figure 8.**Environmental performance curves for planes $\mathsf{\Delta}U-\mathsf{\Delta}V$ (

**a**) and $\mathsf{\Delta}U-\mathsf{\Delta}\mu $ (

**b**).

R | Connections Between External Elements | Corners Between Vertical Walls and Roof |

B | Corners between vertical walls and projecting elements | |

C | Corners between vertical walls | |

GF | Corner between vertical walls and floors | |

IF | Corners between external vertical walls and intermediate floors | |

IW | Corners between inner vertical walls and external elements | |

P | Presence of external columns | |

W | Presence of doors and windows |

**Table 2.**Masonry parameters: f

_{m,k}average compression strength, τ

_{0}: shear strength in absence of normal stress, E: elastic modulus, G: tangential elastic modulus, w: specific weight, λ: thermal conductivity.

f_{m,k} | τ_{0} | E | G | w | λ |
---|---|---|---|---|---|

[N/mm^{2}] | [N/mm^{2}] | [N/mm^{2}] | [N/mm^{2}] | [kN/m^{3}] | [W/mK] |

3.20 | 0.065 | 1740.00 | 580.00 | 21.00 | 2.30 |

**Table 3.**Thermal transmittance $U$ of the entire façade with the different integrated interventions—economic analysis.

Type of Intervention | Investment | |||||
---|---|---|---|---|---|---|

100 €/m^{2} | 150 €/m^{2} | 200 €/m^{2} | 250 €/m^{2} | 300 €/m^{2} | 350 €/m^{2} | |

Polystyrene panel | 1.753 | 1.660 | 1.608 | 1.574 | 1.551 | 1.534 |

Polystyrene panel + diatons | 2.305 | 1.854 | 1.708 | 1.636 | 1.593 | 1.564 |

Ferro-cement | 2.845 | 2.802 | 2.762 | 2.725 | 2.689 | 2.656 |

CFRP strips | 2.845 | 2.845 | 2.845 | 2.845 | 2.835 | 2.832 |

GFRP strips | 2.845 | 2.845 | 2.779 | 2.757 | 2.730 | 2.718 |

GFRP net | 2.839 | 2.794 | 2.753 | 2.713 | 2.676 | 2.641 |

**Table 4.**Thermal transmittance $U$ of the entire façade with the different integrated interventions—environmental analysis.

Type of Intervention | Emissions | |||||
---|---|---|---|---|---|---|

10 kgCO_{2eq}/m^{2} | 15 kgCO_{2eq}/m^{2} | 20 kgCO_{2eq}/m^{2} | 25 kgCO_{2eq}/m^{2} | 30 kgCO_{2eq}/m^{2} | 35 kgCO_{2eq}/m^{2} | |

Polystyrene panel | 1.933 | 1.729 | 1.642 | 1.593 | 1.562 | 1.540 |

Polystyrene panel + diatons | 1.950 | 1.735 | 1.645 | 1.595 | 1.563 | 1.541 |

Ferro-cement | 2.915 | 2.893 | 2.872 | 2.851 | 2.831 | 2.812 |

CFRP strips | 2.845 | 2.845 | 2.845 | 2.845 | 2.834 | 2.832 |

GFRP strips | 2.845 | 2.845 | 2.766 | 2.741 | 2.730 | 2.718 |

GFRP net | 2.848 | 2.808 | 2.769 | 2.733 | 2.699 | 2.666 |

**Table 5.**Base shear capacity V [kN] of the entire façade with the different integrated interventions—economic analysis.

Type of Intervention | Investment | |||||
---|---|---|---|---|---|---|

100 €/m^{2} | 150 €/m^{2} | 200 €/m^{2} | 250 €/m^{2} | 300 €/m^{2} | 350 €/m^{2} | |

Polystyrene panel | 446.803 | 446.803 | 446.803 | 446.803 | 446.803 | 446.803 |

Polystyrene panel + diatons | 458.259 | 458.259 | 458.259 | 458.259 | 458.259 | 458.259 |

Ferro-cement | 469.716 | 469.716 | 469.716 | 469.716 | 469.716 | 469.716 |

CFRP strips | 572.824 | 653.019 | 712.169 | 736.157 | 759.093 | 793.436 |

GFRP strips | 561.367 | 707.326 | 715.263 | 781.991 | 838.286 | 838.286 |

GFRP net | 504.085 | 562.998 | 561.367 | 584.280 | 595.737 | 607.193 |

**Table 6.**Base shear capacity V [kN] of the entire façade with the different integrated interventions—environmental analysis.

Type of Intervention | Emissions | |||||
---|---|---|---|---|---|---|

10 kgCO_{2}/m^{2} | 15 kgCO_{2}/m^{2} | 20 kgCO_{2}/m^{2} | 25 kgCO_{2}/m^{2} | 30 kgCO_{2}/m^{2} | 35 kgCO_{2}/m^{2} | |

Polystyrene panel | 446.803 | 446.803 | 446.803 | 446.803 | 446.803 | 446.803 |

Polystyrene panel + diatons | 458.259 | 458.259 | 458.259 | 458.259 | 458.259 | 458.259 |

Ferro-cement | 469.716 | 469.716 | 469.716 | 469.716 | 469.716 | 469.716 |

CFRP strips | 607.193 | 690.176 | 715.270 | 736.182 | 770.554 | 793.436 |

GFRP strips | 687.389 | 726.755 | 759.086 | 816.354 | 838.286 | 838.286 |

GFRP net | 504.085 | 515.541 | 561.367 | 572.000 | 595.737 | 607.193 |

**Table 7.**Ductility capacity µ of the entire façade with the different integrated interventions—economic analysis.

Type of Intervention | Investment | |||||
---|---|---|---|---|---|---|

100 €/m^{2} | 150 €/m^{2} | 200 €/m^{2} | 250 €/m^{2} | 300 €/m^{2} | 350 €/m^{2} | |

Polystyrene panel | 2.633 | 2.633 | 2.633 | 2.633 | 2.633 | 2.633 |

Polystyrene panel + diatons | 2.811 | 2.811 | 2.811 | 2.811 | 2.811 | 2.811 |

Ferro-cement | 3.220 | 3.220 | 3.220 | 3.220 | 3.220 | 3.220 |

CFRP strips | 3.338 | 3.201 | 3.104 | 2.915 | 2.866 | 2.727 |

GFRP strips | 3.235 | 3.163 | 3.006 | 2.808 | 2.563 | 2.563 |

GFRP net | 2.477 | 2.566 | 2.911 | 3.258 | 3.260 | 3.302 |

**Table 8.**Ductility capacity µ of the entire façade with the different integrated interventions—environmental analysis.

Type of Intervention | Emissions | |||||
---|---|---|---|---|---|---|

10 kgCO_{2}/m^{2} | 15 kgCO_{2}/m^{2} | 20 kgCO_{2}/m^{2} | 25 kgCO_{2}/m^{2} | 30 kgCO_{2}/m^{2} | 35 kgCO_{2}/m^{2} | |

Polystyrene panel | 2.633 | 2.633 | 2.633 | 2.633 | 2.633 | 2.633 |

Polystyrene panel + diatons | 2.811 | 2.811 | 2.811 | 2.811 | 2.811 | 2.811 |

Ferro-cement | 3.220 | 3.220 | 3.220 | 3.220 | 3.220 | 3.220 |

CFRP strips | 2.914 | 3.253 | 3.002 | 2.947 | 2.802 | 2.727 |

GFRP strips | 2.812 | 2.969 | 2.875 | 2.738 | 2.563 | 2.563 |

GFRP net | 2.603 | 2.690 | 2.911 | 2.923 | 3.260 | 3.285 |

Material | Cost |
---|---|

Polystyrene panel | 1517 €/m^{3} |

Diatons | 80 €/m^{2} |

Ferro-cement | 2080 €/m^{3} |

CFRP stripes | 2160 €/m^{3} |

GFRP stripes | 1723 €/m^{3} |

GFRP nets | 4667 €/m^{3} |

**Table 10.**Economic cost regression coefficients for $\mathsf{\Delta}U-\mathsf{\Delta}V$ regression curves.

Economic Investment | α_{0} | α_{1} |
---|---|---|

100 €/m^{2} | 0.0079 | 0.0166 |

150 €/m^{2} | 0.0162 | 0.0305 |

200 €/m^{2} | 0.0209 | 0.0376 |

250 €/m^{2} | 0.0240 | 0.0421 |

300 €/m^{2} | 0.0267 | 0.0460 |

350 €/m^{2} | 0.0291 | 0.0497 |

**Table 11.**Economic cost regression coefficients for $\mathsf{\Delta}U-\mathsf{\Delta}\mu $ regression curves.

Economic Investment | α_{0} | α_{1} |
---|---|---|

100 €/m^{2} | 0.0121 | 0.0258 |

150 €/m^{2} | 0.0165 | 0.0353 |

200 €/m^{2} | 0.0287 | 0.0519 |

250 €/m^{2} | 0.0265 | 0.0482 |

300 €/m^{2} | 0.0231 | 0.0465 |

350 €/m^{2} | 0.0160 | 0.0319 |

Material | Emissions of CO_{2eq} |
---|---|

Polystyrene panel | 138 kgCO_{2eq}/m^{3} |

Diatons | 0.25 kgCO_{2eq}/m2 |

Ferro-cement | 450 kgCO_{2eq}/m^{3} |

CFRP stripes | 87,140 kgCO_{2eq}/m^{3} |

GFRP stripes | 15,062 kgCO_{2eq}/m^{3} |

GFRP nets | 520 kgCO_{2eq}/m^{3} |

**Table 13.**Environmental cost regression coefficients for $\mathsf{\Delta}U-\mathsf{\Delta}V$ regression curves.

Environmental Impact | α_{0} | α_{1} |
---|---|---|

5 kgCO_{2eq}/m^{2} | 0.0128 | 0.0301 |

10 kgCO_{2eq}/m^{2} | 0.0166 | 0.0325 |

20 kgC kgCO_{2eq}/m^{2} | 0.0199 | 0.0364 |

30 kgCO_{2eq}/m^{2} | 0.0216 | 0.0381 |

40 kgCO_{2eq}/m^{2} | 0.0232 | 0.0401 |

50 kgCO_{2eq}/m^{2} | 0.0245 | 0.0417 |

**Table 14.**Environmental cost regression coefficients for $\mathsf{\Delta}U-\mathsf{\Delta}\mu $ regression curves.

Environmental Impact | α_{0} | α_{1} |
---|---|---|

5 kgCO_{2eq}/m^{2} | 0.0155 | 0.0377 |

10 kgCO_{2eq}/m^{2} | 0.0182 | 0.0434 |

20 kgCO_{2eq}/m^{2} | 0.0246 | 0.0460 |

30 kgCO_{2eq}/m^{2} | 0.0206 | 0.0392 |

40 kgCO_{2eq}/m^{2} | 0.0185 | 0.0367 |

50 kgCO_{2eq}/m^{2} | 0.0142 | 0.0279 |

Site | PGA_{i} | c_{R} | DD_{i} | c_{U} |
---|---|---|---|---|

Rocchetta di Vara | 0.120 | 0.436 | 1934 | 0.374 |

Torino | 0.060 | 0.218 | 2617 | 0.507 |

L’Aquila | 0.250 | 0.909 | 2514 | 0.487 |

Catania | 0.215 | 0.782 | 833 | 0.161 |

Cagliari | 0.050 | 0.182 | 990 | 0.192 |
