Metals 2019, 9(7), 734; https://doi.org/10.3390/met9070734

Article
Grain Size Effect on the Mechanical Behavior of Metastable Fe-23Cr-8.5Ni Alloy
1
School of Engineering and Technology, Zunyi Normal University, Zunyi 563006, China
2
International Joint Laboratory for Light Alloys (MOE), College of Material Science and Engineering, Chongqing University, Chongqing 400044, China
3
State Key Laboratory of Metastable Materials Science and Technology, Yanshan University, Qinhuangdao 066004, China
4
National Engineering Research Center for Equipment and Technology of Cold Strip Rolling, Yanshan University, Qinhuangdao 066004, China
5
Department of Mechanical Engineering, Technical University of Denmark, DK-2800 Kgs. Lyngby, Denmark
*
Authors to whom correspondence should be addressed.
Received: 3 June 2019 / Accepted: 25 June 2019 / Published: 29 June 2019

Abstract

:
An Fe-23Cr-8.5Ni alloy was used as a model material to study the grain size effect on the mechanical behavior of metastable duplex metal. Alloy samples with different grain sizes ranging from 0.1 to 2 μm were prepared by cold-rolling and annealing. A structural refinement to about 0.1 μm results in a high yield strength but very limited ductility. A significant improvement of ductility occurred at the grain size of about 0.4 μm. A further increase in grain size results in a decreased strength and a slightly improved ductility. The alloy with a grain size of about 0.4 μm exhibits an excellent combination of strength and ductility, where the yield strength and tensile elongation are increased up to 738 MPa and 29% as compared to 320 MPa and 33% of a coarse-grained (about 2 μm) sample, respectively. The origin of the excellent mechanical properties was attributed to the unique deformation characteristics associated with the transformation induced plasticity and the development of back stress.
Keywords:
mechanical properties; metastable; back stress; grain size

1. Introduction

It is well known that grain size plays an important role in determining the mechanical properties of metals. Nonetheless, high strength and ductility are often mutually exclusive when the grain size refines down to sub-micrometer or nanometer scales [1], and hence, managing both is full of challenges. This dilemma between strength and ductility in ultrafine-grained (UFG) metals has been sought through structural architectures such as bimodal (or multi-modal) grain size distribution [2,3], transformation and twinning induced plasticity (TRIP and TWIP) [4,5], and a mixture of dissimilar phases with different properties [6].
Among these structural design strategies, dual phase structures have attracted high interest for their potential to manage both strength and ductility, which has usually been applied in steels [7]. The differences in mechanical properties between constituent phases lead to an inhomogeneous stress and strain partitioning between them, resulting in a heterogeneous distribution of plastic strains across phase interfaces [8]. This interaction between two phases requires the generation of geometrically necessary dislocations (GNDs) at phase interfaces to accommodate the plastic strain gradient [9], which has a potential to improve the dislocation storage, and hence, contributes to the strain hardening.
Duplex steels containing ferrite (α) and austenite (γ) are an important class of dual-phase alloys. Their importance is manifested in the good combination of strength and ductility. More importantly, these kinds of duplex alloys can become metastable by adjusting the chemical compositions, in which the austenite could transform into α´-martensite during deformation [10,11,12]. The deformation induced martensitic transformation (DIMT) is usually accompanied by a TRIP effect, leading to enhanced strain hardening and improved ductility as a result [13,14]. So the duplex structure combined with the TRIP effect is a promising strategy to overcome the strength-ductility trade-off in UFG metals. However, grain size also plays an important role in determining the TRIP effect. Investigations on metastable austenitic steels [15,16,17] show that grain refinement retards the DIMT and hence suppresses the TRIP effect. However, the grain size effect on the mechanical behavior of metastable duplex alloys, especially when the grain size refines down to sub-micrometer scales, has not been investigated in sufficient detail.
In the present study, a Fe-23Cr-8.5Ni alloy was used as a model material of metastable duplex alloy. The grain-size scales of this alloy were tailored by cold-rolling and annealing, and samples with grain sizes of about 0.1, 0.4, 1, and 2 μm were obtained to investigate the grain size effect on the mechanical behavior.

2. Materials and Methods

A Fe-23Cr-8.5Ni alloy has been chosen as a model material for its representative structure that ensures nearly equal volume fractions of ferrite and metastable austenite. The chemical composition of the alloy investigated are 0.001% C, <0.01% Si, <0.01% Mn, <0.001% P, <0.001% S, 8.52% Ni, 22.9% Cr, 0.002% N, 0.04% O, and the balance Fe (mass%). The alloy was prepared by vacuum induction melting and was homogenized at 1150 °C for 2 h and then hot forged at temperatures above 900 °C to produce a plate that is suitable for cold-rolling. Afterwards, the hot forged plate was cold-rolled to a thickness reduction of 90% and then annealed at 700, 900, and 1000 °C for 30 min, in order to tailor the structure with grain-size scales of about 0.1, 0.4, 1, and 2 μm, respectively.
The austenite phase in the present alloy is mechanically unstable, which is prone to transform into martensite when subjected to deformation. The volume fraction of austenite was measured by X-ray diffraction (XRD) under a Rigaku D/max 2500 diffractometer with Cu Kα radiation and a step size of 0.02°. A quantitative measurement based on XRD data was used to estimate the volume fraction of austenite, with the following equation [18]:
f γ = 1 n i = 1 n I γ i R γ i 1 n i = 1 n I α i R α i + 1 n i = 1 n I γ i R γ i
where Rα and Rγ are the theoretical intensity for the (hkl) plane of ferrite and austenite, respectively; Iα and Iγ refer to the integrated intensity for the (hkl) plane of ferrite and austenite, respectively; and n indicates the number of (hkl) peaks for ferrite or austenite.
Microstructures of alloy samples were characterized by transmission electron microscopy (TEM) using a JEM-2100 electron microscope (JEOL, Boston, MA, USA) operated at 200 kV. Specimens for TEM observation were first mechanically polished to a thickness of 70 μm, and then electropolished under a Tenupol-5 double-jet polisher in an electrolyte of 25% perchloric acid and 75% ethanol (vol.%) with a voltage of 20 V at −20 °C. The observed plane was the longitudinal section containing the rolling direction (RD) and normal direction (ND).
Mechanical behaviors of alloy samples were revealed by uniaxial tensile tests including monotonic tensile loading and tensile loading-unloading-reloading (LUR) tests, which were conducted with an MTS793 testing machine (MTS, Eden Prairie, MN, USA) operating at a quasi-static rate of 6 × 10−4 s−1 at room temperature. Dog-bone-shaped plates with 25 mm in gauge length and 5 mm in gauge width were machined from the alloy samples along the RD. An extensometer was attached on the plate to measure tensile strain. For the LUR test, five LUR cycles were performed. The specimen was unloaded at a certain strain by a stress-control mode to 20 N at an unloading rate of 200 N min−1 and then reloaded to the same applied stress before the next cycle. Both XRD and tensile tests were repeated three times for each condition.

3. Results and Discussion

The present alloy containing metastable austenite experienced a DIMT and its reversion transformation during cold-rolling and annealing. As shown in Figure 1, the XRD spectrum of the cold-rolled (CR) sheet is characterized by only the diffraction peaks of ferrite (also including the α´-martensite), indicating the completion of DIMT. After annealing above 700 °C for 30 min, the deformation induced martensite transformed back to austenite, resulting in a reappearance of austenite diffraction peaks. The volume fraction of austenite was measured to be 51.1% for the 700 °C annealed sample, 57.2% for the 900 °C annealed, and 56.1% for the 1000 °C annealed sample.
Figure 2a is a representative TEM image of the cold-rolled sheet, where the microstructure is characterized by a laminated structure with extended boundaries parallel to the RD. Since the ferrite and α´-martensite have an almost identical crystal structure, they are difficult to be separated based on crystallographic analysis and are also morphologically indistinguishable. The distribution of measured boundary spacing is plotted in Figure 2b, showing an average value of 72 nm.
After annealing at 700 °C for 30 min, the deformed lamellar structure was evolved into a recrystallized duplex structure consisting of austenite and ferrite. A representative TEM image and its boundary sketch are shown in Figure 3a,b, respectively, in which the austenite and ferrite were identified by electron diffraction. Obvious structural coarsening can be seen in this annealed sample. The grain size distribution shown in Figure 3c results in an average grain size of 401 nm for austenite and 347 nm for ferrite. After annealing at 900 °C (see Figure 3d,e), the main evolution is structural coarsening without a significant change in the structural morphology. Statistical results of grain sizes (Figure 3f) show an average value of about 1.1 μm for both austenite and ferrite. Annealing at 1000 °C led to a further structural coarsening (Figure 3h,i), resulting in an average grain size of 2.3 μm for austenite and 1.8 μm for ferrite (Figure 3i). The structural parameters for the above four samples are summarized in Table 1. It is seen that the alloy samples with grain size scales of about 0.1, 0.4, 1, and 2 μm are obtained.
Figure 4 shows the engineering stress-strain curves of the cold-rolled and annealed samples for grain sizes up to micrometer scale. The cold-rolled sample due to its UFG deformation structure (see curve 1) shows a high yield strength of 1298 ± 14 MPa. Nonetheless, the plastic instability manifested as tensile necking occurs at a strain of less than 2%, exhibiting a mechanical behavior typical of heavily deformed metals. The 700 °C annealed sample with a grain-size scale of about 0.4 μm (curve 2) exhibits a discontinuous yielding with 3% Lüders elongation and a yield plateau stress of 738 ± 6 MPa, followed by a wide strain hardening range that results in a total elongation of 29 ± 0.9%. The 900 °C annealed sample with a grain size of about 1 μm (curve 3) shows a continuous yielding and a wider strain hardening stage. The yield strength and total elongation are 437 ± 8 MPa and 35 ± 1.2%, respectively. A further increase of grain size to about 2 μm (1000 °C annealed, curve 4) leads to a decreased yield strength of 320 ± 7 MPa, without apparent change of yielding behavior and ductility. These results reveal a transition of the flow behavior from continuous to discontinuous when the grain size is below about 1 μm, which leads to a significant increase in the yield strength in the 700 °C annealed sample. Note that the yield strength of the 700 °C annealed sample is more than twice of that of the 1000 °C annealed sample, while the total tensile elongations are comparable.
In order to verify the occurrence of DIMT during tensile deformation and the corresponding TRIP effect on the tensile behavior, XRD tests were conducted to quantify the volume fractions of austenite for the annealed samples after tensile testing. Several representative XRD spectrums taken from the fractured areas are shown in Figure 5a. The difference in the volume fraction of austenite before and after tensile testing, ∆ƒγ, was quantified and is shown in Figure 5b. It was observed that all the annealed samples exhibit a substantial reduction in austenite volume fraction (∆ƒγ) after tensile testing to failure, indicating the occurrence of DIMT during the tensile testing. The results also show a clear dependence of ∆ƒγ on the grain size scale. As the austenite grain size increases from 0.4 to 1.1 μm, the ∆ƒγ significantly increases from 14.7% to 28.4%. However, negligible change of ∆ƒγ can be observed as the austenite grain size increases from 1.1 to 2.3 μm. The occurrence of DIMT is expected to contribute to the enhancement in the strain hardening and the tensile ductility. However, the large difference in the extent of DIMT observed between the sample of 0.4 μm grain size and the two samples with 1–2 μm grain sizes cannot be fully explained by the difference in the TRIP effect.
Besides the TRIP effect, the good combination of strength and ductility observed in the present alloy may also have its cause in the composite nature of plastic deformation. Since the present alloy is a dual phase material consisting of austenite and ferrite, there is a structural heterogeneity due to the differences in mechanical properties between the two phases [19]. At the onset of deformation, austenite due to its lower hardness [20] plastically deforms first, initiating the multiplication of dislocation. Nonetheless, the austenite is constrained by surrounding harder ferrite so that dislocations in austenite grains are accumulated and blocked at phase interfaces. Such dislocation configurations produce localized internal stresses which finally develop into long-range back stress [21] to make it difficult for dislocations to transfer from austenite to ferrite until the latter plastically deforms at a larger macroscopic strain. As a result, the back stress and its evolution with strain have a significant contribution to the global flow stress and strain hardening, as previously proved in heterogeneous-structured metals [22].
The back stress arising from structural heterogeneity is expected to be further enhanced when the deformation is associated with martensitic transformation [23], which led to the investigation of the Bauschinger effect [24], from which the back stress could be estimated. Figure 6a shows the true stress-strain curve for the sample with a grain size scale of about 0.4 μm after tensile LUR test. A representative hysteresis loop during the first unloading-reloading cycle could be observed in the inset of this figure, indicating a strong Bauschinger effect. The back stress is determined based on the tensile unloading-reloading hysteresis loop, which is described in detail elsewhere [25]. Figure 6b shows the evolution of back stress with strain. For comparison, the global true stress-strain curve and its strain hardening curve are also included. It is seen that the back stress (σback) exhibits an increasing tendency similar to the global flow stress (σglobal), which is determined to be 298 MPa at the tensile strain of 0.02 and it increases up to 403 MPa at the tensile strain of about 0.1. However, the strain hardening behaviors between the back stress (Θback) and global flow stress (Θglobal) are different. The Θback shows a monotonic decrease with strain, while for the Θglobal, it exhibits a rapid drop during the Lüders deformation stage and subsequently a fast increase up to a true strain of 0.06, followed by a slow decrease during further deformation. It is noteworthy that at the early stage (0.02–0.04), Θback shows much higher values than Θglobal. This suggests that the back stress evolving with strain provides an extra strain hardening to the upturn of Θglobal [25,26], and therefore, plays an important role in the ductility.
Figure 7 shows the TEM images of the sample with a grain size scale of about 0.4 μm after the tensile strain of 0.01, where the structural heterogeneity is taken into account. Hereinto, Figure 7a characterizes the representative deformed structure at the interface between austenite and ferrite. It could be seen that due to the difference in plastic response between the two phases [27], dislocations are mainly piled up and blocked on the austenite side. On the contrary, there are much fewer dislocations statistically stored on the ferrite side. In the austenite phase, on the other hand, a representative deformed structure shown in Figure 7b confirms the occurrence of DIMT. The crystallographic relationship between the α´-martensite and its neighboring austenite obey the Kurdjumov–Sachs orientation relationship [28]. It is also seen that DIMT leads to a dislocation concentration in the neighboring austenite grain. The TEM observation clearly reveals the inhomogeneous dislocation configuration caused by the strain incompatibility of different phases. Large amounts of GNDs are generated at phase interfaces to accommodate the strain incompatibility [29,30], which raises the back stress.
Like other conventional metals, the present alloy also shows a grain-size dependent mechanical behavior. Heavy cold-rolling leads to complete DIMT and significant structural refinement, resulting in a laminated structure composed of ferrite and α´-martensite. The laminated structure with an average boundary spacing of 72 nm gives the alloy a high yield strength that is four times higher than its CG (2 μm) counterpart. However, the extremely small grains are incapable of storing dislocations to increase their density to the same extent as normally in coarse grains, leading to a severely reduced dislocation-mediated plasticity [31]. Therefore, the tensile elongation of the cold-rolled alloy is limited below 5%, as usually reported for the vast majority of nanostructured metals produced by plastic deformation to high stains [32]. Annealing of the cold-rolled alloy at 700 °C for 30 min leads to a structural coarsening accompanied by a complete austenite reversion, resulting in a grain-size scale of about 0.4 μm, which is the finest grain size for the present alloy that allows approximately equal volume fractions of austenite and ferrite. The increase of grain size from 0.1 to 0.4 μm significantly lowers the yield strength from 1.3 GPa to 738 MPa. However, there is an abrupt increase of ductility at this grain-size scale, which is much finer than the scale where a similar transition is reported for a number of single phase metals [33,34,35,36,37], which is usually above 1 μm. The unique deformation characteristics of the duplex structure and TRIP effect are responsible for the observed high ductility. As the grain size further increases by annealing at higher temperatures, the yield strength is further decreased while further improvement in tensile elongation is limited. Note that in the micrometer-grained scale, a grain refinement from 2 to 1 μm leads to a slight increase of ductility. Similar results were also reported for both ferritic-martensitic and ferritic-austenitic dual phase alloys [9,38,39]. The increased densities of grain boundaries and phase interfaces due to structural refinement can increase the number of dislocation sources, giving rise to rapid dislocation multiplication and enhanced strain hardening [38], which is responsible for the observed improved ductility.
Based on the tensile results, the yield strength is plotted in Figure 8 against the inverse square root of grain size, exhibiting a clear Hall–Petch relationship. The fitted line shows a slope of 315.2 MPa μm2 and flow stress of 145 MPa at an infinite grain size. This slope is comparable to that (334.7 MPa μm2) reported for a Fe-24Cr-4Ni-0.4Mo-0.1N duplex alloy [9]. However, the Fe-24Cr-4Ni-0.4Mo-0.1N alloy shows much higher flow stress (308 MPa) at an infinite grain size than the present alloy, which can be attributed to the differences in chemical compositions, especially to the solution strengthening effect imposed by nitrogen. The present study combined with previous research [9,40] on Fe-Cr-Ni based duplex alloys, clearly reveal an extension of the Hall–Petch relationship from the micrometer scale to the sub-micrometer scale.
Many studies on metastable austenitic steels [15,16,17] indicate that the mechanical stability of austenite is increased with decreasing grain size. For the metastable duplex alloy, a previous investigation on medium-Mn duplex steel [41] also suggests that the DIMT can be significantly inhibited as the austenite grain size refines from 3 μm down to 1 μm. In the case of the present alloy, the quantification results of DIMT during tensile deformation are similar for the austenite grain size ranged from 1.1–2.3 μm. However, suppressed DIMT is observed when the austenite grain size refines down to 0.4 μm. Similar to the situation of deformation twinning, there is also critical stress that is required to activate DIMT [15]. The decrease in austenite grain size increases the strain energies required for both lattice displacement and shear deformation, resulting in reduced nucleation sites for the formation of martensite [42,43].
It is also noted that the alloy sample with a grain size of about 0.4 μm shows a discontinuous yielding characterized by a yield point phenomenon and a Lüders elongation, instead of the continuous yielding in the CG samples. This has been usually observed in single phase metals such as Al [33], IF steel [37], and austenitic steel [44]. The discontinuous yielding behavior corresponds to a steep drop followed by a rapid upturn of strain hardening rate, which can be attributed to the lack of initial mobile dislocations and sudden multiplication of mobile dislocations [45]. Since there is a critical density of mobile dislocation required to initiate plastic deformation, which is increased with decreasing grain size [46]. As the grain size refines down to sub-micrometer scale, the initial density of mobile dislocation is insufficient and the yield point phenomenon occurs as a result.
Among the grain size scales investigated, the alloy with a grain size of about 0.4 μm exhibits the best combination of strength and ductility. The yield strength in this grain size scale is 2.3 times higher than that in the grain size scale of about 2 μm, while the tensile elongation of the former is just slightly smaller than that of the latter. It is obvious that the metastable duplex structure has a good potential to manage both strength and ductility in the UFG scale. Although DIMT in this grain size scale is inhibited as compared to those in the CG scales, the volume fraction of austenite transformed into α´-martensite is still as high as 14.7%, which is comparable to those of the retained austenite in TRIP-aided steels [47,48,49] and is, therefore, sufficient to trigger a TRIP effect. Moreover, DIMT introduces a new phase into the duplex structure, which increases the structural heterogeneity. The difference in mechanical properties between constituted phases and the existence of a large number of phase interfaces make it effective to develop back stress. On the one hand, the back stress gives rise to strengthening mechanisms enhancing the global strength above the strength that resulted from the rule of mixture [50]. On the other hand, the back stress increases with increasing strain, which provides extra strain hardening and contributes to the ductility.

4. Conclusions

Fe-23Cr-8.5Ni alloy samples with different grain-size scales ranging from about 0.1 to 2 μm have been prepared by cold-rolling and annealing. The effect of grain size on mechanical behavior has been systematically studied. The main results are summarized as follows:
(1)
Heavy cold-rolling leads to complete DIMT and significant structural refinement, resulting in a laminated structure with an average lamellar spacing of 72 nm, which gives the alloy a high yield strength of 1.3 GPa but a limited tensile elongation below 5%.
(2)
Annealing of the cold-rolled alloy at 700–1000 °C for 30 min leads to structural coarsening accompanied by a complete austenite reversion, resulting in decreased yield strength and improved ductility.
(3)
Quantification of DIMT during tensile tests shows that the increase of austenite grain size from 401 nm to 1.1 μm leads to an increase of the volume fraction of DIMT from 14.7% to 28.4%. A further increase of austenite grain size from 1.1 to 2.3 μm results in negligible change in the DIMT quantification.
(4)
An excellent combination of strength and ductility was observed in the sample with an average grain size of 401 nm for austenite and 347 nm for ferrite. The yield strength and tensile elongation are increased up to 738 MPa and 29% as compared to 320 MPa and 33% of its CG (2.3 μm for austenite and 1.8 μm for ferrite) counterpart, respectively.
(5)
The excellent strength-ductility balance at the UFG scale can be attributed to the TRIP effect and the development of back stress resulting from the strain incompatibility between austenite, ferrite, and deformation induced martensite.

Author Contributions

Conceptualization—X.H.; Methodology—L.X. and G.W.; Validation—L.X., C.W. and Y.W.; Formal analysis—L.X., G.W. and X.H.; Data curation—L.X.; Writing—original draft preparation—L.X.; Writing, Review, and Editing—G.W. and X.H.; Supervision,—X.H.; Project administration—X.H.

Funding

This research was supported by the State Key Research and Development Program of MOST, China (2016YFB0700400), National Natural Science Foundation of China (NSFC, Nos.: 51421001 and 51871194), and Fundamental Research Funds for the Central Universities (No. 2018CDJDCL0019). The authors thank N. Tsuji for providing the material used in this study and for helpful discussions.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Estrin, Y.; Vinogradov, A. Extreme grain refinement by severe plastic deformation: A wealth of challenging science. Acta Mater. 2013, 61, 782–817. [Google Scholar] [CrossRef]
  2. Wang, Y.; Chen, M.; Zhou, F.; Ma, E. High tensile ductility in a nanostructured metal. Nature 2002, 419, 912–915. [Google Scholar] [CrossRef] [PubMed]
  3. Niu, G.; Wu, H.; Zhang, D.; Gong, N.; Tang, D. Study on microstructure and properties of bimodal structured ultrafine-grained ferrite steel. Metals 2017, 7, 316. [Google Scholar] [CrossRef]
  4. Wu, X.; Tao, N.; Hong, Y.; Lu, J.; Lu, K. γ→ε martensite transformation and twinning deformation in fcc cobalt during surface mechanical attrition treatment. Scr. Mater. 2005, 52, 547–551. [Google Scholar] [CrossRef]
  5. Ma, Y.; Jin, J.E.; Lee, Y.K. A repetitive thermomechanical process to produce nano-crystalline in a metastable austenitic steel. Scr. Mater. 2005, 52, 1311–1315. [Google Scholar] [CrossRef]
  6. Koch, C.C.; Scattergood, R.O.; Murty, K.L. The mechanical behavior of multiphase nanocrystalline materials. JOM 2007, 59, 66–70. [Google Scholar] [CrossRef]
  7. Tasan, C.C.; Diehl, M.; Yan, D.; Bechtold, M.; Roters, F.; Schemmann, L.; Zheng, C.; Peranio, N.; Ponge, D.; Koyama, B.; et al. An overview of dual-phase steels: Advances in microstructure-oriented processing and micromechanically guided design. Annu. Rev. Mater. Res. 2015, 45, 391–431. [Google Scholar] [CrossRef]
  8. Ankem, S.; Margolin, H.; Greene, C.A.; Neuberger, B.W.; Oberson, P.G. Mechanical properties of alloys consisting of two ductile phases. Prog. Mater. Sci. 2006, 51, 632–709. [Google Scholar] [CrossRef]
  9. Chen, L.; Yuan, F.P.; Jiang, P.; Xie, J.J.; Wu, X.L. Simultaneous improvement of tensile strength and ductility in micro-duplex structure consisting of austenite and ferrite. Mater. Sci. Eng. A 2014, 618, 563–571. [Google Scholar] [CrossRef]
  10. Choi, J.Y.; Ji, J.H.; Hwang, S.W.; Park, K.T. Strain induced martensitic transformation of Fe–20Cr–5Mn–0.2 Ni duplex stainless steel during cold rolling: effects of nitrogen addition. Mater. Sci. Eng. A 2011, 528, 6012–6019. [Google Scholar] [CrossRef]
  11. Tavares, S.S.M.; Pardal, J.M.; Da Silva, M.R.; De Oliveira, C.A.S. Martensitic transformation induced by cold deformation of lean duplex stainless steel UNS S32304. Mater. Res. 2014, 17, 381–385. [Google Scholar] [CrossRef]
  12. Breda, M.; Brunelli, K.; Grazzi, F.; Scherillo, A.; Calliari, I. Effects of cold rolling and strain-induced martensite formation in a SAF 2205 duplex stainless steel. Metall. Mater. Trans. A 2015, 46, 577–586. [Google Scholar] [CrossRef]
  13. Jacques, P.; Furnémont, Q.; Mertens, A.; Delannay, F. On the sources of work hardening in multiphase steels assisted by transformation-induced plasticity. Philos. Mag. A 2001, 81, 1789–1812. [Google Scholar] [CrossRef]
  14. Ryu, J.H.; Kim, D.I.; Kim, H.S.; Bhadeshia, H.K.D.H.; Suh, D.W. Strain partitioning and mechanical stability of retained austenite. Scr. Mater. 2010, 63, 297–299. [Google Scholar] [CrossRef]
  15. Jin, J.E.; Jung, Y.S.; Lee, Y.K. Effect of grain size on the uniform ductility of a bulk ultrafine-grained alloy. Mater. Sci. Eng. A 2007, 449, 786–789. [Google Scholar] [CrossRef]
  16. Matsuoka, Y.; Iwasaki, T.; Nakada, N.; Tsuchiyama, T.; Takaki, S. Effect of grain size on thermal and mechanical stability of austenite in metastable austenitic stainless steel. ISIJ Int. 2013, 53, 1224–1230. [Google Scholar] [CrossRef]
  17. Kisko, A.; Misra, R.D.K.; Talonen, J.; Karjalainen, L.P. The influence of grain size on the strain-induced martensite formation in tensile straining of an austenitic 15Cr–9Mn–Ni–Cu stainless steel. Mater. Sci. Eng. A 2013, 578, 408–416. [Google Scholar] [CrossRef]
  18. De, A.K.; Murdock, D.C.; Mataya, M.C.; Speer, J.G.; Matlock, D.K. Quantitative measurement of deformation-induced martensite in 304 stainless steel by X-ray diffraction. Scr. Mater. 2004, 50, 1445–1449. [Google Scholar] [CrossRef]
  19. Chen, L.; Yuan, F.; Jiang, P.; Wu, X. Mechanical properties and nanostructures in a duplex stainless steel subjected to equal channel angular pressing. Mater. Sci. Eng. A 2012, 551, 154–159. [Google Scholar] [CrossRef]
  20. Dakhlaoui, R.; Braham, C.; Baczmański, A. Mechanical properties of phases in austeno-ferritic duplex stainless steel—Surface stresses studied by X-ray diffraction. Mater. Sci. Eng. A 2007, 444, 6–17. [Google Scholar] [CrossRef]
  21. Sinclair, C.W.; Saada, G.; Embury, J.D. Role of internal stresses in co-deformed two-phase materials. Philos. Mag. 2006, 86, 4081–4098. [Google Scholar] [CrossRef]
  22. Wu, X.; Zhu, Y. Heterogeneous materials: a new class of materials with unprecedented mechanical properties. Mater. Res. Lett. 2017, 5, 527–532. [Google Scholar] [CrossRef]
  23. Li, Y.; Li, W.; Hu, J.C.; Song, H.M.; Jin, X.J. Compatible strain evolution in two phases due to epsilon martensite transformation in duplex TRIP-assisted stainless steels with high hydrogen embrittlement resistance. J. Int. Plast. 2017, 88, 53–69. [Google Scholar] [CrossRef]
  24. Sowerby, R.; Uko, D.K.; Tomita, Y. A review of certain aspects of the Bauschinger effect in metals. Mater. Sci. Eng. 1979, 41, 43–58. [Google Scholar] [CrossRef]
  25. Yang, M.; Pan, Y.; Yuan, F.; Zhu, Y.; Wu, X. Back stress strengthening and strain hardening in gradient structure. Mater. Res. Lett. 2016, 4, 145–151. [Google Scholar] [CrossRef]
  26. Yang, M.X.; Yuan, F.P.; Xie, Q.G.; Wang, Y.D.; Ma, E.; Wu, X.L. Strain hardening in Fe–16Mn–10Al–0.86 C–5Ni high specific strength steel. Acta Mater. 2016, 109, 213–222. [Google Scholar] [CrossRef]
  27. Jia, N.; Peng, R.L.; Wang, Y.D.; Chai, G.C.; Johansson, S.; Wang, G.; Liaw, P.K. Interactions between the phase stress and the grain-orientation-dependent stress in duplex stainless steel during deformation. Acta Mater. 2006, 54, 3907–3916. [Google Scholar] [CrossRef]
  28. Fang, X.; Yin, W.; Qin, C.; Wang, W.; Lo, K.H.; Shek, C.H. The interface character distribution of cold-rolled and annealed duplex stainless steel. Mater. Charact. 2016, 118, 397–404. [Google Scholar] [CrossRef]
  29. Ashby, M.F. The deformation of plastically non-homogeneous materials. Philos. Mag. A 1970, 21, 399–424. [Google Scholar] [CrossRef]
  30. Mughrabi, H. On the role of strain gradients and long-range internal stresses in the composite model of crystal plasticity. Mater. Sci. Eng. A 2001, 317, 171–180. [Google Scholar] [CrossRef]
  31. Ma, E. Instabilities and ductility of nanocrystalline and ultrafine-grained metals. Scr. Mater. 2003, 49, 663–668. [Google Scholar] [CrossRef]
  32. Koch, C.C. Ductility in nanostructured and ultrafine-grained materials: Recent evidence for optimism. J. Metastab. Nanocrystalline Mater. 2003, 18, 9–20. [Google Scholar] [CrossRef]
  33. Tsuji, N.; Ito, Y.; Saito, Y.; Minamino, Y. Strength and ductility of ultrafine grained aluminum and iron produced by ARB and annealing. Scr. Mater. 2002, 47, 893–899. [Google Scholar] [CrossRef]
  34. Kamikawa, N.; Huang, X.; Tsuji, N.; Hansen, N. Strengthening mechanisms in nanostructured high-purity aluminium deformed to high strain and annealed. Acta Mater. 2009, 57, 4198–4208. [Google Scholar] [CrossRef]
  35. Huang, T.; Dong, Q.; Gong, X.; Hansen, N.; Liu, Q.; Huang, X. Cold rolled nanostructured super-pure Al (99.9996%) containing 1% Si particles: Structure and strength. J. Mater. Sci. 2012, 47, 7914–7920. [Google Scholar] [CrossRef]
  36. Li, Z.; Fu, L.; Fu, B.; Shan, A. Yield point elongation in fine-grained titanium. Mater. Lett. 2013, 96, 1–4. [Google Scholar] [CrossRef]
  37. Gao, S.; Chen, M.; Joshi, M.; Shibata, A.; Tsuji, N. Yielding behavior and its effect on uniform elongation in IF steel with various grain sizes. J. Mater. Sci. 2014, 49, 6536–6542. [Google Scholar] [CrossRef]
  38. Calcagnotto, M.; Ponge, D.; Raabe, D. Effect of grain refinement to 1 μm on strength and toughness of dual-phase steels. Mater. Sci. Eng. A 2010, 527, 7832–7840. [Google Scholar] [CrossRef]
  39. Calcagnotto, M.; Adachi, Y.; Ponge, D.; Raabe, D. Deformation and fracture mechanisms in fine-and ultrafine-grained ferrite/martensite dual-phase steels and the effect of aging. Acta Mater. 2011, 59, 658–670. [Google Scholar] [CrossRef]
  40. Tomota, Y.; Kuroki, K.; Mori, T.; Tamura, I. Tensile deformation of two-ductile-phase alloys: Flow curves of α-γ Fe-Cr-Ni alloys. Mater. Sci. Eng. 1976, 24, 85–94. [Google Scholar] [CrossRef]
  41. Sohn, S.S.; Choi, K.; Kwak, J.H.; Kim, N.J.; Lee, S. Novel ferrite–austenite duplex lightweight steel with 77% ductility by transformation induced plasticity and twinning induced plasticity mechanisms. Acta Mater. 2014, 78, 181–189. [Google Scholar] [CrossRef]
  42. Berrahmoune, M.R.; Berveiller, S.; Inal, K.; Moulin, A.; Patoor, E. Analysis of the martensitic transformation at various scales in TRIP steel. Mater. Sci. Eng. A 2004, 378, 304–307. [Google Scholar] [CrossRef]
  43. Van Dijk, N.H.; Butt, A.M.; Zhao, L.; Sietsma, J.; Offerman, S.E.; Wright, J.P.; Van der Zwaag, S. Thermal stability of retained austenite in TRIP steels studied by synchrotron X-ray diffraction during cooling. Acta Mater. 2005, 53, 5439–5447. [Google Scholar] [CrossRef]
  44. Saha, R.; Ueji, R.; Tsuji, N. Fully recrystallized nanostructure fabricated without severe plastic deformation in high-Mn austenitic steel. Scr. Mater. 2013, 68, 813–816. [Google Scholar] [CrossRef]
  45. Hahn, G.T. A model for yielding with special reference to the yield-point phenomena of iron and related bcc metals. Acta Metall. 1962, 10, 727–738. [Google Scholar] [CrossRef]
  46. Yu, C.Y.; Kao, P.W.; Chang, C.P. Transition of tensile deformation behaviors in ultrafine-grained aluminum. Acta Mater. 2005, 53, 4019–4028. [Google Scholar] [CrossRef]
  47. Sugimoto, K.I.; Usui, N.; Kobayashi, M.; Hashimoto, S.I. Effects of volume fraction and stability of retained austenite on ductility of TRIP-aided dual-phase steels. ISIJ Int. 1992, 32, 1311–1318. [Google Scholar] [CrossRef]
  48. Sugimoto, K.I.; Iida, T.; Sakaguchi, J.; Kashima, T. Retained austenite characteristics and tensile properties in a TRIP type bainitic sheet steel. ISIJ Int. 2000, 40, 902–908. [Google Scholar] [CrossRef]
  49. Jacques, P.J.; Delannay, F.; Ladrière, J. On the influence of interactions between phases on the mechanical stability of retained austenite in transformation-induced plasticity multiphase steels. Metall. Mater. Trans. A 2001, 32, 2759–2768. [Google Scholar] [CrossRef]
  50. Wang, Y.; Kang, J.; Peng, Y.; Wang, T.; Hansen, N.; Huang, X. Laminated Fe-34.5Mn-0.04C composite with high strength and ductility. J. Mater. Sci. Technol. 2018, 34, 1939–1943. [Google Scholar] [CrossRef]
Figure 1. (a) Representative XRD spectrums and (b) the quantified austenite volume fractions of samples cold-rolled and annealed.
Figure 1. (a) Representative XRD spectrums and (b) the quantified austenite volume fractions of samples cold-rolled and annealed.
Metals 09 00734 g001

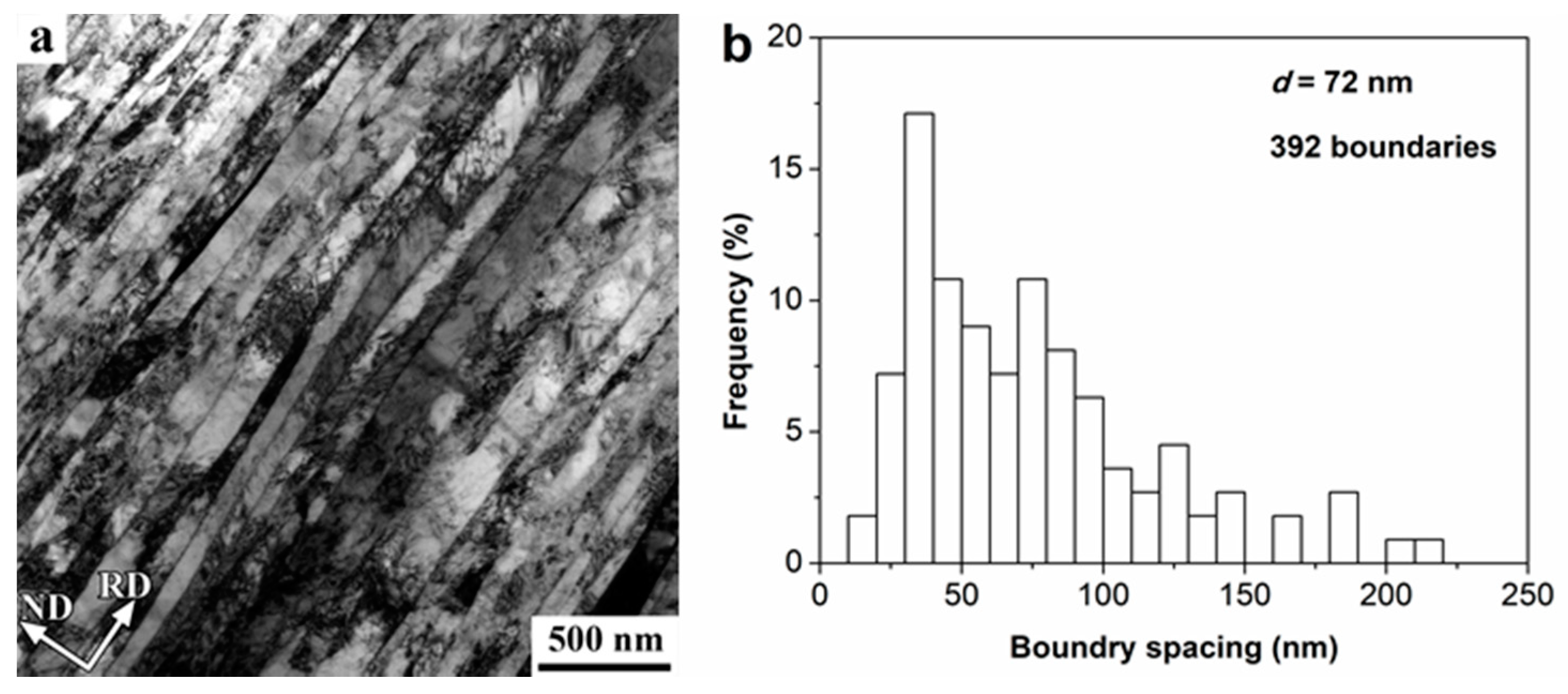

Figure 2. Microstructural characterization of the cold-rolled sample: (a) Representative TEM image; (b) The distribution of lamellar boundary spacing.
Figure 2. Microstructural characterization of the cold-rolled sample: (a) Representative TEM image; (b) The distribution of lamellar boundary spacing.
Metals 09 00734 g002

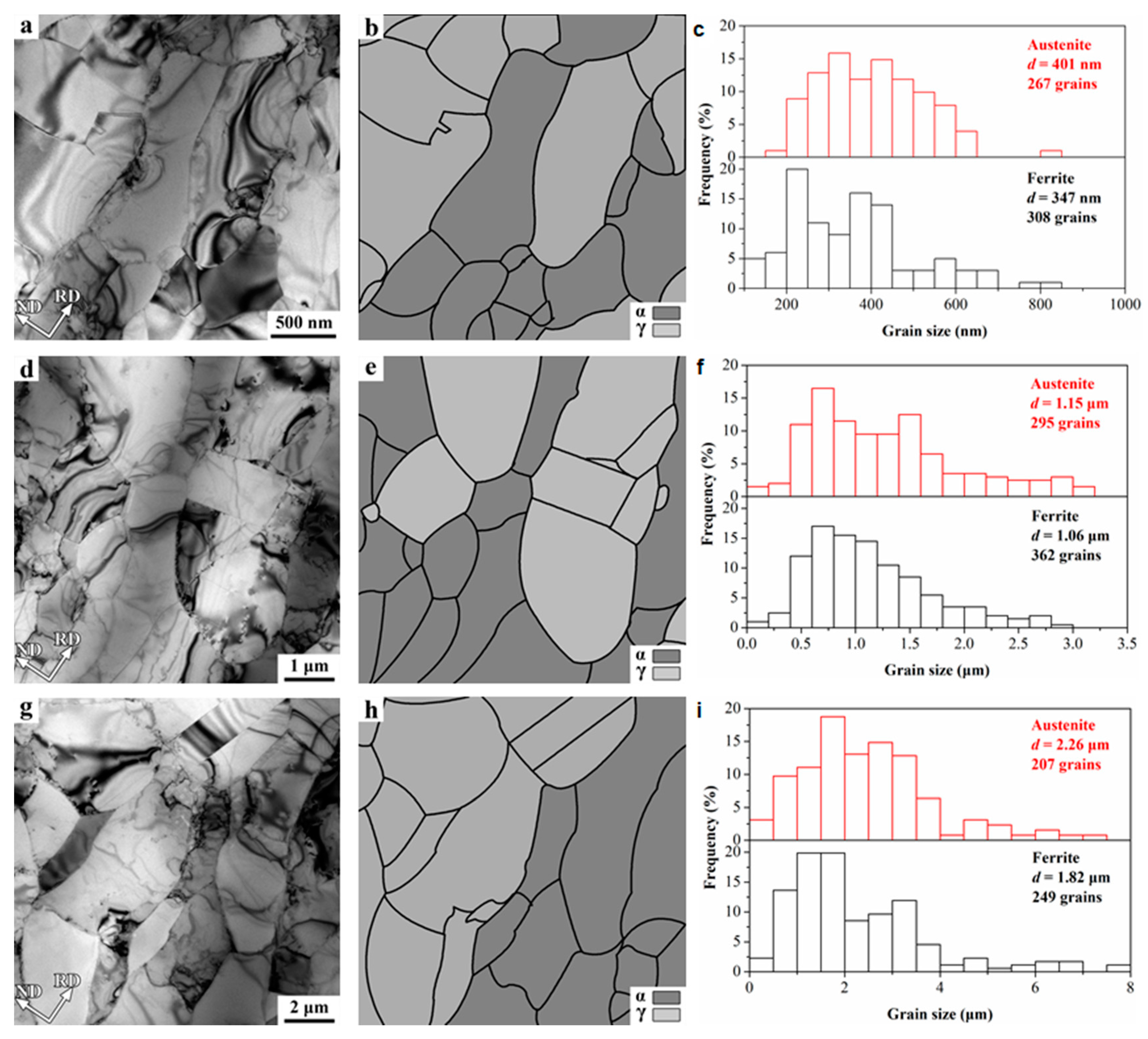

Figure 3. Microstructural characterizations of annealed samples: (ac) Representative TEM image, the corresponding boundary sketch, and the grain size distribution of the sample annealed at 700 °C for 30 min, respectively; (df) Representative TEM image, the corresponding boundary sketch, and the grain size distribution of the sample annealed at 900 °C for 30 min, respectively; (gi) Representative TEM image, the corresponding boundary sketch, and the grain size distribution of the sample annealed at 1000 °C for 30 min, respectively.
Figure 3. Microstructural characterizations of annealed samples: (ac) Representative TEM image, the corresponding boundary sketch, and the grain size distribution of the sample annealed at 700 °C for 30 min, respectively; (df) Representative TEM image, the corresponding boundary sketch, and the grain size distribution of the sample annealed at 900 °C for 30 min, respectively; (gi) Representative TEM image, the corresponding boundary sketch, and the grain size distribution of the sample annealed at 1000 °C for 30 min, respectively.
Metals 09 00734 g003

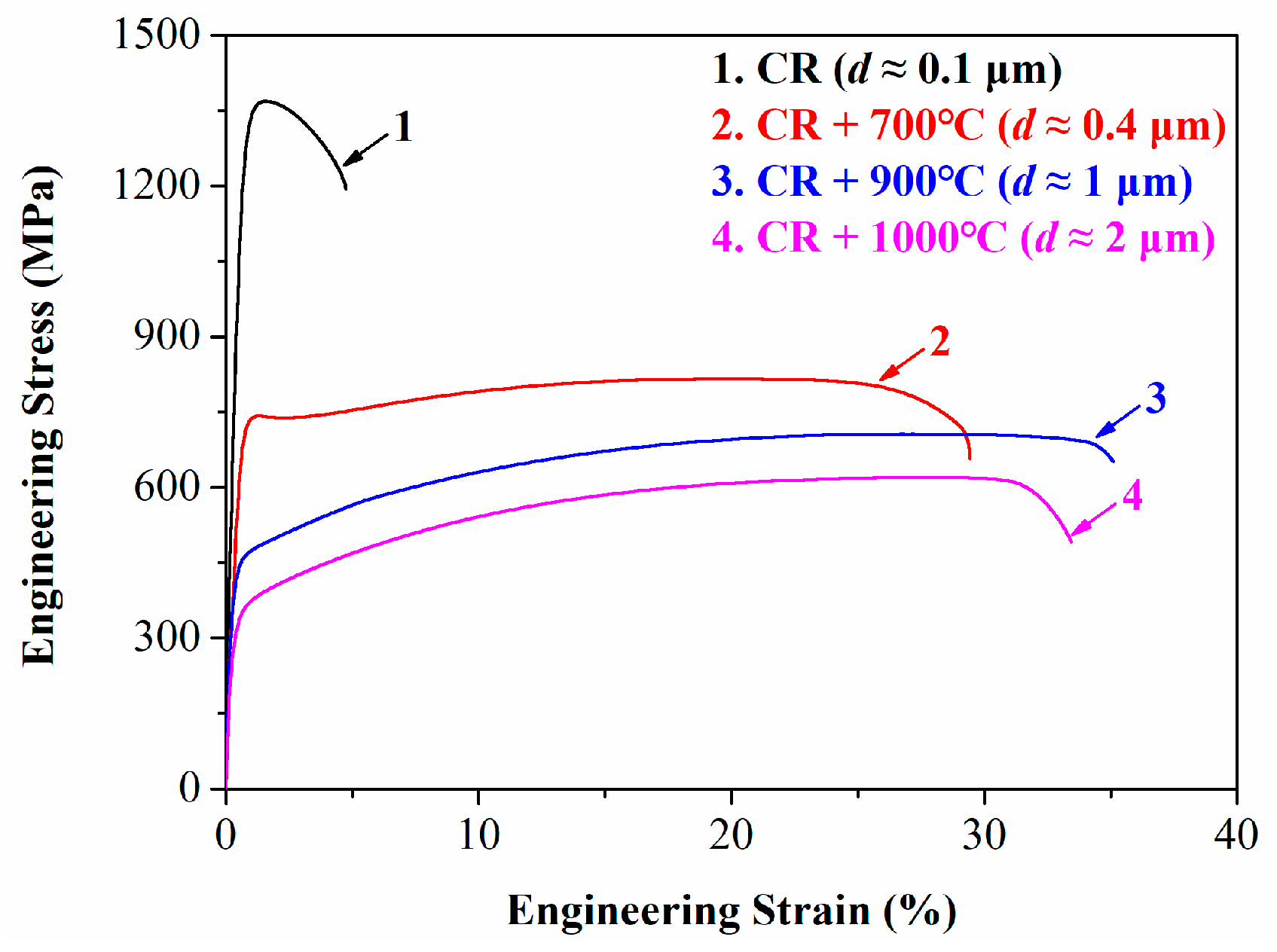

Figure 4. Engineering stress-strain curves of samples with different grain size scales.
Figure 4. Engineering stress-strain curves of samples with different grain size scales.
Metals 09 00734 g004

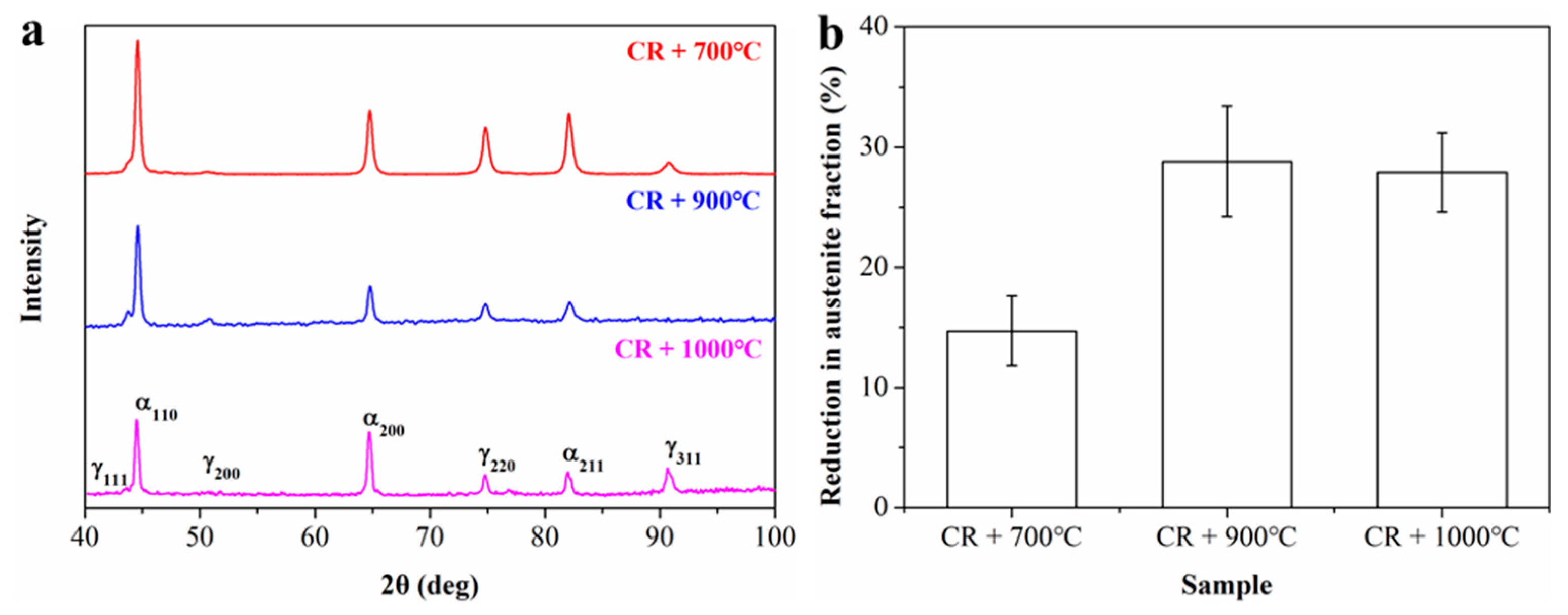

Figure 5. (a) Representative XRD spectrums and (b) the corresponding quantified results of annealed samples after tensile testing to failure.
Figure 5. (a) Representative XRD spectrums and (b) the corresponding quantified results of annealed samples after tensile testing to failure.
Metals 09 00734 g005

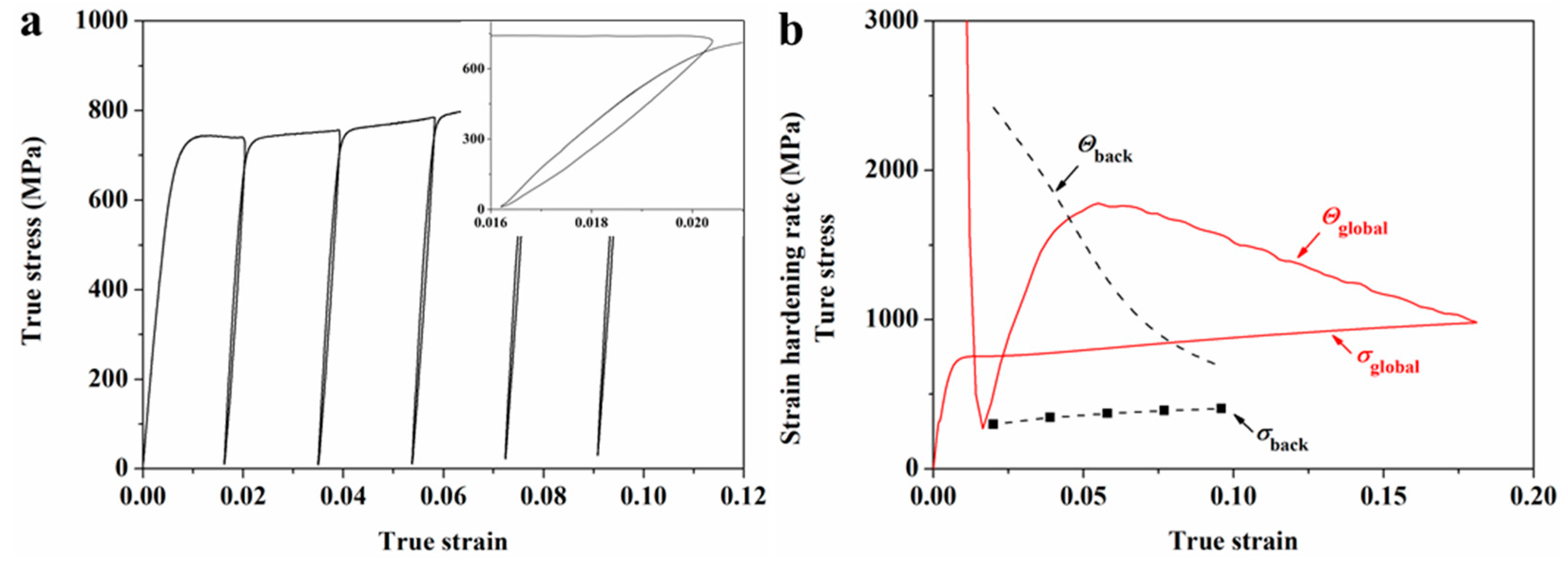

Figure 6. (a) The tensile loading-unloading-reloading (LUR) true stress-strain curve of the 700 °C annealed sample; (b) Back stress and its strain hardening.
Figure 6. (a) The tensile loading-unloading-reloading (LUR) true stress-strain curve of the 700 °C annealed sample; (b) Back stress and its strain hardening.
Metals 09 00734 g006

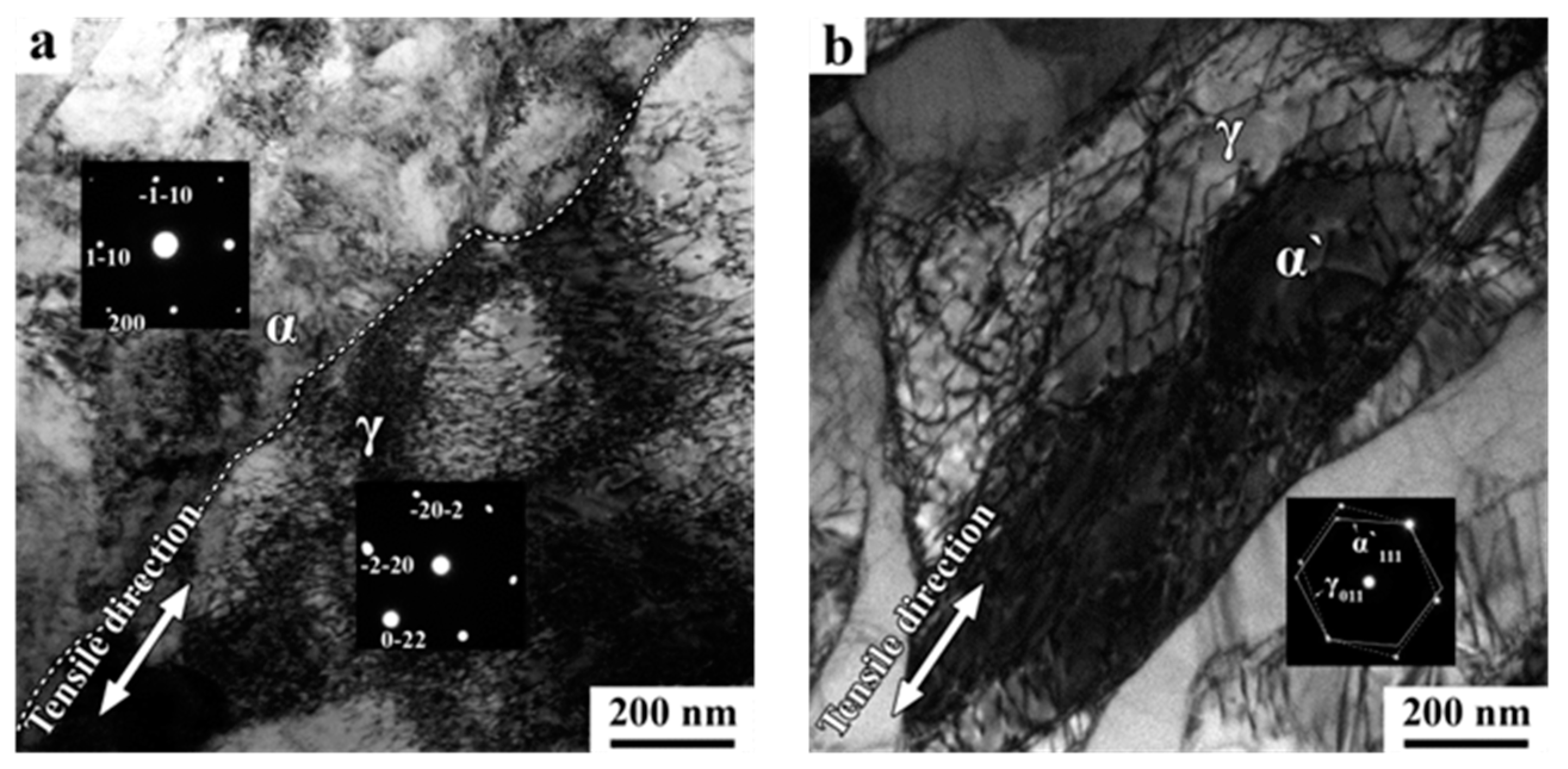

Figure 7. Representative TEM images revealing the deformed microstructures of the 700 °C annealed sample after tensile strain of 0.01: (a) At the phase interface between austenite and ferrite; (b) In the austenite phase where deformation induced martensitic transformation (DIMT) has occurred.
Figure 7. Representative TEM images revealing the deformed microstructures of the 700 °C annealed sample after tensile strain of 0.01: (a) At the phase interface between austenite and ferrite; (b) In the austenite phase where deformation induced martensitic transformation (DIMT) has occurred.
Metals 09 00734 g007

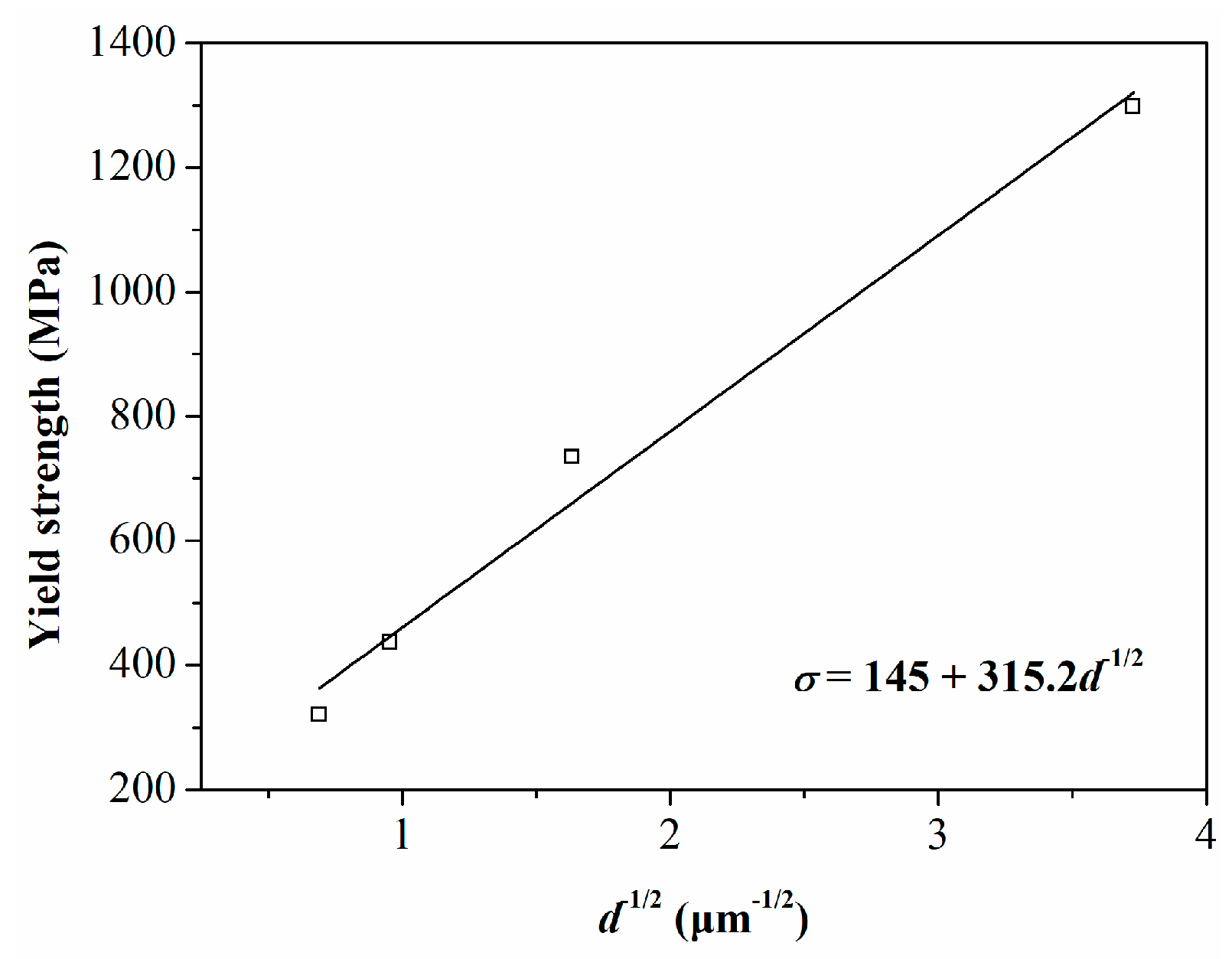

Figure 8. Yield strength vs. the inverse square root of grain size.
Figure 8. Yield strength vs. the inverse square root of grain size.
Metals 09 00734 g008
Table 1. Structural parameters of samples cold-rolled and annealed.
Table 1. Structural parameters of samples cold-rolled and annealed.
SampleStructural FeatureGrain Size
(α)
Grain Size
(γ)
Volume Fraction
(γ)
CRUFG lamellar structure
(α + α´)
72 ± 24 nm——0%
CR + 700 °CUFG recrystallized structure (α +γ)347 ± 137 nm401 ± 122 nm51.1 ± 1.4%
CR + 900 °CCG * recrystallized structure (α +γ)1.06 ± 0.37 μm1.15 ± 0.43 μm57.2 ± 2.2%
CR + 1000 °CCG recrystallized structure
(α +γ)
1.82 ± 0.55 μm2.26 ± 0.69 μm56.1 ± 3.1%
* CG refers to coarse-grained.
