Metals 2019, 9(7), 726; https://doi.org/10.3390/met9070726

Article
From High-Manganese Steels to Advanced High-Entropy Alloys
1
Steel Institute, RWTH Aachen University, Intzestraße 1, 52072 Aachen, Germany
2
George W. Woodruff School of Mechanical Engineering, Georgia Institute of Technology, 2 Rue Marconi, 57070 Metz, France
*
Author to whom correspondence should be addressed.
Received: 7 June 2019 / Accepted: 25 June 2019 / Published: 27 June 2019

Abstract

:
Arguably, steels are the most important structural material, even to this day. Numerous design concepts have been developed to create and/or tailor new steels suited to the most varied applications. High-manganese steels (HMnS) stand out for their excellent mechanical properties and their capacity to make use of a variety of physical mechanisms to tailor their microstructure, and thus their properties. With this in mind, in this contribution, we explore the possibility of extending the alloy design concepts that haven been used successfully in HMnS to the recently introduced high-entropy alloys (HEA). To this aim, one HMnS steel and the classical HEA Cantor alloy were subjected to cold rolling and heat treatment. The evolution of the microstructure and texture during the processing of the alloys and the resulting properties were characterized and studied. Based on these results, the physical mechanisms active in the investigated HMnS and HEA were identified and discussed. The results evidenced a substantial transferability of the design concepts and more importantly, they hint at a larger potential for microstructure and property tailoring in the HEA.
Keywords:
high-manganese steels; high-entropy alloys; alloy design; plastic deformation; annealing; microstructure; texture; mechanical properties

1. Introduction

One of the most important objectives of materials scientists is the improvement of the mechanical properties of materials. For this purpose, it is possible to make use of diverse physical phenomena that essentially modify the microstructure to either facilitate or complicate the motion and generation of dislocations depending on the requirements of the final component. In the same way as alloys aim to be more than the sum of their parts, modern strengthening concepts aim to combine and—perhaps more important—trigger strengthening mechanisms at the right times. This is the idea behind the high-manganese steels (HMnS), whose mechanical properties are improved by activating either martensitic transformations (transformation-induced plasticity, TRIP) or mechanical twinning (twinning-induced plasticity, TWIP) to achieve higher strength and larger elongation [1]. The combination of these mechanisms with strong planar dislocation glide makes these materials possess outstanding strain-hardening potential attributable to an observed dynamic Hall–Petch effect [2].
Another recently developed class of alloys are the so-called high-entropy alloys (HEA). HEAs are alloys with more than four elements in usually equiatomic or near-equiatomic compositions. The idea behind these alloys is that their high entropy stabilizes the solid solution against the formation of intermetallic phases. HEAs are less well studied than HMnS, but since their discovery by Cantor et al. [3] and Yeh et al. [4], HEAs have attracted much fascination within the research community due to the vast space of possible alloys and thus, potential microstructures and property combinations. Although several core effects (high-entropy effect, sever lattice distortion effect, sluggish diffusion effect, cocktail effect) of HEAs have been proposed [5], a clear design strategy is still missing.
The underlying physical mechanisms active in HMnS have already been studied for several decades [1,2,6], and therefore are comparatively well understood. One of the most important parameters when designing HMnS is the tailoring of their stacking fault energy (SFE). This property controls the dissociation distance of partial dislocations and determines whether TRIP and/or TWIP is activated/suppressed during plastic deformation. The role of the SFE during plastic deformation and subsequent heat treatment in metals has been studied for decades, and its effect is relatively well-known for face-centered cubic (fcc) metals [7]. In fcc HEAs, the mechanisms of microstructure formation have been found to occur in a similar way to the same class of alloys with comparable SFE [8]. For instance, the Cantor alloy (CoCrFeMnNi) with an estimated SFE between 18.3–27.3 mJ/m2 [9,10] has been shown to develop the TWIP effect, depending on the processing conditions [11]. Evidently, the determination of the SFE in HEAs is fundamental, because this property indicates the possible acting mechanisms for microstructure development. However, as with steels, the complex chemistry of HEAs leads to almost unlimited combinations that make a systematic determination of this property difficult. Nevertheless, to accelerate the development of these alloys, several research groups have made use of ab initio calculations, e.g., [12]. The advantage of this method is that it is possible to calculate several alloy compositions with less effort than the one required for an experimental determination of the same alloys. So far, the systems CoCrFeMnNi [9,10,13,14], AlCoCrCuFeNi, and AlCoCrFeNi [15] have been investigated regarding their SFE. A comprehensive list can be found in Reference [12]. First-principle methods have even allowed the constructions of property maps, where the SFE can be read as a function of the chemical composition [14], which can be used to predict the expected physical acting mechanisms. The experimental determination of the SFE, although it is arguably more laborious, is as important as its computational calculation because, as accurate as they are, ab initio calculations still rely on a model, which may not be accurate for some conditions. Thus, experimentation provides the necessary validation of the models. For the experimental determination of the SFE, two methods have been used before: namely, the measurement of the dissociation width of partial dislocations [16] and a combination of X-ray diffraction analysis and first-principle calculations of elastic constants [9]. The strategy of obtaining similar microstructures as those in advanced steels has been successfully utilized in some HEAs. For instance, dual-phase fcc-hcp (hexagonal closest packed) HEAs have substantiated increased ductility and strength [17], owing to the activation of the TWIP and TRIP effects [18]. With this in mind, in the present contribution, the mechanisms active during deformation and annealing in low-SFE single-phase HMnS and HEAs will be compared and discussed in order to put forward an SFE-oriented design of fcc-based HEAs.

2. Materials and Methods

Two alloys were investigated: one HMnS and one HEA. The chemical composition and their SFEs are shown in Table 1. The chemical compositions were determined by inductively coupled plasma-optical emission spectrometry (ICP-OES) and combustion analysis. The SFE values of the HMnS were calculated using a subregular thermodynamic solution model [19], whereas the SFE of the HEA was taken from the literature [9,10].
Both alloys were melted in an air conduction furnace followed by ingot casting, and were subsequently homogenized at 1150 °C for 5 h under protective Ar atmosphere. Then, the ingots were forged and subsequently homogenized at 1150 °C. After hot rolling, the alloys were cold rolled at room temperature to achieve up to 50% thickness reduction. To investigate the influence of additional heat treatment on the material behavior, the HMnS was subjected to annealing treatments at 550 °C for different times. In turn, the HEA was produced using induction melting in Ar atmosphere followed by hot rolling at 1000 °C and homogenization at 1000 °C for 1 h. The hot-rolled sheet was further cold rolled up to 50% thickness reduction. Finally, the cold-rolled sheets were annealed in the range between 500–900 °C for 1 h in an air furnace. The specific parameters used for processing the HMnS and HEA in different conditions are given in Table A1.
For characterization of the HMnS and HEA, specimens with the dimensions 12 mm × 10 mm in the rolling direction (RD) and transverse direction (TD) were fabricated using electrical discharge machining. The samples were mechanically ground up to 4000 SiC grit paper followed by mechanical polishing using diamond suspensions of 3 µm and 1 µm. For X-ray diffraction (XRD) pole figure measurements, the middle layer of the RD–TD section was polished electrolytically at room temperature for 2 min at 22 V, whereas the RD–ND (ND—normal direction) section was electropolished for scanning electron backscatter diffraction (EBSD) using the same parameters as before. The electrolyte used for XRD and EBSD sample preparation consisted of 700 mL of ethanol (C2H5OH), 100 mL of butyl glycol (C6H14O2), and 78 mL of perchloric acid (60%) (ClO4). Transmission electron microscopy (TEM) samples (~100 µm thick, 3 mm in diameter) were prepared using the same electrolyte as for XRD and EBSD samples in a double jet Tenupol-5 electrolytic polisher with a voltage of 22–29 V and a flow rate of 10 at 15 °C (HMnS) and 4–6 °C (HEA).
EBSD analyses were performed in an LEO 1530 field emission gun scanning electron microscope (FEG-SEM) (Carl Zeiss AG, Oberkochen, Germany) operated at 20-kV accelerating voltage and a working distance of 10 mm. The HKL Channel 5 software and the MATLAB®-based toolbox MTEX [20,21,22] were utilized to post-process and visualize the ESBD data. The subdivision of EBSD mappings into subsets containing only non-recrystallized (non-RX) or recrystallized (RX) grains was realized, as described in [23]. TEM analyses were performed in a FEI Tecnai F20 TEM (FEI Company, Hillsboro, OR, USA) operated at 200 kV.
X-ray pole figures were acquired utilizing a Bruker D8 Advance diffractometer (Bruker Corporation, Billerica, MA, USA), equipped with a HI-STAR area detector, operating at 30 kV and 25 mA, using filtered iron radiation and polycapillary focusing optics. In order to characterize the crystallographic texture, three incomplete (0–85°) pole figures {111}, {200}, and {220} were measured. The macrotexture orientation distribution functions (ODFs) were also calculated and visualized using MTEX. The volume fractions of the corresponding texture components were calculated using a spread of 15° from their ideal orientation.
Mechanical properties were evaluated by uniaxial tensile tests at room temperature and a constant strain rate of 2.5 × 10−3 s−1 along the previous rolling direction on a screw-driven Zwick Z100 mechanical testing device (Zwick/Roell, Ulm, Germany). Flat bar tension specimens were used with a gauge length of 13 mm, gauge width of 2 mm, fillet radius of 1 mm, and a total length of 33 mm.

3. Results and Discussion

3.1. Behavior during Plastic Deformation

An excellent tool for identifying the mechanisms acting during plastic deformation is the analysis of the crystallographic texture. To exemplify, Figure 1 shows the development of the texture of the HMnS and HEA during cold rolling with thickness reductions from 10% to 50%. Both alloys evinced the evolution of the main rolling texture components of fcc alloys, namely the Cu, S, Goss, and Brass texture components, whereas the Cube component disappeared. The position and definition of the ideal texture components is given in Figure A1 and Table A2 in Appendix A. With increasing deformation, the orientations tended to cluster at positions between the Brass and Goss texture components. This effect intensified at larger strains. In addition, the Goss component spread toward the CuT texture component. Nevertheless, one major difference between the texture of the HMnS and HEA after 50% cold rolling can be recognized. The α-fiber texture components, Brass and Goss, were stronger than the Cu one in the HMnS, whereas, in the HEA, the Brass component was less pronounced, while the Cu component was stronger (Figure 1). Therefore, after 50% cold rolling, the HMnS had already developed a Brass-type texture, while the HEA was characterized by a mixture of Brass-type and Cu-type textures.
As shown in Figure 2, the microstructure of both alloys after 50% cold rolling consisted of grains elongated in RD and contained longitudinal features, such as slip bands. Deformation twins and microshear bands developed equally. Nevertheless, it has been proven that at low rolling degrees, deformation twinning in HEAs is less pronounced, and thus contributes to plastic deformation to a lesser extent, as compared to HMnS [8,24]. At high rolling degrees (80–90%), pronounced Brass-type textures have been observed in HMnS and HEAs [24,25]. Therefore, it can be concluded that the transition from Cu-type to Brass-type texture evolves in low-SFE HEAs in a comparable manner as to that in low-SFE HMnS, but it is shifted to higher degrees of plastic deformation. In terms of the activation of deformation twinning, the presence of C in the HMnS, and correspondingly the absence of C in the HEA, is presumably the main influential factor. On the one hand, C causes an increase of the flow stress, and therefore facilitates achieving the critical resolved shear stress for the activation of twinning. On the other hand, C-Mn short range ordered clusters contribute to the splitting of partial dislocations and ease the onset of deformation twinning [26]. In turn, in the C-free HEA, a more prolonged stage of deformation by dislocation slip retards the initiation of deformation twinning and delays the formation sequence of twin-matrix lamellae, their rotation into the rolling plane, and the subsequent onset of shear banding [27,28,29,30,31,32,33], which are thus shifted to higher strains. Hence, the related formation of a pronounced Brass-type texture with the typical texture components—Brass, Goss, CuT and γ-fiber—is shifted to higher degrees of thickness reduction during rolling of the HEA.

3.2. Behavior during Heat Treatment

The texture evolution during the heat treatment of the 50% cold-rolled HMnS and HEA is shown in Figure 3 and Figure 4. Both alloy systems revealed a slight texture strengthening during static recovery, as substantiated by the increased volume fraction of the main texture components and a decreased fraction of randomly oriented grains (Figure 4). It has been shown before that the texture strengthening is caused by a reduced dislocation density due to recovery processes, which results in less scattering of radiation during XRD measurements [23]. During the recovery stage, the twins induced by cold rolling are thermally stable, and will not collapse upon annealing, but they can be consumed by newly formed grains during primary recrystallization (Figure 5). With the onset of recrystallization, the volume fraction of randomly oriented grains increased, whereas the fraction of the main rolling texture components decreased (Figure 4). This trend was further intensified with increasing recrystallized volume fraction. Nevertheless, the main rolling texture components were retained during recrystallization, although with lower intensity. In addition, a weak complete α-fiber was formed.
In both alloys, the nucleation sites were found to be distributed heterogeneously at grain boundaries and triple junctions (Figure 6). New grains formed and grew primarily by strain-induced grain boundary migration. In this case, the orientations of nuclei were defined by the orientation of subgrains/dislocation cells in the deformed matrix. Additionally, extensive annealing twinning contributed to the formation of new texture components, and thus texture randomization [34]. As has been shown before, first-order twinning within Goss-oriented, Goss/Brass-oriented, and Brass-oriented nuclei resulted in the formation of a complete α-fiber due to the development of the A and rotated Goss (RtG) texture components [8,35,36]. Therefore, the evolution of the recyrstallization texture of the HMnS and HEA is a result of texture retention due to grain boundary nucleation and texture randomization due to annealing twinning [8,37].

3.3. Mechanical Properties

The results of uniaxial tensile tests of the HMnS and HEA after cold rolling and recrystallization are shown in Figure 7. In both cases, the cold-rolled conditions (CR) were characterized by a very high yield and ultimate tensile strength, but a strongly reduced total elongation. During subsequent recovery annealing (RC), the high yield strength was retained due to the thermal stability of deformation twins, whereas the total elongation was enhanced due to dislocations’ annihilation [38,39]. After partial recrystallization (PRX) and complete recrystallization (RX), the soft recrystallized grains promoted increased total elongation at the expense of strength. In contrast to the deformed grains subjected to cold rolling, the soft RX grains facilitated regained formability due to the capability of accumulating new dislocations and undergoing deformation twinning [40,41].

4. Mechanism-Oriented Alloy Design

It has been shown and discussed in Section 3.1, Section 3.2 and Section 3.3 that the investigated HMnS and HEA behave very similarly. Based on the correlation between microstructure and texture evolution during deformation and heat treatment, it was demonstrated that the influence of the SFE on the material behavior of HMnS also holds true for fcc C-free HEA. The low SFE of both alloys facilitated the activation of twinning during deformation, albeit at different strains, as well as softening by static recovery and recrystallization during annealing. As a consequence, thermomechanical treatment resulted in comparable property profiles of the HMnS and HEA with minor differences due to the presence of C in the HMnS, which enabled higher strength and more pronounced twinning. Therefore, it can be asserted that SFE-based, mechanism-oriented alloy design, as has been used for tailoring the properties of HMnS for more than two decades, is a promising methodology to develop new advanced HEAs.
As shown in Figure 8, the activation/suppression of specific deformation mechanisms can be used to tailor the deformation behavior and mechanical properties of HMnS in a wide range. With an SFE ≤ 20 mJ/m2, the TRIP effect promotes strong work hardening, whereas the TWIP (20 mJ/m2 ≤ SFE ≤ 50 mJ/m2) and slip-band refinement-induced plasticity (SRIP) (SFE ≥ 50 mJ/m2) effects result in a lower work-hardening potential. Strength and work-hardening capability can be further modified by combining the aforementioned mechanisms with multi-phase (medium-manganese steels (MMnS)) and precipitation (κ-carbides) strengthening (Figure 8). Furthermore, the activation/suppression of specific mechanisms can also be adjusted by precise process design. These approaches include using the higher thermal stability of deformation twins over dislocations during recovery annealing, suppression and activation of twinning during, respectively, warm deformation, e.g., ECAP, and further room temperature deformation or tailoring the work-hardening behavior by using the strong orientation dependence of twinning in anisotropic additively manufactured specimens (Figure 8).
Indeed, several of the approaches presented in Figure 8 have already been transferred to HEAs, such as TRIP and TWIP effects [17,47], precipitation hardening in compositionally complex alloys (CCAs) [48], recovery annealing [8], severe plastic deformation [49], additive manufacturing [50], etc. However, the further maturity of thermodynamics-based [51,52] and ab initio methods are required to explore the wide composition space of HEAs and CCAs. The mechanism-oriented design will certainly enable unveiling the full potential of these alloys.

5. Conclusions

A high-manganese steel and a high-entropy alloy with similar SFE were investigated regarding their microstructure, texture, and mechanical properties after cold rolling and heat treatment. The mechanisms for microstructure modification in both alloys were found to be similar due to the activation of the same physical mechanisms. During plastic deformation at low temperatures, the alloys substantiated initially deformation by dislocation slip and subsequently twinning. However, the onset of twinning in the HEA occurs at higher strains. This effect was attributed to the presence of carbon atoms in solid solution in the steel, whose hardening effect allows reaching the critical stress for twin formation earlier. Consequently, both alloys developed similar textures, but equivalent texture components developed at higher strains in the HEA. Upon annealing, the alloys substantiated the thermal stability of the twins formed during deformation in the recovery range. This effect permits the utilization of recovery annealing treatments in HEA for pronounced ductility and strength. In turn, during recrystallization, a retention of the texture due to grain boundary nucleation and texture randomization as a result of the formation and growth of annealing twins was exhibited. Finally, the mechanical characterization of the alloys evidenced the substantial range of variability of the properties that can be obtained from these alloys.
This suggests that fcc-HEAs can be almost arbitrarily tailored by a combination of the diverse physical mechanisms of microstructure modification that can be triggered in these alloys. The applicability and the potential of mechanisms-oriented alloys design have been already proven by the Collaborative Research Center (SFB) 761 ‘’Steel—ab initio’’ [6], whose strategy can be used to design new HEAs and CCAs.

Author Contributions

Conceptualization, C.H. and L.A.B.-M.; formal analysis, C.H. and L.A.B.-M.; investigation, C.H. and L.A.B.-M.; visualization, C.H. and L.A.B.-M.; writing–original draft, C.H. and L.A.B.-M.; writing–review & editing, C.H. and L.A.B.-M.

Funding

This research was funded by the “Deutsche Forschungsgemeinschaft” (DFG) within the Sonderforschungsbereich (Collaborative Research Center) 761 “Steel–ab initio”.

Acknowledgments

The authors are thankful for the help of Arndt Ziemons, Marie Luise Köhler, Mehran Afshar, Christian Schnatterer, Johannes Lohmar, and Stefan Senge with carrying out the experiments.

Conflicts of Interest

The authors declare no conflict of interest.

Appendix A

Table A1. Processing parameters used for the HMnS and HEA in different conditions. CR, RC, PRX, and RX denote cold rolled, recovered, partially recrystallized with recrystallized fraction X and recrystallized, respectively.
Table A1. Processing parameters used for the HMnS and HEA in different conditions. CR, RC, PRX, and RX denote cold rolled, recovered, partially recrystallized with recrystallized fraction X and recrystallized, respectively.
AlloyConditionRolling Degree (%)Annealing Temperature (°C)Annealing Time (h)
HMnSCR1010--
HMnSCR2525--
HMnSCR5050--
HMnSCR50 + RC505001
HMnSCR50 + PRX (X < 10%)506001
HMnSCR50 + PRX (X > 50%)506501
HMnSCR50 + RX507001
HEA20.310--
HEACR2525--
HEACR5050--
HEACR50 + RC505500.5
HEACR50 + PRX (X < 10%)505501
HEACR50 + PRX (X > 50%)505502
HEACR50 + RX507008

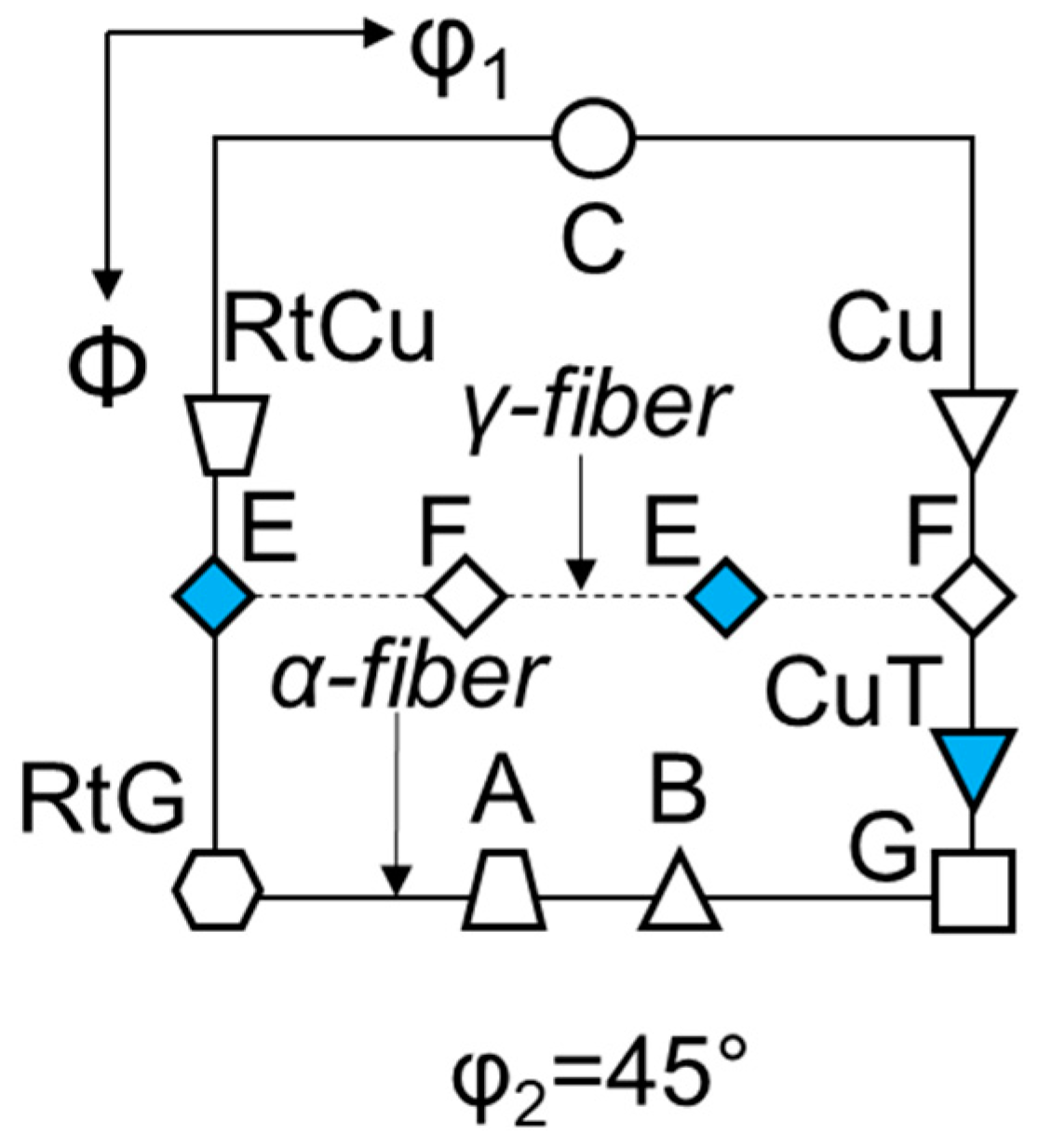

Figure A1. Schematic illustration of the ideal texture components and fibers, ODF section at φ2 = 45°. The texture components are defined in Table A2.
Figure A1. Schematic illustration of the ideal texture components and fibers, ODF section at φ2 = 45°. The texture components are defined in Table A2.
Metals 09 00726 g0a1
Table A2. Definition of texture components illustrated in Figure A1.
Table A2. Definition of texture components illustrated in Figure A1.
ComponentSymbolMiller IndicesEuler Angles (φ1, Φ, φ2)Fiber
Brass (B) Metals 09 00726 i001{110}<112>(55, 90, 45)α, β
Goss (G) Metals 09 00726 i002{110}<100>(90, 90, 45)α, τ
Rotated Goss (RtG) Metals 09 00726 i003{110}<110>(0, 90, 45)α
A Metals 09 00726 i004{110}<111>(35, 90, 45)α
Cube (C) Metals 09 00726 i005{001}<100>(45, 0, 45)/
E Metals 09 00726 i006{111}<110>(0/60, 55, 45)γ
F Metals 09 00726 i007{111}<112>(30/90, 55, 45)γ
Copper (Cu) Metals 09 00726 i008{112}<111>(90, 35, 45)β, τ
Copper Twin (CuT) Metals 09 00726 i009{552}<115>(90, 74, 45)τ
S Metals 09 00726 i010{123}<634>(59, 37, 63)β
α-fiber<110> parallel to ND
β-fiber<110> tilted 60° from ND towards RD
γ-fiber<111> parallel ND

References

  1. Bouaziz, O.; Allain, S.; Scott, C.P.; Cugy, P.; Barbier, D. High manganese austenitic twinning induced plasticity steels: A review of the microstructure properties relationships. Curr. Opin. Solid State Mater. Sci. 2011, 15, 141–168. [Google Scholar] [CrossRef]
  2. De Cooman, B.C.; Chen, L.; Kim, H.S.; Estrin, Y.; Kim, S.K.; Voswinckel, H. State-of-the-Science of High Manganese TWIP Steels for Automotive Applications. In Proceedings of the International Conference on Microstructure and Texture in Steels and Other Materials, Jamshedpur, India, 5–7 February 2008; Haldar, A., Suwas, S., Bhattacharjee, D., Eds.; Springer: London, UK, 2008; pp. 165–182. [Google Scholar]
  3. Cantor, B.; Chang, I.T.H.; Knight, P.; Vincent, A.J.B. Microstructural development in equiatomic multicomponent alloys. Mater. Sci. Eng. A 2004, 375, 213–218. [Google Scholar] [CrossRef]
  4. Yeh, J.W.; Chen, S.K.; Lin, S.J.; Gan, J.Y.; Chin, T.S.; Shun, T.T.; Tsau, C.H.; Chang, S.Y. Nanostructured high-entropy alloys with multiple principal elements: Novel alloy design concepts and outcomes. Adv. Eng. Mater. 2004, 6, 299–303. [Google Scholar] [CrossRef]
  5. Murty, B.S.; Yeh, J.W.; Ranganathan, S. High-entropy alloys: Basic concepts. In High Entropy Alloys; Butterworth-Heinemann: Boston, MA, USA, 2014; pp. 13–35. [Google Scholar]
  6. Sonderforschungsbereich 761. Available online: http://abinitio.iehk.rwth-aachen.de/ (accessed on 7 June 2019).
  7. Gottstein, G. Physical Foundations of Materials Science; Springer: Berlin/Heidelberg, Germany, 2004. [Google Scholar]
  8. Haase, C.; Barrales-Mora, L.A. Influence of deformation and annealing twinning on the microstructure and texture evolution of face-centered cubic high-entropy alloys. Acta Mater. 2018, 150, 88–103. [Google Scholar] [CrossRef]
  9. Zaddach, A.J.; Niu, C.; Koch, C.C.; Irving, D.L. Mechanical properties and stacking fault energies of NiFeCrCoMn high-entropy alloy. JOM 2013, 65, 1780–1789. [Google Scholar] [CrossRef]
  10. Huang, S.; Li, W.; Lu, S.; Tian, F.; Shen, J.; Holmström, E.; Vitos, L. Temperature dependent stacking fault energy of FeCrCoNiMn high entropy alloy. Scripta Mater. 2015, 108, 44–47. [Google Scholar] [CrossRef]
  11. Otto, F.; Dlouhý, A.; Somsen, C.; Bei, H.; Eggeler, G.; George, E.P. The influences of temperature and microstructure on the tensile properties of a CoCrFeMnNi high-entropy alloy. Acta Mater. 2013, 61, 5743–5755. [Google Scholar] [CrossRef]
  12. Ikeda, Y.; Grabowski, B.; Körmann, F. Ab initio phase stabilities and mechanical properties of multicomponent alloys: A comprehensive review for high entropy alloys and compositionally complex alloys. Mater. Charact. 2019, 147, 464–511. [Google Scholar] [CrossRef]
  13. Zhao, S.; Stocks, G.M.; Zhang, Y. Stacking fault energies of face-centered cubic concentrated solid solution alloys. Acta Mater. 2017, 134, 334–345. [Google Scholar] [CrossRef]
  14. Ikeda, Y.; Körmann, F.; Tanaka, I.; Neugebauer, J. Impact of chemical fluctuations on stacking fault energies of CrCoNi and CrMnFeCoNi high entropy alloys from first principles. Entropy 2018, 20, 655. [Google Scholar] [CrossRef]
  15. Beyramali Kivy, M.; Asle Zaeem, M. Generalized stacking fault energies, ductilities, and twinnabilities of CoCrFeNi-based face-centered cubic high entropy alloys. Scripta Mater. 2017, 139, 83–86. [Google Scholar] [CrossRef]
  16. Liu, S.F.; Wu, Y.; Wang, H.T.; He, J.Y.; Liu, J.B.; Chen, C.X.; Liu, X.J.; Wang, H.; Lu, Z.P. Stacking fault energy of face-centered-cubic high entropy alloys. Intermetallics 2018, 93, 269–273. [Google Scholar] [CrossRef]
  17. Li, Z.; Pradeep, K.G.; Deng, Y.; Raabe, D.; Tasan, C.C. Metastable high-entropy dual-phase alloys overcome the strength-ductility trade-off. Nature 2016, 534, 227–230. [Google Scholar] [CrossRef] [PubMed]
  18. Li, Z.; Tasan, C.C.; Springer, H.; Gault, B.; Raabe, D. Interstitial atoms enable joint twinning and transformation induced plasticity in strong and ductile high-entropy alloys. Sci. Rep. 2017, 7, 40704. [Google Scholar] [CrossRef] [PubMed]
  19. Saeed-Akbari, A.; Imlau, J.; Prahl, U.; Bleck, W. Derivation and variation in composition-dependent stacking fault energy maps based on subregular solution model in high-manganese steels. Metall. Mater. Trans. A 2009, 40, 3076–3090. [Google Scholar] [CrossRef]
  20. Hielscher, R.; Schaeben, H. A novel pole figure inversion method: Specification of the MTEX algorithm. J. Appl. Crystallogr. 2008, 41, 1024–1037. [Google Scholar] [CrossRef]
  21. Bachmann, F.; Hielscher, R.; Schaeben, H. Texture analysis with MTEX—Free and open source software toolbox. Soild State Phenom 2010, 160, 63–68. [Google Scholar] [CrossRef]
  22. Bachmann, F.; Hielscher, R.; Schaeben, H. Grain detection from 2d and 3d EBSD data—Specification of the MTEX algorithm. Ultramicroscopy 2011, 111, 1720–1733. [Google Scholar] [CrossRef]
  23. Haase, C.; Barrales-Mora, L.A.; Molodov, D.A.; Gottstein, G. Tailoring the mechanical properties of a twinning-induced plasticity steel by retention of deformation twins during heat treatment. Metall. Mater. Trans. A 2013, 44, 4445–4449. [Google Scholar] [CrossRef]
  24. Haase, C.; Chowdhury, S.G.; Barrales-Mora, L.A.; Molodov, D.A.; Gottstein, G. On the relation of microstructure and texture evolution in an austenitic Fe-28Mn-0.28C TWIP steel during cold rolling. Metall. Mater. Trans. A 2013, 44, 911–922. [Google Scholar] [CrossRef]
  25. Sathiaraj, G.D.; Ahmed, M.Z.; Bhattacharjee, P.P. Microstructure and texture of heavily cold-rolled and annealed fcc equiatomic medium to high entropy alloys. J. Alloys Compd. 2016, 664, 109–119. [Google Scholar] [CrossRef]
  26. Sevsek, S.; Brasche, F.; Haase, C.; Bleck, W. Combined deformation twinning and short-range ordering causes serrated flow in high-manganese steels. Mater. Sci. Eng. A 2019, 746, 434–442. [Google Scholar] [CrossRef]
  27. Hirsch, J.; Lücke, K.; Hatherly, M. Mechanism of deformation and development of rolling textures in polycrystalline F.C.C. metals—III. The influence of slip inhomogeneities and twinning. Acta Metall. 1988, 36, 2905–2927. [Google Scholar] [CrossRef]
  28. Vercammen, S.; Blanpain, B.; De Cooman, B.C.; Wollants, P. Cold rolling behaviour of an austenitic Fe–30Mn–3Al–3Si TWIP-steel: The importance of deformation twinning. Acta Mater. 2004, 52, 2005–2012. [Google Scholar] [CrossRef]
  29. Kusakin, P.; Belyakov, A.; Haase, C.; Kaibyshev, R.; Molodov, D.A. Microstructure evolution and strengthening mechanisms of Fe–23Mn–0.3C–1.5Al TWIP steel during cold rolling. Mater. Sci. Eng. A 2014, 617, 52–60. [Google Scholar] [CrossRef]
  30. Saleh, A.A.; Haase, C.; Pereloma, E.V.; Molodov, D.A.; Gazder, A.A. On the evolution and modelling of brass-type texture in cold-rolled twinning-induced plasticity steel. Acta Mater. 2014, 70, 259–271. [Google Scholar] [CrossRef]
  31. Stepanov, N.; Tikhonovsky, M.; Yurchenko, N.; Zyabkin, D.; Klimova, M.; Zherebtsov, S.; Efimov, A.; Salishchev, G. Effect of cryo-deformation on structure and properties of CoCrFeNiMn high-entropy alloy. Intermetallics 2015, 59, 8–17. [Google Scholar] [CrossRef]
  32. Klimova, M.; Stepanov, N.; Shaysultanov, D.; Chernichenko, R.; Yurchenko, N.; Sanin, V.; Zherebtsov, S. Microstructure and mechanical properties evolution of the Al, C-containing CoCrFeNiMn-type high-entropy alloy during cold rolling. Materials 2018, 11, 53. [Google Scholar] [CrossRef]
  33. Klimova, M.; Zherebtsov, S.; Stepanov, N.; Salishchev, G.; Haase, C.; Molodov, D.A. Microstructure and texture evolution of a high manganese TWIP steel during cryo-rolling. Mater. Charact. 2017, 132, 20–30. [Google Scholar] [CrossRef]
  34. Gottstein, G. Annealing texture development by multiple twinning in F.C.C. crystals. Acta Metall. 1984, 32, 1117–1138. [Google Scholar] [CrossRef]
  35. Haase, C.; Barrales-Mora, L.A.; Molodov, D.A.; Gottstein, G. Texture evolution of a cold-rolled Fe-28Mn-0.28C TWIP steel during recrystallization. Mater. Sci. Forum 2013, 753, 213–216. [Google Scholar] [CrossRef]
  36. Haase, C.; Kühbach, M.; Barrales Mora, L.A.; Wong, S.L.; Roters, F.; Molodov, D.A.; Gottstein, G. Recrystallization behavior of a high-manganese steel: Experiments and simulations. Acta Mater. 2015, 100, 155–168. [Google Scholar] [CrossRef]
  37. Haase, C.; Ingendahl, T.; Güvenç, O.; Bambach, M.; Bleck, W.; Molodov, D.A.; Barrales-Mora, L.A. On the applicability of recovery-annealed twinning-induced plasticity steels: Potential and limitations. Mater. Sci. Eng. A 2016, 649, 74–84. [Google Scholar] [CrossRef]
  38. Haase, C.; Barrales-Mora, L.A.; Roters, F.; Molodov, D.A.; Gottstein, G. Applying the texture analysis for optimizing thermomechanical treatment of high manganese twinning-induced plasticity steel. Acta Mater. 2014, 80, 327–340. [Google Scholar] [CrossRef]
  39. Berrenberg, F.; Haase, C.; Barrales-Mora, L.A.; Molodov, D.A. Enhancement of the strength-ductility combination of twinning-induced/transformation-induced plasticity steels by reversion annealing. Mater. Sci. Eng. A 2017, 681, 56–64. [Google Scholar] [CrossRef]
  40. Yanushkevich, Z.; Belyakov, A.; Haase, C.; Molodov, D.A.; Kaibyshev, R. Structural/textural changes and strengthening of an advanced high-Mn steel subjected to cold rolling. Mater. Sci. Eng. A 2016, 651, 763–773. [Google Scholar] [CrossRef]
  41. Yanushkevich, Z.; Belyakov, A.; Kaibyshev, R.; Haase, C.; Molodov, D.A. Effect of cold rolling on recrystallization and tensile behavior of a high-Mn steel. Mater. Charact. 2016, 112, 180–187. [Google Scholar] [CrossRef]
  42. Sevsek, S.; Haase, C.; Bleck, W. Strain-rate-dependent deformation behavior and mechanical properties of a multi-phase medium-manganese steel. Metals 2019, 9, 344. [Google Scholar] [CrossRef]
  43. Haase, C.; Zehnder, C.; Ingendahl, T.; Bikar, A.; Tang, F.; Hallstedt, B.; Hu, W.; Bleck, W.; Molodov, D.A. On the deformation behavior of κ-carbide-free and κ-carbide-containing high-Mn light-weight steel. Acta Mater. 2017, 122, 332–343. [Google Scholar] [CrossRef]
  44. Haase, C.; Barrales-Mora, L.A.; Molodov, D.A.; Gottstein, G. Application of texture analysis for optimizing thermo-mechanical treatment of a high Mn TWIP steel. Adv. Mater. Res. 2014, 922, 213–218. [Google Scholar] [CrossRef]
  45. Haase, C.; Kremer, O.; Hu, W.; Ingendahl, T.; Lapovok, R.; Molodov, D.A. Equal-channel angular pressing and annealing of a twinning-induced plasticity steel: Microstructure, texture, and mechanical properties. Acta Mater. 2016, 107, 239–253. [Google Scholar] [CrossRef]
  46. Kies, F.; Köhnen, P.; Wilms, M.B.; Brasche, F.; Pradeep, K.G.; Schwedt, A.; Richter, S.; Weisheit, A.; Schleifenbaum, J.H.; Haase, C. Design of high-manganese steels for additive manufacturing applications with energy-absorption functionality. Mater. Des. 2018, 160, 1250–1264. [Google Scholar] [CrossRef]
  47. Deng, Y.; Tasan, C.C.; Pradeep, K.G.; Springer, H.; Kostka, A.; Raabe, D. Design of a twinning-induced plasticity high entropy alloy. Acta Mater. 2015, 94, 124–133. [Google Scholar] [CrossRef]
  48. He, J.Y.; Wang, H.; Huang, H.L.; Xu, X.D.; Chen, M.W.; Wu, Y.; Liu, X.J.; Nieh, T.G.; An, K.; Lu, Z.P. A precipitation-hardened high-entropy alloy with outstanding tensile properties. Acta Mater. 2016, 102, 187–196. [Google Scholar] [CrossRef]
  49. Schuh, B.; Mendez-Martin, F.; Völker, B.; George, E.P.; Clemens, H.; Pippan, R.; Hohenwarter, A. Mechanical properties, microstructure and thermal stability of a nanocrystalline CoCrFeMnNi high-entropy alloy after severe plastic deformation. Acta Mater. 2015, 96, 258–268. [Google Scholar] [CrossRef]
  50. Ewald, S.; Kies, F.; Hermsen, S.; Voshage, M.; Haase, C.; Schleifenbaum, J.H. Rapid alloy development of extremely high-alloyed metals using powder blends in laser powder bed fusion. Materials 2019, 12, 1706. [Google Scholar] [CrossRef] [PubMed]
  51. Haase, C.; Tang, F.; Wilms, M.B.; Weisheit, A.; Hallstedt, B. Combining thermodynamic modeling and 3D printing of elemental powder blends for high-throughput investigation of high-entropy alloys—Towards rapid alloy screening and design. Mater. Sci. Eng. A 2017, 688, 180–189. [Google Scholar] [CrossRef]
  52. Miracle, D.B.; Senkov, O.N. A critical review of high entropy alloys and related concepts. Acta Mater. 2017, 122, 448–511. [Google Scholar] [CrossRef]
Figure 1. Texture evolution during cold rolling at room temperature of the investigated high-manganese steels (HMnS) and high-entropy alloy (HEA) illustrated by φ2 = 45° section of the ODF.
Figure 1. Texture evolution during cold rolling at room temperature of the investigated high-manganese steels (HMnS) and high-entropy alloy (HEA) illustrated by φ2 = 45° section of the ODF.
Metals 09 00726 g001
Figure 2. (a) Electron backscatter diffraction (EBSD) band contrast maps (top) and (b) TEM micrographs (bottom) of the HMnS and HEA after 50% cold rolling.
Figure 2. (a) Electron backscatter diffraction (EBSD) band contrast maps (top) and (b) TEM micrographs (bottom) of the HMnS and HEA after 50% cold rolling.
Metals 09 00726 g002

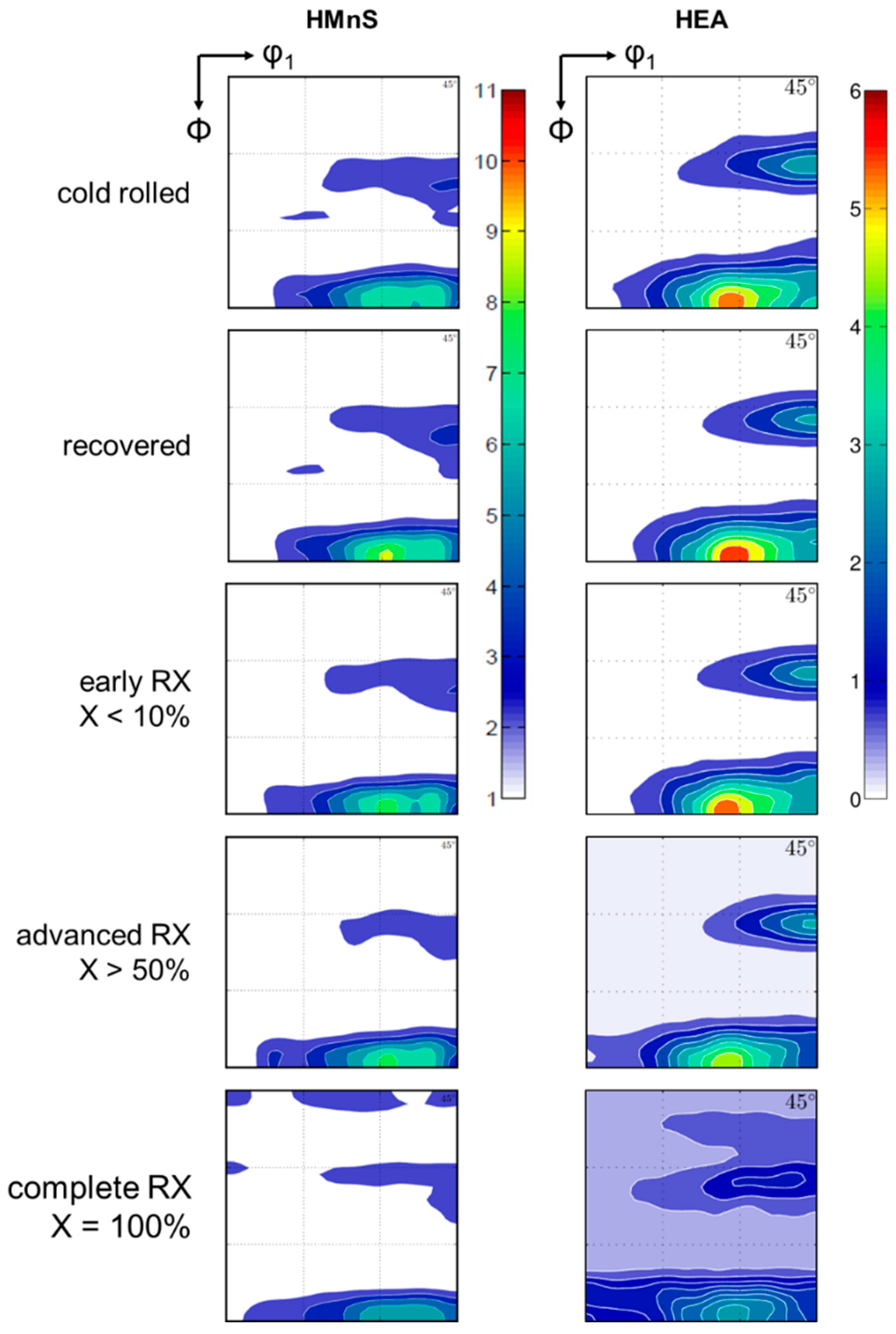

Figure 3. Texture evolution during annealing of the 50% cold-rolled HMnS and HEA illustrated by φ2 = 45° section of the orientation distribution functions (ODF).
Figure 3. Texture evolution during annealing of the 50% cold-rolled HMnS and HEA illustrated by φ2 = 45° section of the orientation distribution functions (ODF).
Metals 09 00726 g003

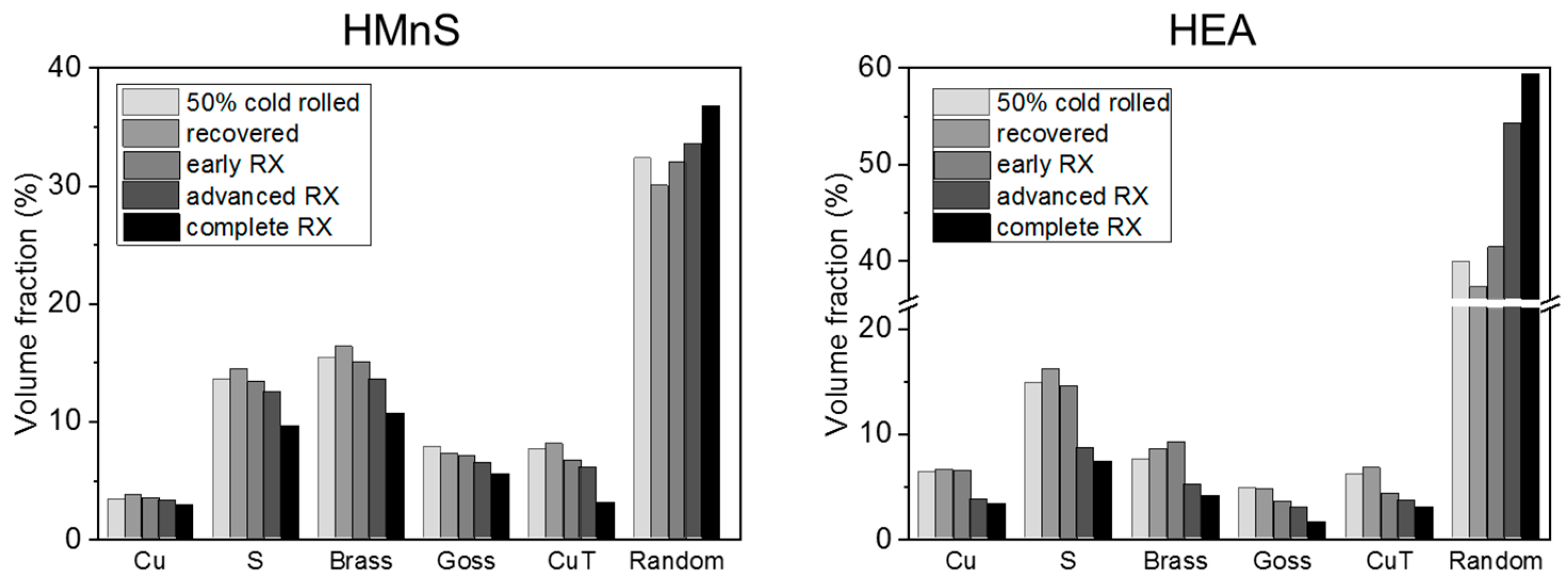

Figure 4. Evolution of the volume fractions of the main texture components during annealing of the 50% cold-rolled HMnS and HEA.
Figure 4. Evolution of the volume fractions of the main texture components during annealing of the 50% cold-rolled HMnS and HEA.
Metals 09 00726 g004
Figure 5. TEM bright-field images of the HMnS and HEA after 50% cold rolling and subsequent recovery annealing (top) and partial recrystallization (bottom).
Figure 5. TEM bright-field images of the HMnS and HEA after 50% cold rolling and subsequent recovery annealing (top) and partial recrystallization (bottom).
Metals 09 00726 g005

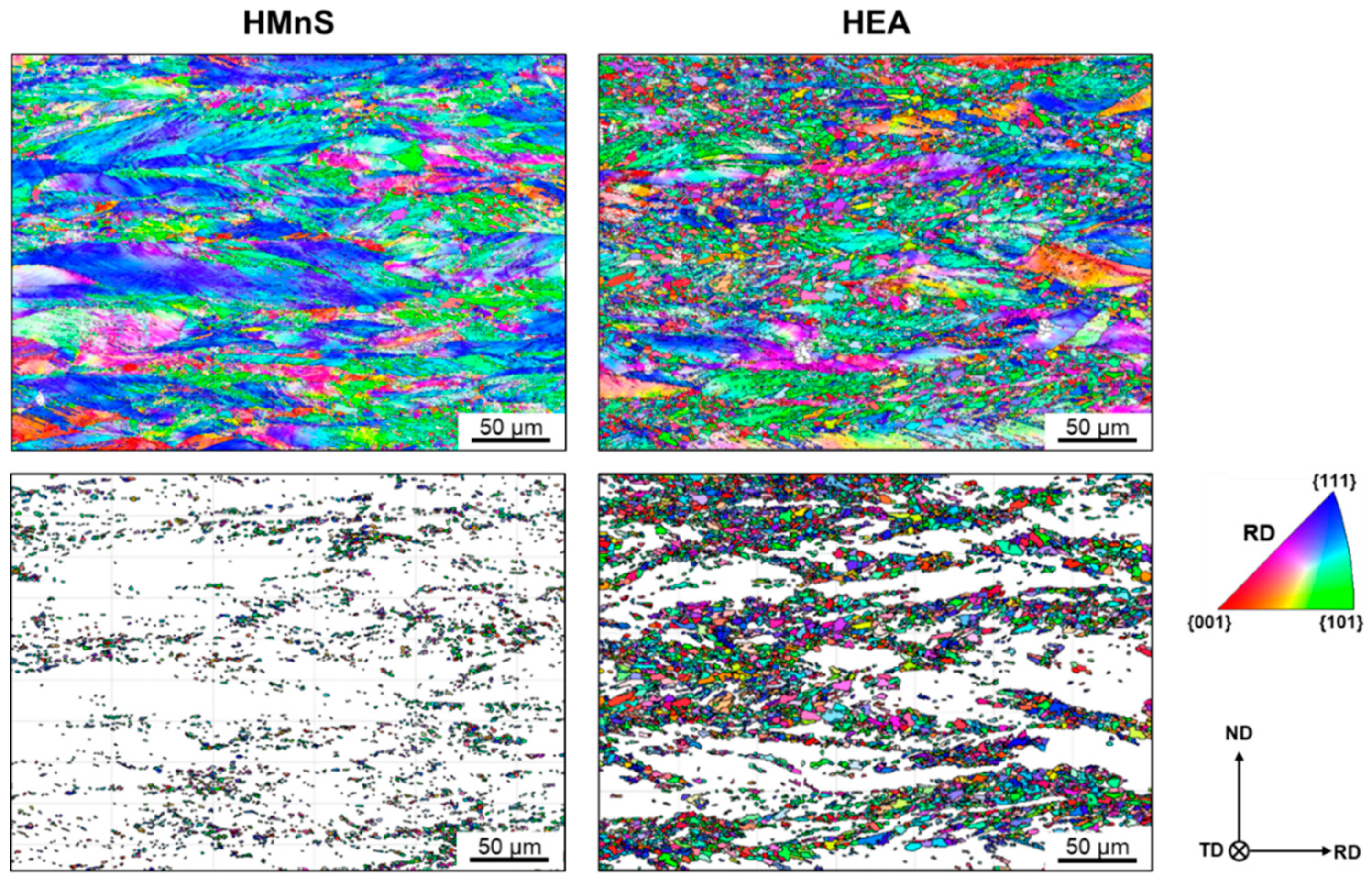

Figure 6. EBSD maps with color-coding according to the inverse pole figure of the HMnS and HEA after 50% cold rolling and partial recrystallization showing all grains (top row) and only recrystallized grains (bottom row).
Figure 6. EBSD maps with color-coding according to the inverse pole figure of the HMnS and HEA after 50% cold rolling and partial recrystallization showing all grains (top row) and only recrystallized grains (bottom row).
Metals 09 00726 g006

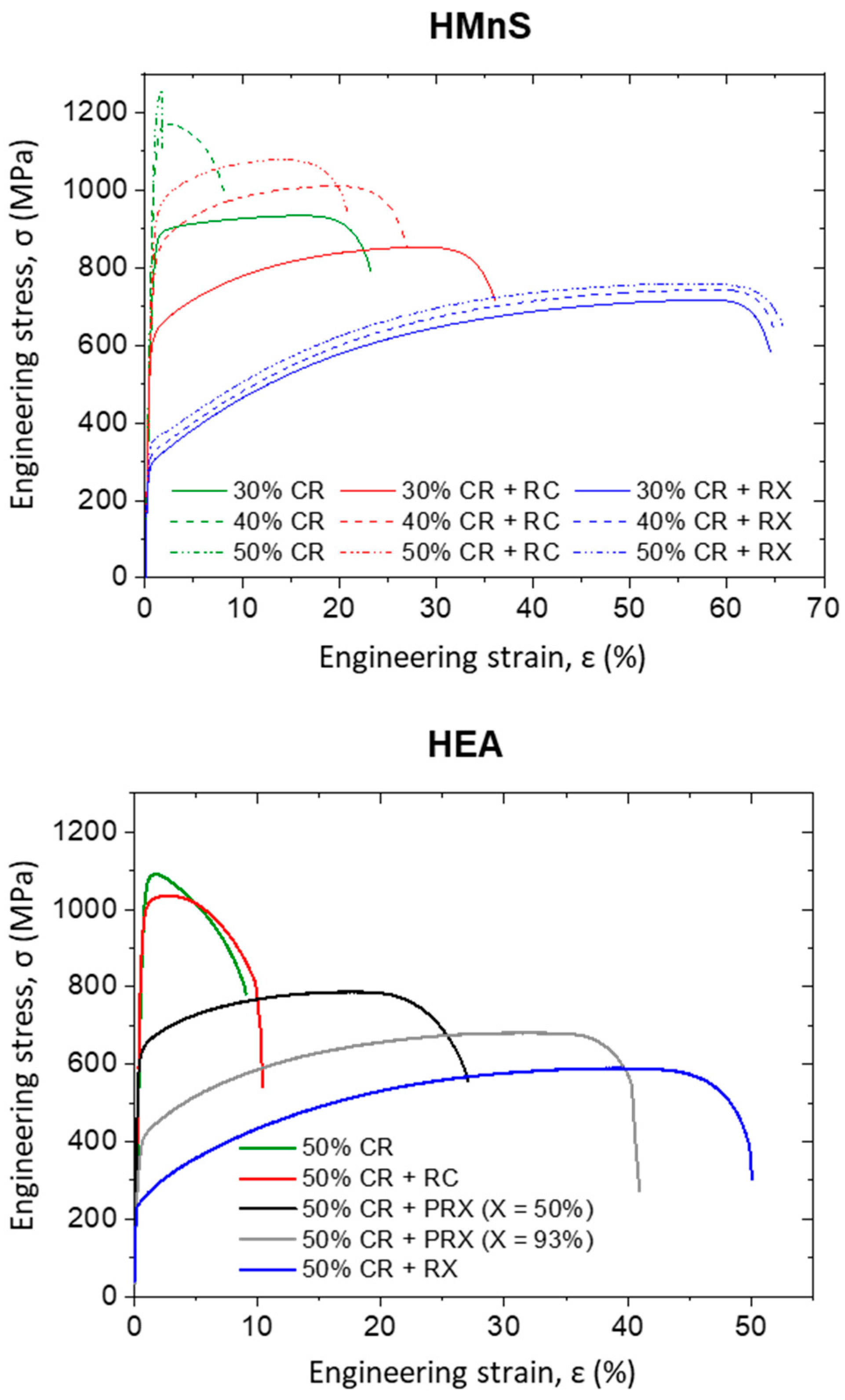

Figure 7. Engineering stress–strain curves of the HMnS and HEA in the states cold rolled (CR), recovered (RC), partially recrystallized (PRX with recrystallized fraction X), and recrystallized (RX).
Figure 7. Engineering stress–strain curves of the HMnS and HEA in the states cold rolled (CR), recovered (RC), partially recrystallized (PRX with recrystallized fraction X), and recrystallized (RX).
Metals 09 00726 g007

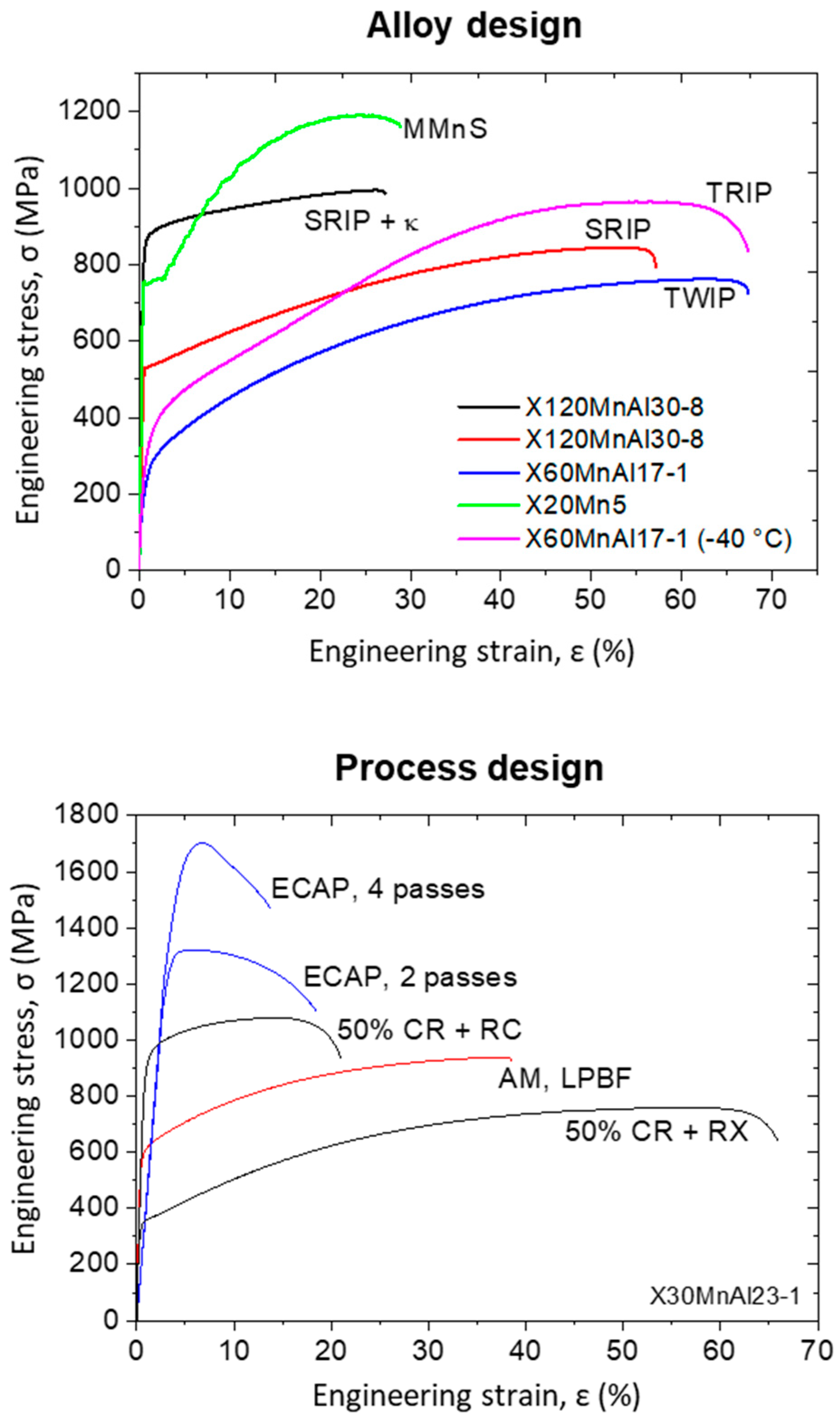

Figure 8. Engineering stress–strain curves of HMnS with various SFE/activated deformation mechanisms and the X30MnAl23-1 HMnS subjected to different processing techniques. MMnS—medium-manganese steel [42], SRIP—slip-band refinement-induced plasticity [43], TRIP—transformation-induced plasticity, TWIP—twinning-induced plasticity [44], ECAP—equal-channel angular pressing [45], SLM—selective laser melting [46].
Figure 8. Engineering stress–strain curves of HMnS with various SFE/activated deformation mechanisms and the X30MnAl23-1 HMnS subjected to different processing techniques. MMnS—medium-manganese steel [42], SRIP—slip-band refinement-induced plasticity [43], TRIP—transformation-induced plasticity, TWIP—twinning-induced plasticity [44], ECAP—equal-channel angular pressing [45], SLM—selective laser melting [46].
Metals 09 00726 g008
Table 1. Chemical composition (in wt%) and stacking fault energy (SFE) values of the investigated alloys. The weight fractions of Al, Si, N, and P were not measured in the high-entropy alloys (HEA).
Table 1. Chemical composition (in wt%) and stacking fault energy (SFE) values of the investigated alloys. The weight fractions of Al, Si, N, and P were not measured in the high-entropy alloys (HEA).
AlloyFeMnAlCoCrNiSiCNPSFE (mJ/m2)
HMnSBal.22.461.21---0.040.3250.01500.0125
HEA20.318.8-21.817.921.0-0.038--18–27
