Next Article in Journal
Laser Powder Bed Fusion of Inconel 718: Residual Stress Analysis Before and After Heat Treatment
Previous Article in Journal
Influence of EMS on Asymmetric Flow with Different SEN Clogging Rates in a Slab Continuous Casting Mold
Previous Article in Special Issue
Texture Evolution and Anisotropy of Plastic Flow in Hot Compression of Extruded ZK60-T5 Magnesium Alloy Plate
Open AccessArticle

Study of Static Recrystallization Kinetics and the Evolution of Austenite Grain Size by Dynamic Recrystallization Refinement of an Eutectoid Steel

1
Centro de Investigación y de Estudios Avanzados del Instituto Politécnico Nacional (CINVESTAV), Unidad Saltillo, Av. Industria Metalúrgica, 1062, Parque Industrial Saltillo-Ramos Arizpe, Ramos Arizpe 25900, Mexico
2
Instituto Tecnológico de Saltillo, Blvd. Venustiano Carranza, 2400, Col. Tecnológico, Saltillo 25280, Mexico
*
Author to whom correspondence should be addressed.
Metals 2019, 9(12), 1289; https://doi.org/10.3390/met9121289
Received: 20 October 2019 / Revised: 25 November 2019 / Accepted: 25 November 2019 / Published: 29 November 2019

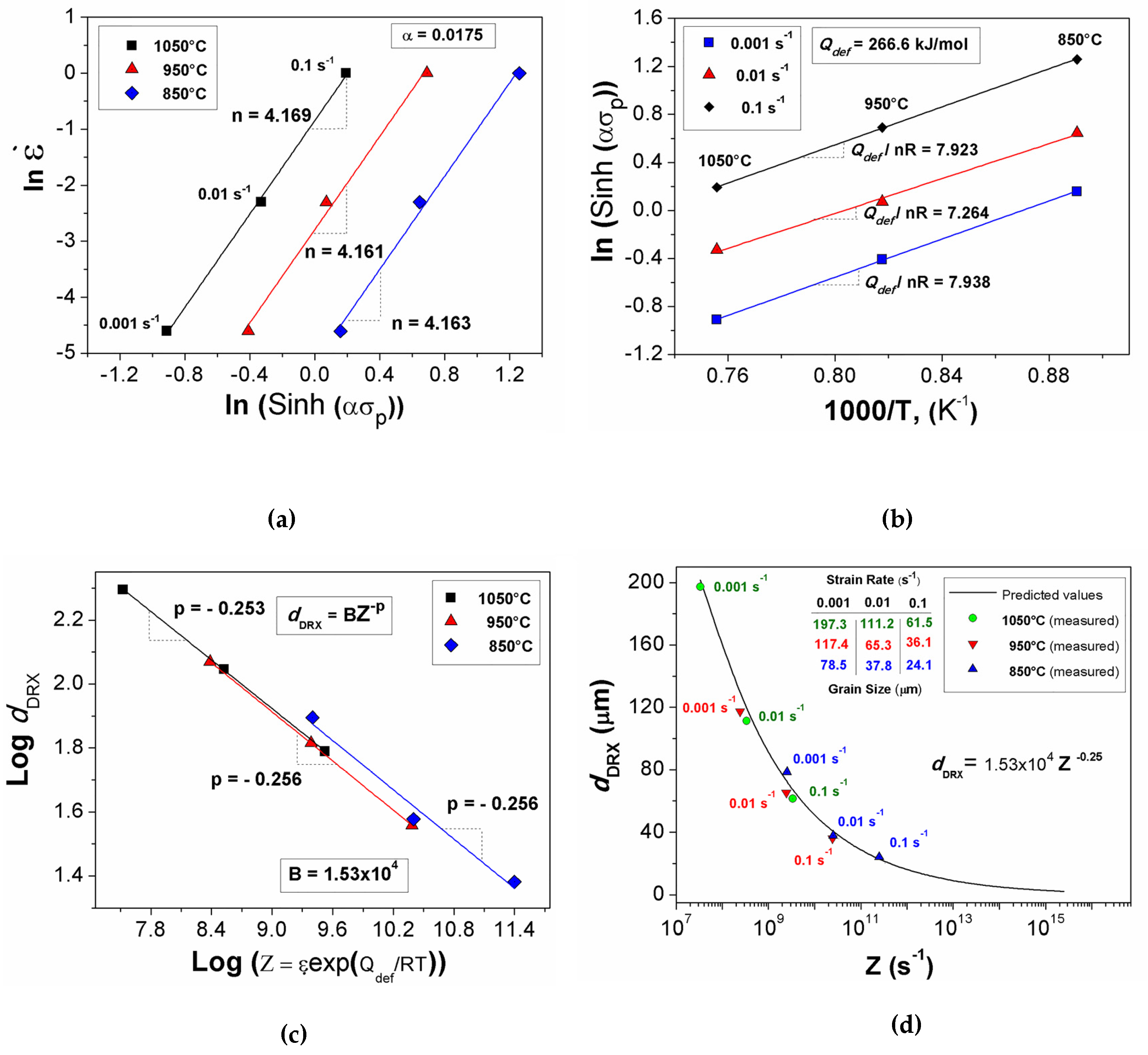

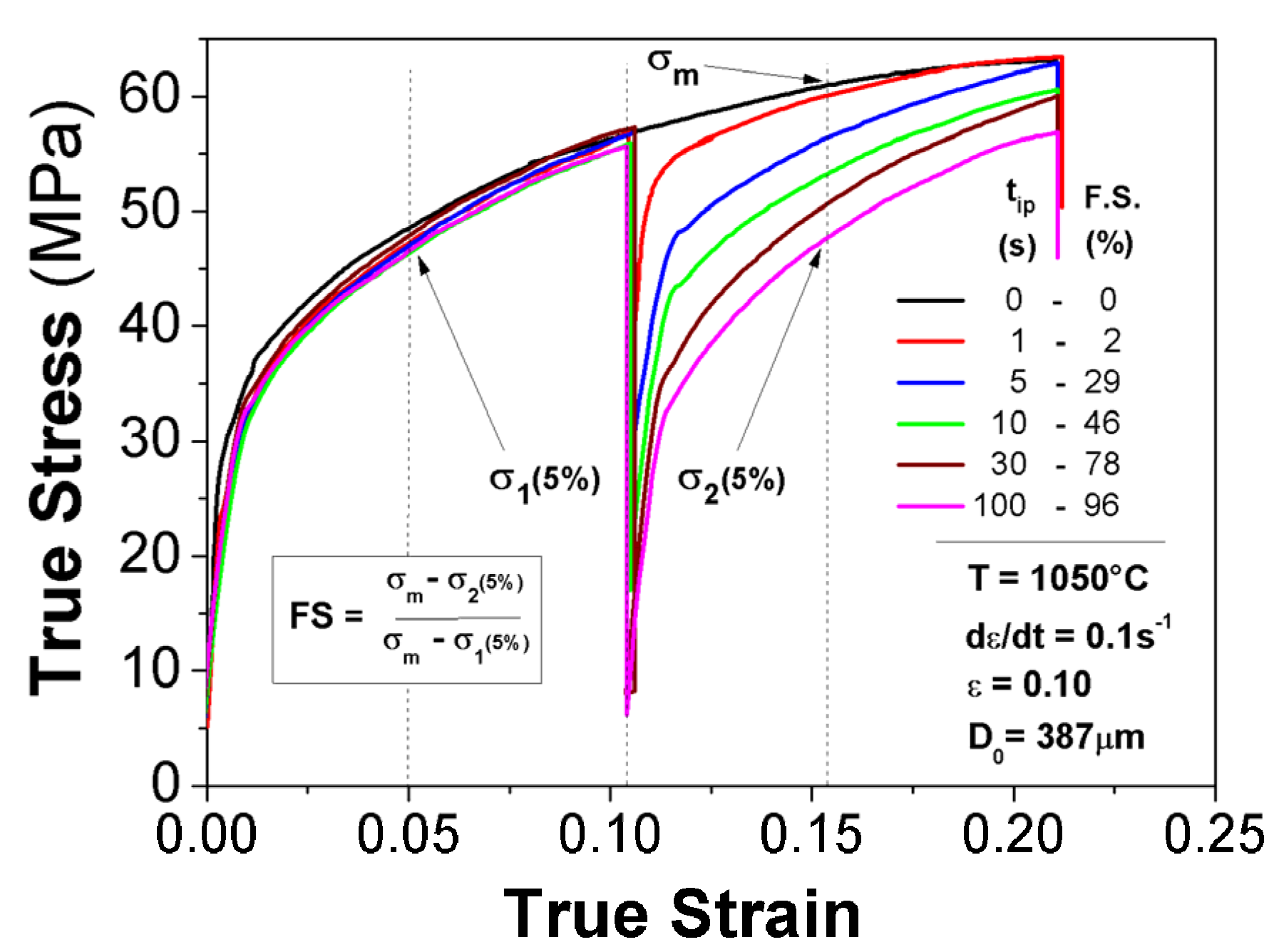

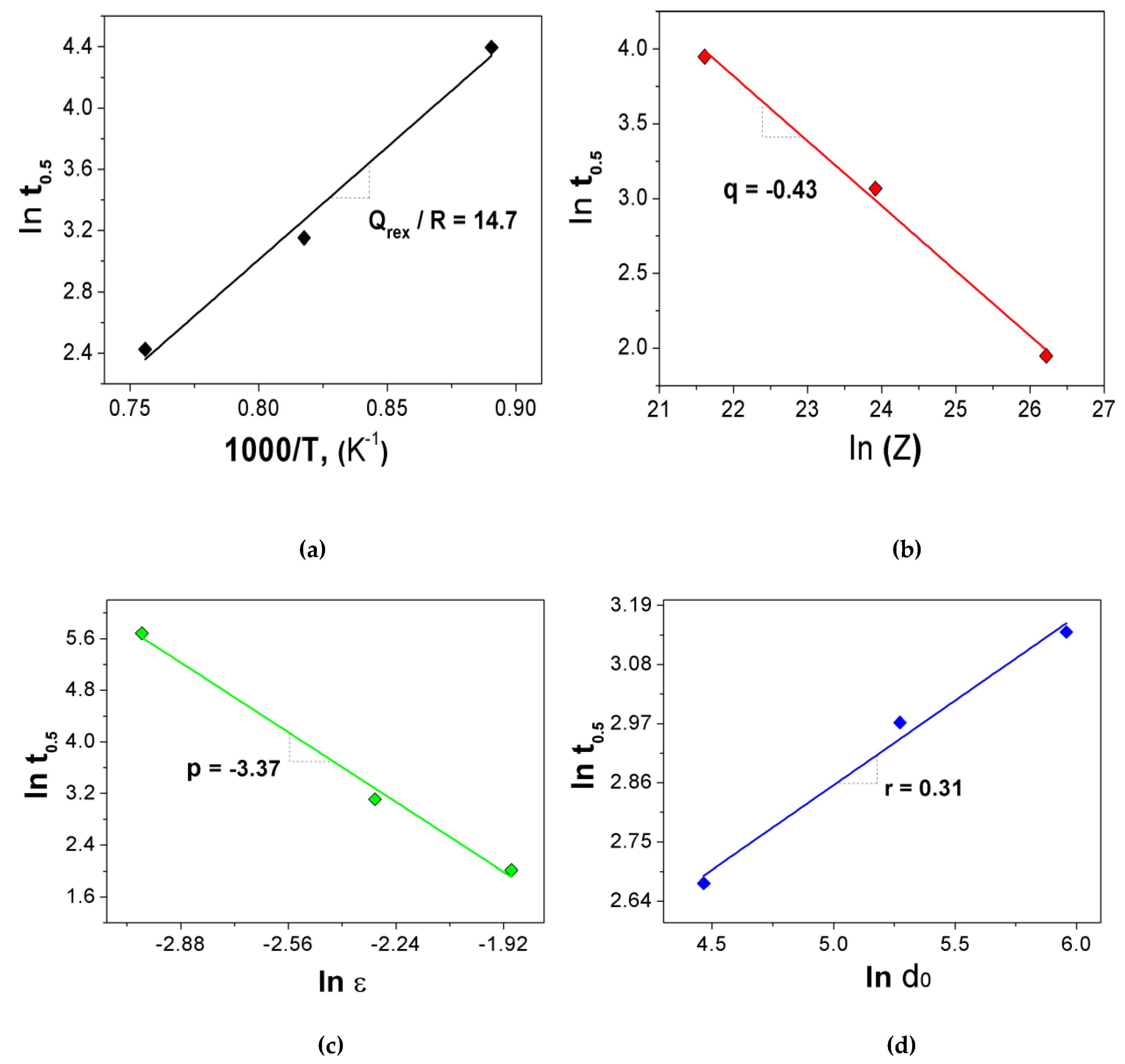

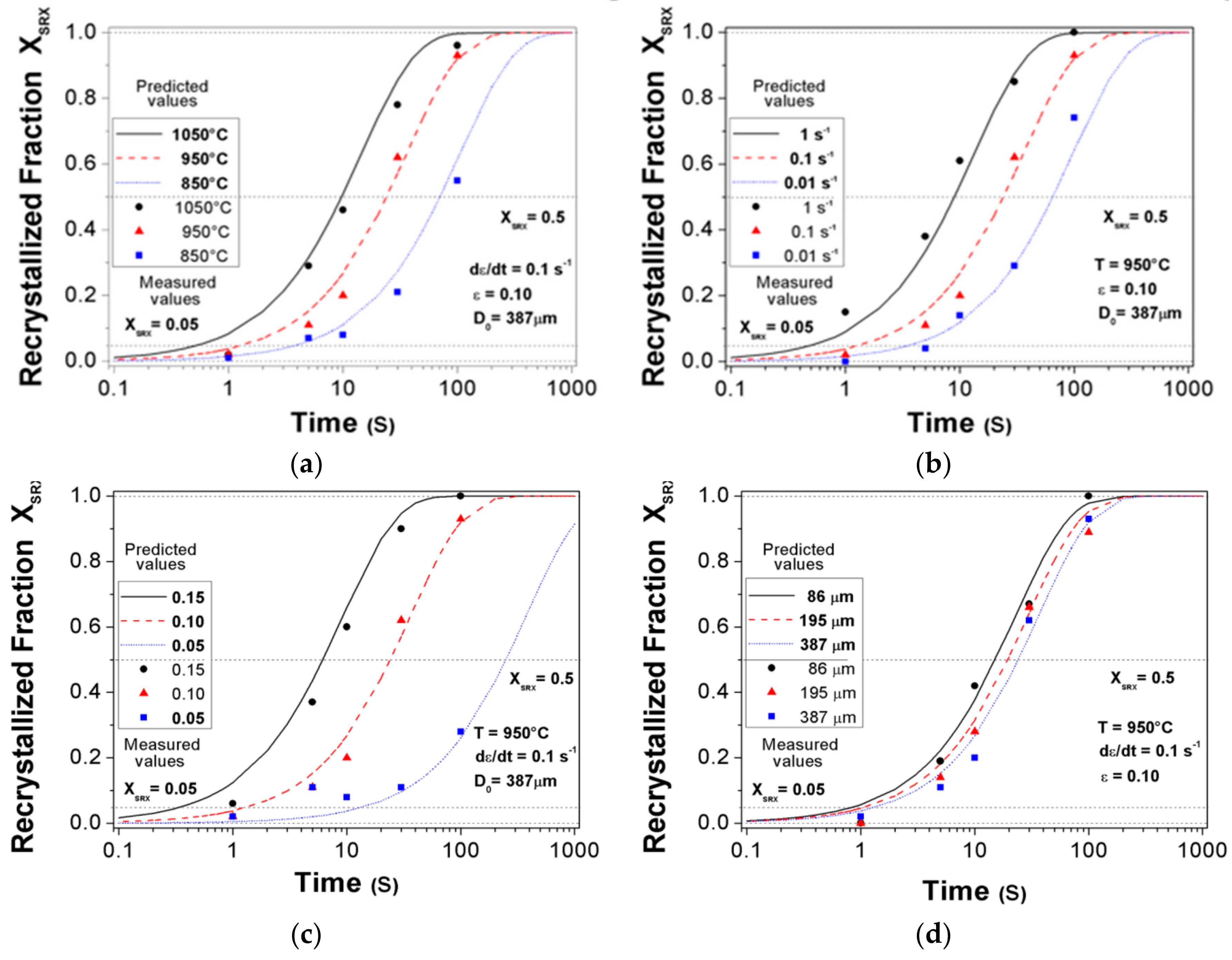

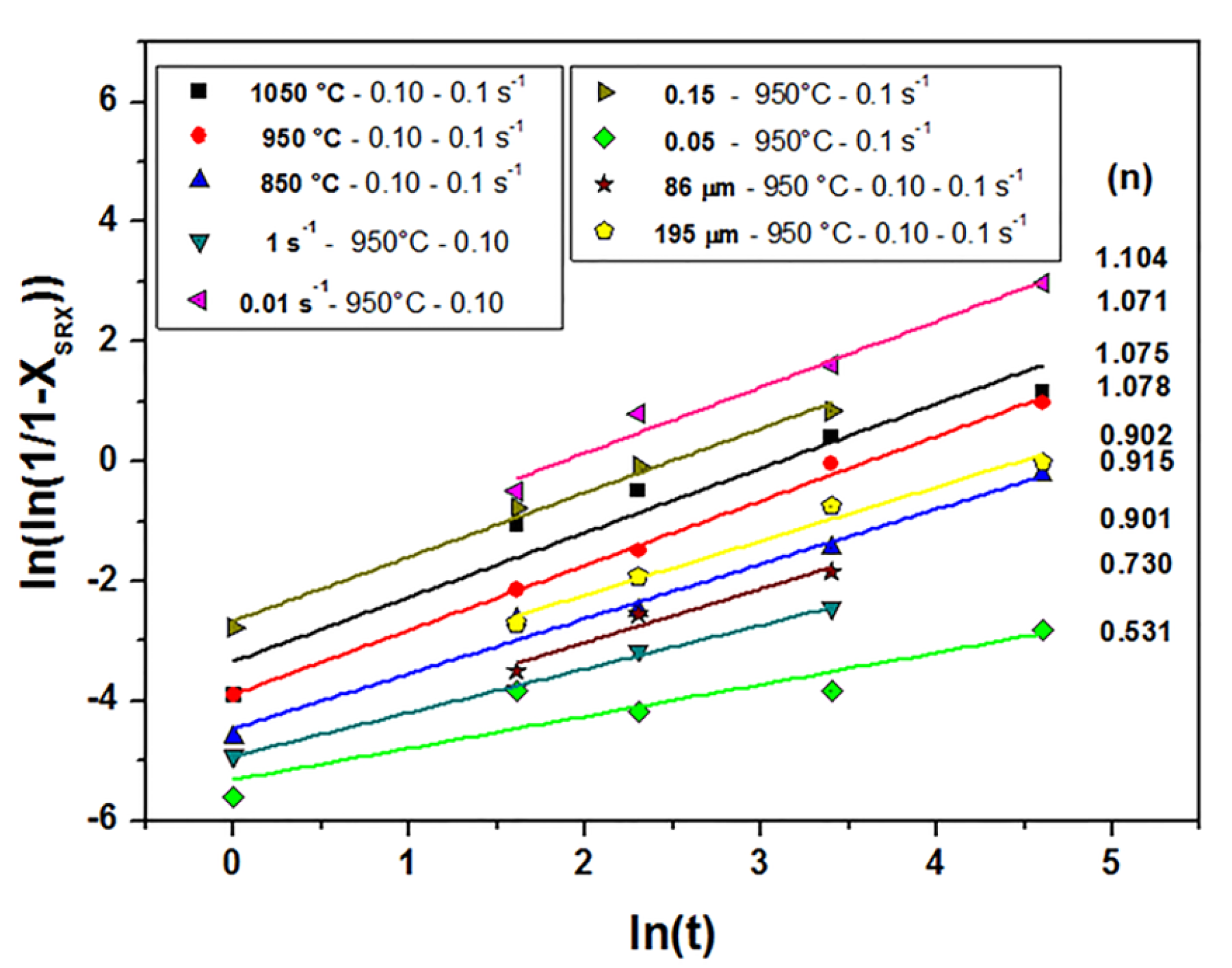

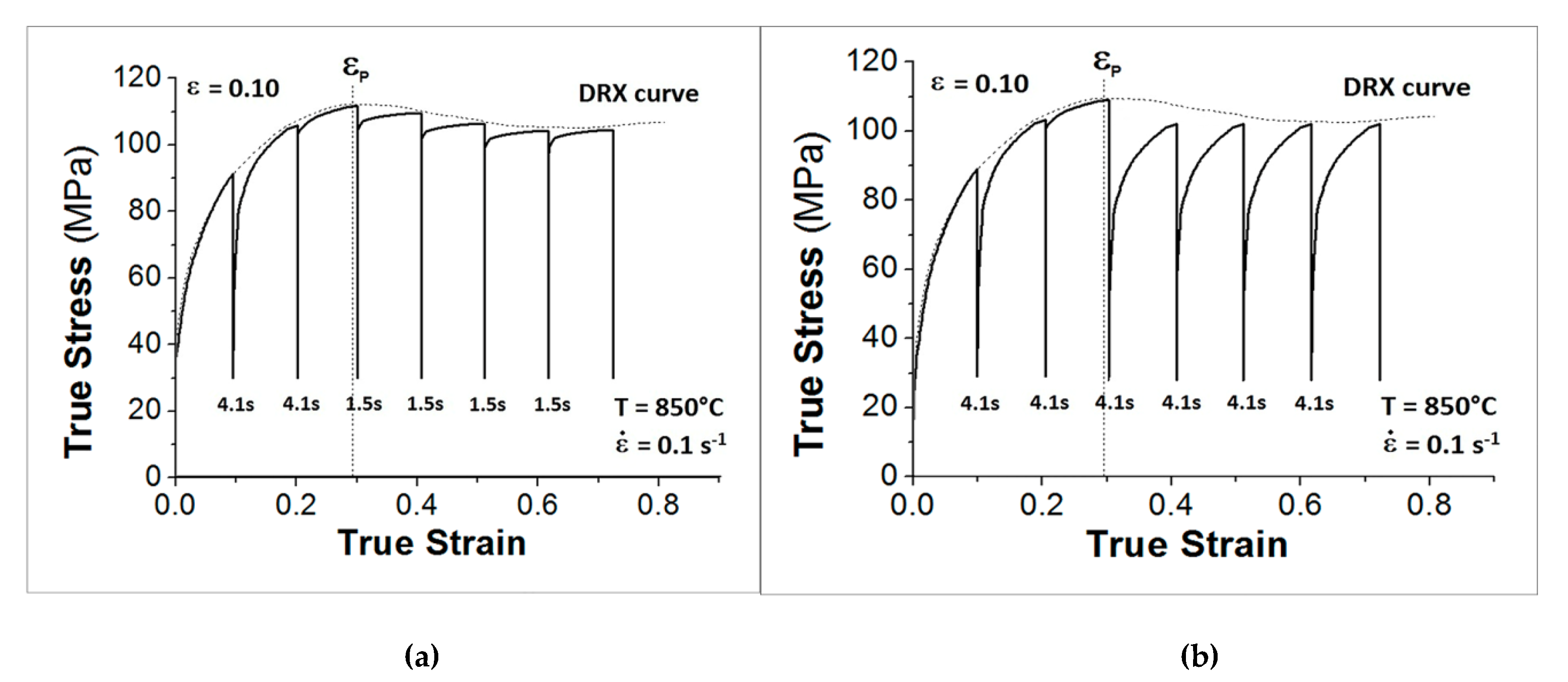

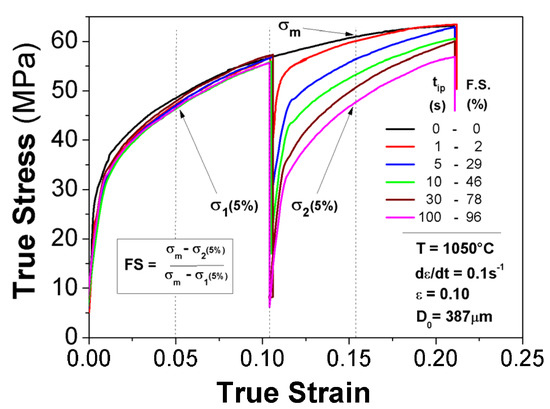

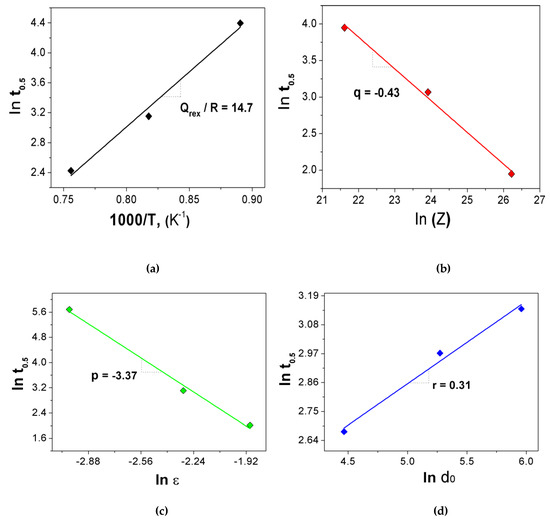

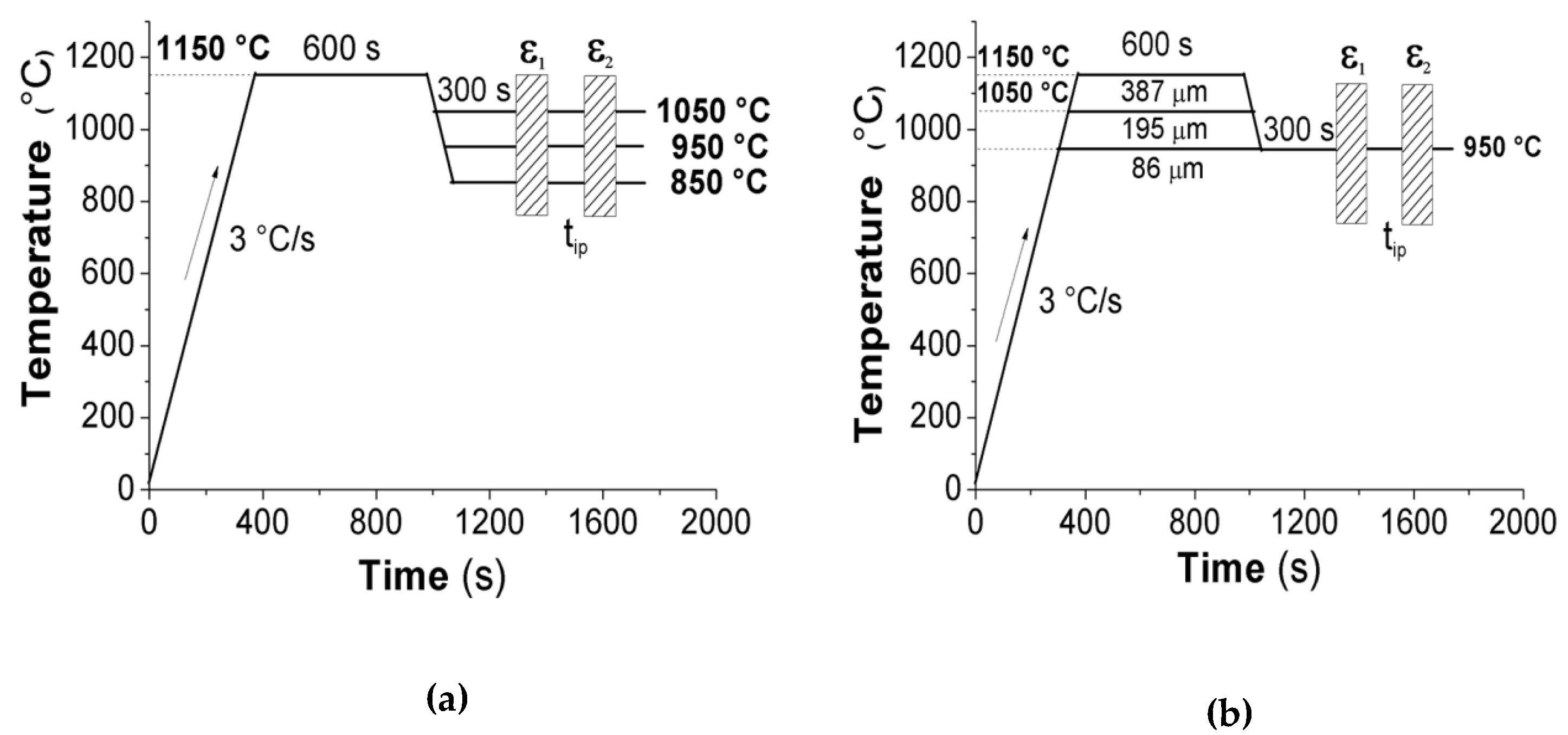

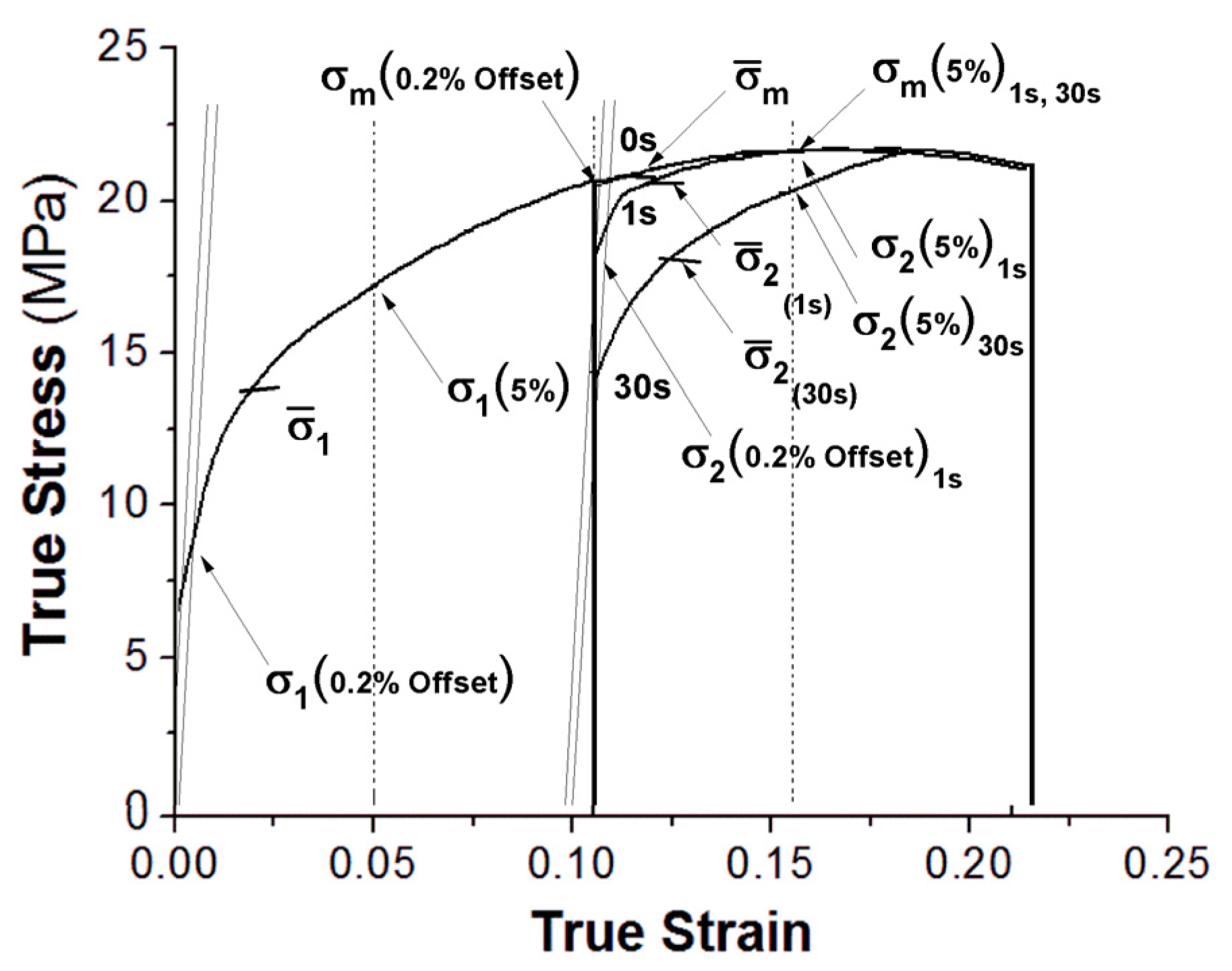

Interrupted and continuous hot compression tests were performed for eutectoid steel over the temperature range of 850 to 1050 °C and while using strain rates of 0.001, 0.01, 0.1, and 1 s−1. The interrupted tests were carried out to characterize the kinetics of static recrystallization(SRX) and determinate the interpass time conditions that are required for initiation and propagation of dynamic recrystallization (DRX), while considering that the material does not contain microalloying elements additions for the recrystallization delay. Continuous testing was used to investigate the evolution of the austenite grain size that results from DRX. The results indicate that carbon content accelerates the SRX rate. This effect was observed when the retardation of recrystallization due to a decrease in deformation temperature from 1050 to 850 °C was only about one order of magnitude. The expected decelerate effect on the SRX rate when the initial grain size increases from 86 to 387 µm was not significant for this material. Although the strain parameter has a strong influence on SRX rate, in contrast to a lesser degree of strain rate, both of the effects are nearly independent of the chemical composition. The calculated maximum interpass times that are compatible with DRCR (Dynamic Recrystallization Controlled Rolling), for relatively low strain rates, suggest that the onset and maintaining of the DRX is possible. However, while using the empirical equations that were developed in the present work to estimate the maximum times for high strain rates, such as those observed in the wire and rod mills, indicate that the DRX start is feasible, but maintaining this mechanism for 5% softening in each pass after peak strain is not possible. View Full-Text
Keywords: eutectoid steel; pearlite interlamellar spacing; austenite grain refinement; interpass time; static recrystallization (SRX); dynamic recrystallization (DRX); metadynamic recrystallization (MDRX); dynamic recrystallization controlled rolling (DRCR) eutectoid steel; pearlite interlamellar spacing; austenite grain refinement; interpass time; static recrystallization (SRX); dynamic recrystallization (DRX); metadynamic recrystallization (MDRX); dynamic recrystallization controlled rolling (DRCR)
Show Figures

Figure 1

MDPI and ACS Style

Facusseh, C.; Salinas, A.; Flores, A.; Altamirano, G. Study of Static Recrystallization Kinetics and the Evolution of Austenite Grain Size by Dynamic Recrystallization Refinement of an Eutectoid Steel. Metals 2019, 9, 1289.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
